10AU1200
|
Ball Joint Left |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg |
6R0 407 365 B, 6R0 407 365 A (3) OEM |
 |
10AU1201
|
Ball Joint Right |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg |
6R0 407 366 B, 6R0 407 366 (3) OEM |
 |
10VW1600
|
Ball Joint Lower Left |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1K0 407 365 C, 5Q0 407 365 A (6) OEM |
 |
10VW1601
|
Ball Joint Lower Right |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1KD 407 366, 1K0 407 366 E (6) OEM |
 |
17AU1200
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17SK2010
NEW
|
Tie Rod End Left |
0,4 kg |
6C0 423 811 A |
 |
17SK2011
NEW
|
Tie Rod End Right |
0,4 kg |
6C0 423 812 A |
 |
17VW2010
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6Q0 419 811 C, 6Q0 423 811 A (6) OEM |
 |
17VW2011
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6Q0 423 812 A, 6Q0 423 812 D (17) OEM |
 |

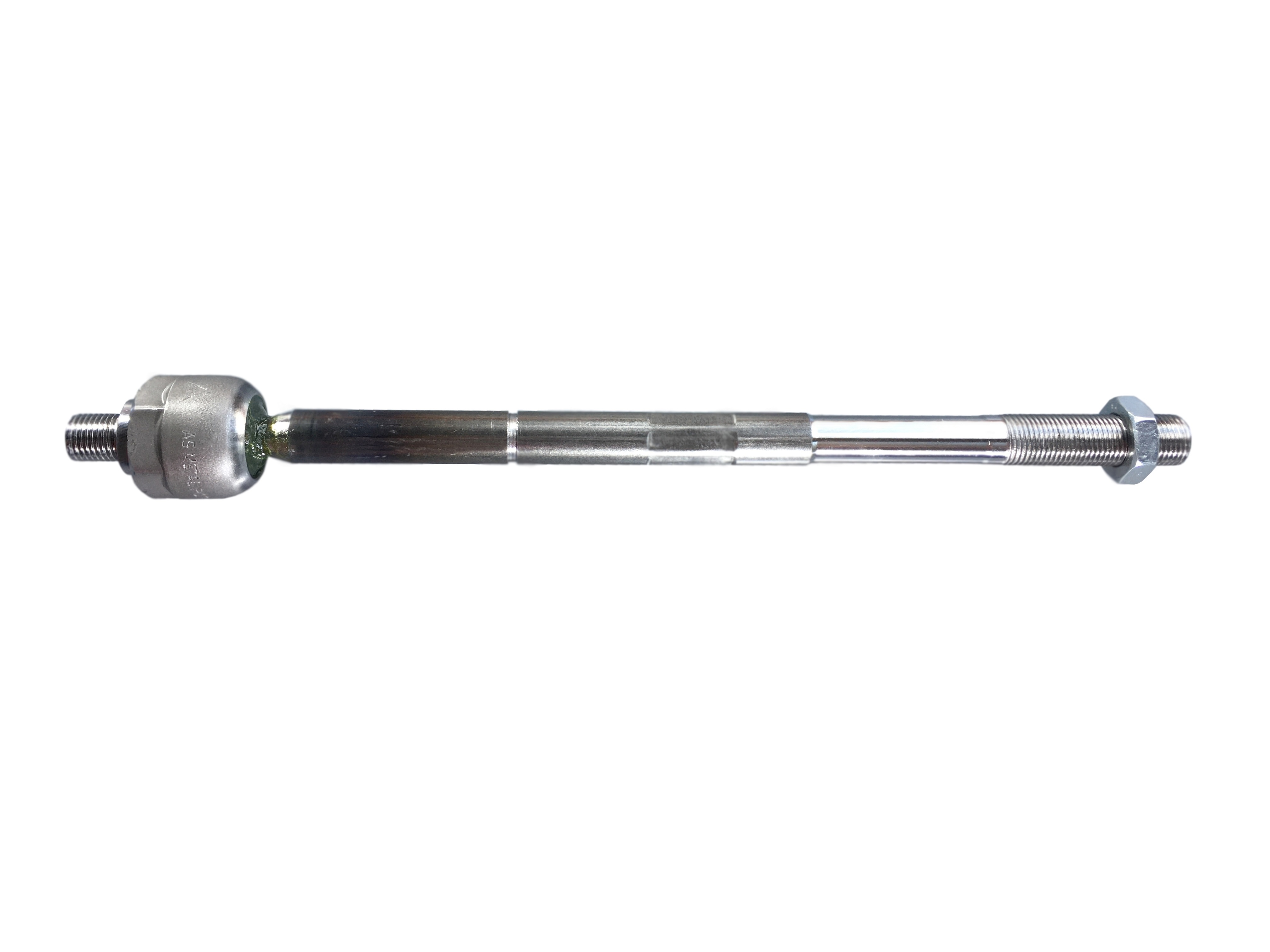

20AU1000
|
Axial Joint |
L:315 tp:M14x1.5 th:MM16x1.5 RHT / 0,7 kg |
2Q0 423 810 D |
 |
20AU1100
|
Axial Joint |
L:313 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6R0 423 810, 8Z0 423 810 C (1) OEM |
 |
20VW2020
|
Axial Joint |
L:312.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6R0 423 803, 6R0 423 803 A (1) OEM |
 |
20VW2030
|
Axial Joint |
L:312 tp:M14x1.5 th:MM14x1.5 RHT / 0,66 kg |
6C0 423 810 C, 6C0 423 810 B (3) OEM |
 |
26VW1605
|
Stabiliser Link Rear |
L:95.3 tp:M10x1.5 RHT / 0,38 kg |
1K0 505 465 K, 1K0 505 465 J (7) OEM |
 |
26VW1700
|
Stabiliser Link Rear |
L:70 tp:M10x1.5 RHT / 0,16 kg |
5Q0 505 465 C, 5Q0 505 465 A (4) OEM |
 |
26VW2010
|
Stabiliser Link |
L:269.5 tp:M10x1.5 RHT / 0,43 kg |
606 14 514, 893 407 465 (27) OEM |
 |
30AU1200
|
Track Control Arm Left |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 3,3 kg |
6R0 407 151 F, 6R0 407 151 A |
 |
30AU1201
|
Track Control Arm Right |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 3,3 kg |
6R0 407 152 F, 6R0 407 152 A |
 |
30SK1600
NEW
|
Track Control Arm Rear |
|
1K0 505 311 AA, 1K0 505 311 AB (6) OEM |
 |
30SK1600K
IN PREPARATION
|
Track Control Arm Rear |
|
1K0 505 311 AA, 1K0 505 311 AB (6) OEM |
 |
30VW1670
|
Track Control Arm Rear Left |
di:Ø12.25 / 1,79 kg |
1K0 505 223 E, 1K0 505 223 H (2) OEM |
 |
30VW1671
|
Track Control Arm Rear Right |
di:Ø12.25 / 1,77 kg |
1K0 505 224 H, 1K0 505 224 K (2) OEM |
 |
30VW1700
NEW
|
Track Control Arm Rear |
2,22 kg |
5QM 505 311, 5Q0 505 311 C (3) OEM |
 |
30VW1702
NEW
|
Track Rod Rear |
1,34 kg |
5Q0 505 323 C, 5Q0 505 323 D (1) OEM |
 |
30VW1704
NEW
|
Track Rod Rear |
0,58 kg |
5Q0 501 529 F, 5Q0 501 529 D (2) OEM |
 |
38AU1001
|
Silentblock for TCA |
L:50 di:Ø13.1 do:Ø60 / 0,12 kg |
2Q0 407 183 B, 2Q0 407 183 |
 |
38AU1200
|
Silentblock for TCA |
L:54.1 di:Ø12.2 do:Ø32.4 / 0,1 kg |
191 407 182, 357 407 182 (2) OEM |
 |
38AU1205
|
Silentblock for TCA |
L:41 di:Ø13.2 do:Ø60 / 0,12 kg |
1J0 407 181 A, 1J0 407 181 (1) OEM |
 |
38AU1210
|
Silentblock for TCA |
L:41 di:Ø13.5 do:Ø60 / 0,13 kg |
8N0 407 181 B, 6R0 407 181 B |
 |
38AU1215
|
Stabiliser Mounting |
L:24.7 di:Ø17 do:Ø32.5 / 0,03 kg |
6Q0 411 303 AD, 6Q0 411 314 Q (3) OEM |
 |
38AU1216
|
Stabiliser Mounting |
L:34.7 di:Ø18 do:Ø32.5 / 0,03 kg |
6Q0 411 314 R, 6Q0 411 314 N (3) OEM |
 |
38AU1220
|
Silentblock for TCA |
L:45 di:Ø14.2 do:Ø38.7 / 0,13 kg |
1K0 505 203 A, 1K0 505 323 N* (1) OEM |
 |
38AU1221
|
Silentblock for TCA |
L:45 di:Ø14.1 do:Ø40.5 / 0,18 kg |
1K0 501 541 C, 1K0 501 530 C (6) OEM |
 |
38AU1235
|
Silentblock for TCA |
L:45.2 di:Ø12.25 do:Ø60.2 / 0,19 kg |
1K0 505 541 B, 5Q0 505 541 A (4) OEM |
 |
38AU3021
|
Silentblock for TCA |
L:50 di:Ø13 do:Ø64.7 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
38SK1605
IN PREPARATION
|
Axle Beam Bushing |
|
5Q0 501 541 C, 5Q0 501 541 F |
 |
38VW1230
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø47.5 / 0,11 kg |
5Q0 505 311 D*, 5Q0 505 171 |
 |
38VW1270
|
Strut Mount |
L:53 di:Ø27.5 do:Ø82 / 0,21 kg |
1J0 412 331, 1J0 412 331 C (1) OEM |
 |
38VW1271
|
Strut Mount With Bearing |
L:53 di:Ø27.5 do:Ø82 / 0,27 kg |
1J0 412 331 BS, 1J0 412 331 CS (4) OEM |
 |
38VW1273
|
Bearing |
L:13.8 di:Ø14 do:Ø45 / 0,07 kg |
357 412 249 A, 1J0 412 249 (10) OEM |
 |
38VW1608
|
Axle Beam Bushing |
L:92 di:Ø18.1 do:Ø70 / 0,52 kg |
1K0 505 145 K, 1K0 505 145 H |
 |
38VW1609
|
Silentblock for TCA |
L:60 di:Ø12.1 do:Ø42.4 / 0,1 kg |
1K0 505 311 S, 1K0 505 311 AH (8) OEM |
 |
38VW1700
|
Silentblock for TCA |
L:49.8 di:Ø12.1 do:Ø37.8 / 0,13 kg |
1K0 505 553, 1K0 505 553 A |
 |
45VW1505
|
Strut Mount |
L:58 di:Ø11.1 / 0,35 kg |
1J0 513 353 D, 1J0 513 353 C (6) OEM |
 |
45VW1601
|
Strut Mount |
L:62 di:Ø11 do:Ø61.5 / 0,34 kg |
5Q0 513 353 H |
 |
45VW1603
|
Strut Mount |
L:62.5 di:Ø10 do:Ø68 / 0,31 kg |
3C0 513 353, 3C0 513 353 C (1) OEM |
 |
45VW1608
NEW
|
Strut Mount |
0,69 kg |
5Q0 412 331 E, 5Q0 412 331 F (7) OEM |
 |
45VW1621
|
Suspension Support Buffer Front |
L:70 di:Ø19.5 do:Ø61 / 0,05 kg |
6K0 413 031 B, 357 412 303 F (4) OEM |
 |
45VW1622
|
Suspension Support Buffer Front |
L:56.5 di:Ø20 do:Ø56.5 / 0,08 kg |
5Q0 412 303 B, 1K0 412 303 AE |
 |
45VW1639
|
Suspension Support Buffer Rear |
L:134 di:Ø16 do:Ø55.5 / 0,09 kg |
3C0 511 359 |
 |
45VW2030
|
Suspension Support Buffer Rear |
L:124 di:Ø15.5 do:Ø52 / 0,07 kg |
6Q0 512 131 B |
