10VW2010
|
Ball Joint Left |
th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0.45 |
6Q0 407 365 A, 8Z0 407 365 A (3) OEM |
 |
10VW2011
|
Ball Joint Right |
th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0.45 |
5Z0 407 366 B, 8Z0 407 366 A (7) OEM |
 |
17VW1260
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0.38 |
1J0 422 811 D, 1J0 422 811 B (1) OEM |
 |
17VW1261
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0.38 |
1J0 422 812 D, 1J0 422 812 B (1) OEM |
 |

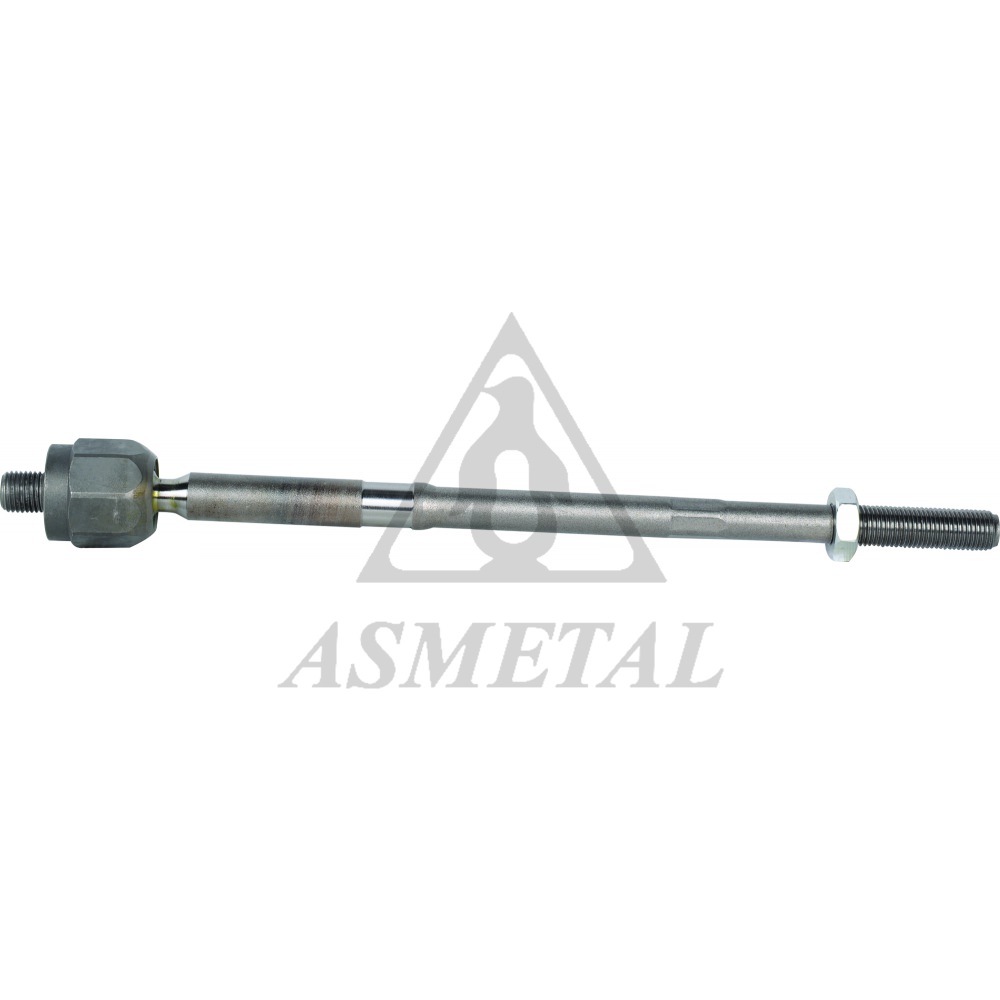

20AU1100
|
Axial Joint |
L:313 tp:M14x1.5 th:MM14x1.5 RHT / 0.62 |
6R0 423 810, 8Z0 423 810 C (1) OEM |
 |
20VW2020
|
Axial Joint |
L:312.5 tp:M14x1.5 th:MM14x1.5 RHT / 0.62 |
6R0 423 803, 6R0 423 803 A (1) OEM |
 |
26VW2010
|
Stabiliser Link |
L:269.5 tp:M10x1.5 RHT / 0.43 |
606 14 514, 893 407 465 (27) OEM |
 |
38AU2000
|
Stabiliser Mounting |
L:34.7 di:Ø16 do:Ø32.5 / 0.04 |
6Q0 411 303 H, 6Q0 411 305 F (5) OEM |
 |
38VW2000
|
Stabiliser Mounting |
L:34.7 di:Ø20.8 / 0.03 |
8Z0 411 314 B |
 |
45VW1505
|
Strut Mount |
L:58 di:Ø11.1 / 0.35 |
1J0 513 353 D, 1J0 513 353 C (6) OEM |
 |
45VW1607
|
Bearing |
0.25 |
1K0 412 249 B, 6N0 412 249 C (3) OEM |
 |
45VW1620
|
Suspension Support Buffer Front |
L:48.2 di:Ø14.2 do:Ø65.5 / 0.05 |
6Q0 412 301 A, 6N0 413 175 A |
 |
45VW2023
|
Suspension Support Buffer Front |
L:56 di:Ø22 do:Ø64 / 0.06 |
6Q0 412 301 A |
 |
45VW2030
|
Suspension Support Buffer Rear |
L:124 di:Ø15.5 do:Ø52 / 0.07 |
6Q0 512 131 B |
