BMW

ASMETAL NO PRODUCT NAME DIMENSIONS OEM NO
10BM0010
Ball Joint Lower th:M12x1.25 RHT cp:1/10 cs:Ø14,3 do:Ø41,4 / 0,38 kg 31121126254 DETAILS
10BM0011
Ball Joint Lower th:M14x1.5 RHT cp:1/5 cs:Ø14,7 do:Ø41,4 / 0,46 kg 31 12 1 126 253 DETAILS
10BM0015
Ball Joint th:M12x1.25 RHT cp:1/10 cs:Ø14,35 / 0,42 kg 31131103834, 31131108439 DETAILS
10BM0100
Ball Joint th:M12x1.5 RHT cp:1/10 cs:Ø14,4 do:Ø35 / 0,48 kg 31121096685, 31121140398 +1 OEM DETAILS
10BM0101
Ball Joint th:M12x1.5 RHT cp:1/10 cs:Ø14,4 do:Ø49,4 / 0,48 kg 31121096685, 31121140398 +1 OEM DETAILS
10BM0400
Ball Joint th:M14x1.5 RHT cp:1/8 cs:Ø17,8 / 0,51 kg 31 12 1 096 425, 31 12 6 756 491 DETAILS
10BM1100
IN PREPARATION
Ball Joint No Information DETAILS
10BM1500
Ball Joint th:M14x1.5 RHT cp:1/5 cs:Ø14,7 do:Ø41,4 / 0,43 kg 31 12 1 139 131 DETAILS
11BM00
Silentblock Bushing di:Ø14 / 0,39 kg 33321123463, 33321125665 +1 OEM DETAILS
11BM0300
Silentblock Bushing di:Ø16,3 do:Ø52 / 0,56 kg 33321090504, 33321095631 +2 OEM DETAILS
11BM0420
NEW
Silentblock Bushing No Information 33 32 6 770 985 DETAILS
11BM1000
IN PREPARATION
Silentblock Bushing No Information DETAILS
11BM1500
Silentblock Bushing di:Ø12,15 do:Ø45,2 / 0,32 kg 33306852895, 33321138722 +2 OEM DETAILS
11BM2600
IN PREPARATION
Silentblock Bushing No Information DETAILS
17BM0001
Tie Rod End c:Ø12,6 th:FM14x1,5 RHT / 0,32 kg 32 11 1 115 239, 32 11 1 116 463 DETAILS
17BM0002
Tie Rod End c:Ø12,6 th:MM14x1,5 RHT / 0,46 kg 32 11 1 126 757 DETAILS
17BM0030
Tie Rod End c:Ø12,6 th:MM16x1,5 RHT / 0,28 kg 32 21 1 113 447, 32 21 1 113 448 +1 OEM DETAILS
17BM0300
Tie Rod End Left c:Ø12,8 th:FM16x1 RHT / 0,83 kg 32 11 1 091 767, 32 11 1 093 769 +2 OEM DETAILS
17BM0301
Tie Rod End Right c:Ø12,8 th:FM16x1 RHT / 0,83 kg 32 11 1 091 767, 32 11 1 091 768 +4 OEM DETAILS
17BM0305
Tie Rod End th:FM16x1,5 RHT / 0,78 kg 32 10 6 774 361, 32 10 6 776 946 +1 OEM DETAILS
17BM0400
Tie Rod End c:Ø15,3 th:FM14x1,5 RHT / 0,74 kg 32 21 1 096 327 DETAILS
17BM0405
Tie Rod End c:Ø15,3 th:FM14x1,5 RHT / 0,74 kg 32 10 6 774 335, 32 21 6 760 354 DETAILS
17BM0410
Tie Rod End Left No Information DETAILS
17BM0411
Tie Rod End Right No Information DETAILS
17BM0420
Tie Rod End No Information DETAILS
17BM0500
Tie Rod End Left c:Ø14,6 th:FM16x1,5 RHT / 0,75 kg 32 21 1 141 345 DETAILS
17BM0501
Tie Rod End Right c:Ø14,6 th:FM16x1,5 RHT / 0,75 kg 32 21 1 141 346 DETAILS
17BM10
Tie Rod End c:Ø12,6 th:MM14x1,5 LHT / 0,3 kg 32 21 1 127 918, 32 21 1 130 001 +1 OEM DETAILS
17BM1000
Tie Rod End Left No Information DETAILS
17BM1001
Tie Rod End Right No Information DETAILS
17BM11
Tie Rod End c:Ø12,6 th:MM14x1,5 RHT / 0,3 kg 32 21 1 127 917, 32 21 1 130 004 +1 OEM DETAILS
17BM1501
Tie Rod End Left c:Ø12,6 th:FM14x1,5 RHT / 0,65 kg 32 11 1 139 313 DETAILS
17BM1502
Tie Rod End Right c:Ø12,6 th:FM14x1,5 RHT / 0,65 kg 32 11 1 139 314 DETAILS
17BM2000
Tie Rod End Left c:Ø14,6 th:FM14x1,5 RHT / 0,73 kg 32 10 6 774 220, 32 21 1 095 957 DETAILS
17BM2001
Tie Rod End Right c:Ø14,6 th:FM14x1,5 RHT / 0,73 kg 32 10 6 774 221, 32 21 1 095 958 DETAILS
17BM2450
Tie Rod End Left th:FM14x1,5 RHT / 0,68 kg 32 10 6 767 781, 6 767 781 DETAILS
17BM2451
Tie Rod End Right th:FM14x1,5 RHT / 0,68 kg 32 10 6 767 782, 6 767 782 DETAILS
17BM2600
Tie Rod End Left No Information DETAILS
17BM2601
Tie Rod End Right No Information DETAILS
17BM2610
Tie Rod End Left No Information DETAILS
17BM2611
Tie Rod End Right No Information DETAILS
17FR1530
Tie Rod End Left c:Ø12,5 th:MM14x1,5 RHT / 0,31 kg 60777585, 105002404004 +24 OEM DETAILS
17FR1550
Tie Rod End Right c:Ø12,5 th:MM14x1,5 LHT / 0,31 kg 60777585, 105002404004 +24 OEM DETAILS
17MR1530
Tie Rod End Inner c:Ø12,6 th:MM14x1,5 RHT / 0,3 kg 32 21 1 114 842, 32 21 2 775 003 +4 OEM DETAILS
20BM0020
Axial Joint th:MM14x1.5 RHT / 0,54 kg 32111115241, 32111116710 DETAILS
20BM0021
Axial Joint Right th:MM18x1.5 RHT L:232mm / 0,63 kg 3211 1 126 620, 3211 1 130 451 DETAILS
20BM0030
Axial Joint th:MM14x1.5 RHT L:255mm / 0,52 kg 32111116709 DETAILS
20BM0031
Axial Joint th:MM18x1.5 RHT L:232mm / 0,63 kg 3211 1 127 124, 3211 1 130 449 DETAILS
20BM0300
Axial Joint th:MM18x1.5 RHT L:174,5mm / 0,46 kg 32 11 1 091 767, 32 11 1 091 768 +4 OEM DETAILS
20BM0305
Axial Joint th:MM18x1.5 RHT L:260,5mm / 0,63 kg 32 10 6 777 479 DETAILS
20BM0400
Axial Joint th:MM18x1.5 RHT L:221mm / 0,52 kg 32 21 6 751 277 DETAILS
20BM0410
Axial Joint No Information DETAILS
20BM0420
Axial Joint No Information DETAILS
20BM0600
Axial Joint th:MM18x1.5 RHT L:260mm / 0,64 kg 32 10 6 768 879, 32 10 6 768 880 +8 OEM DETAILS
20BM1000
Axial Joint No Information DETAILS
20BM1500
Axial Joint th:MM18x1.5 RHT L:207mm / 0,46 kg 32 11 1 136 133, 32 11 1 139 315 DETAILS
20BM2000
Axial Joint th:MM18x1.5 RHT L:204mm / 0,43 kg 32 10 6 774 222, 32 10 6 774 222 SK +11 OEM DETAILS
20BM2450
Axial Joint th:MM18x1.5 RHT L:256mm / 0,62 kg 32 10 6 765 235, 32 10 6 765 236 +4 OEM DETAILS
20BM2452
Axial Joint th:MM18x1.5 RHT L:246mm / 0,7 kg 32 21 6 762 243, 32 21 6 762 244 +2 OEM DETAILS
20BM2600
Axial Joint No Information DETAILS
20BM2610
Axial Joint No Information DETAILS
21BM10
Tie Rod Adjustable c:Ø12,6 th:M10x1.0 RHT / 0,95 kg 32 21 1 124 231, 32 21 1 129 020 +1 OEM DETAILS
22BM0300
Tie Rod Center th1:M12x1.5 RHT th2:M16x1.5 RHT L:514mm / 3 kg 32 21 1 091 913, 32 21 1 093 433 +1 OEM DETAILS
22BM1000
Tie Rod Center th1:M10x1.0 RHT L:610mm / 2,6 kg 32 21 1 130 661, 32 21 1 133 615 +3 OEM DETAILS
23BM01
Track Control Arm Left c:1:10 th:M14x1.5 RHT L:324mm / 1,9 kg 31121124401, 31121131587 +1 OEM DETAILS
23BM02
Track Control Arm Right c:1:10 th:M14x1.5 RHT L:324mm / 1,9 kg 31121124402, 31121131582 +2 OEM DETAILS
23BM0300
Track Control Arm Left DETAILS
23BM0301
Track Control Arm Right DETAILS
23BM0310
Track Control Arm Left DETAILS
23BM0311
Track Control Arm Right DETAILS
23BM0320
Track Control Arm Left th:FM16x1,5 RHT DETAILS
23BM0321
Track Control Arm Right th:FM16x1,5 RHT DETAILS
23BM0322
Track Control Arm Left th:FM16x1,5 RHT DETAILS
23BM0323
Track Control Arm Right th:FM16x1,5 RHT DETAILS
23BM0330
Track Control Arm DETAILS
23BM0332
Track Control Arm Left th:FM16x1,5 RHT DETAILS
23BM0333
Track Control Arm Right th:MM18x1.5 RHT L:260,5mm DETAILS
23BM0334
Track Control Arm Left th:FM16x1,5 RHT DETAILS
23BM0335
Track Control Arm Right th:MM18x1.5 RHT L:260,5mm DETAILS
23BM0336
Track Control Arm Left th:FM16x1,5 RHT DETAILS
23BM0337
Track Control Arm Right th:MM18x1.5 RHT L:260,5mm DETAILS
23BM1000
Track Control Arm Left c:1:10 th:M14x1.5 RHT L:388,65mm / 2,48 kg 31 12 1 132 159, 31 12 1 132 159 S1 +6 OEM DETAILS
23BM1001
Track Control Arm Right c:1:10 th:M14x1.5 RHT L:388,65mm / 2,48 kg 31 12 1 132 160, 31 12 1 132 160 S1 +6 OEM DETAILS
26BM0001
Stabiliser Link L:240mm / 0,39 kg 31 35 1 124 380, 31 35 1 127 194 +3 OEM DETAILS
26BM0002
Stabiliser Link Rear No Information / 0,19 kg 33 55 1 124 375, 33 55 1 126 932 DETAILS
26BM0100
Stabiliser Link L:66mm / 0,3 kg 31 35 1 091 764, 31 35 1 127 689 +1 OEM DETAILS
26BM0300
Stabiliser Link Rear L:66mm / 0,26 kg 33 55 1 092 292, 33 55 1 095 532 DETAILS
26BM0305
Stabiliser Link Left L:300mm / 0,38 kg 31 30 6 781 547, 31 35 4 014 531 +2 OEM DETAILS
26BM0306
Stabiliser Link Right L:300mm / 0,38 kg 31 30 6 781 548, 31 35 4 014 532 +2 OEM DETAILS
26BM0310
Stabiliser Link Left L:425mm / 0,6 kg 31 30 6 781 545, 31 35 6 753 767 +2 OEM DETAILS
26BM0311
Stabiliser Link Right L:425mm / 0,6 kg 31 30 6 781 546, 31 35 6 753 768 +2 OEM DETAILS
26BM0320
NEW
Stabiliser Link No Information 31 35 6 777 319, 6 777 319 DETAILS
26BM0330
NEW
Stabiliser Link Rear No Information 33 55 6 777 635, 6 777 635 DETAILS

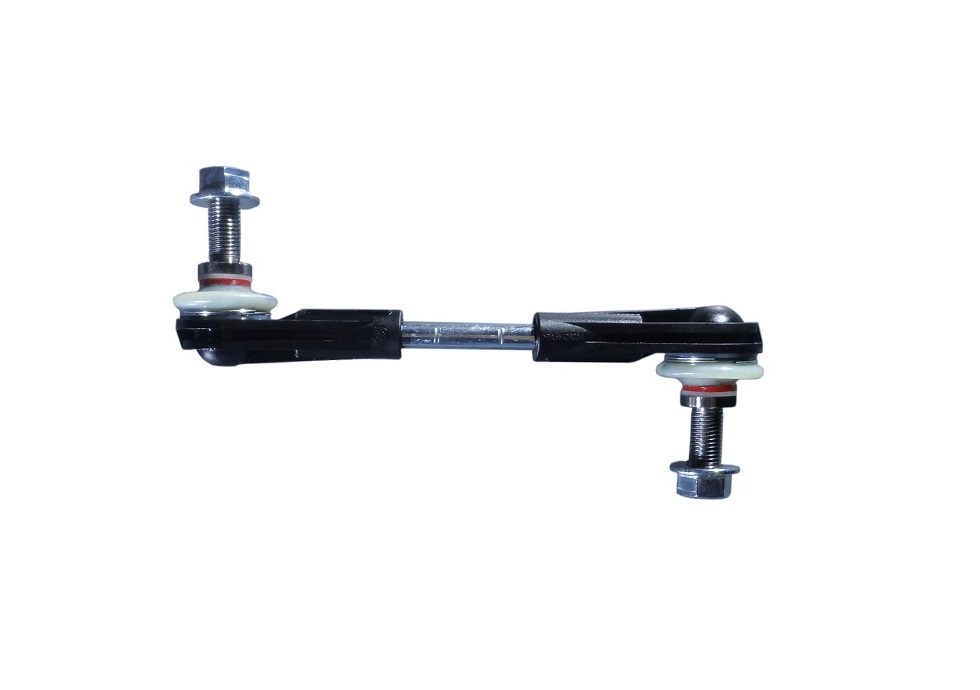

26BM0340
IN PREPARATION
Stabiliser Link No Information 31 30 6 861 485 DETAILS

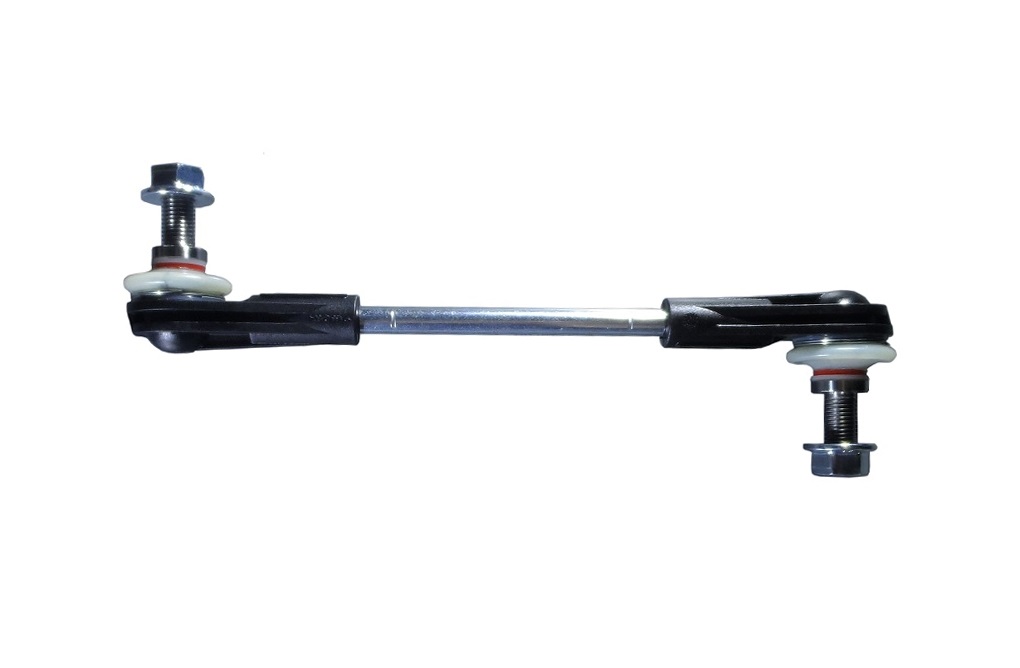

26BM0350
IN PREPARATION
Stabiliser Link No Information 31 30 6 861 483 DETAILS
26BM0360
IN PREPARATION
Stabiliser Link Rear No Information DETAILS
26BM0400
Stabiliser Link Left L:358,5mm / 0,6 kg 31 35 6 750 704 DETAILS
26BM0401
Stabiliser Link Right L:358,5mm / 0,6 kg 31 35 6 750 703 DETAILS
26BM0405
Stabiliser Link Rear L:66mm / 0,3 kg 33 55 1 096 735 DETAILS
26BM0410
IN PREPARATION
Stabiliser Link Left No Information DETAILS
26BM0411
IN PREPARATION
Stabiliser Link Right No Information DETAILS
26BM0420
IN PREPARATION
Stabiliser Link Rear No Information DETAILS
26BM0500
Stabiliser Link Left L:240mm / 0,35 kg 31 35 1 091 855, 31 35 1 095 661 DETAILS
26BM0501
Stabiliser Link Right L:240mm / 0,35 kg 31 35 1 091 856, 31 35 1 095 662 DETAILS
26BM1100
IN PREPARATION
Stabiliser Link Rear No Information DETAILS
26BM2000
Stabiliser Link L:270mm / 0,37 kg 31 35 1 095 694, 31 35 6 780 847 DETAILS
26BM2450
Stabiliser Link Right L:290mm / 0,48 kg 31 35 6 765 934, 6 765 934 DETAILS
26BM2451
Stabiliser Link Left L:290mm / 0,48 kg 31 35 6 765 933, 6 765 933 DETAILS
26BM2452
Stabiliser Link Rear L:161mm / 0,24 kg 33 55 6 764 428, 6 764 428 DETAILS
26BM2500
NEW
Stabiliser Link Left No Information 31 35 6 768 771, 6 768 771 DETAILS
26BM2501
NEW
Stabiliser Link Right No Information 31 35 6 768 772, 6 768 772 DETAILS
26BM2510
NEW
Stabiliser Link Rear Left No Information 33 50 6 785 607, 6 785 607 DETAILS
26BM2511
NEW
Stabiliser Link Right No Information 33 50 6 785 608, 6 785 608 DETAILS
26BM2520
NEW
Stabiliser Link No Information 31 30 6 792 211, 6 792 211 DETAILS
26BM2521
NEW
Stabiliser Link Right No Information 31 30 6 792 212, 6 792 212 DETAILS
29BM0001
Tie Rod Right No Information 3211 1 125 187 DETAILS
29BM0002
Tie Rod No Information 32 11 1 125 186 DETAILS
29BM0005
Tie Rod No Information 32111115229 DETAILS
29BM0006
Tie Rod No Information 32111115241 DETAILS
29BM0305
Tie Rod No Information 32 10 6 774 347, 32 10 6 777 479 +1 OEM DETAILS
29BM0400
Tie Rod No Information 32 21 6 751 277 DETAILS
29BM1501
Tie Rod Left No Information 32 11 1 139 315, 32 11 1 139 317 DETAILS
29BM1502
Tie Rod Right No Information 32 11 1 139 316 DETAILS
29BM2450
Tie Rod Left No Information 32 10 6 765 235, 6 765 235 DETAILS
29BM2451
Tie Rod Right No Information 32 10 6 765 236, 6 765 236 DETAILS
29BM2452
Tie Rod Left No Information 32 21 6 762 243, 6 762 243 DETAILS
29BM2453
Tie Rod Right No Information 32 21 6 762 244, 6 762 244 DETAILS
30BM2000
NEW
Track Control Arm Left No Information DETAILS
30BM2001
NEW
Track Control Arm Right No Information DETAILS
30BM2002
NEW
Track Control Arm Left No Information DETAILS
30BM2003
NEW
Track Control Arm Right No Information DETAILS
38BM0300
Silentblock for TCA di:Ø14 do:Ø58,2 / 0,32 kg 31 12 1 130 587, 31 12 1 136 606 +1 OEM DETAILS

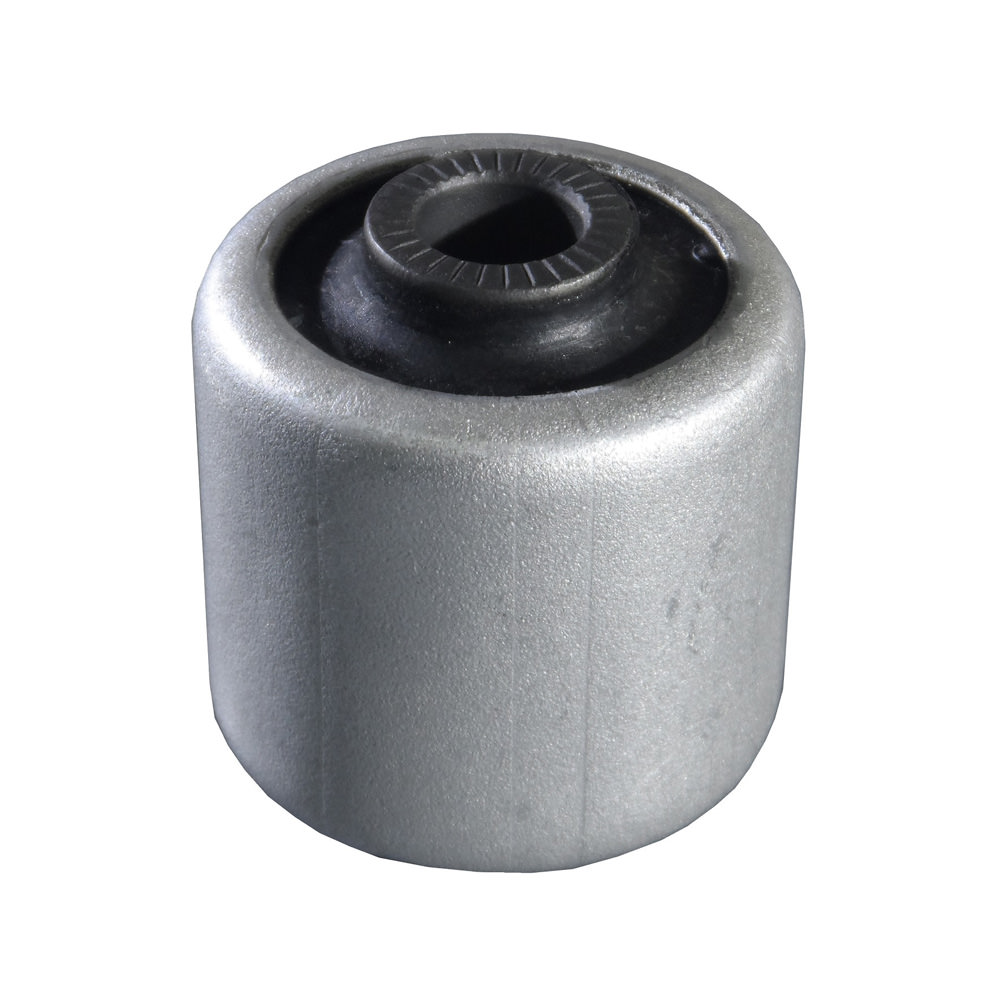

38BM0301
IN PREPARATION
Silentblock for TCA No Information DETAILS
38BM0305
Silentblock for TCA di:Ø12,2 do:Ø58,5 / 0,3 kg 31 12 9 068 753 DETAILS
38BM0310
Silentblock for TCA di:Ø14,1 do:Ø66,2 / 0,32 kg 31 12 0 006 482, 31 12 1 141 752 +3 OEM DETAILS
38BM0500
Silentblock for TCA di:Ø14,2 do:Ø66,2 / 0,5 kg 31 10 3 412 781, 31 12 1 096 372 +2 OEM DETAILS
38BM0600
Silentblock for TCA di:Ø12,2 do:Ø49,3 / 0,13 kg 33321090815, 33321094209 +1 OEM DETAILS
38BM0700
Stabiliser Mounting di:Ø22,5 / 0,17 kg 31 35 1 093 108 DETAILS
38BM1500
Silentblock for TCA di:Ø12,1 do:Ø35,3 / 0,1 kg 33 32 1 092 248, 33 32 1 138 383 +1 OEM DETAILS
38BM1505
Silentblock for TCA di:Ø12 do:Ø45,5 / 0,26 kg 33 32 1 136 311, 33 32 6 771 828 DETAILS
38BM1510
Silentblock for TCA do:Ø66,5 / 0,36 kg 31 12 6 755 432, 6 755 432 DETAILS
38BM1520
Silentblock for TCA Left No Information / 0,68 kg 31 12 6 754 899, 31 12 6 756 063 +3 OEM DETAILS
38BM1521
Silentblock for TCA Right No Information / 0,7 kg 31 12 6 754 900, 31 12 6 756 064 +2 OEM DETAILS
38BM1530
Stabiliser Mounting di:Ø17 / 0,04 kg 1 136 491, 1 138 104 +2 OEM DETAILS
38BM1535
Stabiliser Mounting di:Ø15 / 0,04 kg 33 55 1 094 550, 33 55 1 131 155 DETAILS
