11BM21
NEW
|
Silentblock Bushing |
0,25 kg |
33 32 6 851 563, 33 32 6 852 035 (6) OEM |
 |
11BM2600
|
Silentblock Bushing |
di:Ø14.2 do:Ø47.3 / 0,36 kg |
33 32 6 786 981, 33 32 6 775 552 (4) OEM |
 |
13BM2600
|
Suspension KIT (TCA KIT) |
7,733 kg |
6 855 742, 31 12 6 855 742 (12) OEM |
 |
17BM2100
IN PREPARATION
|
Tie Rod End Left |
0 kg |
32 10 5 A01 8D0, 5 A01 8D0 (2) OEM |
 |
17BM2101
IN PREPARATION
|
Tie Rod End Right |
0 kg |
32 10 5 A01 8D4, 5 A01 8D4 (2) OEM |
 |
17BM2600
|
Tie Rod End Left |
L:147 c:Ø16.2 tp:M14x1.5 th:FM14x1.5 RHT / 0,7 kg |
32 10 6 799 966, 6 799 966 (2) OEM |
 |
17BM2601
|
Tie Rod End Right |
L:147 c:Ø16.2 tp:M14x1.5 th:FM14x1.5 RHT / 0,7 kg |
32 10 6 799 965, 6 799 965 (2) OEM |
 |
17BM2610
NEW
|
Tie Rod End Left |
0,74 kg |
32 10 6 797 617, 6 797 617 |
 |
17BM2611
NEW
|
Tie Rod End Right |
0,74 kg |
32 10 6 797 618, 6 797 618 |
 |
20BM2100
NEW
|
Axial Joint |
0,56 kg |
32 10 6 867 405, 32 10 6 899 816 (6) OEM |
 |
20BM2600
|
Axial Joint |
L:253 tp:M16x1.5 th:MM14x1.5 RHT / 0,64 kg |
32 10 6 799 965, 32 10 6 799 960 (4) OEM |
 |
20BM2610
|
Axial Joint |
L:248 tp:M16x1.5 th:MM14x1.5 RHT / 0,62 kg |
32 10 6 792 029, 32 10 6 792 030 (4) OEM |
 |
23BM2600
|
Track Control Arm Lower Left |
tp:M14x1.5 RHT / 1,2 kg |
31 12 6 852 991, 6 852 991 |
 |
23BM2600B
|
Track Control Arm Lower Left (Without Fasteners) |
tp:M14x1.5 RHT / 1,08 kg |
31 12 6 852 991, 6 852 991 |
 |
23BM2601
|
Track Control Arm Lower Right |
tp:M14x1.5 RHT / 1,2 kg |
31 12 6 852 992, 6 852 992 |
 |
23BM2601B
|
Track Control Arm Lower Right (Without Fasteners) |
tp:M14x1.5 RHT / 1,08 kg |
31 12 6 852 992, 6 852 992 |
 |
23BM2602
|
Track Control Arm Upper Left |
tp:M14x1.5 RHT / 1,94 kg |
6 855 741, 31 12 6 855 741 (2) OEM |
 |
23BM2602B
|
Track Control Arm Upper Left (Without Fasteners) |
tp:M14x1.5 RHT / 1,82 kg |
6 855 741, 31 12 6 855 741 (2) OEM |
 |
23BM2603
|
Track Control Arm Upper Right |
tp:M14x1.5 RHT / 1,94 kg |
6 855 742, 31 12 6 855 742 (2) OEM |
 |
23BM2603B
|
Track Control Arm Upper Right (Without Fasteners) |
tp:M14x1.5 RHT / 1,82 kg |
6 855 742, 31 12 6 855 742 (2) OEM |
 |
23BM2610
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
6 854 727, 31 12 6 854 727 (2) OEM |
 |
23BM2611
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
6 854 728, 31 10 6 793 886 (2) OEM |
 |
23BM2612
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
31 12 6 854 723, 6 854 723 (2) OEM |
 |
23BM2613
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 12 6 793 882, 6 854 724 (2) OEM |
 |
23BM2650
NEW
|
Track Rod Rear Left |
0,67 kg |
33 32 6 792 539, 6 792 539 |
 |
23BM2651
NEW
|
Track Rod Rear Right |
0,67 kg |
33 32 6 792 540, 6 792 540 |
 |
23BM2652
NEW
|
Track Rod Rear Left |
0,77 kg |
33 32 6 792 543, 6 792 543 |
 |
23BM2653
NEW
|
Track Rod Rear Right |
0,77 kg |
33 32 6 792 544, 6 792 544 |
 |
23BM2654
NEW
|
Track Rod Rear |
0,65 kg |
33 32 6 792 533, 33 32 6 792 535 (2) OEM |
 |
23BM2655
NEW
|
Track Rod Rear |
0,45 kg |
33 32 6 792 525, 6 792 525 |
 |
26BM2100
|
Stabiliser Link |
L:320 tp:M10x1.5 RHT / 0,44 kg |
31 30 6 862 864, 6 862 864 |
 |
26BM2110
|
Stabiliser Link Rear |
L:104 tp:M10x1.5 RHT / 0,14 kg |
6 862 865, 33 50 6 862 865 |
 |
26BM2115
|
Stabiliser Link Rear |
L:104 tp:M10x1.5 RHT / 0,22 kg |
6 862 865, 33 50 6 862 865 |
 |
26BM2510
|
Stabiliser Link Rear Left |
L:135.5 tp:M10x1.5 RHT / 0,19 kg |
6 785 607, 33 50 6 785 607 (1) OEM |
 |
26BM2511
|
Stabiliser Link Rear Right |
L:135.5 tp:M10x1.5 RHT / 0,19 kg |
6 785 608, 33 50 6 785 608 (1) OEM |
 |
26BM2515
|
Stabiliser Link Rear Left |
L:135 tp:M10x1.5 RHT / 0,32 kg |
6 785 607, 33 50 6 785 607 |
 |
26BM2516
|
Stabiliser Link Rear Right |
L:135 tp:M10x1.5 RHT / 0,32 kg |
33 50 6 785 608, 6 785 608 |
 |
26BM2520
|
Stabiliser Link |
L:310 tp:M10x1.5 RHT / 0,39 kg |
6 792 211, 31 30 6 792 211 |
 |
26BM2521
|
Stabiliser Link Right |
L:310 tp:M10x1.5 RHT / 0,39 kg |
6 792 212, 31 30 6 792 212 |
 |
26BM2525
|
Stabiliser Link |
L:310 tp:M10x1.5 RHT / 0,44 kg |
6 792 211, 31 30 6 792 211 |
 |
26BM2526
|
Stabiliser Link Right |
L:310 tp:M10x1.5 RHT / 0,44 kg |
6 792 212, 31 30 6 792 212 |
 |
29BM2100
IN PREPARATION
|

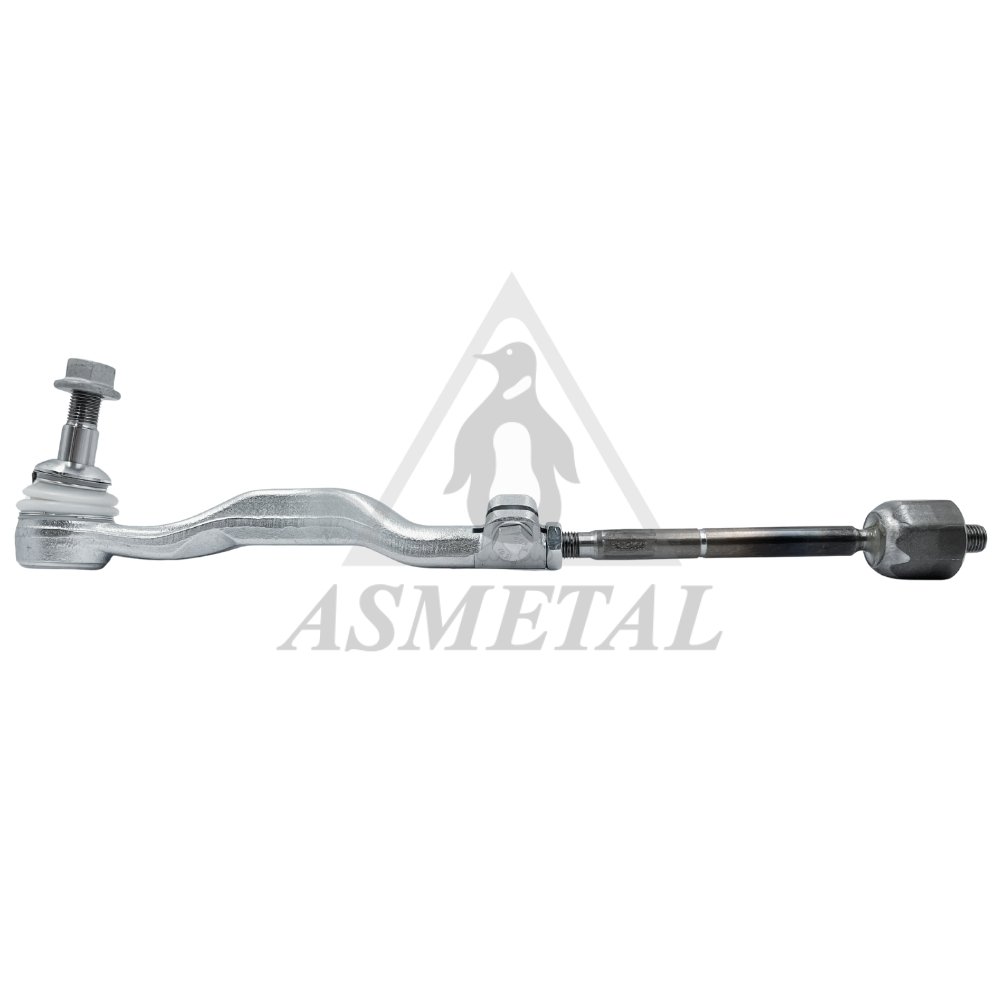

Tie Rod Left |
0 kg |
32 10 6 867 404, 32 10 6 899 815 (2) OEM |
 |
29BM2101
IN PREPARATION
|

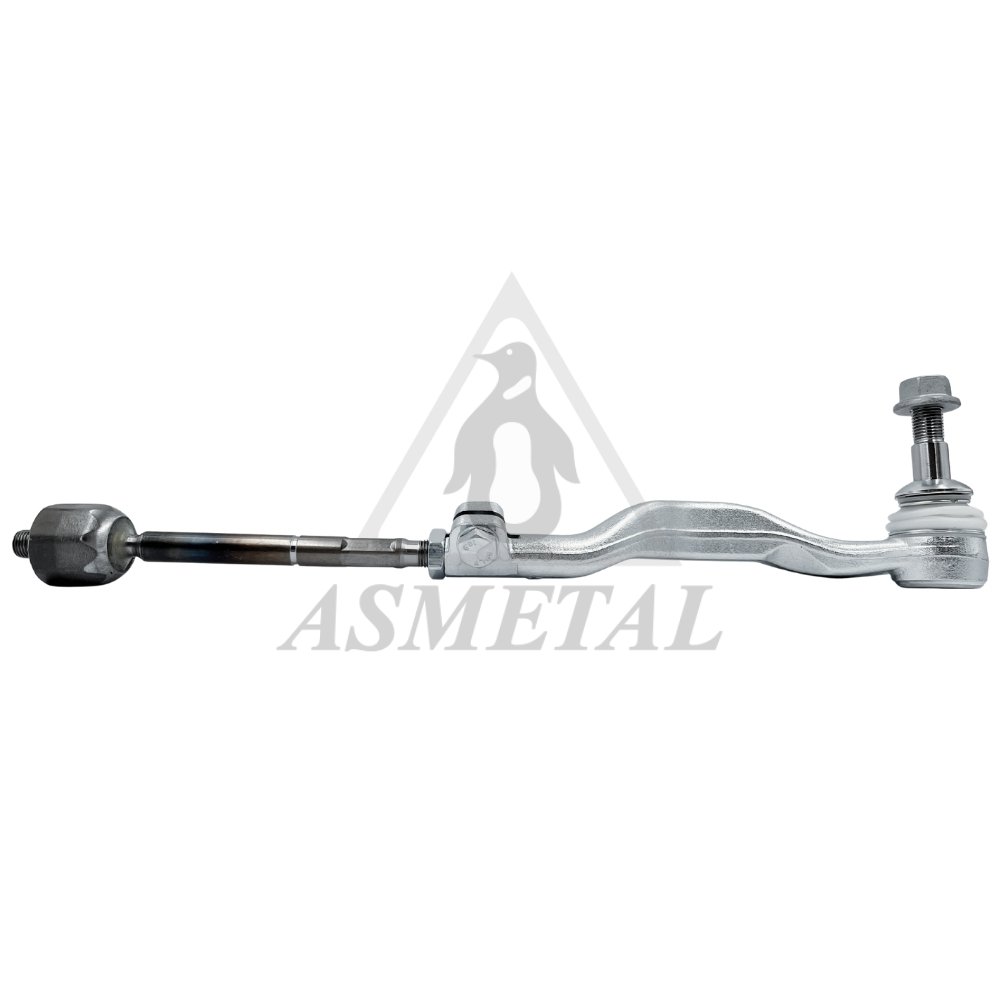

Tie Rod Right |
0 kg |
32 10 6 899 816, 32 10 6 867 405 (2) OEM |
 |
29BM2600
|
Tie Rod Left |
tp:M14x1.5 RHT / 1,35 kg |
6 799 960, 32 10 6 799 960 |
 |
29BM2601
|
Tie Rod Right |
tp:M14x1.5 RHT / 1,35 kg |
6 799 965, 32 10 6 799 965 |
 |
29BM2610
NEW
|
Tie Rod Left |
0 kg |
32 10 6 792 029, 6 792 029 |
 |
29BM2611
NEW
|
Tie Rod Right |
0 kg |
32 10 6 792 030, 6 792 030 |
 |
30BM2660
NEW
|
Track Control Arm Rear |
2,36 kg |
33 32 6 792 541, 33 32 6 867 540 (2) OEM |
 |
38BM2100
|
Silentblock for TCA |
L:93.5 di:Ø12.2 do:Ø57 / 0,23 kg |
31 12 6 850 398*, 31 12 6 850 397* |
 |
38BM2120
|
Silentblock for TCA |
L:46 di:Ø12.1 do:Ø42.25 / 0,14 kg |
33 32 6 851 563*, 33 32 6 870 773* |
 |
38BM2600
|
Silentblock for TCA |
L:53.5 di:Ø12.2 do:Ø46.4 / 0,29 kg |
31 12 6 854 727*, 6 854 727* (8) OEM |
 |
38BM2610
|
Silentblock for TCA |
L:94.8 di:Ø12.2 do:Ø70 / 0,45 kg |
31 12 6 851 261, 6 851 261 (4) OEM |
 |
38BM2612
|
Silentblock for TCA |
L:79.8 di:Ø12.2 do:Ø70.5 / 0,39 kg |
6 854 729, 31 12 6 854 729 |
 |
38BM2613
|
Silentblock for TCA |
L:49 di:Ø12.4 do:Ø45.2 / 0,29 kg |
33 32 6 792 550, 6 792 550 (7) OEM |
 |
38BM2614
|
Silentblock for TCA |
L:45 di:Ø12.1 do:Ø35.5 / 0,07 kg |
33 32 6 792 551, 6 792 551 (2) OEM |
 |
38BM2615
|
Silentblock for TCA |
L:48 di:Ø12 do:Ø38.2 / 0,09 kg |
33 32 6 792 543, 6 792 543 (6) OEM |
 |
38BM2616
|
Silentblock for TCA |
L:44.3 di:Ø12.1 do:Ø37.3 / 0,08 kg |
33 32 6 792 533*, 6 792 533* |
 |
38BM2617
|
Silentblock for TCA |
L:48 di:Ø12.1 do:Ø39.2 / 0,09 kg |
33 32 6 792 540*, 6 792 540* (2) OEM |
 |
38BM2618
|
Silentblock for TCA |
L:47.8 di:Ø12.4 do:Ø43.2 / 0,23 kg |
33 32 6 792 540*, 6 792 540* (2) OEM |
 |
38BM2619
|
Axle Beam Bushing |
L:54.1 di:Ø12.3 do:Ø51 / 0,13 kg |
33 31 6 792 513, 6 792 513 |
 |
38BM2624
NEW
|
Stabiliser Mounting |
di:Ø24 / 0,12 kg |
31 30 6 869 290, 6 869 290 (2) OEM |
 |
38BM2660
IN PREPARATION
|
Axle Beam Bushing |
|
33 32 6 867 540, 6 867 540 (2) OEM |
 |
45BM2100
|
Strut Mount With Bearing |
L:66.5 di:Ø13.5 / 1,23 kg |
31 30 6 880 367, 6 880 367 |
 |
45BM2600
|
Strut Mount With Bearing |
di:Ø13.5 / 1,08 kg |
31 30 6 869 888, 6 869 888 |
 |
45BM2605
|
Strut Mount |
0,47 kg |
33 50 6 791 706, 33 50 6 862 725 (4) OEM |
 |
45BM2626
|
Strut Mount |
L:48 di:Ø10.6 / 0,48 kg |
33 50 6 865 257 |
