10BM0352
|
Ball Joint Lower |
th:M16x1.5 RHT c:Ø19.1 tp2:M30x1.5 RHT / 0,86 kg |
31 10 6 852 536, 6 852 536 |
 |
10BM1000
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/6 c:Ø18.1 tp2:M30x1.5 RHT / 0,78 kg |
31 12 6 777 753, 6 777 753 |
 |
11BM00
|
Silentblock Bushing |
di:Ø14 / 0,39 kg |
1 125 665, 33 32 1 125 665 (4) OEM |
 |

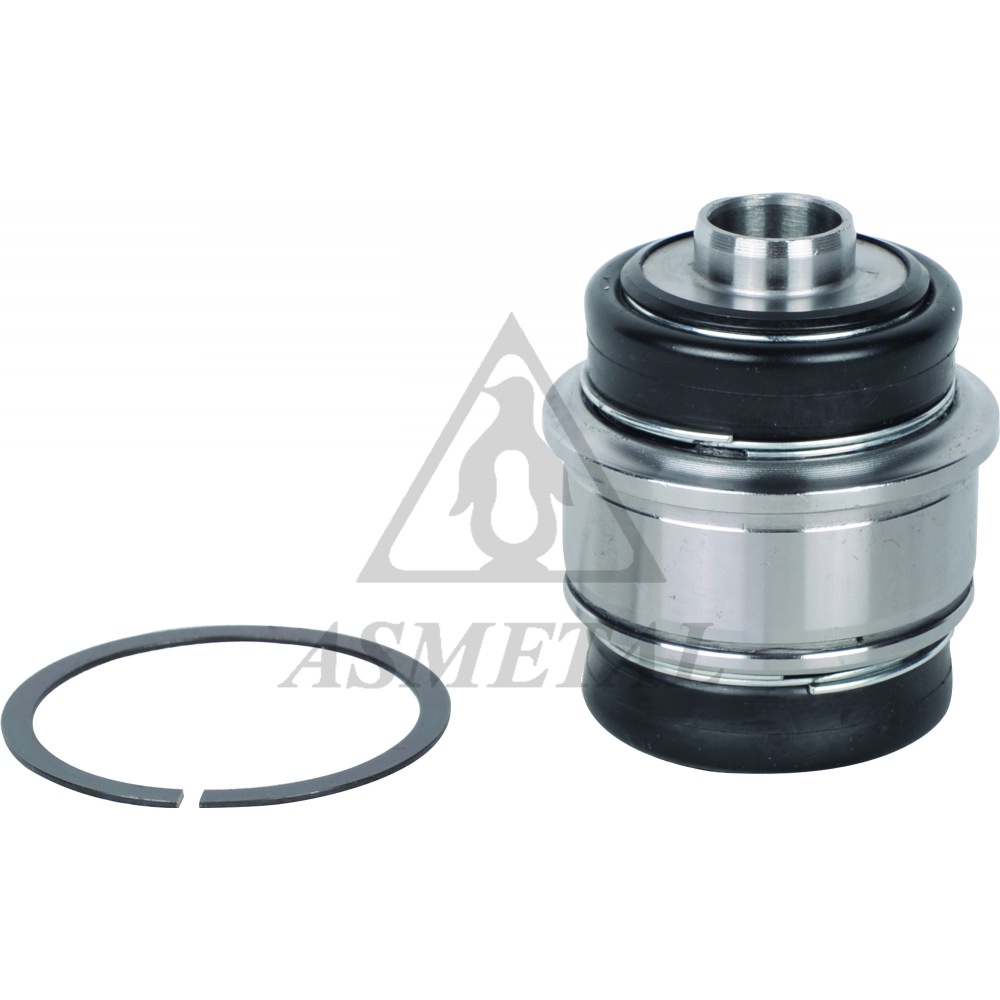

11BM0300
|
Silentblock Bushing |
di:Ø16.3 do:Ø52 / 0,56 kg |
33 32 1 090 504, 33 32 2 347 944 (8) OEM |
 |

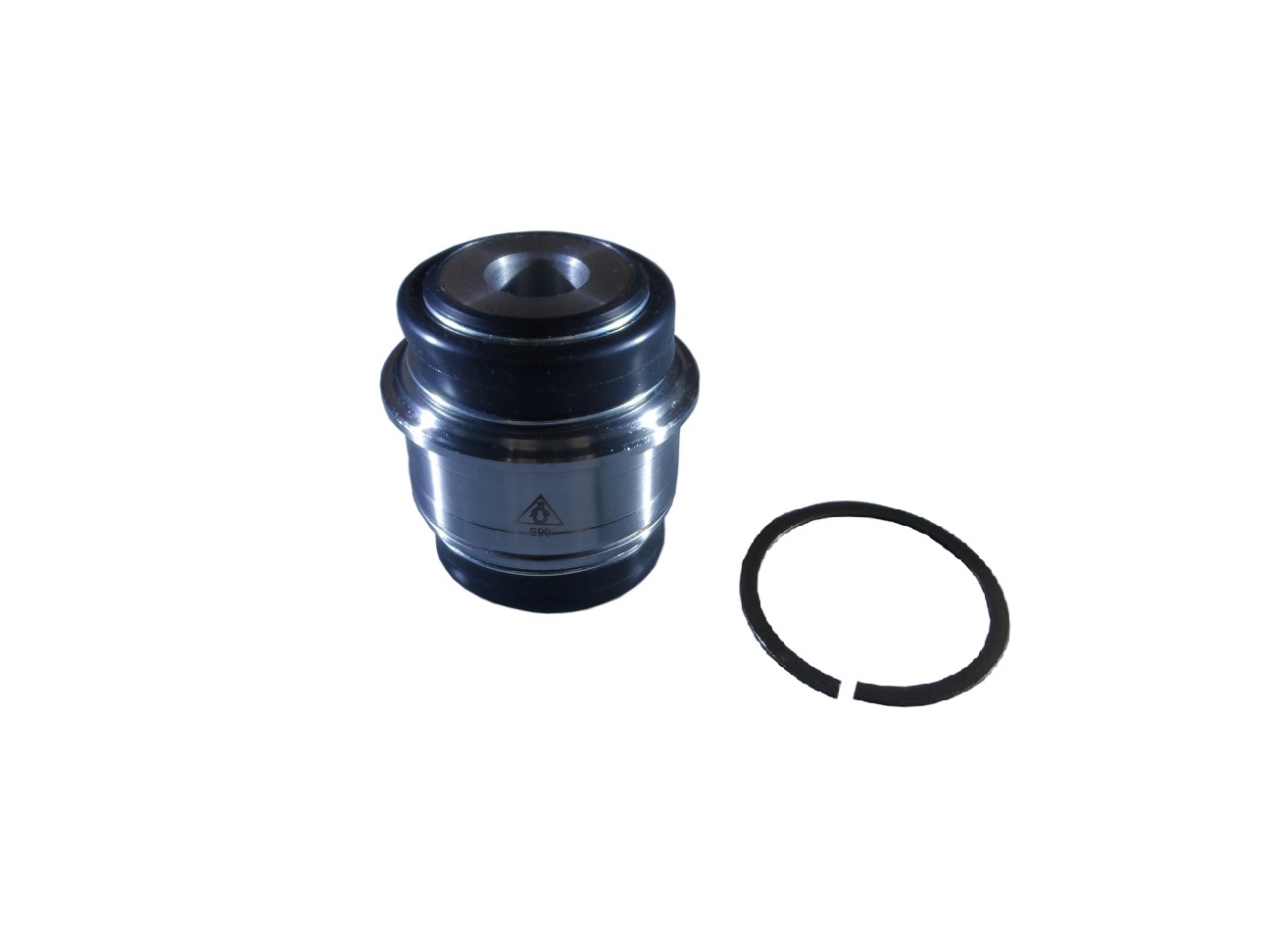

11BM1000
|
Silentblock Bushing |
di:Ø16.2 do:Ø51.7 / 0,58 kg |
6 780 438, 33 32 6 780 438 |
 |
17BM0030
|
Tie Rod End |
c:Ø12,6 th:MM16x1,5 RHT / 0,28 kg |
32 21 1 114 843, 32 21 1 113 448 (1) OEM |
 |

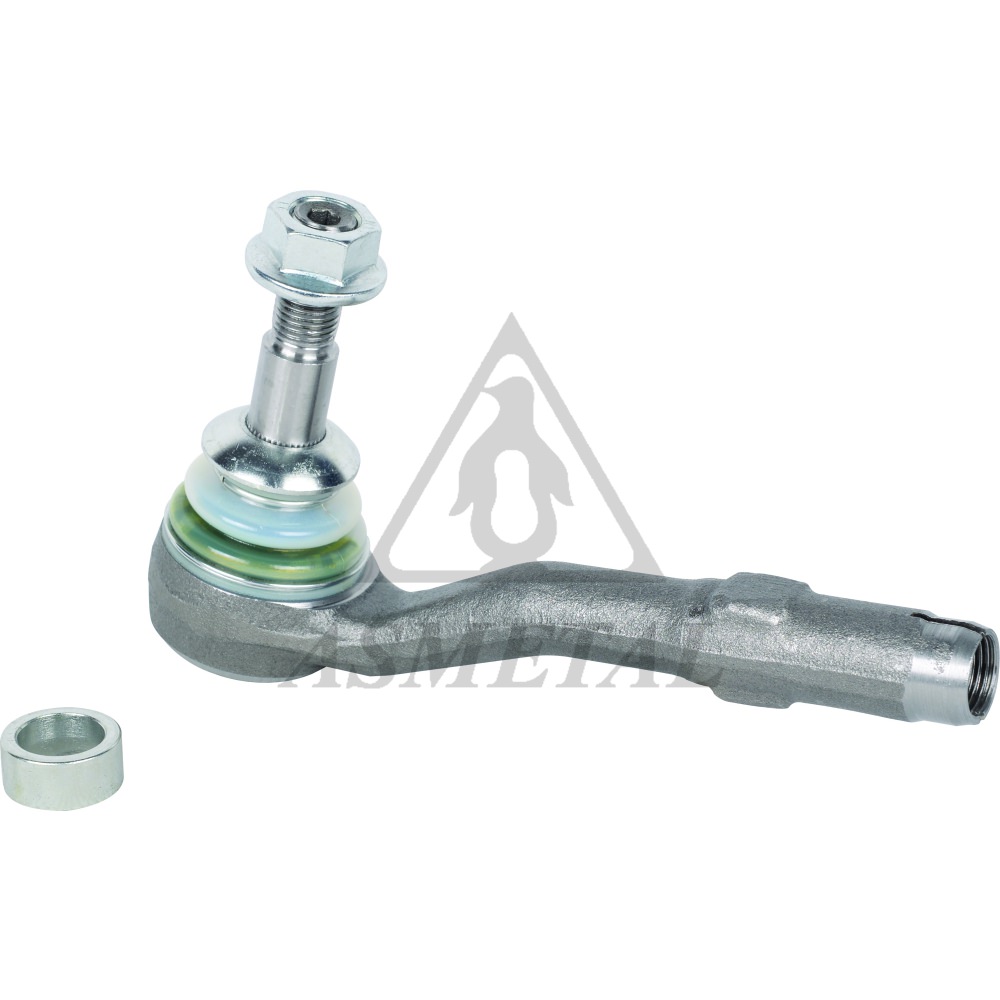

17BM0305
|
Tie Rod End |
c:Ø16.16 tp:M14x1.5 th:FM16x1.5 RHT / 0,78 kg |
32 10 6 776 946, 32 21 6 756 369 (1) OEM |
 |
17BM0340
NEW
|
Tie Rod End Left |
0,9 kg |
32 10 6 868 685, 32 10 6 881 534 (7) OEM |
 |
17BM0341
NEW
|
Tie Rod End Right |
0,9 kg |
32 10 6 868 687, 32 10 6 868 538 (7) OEM |
 |
17BM0500
|
Tie Rod End Left |
L:235 cr:1/10 c:Ø14.6 tp:M12x1.5 th:FM16x1.5 RHT / 0,75 kg |
32 21 1 141 345 |
 |
17BM0501
|
Tie Rod End Right |
L:235 cr:1/10 c:Ø14.6 tp:M12x1.5 th:FM16x1.5 RHT / 0,75 kg |
32 21 1 141 346 |
 |
17BM10
|
Tie Rod End |
L:80 cr:1/10 c:Ø12.6 tp:M10x1 th:MM14x1.5 LHT / 0,3 kg |
32 21 1 135 819, 32 21 1 130 001 (1) OEM |
 |
17BM1000
|
Tie Rod End Left |
L:160 c:Ø16.2 tp:M14x1.5 th:FM14x1.5 RHT / 0,69 kg |
32 10 6 784 790, 6 784 790 |
 |
17BM1001
|
Tie Rod End Right |
L:160 c:Ø16.2 tp:M14x1.5 th:FM14x1.5 RHT / 0,69 kg |
6 784 796, 32 10 6 784 796 |
 |
17BM11
|
Tie Rod End |
L:81 cr:1/10 c:Ø12.6 tp:M10x1 th:MM14x1.5 RHT / 0,3 kg |
32 21 1 135 820, 32 21 1 130 004 (1) OEM |
 |
20BM0340
|
Axial Joint |
L:213 tp:M16x1.5 th:MM14x1.5 RHT / 0,58 kg |
6 868 689, 6 869 537 (6) OEM |
 |
20BM0370
IN PREPARATION
|
Axial Joint |
0 kg |
32 10 6 774 360*, 32 21 6 756 368* (4) OEM |
 |
20BM1000
|
Axial Joint |
L:245.5 tp:M18x1.5 th:MM14x1.5 RHT / 0,67 kg |
6 784 792, 6 784 719 (6) OEM |
 |
21BM10
|
Tie Rod Adjustable |
tp:M10x1 RHT cr:1/10 c:Ø12.6 / 0,95 kg |
32 21 1 135 666, 32 21 1 129 020 (1) OEM |
 |
22BM0300
OUT OF SERVICE
|
Rod Assembly |
th1:M12x1.5 RHT th2:M16x1.5 RHT L:514mm / 0 kg |
32 21 1 091 913, 32 21 1 093 433 (1) OEM |
 |
23BM01
OUT OF SERVICE
|
Track Control Arm Left |
tp:M14x1.5 RHT cr:1/10 / 1,9 kg |
31 12 1 139 991, 31 12 1 131 587 (1) OEM |
 |
23BM02
|
Track Control Arm Right |
tp:M14x1.5 RHT cr:1/10 / 1,9 kg |
31 12 1 139 992, 31 12 1 131 588 (2) OEM |
 |
23BM0315
|
Track Control Arm Rear |
tp:M10x1.5 RHT / 0,46 kg |
33 32 1 090 745, 33 32 1 097 264 (1) OEM |
 |
23BM0315B
|
Track Control Arm Rear (Without Fasteners) |
tp:M10x1.5 RHT / 0,4 kg |
33 32 6 768 791, 33 32 1 097 264 (1) OEM |
 |

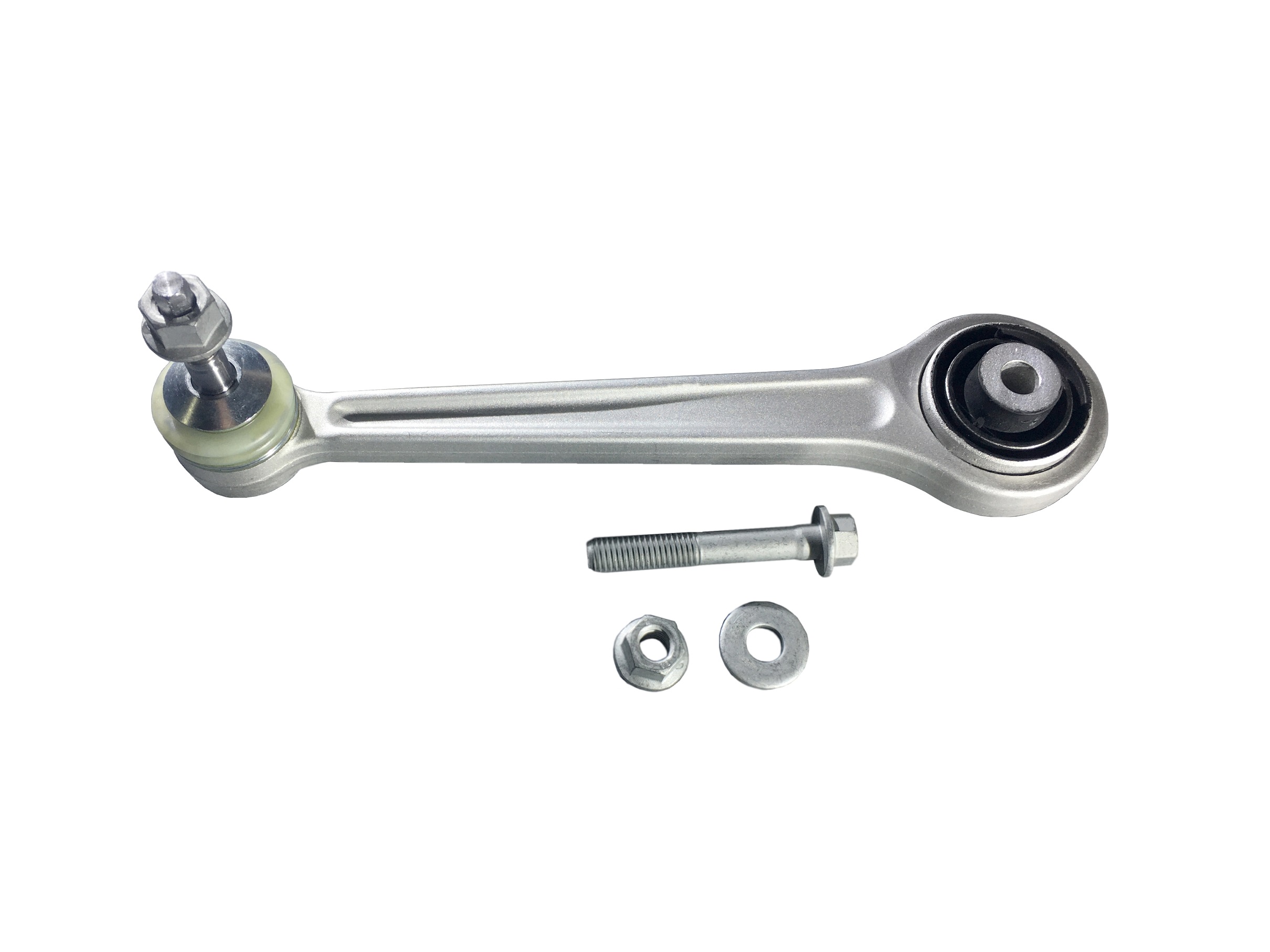

23BM0330
|
Track Control Arm Rear |
c:Ø10 tp:M10x1.5 / 0,49 kg |
33 32 2 348 886, 33 32 6 777 424 (16) OEM |
 |
23BM0330B
|
Track Control Arm Rear (Without Fasteners) |
tp:M10x1.5 RHT / 0,4 kg |
33 32 2 348 886, 33 32 6 777 424 (16) OEM |
 |

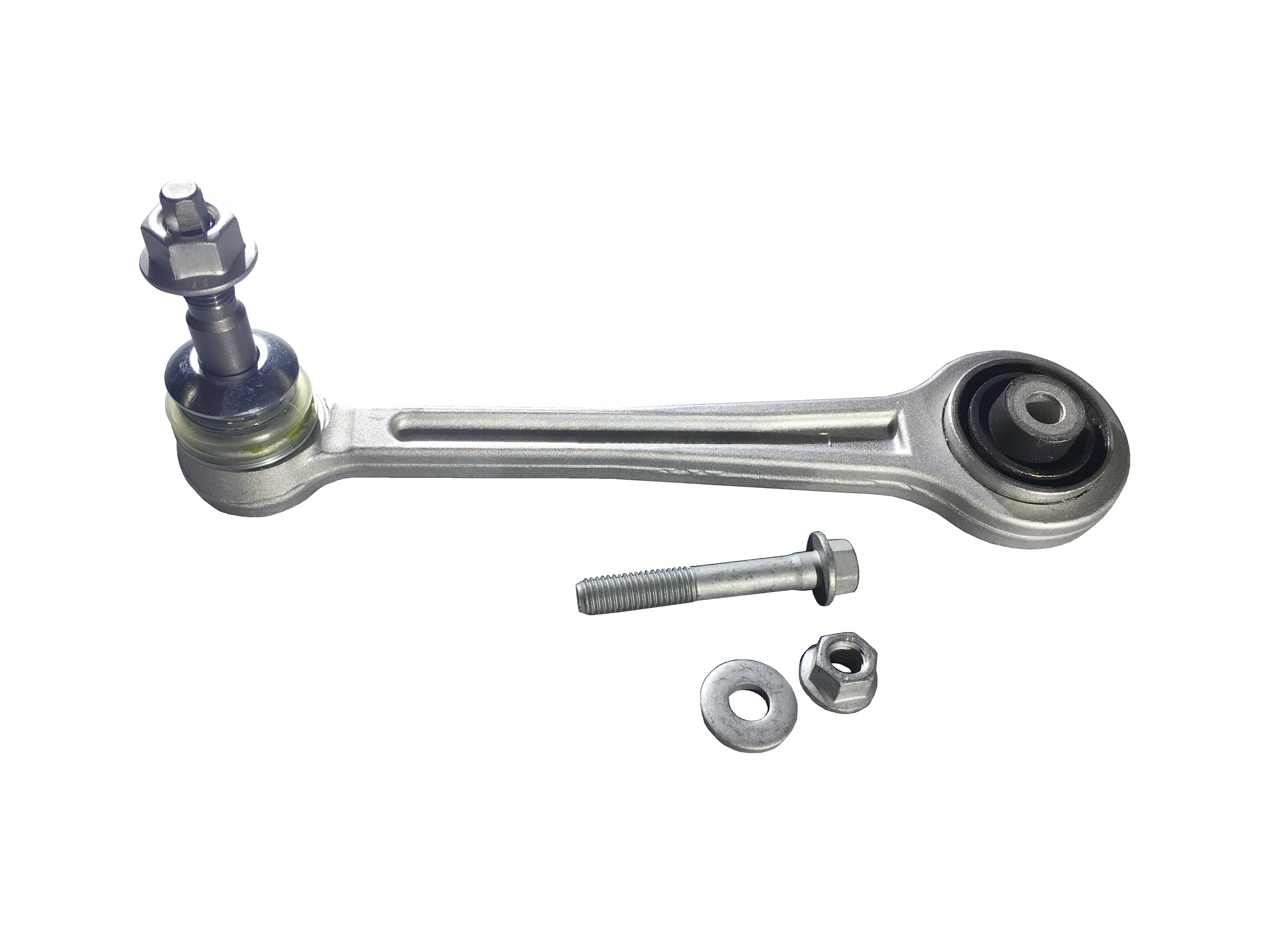

23BM0332
|
Track Control Arm Rear Left |
tp:M12x1.5 RHT / 0,52 kg |
2 348 885, 6 775 083 (2) OEM |
 |
23BM0332B
|
Track Control Arm Rear Left (Without Fasteners) |
tp:M12x1.5 RHT / 0,3 kg |
33 32 6 775 083, 6 775 083 (2) OEM |
 |

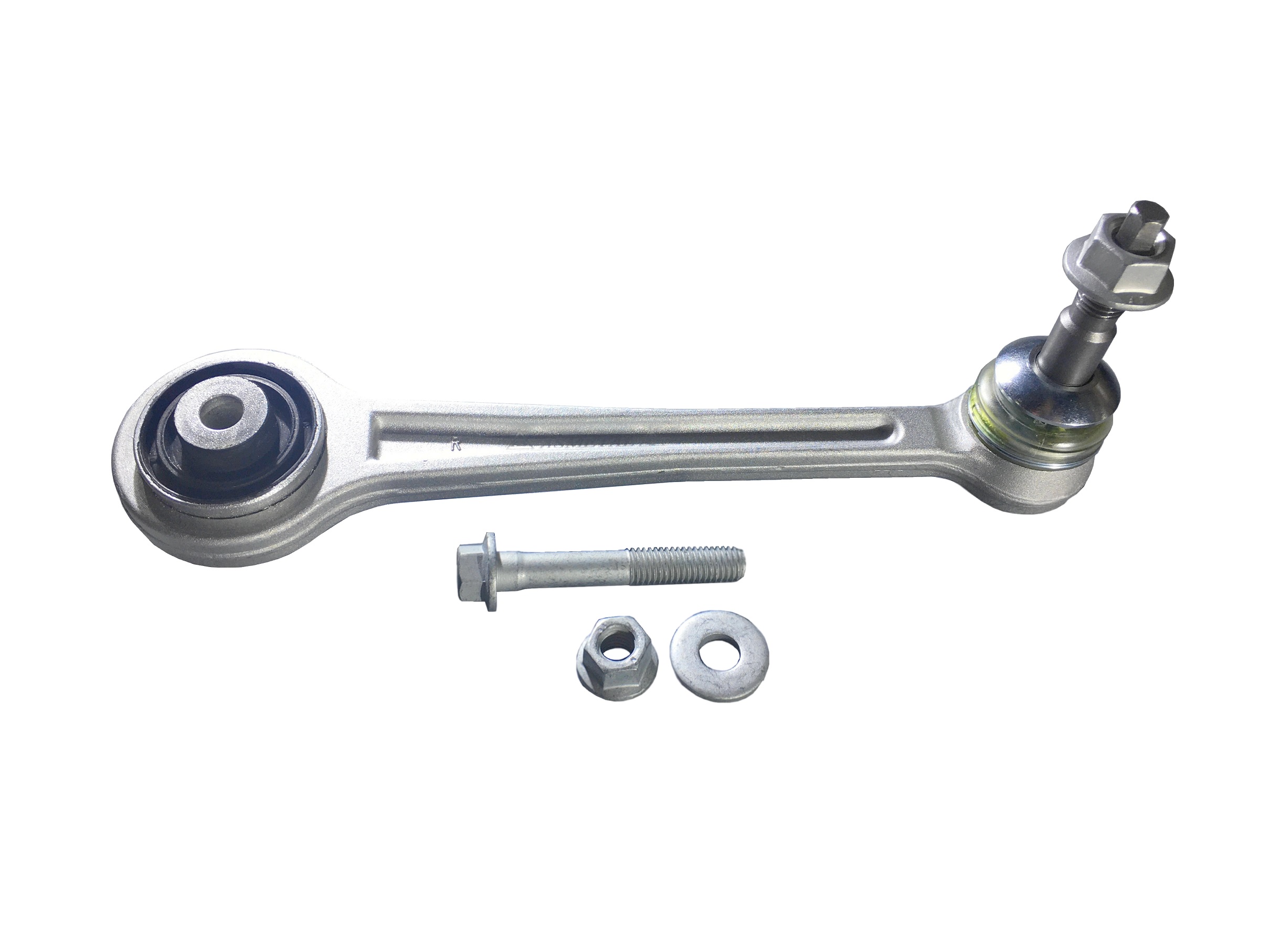

23BM0333
|
Track Control Arm Rear Right |
tp:M12x1.5 RHT / 0,52 kg |
6 775 084, 33 32 6 775 084 (2) OEM |
 |
23BM0333B
|
Track Control Arm Rear Right (Without Fasteners) |
tp:M12x1.5 RHT / 0,3 kg |
33 32 2 348 884, 2 348 884 (2) OEM |
 |

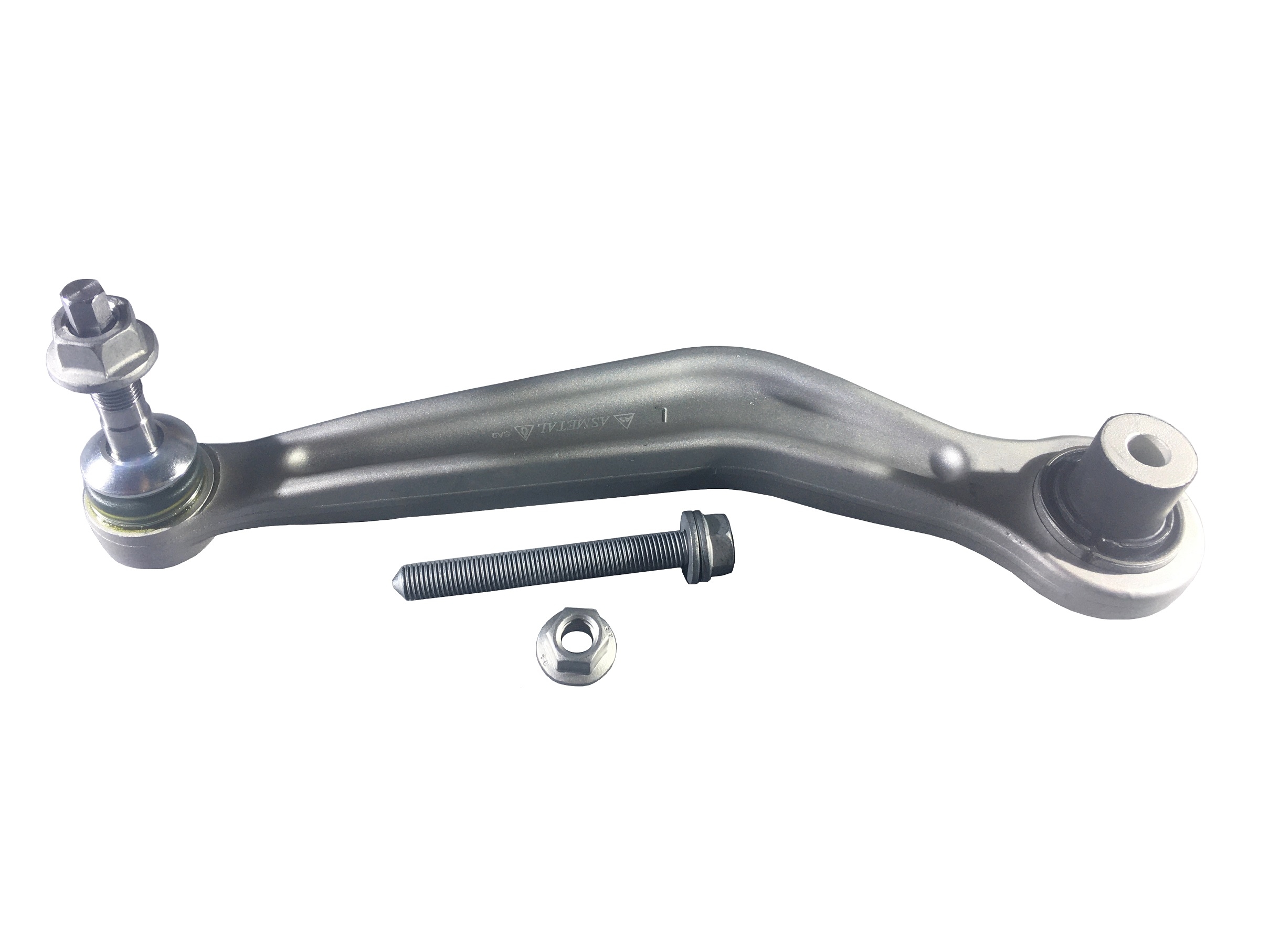

23BM0336
|
Track Control Arm Rear Left |
tp:M14x1.5 RHT / 1,2 kg |
6 767 759, 33 32 6 758 141 (12) OEM |
 |
23BM0336B
|
Track Control Arm Rear Left (Without Fasteners) |
tp:M14x1.5 RHT / 1 kg |
6 767 759, 33 32 6 758 141 (12) OEM |
 |

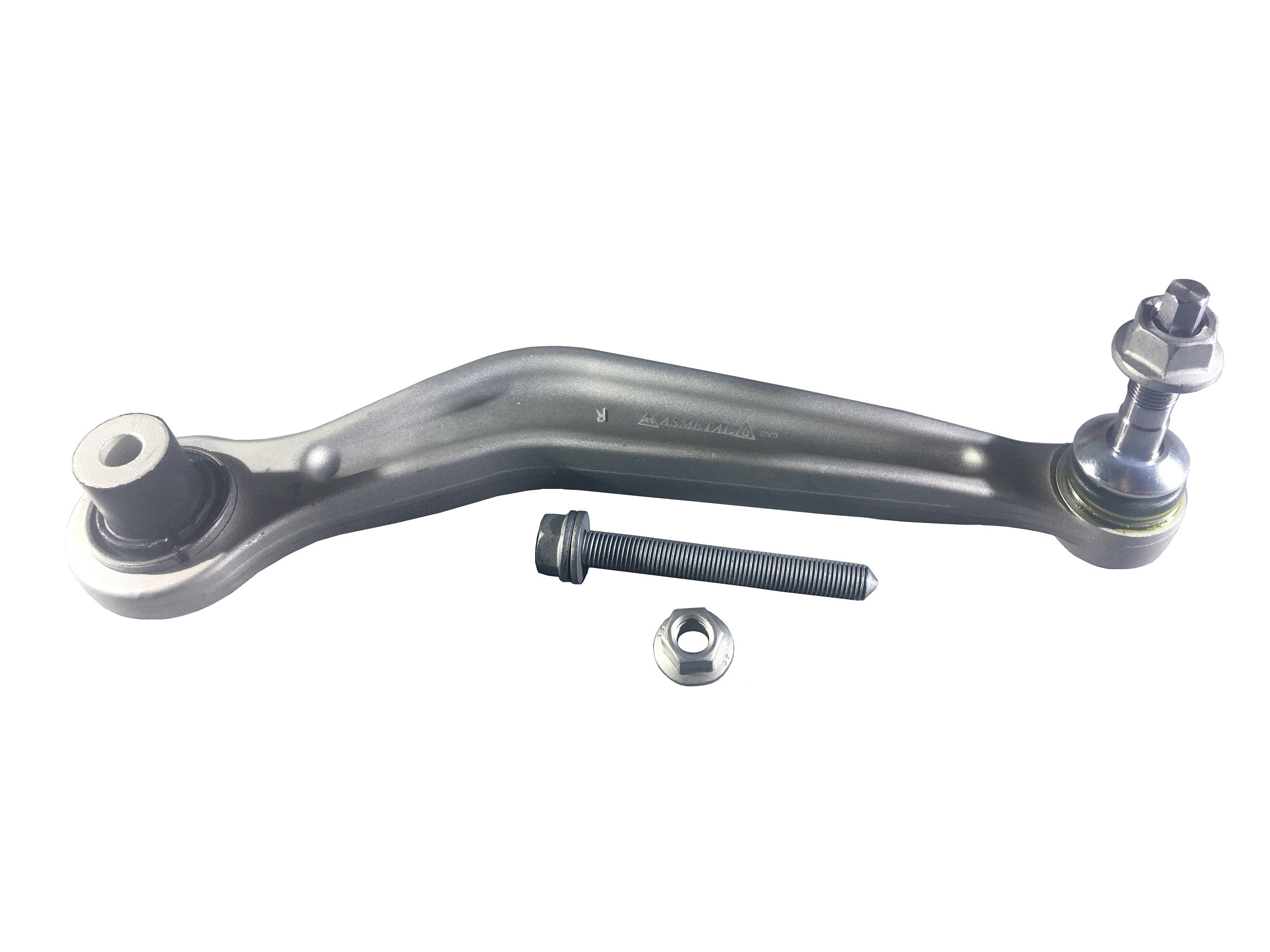

23BM0337
|
Track Control Arm Rear Right |
tp:M14x1.5 RHT / 1,2 kg |
33 32 6 770 776, 33 32 6 769 972 (12) OEM |
 |
23BM0337B
|
Track Control Arm Rear Right (Without Fasteners) |
tp:M14x1.5 RHT / 1 kg |
33 32 6 770 776, 33 32 6 769 972 (12) OEM |
 |
23BM0360
|
Track Control Arm Rear Left |
c1:Ø14.1 c1:Ø16.5 / 0,9 kg |
33 32 6 867 537, 6 867 537 |
 |
23BM0361
|
Track Control Arm Rear Right |
c1:Ø14.1 c1:Ø16.5 / 0,9 kg |
33 32 6 867 538, 6 867 538 |
 |
23BM0364
|
Track Control Arm Rear Left |
c1:Ø12.2 c1:Ø14.6 / 0,96 kg |
33 32 6 861 125, 6 861 125 |
 |
23BM0365
|
Track Control Arm Rear Right |
c1:Ø12.2 c1:Ø14.6 / 0,95 kg |
33 32 6 861 126, 6 861 126 |
 |
23BM0366
|
Track Control Arm Lower Rear |
c1:Ø12.2 c1:Ø14.6 / 0,64 kg |
6 861 114, 33 30 6 893 528 (2) OEM |
 |
23BM0368
|
Track Control Arm Upper Left |
c1:Ø14.1 c1:Ø14.2 / 1,2 kg |
6 861 115, 33 32 6 861 115 (4) OEM |
 |
23BM0369
|
Track Control Arm Upper Right |
c1:Ø14.1 c1:Ø14.2 / 1,2 kg |
33 32 6 883 340, 33 32 6 861 116 (4) OEM |
 |
23BM0370
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
31 12 4 026 453, 31 12 4 046 441 (11) OEM |
 |
23BM0371
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 12 4 026 454, 31 12 4 046 442 (11) OEM |
 |
23BM0372
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
31 12 6 755 835, 31 12 6 770 121 (4) OEM |
 |
23BM0373
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 12 6 755 836, 31 12 6 770 122 (4) OEM |
 |
23BM0399
|
Track Control Arm Rear |
c1:Ø16.1 c1:Ø12.1 / 0,63 kg |
33 32 1 090 030, 33 32 1 091 620 (1) OEM |
 |
23BM1005
IN PREPARATION
|
Track Control Arm Rear |
|
33 32 6 775 902, 6 775 902 |
 |
23BM1230
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
31 12 4 083 311, 31 12 6 775 959 |
 |
23BM1231
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 12 4 083 312, 31 12 6 775 960 |
 |
23BM1299
|
Track Control Arm Rear |
c1:Ø12.1 c1:Ø14.2 / 0,37 kg |
33 32 6 775 683, 6 775 683 |
 |
26BM0001
|
Stabiliser Link |
L:285 tp:M10x1.25 RHT / 0,39 kg |
31 35 1 134 582, 31 35 1 130 075 (4) OEM |
 |

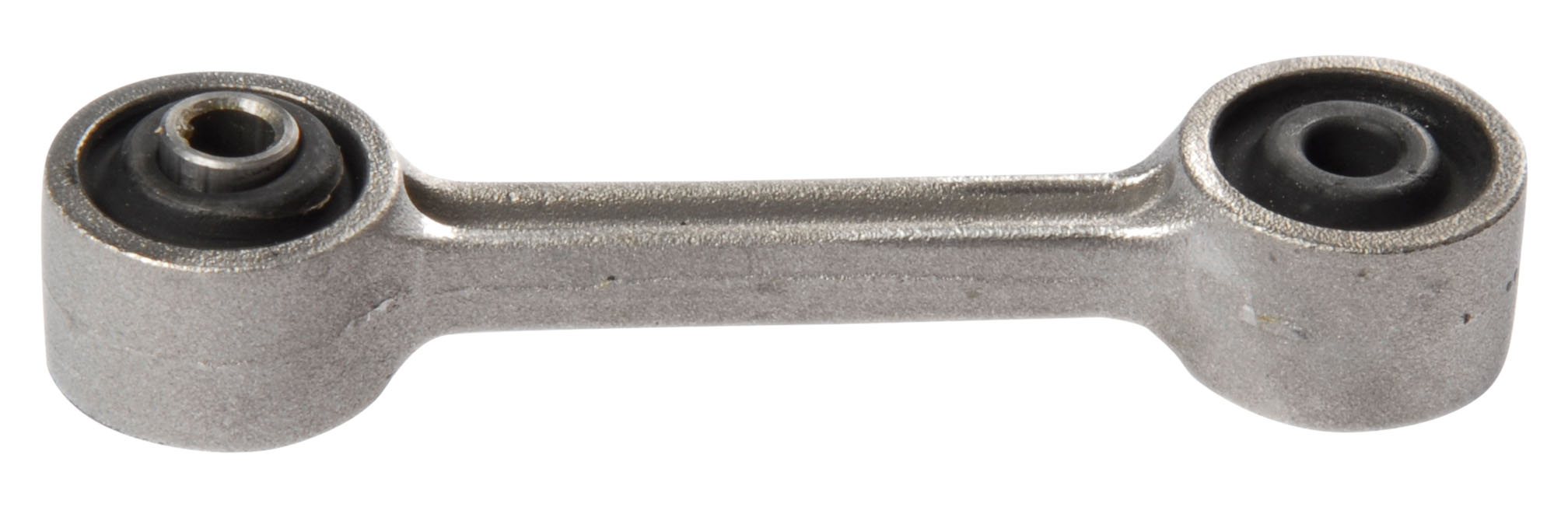

26BM0002
OUT OF SERVICE
|
Stabiliser Link Rear |
0 kg |
33 55 1 126 932, 33 55 1 124 375 |
 |
26BM0310
|
Stabiliser Link Left |
L:425 tp:M10x1.5 RHT / 0,6 kg |
31 30 6 781 545, 31 35 6 753 767 (2) OEM |
 |
26BM0311
|
Stabiliser Link Right |
L:425 tp:M10x1.5 RHT / 0,6 kg |
31 30 6 781 546, 31 35 6 753 768 (2) OEM |
 |
26BM0312
|
Stabiliser Link Rear |
L:210 tp1:M12x1.5 RHT tp2:M12x1.5 RHT / 0,54 kg |
6 753 770, 33 50 6 781 539 (2) OEM |
 |

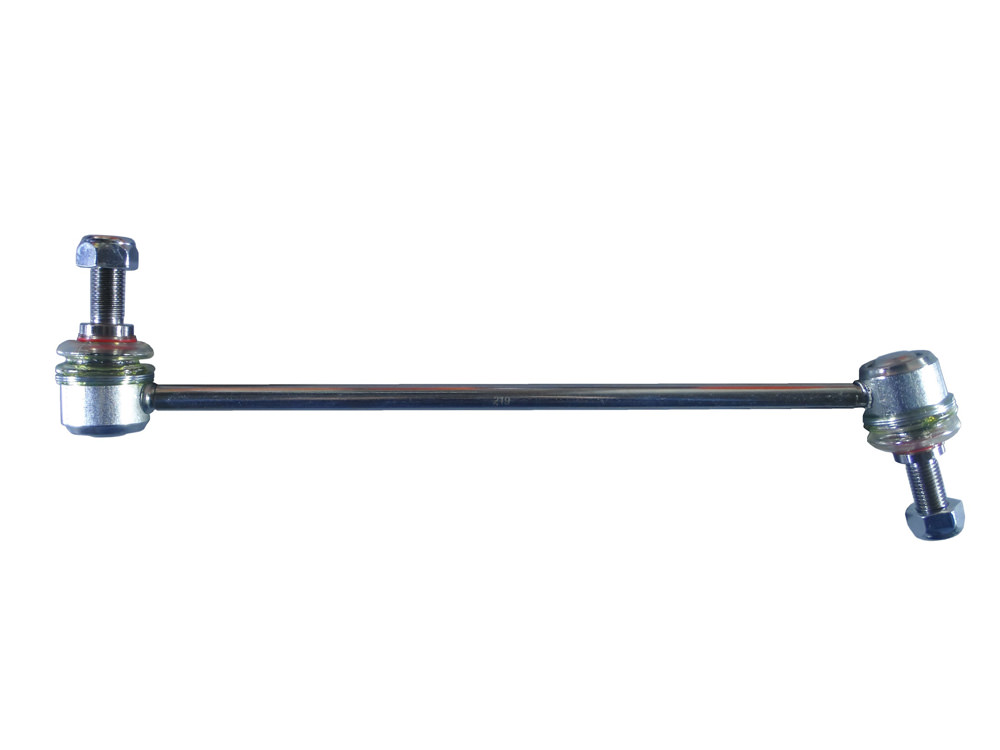

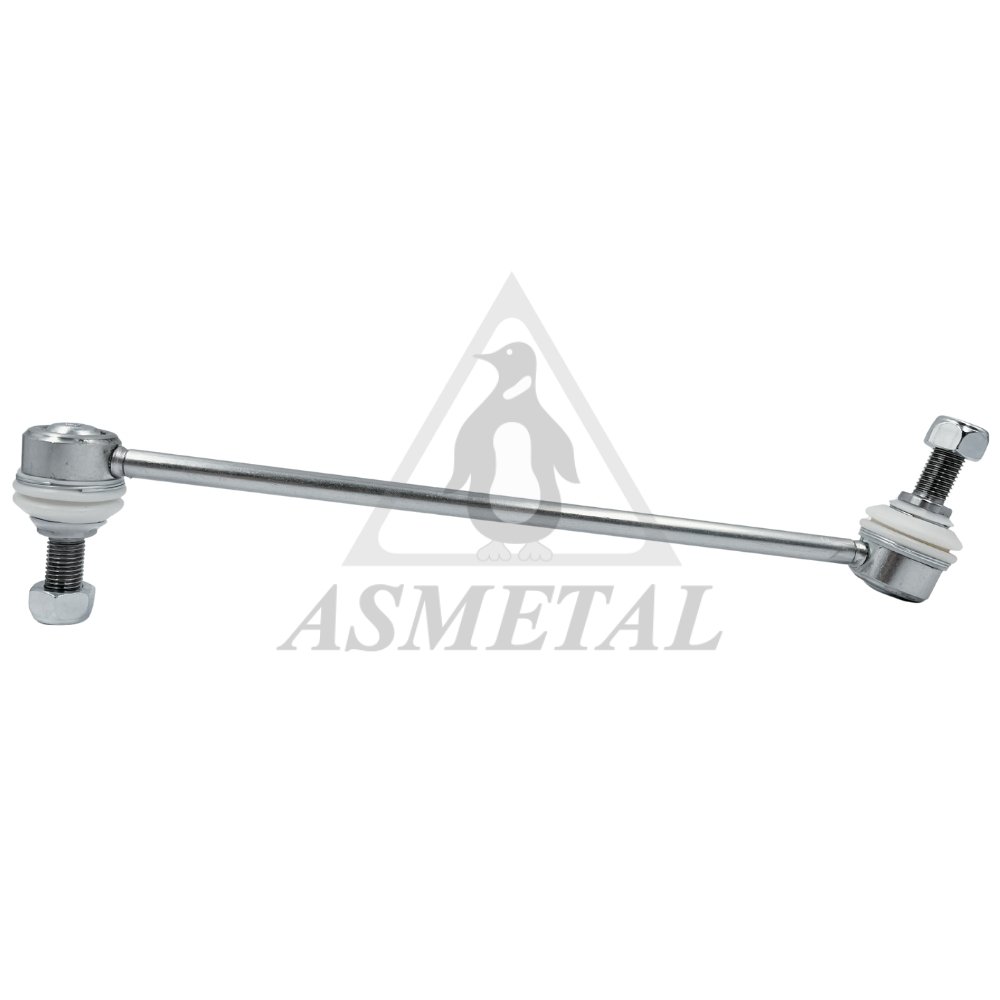

26BM0320
|
Stabiliser Link |
L:299 tp:M12x1.5 RHT / 0,49 kg |
6 777 319, 31 35 6 777 319 |
 |

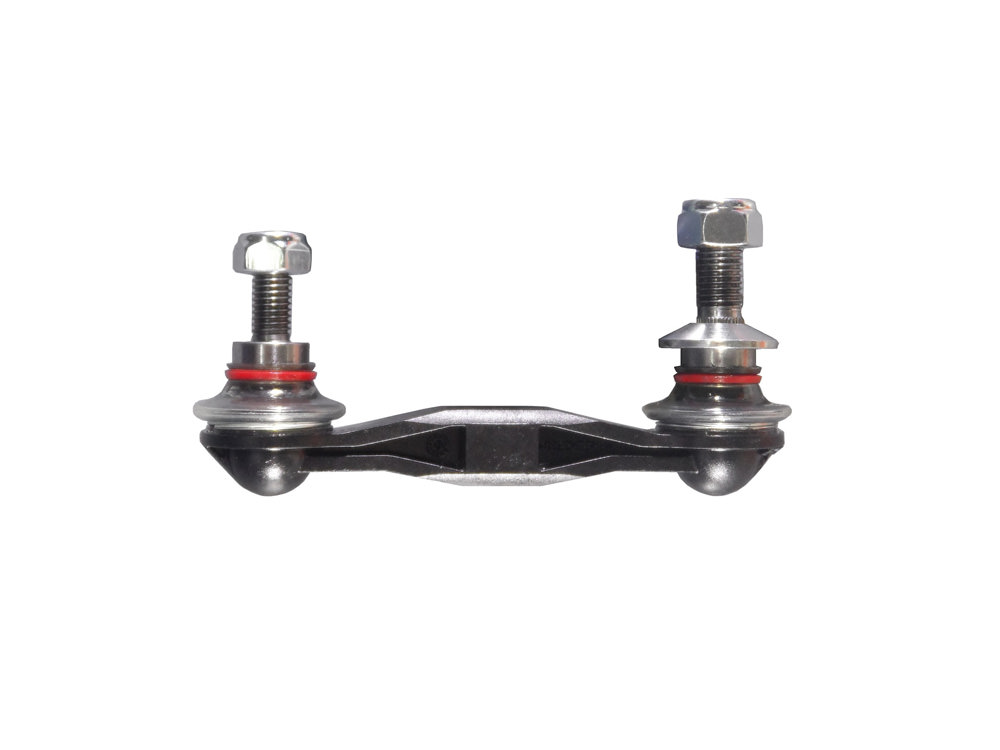

26BM0330
|
Stabiliser Link Rear |
L:110 tp1:M10x1.5 RHT tp2:M12x1.5 RHT / 0,23 kg |
33 55 6 777 635, 6 777 635 |
 |
26BM0331
|
Stabiliser Link Rear |
L:110 tp:M12x1.5 RHT / 0,4 kg |
6 775 189, 37 10 6 775 189 |
 |

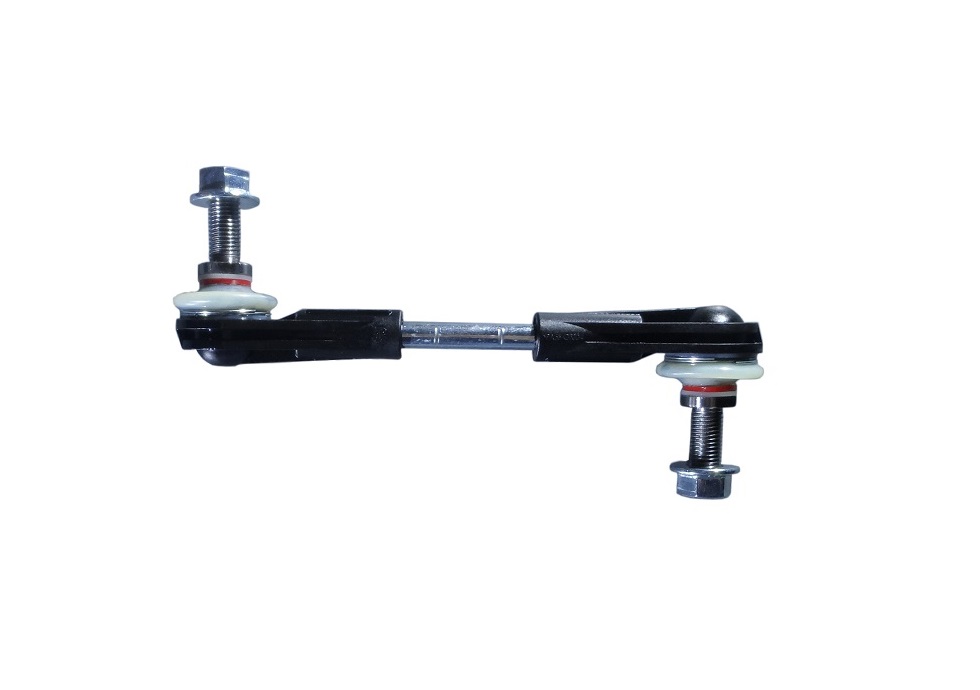

26BM0340
|
Stabiliser Link |
L:179 tp:M12x1.5 RHT / 0,34 kg |
31 30 6 861 485, 6 861 485 |
 |
26BM0345
|
Stabiliser Link |
L:180 tp:M12x1.5 RHT / 0,38 kg |
31 30 6 861 485, 6 861 485 |
 |

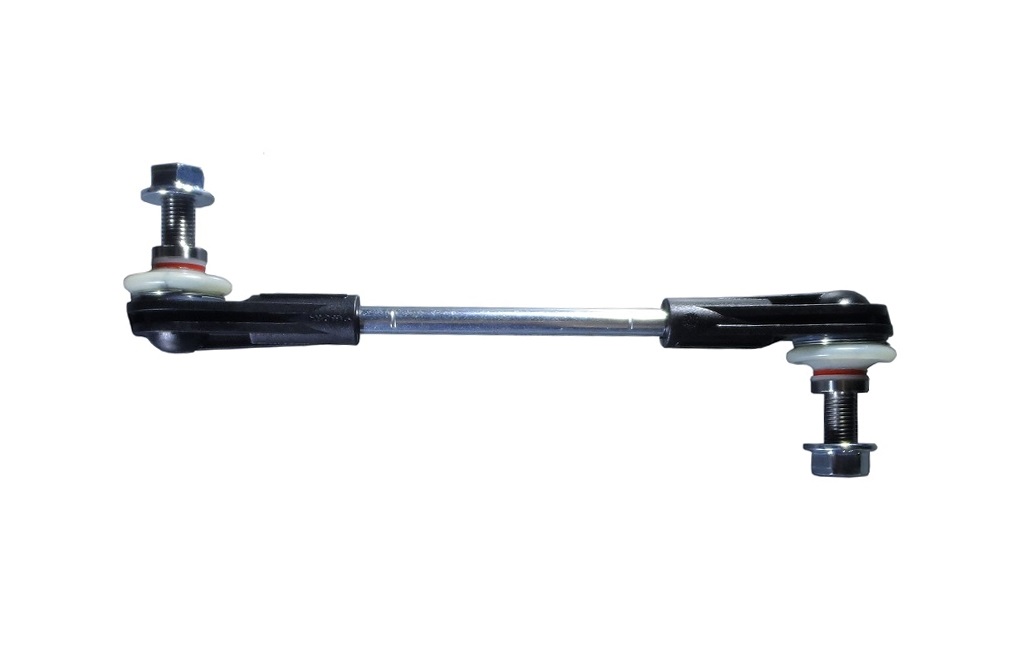

26BM0350
|
Stabiliser Link |
L:242 tp:M12x1.5 RHT / 0,37 kg |
31 30 6 861 483, 6 861 483 |
 |
26BM0355
|
Stabiliser Link |
L:242 tp:M12x1.5 RHT / 0,42 kg |
31 30 6 861 483, 6 861 483 |
 |
26BM0360
|
Stabiliser Link Rear |
L:140 tp:M12x1.5 RHT / 0,2 kg |
6 861 482, 33 50 6 861 482 (4) OEM |
 |
26BM0507
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
1 095 696, 1 091 497 (2) OEM |
 |
26BM0510
|
Stabiliser Link |
L:307 tp:M10x1.5 RHT / 0,44 kg |
31 35 1 095 695, 1 095 695 (2) OEM |
 |
26BM1131
NEW
|
Stabiliser Link Rear |
0,89 kg |
33 55 1 135 307, 33 55 1 131 131 (2) OEM |
 |
29BM0340
NEW
|
Tie Rod Left |
1,40 kg |
32 10 6 868 688, 32 10 6 689 535 (2) OEM |
 |
29BM0341
NEW
|
Tie Rod Right |
1,40 kg |
32 10 6 868 689, 32 10 6 689 537 (2) OEM |
 |
29BM0375
IN PREPARATION
|
Tie Rod |
0 kg |
32 10 6 774 360, 32 21 6 756 368 (2) OEM |
 |
29BM1000
|
Tie Rod Left |
tp:M14x1.5 RHT / 1,35 kg |
32 10 6 784 716, 6 784 716 |
 |
29BM1001
|
Tie Rod Right |
tp:M14x1.5 RHT / 1,35 kg |
6 784 719, 32 10 6 784 719 |
 |
30BM0970
IN PREPARATION
|
Track Control Arm Upper |
0 kg |
6 779 908, 31 12 6 779 908 |
 |
30BM1000
IN PREPARATION
|
Track Control Arm Upper |
0 kg |
6 775 967, 31 12 6 775 967 |
 |
30BM1030
IN PREPARATION
|
Track Control Arm Upper |
|
31 12 6 779 871, 6 779 871 |
 |
38BM0300
|
Silentblock for TCA |
0,32 kg |
31 12 1 136 606, 31 12 1 130 587 (4) OEM |
 |
38BM0301
|

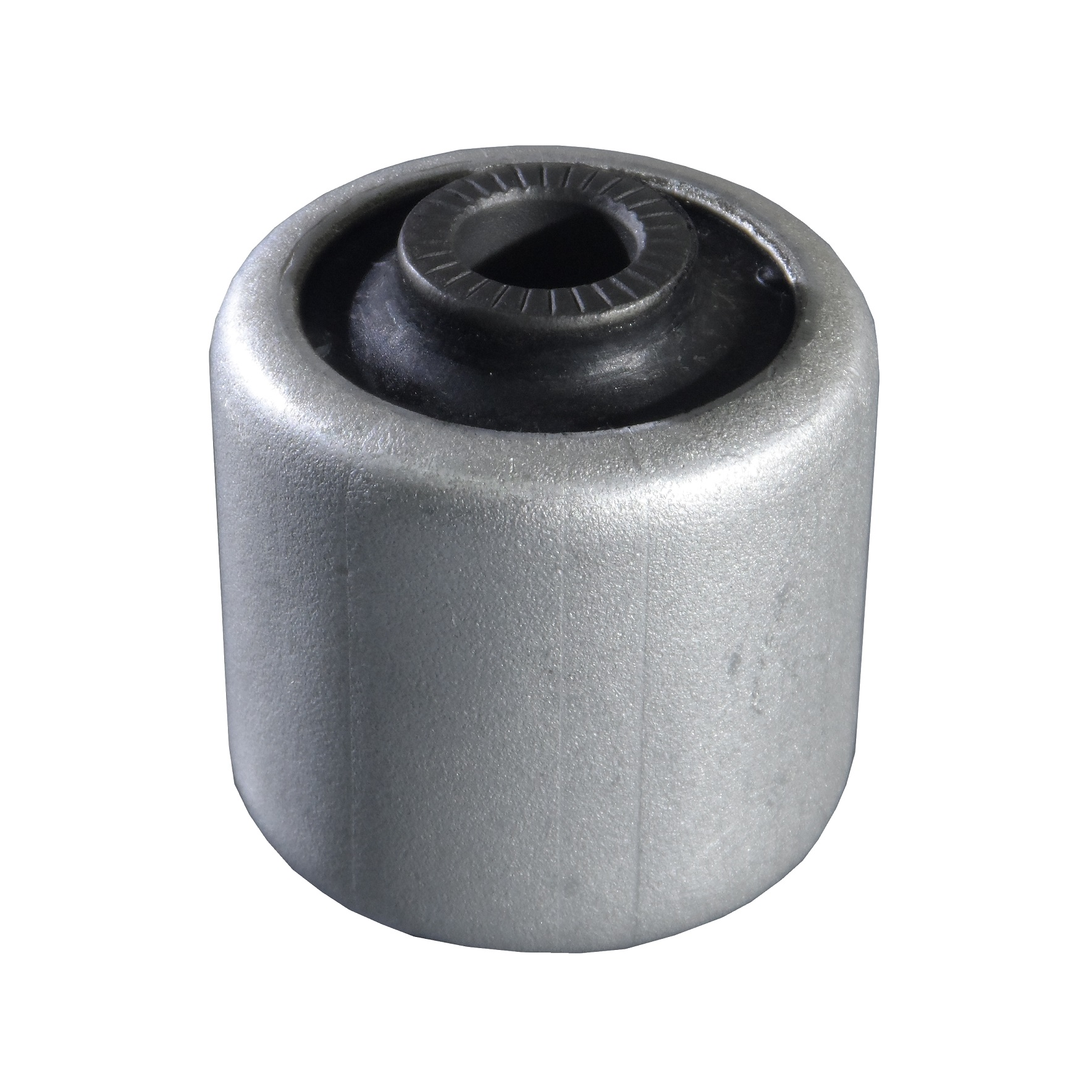

Silentblock for TCA |
L:52 di:Ø12.1 do:Ø46.4 / 0,2 kg |
6 767 651, 31 12 1 124 622 (2) OEM |
 |
38BM0306
|
Stabiliser Mounting |
L:48 di:Ø24.5 do:Ø45.2 / 0,18 kg |
31 35 6 766 509, 31 35 6 763 267 (2) OEM |
 |

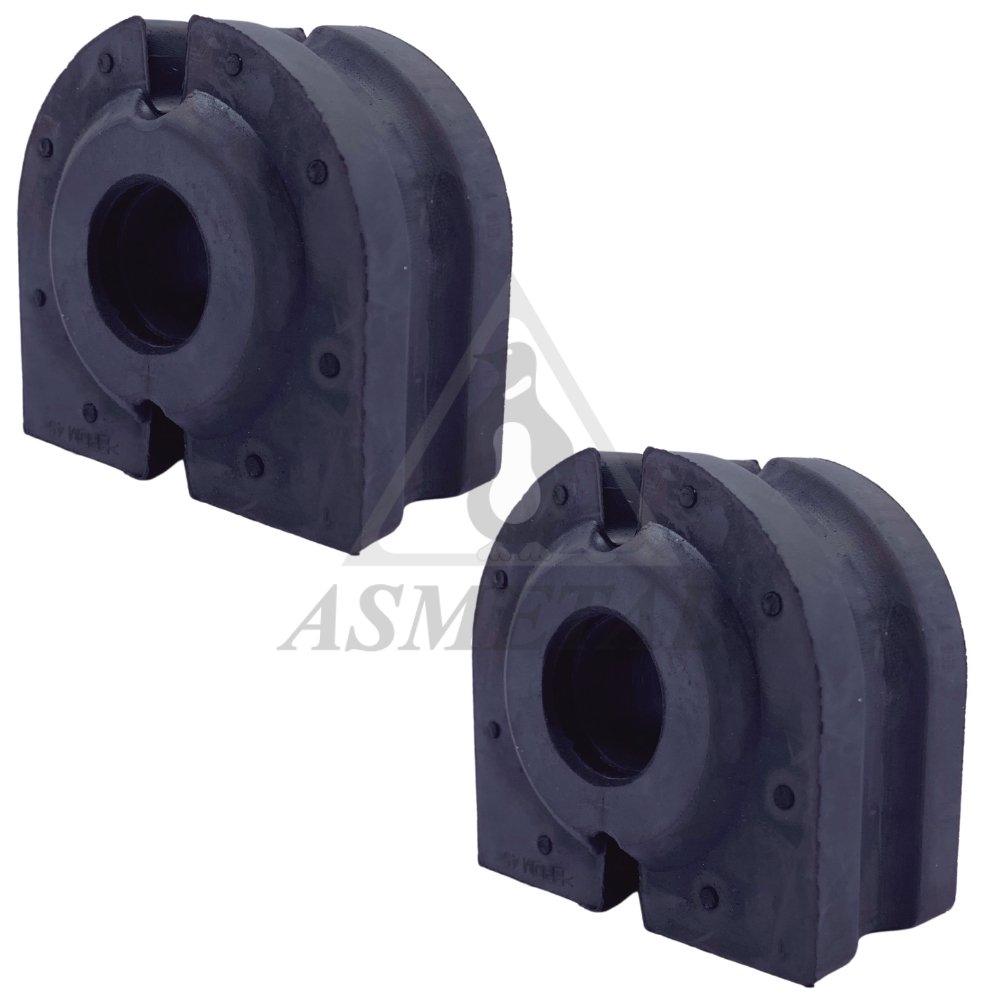

38BM0307
NEW
|
Stabiliser Mounting |
di:Ø24,6 / 0,20 kg |
31 35 6 761 589, 31 35 6 761 591 (4) OEM |
 |
38BM0310
|
Silentblock for TCA |
L:76 di:Ø14.1 do:Ø66.2 / 0,32 kg |
31 12 0 006 482, 31 12 1 141 752 (3) OEM |
 |

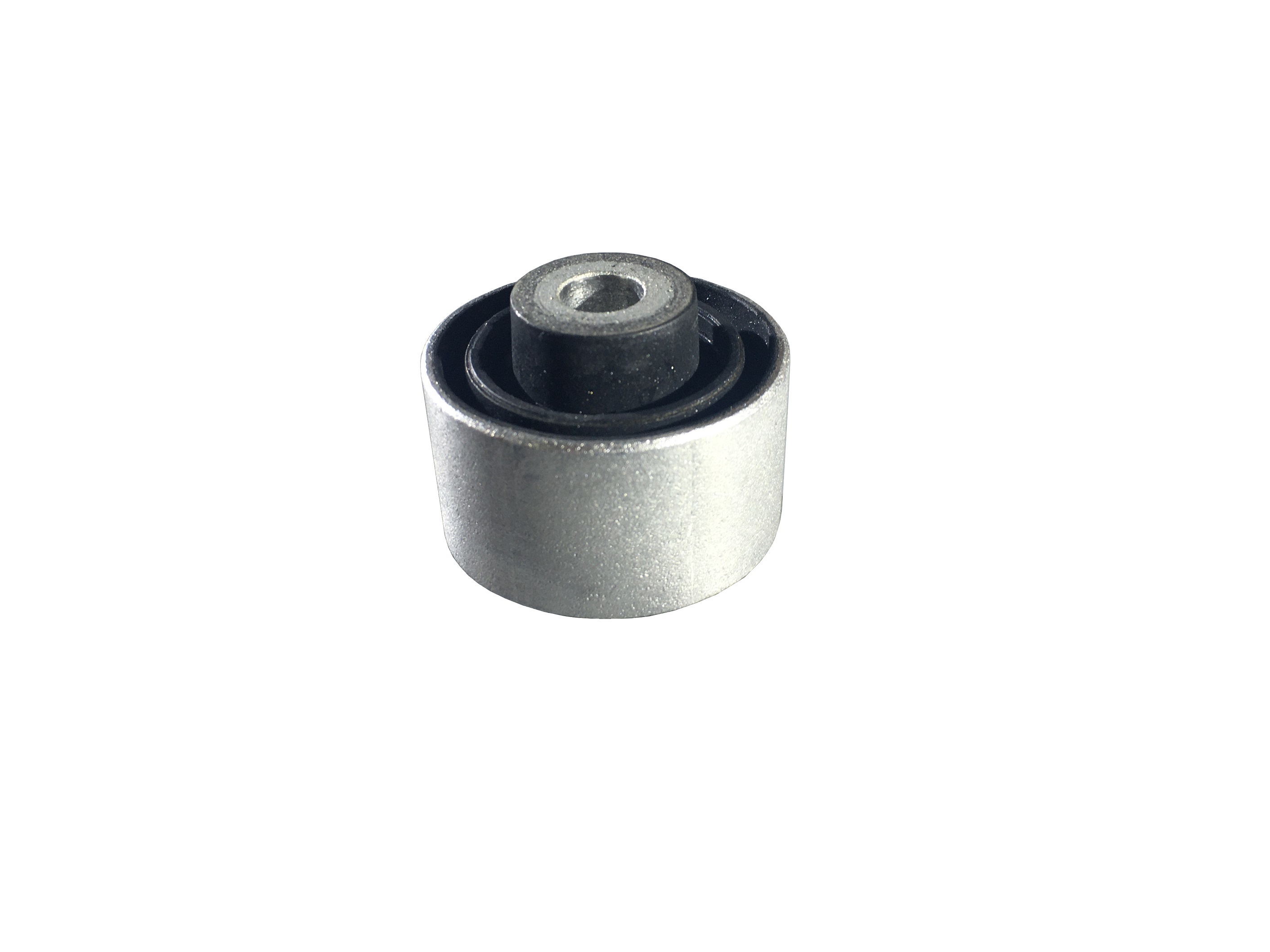

38BM0330
|
Silentblock for TCA |
L:40 di:Ø10.1 do:Ø45.4 / 0,08 kg |
33 32 1 096 797*, 33 32 2 282 065* (12) OEM |
 |

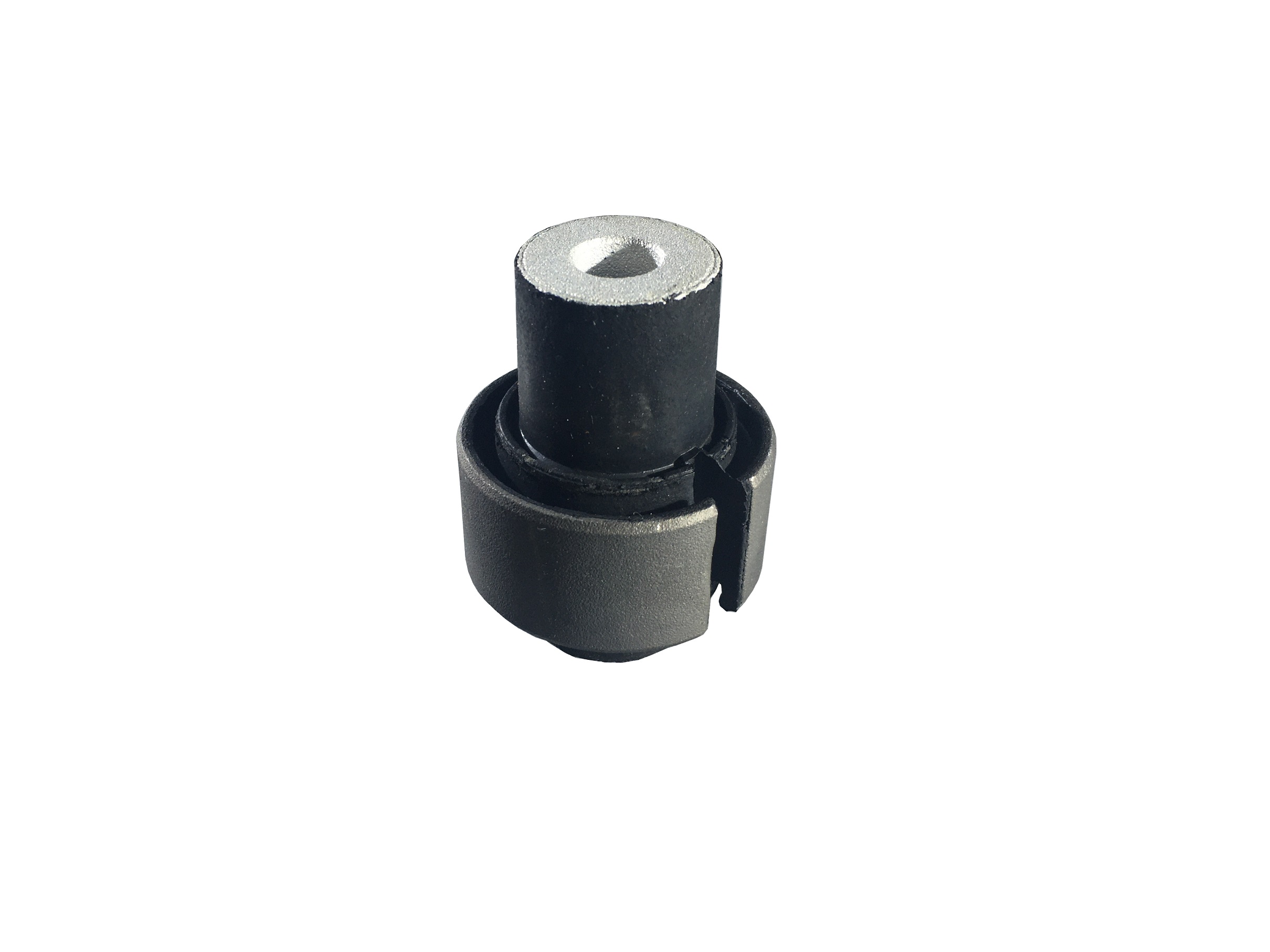

38BM0334
|
Silentblock for TCA |
L:65 di:Ø12.2 di1:Ø47 do:Ø49 / 0,21 kg |
33 32 6 770 776*, 33 32 6 770 775* (3) OEM |
 |
38BM0352
|
Silentblock for TCA |
L:71 di:Ø14.3 do:Ø55.9 / 0,25 kg |
6 861 169*, 6 878 080 (14) OEM |
 |
38BM0360
|
Silentblock for TCA |
L:54 di:Ø16.5 do:Ø55 / 0,23 kg |
6 867 538, 33 32 6 867 537 (8) OEM |
 |
38BM0361
|
Silentblock for TCA |
L:48 di:Ø14.1 do:Ø51 / 0,2 kg |
33 32 6 867 538, 6 861 111 (6) OEM |
 |
38BM0363
|
Silentblock for TCA |
L:49 di:Ø14.5 do:Ø53 / 0,14 kg |
6 861 126, 33 32 6 861 125* (4) OEM |
 |
38BM0364
|
Silentblock for TCA |
L:44 di:Ø12.1 do:Ø49 / 0,13 kg |
33 32 6 861 126, 33 32 6 861 125* (6) OEM |
 |
38BM0365
|
Silentblock for TCA |
L:51.7 di:Ø10.1 do:Ø39.5 / 0,1 kg |
31 12 6 870 026*, 31 12 6 870 025* (2) OEM |
 |
38BM0366
|
Silentblock for TCA |
L:48 di:Ø12.1 do:Ø47 / 0,13 kg |
33 32 6 861 114, 33 30 6 893 528 |
 |
38BM1000
|
Silentblock for TCA |
L:70.9 di:Ø14.2 do:Ø56.3 / 0,25 kg |
31 12 6 777 739*, 31 12 6 777 740* (9) OEM |
 |
38BM1001
|
Silentblock for TCA |
L:55 di:Ø14.2 do:Ø43.3 / 0,3 kg |
31 12 6 850 606*, 6 850 606* (27) OEM |
 |
38BM1004
|
Silentblock for TCA |
L:60.3 di:Ø14 do:Ø50.3 / 0,18 kg |
33 32 4 069 283*, 33 32 4 069 284* (9) OEM |
 |
38BM1005
|
Silentblock for TCA |
L:44 di:Ø12 do:Ø48.4 / 0,12 kg |
33 32 6 779 848*, 33 32 6 779 847* (2) OEM |
 |
38BM1006
|
Silentblock for TCA |
L:60.5 di:Ø14.2 do:Ø50.4 / 0,4 kg |
33 32 6 782 136*, 33 32 6 782 135* (4) OEM |
 |
38BM1007
|
Silentblock for TCA |
L:80.8 di:Ø14.2 do:Ø70.2 / 0,53 kg |
6 777 653, 31 12 6 777 653 (2) OEM |
 |
38BM1008
|
Axle Beam Bushing |
L:80.8 di:Ø14.2 do:Ø70.2 / 0,6 kg |
6 775 792, 33 31 6 775 792 (2) OEM |
 |
38BM1009
|
Axle Beam Bushing |
L:92 di:Ø18.8 do:Ø98 / 0,61 kg |
6 790 573, 33 31 6 790 573 (2) OEM |
 |
38BM1010
|
Silentblock for TCA |
L:51.7 di:Ø10.1 do:Ø39.5 / 0,1025 kg |
31 12 6 775 967*, 6 775 967* (4) OEM |
 |
38BM1290
|
Silentblock for TCA |
L:38.9 di:Ø14.2 do:Ø51.3 / 0,12 kg |
33 32 6 775 683*, 6 775 683* |
 |
38BM1291
|
Silentblock for TCA |
L:45 di:Ø12.1 do:Ø39 / 0,093 kg |
33 32 6 775 683*, 6 775 683* |
 |

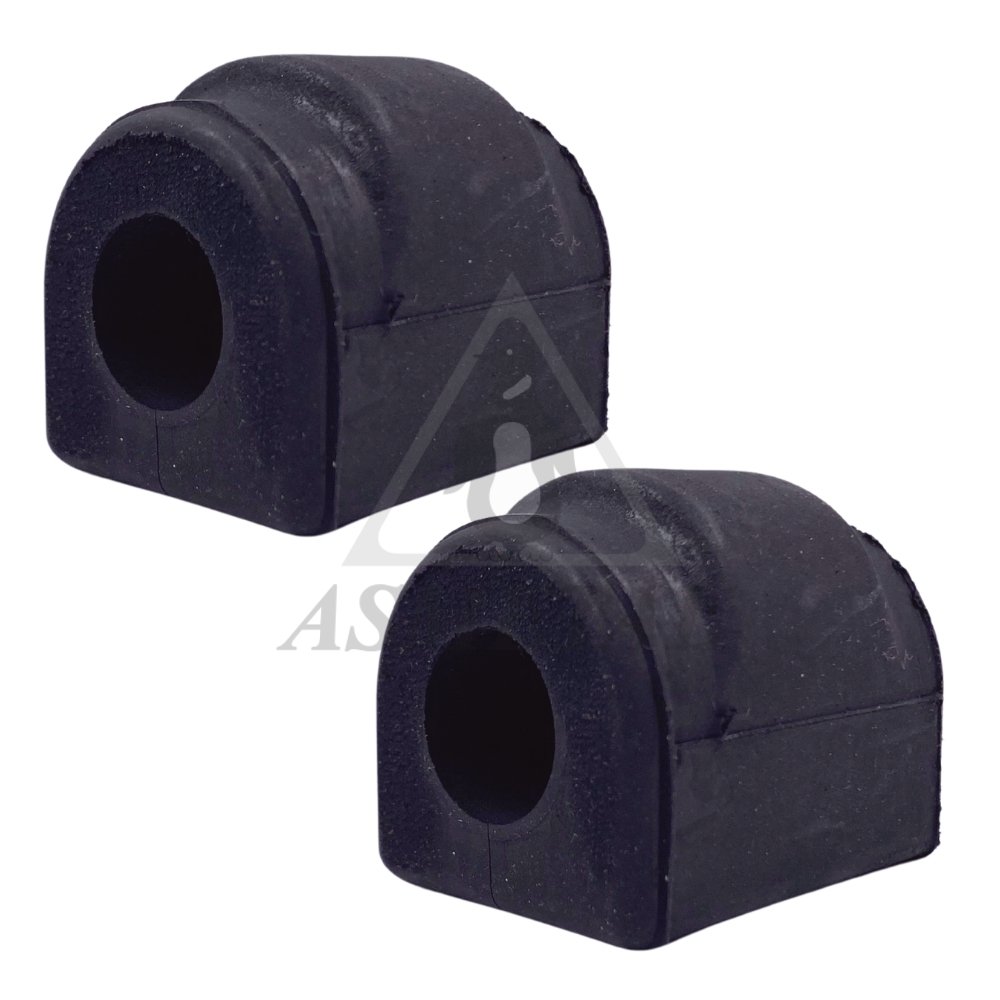

38BM1535
|
Stabiliser Mounting |
L:40.5 di:Ø15 / 0,04 kg |
33 55 1 094 550, 33 55 1 131 155 |
 |
45BM0321
|
Suspension Support Buffer Front |
L:84.5 di:Ø20.5 do:Ø66 / 0,07 kg |
31 33 1 124 449, 1 124 449 (2) OEM |
 |
45BM1105
|
Strut Mount |
L:40 di:Ø12 do:Ø124.5 / 0,39 kg |
33 52 6 753 810, 6 753 810 (4) OEM |
