10BM2700
IN PREPARATION
|
Ball Joint |
|
31 10 6 787 665, 6 787 665 |
 |
10BM2800
|
Ball Joint Lower |
th:MM14x1.5 RHT cp:1/8 cs:Ø17.8 / 0,51 kg |
3 412 726, 31 10 3 418 341 (2) OEM |
 |
10BM2810
|
Ball Joint Lower |
c: Ø16,5 CR: 1/8 TP: M14X1,5 / 0,52 kg |
31 10 3 438 623, 3 438 623 (3) OEM |
 |
11BM2600
|
Silentblock Bushing |
di: Ø14.2 do: Ø47.3 / 0,36 kg |
33 32 6 786 981, 33 32 6 775 552 (4) OEM |
 |
11BM2700
IN PREPARATION
|
Silentblock Bushing |
0 kg |
33 32 6 790 493, 6 790 493 |
 |
11BM2800
NEW
|
Silentblock Bushing |
di: Ø12.15 do: Ø45.2 L: 56,7 / 0,32 kg |
33 31 3 418 342, 3 418 342 (2) OEM |
 |
17BM2700
IN PREPARATION
|
Tie Rod End |
0 kg |
32 10 6 792 674, 6 792 674 |
 |
17BM2800
|
Tie Rod End |
th:FM14x1.5RHT th2:MM14x1.5RHT cp:1/6 cs:Ø15.5 L:187mm / 0,79 kg |
3 413 476, 32 41 3 413 476 (2) OEM |
 |
17BM2900
IN PREPARATION
|
Tie Rod End Left |
0 kg |
32 10 4 A01 666, 4 A01 666 (2) OEM |
 |
17BM2901
IN PREPARATION
|
Tie Rod End Right |
0 kg |
32 10 6 871 893, 6 871 893 (2) OEM |
 |
20BM2500
IN PREPARATION
|
Axial Joint |
0 kg |
32 10 4 A01 665*, 32 10 4 A01 667* (3) OEM |
 |
20BM2700
|
Axial Joint |
tp: MM16x1.5 tp: MM16x1.5 L: 228.5 / 0,62 kg |
6 787 472, 32 10 6 787 472* |
 |
20BM2800
|
Axial Joint |
th:MM18x1.5RHT th2:MM14x1.5RHT L:220 mm / 0,59 kg |
3 412 798, 32 10 3 444 999 (4) OEM |
 |
23BM2700
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
31 12 6 787 669, 6 787 669 |
 |
23BM2701
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 12 6 787 670, 6 787 670 |
 |
23BM2750
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
31 10 6 870 971, 31 10 6 871 467 (2) OEM |
 |
23BM2751
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 10 6 870 972, 31 10 6 871 468 (2) OEM |
 |
23BM2810
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
31 10 3 443 127, 31 10 0 363 477 (4) OEM |
 |
23BM2811
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 10 3 443 128, 31 10 3 412 138 (4) OEM |
 |
23BM2900
IN PREPARATION
|
Track Control Arm Left |
0 kg |
31 10 8 854 989, 31 10 6 890 905 (9) OEM |
 |
23BM2901
IN PREPARATION
|
Track Control Arm Right |
0 kg |
31 10 8 854 994, 31 10 8 854 990 (9) OEM |
 |
26BM2700
|
Stabiliser Link Left |
th:MM12x1.5RHT L: 340mm / 0,5 kg |
6 787 163, 31 30 6 787 163 |
 |
26BM2701
|
Stabiliser Link Right |
th:MM12x1.5RHT L: 340mm / 0,5 kg |
6 787 164, 31 30 6 787 164 |
 |
26BM2750
NEW
|
Stabiliser Link Rear |
0 kg |
33 55 6 790 324, 6 790 324 |
 |
26BM2800
|
Stabiliser Link Left |
th:MM10x1.5 RHT L: 300mm / 0,4 kg |
3 414 299, 31 30 3 413 201 (1) OEM |
 |
26BM2801
|
Stabiliser Link Right |
th:MM10x1.5 RHT L: 300mm / 0,4 kg |
3 414 300, 31 30 3 414 300 (1) OEM |
 |
26BM2810
|
Stabiliser Link Rear |
th:MM10x1.5 RHT L: 95mm / 0,3 kg |
3 413 197, 3 414 297 (3) OEM |
 |
26BM2900
IN PREPARATION
|
Stabiliser Link Left |
0 kg |
6 881 091, 6 886 035 (2) OEM |
 |
26BM2901
IN PREPARATION
|
Stabiliser Link Right |
0 kg |
6 881 092, 6 886 036 (2) OEM |
 |
29BM2700
IN PREPARATION
|
Tie Rod |
0 kg |
6 787 472, 32 10 6 787 472 |
 |
29BM2800
|
Tie Rod |
1,35 kg |
3 412 798, 3 444 999 (4) OEM |
 |
29BM2950
IN PREPARATION
|
Tie Rod Left |
0 kg |
32 10 4 A01 665, 32 10 6 871 884 (2) OEM |
 |
29BM2951
IN PREPARATION
|
Tie Rod Right |
0 kg |
32 10 6 871 892, 6 871 892 (1) OEM |
 |

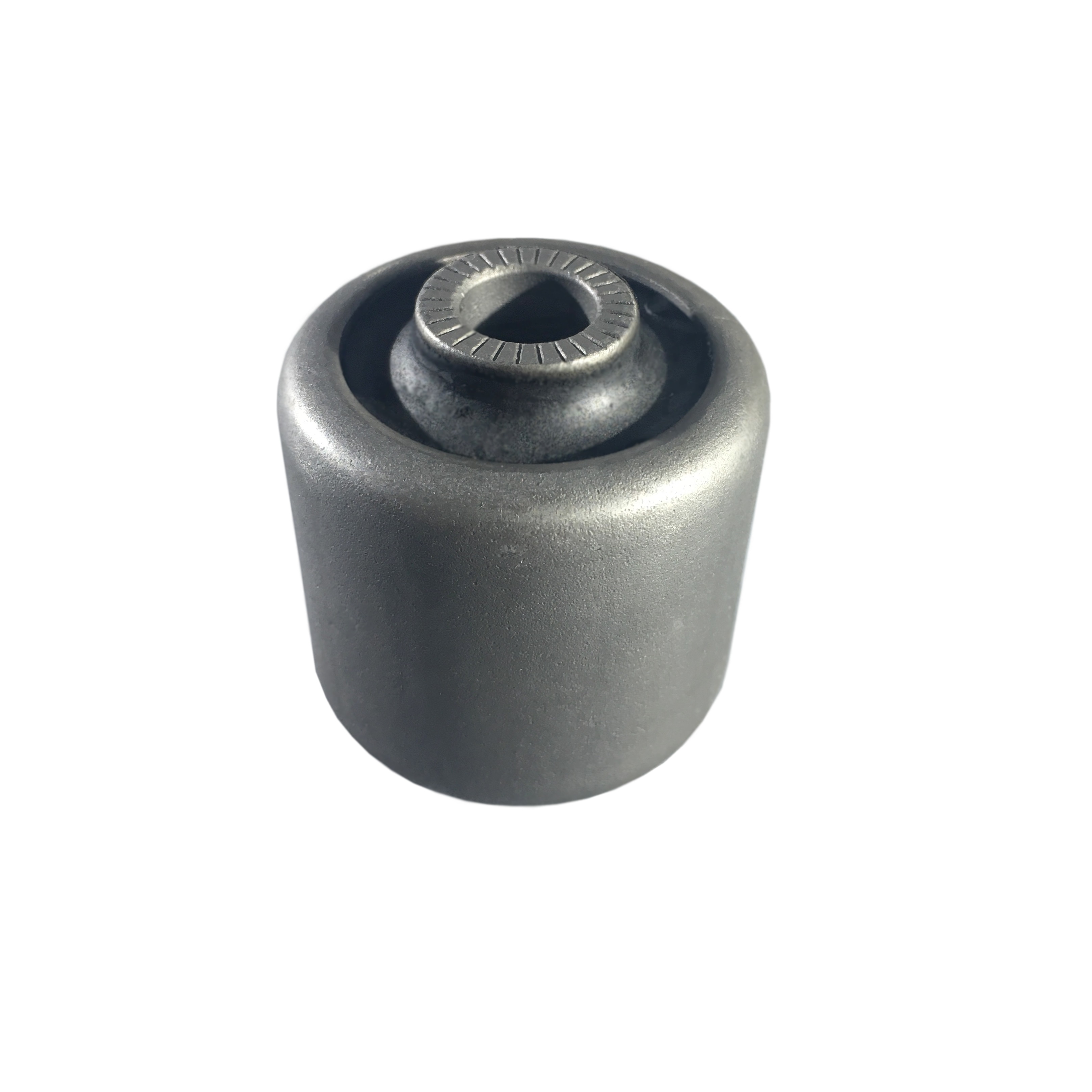

38BM0301
|
Silentblock for TCA |
0,2 kg |
6 767 651, 31 12 1 124 622 (2) OEM |
 |
38BM0500
|
Silentblock for TCA |
di:Ø14,2 do:Ø66,2 / 0,5 kg |
31 12 6 769 715, 31 12 1 096 372 (2) OEM |
 |
38BM1500
|
Silentblock for TCA |
di:Ø12,1 do:Ø35,3 / 0,1 kg |
33 32 6 770 824, 6 770 824 (4) OEM |
 |

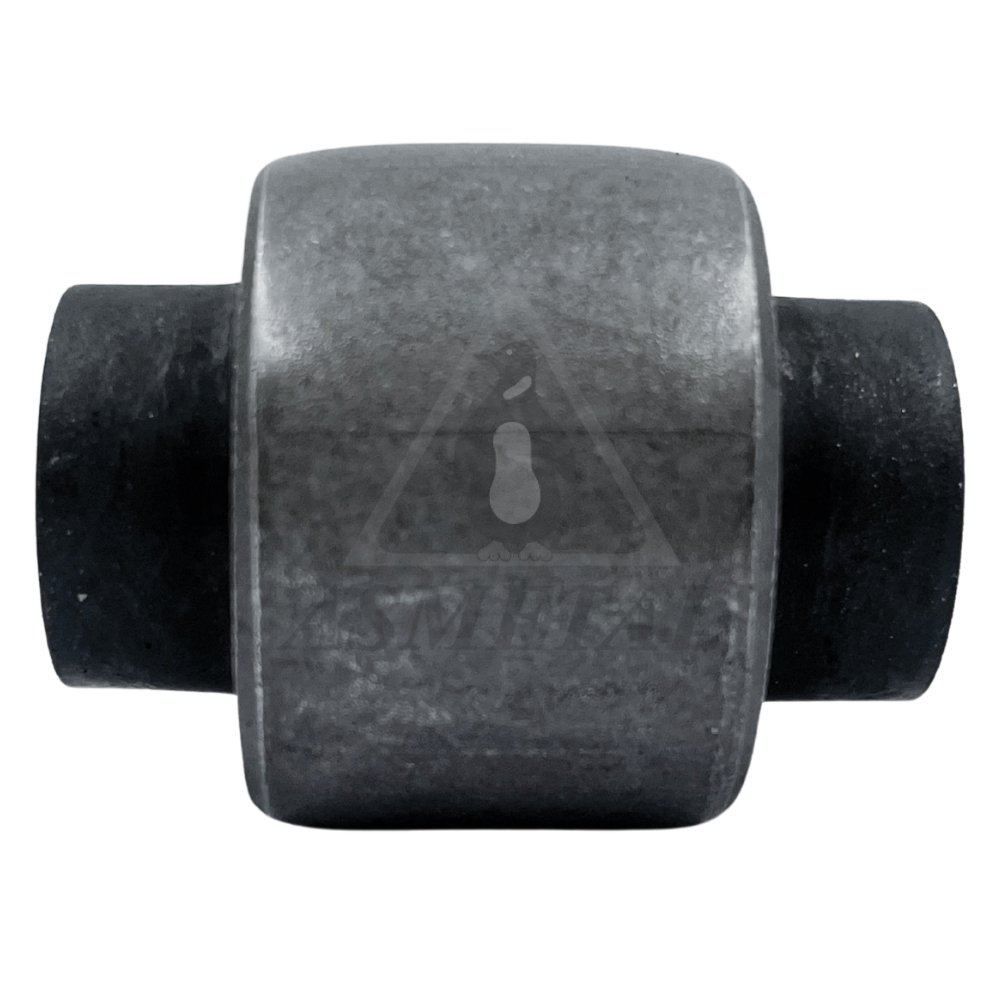

38BM1505
|
Silentblock for TCA |
di:Ø12 do:Ø45,5 / 0,26 kg |
33 32 6 771 828, 6 771 828 (2) OEM |
 |
38BM1545
|
Silentblock for TCA |
di:Ø12.2 L:49.4mm / 0,18 kg |
33 32 1 137 806, 33 32 1 097 009 (4) OEM |
 |
38BM1546
NEW
|
Mounting Axle Body Left |
di: Ø12.4 / do: Ø70.4 / L: 58.5 / 0,34 kg |
33 31 6 760 687, 6 760 687 (8) OEM |
 |
38BM1547
NEW
|
Mounting Axle Body Right |
c: Ø70.4 / L: 61.5 / 0,32 kg |
33 31 6 760 688, 33 31 6 757 394 (3) OEM |
 |
38BM2600
|
Silentblock for TCA |
di:Ø12.2 do: Ø46.4 L:53.5mm / 0,29 kg |
31 12 6 854 727*, 6 854 727* (8) OEM |
 |
38BM2700
|
Silentblock for TCA |
di:Ø14.2 do:Ø53.8 L:65 / 0,23 kg |
33 32 6 795 812, 6 795 812 |
 |
38BM2701
|
Silentblock for TCA |
di:Ø12.1 do:Ø44.8 L:47.8 / 0,12 kg |
6 786 980, 33 30 6 786 980 (2) OEM |
 |
38BM2705
|
Silentblock for TCA |
di:Ø14.2 do:Ø65.2 L:84mm / 0,27 kg |
31 10 6 787 673, 6 787 674 (4) OEM |
 |
38BM2706
NEW
|
Mounting Axle Body |
di: Ø17 / do: Ø55.5 / L: 48 / 0,53 kg |
33 30 6 786 972, 6 786 972 |
 |
38BM2750
NEW
|
Silentblock for TCA |
di: Ø12.1 / do: Ø56.3 / L: 70.8 / 0,4 kg |
31 10 6 870 975, 31 10 6 870 971* (1) OEM |
 |
45BM2730
IN PREPARATION
|
Strut Mount |
|
6 787 178, 33 50 6 787 178 |
