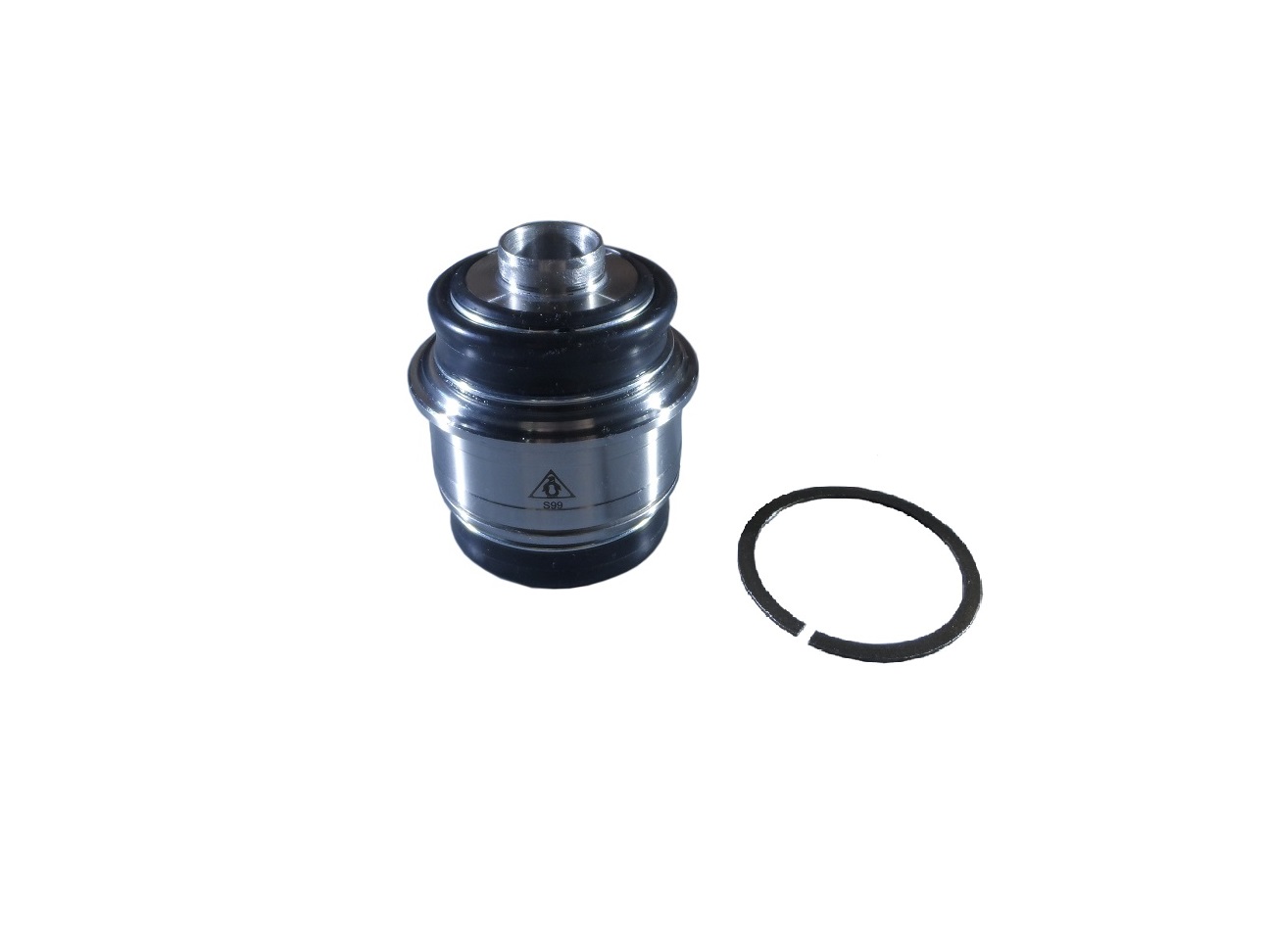

11BM0420
|
Silentblock Bushing |
di:Ø16.2 do:Ø51.7 / 0,58 kg |
33 32 6 770 985, 6 770 985 |
 |
17BM0410
NEW
|
Tie Rod End Left |
0,84 kg |
32 10 6 858 736, 32 10 6 863 858 |
 |
17BM0411
NEW
|
Tie Rod End Right |
0,84 kg |
32 10 6 863 860, 32 10 6 858 738 |
 |
17BM0420
|
Tie Rod End |
L:188 cr:1/6 c:Ø15.5 tp:M14x1.5 th:FM14x1.5 RHT / 0,82 kg |
32 21 6 773 739, 6 793 497 (4) OEM |
 |
17BM2904
IN PREPARATION
|
Tie Rod End Left |
|
32 10 6 887 405 |
 |
17BM2905
IN PREPARATION
|
Tie Rod End Right |
|
32 10 6 887 406 |
 |
20BM0410
|
Axial Joint |
L:224 tp:M16x1.5 th:MM14x1.5 RHT / 0,58 kg |
32 10 6 858 735, 32 10 6 858 737 |
 |
20BM0420
|
Axial Joint |
L:220 tp:M18x1.5 th:MM14x1.5 RHT / 0,58 kg |
32 21 6 773 741*, 32 10 6 793 498* (8) OEM |
 |
23BM0402
IN PREPARATION
|
Track Control Arm Rear Left |
|
33 32 4 046 917, 4 046 917 (6) OEM |
 |
23BM0403
IN PREPARATION
|
Track Control Arm Rear Right |
|
33 32 4 046 918, 4 046 918 (6) OEM |
 |
23BM0410
NEW
|
Track Control Arm Rear Left |
1,60 kg |
6 770 969, 33 32 6 770 969 (2) OEM |
 |
23BM0410B
NEW
|
Track Control Arm Rear Left (Without Fasteners) |
1,08 kg |
6 770 969, 33 32 6 770 969 (2) OEM |
 |
23BM0411
NEW
|
Track Control Arm Rear Right |
1,60 kg |
33 32 6 796 002, 6 796 002 (2) OEM |
 |
23BM0411B
NEW
|
Track Control Arm Rear Right (Without Fasteners) |
1,08 kg |
33 32 6 796 002, 6 796 002 (2) OEM |
 |
23BM0420
|
Track Control Arm Left |
tp:M14x1.5 RHT cr:1/6 c:Ø19 / 3,52 kg |
31 12 6 771 893, 6 771 893 |
 |
23BM0420B
|
Track Control Arm Left |
tp:M14x1.5 RHT cr:1/6 c:Ø19 / 3 kg |
31 12 6 771 893, 6 771 893 |
 |
23BM0421
|
Track Control Arm Right |
tp:M14x1.5 RHT cr:1/6 c:Ø19 / 3,52 kg |
31 12 6 771 894, 6 771 894 |
 |
23BM0421B
|
Track Control Arm Right |
tp:M14x1.5 RHT cr:1/6 c:Ø19 / 3 kg |
31 12 6 771 894, 6 771 894 |
 |
23BM0422
|
Track Control Arm Lower Left |
tp:M14x1.5 RHT cr:1/6 c:Ø18.9 / 4,86 kg |
6 863 169, 31 12 6 773 949 (2) OEM |
 |
23BM0422B
|
Track Control Arm Lower Left |
tp:M14x1.5 RHT cr:1/6 c:Ø18.9 / 4,82 kg |
6 863 169, 31 12 6 773 949 (2) OEM |
 |
23BM0423
|
Track Control Arm Lower Right |
tp:M14x1.5 RHT cr:1/6 c:Ø18.9 / 4,86 kg |
31 12 6 773 950, 31 12 6 863 170 (2) OEM |
 |
23BM0423B
|
Track Control Arm Lower Right |
tp:M14x1.5 RHT cr:1/6 c:Ø18.9 / 4,72 kg |
31 12 6 773 950, 31 12 6 863 170 (2) OEM |
 |
23BM0424
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
3112 6 864 821, 6 864 821 |
 |
23BM0425
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
31 12 6 864 822, 6 864 822 |
 |
23BM0426
NEW
|
Track Control Arm Lower Left |
4,66 kg |
31 12 6 851 691, 6 851 691 |
 |
23BM0426B
NEW
|
Track Control Arm Lower Left |
4,42 kg |
31 12 6 851 691, 6 851 691 |
 |
23BM0427
NEW
|
Track Control Arm Lower Right |
4,66 kg |
31 12 6 851 692, 6 851 692 |
 |
23BM0427B
NEW
|
Track Control Arm Lower Right |
4,42 kg |
31 12 6 851 692, 6 851 692 |
 |
23BM2950
IN PREPARATION
|
Track Control Arm Lower Left |
|
31 10 6 878 073, 31 10 6 893 549 (10) OEM |
 |
23BM2951
IN PREPARATION
|
Track Control Arm Lower Right |
|
31 10 6 878 074, 31 10 6 893 550 (10) OEM |
 |
26BM0360
|
Stabiliser Link Rear |
L:140 tp:M12x1.5 RHT / 0,2 kg |
6 861 482, 33 50 6 861 482 (4) OEM |
 |

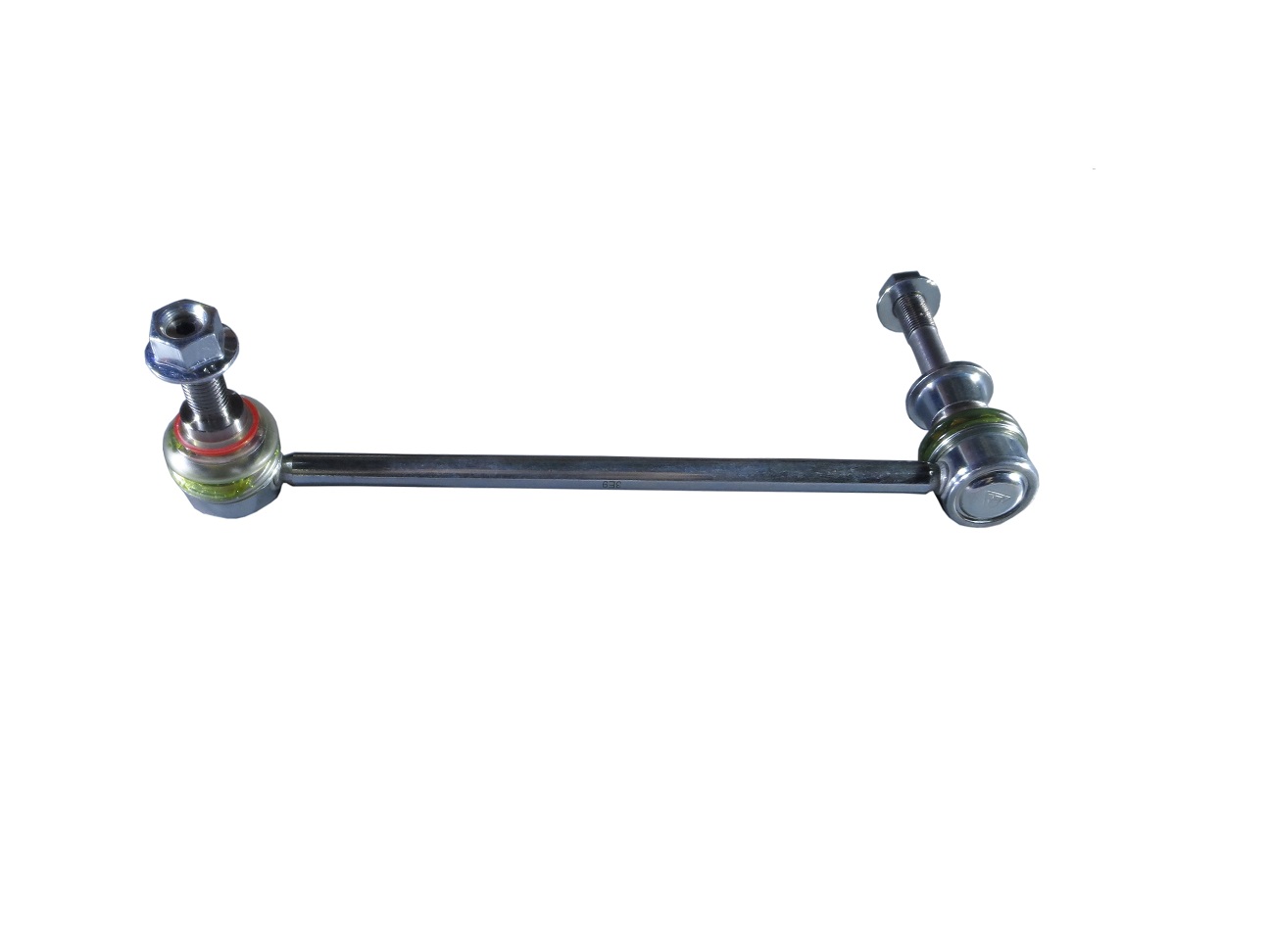

26BM0410
|
Stabiliser Link Left |
L:247 tp:M12x1.5 RHT / 0,6 kg |
6 857 627, 37 11 6 859 653 (4) OEM |
 |

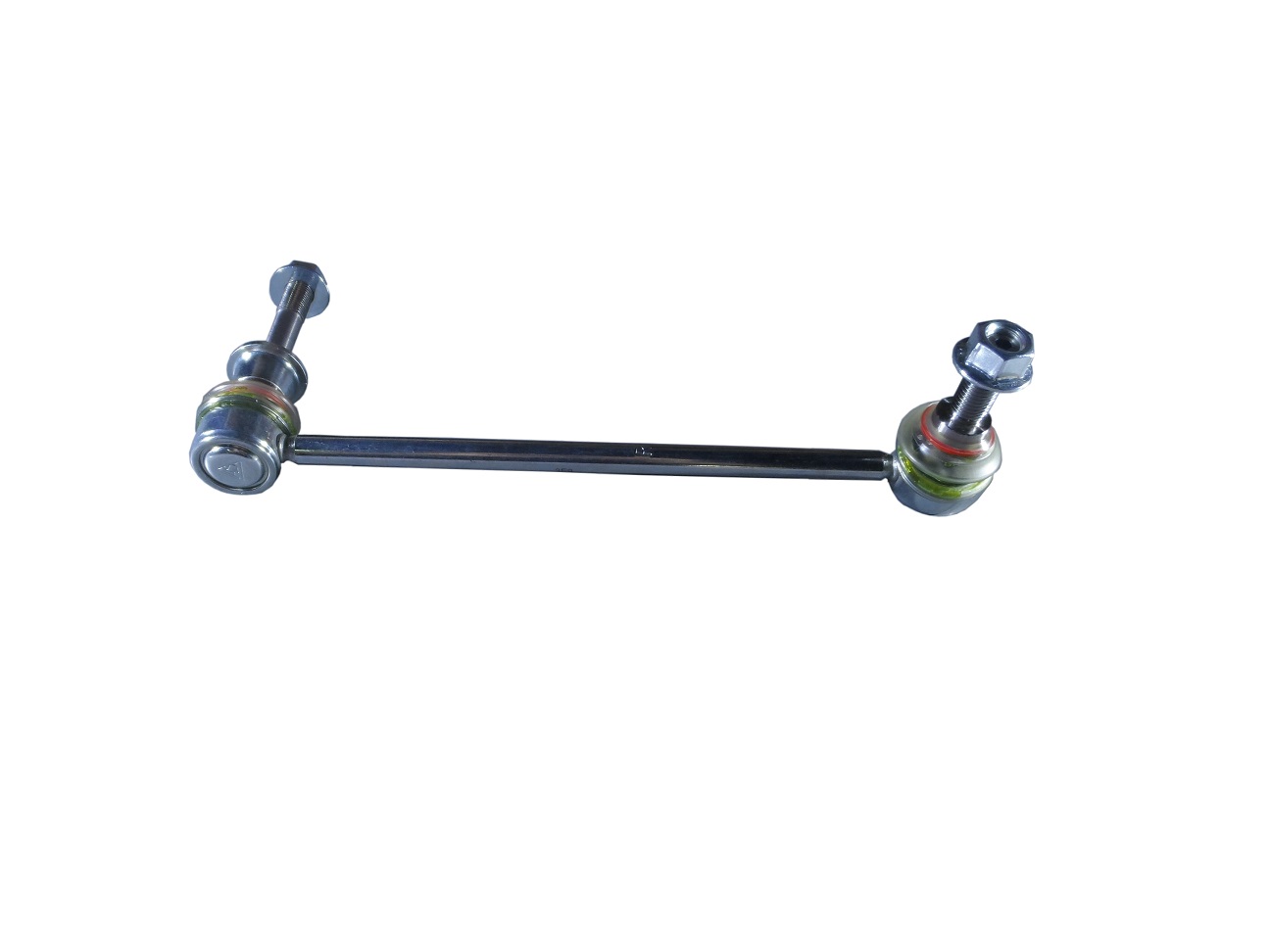

26BM0411
|
Stabiliser Link Right |
L:247 tp:M12x1.5 RHT / 0,6 kg |
6 857 628, 37 11 6 857 628 (4) OEM |
 |
26BM0412
|
Stabiliser Link Left |
L:248 tp:M12x1.5 RHT / 0,6 kg |
31 35 6 773 023, 31 35 6 857 623 (1) OEM |
 |
26BM0413
|
Stabiliser Link Right |
L:248 tp:M12x1.5 RHT / 0,55 kg |
31 35 6 773 024, 31 35 6 857 624 (1) OEM |
 |

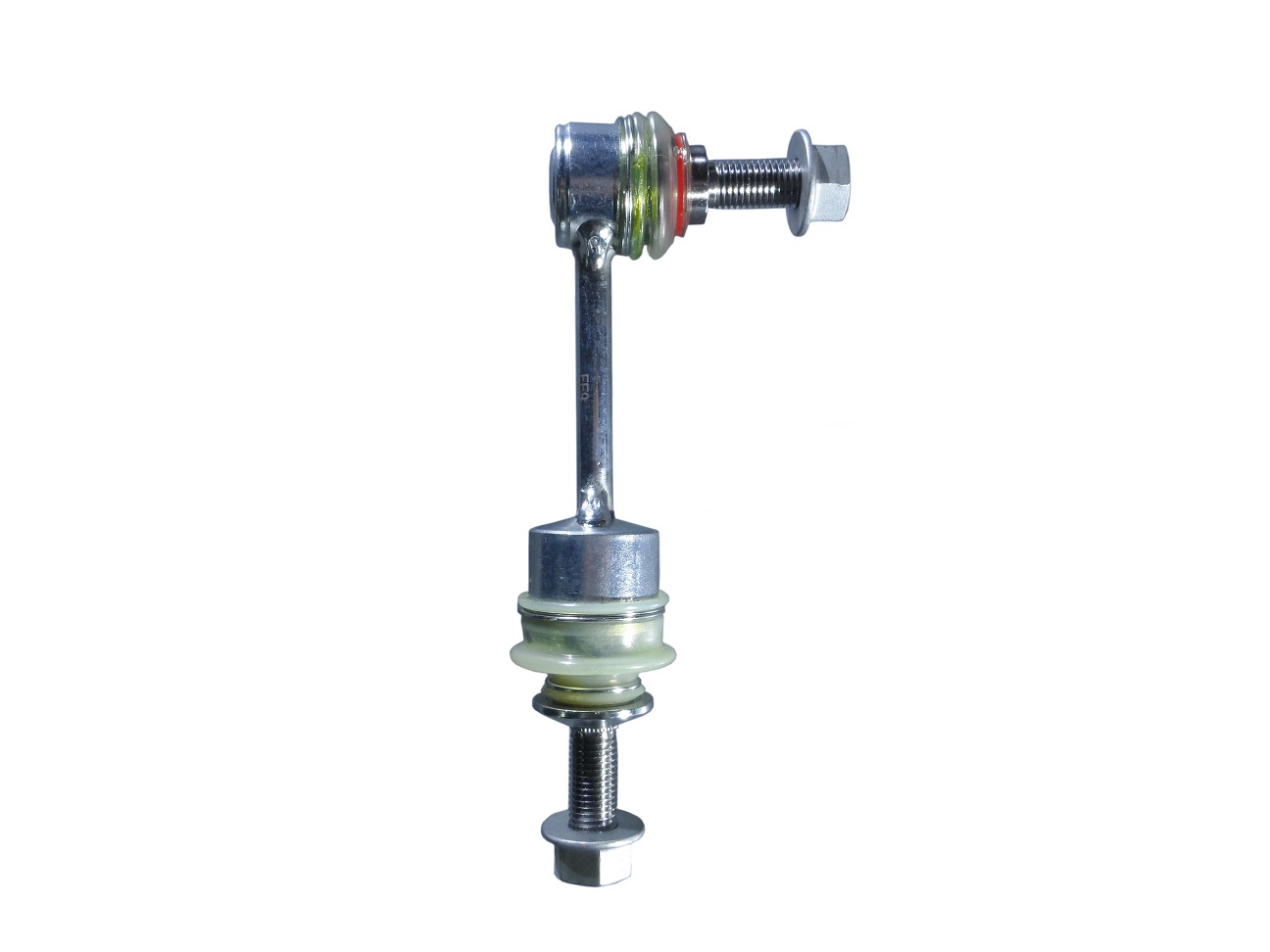

26BM0420
|
Stabiliser Link Rear |
L:125.5 tp:M12x1.5 RHT / 0,44 kg |
33 55 6 771 937, 6 857 626 (2) OEM |
 |
26BM2910
IN PREPARATION
|
Stabiliser Link Left |
|
31 35 6 881 807, 6 881 807 |
 |
26BM2911
IN PREPARATION
|
Stabiliser Link Right |
|
31 35 6 881 808, 6 881 808 |
 |
29BM0420
|
Tie Rod |
cr:1/6 c:Ø15.5 tp:M14x1.5 RHT / 1,35 kg |
32 10 6 780 985, 32 21 6 773 741 (4) OEM |
 |
30BM0420
IN PREPARATION
|
Track Control Arm Left |
0 kg |
31 12 6 772 997, 31 12 6 863 335 (2) OEM |
 |
30BM0421
IN PREPARATION
|
Track Control Arm Upper Right |
0 kg |
31 12 6 772 998, 31 12 6 863 335 (2) OEM |
 |
30BM0422
IN PREPARATION
|
Track Control Arm Left |
|
31 12 6 772 995, 31 12 6 863 333 |
 |
30BM0423
IN PREPARATION
|
Track Control Arm Right |
|
31 12 6 772 996, 31 12 6 863 334 |
 |
30BM2950
IN PREPARATION
|
Track Control Arm Upper Left |
|
31 10 6 883 115, 6 883 115 |
 |
30BM2951
IN PREPARATION
|
Track Control Arm Upper Right |
|
31 10 6 883 116, 6 883 116 |
 |
38BM0352
|
Silentblock for TCA |
L:71 di:Ø14.3 do:Ø55.9 / 0,25 kg |
6 861 169*, 6 878 080 (14) OEM |
 |
38BM0403
|
Silentblock for TCA |
L:46 di:Ø12 do:Ø47 / 0,11 kg |
33 30 6 775 494, 33 32 6 779 387* (1) OEM |
 |
38BM0410
|
Silentblock for TCA |
L:48 di:Ø12.1 di1:Ø49.8 do:Ø52 / 0,14 kg |
33 32 6 770 970*, 33 30 6 779 517 (1) OEM |
 |
38BM0420
|
Silentblock for TCA |
L:50 di:Ø14 do:Ø43.2 / 0,26 kg |
31 10 6 878 081*, 31 12 6 855 509 (3) OEM |
 |
38BM0421
|
Silentblock for TCA |
L:55 di:Ø14 do:Ø43.2 / 0,27 kg |
31 12 6 771 893, 31 10 6 771 194 (1) OEM |
 |
38BM0422
|
Silentblock for TCA |
L:90 di:Ø12.1 do:Ø70.6 / 0,57 kg |
31 12 6 863 171, 6 863 171 (2) OEM |
 |
38BM0423
|
Silentblock for TCA |
L:90 di:Ø12.2 do:Ø70.2 / 0,38 kg |
31 12 6 851 693, 6 851 693 |
 |
38BM1000
|
Silentblock for TCA |
L:70.9 di:Ø14.2 do:Ø56.3 / 0,25 kg |
31 12 6 777 739*, 31 12 6 777 740* (9) OEM |
 |
45BM0420
|
Strut Mount |
di:Ø12.3 / 0,93 kg |
6 788 776, 6 776 391 (4) OEM |
 |
45BM0450
|
Strut Mount |
di:Ø12.3 / 0,6 kg |
33 50 6 867 864, 6 867 864 (2) OEM |
 |
45BM0455
|
Strut Mount |
L:68.1 di:Ø13.5 do:Ø115 / 0,79 kg |
31 30 6 851 880, 6 851 880 (2) OEM |
