11BM1500
|
Silentblock Bushing |
di:Ø12,15 do:Ø45,2 / 0,32 kg |
33 30 6 852 895, 33 32 1 138 722 (6) OEM |
 |
13BM1520
|
Silentblock for TCA Set |
1,38 kg |
31 12 6 757 623, 31 12 6 757 624 (12) OEM |
 |
17BM2000
|
Tie Rod End Left |
c:Ø14,6 th:FM14x1,5 RHT / 0,73 kg |
1 095 957, 32 10 6 774 220 (2) OEM |
 |

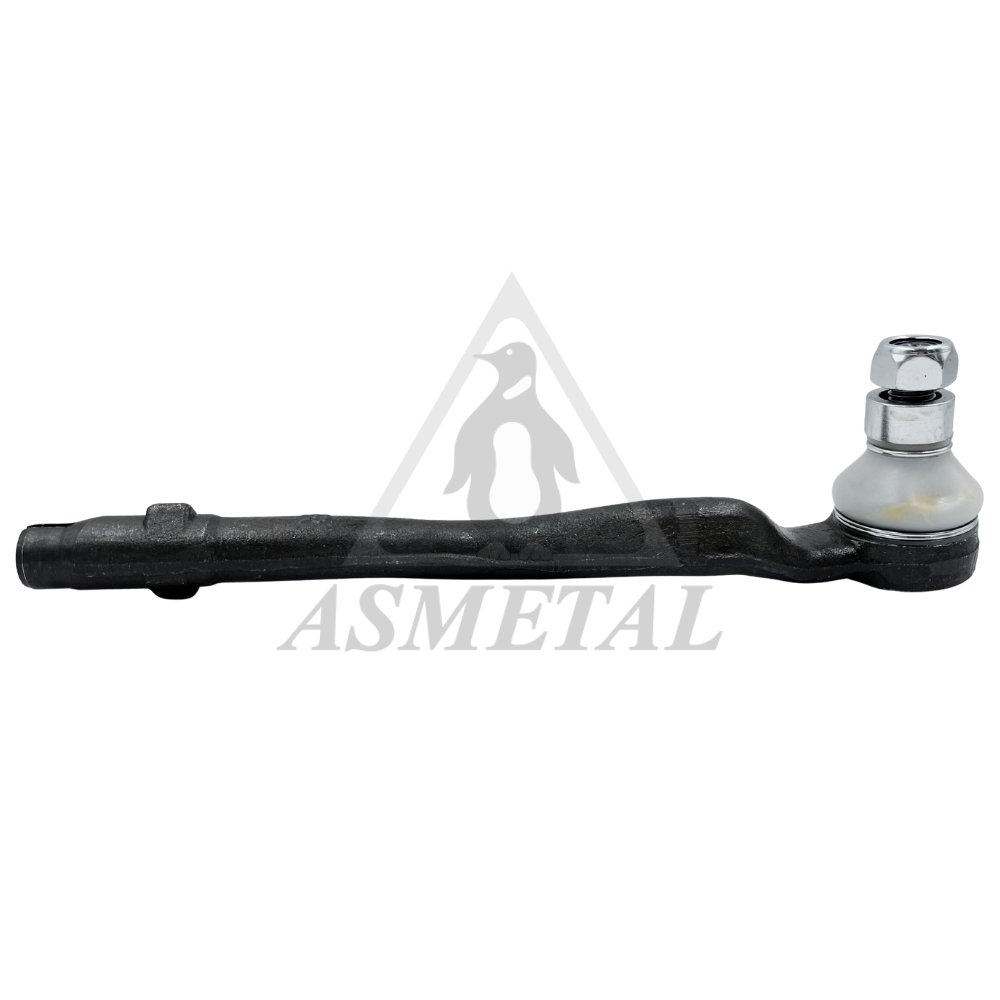

17BM2001
|
Tie Rod End Right |
c:Ø14,6 th:FM14x1,5 RHT / 0,73 kg |
1 095 958, 32 10 6 774 221 (2) OEM |
 |
17BM2450
|
Tie Rod End Left |
th:FM14x1,5 RHT / 0,68 kg |
32 10 676 50 89, 6 765 089 (2) OEM |
 |
17BM2451
|
Tie Rod End Right |
th:FM14x1,5 RHT / 0,68 kg |
6 767 782, 32 10 6 765 090 (2) OEM |
 |
17BM2902
IN PREPARATION
|
Tie Rod End Left |
|
32 10 6 887 400, 32 10 5 A38 DE6 (1) OEM |
 |
17BM2903
IN PREPARATION
|
Tie Rod End Right |
|
32 10 5 A38 DE8, 32 10 6 887 402 (1) OEM |
 |
20BM2000
|
Axial Joint |
th:MM18x1.5 RHT L:204mm / 0,43 kg |
32 21 1 095 950, 32 11 1 096 898* (21) OEM |
 |
20BM2450
|
Axial Joint |
th:MM18x1.5 RHT L:256mm / 0,62 kg |
6 765 238, 32 10 6 765 236 (4) OEM |
 |
23BM2450
|
Track Control Arm Upper Left |
th:MM14x1.5 RHT cs: Ø16.2 / 1,94 kg |
6 763 703, 31 12 2 405 861 (10) OEM |
 |
23BM2450B
|
Track Control Arm Upper Left (Without Fasteners) |
th:MM14x1.5 RHT cs: Ø16.2 / 1,75 kg |
31 12 4 036 269, 31 12 2 405 861 (10) OEM |
 |
23BM2451
|
Track Control Arm Upper Right |
th:MM14x1.5 RHT cs: Ø16.2 / 1,94 kg |
6 769 802, 4 036 270 (9) OEM |
 |
23BM2451B
|
Track Control Arm Upper Right (Without Fasteners) |
th:MM14x1.5 RHT cs: Ø16.2 / 1,75 kg |
6 769 802, 6 763 708 (9) OEM |
 |
23BM2452
|
Track Control Arm Lower Left |
th:MM14x1.5 RHT cs: Ø16.2 / 1,2 kg |
6 769 793, 6 770 849 (8) OEM |
 |
23BM2452B
|
Track Control Arm Lower Left (Without Fasteners) |
th:MM14x1.5 RHT cs: Ø16.2 / 1 kg |
6 769 793, 6 770 849 (8) OEM |
 |
23BM2453
|
Track Control Arm Lower Right |
th:MM14x1.5 RHT cs: Ø16.2 / 1,2 kg |
6 769 794, 31 12 6 786 204 (8) OEM |
 |
23BM2453B
|
Track Control Arm Lower Right (Without Fasteners) |
th:MM14x1.5 RHT cs: Ø16.2 / 1 kg |
2 405 860, 6 763 700 (8) OEM |
 |
26BM2000
|
Stabiliser Link |
L:270mm / 0,37 kg |
31 35 0 956 94, 31 35 6 780 847 (3) OEM |
 |
26BM2450
|
Stabiliser Link Right |
L:290mm / 0,48 kg |
6 765 934, 31 35 6 765 934 |
 |
26BM2451
|
Stabiliser Link Left |
L:290mm / 0,48 kg |
6 765 933, 31 35 6 765 933 |
 |
26BM2510
|
Stabiliser Link Rear Left |
L: 135 tp: MM10x1.5 / 0,19 kg |
6 785 607, 33 50 6 785 607 (1) OEM |
 |
26BM2511
|
Stabiliser Link Rear Right |
L: 135 tp: MM10x1.5 / 0,19 kg |
6 785 608, 33 50 6 785 608 (1) OEM |
 |
26BM2515
NEW
|
Stabiliser Link Rear Left |
L: 135 tp: MM10x1.5 / 0,32 kg |
6 785 607, 33 50 6 785 607 |
 |
26BM2516
NEW
|
Stabiliser Link Rear Right |
L: 135 tp: MM10x1.5 / 0,32 kg |
33 50 6 785 608, 6 785 608 |
 |
29BM2000
|
Tie Rod Left |
1,2 kg |
32 11 1 096 897, 6 777 503 (4) OEM |
 |
29BM2001
|
Tie Rod Right |
1,2 kg |
32 10 6 777 504, 6 774 223 (4) OEM |
 |
29BM2450
|
Tie Rod Left |
th:MM14x1.5 RHT cs:Ø16.6 / 1,03 kg |
32 10 6 765 235, 6 765 235 |
 |
29BM2451
|
Tie Rod Right |
th:MM14x1.5 RHT cs: Ø16.16 / 1,03 kg |
6 765 236, 32 10 6 765 236 |
 |
30BM2000
|
Track Control Arm Left |
tp: M12x1.5 cr: 1:10 c: Ø14.4 / 3 kg |
6 777 851, 1 094 465 (20) OEM |
 |
30BM2001
|
Track Control Arm Right |
tp: M12x1.5 cr: 1:10 c: Ø14.4 / 3 kg |
31 12 6 750 224, 31 12 1 096 986 (22) OEM |
 |
30BM2002
|
Track Control Arm Left |
tp: M12x1.5 cr: 1:10 c: Ø14.4 / 3,74 kg |
31 12 6 750 223, 2 343 359 (22) OEM |
 |
30BM2003
|
Track Control Arm Right |
tp: M12x1.5 cr: 1:10 c: Ø14.4 / 3,74 kg |
31 12 6 777 852, 31 12 6 774 820 (22) OEM |
 |
38BM1500
|
Silentblock for TCA |
di:Ø12,1 do:Ø35,3 / 0,1 kg |
33 32 6 770 824, 6 770 824 (4) OEM |
 |
38BM1505
|
Silentblock for TCA |
di:Ø12 do:Ø45,5 / 0,26 kg |
33 32 6 771 828, 6 771 828 (2) OEM |
 |
38BM1510
|
Silentblock for TCA |
do:Ø66,5 / 0,36 kg |
31 12 6 755 432, 6 755 432 |
 |
38BM1520
|
Silentblock for TCA Left |
di: Ø12 / do: Ø66 / L: 61 / 0,68 kg |
31 12 4 004 359, 31 12 1 096 983 (16) OEM |
 |
38BM1521
|
Silentblock for TCA Right |
di: Ø12 / do: Ø66 / L: 61 / 0,7 kg |
31 12 6 750 221, 31 12 6 750 057 (11) OEM |
 |
38BM1524
|
Stabiliser Mounting |
di:Ø24 L:56mm / 0,22 kg |
31 35 1 094 556, 1 094 556 (4) OEM |
 |
38BM1530
|
Stabiliser Mounting |
di:Ø17 / 0,04 kg |
33 55 1 138 326, 33 55 1 136 491 (4) OEM |
 |
38BM1535
|
Stabiliser Mounting |
di:Ø15 / 0,04 kg |
33 55 1 094 550, 33 55 1 131 155 |
 |
38BM1537
|
Stabiliser Mounting |
di:Ø23 L:56mm / 0,15 kg |
6 751 269, 31 35 1 097 179 (2) OEM |
 |
38BM1546
NEW
|
Mounting Axle Body Left |
di: Ø12.4 / do: Ø70.4 / L: 58.5 / 0,34 kg |
33 31 6 760 687, 6 760 687 (8) OEM |
 |
38BM1547
NEW
|
Mounting Axle Body Right |
c: Ø70.4 / L: 61.5 / 0,32 kg |
33 31 6 760 688, 33 31 6 757 394 (3) OEM |
 |

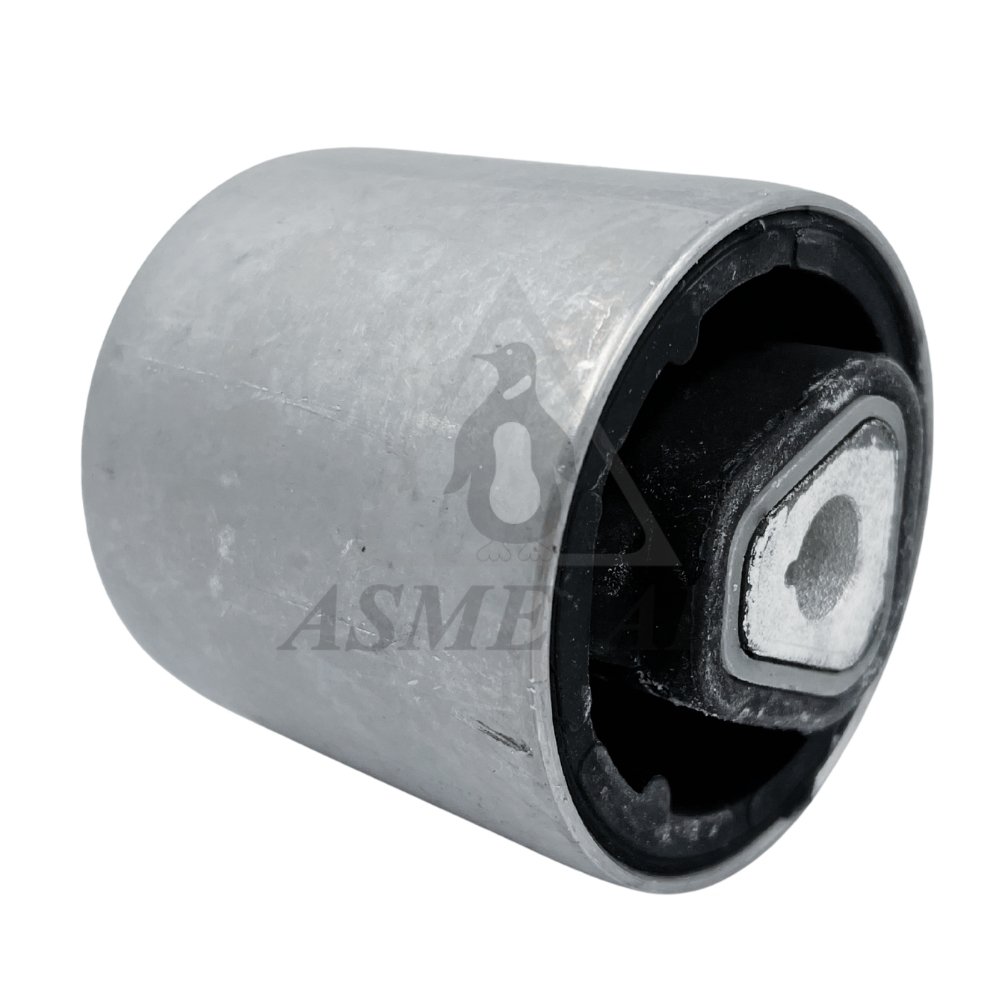

38BM2450
|
Silentblock for TCA |
di:Ø12,2 do:Ø70,2 L:76 / 0,46 kg |
31 12 6 763 719, 31 12 0 398 350 (1) OEM |
 |
38BM2453
|
Silentblock for TCA |
di:Ø12 do:Ø46.5 L:71mm / 0,24 kg |
31 12 6 763 700, 6 763 700 (12) OEM |
 |
38BM2456
NEW
|
Stabiliser Mounting |
di: Ø26.5 / L: 55 / 0,14 kg |
6 765 574, 31 35 6 765 574 |
 |
38BM2525
NEW
|
Silentblock for TCA |
di: Ø12.2 / do: Ø41.6 / L: 38 / 0,091 kg |
33 32 6 878 632*, 48770 WAA02* |
 |
38BM2526
NEW
|
Silentblock for TCA |
0,1500 kg |
33 32 6 878 631*, 6 878 631* |
