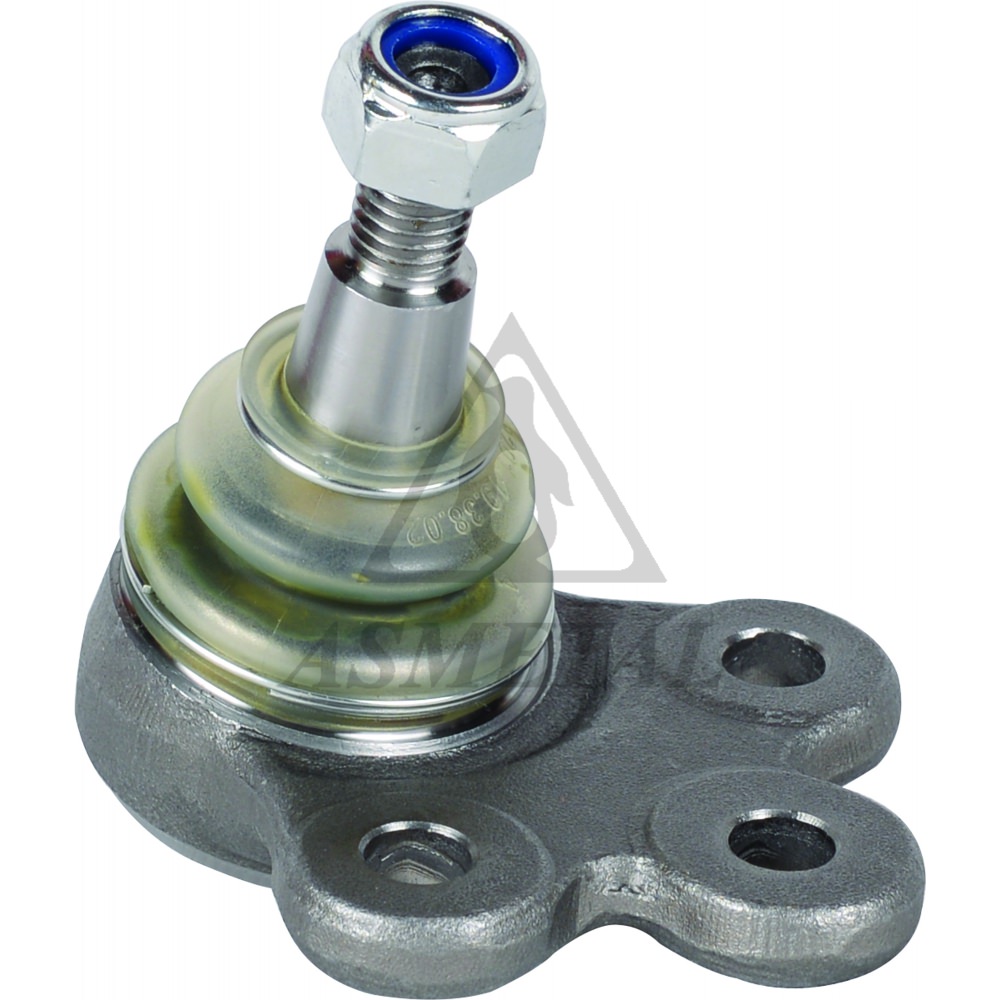

10CH0100
|
Ball Joint |
th:M12x1.5 RHT cr:1/6 c:Ø15.12 / 0,76 kg |
96 852 964, 48 17 778 (11) OEM |
 |
10CH0300
IN PREPARATION
|
Ball Joint |
|
95032440*, 95952782* (3) OEM |
 |
10DW1000
|
Ball Joint Lower |
th:M12x1.25 RHT cr:1/8 c:Ø14.8 / 0,6 kg |
96 535 089, 5 490 983 |
 |

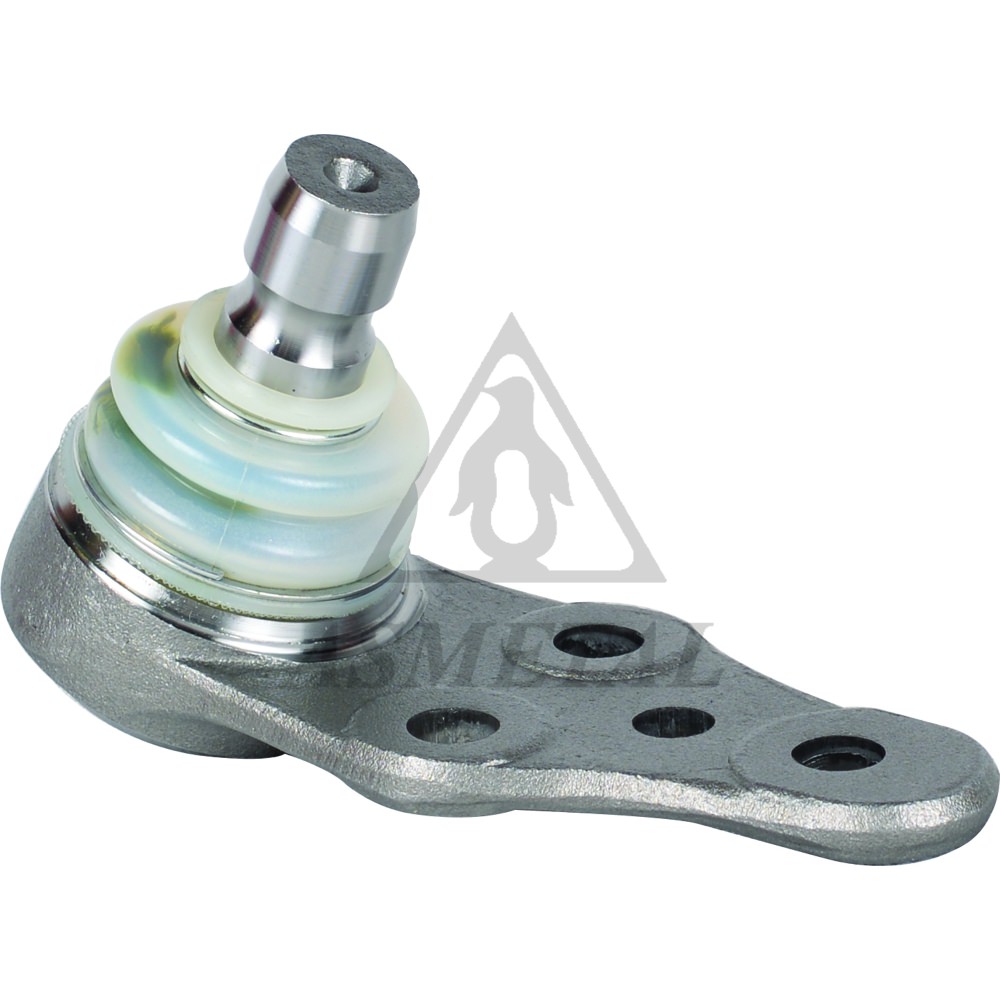

10DW2000
|
Ball Joint Lower |
c:Ø18 / 0,64 kg |
96 490 218 |
 |

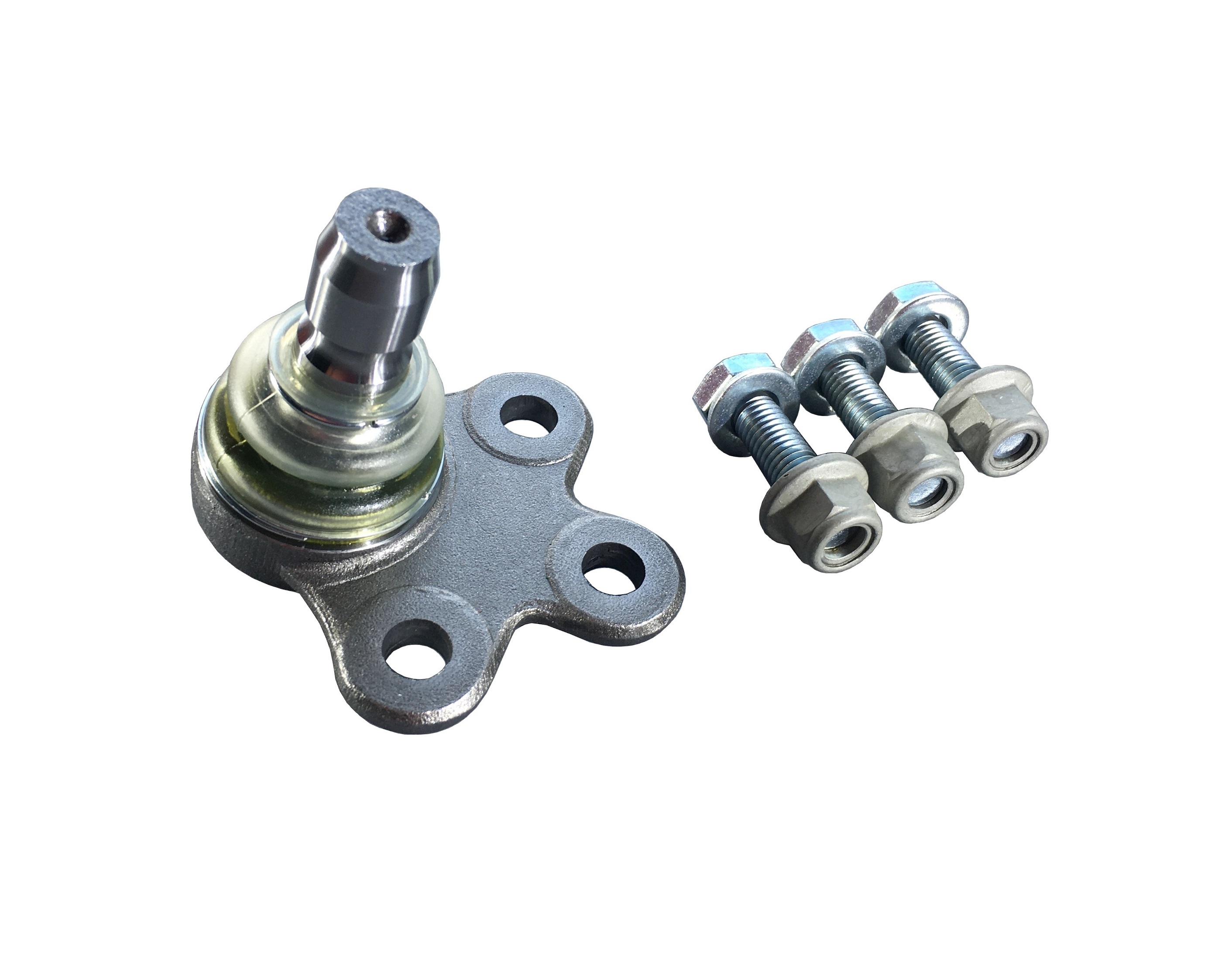

10OP5000
|
Ball Joint Lower |
c:Ø18.1 / 0,58 kg |
95 017 035, 95 017 034 (6) OEM |
 |
10OP9120
|
Ball Joint Lower |
th:M12x1.25 RHT cr:1/6 c:Ø13.3 / 0,59 kg |
94 786 917, 96 216 354 (7) OEM |
 |

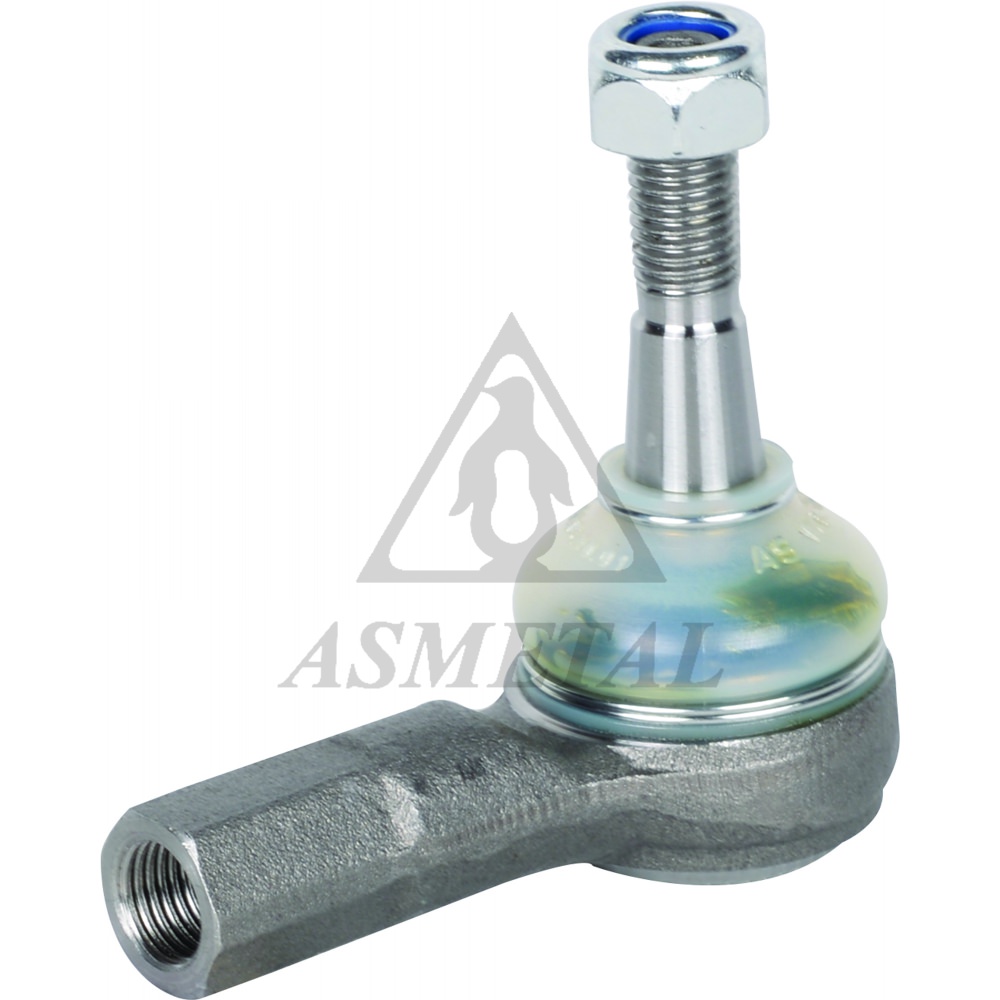

17CH0100
|
Tie Rod End |
L:74 cr:1/6 c:Ø12.4 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
96 626 667, 48 03 429 |
 |
17CH9500
NEW
|
Tie Rod End |
0,35 kg |
95 952 936, 95 952 930 |
 |
17DW0300
IN PREPARATION
|
Tie Rod End |
|
95 967 285 |
 |
17DW0500
|
Tie Rod End |
L:70 cr:1/8 c:Ø12.5 tp:M12x1.5 th:FM12x1.5 RHT / 0,3 kg |
93 741 077, 5 21 136 (8) OEM |
 |
17DW1000
|
Tie Rod End Left |
L:189.5 cr:1/8 c:Ø13.2 tp:M12x1.5 th:FM12x1.5 RHT / 0,65 kg |
93 740 722, KBJO47A (1) OEM |
 |
17DW1001
|
Tie Rod End Right |
L:189.5 cr:1/8 c:Ø13.2 tp:M12x1.5 th:FM12x1.5 RHT / 0,65 kg |
KBJO48A, 93 740 623 (1) OEM |
 |

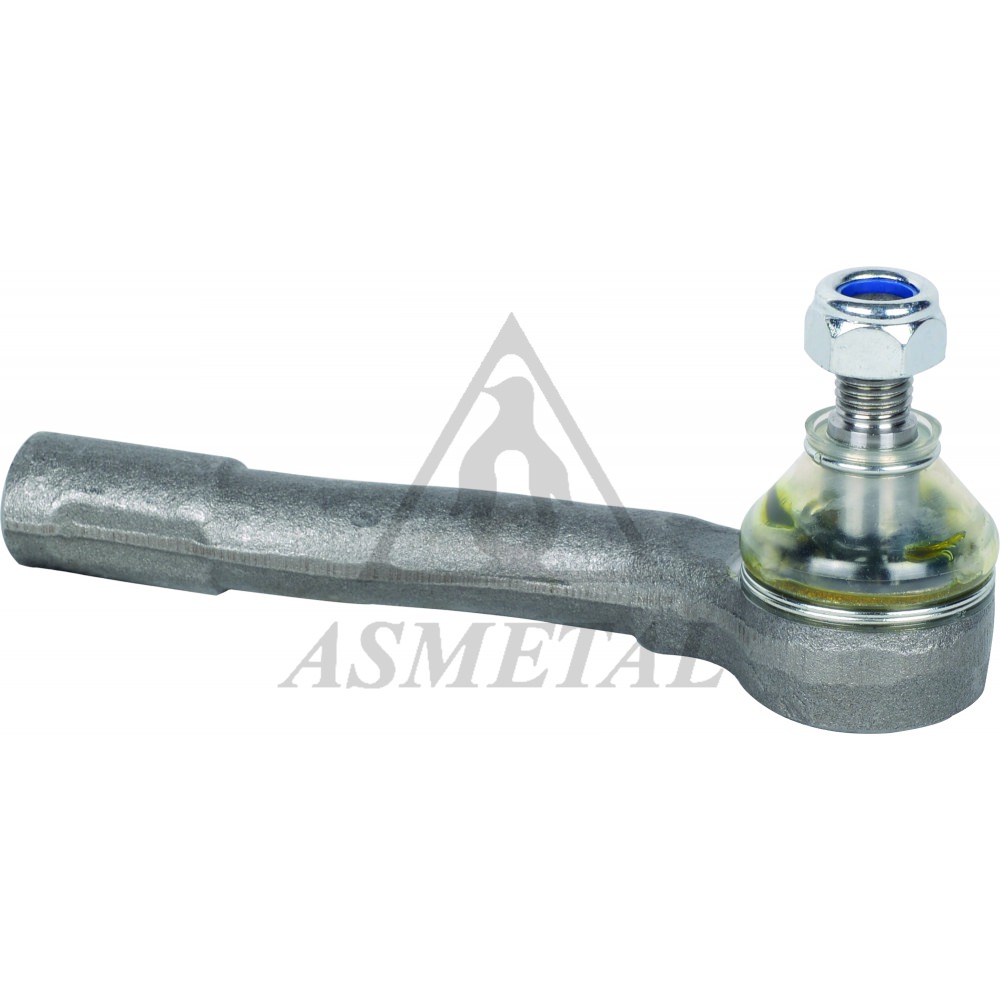

17DW2000
|
Tie Rod End Left |
L:142 cr:1/9 c:Ø13.3 tp:M12x1.5 th:FM14x1.5 RHT / 0,6 kg |
96 407 485 |
 |

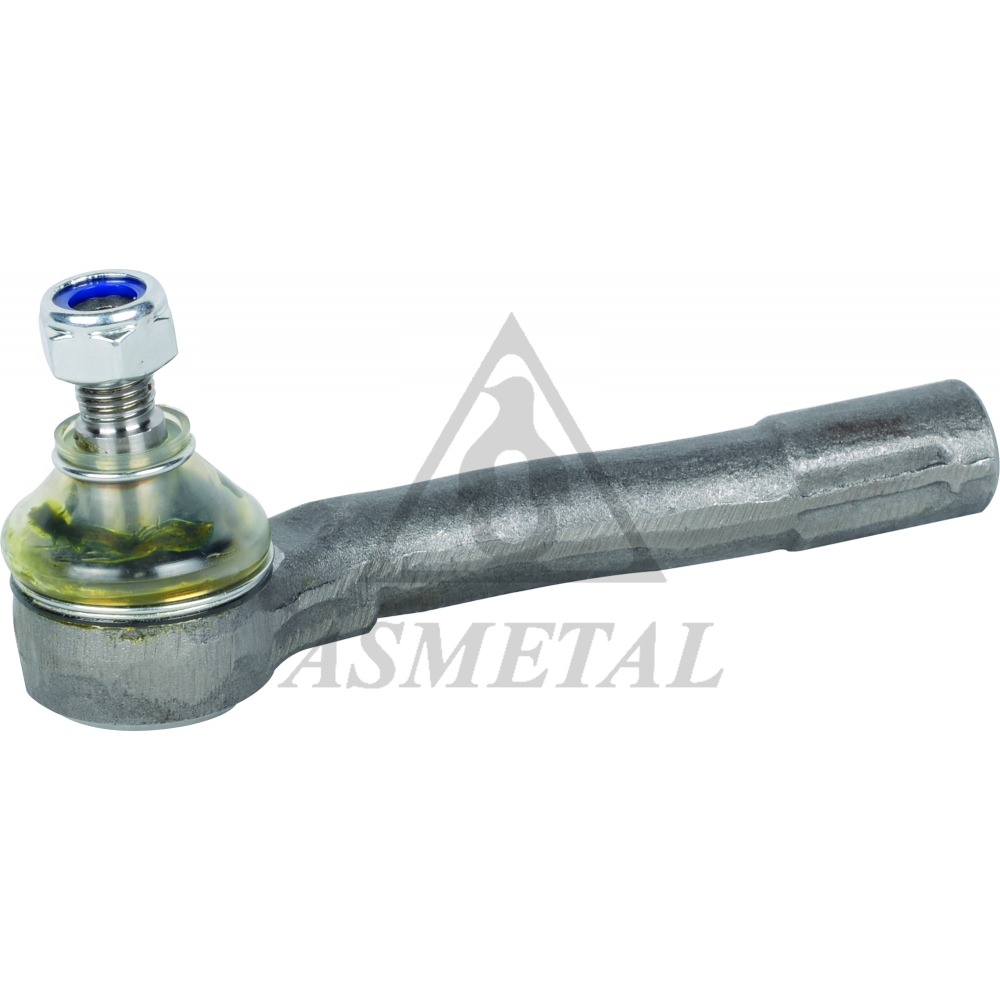

17DW2001
|
Tie Rod End Right |
L:142 cr:1/9 c:Ø13.3 tp:M12x1.5 th:FM14x1.5 RHT / 0,6 kg |
96 407 486, 96 407 486 |
 |
17DW4300
IN PREPARATION
|
Tie Rod End |
0 kg |
5 20 262, 93 740 710 (6) OEM |
 |
17OP1400
|
Tie Rod End |
L:119.3 cr:1/6 c:Ø13.1 tp:M12x1.75 th:FM16x1.5 RHT / 0,6 kg |
13 272 000, 13 278 359 (3) OEM |
 |
17OP4038
|
Tie Rod End Right |
L:66 cr:1/8 c:Ø13 tp:M12x1.5 th:FM16x1.5 LHT / 0,46 kg |
260 01 806, 96 275 019 (3) OEM |
 |
17OP4039
|
Tie Rod End Left |
L:66 cr:1/8 c:Ø13 tp:M12x1.5 th:FM16x1.5 RHT / 0,46 kg |
26 001 807, 7 846 495 (3) OEM |
 |

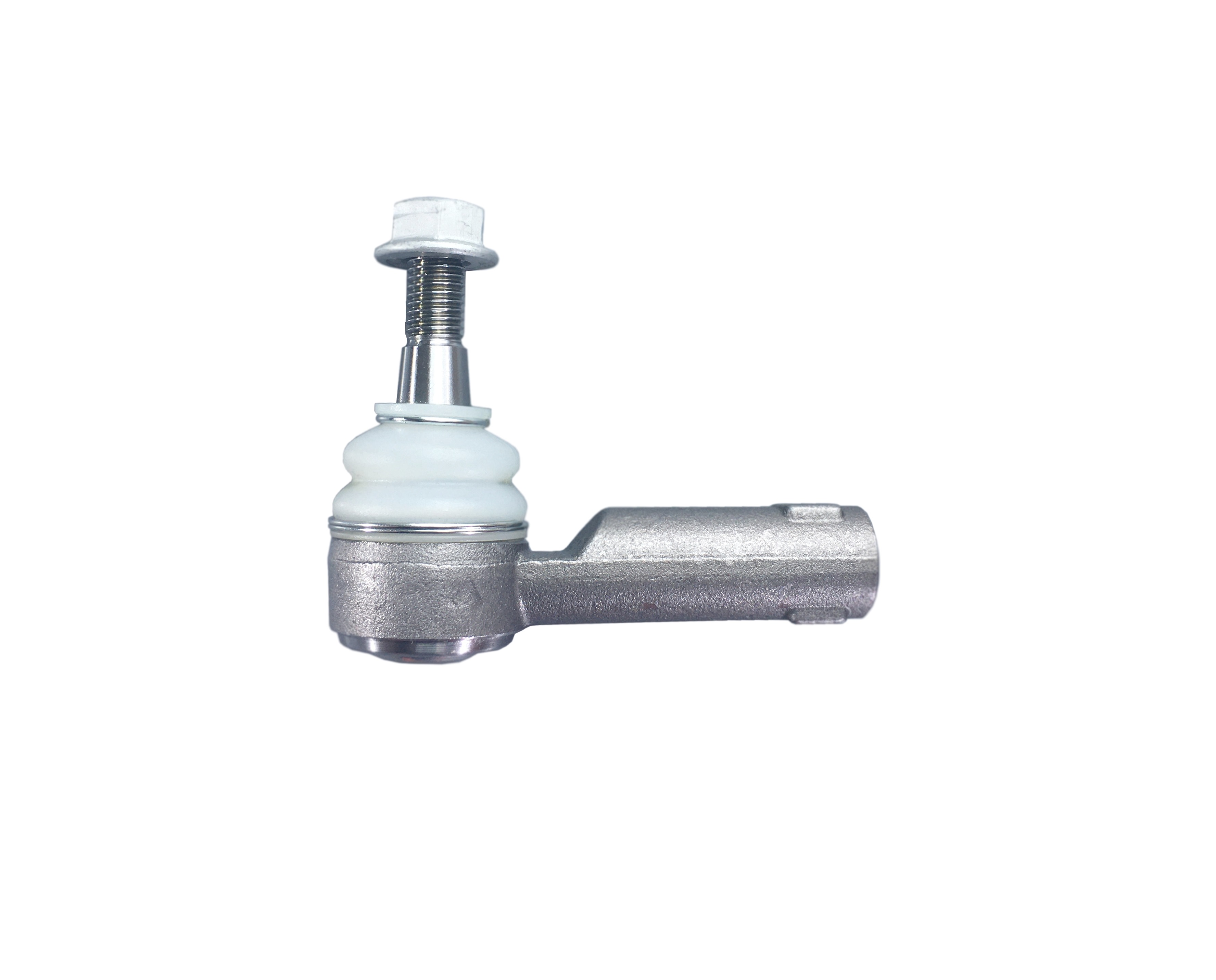

17OP5000
|
Tie Rod End |
L:89 cr:1/6 c:Ø13 tp:M12x1.75 th:FM14x1.5 RHT / 0,48 kg |
95 914 910 |
 |
17OP5010
|
Tie Rod End |
L:73 cr:1/6 c:Ø12.9 tp:M12x1.75 th:FM14x1.5 RHT / 0,4 kg |
95 932 790, 95 932 779 (2) OEM |
 |
20CH0100
|
Axial Joint |
L:358.5 tp:M16x1.5 th:MM14x1.5 RHT / 0,72 kg |
96 626 667, 48 03 429 (6) OEM |
 |
20CH9500
NEW
|
Axial Joint |
0,72 kg |
95 218 372 |
 |

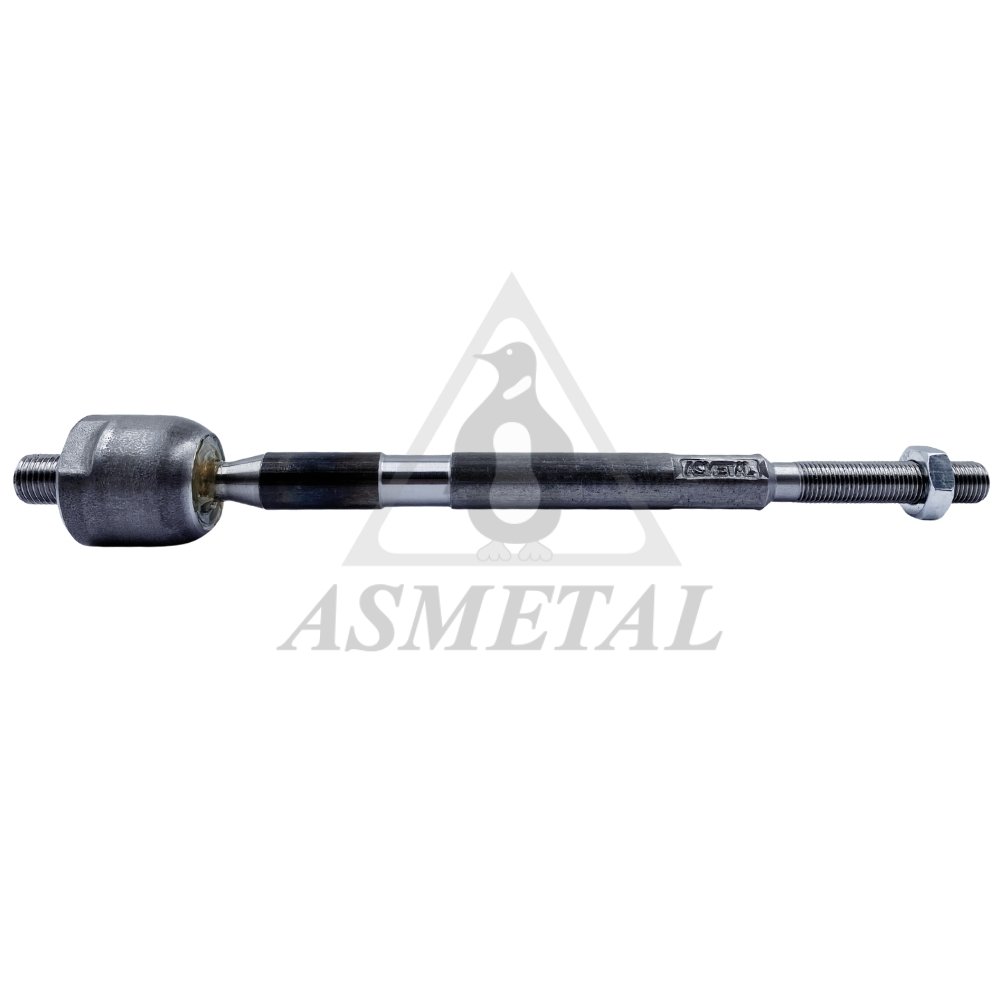

20DW0300
IN PREPARATION
|
Axial Joint |
|
95 967 294 |
 |
20DW1000
|
Axial Joint |
L:200 tp:M16x1.5 th:MM12x1.5 RHT / 0,41 kg |
96 535 300, 96 425 093 |
 |
20OP1100
|
Axial Joint |
L:293 tp:M16x1.5 th:MM16x1.5 RHT / 0,7 kg |
13 278 358, 9 20 005 (1) OEM |
 |
20OP1110
IN PREPARATION
|
Axial Joint |
0 kg |
13 286 687, 13 398 593 (1) OEM |
 |
20OP1400
|
Axial Joint |
L:309 tp:M18x1.5 th:MM16x1.5 RHT / 0,78 kg |
13 271 996, 66 06 030 |
 |
20OP5000
|
Axial Joint |
L:334 tp:M14x1.5 th:MM14x1.5 RHT / 0,65 kg |
95 952 929, 16 09 213 |
 |
20OP5010
|
Axial Joint |
L:350 tp:M16x1.5 th:MM14x1.5 RHT / 0,68 kg |
96 932 789, 95 932 789 (1) OEM |
 |
26CH0100
|
Stabiliser Link Left |
L:286 tp:M12x1.75 RHT / 0,44 kg |
96 626 247, 96 996 450 (8) OEM |
 |
26CH0101
|
Stabiliser Link Right |
L:286 tp:M12x1.75 RHT / 0,44 kg |
95 942 520, 96 626 248 (8) OEM |
 |
26CH0105
|
Stabiliser Link Rear |
L:166.5 tp:M10x1.5 RHT / 0,32 kg |
96 996 460, 96 626 150 (2) OEM |
 |
26CH9500
NEW
|
Stabiliser Link |
0,50 kg |
95 299 172, 42 342 547 (4) OEM |
 |
26DW0300
IN PREPARATION
|
Stabiliser Link |
|
95 947 829 |
 |
26DW0500
|
Stabiliser Link Rear |
L:247 tp:M10x1.5 RHT / 0,4 kg |
96 391 876, 96 300 222 (1) OEM |
 |
26DW0501
|
Stabiliser Link |
L:247 tp:M10x1.5 RHT / 0,4 kg |
96 300 627 |
 |

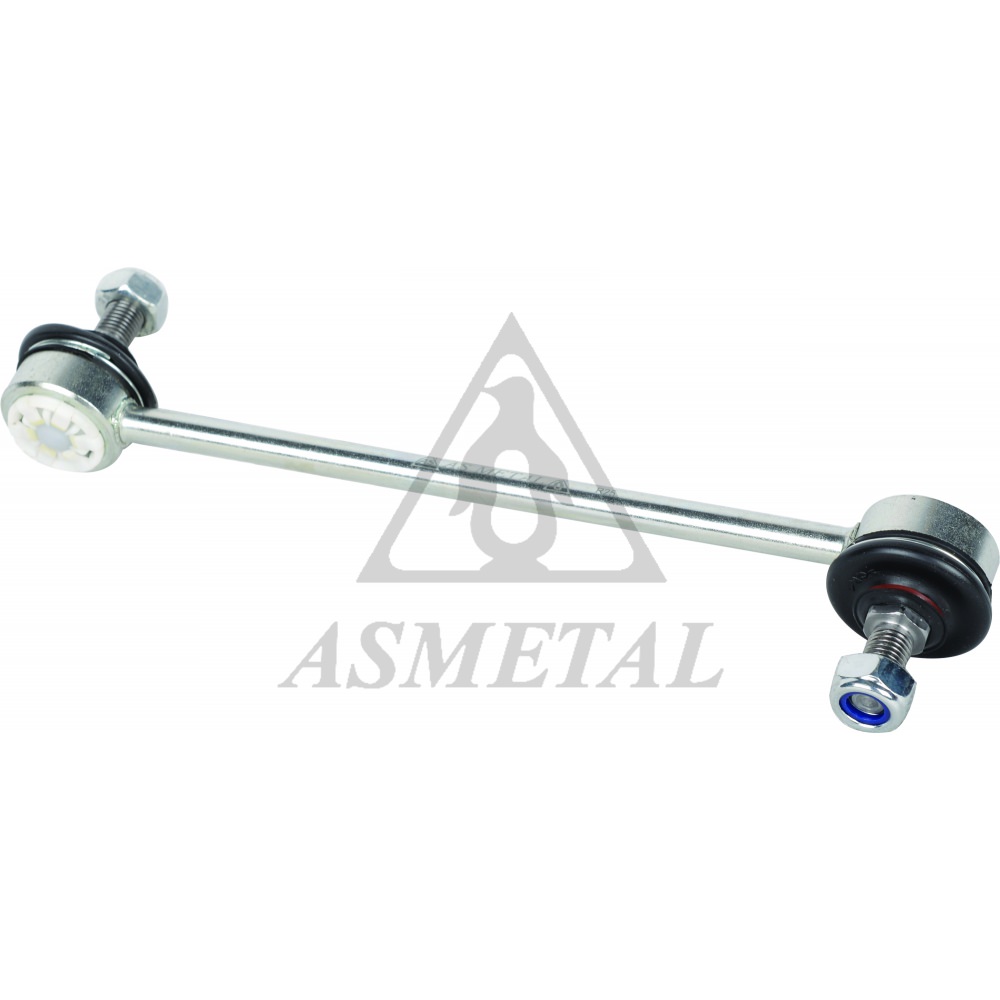

26DW0505
|
Stabiliser Link Rear |
L:217 tp:M10x1.25 RHT / 0,32 kg |
96 561 754 |
 |

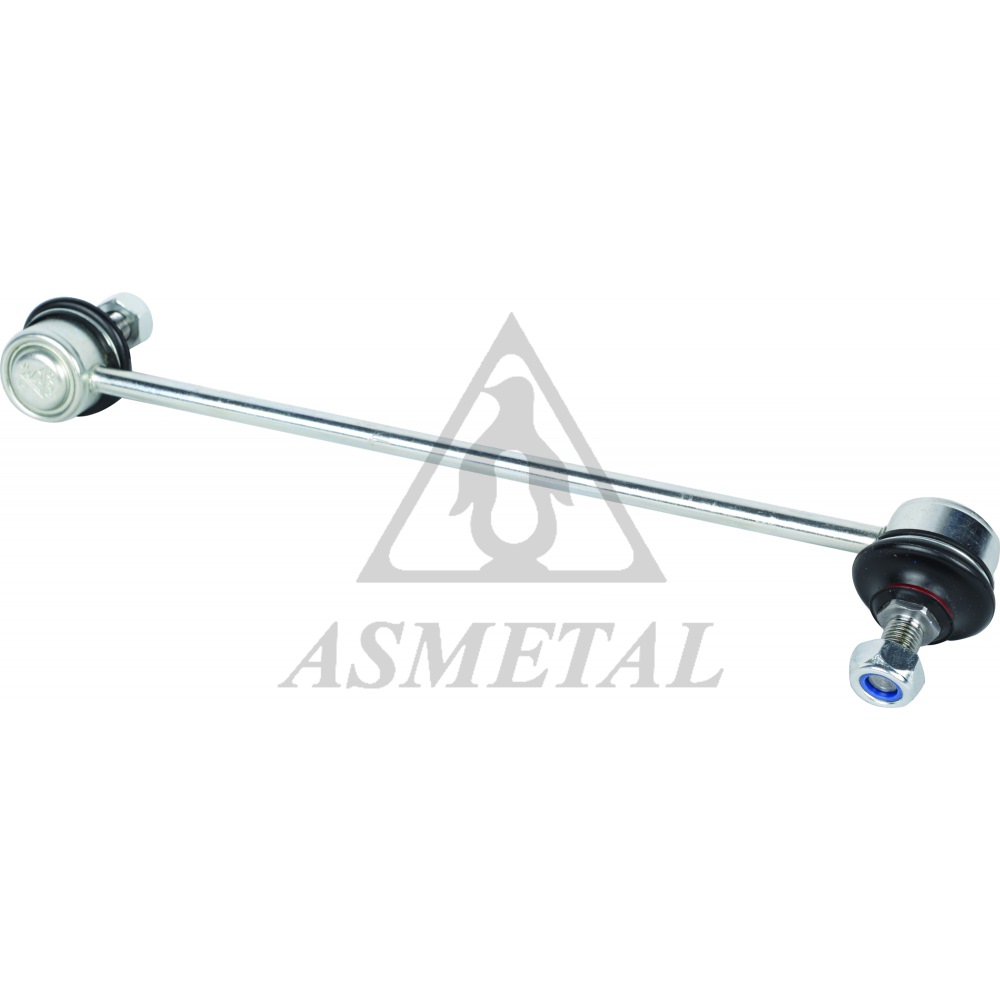

26DW2000
|
Stabiliser Link Left |
L:271.5 tp:M10x1.25 RHT / 0,36 kg |
96 403 099 |
 |

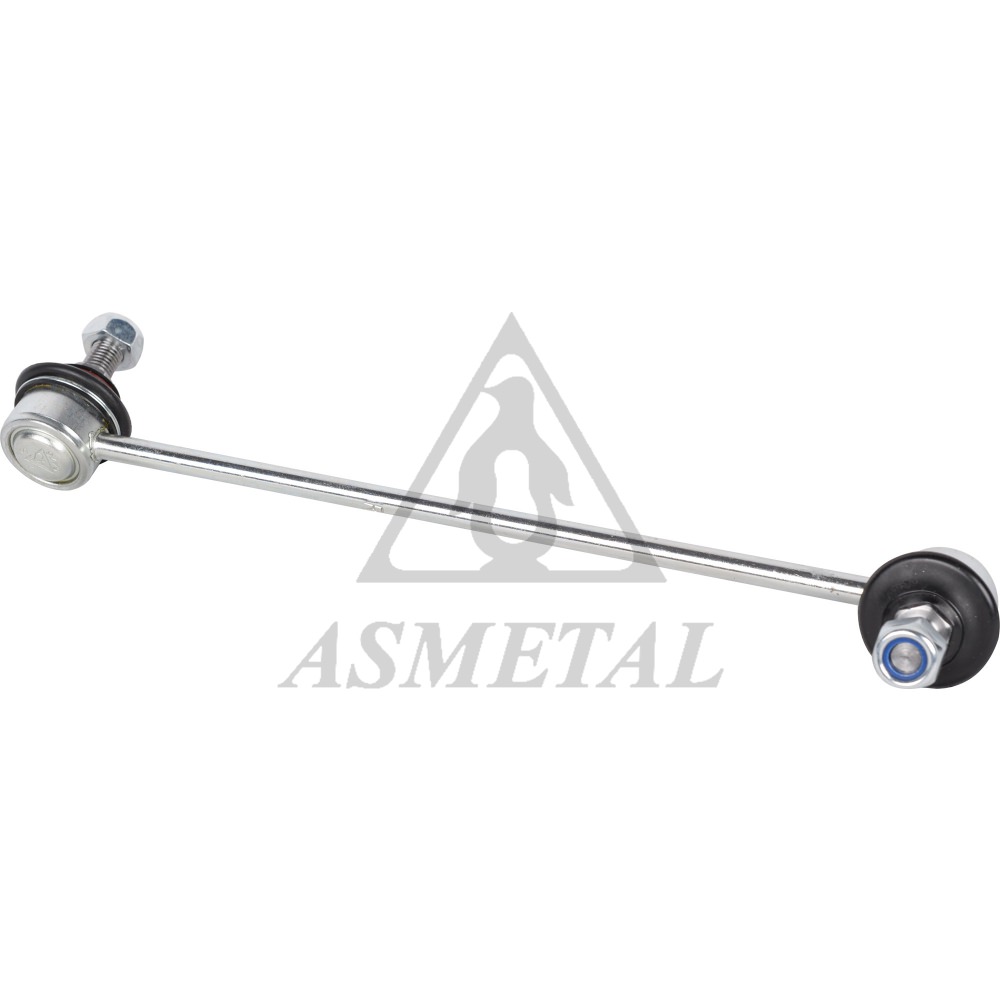

26DW2001
|
Stabiliser Link Right |
L:271.5 tp:M10x1.25 RHT / 0,36 kg |
96 403 100 |
 |
26DW2005
|
Stabiliser Link |
L:262 tp:M10x1.25 RHT / 0,34 kg |
96 2757 98, 96 391 875 (2) OEM |
 |
26DW4300
IN PREPARATION
|
Stabiliser Link Left |
0 kg |
96 225 858 |
 |
26DW4301
IN PREPARATION
|
Stabiliser Link Right |
0 kg |
96 225 859 |
 |
26DW4310
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
96 639 910 |
 |
26OP1402
|
Stabiliser Link Rear |
L:71 tp:M10x1.5 RHT / 0,25 kg |
4 44 081, 13 281 792 |
 |
26OP1405
|
Stabiliser Link |
L:303.8 tp:M12x1.75 RHT / 0,34 kg |
3 50 611, 3 50 617 (6) OEM |
 |
30CH0100
NEW
|
Track Control Arm Lower Left |
5,00 kg |
20 946 158, 25 995 128 (8) OEM |
 |
30CH0101
NEW
|
Track Control Arm Lower Right |
5,00 kg |
20 946 157, 25 995 129 (8) OEM |
 |
30OP1400
IN PREPARATION
|
Track Control Arm Left |
0 kg |
22792990, 23361708 (9) OEM |
 |
30OP1401
IN PREPARATION
|
Track Control Arm Right |
0 kg |
23361709, 22792991 (10) OEM |
 |
30OP5000
|
Track Control Arm Left |
c:Ø18 / 2,3 kg |
95025706, 94540668 (6) OEM |
 |
30OP5001
|
Track Control Arm Right |
c:Ø18 / 2,3 kg |
95025704, 94540670 (14) OEM |
 |
30SZ05
OUT OF SERVICE
|
Track Control Arm |
0 kg |
96316765, 96611265 (9) OEM |
 |
38CH0100
|
Silentblock for TCA |
L:92.25 di:Ø19.5 do:Ø78.5 / 0,68 kg |
20 946 159, 95 248 454 (6) OEM |
 |
38CH0101
|
Silentblock for TCA |
L:60 di:Ø14.1 do:Ø38 / 0,15 kg |
48 06 300*, 48 06 301* (2) OEM |
 |
38DW0300
IN PREPARATION
|
Silentblock for TCA |
|
95032440*, 95032441* (5) OEM |
 |
38DW1000
|
Silentblock for TCA |
L:46 di:Ø12 do:Ø60 / 0,14 kg |
95 479 763, 96 653 381 (3) OEM |
 |
38DW1001
|
Silentblock for TCA |
L:46.9 di:Ø12.1 do:Ø28 / 0,07 kg |
96 535 087 |
 |
38DW1002
|
Stabiliser Mounting |
L:31.5 di:Ø16 / 0,04 kg |
96 804 650, 96 653 351 (4) OEM |
 |
38DW2000
IN PREPARATION
|
Silentblock for TCA |
|
96 391 856, 96 391 850* (1) OEM |
 |
38DW2001
IN PREPARATION
|
Silentblock for TCA |
|
96 378 346, 96 391 850* (1) OEM |
 |
38DW9500
IN PREPARATION
|
Silentblock for TCA |
|
95 217 519, 95 017 035* |
 |
38DW9501
IN PREPARATION
|
Silentblock for TCA |
|
95 228 670, 95 017 035* (1) OEM |
 |
38OP1000
|
Stabiliser Mounting |
L:18.3 di:Ø8.5 do:Ø29.8 / 0,02 kg |
2 875 013, 3 50 153 (1) OEM |
 |
38OP1010
|
Axle Beam Bushing |
L:75 di:Ø12.1 do:Ø59 / 0,29 kg |
4 02 645, 90 305 431 (1) OEM |
 |
38OP2060
|
Silentblock for TCA |
L:105.2 di:Ø22.5 do:Ø80.2 / 0,89 kg |
13 230 774, 13 334 021 (6) OEM |
 |
38OP2061
|
Silentblock for TCA |
L:40.6 di:Ø12.1 do:Ø40.6 / 0,21 kg |
13 321 342, 13 318 894* (8) OEM |
 |
38OP2062
|
Stabiliser Mounting |
L:39 di:Ø26 / 0,08 kg |
13 346 848*, 13 281 782 (4) OEM |
 |
38OP5010
|
Silentblock for TCA |
L:70 di:Ø12.2 do:Ø64.5 / 0,34 kg |
95 025 706*, 95 025 705* (7) OEM |
 |
38OP5011
|
Silentblock for TCA |
L:68.5 di:Ø12.2 do:Ø37.3 / 0,3 kg |
95 025 705*, 95 025 704* (7) OEM |
 |
40CH0100
|
Drive Shaft Center Bearing |
L:190 di:Ø30 / 0,85 kg |
96 624 771, 20 781 756 (3) OEM |
 |
45OP1405
|
Strut Mount Left |
L:62.6 di:Ø10.2 / 0,48 kg |
22 834 079, 4 24 700 (6) OEM |
 |
45OP1406
|
Strut Mount Right |
L:62.6 di:Ø10.2 / 0,48 kg |
22 834 080, 4 36 437 (6) OEM |
 |
45OP1420
|
Suspension Support Buffer Front |
L:51 di:Ø25 do:Ø66.5 / 0,06 kg |
13 356 026, 13 315 664 (11) OEM |
 |
45OP1440
|
Strut Mount With Bearing |
L:47 di:Ø14.2 do:Ø113.5 / 0,78 kg |
13 505 131, 95 212 727 (8) OEM |
