ASMETAL Catalogue

CHEVROLET > AVEO (15 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No

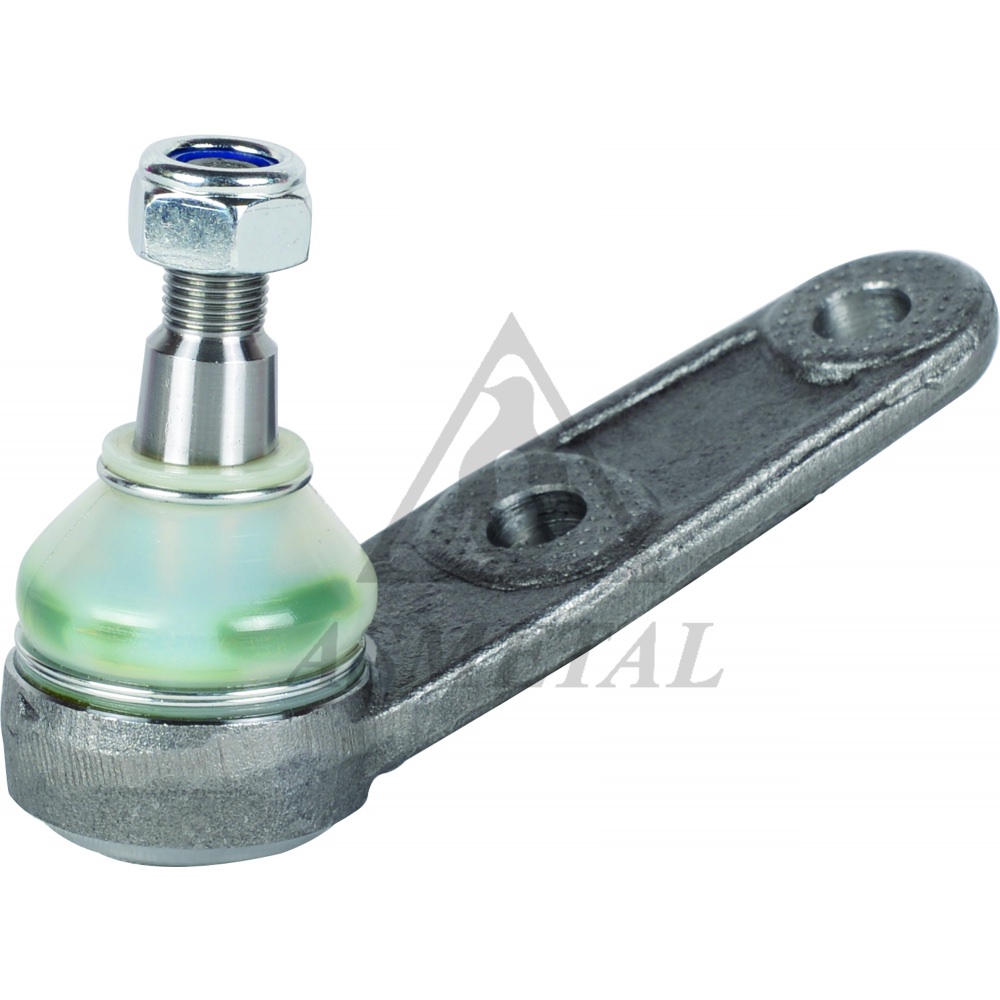

10DW1000	Ball Joint Lower	th:M12x1.25 RHT cr:1/8 c:Ø14.8 / 0,6 kg	96 535 089, 5 490 983
10OP5000	Ball Joint Lower	c:Ø18.1 / 0,58 kg	95 017 035, 95 017 034 (6) OEM
17CH9500 NEW	Tie Rod End	0,35 kg	95 952 936, 95 952 930
17DW1000	Tie Rod End Left	L:189.5 cr:1/8 c:Ø13.2 tp:M12x1.5 th:FM12x1.5 RHT / 0,65 kg	93 740 722, KBJO47A (1) OEM
17DW1001	Tie Rod End Right	L:189.5 cr:1/8 c:Ø13.2 tp:M12x1.5 th:FM12x1.5 RHT / 0,65 kg	KBJO48A, 93 740 623 (1) OEM
20CH9500 NEW	Axial Joint	0,72 kg	95 218 372

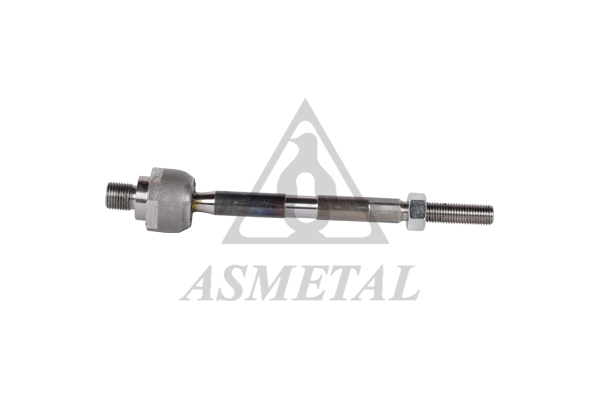

20DW1000	Axial Joint	L:200 tp:M16x1.5 th:MM12x1.5 RHT / 0,41 kg	96 535 300, 96 425 093
20OP5000	Axial Joint	L:334 tp:M14x1.5 th:MM14x1.5 RHT / 0,65 kg	95 952 929, 16 09 213
26CH9500 NEW	Stabiliser Link	0,50 kg	95 299 172, 42 342 547 (4) OEM
26DW2005	Stabiliser Link	L:262 tp:M10x1.25 RHT / 0,34 kg	96 2757 98, 96 391 875 (2) OEM

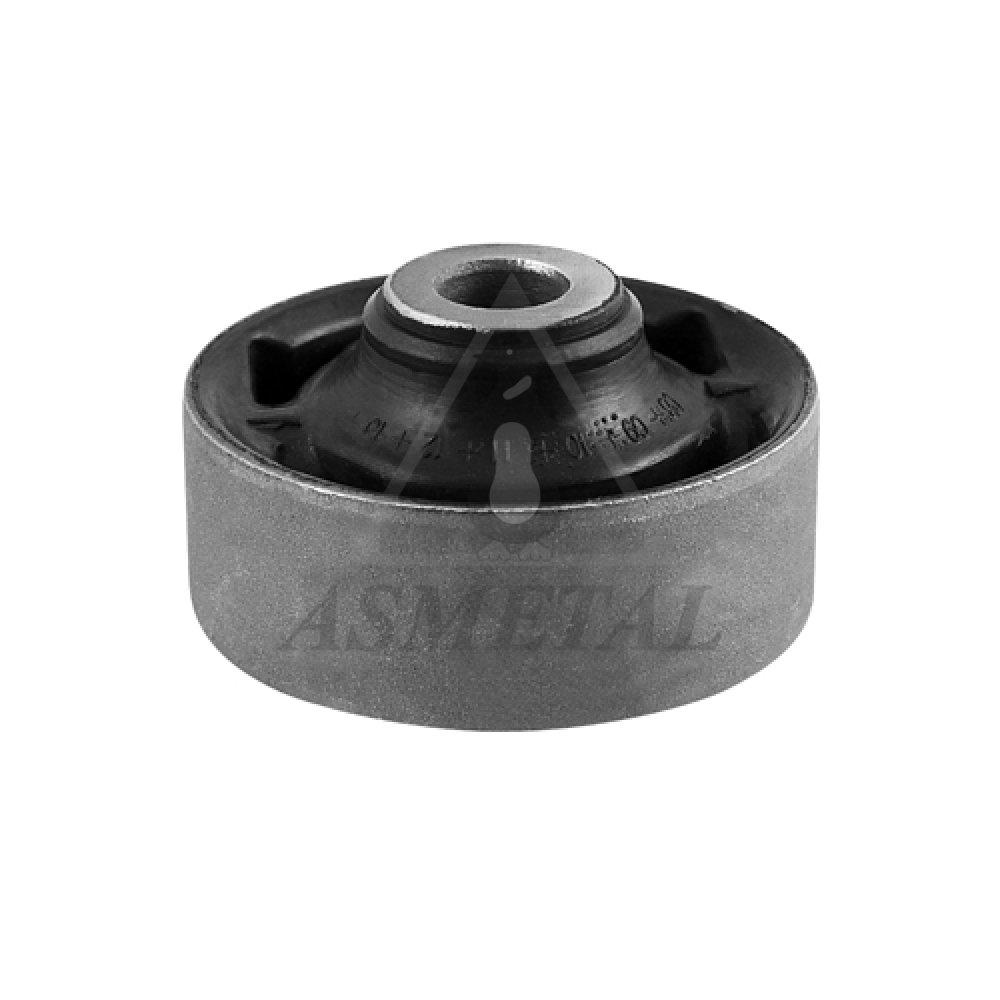

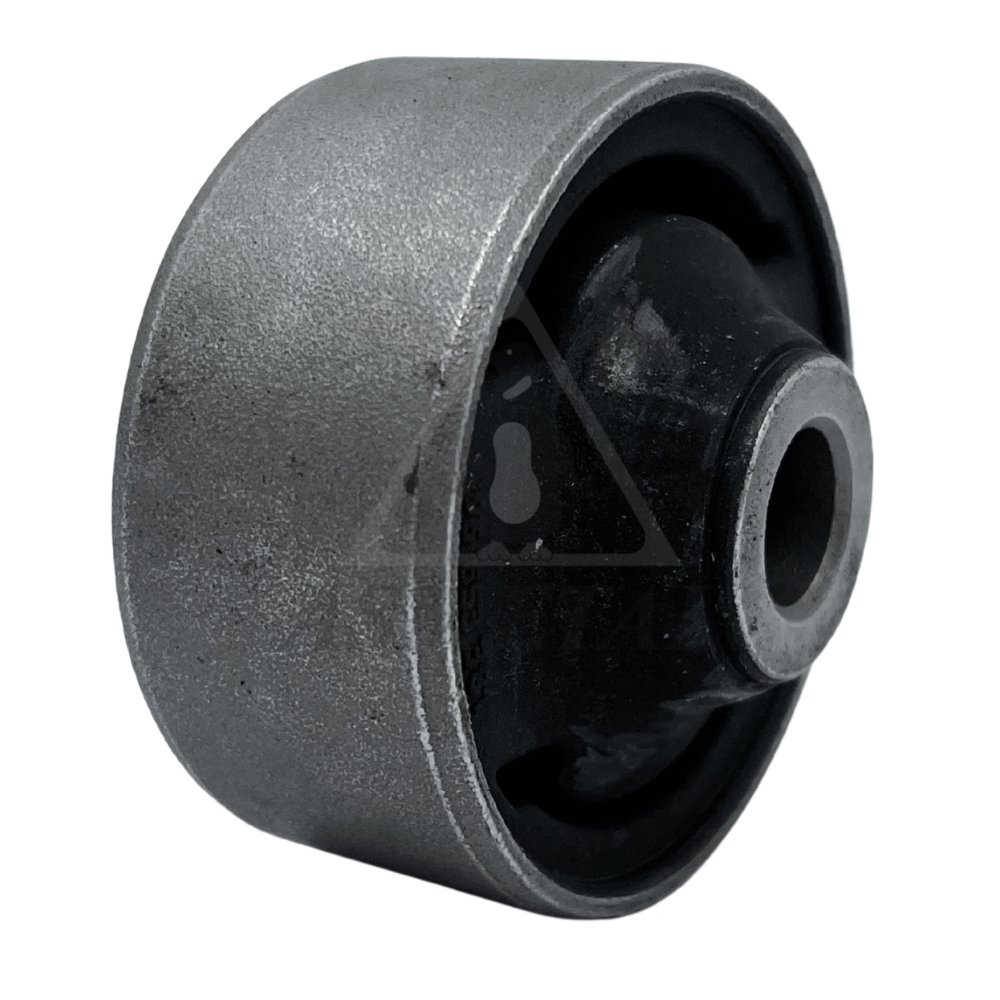

38DW1000	Silentblock for TCA	L:46 di:Ø12 do:Ø60 / 0,14 kg	95 479 763, 96 653 381 (3) OEM

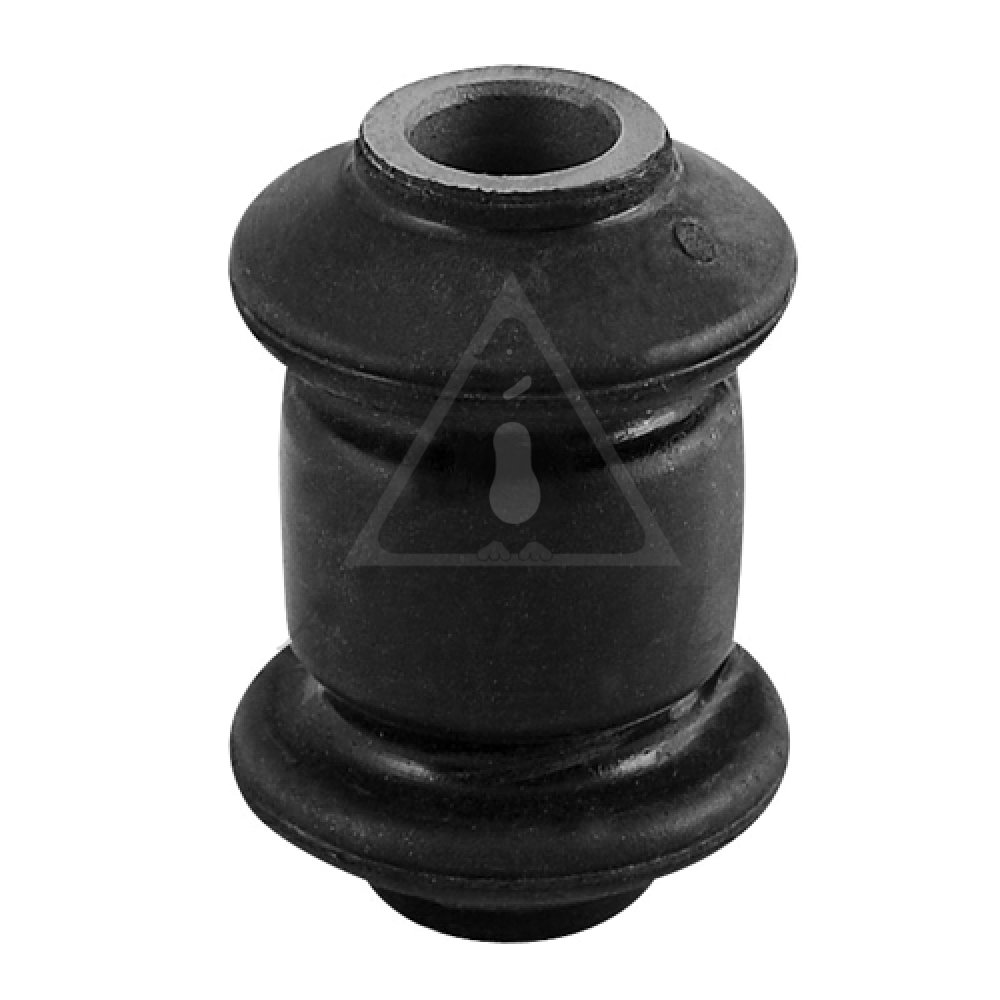

38DW1001	Silentblock for TCA	L:46.9 di:Ø12.1 do:Ø28 / 0,07 kg	96 535 087

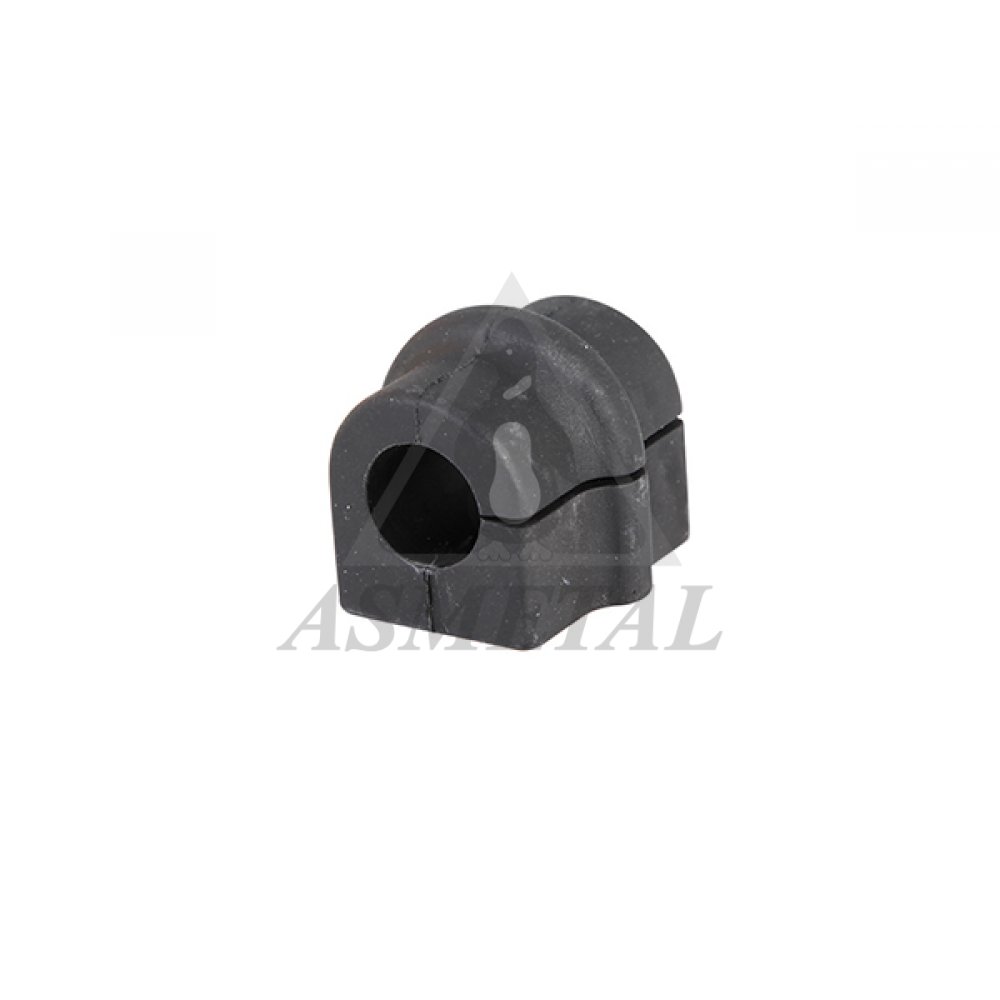

38DW1002	Stabiliser Mounting	L:31.5 di:Ø16 / 0,04 kg	96 804 650, 96 653 351 (4) OEM
38DW9500 IN PREPARATION	Silentblock for TCA		95 217 519, 95 017 035*
38DW9501 IN PREPARATION	Silentblock for TCA		95 228 670, 95 017 035* (1) OEM
