ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10CT0600	Ball Joint Lower	c:Ø18 / 0,48 kg	3640 61, 3640 56 (8) OEM
10CT0610	Ball Joint Lower	c:Ø18 / 0,54 kg	98 093 384 80, 16 072 984 80 (2) OEM
10PE0400	Ball Joint Lower	c:Ø17.95 / 0,5 kg	3640 78
17CT0310 IN PREPARATION	Tie Rod End		16 310 569 80, 3 556 146
17CT0600	Tie Rod End Left	L:171 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM14x1.5 RHT / 0,51 kg	3817 55
17CT0601	Tie Rod End Right	L:171 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM14x1.5 RHT / 0,51 kg	3817 56
17CT0602 IN PREPARATION	Tie Rod End Left	0 kg	3817 62
17CT0603 IN PREPARATION	Tie Rod End Right	0 kg	3817 61
17CT0610	Tie Rod End Left	L:178 cr:1/5 c:Ø12.18 tp:M10x1.25 th:FM14x1.5 RHT / 0,54 kg	3817 92, 16 109 363 80
17CT0611	Tie Rod End Right	L:178 cr:1/5 c:Ø12.18 tp:M10x1.25 th:FM14x1.5 RHT / 0,54 kg	3817 91, 16 109 362 80
17CT0612 IN PREPARATION	Tie Rod End Left		16 231 410 80
17CT0613 IN PREPARATION	Tie Rod End Right		16 231 411 80
17PE0900	Tie Rod End Left	L:210.5 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg	16 357 723 80, 16 086 522 80 (3) OEM
17PE0901	Tie Rod End Right	L:210.5 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg	16 086 523 80, 3817 68 (3) OEM
20CT0600	Axial Joint	L:237 tp:M12x1 th:MM14x1.5 RHT / 0,48 kg	16 072 933 80, 3812 E1
20CT0610	Axial Joint	L:245.5 tp:M12x1 th:MM14x1.5 RHT / 0,5 kg	16 072 933 80, 3812 F6
20CT0612 IN PREPARATION	Axial Joint		16 231 408 80
20PE0900	Axial Joint	L:212 tp:M16x1.5 th:MM12x1 RHT / 0,55 kg	16 109 355 80, 3812 E8 (1) OEM
26PE0600	Stabiliser Link	L:335 tp:M10x1.5 RHT / 0,42 kg	16 466 219 80, 98 088 682 80 (7) OEM
26PE0900	Stabiliser Link Right	L:329 tp:M10x1.5 RHT / 0,4 kg	5087 68, 16 073 268 80 (3) OEM
26PE0901	Stabiliser Link Left	L:329 tp:M10x1.5 RHT / 0,4 kg	16 073 269 80, 5087 69 (3) OEM
30CT0600 NEW	Track Control Arm Left	3,45 kg	16 227 113 80, 3520 Q9 (4) OEM
30CT0601 NEW	Track Control Arm Right	3,45 kg	16 227 114 80, 3521 N0 (4) OEM
30CT0602 NEW	Track Control Arm Left	3,32 kg	3520 L4, 3520 N1 (12) OEM
30CT0603 NEW	Track Control Arm Right	3,32 kg	3521 L1, 3521 N1 (12) OEM
30CT0610	Track Control Arm Lower Left	c:Ø17.95 / 3,82 kg	98 194 179 80, 96 750 318 80 (1) OEM
30CT0611	Track Control Arm Lower Right	c:Ø17.95 / 3,82 kg	98 194 180 80, 96 750 288 80 (1) OEM
30CT0612 NEW	Track Control Arm Left	3,82 kg	3520 Y1, 3520 W7 (3) OEM
30CT0613 NEW	Track Control Arm Right	3,82 kg	3521 S9, 3521 T0 (3) OEM
30CT0614 NEW	Track Control Arm Lower Left	3,54 kg	98 032 865 80
30CT0615 NEW	Track Control Arm Lower Right	3,54 kg	98 032 864 80

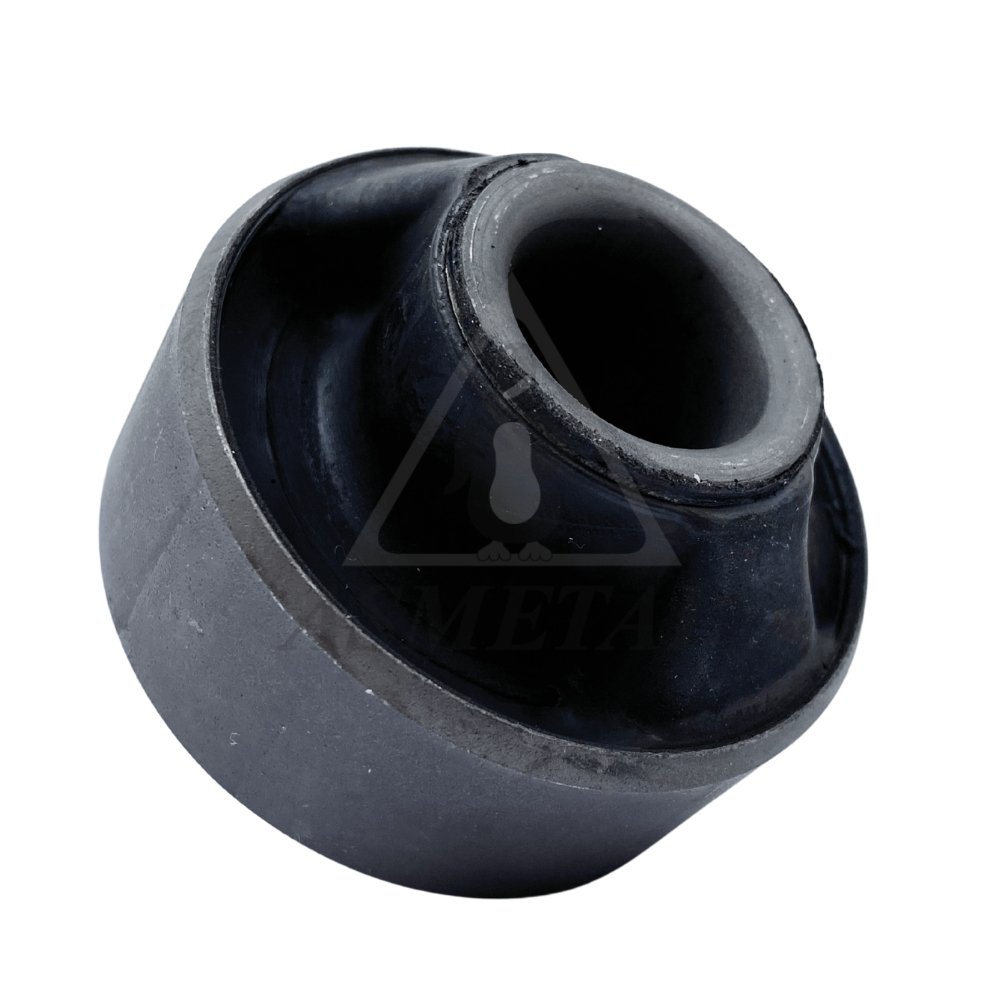

38CT0300	Silentblock for TCA	L:48 di:Ø18 do:Ø55.3 / 0,21 kg	3523 EA, 3523 CZ (10) OEM
38CT0301	Silentblock for TCA	L:48 di:Ø18 do:Ø55.5 / 0,21 kg	96 408 770 80, 3523 AA (2) OEM
38CT0303	Silentblock for TCA	L:48 di:Ø18 do:Ø55.5 / 0,2 kg	3523 98, 96 361 910 80
38CT0309	Silentblock for TCA	L:48 di:Ø14.2 do:Ø56.3 / 0,21 kg	96 557 668 80, 98 806 138 80 (2) OEM
38CT0310	Silentblock for TCA	L:48 di:Ø14.2 do:Ø56.6 / 0,21 kg	96 806 138 80, 96 770 410 80 (1) OEM
38CT0311	Silentblock for TCA	L:48 di:Ø14.2 do:Ø56.6 / 0,28 kg	96 770 405 80, 96 585 835 80 (1) OEM
38CT0620 NEW	Stabiliser Mounting	di:Ø20,5 / 0,09 kg	96 747 462 80, 96 747 463 80
38CT0640 NEW	Stabiliser Mounting	di:Ø20 / 0,09 kg	5081 P3, 96 747 462 80
38PE0622 NEW	Stabiliser Mounting	di:Ø21,5 / 0,09 kg	96 747 6380
38PE0910	Axle Beam Bushing	L:82.5 di:Ø12 do:Ø73 / 0,32 kg	5131 H3, 5131 F0 (5) OEM
38PE0923	Stabiliser Mounting	L:38 di:Ø23 / 0,0935 kg	5094 C5
45CT0600	Strut Mount	L:29 / 0,4 kg	5038 F5, 5038 A9 (3) OEM
45CT0601 NEW	Strut Mount KIT	0,62 kg	5038 F5, 5038 A9 (3) OEM
45CT0622	Suspension Support Buffer Front	L:86 di:Ø21 do:Ø57.5 / 0,07 kg	96 764 082 80, 5033 E3
45CT0630	Suspension Support Buffer Rear	L:96 di:Ø21 do:Ø45.75 / 0,07 kg	5166 67, 5166 94
45CT1200	Strut Mount	L:25 di:Ø14 do:Ø66.5 / 0,37 kg	5038 H4, 96 708 307 80 (2) OEM
45CT1201	Strut Mount KIT	L:33.5 di:Ø14.2 do:Ø66.4 / 0,59 kg	96 837 389 80, 5038 G6 (2) OEM
45CT1205 IN PREPARATION	Strut Mount		5031 F2, 5038 G6 (3) OEM
45CT1206 IN PREPARATION	Strut Mount KIT		5031.F2, 5038.G6 (1) OEM
45PE1123	Suspension Support Buffer Front	L:97.5 di:Ø20 do:Ø48 / 0,06 kg	96 433 870 80, 5033 70
45PE4545 NEW	Engine Mounting	0,50 kg	1844.38, 1844.72 (2) OEM
45PE9999 NEW	Bearing	0,17 kg	5035 19, 5035 27 (7) OEM
