CITROËN > C4

ASMETAL NO PRODUCT TYPE DIMENSIONS OEM NO
10CT0610
Ball Joint c:Ø18 / 0,54 kg 16 072 984 80, 3640 77 +2 OEM DETAILS
10PE1003
Ball Joint th:M14x1.5 RHT cp:1/8 cs:Ø15,6 th2:M38x1.5 RHT / 0,31 kg 3640.53, 3640.60 +3 OEM DETAILS

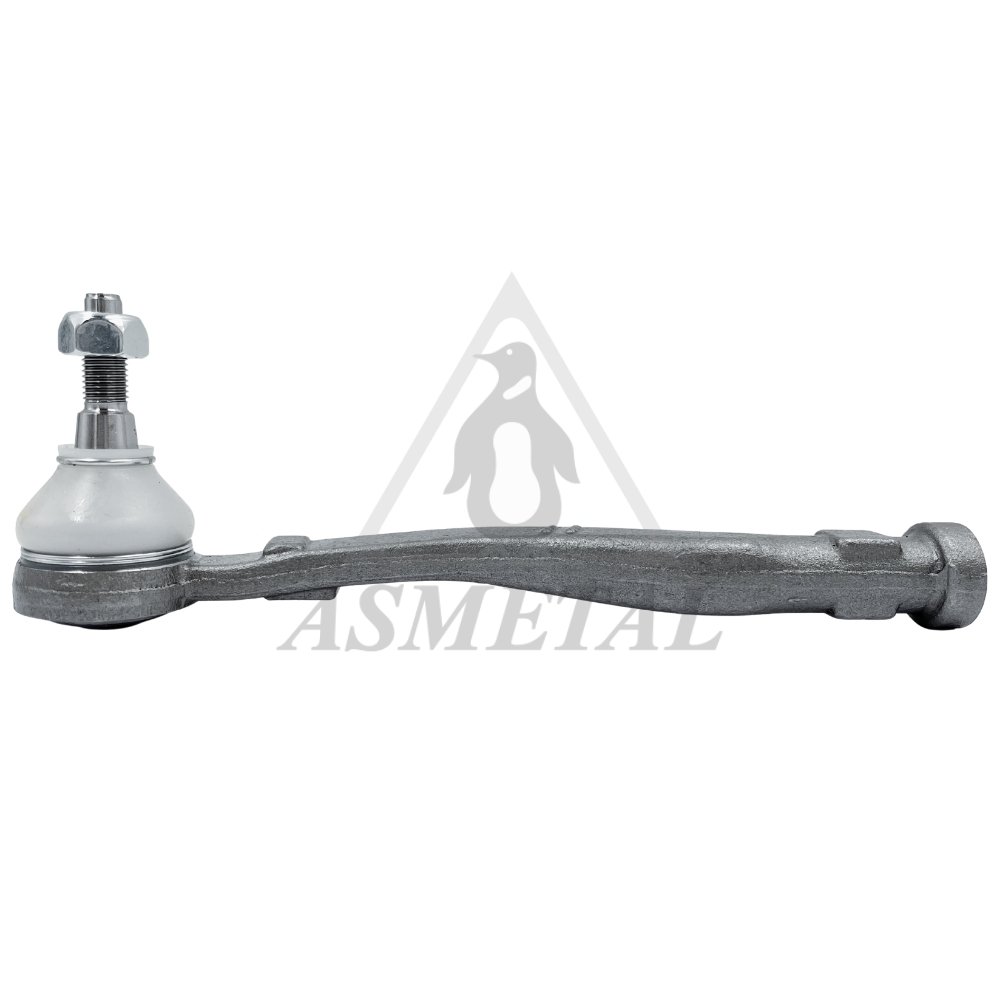

17PE0400
Tie Rod End Left c:Ø 12,1 th:FM14x1,5 RHT / 0,56 kg 16 080 251 80, 16 08 025 180 DETAILS

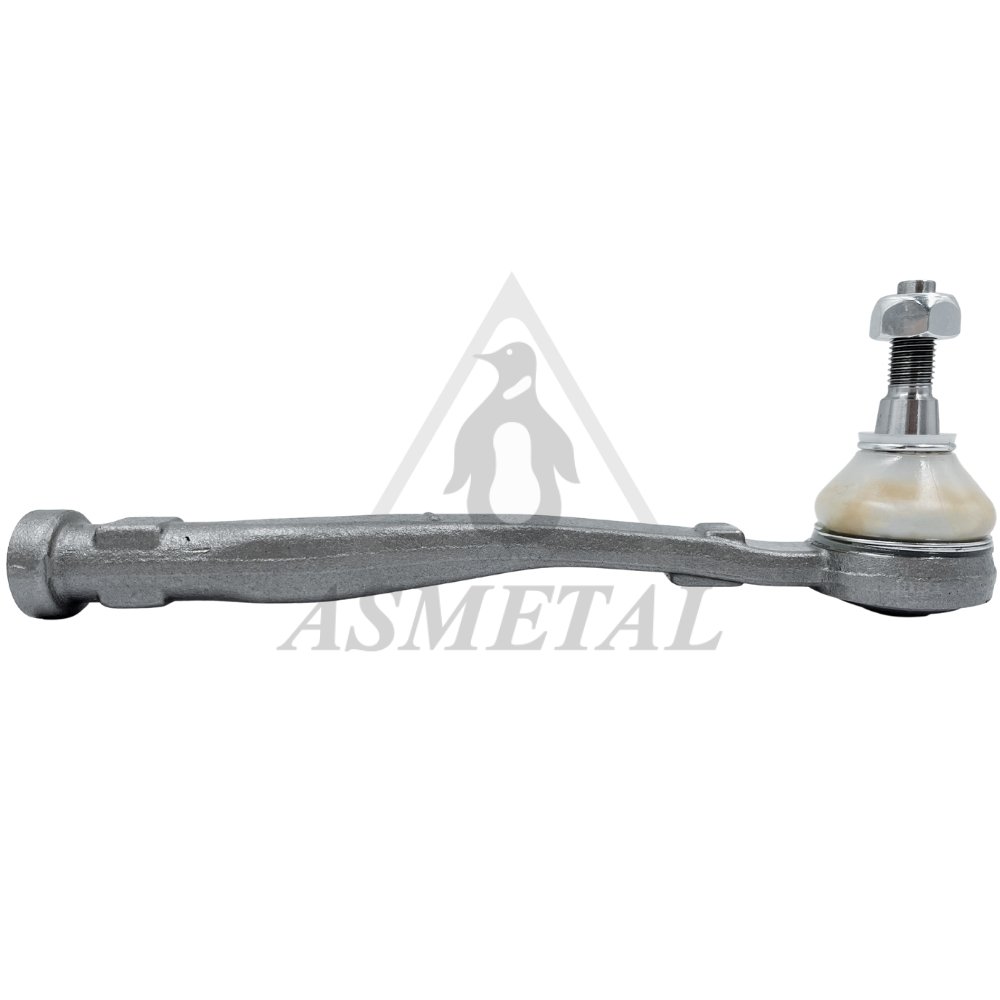

17PE0401
Tie Rod End Right c:Ø 12,1 th:FM14x1,5 RHT / 0,56 kg 16 080 252 80, 16 08 025 280 DETAILS
17PE0500
Tie Rod End Left c:Ø12,12 th:MM14x1,5 RHT / 0,41 kg 3817 41, 3871 30 +4 OEM DETAILS
17PE0501
Tie Rod End Right c:Ø12,12 th:MM14x1,5 RHT / 0,41 kg 3817 31, 3817 42 +3 OEM DETAILS
17PE1105
Tie Rod End Left c:Ø12 th:FM14x1,5 RHT / 0,5 kg 3817.76, 3817.89 DETAILS
17PE1106
Tie Rod End Right c:Ø12 th:FM14x1,5 RHT / 0,5 kg 3817.75, 3817.88 DETAILS
17PE1502
Tie Rod End c:Ø11,95 th:MM14x1,5 RHT / 0,32 kg 95 590 802, 95 493 208 +6 OEM DETAILS
20PE0400
Axial Joint th:MM12x1.0 RHT L:225mm / 0,48 kg 16 080 253 80 DETAILS
20PE0800
Axial Joint th:MM14x1.5 RHT L:321,5mm / 0,59 kg 16 072 936 80, 3812 E0 DETAILS
20PE0805
Axial Joint th:MM14x1,5 RHT L:342,5mm / 0,62 kg 16 072 917 80, 3812 E5 DETAILS
20PE1107
Axial Joint th:MM14x1,5 RHT L:276mm / 0,64 kg 3812 F2, 16 109 369 80 DETAILS
23PE0800
Track Control Arm Left No Information / 4,7 kg 3520K8, 3520P3 +1 OEM DETAILS
23PE0801
Track Control Arm Right No Information / 4,7 kg 3521G8, 3521K3 +1 OEM DETAILS
26PE0600
Stabiliser Link L:335mm / 0,42 kg 5087 45, 5087 59 +5 OEM DETAILS
26PE0800
Stabiliser Link L:335mm / 0,42 kg 96347856, 5087.77 +2 OEM DETAILS
26PE1105
Stabiliser Link L:334mm / 0,4 kg 5087.64, 16 109 302 80 +2 OEM DETAILS
38CT0300
Silentblock for TCA di:Ø18 do:Ø55,3 / 0,21 kg 3520 W7*, 3520 W8* +10 OEM DETAILS
38PE0605
Silentblock for TCA di:Ø14,1 do:Ø55,3 / 0,37 kg 3523.92, 3523.77 DETAILS
38PE0800
Silentblock for TCA di:Ø14,2 do:Ø55 / 0,35 kg 3523.91, 3523.AJ DETAILS
