10CT0600
|
Ball Joint Lower |
c:Ø18 / 0,48 kg |
3640 61, 3640 56 (8) OEM |
 |
10CT0610
|
Ball Joint Lower |
c:Ø18 / 0,54 kg |
98 093 384 80, 16 072 984 80 (2) OEM |
 |
10PE1003
|
Ball Joint Lower |
tp:M14x1.5 RHT cr:1/8 c:Ø15.6 tp2:M38x1.5 RHT / 0,31 kg |
3640 73, 3640 60 (6) OEM |
 |
10PE1110
|
Ball Joint Lower |
th:M14x1.5 RHT cr:1/5 c:Ø16.5 / 0,97 kg |
98 034 340 80, 36 37 430 |
 |
10PE1385
IN PREPARATION
|
Ball Joint |
|
98 246 267 80 |
 |
10PE4800
|
Ball Joint |
c:Ø20 / 0,34 kg |
3521 V0*, 3521 R1* (10) OEM |
 |
17CT0850
|
Tie Rod End Left |
L:119.5 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM16x1.5 RHT / 0,48 kg |
3817 71, 16 109 358 80 |
 |
17CT0851
|
Tie Rod End Right |
L:119.5 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM16x1.5 RHT / 0,48 kg |
3817 72, 16 109 357 80 |
 |
17CT1300
IN PREPARATION
|
Tie Rod End Left |
|
16 804 464 80 |
 |
17CT1301
IN PREPARATION
|
Tie Rod End Right |
|
16 804 463 80 |
 |
17PE0400
|
Tie Rod End Left |
L:200 cr:1/5 c:Ø12.1 tp:M12x1.75 th:FM14x1.5 RHT / 0,56 kg |
16 080 251 80, 16 08 025 180 |
 |
17PE0401
|
Tie Rod End Right |
L:200 cr:1/5 c:Ø12.1 tp:M12x1.75 th:FM14x1.5 RHT / 0,56 kg |
16 080 252 80, 16 08 025 280 |
 |
17PE0500
|
Tie Rod End Left |
L:111.5 cr:1/5 c:Ø12.12 tp:M10x1.25 th:MM14x1.5 RHT / 0,41 kg |
3871 30, 94 71 007 465 (5) OEM |
 |
17PE0501
|
Tie Rod End Right |
L:111.5 cr:1/5 c:Ø12.12 tp:M10x1.25 th:MM14x1.5 RHT / 0,41 kg |
3817 42, 16 073 163 80 (5) OEM |
 |
17PE0900
|
Tie Rod End Left |
L:210.5 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg |
16 357 723 80, 16 086 522 80 (3) OEM |
 |
17PE0901
|
Tie Rod End Right |
L:210.5 cr:1/5 c:Ø12.1 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg |
16 086 523 80, 3817 68 (3) OEM |
 |
17PE1105
|
Tie Rod End Left |
L:165.5 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,5 kg |
16 109 368 80, 3817 76 (1) OEM |
 |
17PE1106
|
Tie Rod End Right |
L:165.5 cr:1/5 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,5 kg |
3817 88, 3817 75 (1) OEM |
 |
17PE1200
|
Tie Rod End Left |
L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg |
16 108 177 80, 39 176 185* (2) OEM |
 |
17PE1201
|
Tie Rod End Right |
L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg |
16 108 178 80, 39 176 184* (2) OEM |
 |
17PE1502
|
Tie Rod End |
L:90.5 cr:1/5 c:Ø11.95 tp:M10x1.25 th:MM14x1.5 RHT / 0,32 kg |
3817 50, 94 71 003 465 (6) OEM |
 |
17PE4800
IN PREPARATION
|
Tie Rod End |
0 kg |
16 075 024 80, 3817 74 (3) OEM |
 |
20CT0850
NEW
|
Axial Joint |
0,79 kg |
3812 E9 |
 |
20CT1205
IN PREPARATION
|
Axial Joint |
|
16 111 586 80 |
 |
20PE0400
|
Axial Joint |
L:225 tp:M12x1 th:MM14x1.5 RHT / 0,48 kg |
16 080 253 80 |
 |
20PE0800
|
Axial Joint |
L:321.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,59 kg |
3812 E0, 3812 00 (1) OEM |
 |
20PE0805
|
Axial Joint |
L:342 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
16 072 917 80, 3812 E5 |
 |
20PE1107
|
Axial Joint |
L:277 tp:M14x1.5 th:MM14x1.5 RHT / 0,64 kg |
3812 F2, 16 109 369 80 |
 |
20PE1110
|
Axial Joint |
L:225 tp:M14x1.5 th:MM14x1.5 RHT / 0,48 kg |
16 108 176 80, 39 176 184* (2) OEM |
 |
20PE4810
|
Axial Joint |
L:340 tp:M14x1.5 th:MM14x1.5 RHT / 0,76 kg |
16 075 025 80, 16 085 321 80* (3) OEM |
 |
23PE0800
|
Track Control Arm Left |
4,94 kg |
3520 S2, 16 431 885 80 (6) OEM |
 |
23PE0801
|
Track Control Arm Right |
4,94 kg |
3521 G8, 3521 K3 (6) OEM |
 |
23PE1104
NEW
|
Track Control Arm Left (Without Ball Joint) |
4,92 kg |
3520 V2, 16 109 380 80 |
 |
23PE1105
NEW
|
Track Control Arm Right (Without Ball Joint) |
5,50 kg |
3521 R3, 16 109 381 80 |
 |
23PE1106
NEW
|
Track Control Arm Left (Without Ball Joint) |
5,4 kg |
98 056 074 80 |
 |
23PE1107
NEW
|
Track Control Arm Right (Without Ball Joint) |
5,4 kg |
98 056 073 80 |
 |
26PE0600
|
Stabiliser Link |
L:335 tp:M10x1.5 RHT / 0,42 kg |
16 466 219 80, 98 088 682 80 (7) OEM |
 |
26PE0800
|
Stabiliser Link |
L:335 tp:M10x1.5 RHT / 0,42 kg |
5087 64, 16 073 250 80 (16) OEM |
 |
26PE0900
|
Stabiliser Link Right |
L:329 tp:M10x1.5 RHT / 0,4 kg |
5087 68, 16 073 268 80 (3) OEM |
 |
26PE0901
|
Stabiliser Link Left |
L:329 tp:M10x1.5 RHT / 0,4 kg |
16 073 269 80, 5087 69 (3) OEM |
 |
26PE1300
IN PREPARATION
|
Stabiliser Link |
|
98 246 525 80 |
 |
26PE4800
|
Stabiliser Link |
L:264 tp:M10x1.5 RHT / 0,34 kg |
5087 58, 16 109 303 80 (1) OEM |
 |
26PE4810
|
Stabiliser Link Rear Left |
L:80 tp:M10x1.5 RHT / 0,3 kg |
5178 48, 4156A014 |
 |
26PE4811
|
Stabiliser Link Rear Right |
L:80 tp:M10x1.5 RHT / 0,3 kg |
5178 49, MN184194 |
 |

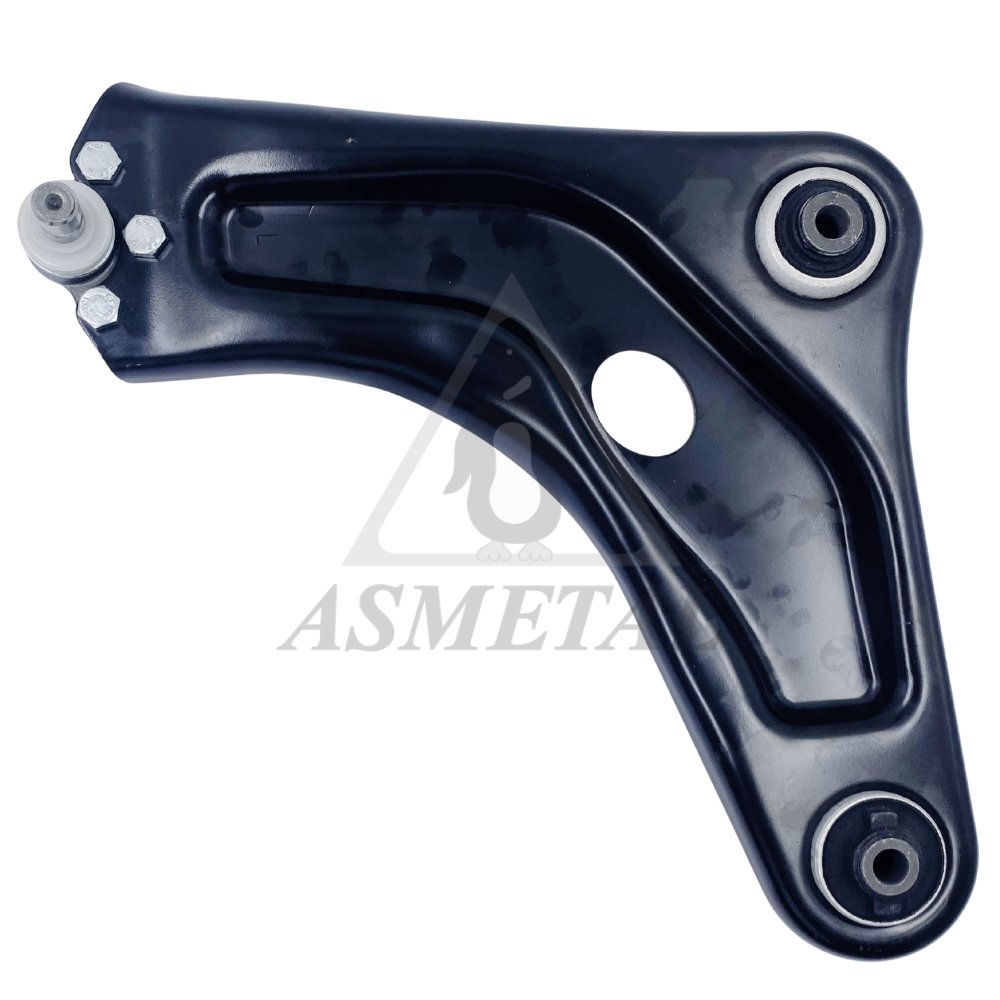

30CT0600
NEW
|
Track Control Arm Left |
3,45 kg |
16 227 113 80, 3520 Q9 (4) OEM |
 |
30CT0601
NEW
|
Track Control Arm Right |
3,45 kg |
16 227 114 80, 3521 N0 (4) OEM |
 |
30CT0612
NEW
|
Track Control Arm Left |
3,82 kg |
3520 Y1, 3520 W7 (3) OEM |
 |
30CT0613
NEW
|
Track Control Arm Right |
3,82 kg |
3521 S9, 3521 T0 (3) OEM |
 |
30CT0614
NEW
|
Track Control Arm Lower Left |
3,54 kg |
98 032 865 80 |
 |
30CT0615
NEW
|
Track Control Arm Lower Right |
3,54 kg |
98 032 864 80 |
 |
30PE4801
IN PREPARATION
|
Track Control Arm Right |
|
4013A010, 3521.V0 (8) OEM |
 |
38CT0300
|
Silentblock for TCA |
L:48 di:Ø18 do:Ø55.3 / 0,21 kg |
3523 EA, 3523 CZ (10) OEM |
 |
38CT0310
|
Silentblock for TCA |
L:48 di:Ø14.2 do:Ø56.6 / 0,21 kg |
96 806 138 80, 96 770 410 80 (1) OEM |
 |
38CT0311
|
Silentblock for TCA |
L:48 di:Ø14.2 do:Ø56.6 / 0,28 kg |
96 770 405 80, 96 585 835 80 (1) OEM |
 |
38CT0620
NEW
|
Stabiliser Mounting |
di:Ø20,5 / 0,09 kg |
96 747 462 80, 96 747 463 80 |
 |
38CT0640
NEW
|
Stabiliser Mounting |
di:Ø20 / 0,09 kg |
5081 P3, 96 747 462 80 |
 |
38CT0800
|
Stabiliser Mounting |
L:50 di:Ø22 do:Ø50.5 / 0,12 kg |
5094 88, 5094 E0 (1) OEM |
 |
38CT0801
|
Stabiliser Mounting |
L:50 di:Ø21.5 do:Ø33 / 0,12 kg |
5094 E2, 5094 C4 (1) OEM |
 |
38MT1500
|
Silentblock for TCA |
L:53.8 di:Ø14.1 do:Ø60 / 0,32 kg |
3523 CS , 16 099 106 80 (6) OEM |
 |
38MT1550
|
Axle Beam Bushing |
L:98 do:Ø70.3 / 0,53 kg |
16 099 117 80, 4120A166 |
 |
38OP5100
|
Silentblock for TCA |
L:55.8 di:Ø12.2 do:Ø56.4 / 0,1565 kg |
98 316 827 80*, 98 316 825 80* (1) OEM |
 |
38PE0600
|
Silentblock for TCA |
L:50.3 di:Ø14 do:Ø55.2 / 0,4 kg |
96 239 15, 3523 80 (1) OEM |
 |
38PE0605
|
Silentblock for TCA |
L:48.8 di:Ø14.1 do:Ø55.3 / 0,37 kg |
3523 92, 3523 77 |
 |
38PE0800
|
Silentblock for TCA |
L:56 di:Ø14.2 do:Ø55 / 0,35 kg |
3523 91, 3523 AJ (1) OEM |
 |
38PE0805
|
Axle Beam Bushing |
L:82.3 di:Ø12.2 do:Ø71 / 0,36 kg |
5131 A4 |
 |
38PE0806
|
Axle Beam Bushing |
L:82.5 di:Ø12.2 do:Ø71.5 / 0,35 kg |
5131 G4 |
 |
38PE0924
|
Stabiliser Mounting |
L:50 di:Ø24 / 0,12 kg |
5094 E4, 96 857 200 80 |
 |
38PE1110
|
Stabiliser Mounting |
L:50 di:Ø23 / 0,12 kg |
5094 89, 5094 E3 |
 |
38PE1201
|
Silentblock for TCA |
L:59.5 di:Ø14.1 do:Ø43.2 / 0,23 kg |
96 760 321 80, 3 637 432 |
 |
38PE1203
|
Silentblock for TCA |
L:65 di:Ø14.1 do:Ø50.2 / 0,25 kg |
96 760 352 80, 98 078 923 80 |
 |
38PE1301
|
Silentblock for TCA |
L:65 di:Ø12.1 do:Ø38.1 / 0,22 kg |
98 299 209 80 |
 |
45CT0622
|
Suspension Support Buffer Front |
L:86 di:Ø21 do:Ø57.5 / 0,07 kg |
96 764 082 80, 5033 E3 |
 |
45CT1200
|
Strut Mount |
L:25 di:Ø14 do:Ø66.5 / 0,37 kg |
5038 H4, 96 708 307 80 (2) OEM |
 |
45CT1205
IN PREPARATION
|
Strut Mount |
|
5031 F2, 5038 G6 (3) OEM |
 |
45CT1206
IN PREPARATION
|
Strut Mount KIT |
|
5031.F2, 5038.G6 (1) OEM |
 |
45PE1100
|
Strut Mount |
L:30 di:Ø14.2 do:Ø118.6 / 0,33 kg |
5038 G0, 5038 46 (3) OEM |
 |
45PE1101
|
Strut Mount |
L:30.2 di:Ø14.2 do:Ø118 / 0,34 kg |
98 047 763 80, 98 210 408 80 |
 |
45PE1105
|
Engine Mounting |
L:53 di:Ø10.2 do:Ø70.2 / 0,31 kg |
1809 30, 1809 33 (4) OEM |
 |
45PE1110
|
Strut Mount |
L:30.5 di:Ø14.2 do:Ø121 / 0,36 kg |
5031 77, 5038 85 (4) OEM |
 |
45PE1111
|
Strut Mount With Bearing |
L:34 di:Ø14.2 do:Ø121 / 0,53 kg |
5038 F7, 5038 46 (4) OEM |
 |
45PE1112
|
Strut Mount KIT |
di:Ø14.2 do:Ø121 / 0,58 kg |
5031 77, 5038 85 (4) OEM |
 |
45PE1113
|
Spring Seat |
L:12 di:Ø14.8 do:Ø64 / 0,07 kg |
5033 75, 5033 C9 (1) OEM |
 |
45PE1120
|
Strut Mount |
L:49.6 di:Ø10.2 do:Ø57.2 / 0,29 kg |
5142 34, 5142 32 (3) OEM |
 |
45PE1122
|
Suspension Support Buffer Front |
L:87 di:Ø20 do:Ø47 / 0,06 kg |
96 442 079 80, 96 834 215 80 (2) OEM |
 |
45PE1123
|
Suspension Support Buffer Front |
L:97.5 di:Ø20 do:Ø48 / 0,06 kg |
96 433 870 80, 5033 70 |
 |
45PE1124
|
Suspension Support Buffer Front |
L:96 di:Ø21 do:Ø54.5 / 0,07 kg |
96 847 915 80, 5033 E4 |
 |
45PE9999
NEW
|
Bearing |
0,17 kg |
5035 19, 5035 27 (7) OEM |
