ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10PE1110	Ball Joint Lower	th:M14x1.5 RHT cr:1/5 c:Ø16.5 / 0,97 kg	98 034 340 80, 36 37 430
10PE2000	Ball Joint	tp:M14x1.5 RHT cr:1/8 c:Ø15.9 tp2:M40x1.5 RHT / 0,34 kg	96 233 739, 95 028 039 (3) OEM
10PE4700	Ball Joint Upper	th:M14x1.5 RHT cr:1/6 c:Ø18 th2:M42x1.5 RHT / 0,5 kg	3640 74, 3640 57 (1) OEM
17CT0800	Tie Rod End Left	L:232 cr:1/5 c:Ø11.86 tp:M10x1.25 th:MM16x1.5 RHT / 0,68 kg	3817 59, 3817 53
17CT0801	Tie Rod End Right	L:232 cr:1/5 c:Ø11.86 tp:M10x1.25 th:MM16x1.5 RHT / 0,68 kg	3817 60, 3817 54
17CT4700	Tie Rod End Left	L:210 cr:1/6 c:Ø14.9 tp:M12x1.5 th:FM14x1.5 RHT / 0,84 kg	3817 80, 16 099 482 80 (1) OEM
17CT4701	Tie Rod End Right	L:210 cr:1/6 c:Ø14.9 tp:M12x1.5 th:FM14x1.5 RHT / 0,84 kg	3817 81, 16 099 483 80 (1) OEM
17PE1200	Tie Rod End Left	L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg	16 108 177 80, 39 176 185* (2) OEM
17PE1201	Tie Rod End Right	L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg	16 108 178 80, 39 176 184* (2) OEM

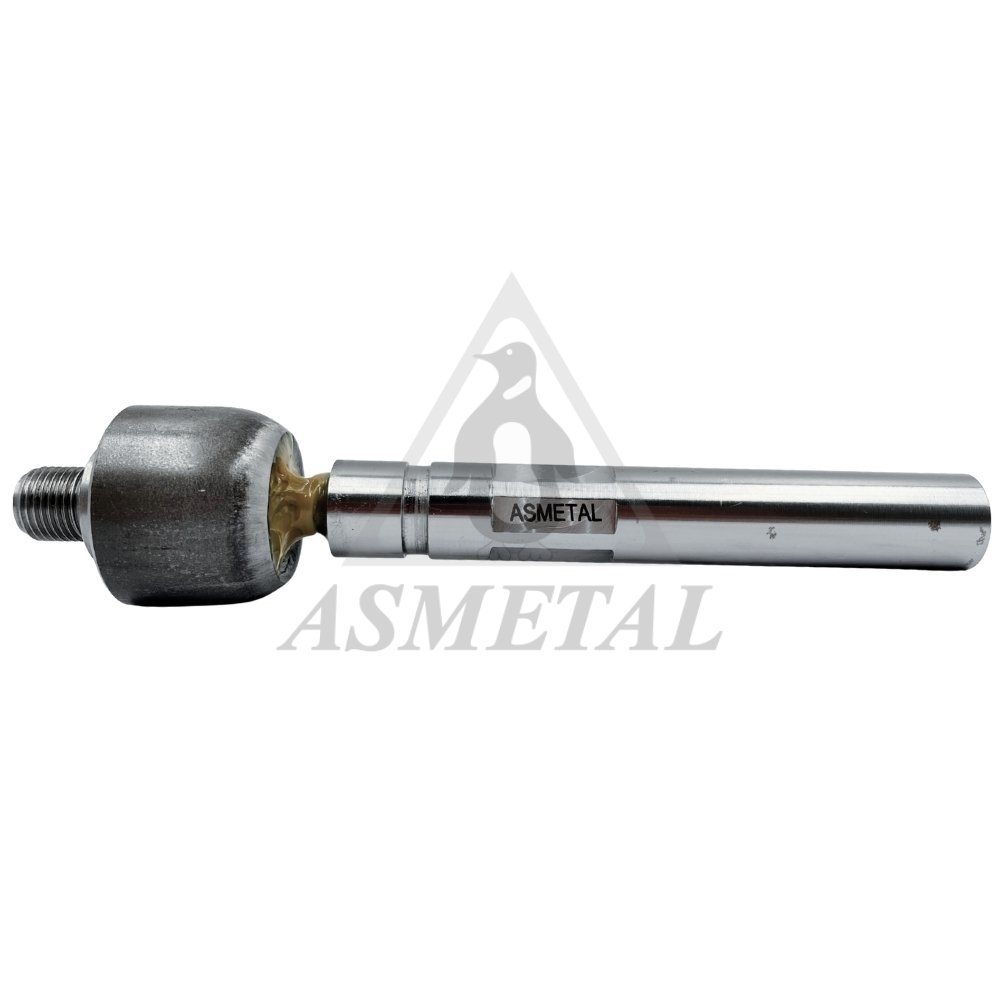

20CT0800	Axial Joint	L:182.5 tp:M16x1.5 th:MM16x1.5 RHT / 0,66 kg	3812 C8
20CT4700	Axial Joint	L:129 tp:M16x1.5 th:MM14x1.5 RHT / 0,42 kg	3812 F3, 16 357 706 80 (1) OEM
20PE1110	Axial Joint	L:225 tp:M14x1.5 th:MM14x1.5 RHT / 0,48 kg	16 108 176 80, 39 176 184* (2) OEM
26PE0800	Stabiliser Link	L:335 tp:M10x1.5 RHT / 0,42 kg	5087 64, 16 073 250 80 (16) OEM
26PE2502	Stabiliser Link	L:320 tp:M12x1.5 RHT / 0,44 kg	96 177 836, 5087 43 (2) OEM
26PE4700	Stabiliser Link Left	L:200 tp:M16x1.5 RHT tp:M12x1.75 RHT / 0,66 kg	5087 52
26PE4701	Stabiliser Link Right	L:200 tp:M16x1.5 RHT tp:M12x1.75 RHT / 0,66 kg	5087 53
26PE4703	Stabiliser Link Rear	L:141 tp:M10x1.5 RHT / 0,29 kg	16 073 260 80, 5178 52 (4) OEM
30PE1150	Track Control Arm Lower Left	cr:1/5 c:Ø16.5 th:M14x1.5 RHT / 4,5 kg	98 168 655 80, 98 463 295 80 (1) OEM
30PE1151	Track Control Arm Lower Right	cr:1/5 c:Ø16.5 th:M14x1.5 RHT / 4,5 kg	98 168 654 80, 98 463 290 80 (1) OEM
38CT0100	Silentblock for TCA	L:104 di:Ø16 do:Ø32.5 / 0,36 kg	3523 AR, 3523 95
38CT0101 IN PREPARATION	Silentblock for TCA		3523.84, 3523.87
38CT0110	Silentblock for TCA	L:111.5 di:Ø20 do:Ø64 / 0,34 kg	3520 X6, 3521 T7
38PE1200	Silentblock for TCA	L:65 di:Ø14.1 do:Ø50.3 / 0,26 kg	98 163 803 80, 3 644 790 (1) OEM
38PE1201	Silentblock for TCA	L:59.5 di:Ø14.1 do:Ø43.2 / 0,23 kg	96 760 321 80, 3 637 432
38PE4700	Silentblock for TCA	L:38 di:Ø12.2 do:Ø44.5 / 0,2 kg	3657 04, 3656 04
38PE4720	Silentblock for TCA	L:34 di:Ø10.2 do:Ø32.3 / 0,1 kg	3523 AN, 3523 CA (2) OEM
38PE4740	Silentblock for TCA	L:42.5 di:Ø20 / 0,28 kg	3521 S5, 3521 Q0 (7) OEM
38PE4750	Silentblock for TCA	L:50.3 di:Ø14 do:Ø56.1 / 0,37 kg	3523 AQ
45PE0650	Engine Mounting	L:52.7 di:Ø10.1 do:Ø70.25 / 0,26 kg	1809 21, 1809 29 (2) OEM
45PE1105	Engine Mounting	L:53 di:Ø10.2 do:Ø70.2 / 0,31 kg	1809 30, 1809 33 (4) OEM
45PE4705	Strut Mount	L:68 di:Ø10.4 do:Ø119 / 0,51 kg	5038 E6, 5038 G1 (4) OEM
