10VW1605
|
Ball Joint Lower Right |
th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg |
35D 407 366, 5QD 407 366 (3) OEM |
 |
10VW1606
|
Ball Joint Lower Left |
th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg |
5QD 407 365, 3C0 407 365 A (3) OEM |
 |
10VW6600
|
Ball Joint |
th:M12x1.5 RHT cr:1/6 c:Ø18.2 / 0,66 kg |
1EA 407 365 A, 1EA 407 365 C (1) OEM |
 |
17AU1200
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17AU1202
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg |
1K0 423 811 K, 1K0 423 811 J (8) OEM |
 |
17AU1203
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg |
1K0 423 812 K, 1K0 423 812 G (7) OEM |
 |
17AU1210
NEW
|
Tie Rod End Left |
0,5 kg |
5WA 423 811 E, 5WA 423 811 C |
 |
17AU1211
NEW
|
Tie Rod End Right |
0,5 kg |
5WA 423 812 E, 5WA 423 812 C |
 |
17VW6600
|
Tie Rod End |
0,36 kg |
1EA 423 811 B |
 |
20VW1200
|
Axial Joint |
L:330 tp:M16x1.5 th:MM16x1.5 RHT / 0,75 kg |
1KD 423 810, 5Q0 423 810 (1) OEM |
 |
20VW1205
|
Axial Joint |
0,72 kg |
5WA 423 810 D, 2 560 580 (1) OEM |
 |
20VW1210
|
Axial Joint |
0,74 kg |
5WA 423 810 C |
 |

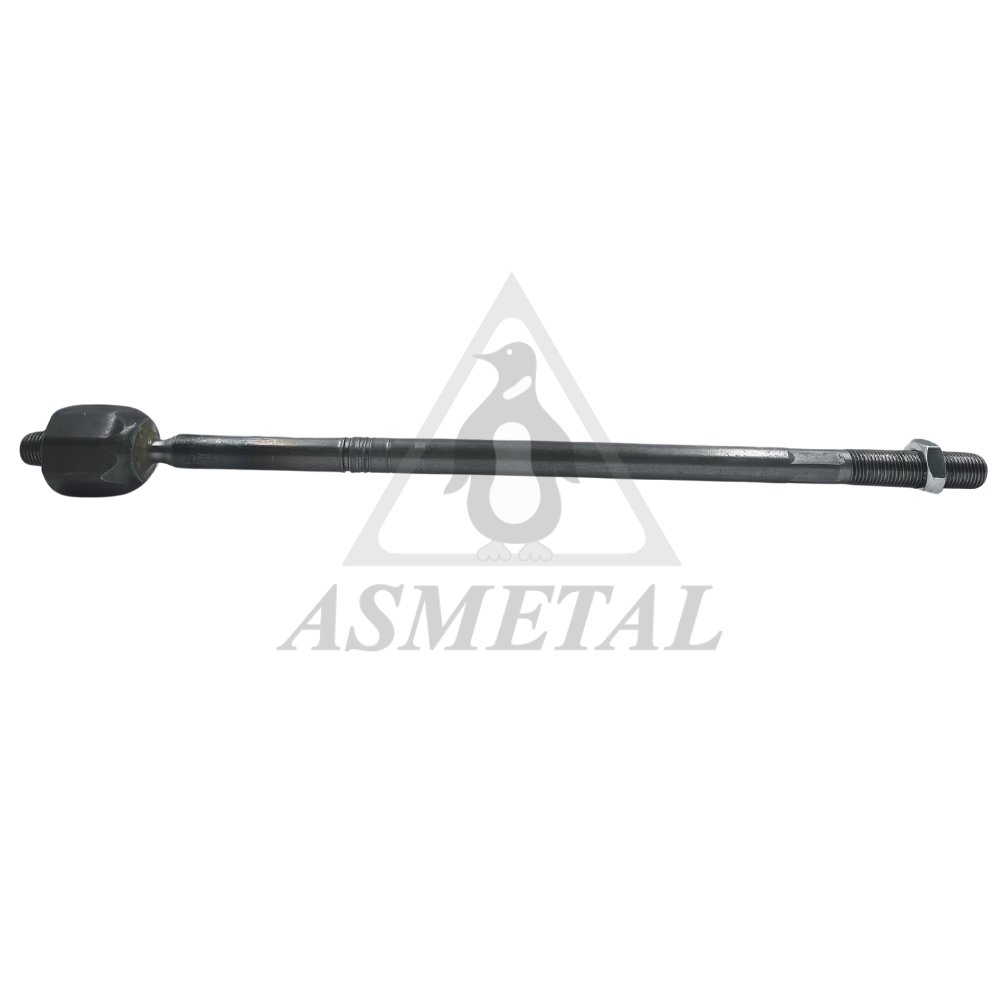

20VW6600
|
Axial Joint |
L:392 tp:M16x1.5 th:MM16x1.5 RHT / 0,88 kg |
1EA 423 810 B |
 |
26VW1600
|
Stabiliser Link |
L:335 tp:M12x1.5 RHT / 0,5 kg |
1K0 411 315 P, 1K0 411 315 K (14) OEM |
 |
26VW1700
|
Stabiliser Link Rear |
L:70 tp:M10x1.5 RHT / 0,16 kg |
5Q0 505 465 C, 5Q0 505 465 A (4) OEM |
 |
26VW6600
|
Stabiliser Link |
L:302 tp:M14x1.5 RHT / 0,72 kg |
1EA 411 315 C, 1EA 411 315 B (2) OEM |
 |
26VW6604
NEW
|
Stabiliser Link Rear Left |
0,25 kg |
1EA 505 465 A, 1EA 505 465 (4) OEM |
 |
26VW6605
NEW
|
Stabiliser Link Rear Right |
0,25 kg |
1EA 505 466, 1EA 505 466 A (4) OEM |
 |
30SK1700
IN PREPARATION
|
Track Control Arm Rear |
|
5QA 505 311 E, 5QA 505 311 C (3) OEM |
 |
30VW1606
|
Track Control Arm Left |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,7 kg |
3Q0 407 151 E, 3Q0 407 151 J (9) OEM |
 |
30VW1607
|
Track Control Arm Right |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,7 kg |
3Q0 407 152 E, 3Q0 407 152 J (9) OEM |
 |
30VW1672
|
Track Control Arm Rear Left |
di:Ø12.25 / 1,58 kg |
5Q0 505 223 D, 5Q0 505 223 (1) OEM |
 |
30VW1673
|
Track Control Arm Rear Right |
di:Ø12.25 / 1,59 kg |
5QM 505 224, 5Q0 505 224 D |
 |
30VW1702
|
Track Rod Rear |
1,34 kg |
5Q0 505 323 C, 5Q0 505 323 D (1) OEM |
 |
30VW1704
|
Track Rod Rear |
0,58 kg |
5Q0 501 529 F, 5Q0 501 529 D (2) OEM |
 |
30VW6600
NEW
|
Track Control Arm Left |
3,96 kg |
1EA 407 151 B |
 |
30VW6601
NEW
|
Track Control Arm Right |
3,96 kg |
1EA 407 152 B |
 |
38AU1220
|
Silentblock for TCA |
L:45 di:Ø14.2 do:Ø38.7 / 0,13 kg |
1K0 505 203 A, 1K0 505 323 N* (1) OEM |
 |
38AU1230
|
Silentblock for TCA |
L:49.8 di:Ø12.1 do:Ø37.4 / 0,14 kg |
5Q0 505 553 |
 |
38AU1231
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø44.5 / 0,12 kg |
3Q0 505 311 D*, 3Q0 505 311 E* (5) OEM |
 |
38AU1235
|
Silentblock for TCA |
L:45.2 di:Ø12.25 do:Ø60.2 / 0,19 kg |
1K0 505 541 B, 5Q0 505 541 A (4) OEM |
 |
38AU1290
|
Bellow Steering |
0,12 kg |
1K0 423 831 A, 1K0 423 831 B (1) OEM |
 |
38AU2601
|
Silentblock for TCA |
L:28 di:Ø10.2 do:Ø36.8 / 0,05 kg |
8W0 505 324 F*, 8W0 505 323 F* (4) OEM |
 |
38AU3020
|
Silentblock for TCA |
L:54 di:Ø12.2 do:Ø48 / 0,19 kg |
5Q0 407 182 A, 5Q0 407 182 (4) OEM |
 |
38AU3021
|
Silentblock for TCA |
L:50 di:Ø13 do:Ø64.7 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
45VW1602
|
Strut Mount Right |
0,35 kg |
5Q0 513 353 G, 5Q0 513 353 K (2) OEM |
 |
45VW1608
|
Strut Mount |
0,69 kg |
5Q0 412 331 E, 5Q0 412 331 F (7) OEM |
 |
45VW1609
|
Engine Mounting |
0,60 kg |
5Q0 199 855 AB, 5Q0 199 855 AF (1) OEM |
