10DC1005
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/5 cs:Ø17,2 / 0,66 kg |
54 50 116 97R*, 54 50 001 38R* (9) OEM |
 |

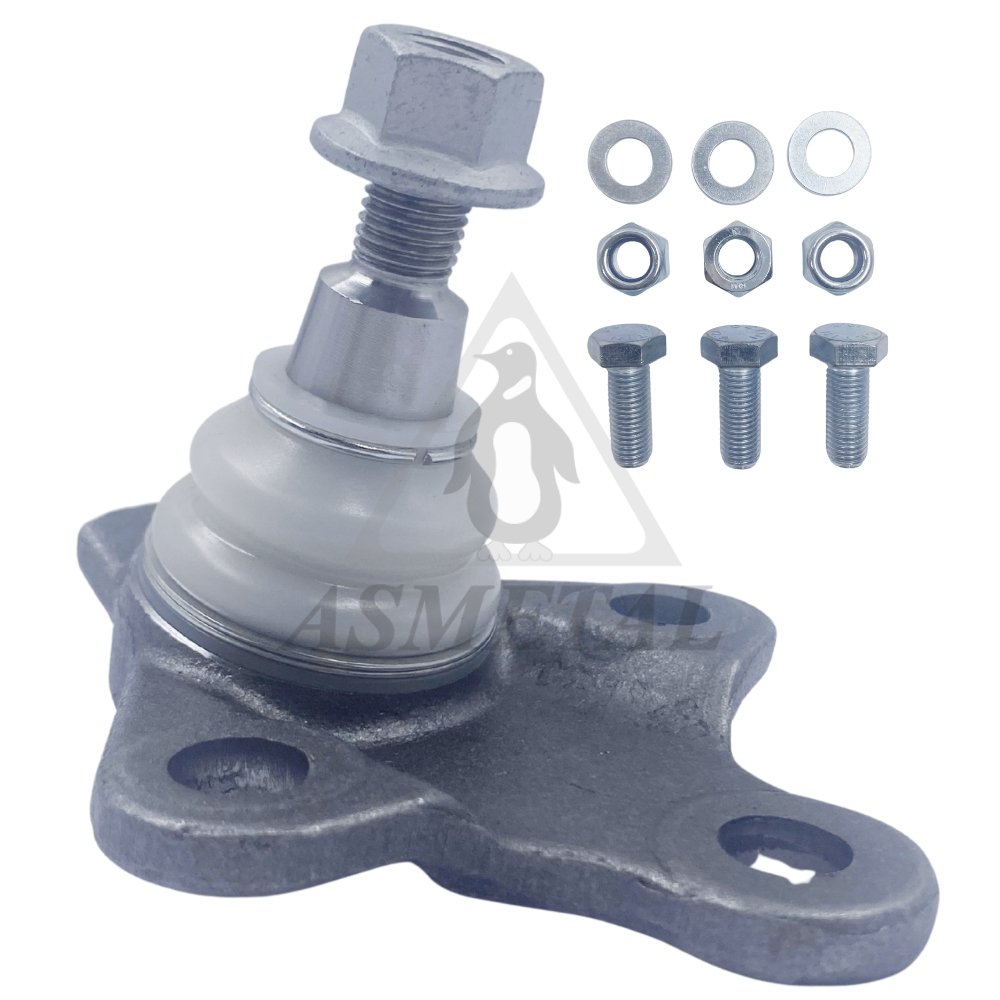

10DC1010
|
Ball Joint Lower |
th1:M12x1.5 RHT c:Ø17.1 / 0,82 kg |
40 16 098 14R, 54 50 402 80R (1) OEM |
 |
10NS1300
|
Ball Joint |
cs:Ø16 do:Ø34,8 / 0,21 kg |
54501 1HA6A*, 54501 1HA5D* (6) OEM |
 |
10RN2000
|
Ball Joint |
c:Ø16 & 2xM10 / 0,52 kg |
77 01 472 038, 54501 00QAH* (3) OEM |
 |
10RN4015
|
Ball Joint Upper |
th:M12x1.25 RHT cp:1/10 cs:Ø15,8 / 0,43 kg |
77 01 468 820, 77 01 460 885 (1) OEM |
 |
10RN4055
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/10 cs:Ø15,8 / 0,42 kg |
77 01 468 821, 77 01 460 886 (2) OEM |
 |
10RN5541
|
Ball Joint Lower |
c:Ø18 do:Ø38,35 / 0,27 kg |
54 50 042 69R, 60 01 549 181 (25) OEM |
 |
10RN5560
|
Ball Joint Lower |
c: Ø18 do: Ø38.35 / 0,28 kg |
82 01 093 259, 40 16 040 02R (6) OEM |
 |
10RN5800
|
Ball Joint |
C: Ø17,2 CR: 1/5 TP: M12X1,25 / 0,72 kg |
54504 00Q0D*, 54505 00Q0D* (6) OEM |
 |
13DC1000
|
Suspension Kit (TCA Kit) |
7,4 kg |
60 01 550 446, 60 01 547 606* |
 |
13DC2000
|
Suspension Kit (TCA Kit) |
7,3 kg |
48 52 028 67R*, 60 01 550 442* (5) OEM |
 |
17DC1000
|
Tie Rod End Left |
c:Ø12,1 th:FM14x1,5 RHT / 0,65 kg |
48 52 028 67R, 60 01 550 442 (2) OEM |
 |
17DC1001
|
Tie Rod End Right |
c:Ø12,1 th:FM14x1,5 RHT / 0,65 kg |
60 01 547 611, 48 52 004 10R (2) OEM |
 |
17DC1005
|
Tie Rod End Left |
c:Ø11,8 th:FM14x1,5 RHT / 0,7 kg |
82 01 108 339, 86 60 003 545 |
 |
17DC1006
|
Tie Rod End Right |
c:Ø11,8 th:FM14x1,5 RHT / 0,7 kg |
82 01 108 332, 86 60 003 545 |
 |
17DC1100
|
Tie Rod End Left |
L: 209 C: Ø11,9 CR: 1/5 TH: FM14x1,5 TP: M10X1,25 / 0,70 kg |
48 64 019 37R |
 |
17DC1101
|
Tie Rod End Right |
L: 209 C: Ø11,9 CR: 1/5 TH: FM14x1,5 TP: M10X1,25 / 0,70 kg |
48 52 049 98R |
 |
17DC1300
IN PREPARATION
|
Tie Rod End |
|
82 01 728 693, 82 01 728 694 |
 |
17RN0510
|
Tie Rod End Left |
c:Ø11,9 th:FM14x1,5 RHT / 0,64 kg |
6000 617 476, 48520 00QAK (9) OEM |
 |
17RN0510.11
|
Tie Rod End (KIT) |
|
6000 617 476, 60 006 174 75 (19) OEM |
 |
17RN0511
|
Tie Rod End Right |
c:Ø11,9 th:FM14x1,5 RHT / 0,64 kg |
60 006 174 75, 48520 00Q0K (8) OEM |
 |
20DC1000
|
Axial Joint |
th:MM12x1.0 RHT L:188,5mm / 0,42 kg |
60 01 547 606, 60 01 550 441 |
 |
20DC1005
|
Axial Joint |
th:MM16x1,5 RHT L:203mm / 0,58 kg |
86 60 003 582, 82 01 108 350 |
 |
20DC1010
|
Axial Joint |
MM14x1.5 RHT L:218mm / 0,47 kg |
48 52 132 85R* |
 |
20DC1100
|
Axial Joint |
tp: MM14x1.5 / tp: FM14x1.5 / L: 212.5 / 0,46 kg |
48 52 194 53R |
 |
20DC1300
IN PREPARATION
|
Axial Joint |
|
82 01 728 697 |
 |
20DC2000
|
Axial Joint |
th:MM14x1.5 RHT L:193mm / 0,4 kg |
48 52 111 05R, 48 52 111 05R* (2) OEM |
 |
23RN4080
|
Track Control Arm Right |
c:1:9 th:M10x1.25 RHT / 1,22 kg |
77 00 571 173 |
 |
23RN4081
|
Track Control Arm Left |
c:1:9 th:M10x1.25 RHT / 1,22 kg |
77 00 571 172 |
 |
26DC1000
|
Stabiliser Link |
L:73,4mm Plastic / 0,11 kg |
82 00 277 960, 60 01 547 138 |
 |
26DC1020
|
Track Rod Rear |
0,87 kg |
82 00 839 119 |
 |
26DC1022
|
Track Rod Rear Left |
1,13 kg |
82 00 841 004, 55 11 193 05R |
 |
26DC1023
|
Track Rod Rear Right |
1,13 kg |
82 00 839 107, 55 11 078 94R |
 |
26DC1100
|
Stabiliser Link |
L: 245 TP: M10X1,25 / 0,32 kg |
55 11 007 10R |
 |
26DC9930
|
Stabiliser Link |
L: 73.5 tp: MM8x1,25 / 3,3 kg |
82 00 277 960, 60 01 547 138 |
 |
26RN0515
|
Stabiliser Link |
L:295mm / 0,36 kg |
55 11 030 22R, 82 00 814 411 (4) OEM |
 |
30DC1000
|
Track Control Arm Right |
cs:Ø18 / 2 kg |
82 00 820 918, 54 50 007 94R (6) OEM |
 |
30DC1001
|
Track Control Arm Left |
cs:Ø18 / 2 kg |
60 01 550 911, 60 01 550 909 (5) OEM |
 |

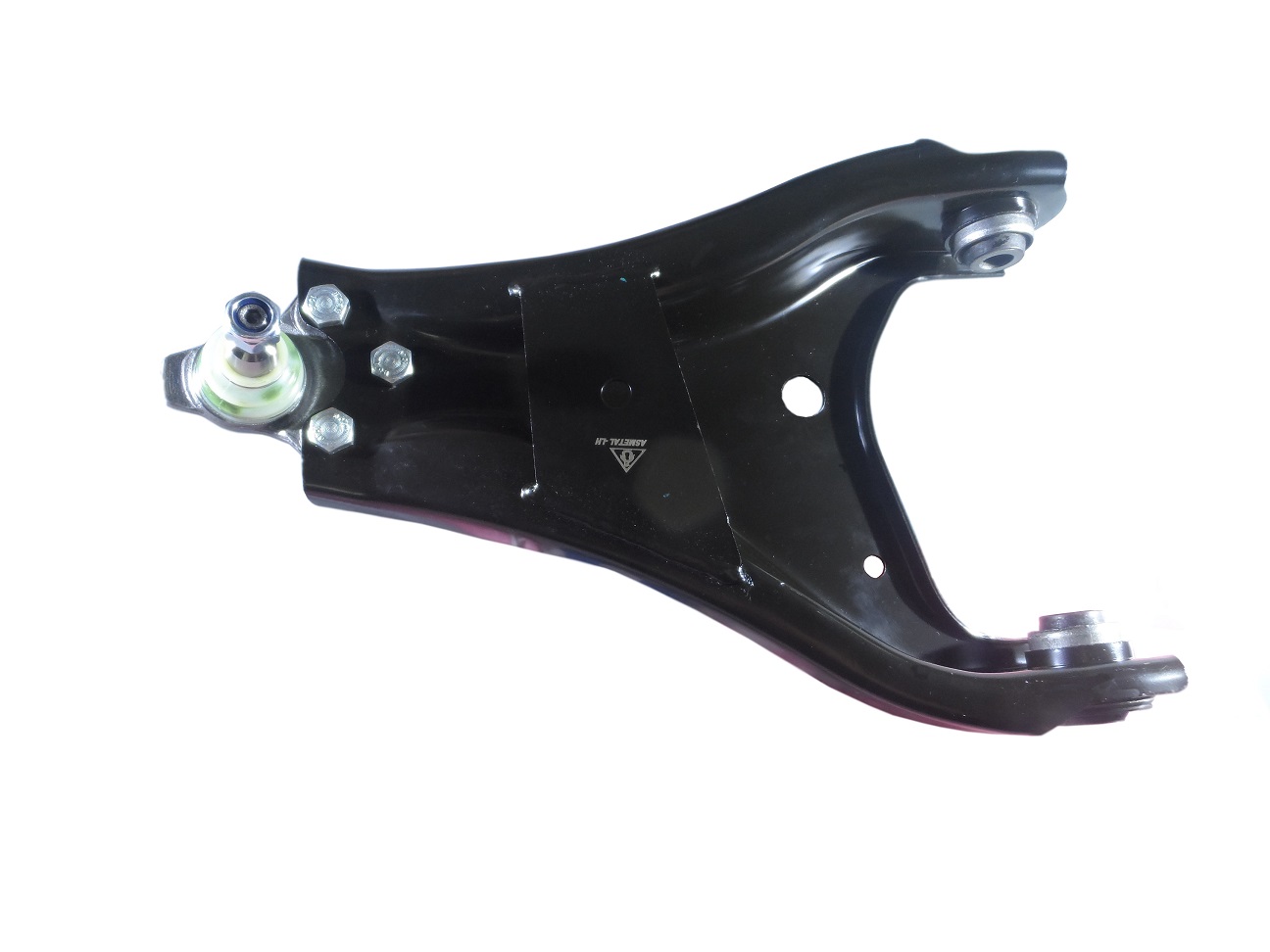

30DC1004
|
Track Control Arm Left |
tp: M12x1.25 cr: 1:5 c: Ø17.08 / 3 kg |
54 50 116 97R, 54 50 199 69R (2) OEM |
 |

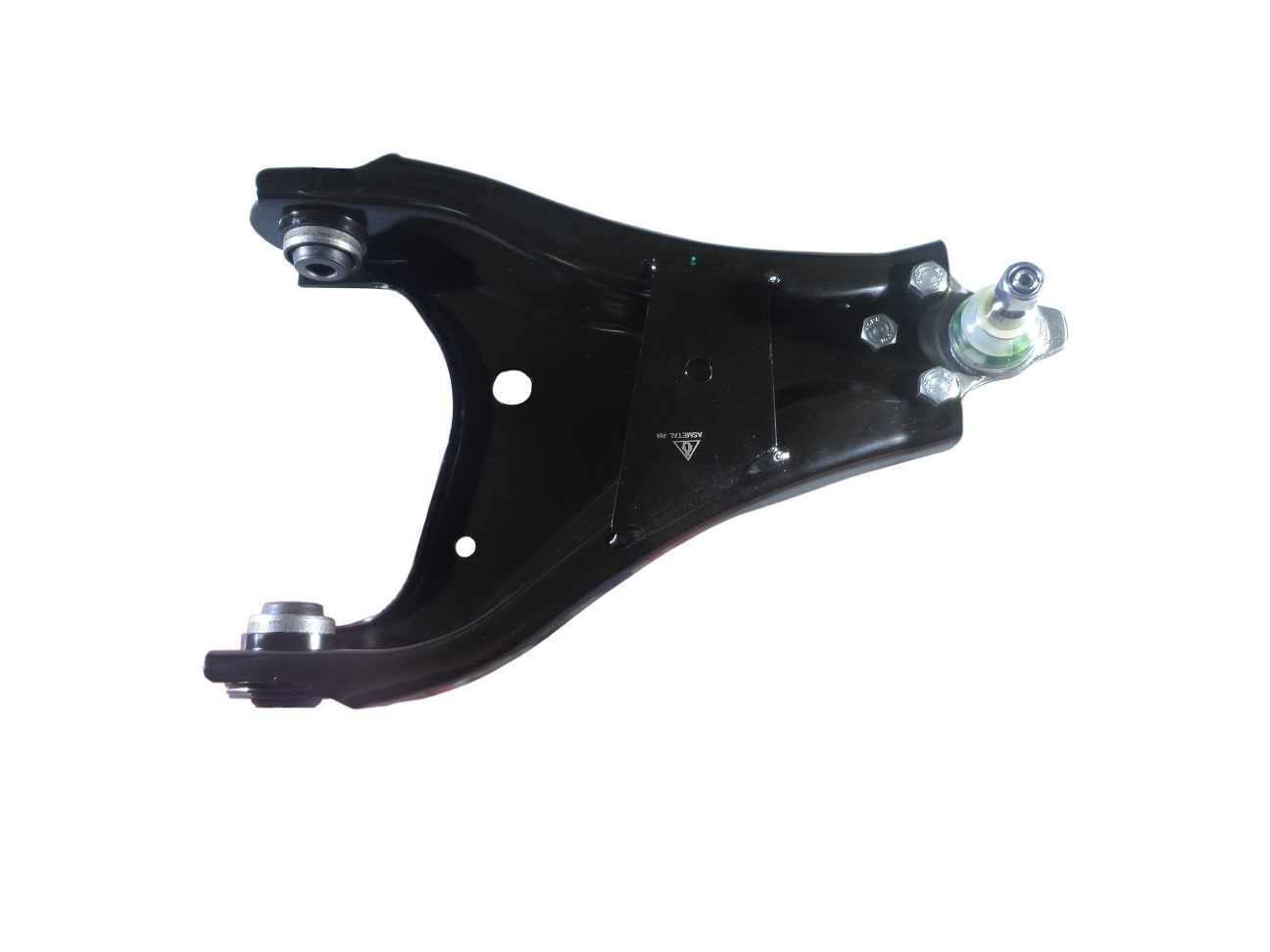

30DC1005
|
Track Control Arm Right |
3 kg |
54 50 001 38R, 54 50 065 42R (2) OEM |
 |
30DC1010
|
Track Control Arm Left |
3,18 kg |
54 50 554 13R |
 |
30DC1011
|
Track Control Arm Right |
tp: M12x1.5 cr: 1:5 c: Ø17.1 / 3,18 kg |
54 50 402 80R |
 |
30RN5560
|
Track Control Arm Left |
c: Ø18 / 2 kg |
54 50 102 94R, 54 50 170 81R (2) OEM |
 |
30RN5561
|
Track Control Arm Right |
c: Ø18 / 2 kg |
54 50 010 64R, 54 50 045 29R (2) OEM |
 |
38DC1000
|
Stabiliser Mounting |
Ø24 / 0,03 kg |
60 01 549 311, 82 00 262 344 (4) OEM |
 |
38DC1002
|
Silentblock for TCA |
di:Ø12,1 do:Ø37,2 / 0,17 kg |
60 40 002 245, 60 01 547 519* (4) OEM |
 |
38DC1005
|
Mounting Axle Body |
di:Ø12 / 0,42 kg |
60 01 549 988, 60 01 549 989 (2) OEM |
 |
38DC1015
|
Silentblock for TCA |
di:Ø14 do:Ø37,3 / 0,16 kg |
54 56 027 88R, 54 50 199 69R* (5) OEM |
 |
38DC1018
|
Stabiliser Mounting |
di:Ø18 / 0,04 kg |
82 00 852 550, 54 61 142 37R |
 |
38DC1020
|
Stabiliser Mounting |
di: Ø11 / L: 35 / 0,04 kg |
56 23 001 11R |
 |
38DC1024
|
Silentblock for TCA |
0,238 kg |
55 11 078 94R*, 55 11 193 05R* (2) OEM |
 |
38DC1025
|
Silentblock for TCA |
di:Ø14.2 do:Ø35.5 L:40mm / 0,1 kg |
82 00 839 121 |
 |
38DC3000
|
Silentblock for TCA |
di: Ø18.5 / do: Ø55 / L: 43.5 / 0,28 kg |
54 56 059 25R, 54 50 547 87R* (1) OEM |
 |
38DC3001
|
Silentblock for TCA |
di: Ø14.2 / do: Ø58 / L: 53 / 0,16 kg |
54 56 048 08R, 54 50 547 87R* (1) OEM |
 |
38DC3100
NEW
|
Silentblock for TCA |
0,342 kg |
54 501 521 6R*, 54 500 204 6R* |
 |
38DC3101
NEW
|
Silentblock for TCA |
0,167 kg |
54 501 521 6R*, 54 500 204 6R* |
 |
38RN5560
|
Silentblock for TCA |
di:Ø12.1 do:Ø37.2 L:46mm / 0,16 kg |
66 40 096 299, 54 50 117 27R* (3) OEM |
 |
40DC1006
|
Bearing Drive Shaft (FAG) |
di:Ø30 L:178mm / 0,71 kg |
39 77 403 85R |
 |
45DC1000
|
Strut Mount |
di:Ø12 do:Ø122 / 0,32 kg |
60 01 547 499, 60 01 548 403 (2) OEM |
 |
45DC1000E
OUT OF SERVICE
|
Strut Mount |
di:Ø12 do:Ø122 / 0,32 kg |
60 01 547 499, 60 01 548 403 (2) OEM |
 |
45DC1010
|
Strut Mount With Bearing |
di:Ø16.2 do:Ø75 h:47mm / 0,38 kg |
60 01 025 850, 82 00 307 941 (5) OEM |
 |
45DC1032
|
Suspension Support Buffer Rear |
di:Ø9 do: Ø120 L:144.5mm / 0,3 kg |
55 24 019 99R |
 |
45DC1111
|
Bearing |
di: Ø16 / do: Ø56 / L: 10 / 0,06 kg |
86 60 004 283, 77 00 800 107 (3) OEM |
 |
45DC4500
|
Engine Mounting |
di:Ø14 L:104.5mm / 1,93 kg |
82 00 042 456, 82 00 592 642 (1) OEM |
 |
45DC4560
IN PREPARATION
|
Engine Mounting |
|
11 23 810 35R, 11 23 839 05R (1) OEM |
