ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

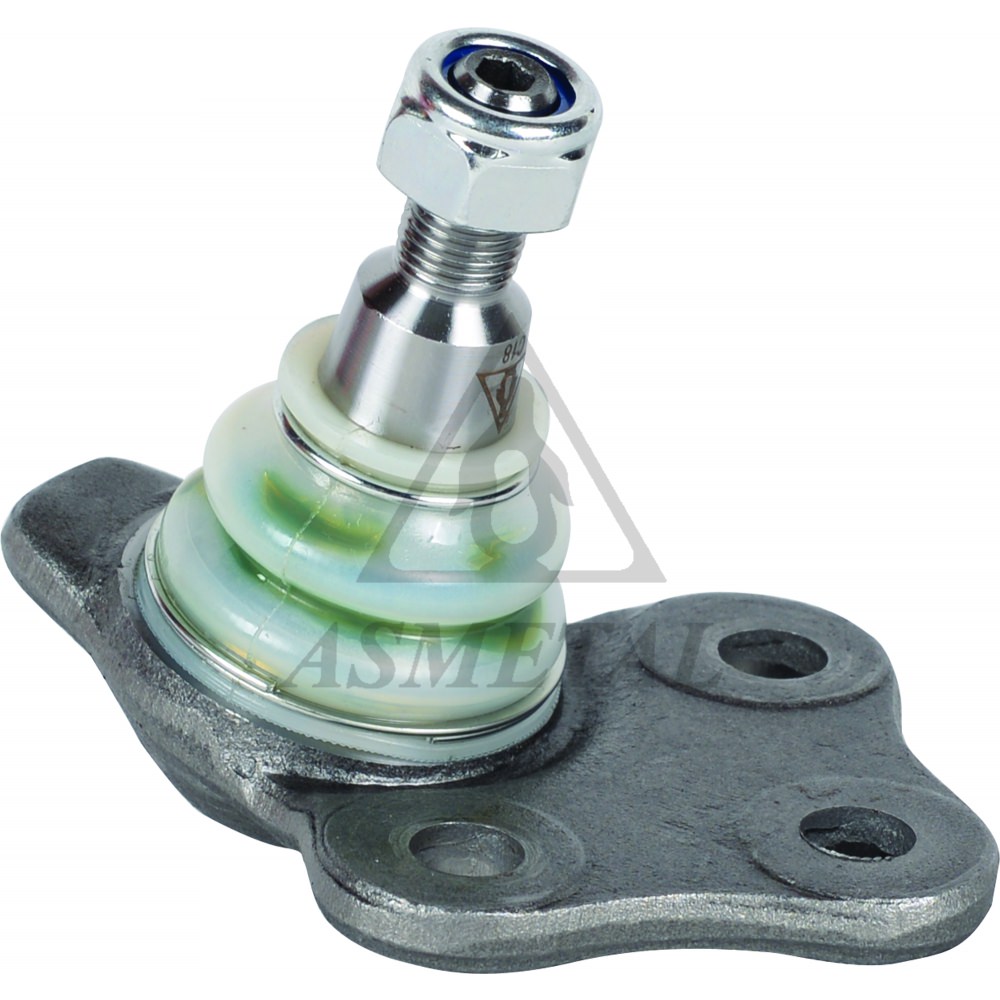

10DC1005	Ball Joint Lower	th:M12x1.25 RHT cp:1/5 cs:Ø17,2 / 0,66 kg	54 50 116 97R, 54 50 001 38R (9) OEM
10DC1010	Ball Joint Lower	th1:M12x1.5 RHT c:Ø17.1 / 0,82 kg	40 16 098 14R, 54 50 402 80R (1) OEM
10RN5800	Ball Joint	C: Ø17,2 CR: 1/5 TP: M12X1,25 / 0,72 kg	54504 00Q0D, 54505 00Q0D (6) OEM
17DC1005	Tie Rod End Left	c:Ø11,8 th:FM14x1,5 RHT / 0,7 kg	82 01 108 339, 86 60 003 545

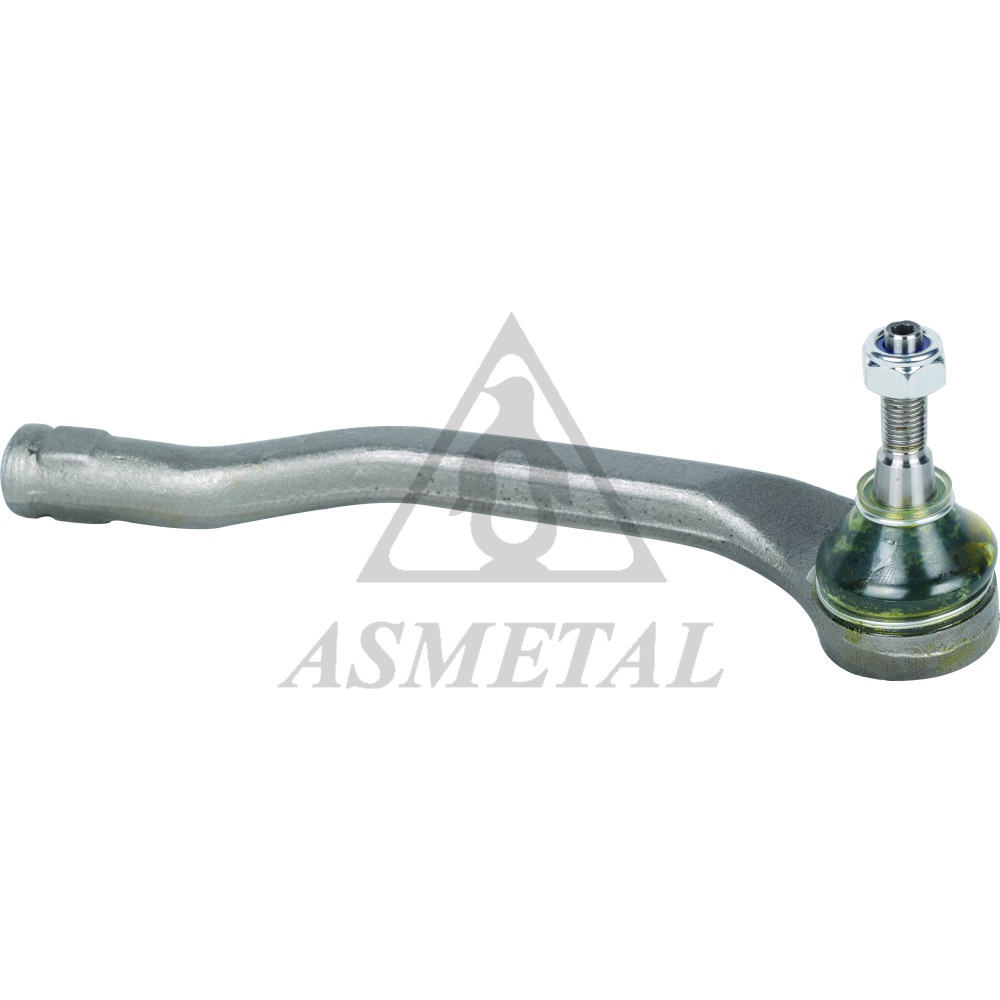

17DC1006	Tie Rod End Right	c:Ø11,8 th:FM14x1,5 RHT / 0,7 kg	82 01 108 332, 86 60 003 545
17RN0510	Tie Rod End Left	c:Ø11,9 th:FM14x1,5 RHT / 0,64 kg	6000 617 476, 48520 00QAK (9) OEM
17RN0510.11	Tie Rod End (KIT)		6000 617 476, 60 006 174 75 (19) OEM
17RN0511	Tie Rod End Right	c:Ø11,9 th:FM14x1,5 RHT / 0,64 kg	60 006 174 75, 48520 00Q0K (8) OEM
20DC1005	Axial Joint	th:MM16x1,5 RHT L:203mm / 0,58 kg	86 60 003 582, 82 01 108 350

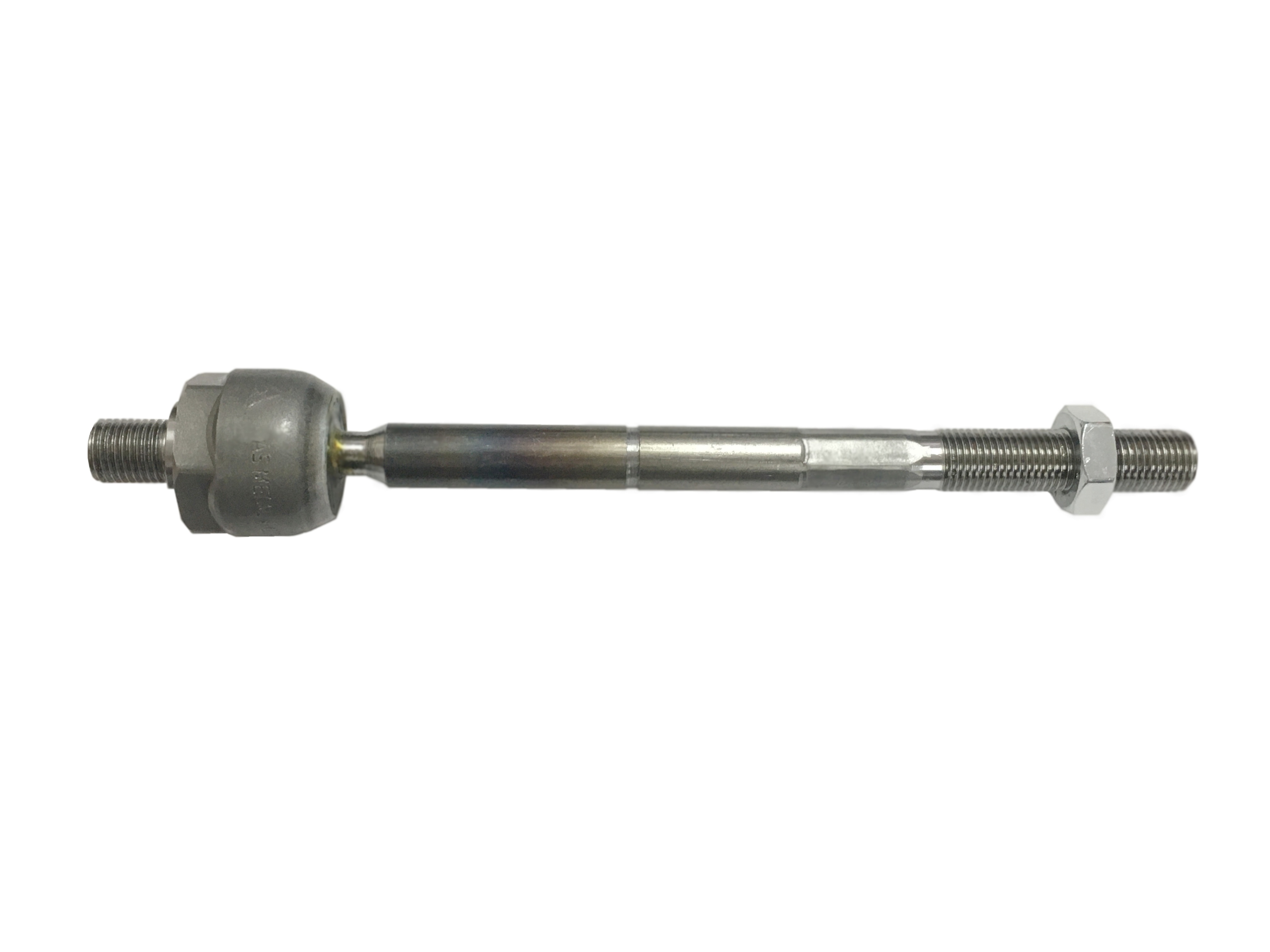

20DC1010	Axial Joint	MM14x1.5 RHT L:218mm / 0,47 kg	48 52 132 85R*
26DC1020	Track Rod Rear	0,87 kg	82 00 839 119
26DC1022	Track Rod Rear Left	1,13 kg	82 00 841 004, 55 11 193 05R
26DC1023	Track Rod Rear Right	1,13 kg	82 00 839 107, 55 11 078 94R
26RN0515	Stabiliser Link	L:295mm / 0,36 kg	55 11 030 22R, 82 00 814 411 (4) OEM
30DC1004	Track Control Arm Left	tp: M12x1.25 cr: 1:5 c: Ø17.08 / 3 kg	54 50 116 97R, 54 50 199 69R (2) OEM
30DC1005	Track Control Arm Right	3 kg	54 50 001 38R, 54 50 065 42R (2) OEM
30DC1010	Track Control Arm Left	3,18 kg	54 50 554 13R
30DC1011	Track Control Arm Right	tp: M12x1.5 cr: 1:5 c: Ø17.1 / 3,18 kg	54 50 402 80R
38DC1005	Mounting Axle Body	di:Ø12 / 0,42 kg	60 01 549 988, 60 01 549 989 (2) OEM

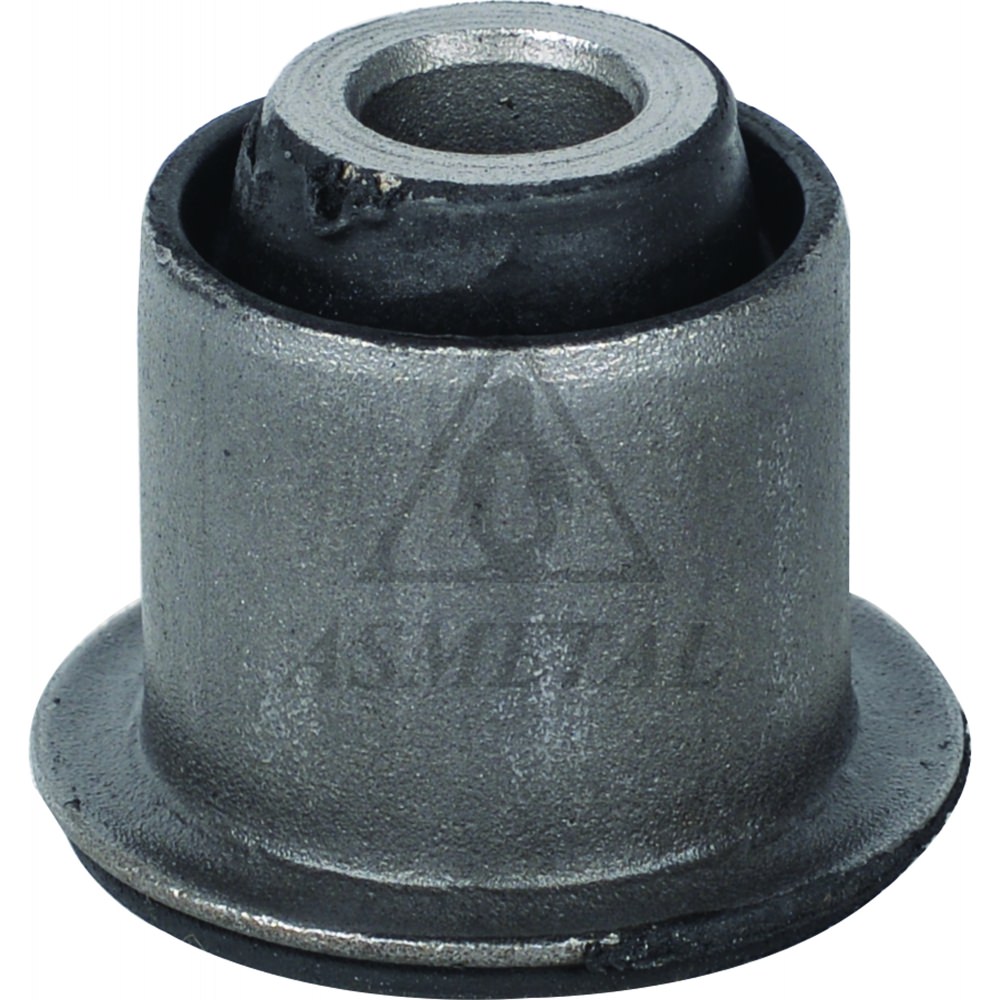

38DC1015	Silentblock for TCA	di:Ø14 do:Ø37,3 / 0,16 kg	54 56 027 88R, 54 50 199 69R* (5) OEM
38DC1018	Stabiliser Mounting	di:Ø18 / 0,04 kg	82 00 852 550, 54 61 142 37R
38DC1020	Stabiliser Mounting	di: Ø11 / L: 35 / 0,04 kg	56 23 001 11R
38DC1024	Silentblock for TCA	0,238 kg	55 11 078 94R, 55 11 193 05R (2) OEM
38DC1025	Silentblock for TCA	di:Ø14.2 do:Ø35.5 L:40mm / 0,1 kg	82 00 839 121
38DC3100 NEW	Silentblock for TCA		545015216R, 545002046R
38DC3101 NEW	Silentblock for TCA		545002046R, 545015216R

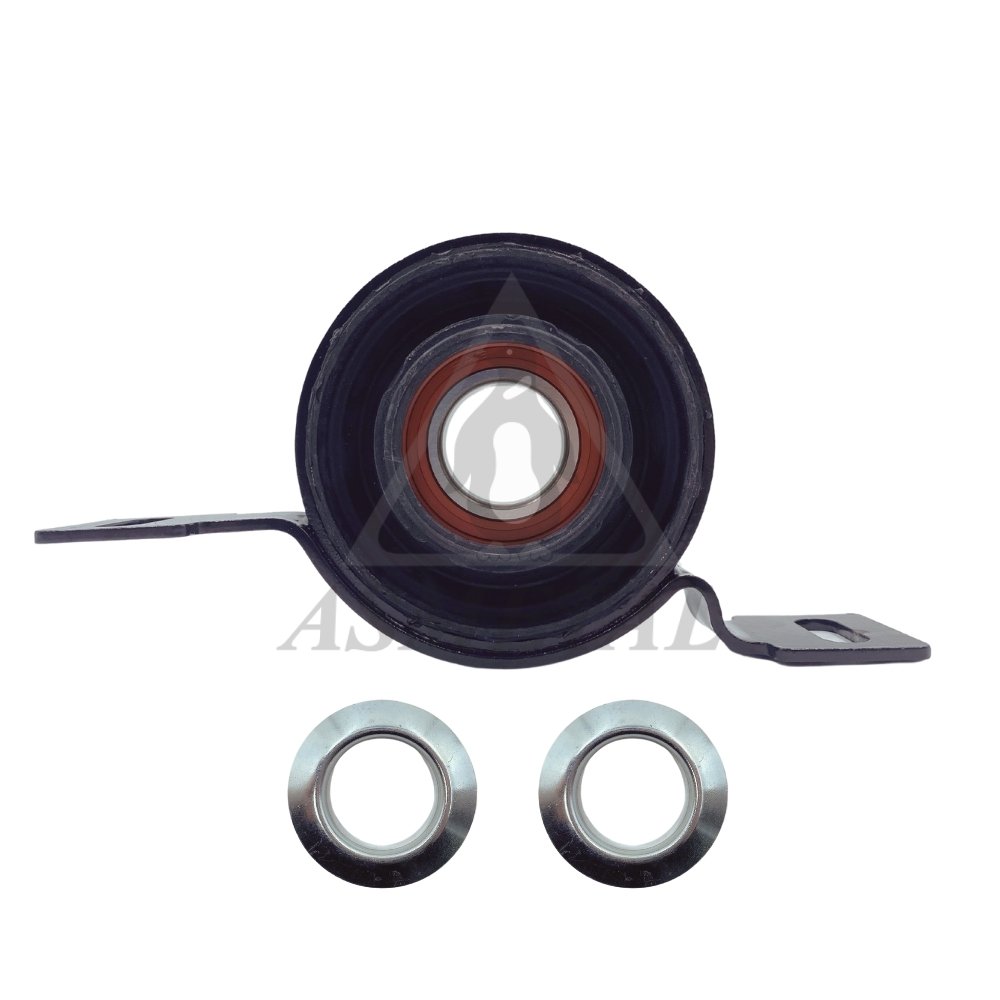

40DC1006	Bearing Drive Shaft (FAG)	di:Ø30 L:178mm / 0,71 kg	39 77 403 85R
45DC1000	Strut Mount	di:Ø12 do:Ø122 / 0,32 kg	60 01 547 499, 60 01 548 403 (2) OEM
45DC1000E OUT OF SERVICE	Strut Mount	di:Ø12 do:Ø122 / 0,32 kg	60 01 547 499, 60 01 548 403 (2) OEM
45DC1010	Strut Mount With Bearing	di:Ø16.2 do:Ø75 h:47mm / 0,38 kg	60 01 025 850, 82 00 307 941 (5) OEM
45DC1111	Bearing	di: Ø16 / do: Ø56 / L: 10 / 0,06 kg	86 60 004 283, 77 00 800 107 (3) OEM
