ASMETAL Catalogue

DACIA > LODGY (16 Quantity)

	ASMETAL No	Product Description	Dimensions	Oem No
	10RN5560	Ball Joint Lower	c: Ø18 do: Ø38.35 / 0,28 kg	82 01 093 259, 40 16 040 02R (6) OEM
	13DC2000	Suspension Kit (TCA Kit)	7,3 kg	48 52 028 67R, 60 01 550 442 (5) OEM
	17DC1000	Tie Rod End Left	c:Ø12,1 th:FM14x1,5 RHT / 0,65 kg	48 52 028 67R, 60 01 550 442 (2) OEM
	17DC1001	Tie Rod End Right	c:Ø12,1 th:FM14x1,5 RHT / 0,65 kg	60 01 547 611, 48 52 004 10R (2) OEM

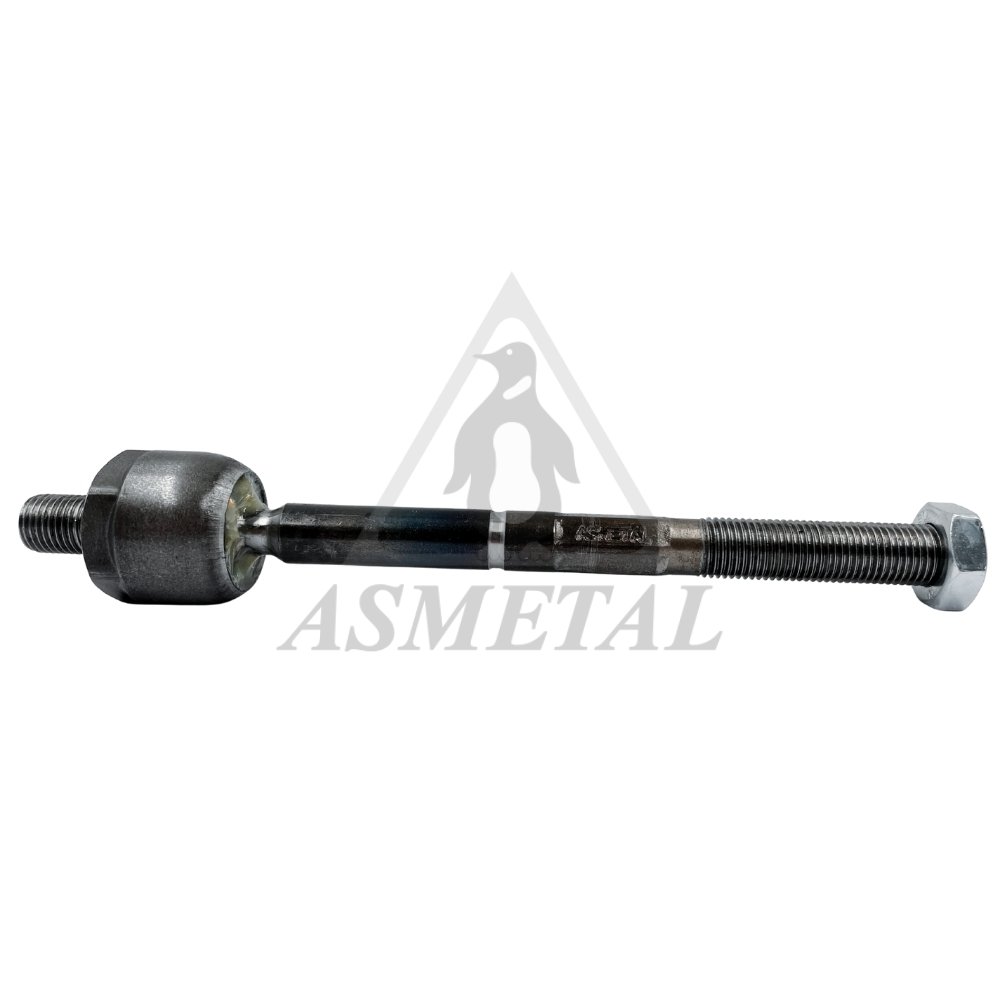

	20DC2000	Axial Joint	th:MM14x1.5 RHT L:193mm / 0,4 kg	48 52 111 05R, 48 52 111 05R* (2) OEM
	26DC1000	Stabiliser Link	L:73,4mm Plastic / 0,11 kg	82 00 277 960, 60 01 547 138
	26DC9930	Stabiliser Link	L: 73.5 tp: MM8x1,25 / 3,3 kg	82 00 277 960, 60 01 547 138
	30RN5560	Track Control Arm Left	c: Ø18 / 2 kg	54 50 102 94R, 54 50 170 81R (2) OEM
	30RN5561	Track Control Arm Right	c: Ø18 / 2 kg	54 50 010 64R, 54 50 045 29R (2) OEM
	38DC1000	Stabiliser Mounting	Ø24 / 0,03 kg	60 01 549 311, 82 00 262 344 (4) OEM
	38RN5560	Silentblock for TCA	di:Ø12.1 do:Ø37.2 L:46mm / 0,16 kg	66 40 096 299, 54 50 117 27R* (3) OEM
	45DC1000	Strut Mount	di:Ø12 do:Ø122 / 0,32 kg	60 01 547 499, 60 01 548 403 (2) OEM
	45DC1000E OUT OF SERVICE	Strut Mount	di:Ø12 do:Ø122 / 0,32 kg	60 01 547 499, 60 01 548 403 (2) OEM
	45DC1010	Strut Mount With Bearing	di:Ø16.2 do:Ø75 h:47mm / 0,38 kg	60 01 025 850, 82 00 307 941 (5) OEM
	45DC1111	Bearing	di: Ø16 / do: Ø56 / L: 10 / 0,06 kg	86 60 004 283, 77 00 800 107 (3) OEM
	45DC1292 IN PREPARATION	Engine Mounting		11 21 012 92R, 11 37 519 34R (3) OEM
