ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

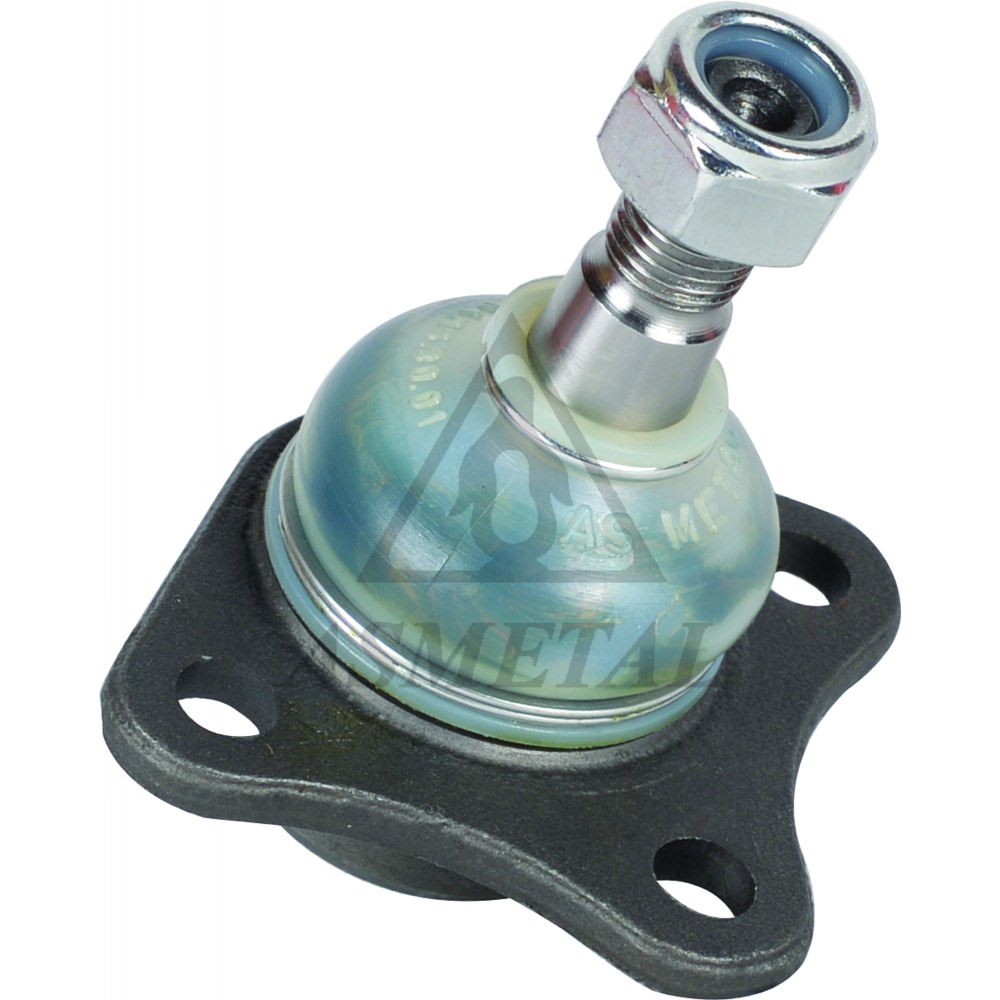

10FI5000	Ball Joint Lower	th:M12x1.25 RHT cr:1/8 c:Ø13 do:Ø36 / 0,36 kg	4 643 7951, 4 643 7959 (1) OEM
10FI5010	Ball Joint Lower	th:M12x1.25 RHT cr:1/5 c:Ø13.7 do:Ø36 / 0,38 kg	464 37 959, 464 54 599
10FI5500	Ball Joint Lower	tp:M12x1.25 RHT cr:1/5 c:Ø13.6 / 0,42 kg	467 79 293, 468 42 581 (1) OEM
17FI5001 OUT OF SERVICE	Tie Rod End Left	c:Ø12 th:FM14x1,5 RHT / 0 kg	46745365, 46456189
17FI5500	Tie Rod End Right	L:144 cr:1/10 c:Ø12.15 tp:M10x1.25 th:FM14x1.5 RHT / 0,51 kg	988 45 031, 464 56 660 (1) OEM
17FI5501	Tie Rod End Left	L:144 cr:1/10 c:Ø12.15 tp:M10x1.25 th:FM14x1.5 RHT / 0,51 kg	988 45 032, 464 56 189 (1) OEM
20FI5000	Axial Joint	0,53 kg	707 93 82
20FI5005	Axial Joint	L:269 tp:M14x1.5 th:MM14x1.5 RHT / 0,5 kg	7 081 851, 2 170 345

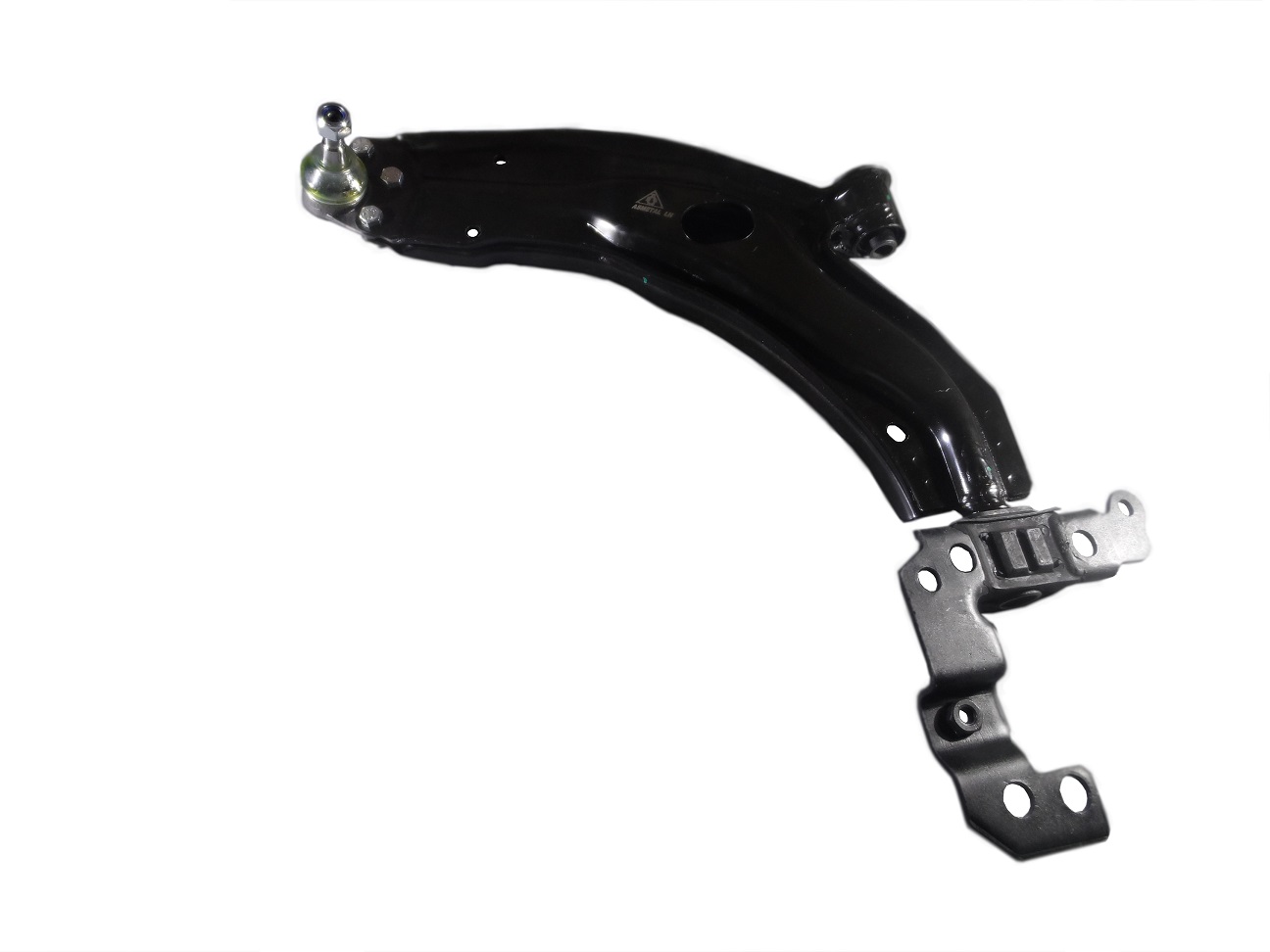

30FI5510	Track Control Arm Left	cr:1/5 c:Ø13.6 th:M12x1.25 RHT / 3,9 kg	465 39 001, 467 77 742 (7) OEM

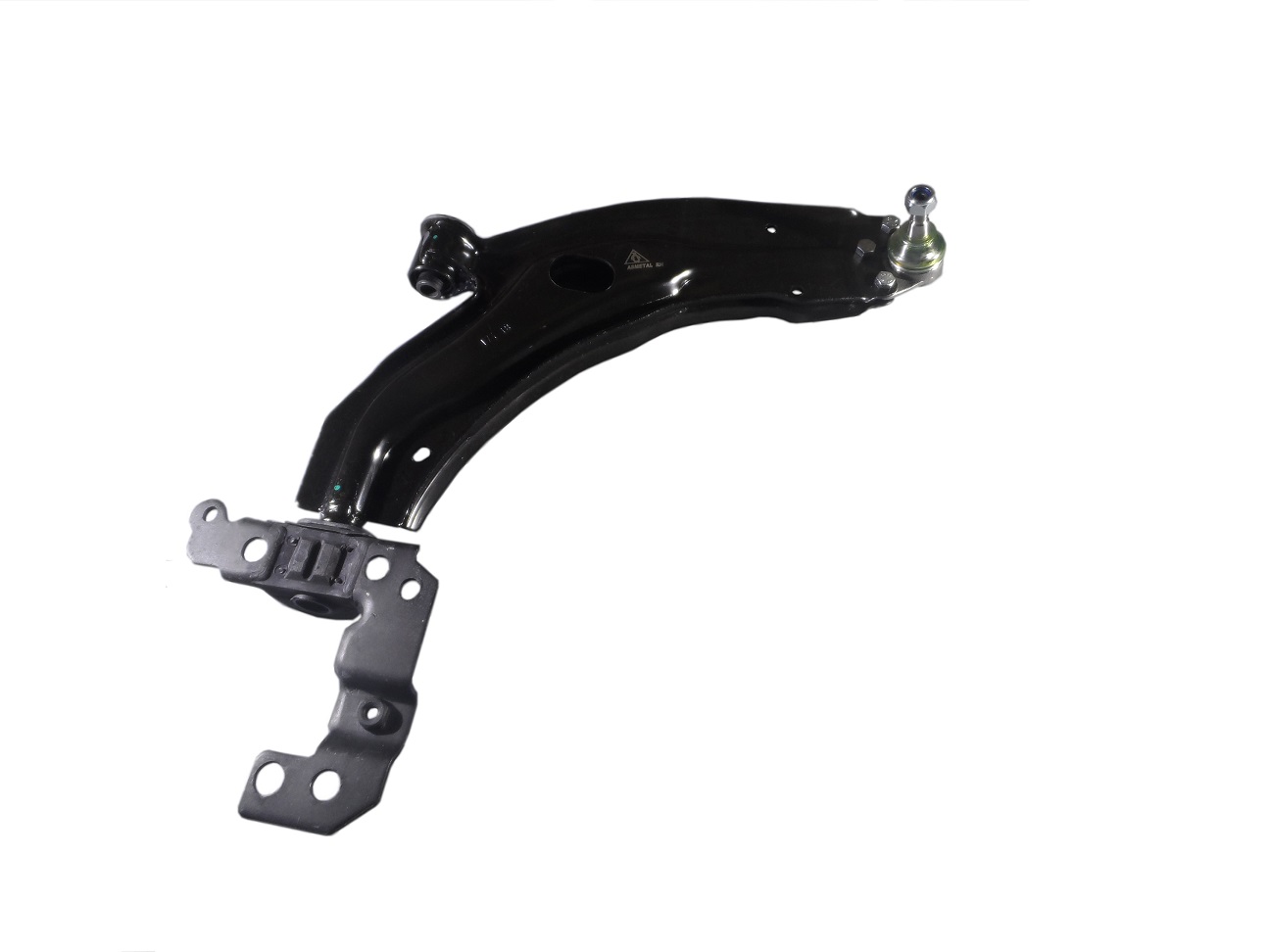

30FI5511	Track Control Arm Right	cr:1/5 c:Ø13.6 th:M12x1.25 RHT / 3,9 kg	518 66 700, 517 69 073 (7) OEM
38FI5500	Silentblock for TCA Right	di:Ø19.8 / 0,64 kg	517 12 407, 467 94 065 (2) OEM
38FI5501	Silentblock for TCA Left	di:Ø19.8 / 0,64 kg	467 94 066, 464 54 078 (2) OEM*
38FI5505	Silentblock for TCA	L:55 di:Ø12 do:Ø30.3 / 0,16 kg	464 21 522, 464 54 595* (14) OEM
38FI5527	Stabiliser Mounting	L:60 di:Ø12.5 / 0,11 kg	517 44 226, 517 13 088 (2) OEM
45FI5020	Suspension Support Buffer Front	L:87.5 di:Ø14 / 0,11 kg	464 66 617
45FI5030	Suspension Support Buffer Rear	di:Ø22 do:Ø69 L:97mm / 0,1 kg	468 36 452
45FI5500	Strut Mount Left With Bearing	L:68 di:Ø14 / 0,96 kg	464 57 410, 467 60 674 (1) OEM
45FI5501	Strut Mount Right With Bearing	L:68 di:Ø14 / 0,94 kg	824 91 440, 467 60 673 (1) OEM
45FI5510	Strut Mount Left With Original Bearing	1 kg	824 91 441, 464 57 410 (1) OEM
45FI5511	Strut Mount Right With Original Bearing	0,97 kg	464 57 409, 467 60 673 (1) OEM
45FI5521	Suspension Support Buffer Front	L:89 di:Ø19 do:Ø70 / 0,1 kg	464 64 298
45FI5523	Shock Absorber Bellow	L:178 di:Ø62 do:Ø82.5 / 0,08 kg	464 66 619
45FI5530	Suspension Support Buffer Rear	L:107 di:Ø6 do:Ø70.5 / 0,13 kg	464 70 781
