ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FI5500	Ball Joint Lower	tp:M12x1.25 RHT cr:1/5 c:Ø13.6 / 0,42 kg	467 79 293, 468 42 581 (1) OEM
10FI5501	Ball Joint Lower	th:M12x1.25 RHT cr:1/5 c:Ø13.65 do:Ø36 / 0,42 kg	7 081 835, 465 43 045
10FI5600	Ball Joint Lower	c:Ø18 / 0,5 kg	519 32 036, 51 220 504 90 (3) OEM
10PE1300 NEW	Ball Joint Lower	0,86 kg	98 310 885 80, 98 073 060 99 (6) OEM
10PE1305 IN PREPARATION	Ball Joint		98 154 180 80, 98 210 415 80 (4) OEM
17FI5000 OUT OF SERVICE	Tie Rod End Right	c:Ø12 th:FM14x1,5 RHT / 0 kg	46745364, 46456660

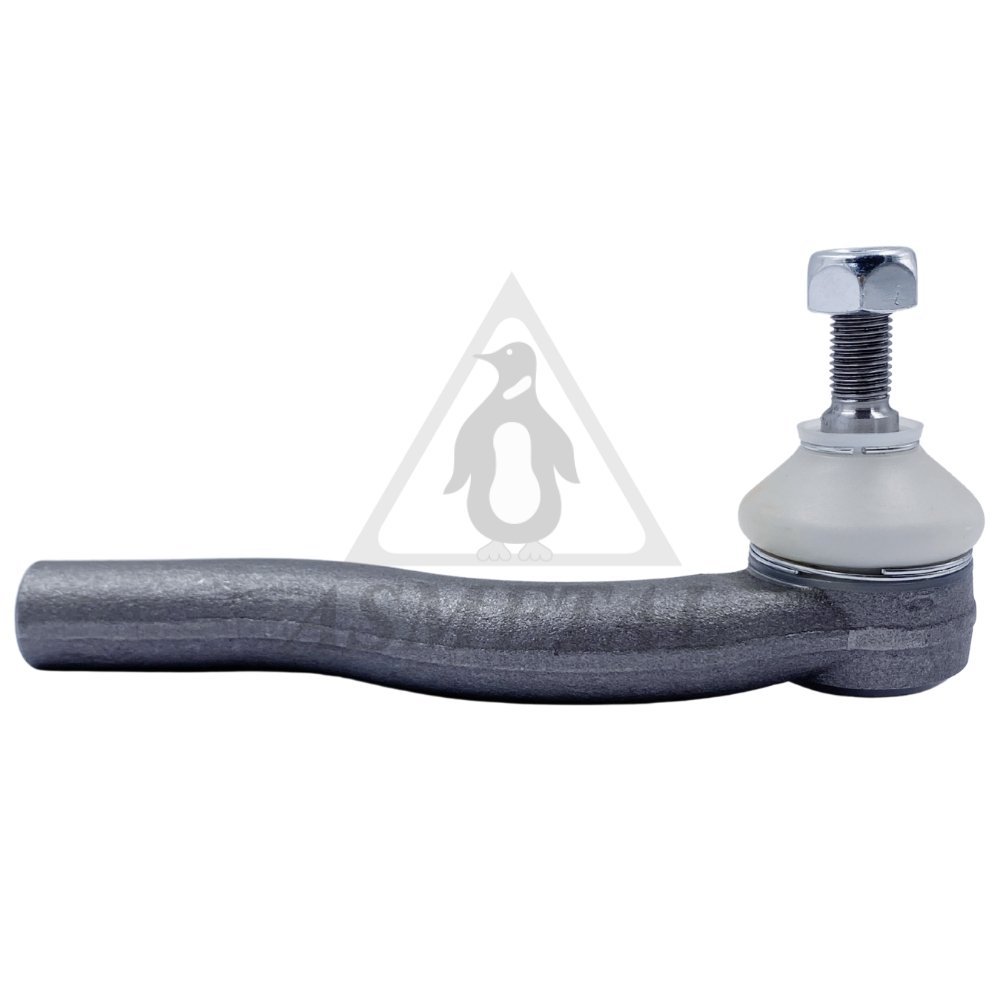

17FI5500	Tie Rod End Right	L:144 cr:1/10 c:Ø12.15 tp:M10x1.25 th:FM14x1.5 RHT / 0,51 kg	988 45 031, 464 56 660 (1) OEM

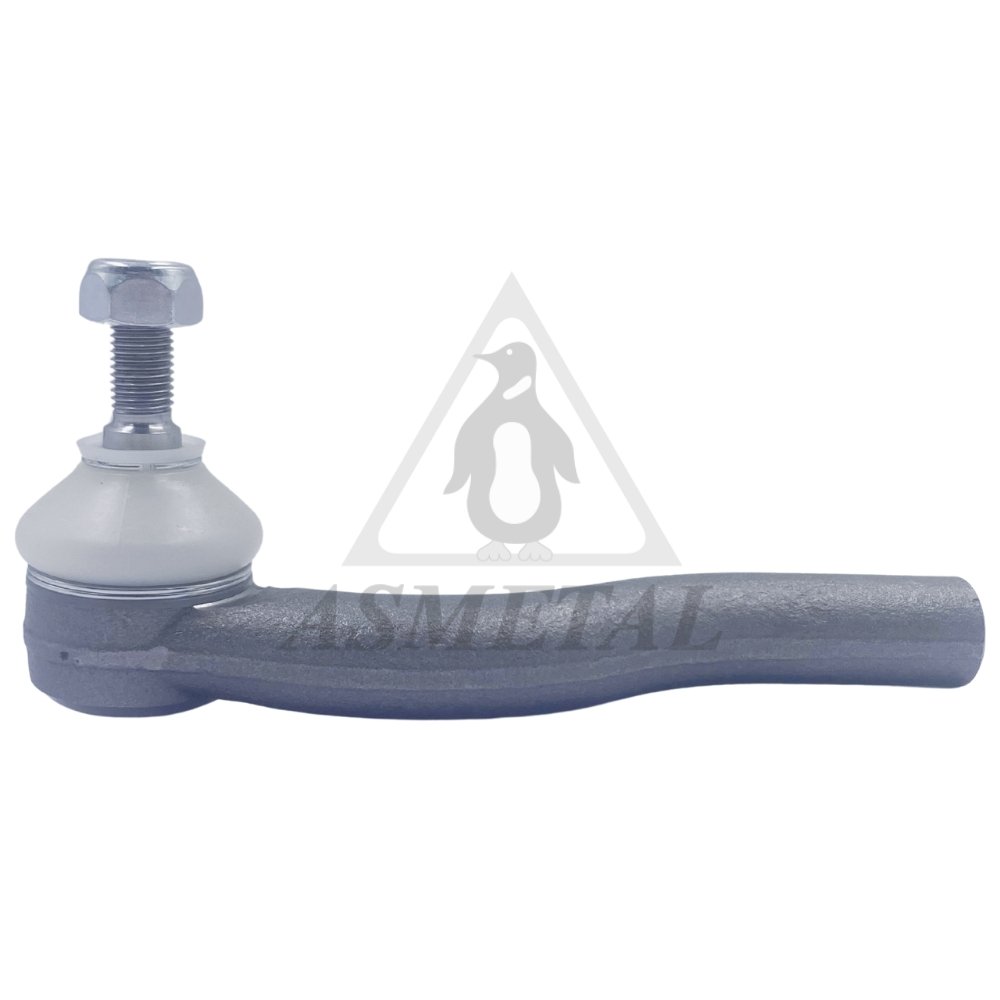

17FI5501	Tie Rod End Left	L:144 cr:1/10 c:Ø12.15 tp:M10x1.25 th:FM14x1.5 RHT / 0,51 kg	988 45 032, 464 56 189 (1) OEM
17FI5600	Tie Rod End Left	L:112 cr:1/6 c:Ø11.58 tp:M10x1.25 th:FM14x1.5 RHT / 0,52 kg	773 65 223, 16 09 193 (1) OEM
17FI5601	Tie Rod End Right	L:112 cr:1/6 c:Ø11.58 tp:M10x1.25 th:FM14x1.5 RHT / 0,52 kg	773 65 224, 16 09 192 (1) OEM
17FI6000	Tie Rod End	L:107 cr:1/10 c:Ø12 tp:M10x1.25 th:FM14x1.5 RHT / 0,36 kg	994 77 19, 988 45 030 (2) OEM
17PE1200	Tie Rod End Left	L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg	16 108 177 80, 39 176 185* (2) OEM
17PE1201	Tie Rod End Right	L:215 cr:1/5 c:Ø14.5 tp:M12x1.5 th:FM14x1.5 RHT / 0,8 kg	16 108 178 80, 39 176 184* (2) OEM
20FI5500	Axial Joint	0,64 kg	988 45 024
20FI5501	Axial Joint	L:298 tp:M14x1.5 th:MM14x1.5 RHT / 0,6 kg	467 94 038, 988 45 025
20FI5502	Axial Joint	L:296 tp:M14x1.5 th:MM16x1.5 RHT / 0,61 kg	988 45 026
20FI5600	Axial Joint	L:298 tp:M18x1.5 th:MM14x1.5 RHT / 0,68 kg	26 144 989*
20PE1200	Axial Joint	L:207 tp:M14x1.5 th:MM14x1.5 RHT / 0,46 kg	16 112 423 80
26FI5500	Stabiliser Link Rear	L:117.5 tp:M10x1.25 RHT / 0,27 kg	517 17 000, 467 67 267
26FI5501	Stabiliser Link Rear	L:117.5 tp:M10x1.25 RHT / 0,29 kg	517 17 001, 467 99 278

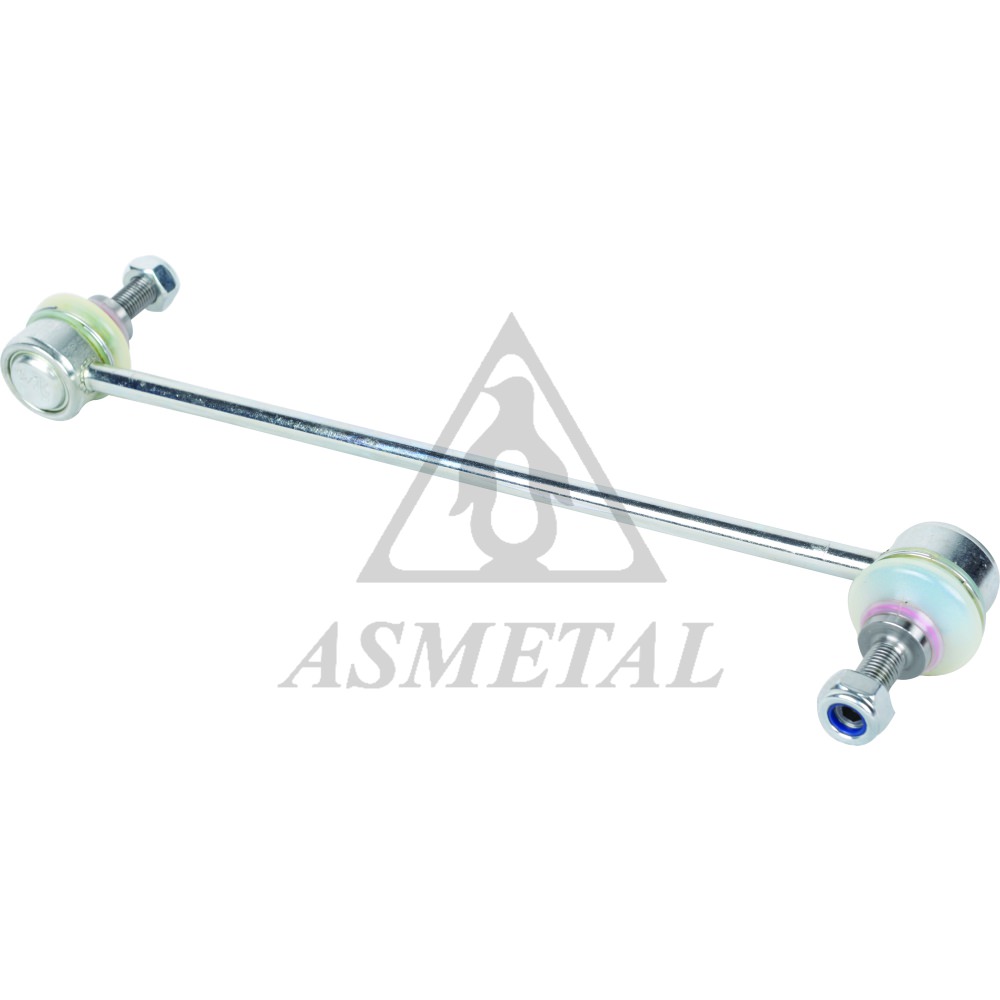

26FI5600	Stabiliser Link	L:297 tp:M10x1.25 RHT / 0,42 kg	518 98 527, 520 42 281 (7) OEM
26FI5610 IN PREPARATION	Stabiliser Link Rear	0 kg	518 10 124, 520 04 273 (3) OEM
26MR1400	Stabiliser Link	L:333 tp:M12x1.5 RHT / 0,42 kg	98 465 490 80, 54618 HG00A (5) OEM

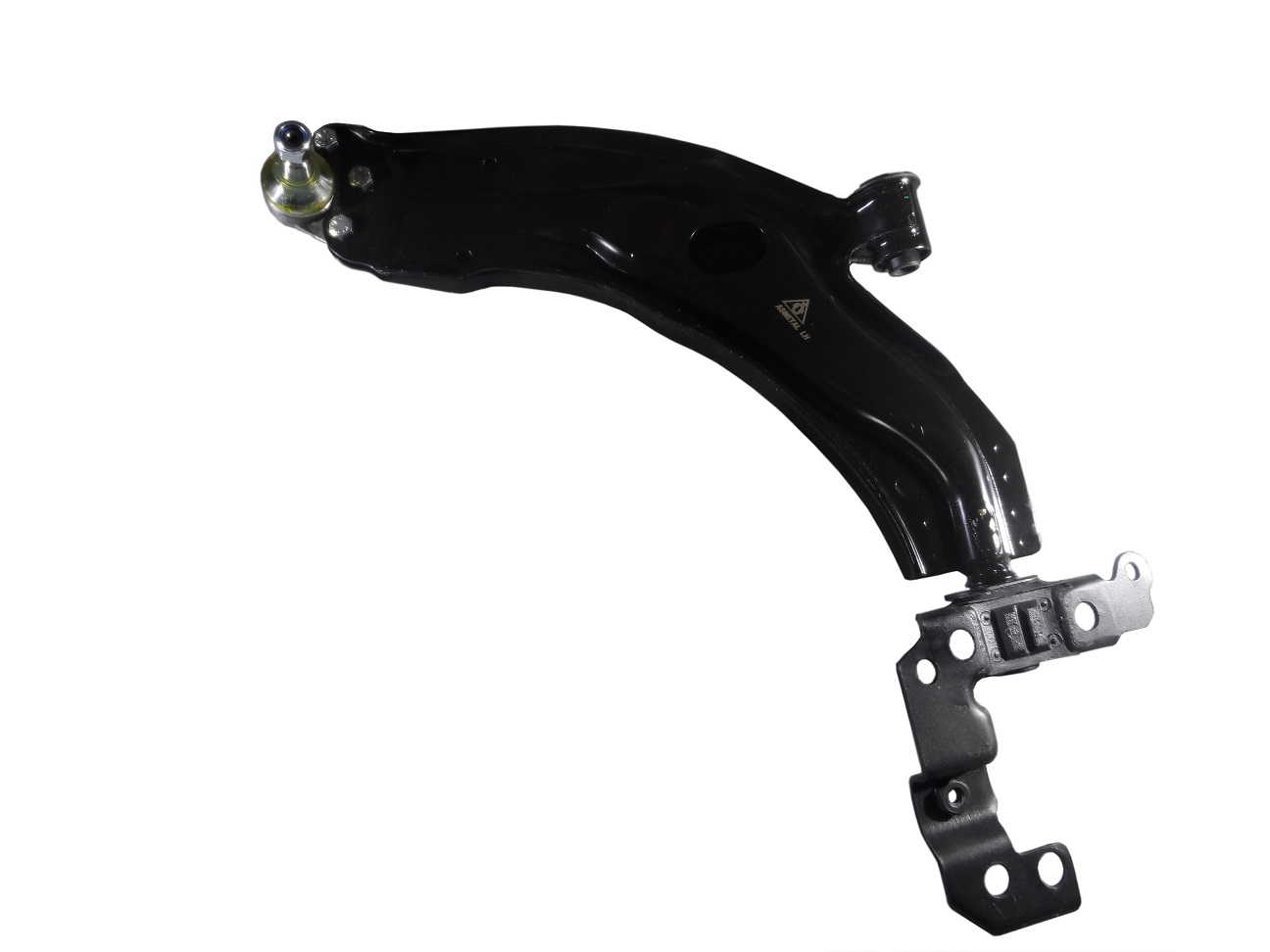

30FI5500	Track Control Arm Left	cr:1/5 c:Ø13.6 th:M12x1.25 RHT / 3,9 kg	517 72 992, 517 72 993

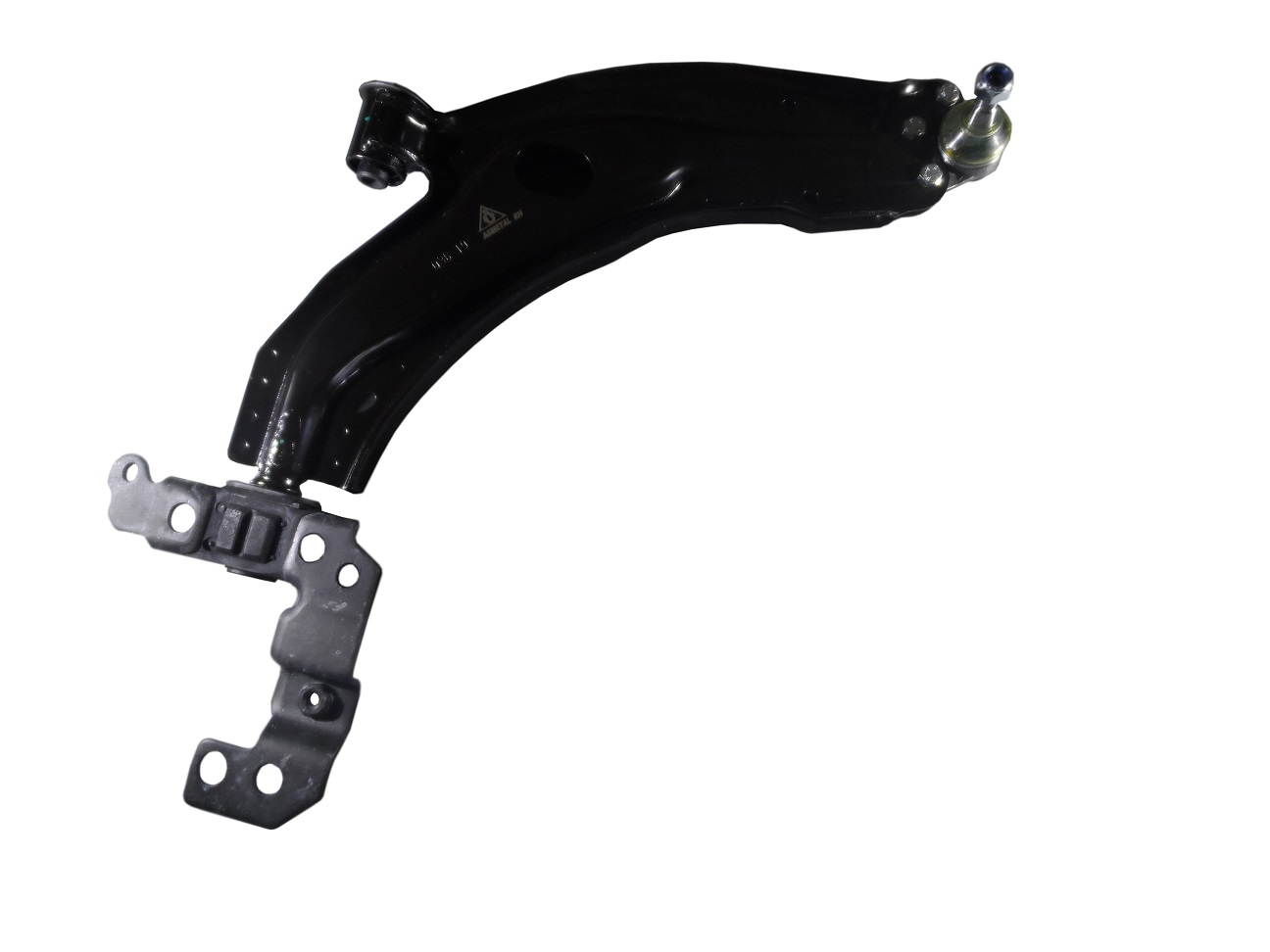

30FI5501	Track Control Arm Right	cr:1/5 c:Ø13.6 th:M12x1.25 RHT / 3,9 kg	517 72 988, 517 72 989
30FI5510	Track Control Arm Left	cr:1/5 c:Ø13.6 th:M12x1.25 RHT / 3,9 kg	465 39 001, 467 77 742 (7) OEM
30FI5511	Track Control Arm Right	cr:1/5 c:Ø13.6 th:M12x1.25 RHT / 3,9 kg	518 66 700, 517 69 073 (7) OEM

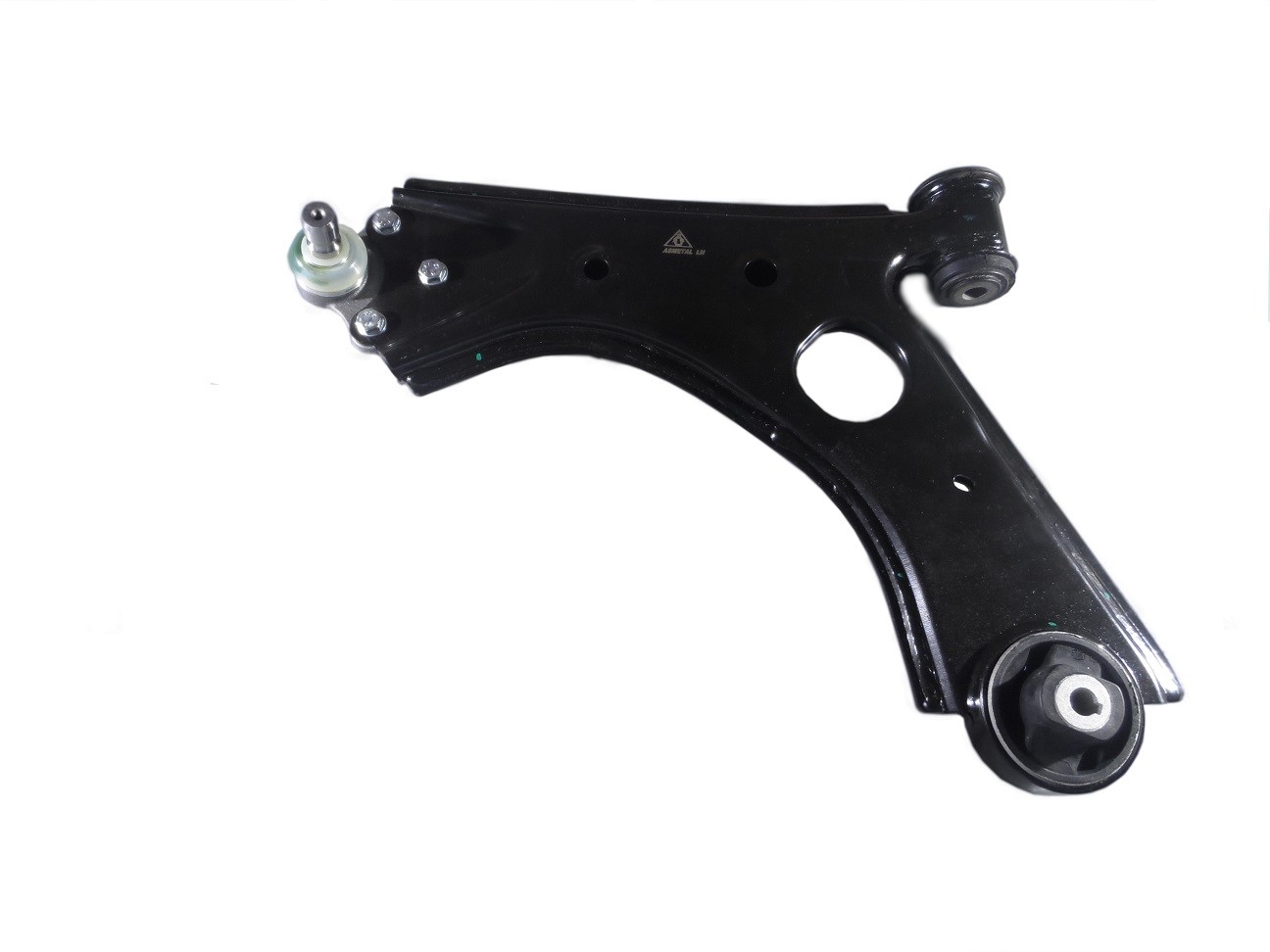

30FI5600	Track Control Arm Left	c:Ø18 / 3,4 kg	518 10 665, 519 32 035 (2) OEM

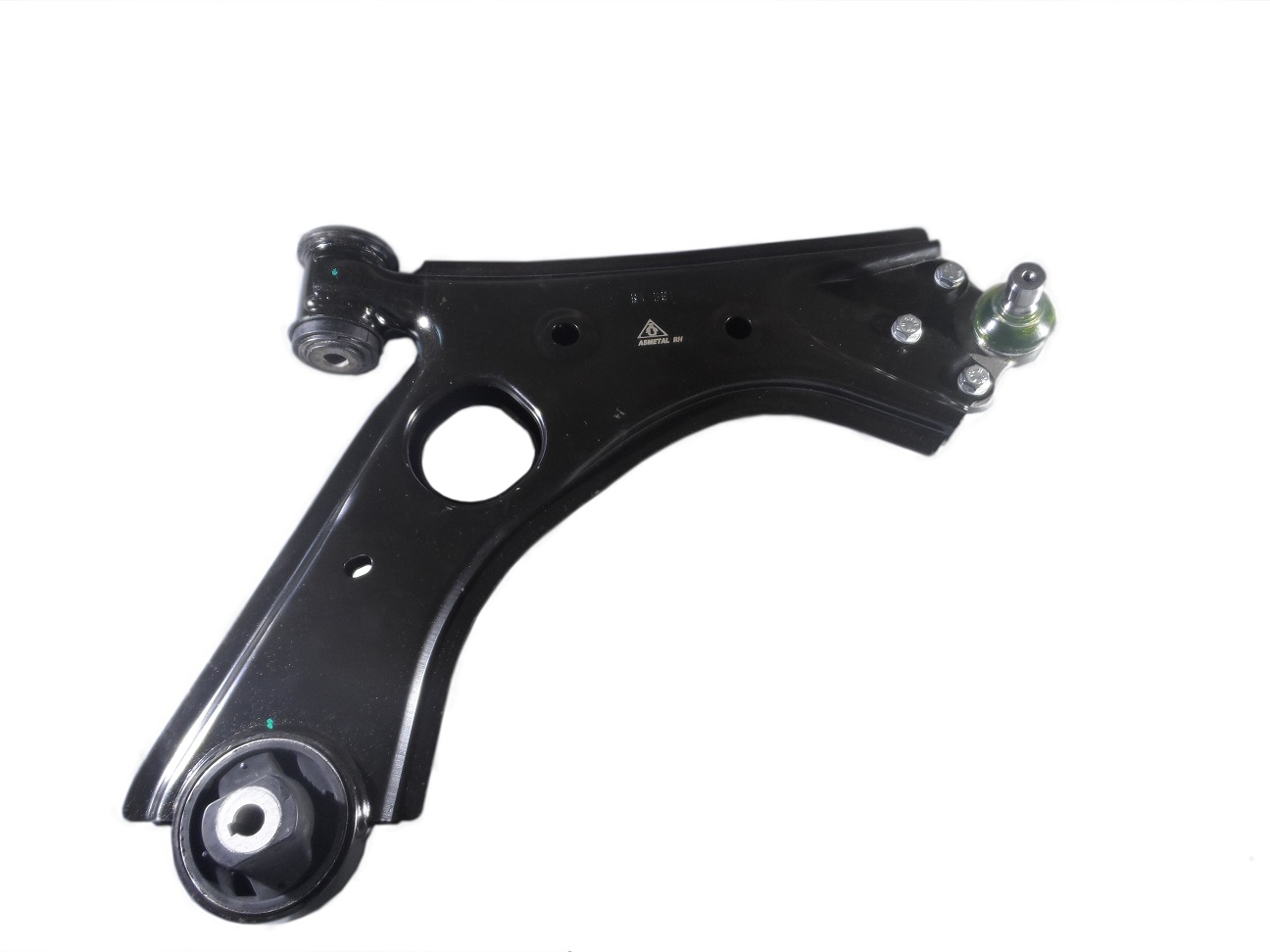

30FI5601	Track Control Arm Right	c:Ø18 / 3,4 kg	518 10 664, 519 32 036 (2) OEM
30FI5602 IN PREPARATION	Track Control Arm Left		518 10 665, 3 52 516 (1) OEM
30FI5603 IN PREPARATION	Track Control Arm Right		518 10 664, 3 52 515 (1) OEM
30PE1300 NEW	Track Control Arm Lower Left	4,46 kg	98 168 655 80, 98 463 295 80 (2) OEM
30PE1301 NEW	Track Control Arm Lower Right	4,46 kg	98 168 654 80, 98 463 290 80 (2) OEM
38FI5500	Silentblock for TCA Right	di:Ø19.8 / 0,64 kg	517 12 407, 467 94 065 (2) OEM
38FI5501	Silentblock for TCA Left	di:Ø19.8 / 0,64 kg	467 94 066, 464 54 078 (2) OEM*
38FI5505	Silentblock for TCA	L:55 di:Ø12 do:Ø30.3 / 0,16 kg	464 21 522, 464 54 595* (14) OEM
38FI5506	Silentblock for TCA	L:67.5 di:Ø12.2 do:Ø41.3 / 0,3 kg	3520 W3, 3521 S6 (28) OEM
38FI5507	Silentblock for TCA	L:66 di:Ø12.3 do:Ø71.5 / 0,2 kg	517 83 056, 517 83 057 (10) OEM
38FI5508	Silentblock for TCA	L:66 di:Ø12.2 do:Ø71 / 0,22 kg	520 08 283, 520 26 316 (13) OEM
38FI5526	Stabiliser Mounting	L:60.2 / 0,12 kg	467 43 788, 467 43 786 (1) OEM
38FI5527	Stabiliser Mounting	L:60 di:Ø12.5 / 0,11 kg	517 44 226, 517 13 088 (2) OEM
38PE1200	Silentblock for TCA	L:65 di:Ø14.1 do:Ø50.3 / 0,26 kg	98 163 803 80, 3 644 790 (1) OEM
38PE1201	Silentblock for TCA	L:59.5 di:Ø14.1 do:Ø43.2 / 0,23 kg	96 760 321 80, 3 637 432
38PE1205	Axle Beam Bushing	L:78.5 di:Ø14.2 do:Ø82.5 / 0,4 kg	5131 H1, 96 810 170 80 (1) OEM
45FI5500	Strut Mount Left With Bearing	L:68 di:Ø14 / 0,96 kg	464 57 410, 467 60 674 (1) OEM
45FI5501	Strut Mount Right With Bearing	L:68 di:Ø14 / 0,94 kg	824 91 440, 467 60 673 (1) OEM
45FI5510	Strut Mount Left With Original Bearing	1 kg	824 91 441, 464 57 410 (1) OEM
45FI5511	Strut Mount Right With Original Bearing	0,97 kg	464 57 409, 467 60 673 (1) OEM
45FI5520	Suspension Support Buffer Front	L:105.5 di:Ø17.5 do:Ø54 / 0,11 kg	467 92 633

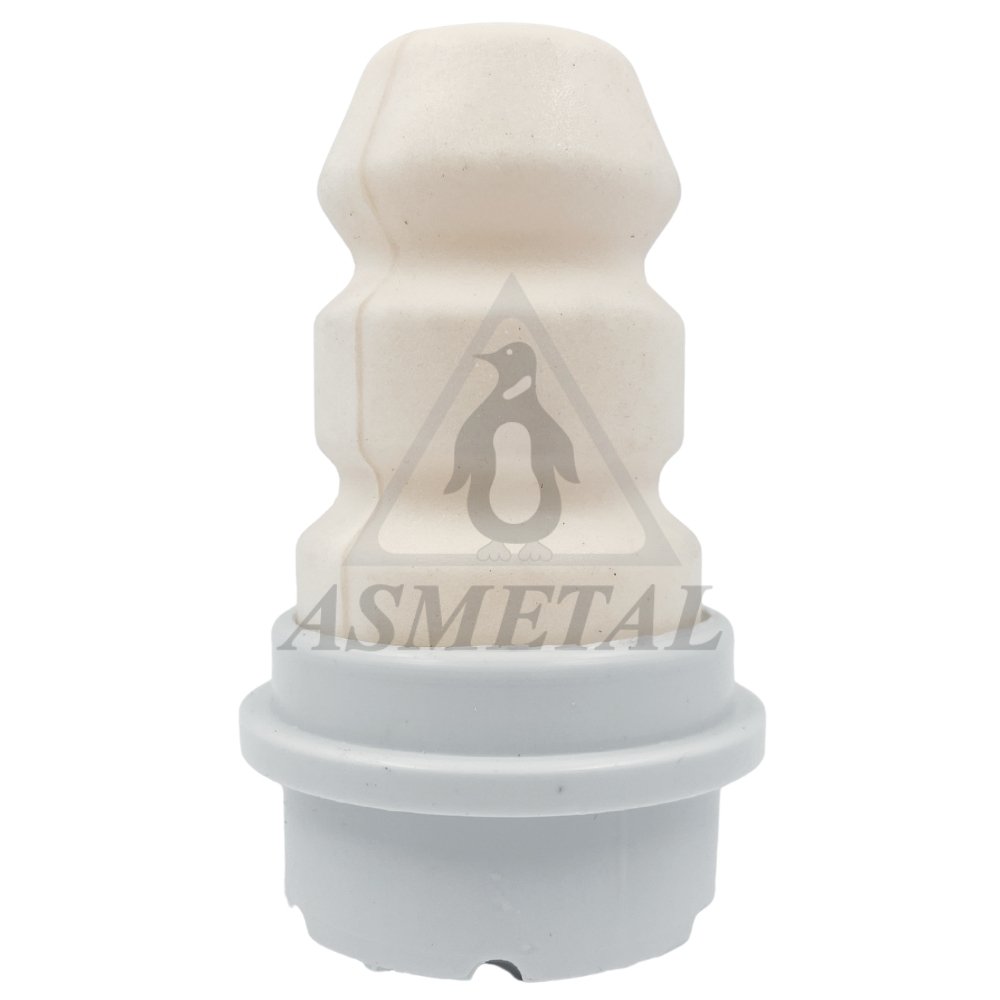

45FI5522	Suspension Support Buffer Front	L:120 di:Ø22.7 do:Ø71 / 0,12 kg	468 04 120
45FI5523	Shock Absorber Bellow	L:178 di:Ø62 do:Ø82.5 / 0,08 kg	464 66 619
45FI5531	Suspension Support Buffer Rear	L:143.5 di:Ø17 / 0,53 kg	467 96 102
45FI5532	Suspension Support Buffer Rear	L:181.5 di:Ø19.5 / 0,54 kg	517 55 085, 517 59 794
45FI5533	Suspension Support Buffer Rear	L:181 di:Ø18.5 / 0,58 kg	468 17 717
45FI5534	Suspension Support Buffer Rear	L:125 do:Ø58 / 0,24 kg	518 65 204, 518 19 224

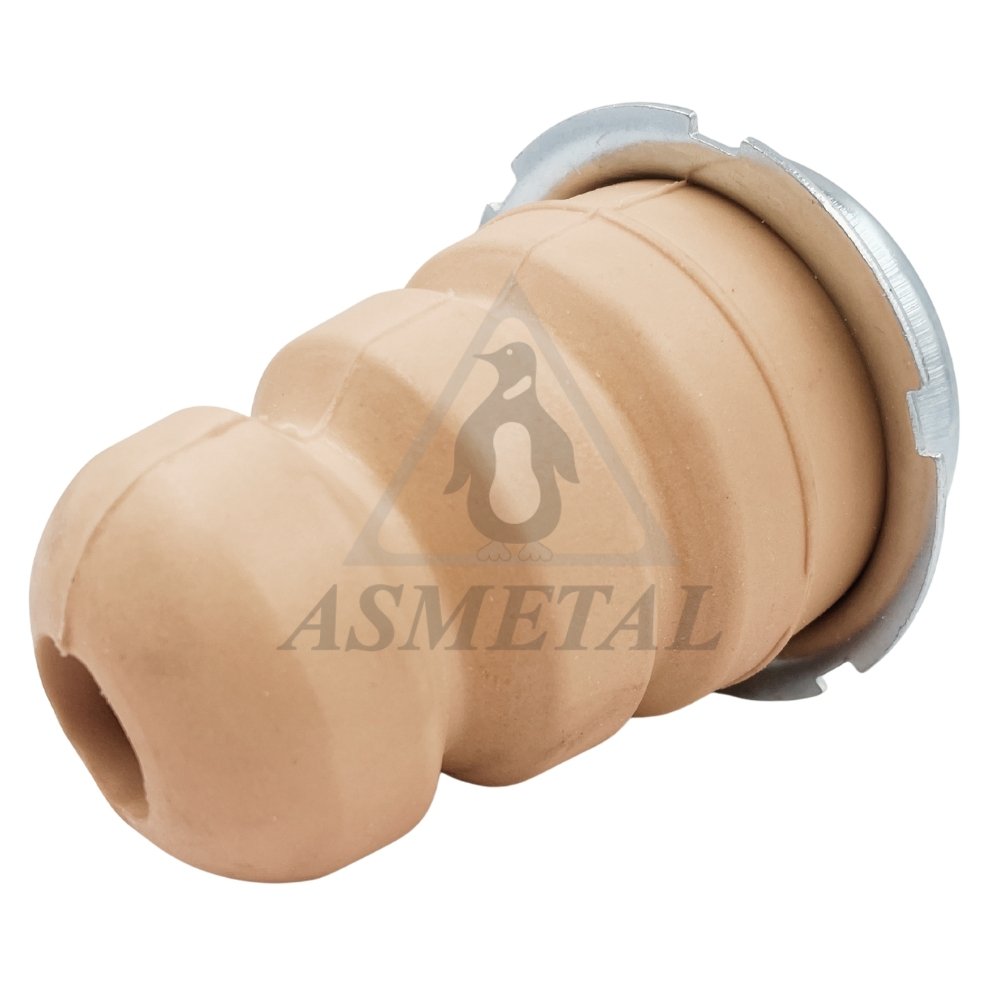

45FI5535	Suspension Support Buffer Rear	L:161 di:Ø21 / 0,47 kg	467 51 548
45FI5570	Engine Mounting	L:49.2 L1:102.8 di:Ø12 / 0,71 kg	517 60 173, 467 67 476 (1) OEM
45FI5620	Suspension Support Buffer Front	L:85.5 di:Ø23.5 do:Ø61.5 / 0,07 kg	955 11 416, 518 51 802 (5) OEM
45FI5621	Suspension Support Buffer Front	L:85 di:Ø30 do:Ø62 / 0,08 kg	518 10 447
45FI5630	Suspension Support Buffer Rear	L:119 di:Ø10.5 / 0,23 kg	518 50 337
45FI5680	Engine Mounting	L:46.5 L1:115 / 0,8 kg	518 37 816, 518 97 408 (4) OEM

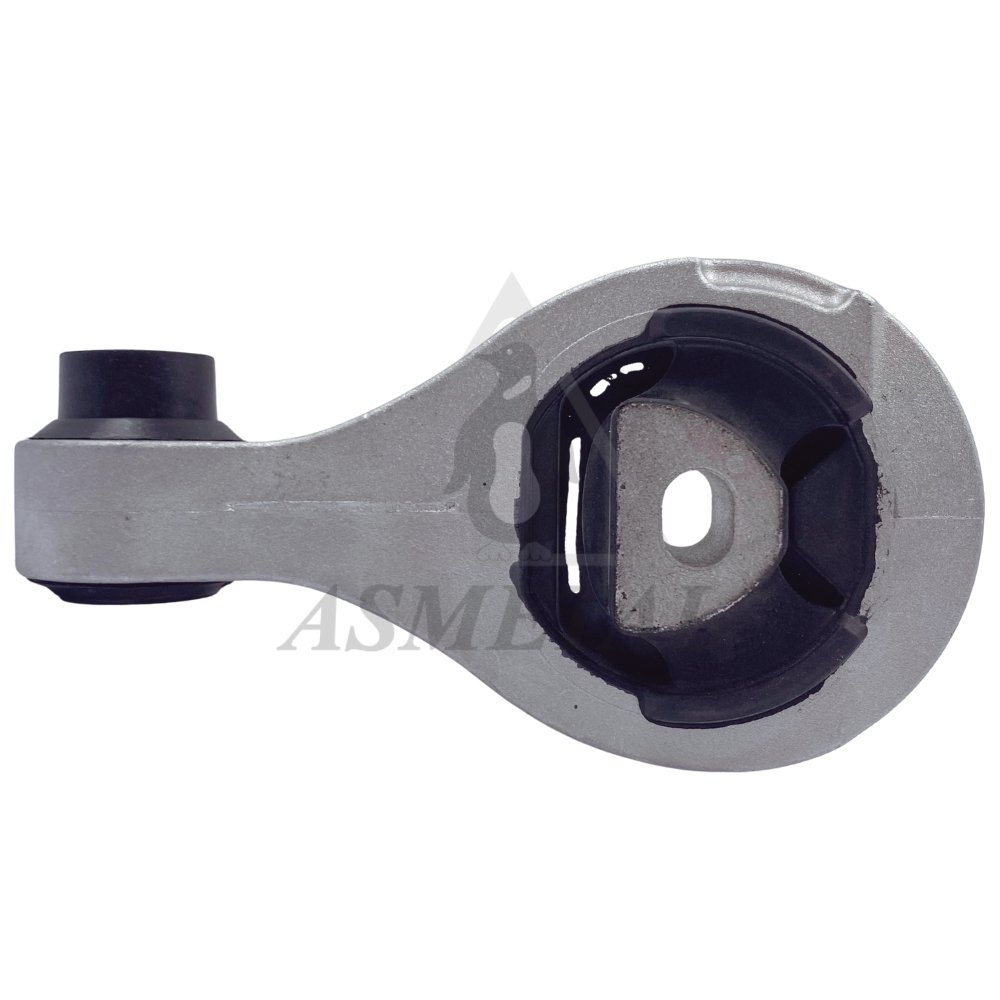

45FI5685 NEW	Transmission Mount	0,7 kg	51 831 511, 51 879 480
