ASMETAL Catalogue

FIAT > EGEA (17 Quantity)

	ASMETAL No	Product Description	Dimensions	Oem No
	10FI2700	Ball Joint	c:Ø19 / 0,76 kg	520 11 614, 520 26 562 (2) OEM*
	17FI2700	Tie Rod End	L:135 c:Ø11.3 tp:M10x1.5 th:FM14x1.5 RHT / 0,44 kg	00 773 67 379 001, 773 67 379
	20FI2700	Axial Joint	L:325 tp:M16x1.5 th:MM14x1.5 RHT / 0,7 kg	520 14 014, 773 67 378
	26FI2700 OUT OF SERVICE	Stabiliser Link	L:280mm Plastic / 0,36 kg	519 39 949, 534 72 294 (5) OEM
	26FI2710	Stabiliser Link	L:280 tp:M12x1.5 RHT / 0,48 kg	534 72 294, 519 39 949 (8) OEM

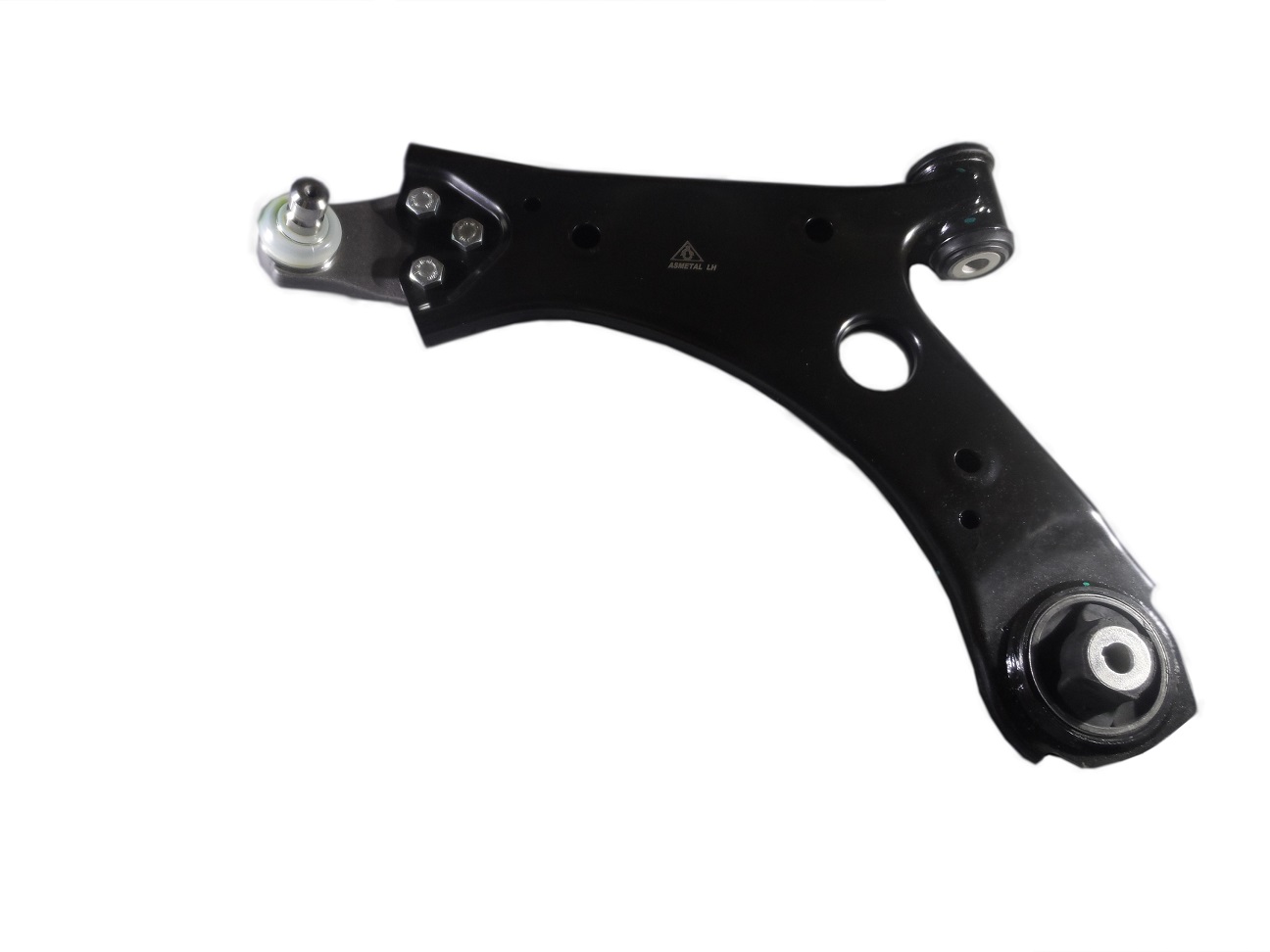

	30FI2700	Track Control Arm Left	c:Ø19 / 3,65 kg	520 56 674, 520 828 96 (1) OEM

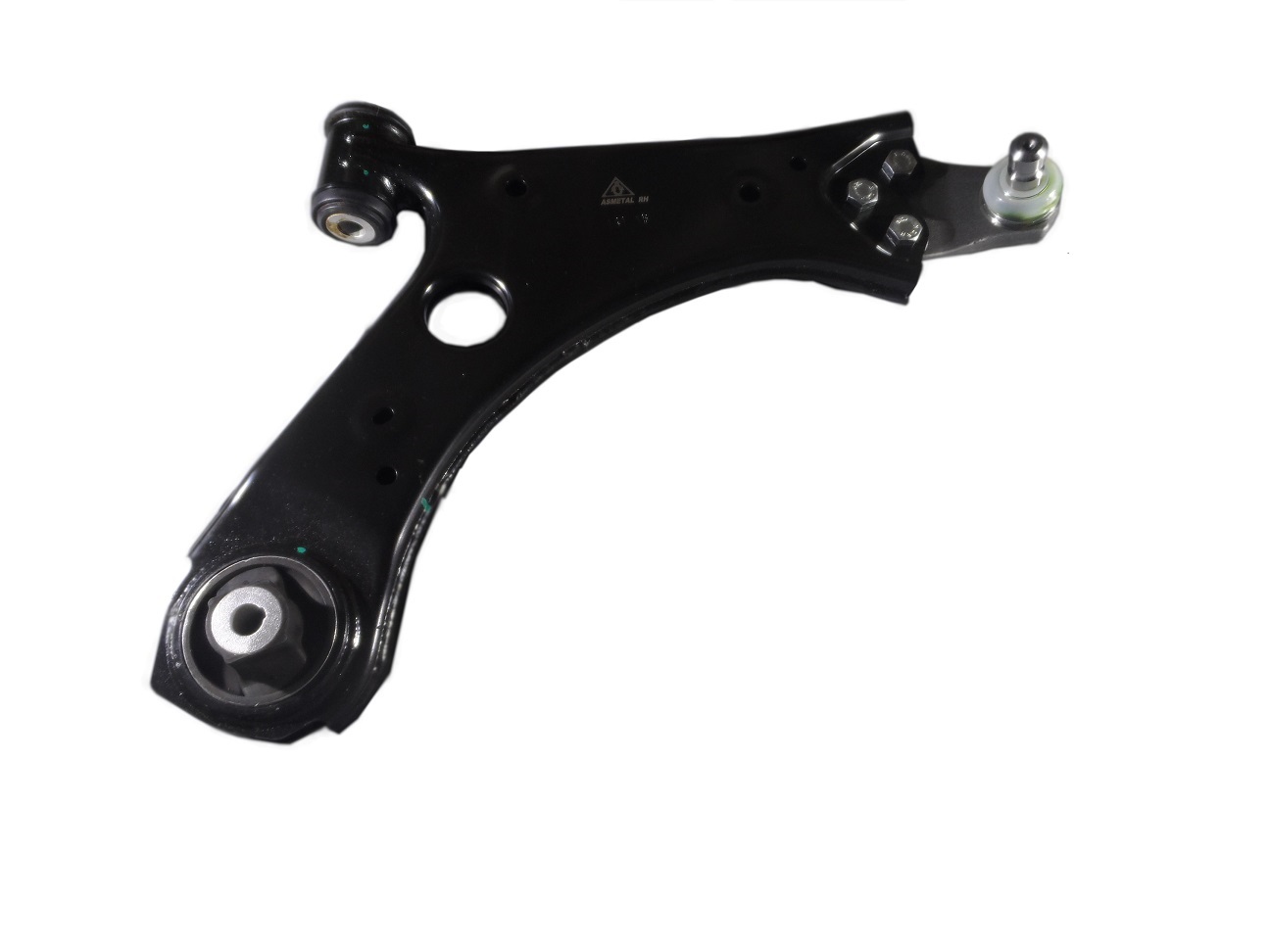

	30FI2701	Track Control Arm Right	c:Ø19 / 3,65 kg	520 11 612, 520 56 673 (1) OEM

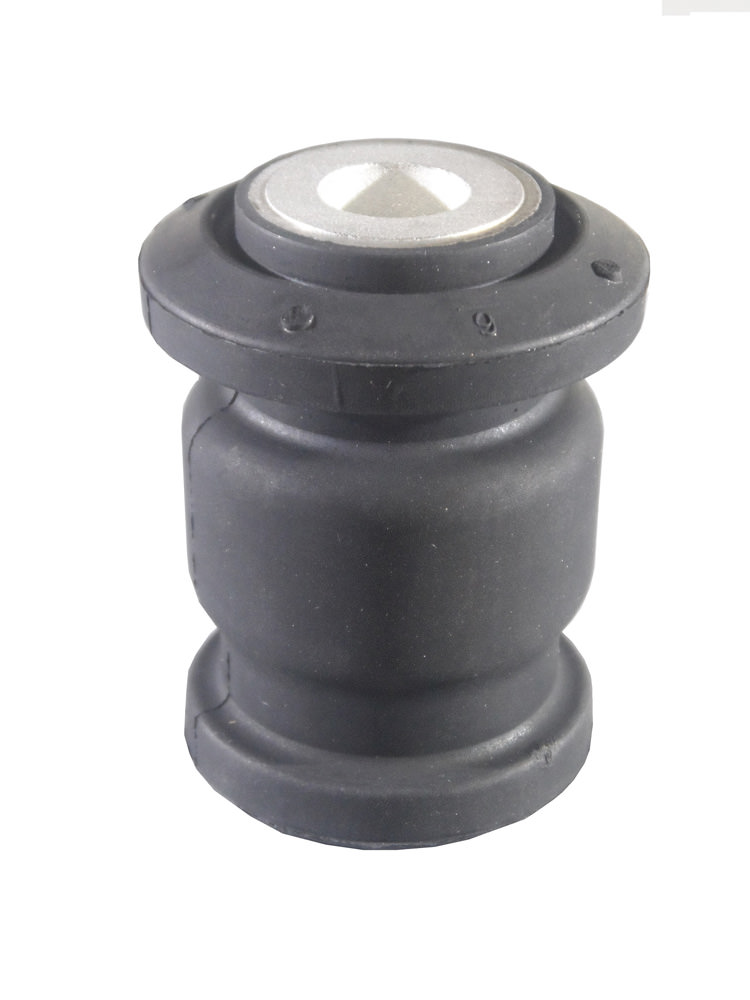

	38FI2700	Silentblock for TCA	L:67.5 di:Ø14.2 do:Ø49 / 0,14 kg	520 11 614, 520 11 612 (1) OEM

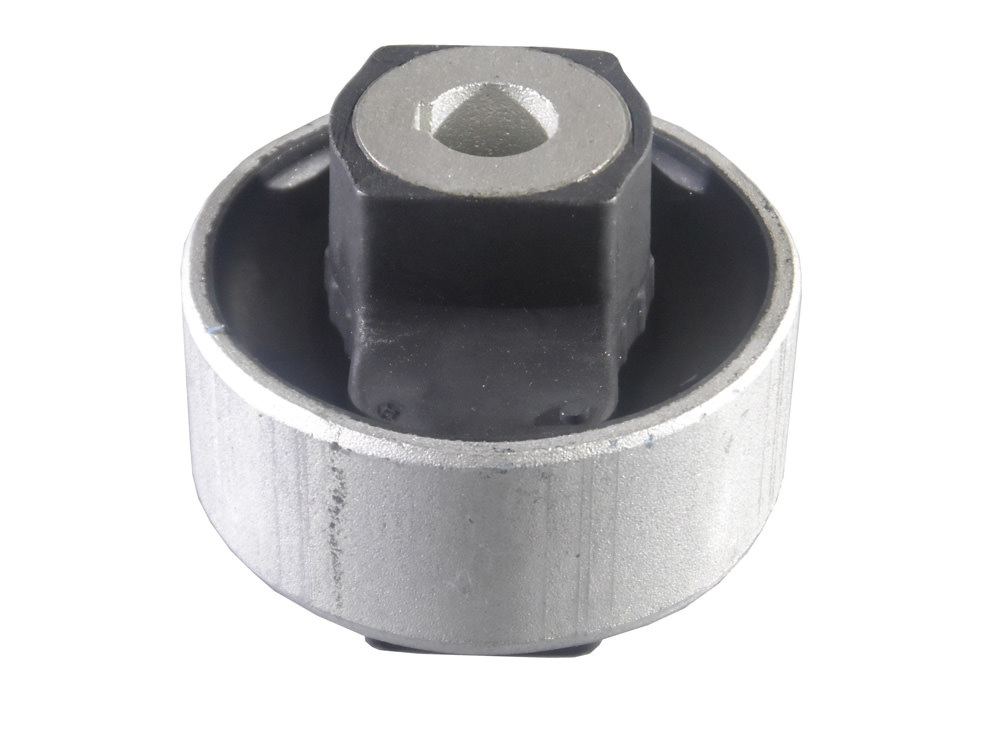

	38FI2701	Silentblock for TCA	L:66 di:Ø14.2 do:Ø70 / 0,23 kg	519 83 600, 520 11 614* (2) OEM
	45FI2700	Strut Mount With Bearing	L:68 di:Ø13 do:Ø109.5 / 0,52 kg	519 83 626, 520 31 639 (1) OEM
	45FI2710	Strut Mount ( New Type Bearing )	L:68 di:Ø13 do:Ø108.7 / 0,52 kg	521 20 559, 519 83 626 (3) OEM
	45FI2720	Suspension Support Buffer Front	di:Ø27 do:Ø64 L:83.5mm / 0,05 kg	519 21 446, 519 83 725
	45FI2730	Suspension Support Buffer Rear	L:119 di:Ø13 do:Ø51.5 / 0,15 kg	520 55 566, 519 83 774
	45FI2760 NEW	Engine Mounting	1,63 kg	51 983 880
	45FI2761 IN PREPARATION	Engine Mounting		51 983 866
	45FI2770	Engine Mounting	L:52 di:Ø20 / 0,48 kg	520 26 841
	45FI2780	Engine Mounting	L:52 di:Ø19.5 L1:83 di1:Ø12 / 0,74 kg	520 26 840, 521 09 007
