ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FR11	Ball Joint	c:Ø17 / 0,53 kg	1 679 392, 6 770 224 (13) OEM
10FR1200	Ball Joint	c:Ø17 / 0,65 kg	94FB 3395 A2A, 1 047 798 (1) OEM
10FR1201	Ball Joint	c:Ø16,5 / 0,66 kg	94FB 3395 A1B, ME96FB 3395 AA (4) OEM

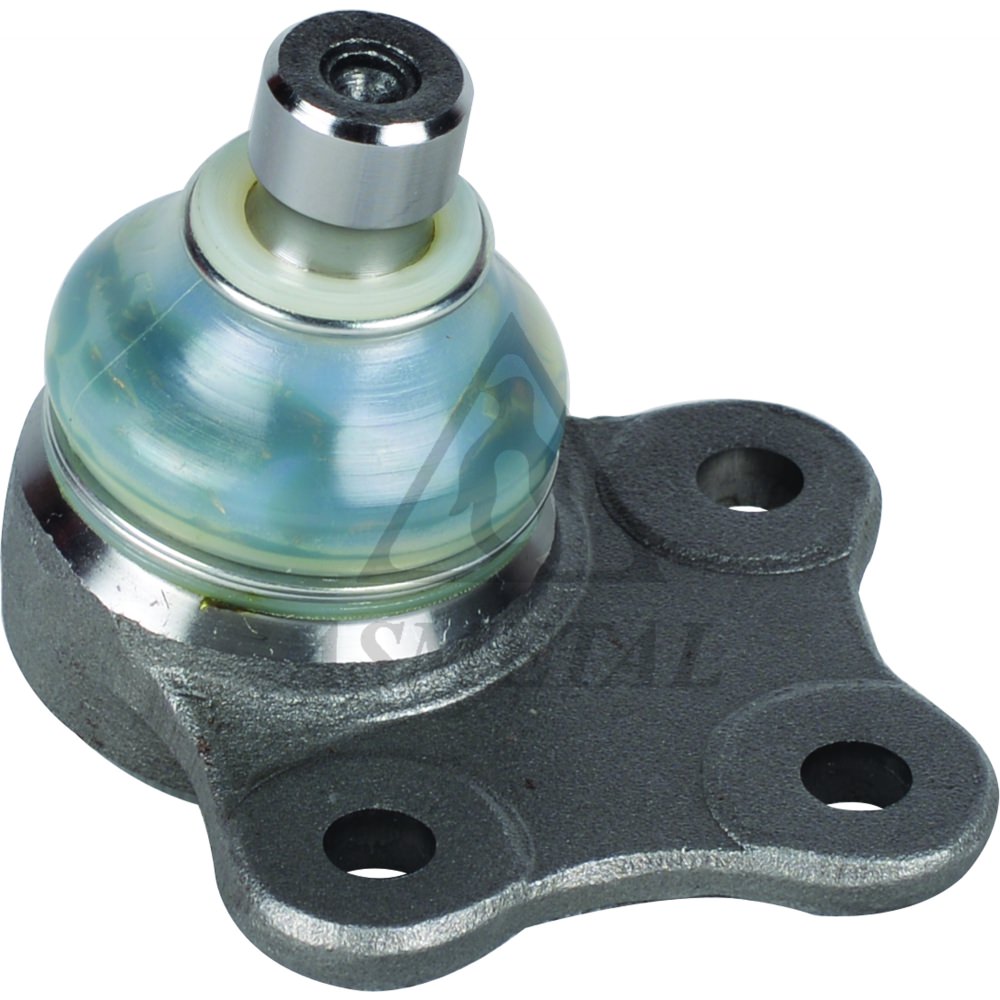

10FR3515	Ball Joint Lower	c:Ø16,4 / 0,48 kg	1 212 808, 2S61 3395 AB (4) OEM
10FR3520	Ball Joint Lower	c:Ø17,5 do:Ø38,6 / 0,26 kg	2 106 530, 1 834 055 (29) OEM*
10FR3520R NEW	Ball Joint Lower	0,26 kg	1 518 904, 1 521 773 (12) OEM

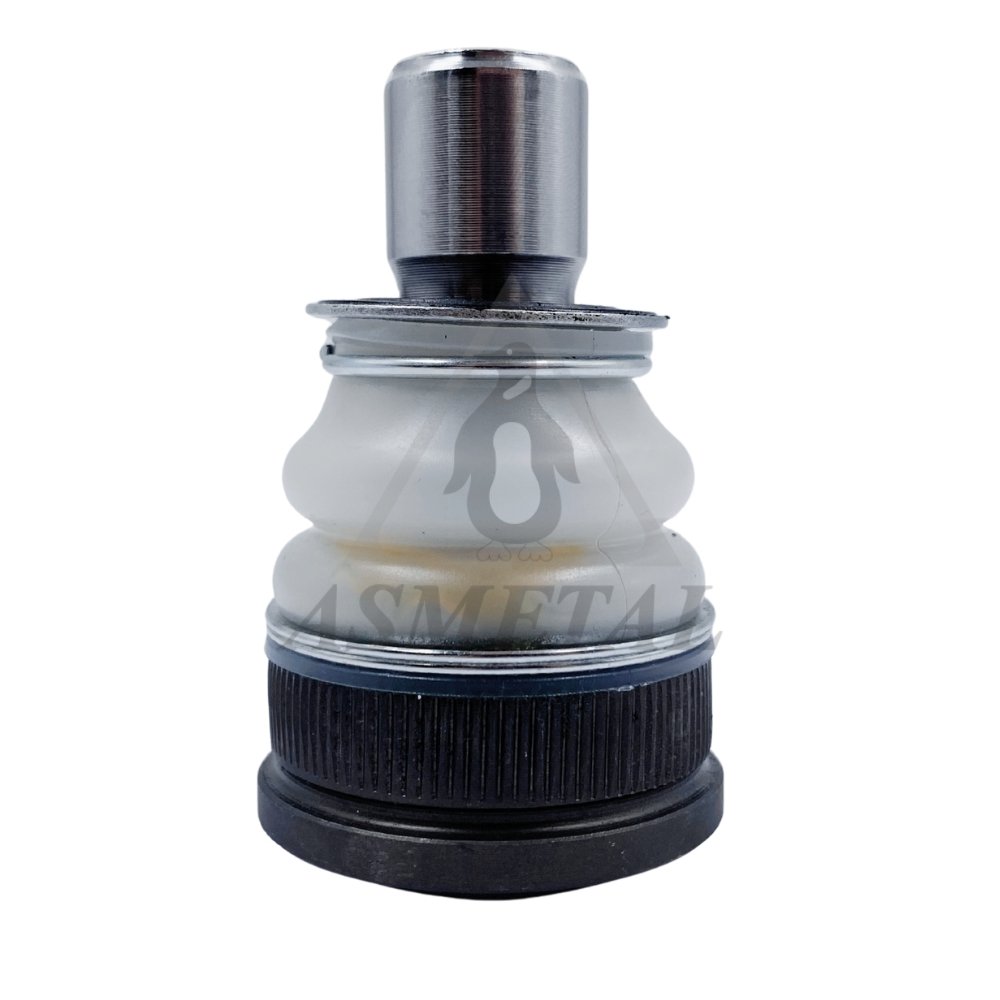

10FR3620 IN PREPARATION	Ball Joint		2 112 614, 2 112 616
17FR1900	Tie Rod End Left	c:Ø11,6 th:FM14x2 RHT / 0,3 kg	96FX 3290 AA, 96FB 3290 AD (4) OEM
17FR1901	Tie Rod End Right	c:Ø11,6 th:FM14x2 RHT / 0,3 kg	96FX 3289 AA, 96FB 3289 AD (4) OEM
17FR20	Tie Rod End	c:Ø11,5 th:F1/2 / 0,31 kg	1 447 222, 1 571 221 (9) OEM

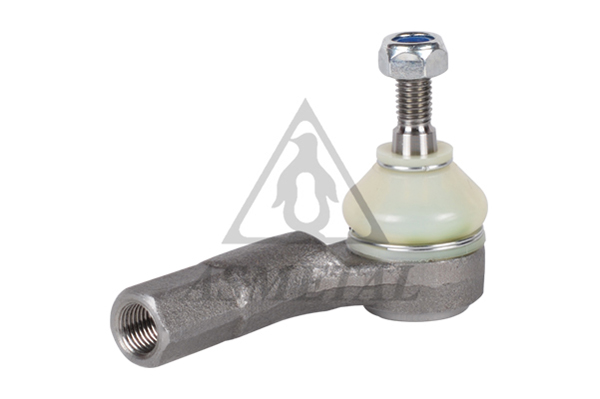

17FR3515	Tie Rod End Right	c:Ø11,5 th:FM14x1,5 RHT / 0,38 kg	2S6J 3289 AC, 1 202 548 (2) OEM
17FR3516	Tie Rod End Left	c:Ø11,5 th:FM14x1,5 RHT / 0,38 kg	1 202 549, 2S6J 3290 AC (2) OEM
17FR3520	Tie Rod End Right	c:Ø12,85 th:FM14x1,5 RHT / 0,37 kg	1 545 338, 8V51 3C367 AA
17FR3521	Tie Rod End Left	c:Ø12,85 th:FM14x1,5 RHT / 0,37 kg	1 545 339, 8V51 3C437 AA
17FR3620 IN PREPARATION	Tie Rod End Left		2 095 043, 2 644 299
17FR3621 IN PREPARATION	Tie Rod End Right		2 090 579, 2 644 283
20FR35	Axial Joint	th:MM14X1.5 RHT L:262,5mm / 0,49 kg	6 185 337, 6 128 255 (2) OEM
20FR3505	Axial Joint	th:MM14x1,5 RHT L:299mm / 0,55 kg	6 790 700, 6 639 188 (5) OEM
20FR3510	Axial Joint	th:MM14x1,5 RHT L:308mm / 0,56 kg	96FB 3L519 BA, 1 044 014 (1) OEM
20FR3515	Axial Joint	th:MM14x1.5 RHT L:276mm / 0,56 kg	2S6C 3280 KA, 2S6C 3280 KB (3) OEM
20FR3520	Axial Joint	th:MM14x1,5 RHT L:290,5mm / 0,6 kg	1 545 457, 8V51 3L519 AA (1) OEM
20FR3620 IN PREPARATION	Axial Joint		2 090 582

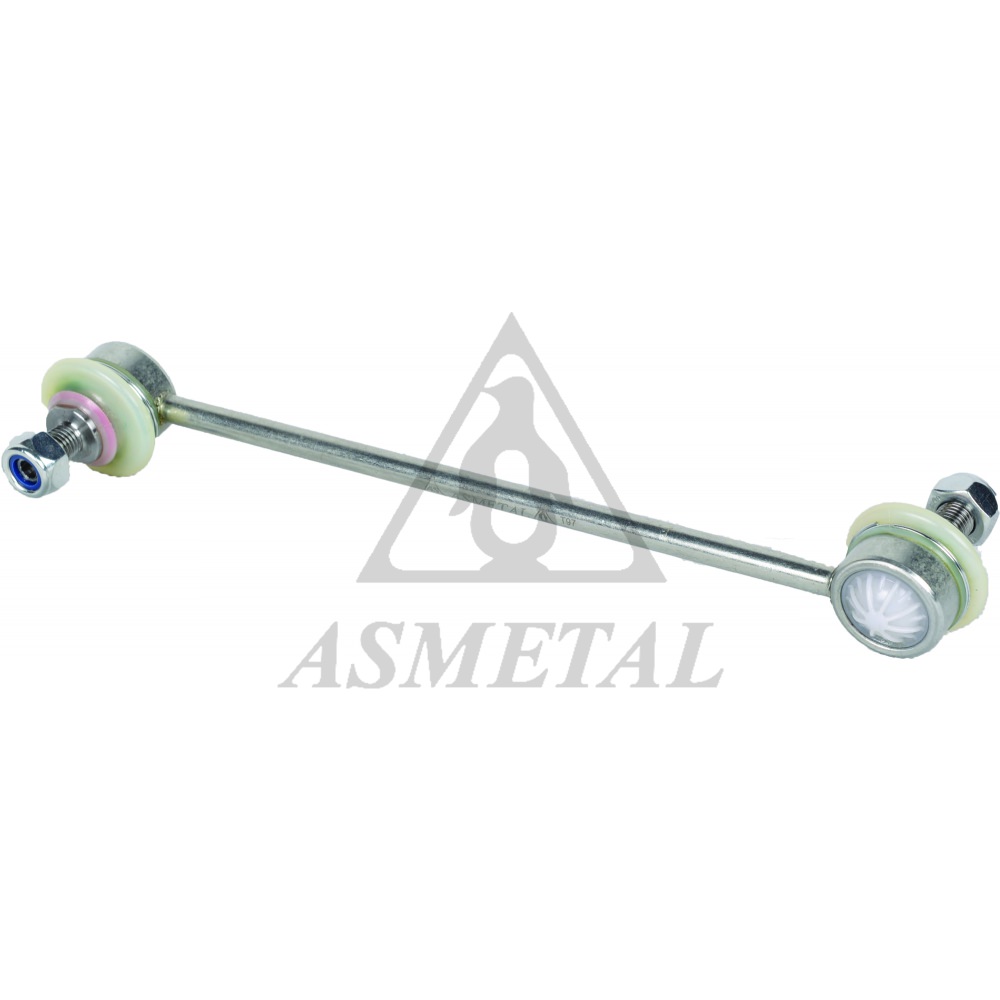

26FR05	Stabiliser Link	L:238mm / 0,3 kg	6 198 621, 1 111 769 (21) OEM
26FR0510	Stabiliser Link	L:284mm / 0,3 kg	2S61 3B438 AC, 1 761 200 (7) OEM

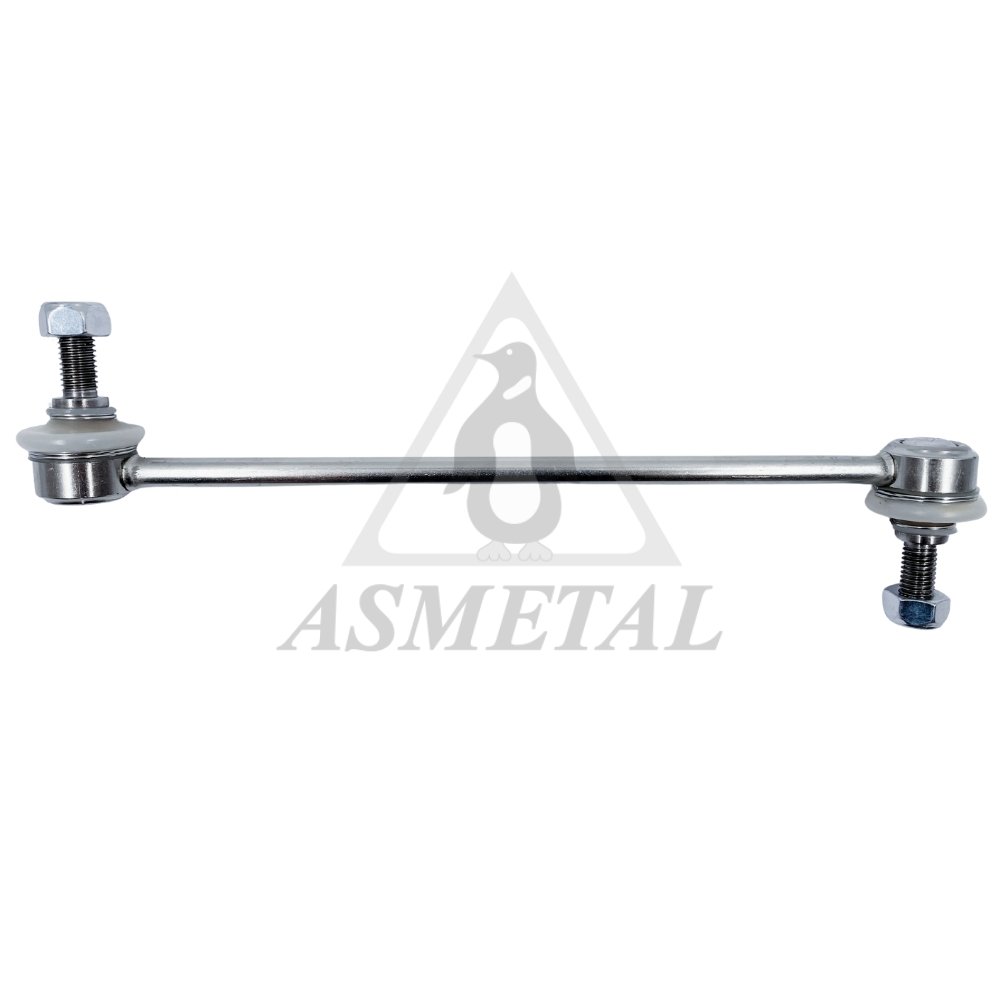

26FR3520	Stabiliser Link	L:252mm / 0,32 kg	8V51 3B438 BC, 1 513 343 (23) OEM
29FR3620 IN PREPARATION	Tie Rod Left		2 090 582, 2 095 043 (1) OEM
29FR3621 IN PREPARATION	Tie Rod Right		2 090 579, 2 644 283 (1) OEM
30FR3514	Track Control Arm Left	cs:Ø17.45 / 4,46 kg	1 436 095, 1 436 170 (11) OEM
30FR3515	Track Control Arm Right	cs:Ø17.45 / 4,46 kg	1 436 097, 1 436 169 (10) OEM
30FR3520	Track Control Arm Left	cs:Ø17.5 / 2,68 kg	8V51-3051-BH, 1 737 305 (20) OEM
30FR3521	Track Control Arm Right	cs:Ø17.5 / 2,68 kg	8V51-3051-BD, 1532433 (28) OEM
38FR05	Stabiliser Mounting	di:Ø15 L:37 / 0,03 kg	1 003 609, 96FB 5484 CA
38FR0550	Mounting Axle Body	di:Ø12.1 do:Ø63.5 L:70mm / 0,36 kg	1 016 439, 96FB 5K653 CA
38FR1900	Silentblock for TCA	0,28 kg	1 004 011, 1 014 654 (4) OEM

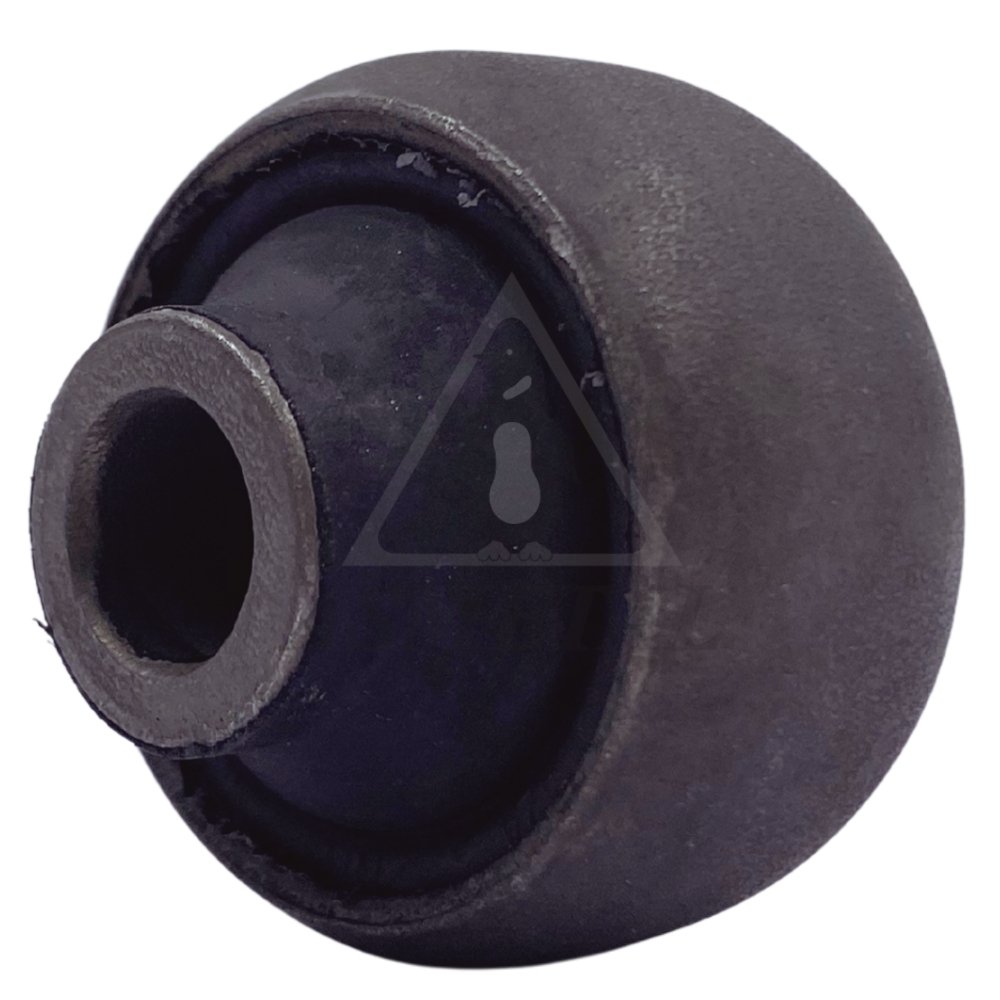

38FR3000	Silentblock for TCA	di:Ø12,2 do:Ø46,5 / 0,18 kg	89FB 3063 AD, 1 000 445 (1) OEM
38FR3001	Silentblock for TCA	di:Ø12,2 do:Ø54 / 0,2 kg	1 035 929, 91AB 3A262 AA
38FR3520	Silentblock for TCA	do:Ø61 / 0,29 kg	8V51 3042 BH, 8V51 3051 BG (31) OEM
38FR3530	Silentblock for TCA	di:Ø12,2 do:Ø40,6 / 0,21 kg	1 212 808, 1 207 448 (5) OEM
38FR3531	Silentblock for TCA	di: Ø22 / do: Ø72.5 / L: 65 / 0,59 kg	1 212 807, 1 212 808 (2) OEM
38FR3535	Mounting Axle Body	di: Ø12.1 / do: Ø71.8 / L: 78.3 / 0,30 kg	1 535 296, 1 775 568 (2) OEM
38FR3555	Mounting Axle Body	c: Ø60 / do: 69 / h:70 / 0,18 kg	1 198 236, 1 203 039 (10) OEM
38FR3620	Silentblock for TCA	di: Ø12.5 / do: Ø61.5 / L: 52 / 0,25 kg	2 112 616, 2 112 614 (2) OEM
38FR3621	Silentblock for TCA	di: Ø14.2 / do: Ø38.4 / L: 53.5 / 0,24 kg	2 422 615, 2 112 614 (2) OEM

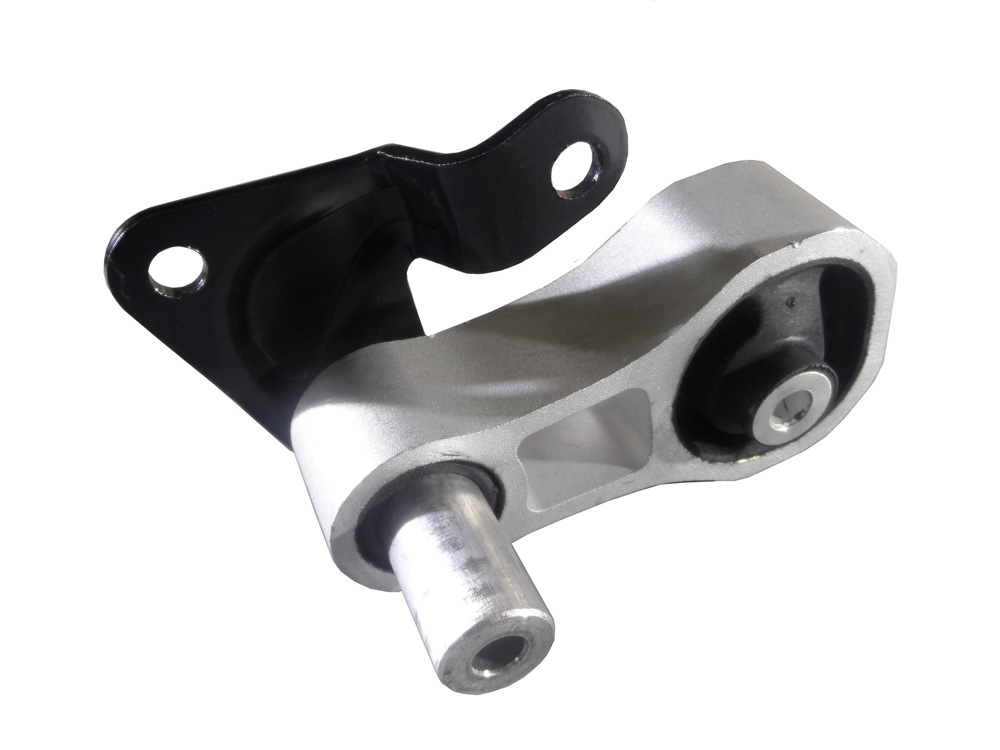

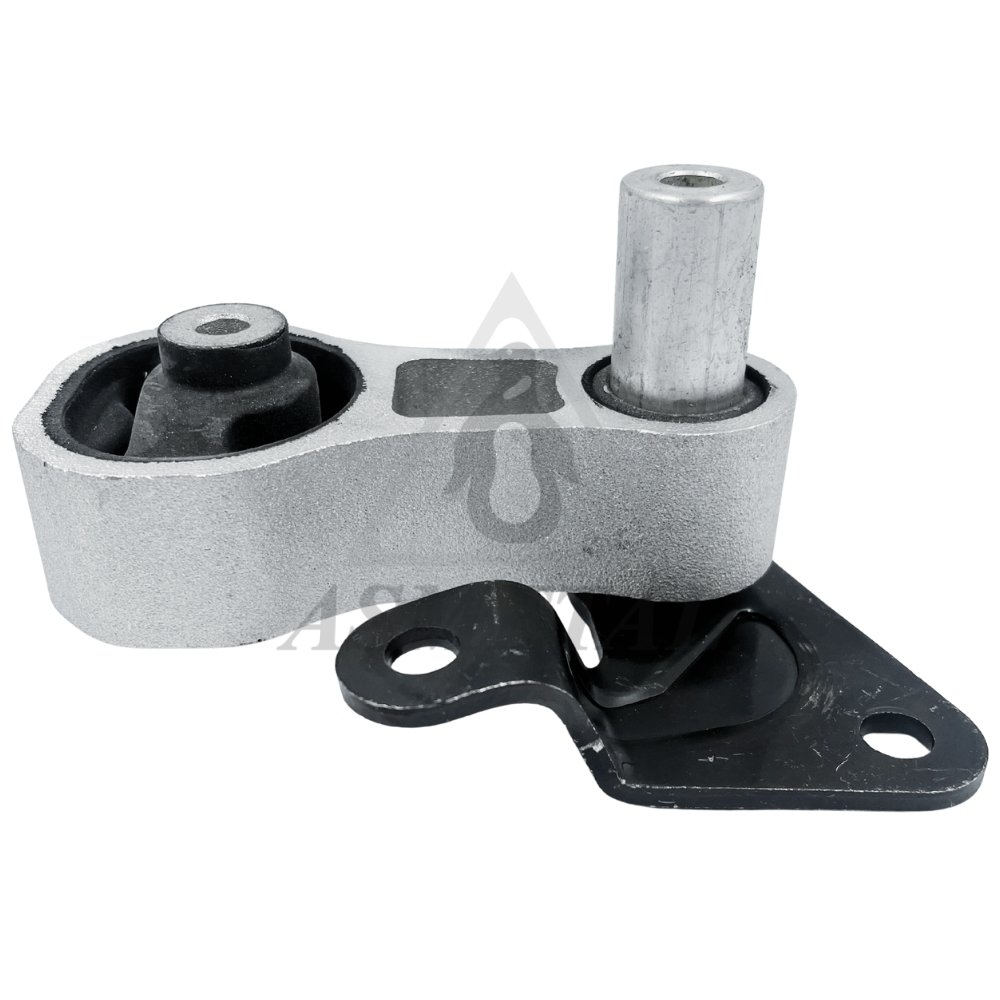

45FR3520	Engine Mounting	0,64 kg	1 141 459, 1 513 114 (8) OEM
45FR3521	Suspension Support Buffer Front	di:Ø14 L:138.5mm / 0,08 kg	8V51 5K 570 BA
45FR3522	Suspension Support Buffer Front	di:Ø25 do: Ø53 L:90mm / 0,06 kg	1 254 213, 1 146 151 (4) OEM
45FR3524 IN PREPARATION	Suspension Support Buffer Front	0 kg	2S61 3025 AE, 2S61 3025 AA (2) OEM
45FR3530	Suspension Support Buffer Rear	di:Ø12 do:Ø58 L:147mm / 0,1 kg	2S61 5K570 CA
45FR3531	Suspension Support Buffer Kit Rear	di: Ø17 / L: 288 / 0,015 kg	2S61 5K570 CA
