ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

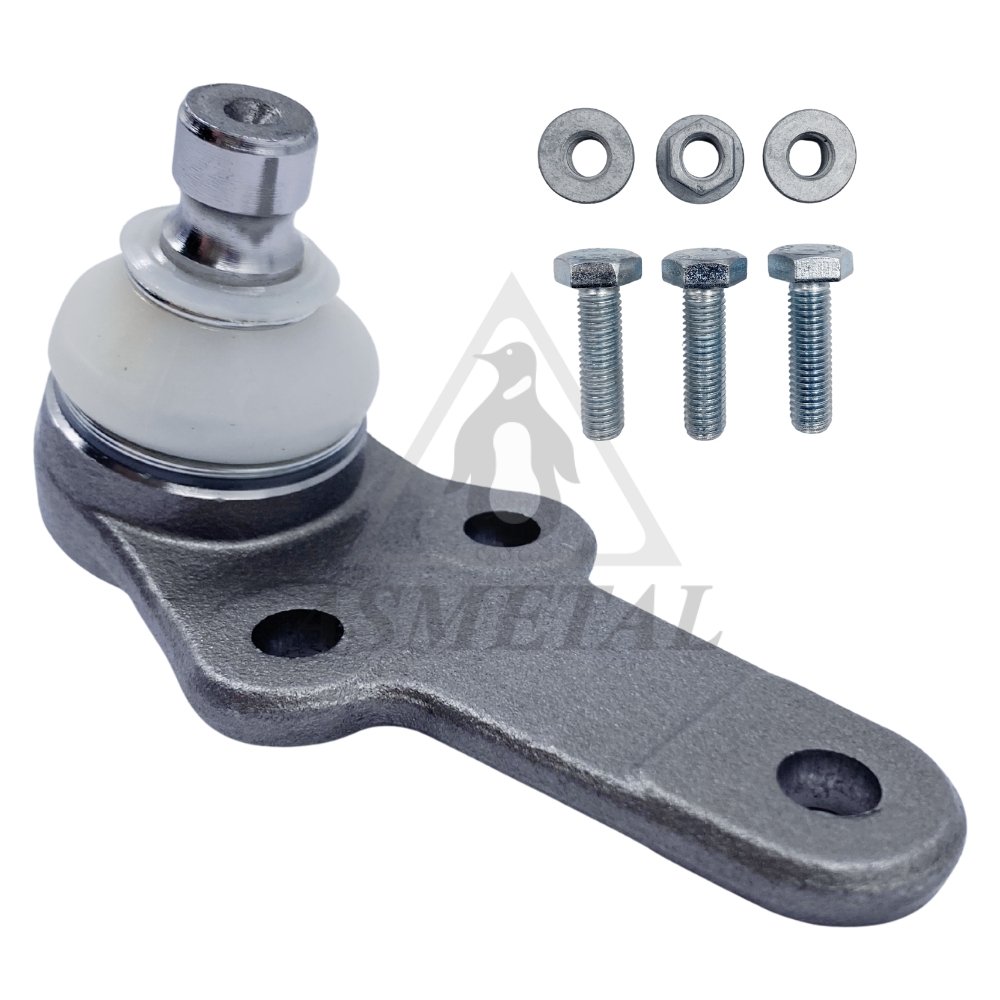

10FR1700	Ball Joint Lower	c:Ø16.5 / 0.66	98AG 3042 ZZ, 1 344 966 (25) OEM
10FR1705	Ball Joint Lower	tp:M14x1.5 RHT cr:1/6 c:Ø18 / 0.75	1 470 387, 1 679 388 (10) OEM
10FR1706	Ball Joint Lower	th:M14x1.5 RHT cr:1/6 c:Ø15 / 0.72	3M5J 3395 AA, ME3M 5J3395 AA (6) OEM
10FR1710	Ball Joint Left	c:Ø20.95 / 0.74	1 933 035, 1 709 466 (5) OEM
10FR1711	Ball Joint Right	c:Ø20.95 / 0.74	1 749 593, 1 702 970 (6) OEM
10FR1720	Ball Joint	c:Ø21 / 0.74	JX61 3A423 AEB, JX61 3395 AA (7) OEM

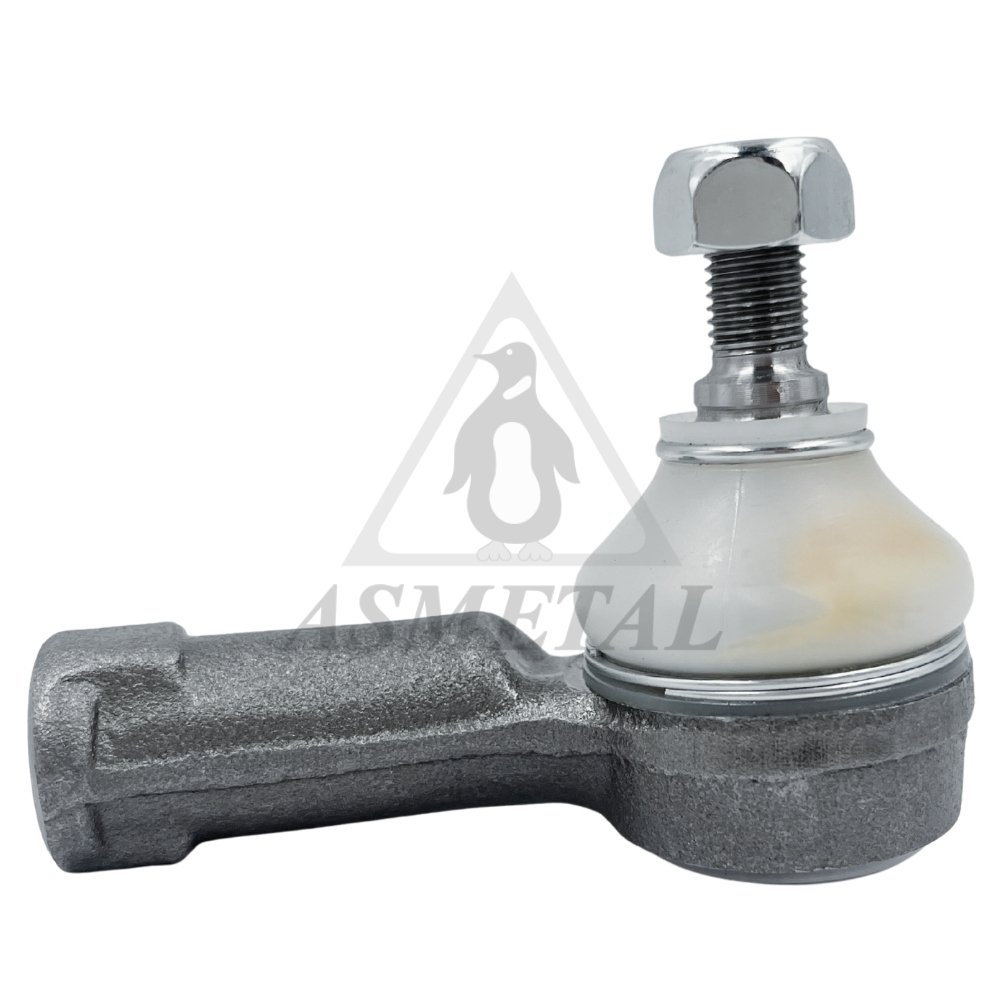

17FR1700	Tie Rod End Right	L:74.5 cr:1/6 c:Ø12.6 tp:M10x1.25 th:FM14x2 RHT / 0.31	98AX 3270 AA, YS4Z 3A130 CB (7) OEM
17FR1701	Tie Rod End Left	L:74.5 cr:1/6 c:Ø12.6 tp:M10x1.25 th:FM14x2 RHT / 0.31	98AX 3270 BA, 4L3Z 3A130 CA (7) OEM
17FR1705	Tie Rod End Right	L:100 cr:1/6 c:Ø12.4 tp:M10x1.25 th:FM16x1.5 RHT / 0.42	1 328 881, EV61 3289 AA (22) OEM
17FR1706	Tie Rod End Left	L:100 cr:1/6 c:Ø12.4 tp:M10x1.25 th:FM16x1.5 RHT / 0.42	1 894 034, 4M51 3290 AD (21) OEM
17FR1707	Tie Rod End Right	L:110 cr:1/6 c:Ø12.34 tp:M10x1.5 th:FM16x1.5 RHT / 0.44	1 826 501, AV6C 3C367 AA (6) OEM
17FR1708	Tie Rod End Left	L:110 cr:1/6 c:Ø12.34 tp:M10x1.5 th:FM16x1.5 RHT / 0.44	BV6C 3C437 BB, BV6C 3C437 BA (7) OEM
17FR1710	Tie Rod End Left	L:116 cr:1/6 c:Ø12.2 tp:M10x1.5 th:FM16x1.5 RHT / 0.52	JX6C 3C437 AB, 2 194 040 (2) OEM
17FR1711	Tie Rod End Right	L:116 cr:1/6 c:Ø12.2 tp:M10x1.5 th:FM16x1.5 RHT / 0.52	2 194 042, JX6C 3C367 AA
20FR1700	Axial Joint	L:343.5 tp:M14x2 th:MM14x1.5 RHT / 0.63	3 043 523, XS4C 3280 AB (6) OEM
20FR1705	Axial Joint	L:293 tp:M16x1.5 th:MM14x1.5 RHT / 0.64	3M51 3L519 AA, 1 251 937 (10) OEM
20FR1707	Axial Joint	0.72	1 754 076, BV61 3L519 AC (4) OEM
20FR1710	Axial Joint	L:293.5 tp:M16x1.5 th:MM14x1.5 RHT / 0.66	4M51 3L519 AB, 1 317 453 (2) OEM
20FR1731	Axial Joint	L:289 tp:M16x1.5 th:MM16x1.5 RHT / 0.68	2 194 056, 2 475 900 (2) OEM
26FR05	Stabiliser Link	L:238 tp:M10x1.25 RHT / 0.3	6 198 621, 1 111 769 (21) OEM
26FR1700	Stabiliser Link Rear	L:115 tp:M8x1.25 RHT / 0.14	1 203 093, 1 487 402 (2) OEM
26FR1705	Stabiliser Link	L:298 tp:M10x1.5 RHT / 0.34	1 223 792, 1 230 909 (16) OEM
26FR1706	Stabiliser Link Rear	L:72.5 tp:M10x1.5 RHT th:M10x1.5 RHT / 0.38	3M51 5C486 BF, 2 408 359 (19) OEM
26FR1708	Stabiliser Link Rear	L:87.5 tp:M12x1.25 RHT tp:M10x1.5 RHT / 0.4	BV61 5C486 BAB, 1 767 896 (11) OEM
26FR1709	Stabiliser Link Rear	L:106.5 tp:M10x1.5 RHT / 0.15	1 500 682, 1 719 542 (15) OEM
26FR1720	Stabiliser Link	L:299 tp:M12x1.25 RHT / 0.49	5 182 780, 2 286 405
26FR1721	Stabiliser Link Rear	0.34	JX61 5C486 AKC, 2 173 832 (2) OEM
26FR1722	Stabiliser Link Rear	L:289 tp1:M12x1.25 RHT tp2:M8x1.25 RHT / 0.36	JX61 5C486 BEA, 2 200 512 (1) OEM
30FR1702 NEW	Track Control Arm Rear	2.85	1 064 128, 1 150 353 (2) OEM
30FR1706	Track Control Arm Left	cr:1/6 c:Ø15 th:M14x1.5 RHT / 5	3M51 3A424 AE, 3M51 3A424 AB (35) OEM
30FR1706P	Track Control Arm Left (Without Ball Joint)	cs:15 cp:1/6 / 4.28	3M51 3A424 AD, 1 234 275 (35) OEM
30FR1707	Track Control Arm Right	cr:1/6 c:Ø15 th:M14x1.5 RHT / 5	1 309 148, 1 309 644 (33) OEM
30FR1707P	Track Control Arm Right (Without Ball Joint)	cs:15 cp:1/6 / 4.28	3M51 3A423 AE, 1 332 074 (33) OEM
30FR1720 COMING SOON	Track Control Arm Left	0 kg	2 203 138, 2 194 099 (1) OEM
30FR1721 COMING SOON	Track Control Arm Right	0 kg	2 203 137, 2 194 097 (1) OEM
30FR1722 COMING SOON	Track Control Arm Left		2 216 267
30FR1723 COMING SOON	Track Control Arm Right		2 216 265
38FR1700	Axle Beam Bushing	L:142 do:Ø60.3 / 0.38	3M51 5K896 AC, 1 061 670 (5) OEM
38FR1701	Silentblock for TCA	0.267	1 702 970, 1 702 983 (21) OEM
38FR1702	Silentblock for TCA Left	1.46	1 709 468, 1 749 992 (1) OEM
38FR1703	Silentblock for TCA Right	1.46	1 709 423, 1 709 424 (1) OEM
38FR1704	Silentblock for TCA	1.398	1 866 073, 1 702 970 (14) OEM
38FR1705	Silentblock for TCA	di:Ø22 / 1.25	1 477 858, 1 570 284 (15) OEM
38FR1707	Axle Beam Bushing	L:114 do:Ø60.2 / 0.49	1 692 849, BV61 5K896 AB (3) OEM
38FR1710	Silentblock for TCA	L:64.5 di:Ø12.1 do:40.7 / 0.28	98AG 3063 AE, 1 061 570
38FR1711	Silentblock for TCA	L:124 di:Ø22 do:63 / 0.67	98AG 3042 AJ, 98AG 3051 AK (14) OEM
38FR1720	Silentblock for TCA	L:35 di:Ø12.2 do:Ø32.2 / 0.11	13 000 384, 3M51 5K653 AA (18) OEM
38FR1721	Silentblock for TCA	L:35 di:Ø12.1 do:36.4 / 0.13	1 061 659, 1 136 072 (8) OEM
38FR1722 NEW	Stabiliser Mounting	di:Ø21 / 0.0985	1 715 440, 1 718 026 (5) OEM
38FR1724 NEW	Stabiliser Mounting	di:Ø23 / 0.0995	1 683 481, 1 810 326 (5) OEM
38FR1730	Silentblock for TCA	L:64.5 di:Ø14.2 do:Ø40.8 / 0.25	1 309 645, 1 420 795 (54) OEM
38FR1740	Stabiliser Mounting	L:46 / 0.09	1 073 217, 1 061 626 (1) OEM
38FR1760	Silentblock for TCA	L:55 di:Ø12.1 do:Ø32.4 / 0.16	1 064 128, 1 150 353 (8) OEM
38FR1761	Silentblock for TCA	0.16	1 064 128, 1 150 353 (3) OEM
45FR1010 SERVIS DIŞI*	Engine Mounting	L:95 di:Ø10 / 0.56	1 070 177, 1 102 416 (6) OEM

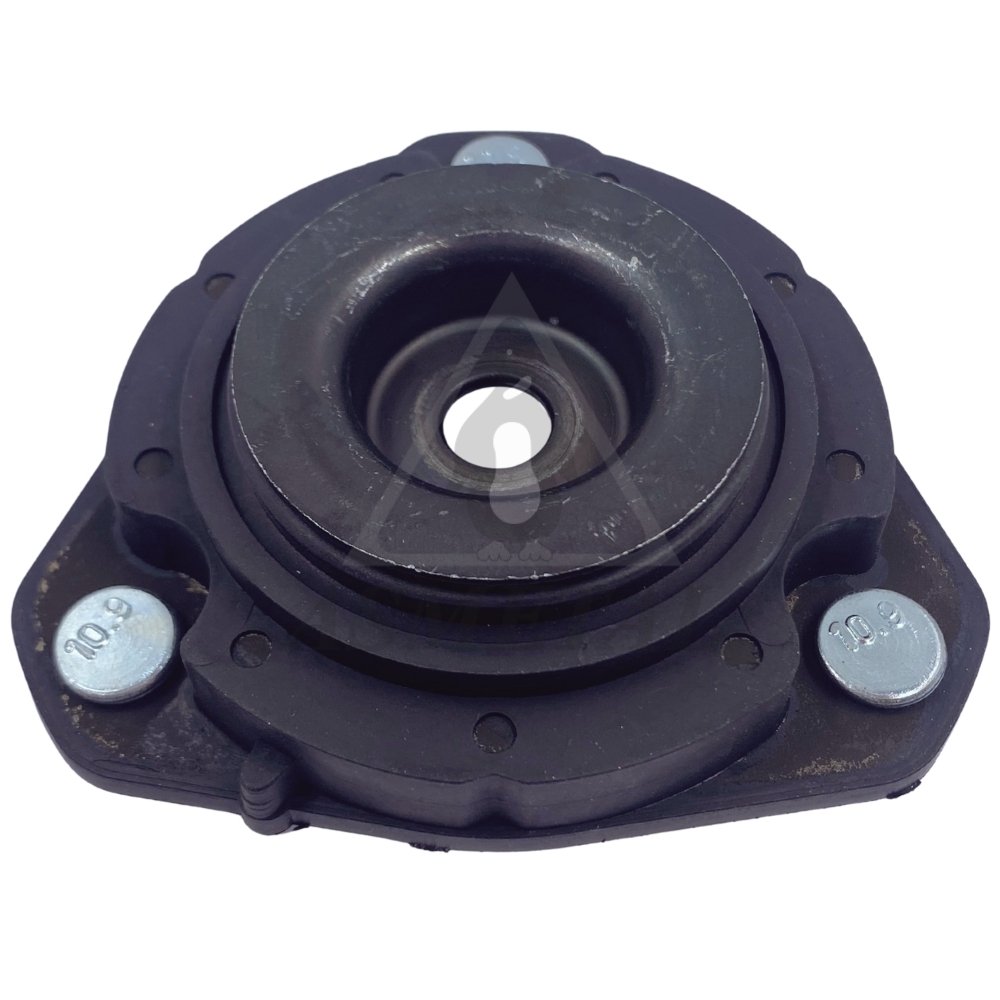

45FR1700 NEW	Strut Mount	0.396	7T16 3K155 AA, 1 061 722 (10) OEM
45FR1702 COMING SOON	Strut Mount		1 490 983, 1 300 459 (8) OEM
45FR1705	Strut Mount	L:30 di:Ø13 / 0.48	1 255 747, 1 230 960
45FR1706	Strut Mount With Bearing	L:22.2 di:Ø12.5 do:Ø87.5 / 0.7	1 508 111, 1 741 612 (16) OEM
45FR1707	Bearing	L:44.5 di:Ø35.68 do:Ø69.5 / 0.17	1 223 835, 1 250 820 (27) OEM
45FR1720	Suspension Support Buffer Front	di:Ø17 do:Ø50 L:57.5mm / 0.04	98AG 3025 AD, 1 061 707 (1) OEM
45FR1721	Suspension Support Buffer Front	L:66 di:Ø31.5 do:Ø63 / 0.06	1 230 954, 1 250 821 (10) OEM
45FR1730	Suspension Support Buffer Rear	L:117.5 di:Ø13 do:Ø59 / 0.08	1 073 486, 1 323 629 (4) OEM
45FR1731	Suspension Support Buffer Rear	L:131.5 di:Ø17 do:Ø58 / 0.08	1 257 344, 1 230 981 (3) OEM
45FR1732	Suspension Support Buffer Kit Rear	0.1095	98AG 5K 570 AH, 1 073 486 (2) OEM
45FR1733	Suspension Support Buffer Kit Rear	L:302 di:Ø17 do:Ø55 / 0.13	1 230 981, 1 257 344 (4) OEM
45FR1775 NEW	Transmission Mount	0.831	98AB 7M121 NB, 1 061 125 (13) OEM
45FR1777	Engine Mounting	L:187.5 / 1.6	1M51 6F012 AD, 1M51 6F012 BA (6) OEM
45FR1780	Transmission Mount	L:45 di:Ø12 / 0.55	1 250 824, AV61 6P082 AC (16) OEM
