ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FR3515	Ball Joint Lower	c:Ø18 / 0,48 kg	1 212 808, 2S61 3395 AB (4) OEM
17FR3515	Tie Rod End Right	L:94.5 cr:1/6 c:Ø11.47 tp:M10x1.5 th:FM14x1.5 RHT / 0,38 kg	2S6J 3289 AC, 1 202 548 (2) OEM
17FR3516	Tie Rod End Left	L:94.5 cr:1/6 c:Ø11.47 tp:M10x1.5 th:FM14x1.5 RHT / 0,38 kg	1 202 549, 2S6J 3290 AC (2) OEM
17FR3600 IN PREPARATION	Tie Rod End Left	0 kg	DG9Z 3A13 0B
17FR3601 IN PREPARATION	Tie Rod End Right	0 kg	DG9Z 3A13 0A
20FR3515	Axial Joint	L:279 tp:M14x1.5 th:MM14x1.5 RHT / 0,56 kg	2S6C 3280 KA, 2S6C 3280 KB (3) OEM

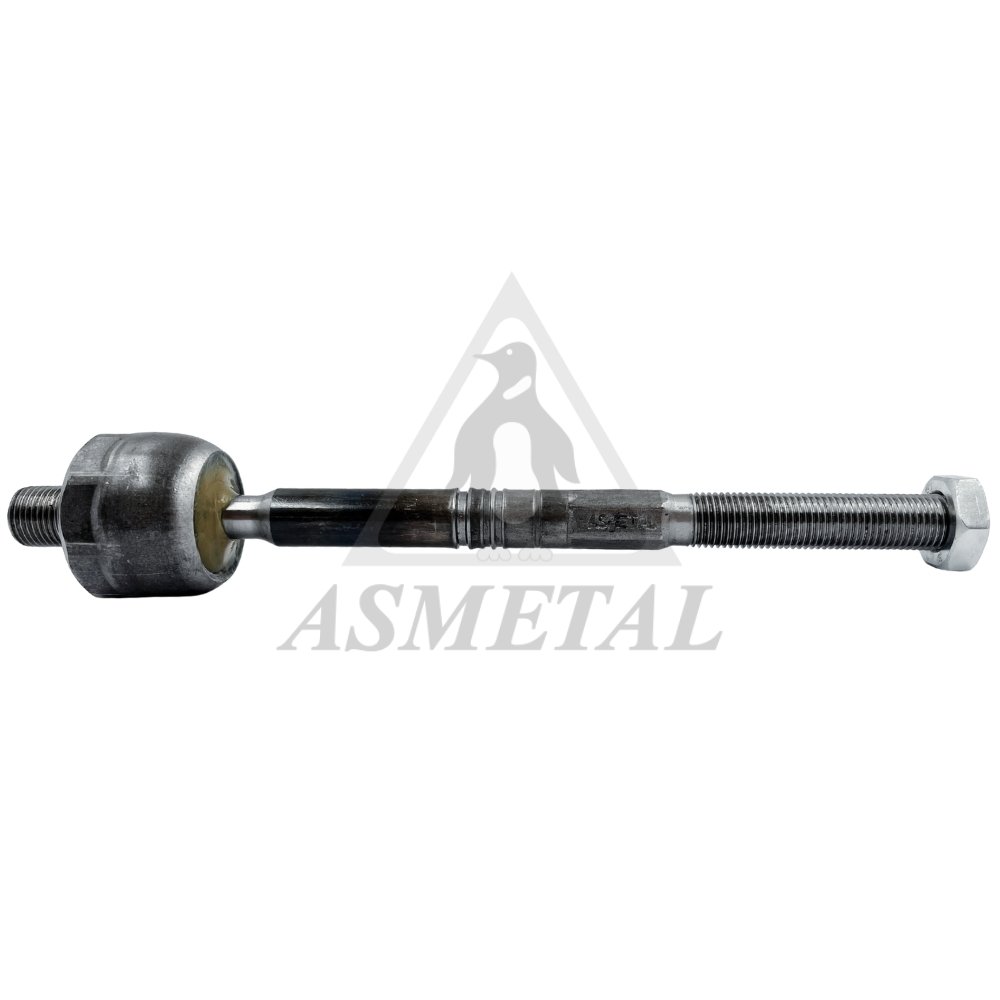

20FR3600	Axial Joint	L:219 tp:M16x1.5 th:MM14x1.5 RHT / 0,58 kg	5 178 931, DG9Z 3280A
26FR0510	Stabiliser Link	L:284 tp:M10x1.5 RHT / 0,3 kg	2S61 3B438 AC, 1 761 200 (7) OEM
26FR1720	Stabiliser Link	L:299 tp:M12x1.25 RHT / 0,49 kg	5 182 780, 2 286 405
26FR2300	Stabiliser Link Rear	L:120 tp:M12x1.25 RHT / 0,36 kg	5 182 818
30FR3514	Track Control Arm Left	c:Ø16.42 / 4,46 kg	1 436 095, 1 436 170 (11) OEM
30FR3515	Track Control Arm Right	c:Ø16.42 / 4,46 kg	1 436 097, 1 436 169 (10) OEM
30FR3600 NEW	Track Control Arm Left	5,6 kg	1 927 132, 2 180 769 (6) OEM
30FR3601 NEW	Track Control Arm Right	5,6 kg	5 303 328, 1 927 131 (6) OEM
38FR3530	Silentblock for TCA	L:55 di:Ø12.2 do:Ø40.6 / 0,21 kg	1 212 808, 1 207 448 (5) OEM
38FR3531	Silentblock for TCA	L:97.5 di:Ø22 do:Ø72.5 / 0,59 kg	1 212 807, 1 212 808 (2) OEM
38FR3555	Axle Beam Bushing	L:70 di:Ø12.3 do:Ø69 / 0,18 kg	1 198 236, 1 203 039 (10) OEM
38FR3600	Silentblock for TCA Left	L:87 / 1,60 kg	5 303 329, 1 927 132
38FR3601	Silentblock for TCA Right	L:87 / 1,60 kg	5 303 328, 1 927 131
38FR3602	Silentblock for TCA	L:60 di:Ø16.1 do:Ø66.1 / 0,53 kg	5 303 329, 1 927 131 (3) OEM
45FR3520	Engine Mounting	L:97 di:Ø11 L1:60 di1:Ø10 / 0,64 kg	1 141 459, 1 513 114 (8) OEM
45FR3522	Suspension Support Buffer Front	L:90 di:Ø25 do:Ø53 / 0,06 kg	1 254 213, 1 146 151 (4) OEM
