ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FR0500	Ball Joint Lower	c:Ø17.95 / 0,63 kg	6 954 471, 6 954 470 (12) OEM
10FR0505	Ball Joint Lower	c:Ø20.95 / 0,79 kg	1 116 579, 1 679 376 (14) OEM
10FR2205	Ball Joint Lower	th:M14x1.5 RHT cr:1/6 c:Ø18 / 0,8 kg	6G9N 3A053 DH, 6G9N 3A053 DG (41) OEM
17FR2200	Tie Rod End Left	L:92.5 cr:1/6 c:Ø12.2 tp:M10x1.25 th:FM16x1.5 RHT / 0,34 kg	93BX 3270 AA, 5 027 451
17FR2201	Tie Rod End Right	L:92.5 cr:1/6 c:Ø12.2 tp:M10x1.25 th:FM16x1.5 RHT / 0,34 kg	93BX 3270 BA, 5 027 452
17FR2205	Tie Rod End Right	L:112 cr:1/6 c:Ø16.7 tp:M14x2 th:FM18x1.5 RHT / 0,58 kg	6G91 3289 AA, 1 433 273 (4) OEM
17FR2206	Tie Rod End Left	L:112 cr:1/6 c:Ø16.7 tp:M14x2 th:FM18x1.5 RHT / 0,58 kg	6G91 3290 AA, 1 433 274 (4) OEM
17FR2210	Tie Rod End Left	L:92.5 cr:1/6 c:Ø13.2 tp:M10x1.25 th:FM16x1.5 RHT / 0,33 kg	97BX 3290 AA, 1 097 323 (2) OEM
17FR2211	Tie Rod End Right	L:92.5 cr:1/6 c:Ø13.2 tp:M10x1.25 th:FM16x1.5 RHT / 0,33 kg	93BX 3289 AA, 1 097 316 (2) OEM

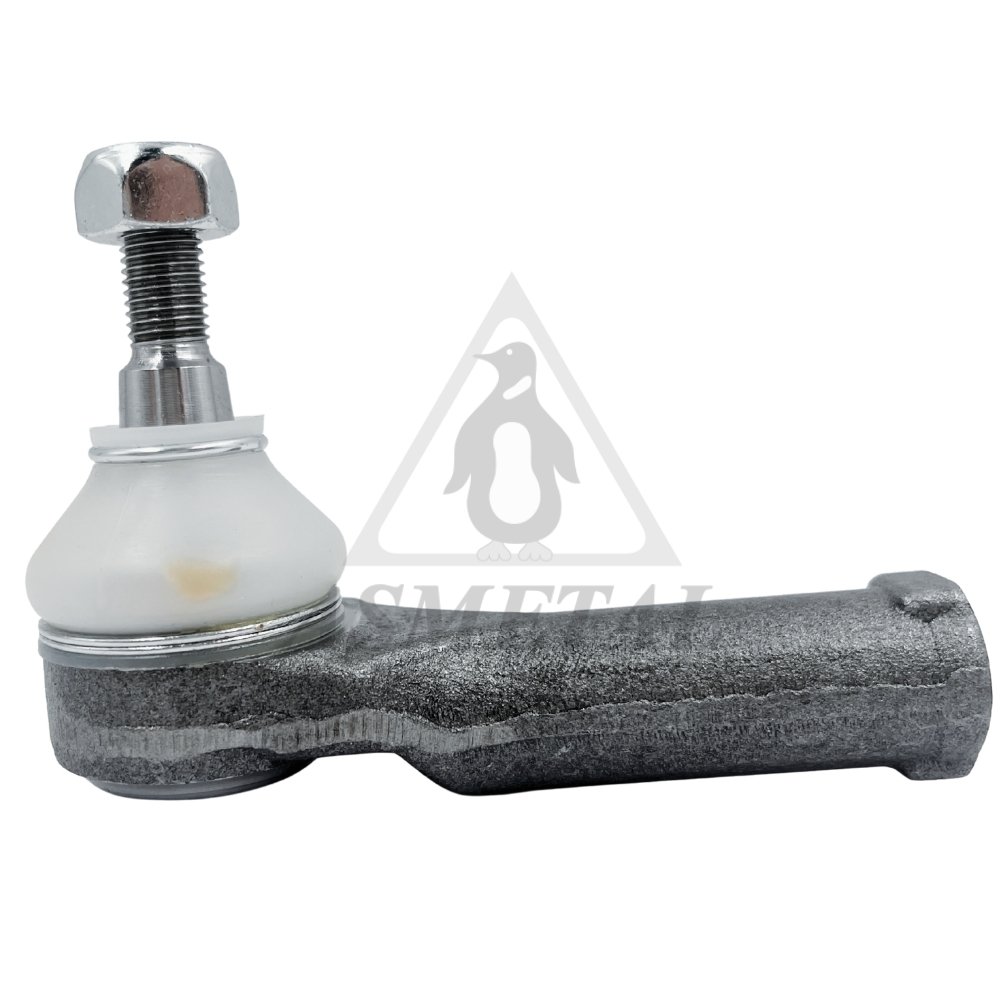

17FR2220	Tie Rod End	L:92.5 cr:1/6 c:Ø12.6 tp:M10x1.25 th:FM16x1.5 RHT / 0,38 kg	1 138 313, 1 138 314 (9) OEM
17FR2300	Tie Rod End Left	L:117 tp:M14x2 th:FM18x1.5 RHT / 0,64 kg	5 333 724, DG9C 3290 CA (1) OEM
17FR2301	Tie Rod End Right	L:117 tp:M14x2 th:FM18x1.5 RHT / 0,64 kg	DG9C 3289 CA, 5 333 720 (1) OEM
20FR0501	Axial Joint	L:338 tp:M14x1.5 th:MM16x1.5 RHT / 0,77 kg	7 294 416, 3 903 147 (6) OEM

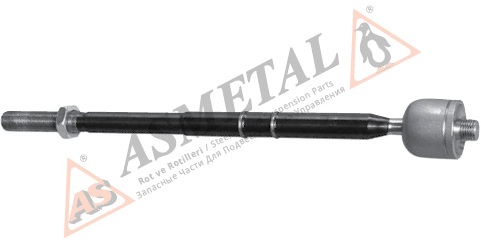

20FR0502	Axial Joint	L:342 tp:M14x1.5 th:MM16x1.5 RHT / 0,77 kg	3 903 148, 3 903 149 (2) OEM
20FR2205	Axial Joint	L:315 tp:M18x1.5 th:MM16x1.5 RHT / 0,83 kg	1 433 271, 1 596 574 (7) OEM

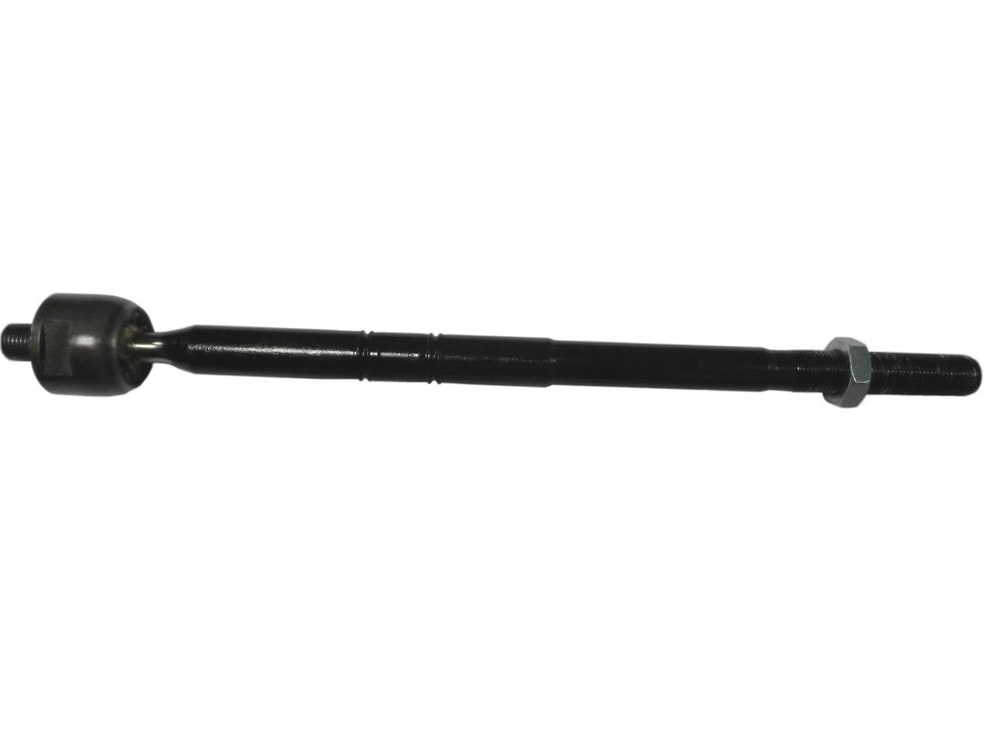

20FR2220	Axial Joint	L:344 tp:M14x1.5 th:MM16x1.5 RHT / 0,8 kg	4 097 484, 1S7C 3280 BB (1) OEM
20FR2300 IN PREPARATION	Axial Joint		1 824 228, 31 360 303*
23FR2220 NEW	Track Rod Rear	0,65 kg	1 220 005, 1 123 275 (2) OEM
26FR0100	Stabiliser Link	L:236.5 tp:M10x1.5 RHT / 0,38 kg	5 106 995, 6 960 036 (4) OEM

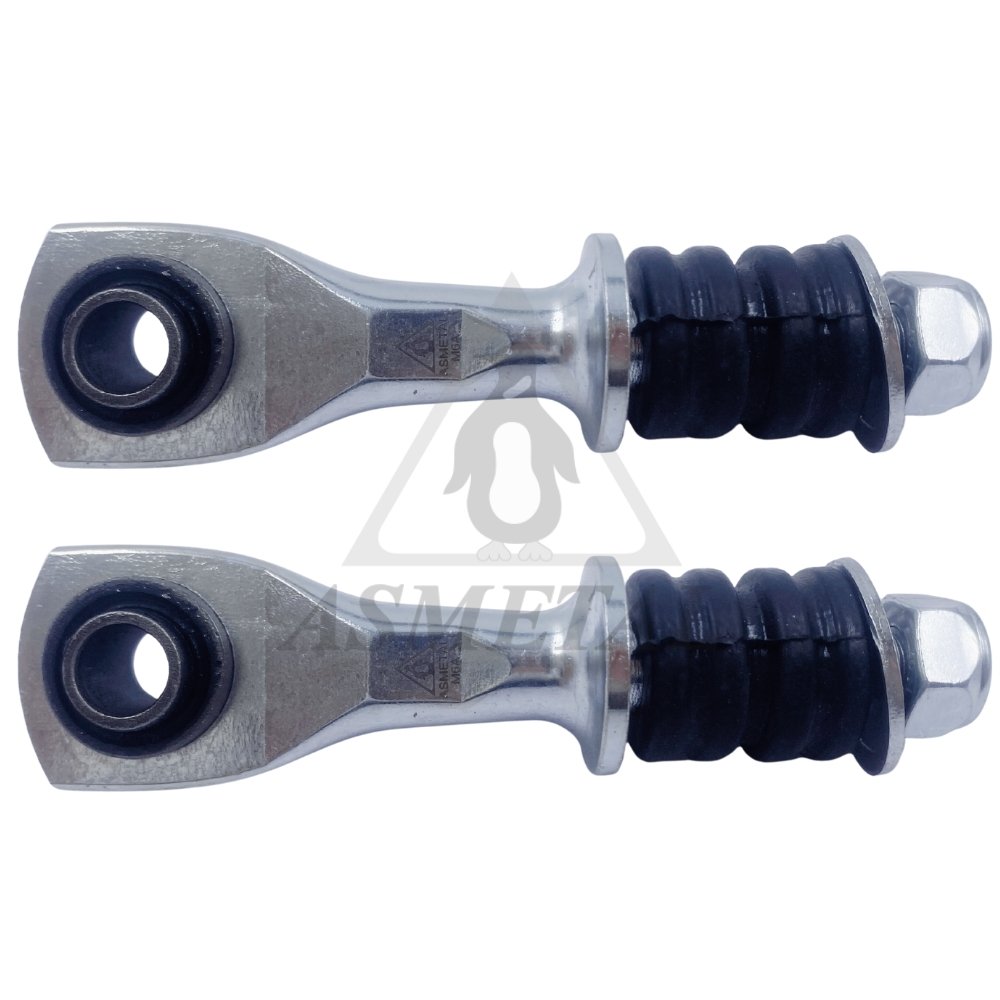

26FR02	Stabiliser Link Rear	L:102.3 / 0,18 kg	93BB 5K566 AG, 1 054 209 (9) OEM
26FR03	Stabiliser Link Rear	L:102mm / 0,17 kg	6 931 610, 6 783 835 (3) OEM

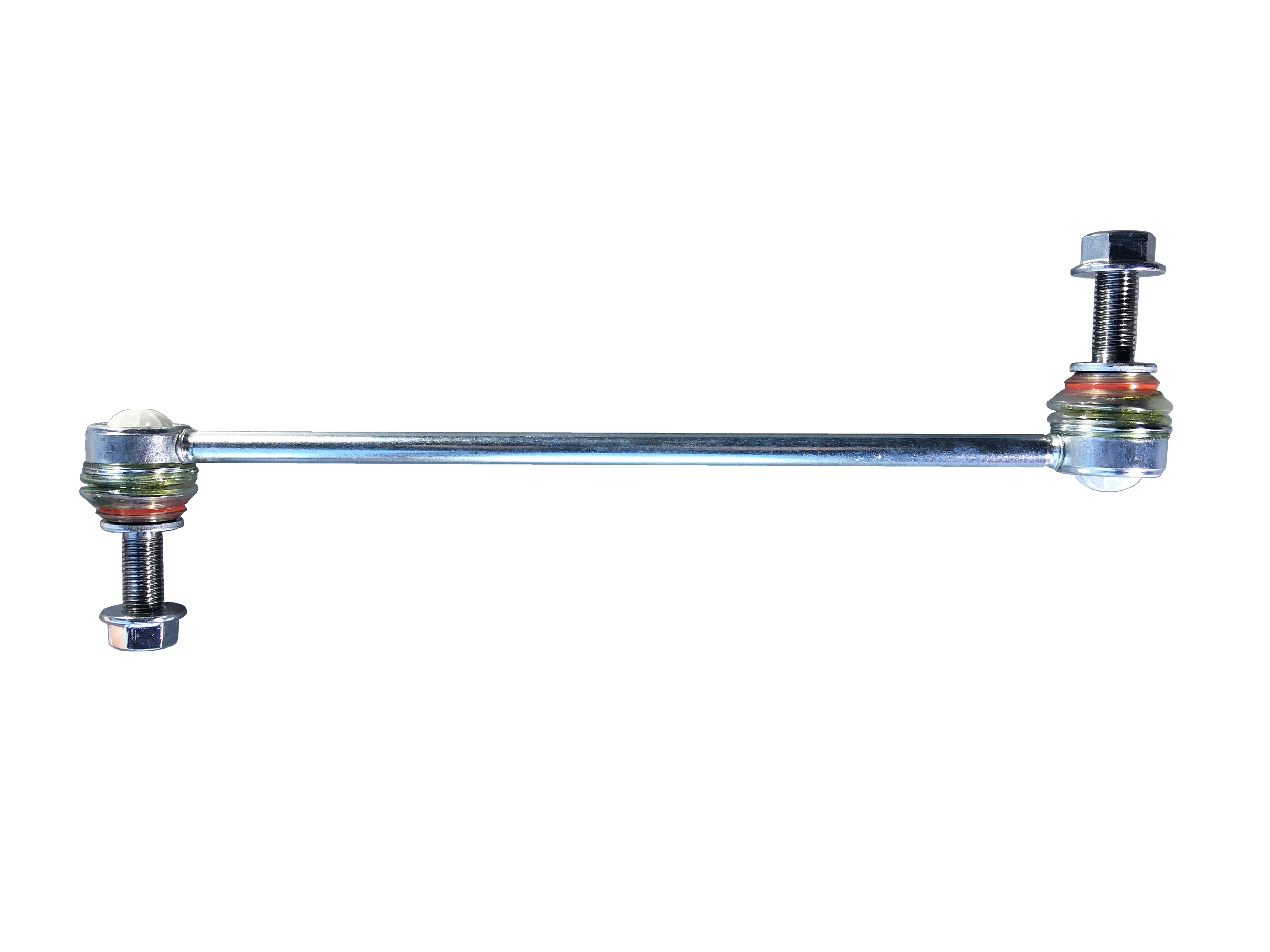

26FR1720	Stabiliser Link	L:299 tp:M12x1.25 RHT / 0,49 kg	5 182 780, 2 286 405
26FR2205	Stabiliser Link	L:300 tp:M10x1.5 RHT / 0,38 kg	1 377 849, 6G9N 3B438 BA (2) OEM
26FR2210	Stabiliser Link Rear	L:179 tp:M10x1.5 RHT th:M8x1.25 RHT / 0,3 kg	1 425 853, 1 377 416 (4) OEM

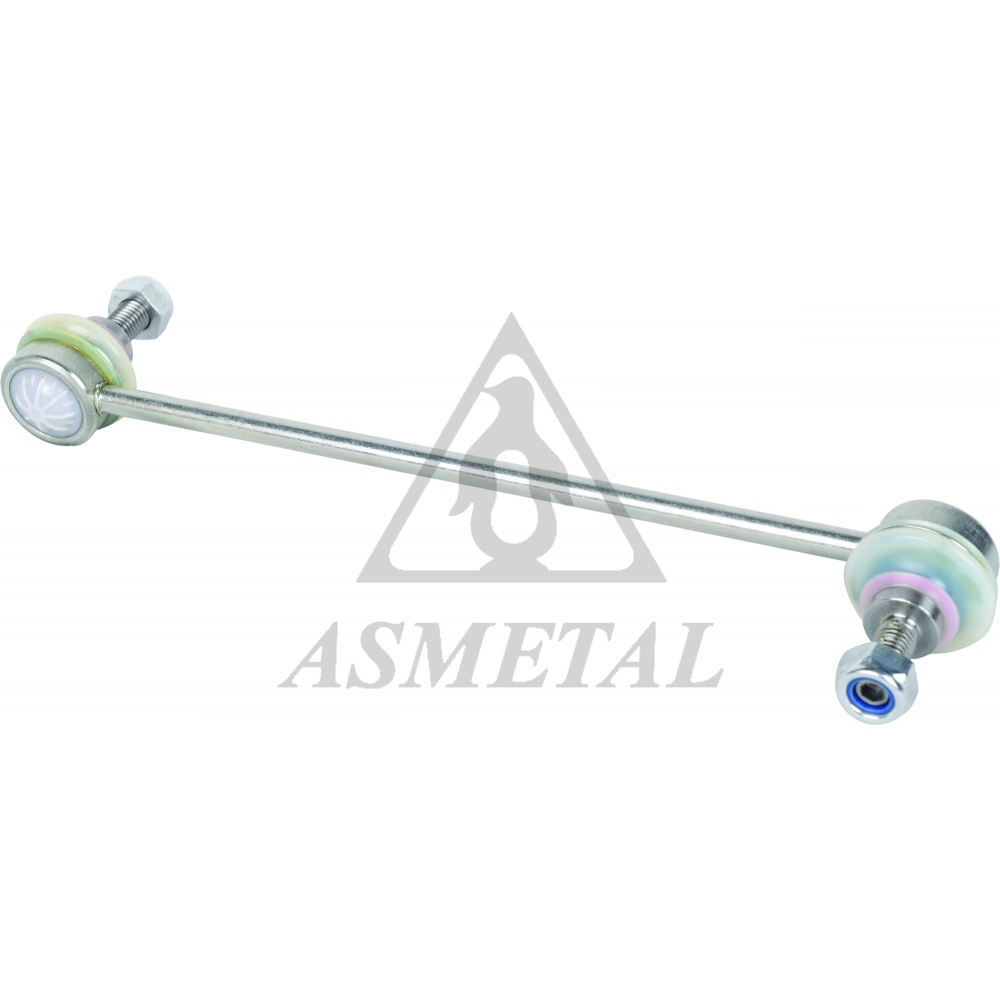

26FR2221	Stabiliser Link	L:249 tp:M10x1.5 RHT / 0,34 kg	1S71 3B438 AB, 1S71 3B438 AC (9) OEM

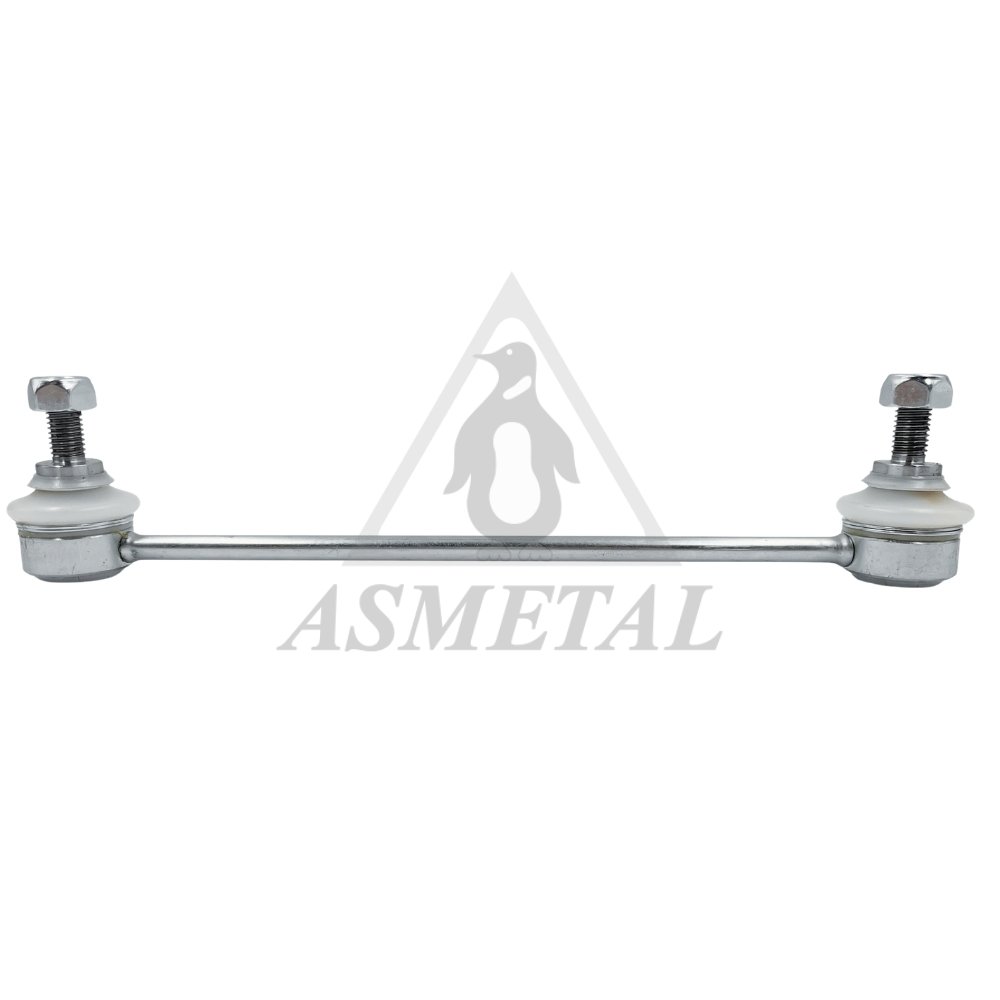

26FR2222	Stabiliser Link Rear	L:254 tp1:M10x1.5 RHT / 0,34 kg	1S71 5C486 AC, 1 127 648 (2) OEM
26FR2223	Stabiliser Link Rear	L:88.2 tp:M10x1.5 RHT / 0,36 kg	1S71 5C486 BD, 1S71 5C486 BC (4) OEM
26FR2300	Stabiliser Link Rear	L:120 tp:M12x1.25 RHT / 0,36 kg	5 182 818
30FR0504	Track Control Arm Left	c:Ø20.95 / 4,4 kg	1 909 998, 1 522 133 (40) OEM
30FR0505	Track Control Arm Right	c:Ø20.95 / 4,4 kg	1 384 309, 1 384 307 (25) OEM
30FR2204	Track Control Arm Left	cr:1/6 c:Ø18 th:M14x1.5 RHT / 6,64 kg	1 507 182, 1 469 026 (4) OEM
30FR2205	Track Control Arm Right	cr:1/6 c:Ø18 th:M14x1.5 RHT / 6,54 kg	1 507 181, 1 469 024 (4) OEM
30FR3600 NEW	Track Control Arm Left	5,6 kg	1 927 132, 2 180 769 (6) OEM
30FR3601 NEW	Track Control Arm Right	5,6 kg	5 303 328, 1 927 131 (6) OEM
38FR0501	Silentblock for TCA	L:46 di:Ø12 do:Ø41.3 / 0,19 kg	1 102 950, YS71 3063 AA
38FR0503	Silentblock for TCA	L:46 di:Ø12 do:Ø47.3 / 0,17 kg	6 790 115, 93BB 3063 AA
38FR0504	Silentblock for TCA	L:77.5 di:Ø13.2 do:Ø77.5 / 0,63 kg	1 116 579, 1S71 3A26 2A01* (10) OEM
38FR0505	Silentblock for TCA	L:69 di:Ø12.2 do:Ø35.5 / 0,23 kg	1 522 081, 1 522 130 (3) OEM
38FR1721	Silentblock for TCA	L:35 di:Ø12.1 do:36.4 / 0,13 kg	1 061 659, 1 136 072 (8) OEM
38FR2000	Silentblock for TCA	L:45 di:Ø12.2 do:Ø60.3 / 0,23 kg	93BB 5K896 BA, 6 829 051
38FR2204	Silentblock for TCA Left	L:92.7 / 2 kg	1 507 182, 1 469 026 (17) OEM
38FR2205	Silentblock for TCA Right	L:92.7 / 2,03 kg	1 883 048, 1 469 024* (17) OEM
38FR2206	Axle Beam Bushing Left	L:151 di:Ø12.2 do:Ø89.9 / 0,85 kg	1 566 838, TKA 181351 (10) OEM
38FR2207	Axle Beam Bushing Right	L:151 do:89.9 / 0,84 kg	6G91 5A968 FCJ, 1 566 841 (12) OEM
38FR2208	Silentblock for TCA	L:55.5 di:Ø12.1 do:Ø37.3 / 0,21 kg	1377447, 6G91-5K652-XAE (1) OEM
38FR2222	Stabiliser Mounting	L:41 di:Ø20 / 0,05 kg	1 117 752, 1 124 418 (2) OEM
38FR2232	Stabiliser Mounting	L:48 di:Ø22 / 0,1 kg	1 469 020, 1 453 257 (10) OEM
38FR2260	Silentblock for TCA	L:46 di:Ø12 do:Ø60 / 0,26 kg	1 023 058, 1 074 282 (2) OEM
38FR3600	Silentblock for TCA Left	L:87 / 1,60 kg	5 303 329, 1 927 132
38FR3601	Silentblock for TCA Right	L:87 / 1,60 kg	5 303 328, 1 927 131
38FR3602	Silentblock for TCA	L:60 di:Ø16.1 do:Ø66.1 / 0,53 kg	5 303 329, 1 927 131 (3) OEM
38FR4000	Silentblock for TCA	L:60 di:Ø14.2 do:Ø60.4 / 0,44 kg	6G9N 3A052 DG, 1 507 181* (37) OEM
38FR4017	Stabiliser Mounting	L:48 di:Ø17 / 0,07 kg	1 377 334, 1 387 624 (4) OEM
45FR1320	Suspension Support Buffer Front	L:69.5 di:Ø29 do:Ø68.5 / 0,07 kg	1 116 577, 1 118 919 (6) OEM
