ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FR2205	Ball Joint Lower	th:M14x1.5 RHT cr:1/6 c:Ø18 / 0,8 kg	6G9N 3A053 DH, 6G9N 3A053 DG (41) OEM
17FR2205	Tie Rod End Right	L:112 cr:1/6 c:Ø16.7 tp:M14x2 th:FM18x1.5 RHT / 0,58 kg	6G91 3289 AA, 1 433 273 (4) OEM
17FR2206	Tie Rod End Left	L:112 cr:1/6 c:Ø16.7 tp:M14x2 th:FM18x1.5 RHT / 0,58 kg	6G91 3290 AA, 1 433 274 (4) OEM
17FR2300	Tie Rod End Left	L:117 tp:M14x2 th:FM18x1.5 RHT / 0,64 kg	5 333 724, DG9C 3290 CA (1) OEM
17FR2301	Tie Rod End Right	L:117 tp:M14x2 th:FM18x1.5 RHT / 0,64 kg	DG9C 3289 CA, 5 333 720 (1) OEM

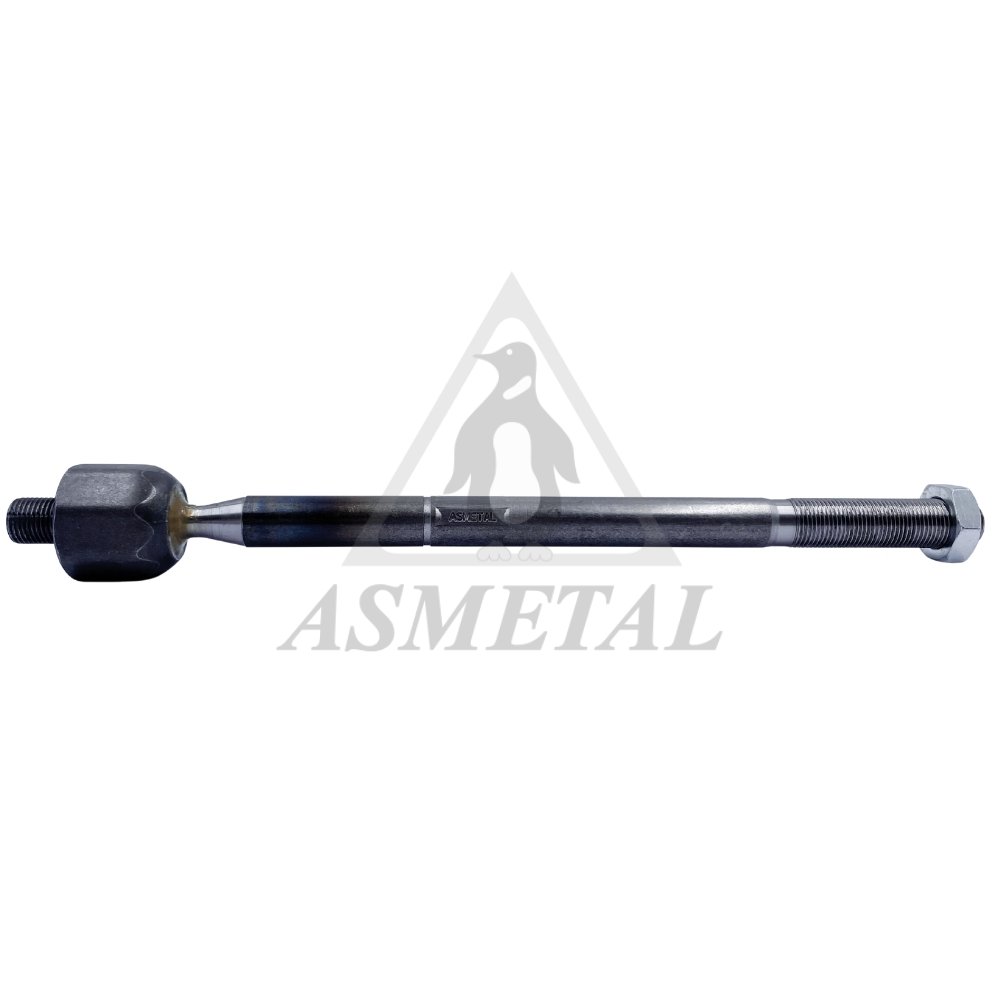

20FR2205	Axial Joint	L:315 tp:M18x1.5 th:MM16x1.5 RHT / 0,83 kg	1 433 271, 1 596 574 (7) OEM
20FR2300 IN PREPARATION	Axial Joint		1 824 228, 31 360 303*
26FR1720	Stabiliser Link	L:299 tp:M12x1.25 RHT / 0,49 kg	5 182 780, 2 286 405
26FR2205	Stabiliser Link	L:300 tp:M10x1.5 RHT / 0,38 kg	1 377 849, 6G9N 3B438 BA (2) OEM
26FR2210	Stabiliser Link Rear	L:179 tp:M10x1.5 RHT th:M8x1.25 RHT / 0,3 kg	1 425 853, 1 377 416 (4) OEM
30FR2204	Track Control Arm Left	cr:1/6 c:Ø18 th:M14x1.5 RHT / 6,64 kg	1 507 182, 1 469 026 (4) OEM
30FR2205	Track Control Arm Right	cr:1/6 c:Ø18 th:M14x1.5 RHT / 6,54 kg	1 507 181, 1 469 024 (4) OEM
38FR2204	Silentblock for TCA Left	L:92.7 / 2 kg	1 507 182, 1 469 026 (17) OEM
38FR2205	Silentblock for TCA Right	L:92.7 / 2,03 kg	1 883 048, 1 469 024* (17) OEM
38FR2206	Axle Beam Bushing Left	L:151 di:Ø12.2 do:Ø89.9 / 0,85 kg	1 566 838, TKA 181351 (10) OEM
38FR2207	Axle Beam Bushing Right	L:151 do:89.9 / 0,84 kg	6G91 5A968 FCJ, 1 566 841 (12) OEM
38FR2208	Silentblock for TCA	L:55.5 di:Ø12.1 do:Ø37.3 / 0,21 kg	1377447, 6G91-5K652-XAE (1) OEM
38FR2232	Stabiliser Mounting	L:48 di:Ø22 / 0,1 kg	1 469 020, 1 453 257 (10) OEM
38FR4000	Silentblock for TCA	L:60 di:Ø14.2 do:Ø60.4 / 0,44 kg	6G9N 3A052 DG, 1 507 181* (37) OEM
38FR4017	Stabiliser Mounting	L:48 di:Ø17 / 0,07 kg	1 377 334, 1 387 624 (4) OEM
