ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FR1300	Ball Joint Lower	tp:M16x1.5 RHT cr:1/6 c:Ø18.15 do:Ø44.45 / 0,65 kg	1 763 713, 2 115 116 (18) OEM
10FR1300R NEW	Ball Joint Lower	0,64 kg	1 417 352, 1 451 914 (19) OEM
10FR1305	Ball Joint Lower	tp:M20x1.5 RHT cr:1/6 c:Ø21.7 do:Ø50 / 1 kg	1 817 754, 1 451 917 (6) OEM
10FR1710	Ball Joint Left	c:Ø20.95 / 0,74 kg	1 933 035, 1 709 466 (5) OEM
10FR1711	Ball Joint Right	c:Ø20.95 / 0,74 kg	1 749 593, 1 702 970 (6) OEM
10FR3520	Ball Joint Lower	c:Ø17.5 do:Ø38.6 / 0,26 kg	2 106 530, 1 834 055 (29) OEM*
10FR3520R NEW	Ball Joint Lower	0,26 kg	1 518 904, 1 521 773 (12) OEM
10VW1602 NEW	Ball Joint Left	0,62 kg	2 553 416, VWN3CA 3395 AA (2) OEM
10VW1603 NEW	Ball Joint Right	0,62 kg	2 553 418, VWN3CA 3395 BA (2) OEM

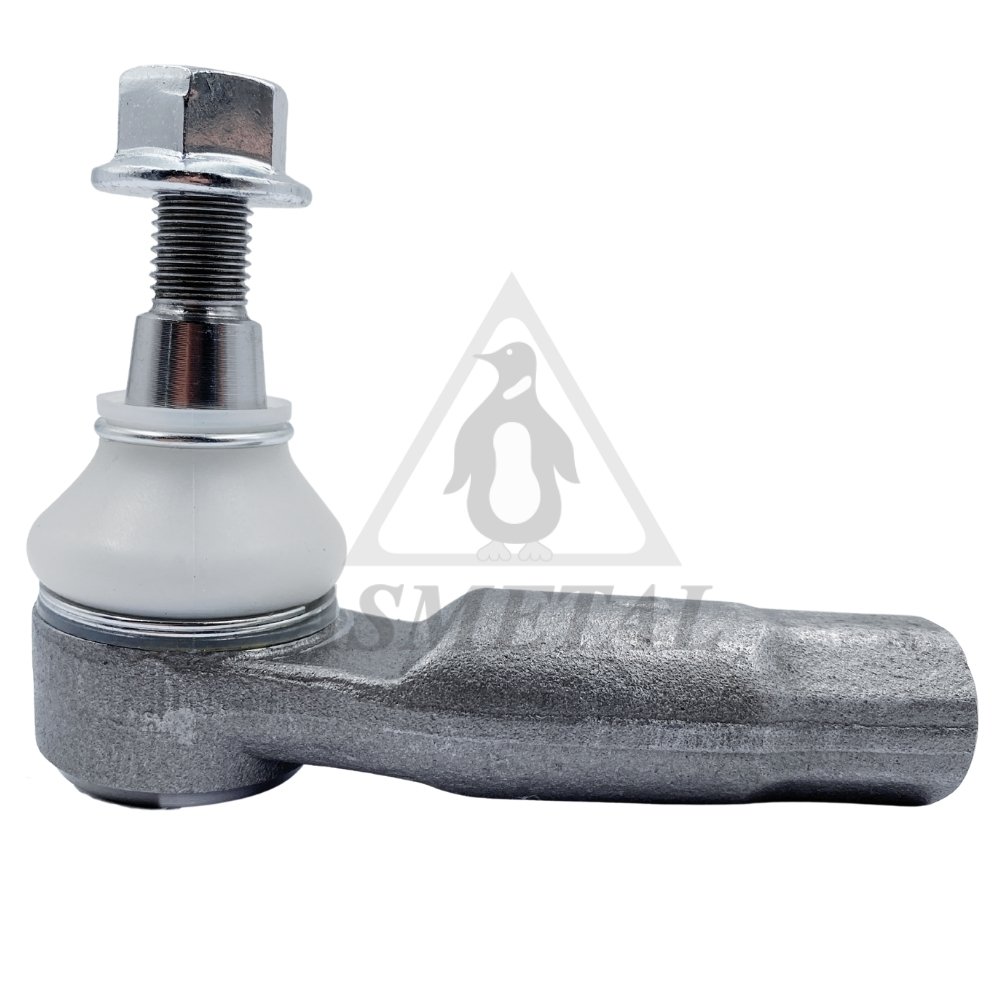

17FR1210 IN PREPARATION	Tie Rod End Left		2 560 576, VWN3CA 3290 AA (2) OEM

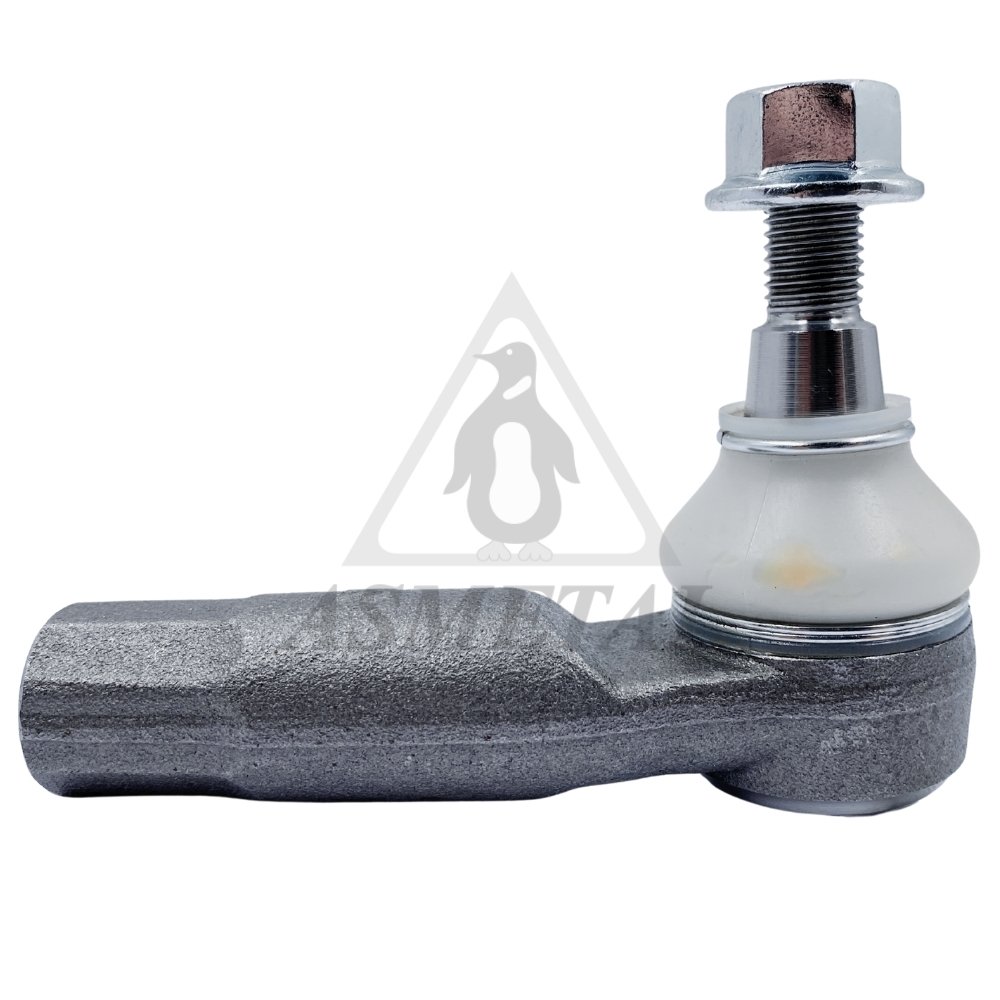

17FR1211 IN PREPARATION	Tie Rod End Right		2 560 578, VWN3CA 3289 AA (2) OEM
17FR1300	Tie Rod End	L:90.5 cr:1/6 c:Ø16.7 tp:M14x1.5 th:FM16x1.5 RHT / 0,49 kg	1 138 275, 1 370 741 (14) OEM

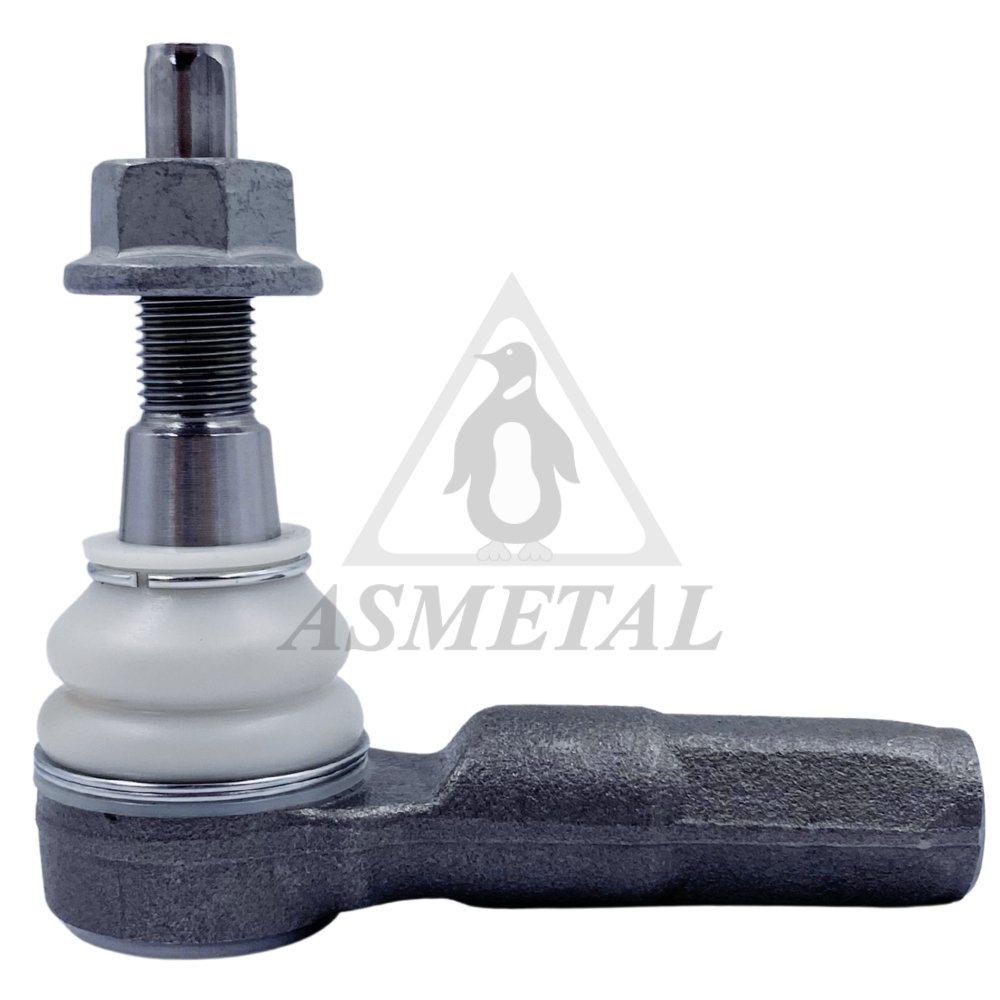

17FR1305 NEW	Tie Rod End	0,52 kg	1 138 275, 1 370 741 (12) OEM
17FR1310	Tie Rod End	L:74 cr:1/6 c:Ø12.8 tp:M10x1.25 th:FM14x2 RHT / 0,31 kg	4 381 840, 2T14 3289 AA

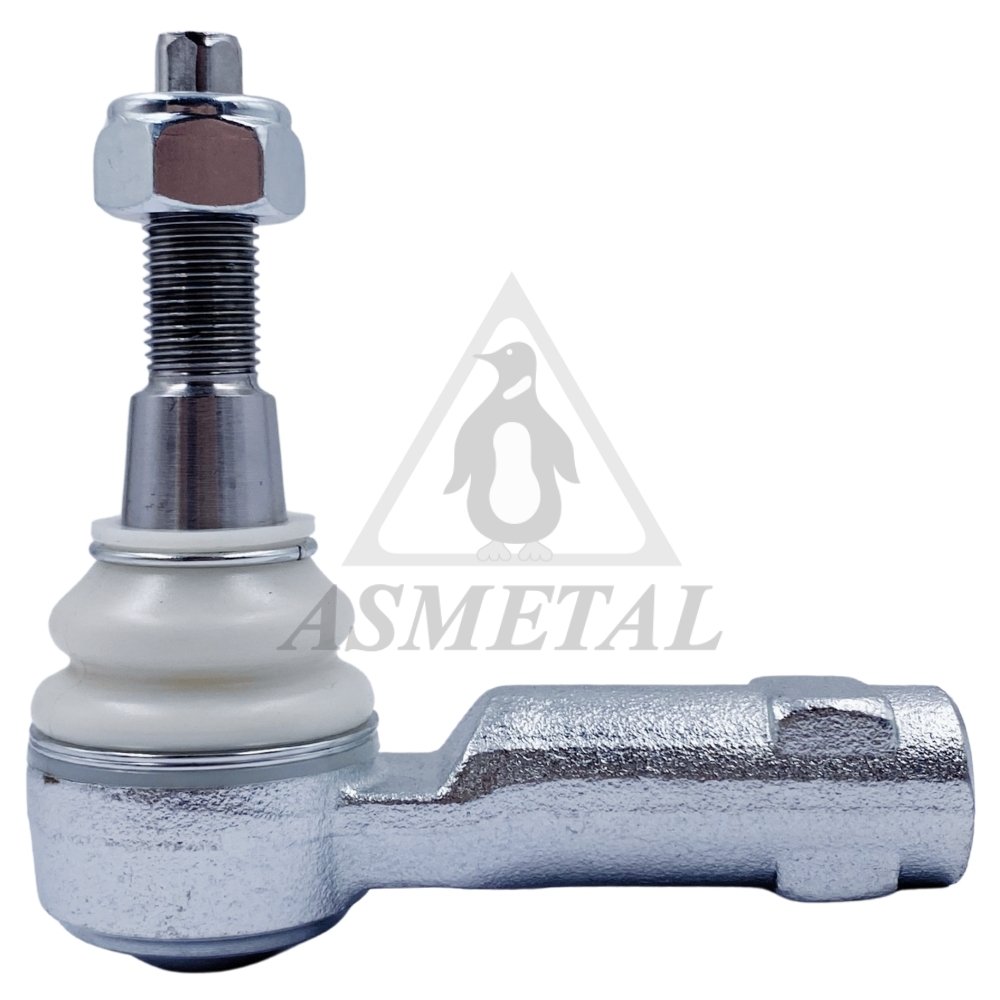

17FR1320 NEW	Tie Rod End	0,58 kg	2 227 099, 2 360 730 (2) OEM

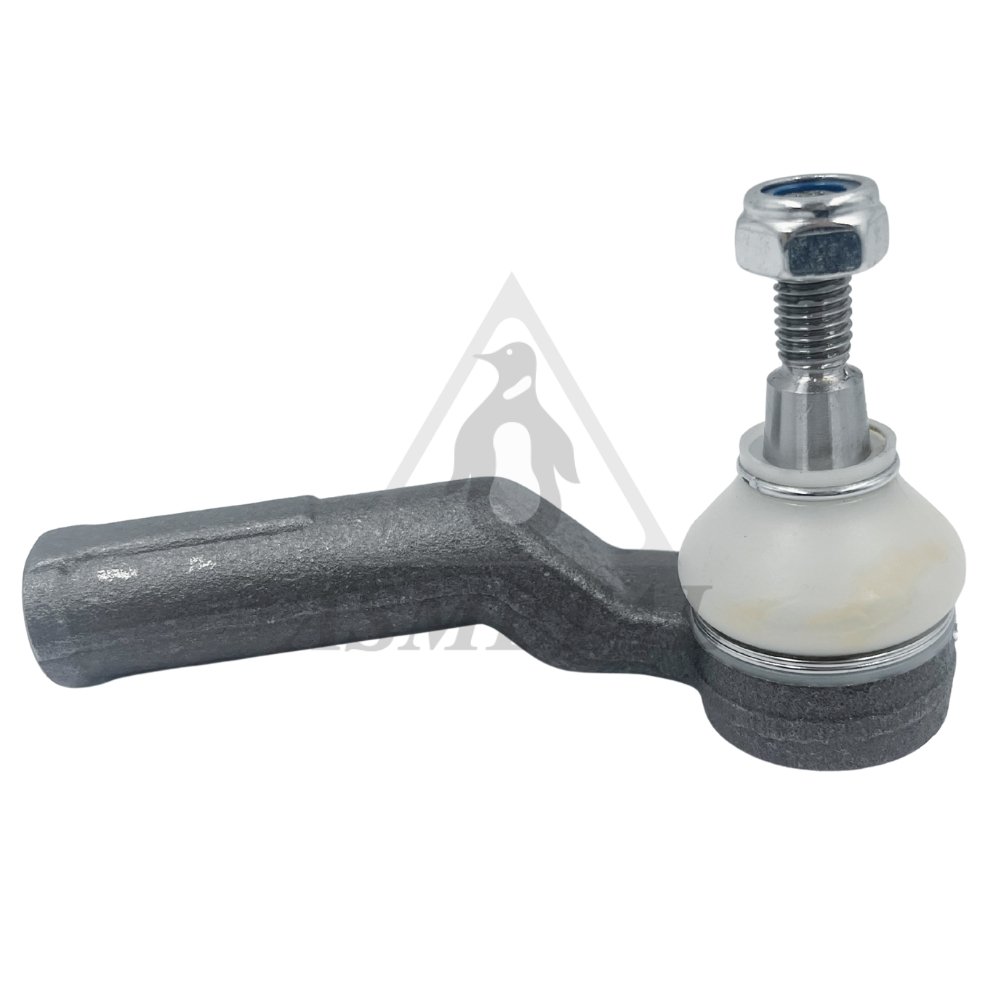

17FR1707	Tie Rod End Right	L:110 cr:1/6 c:Ø12.34 tp:M10x1.5 th:FM16x1.5 RHT / 0,44 kg	1 826 501, AV6C 3C367 AA (6) OEM
17FR1708	Tie Rod End Left	L:110 cr:1/6 c:Ø12.34 tp:M10x1.5 th:FM16x1.5 RHT / 0,44 kg	BV6C 3C437 BB, BV6C 3C437 BA (7) OEM
17FR3520	Tie Rod End Right	L:94.5 cr:1/8 c:Ø12.85 tp:M10x1.5 th:FM14x1.5 RHT / 0,37 kg	1 545 338, 8V51 3C367 AA
17FR3521	Tie Rod End Left	L:94.5 cr:1/8 c:Ø12.85 tp:M10x1.5 th:FM14x1.5 RHT / 0,37 kg	1 545 339, 8V51 3C437 AA
20FR1006	Axial Joint	L:382 tp:M16x1.5 th:MM16x1.5 RHT / 1 kg	1 763 991, BK21 3L519 AA
20FR1320 NEW	Axial Joint	0,94 kg	2 207 131, 2 411 062 (1) OEM
20FR1700	Axial Joint	L:343.5 tp:M14x2 th:MM14x1.5 RHT / 0,63 kg	3 043 523, XS4C 3280 AB (6) OEM
20FR1705	Axial Joint	L:293 tp:M16x1.5 th:MM14x1.5 RHT / 0,64 kg	3M51 3L519 AA, 1 251 937 (10) OEM
20FR3520	Axial Joint	L:295 tp:M14x1.5 th:MM14x1.5 RHT / 0,6 kg	1 545 457, 8V51 3L519 AA (1) OEM

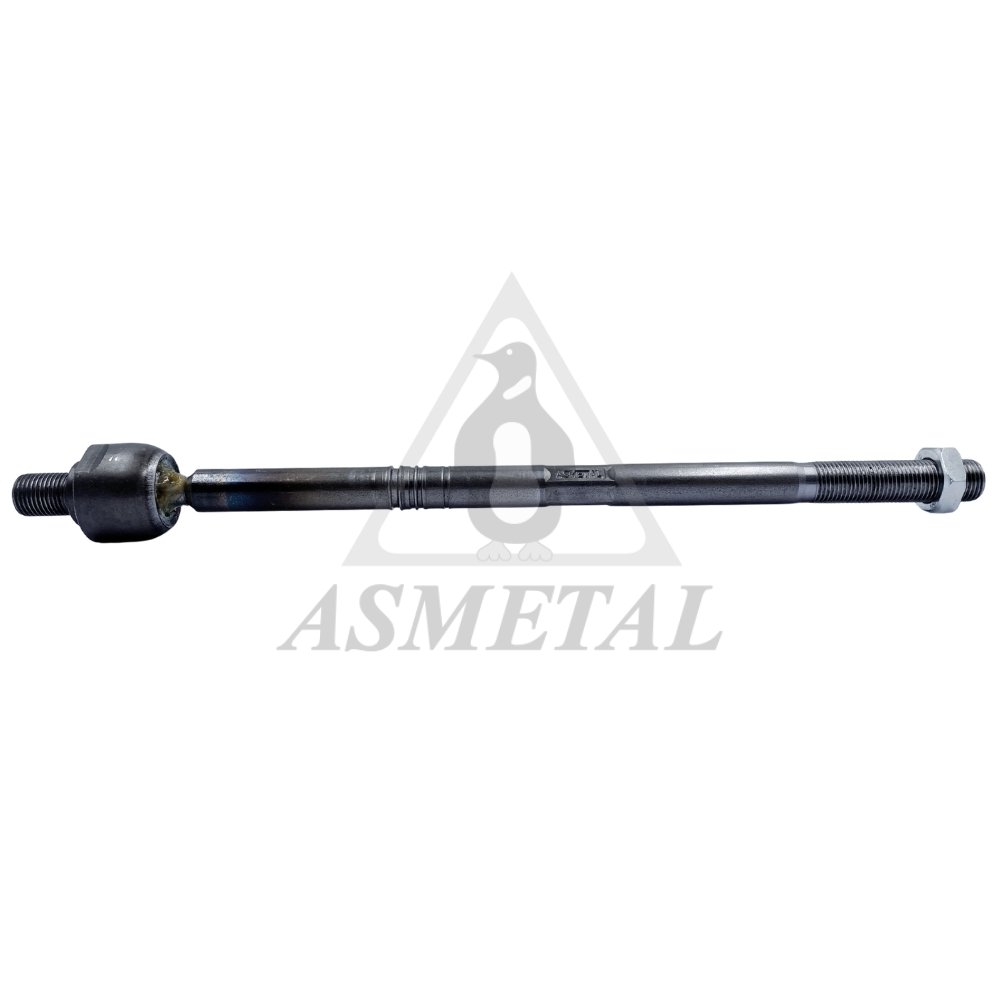

20VW1205 NEW	Axial Joint	0,72 kg	5WA 423 810 D, 2 560 580 (1) OEM
26FR1007	Stabiliser Link	L:290 tp:M12x1.5 RHT / 0,56 kg	3C11 3B438 AC, BK21 3B438 AA (5) OEM

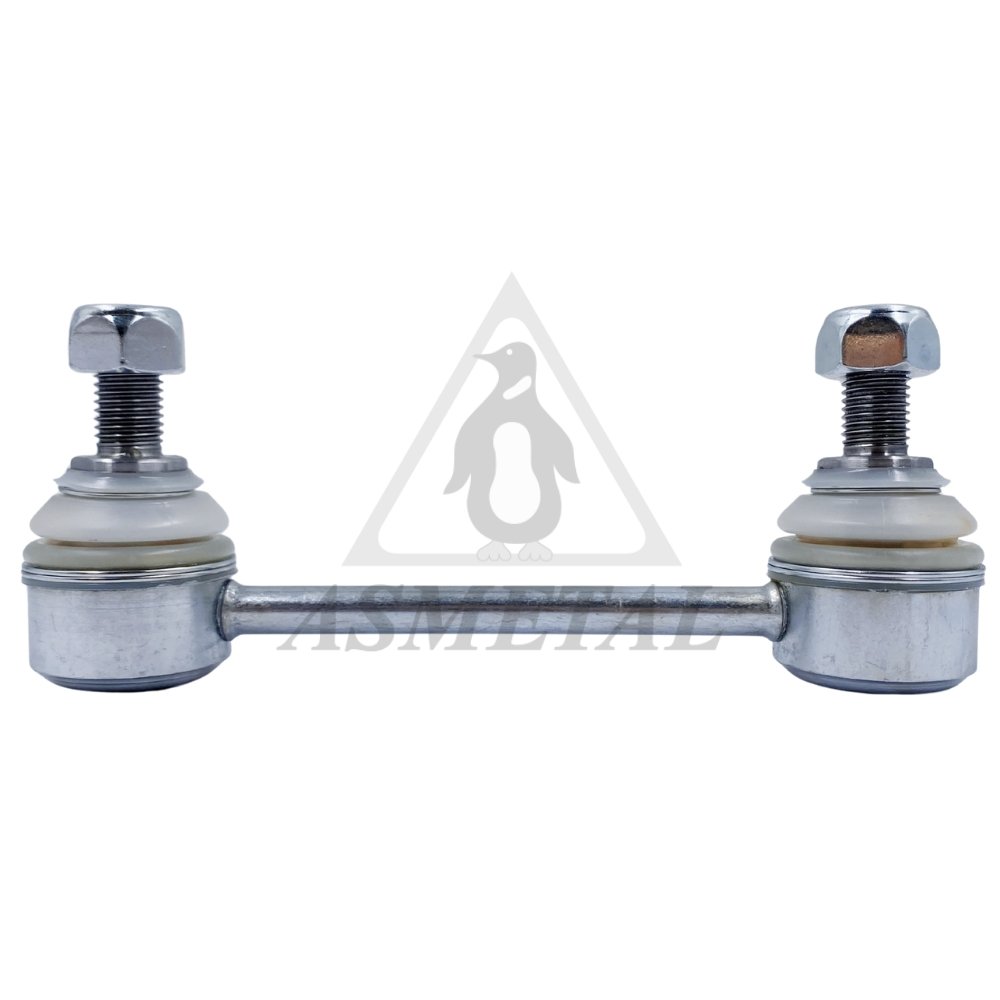

26FR1300	Stabiliser Link Rear	L:133 tp:M12x1.5 RHT / 0,5 kg	4 548 398, 4 436 609 (11) OEM
26FR1310	Stabiliser Link	L:237 tp:M10x1.5 RHT / 0,37 kg	4 367 012, 1 332 453 (2) OEM
26FR1705	Stabiliser Link	L:298 tp:M10x1.5 RHT / 0,34 kg	1 223 792, 1 230 909 (16) OEM
26FR3520	Stabiliser Link	L:252 tp:M10x1.5 RHT / 0,32 kg	8V51 3B438 BC, 1 513 343 (23) OEM
26VW1600	Stabiliser Link	L:335 tp:M12x1.5 RHT / 0,5 kg	1K0 411 315 P, 1K0 411 315 K (14) OEM
26VW1620 IN PREPARATION	Stabiliser Link Rear		2 630 510, VWN3CA 5C486 CA (3) OEM
30FR1300	Track Control Arm Left (Without Ball Joint)	cr:1/6 c:Ø16.75 / 4,6 kg	1 355 050, 4 371 926 (7) OEM
30FR1301	Track Control Arm Right (Without Ball Joint)	cr:1/6 c:Ø16.75 / 4,7 kg	4T16 3042 AA, 4 539 871 (8) OEM
30FR1304 NEW	Track Control Arm Left (Without Ball Joint)	5,6 kg	1 810 331, 1 828 700 (6) OEM
30FR1305 NEW	Track Control Arm Right (Without Ball Joint)	5,6 kg	2 310 651, 1 810 330 (4) OEM

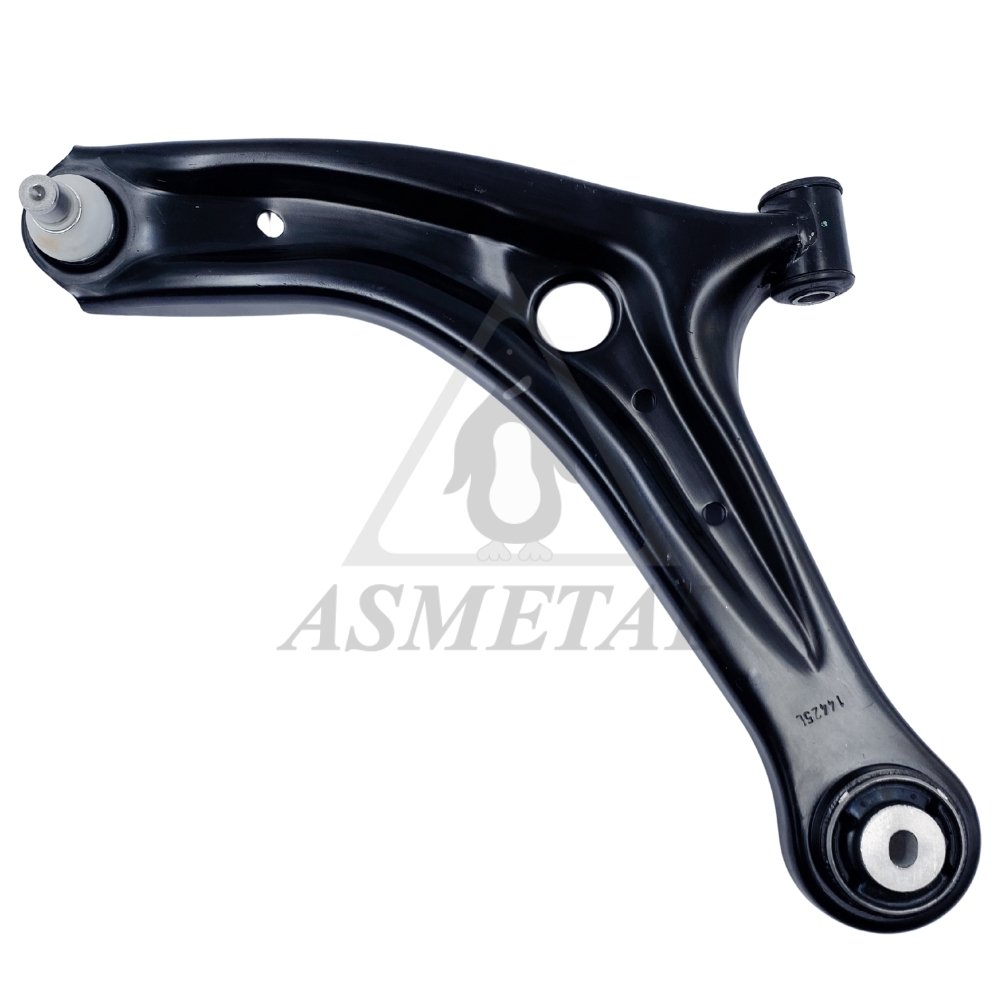

30FR3522 NEW	Track Control Arm Lower Left	2,68 kg	1 751 955, 1 834 055 (1) OEM

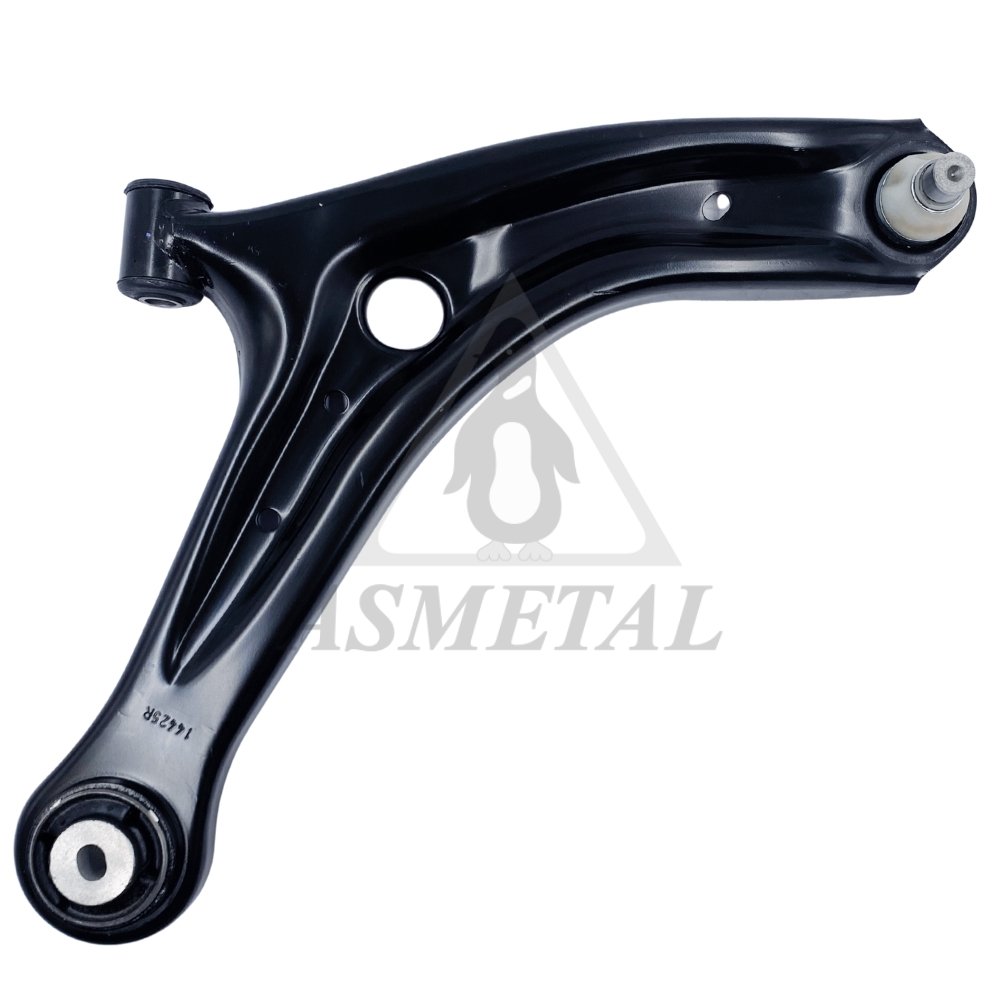

30FR3523 NEW	Track Control Arm Lower Right	2,68 kg	1 751 952, 1 834 054 (1) OEM

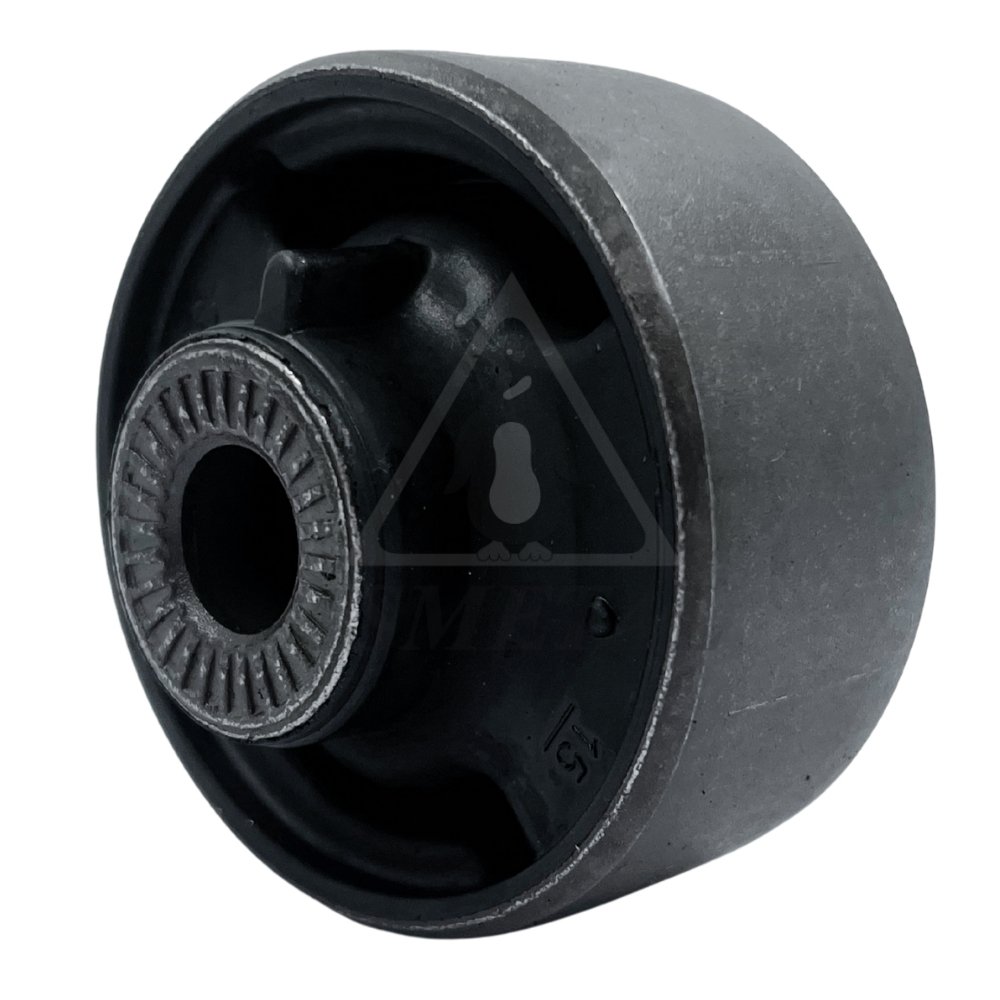

38AU3021	Silentblock for TCA	L:50 di:Ø13 do:Ø64.7 / 0,35 kg	5Q0 407 183 D, 5Q0 407 183 G (7) OEM
38AU3030	Silentblock for TCA	L:54 di:Ø12.1 do:Ø39.5 / 0,19 kg	1K0 407 182, 1K0 407 182 F (4) OEM

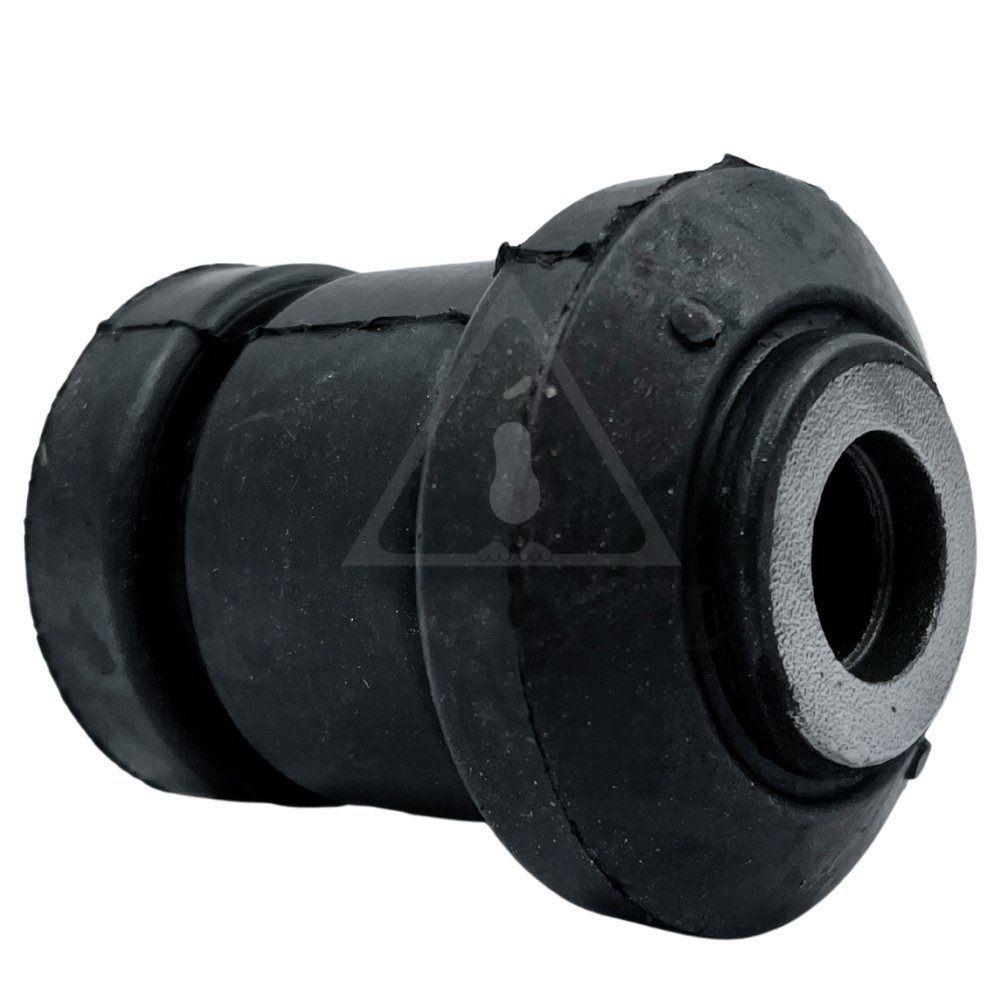

38FR0110	Silentblock for TCA	L:64.5 di:Ø14.2 do:Ø40.7 / 0,26 kg	4 366 976, 2T14 3063 AA
38FR1300	Silentblock for TCA	L:124 di:Ø22 / 0,77 kg	1 332 455, 4 366 973 (6) OEM
38FR1305	Silentblock for TCA	L:67 di:Ø16.1 do:Ø44 / 0,26 kg	1 764 290, 1 782 112 (11) OEM
38FR1324 NEW	Stabiliser Mounting	di:Ø26 / 0,08 kg	4 964 972, 5 205 536 (5) OEM

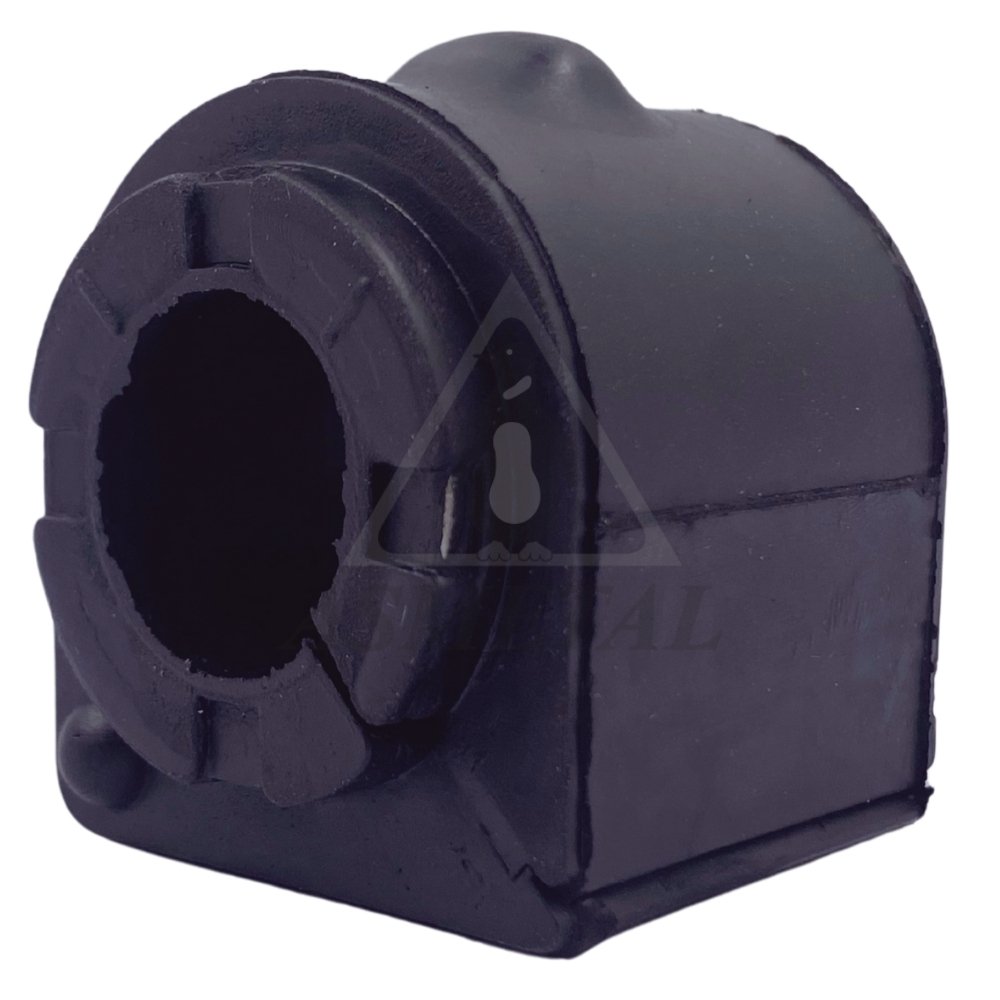

38FR1722 NEW	Stabiliser Mounting	di:Ø21 / 0,10 kg	1 715 440, 1 718 026 (5) OEM

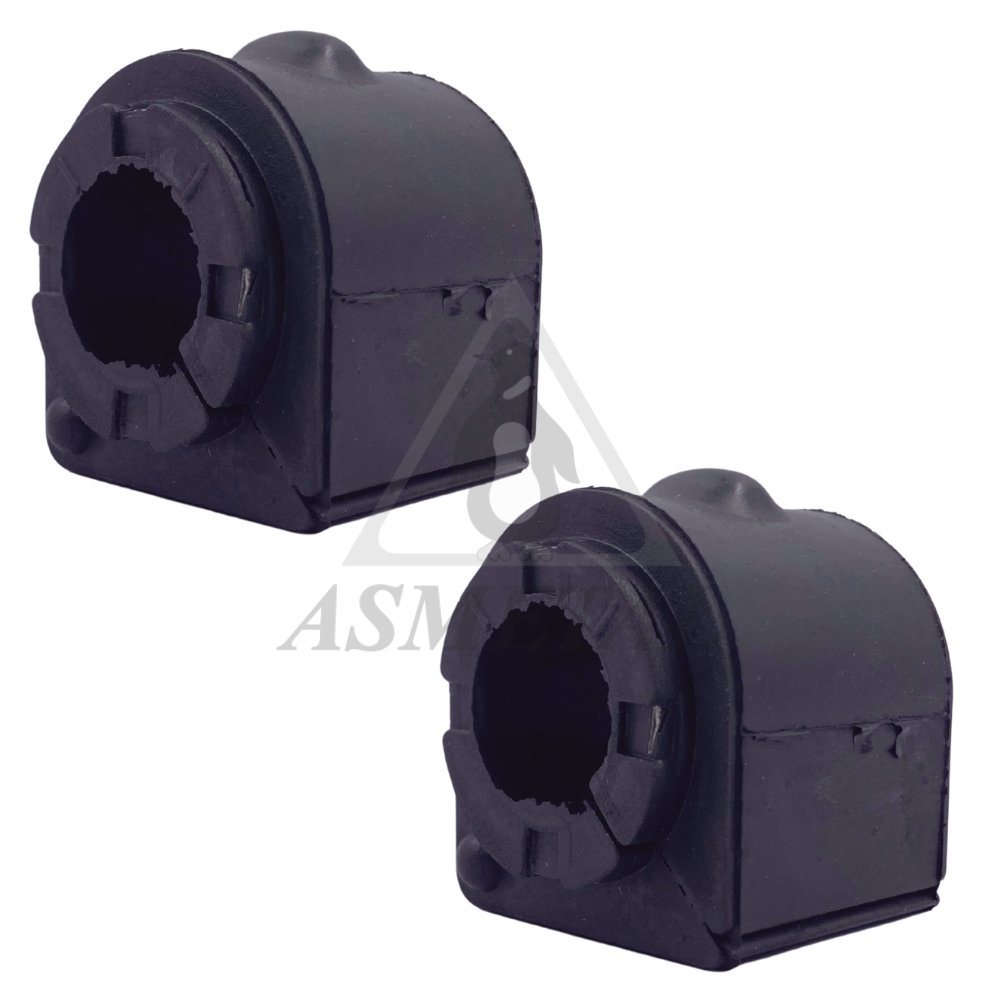

38FR1724 NEW	Stabiliser Mounting	di:Ø23 / 0,10 kg	1 683 481, 1 810 326 (5) OEM
38FR3514 NEW	Silentblock for TCA	0,10 kg	1 751 952, 1 751 955 (4) OEM
38FR3520	Silentblock for TCA	L:52 do:Ø61.5 / 0,29 kg	8V51 3042 BH, 8V51 3051 BG (31) OEM
40FR1000	Drive Shaft Center Bearing	L:144.5 di:Ø30 / 0,72 kg	95VB 4826 AA, 99VB 4826 AB (7) OEM

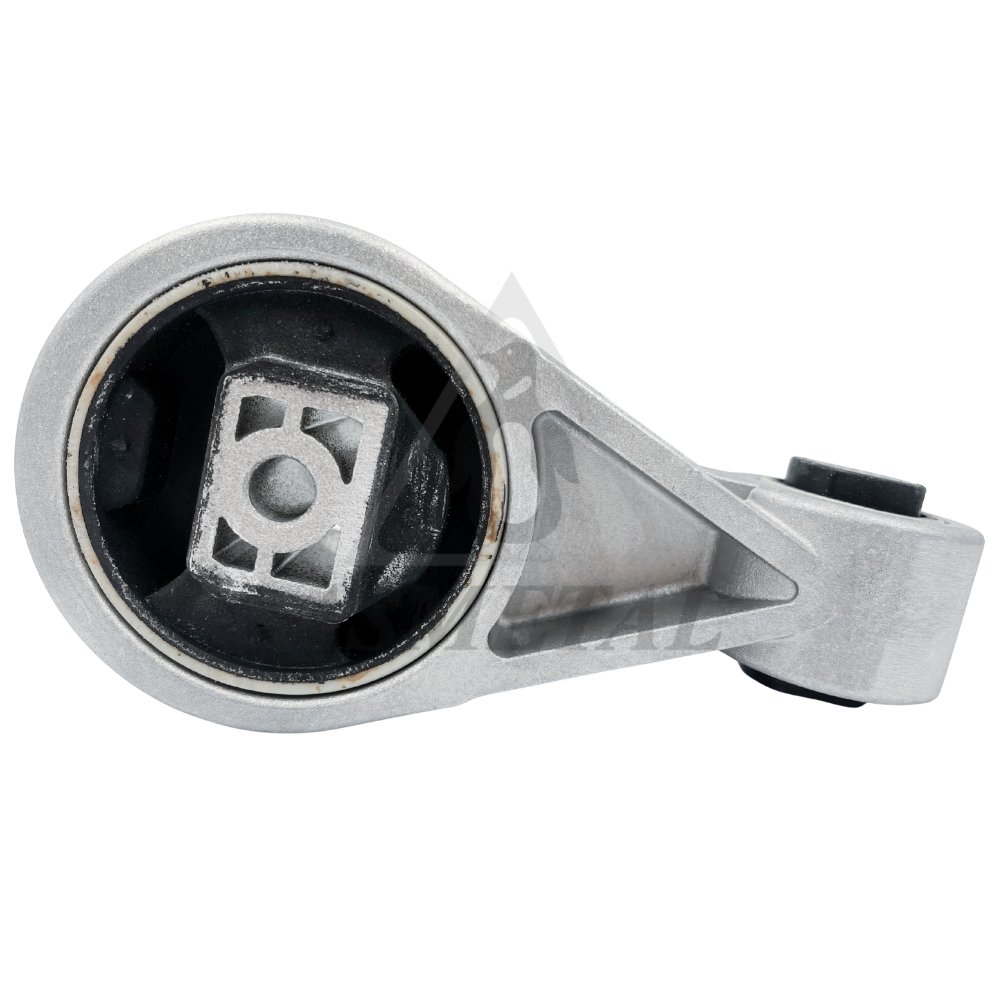

45FR1010	Engine Mounting	L:95 di:Ø10 / 0,56 kg	1 070 177, 1 102 416 (6) OEM
45FR1320	Suspension Support Buffer Front	L:69.5 di:Ø29 do:Ø68.5 / 0,07 kg	1 116 577, 1 118 919 (6) OEM
45FR1330	Suspension Support Buffer Rear	L:80 di:Ø14 do:Ø71.5 / 0,1 kg	2T14 5K 570 BA, 1 344 760 (3) OEM
45FR1332	Suspension Support Buffer Rear	L:80 di:Ø14 do:Ø74 / 0,12 kg	1 344 760, 4T16 5K 570 AA
45FR1334	Suspension Support Buffer Rear	L:120 di:Ø25 do:Ø100 / 0,37 kg	1 817 422, BK31 4002 CB
45FR1350 IN PREPARATION	Engine Mounting		1771506, 1786184 (4) OEM
45FR1700 IN PREPARATION	Strut Mount		7T16 3K155 AA, 1 061 722 (10) OEM

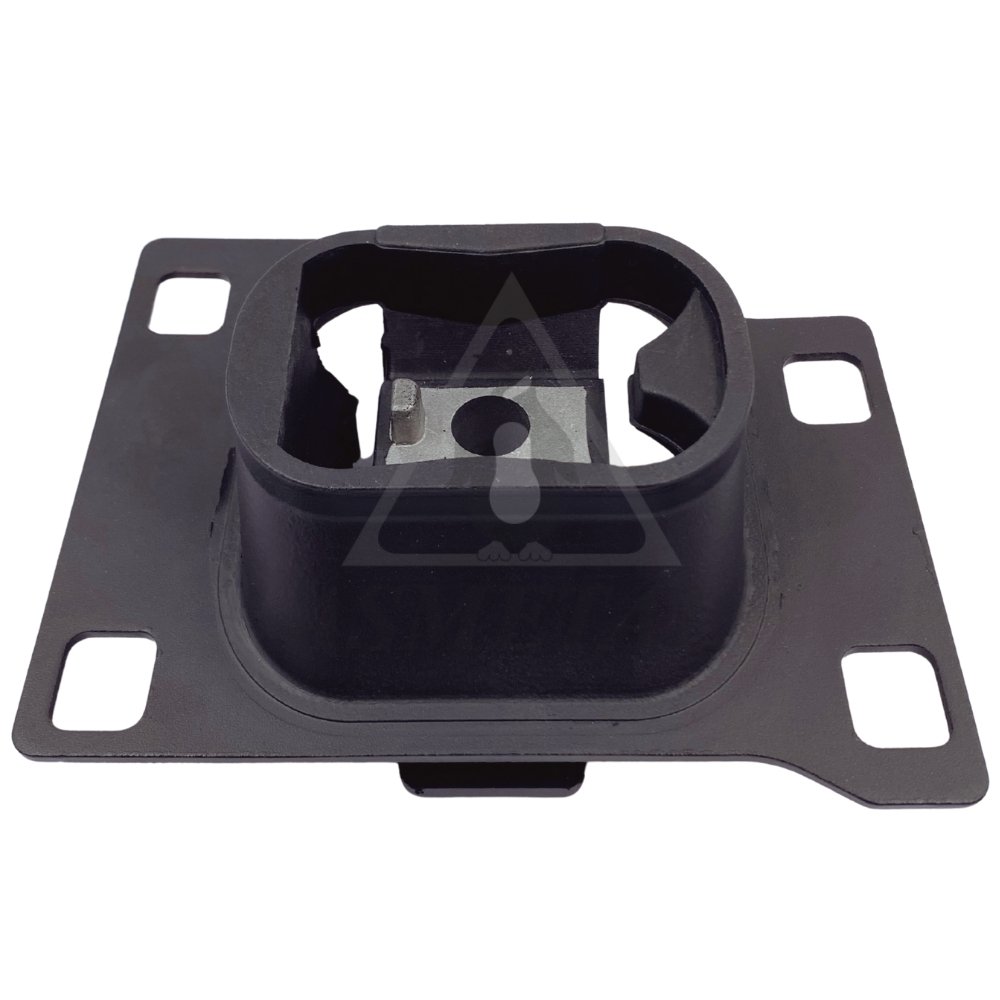

45FR1775 IN PREPARATION	Transmission Mount		98AB 7M121 NB, 1 061 125 (13) OEM
45FR1777	Engine Mounting	L:187.5 / 1,6 kg	1M51 6F012 AD, 1M51 6F012 BA (6) OEM

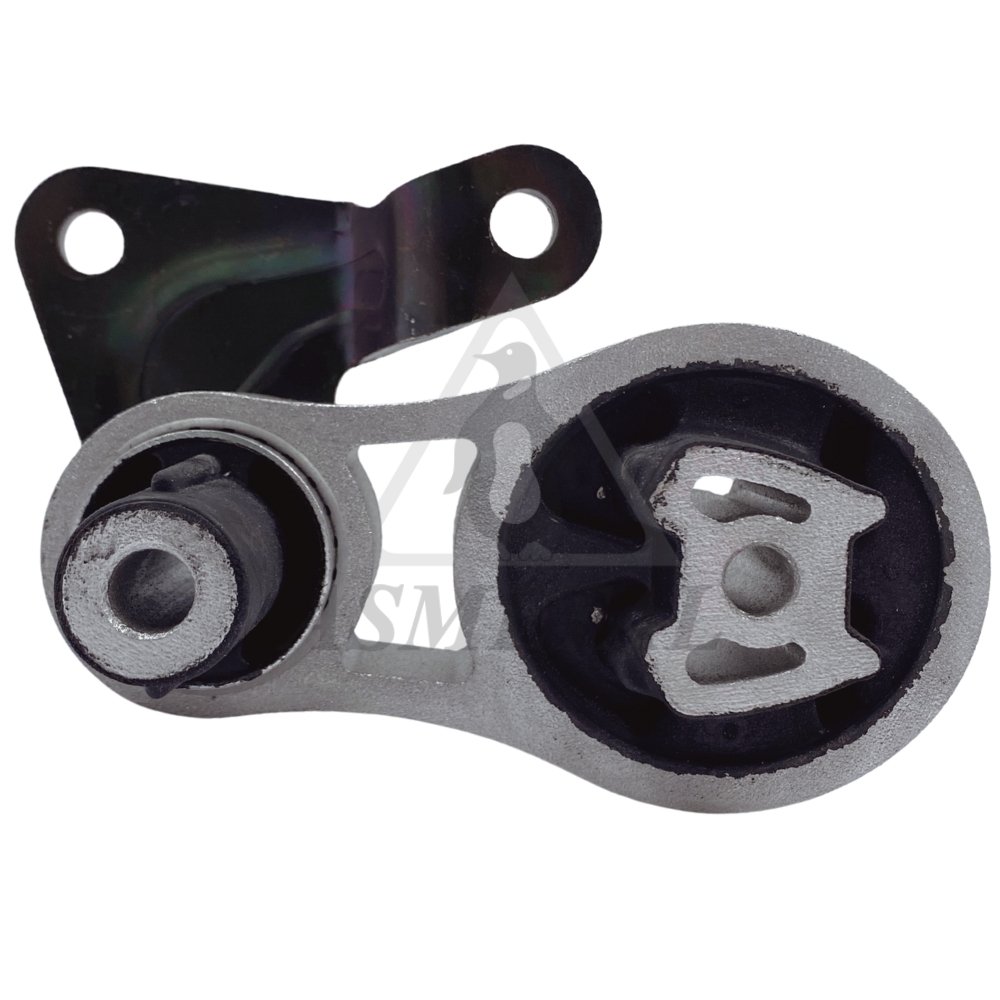

45FR3525 NEW	Transmission Mount	0,73 kg	ET76 6P082 AB, ET76 6P082 AA (2) OEM

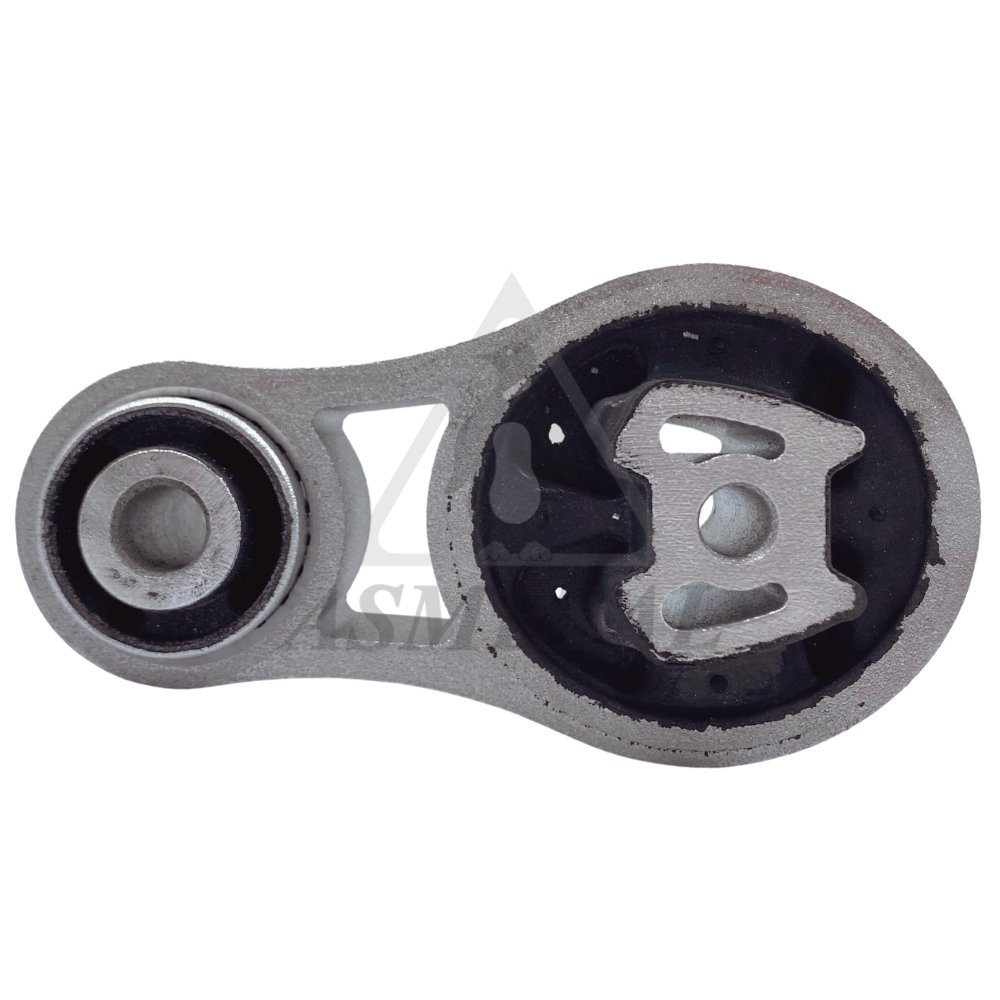

45FR3526 NEW	Transmission Mount	0,52 kg	2 236 292, 2 475 886 (2) OEM
45VW1608 NEW	Strut Mount	0,69 kg	5Q0 412 331 E, 5Q0 412 331 F (7) OEM
