ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10HN0200	Ball Joint Upper	th:M10x1.25 RHT cp:1/9 cs:Ø12,73 do:Ø35,5 / 0,24 kg	51460 S10 010, 51460 S10 000 (1) OEM
10HN2800	Ball Joint Lower	tp: M12x1.5 / cr: 1:8 / do: Ø35.8 / 0,32 kg	51220 S5A 003, 51220 S5A J10 (5) OEM
10HN3000 IN PREPARATION	Ball Joint Lower Left	0 kg	51230 SNA A01, 51230 SNA A02 (2) OEM
10HN3001 IN PREPARATION	Ball Joint Lower Right	0 kg	51220 SNA A02, 51220 SNA A03 (1) OEM
10HN3100 IN PREPARATION	Ball Joint		51220 TR0 A01
10HN3300 IN PREPARATION	Ball Joint		51220 TEA T01
10RV2000	Ball Joint Lower	th:M12x1.25 RHT cp:1/10 cs:Ø14,6 do:Ø40 / 0,34 kg	51220 SS0 000, 51225 SR3 003 (20) OEM
10RV2010	Ball Joint Lower	th:M12x1.5 RHT cp:1/8 cs:Ø15,6 do:Ø40,05 / 0,34 kg	51220 S74 E00, RBK100380 (1) OEM
17HN2000	Tie Rod End Left	c:Ø12,6 th:FM14x1,5 RHT / 0,6 kg	53560 SH3 003, 53560 SH3 013 (7) OEM
17HN2001	Tie Rod End Right	c:Ø12,6 th:FM14x1,5 RHT / 0,6 kg	53540 SO4 003, 53540 SO4 013 (8) OEM
17HN2800 IN PREPARATION	Tie Rod End	0 kg	53541 S5A 003
17HN2900	Tie Rod End Left	L: 197,5 C: Ø13,6 CR: 1/8 TH: FM14x1,5 TP: M12X1,25 / 0,62 kg	53560 SMG 003, 53560 TR0 A01 (3) OEM
17HN2901	Tie Rod End Right	L: 197,5 C: Ø13,6 CR: 1/8 TH: FM14x1,5 TP: M12X1,25 / 0,62 kg	53540 SMG 003, 53540 TR0 A02 (3) OEM
17HN3000 IN PREPARATION	Tie Rod End Left	0 kg	53560 SNE A02, 53560 SNE A01 (2) OEM
17HN3001 IN PREPARATION	Tie Rod End Right	0 kg	53540 SNE A02, 53540 SNE A01 (2) OEM
17HN3300 IN PREPARATION	Tie Rod End Left		53560 TBA A01
17HN3301 IN PREPARATION	Tie Rod End Right		53540 TBA A01
20HN2800	Axial Joint	th1: M14X1.25 th2: M14X1.5 cs: Ø14.5 cp:1/5 L:502 / 1,18 kg	53521 S5A 003
20HN2900	Axial Joint Left	tp: MM20x1.5 / tp: MM14x1.5 / L: 209 / 0,5 kg	53010 SMG E01
20HN2901	Axial Joint	L: 209 TP: M20x1,5 TP: M14X1,5 / 0,50 kg	53011 SMG E01
20HN3000	Axial Joint	tp: MM18x1.5 / tp: FM14x1.5 / L: 175 / 0,58 kg	53010 SNA A01, 53010 SNE A01
20HN3005 IN PREPARATION	Axial Joint		53610 SNB J01, 53610 SNR A01
20HN3300 IN PREPARATION	Axial Joint		53521 TBA A01, 53521 TEA A51
20RV05	Axial Joint	th:MM14x1,5 RHT L:162,5mm / 0,41 kg	53010 SR3 010, 53010 ST0 000 (3) OEM
26HN0200	Stabiliser Link	L:55,5mm / 0,27 kg	51320 S04 003
26HN0205	Stabiliser Link Rear Right	L:90mm / 0,27 kg	52320 S04 003
26HN0206	Stabiliser Link Rear Left	L:90mm / 0,27 kg	52321 S04 003

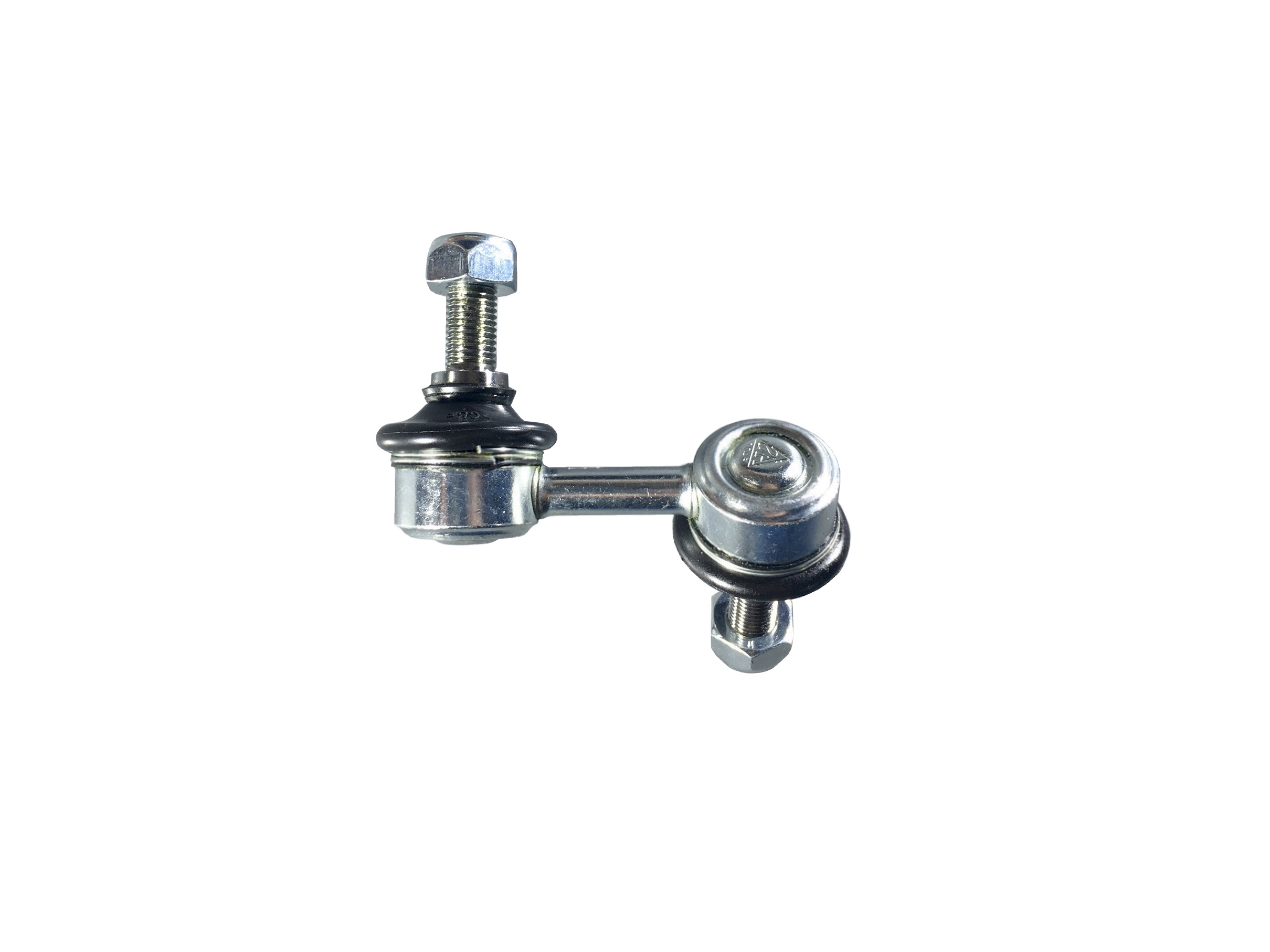

26HN0210	Stabiliser Link Left	th:MM10x1.5 RHT L: 55mm / 0,23 kg	51321 S5A 003

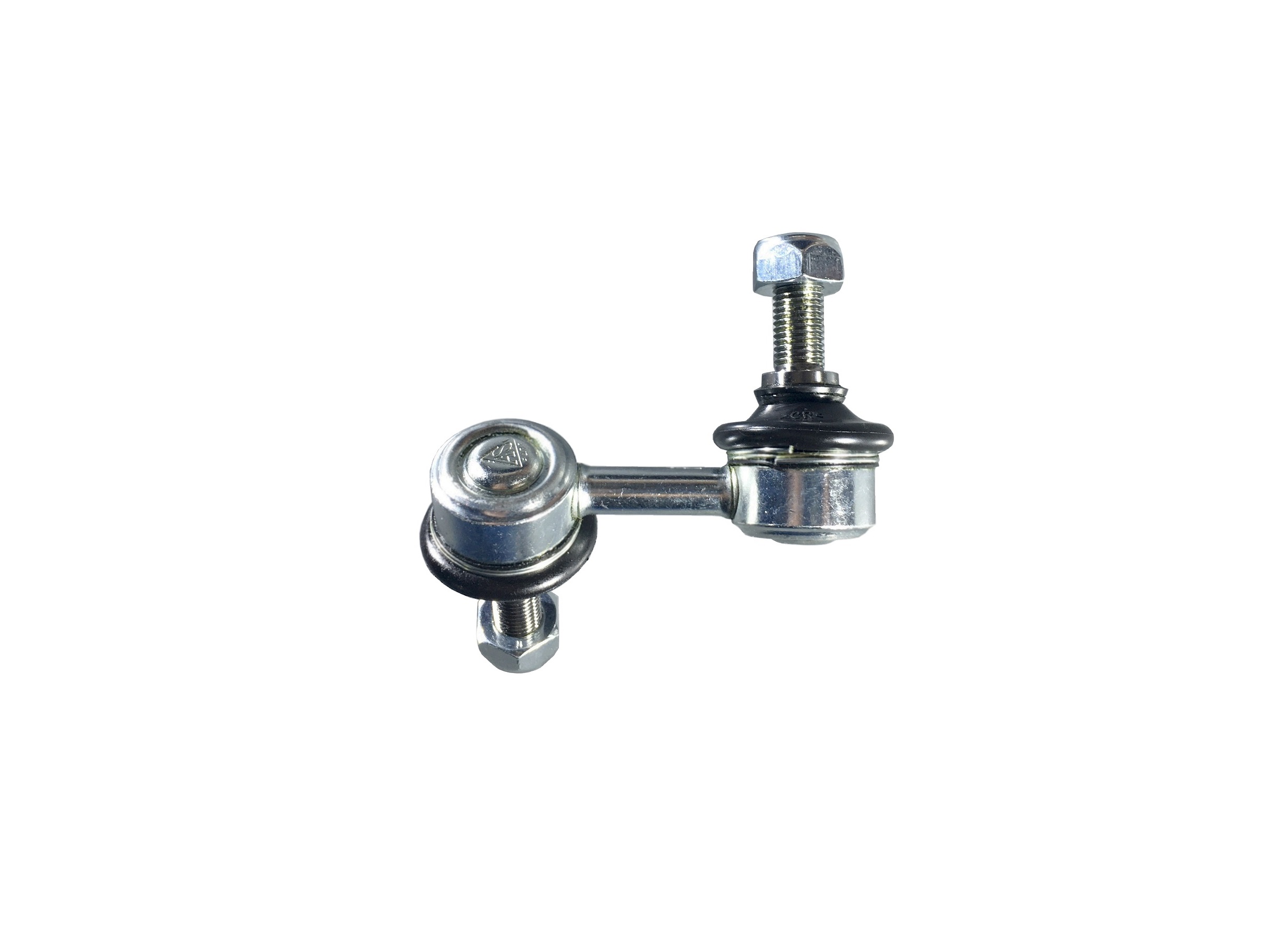

26HN0211	Stabiliser Link Right	th:MM10x1.5 RHT L:55mm / 0,23 kg	51320 S5A 003
26HN2800	Stabiliser Link Rear Left	th:M10x1.5 L:72mm / 0,28 kg	52321 S5A 013
26HN2801	Stabiliser Link Rear Right	th:M10x1.5 L:72mm / 0,28 kg	52320 S5A 013
26HN2900 NEW	Stabiliser Link	L: 225 TP: M10X1,5 / 0,38 kg	51320 SMG E01
26HN2910	Stabiliser Link Rear Left	L:75 TP:M10X1,25 / 0,24 kg	52321 SNA A01
26HN2911	Stabiliser Link Rear Right	L:75 TP:M10X1,25 / 0,24 kg	52320 SNA A01
26HN3000	Stabiliser Link Left	L: 70 mm TP: M10x1,5 mm / 0,24 kg	51321 SNA A02
26HN3001	Stabiliser Link Right	L: 70 mm TP: M10X1,5 mm / 0,24 kg	51320 SNA A02
26HN3200	Stabiliser Link Left	L: 324 mm TP: M10X1,5 mm / 0,42 kg	51321 TR0 A01
26HN3201	Stabiliser Link Right	L: 324 mm TP: M10X1,5 mm / 0,42 kg	51320 TR0 A01
26HN3300 NEW	Stabiliser Link	0,5 kg	51320 TBA A01, 51320 TBA A02
26HN3305 IN PREPARATION	Stabiliser Link		52320 TBA A01

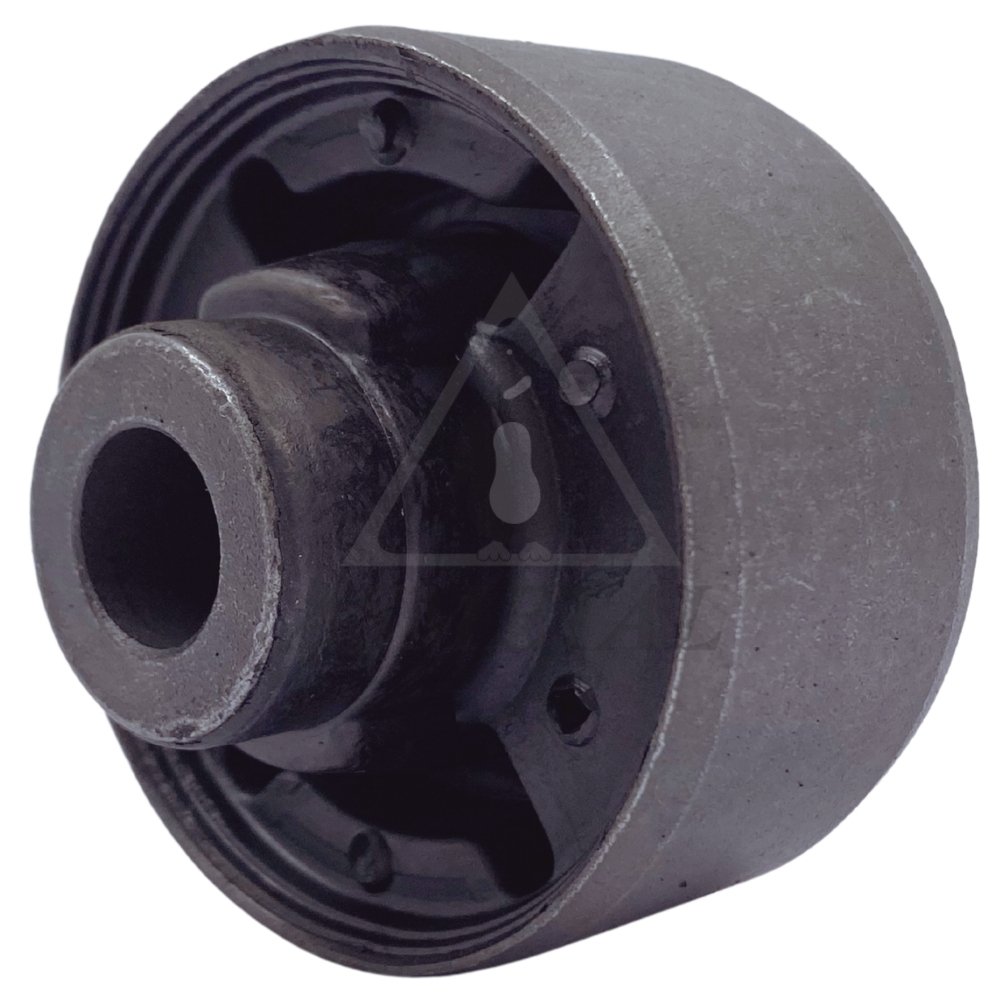

38HN0200	Silentblock for TCA	di:Ø14.2 do:Ø65.3 L:63mm / 0,34 kg	51391 S7A 801, 51391 S5A 024 (1) OEM
38HN0201	Silentblock for TCA	di:Ø14.1 do:Ø42.2 L:63mm / 0,31 kg	51392 S5A 004
38HN0220	Silentblock for TCA	di:Ø10.3 do:Ø34.2 L:47.7mm / 0,16 kg	51460 S01 023, 51450 S01 023 (1) OEM
38HN1005	Mounting Axle Body	di: Ø14.1 / do: Ø72.8 / L: 90.3 / 0,36 kg	42100 SMG E04, 42100 TM0 T12 (7) OEM
