10HY0300
|
Ball Joint Left |
th:M12x1.5 RHT cr:1/8 c:Ø15 / 0,78 kg |
54530 G4AA0, 54530 F2000 |
 |
10HY0301
|
Ball Joint Right |
th:M12x1.5 RHT cr:1/8 c:Ø15 / 0,78 kg |
54530 G4BA0, 54530 F2100 |
 |
10HY0500
|
Ball Joint Lower |
tp:M12x1.25 RHT cr:1/8 c:Ø15 do:Ø40 / 0,35 kg |
54503 25A00, 54503 38A00 (10) OEM |
 |
10HY0510
|
Ball Joint |
c:Ø18 do:Ø40.2 / 0,32 |
54530 2K000, 54530 H8000 (1) OEM |
 |
10HY0600
|
Ball Joint |
th:M12x1.25 RHT cr:1/10 c:Ø15.02 / 0,67 kg |
54530 24000, 54530 24A00 (2) OEM |
 |

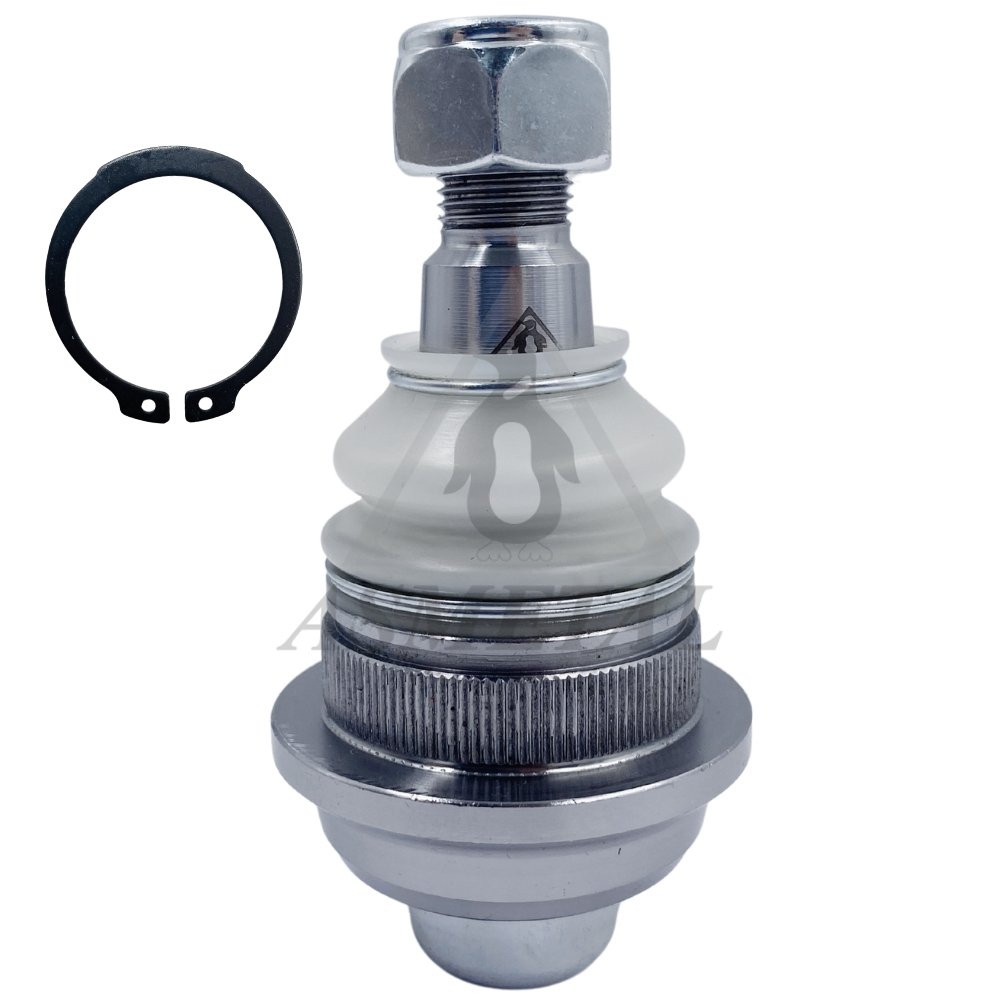

10HY10
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/8 c:Ø19.5 do:Ø46.5 / 0,64 kg |
MB527 38401, MB527 38301 |
 |
10HY1100
IN PREPARATION
|
Ball Joint |
|
51760 3K000 |
 |
10HY1110
IN PREPARATION
|
Ball Joint Upper |
|
54430 3F600 |
 |

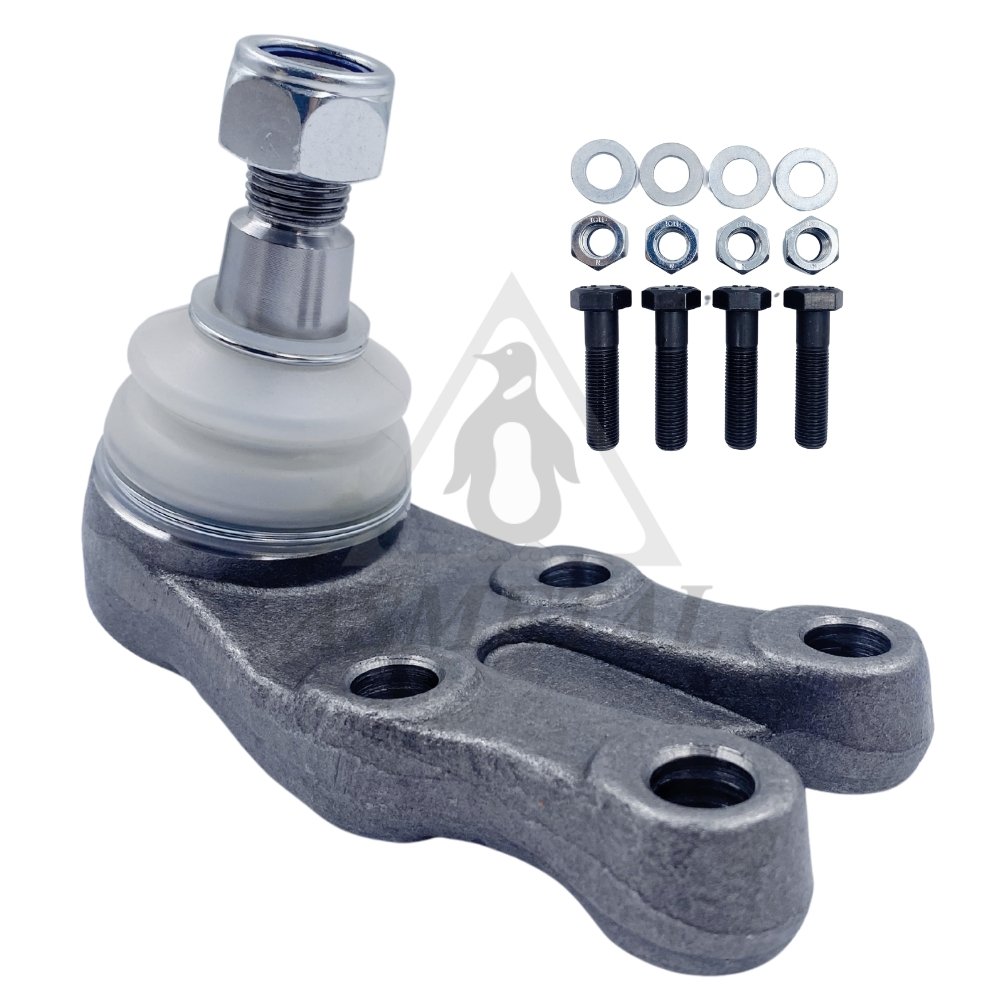

10HY1500
|
Ball Joint Lower |
th:M16x1.5 RHT cr:1/8 c:Ø19.3 / 1,59 kg |
54530 4A000, 54530 4AA00 (1) OEM |
 |
10HY1800
IN PREPARATION
|
Ball Joint |
|
54530 3J000 |
 |
10HY2000
|
Ball Joint Lower |
th:M12x1.5 RHT cr:1/8 c:Ø15.05 / 0,54 kg |
51760 2H000, 51760 0Q000 (1) OEM |
 |
10HY2100
NEW
|
Ball Joint Lower |
0,30 kg |
54530-0X000, 54530-07000 |
 |
10HY3000
|
Ball Joint Lower |
c:Ø20 do:Ø42.75 / 0,4 kg |
54503 2BA00, 54503 3BA00 (2) OEM |
 |
10HY3200
|
Ball Joint Lower |
th:M12x1.5 RHT cr:1/8 c:Ø14.5 / 0,62 kg |
51760 2E000 |
 |
10HY3300
|
Ball Joint Lower Left |
c:Ø17.95 / 0,8 kg |
54530 D7000, 54530 C1000 (1) OEM |
 |
10HY3301
|
Ball Joint Lower Right |
c:Ø17.95 / 0,8 kg |
54530 C1100, 54530 D7100 (1) OEM |
 |
10HY3400
IN PREPARATION
|
Ball Joint |
|
54530 L1000 |
 |
10KI1200
|
Ball Joint Lower |
c:Ø18 / 0,82 kg |
54530 3S000, 54530 3R000 |
 |
10KI1205
IN PREPARATION
|
Ball Joint |
|
54530 2S500 |
 |
10KI2000
|
Ball Joint Lower |
th:M12x1.5 RHT cr:1/8 c:Ø15 / 0,63 kg |
51760 1G000, 51760 1G001 |
 |
10KI3000
|
Ball Joint |
c:Ø17.95 / 0,96 kg |
54530 B2100, 54530 2T010 (2) OEM |
 |
10KI3010
|
Ball Joint Lower |
th:M12x1.5 RHT cr:1/8 c:Ø15.1 th:M42x1.5 RHT / 0,36 kg |
51760 2R000 |
 |
10MT0101
|
Ball Joint Upper |
th:M16x1.5 RHT cr:1/8 c:Ø17.75 / 0,97 kg |
54417 43A00, 54417 43001 (16) OEM |
 |

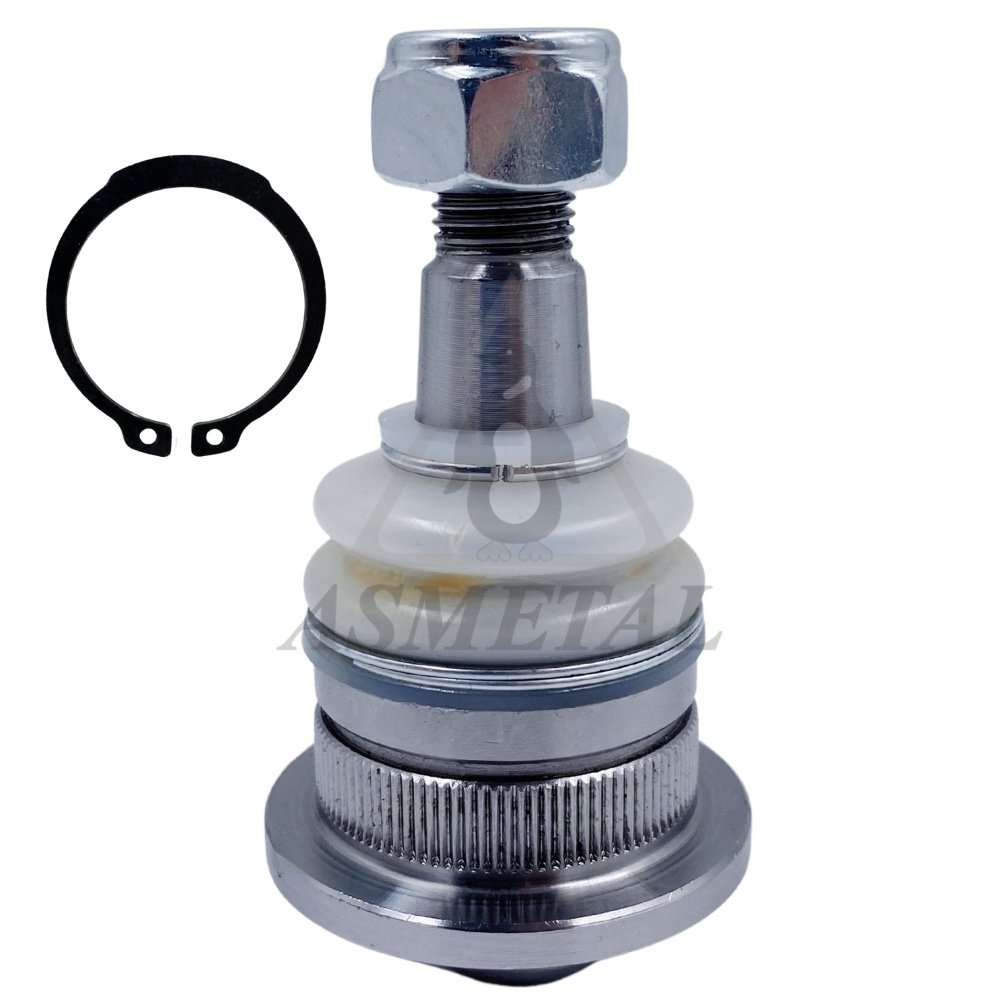

10MT0500
|
Ball Joint Upper |
th:M14x1.5 RHT cr:1/8 c:Ø15.9 do:Ø40.05 / 0,4 kg |
54431 44000, MB34957501 (10) OEM |
 |
11HY1000
NEW
|
Silentblock Bushing |
0,3 kg |
55130 3U000, 55130 4D000 (1) OEM |
 |
17HY0020
NEW
|
Tie Rod End Left |
0,38 kg |
56820 C8000 |
 |
17HY0021
NEW
|
Tie Rod End Right |
0,38 kg |
56820 C8900 |
 |

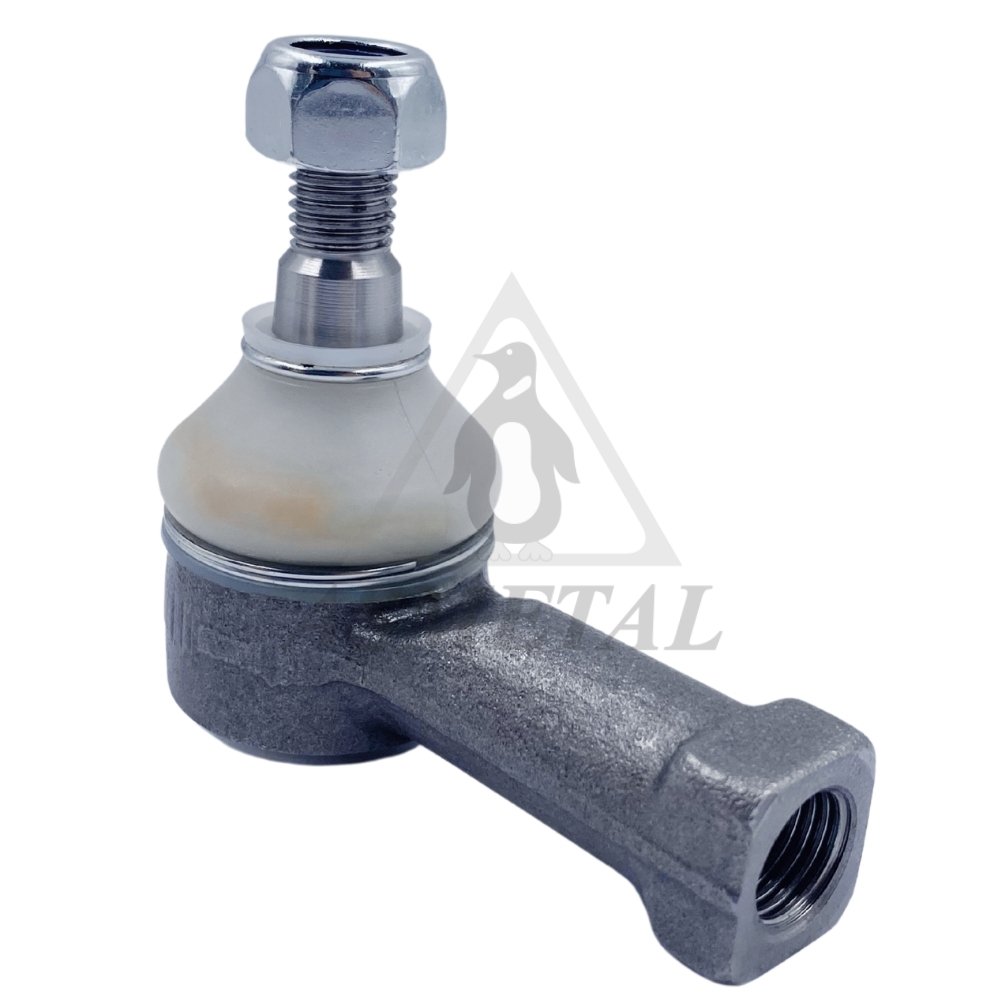

17HY01
|
Tie Rod End |
L:88 cr:1/8 c:Ø13.7 tp:M12x1.5 th:FM14x1.5 RHT / 0,36 kg |
56872 43010, 56872 43000 (3) OEM |
 |
17HY0300
NEW
|
Tie Rod End Left |
0,5 kg |
56820 F2000, 56820 J7000 (1) OEM |
 |
17HY0301
NEW
|
Tie Rod End Right |
0,5 kg |
56825 F2000, 56825 J7000 (1) OEM |
 |
17HY0320
IN PREPARATION
|
Tie Rod End Left |
|
56820 Q0000 |
 |
17HY0321
IN PREPARATION
|
Tie Rod End Right |
|
56825 Q0000 |
 |
17HY0500
|
Tie Rod End |
L:78 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,36 kg |
56820 29500, 56820 37000 (5) OEM |
 |
17HY0510
NEW
|
Tie Rod End Left |
0,34 kg |
56820-B4000 |
 |
17HY0511
NEW
|
Tie Rod End Right |
0,34 kg |
56821-B4050 |
 |
17HY0515
|
Tie Rod End Left |
L:187 cr:1/8 c:Ø13.25 tp:M10x1.25 th:FM14x1.5 RHT / 0,56 kg |
56820 1E000, 56820 1G900 |
 |
17HY0516
|
Tie Rod End Right |
L:187 cr:1/8 c:Ø13.25 tp:M10x1.25 th:FM14x1.5 RHT / 0,56 kg |
56820 1E900, 56820 1G000 |
 |
17HY0520
|
Tie Rod End Left |
L:202.5 cr:1/8 c:Ø13.32 tp:M10x1.25 th:FM16x1.5 RHT / 0,58 kg |
56820 0U500, 56820 1W000 (1) OEM |
 |
17HY0521
|
Tie Rod End Right |
L:202.5 cr:1/8 c:Ø13.32 tp:M10x1.25 th:FM16x1.5 RHT / 0,58 kg |
56820 0U590, 56821 1R591 (2) OEM |
 |
17HY0530
IN PREPARATION
|
Tie Rod End Left |
|
56820 H8000 |
 |
17HY0531
IN PREPARATION
|
Tie Rod End Right |
|
56825 H8000 |
 |
17HY1000
|
Tie Rod End |
L:69 cr:1/12 c:Ø13.45 tp:M10x1.25 th:FM14x1.5 RHT / 0,36 kg |
56820 21000, 56820 21100 (5) OEM |
 |
17HY1500
|
Tie Rod End |
L:72.5 cr:1/8 c:Ø13.65 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
56820 47500, 56820 47300 (1) OEM |
 |
17HY1800
IN PREPARATION
|
Tie Rod End Left |
|
56820 4H000 |
 |
17HY1801
IN PREPARATION
|
Tie Rod End Right |
|
56820 4H100 |
 |
17HY2000
|
Tie Rod End Left |
L:230 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,72 kg |
56820 2H000 |
 |
17HY2001
|
Tie Rod End Right |
L:230 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,72 kg |
56820 2H090 |
 |
17HY2010
|
Tie Rod End Left |
L:188 cr:1/8 c:Ø13.25 tp:M10x1.25 th:FM16x1.5 RHT / 0,55 kg |
56820 2K000 |
 |
17HY2011
|
Tie Rod End Right |
L:188 cr:1/8 c:Ø13.25 tp:M10x1.25 th:FM16x1.5 RHT / 0,55 kg |
56820 2K050 |
 |
17HY2100
NEW
|
Tie Rod End |
0,34 kg |
56820-0X000, 56820-0X010 (1) OEM |
 |
17HY3000
|
Tie Rod End Left |
L:288 cr:1/8 c:Ø13.9 tp:M12x1.5 th:FM16x1.5 RHT / 0,96 kg |
56821 2B000, 56820 2B000 (1) OEM |
 |
17HY3001
|
Tie Rod End Right |
L:288 cr:1/8 c:Ø13.9 tp:M12x1.5 th:FM16x1.5 RHT / 0,96 kg |
56820 2B900, 56820 2P000 (1) OEM |
 |
17HY3050
IN PREPARATION
|
Tie Rod End Left |
0 kg |
56820 2W000, 56820 2W500 (1) OEM |
 |
17HY3051
IN PREPARATION
|
Tie Rod End Right |
0 kg |
56820 2W050, 56820 2W550 |
 |
17HY3200
|
Tie Rod End Left |
L:170 cr:1/8 c:Ø13.4 tp:M10x1.5 th:FM16x1.5 RHT / 0,64 kg |
56820 2E000 |
 |
17HY3201
|
Tie Rod End Right |
L:170 cr:1/8 c:Ø13.4 tp:M10x1.5 th:FM16x1.5 RHT / 0,64 kg |
56820 2E900 |
 |
17HY3300
IN PREPARATION
|
Tie Rod End Left |
0 kg |
56820 D7000, 56820 D3500 (3) OEM |
 |
17HY3301
IN PREPARATION
|
Tie Rod End Right |
0 kg |
56825 D7500, 56825 D7000 (3) OEM |
 |
17HY3302
NEW
|
Tie Rod End Left |
0,74 kg |
56820 G8000, 56820 M5000 |
 |
17HY3303
NEW
|
Tie Rod End Right |
0,74 kg |
56825 G8090, 56825 M5000 |
 |
17HY3400
IN PREPARATION
|
Tie Rod End Left |
|
56820 N7000 |
 |
17HY3401
IN PREPARATION
|
Tie Rod End Right |
|
56825 N7000 |
 |
17KI1100
|
Tie Rod End Left |
L:233 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,89 kg |
56820 2T000, 56820 2T190 (5) OEM |
 |
17KI1101
|
Tie Rod End Right |
L:233 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,89 kg |
56820 2T500, 56820 3S500 (5) OEM |
 |
17KI3000
|
Tie Rod End Left |
L:222.5 cr:1/10 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg |
56820 A6000, 56820 A5000 (1) OEM |
 |
17KI3001
|
Tie Rod End Right |
L:222.5 cr:1/10 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg |
56820 3X090, 56820 A6090 (1) OEM |
 |
17MT0505
IN PREPARATION
|
Tie Rod End Inner |
|
HB56 8110, MB241206 (2) OEM |
 |
17MT1500
|
Tie Rod End |
L:78 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM12x1.25 RHT / 0,3 kg |
3817 A6, 56820 02500 (13) OEM |
 |
20HY0020
NEW
|
Axial Joint |
0,74 kg |
56540-C8000 |
 |
20HY0025
IN PREPARATION
|
Axial Joint |
|
56540 Q0000 |
 |
20HY0210
NEW
|
Axial Joint |
0,66 kg |
54540 B4000, 56540 B4000 |
 |
20HY0300
|
Axial Joint |
L:303 tp:M16x1.5 th:MM16x1.5 RHT / 0,7 kg |
56540 G3000, 56540 F2000 (2) OEM |
 |

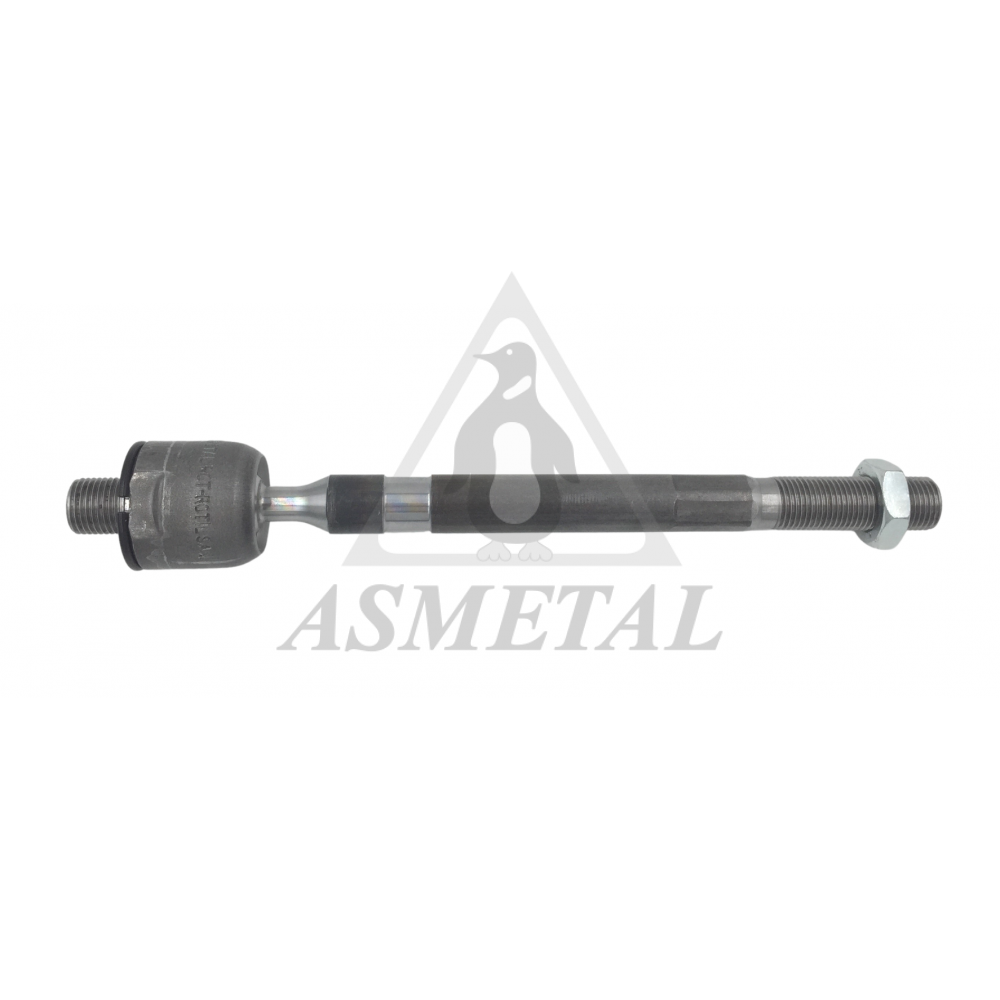

20HY0390
|
Axial Joint |
L:230 tp:M16x1.5 th:MM16x1.5 RHT / 0,6 kg |
56540 3X000 |
 |
20HY0510
|
Axial Joint |
L:305.5 tp:M16x1.5 th:MM14x1.5 RHT / 0,68 kg |
56540 25000, 57755 25000 (1) OEM |
 |
20HY0515
|
Axial Joint |
L:195.5 tp:M16x1.5 th:MM14x1.5 RHT / 0,5 kg |
57724 1E000 |
 |
20HY10
|
Axial Joint |
L:297 tp:M16x1.5 th:MM14x1.5 RHT / 0,6 kg |
57729 4A000, 57729 4A010 (3) OEM |
 |
20HY1105
IN PREPARATION
|
Axial Joint |
|
57724 3K000 |
 |

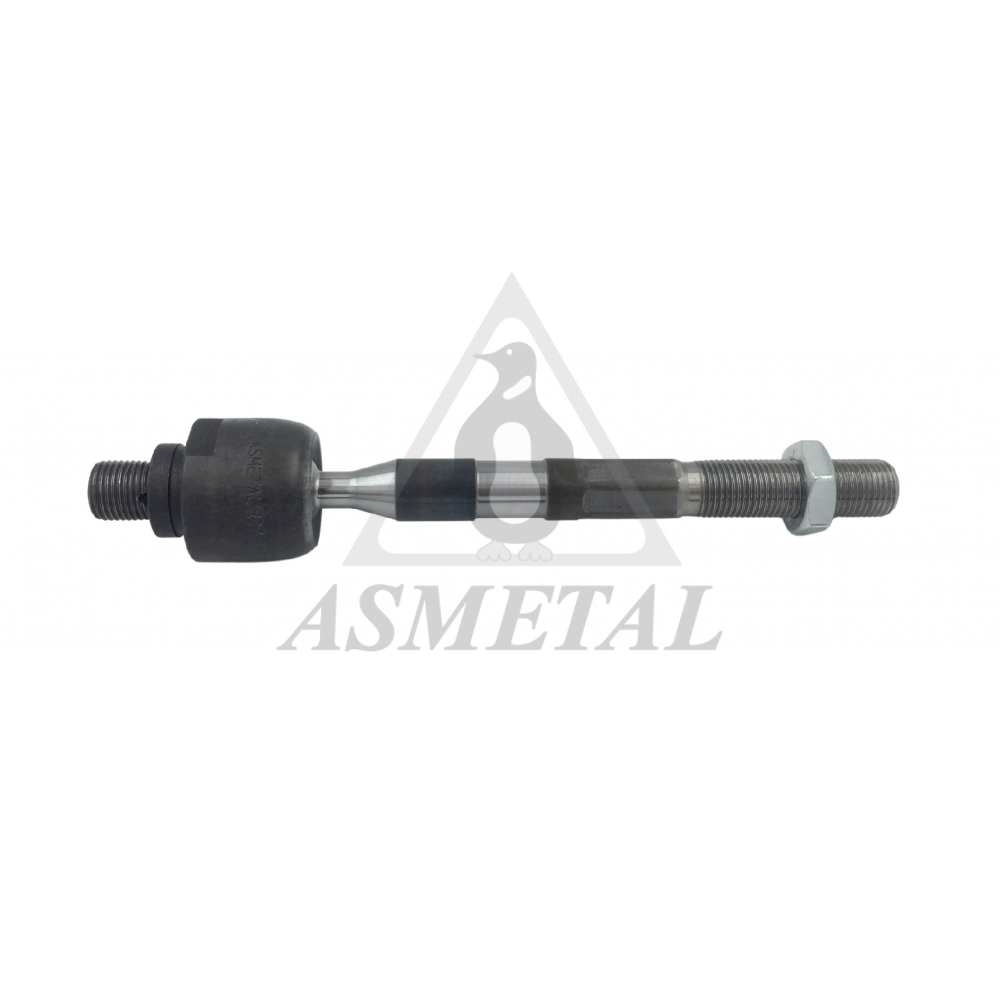

20HY1120
|
Axial Joint |
L:195 tp:M16x1.5 th:MM16x1.5 RHT / 0,56 kg |
57724 2T000 |
 |
20HY1800
IN PREPARATION
|
Axial Joint |
|
57724 4H000 |
 |
20HY2000
|
Axial Joint |
L:164 tp:M16x1.5 th:MM14x1.5 RHT / 0,4 kg |
56540 2H000 |
 |
20HY2005
|
Axial Joint |
L:317 tp:M16x1.5 th:MM14x1.5 RHT / 0,72 kg |
57755 1C000 |
 |
20HY2008
IN PREPARATION
|
Axial Joint |
|
56540 2K000 |
 |
20HY2010
|
Axial Joint |
0,58 kg |
57704 1J000, 57724 1J000 |
 |
20HY2100
|
Axial Joint |
L:296 tp:M16x1.5 th:MM12x1.25 RHT / 0,62 kg |
57724 0X000, 57724 0X010 |
 |

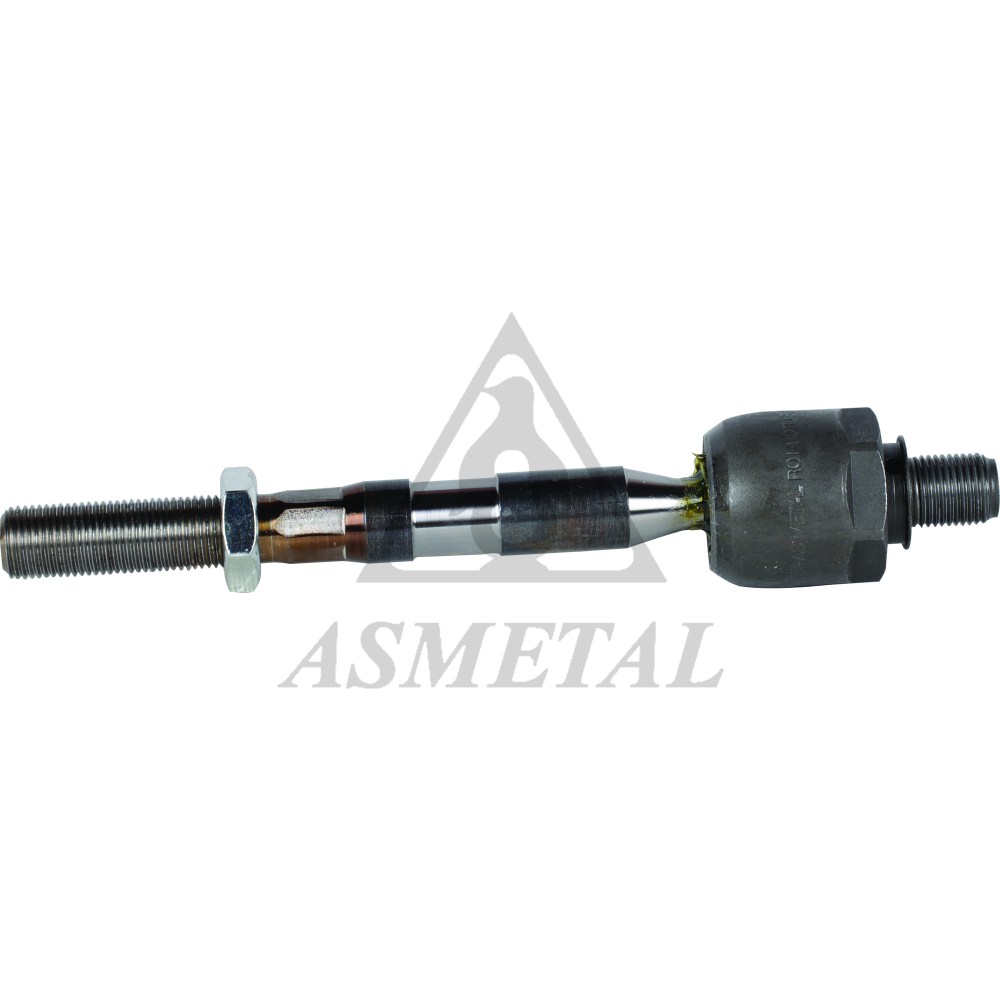

20HY3000
|
Axial Joint |
L:195 tp:M16x1.5 th:MM16x1.5 RHT / 0,56 kg |
57724 2B000 |
 |

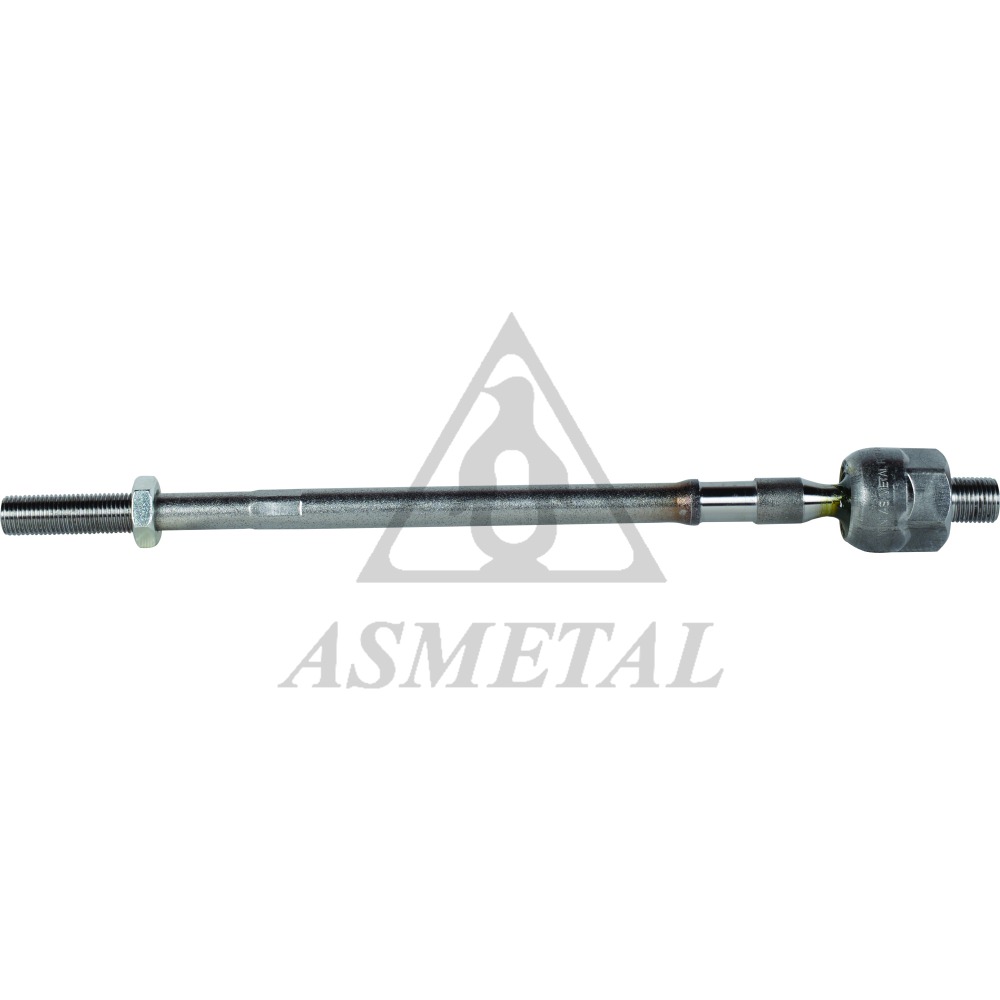

20HY3005
|
Axial Joint |
L:321 tp:M16x1.5 th:MM14x1.5 RHT / 0,62 kg |
57716 34000, 57724 3A000 (2) OEM |
 |
20HY3200
|
Axial Joint |
L:243 tp:M16x1.5 th:MM16x1.5 RHT / 0,66 kg |
57724 2E000 |
 |

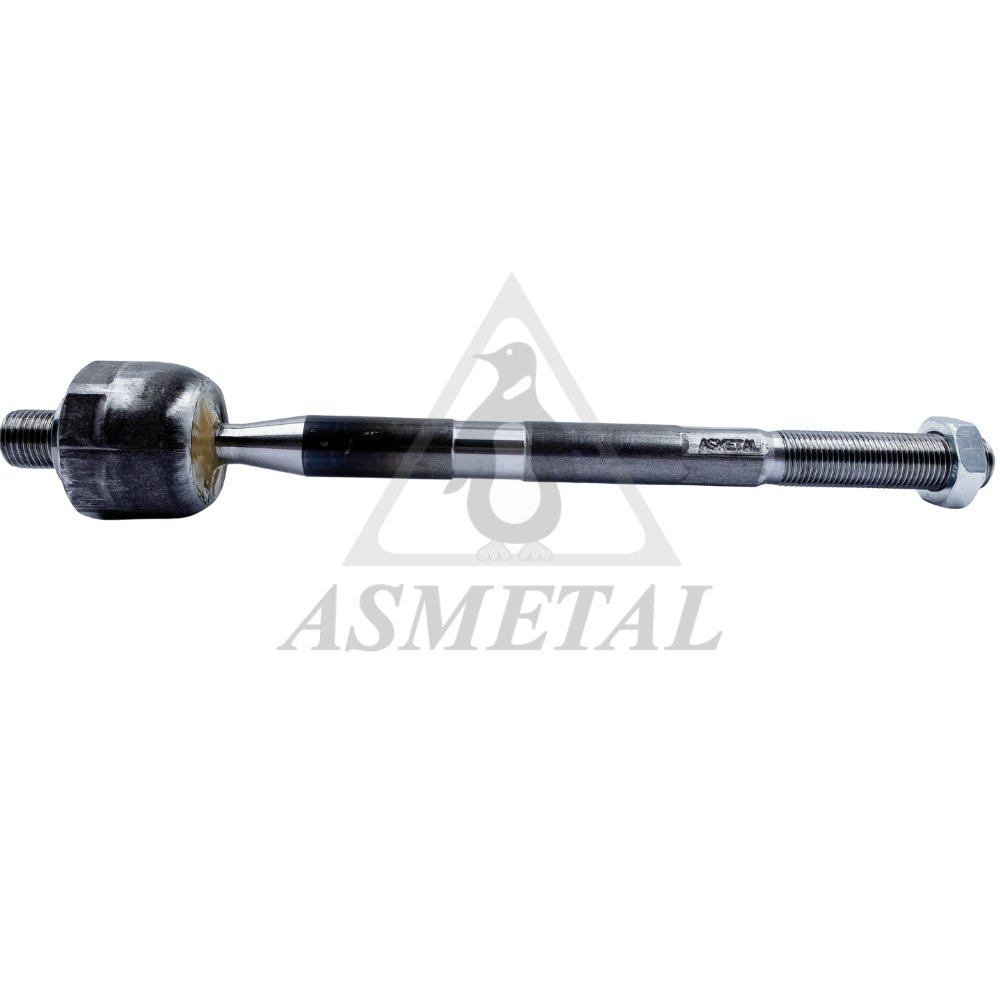

20HY3304
IN PREPARATION
|
Axial Joint |
0,72 kg |
57724 D3100 |
 |
20KI0200
|
Axial Joint |
L:328 tp:M16x1.5 th:MM14x1.5 RHT / 0,76 kg |
57724 2D020, 57724 2D000 |
 |
20KI1100
|
Axial Joint |
L:185 tp:M16x1.5 th:MM16x1.5 RHT / 0,55 kg |
57724 3Q000, 57724 2W000 (1) OEM |
 |
20KI1200
|
Axial Joint |
L:183 tp:M16x1.5 th:MM16x1.5 RHT / 0,56 kg |
57724 2S000, 57724 2S010 |
 |
20KI2010
|
Axial Joint |
L:217.5 tp:M16x1.5 th:MM16x1.5 RHT / 0,56 kg |
54540 0U500, 56540 0U000 (1) OEM |
 |
20KI2020
IN PREPARATION
|
Axial Joint |
|
56540 H8000, 56540 H8100 |
 |
20KI3000
|
Axial Joint |
L:218 tp:M16x1.5 th:MM16x1.5 RHT / 0,56 kg |
56540 A6000 |
 |
23KI1200
IN PREPARATION
|
Track Control Arm Rear |
0 kg |
55250 2H000, 55250 2S000 (3) OEM |
 |

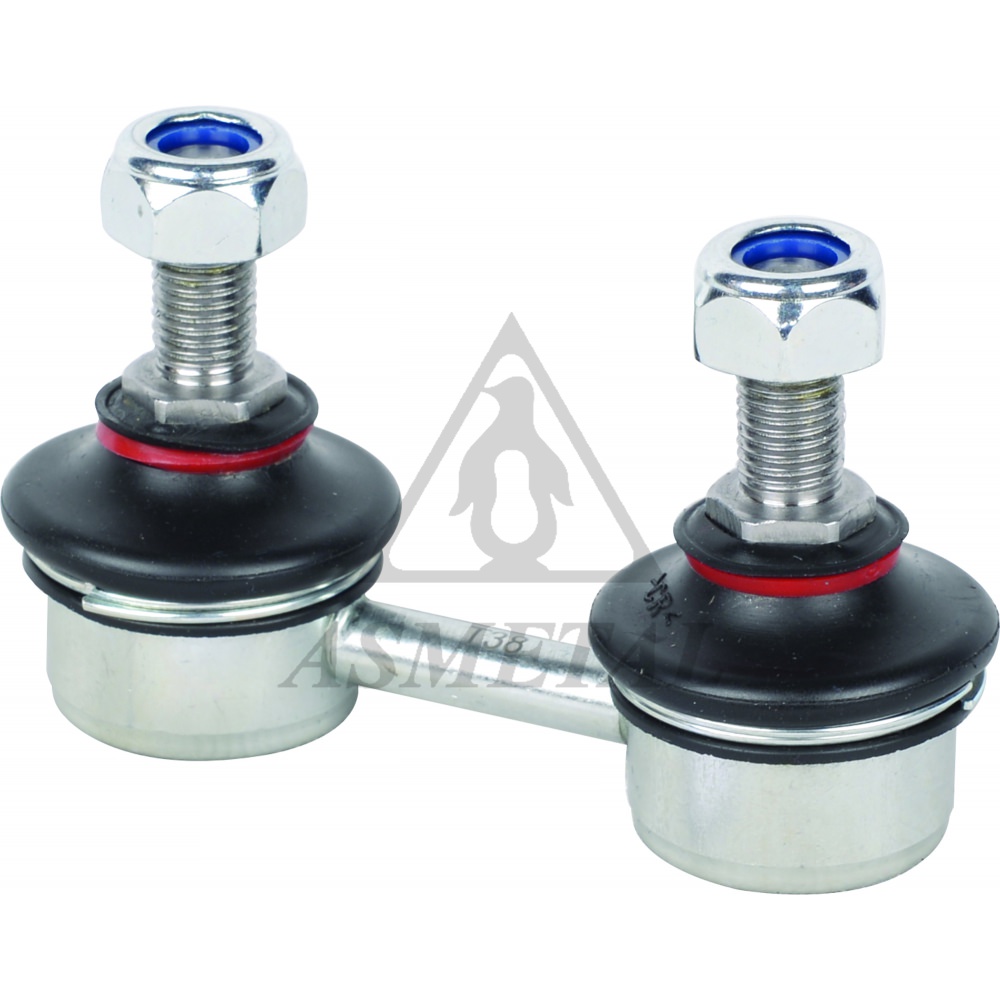

26HY0100
|
Stabiliser Link |
L:60.5 tp:M10x1.25 RHT / 0,29 kg |
54830 37020, 54830 37010 (1) OEM |
 |
26HY0300
|
Stabiliser Link |
L:295 tp:M12x1.5 RHT / 0,46 kg |
54830 J9000, 54830 F2000 |
 |
26HY0305
IN PREPARATION
|
Stabiliser Link Rear |
|
55530 G2000 |
 |
26HY0500
|
Stabiliser Link |
L:129.5 / 0,15 kg |
54825 24010, 54825 22000 |
 |

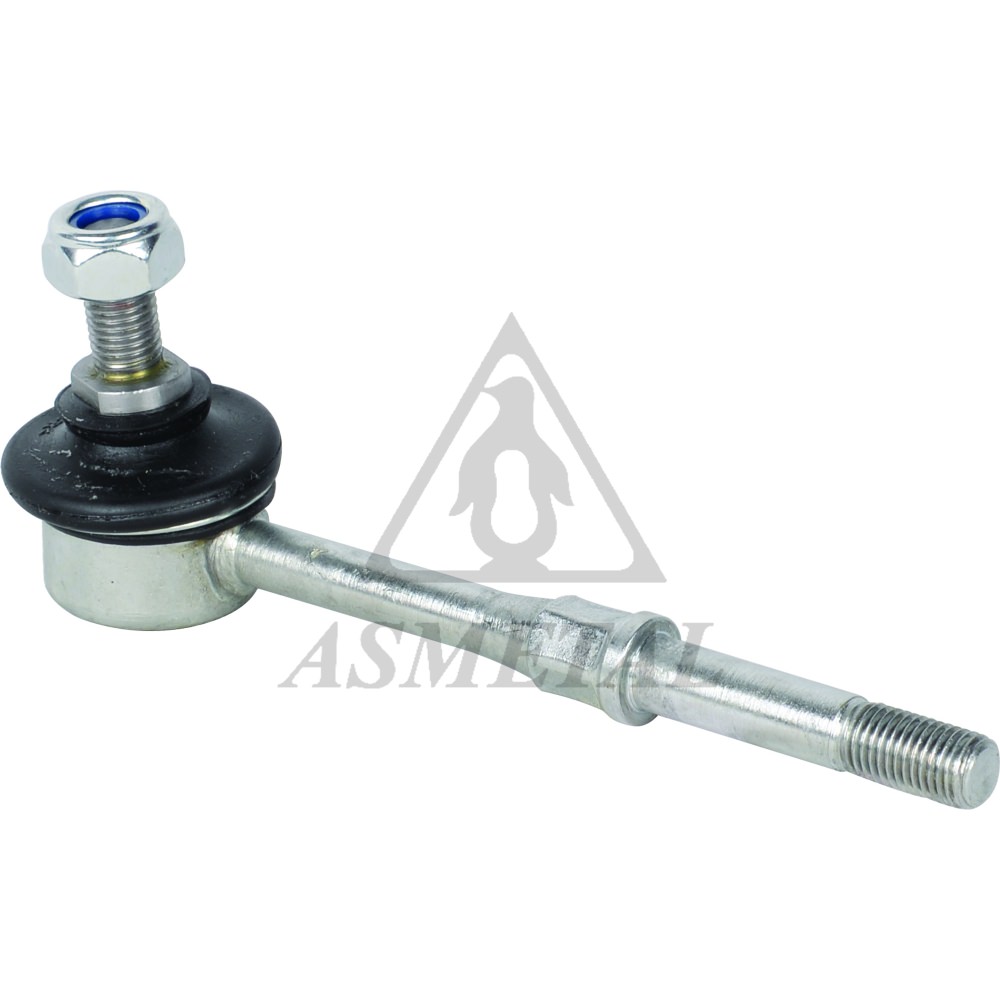

26HY0505
|
Stabiliser Link Rear |
L:136 tp:M10x1.25 RHT / 0,2 kg |
55830 25000 |
 |
26HY0510
|
Stabiliser Link Left |
L:59 tp:M10x1.25 RHT / 0,28 kg |
54830 17010, 54830 25010 |
 |
26HY0511
|
Stabiliser Link Right |
L:59 tp:M10x1.25 RHT / 0,28 kg |
54830 25020, 54830 17020 (2) OEM |
 |
26HY0515
|
Stabiliser Link Left |
L:286 tp:M10x1.25 RHT / 0,42 kg |
54830 1G500, 54830 1E100 (2) OEM |
 |
26HY0516
|
Stabiliser Link Right |
L:286 tp:M10x1.25 RHT / 0,42 kg |
54840 1E100, 54840 1E000 (2) OEM |
 |

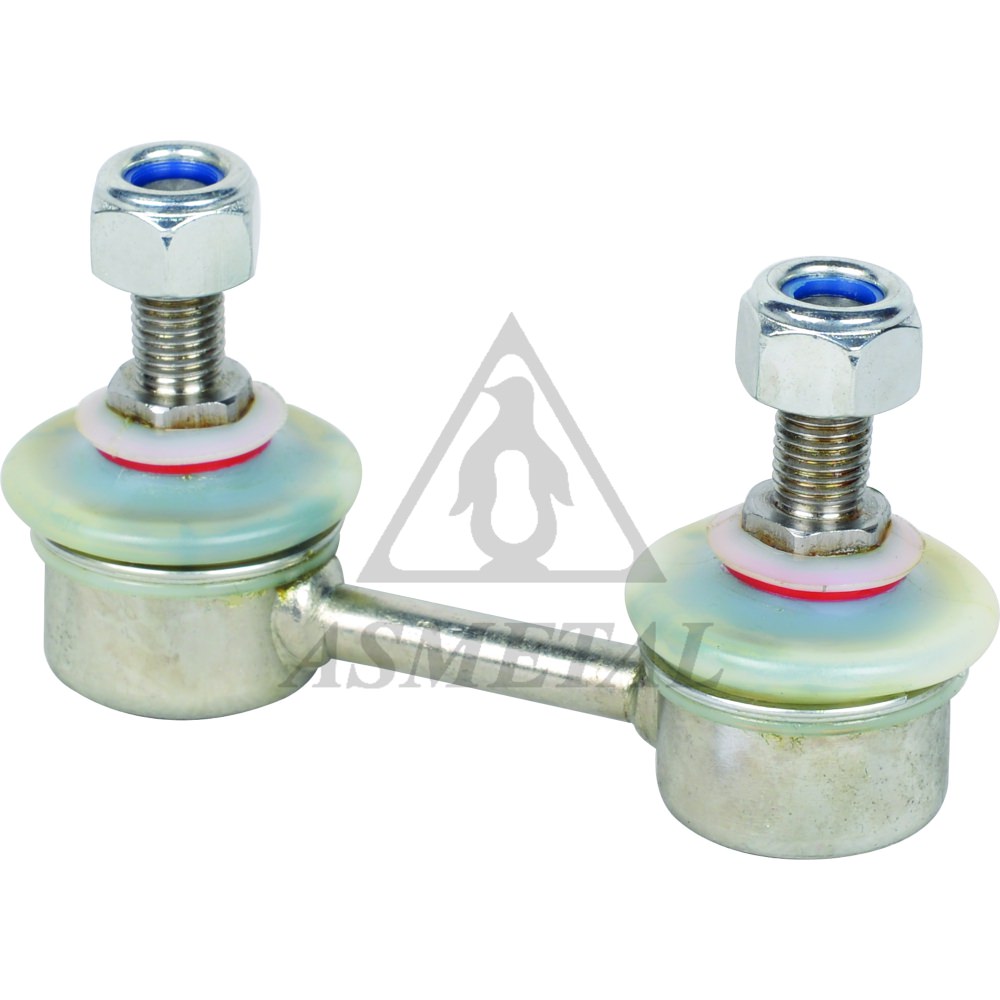

26HY0600
|
Stabiliser Link |
L:71 tp:M10x1.25 RHT / 0,3 kg |
54830 29000, 54830 29500 |
 |
26HY0605
|
Stabiliser Link Rear |
L:71 tp:M10x1.25 RHT / 0,34 kg |
55530 29500, 55530 29300 (3) OEM |
 |
26HY0610
IN PREPARATION
|
Stabiliser Link |
0 kg |
54830 34000, 54830 34500 (1) OEM |
 |
26HY1100
IN PREPARATION
|
Stabiliser Link |
|
45830 3K000, 54830 3K000 (1) OEM |
 |
26HY1105
IN PREPARATION
|
Stabiliser Link Rear |
|
55530 3K000, 55530 3K001 (1) OEM |
 |

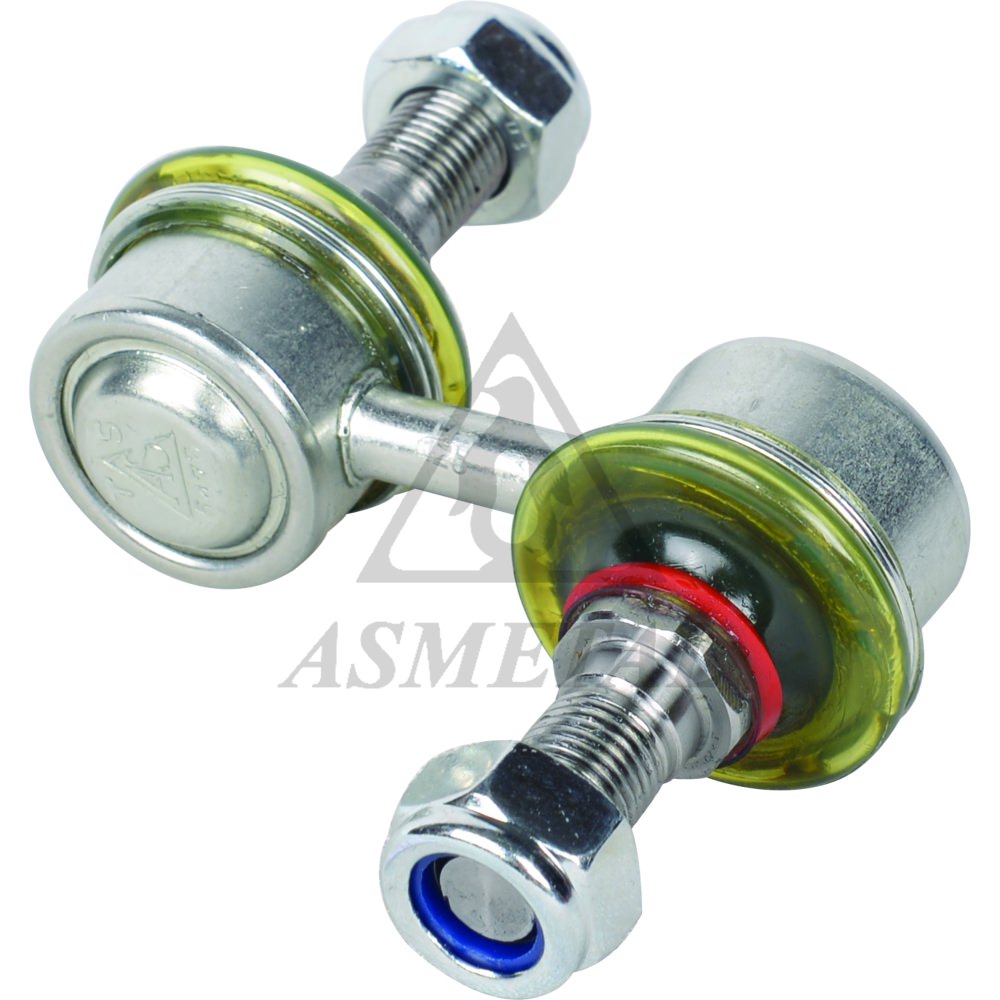

26HY1500
|
Stabiliser Link |
L:130 tp:M10x1.25 RHT / 0,3 kg |
548304 A003, 54830 4A600 (3) OEM |
 |
26HY1800
NEW
|
Stabiliser Link Left |
0,46 kg |
54830 4H000, 54830 4H200 |
 |
26HY1801
NEW
|
Stabiliser Link Right |
0,46 kg |
54840 4H000, 54840 4H200 |
 |
26HY1802
IN PREPARATION
|
Stabiliser Link Rear Left |
|
55530 4H000, 55530 4H200 |
 |
26HY1803
IN PREPARATION
|
Stabiliser Link Rear Right |
|
55540 4H000, 55540 4H200 |
 |

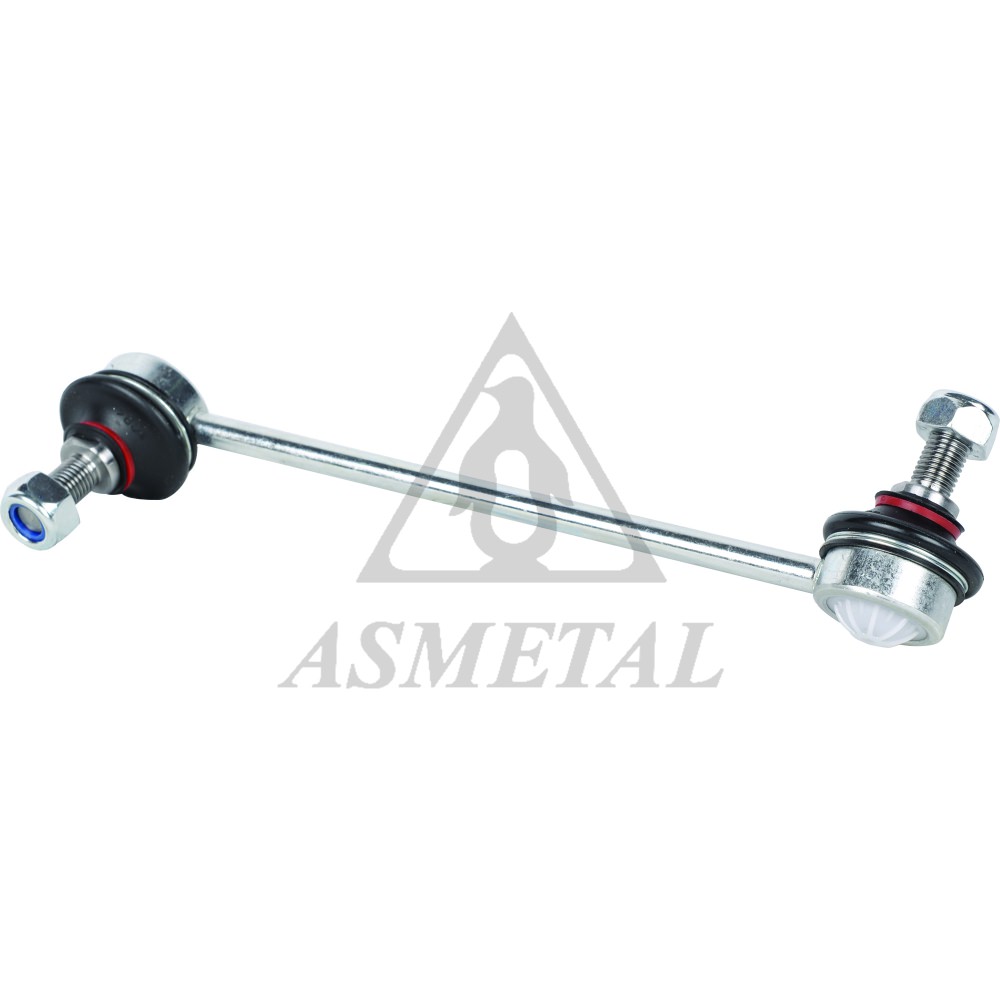

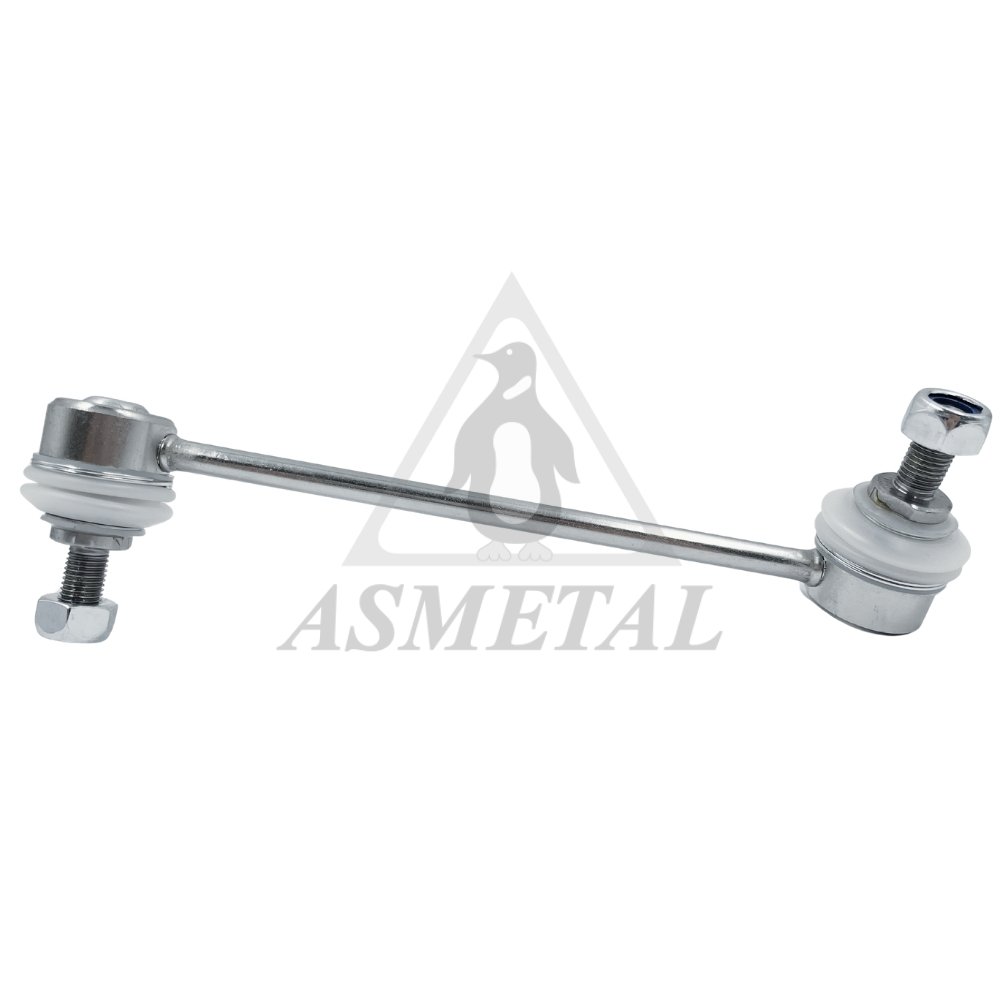

26HY2000
|
Stabiliser Link Right |
L:197 tp:M10x1.25 RHT / 0,3 kg |
54840 1C000, 54840 1C100 |
 |

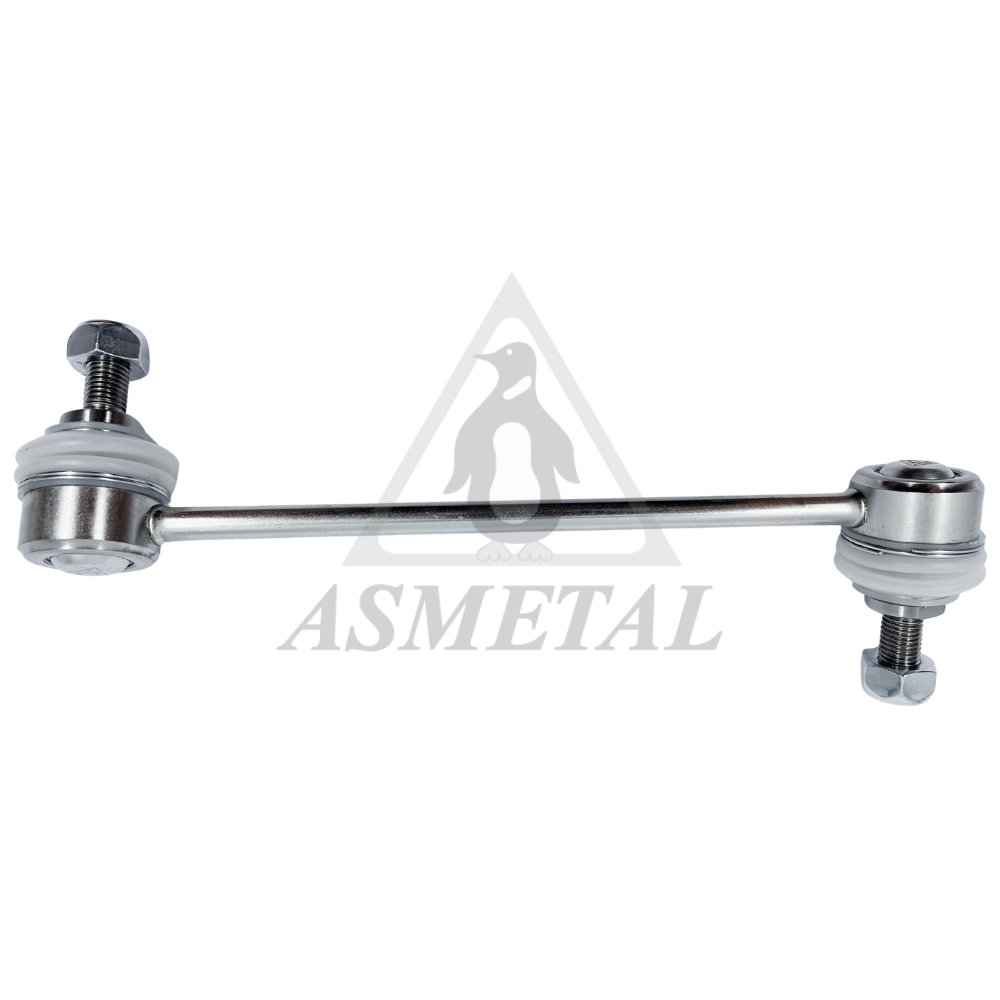

26HY2001
|
Stabiliser Link Left |
L:197 tp:M10x1.25 RHT / 0,3 kg |
54830 1C000, 54830 1C100 |
 |
26HY2010
|
Stabiliser Link Left |
L:216 tp:M10x1.5 RHT / 0,34 kg |
54830 1J000 |
 |
26HY2011
|
Stabiliser Link Right |
L:216 tp:M10x1.5 RHT / 0,34 kg |
54840 1J000, 54840 1P000 |
 |
26HY2100
|
Stabiliser Link Left |
L:230 tp:M10x1.5 RHT / 0,4 kg |
54830 B4000, 54830 0X000 (1) OEM |
 |
26HY2101
|
Stabiliser Link Right |
L:230 tp:M10x1.5 RHT / 0,4 kg |
54840 B4000, 54840 0X000 (1) OEM |
 |

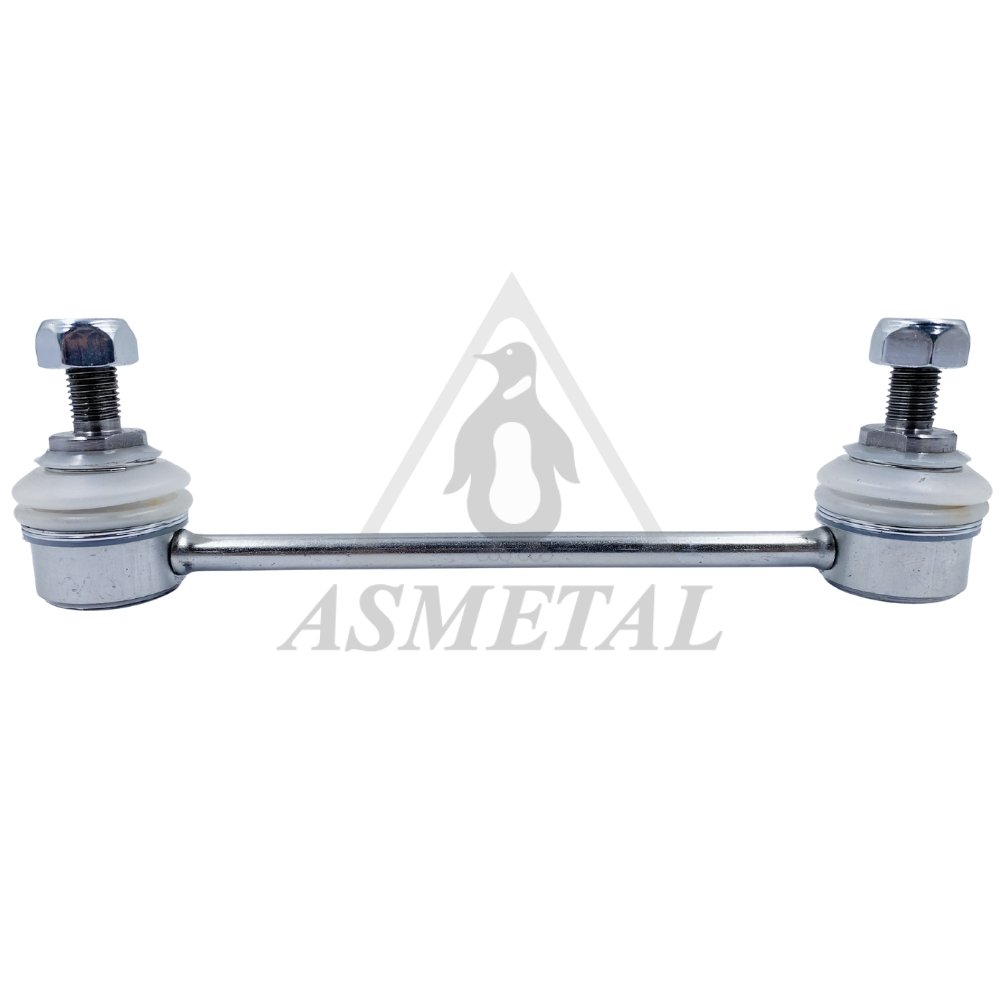

26HY2500
|
Stabiliser Link Rear |
L:170.5 tp:M10x1.25 RHT / 0,29 kg |
55530 1H000, 55530 2H000 (1) OEM |
 |

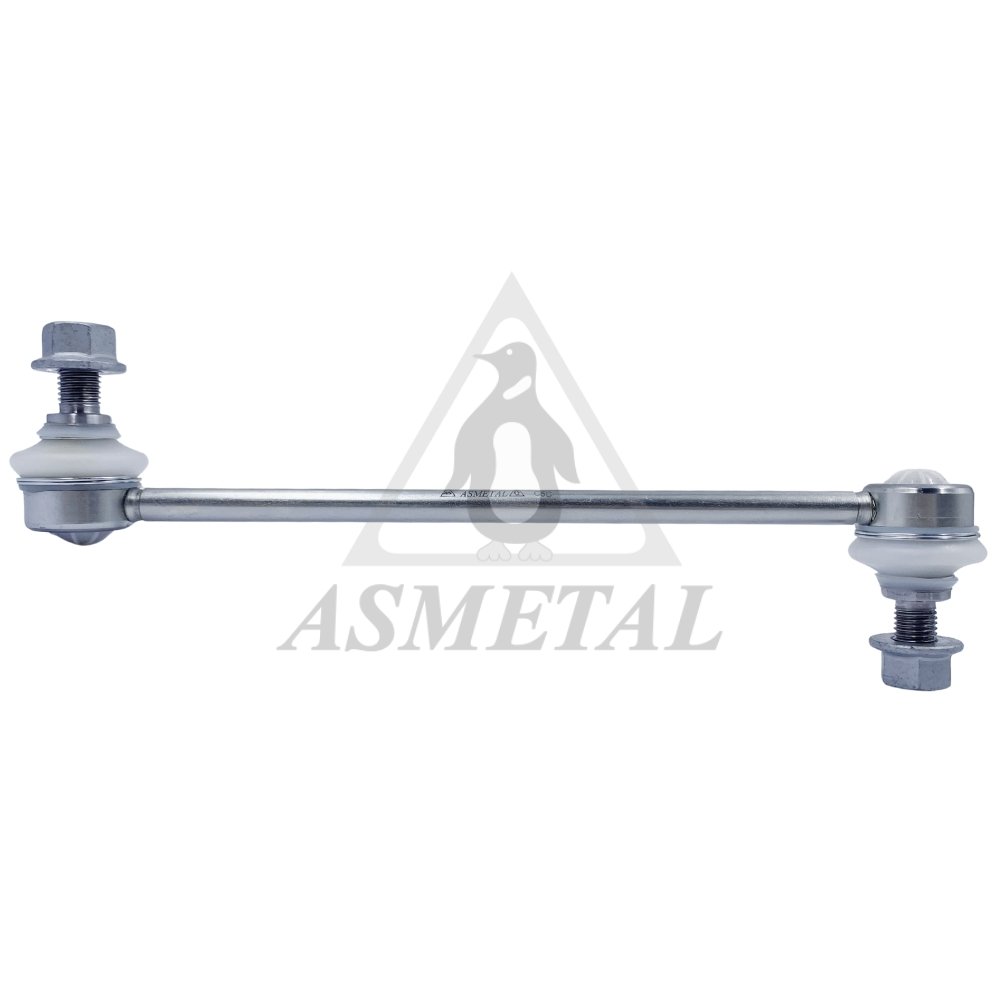

26HY2510
|
Stabiliser Link |
L:243 tp:M12x1.5 RHT / 0,39 kg |
54830 2H100, 54830 2H000 (2) OEM |
 |

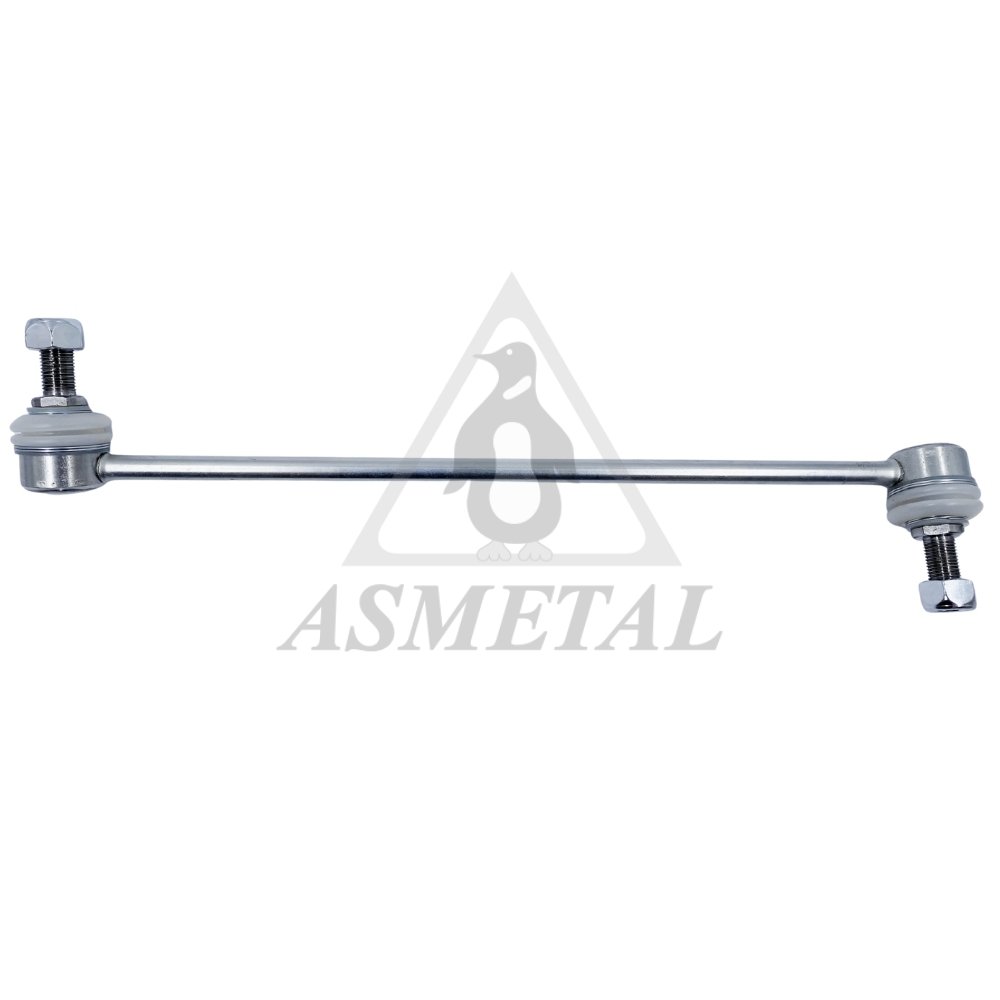

26HY3000
|
Stabiliser Link Left |
L:341 tp:M12x1.25 RHT / 0,48 kg |
54830 2B200, 54830 2B000 |
 |

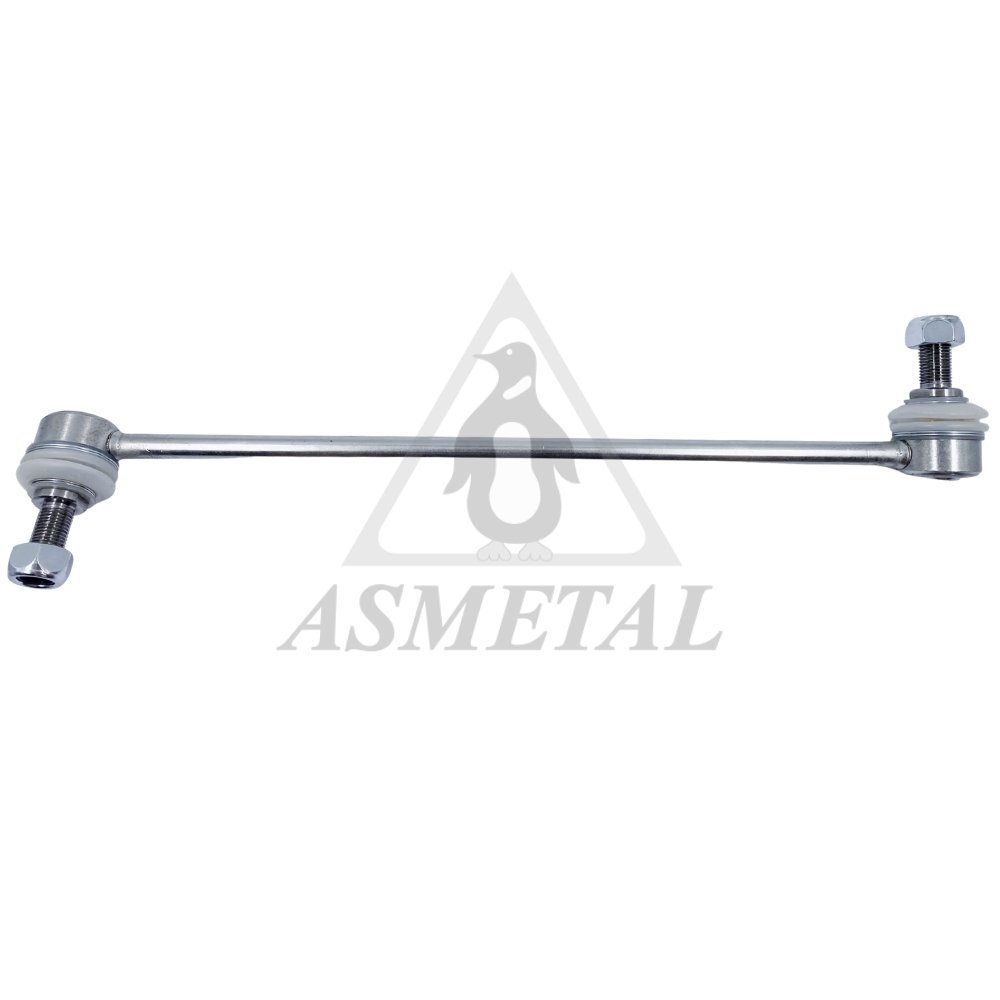

26HY3001
|
Stabiliser Link Right |
L:341 tp:M12x1.25 RHT / 0,48 kg |
54840 2B000, 54840 2B200 |
 |
26HY3005
|
Stabiliser Link Rear |
L:99 tp:M12x1.25 RHT / 0,34 kg |
55530 2B000, 55530 2B200 |
 |

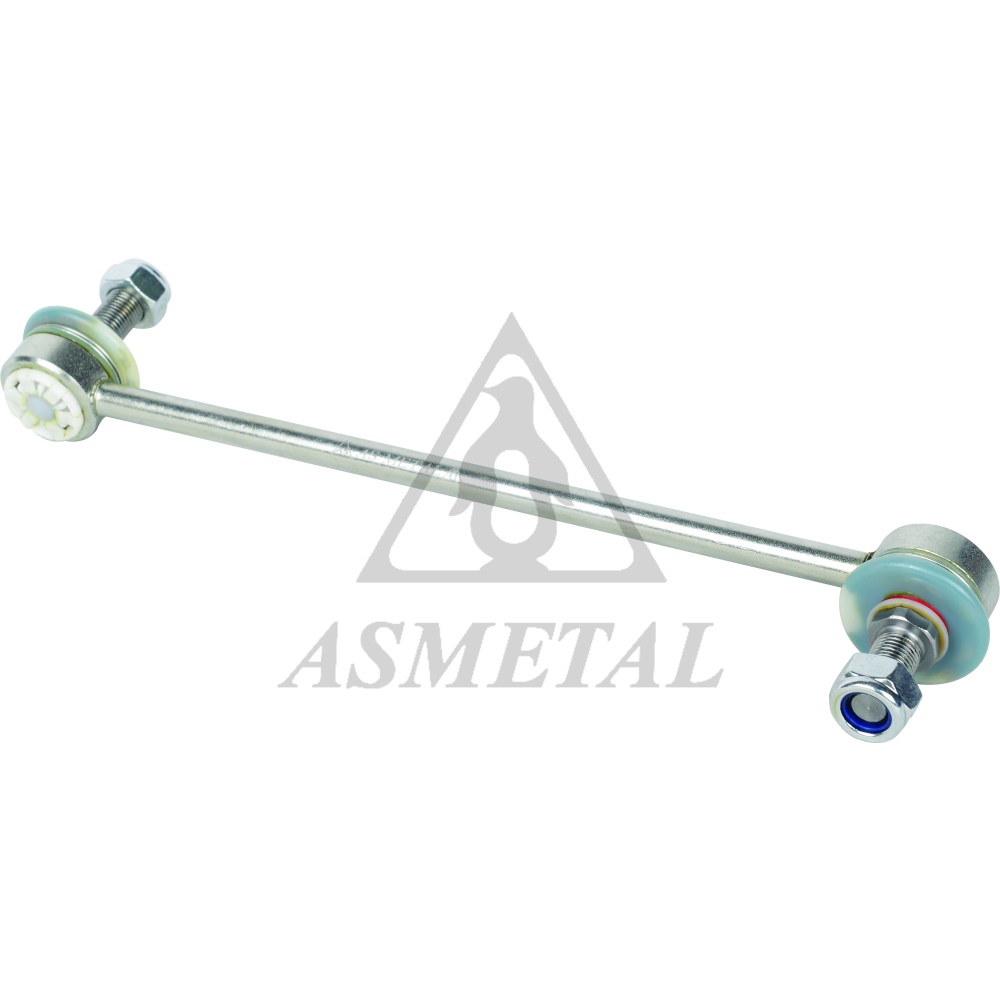

26HY3010
|
Stabiliser Link Left |
L:263 tp:M12x1.25 RHT / 0,4 kg |
54830 26000, 54830 26100 |
 |
26HY3011
|
Stabiliser Link Right |
L:263 tp:M12x1.25 RHT / 0,4 kg |
54840 26000, 54840 26100 |
 |
26HY3030
IN PREPARATION
|
Stabiliser Link Rear Left |
0 kg |
55530 26700, 55530 26600 |
 |
26HY3031
IN PREPARATION
|
Stabiliser Link Rear Right |
0 kg |
55540 26600, 55540 26700 |
 |
26HY3050
|
Stabiliser Link |
L:328 tp:M12x1.5 RHT / 0,5 kg |
54830 2W000 |
 |

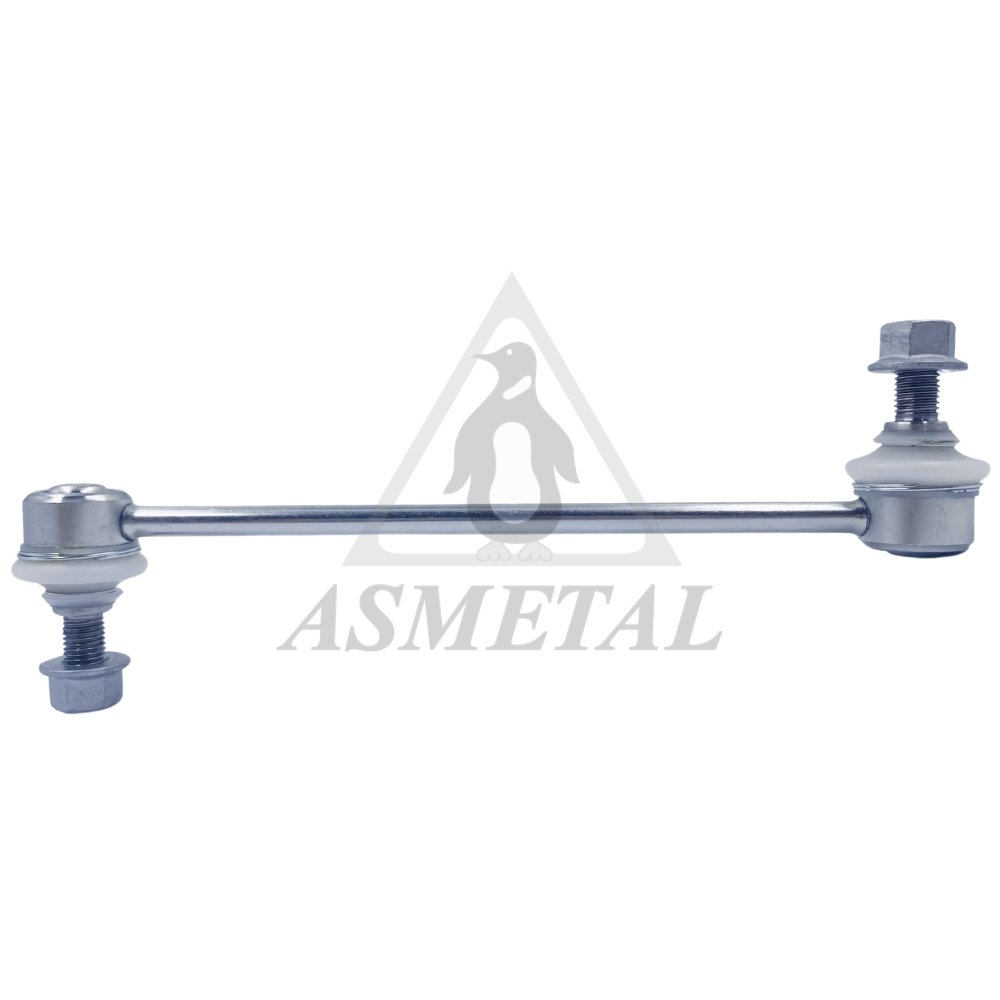

26HY3200
|
Stabiliser Link |
L:238 tp:M12x1.5 RHT / 0,42 kg |
54830 2E100, 54830 2E000 (2) OEM |
 |
26HY3210
|
Stabiliser Link Rear |
L:220 tp:M12x1.5 RHT / 0,4 kg |
55530 2E100, 55530 2E000 (2) OEM |
 |
26HY3300
IN PREPARATION
|
Stabiliser Link |
|
54830 N9000 |
 |
26HY3305
IN PREPARATION
|
Stabiliser Link Rear |
|
55530 D3000, 55540 D3000 |
 |
26HY3402
IN PREPARATION
|
Stabiliser Link Rear Left |
|
55530 N9000 |
 |
26HY3403
IN PREPARATION
|
Stabiliser Link Rear Right |
|
55531 N9000 |
 |

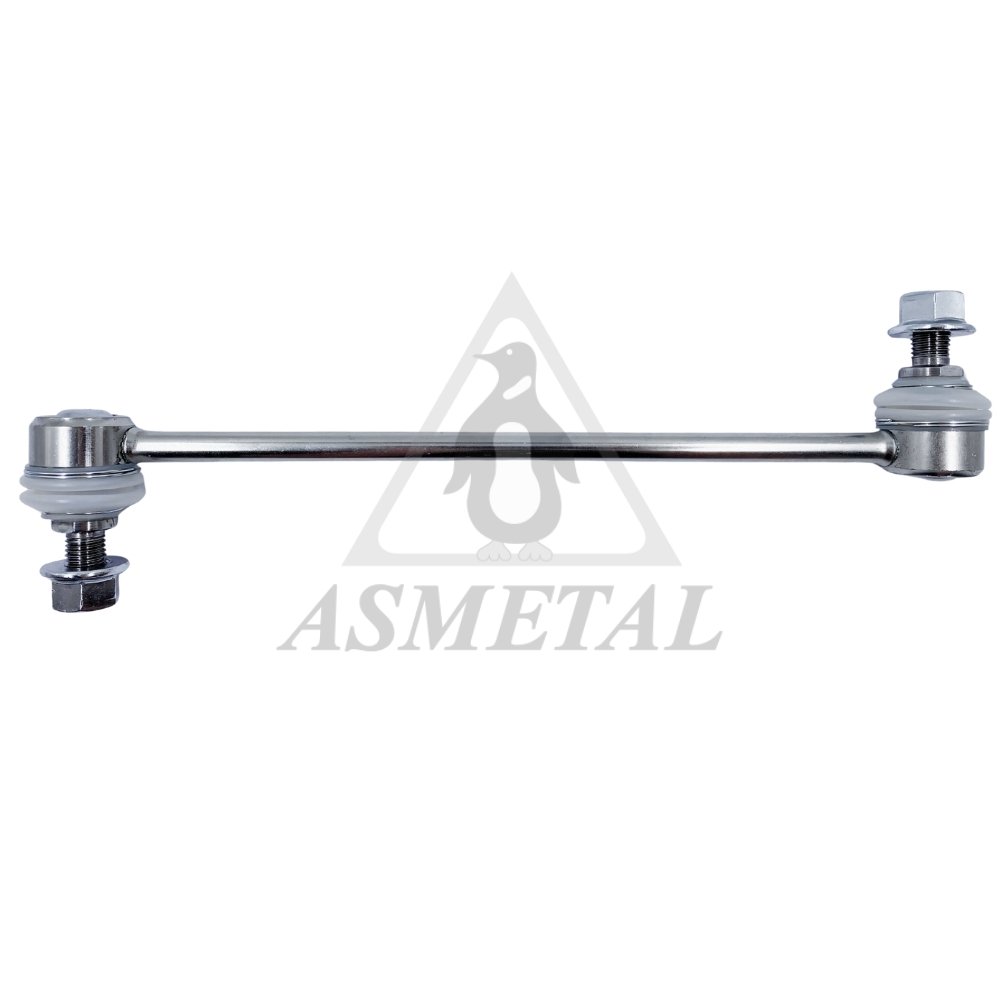

26KI1100
|
Stabiliser Link |
L:270 tp:M12x1.5 RHT / 0,43 kg |
54830 3Q000 |
 |
26KI1102
|
Stabiliser Link Left |
L:352 tp:M12x1.5 RHT / 0,48 kg |
54830 2T000 |
 |
26KI1103
|
Stabiliser Link Right |
L:352 tp:M12x1.5 RHT / 0,48 kg |
54840 2T000 |
 |

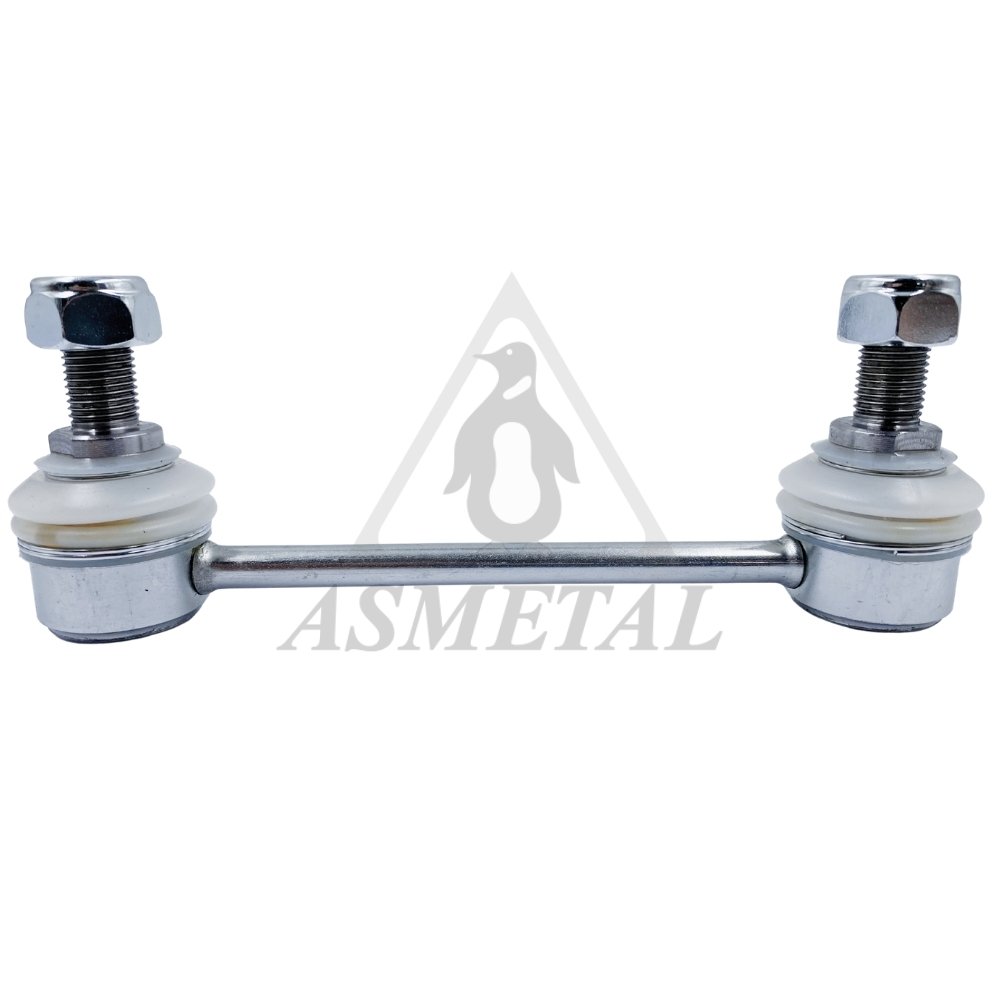

26KI1210
|
Stabiliser Link Rear |
L:140 tp:M12x1.5 RHT / 0,32 kg |
55530 2S100, 55530 2Z100 (2) OEM |
 |
26KI3000
|
Stabiliser Link |
L:282 tp:M12x1.5 RHT / 0,44 kg |
54830 M000, 54830 0U000 (9) OEM |
 |
26KI3005
NEW
|
Stabiliser Link |
0,46 kg |
54830 1S000, 54830 2S000 (3) OEM |
 |
26KI3010
|
Stabiliser Link Rear |
L:87 tp:M12x1.5 RHT / 0,38 kg |
55540 3U800, 55530 3R000 (4) OEM |
 |
26KI3300
IN PREPARATION
|
Stabiliser Link Left |
|
54830 C1000, 54830 E6000 |
 |
26KI3301
IN PREPARATION
|
Stabiliser Link Right |
|
54840 C1000, 54840 E6000 |
 |
26OP2500
|
Stabiliser Link |
L:355 tp:M12x1.5 RHT / 0,46 kg |
51 741 130, 51 803 183 (6) OEM |
 |
29HY2100
NEW
|
Tie Rod |
|
56820 0X000, 56820 0X010 (3) OEM |
 |
30HY0500
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54500-22000, 54500-22100 (1) OEM |
 |

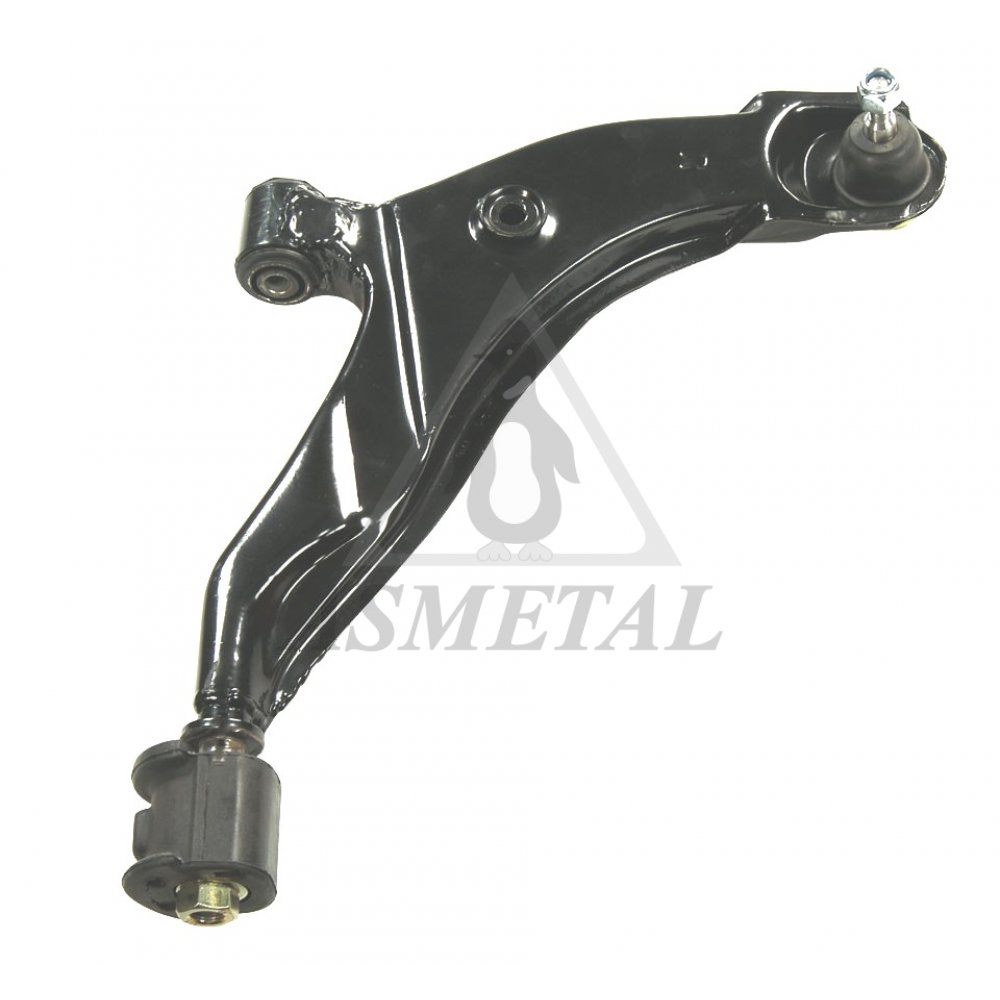

30HY0501
OUT OF SERVICE
|
Track Control Arm Right |
0 kg |
54501-22000, 54501-22100 (1) OEM |
 |
30HY0502
|
Track Control Arm Left |
cr:1/8 c:Ø15 th:M12x1.25 RHT / 3,1 kg |
54500-25000, 54500-25001 |
 |
30HY0503
|
Track Control Arm Right |
cr:1/8 c:Ø15 th:M12x1.25 RHT / 3,1 kg |
54501-25001, 54501-25000 |
 |

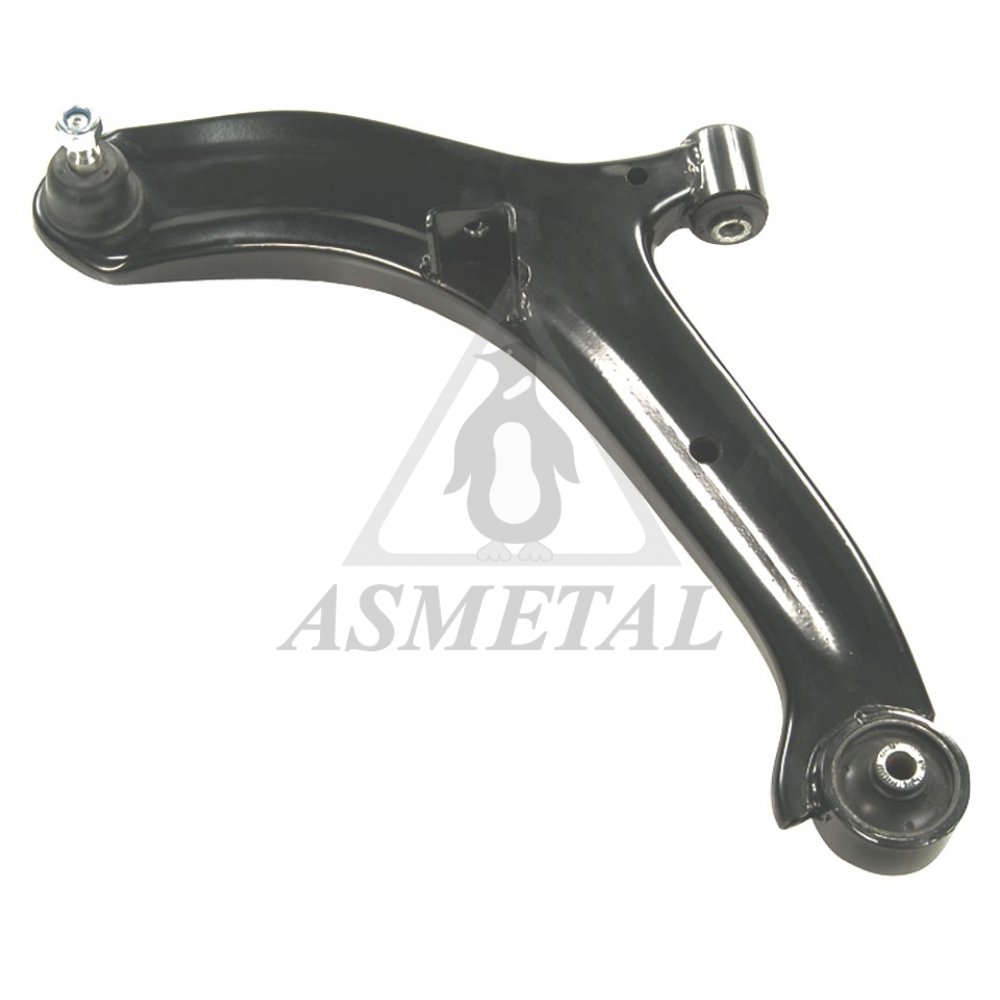

30HY0505
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54500 25000 |
 |

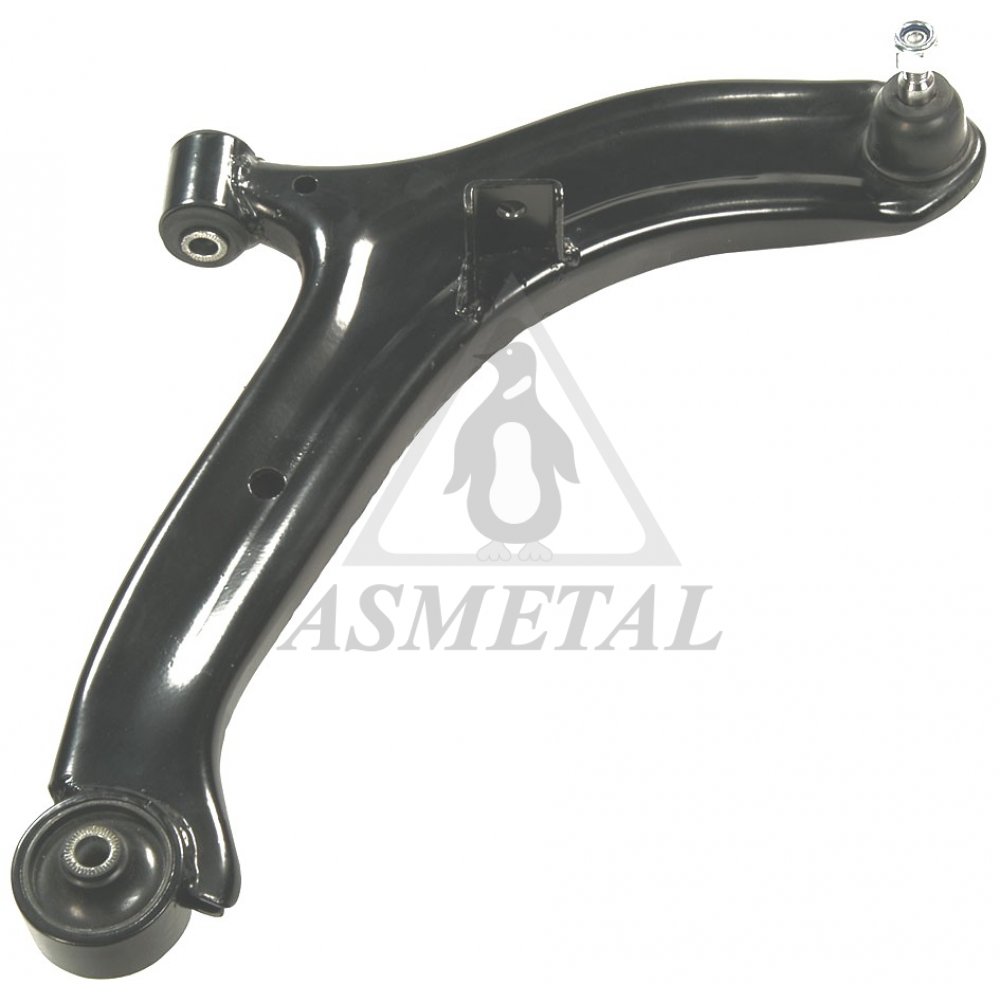

30HY0506
OUT OF SERVICE
|
Track Control Arm Right |
0 kg |
54501 25000 |
 |
30HY0510
|
Track Control Arm Left |
cr:1/8 c:Ø15 th:M12x1.25 RHT / 3,33 kg |
54500 4L000, 54500 1R000 |
 |
30HY0511
|
Track Control Arm Right |
cr:1/8 c:Ø15 th:M12x1.25 RHT / 3,33 kg |
54501 4L000, 54501 1R000 |
 |
30HY1001
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54510 43150, 54510 43151 (6) OEM |
 |

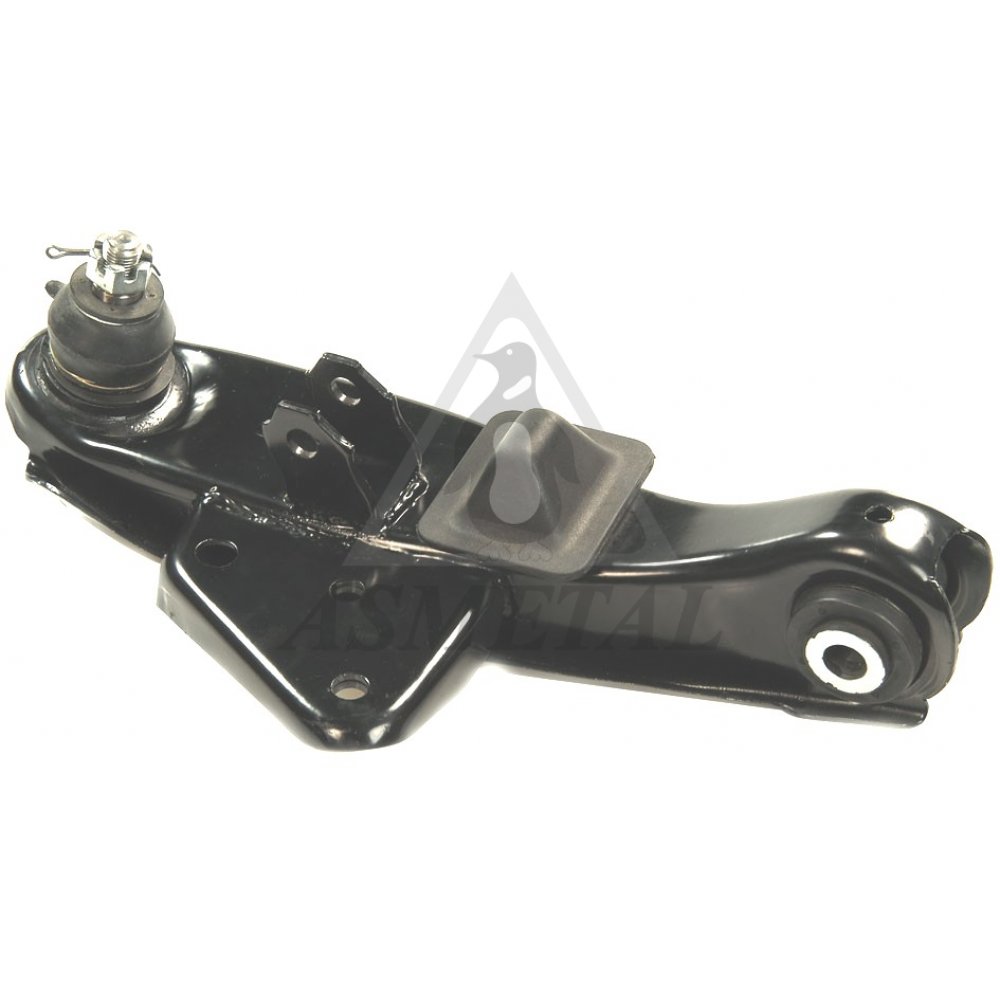

30HY1002
OUT OF SERVICE
|
Track Control Arm Right |
0 kg |
54540 4F000, 54540 4B001 (1) OEM |
 |

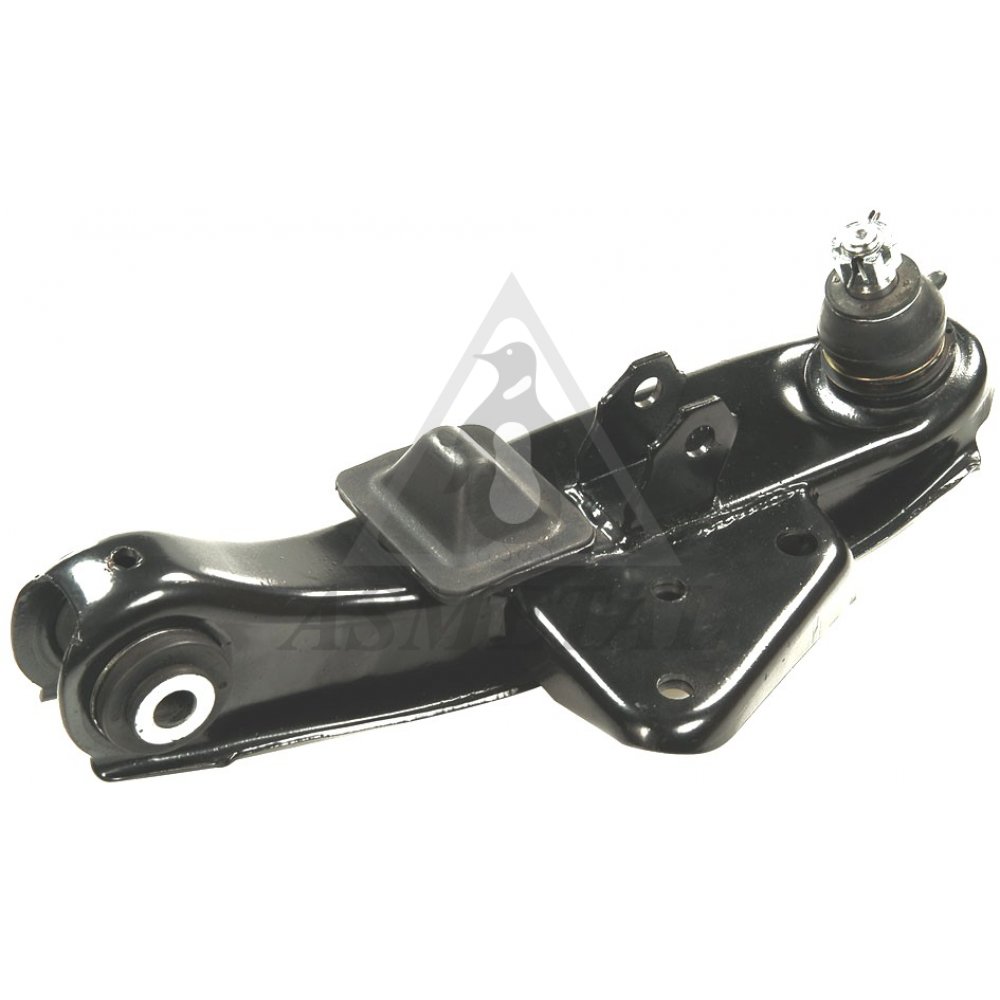

30HY1003
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54510 4B000, 54510 4F000 (1) OEM |
 |

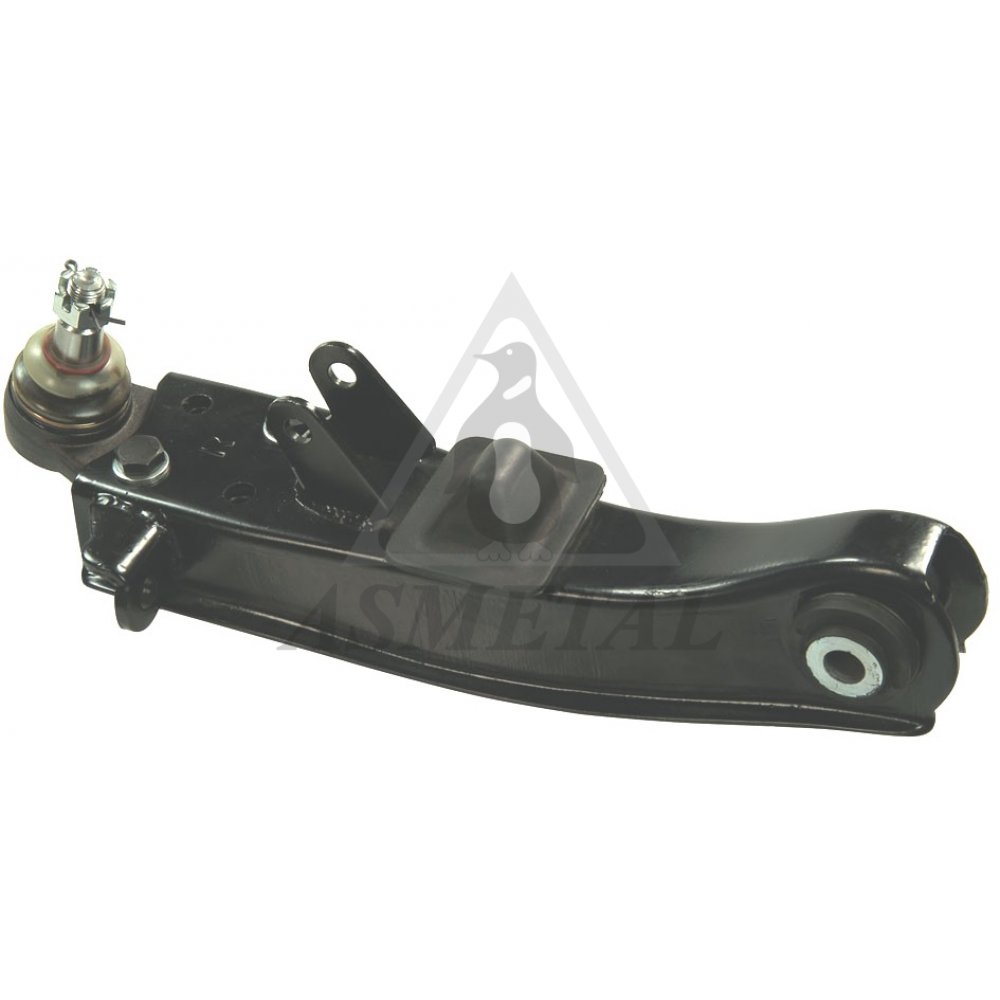

30HY1500
OUT OF SERVICE
|
Track Control Arm Right |
0 kg |
54501 4A000, 54501 4A600 |
 |

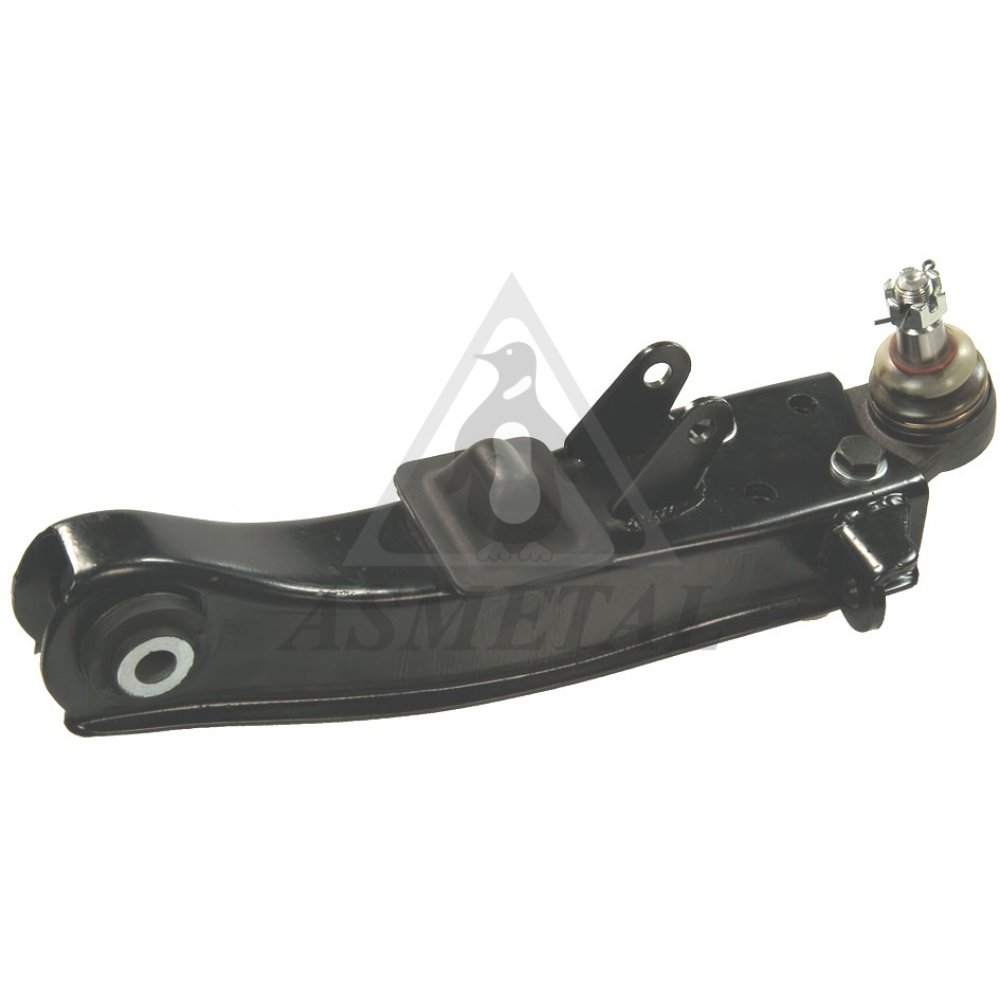

30HY1501
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54500 4A600, 54500 4A000 |
 |
30HY2100
IN PREPARATION
|
Track Control Arm Left |
|
54500 0X000, 54500 0X100 (2) OEM |
 |
30HY2101
IN PREPARATION
|
Track Control Arm Right |
|
54501 0X300, 54501 0X000 (2) OEM |
 |
30HY3300
|
Track Control Arm Lower Left |
c:Ø17.95 / 4,5 kg |
54500 D7000, 54500 F1000 |
 |
30HY3301
|
Track Control Arm Lower Right |
c:Ø17.95 / 4,5 kg |
54501 D7000, 54501 F1000 |
 |

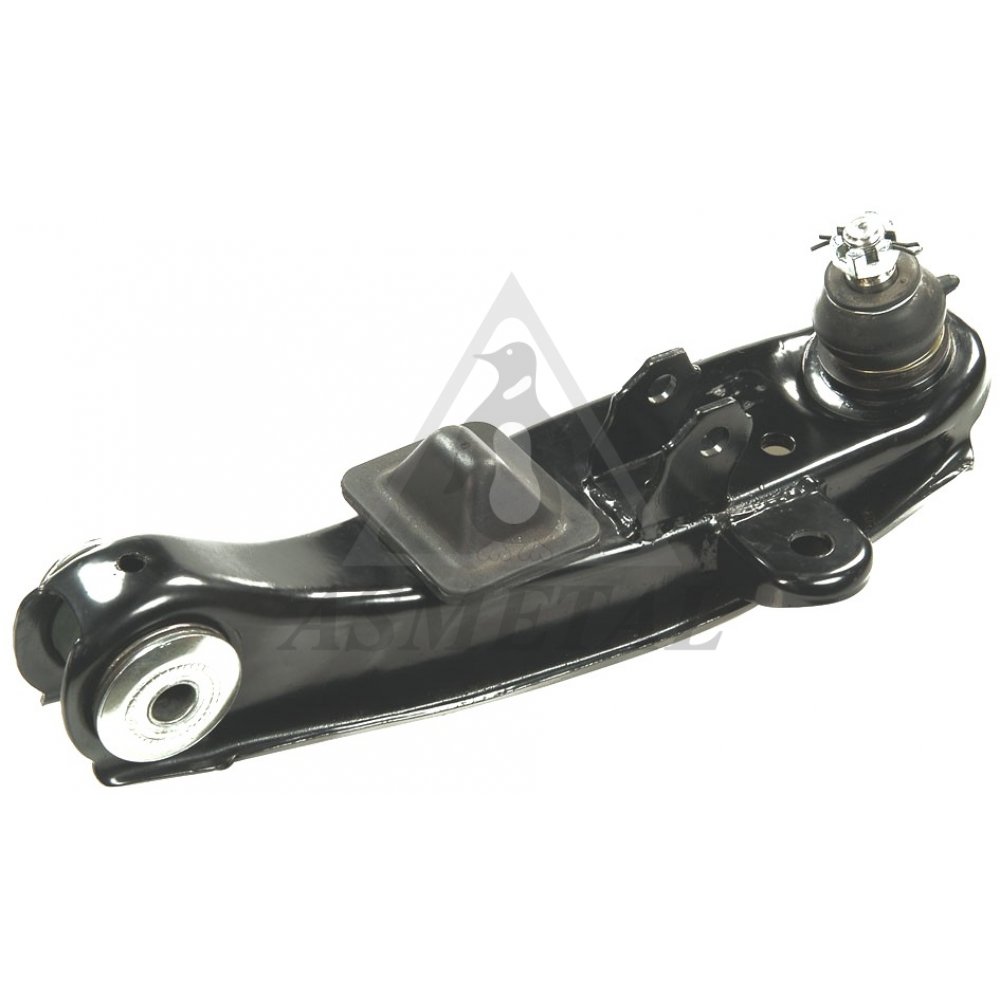

30MT0101
OUT OF SERVICE
|
Track Control Arm Left |
0 kg |
54510 43152, 54510 43151 (3) OEM |
 |
38FR1720
|
Silentblock for TCA |
L:35 di:Ø12.2 do:Ø32.2 / 0,11 kg |
13 000 384, 3M51 5K653 AA (18) OEM |
 |
38HY0100
|
Silentblock for TCA |
L:54 di:Ø12.1 do:Ø32 / 0,1 kg |
54551 1E000, 54551 2K000 |
 |
38HY0110
|
Silentblock for TCA |
L:54 di:Ø12.2 do:Ø31.5 / 0,11 kg |
54551 4L000, 54551 1R000 |
 |

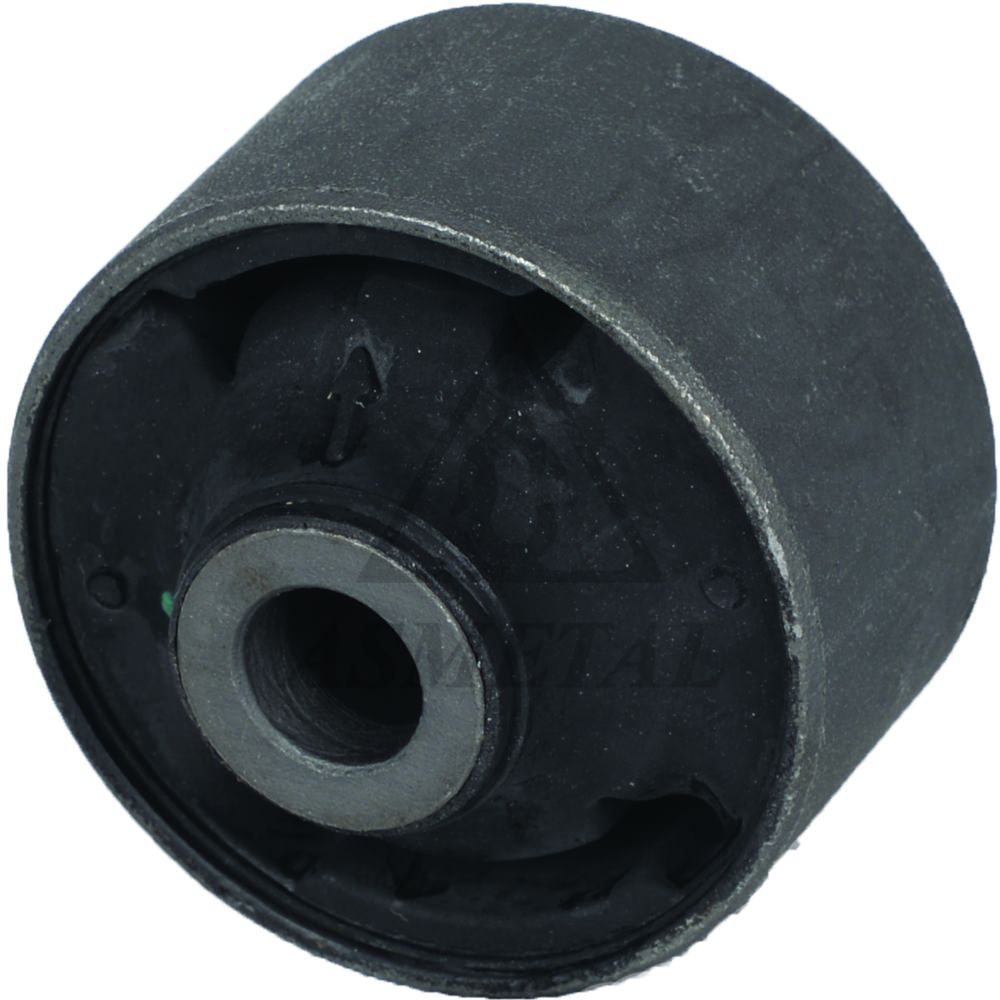

38HY0200
|
Silentblock for TCA |
L:60 di:Ø14.3 do:Ø66.5 / 0,41 kg |
54501 1C000*, 54500 1C010* (4) OEM |
 |
38HY0300
|
Silentblock for TCA |
L:60 di:Ø14.5 do:Ø66 / 0,38 kg |
54584 3X000 |
 |
38HY0310
|
Silentblock for TCA |
L:60 di:Ø14.3 do:Ø70 / 0,44 kg |
54584 A6000, 54584 A2100 |
 |
38HY0311
|
Silentblock for TCA |
L:54 di:Ø12.2 do:Ø41 / 0,19 kg |
54551 3X000, 54551 K000 |
 |

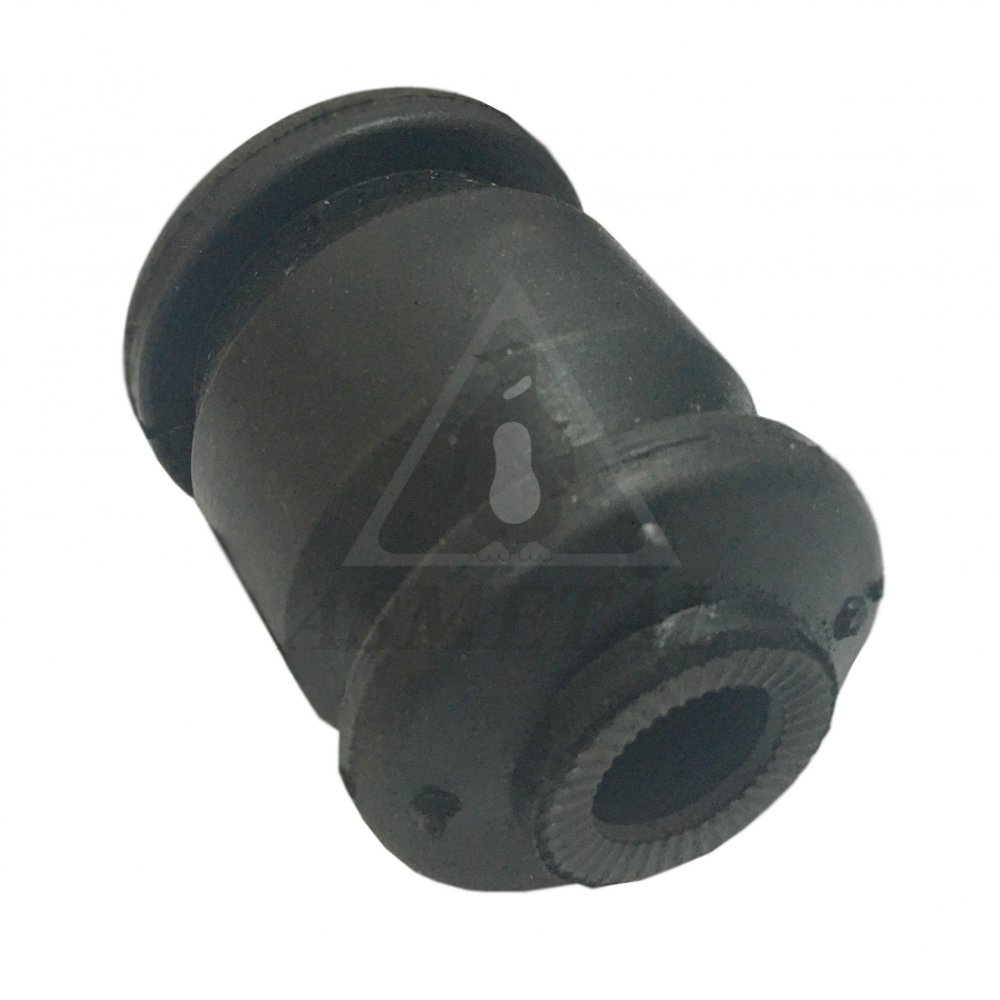

38HY0500
|
Silentblock for TCA |
L:54.1 di:Ø12.2 do:Ø34 / 0,12 kg |
54551 25000, 54551 1C000 |
 |
38HY0501
|
Silentblock for TCA |
L:53.5 di:Ø12.2 do:Ø52.3 / 0,21 kg |
54555 25000 |
 |
38HY1000
OUT OF SERVICE
|
Silentblock Bushing |
di:Ø14,2 do:Ø44 / 0,3 kg |
55130 3U000, 55130 4D000 |
 |
38HY1100
|
Silentblock for TCA |
L:55 di:Ø12.1 do:Ø38.2 / 0,23 kg |
54500 2W200*, 54551 C5000 (1) OEM |
 |
38HY1101
|
Silentblock for TCA |
L:60 di:Ø14.3 do:Ø70.2 / 0,41 kg |
54584 2T000, 54584 2W000 |
 |
38HY1105
|
Silentblock for TCA |
L:54.8 di:Ø12.1 do:Ø38.2 / 0,21 kg |
54551 2S000 |
 |
38HY1115
NEW
|
Stabiliser Mounting |
di:Ø15,5 / 0,06 kg |
55513 2B200 |
 |
38HY1120
|
Stabiliser Mounting |
L:45 di:Ø13.5 / 0,08 kg |
55513 3S000 |
 |
38HY1200
|
Silentblock for TCA |
L:60 di:Ø14.3 do:Ø70 / 0,43 kg |
54584 2S000, 54584 2S100 (11) OEM |
 |
38HY2010
|
Silentblock for TCA |
L:59.9 di:Ø14.5 do:Ø66.6 / 0,44 kg |
54584 1G000 |
 |
38HY3210
|
Silentblock for TCA |
L:60 di:Ø14.5 do:Ø66 / 0,42 kg |
54584 2E000, 54584 4D000 (1) OEM |
 |
38HY3211
|
Silentblock for TCA |
L:55 di:Ø12.2 do:Ø38.2 / 0,23 kg |
54551 2E000, 54551 2H000 |
 |
38HY3300
|
Silentblock for TCA |
L:60 di:Ø14.2 do:Ø70.6 / 0,5 kg |
54584 C5000, 54584 D3000 (1) OEM |
 |
38KI3000
|
Silentblock for TCA |
L:48 di:Ø12.1 do:Ø41.9 / 0,15 kg |
55100 D3050* |
 |
38OP9010
|
Bellow Steering |
L:156 di:Ø12 / 0,083 kg |
16 09 095, 90 512 778 (1) OEM |
 |
45HY0020
|
Strut Mount |
L:40.8 di:Ø12.4 / 0,38 kg |
54611 C8100 |
 |
45HY0320
|
Suspension Support Buffer Front |
L:81 di:Ø18.5 do:Ø52 / 0,06 kg |
54626 1C000, 54626 29100 (1) OEM |
 |

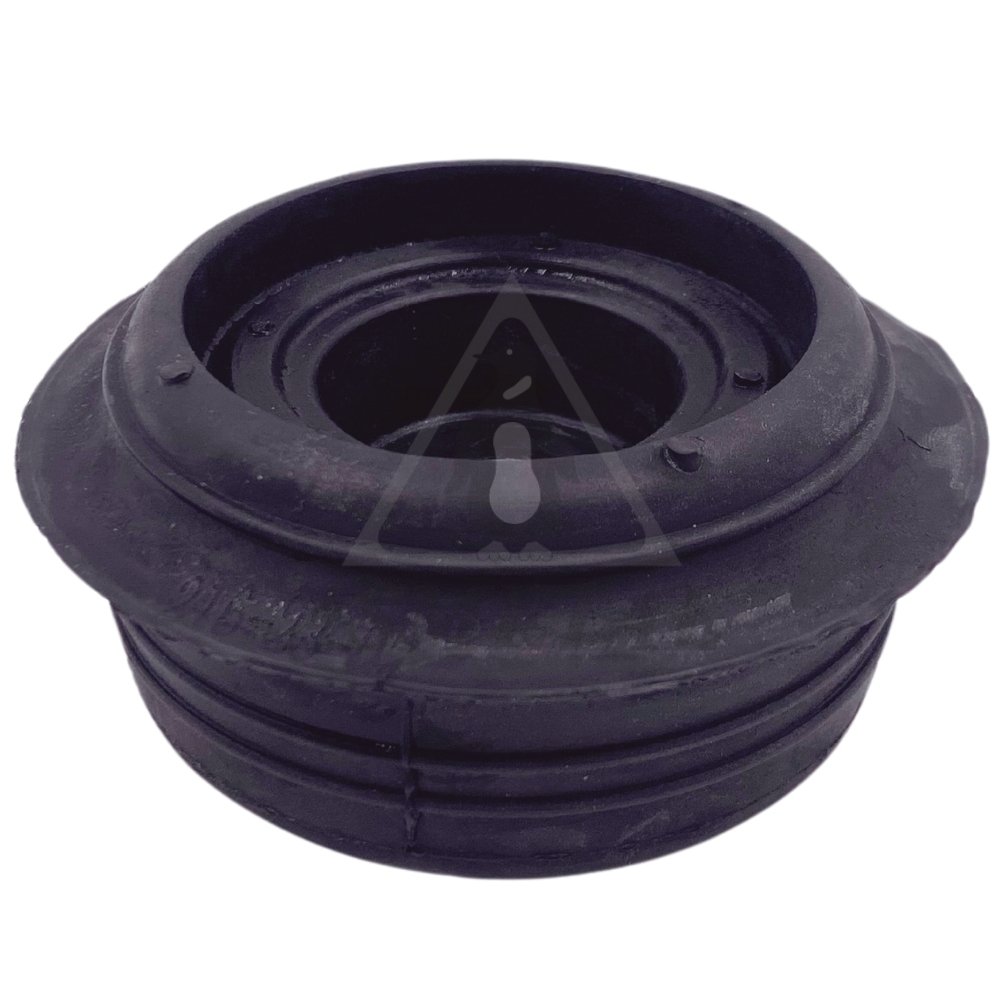

45HY0505
|
Strut Mount |
L:38.4 di:Ø12.6 do:Ø70.4 / 0,19 kg |
55311 25000 |
 |
45HY0510
|
Strut Mount |
L:34.8 di:Ø12 do:Ø98 / 0,34 kg |
54611 1Y000, 54611 1P000 (2) OEM |
 |
45HY0515
|
Strut Mount |
L:40.5 di:Ø10 do:Ø63.5 / 0,38 kg |
55322 1G000, 55311 1G000 (1) OEM |
 |

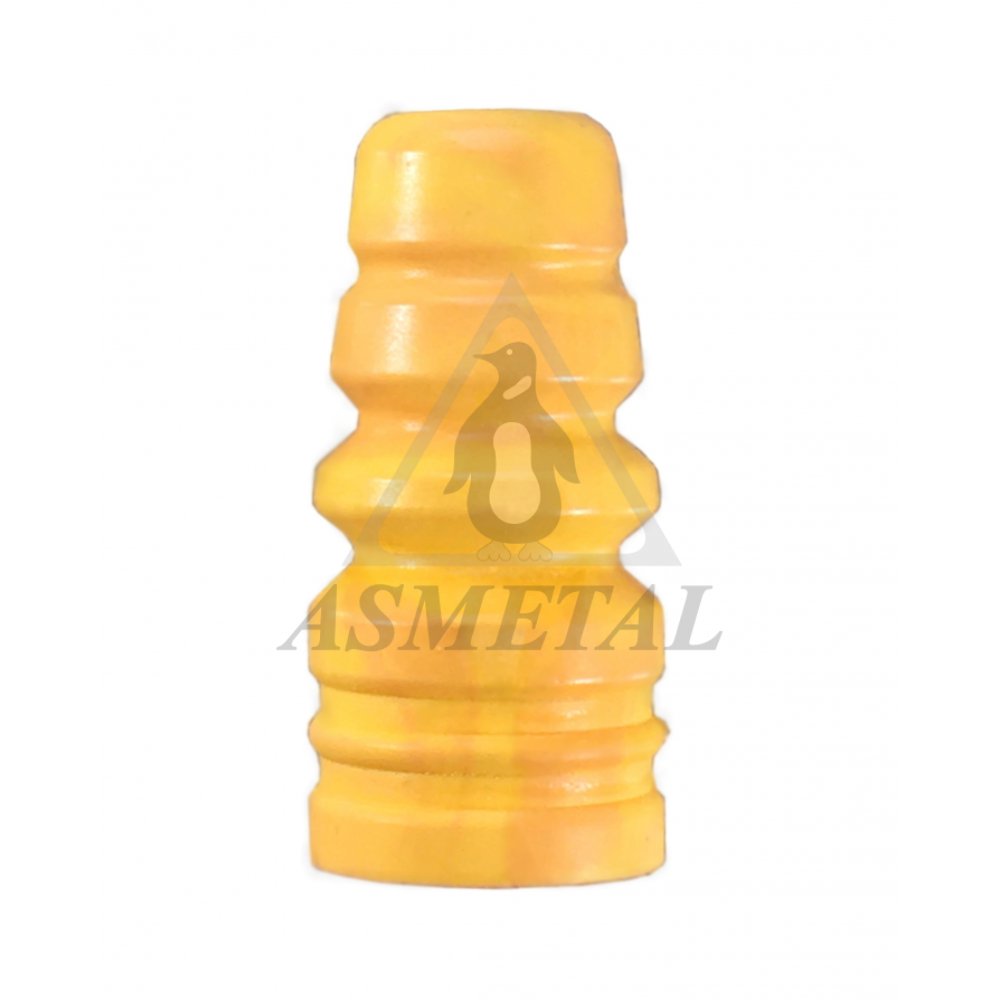

45HY0530
|
Suspension Support Buffer Rear |
L:112.5 di:Ø12.5 do:Ø52.5 / 0,08 kg |
55326 1E000 |
 |

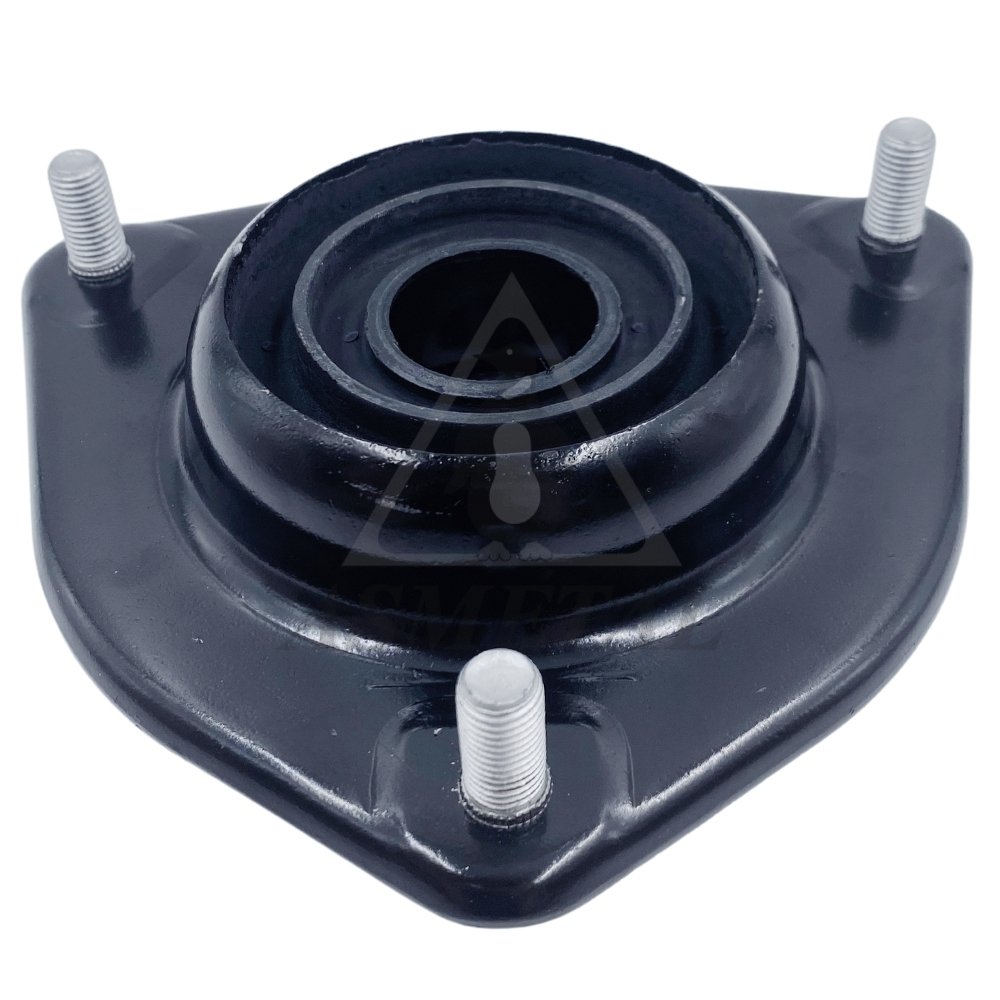

45HY0600
|
Strut Mount |
di:Ø15 / 0,98 kg |
54610 29000, 54610 2D000 (4) OEM |
 |
45HY1100
|
Strut Mount |
L:66.5 di:Ø14.1 do:Ø61.5 / 1,04 kg |
54610 2Y000, 54610 2Y500 (3) OEM |
 |
45HY1120
|
Strut Mount |
L:60 di:Ø10.3 / 0,61 kg |
55330 2S000, 55330 3R011 (6) OEM |
 |
45HY2000
|
Strut Mount |
L:61.6 di:Ø15.3 do:Ø62.6 / 1,07 kg |
54610 1H000, 54610 2H000 (2) OEM |
 |
45HY2005
|
Strut Mount |
L:53 di:Ø10.3 / 0,38 kg |
55330 2H000, 55330 2L000 (1) OEM |
 |
45HY3300
|
Strut Mount |
L:52 di:Ø15.1 / 0,92 kg |
54610 D3000, 54610 D3500 (2) OEM |
 |
45KI3000
|
Strut Mount |
L:54 di:Ø12.5 do:Ø69 / 0,83 kg |
54610 A5000, 54610 A2000 |
 |
45PE9999
NEW
|
Bearing |
0,17 kg |
5035 19, 5035 27 (7) OEM |
