ASMETAL Catalogue

HYUNDAI > AVANTE (13 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No
10HY0500	Ball Joint Lower	tp:M12x1.25 RHT cr:1/8 c:Ø15 do:Ø40 / 0,35 kg	54503 25A00, 54503 38A00 (10) OEM
10HY2000	Ball Joint Lower	th:M12x1.5 RHT cr:1/8 c:Ø15.05 / 0,54 kg	51760 2H000, 51760 0Q000 (1) OEM
17HY0500	Tie Rod End	L:78 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,36 kg	56820 29500, 56820 37000 (5) OEM
17HY2000	Tie Rod End Left	L:230 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,72 kg	56820 2H000
17HY2001	Tie Rod End Right	L:230 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM14x1.5 RHT / 0,72 kg	56820 2H090
17KI3000	Tie Rod End Left	L:222.5 cr:1/10 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg	56820 A6000, 56820 A5000 (1) OEM
17KI3001	Tie Rod End Right	L:222.5 cr:1/10 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,7 kg	56820 3X090, 56820 A6090 (1) OEM
20HY2000	Axial Joint	L:164 tp:M16x1.5 th:MM14x1.5 RHT / 0,4 kg	56540 2H000
20KI0200	Axial Joint	L:328 tp:M16x1.5 th:MM14x1.5 RHT / 0,76 kg	57724 2D020, 57724 2D000
26HY0605	Stabiliser Link Rear	L:71 tp:M10x1.25 RHT / 0,34 kg	55530 29500, 55530 29300 (3) OEM
26HY2510	Stabiliser Link	L:243 tp:M12x1.5 RHT / 0,39 kg	54830 2H100, 54830 2H000 (2) OEM

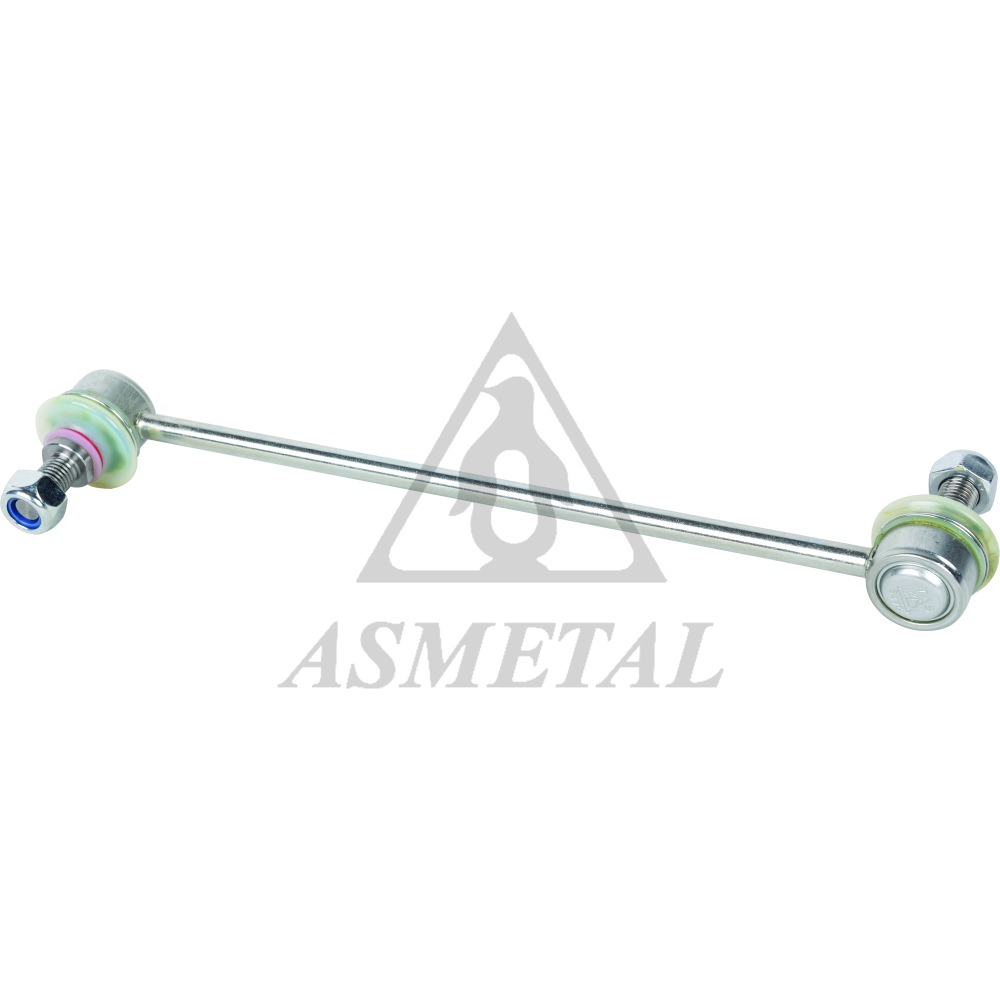

26KI3000	Stabiliser Link	L:282 tp:M12x1.5 RHT / 0,44 kg	54830 M000, 54830 0U000 (9) OEM
38HY1000 OUT OF SERVICE	Silentblock Bushing	di:Ø14,2 do:Ø44 / 0,3 kg	55130 3U000, 55130 4D000
