ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10HY0300 NEW	Ball Joint Left	tp: M12x1.5 / cr: 1:8 / c: Ø15 / 0,78 kg	54530 G4AA0, 54530 F2000
10HY0301 NEW	Ball Joint Right	tp: M12x1.5 / cr: 1:8 / c: Ø15 / 0,78 kg	54530 G4BA0, 54530 F2100
10HY0500	Ball Joint Lower	th:M12x1.25 RHT cp:1/8 cs:Ø15 do:Ø40 / 0,35 kg	54520-31600, 54503-31600 (10) OEM
10HY0600	Ball Joint	th:M12x1.25 RHT cp:1/10 cs:Ø15 / 0,67 kg	54530 24000, 54530 24A00 (2) OEM
10HY2000	Ball Joint Lower	th:M12x1.25 RHT cp:1/8 cs:Ø15 / 0,54 kg	51760 2H000, 51760 0Q000 (2) OEM
17HY0300 IN PREPARATION	Tie Rod End Left	0 kg	56820-AA000, 56820 F2000 (1) OEM
17HY0301 IN PREPARATION	Tie Rod End Right	0 kg	56825 F2000, 56825 J7000
17HY0500	Tie Rod End	c:Ø13,4 th:FM14x1,5 RHT / 0,36 kg	5682029500, 5682037000 (5) OEM

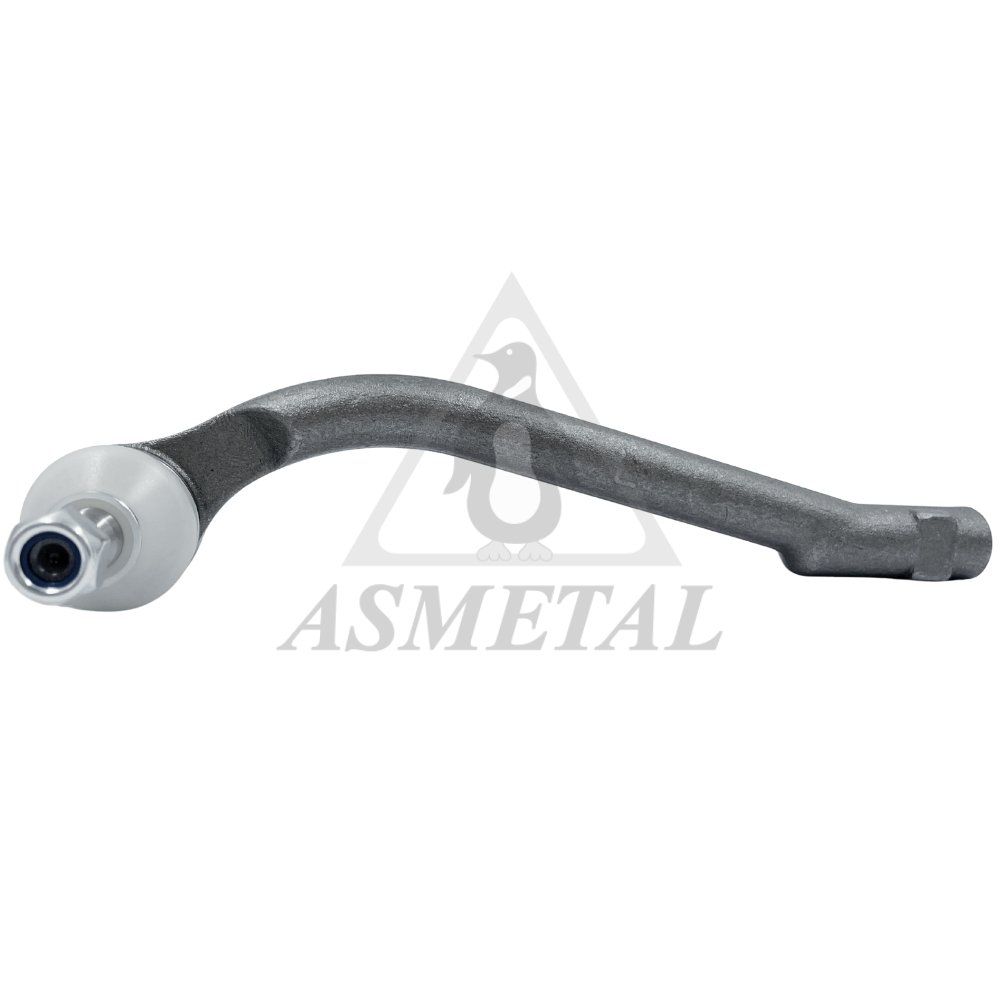

17HY2000	Tie Rod End Left	c:Ø13,4 th:FM14x1,5 RHT / 0,72 kg	56820-2H000

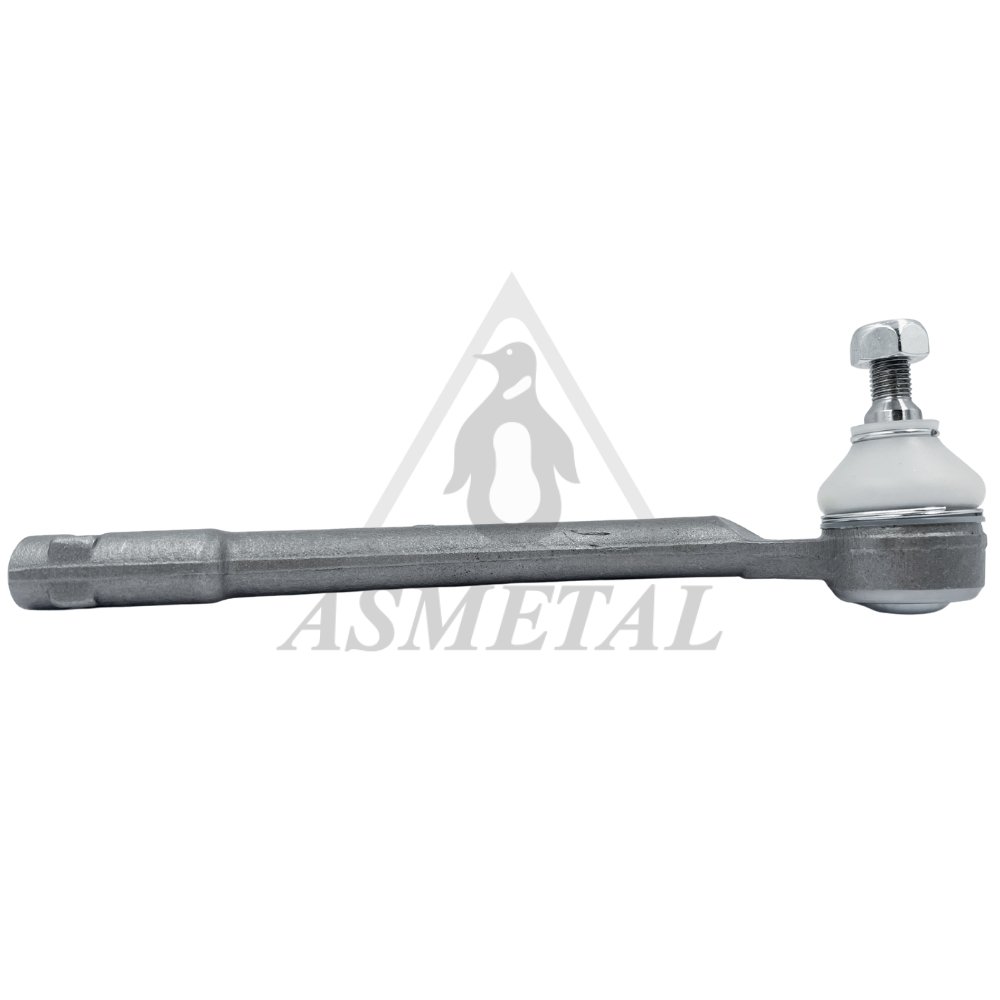

17HY2001	Tie Rod End Right	c:Ø13,4 th:FM14x1,5 RHT / 0,72 kg	56820-2H090
17KI3000	Tie Rod End Left	c:Ø 13,4 th:FM16x1,5 RHT / 0,7 kg	56820 A6000, 56820 A5000 (1) OEM

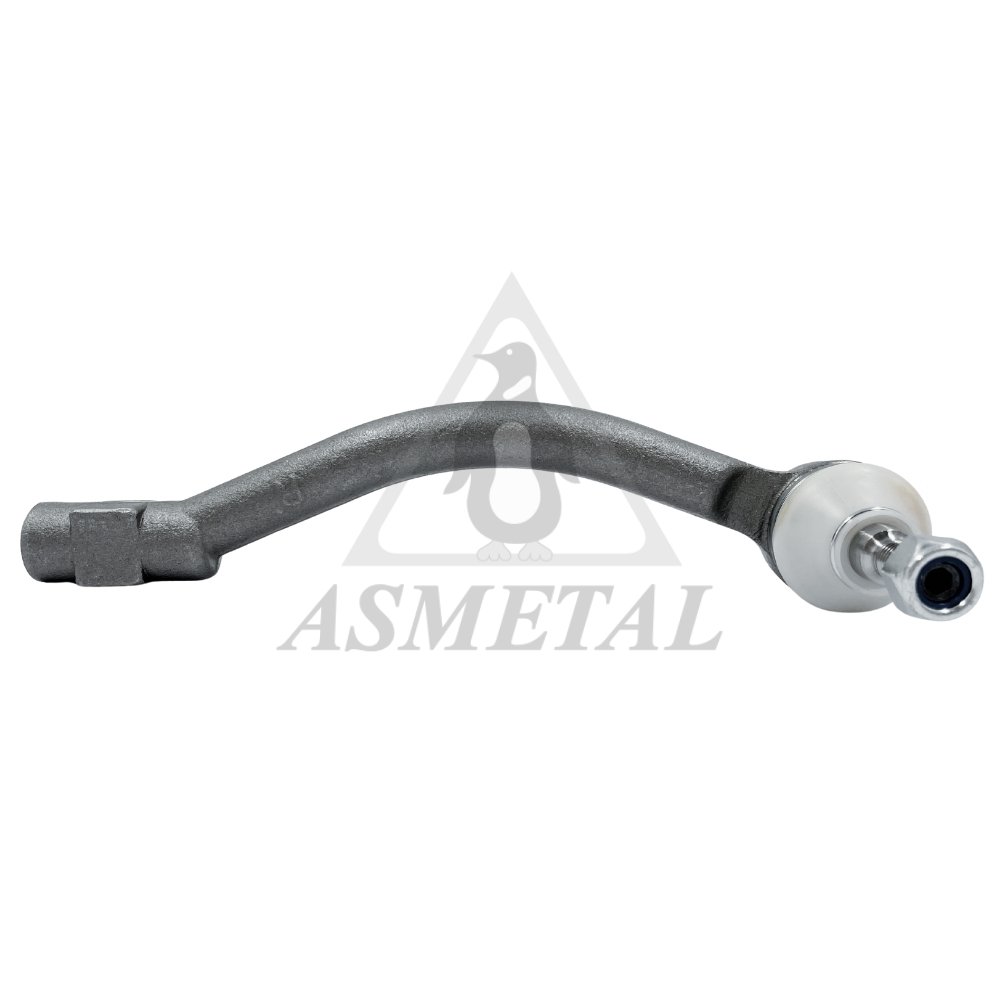

17KI3001	Tie Rod End Right	c:Ø 13,4 th:FM16x1,5 RHT / 0,7 kg	56820 3X090, 56820 A6090 (1) OEM
20HY0300 NEW	Axial Joint	tp: MM16x1.5 / tp: MM16x1.5 / L: 303 / 0,7 kg	56540 AA000, 56540 G3000 (2) OEM
20HY0390	Axial Joint	L: 230 TP: M16x1,5 TP: M16X1,5 / 0,6 kg	56540 3X000

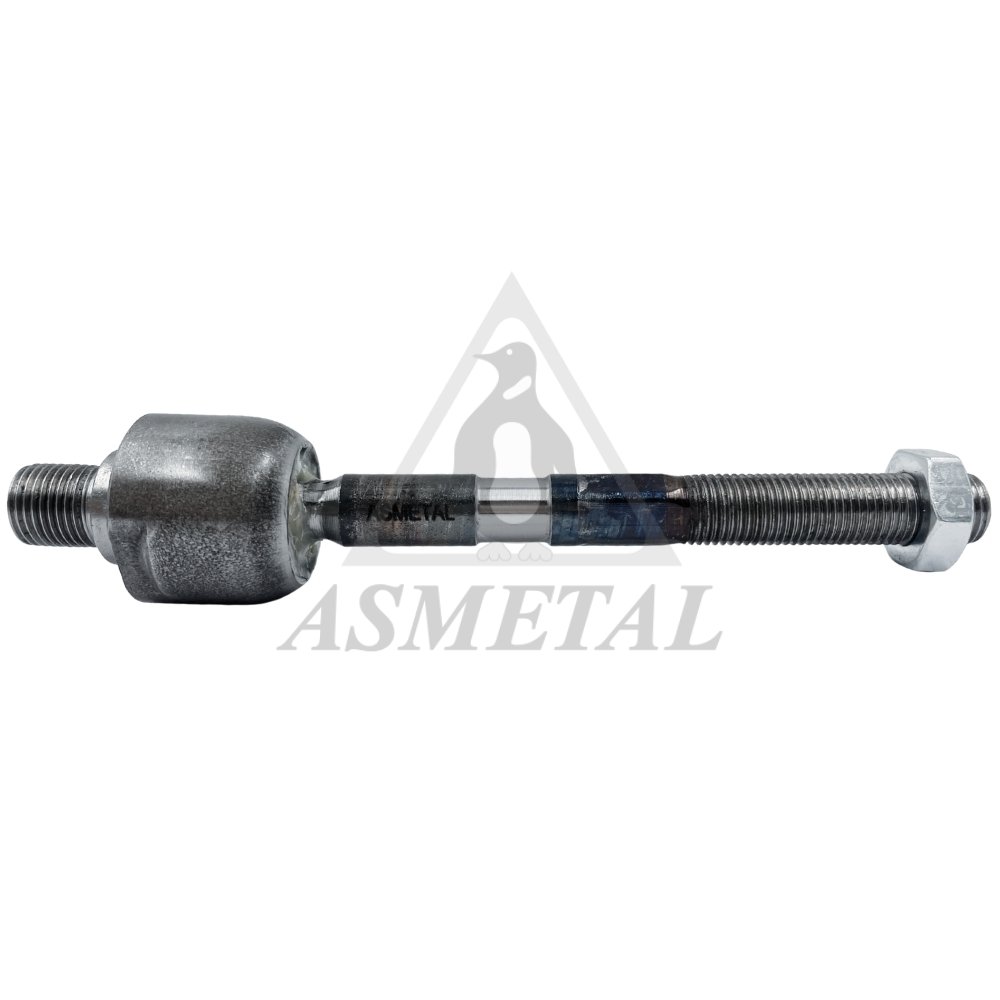

20HY2000	Axial Joint	th:MM16x1,5 RHT L:164mm / 0,4 kg	56540 2H000
20KI0200	Axial Joint	th:MM16x1,5 RHT L:208,5mm / 0,76 kg	57724 2D020, 57724 2D000
23KI1200 IN PREPARATION	Track Control Arm Rear	0 kg	55250 2H000, 55250 2S000 (3) OEM
26HY0100	Stabiliser Link	L:60,5mm / 0,29 kg	54830 37020, 54830 37010 (1) OEM
26HY0300 NEW	Stabiliser Link	L: 295 / tp: MM12x1.5 / 0,46 kg	54830 J9000, 54830 F2000
26HY0305 IN PREPARATION	Stabiliser Link		55530 G2000
26HY0600	Stabiliser Link	L:71mm / 0,3 kg	54830 29000, 54830 29500
26HY0605	Stabiliser Link Rear	L:130mm / 0,34 kg	55530 29500, 55530 29300 (3) OEM
26HY0610 IN PREPARATION	Stabiliser Link	0 kg	54830 34000, 54830 34500 (1) OEM
26HY2510	Stabiliser Link	L:243mm / 0,39 kg	54830 2H100, 54830 2H000 (2) OEM
26KI3000	Stabiliser Link	tp: MM12x1,5 L:282mm / 0,44 kg	54830 M000, 54830 0U000 (9) OEM
38FR1720	Silentblock for TCA	di:Ø12,2 do:Ø32,2 / 0,11 kg	13 000 384, 3M51-5K653-AA (18) OEM
38HY0300	Silentblock for TCA	di:Ø14,5 do:Ø66 / 0,38 kg	54584 3X000
38HY0311	Silentblock for TCA	di:Ø12.1 do:Ø39.5 / h:54mm / 0,19 kg	54551 3X000, 54551-3X000
38HY1000	Silentblock Bushing	di:Ø14,2 do:Ø44 / 0,3 kg	55130 3U000, 55130 4D000
45HY0320 NEW	Suspension Support Buffer Front	di:Ø17 do:Ø52 L:81mm / 0,06 kg	54626-1C000, 54626-29100 (1) OEM
45HY0600 IN PREPARATION	Strut Mount		54610 29000
45HY2000 NEW	Strut Mount	di: Ø15,3 / 1,07 kg	54610 1H000, 54610 2H000 (2) OEM
45HY2005 IN PREPARATION	Strut Mount		55330 1H000, 55330 2H000 (1) OEM
45PE9999 IN PREPARATION	Bearing	0 kg	5035 27, 5035 23 (7) OEM
