ASMETAL Catalogue

HYUNDAI > H200 (8 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No

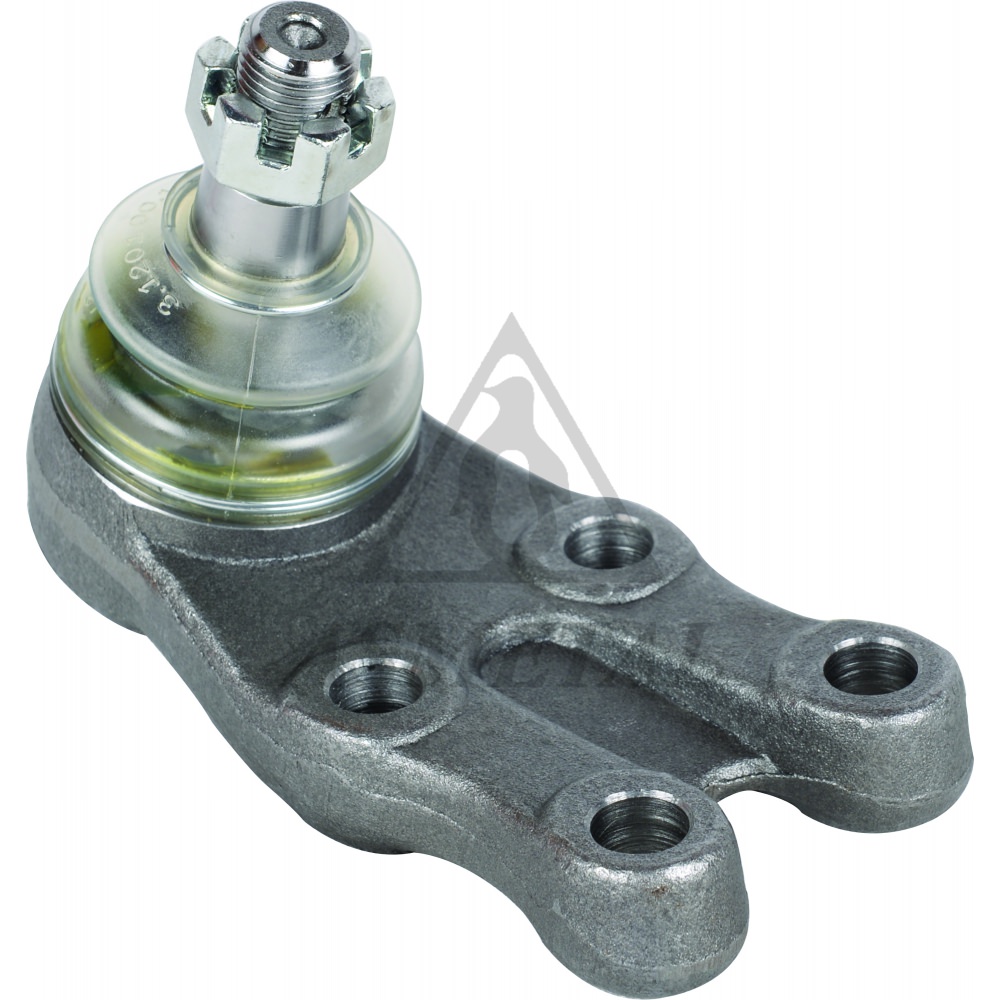

10HY1500	Ball Joint Lower	th:M16x1.5 RHT cp:1/8 cs:Ø19,3 / 1,59 kg	54530 4A000, 54530 4AA00 (1) OEM

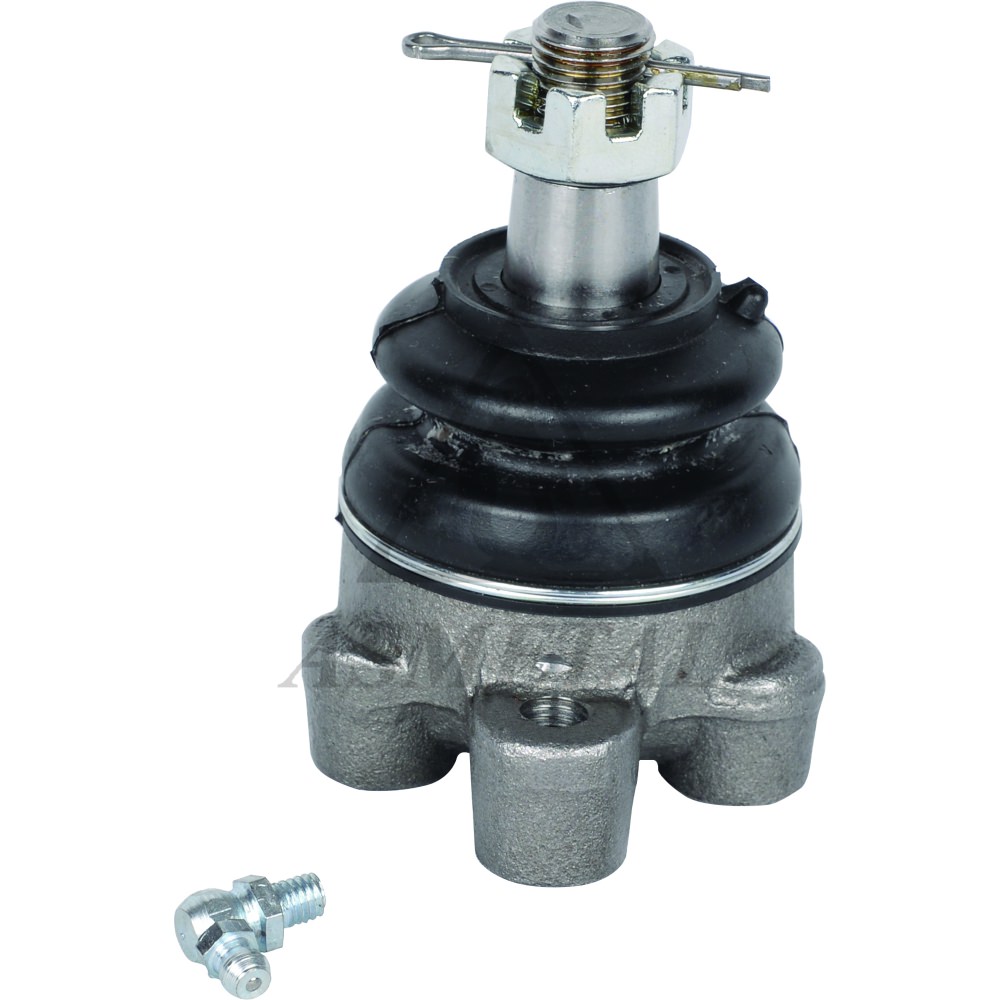

10MT0101	Ball Joint Upper	th:M16x1.5 RHT cp:1/8 cs:Ø17,75 / 0,97 kg	54417 43A00, 54417 43001 (16) OEM

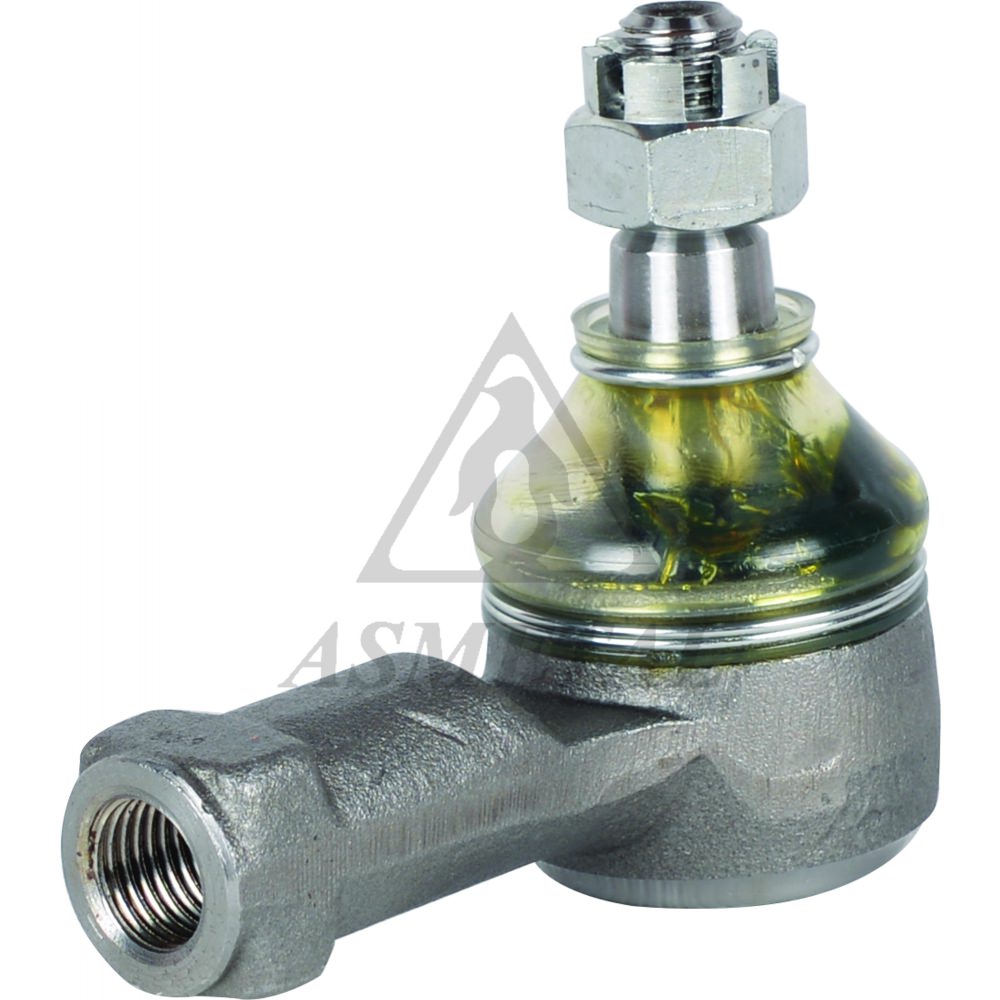

17HY01	Tie Rod End	c:Ø13,7 th:FM14x1,5 RHT / 0,36 kg	56872 43010, 56872 43000 (3) OEM
17HY1500	Tie Rod End	c:Ø13,6 th:FM16x1,5 RHT / 0,42 kg	56820 47500, 56820 47300 (1) OEM

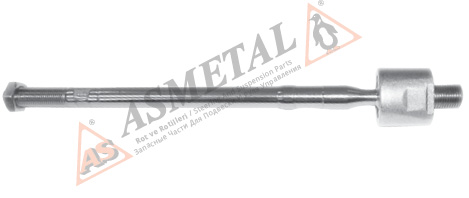

20HY10	Axial Joint	th:MM16x1.5 RHT L:294,5mm / 0,6 kg	57729 4A000, 57729 4A010 (3) OEM
26HY1500	Stabiliser Link	L:55mm / 0,3 kg	548304 A003, 54830 4A600 (3) OEM
30HY1500 OUT OF SERVICE	Track Control Arm Right	0 kg	54501 4A000, 54501 4A600
30HY1501 OUT OF SERVICE	Track Control Arm Left	0 kg	54500 4A600, 54500 4A000
