ASMETAL Catalogue

HYUNDAI > ix35 (18 Quantity)

	ASMETAL No	Product Description	Dimensions	Oem No

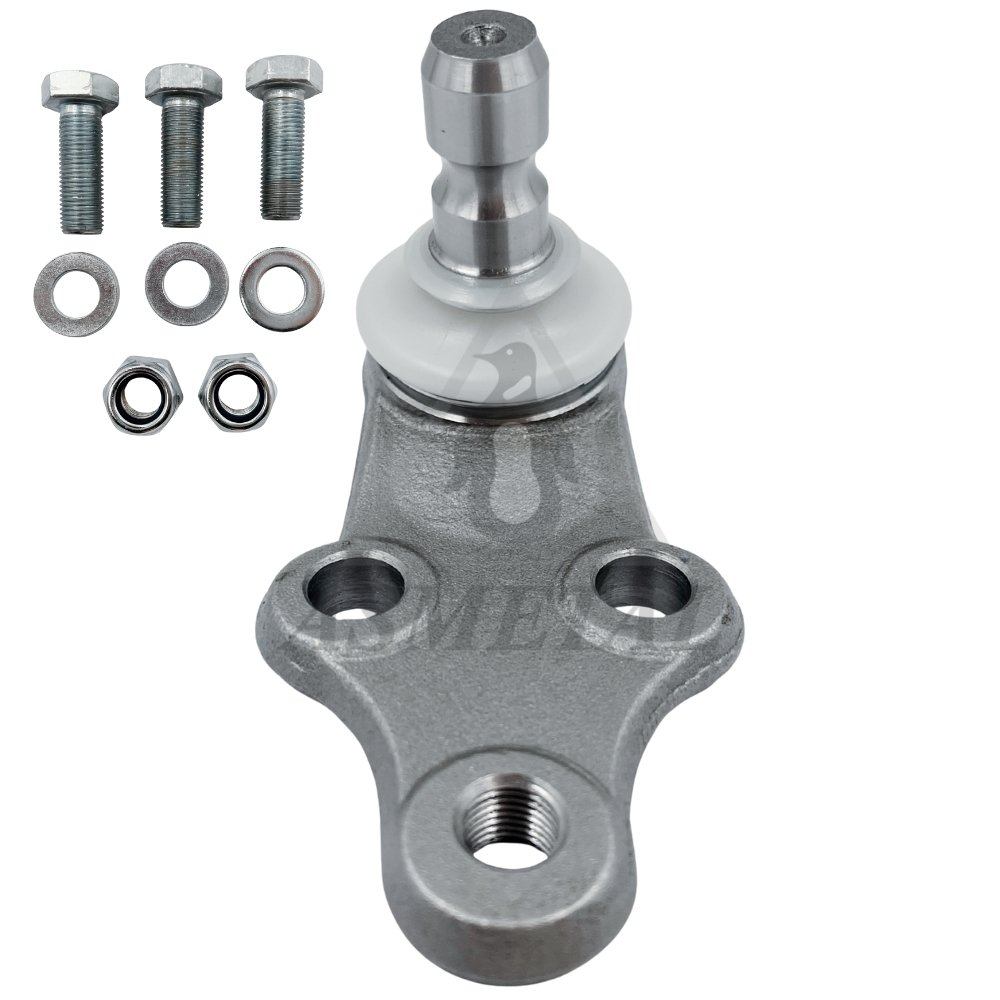

	10KI1200	Ball Joint	cs:Ø18 / 0,82 kg	54530 3S000, 54530 3R000
	10KI1205 IN PREPARATION	Ball Joint		54530 2S500
	17HY3200	Tie Rod End Left	L: 170 cr: 1:8 c: Ø13.4 tp: M10x1.5 th: FM16x1.5 / 0,64 kg	56820 2E000
	17HY3201	Tie Rod End Right	L: 170 cr: 1:8 c: Ø13.4 tp: M10x1.5 th: FM16x1.5 / 0,64 kg	56820 2E900
	17KI1100	Tie Rod End Left	L: 233 cr: 1:8 c: Ø13.4 tp: M10x1.25 th: FM16x1.5 / 0,89 kg	56820 2T000, 56820 2T190 (5) OEM
	17KI1101	Tie Rod End Right	L: 233 cr: 1:8 c: Ø13.4 tp: M10x1.25 th: FM16x1.5 / 0,89 kg	56820 2T500, 56820 3S500 (5) OEM
	20KI1200	Axial Joint	th1: MM16X1.5 RHT th2: MM16X1.5 RHT L:183 / 0,56 kg	57724 2S000, 57724 2S010
	23KI1200 IN PREPARATION	Track Control Arm Rear	0 kg	55250 2H000, 55250 2S000 (3) OEM
	26KI1210	Stabiliser Link Rear	L: 140 TP: M12x1,25 / 0,32 kg	55530 2S100, 55530 2Z100 (2) OEM
	26KI3000	Stabiliser Link	tp: MM12x1,5 L:282mm / 0,44 kg	54830 M000, 54830 0U000 (9) OEM
	26KI3005 NEW	Stabiliser Link	0,46 kg	54830 1S000, 54830 2S000 (3) OEM
	26KI3010	Stabiliser Link Rear	L:87mm / 0,38 kg	55540 3U800, 55530 3R000 (4) OEM
	38FR1720	Silentblock for TCA	di:Ø12,2 do:Ø32,2 / 0,11 kg	13 000 384, 3M51 5K653 AA (18) OEM
	38HY1101	Silentblock for TCA	di:Ø14.3 do: Ø70.2 L:60mm / 0,41 kg	54584 2T000, 54584 2W000
	38HY1105	Silentblock for TCA	di: Ø12.1 / do: Ø38.2 / L: 54.8 / 0,21 kg	54551 2S000
	38HY1200	Silentblock for TCA	di:Ø14.3 do: Ø70 L:60mm / 0,43 kg	54584 2S000, 54584 2S100 (11) OEM
	45HY1100	Strut Mount	1,04 kg	54610 2Y000, 54610 2Y500 (3) OEM
	45HY1120	Strut Mount	0,61 kg	55330 2S000, 55330 3R011 (6) OEM
