ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10HY0500	Ball Joint Lower	th:M12x1.25 RHT cp:1/8 cs:Ø15 do:Ø40 / 0,35 kg	54530 31600, 54530 25000 (10) OEM
10HY1100 IN PREPARATION	Ball Joint		51760 3K000
10HY1110 IN PREPARATION	Ball Joint Upper		54430 3F600
10HY3300	Ball Joint Lower Left	c: Ø17.95 / 0,8 kg	54530 D7000, 54530 C1000 (1) OEM
10HY3301	Ball Joint Lower Right	c: Ø17.95 / 0,8 kg	54530 C1100, 54530 D7100 (1) OEM
10KI3000	Ball Joint	c:Ø18 / 0,96 kg	54530 B2100, 54530 2T010 (2) OEM
17HY0500	Tie Rod End	c:Ø13,4 th:FM14x1,5 RHT / 0,36 kg	56820 29500, 56820 37000 (5) OEM
17HY3302 IN PREPARATION	Tie Rod End Left		56820 G8000
17HY3303 IN PREPARATION	Tie Rod End Right		56825 G8090
17KI1100	Tie Rod End Left	L: 233 cr: 1:8 c: Ø13.4 tp: M10x1.25 th: FM16x1.5 / 0,89 kg	56820 2T000, 56820 2T190 (5) OEM
17KI1101	Tie Rod End Right	L: 233 cr: 1:8 c: Ø13.4 tp: M10x1.25 th: FM16x1.5 / 0,89 kg	56820 2T500, 56820 3S500 (5) OEM
20HY1105 IN PREPARATION	Axial Joint		57724 3K000
20HY1120	Axial Joint	tp: MM16x1.5 / tp: FM16x1.5 / L: 195 / 0,56 kg	57724 2T000
26HY0610 IN PREPARATION	Stabiliser Link	0 kg	54830 34000, 54830 34500 (1) OEM
26HY1100 IN PREPARATION	Stabiliser Link		45830 3K000, 54830 3K000 (1) OEM
26HY1105 IN PREPARATION	Stabiliser Link Rear		55530 3K000, 55530 3K001 (1) OEM
26KI1100	Stabiliser Link	L: 270 tp: MM12x1.5 / 0,43 kg	54830 3Q000
26KI1102	Stabiliser Link Left	L: 352 tp: MM12x1.5 / 0,48 kg	54830 2T000

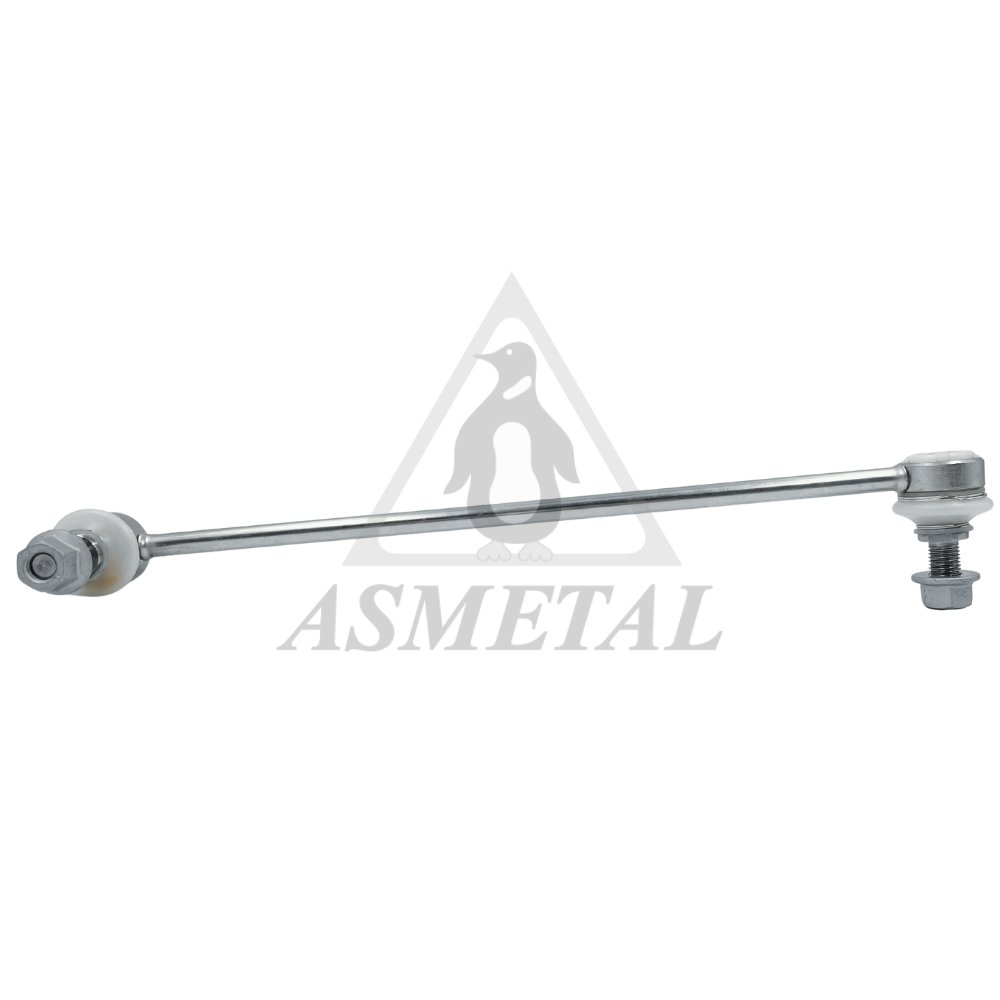

26KI1103	Stabiliser Link Right	L: 352 tp: MM12x1.5 / 0,48 kg	54840 2T000
26KI3010	Stabiliser Link Rear	L:87mm / 0,38 kg	55540 3U800, 55530 3R000 (4) OEM
26KI3300 IN PREPARATION	Stabiliser Link Left		54830 C1000, 54830 E6000
26KI3301 IN PREPARATION	Stabiliser Link Right		54840 C1000, 54840 E6000
38HY1100	Silentblock for TCA	di:Ø12.1 do:Ø38.2 L:55mm / 0,23 kg	54500 2W200, 54551 C5000 (1) OEM*
38HY1101	Silentblock for TCA	di:Ø14.3 do: Ø70.2 L:60mm / 0,41 kg	54584 2T000, 54584 2W000
38HY1120	Stabiliser Mounting	di:Ø13.5 L:45mm / 0,08 kg	55513 3S000
