10IS1000
|
Ball Joint Upper |
th:M14x1.5 RHT cr:1/8 c:Ø17.5 / 0,78 kg |
8 94459 453 3, 8 94459 453 2 (2) OEM |
 |
10IS5500
IN PREPARATION
|
Ball Joint Upper |
|
8 97235 777 0, 8 98005 827 0 |
 |
10OP1000
|
Ball Joint Upper |
th:M14x1.5 RHT cr:1/8 c:Ø17.5 / 0,84 kg |
94 374 424, 8 94374 424 0 (3) OEM |
 |
10OP1005
|
Ball Joint Lower |
th:M18x1.5 RHT cr:1/8 c:Ø20.6 / 1,6 kg |
3 52 828, 98005875 (9) OEM |
 |

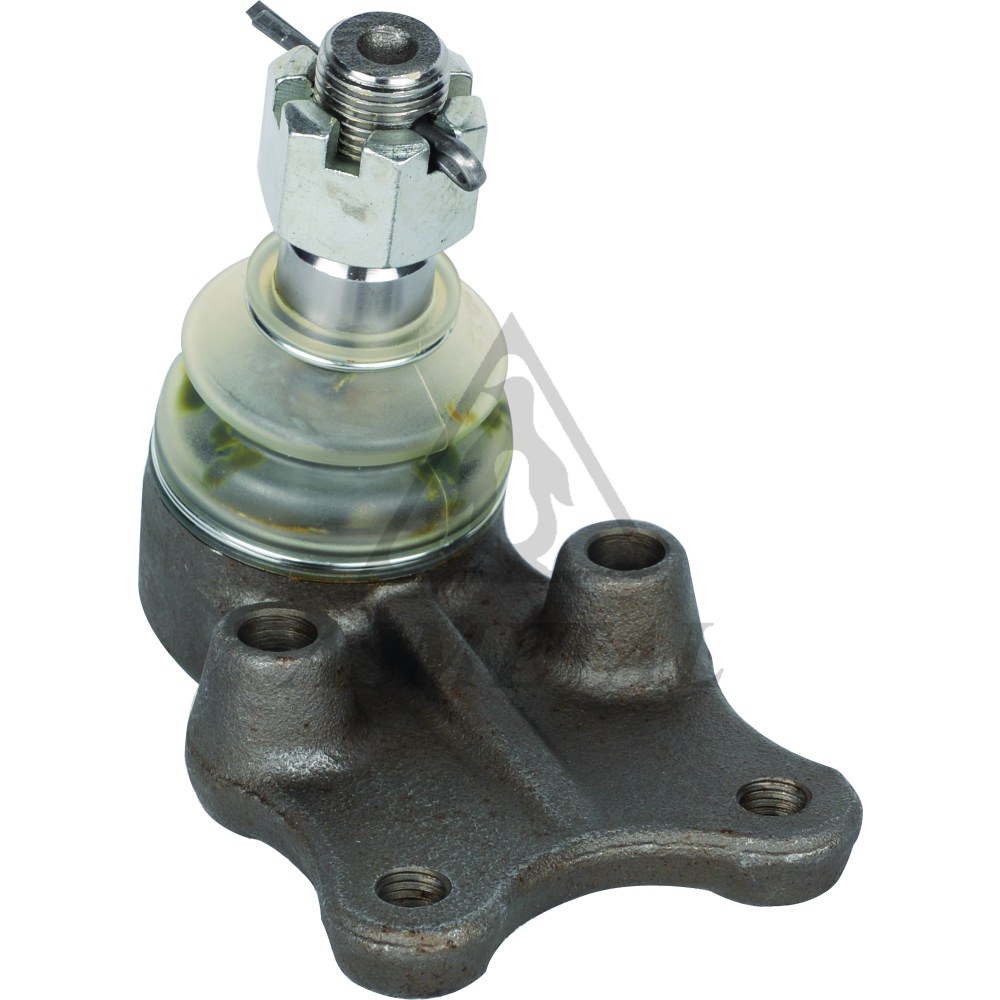

10OP1100
|
Ball Joint Lower |
th:M18x1.5 RHT cp:1/8 cs:Ø20,6 / 1,33 kg |
8 94459 464 3, 8 94459 464 1 (3) OEM |
 |
17IS1030
|
Tie Rod End Right |
c:Ø18 th:MM20x1,5 RHT / 0,62 kg |
389 990 224 101 |
 |
17IS1031
OUT OF SERVICE
|
Tie Rod End Right |
th:FM10x1 RHT / 0 kg |
894 151 326 001 |
 |
17IS1050
|
Tie Rod End Left |
L:97.5 cr:1/10 c:Ø18.05 tp:M16x1.5 th:MM20x1.5 LHT / 0,62 kg |
389 990 225 101 |
 |
17IS1051
OUT OF SERVICE
|
Tie Rod End Left |
th:MM10x1 LHT / 0 kg |
894 151 327 001 |
 |
17IS5510
IN PREPARATION
|
Tie Rod End |
|
8 97304 855 0, 8 98055 746 0 (1) OEM |
 |
17OP0500
|
Tie Rod End Outer |
L:75.5 cr:1/8 c:Ø16.1 tp:M14x1.5 th:FM14x1.5 LHT / 0,42 kg |
8 97020 954 2, 8 97020 954 1 (10) OEM |
 |
17OP0501
|
Tie Rod End Inner |
L:75.5 cr:1/8 c:Ø16.1 tp:M14x1.5 th:FM14x1.5 RHT / 0,42 kg |
8 97020 953 0, 8 97020 953 1 (11) OEM |
 |
20IS5554
IN PREPARATION
|
Axial Joint |
|
8 97304 853 0 |
 |
26IS5510
IN PREPARATION
|
Stabiliser Link Rear |
|
8 97944 575 0, 8 97214 822 1 |
 |
26OP1006
|
Stabiliser Link Left |
L:150 tp:M10x1.25 RHT / 0,27 kg |
8 97018 228 2, 53 52 019 (3) OEM |
 |
26OP1007
|
Stabiliser Link Right |
L:150 tp:M10x1.25 RHT / 0,27 kg |
8 97018 227 2, 3 50 608 (3) OEM |
