10IV37
|
Ball Joint Upper |
th:M16x1.5 RHT cr:1/6 c:Ø16.7 / 0,56 kg |
5801 564 293 |
 |
10IV38
|
Ball Joint Lower |
th:M18x1.5 RHT:cr:1/6 c:Ø19,7 do:Ø45,285 / 0,64 kg |
5801 564 316 |
 |
10IV40
|
Ball Joint |
tp:M18x1.5 RHT cr:1/10 c:Ø21.4 do:Ø48 / 0,73 kg |
93 802 242, 93 807 320 (5) OEM |
 |
10IV4010
|
Ball Joint |
tp:M18x1.5 RHT cr:1/10 c:Ø21.6 do:Ø48 / 0,73 kg |
504 212 586, 504 212 584 (1) OEM |
 |
10IV9005
|
Ball Joint Upper |
th:M16x1.5 RHT cr:1/10 c:Ø18 do:Ø44.25 / 0,56 kg |
500 334 714, 500 344 887 (4) OEM |
 |
10IV9006
|
Ball Joint Lower |
th:M18x1.5 RHT cr:1/10 c:Ø21 do:Ø45.3 / 0,62 kg |
500 334 717, 4255 1289 (2) OEM |
 |
17IV0500
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø23,4 th:MM30x1,5 RHT / 1,29 kg |
MAK 1296, ACHF 242 (65) OEM |
 |
17IV0501
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø23,4 th:MM30x1,5 LHT / 1,29 kg |
0311 300, 0607 998 (55) OEM |
 |
17IV1000
|
Tie Rod End Inner |
c:Ø14,3 th:MM16x1,5 RHT / 0,43 kg |
17IV1000 |
 |
17IV2000
|
Ball Socket for Gearshift |
c:Ø16,1 / 0,27 kg |
8564527 |
 |
17IV2001
|
Ball Socket for Gearshift |
c:Ø12,25 th:MM16x1,5 RHT / 0,31 kg |
8558220 |
 |
17IV2030
|
Tie Rod End Right |
L:103 cr:1/10 c:Ø19.7 tp:M18x1.5 th:MM28x1.5 RHT / 0,99 kg |
110 196, 0607 452 (35) OEM |
 |
17IV2031
|
Tie Rod End |
L:104 cr:1/10 c:Ø19.7 tp:M18x1.5 th:MM24x1.5 RHT / 0,9 kg |
001 330 00 35, 000 330 98 35 (14) OEM |
 |
17IV2050
|
Tie Rod End Left |
L:103 cr:1/10 c:Ø19.7 tp:M18x1.5 th:MM28x1.5 RHT / 0,99 kg |
ACU9242, 1228114 (32) OEM |
 |
17IV2051
|
Tie Rod End |
L:104 cr:1/10 c:Ø19.7 tp:M18x1.5 th:MM24x1.5 LHT / 0,9 kg |
002 330 13 35, 000 330 99 35 (14) OEM |
 |
17IV2501
|
Tie Rod End |
c:Ø12,2 th:MM18x1,5 RHT / 0,32 kg |
|
 |

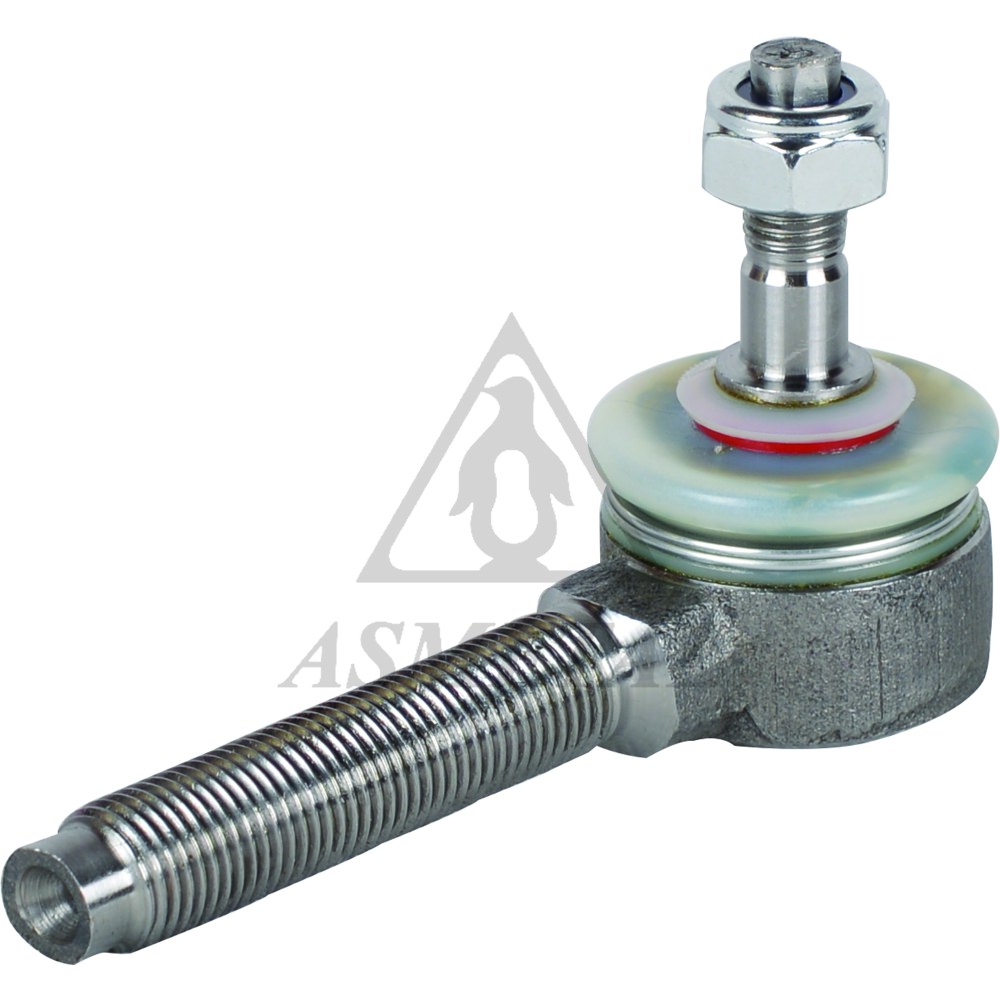

17IV3001
OUT OF SERVICE
|
Tie Rod End |
th:MM14x1,5 RHT / 0,3 kg |
858 2313 |
 |
17IV3005
|
Tie Rod End |
c:Ø23,5 th:MM28x1,5 RHT / 1,5 kg |
8582332, 8565366 (2) OEM |
 |

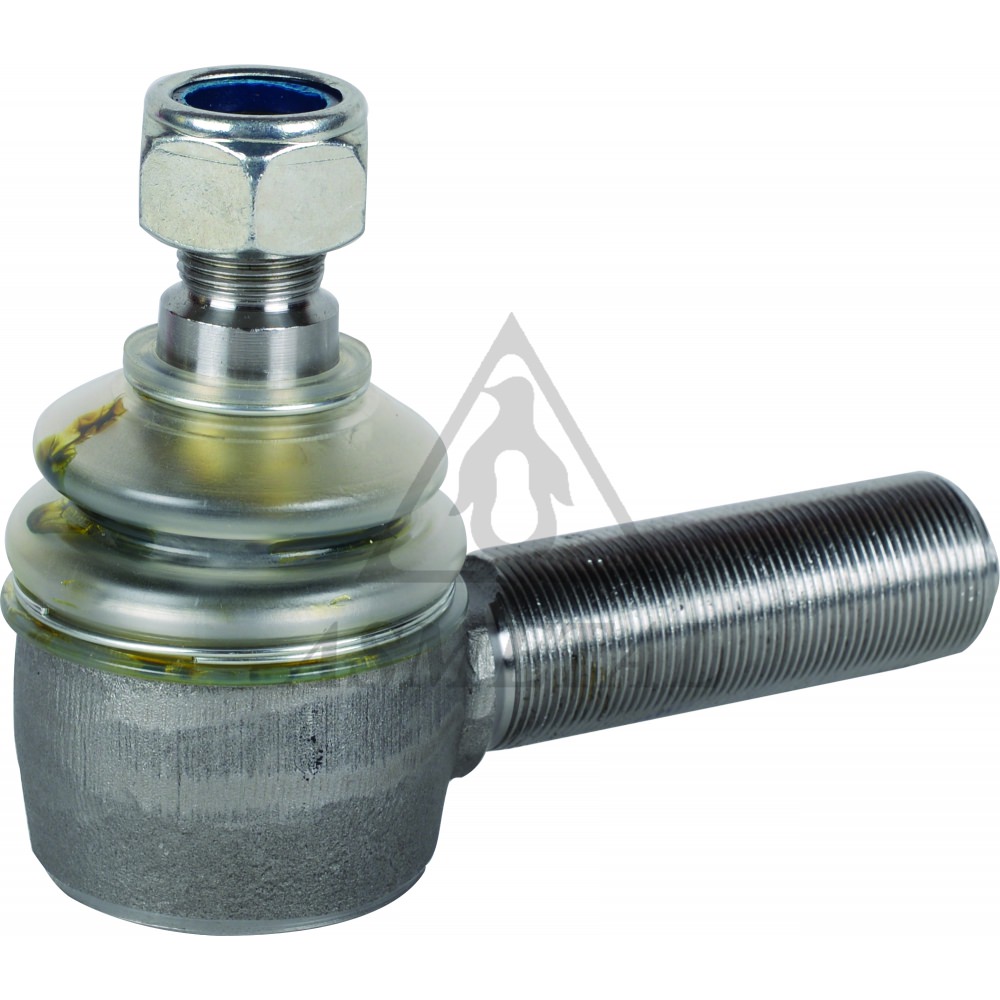

17IV3006
|
Tie Rod End |
c:Ø23,5 th:MM28x1,5 LHT / 1,5 kg |
8582333, 4688942 |
 |
17IV35
NEW
|
Tie Rod End |
L: 100 C: Ø18,2 CR: 1/10 TH: FM16x1,5 TP: M14X1,5 / 0,56 kg |
4256 9564 |
 |
17IV36
|
Tie Rod End |
L:88 cr:1/10 c:Ø18.2 tp:M14x1.5 th:FM16x1.5 RHT / 0,52 kg |
4256 9562 |
 |
17IV37
|
Tie Rod End |
L:109 cr:1/6 c:Ø16.05 tp:M14x1.5 th:MM24x1.5 LHT / 0,6 kg |
4256 9563 |
 |
17IV38
|
Tie Rod End |
L:80 cr:1/10 c:Ø21.05 tp:M18x1.5 th:FM20x1.5 LHT / 1,08 kg |
858 0735, 500 337 201 |
 |
17IV39
|
Tie Rod End |
L:71 cr:1/10 c:Ø21.6 tp:M18x1.5 th:FM20x1.5 RHT / 0,98 kg |
9380 2209, 9380 4060 |
 |
17IV39GR
|
Tie Rod End |
L:71 cr:1/10 c:Ø21.6 tp:M18x1.5 th:FM20x1.5 RHT / 0,96 kg |
9380 2209, 9380 4060 |
 |
17IV40
|
Tie Rod End |
L:79 cr:1/10 c:Ø16.4 tp:M14x1.5 th:FM16x1.5 RHT / 0,5 kg |
93 804 059, 93 800 662 (3) OEM |
 |
17IV41
|
Tie Rod End |
L:80 cr:1/10 c:Ø18.2 tp:M14x1.5 th:FM16x1.5 RHT / 0,58 kg |
9382 7648, 4255 6991 (4) OEM |
 |
17IV42
|
Tie Rod End |
L:82 tp:M10x1.25 th:MM14x1.5 RHT / 0,27 kg |
857 8493 |
 |
17IV43
|
Tie Rod End |
c:Ø10,8 th:MM14x1,5 RHT / 0,27 kg |
7399 424, 0386 930 (19) OEM |
 |
17IV45
|
Tie Rod End |
L:91 c:Ø10 tp:M10x1.25 th:MM16x1.5 RHT / 0,31 kg |
8578492, 857 8492 |
 |
17IV46
|
Tie Rod End |
L:90 cr:1/10 c:Ø10.85 tp:M10x1 th:MM16x1.5 RHT / 0,3 kg |
343 5788, 4204 2912 |
 |
17IV50
|
Tie Rod End |
c:19,7 th:MM25x1,5 LHT / 1,32 kg |
4663791, 466 3791 (1) OEM |
 |
17IV51
|
Tie Rod End |
c:19,7 th:MM25x1,5 RHT / 1,32 kg |
4663787, 466 3787 (1) OEM |
 |
17IV53
OUT OF SERVICE
|
Tie Rod End |
th:MM10x1,5 RHT / 0 kg |
|
|
17IV54
OUT OF SERVICE
|
Tie Rod End |
th:MM10x1,5 LHT / 0 kg |
|
 |
17MN1000
OUT OF SERVICE
|
Tie Rod End Left |
th:MM30x1,5 LHT / 1,73 kg |
1611088, 1329134 (82) OEM |
 |
17MN1001
OUT OF SERVICE
|
Tie Rod End Right |
th:MM30x1,5 RHT / 1,73 kg |
S5004025, ACHF060 (105) OEM |
 |
17MN1500
OUT OF SERVICE
|
Ball Socket for Gearshift Left |
0 kg |
0 592 106, 0 656 084 (12) OEM |
|
17MN1501
OUT OF SERVICE
|
Ball Socket for Gearshift Right |
0 kg |
0 589 333, 0 656 085 (11) OEM |
 |
17MR7010
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø27,2 th:MM30x1,5 RHT / 1,78 kg |
S5004025, ACHF060 (106) OEM |
 |
17MR7011
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø27,2 th:MM30x1,5 LHT / 1,78 kg |
1611088, 1329134 (82) OEM |
 |
20IV0500
|
Axial Joint |
L:331 tp:M16x1.5 th:MM16x1.5 RHT / 0,8 kg |
4253 2977, 9946 3268 |
 |
20IV0501
|
Axial Joint |
L:343 tp:M16x1.5 th:MM16x1.5 RHT / 0,87 kg |
5003 16265*, 5003 16264* (2) OEM |
 |
20IV1000
|
Axial Joint |
L:346 tp:M16x1.5 th:MM18x1.5 RHT / 0,81 kg |
5 0030 6763, 299 2593 |
 |
20IV37
|
Axial Joint |
L:330 tp:M16x1.5 th:MM18x1.5 RHT / 0,9 kg |
4256 9566 |
 |
22IV5050
|
Center Rod |
th1:M20x1.5 RHT / 5,5 kg |
9846 7459, 9840 2544 |
 |
26IV0100
|
Stabiliser Link Left |
L:50 tp:M10x1.5 RHT / 0,24 kg |
500 383 976 |
 |
26IV0101
|
Stabiliser Link Right |
L:50 tp:M10x1.5 RHT / 0,24 kg |
500 383 975 |
 |
26IV0110
|
Stabiliser Link Rear |
L:130 / 0,37 kg |
504 092 614 |
 |
30IV9004
NEW
|
Track Control Arm Upper Left |
3,46 kg |
500 379 801 |
 |
30IV9005
NEW
|
Track Control Arm Upper Right |
3,46 kg |
500 379 802 |
 |
30IV9006
NEW
|
Track Control Arm Lower Left |
7,4 kg |
500 334 717 |
 |
30IV9007
NEW
|
Track Control Arm Lower Right |
7,4 kg |
500 334 716 |
 |
38IV16
NEW
|
Stabiliser Mounting |
di:Ø16 / 0,04 kg |
0 9380 3960, 9380 3960 |
 |
38IV18
NEW
|
Stabiliser Mounting |
di:Ø18 / 0,04 kg |
0 0858 1022, 0858 1022 (1) OEM |
 |
38IV20
NEW
|
Stabiliser Mounting |
di:Ø20 / 0,03 kg |
0 9380 2631, 9380 2631 |
 |
38IV22
NEW
|
Stabiliser Mounting |
di:Ø22 / 0,03 kg |
93801624 |
 |
38IV24
NEW
|
Stabiliser Mounting |
di:Ø24 / 0,03 kg |
93801623 |
 |
38IV36
NEW
|
Stabiliser Mounting |
di:Ø35 / 0,04 kg |
858 5819, 0 0858 5819 (1) OEM |
 |
38IV3920
NEW
|
Stabiliser Mounting |
di:Ø20 / 0,08 kg |
0 9380 2248, 9380 2248 |
 |
38IV40
|
Silentblock for TCA |
L:55 di:Ø16.5 do:Ø50 / 0,29 kg |
5 0403 9506 |
 |
38IV4016
NEW
|
Stabiliser Mounting |
di:Ø16 / 0,05 kg |
9380 3961, 0 9380 3961 |
 |
38IV4018
NEW
|
Stabiliser Mounting |
di:Ø18 / 0,05 kg |
858 1021, 0 0858 1021 (1) OEM |
 |
38IV4020
NEW
|
Stabiliser Mounting |
di:Ø20 / 0,04 kg |
0 9380 2629, 9380 2629 |
 |
38IV4022
NEW
|
Stabiliser Mounting |
di:Ø22 / 0,04 kg |
9380 1556, 0 9380 1556 |
 |
38IV4028
NEW
|
Stabiliser Mounting |
di:Ø28 / 0,19 kg |
0 0856 0291, 000856 0291 (3) OEM |
 |
40IV4000
|
Drive Shaft Center Bearing |
L:168.5 di:Ø40 / 1,16 kg |
4256 1251, 0 4253 5254 (7) OEM |
 |
40IV4001
|
Drive Shaft Center Bearing |
L:168.5 di:Ø30 / 0,92 kg |
4256 9349 |
