ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

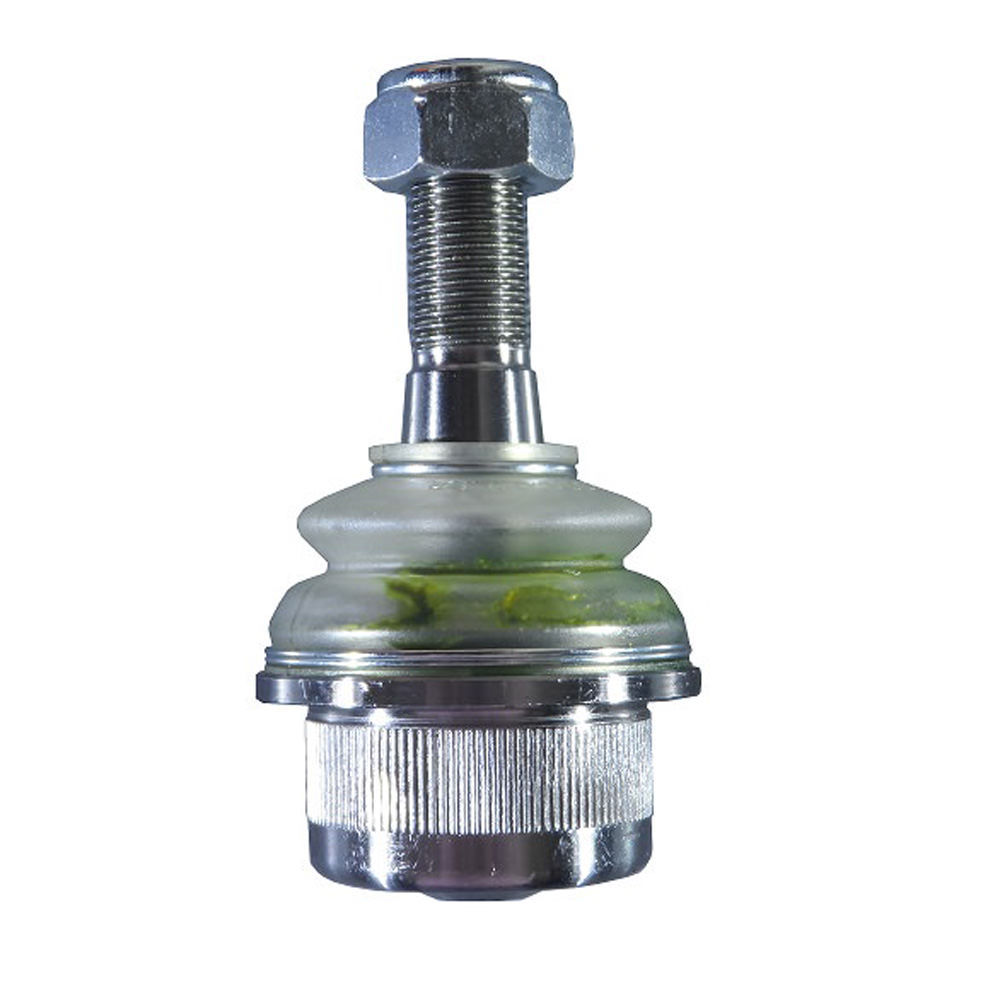

10IV37	Ball Joint Upper	th:M16x1.5 RHT cr:1/6 c:Ø16.7 / 0,56 kg	5801 564 293

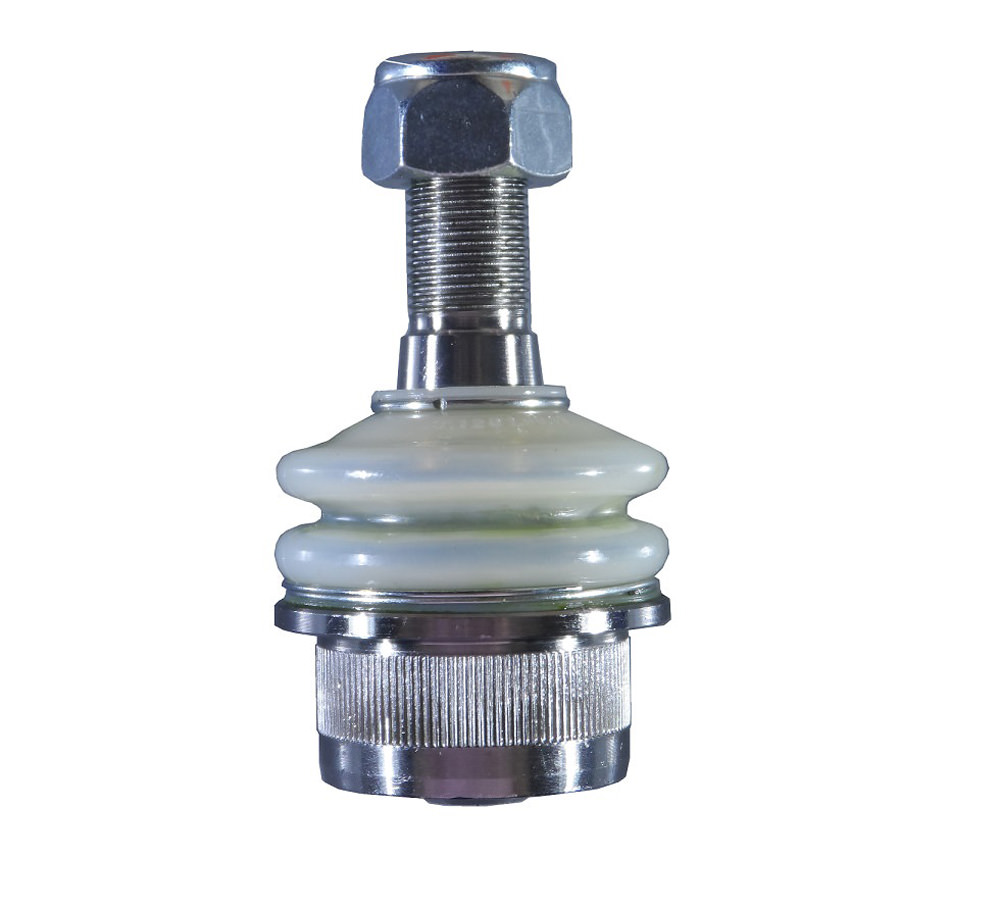

10IV38	Ball Joint Lower	th:M18x1.5 RHT:cr:1/6 c:Ø19,7 do:Ø45,285 / 0,64 kg	5801 564 316
10IV40	Ball Joint	tp:M18x1.5 RHT cr:1/10 c:Ø21.4 do:Ø48 / 0,73 kg	93 802 242, 93 807 320 (5) OEM
10IV4010	Ball Joint	tp:M18x1.5 RHT cr:1/10 c:Ø21.6 do:Ø48 / 0,73 kg	504 212 586, 504 212 584 (1) OEM
10IV9005	Ball Joint Upper	th:M16x1.5 RHT cr:1/10 c:Ø18 do:Ø44.25 / 0,56 kg	500 334 714, 500 344 887 (4) OEM

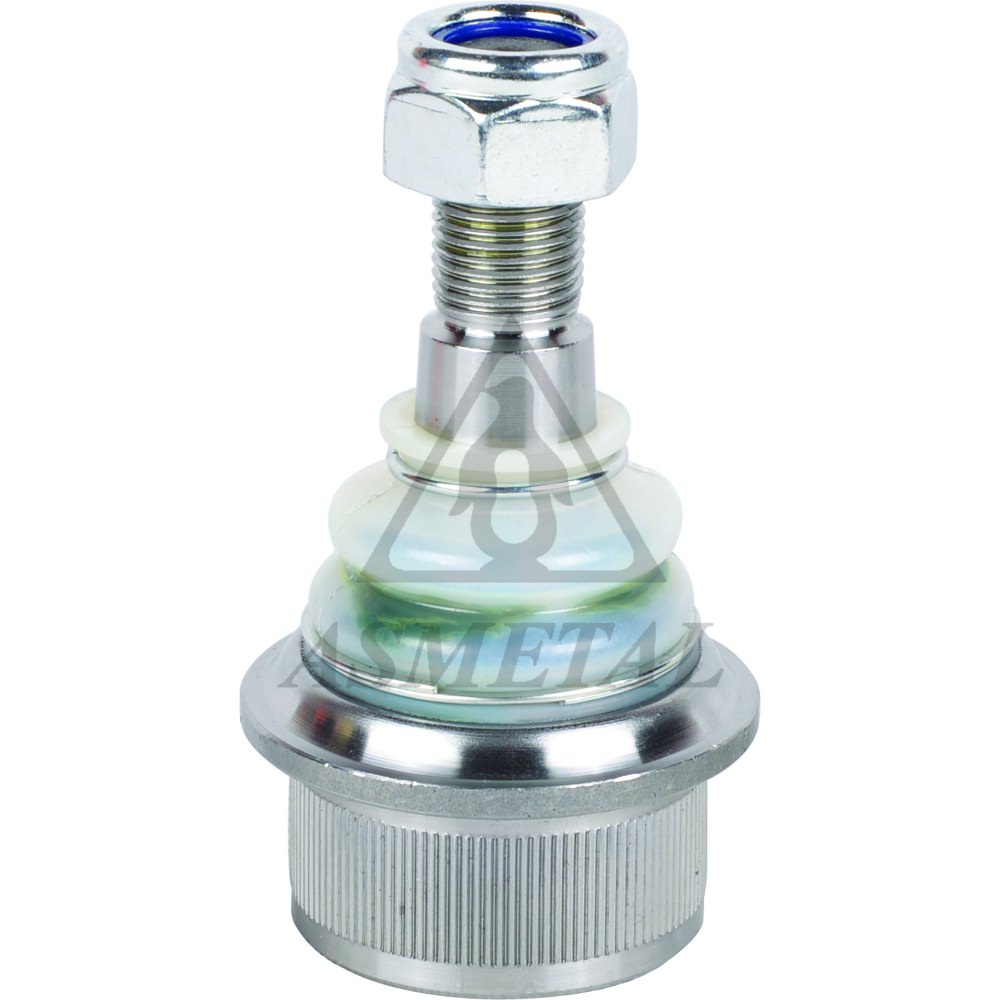

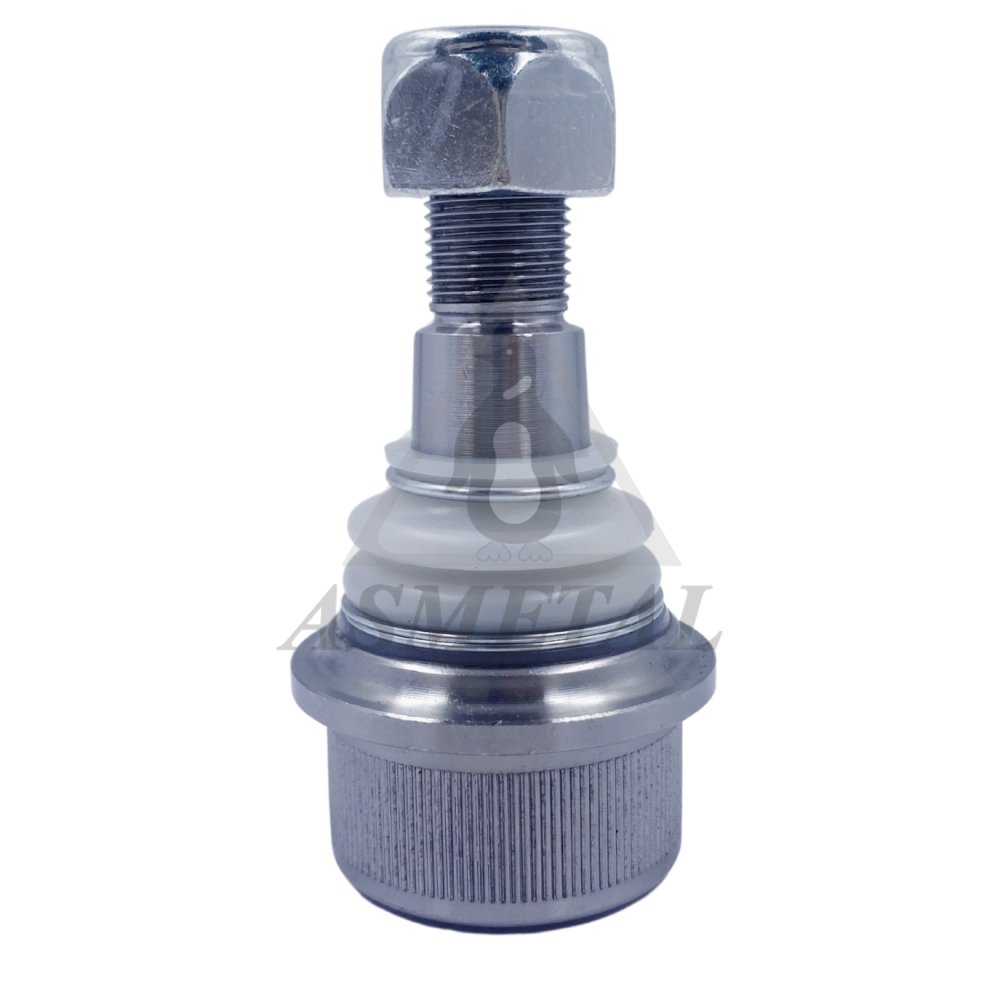

10IV9006	Ball Joint Lower	th:M18x1.5 RHT cr:1/10 c:Ø21 do:Ø45.3 / 0,62 kg	500 334 717, 4255 1289 (2) OEM
17IV35 NEW	Tie Rod End	L: 100 C: Ø18,2 CR: 1/10 TH: FM16x1,5 TP: M14X1,5 / 0,56 kg	4256 9564

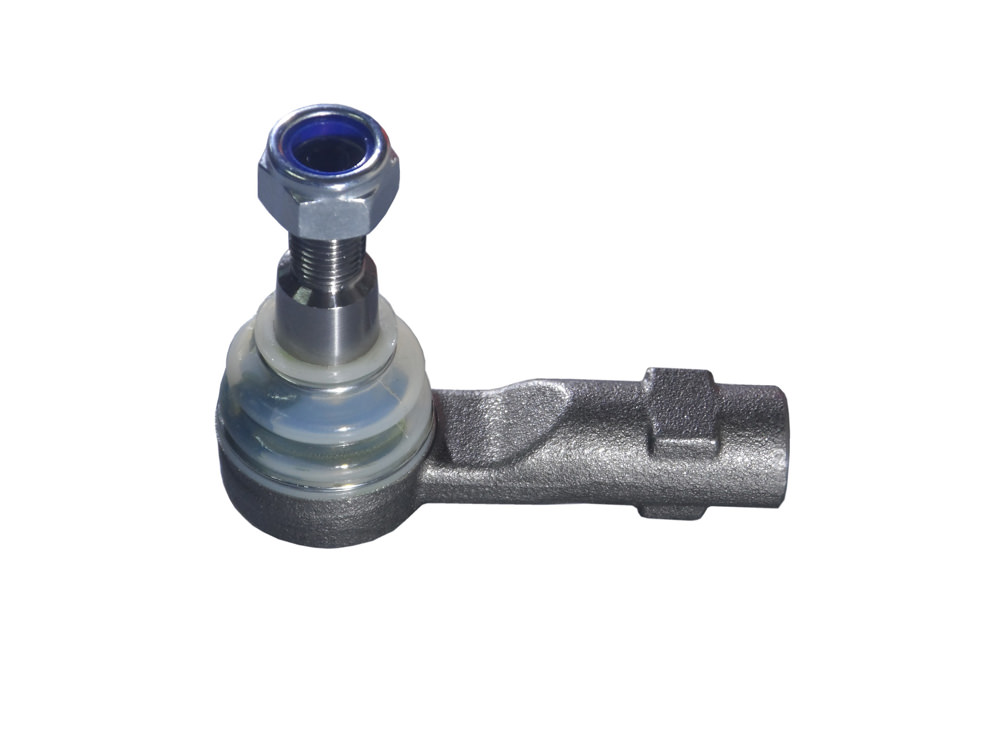

17IV36	Tie Rod End	L:88 cr:1/10 c:Ø18.2 tp:M14x1.5 th:FM16x1.5 RHT / 0,52 kg	4256 9562

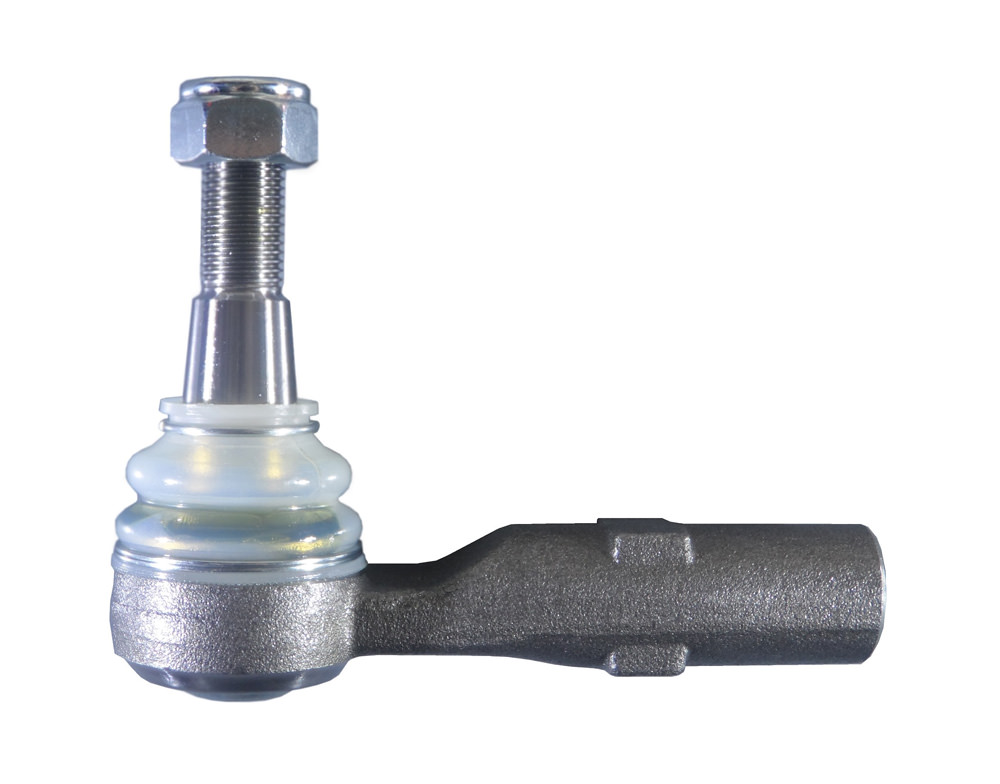

17IV37	Tie Rod End	L:109 cr:1/6 c:Ø16.05 tp:M14x1.5 th:MM24x1.5 LHT / 0,6 kg	4256 9563

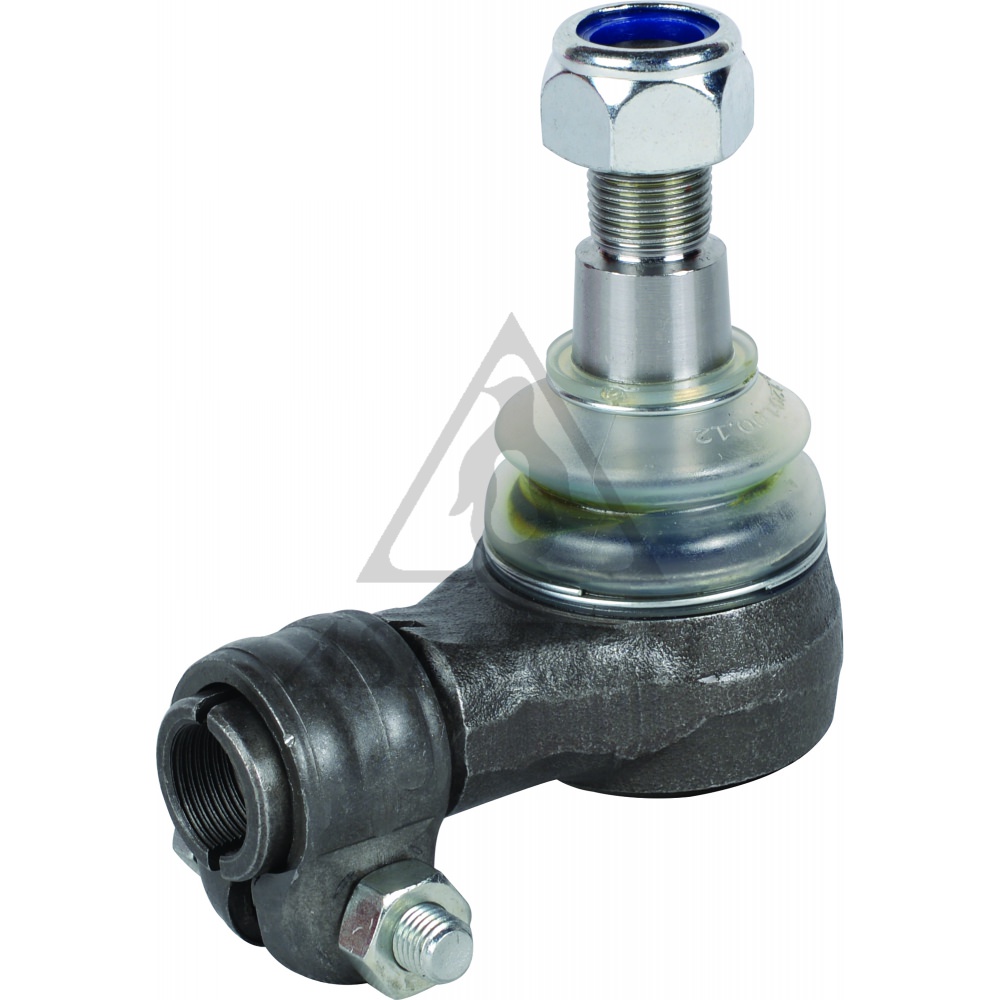

17IV38	Tie Rod End	L:80 cr:1/10 c:Ø21.05 tp:M18x1.5 th:FM20x1.5 LHT / 1,08 kg	858 0735, 500 337 201

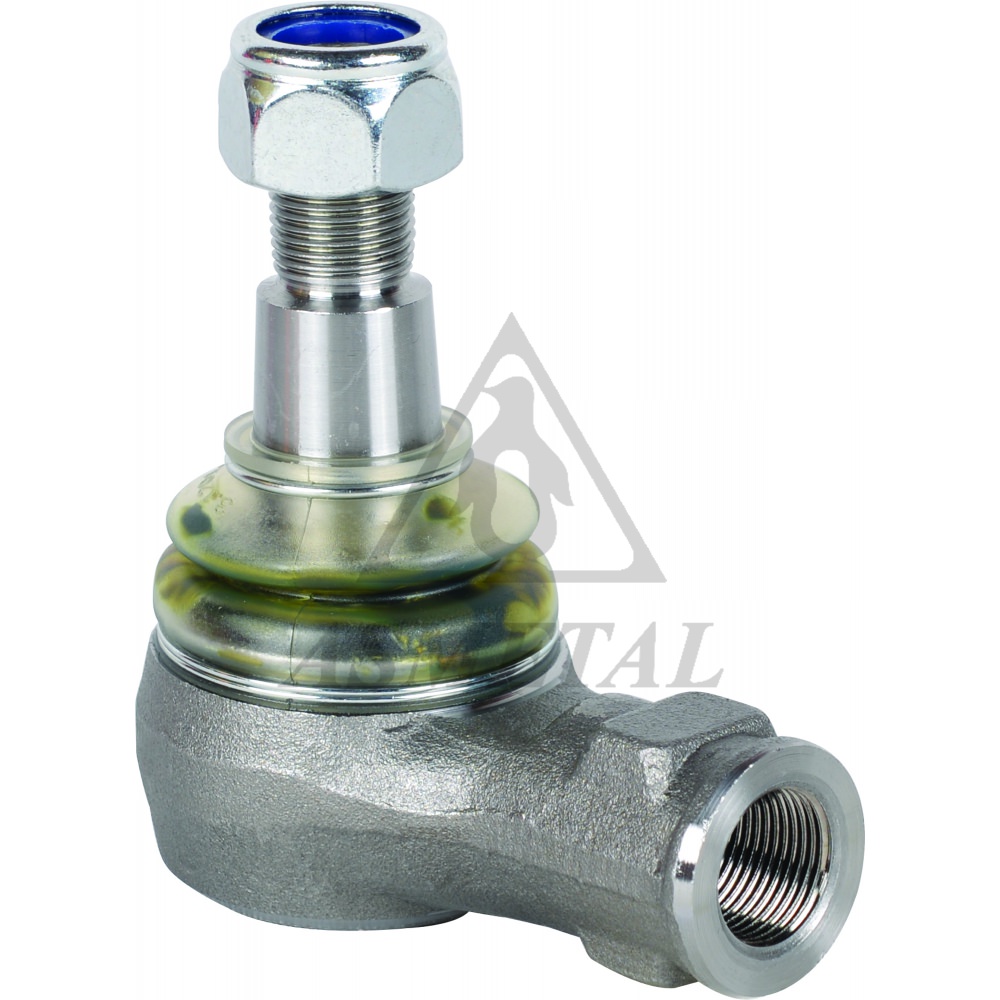

17IV39	Tie Rod End	L:71 cr:1/10 c:Ø21.6 tp:M18x1.5 th:FM20x1.5 RHT / 0,98 kg	9380 2209, 9380 4060

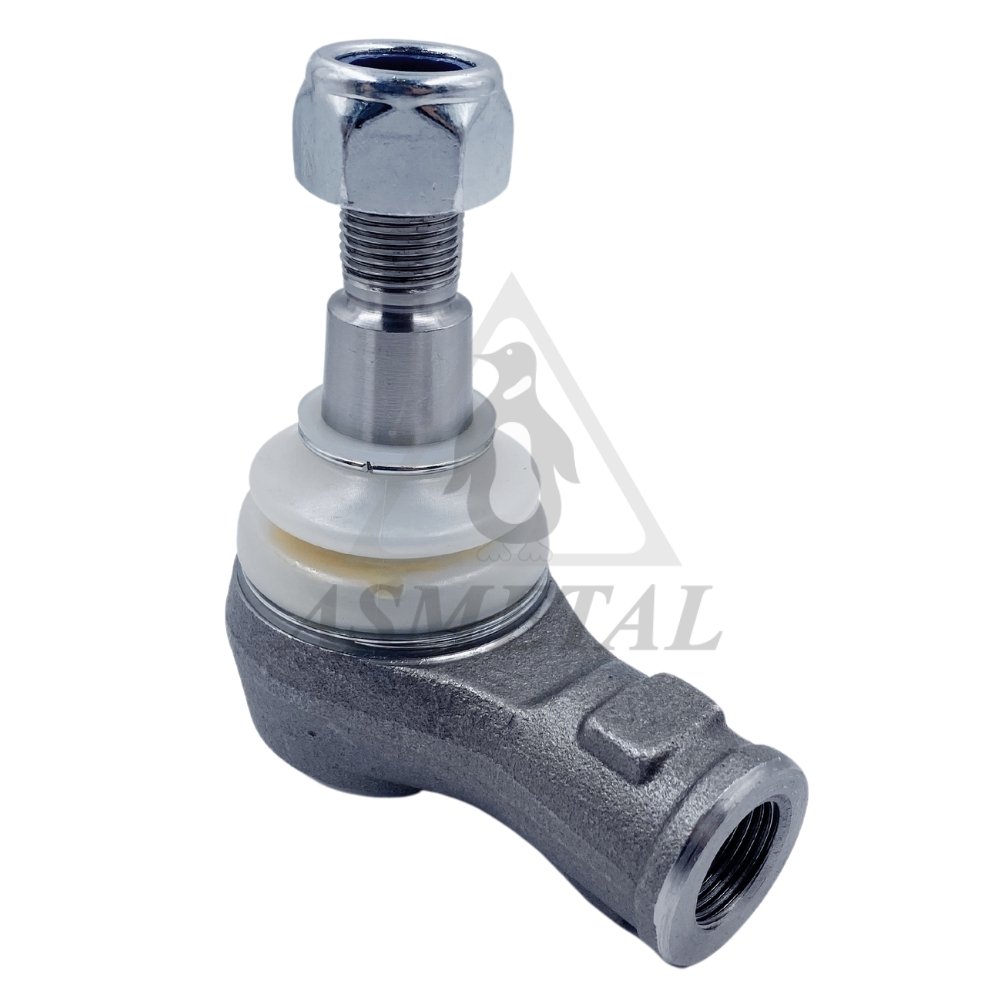

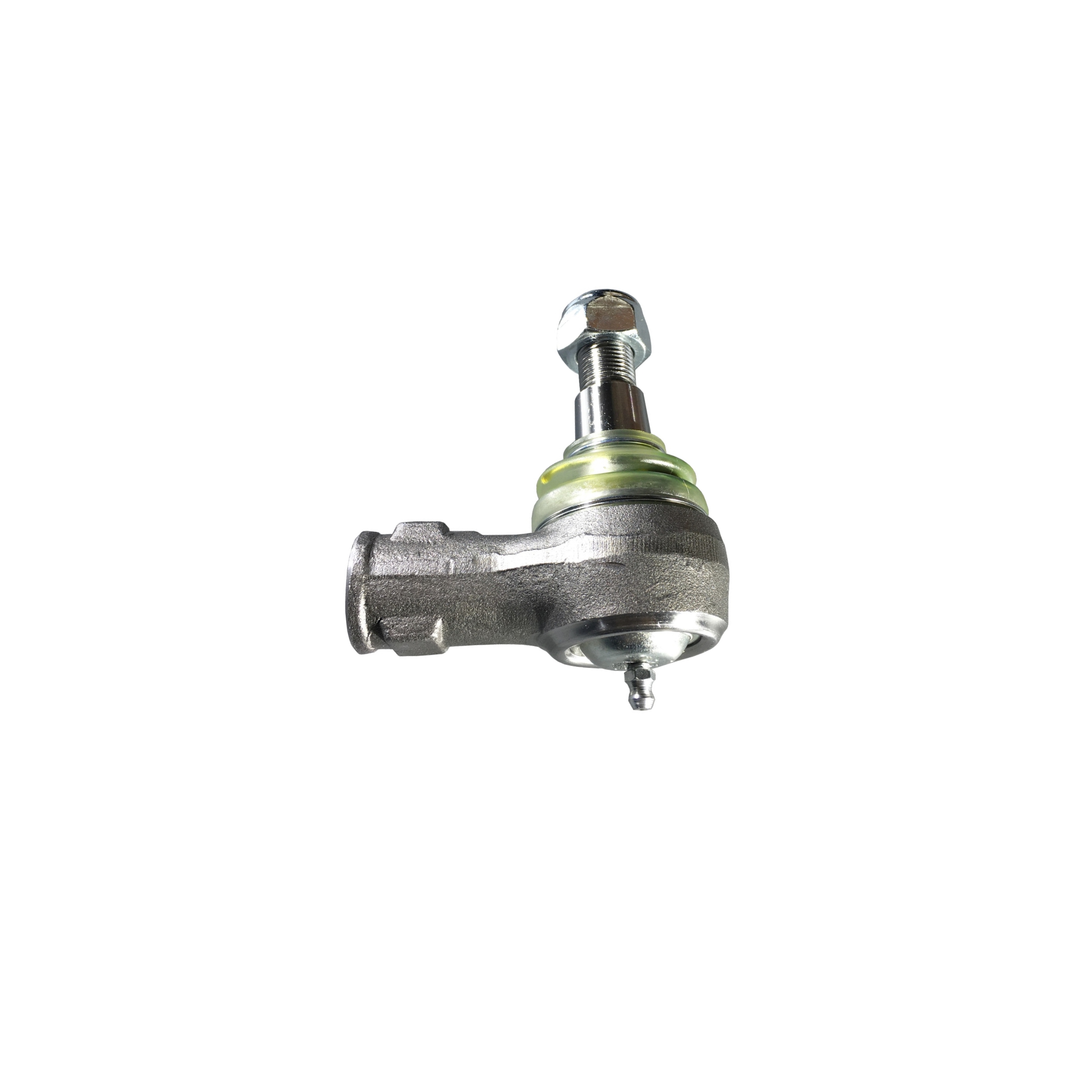

17IV39GR	Tie Rod End	L:71 cr:1/10 c:Ø21.6 tp:M18x1.5 th:FM20x1.5 RHT / 0,96 kg	9380 2209, 9380 4060

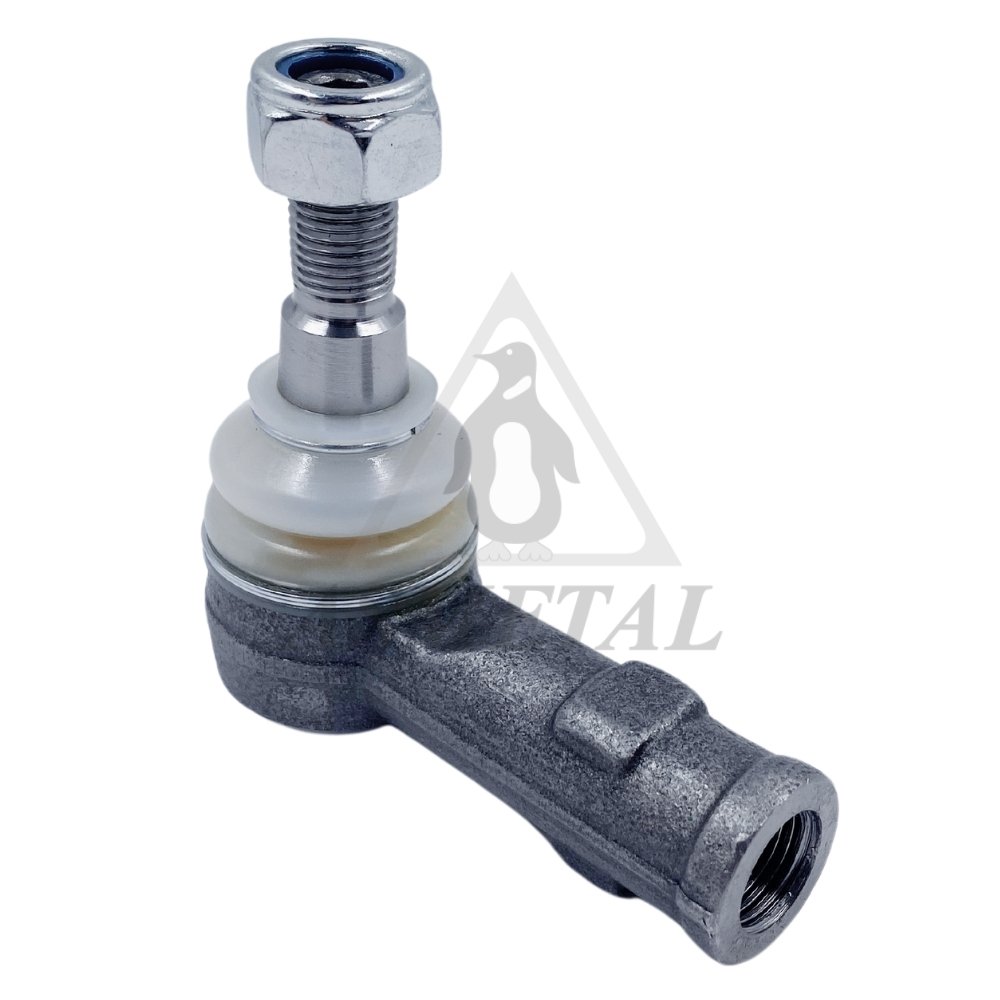

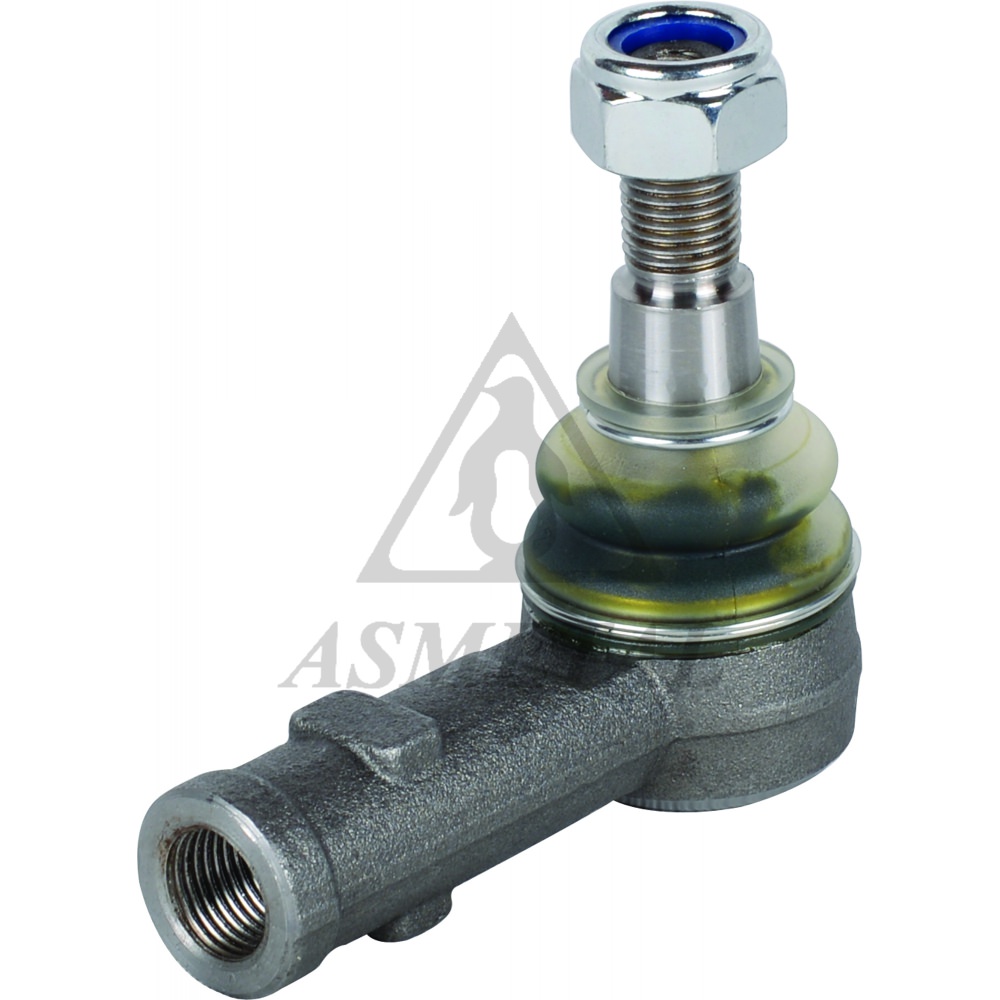

17IV40	Tie Rod End	L:79 cr:1/10 c:Ø16.4 tp:M14x1.5 th:FM16x1.5 RHT / 0,5 kg	93 804 059, 93 800 662 (3) OEM

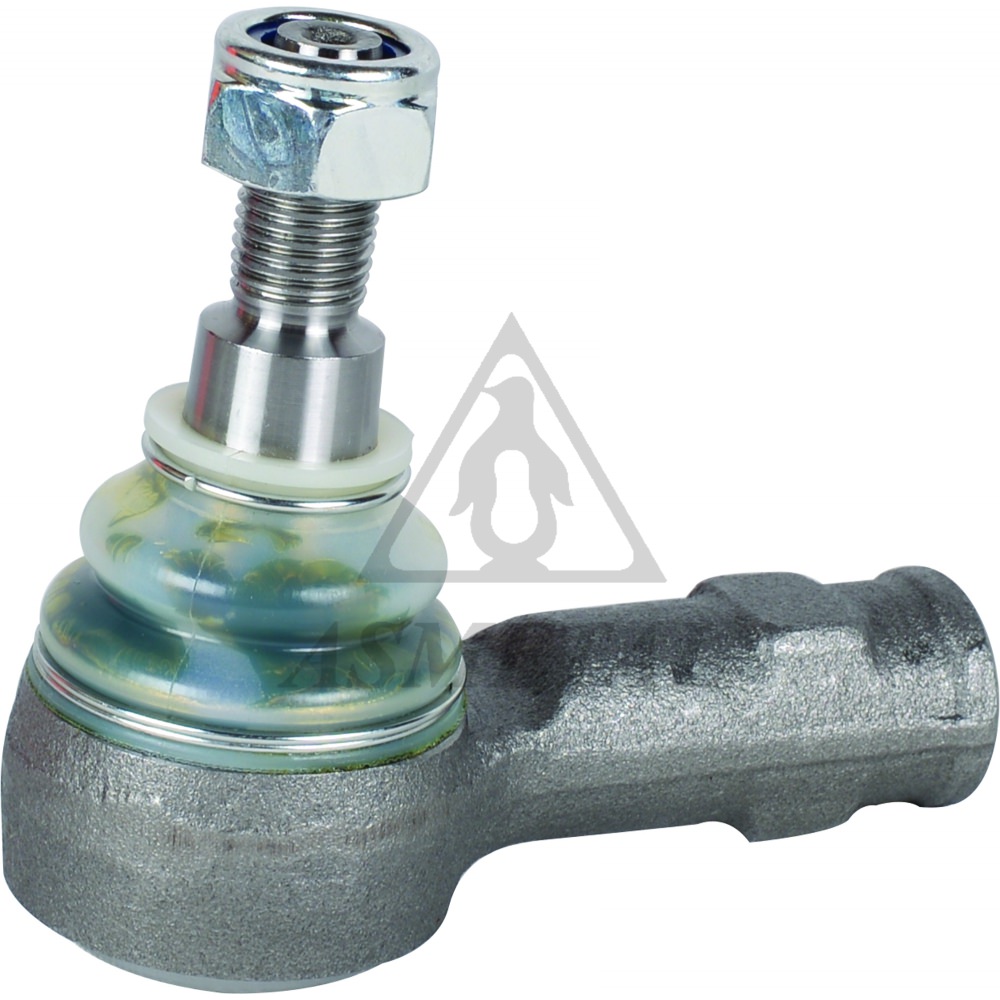

17IV41	Tie Rod End	L:80 cr:1/10 c:Ø18.2 tp:M14x1.5 th:FM16x1.5 RHT / 0,58 kg	9382 7648, 4255 6991 (4) OEM
20IV0500	Axial Joint	L:331 tp:M16x1.5 th:MM16x1.5 RHT / 0,8 kg	4253 2977, 9946 3268

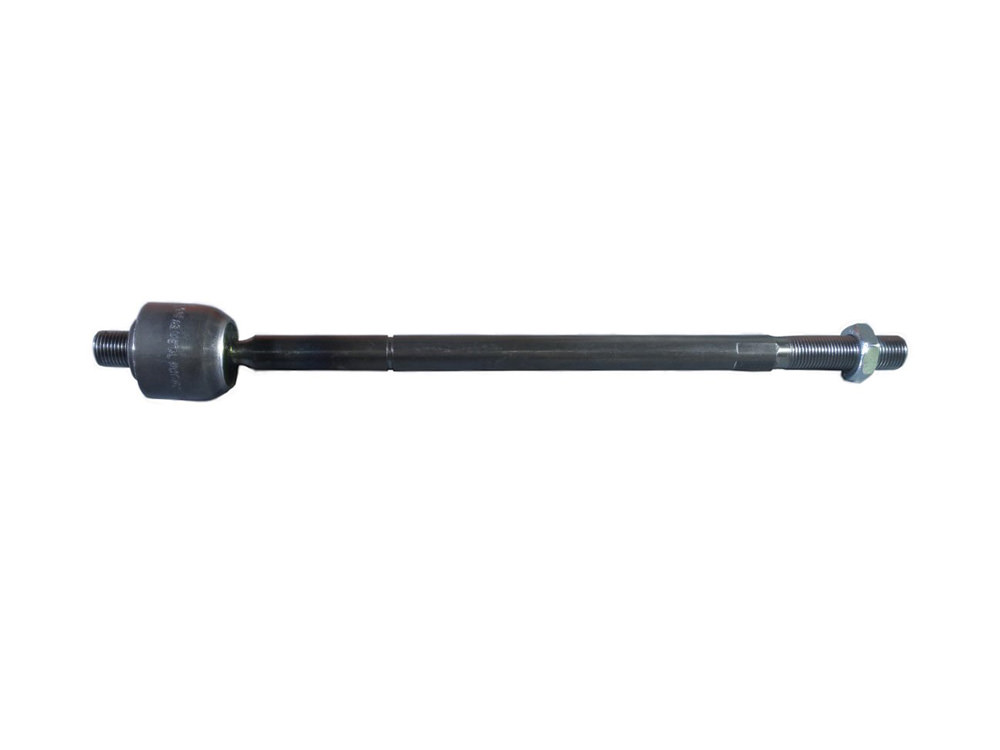

20IV0501	Axial Joint	L:343 tp:M16x1.5 th:MM16x1.5 RHT / 0,87 kg	5003 16265, 5003 16264 (2) OEM
20IV1000	Axial Joint	L:346 tp:M16x1.5 th:MM18x1.5 RHT / 0,81 kg	5 0030 6763, 299 2593

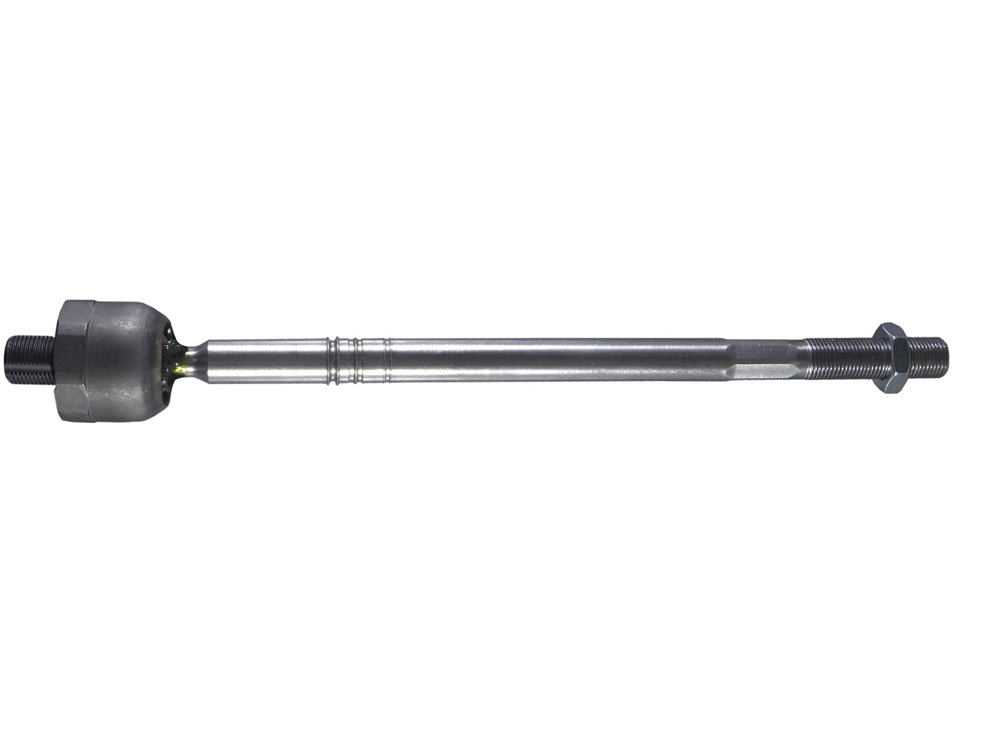

20IV37	Axial Joint	L:330 tp:M16x1.5 th:MM18x1.5 RHT / 0,9 kg	4256 9566

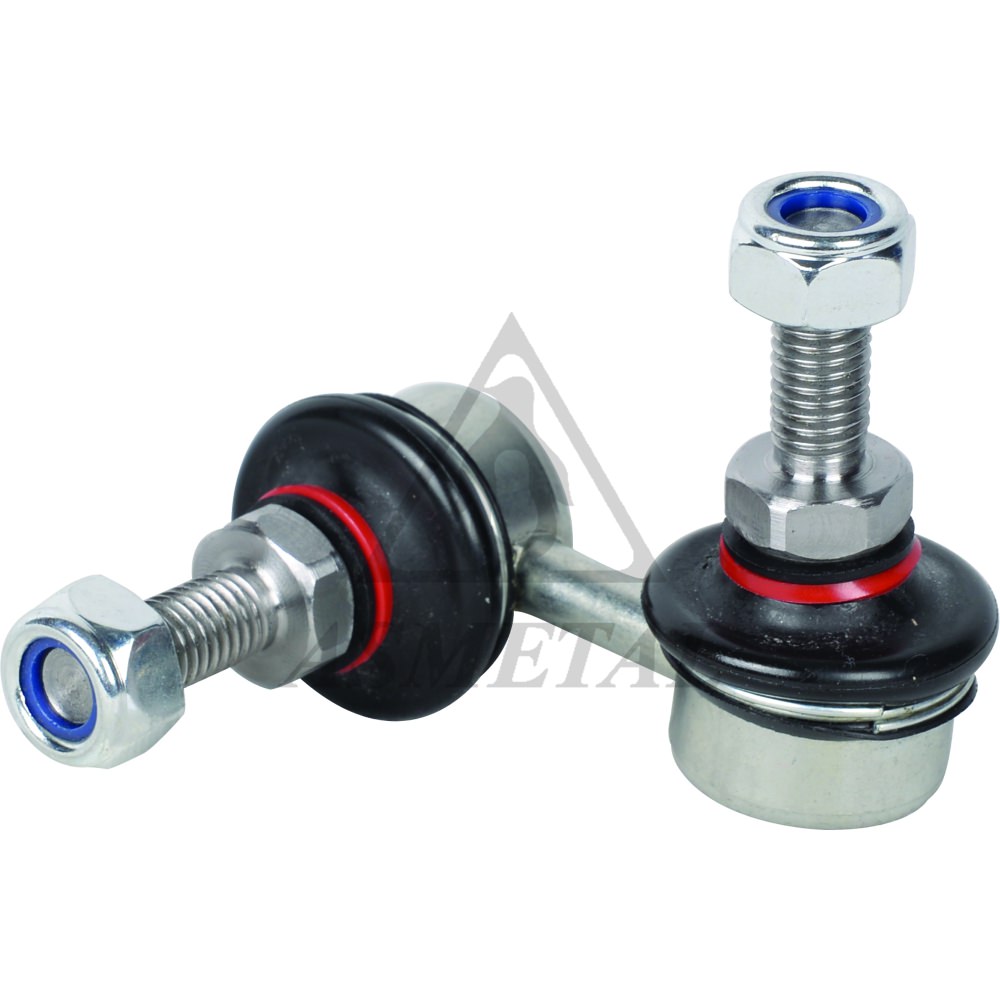

26IV0100	Stabiliser Link Left	L:50 tp:M10x1.5 RHT / 0,24 kg	500 383 976

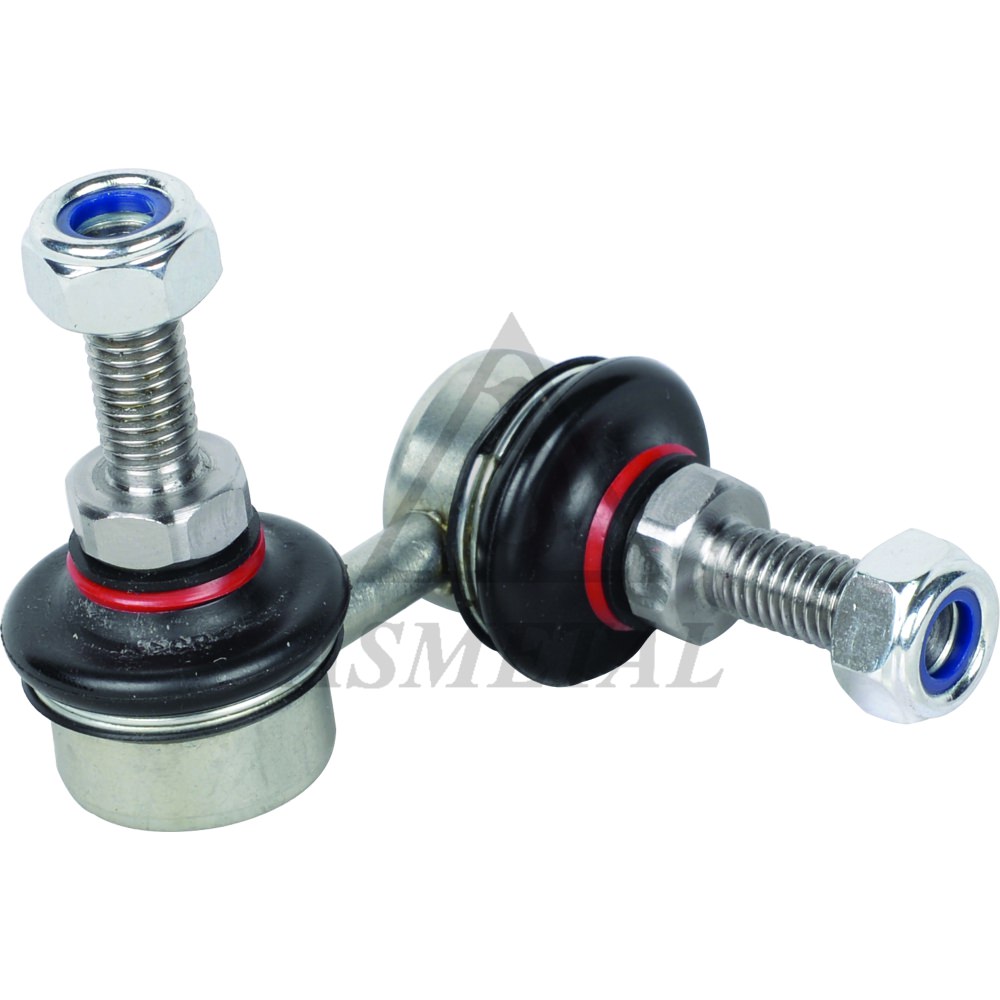

26IV0101	Stabiliser Link Right	L:50 tp:M10x1.5 RHT / 0,24 kg	500 383 975
26IV0110	Stabiliser Link Rear	L:130 / 0,37 kg	504 092 614
30IV9004 NEW	Track Control Arm Upper Left	3,46 kg	500 379 801
30IV9005 NEW	Track Control Arm Upper Right	3,46 kg	500 379 802
30IV9006 NEW	Track Control Arm Lower Left	7,4 kg	500 334 717
30IV9007 NEW	Track Control Arm Lower Right	7,4 kg	500 334 716
38IV16 NEW	Stabiliser Mounting	di:Ø16 / 0,04 kg	0 9380 3960, 9380 3960
38IV18 NEW	Stabiliser Mounting	di:Ø18 / 0,04 kg	0 0858 1022, 0858 1022 (1) OEM
38IV20 NEW	Stabiliser Mounting	di:Ø20 / 0,03 kg	0 9380 2631, 9380 2631
38IV22 NEW	Stabiliser Mounting	di:Ø22 / 0,03 kg	93801624
38IV24 NEW	Stabiliser Mounting	di:Ø24 / 0,03 kg	93801623
38IV36 NEW	Stabiliser Mounting	di:Ø35 / 0,04 kg	858 5819, 0 0858 5819 (1) OEM
38IV3920 NEW	Stabiliser Mounting	di:Ø20 / 0,08 kg	0 9380 2248, 9380 2248
38IV40	Silentblock for TCA	L:55 di:Ø16.5 do:Ø50 / 0,29 kg	5 0403 9506
38IV4016 NEW	Stabiliser Mounting	di:Ø16 / 0,05 kg	9380 3961, 0 9380 3961
38IV4018 NEW	Stabiliser Mounting	di:Ø18 / 0,05 kg	858 1021, 0 0858 1021 (1) OEM
38IV4020 NEW	Stabiliser Mounting	di:Ø20 / 0,04 kg	0 9380 2629, 9380 2629
38IV4022 NEW	Stabiliser Mounting	di:Ø22 / 0,04 kg	9380 1556, 0 9380 1556
38IV4028 NEW	Stabiliser Mounting	di:Ø28 / 0,19 kg	0 0856 0291, 000856 0291 (3) OEM

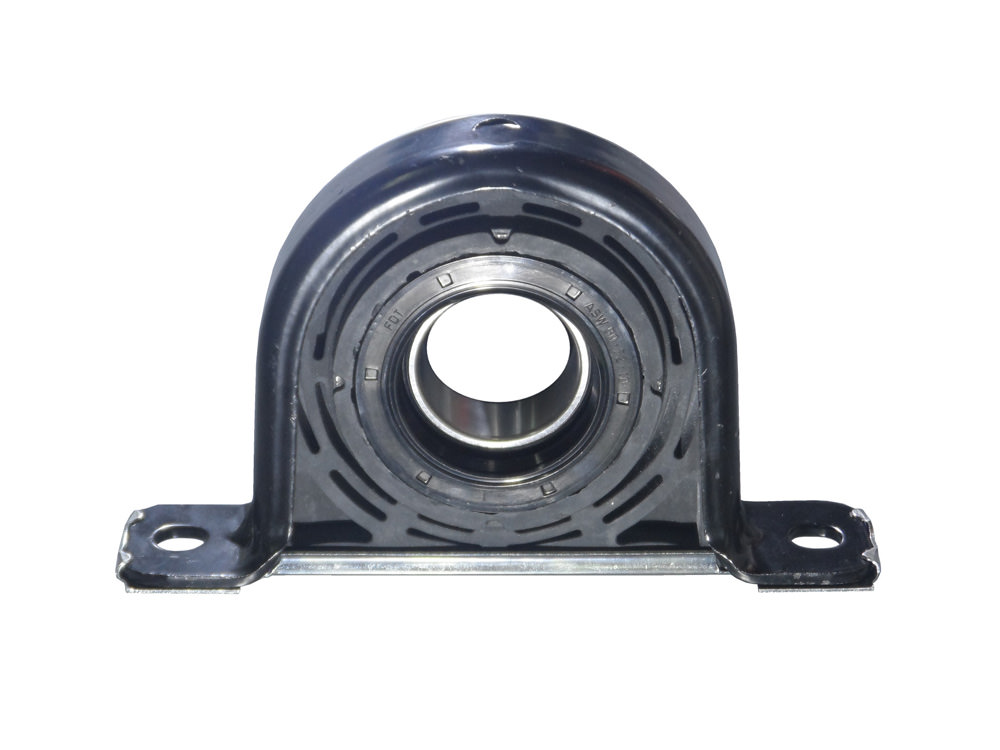

40IV4000	Drive Shaft Center Bearing	L:168.5 di:Ø40 / 1,16 kg	4256 1251, 0 4253 5254 (7) OEM

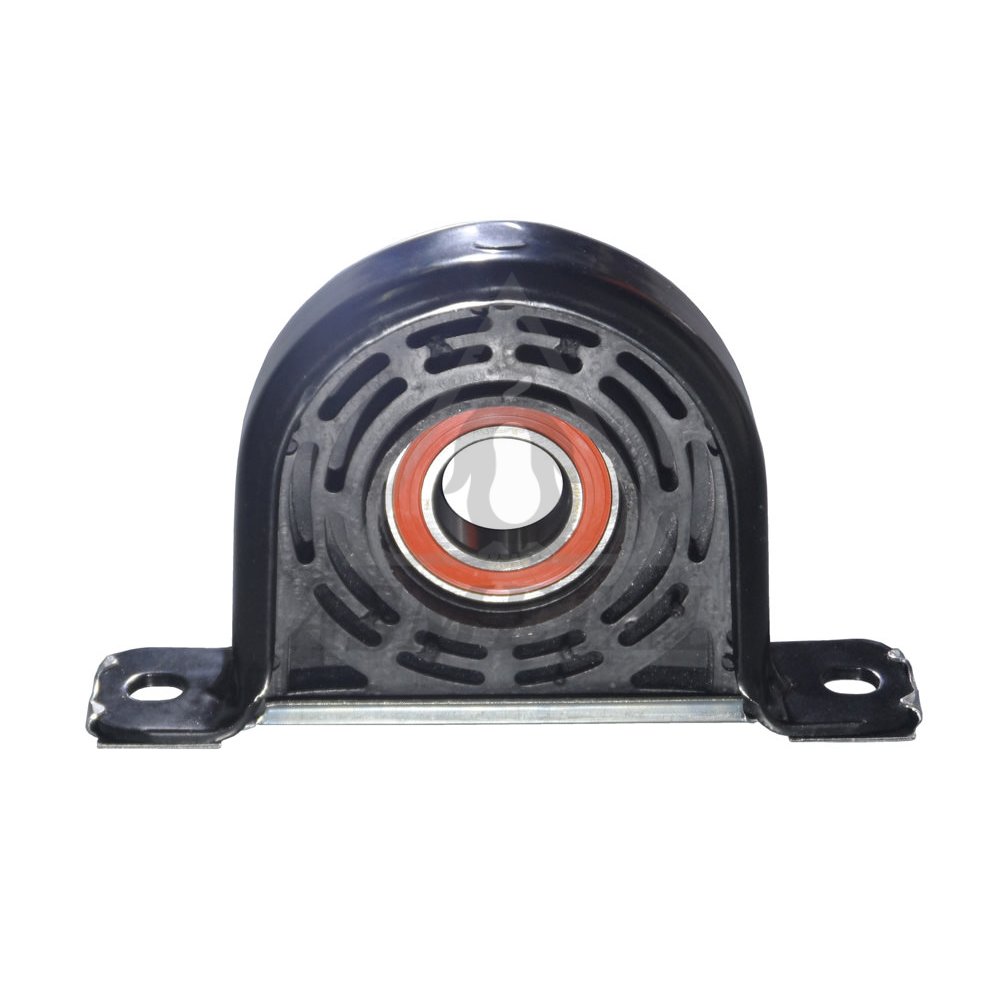

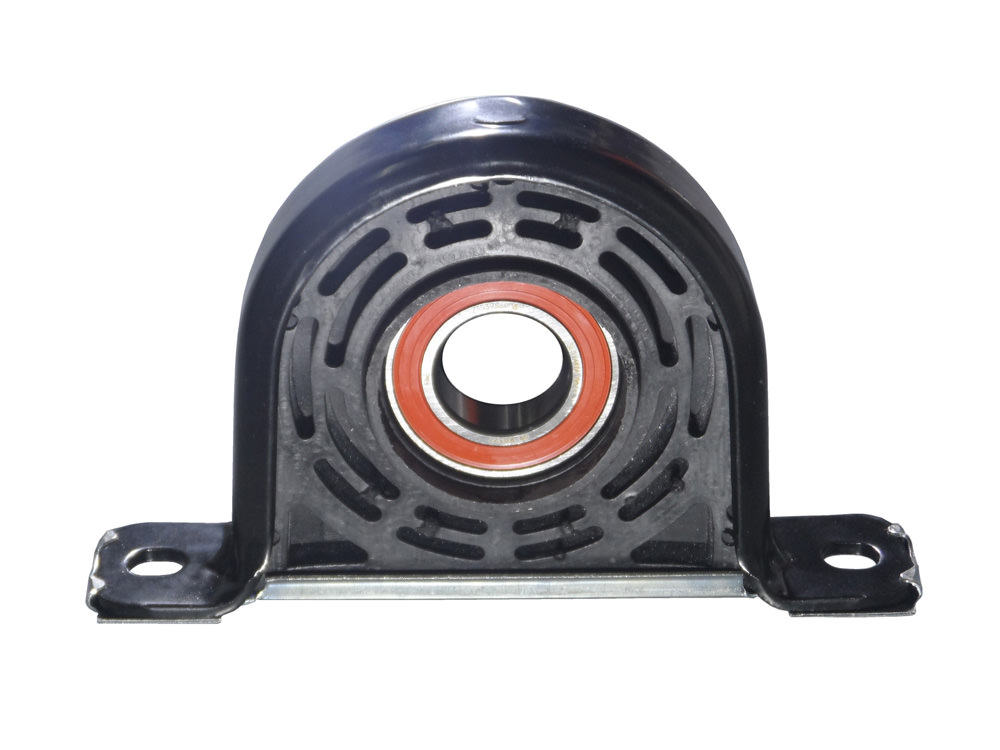

40IV4001	Drive Shaft Center Bearing	L:168.5 di:Ø30 / 0,92 kg	4256 9349
