ASMETAL Catalogue

KIA > CARENS (10 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No

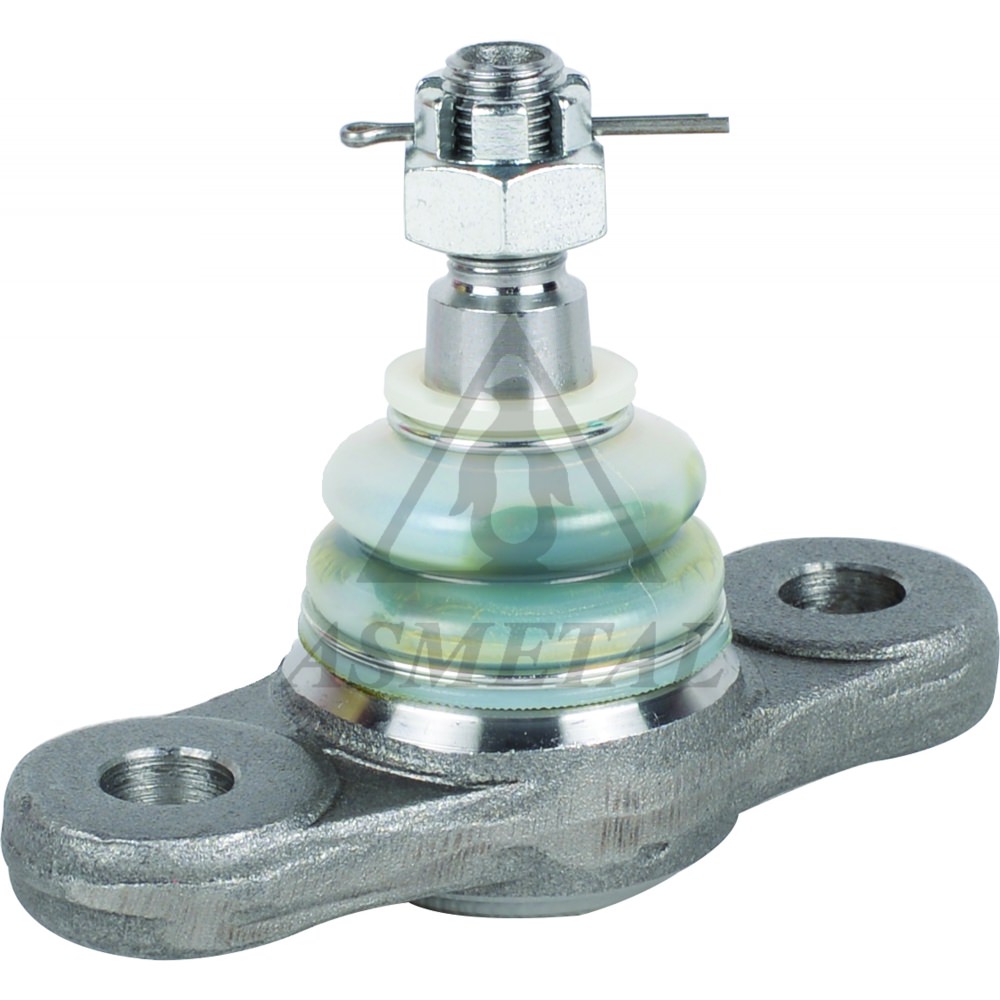

10HY2000	Ball Joint Lower	th:M12x1.5 RHT cr:1/8 c:Ø15.05 / 0,54 kg	51760 2H000, 51760 0Q000 (1) OEM
10KI3000	Ball Joint	c:Ø17.95 / 0,96 kg	54530 B2100, 54530 2T010 (2) OEM
17KI1100	Tie Rod End Left	L:233 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,89 kg	56820 2T000, 56820 2T190 (5) OEM
17KI1101	Tie Rod End Right	L:233 cr:1/8 c:Ø13.4 tp:M10x1.25 th:FM16x1.5 RHT / 0,89 kg	56820 2T500, 56820 3S500 (5) OEM

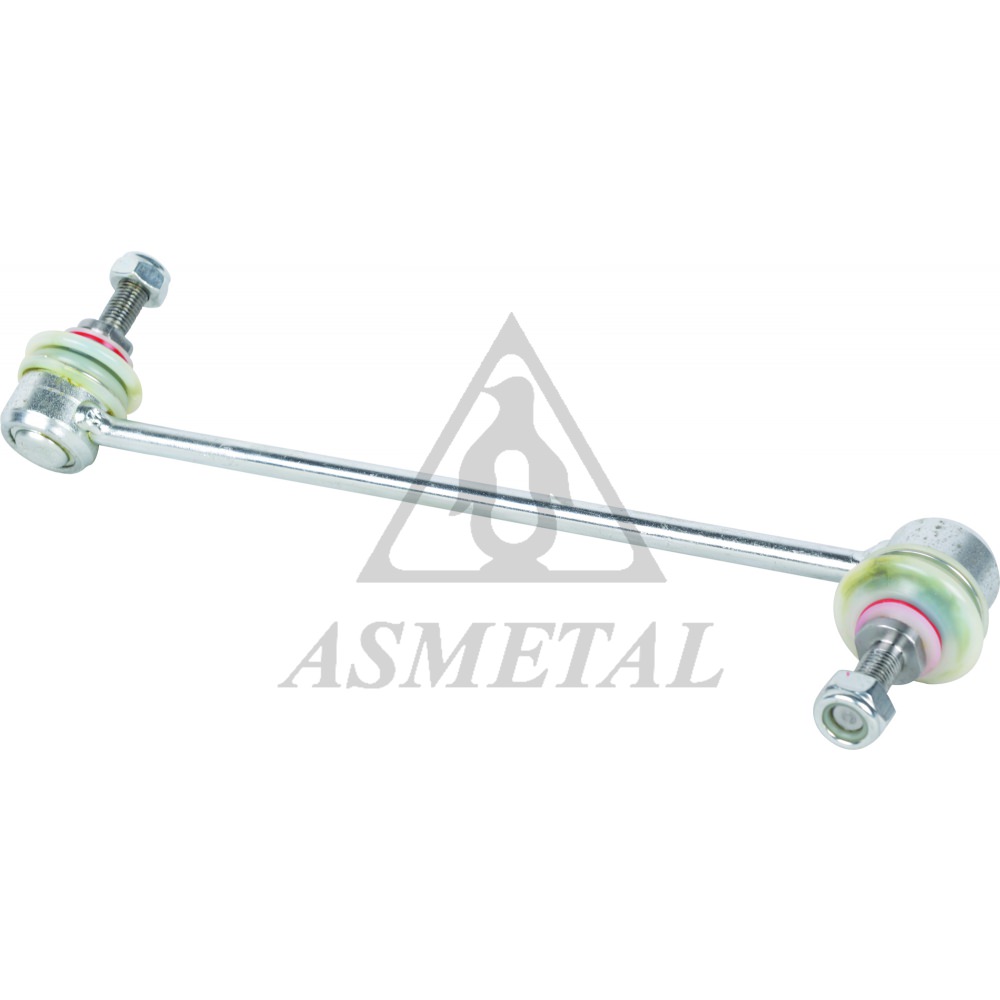

26KI1000	Stabiliser Link Left	L:272 tp:M10x1.5 RHT / 0,39 kg	0K2N1 34170A

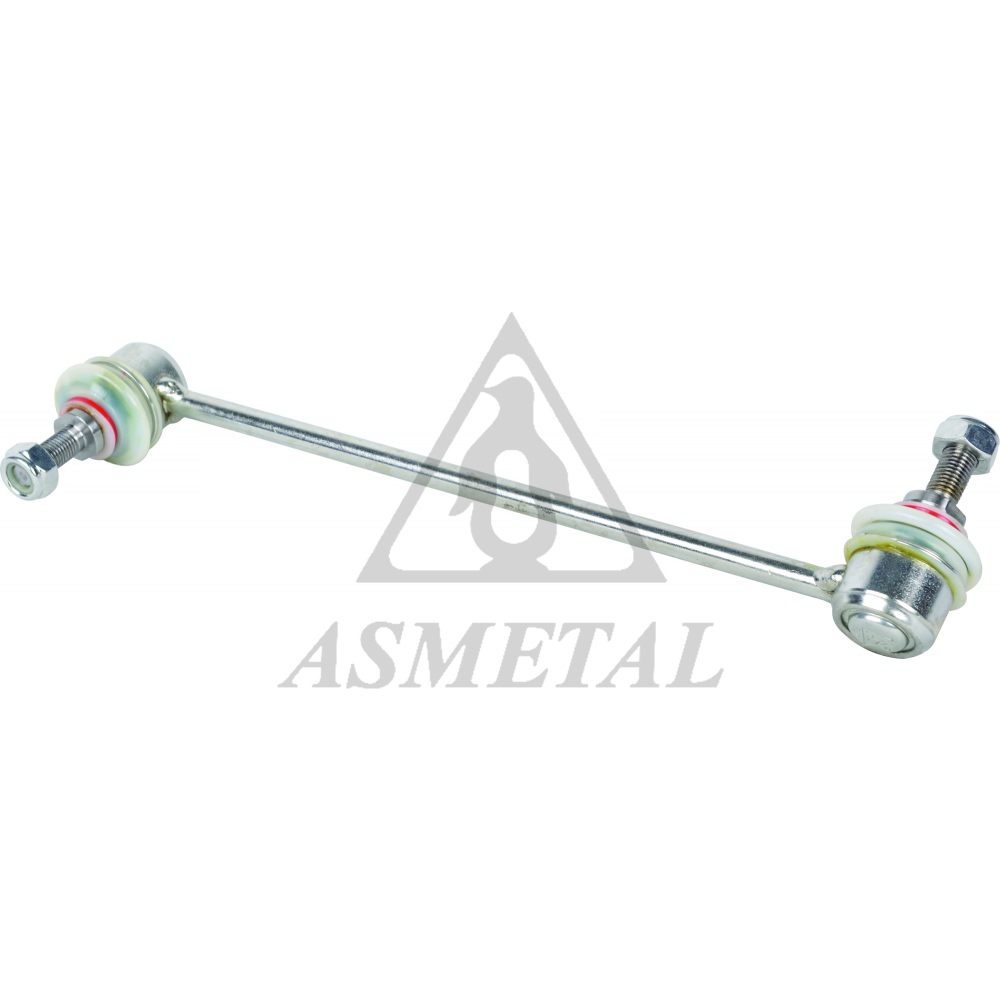

26KI1001	Stabiliser Link Right	L:272 tp:M10x1.5 RHT / 0,39 kg	0K2N1 34150A
26KI1800 IN PREPARATION	Stabiliser Link Rear		K2A13 4150B, K2M2 28150 (2) OEM
38HY1000 OUT OF SERVICE	Silentblock Bushing	di:Ø14,2 do:Ø44 / 0,3 kg	55130 3U000, 55130 4D000
38HY1200	Silentblock for TCA	L:60 di:Ø14.3 do:Ø70 / 0,43 kg	54584 2S000, 54584 2S100 (11) OEM
45PE9999 NEW	Bearing	0,17 kg	5035 19, 5035 27 (7) OEM
