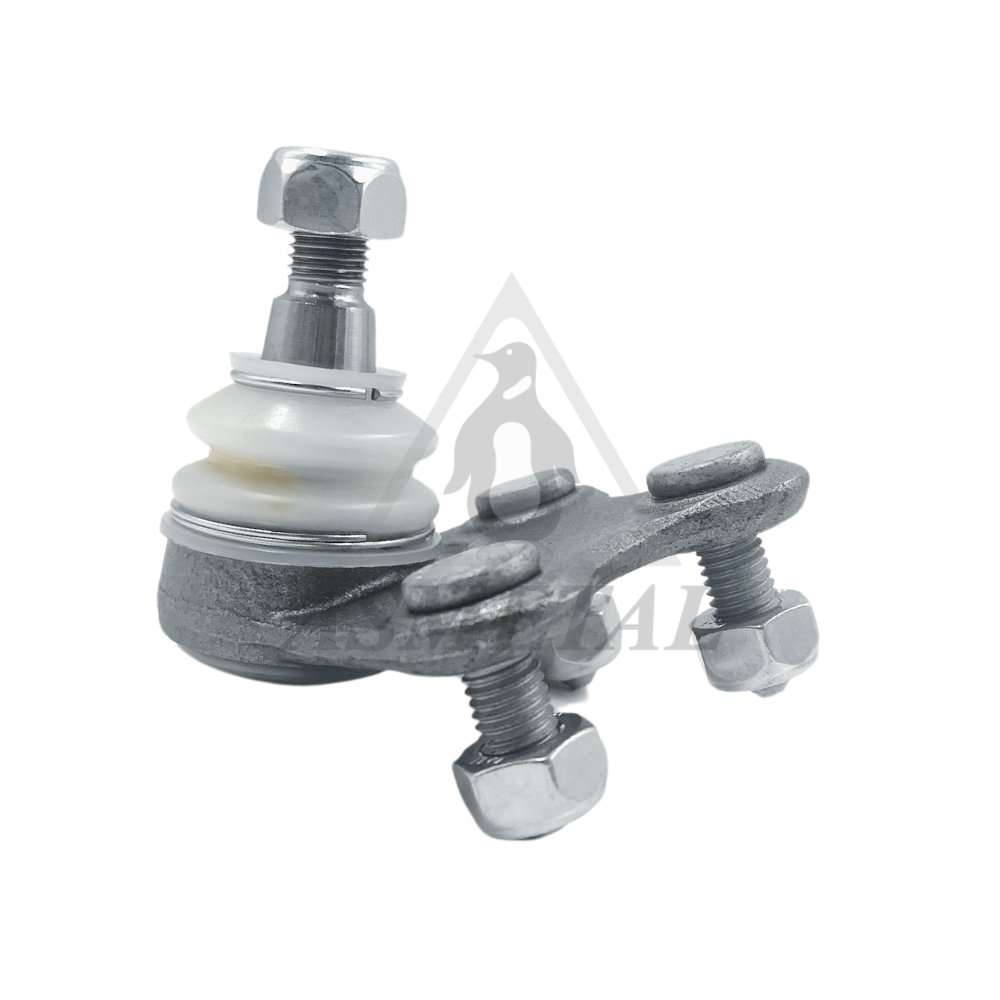

10AU1200
|
Ball Joint Left |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg |
6R0 407 365 B, 6R0 407 365 A (3) OEM |
 |

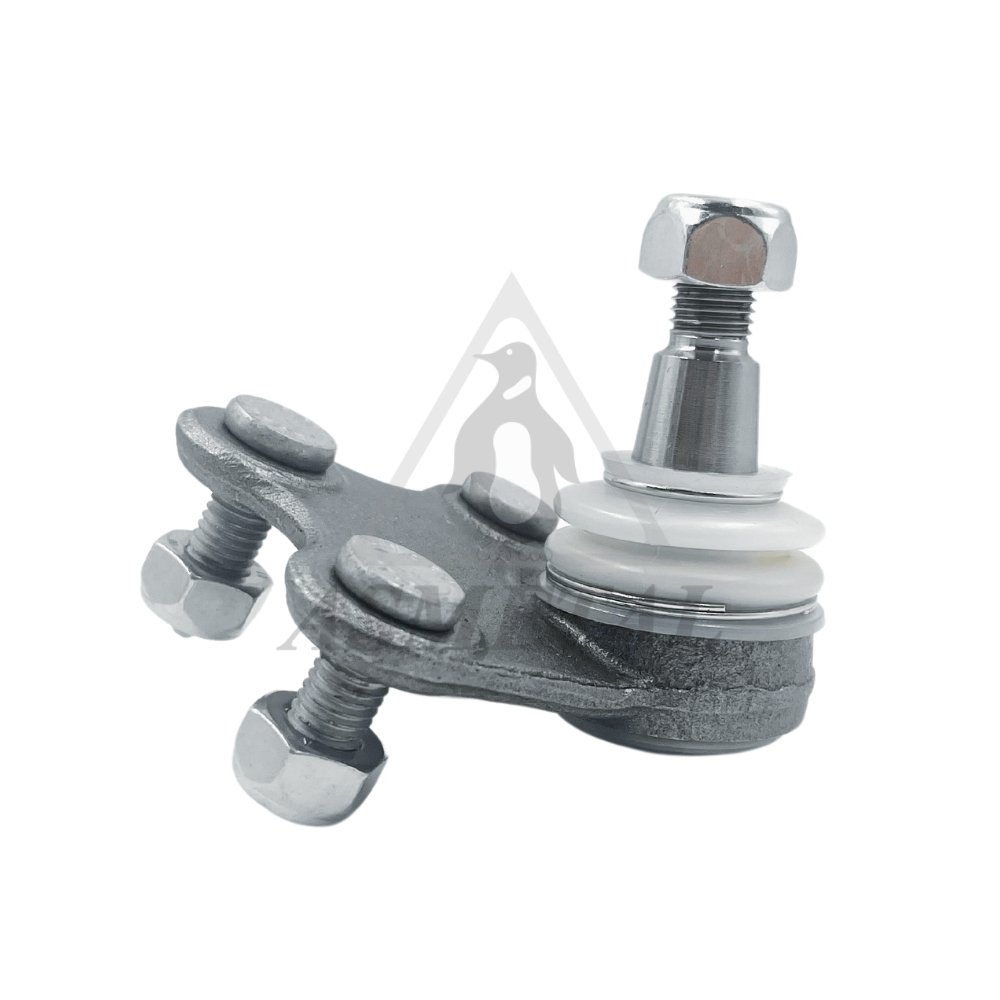

10AU1201
|
Ball Joint Right |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 0,54 kg |
6R0 407 366 B, 6R0 407 366 (3) OEM |
 |

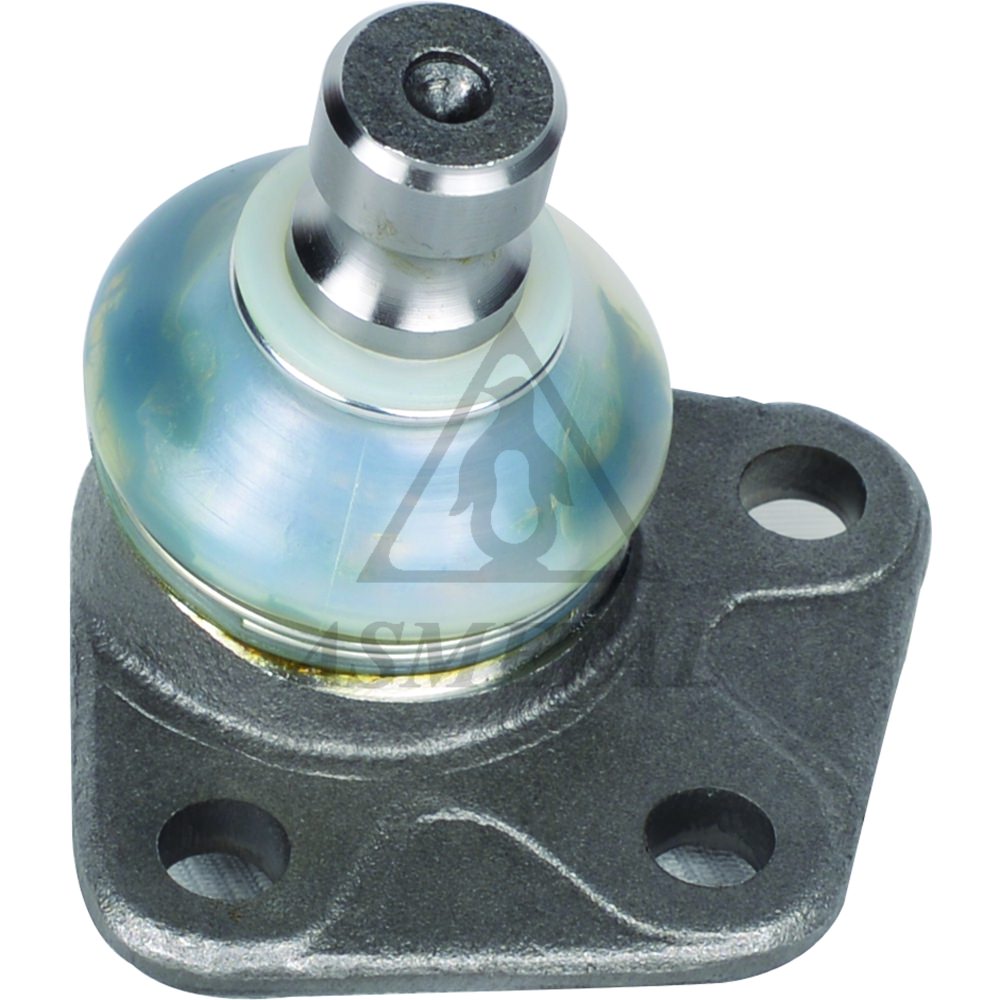

10SK1000
|
Ball Joint |
c:Ø16.95 / 0,41 kg |
115 420 240, 115 420 241 (2) OEM |
 |

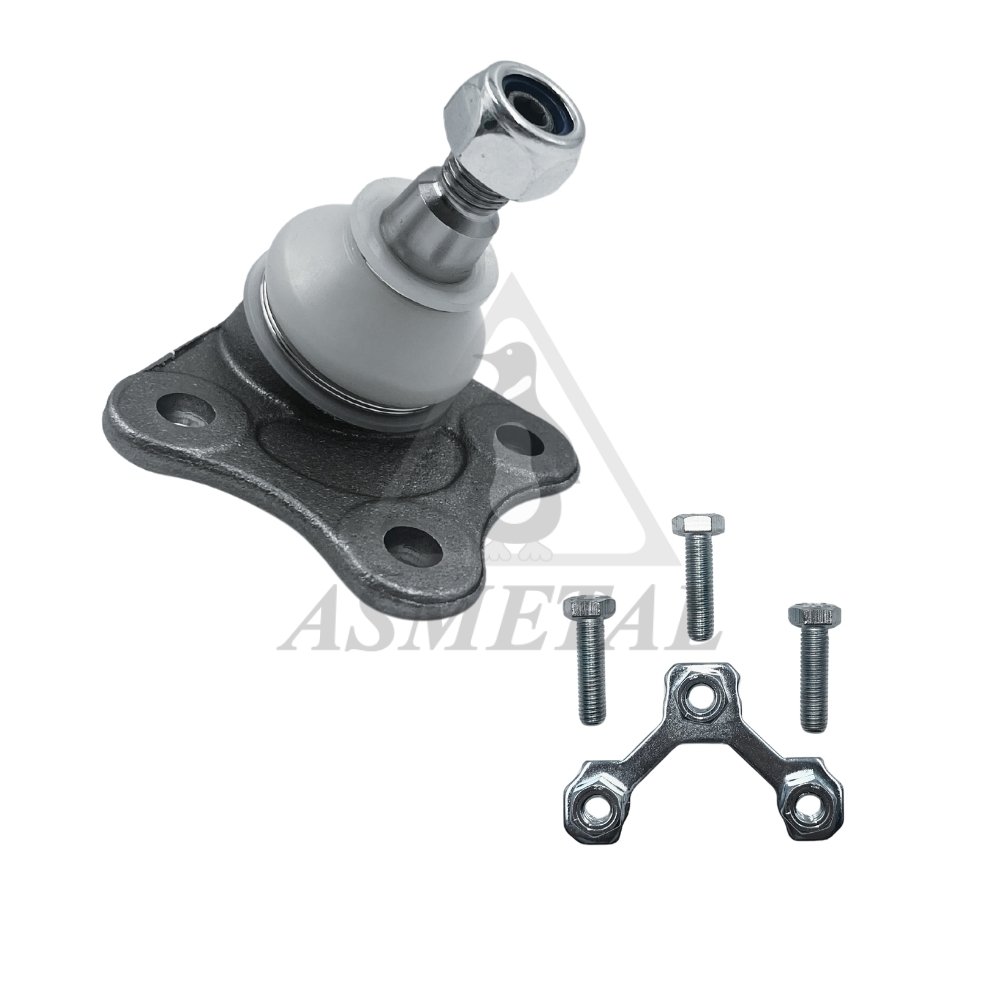

10VW1501
|
Ball Joint Lower Right |
tp:M12x1.5 RHT cr:1/5 c:Ø15 / 0,46 kg |
1J0 407 366 A, 1J0 407 366 J (4) OEM |
 |

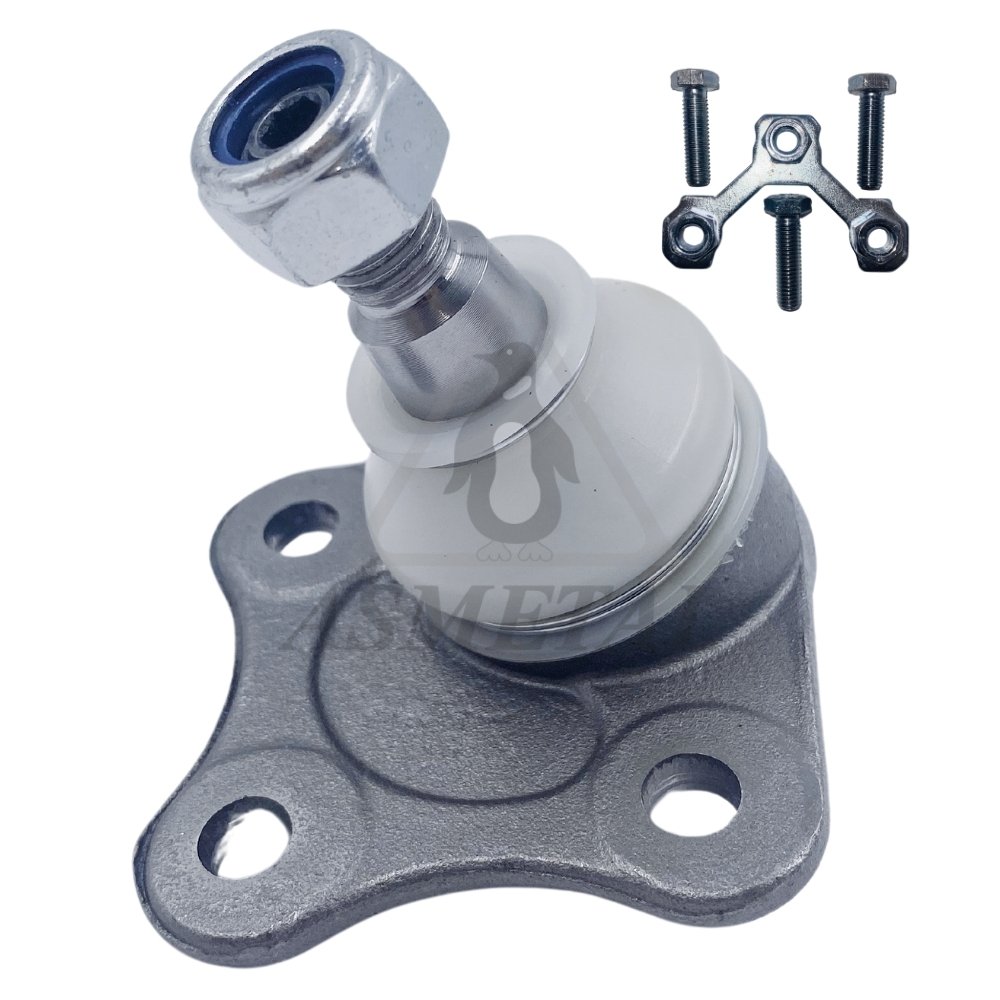

10VW1502
|
Ball Joint Lower Left |
tp:M12x1.5 RHT cr:1/5 c:Ø15 / 0,46 kg |
1J0 407 365 D, 1J0 407 365 H (4) OEM |
 |
10VW1600
|
Ball Joint Lower Left |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1K0 407 365 C, 5Q0 407 365 A (6) OEM |
 |
10VW1601
|
Ball Joint Lower Right |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1KD 407 366, 1K0 407 366 E (6) OEM |
 |
10VW1605
|
Ball Joint Lower Right |
th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg |
35D 407 366, 5QD 407 366 (3) OEM |
 |
10VW1606
|
Ball Joint Lower Left |
th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg |
5QD 407 365, 3C0 407 365 A (3) OEM |
 |

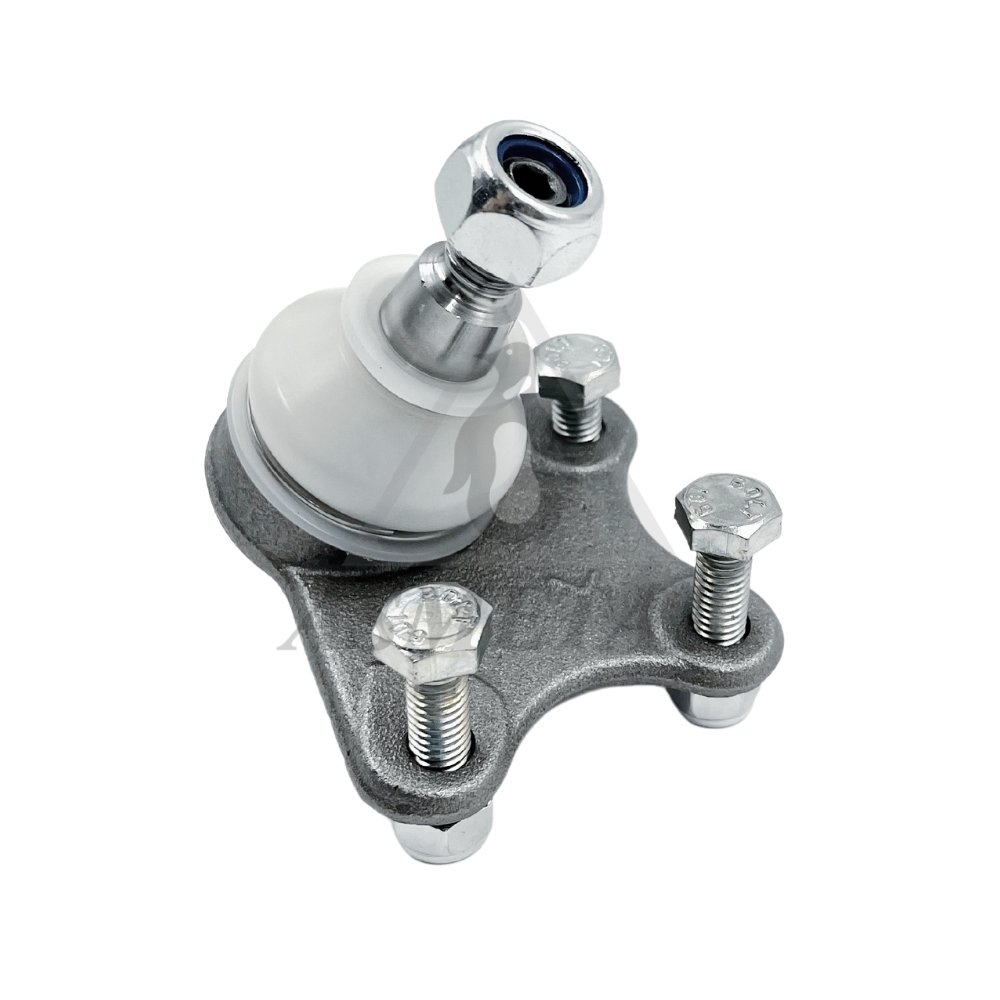

10VW2010
|
Ball Joint Left |
th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0,45 kg |
6Q0 407 365 A, 8Z0 407 365 A (3) OEM |
 |
10VW2011
|
Ball Joint Right |
th:M12x1.5 RHT cr:1/5 c:Ø14.9 / 0,45 kg |
5Z0 407 366 B, 8Z0 407 366 A (7) OEM |
 |

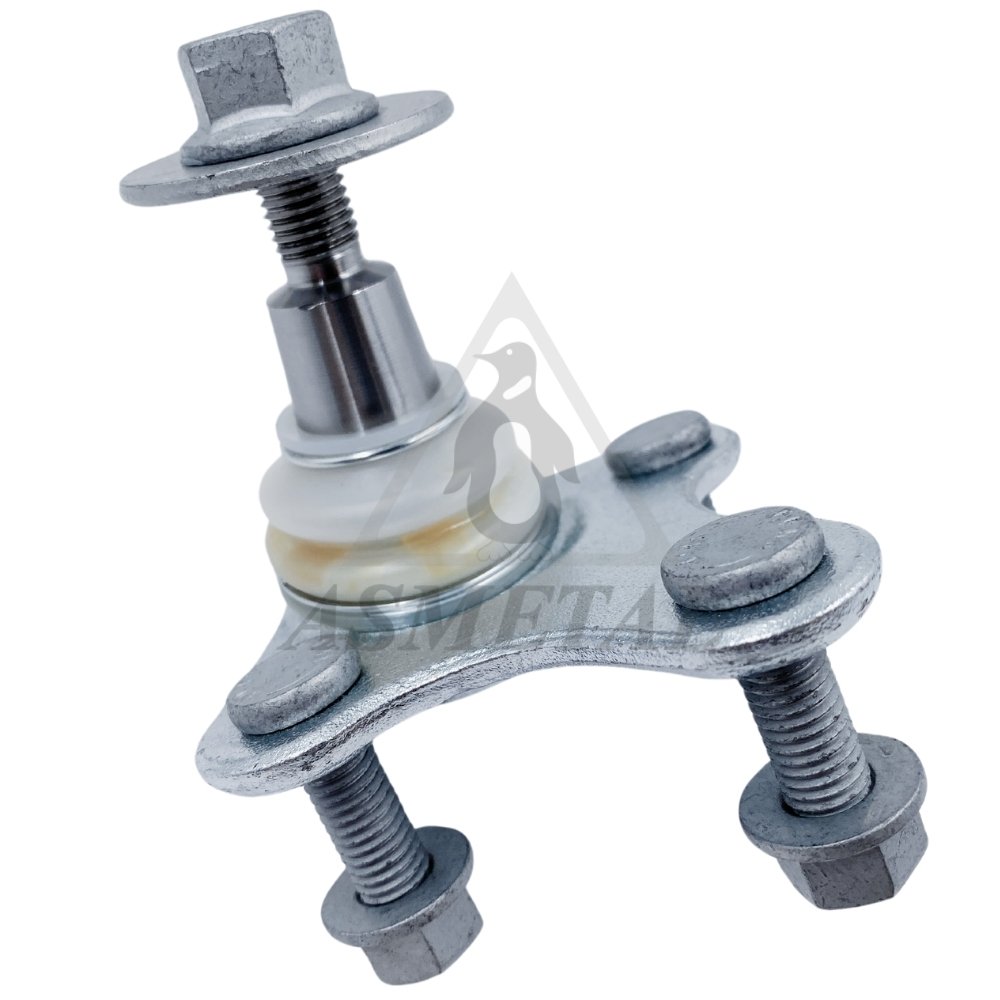

10VW6600
|
Ball Joint |
th:M12x1.5 RHT cr:1/6 c:Ø18.2 / 0,66 kg |
1EA 407 365 A, 1EA 407 365 C (1) OEM |
 |

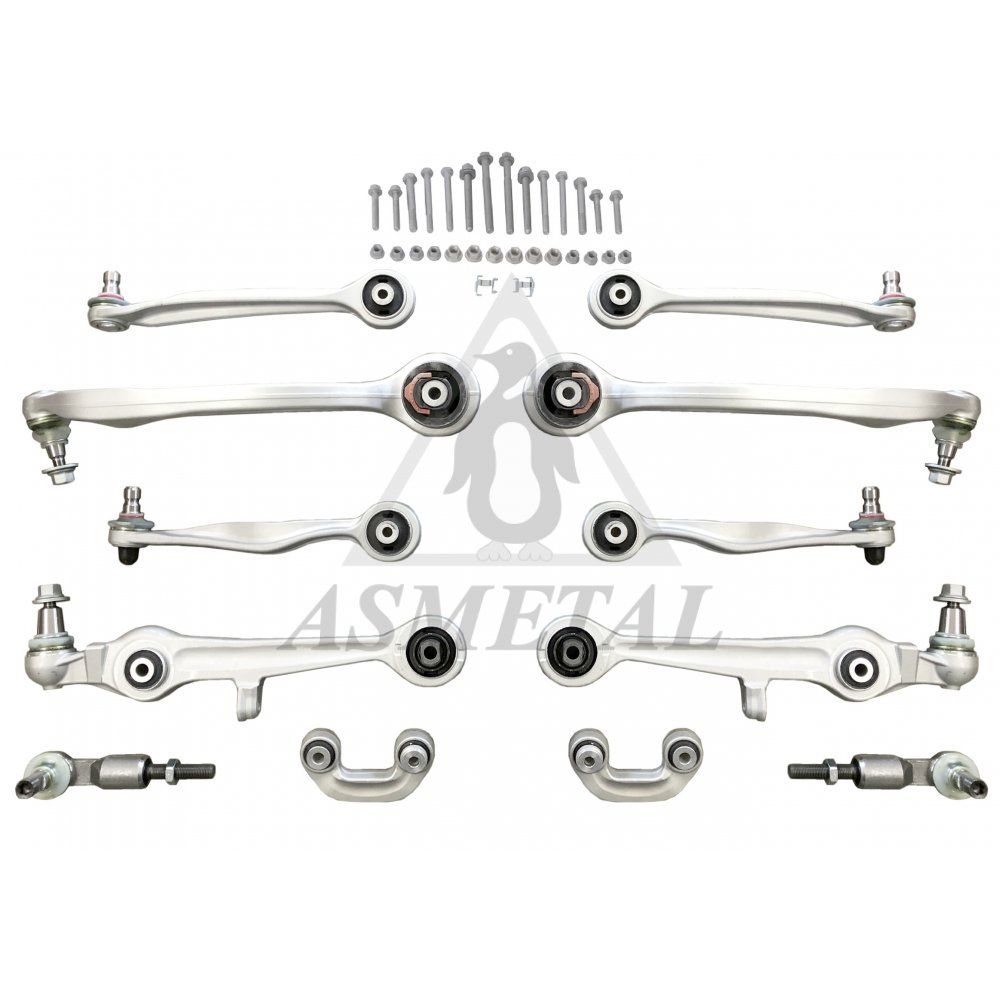

13AU0200
|
Suspension KIT (TCA KIT) |
12,55 kg |
8D0 498 998, 8D0 498 998 B |
 |

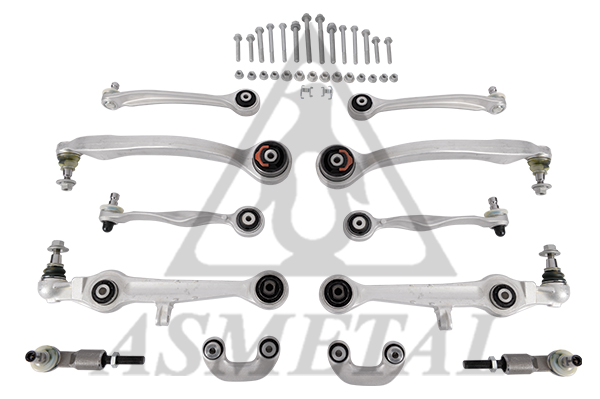

13AU0201
|
Suspension KIT (TCA KIT) |
11,6 kg |
4B3 498 998 |
 |

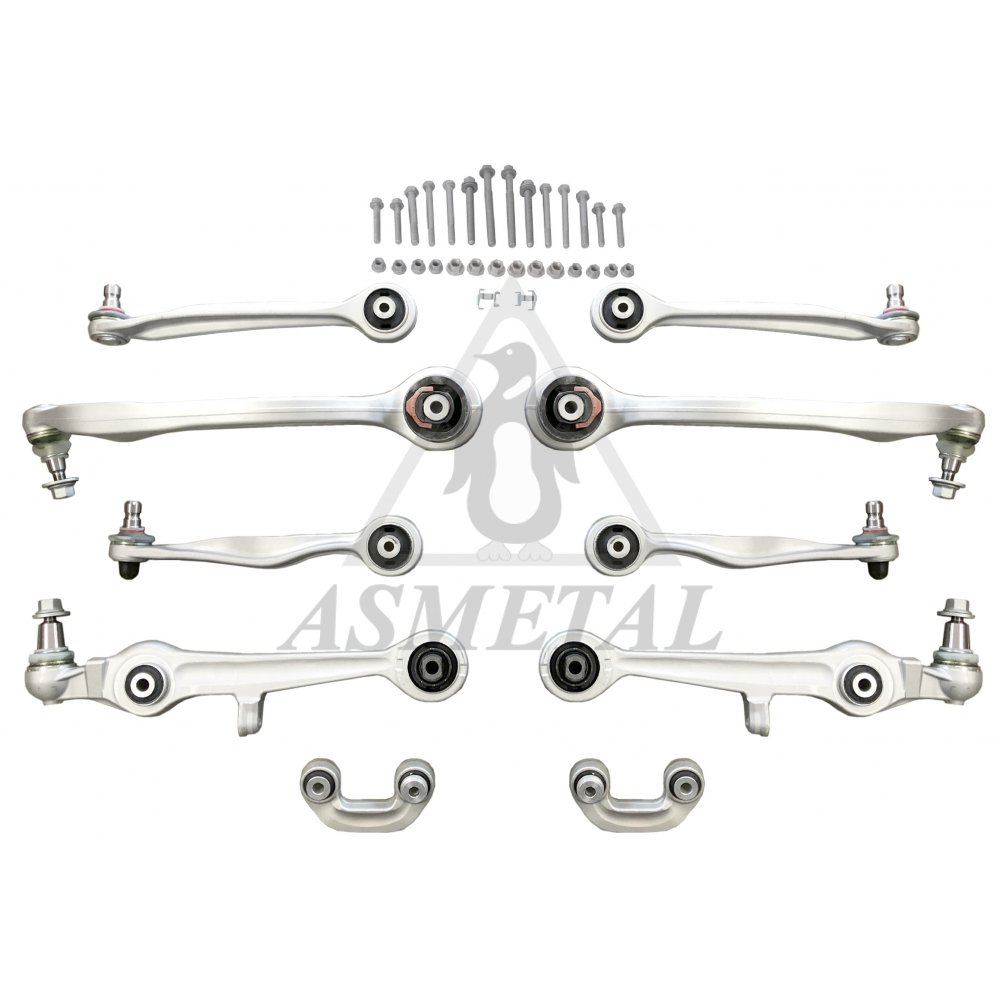

13AU0300
|
Suspension KIT (TCA KIT) |
11,7 kg |
4D0 411 318 J, 8D0 411 318 D (1) OEM |
 |

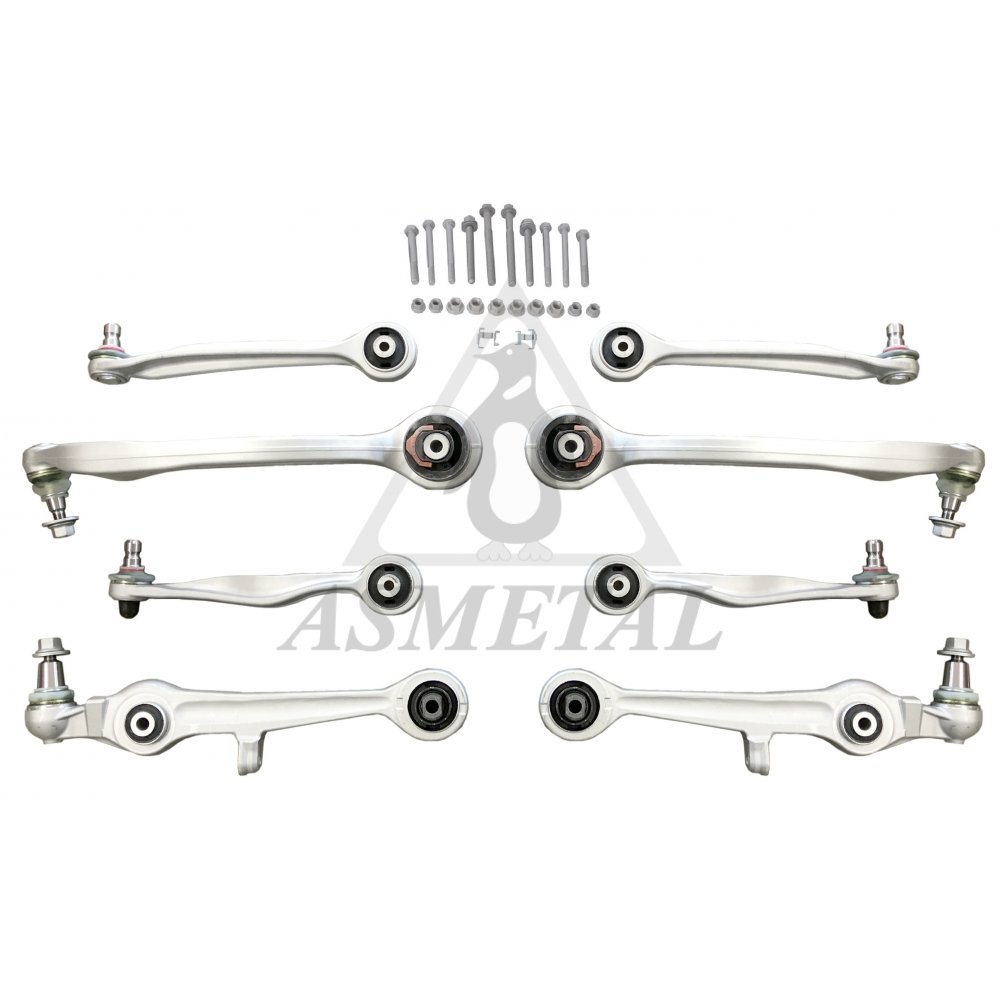

13AU0400
|
Suspension KIT (TCA KIT) |
10,7 kg |
8D0 411 318 D, 4D0 411 318 G (1) OEM |
 |
17AU1200
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17AU1202
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg |
1K0 423 811 K, 1K0 423 811 J (8) OEM |
 |
17AU1203
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg |
1K0 423 812 K, 1K0 423 812 G (7) OEM |
 |
17AU1210
IN PREPARATION
|
Tie Rod End Left |
|
5WA 423 811 E, 5WA 423 811 C |
 |
17AU1211
IN PREPARATION
|
Tie Rod End Right |
|
5WA 423 812 E, 5WA 423 812 C |
 |

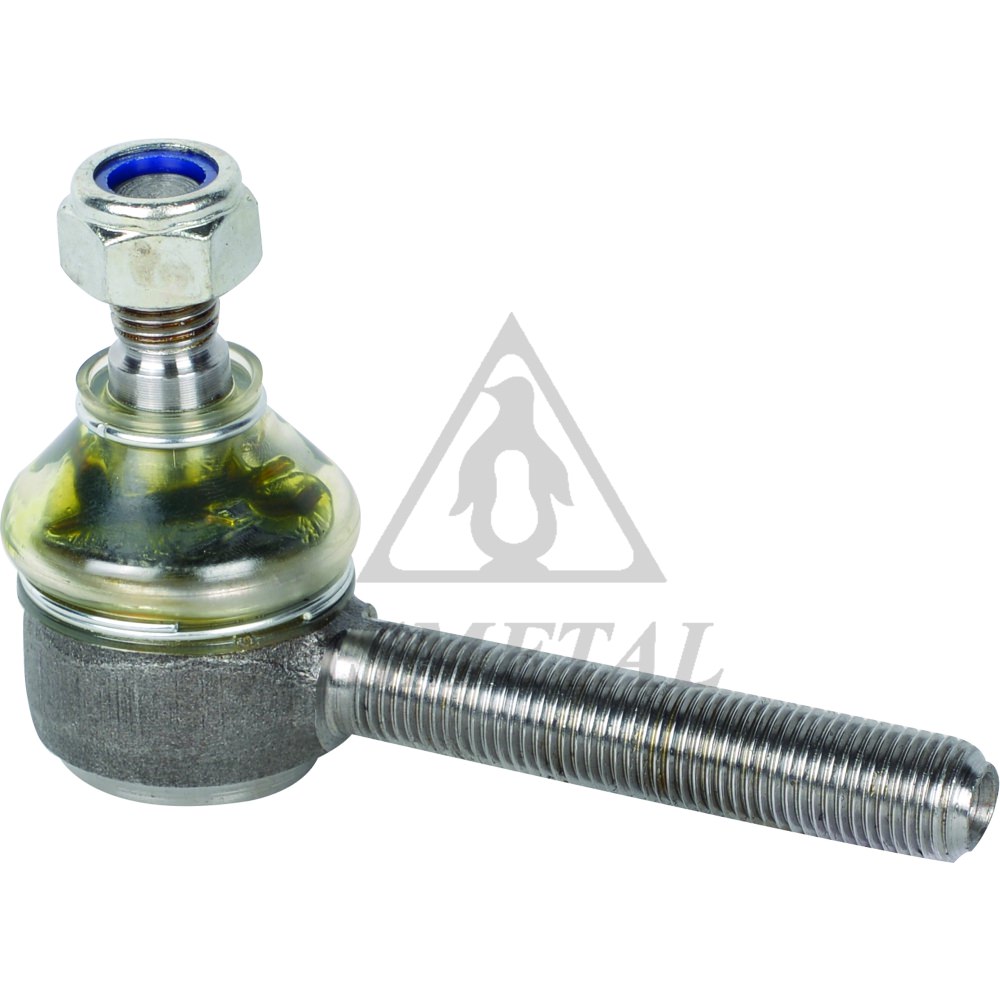

17SK0030
|
Tie Rod End Right |
c:Ø12,8 th:MM14x1,5 RHT / 0,3 kg |
|
 |

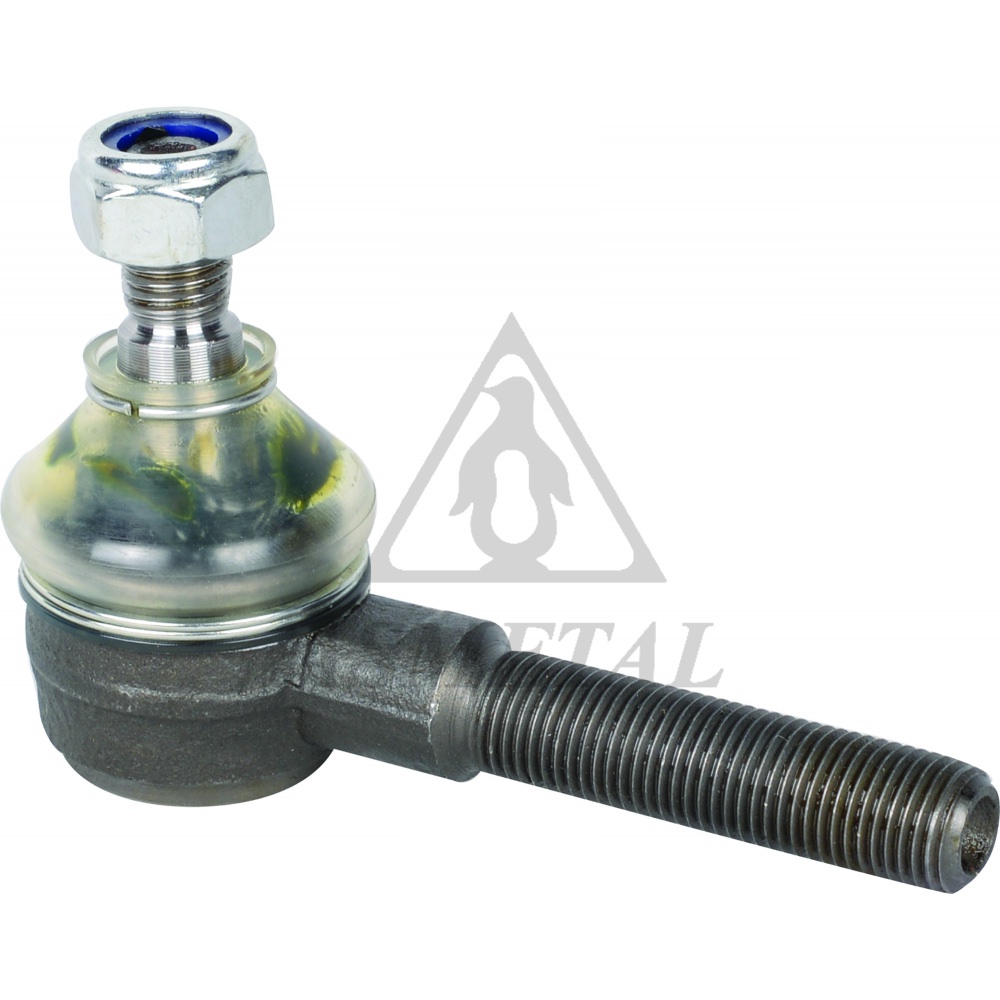

17SK0050
|
Tie Rod End Left |
c:Ø12,8 th:MM14x1,5 LHT / 0,3 kg |
|
 |

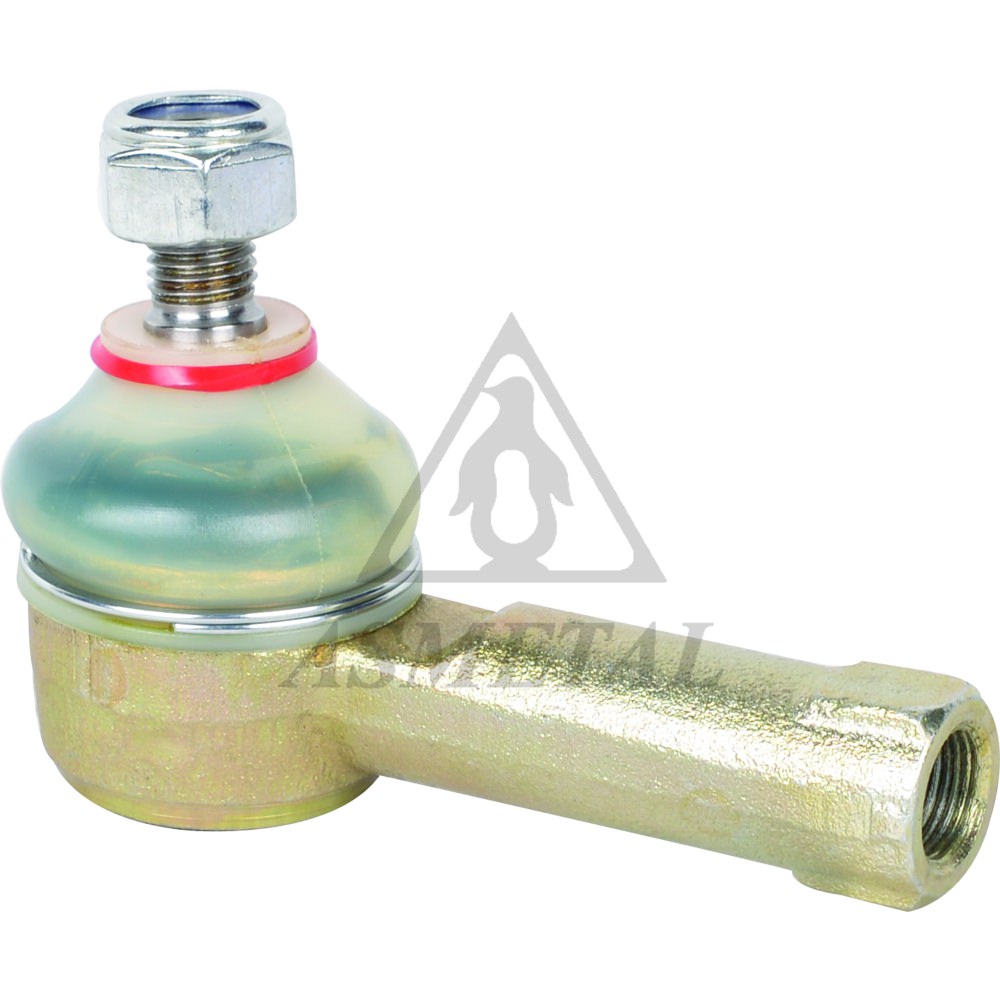

17SK0501
OUT OF SERVICE
|
Tie Rod End |
c:Ø10,9 th:FM12x1 RHT / 0,26 kg |
111500440, 111500441 |
 |

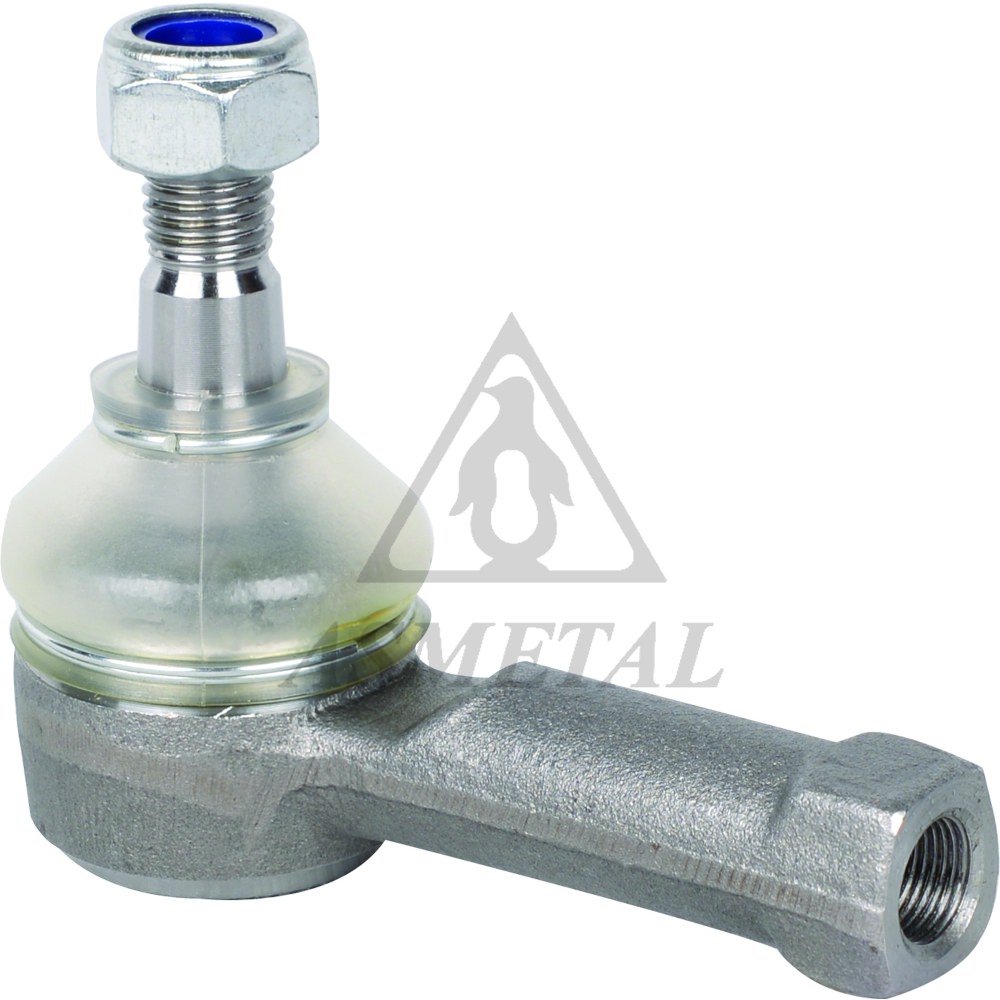

17SK1000
|
Tie Rod End |
L:78 cr:1/10 c:Ø12.6 tp:M10x1.5 th:FM12x1 RHT / 0,36 kg |
115 500 440, 6U0 422 811 (1) OEM |
 |

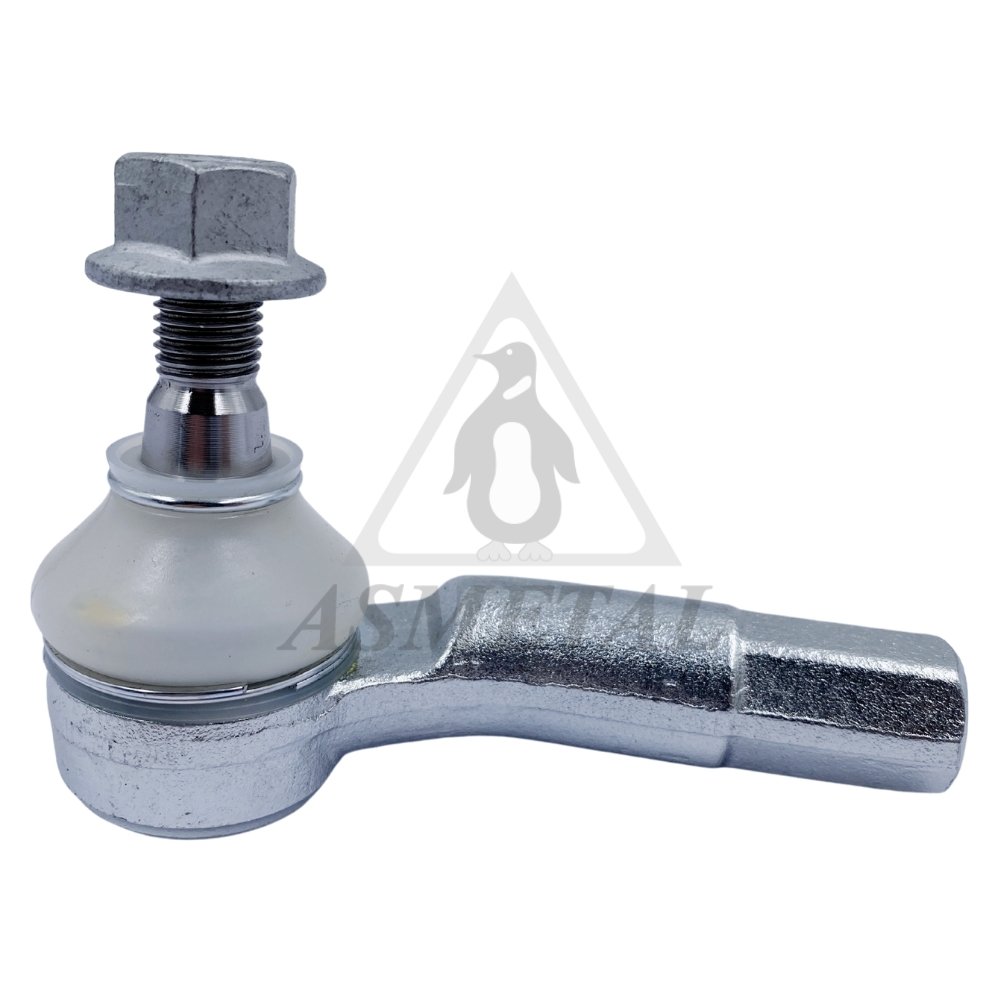

17SK2010
NEW
|
Tie Rod End Left |
0,4 kg |
6C0 423 811 A |
 |

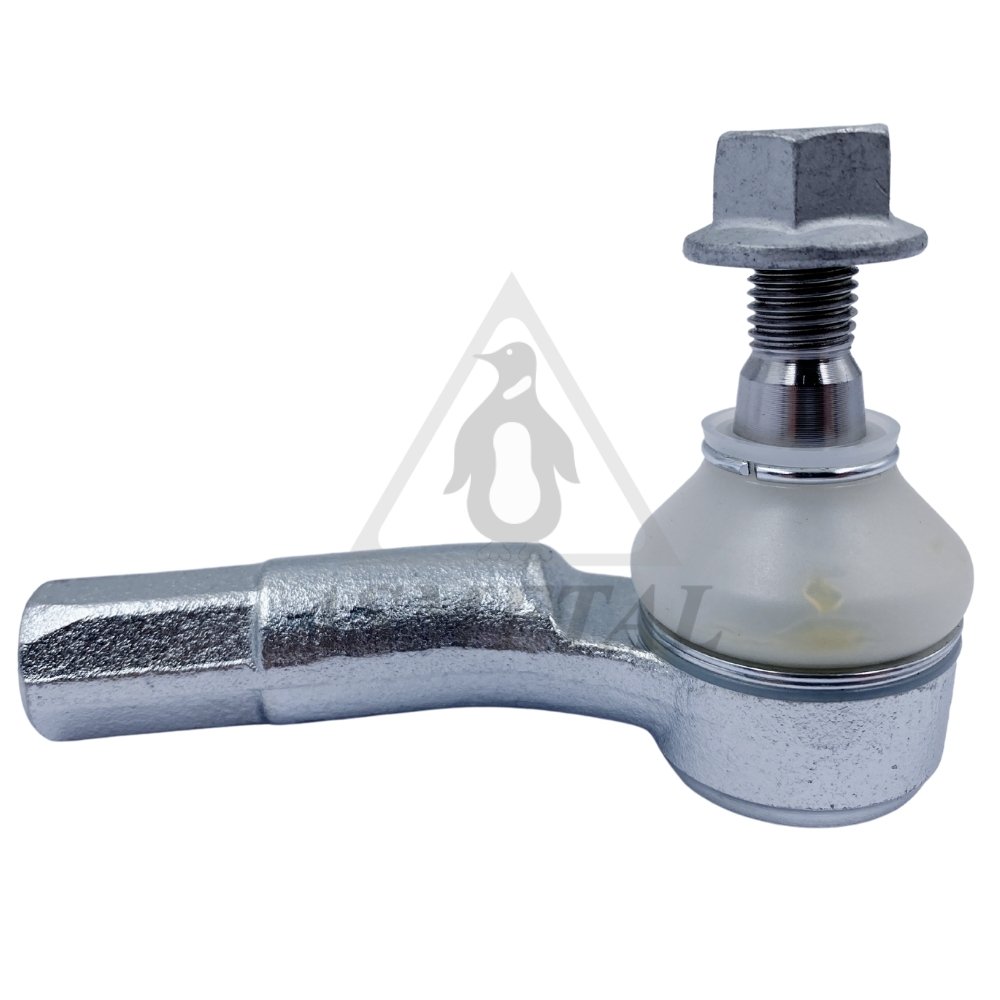

17SK2011
NEW
|
Tie Rod End Right |
0,4 kg |
6C0 423 812 A |
 |

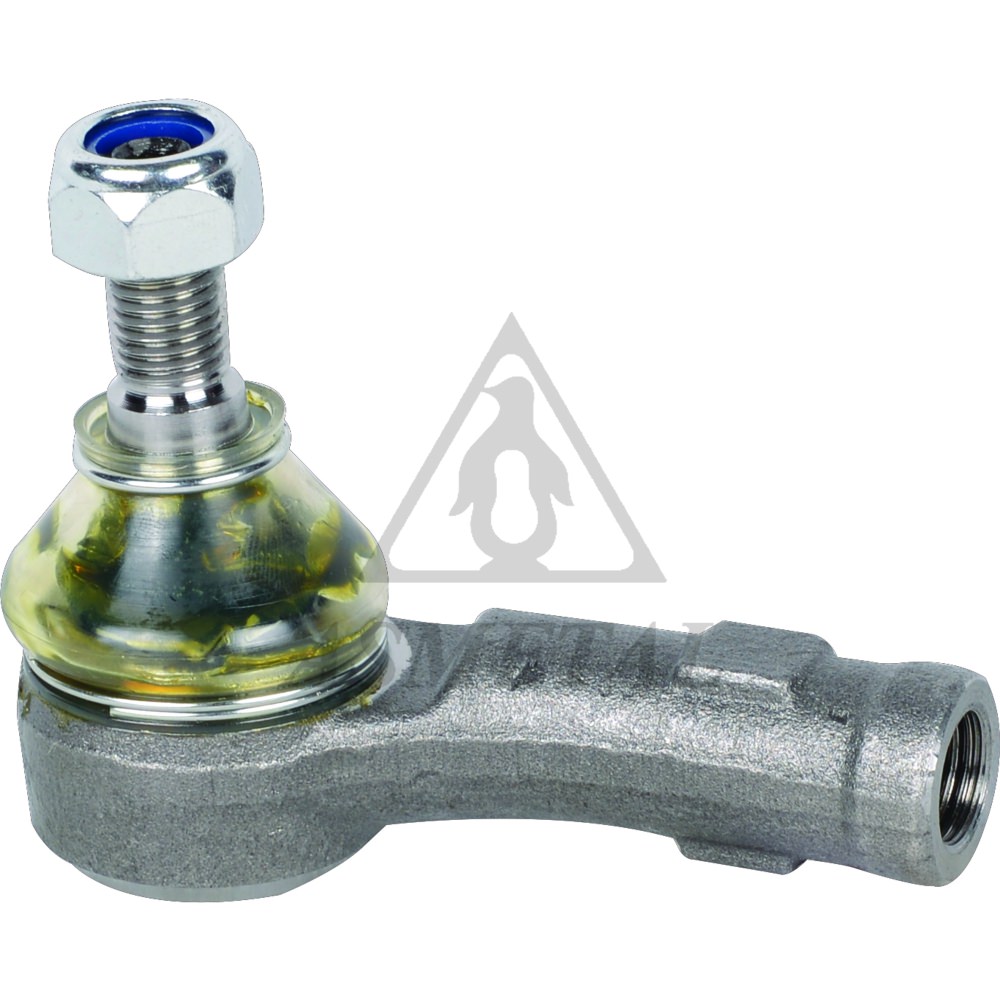

17VW1235
|
Tie Rod End Right |
L:76 cr:1/5 c:Ø13.3 tp:M12x1.5 th:FM14x1.5 RHT / 0,35 kg |
1J0 422 812, 1J0 422 812 A (2) OEM |
 |

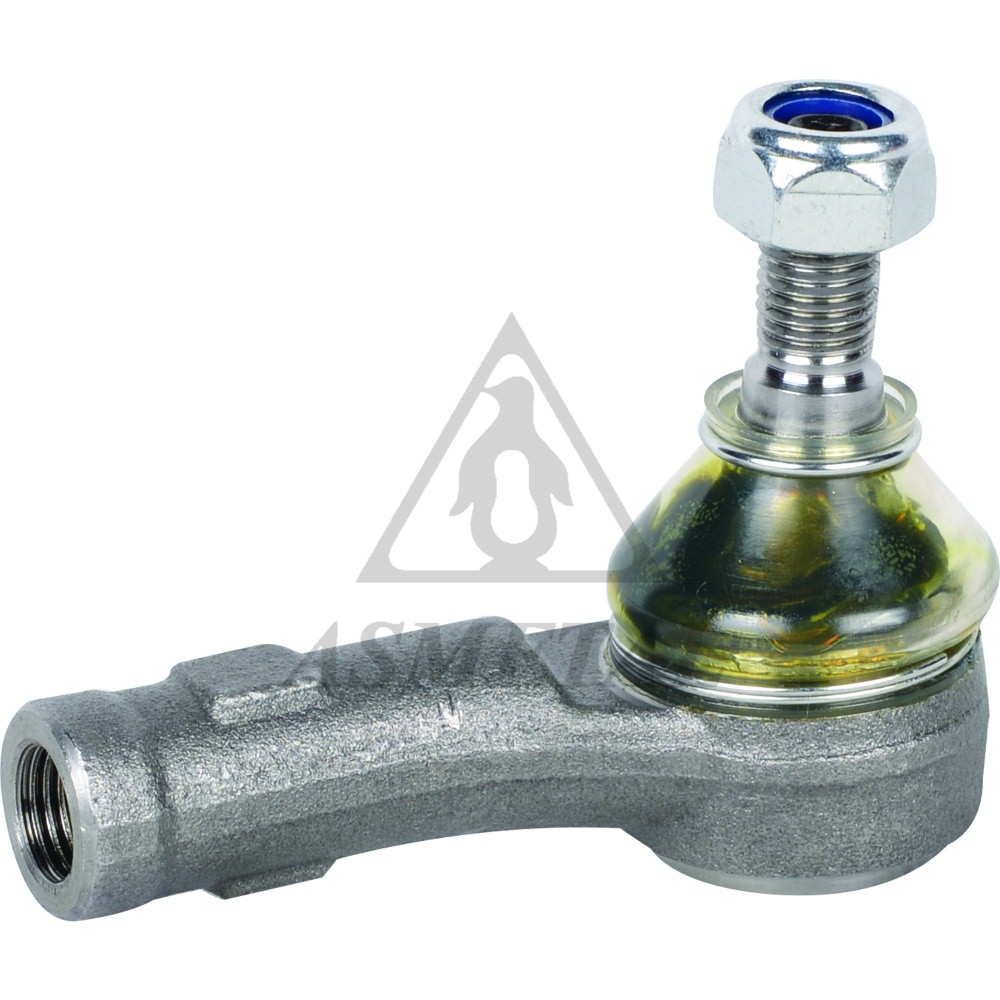

17VW1255
|
Tie Rod End Left |
L:76 cr:1/5 c:Ø13.3 tp:M12x1.5 th:FM14x1.5 RHT / 0,35 kg |
1J0 422 811, 1J0 422 811A (2) OEM |
 |

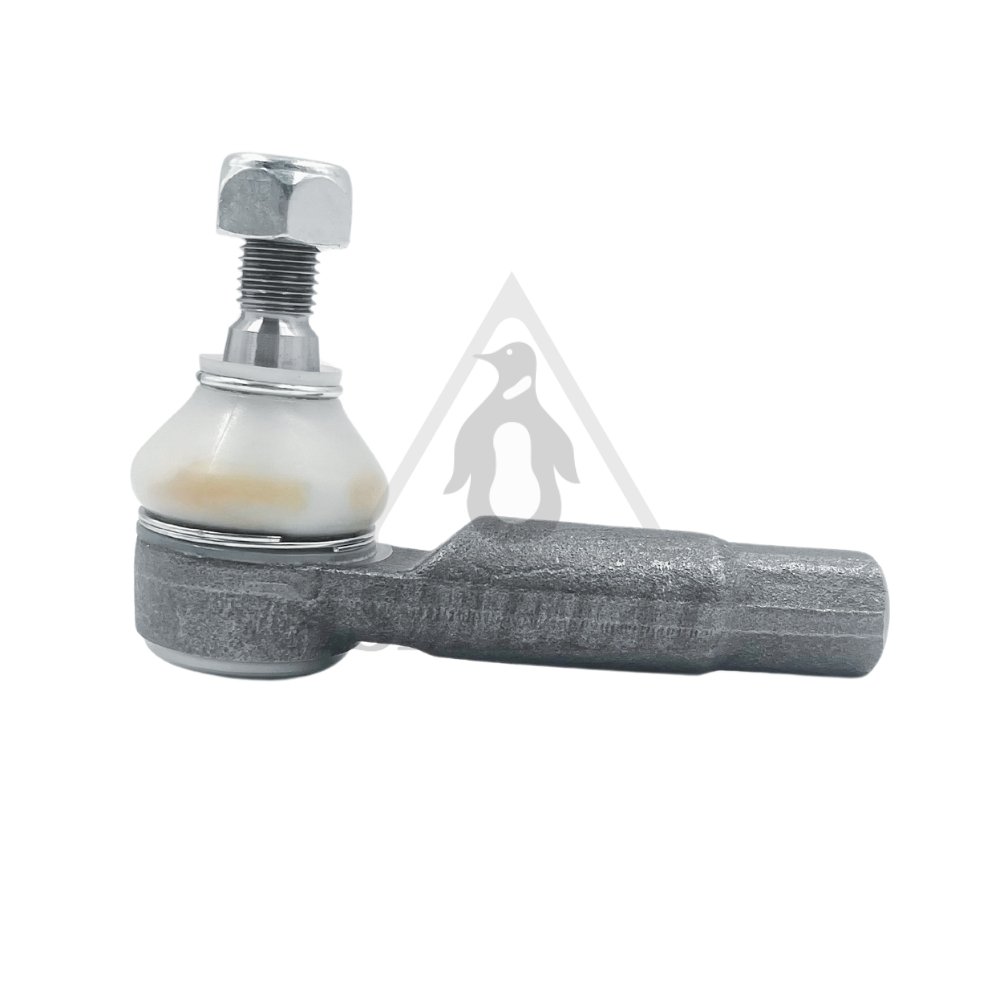

17VW1260
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,38 kg |
1J0 422 811 D, 1J0 422 811 B (1) OEM |
 |

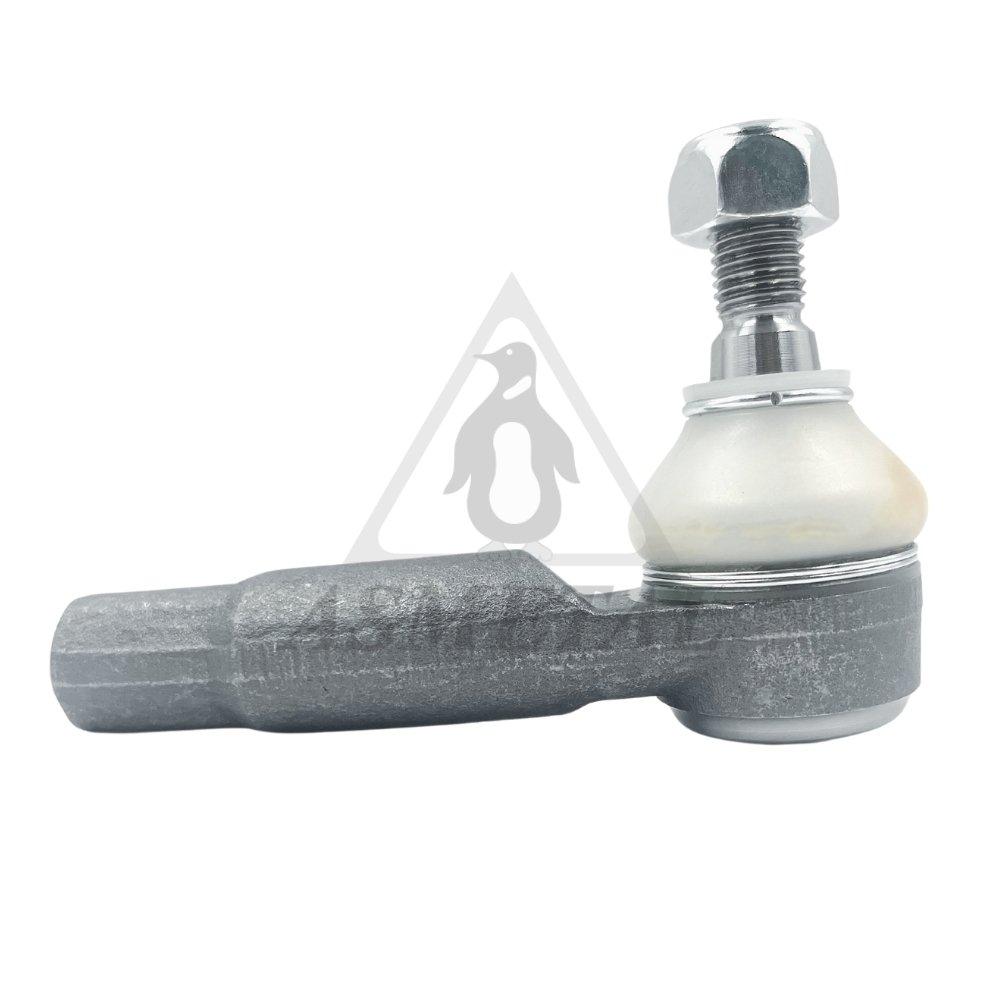

17VW1261
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,38 kg |
1J0 422 812 D, 1J0 422 812 B (1) OEM |
 |

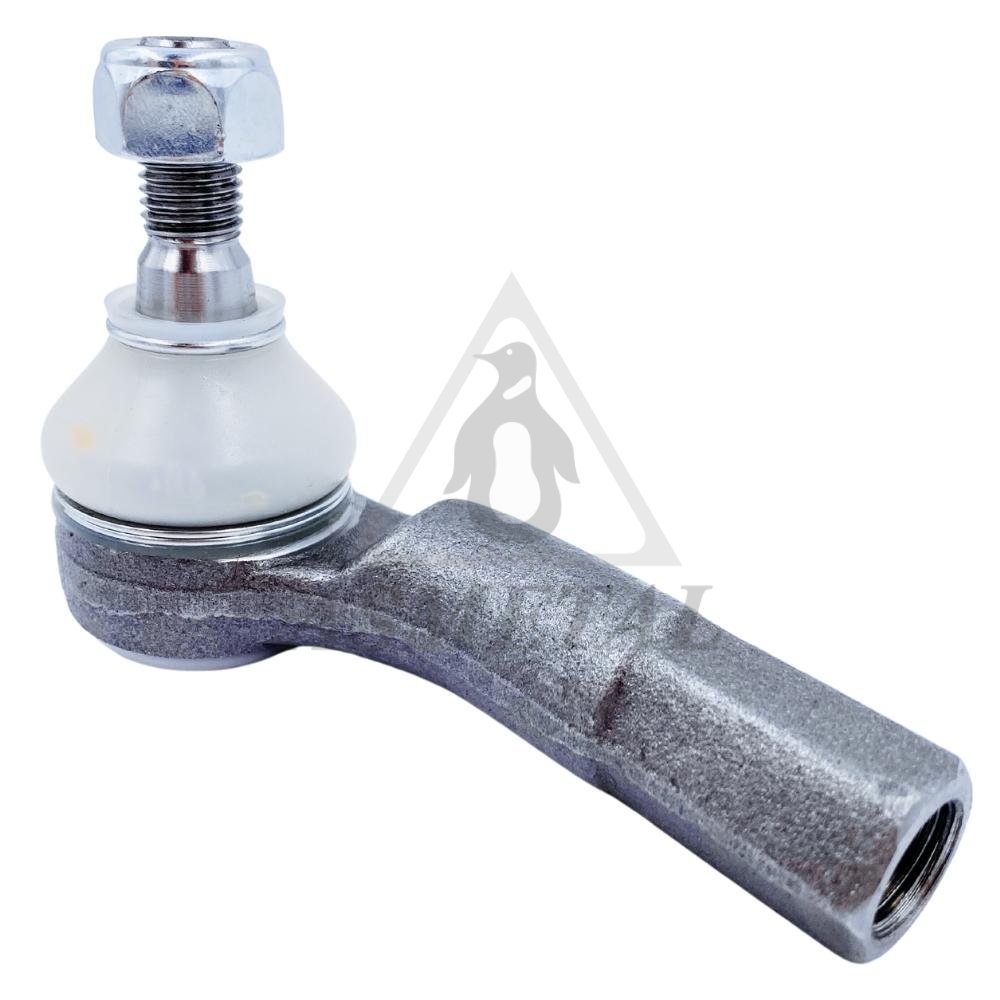

17VW2010
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6Q0 419 811 C, 6Q0 423 811 A (6) OEM |
 |

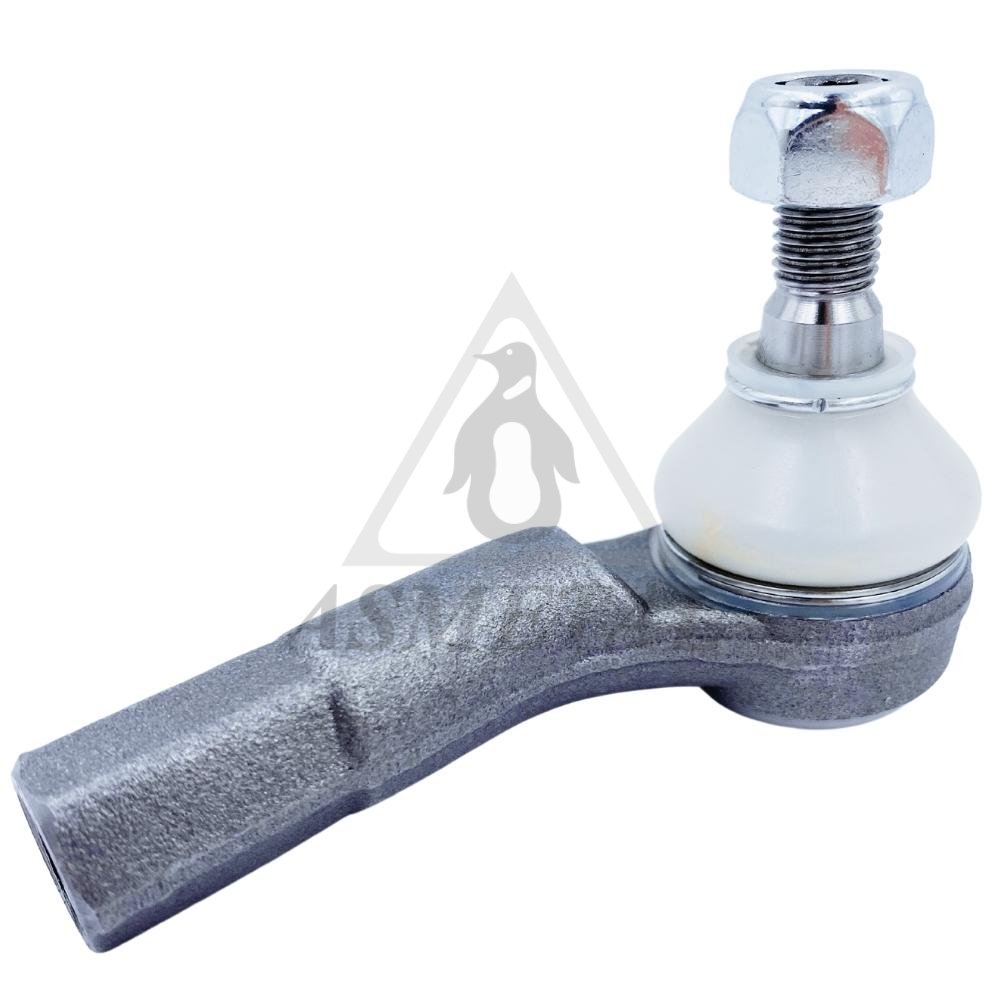

17VW2011
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM14x1.5 RHT / 0,4 kg |
6Q0 423 812 A, 6Q0 423 812 D (17) OEM |
 |

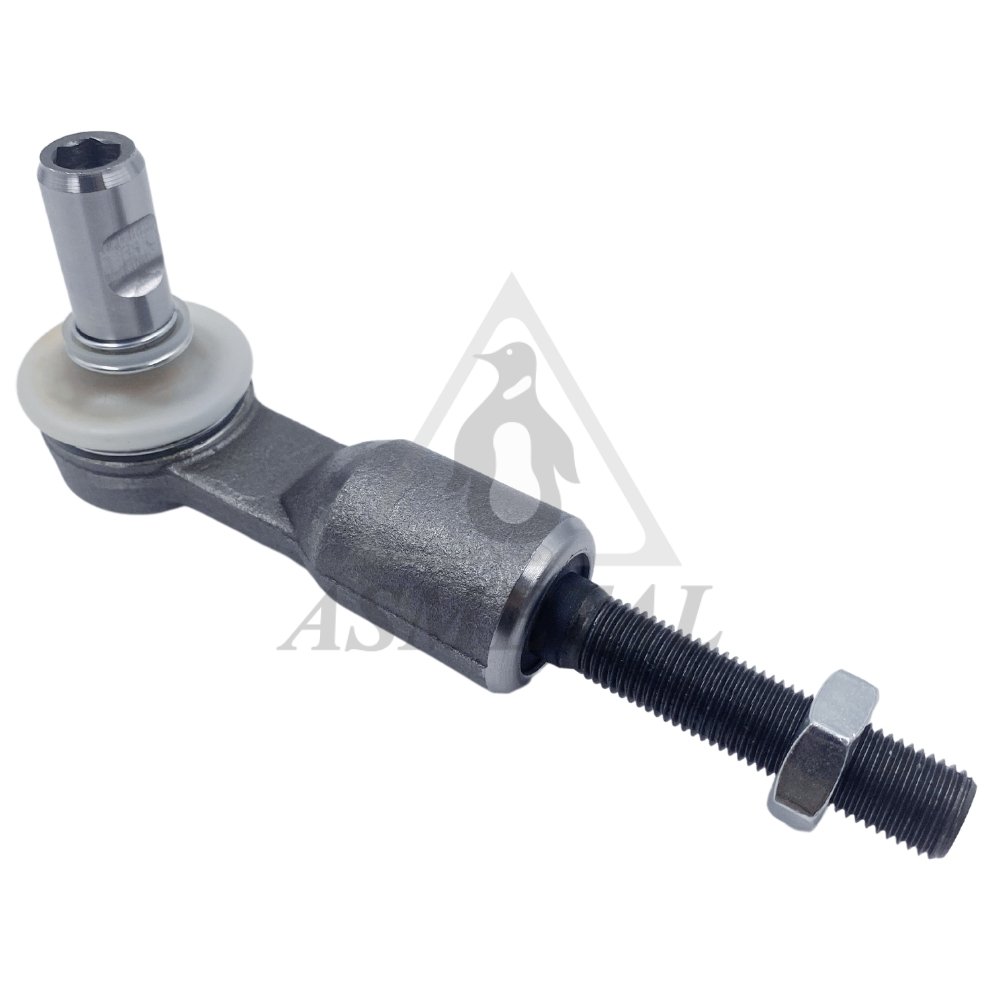

17VW2500
|
Tie Rod End |
L:154.5 c:Ø17.45 th:MM14x1.5 RHT / 0,62 kg |
4F0 419 811, 8E0 419 811 B (8) OEM |
 |

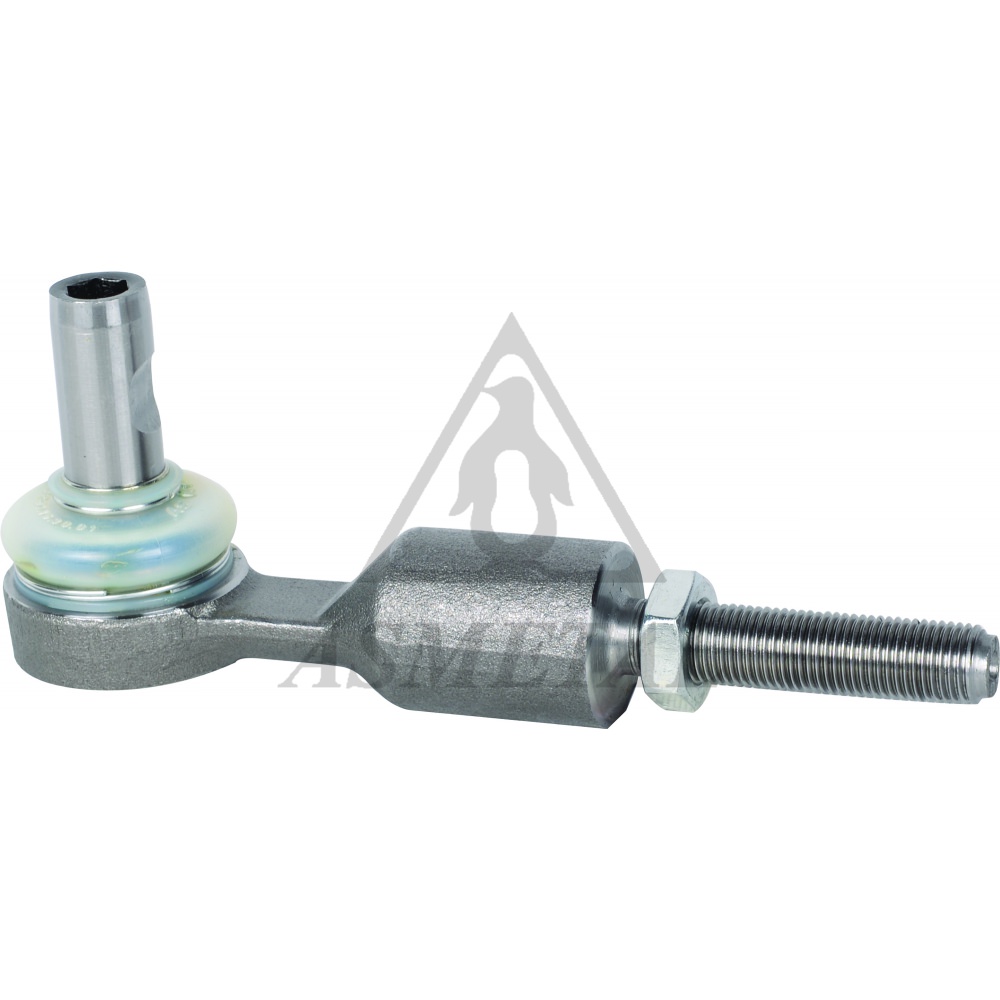

17VW2501
|
Tie Rod End Reinforced |
L:73.5 cr:1/8 c:Ø10.7 tp:M10x1 th:FM14x1.5 RHT / 0,68 kg |
8H1 422 065 B, 8H1 422 065 (48) OEM |
 |

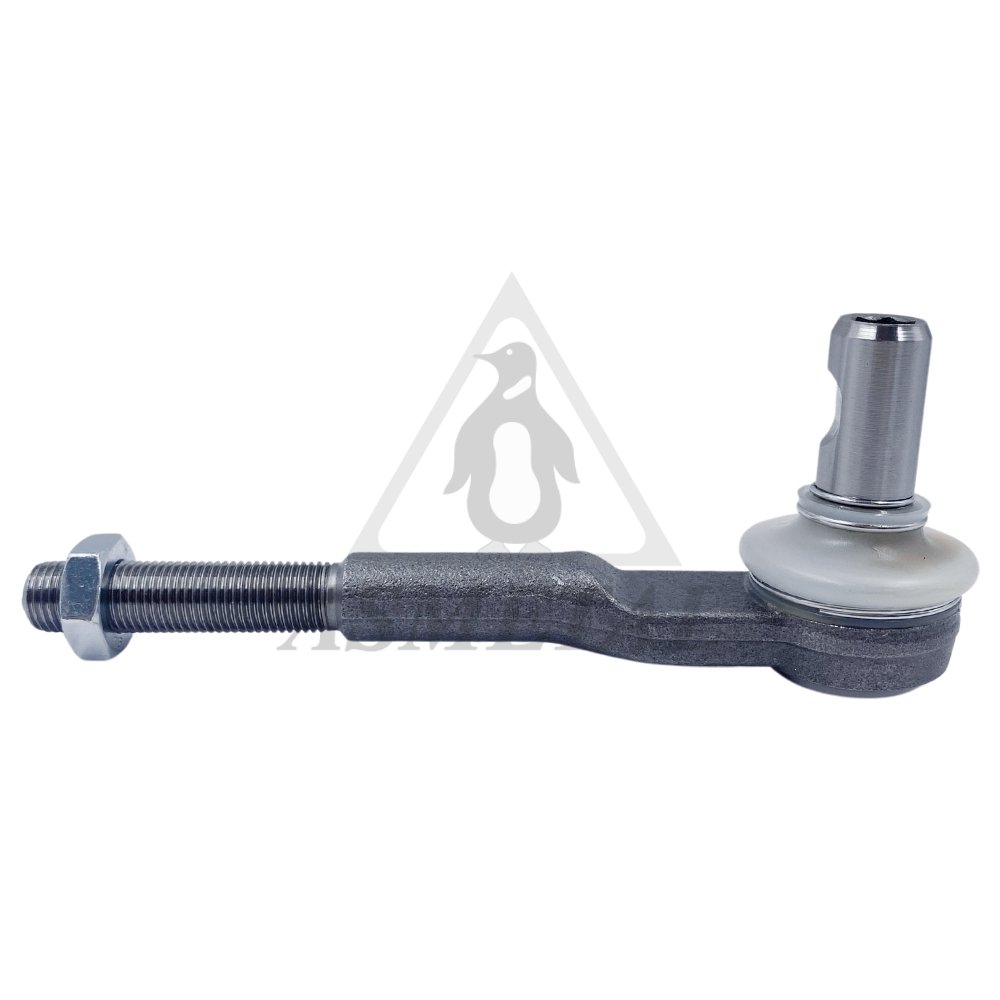

17VW2505
|
Tie Rod End |
L:157 c:Ø17.45 th:MM14x1.5 RHT / 0,46 kg |
8E0 419 811, 4F0 498 811 A (4) OEM |
 |
17VW6600
NEW
|
Tie Rod End |
0,36 kg |
1EA 423 811 B |
 |

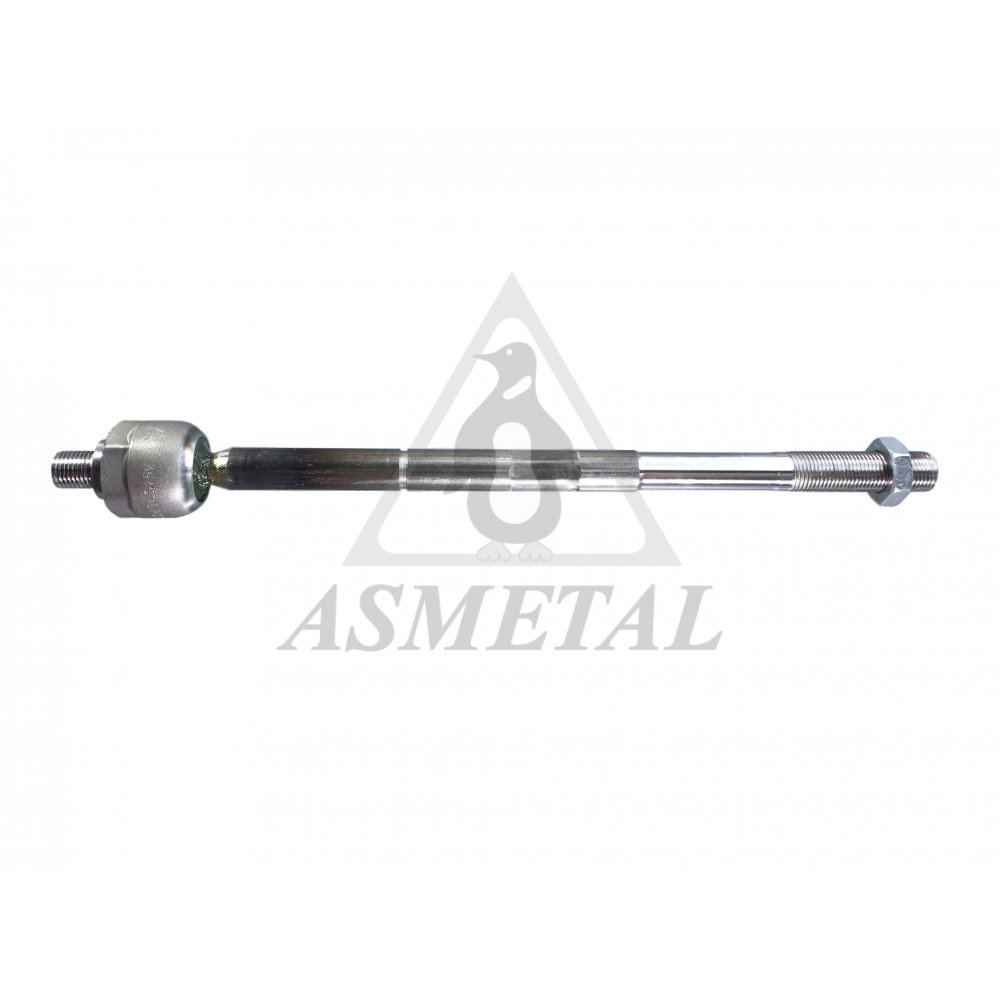

20AU1000
|
Axial Joint |
L:315 tp:M14x1.5 th:MM16x1.5 RHT / 0,7 kg |
2Q0 423 810 D |
 |

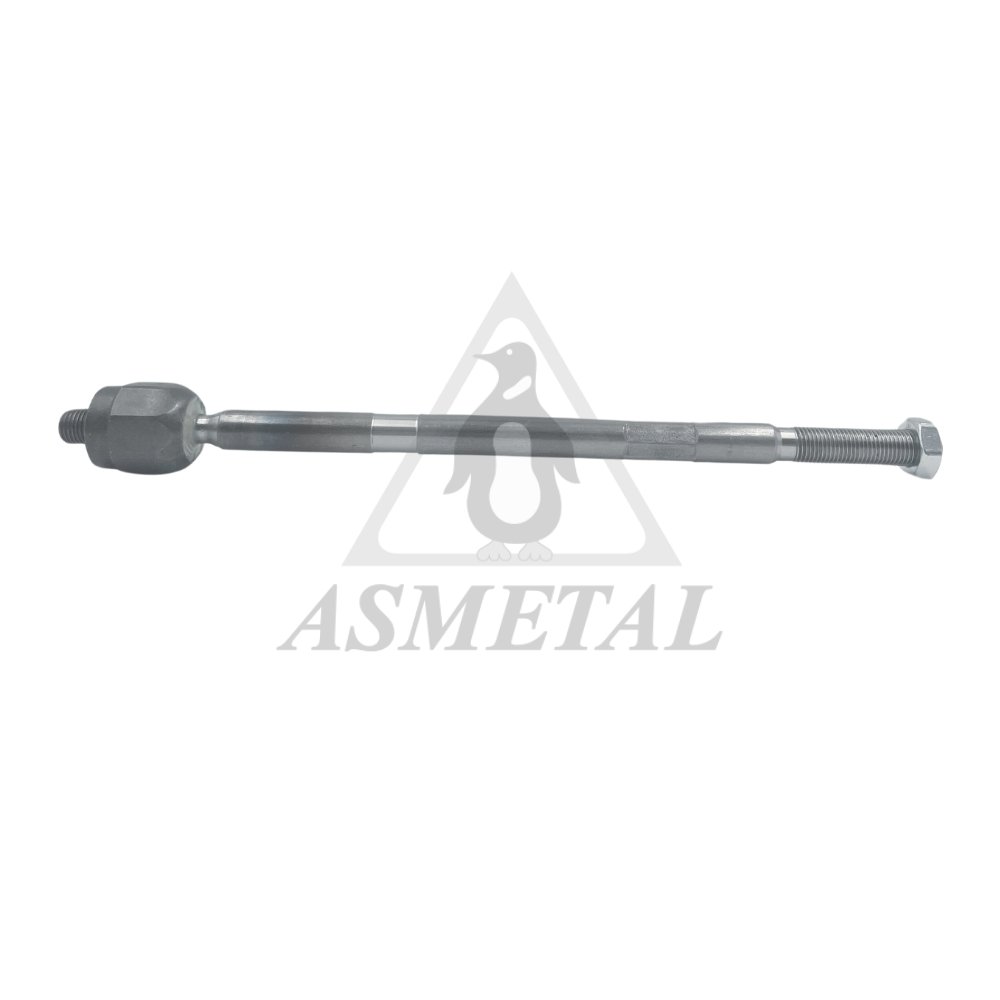

20AU1100
|
Axial Joint |
L:313 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6R0 423 810, 8Z0 423 810 C (1) OEM |
 |
20AU1200
|
Axial Joint |
L:311.5 tp:M16x1.5 th:MM16x1.5 RHT / 0,72 kg |
1K0 423 810 A, 1K1 423 070 AX (16) OEM |
 |

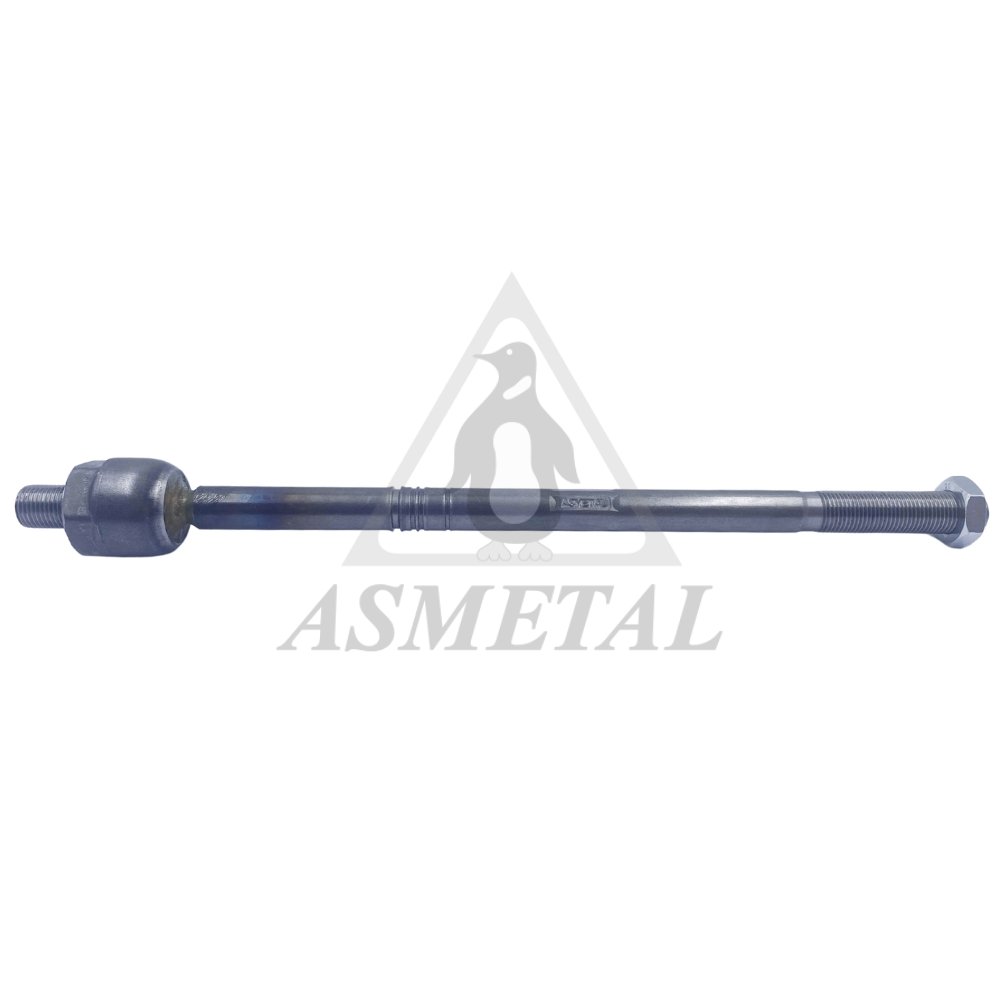

20AU1230
NEW
|
Axial Joint |
0,75 kg |
5WA 423 810 F |
 |
20SK0503
OUT OF SERVICE
|
Axial Joint |
0 kg |
114 500 421, 111 500 420 (1) OEM |
 |

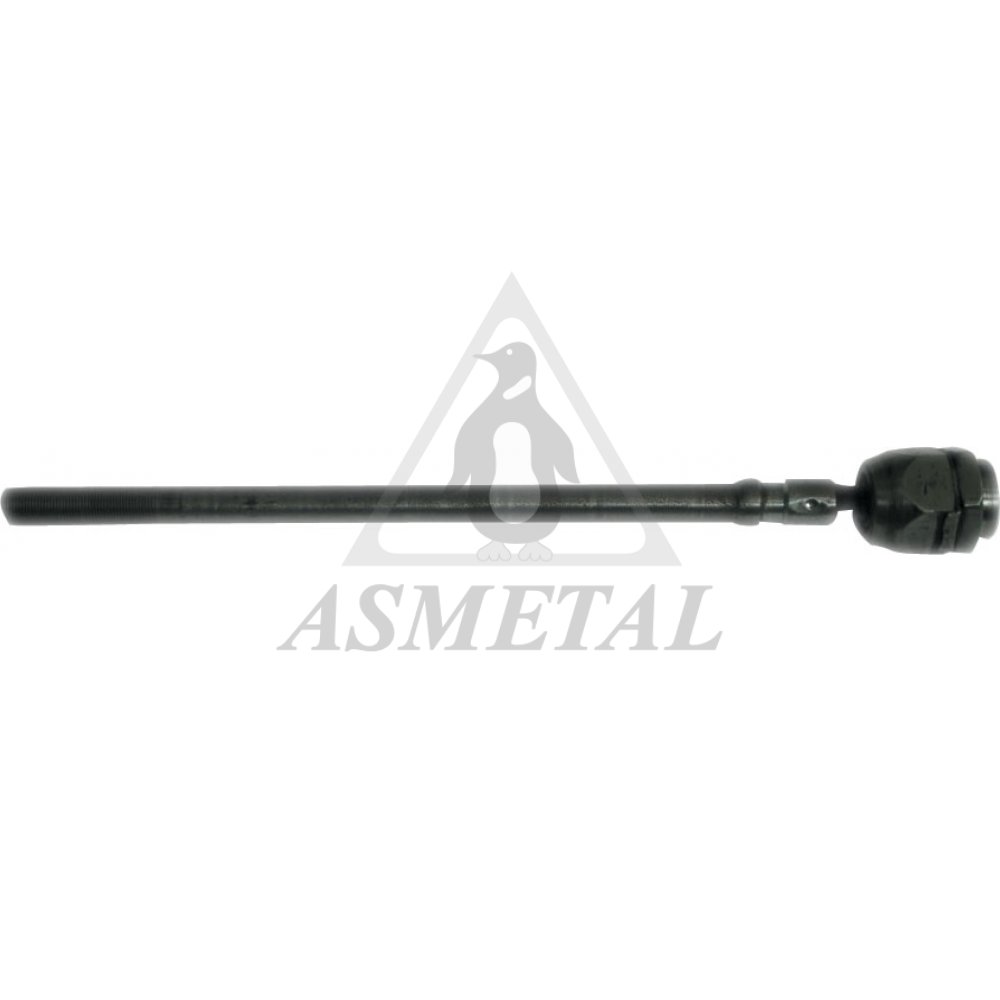

20SK0504
OUT OF SERVICE
|
Axial Joint |
0 kg |
|
 |
20SK1003
|
Axial Joint |
L:330mm / 0,36 kg |
115 500 420 |
 |

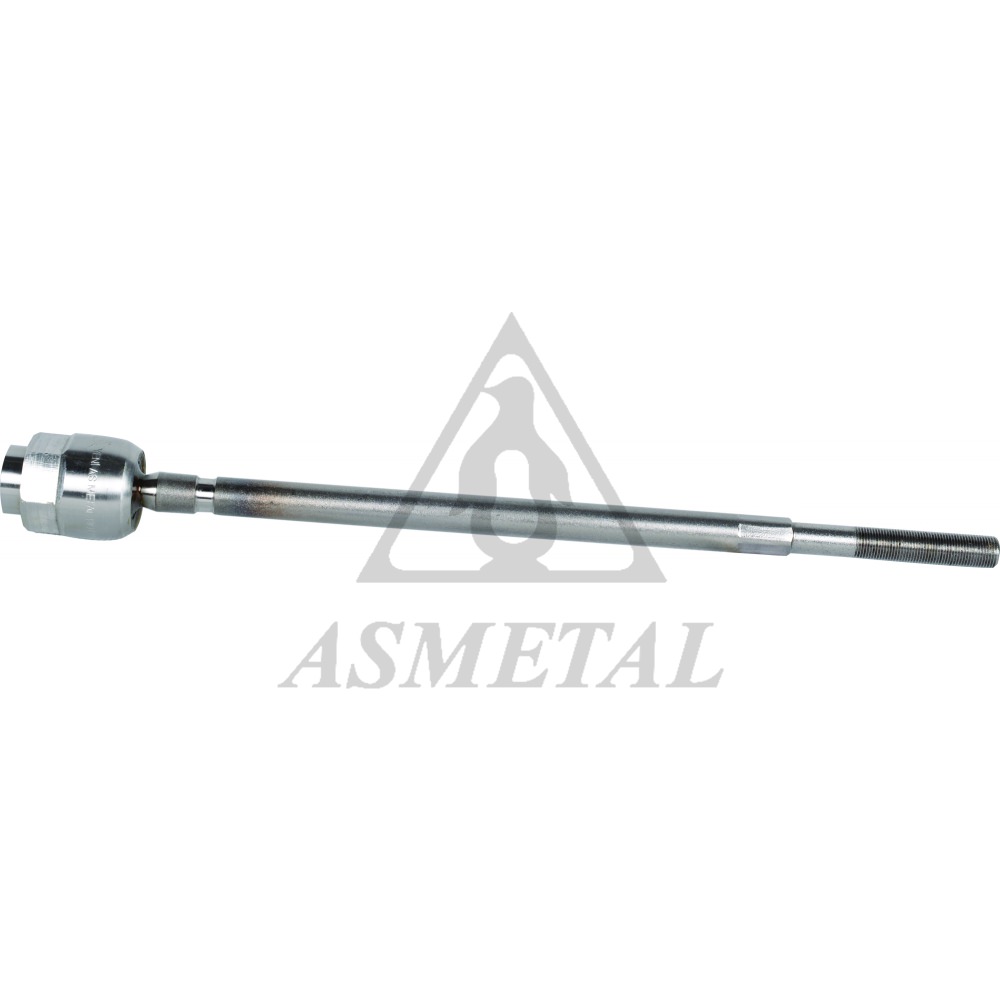

20SK1501
|
Axial Joint |
L:347.5 tp:M14x1.5 th:MM12x1 RHT / 0,61 kg |
6U0 422 807, 073 502 78N (1) OEM |
 |
20SK2020
IN PREPARATION
|
Axial Joint |
|
6Q0 419 810 A |
 |
20SK2030
IN PREPARATION
|
Axial Joint |
|
6RU 422 821, 6RU 423 821 (2) OEM |
 |

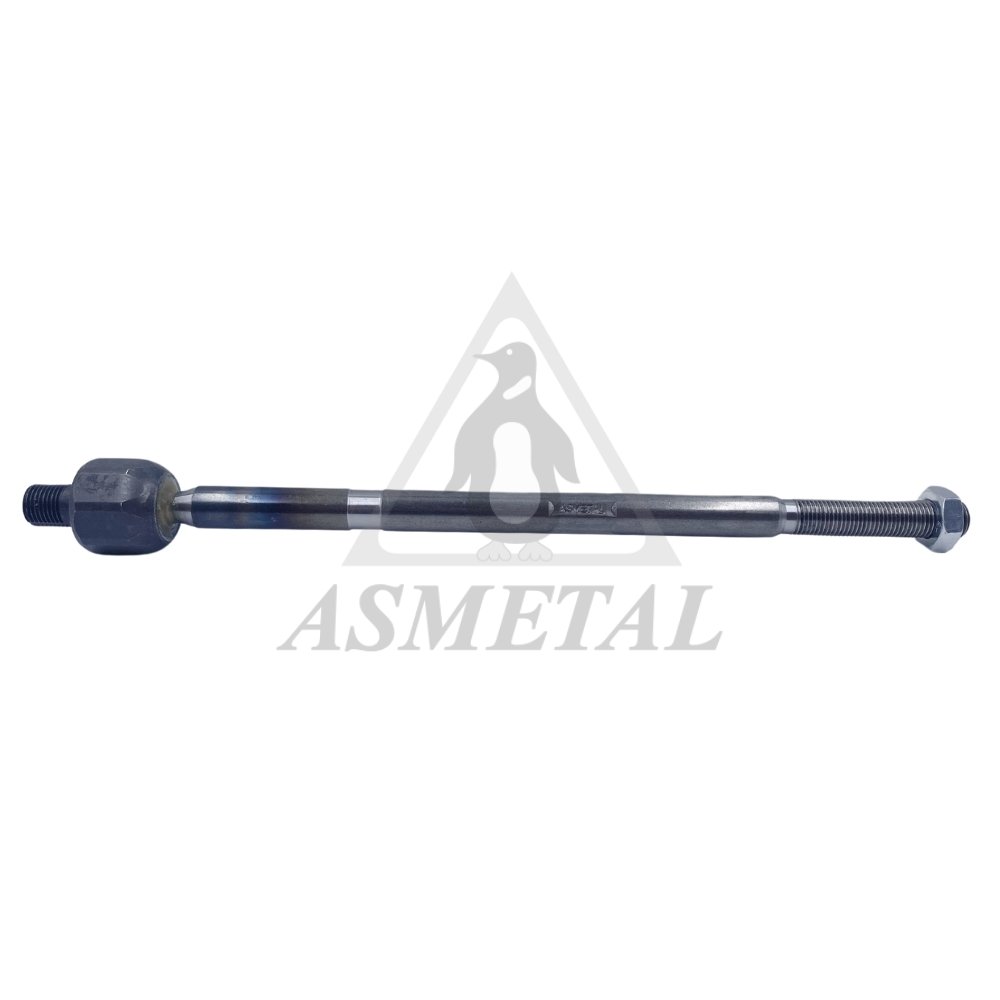

20VW0500
|
Axial Joint |
L:319 tp:M14x1.5 th:MM16x1.5 RHT / 0,59 kg |
1J0 422 807 E*, 1J0 422 804 E* (5) OEM |
 |

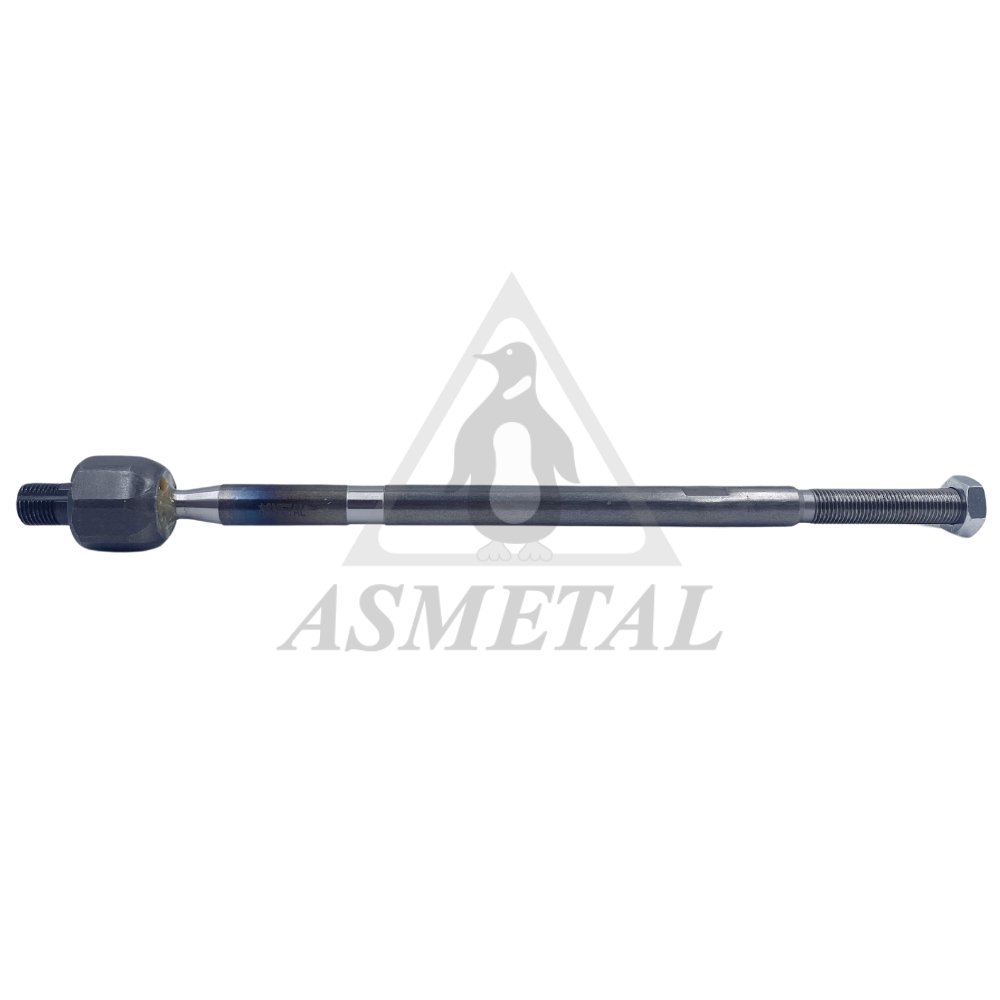

20VW0501
|
Axial Joint |
L:337 tp:M14x1.5 th:MM16x1.5 RHT / 0,7 kg |
1J0 422 804 A*, 1J0 422 803 A* |
 |

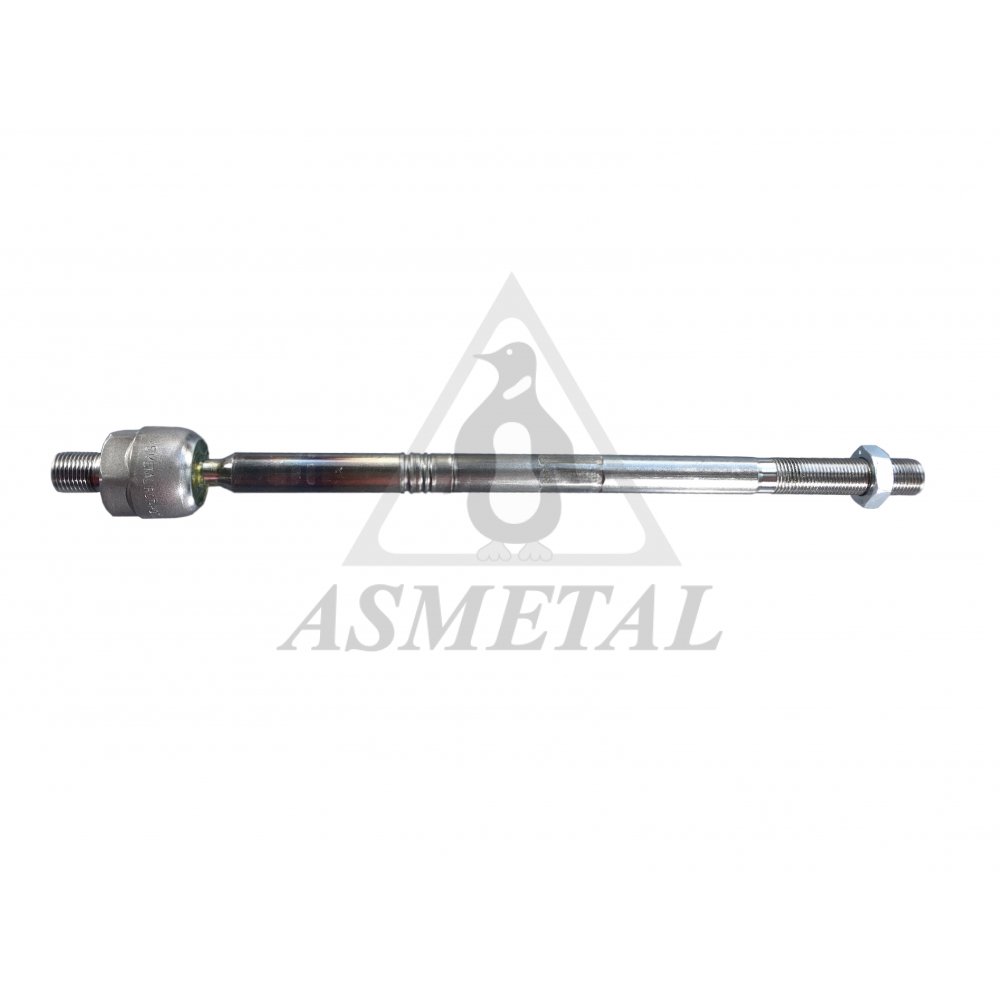

20VW1200
|
Axial Joint |
L:330 tp:M16x1.5 th:MM16x1.5 RHT / 0,75 kg |
1KD 423 810, 5Q0 423 810 (1) OEM |
 |
20VW1210
NEW
|
Axial Joint |
0,74 kg |
5WA 423 810 C |
 |

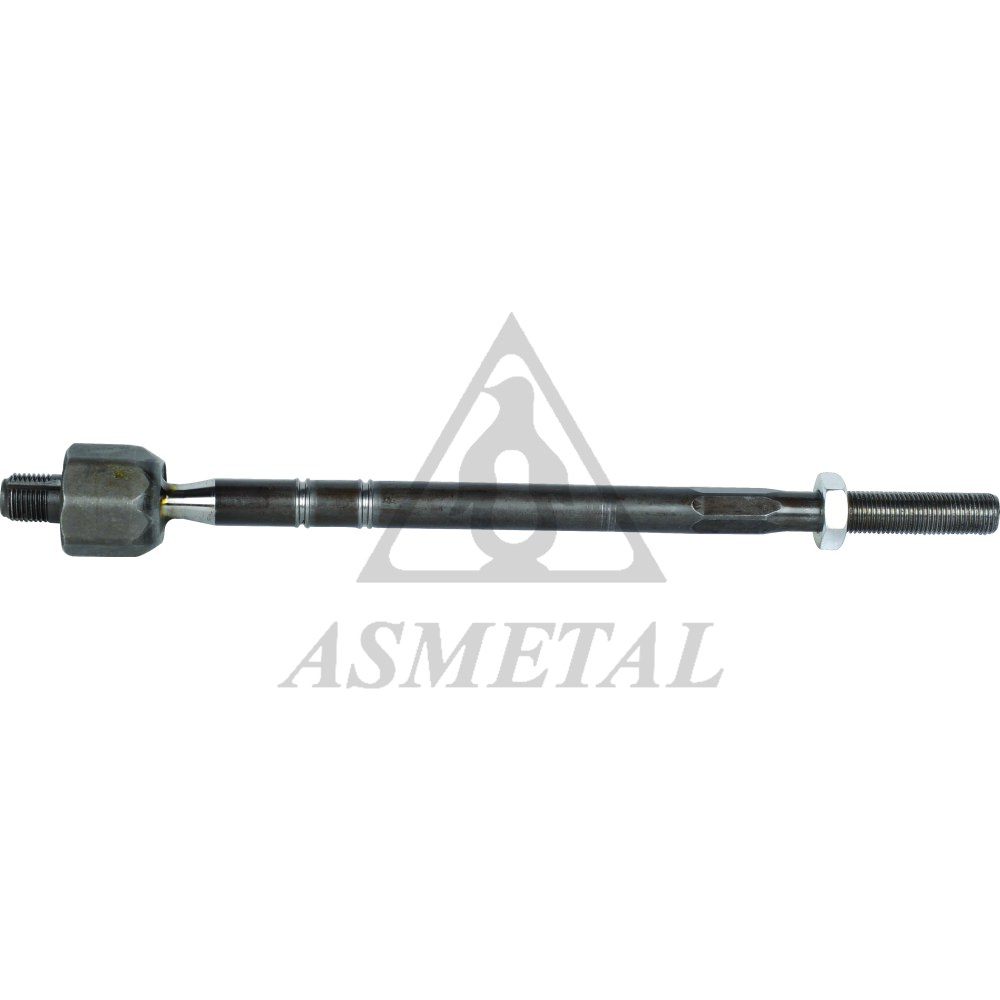

20VW2010
|
Axial Joint |
L:298 tp:M14x1.5 th:MM16x1.5 RHT / 0,55 kg |
6Q0 423 810 G, 6Q0 423 803 G (7) OEM |
 |

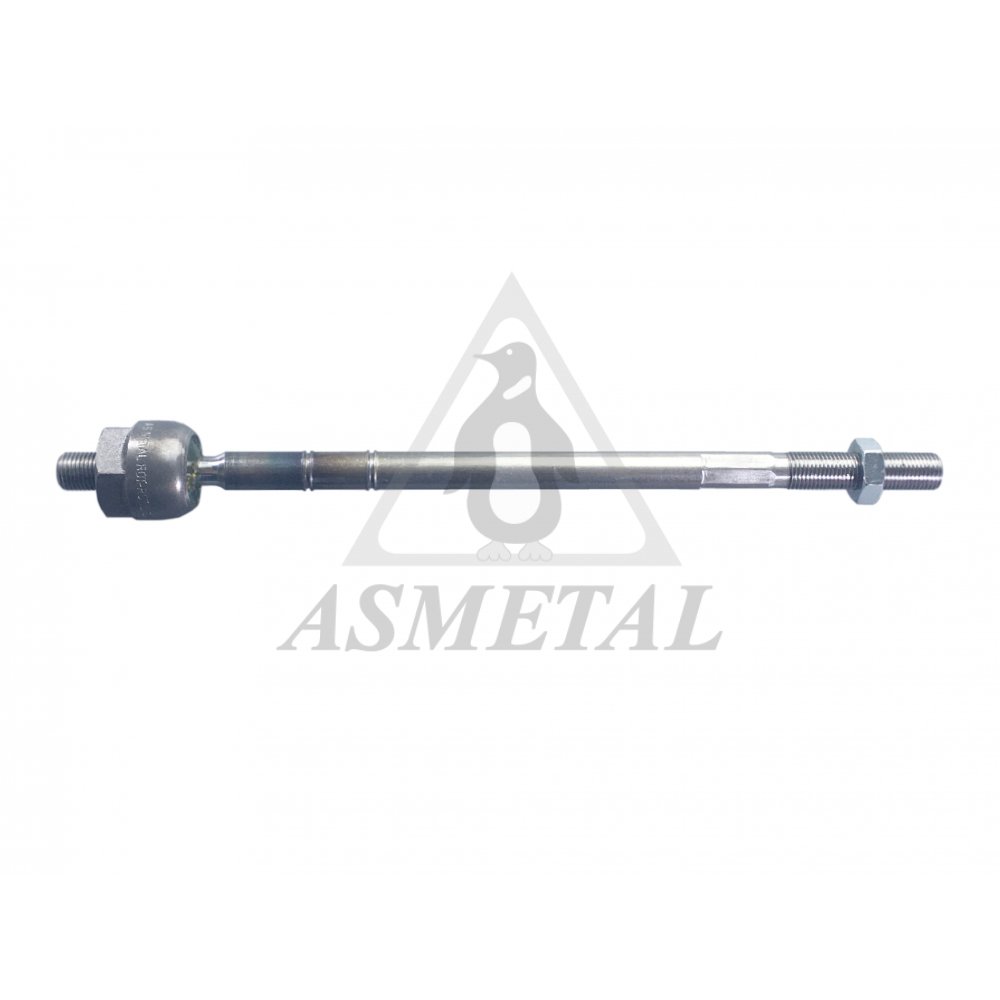

20VW2011
|
Axial Joint |
L:305 tp:M14x1.5 th:MM14x1.5 RHT / 0,58 kg |
1S0 423 810 A |
 |

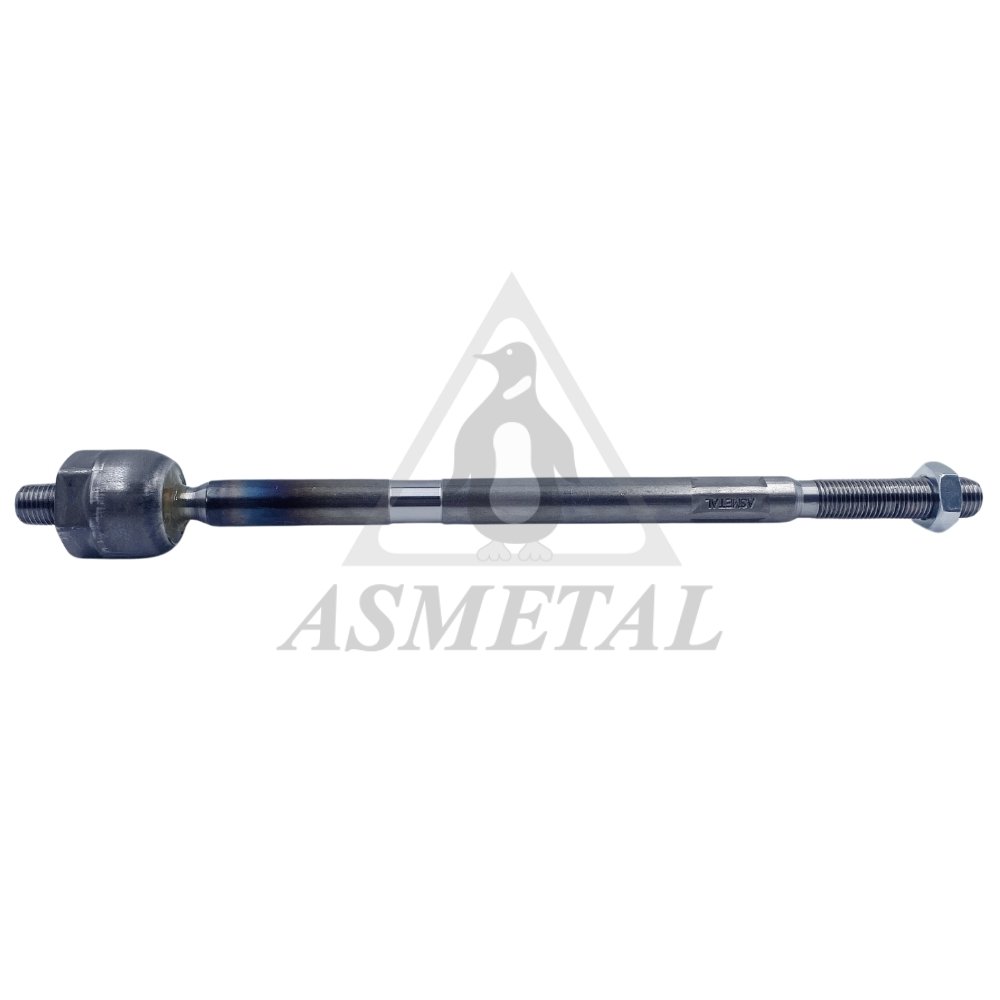

20VW2015
|
Axial Joint |
L:296 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6Q0 423 803 E, 6Q0 423 804 E (5) OEM |
 |

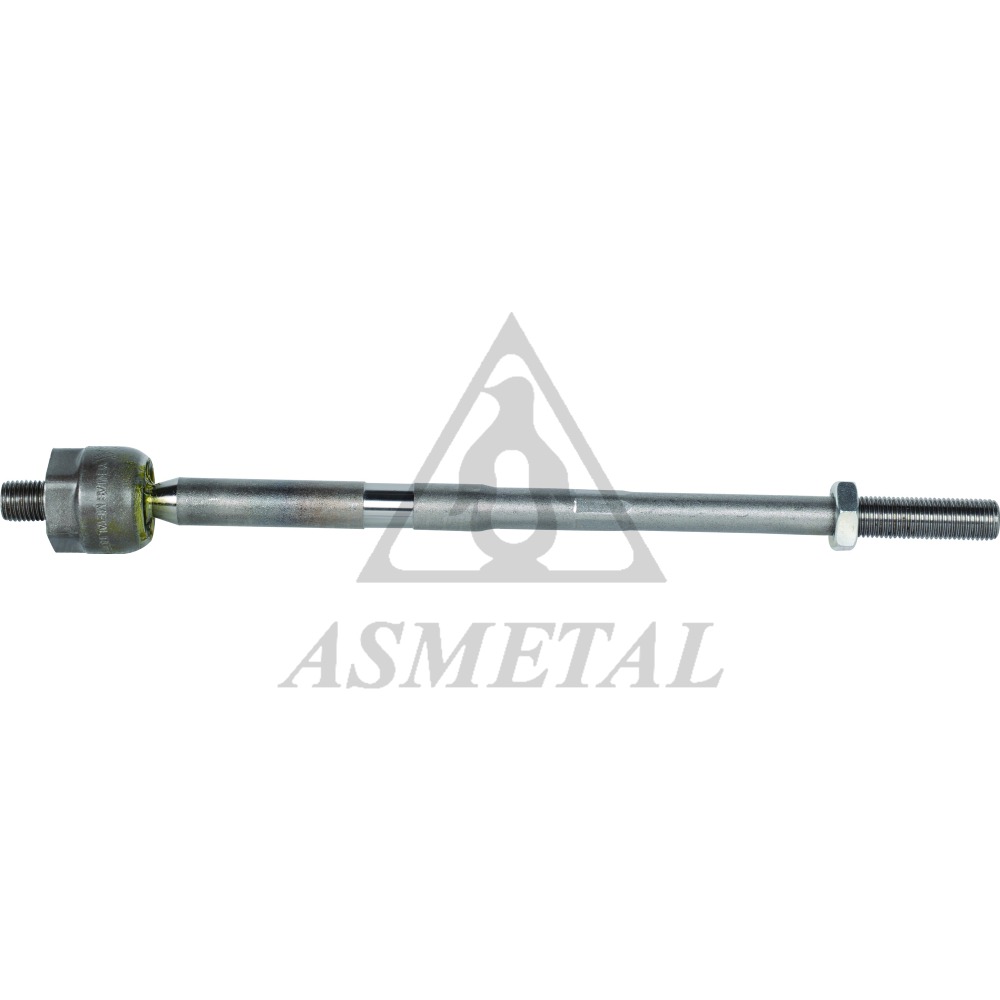

20VW2020
|
Axial Joint |
L:312.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,62 kg |
6R0 423 803, 6R0 423 803 A (1) OEM |
 |

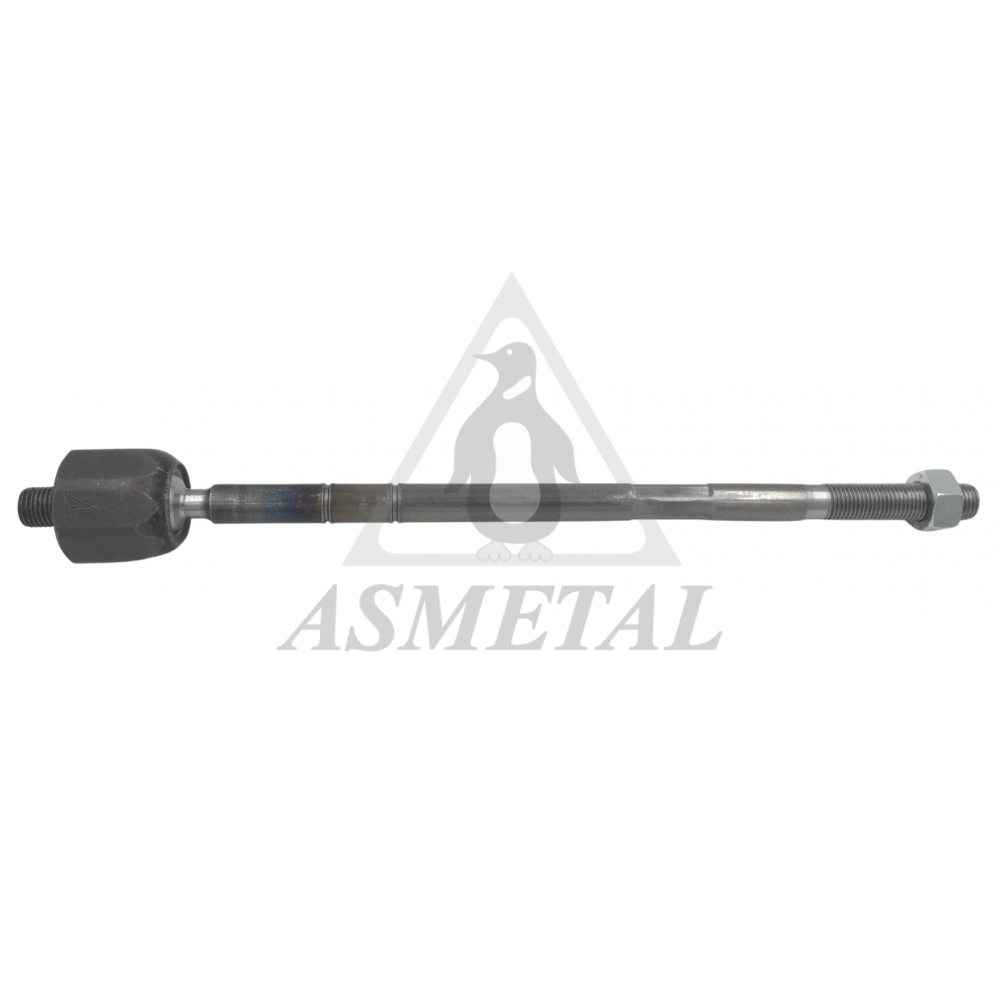

20VW2030
|
Axial Joint |
L:312 tp:M14x1.5 th:MM14x1.5 RHT / 0,66 kg |
6C0 423 810 C, 6C0 423 810 B (3) OEM |
 |

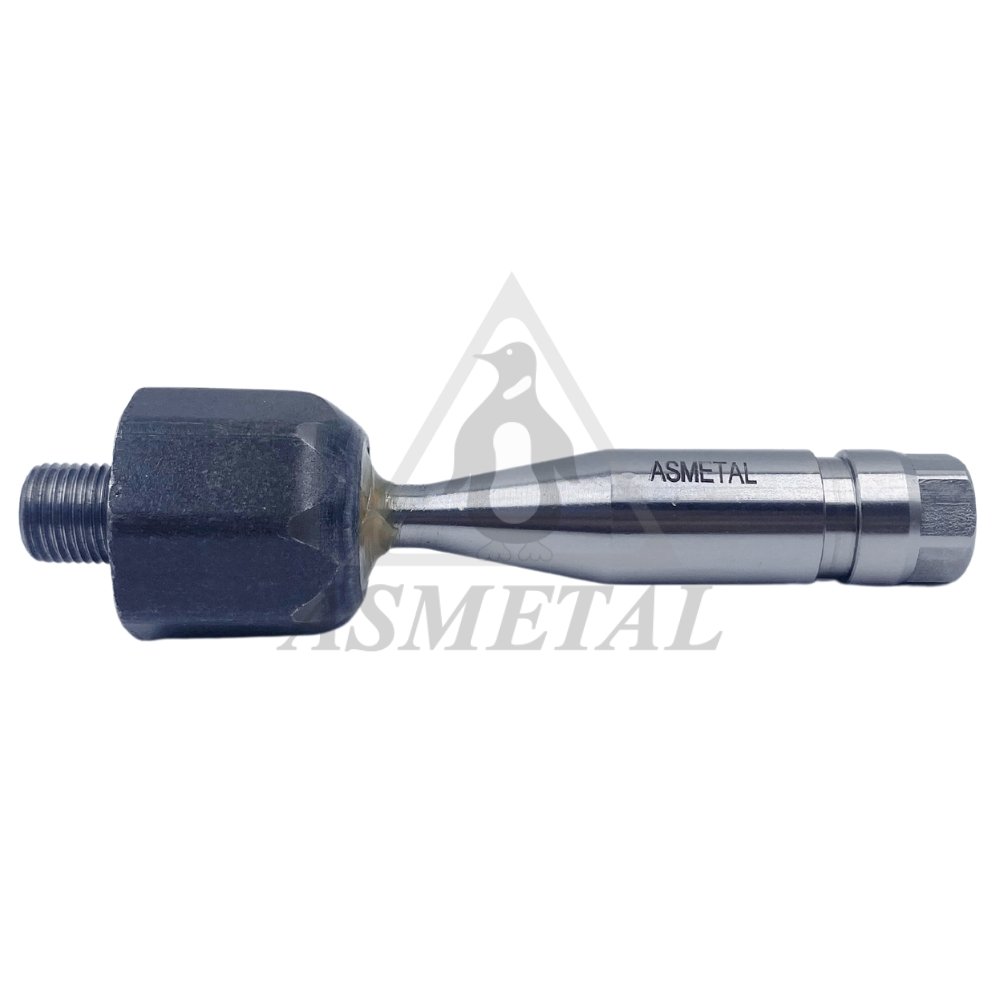

20VW2500
|
Axial Joint |
L:129 tp:M14x1.5 th:MM16x1.5 RHT / 0,42 kg |
4D0 419 801 B, 4D0 419 801 E (8) OEM |
 |
20VW6604
IN PREPARATION
|
Axial Joint |
|
1EA 423 810 C |
 |

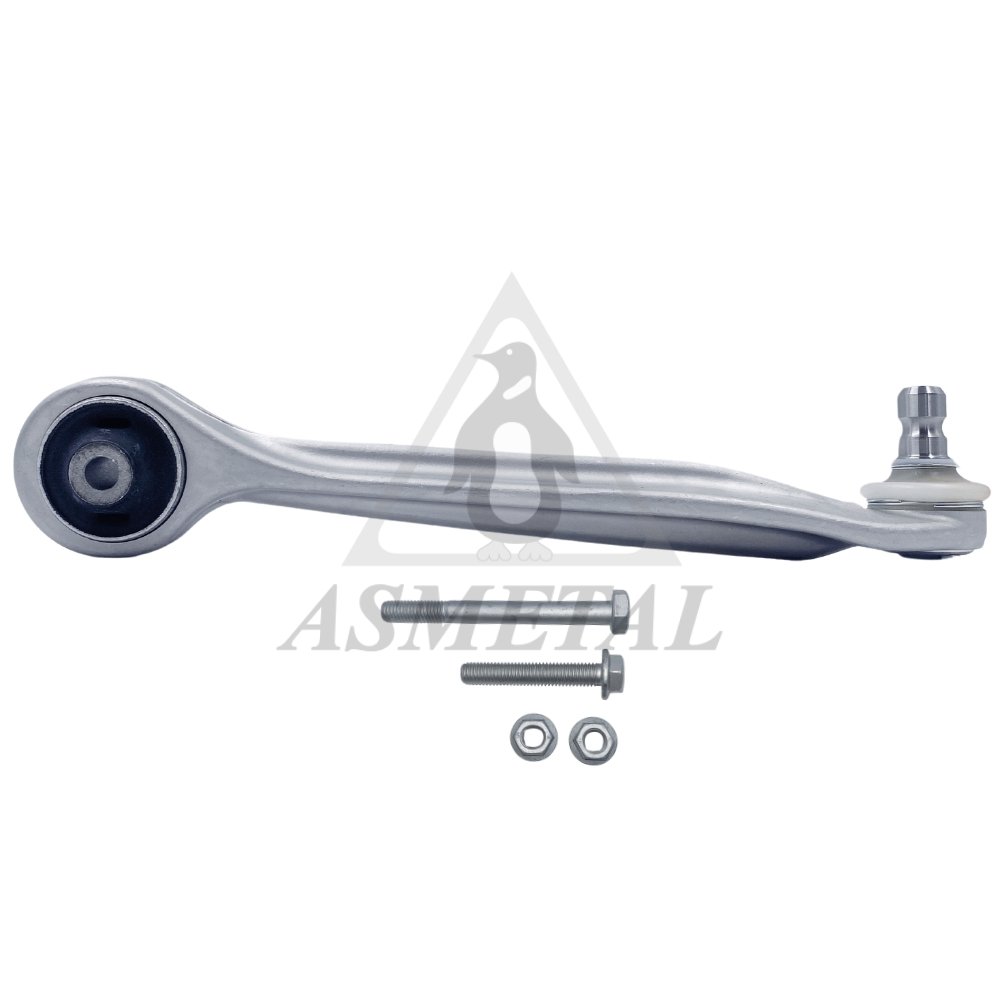

23AU0200
|
Track Control Arm Right |
c:Ø16 / 0,64 kg |
8E0 407 506 C, 8D0 407 506 A (14) OEM |
 |

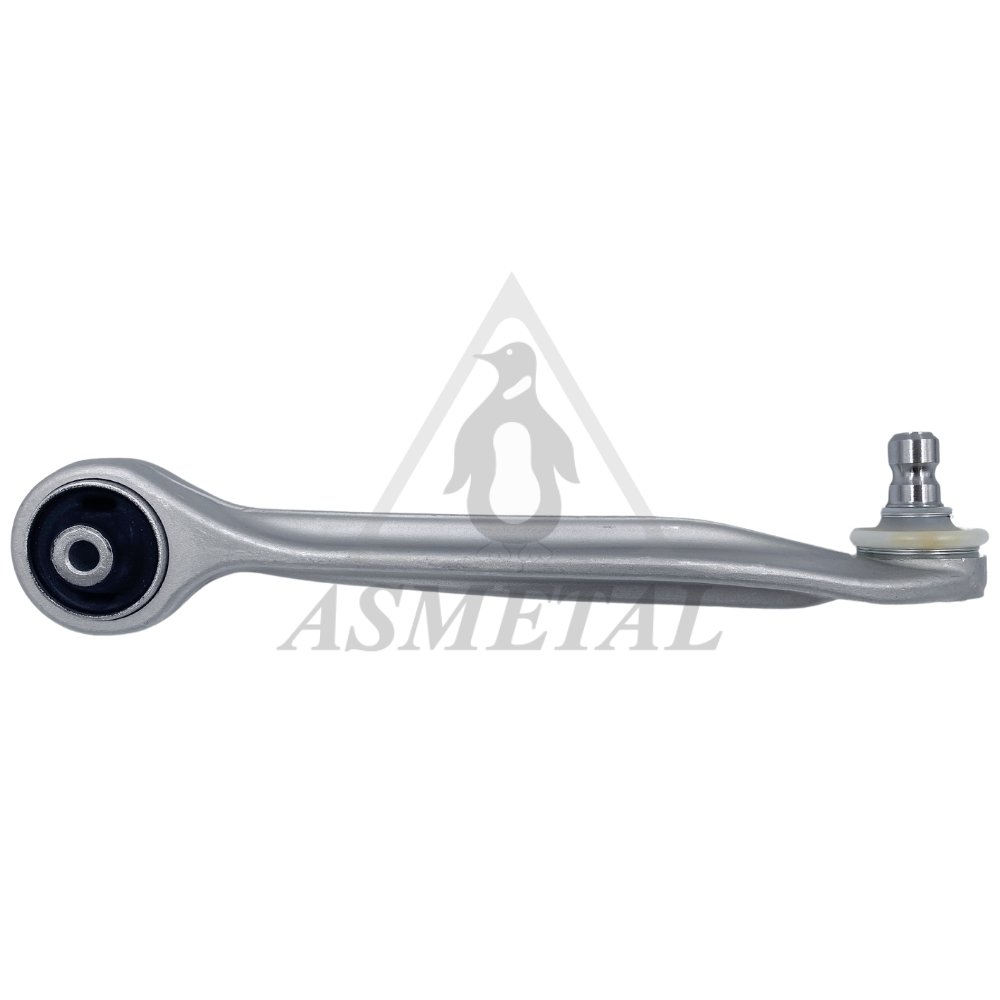

23AU0200B
|
Track Control Arm Right (Without Fasteners) |
c:Ø16 / 0,44 kg |
8E0 407 506 P, 8D0 407 506 A (14) OEM |
 |

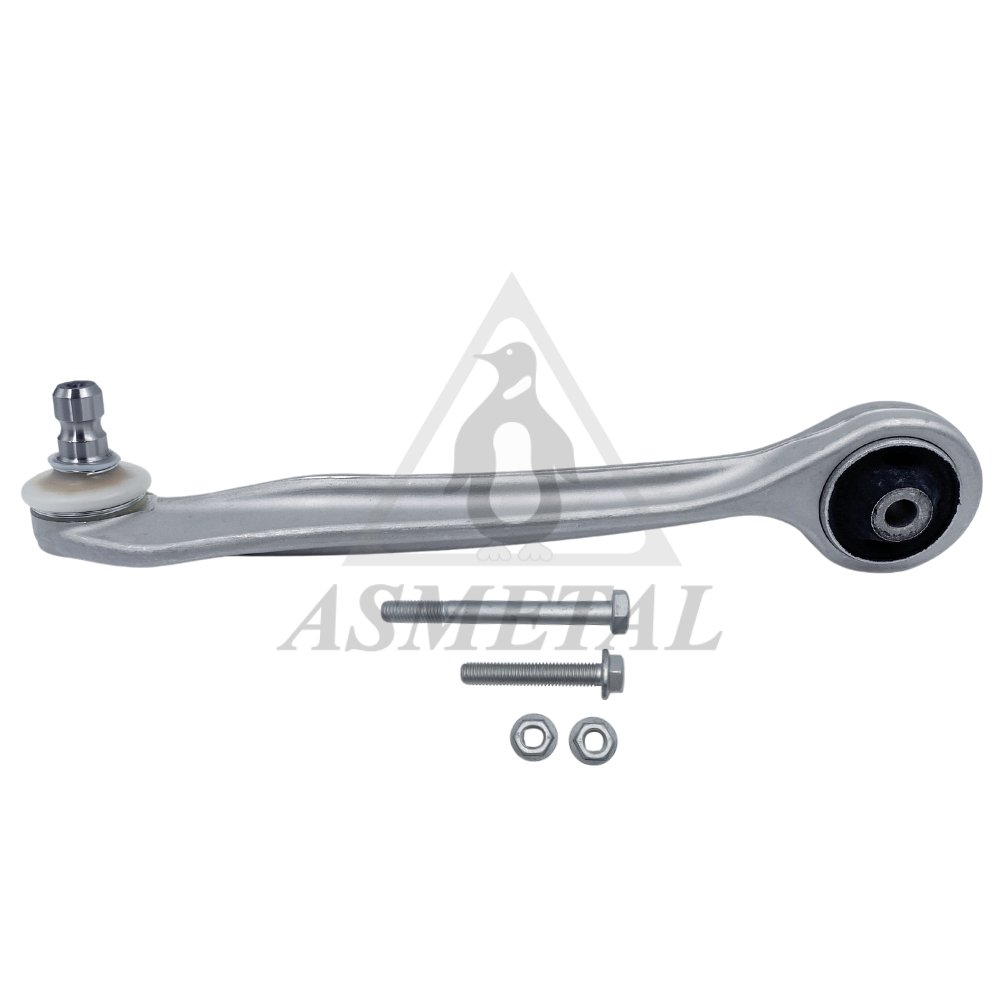

23AU0201
|
Track Control Arm Left |
c:Ø16 / 0,64 kg |
4Z7 407 505 A, 8D0 407 505 A (8) OEM |
 |
23AU0201B
|
Track Control Arm Left (Without Fasteners) |
c:Ø16 / 0,44 kg |
4Z7 407 505 A, 8D0 407 505 A (7) OEM |
 |

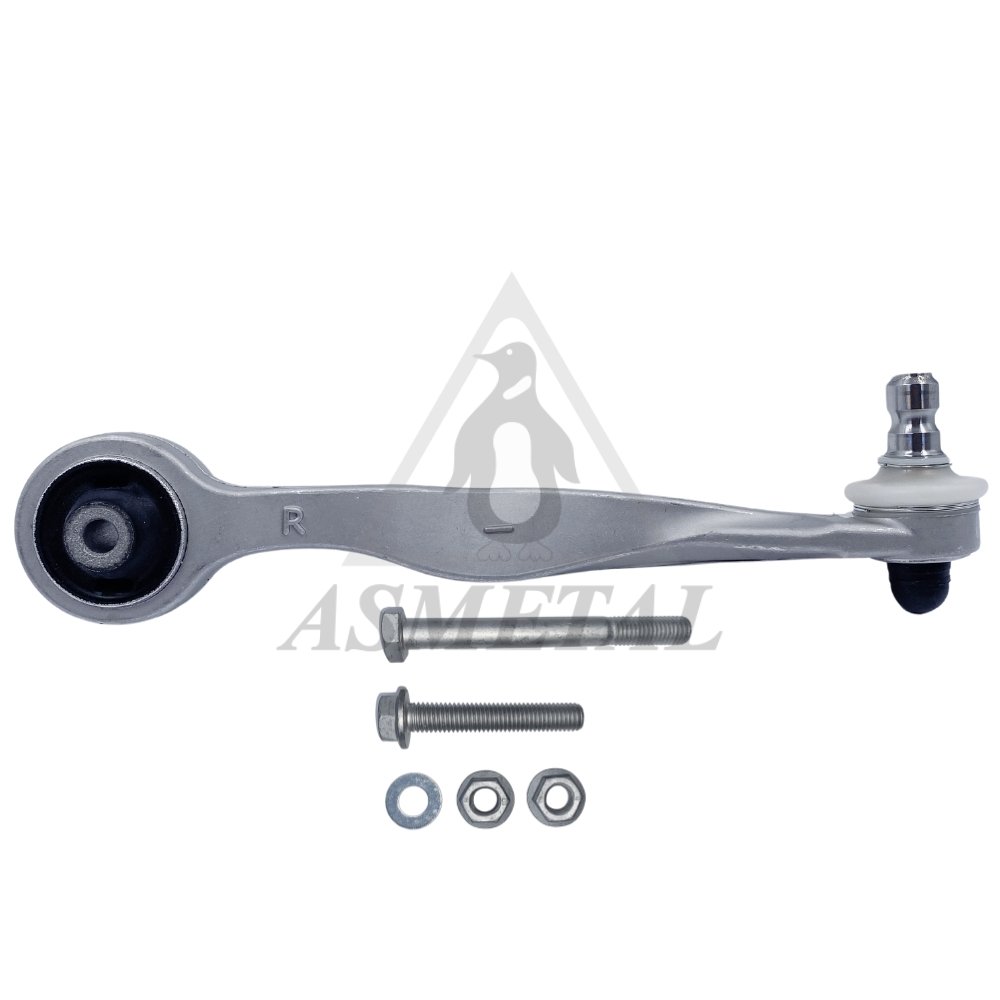

23AU0203
|
Track Control Arm Right |
c:Ø16 / 0,62 kg |
8E0 407 510 A, 8D0 407 510 E (17) OEM |
 |

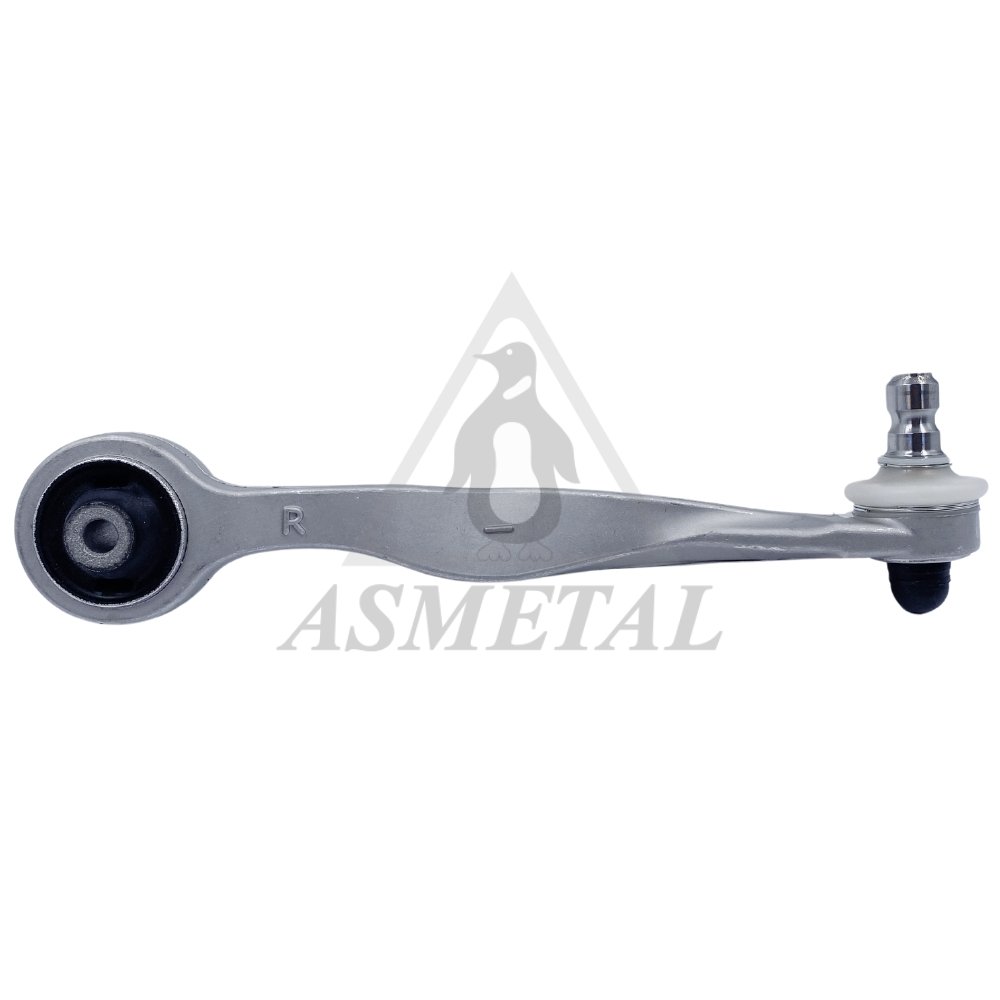

23AU0203B
|
Track Control Arm Right (Without Fasteners) |
c:Ø16 / 0,42 kg |
8D0 407 510 C, 8E0 407 510 A (15) OEM |
 |

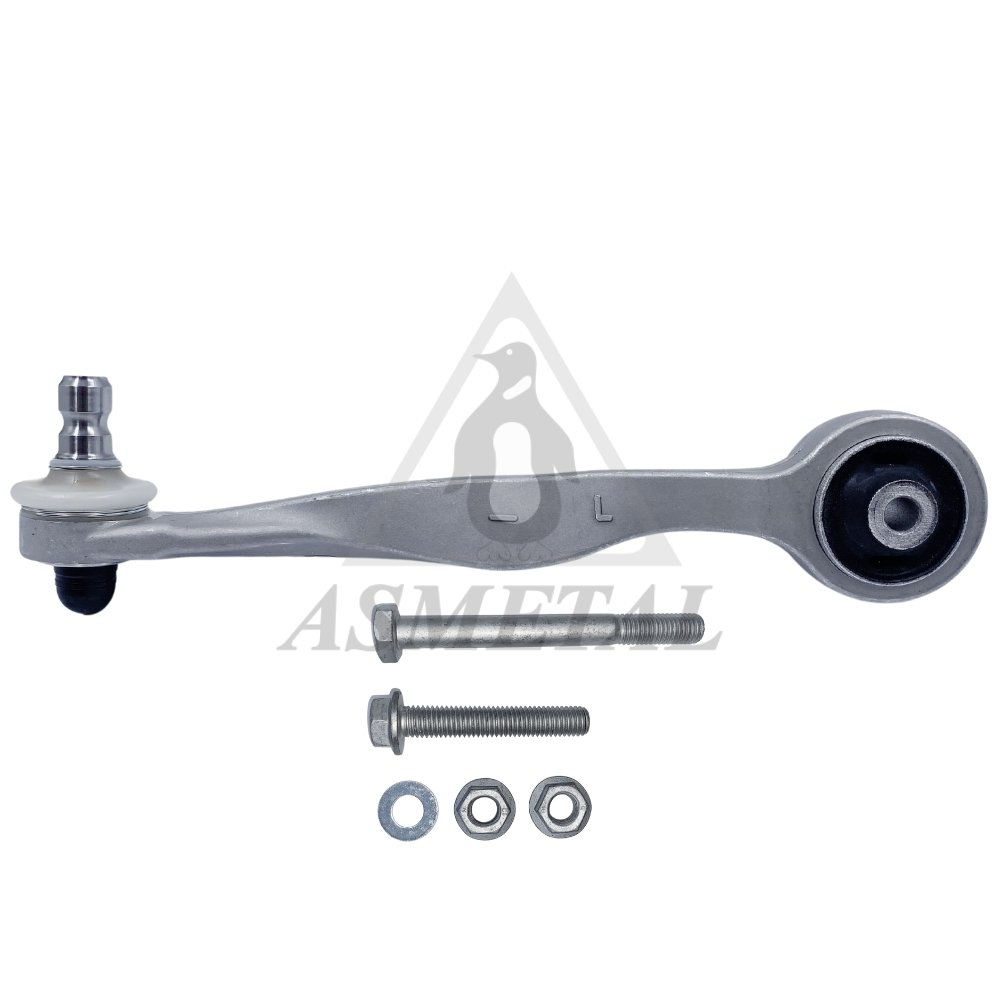

23AU0204
|
Track Control Arm Left |
c:Ø16 / 0,62 kg |
8D0 407 509 A, 8D0 407 509 E (17) OEM |
 |

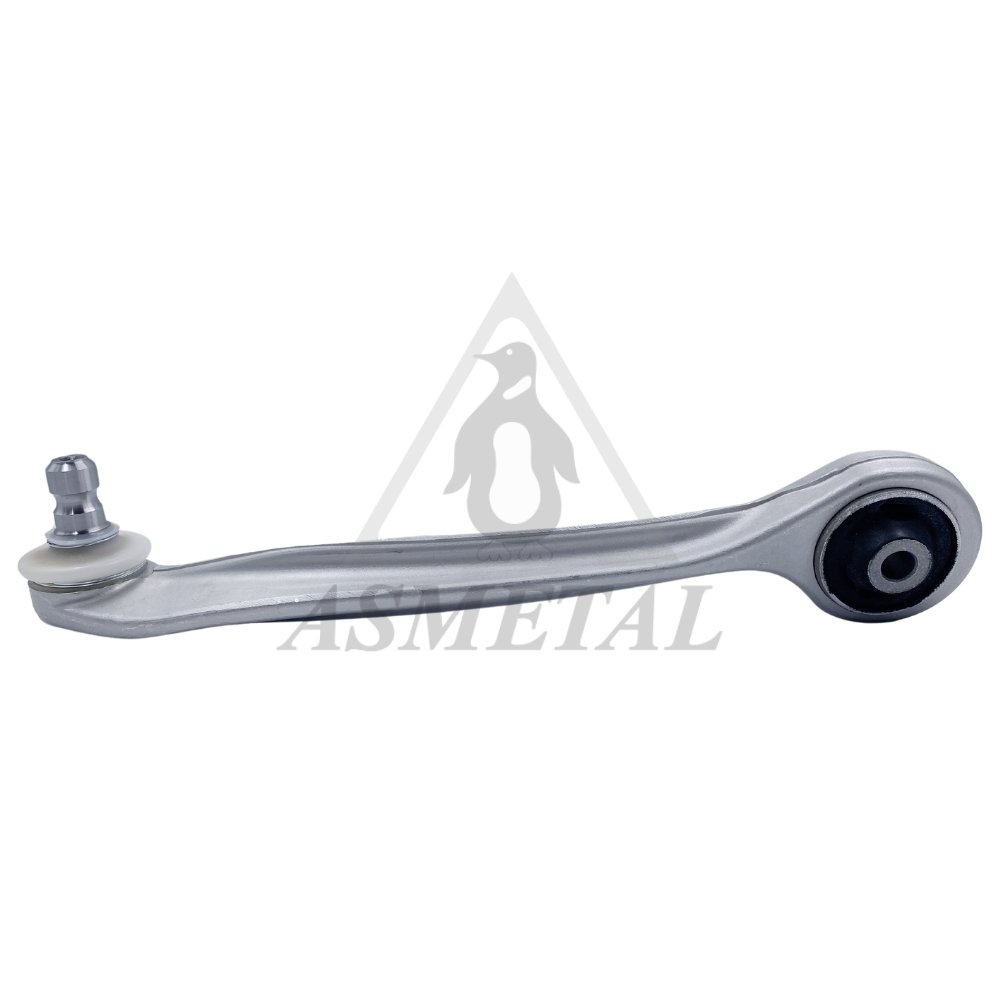

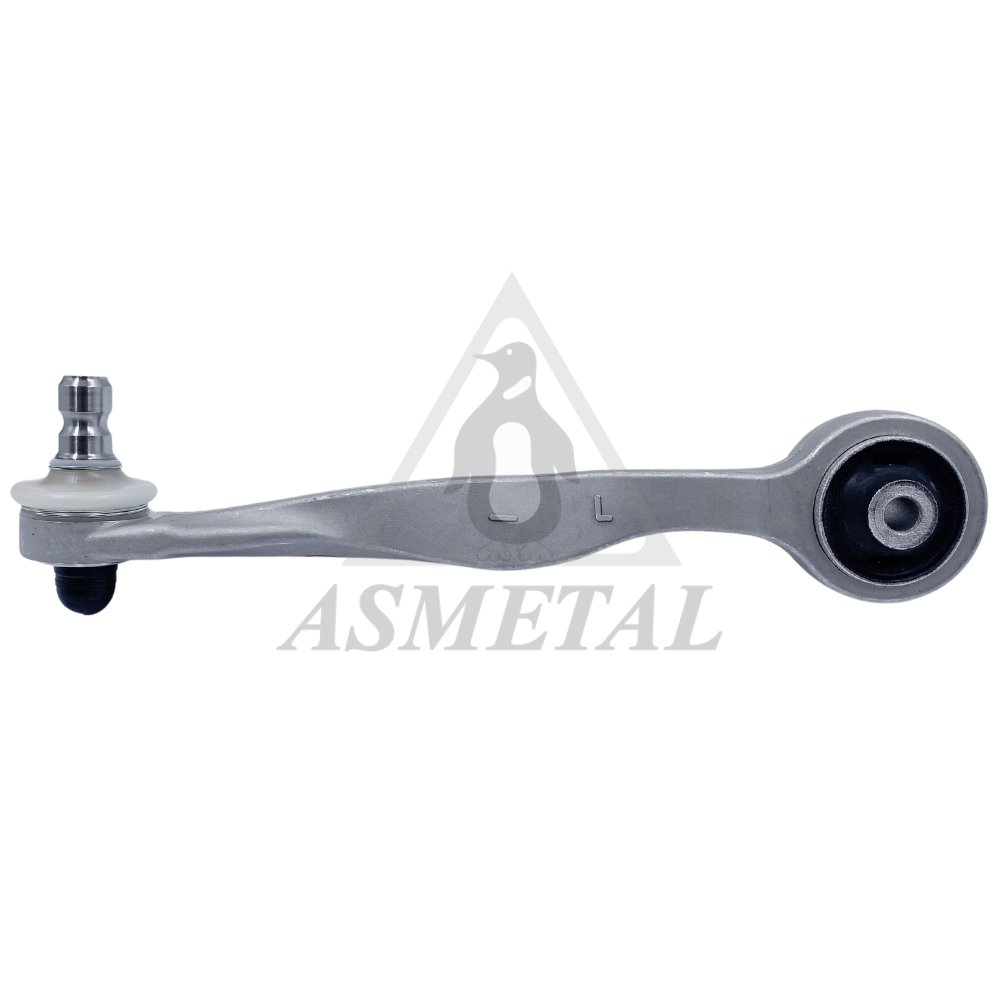

23AU0204B
|
Track Control Arm Left (Without Fasteners) |
c:Ø16 / 0,42 kg |
8D0 407 509 E, 8D0 407 509 A (15) OEM |
 |

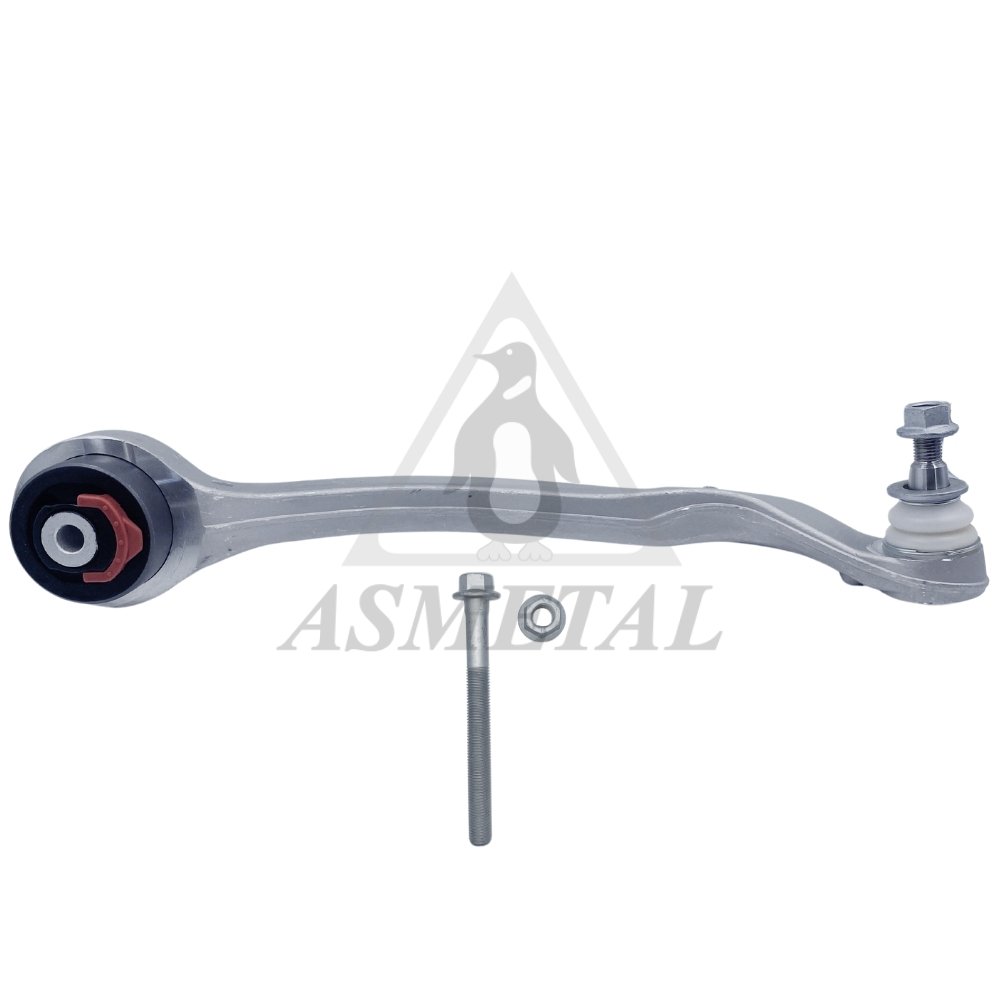

23AU0220
|
Track Control Arm Right |
c:Ø15.4 tp:M12x1.5 / 1,87 kg |
4D0 407 694 N, 4D0 407 694 E (13) OEM |
 |

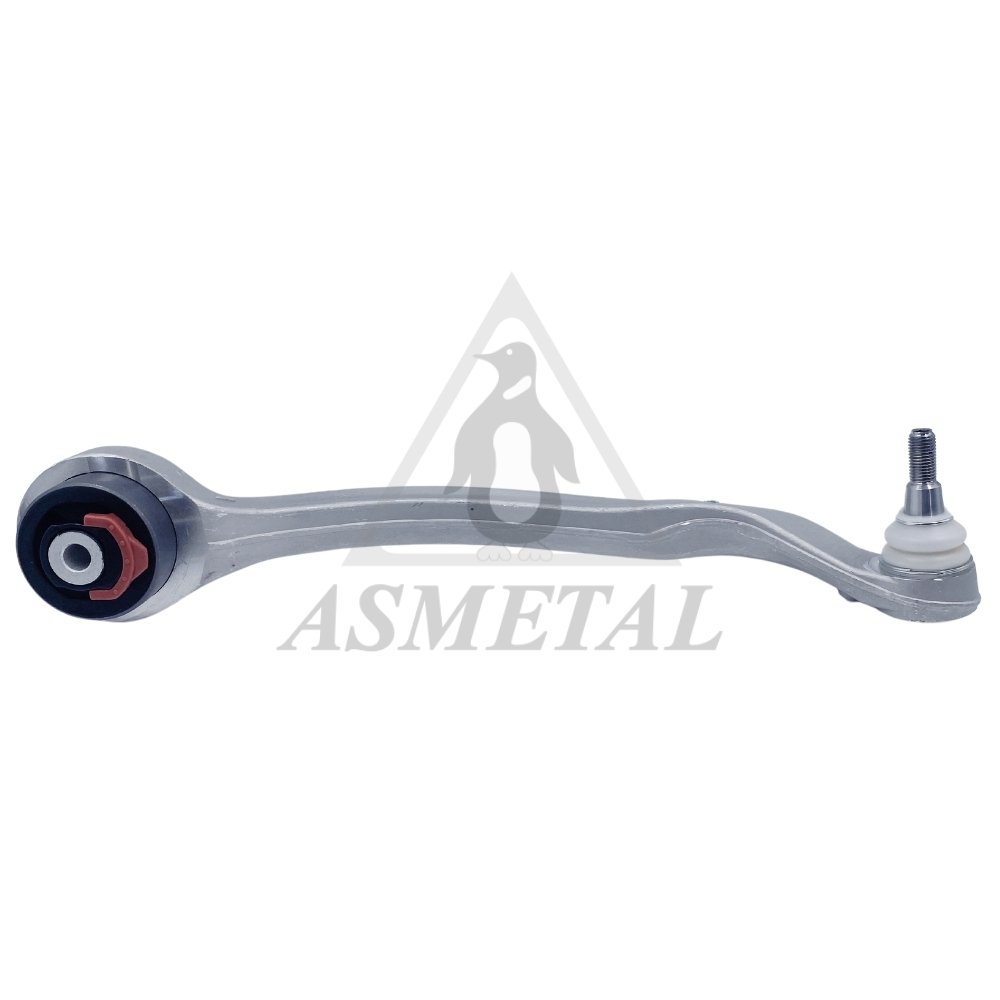

23AU0220B
|
Track Control Arm Right (Without Fasteners) |
c:Ø15.4 tp:M12x1.5 / 1,72 kg |
4D0 407 694 H, 4D0 407 694 P (13) OEM |
 |

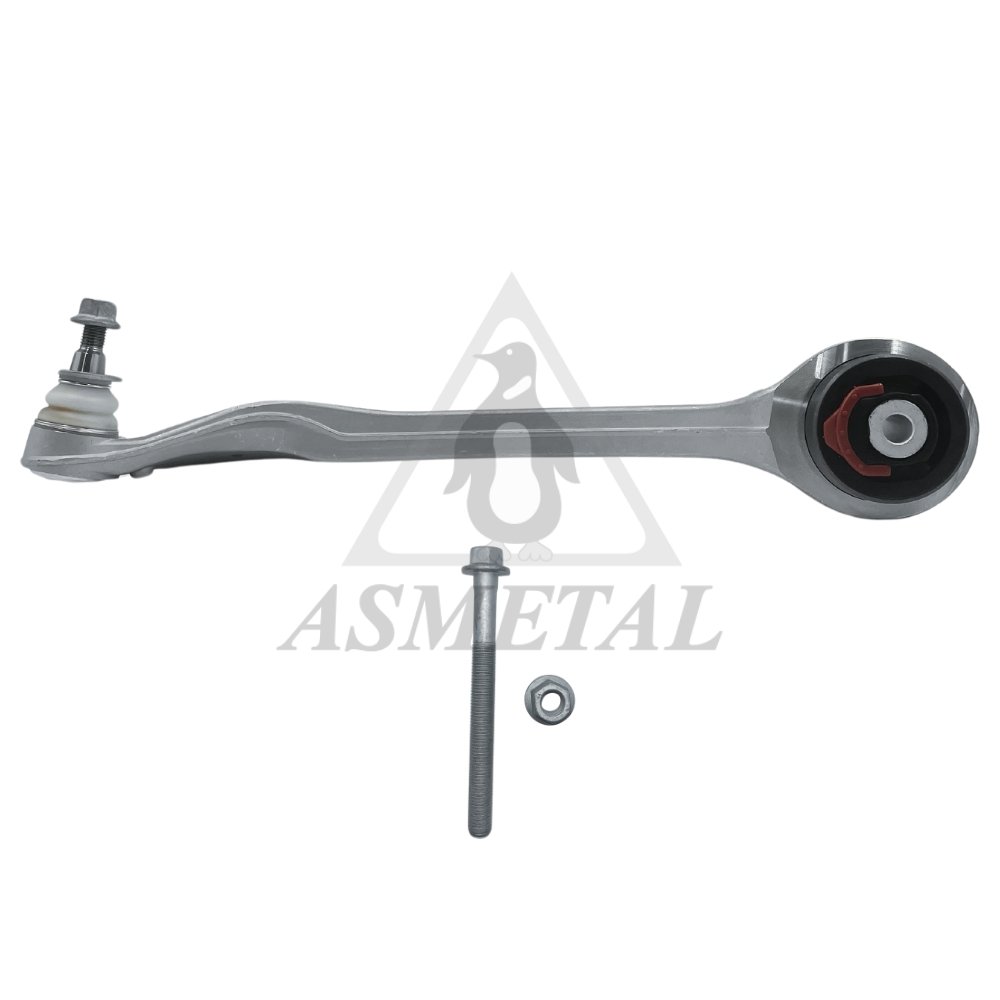

23AU0221
|
Track Control Arm Left |
c:Ø15.4 tp:M12x1.5 / 1,87 kg |
8E0 407 693 K, 4D0 407 693 AD (13) OEM |
 |

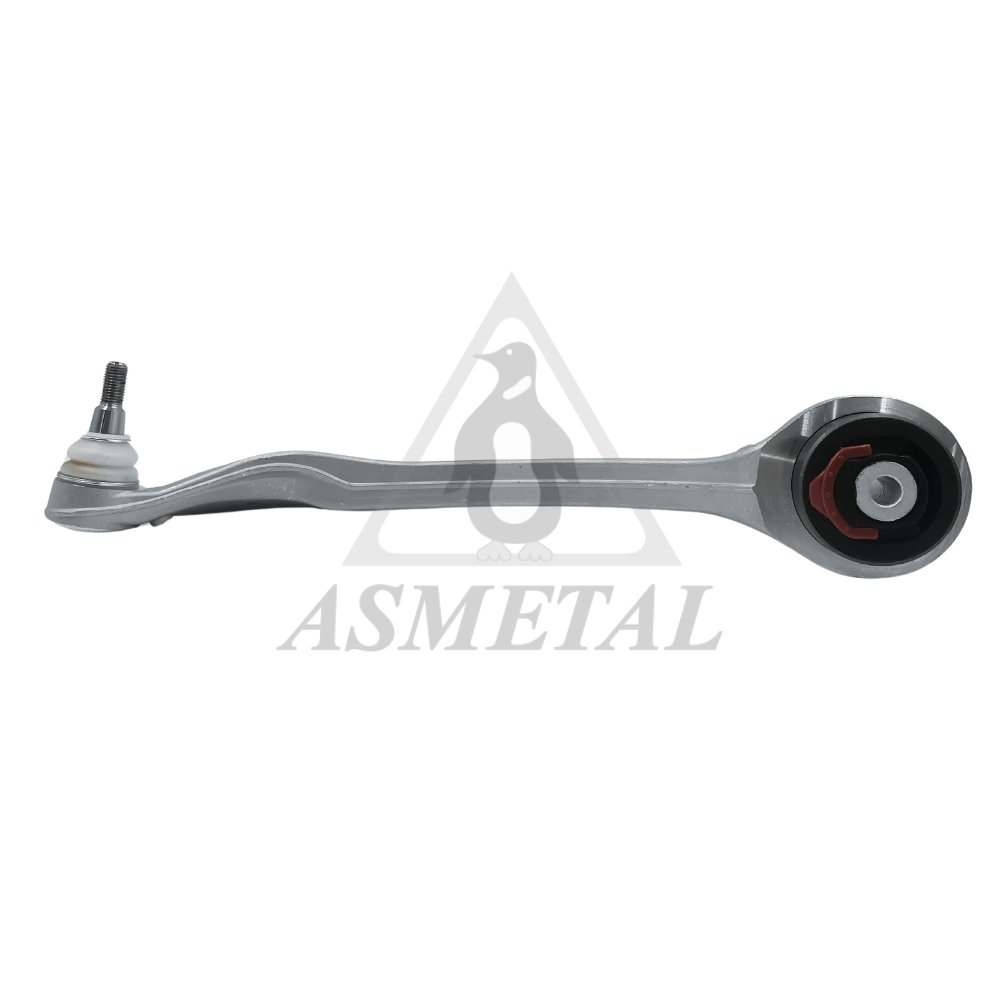

23AU0221B
|
Track Control Arm Left (Without Fasteners) |
c:Ø15.4 tp:M12x1.5 / 1,72 kg |
4D0 407 693 K, 8E0 407 693 H (13) OEM |
 |

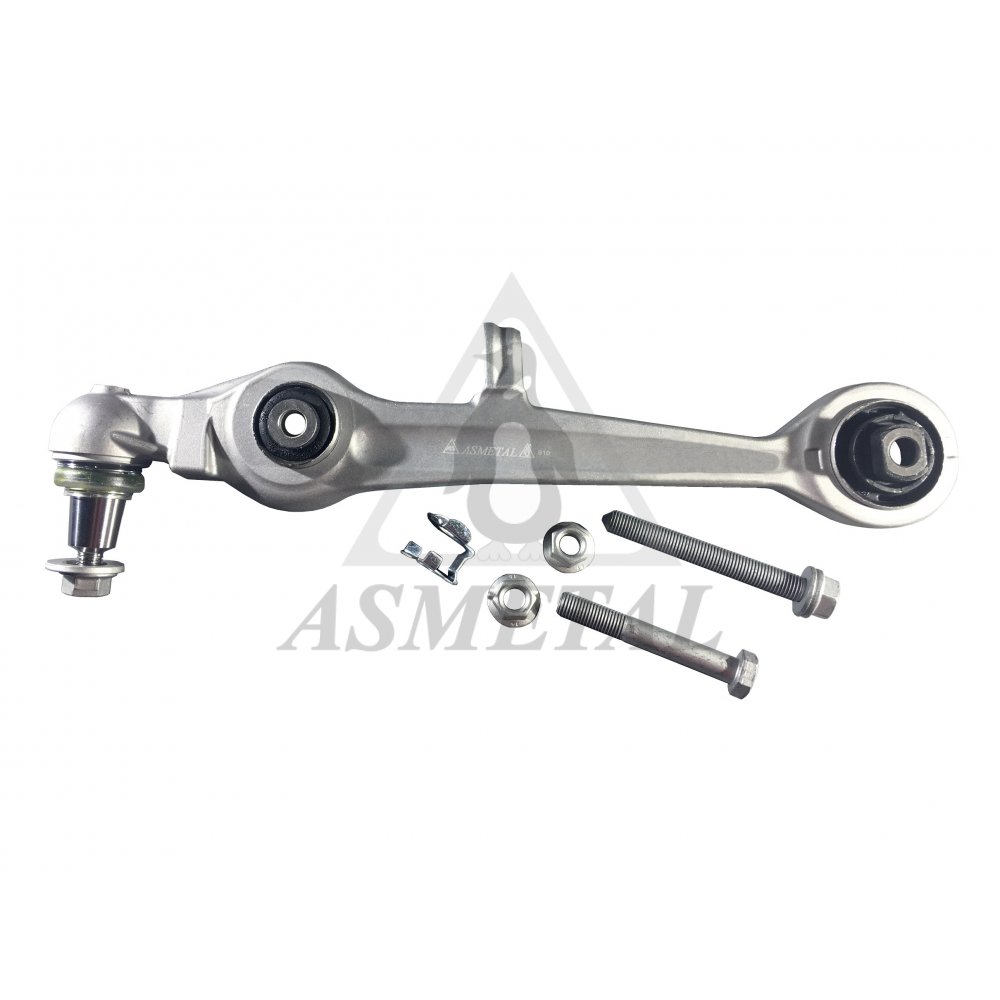

23AU0230
|
Track Control Arm |
c:Ø20.56 cr:1/6 / 1,72 kg |
4D0 407 151 H, 4D0 407 151 G (9) OEM |
 |

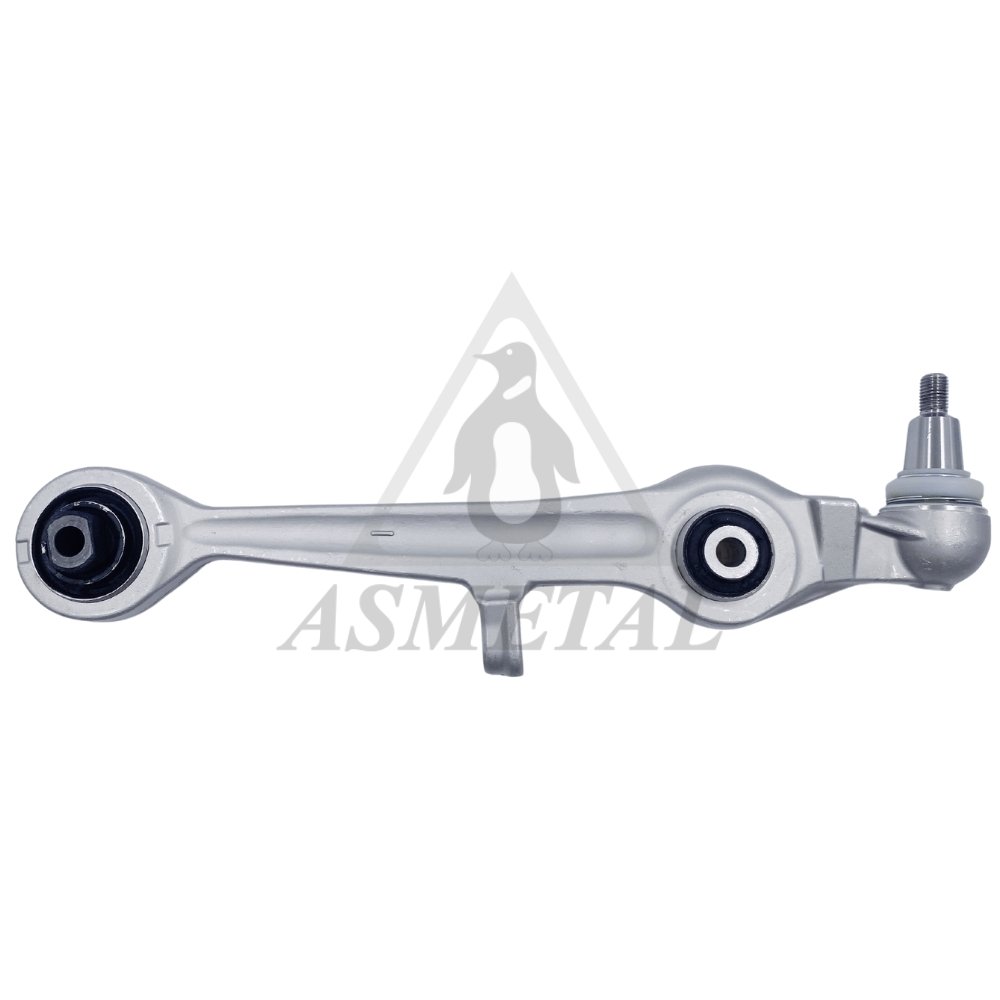

23AU0230B
|
Track Control Arm (Without Fasteners) |
cr:1/6 c:Ø20.56 tp:M12x1.5 / 1,5 kg |
4D0 407 151 P, 8D0 407 151 F (9) OEM |
 |

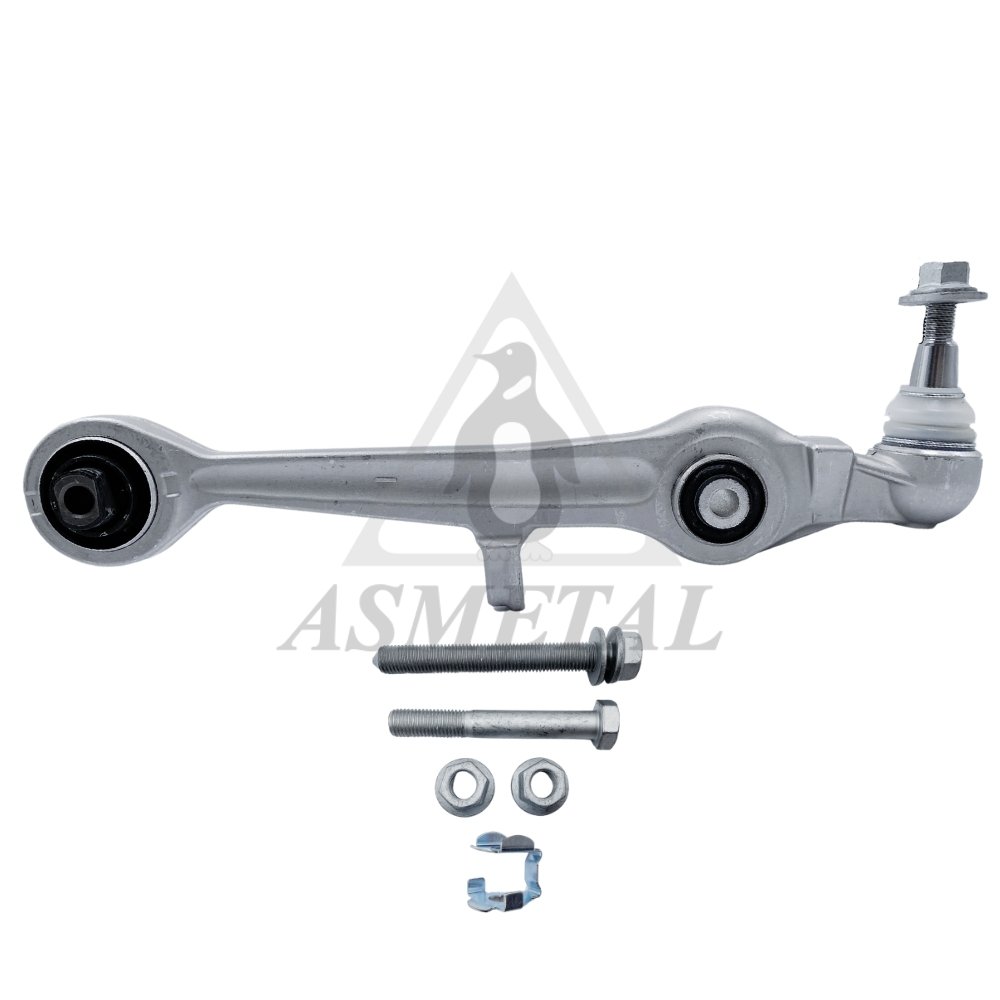

23AU0250
|
Track Control Arm |
cr:1/6 c:Ø16.25 tp:M12x1.5 / 1,72 kg |
4B3 407 151 K, 4B3 407 151 E (3) OEM |
 |

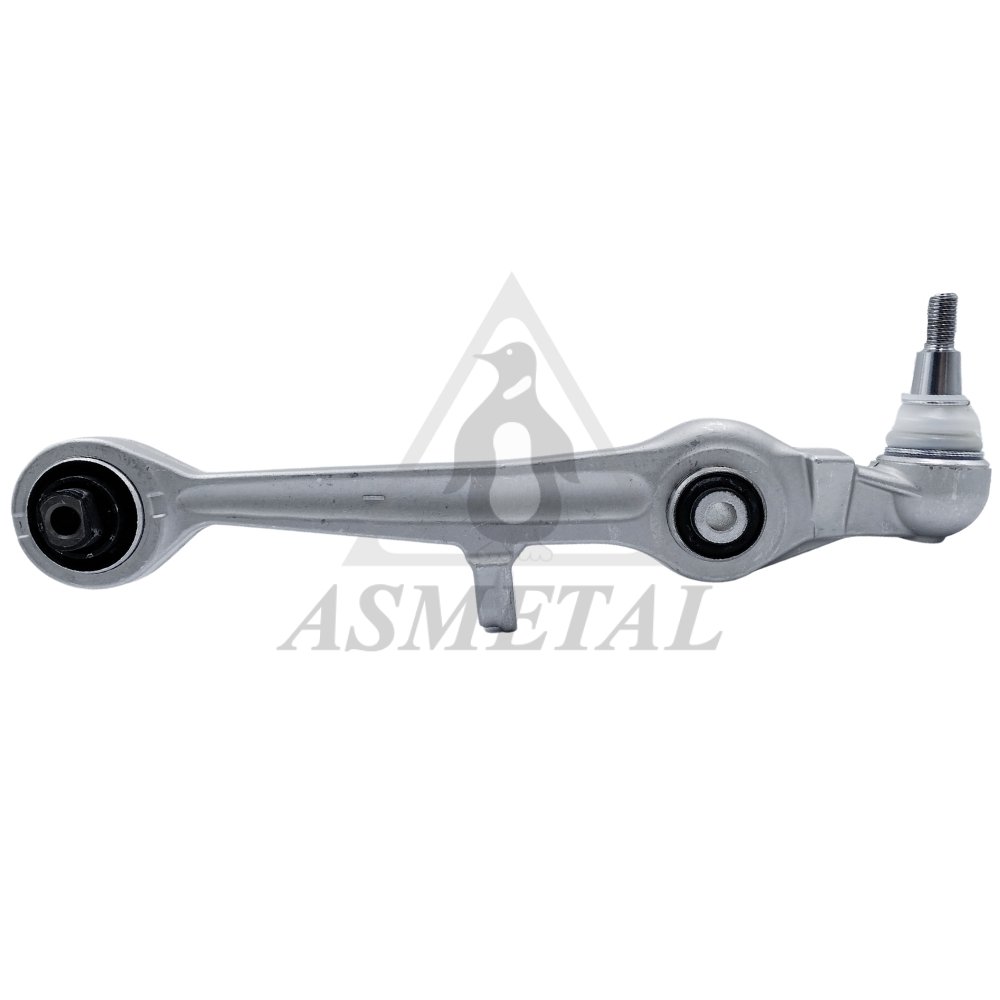

23AU0250B
|
Track Control Arm (Without Fasteners) |
cr:1/6 c:Ø16.25 tp:M12x1.5 / 1,5 kg |
4B0 407 151, 4B3 407 151 A (3) OEM |
 |

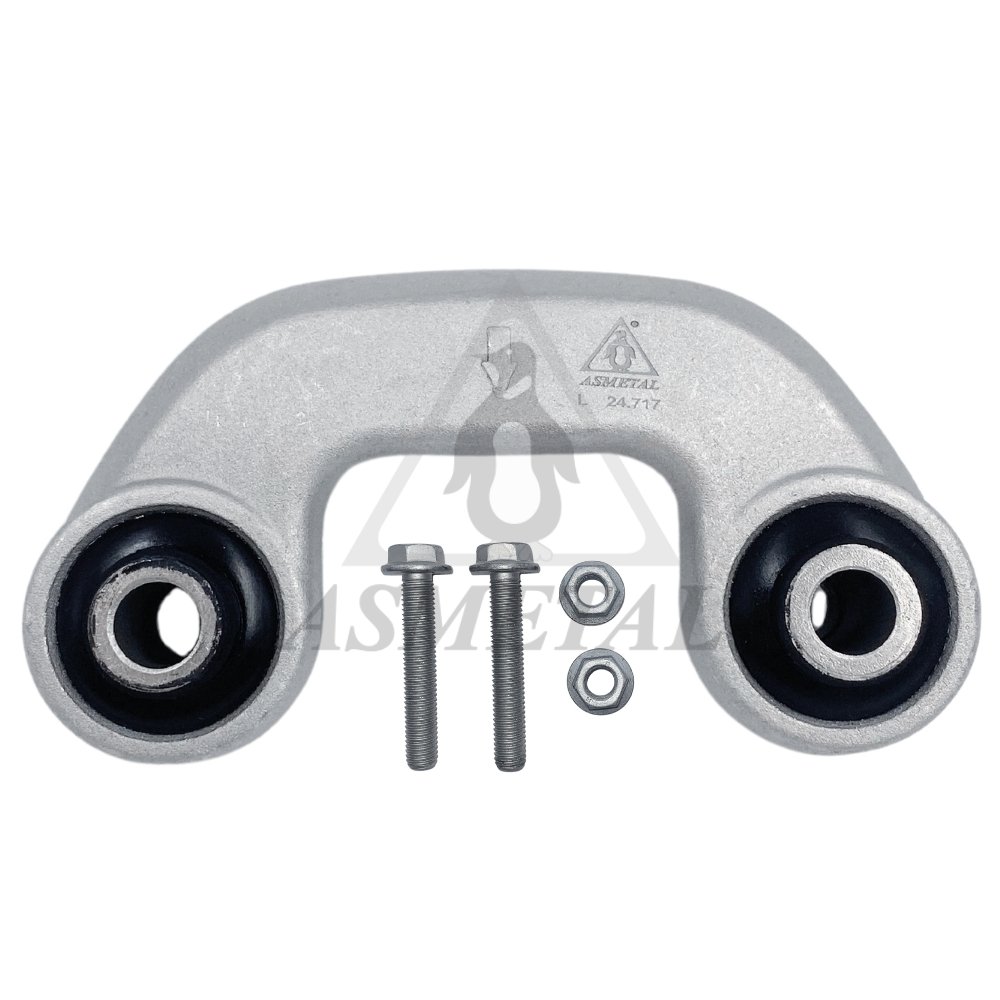

26AU0210
|
Stabiliser Link Left |
L:90 / 0,35 kg |
4D0 411 317 J, 4D0 411 317 G (2) OEM |
 |

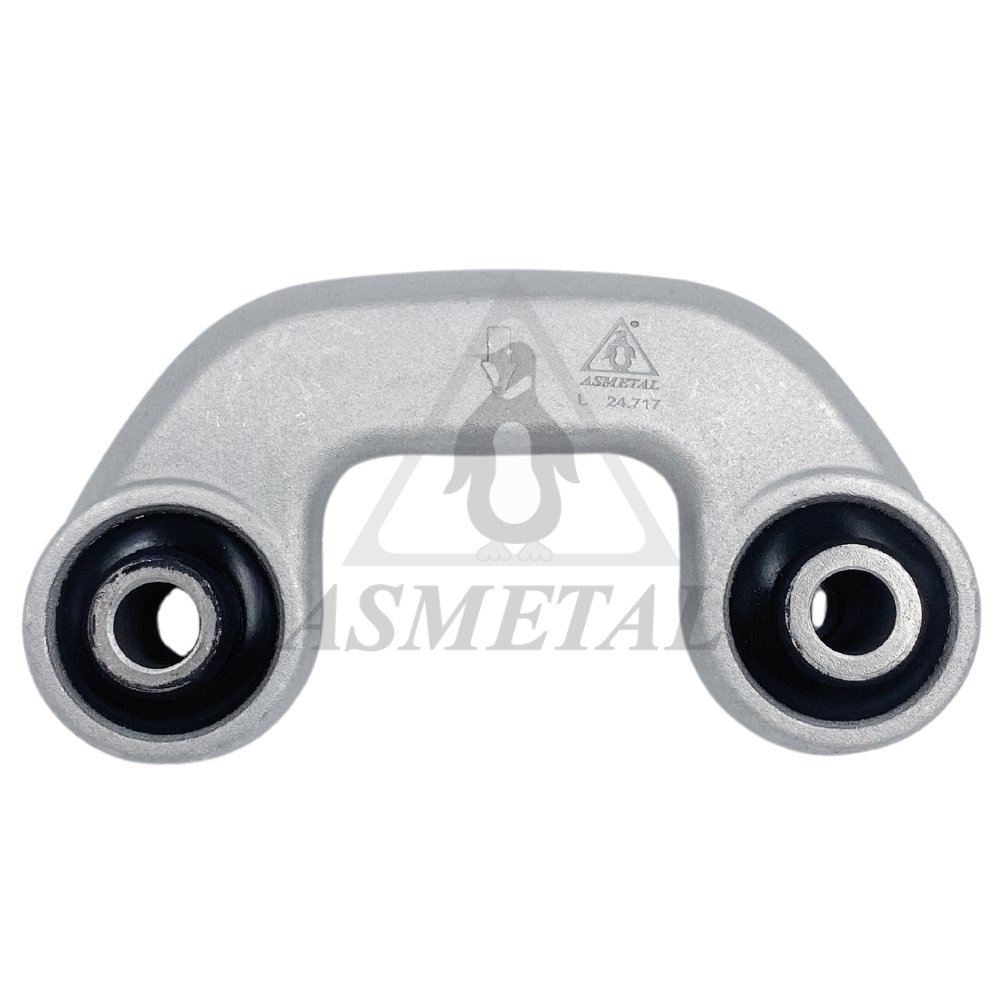

26AU0210B
|
Stabiliser Link Left |
L:90 / 0,24 kg |
4D0 411 317 J, 4D0 411 317 G (2) OEM |
 |

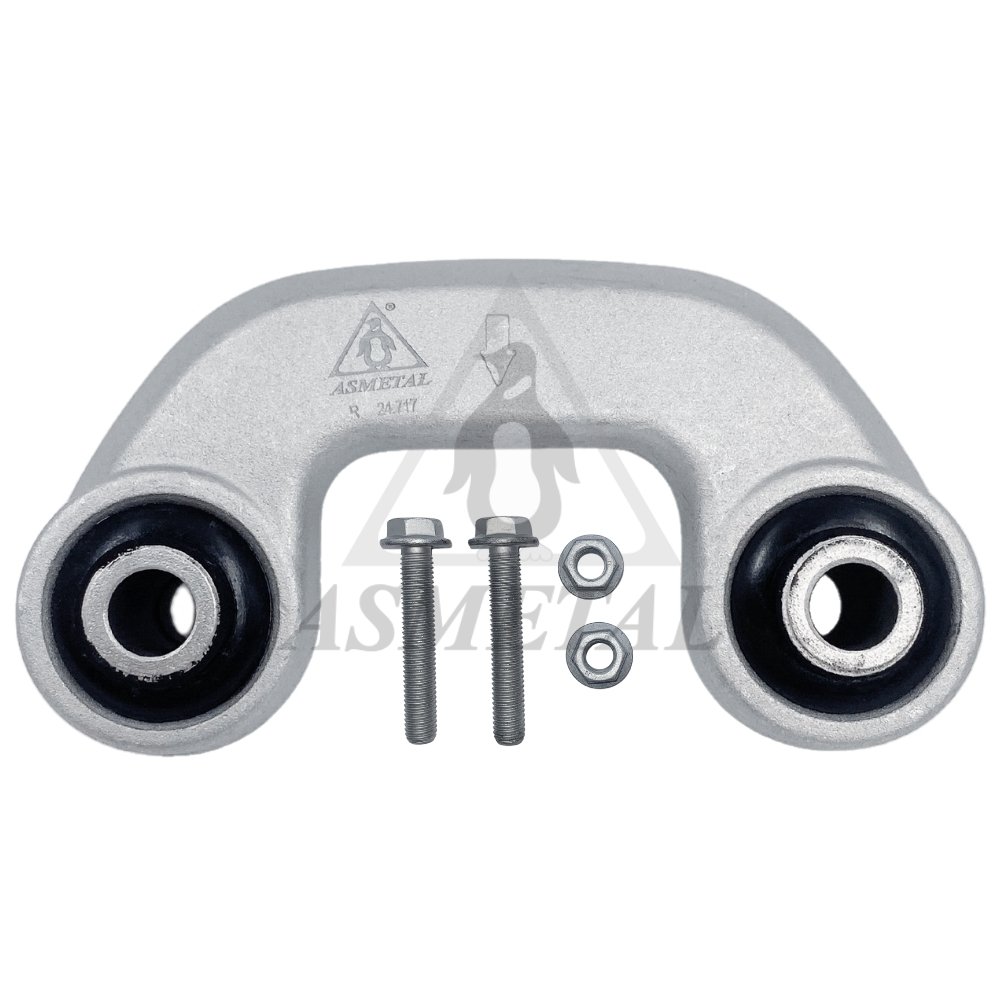

26AU0211
|
Stabiliser Link Right |
L:90 / 0,35 kg |
8D0 411 318 D, 4D0 411 318 G (1) OEM |
 |

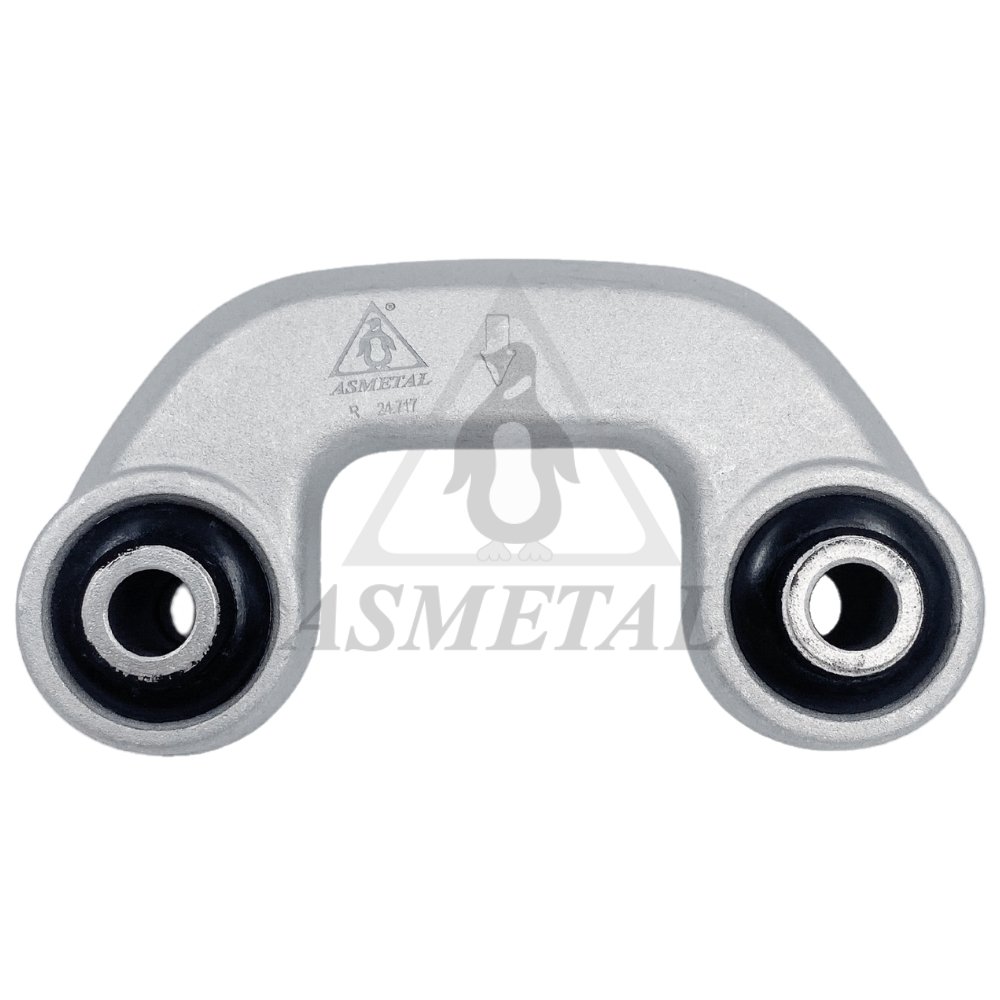

26AU0211B
|
Stabiliser Link Right |
L:90 / 0,24 kg |
8D0 411 318 D, 4D0 411 318 G (1) OEM |
 |
26AU1205
|
Stabiliser Link Rear |
L:194.5 tp:M10x1.5 RHT / 0,32 kg |
1J0 505 466 C |
 |

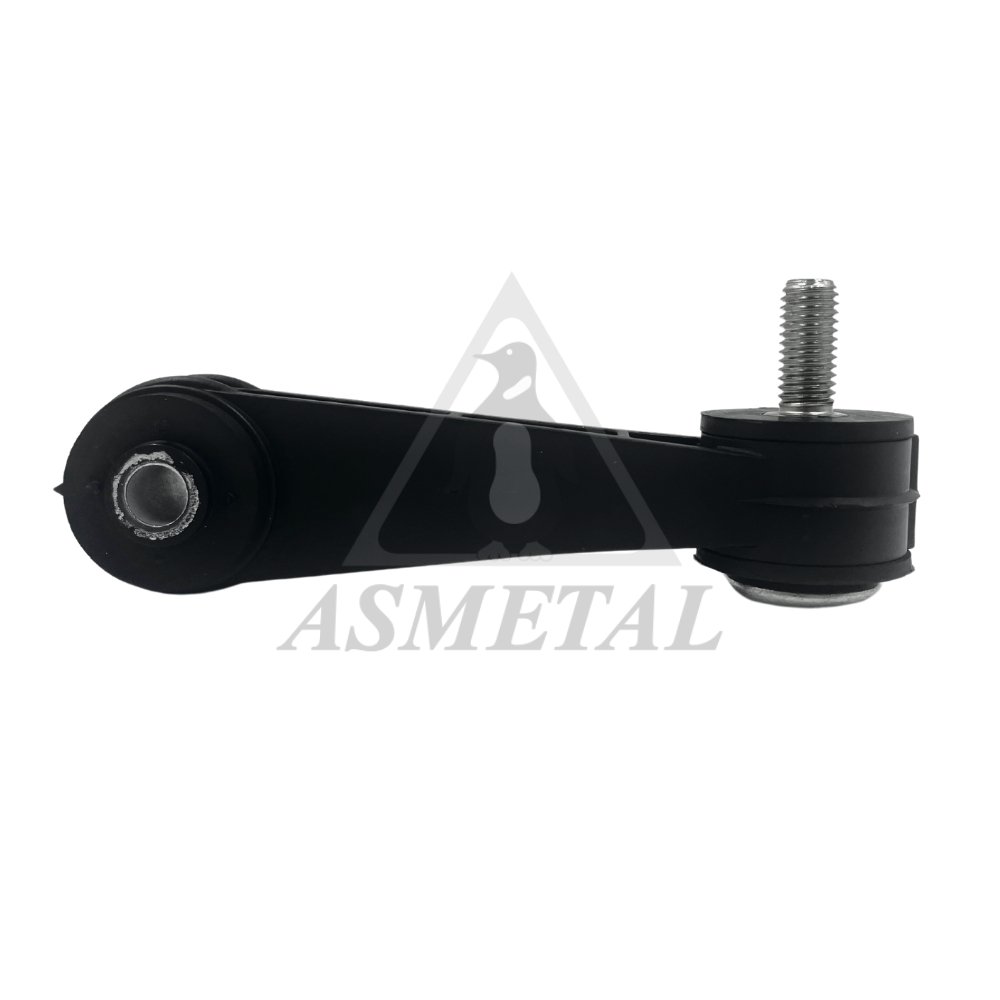

26VW1500
|
Stabiliser Link |
L:105 tp:M10x1.5 RHT / 0,26 kg |
8K0 411 317 C, 1J0 411 315 E (1) OEM |
 |

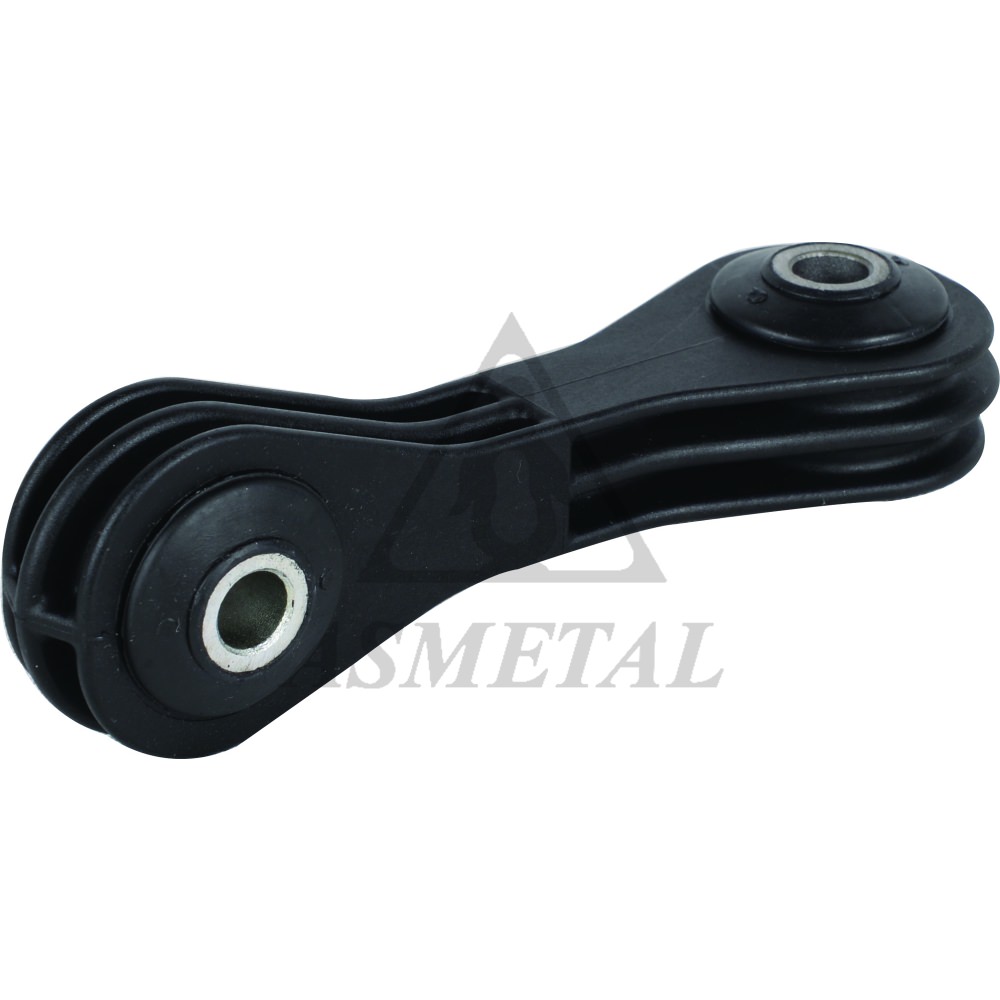

26VW1502
|
Stabiliser Link |
L:105 / 0,16 kg |
1J0 411 315 H, 1J0 411 315 K |
 |

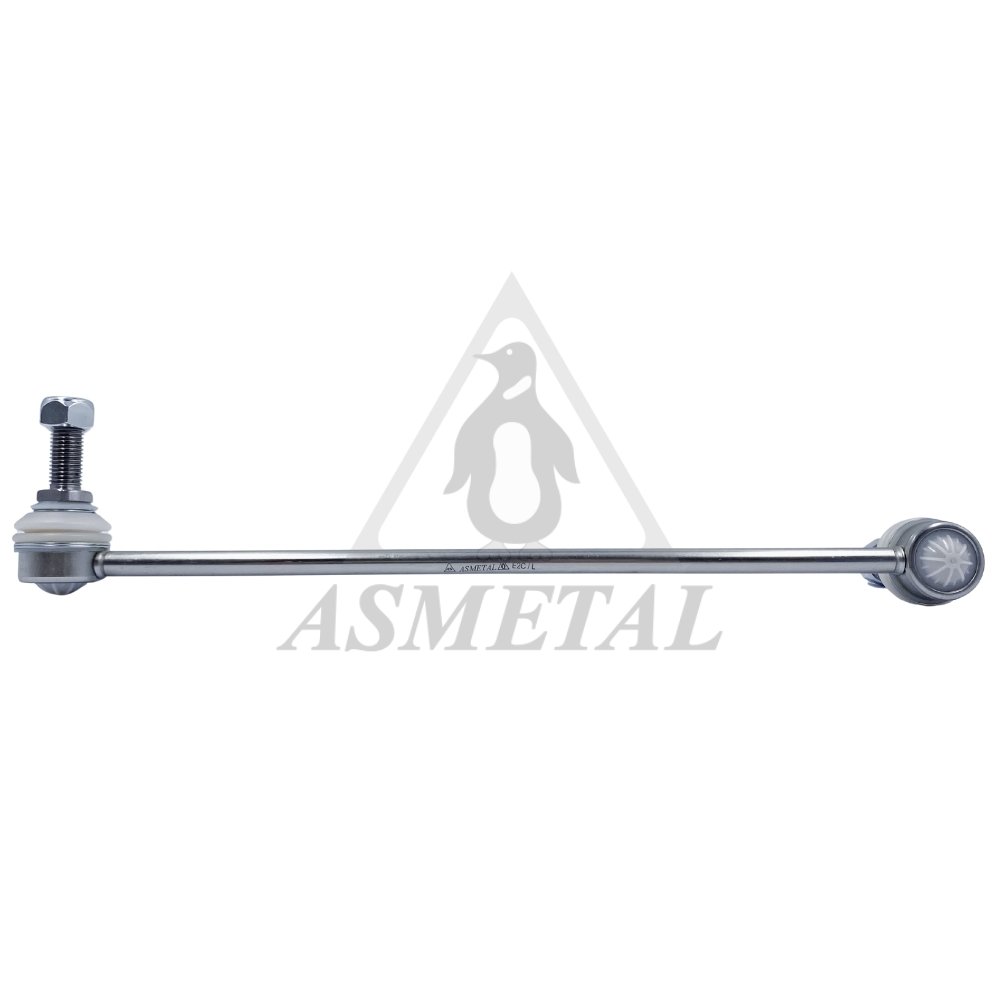

26VW1510
|
Stabiliser Link Left |
L:335.5 tp:M12x1.5 RHT / 0,47 kg |
1J0 411 315 D |
 |

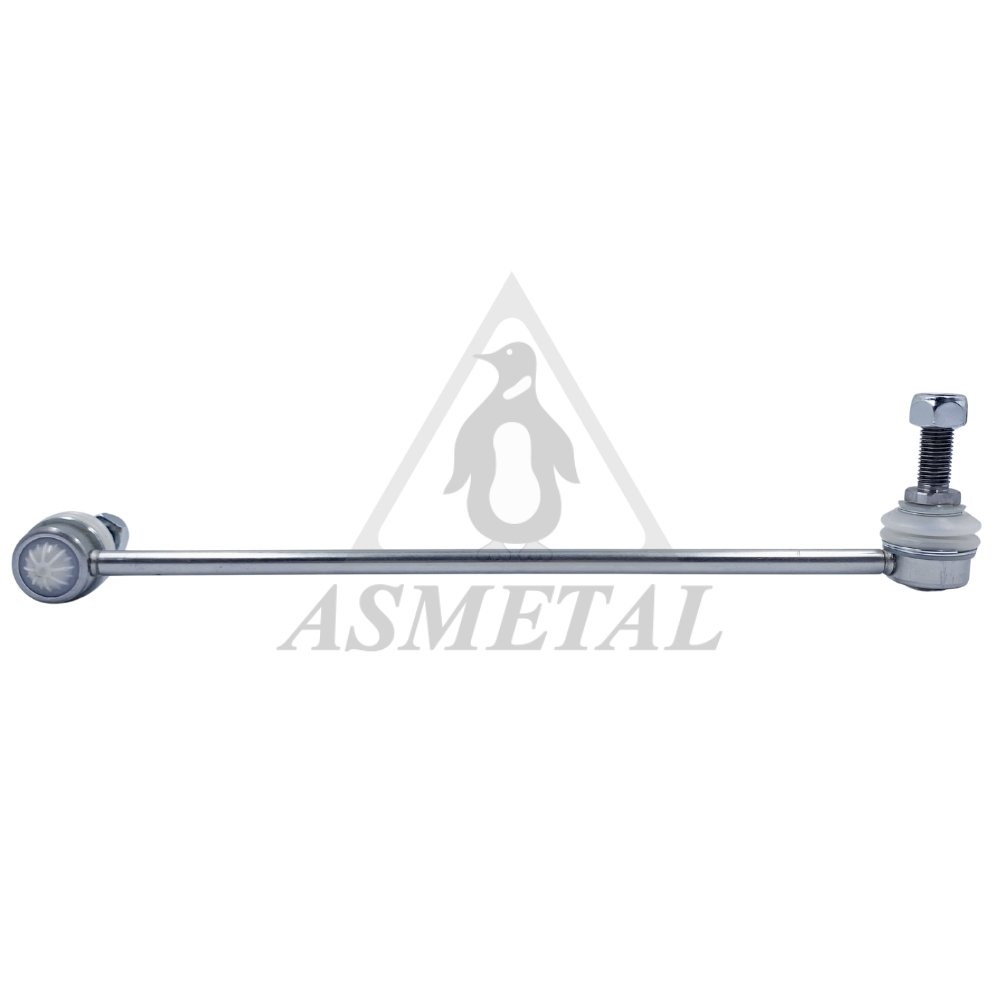

26VW1511
|
Stabiliser Link Right |
L:335.5 tp:M12x1.5 RHT / 0,47 kg |
1J0 411 316 D |
 |
26VW1600
|
Stabiliser Link |
L:335 tp:M12x1.5 RHT / 0,5 kg |
1K0 411 315 P, 1K0 411 315 K (14) OEM |
 |
26VW1605
|
Stabiliser Link Rear |
L:95.3 tp:M10x1.5 RHT / 0,38 kg |
1K0 505 465 K, 1K0 505 465 J (7) OEM |
 |
26VW1700
|
Stabiliser Link Rear |
L:70 tp:M10x1.5 RHT / 0,16 kg |
5Q0 505 465 C, 5Q0 505 465 A (4) OEM |
 |
26VW2010
|
Stabiliser Link |
L:269.5 tp:M10x1.5 RHT / 0,43 kg |
606 14 514, 893 407 465 (27) OEM |
 |

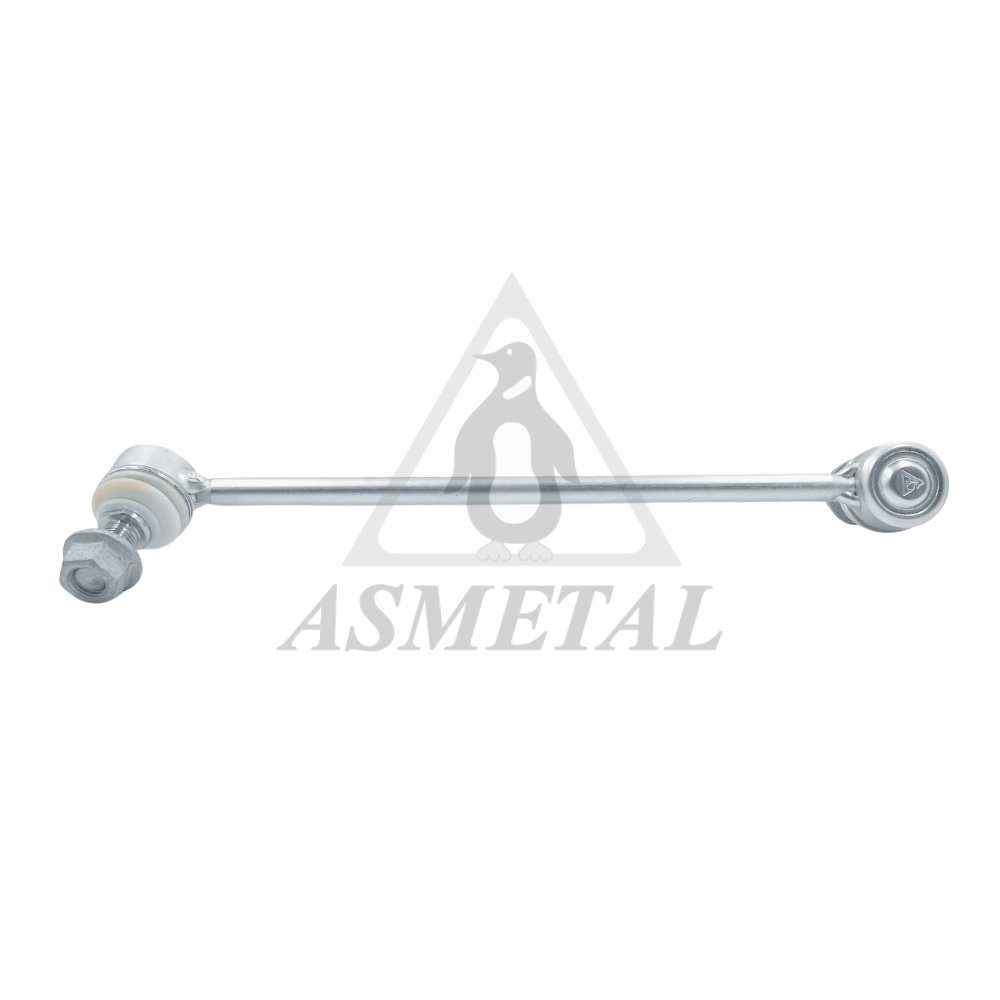

26VW6600
|
Stabiliser Link |
L:302 tp:M14x1.5 RHT / 0,72 kg |
1EA 411 315 C, 1EA 411 315 B (2) OEM |
 |
29AU1200
NEW
|
Tie Rod Right |
1,1 kg |
1K0 423 810 A, 1K0 423 812 A (1) OEM |
 |
29AU1201
NEW
|
Tie Rod Left |
1,1 kg |
1K0 423 810 A, 1K0 423 811 A (1) OEM |
 |
29AU1202
NEW
|
Tie Rod Left |
|
1K0 423 810 A, 1K0 423 811 J (1) OEM |
 |
29AU1203
NEW
|
Tie Rod Right |
|
1K0 423 812 K, 1K0 423 810 A (1) OEM |
 |

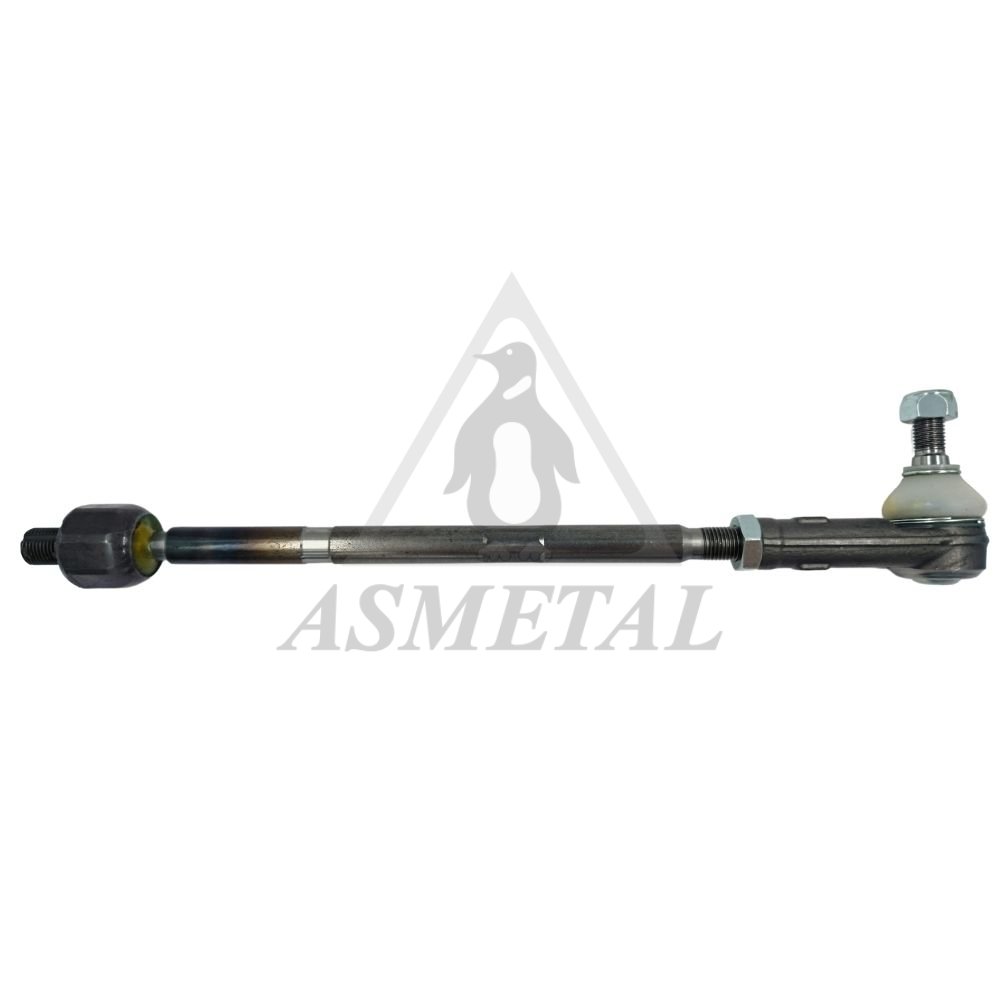

29VW0535
|
Tie Rod Right |
cr:1/5 c:Ø13.3 tp:M12x1.5 RHT / 0,96 kg |
1J0 422 804 A, 1J0 422 804 |
 |
29VW0555
|
Tie Rod Left |
cr:1/5 c:Ø13.3 tp:M12x1.5 RHT / 0,9645 kg |
1J0 422 803 A, 1J0 422 803 |
 |

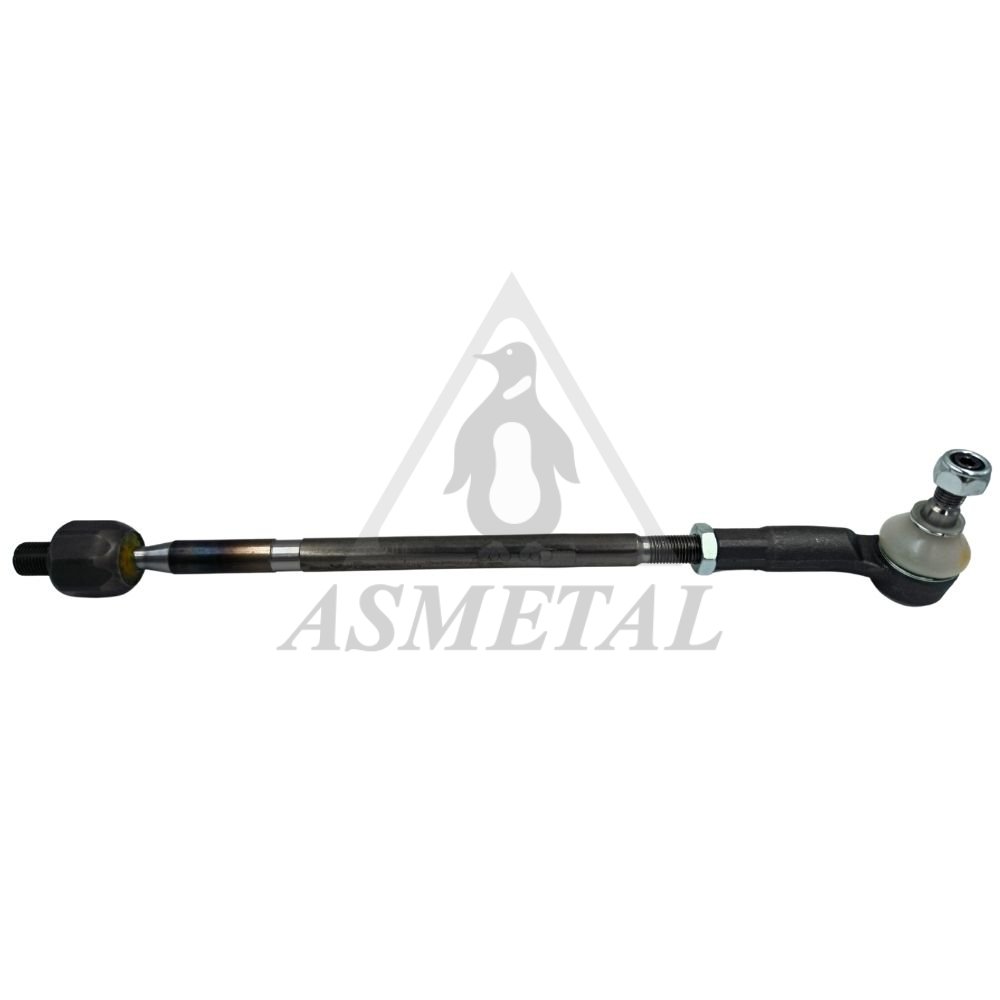

29VW0560
|
Tie Rod Left |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1,1045 kg |
1J0 422 803 B, 1J0 422 803 H |
 |

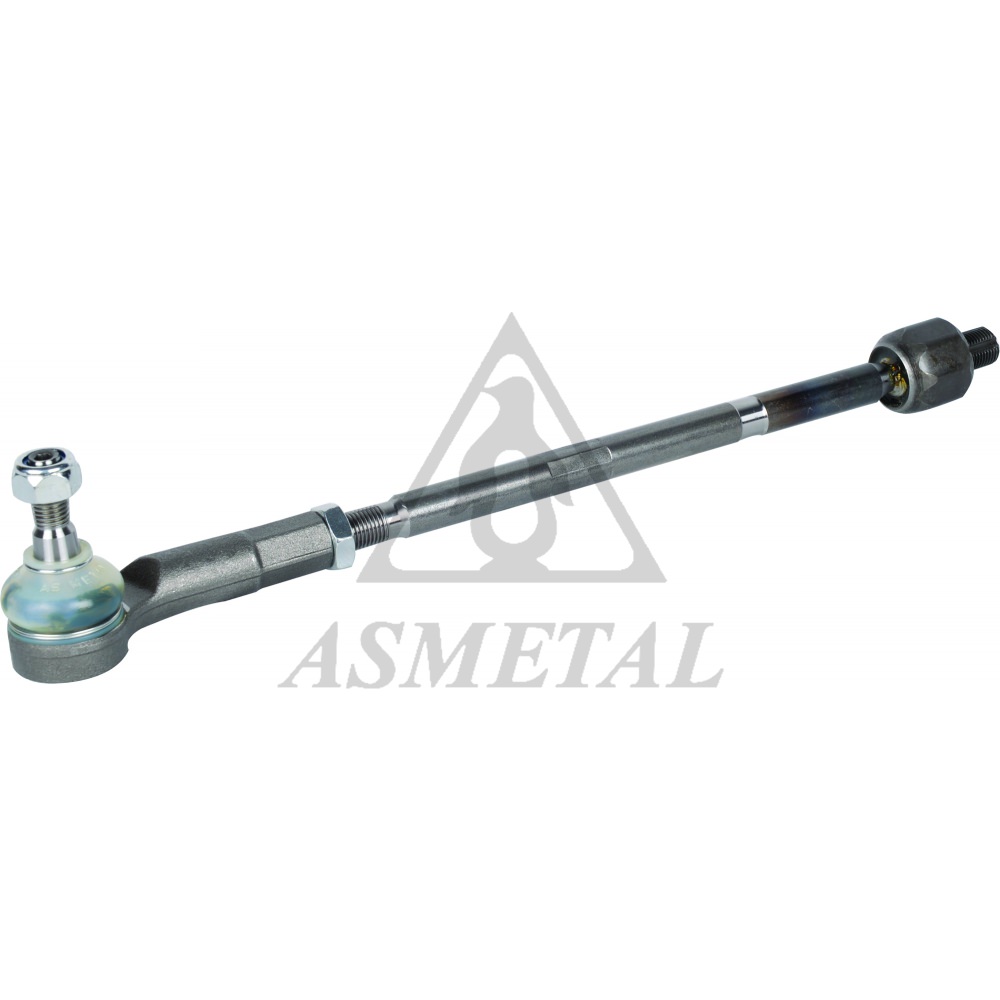

29VW0561
|
Tie Rod Right |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1,1045 kg |
1J0 422 804 B, 1J0 422 804 H |
 |

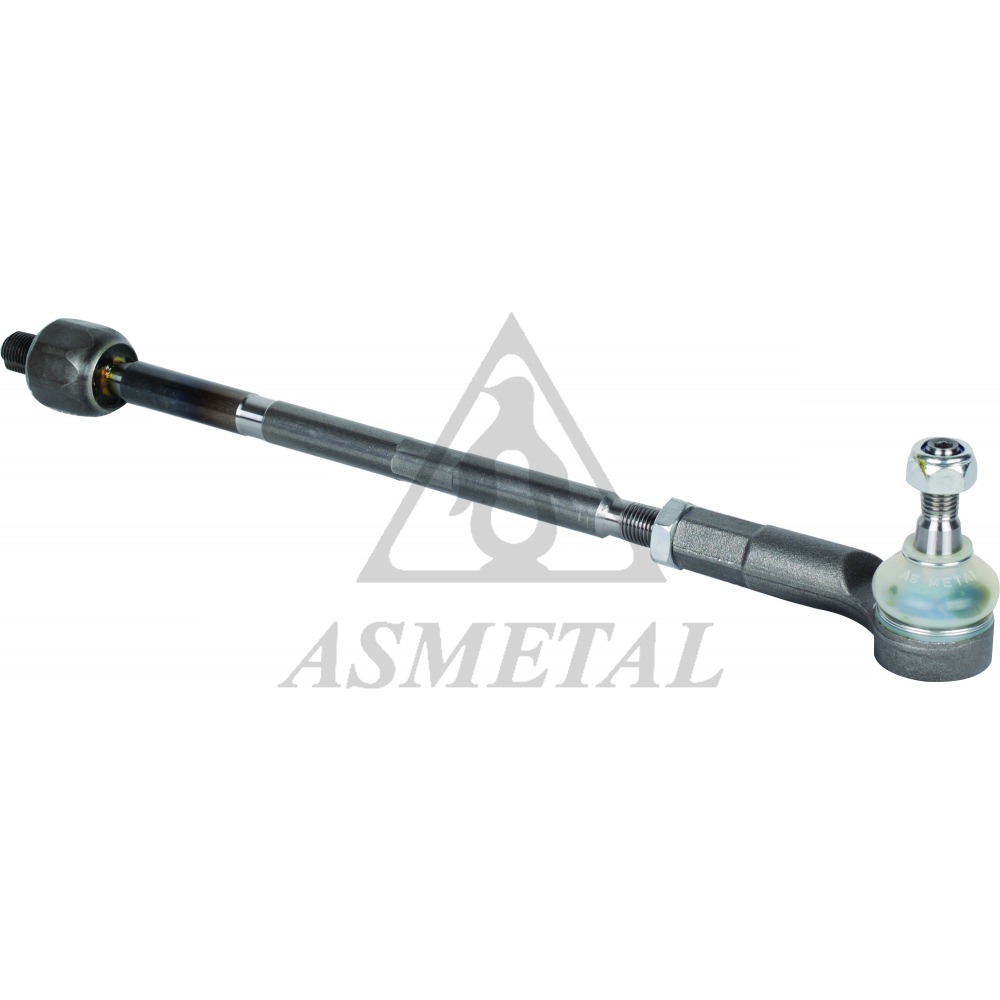

29VW1260
|
Tie Rod Left |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,97 kg |
1J0 422 803 H, 1J0 422 803 B (1) OEM |
 |
29VW1261
|
Tie Rod Right |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,97 kg |
1J0 422 804 H, 1J0 422 804 B (1) OEM |
 |

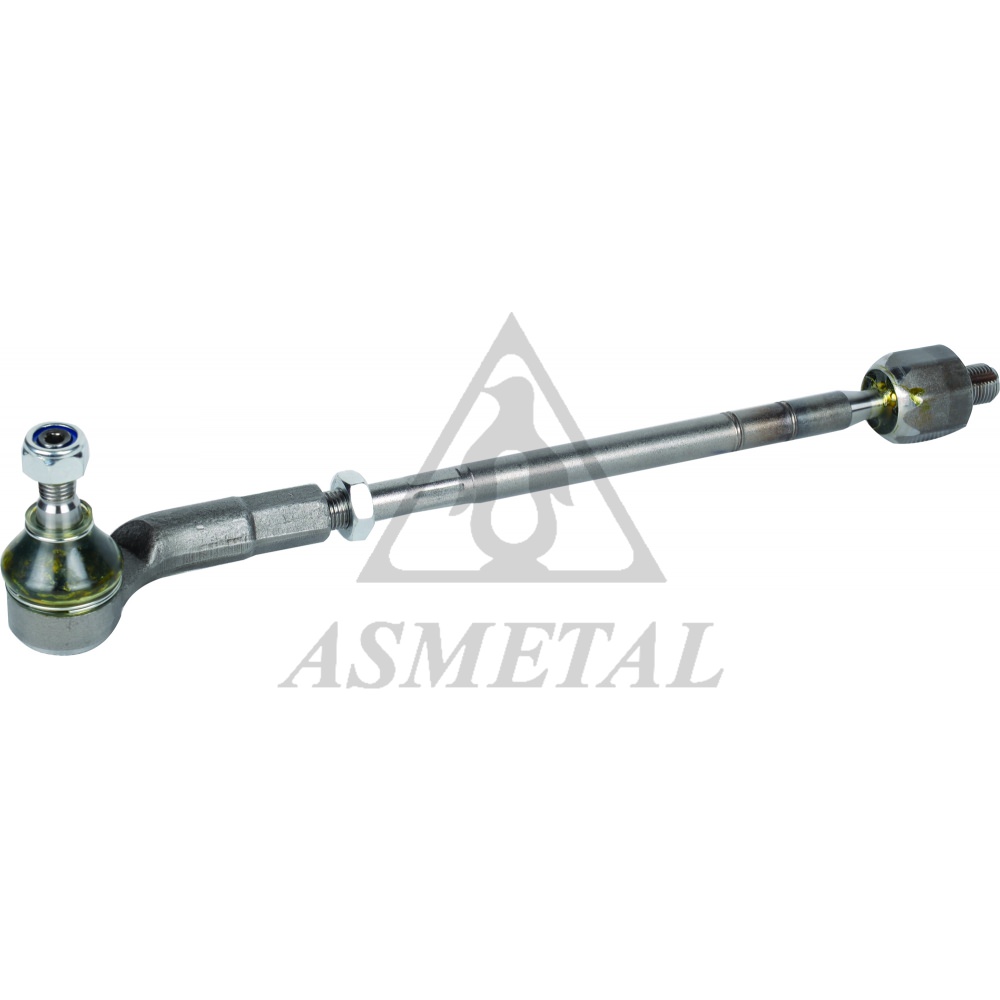

29VW2010
|
Tie Rod Left |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,95 kg |
6Q0 423 803 G, 6Q0 423 803 C |
 |

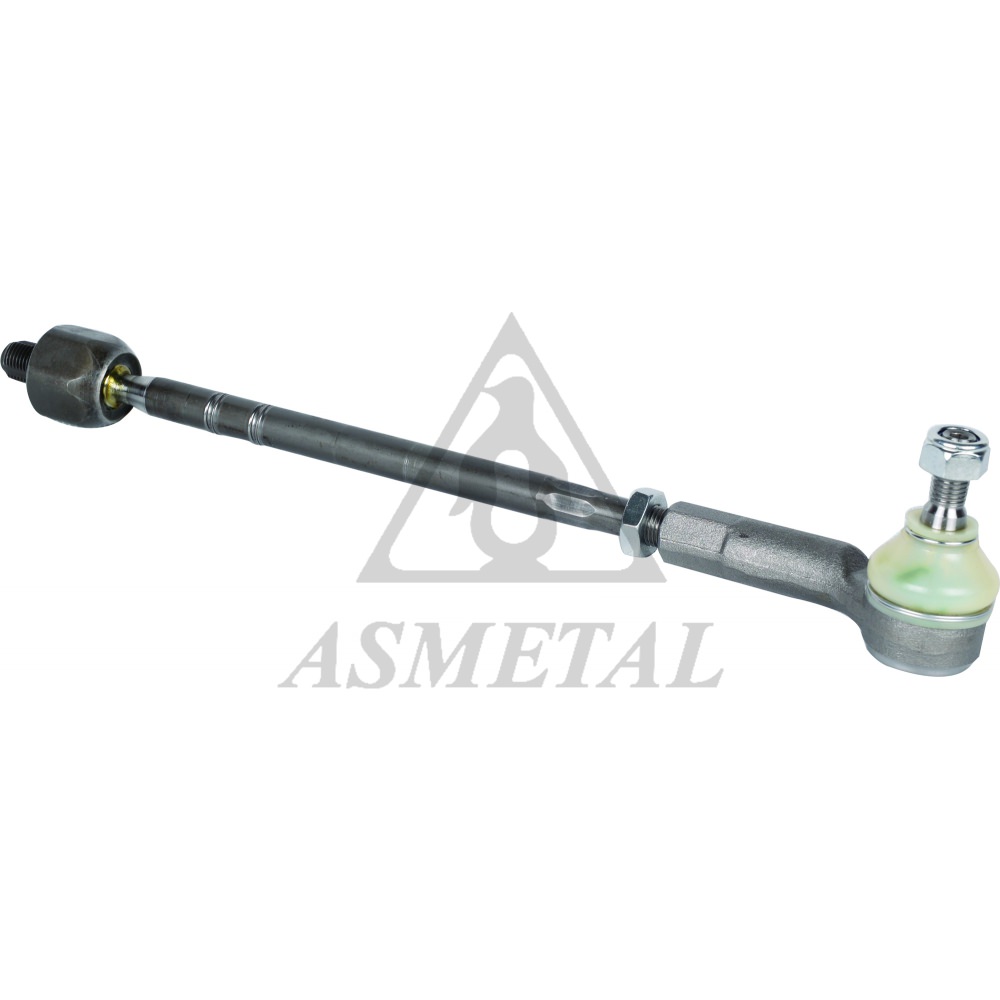

29VW2011
|
Tie Rod Right |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 0,95 kg |
6Q0 423 804 G, 6Q0 423 804 C |
 |

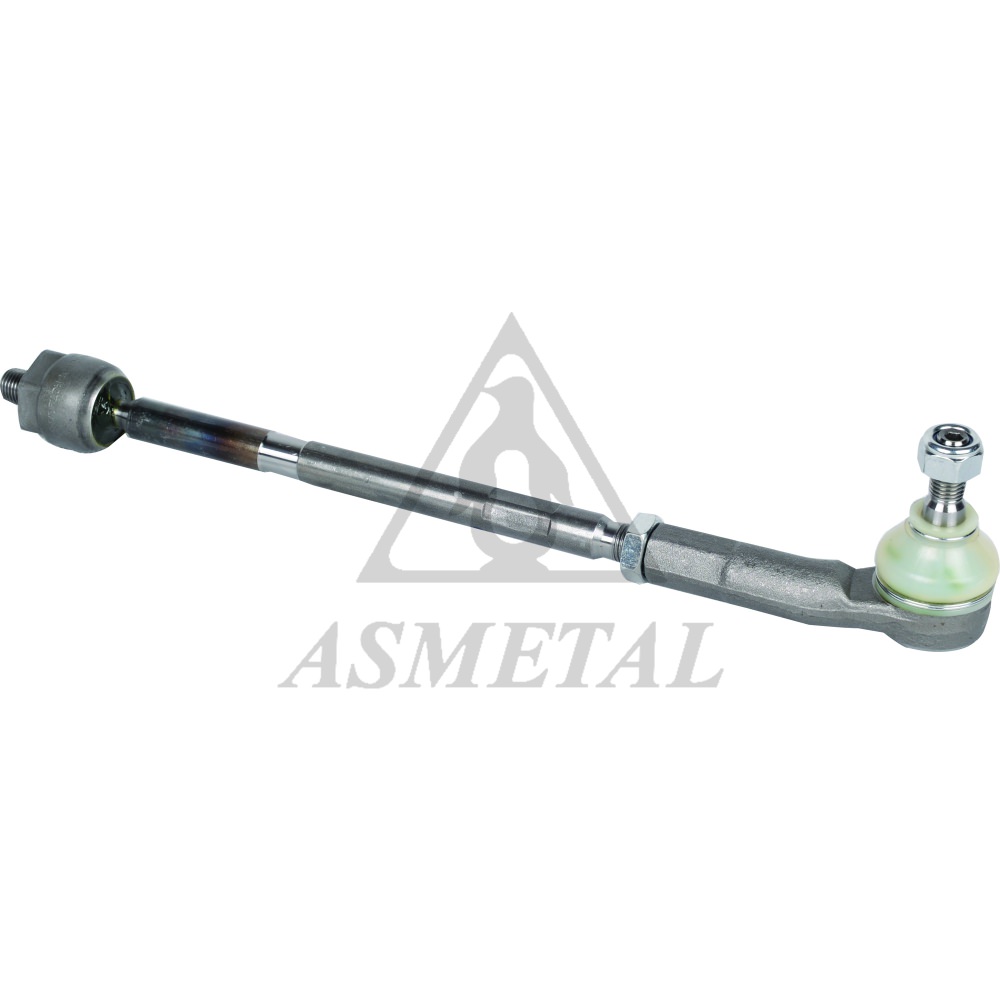

29VW2015
|
Tie Rod Left |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1 kg |
6Q0 423 803 E, 6Q0 423 803 B (1) OEM |
 |

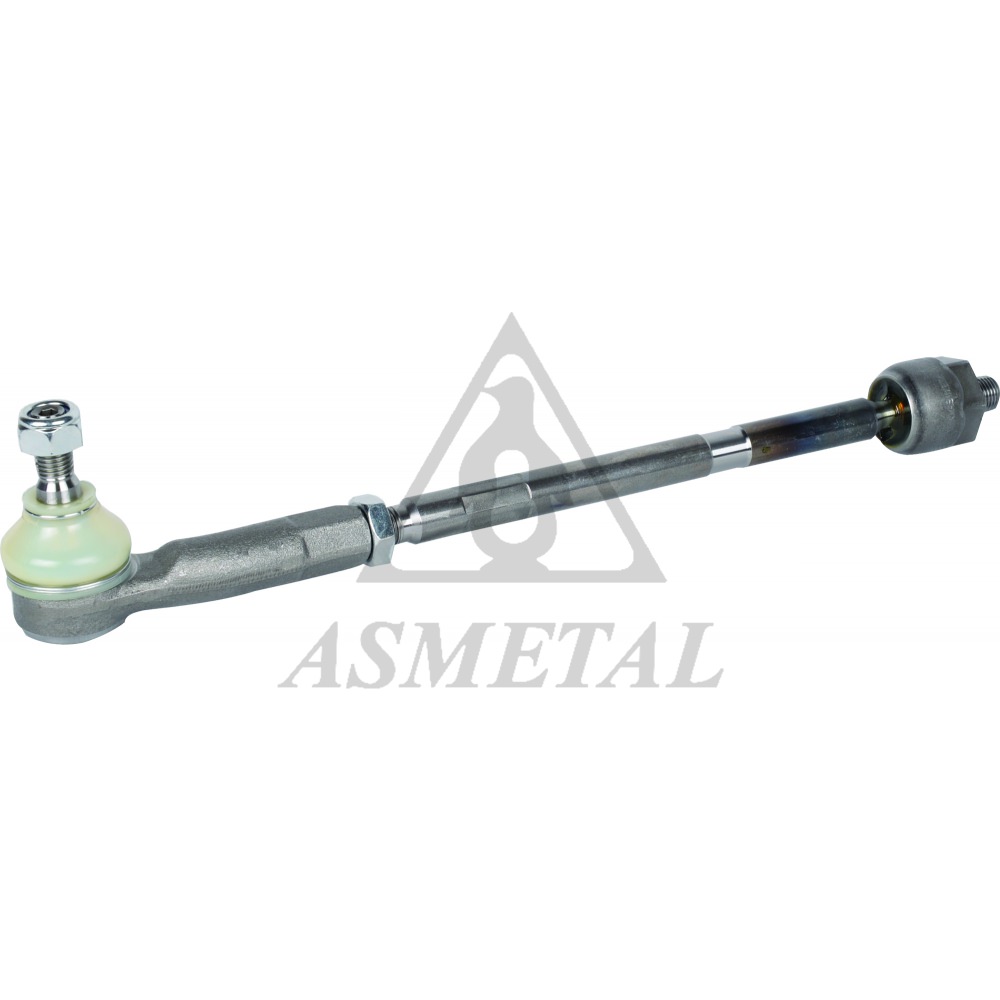

29VW2016
|
Tie Rod Right |
cr:1/5 c:Ø13.2 tp:M12x1.5 RHT / 1 kg |
6Q0 423 804 P, 6Q0 423 804 E (1) OEM |
 |

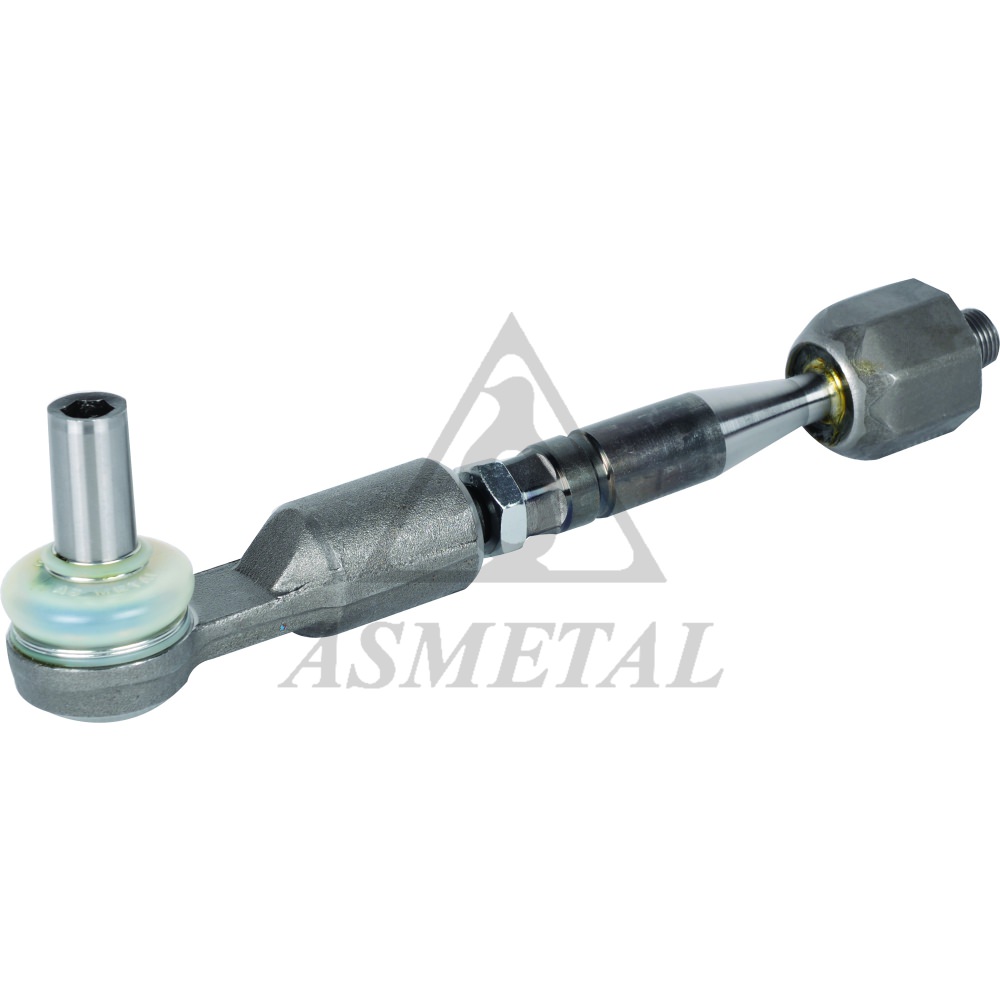

29VW2500
|
Tie Rod |
c:Ø17.45 / 1 kg |
4B0 419 801 B, 4D0 419 801 E (10) OEM |
 |
30AU1200
|
Track Control Arm Left |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 3,3 kg |
6R0 407 151 F, 6R0 407 151 A |
 |

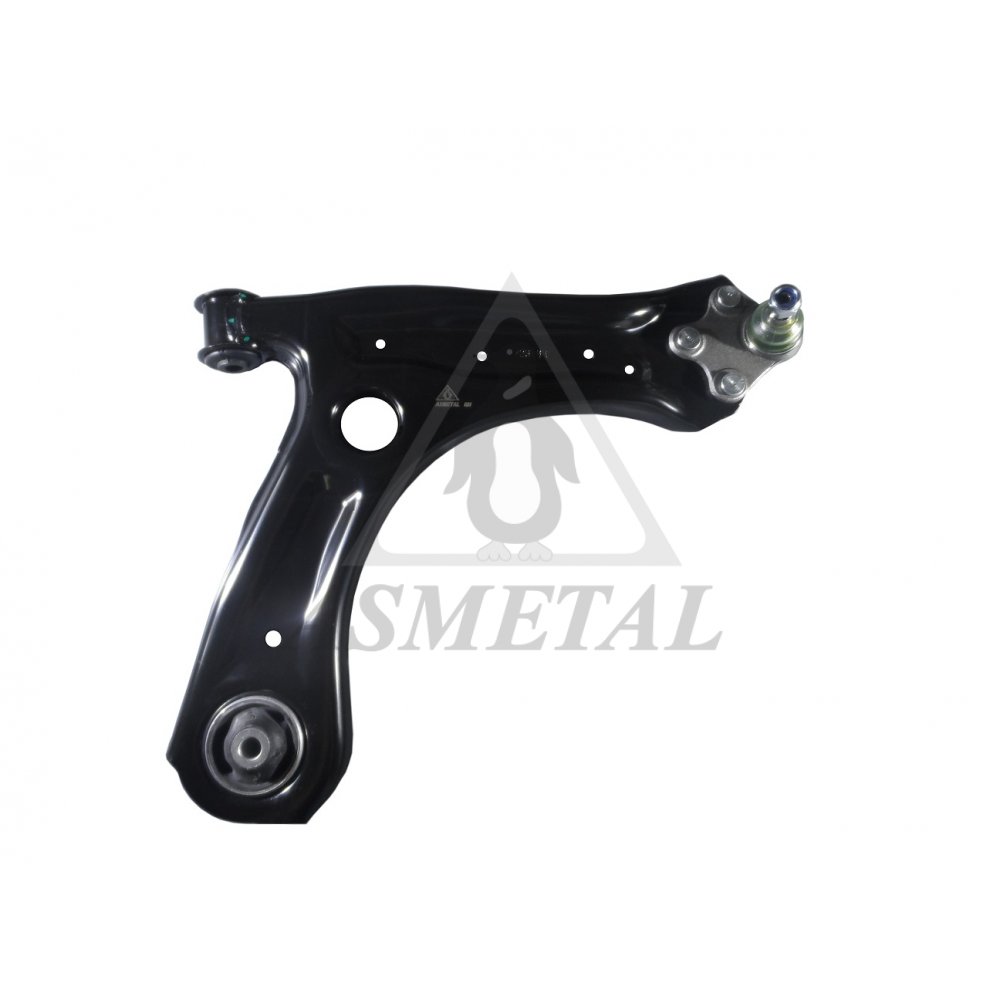

30AU1201
|
Track Control Arm Right |
tp:M12x1.5 RHT cr:1/5 c:Ø14.8 / 3,3 kg |
6R0 407 152 F, 6R0 407 152 A |
 |
30AU1220
NEW
|
Track Control Arm Left |
1,05 kg |
1K0 501 529 F |
 |
30AU1221
NEW
|
Track Control Arm Right |
1,05 kg |
1K0 501 530 C |
 |
30SK1600
NEW
|
Track Control Arm Rear |
|
1K0 505 311 AA, 1K0 505 311 AB (6) OEM |
 |
30SK1600K
IN PREPARATION
|
Track Control Arm Rear |
|
1K0 505 311 AA, 1K0 505 311 AB (6) OEM |
 |
30SK1700
IN PREPARATION
|
Track Control Arm Rear |
|
5QA 505 311 E, 5QA 505 311 C (3) OEM |
 |
30VW1200
NEW
|
Track Control Arm Left |
3,34 kg |
6R0 407 151, 6R0 407 151 E |
 |
30VW1201
NEW
|
Track Control Arm Right |
3,34 kg |
6R0 407 152, 6R0 407 152 E |
 |

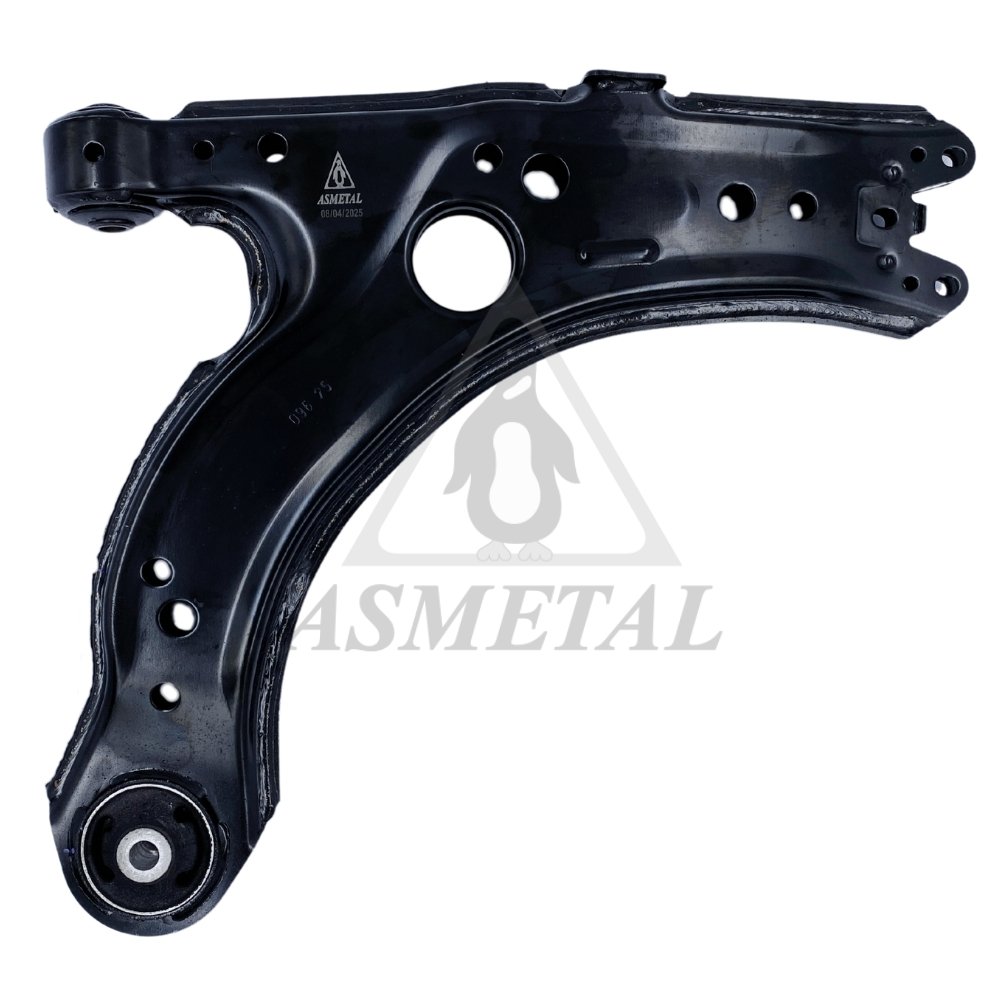

30VW1500P
NEW
|
Track Control Arm (Without Ball Joint) |
3,1 kg |
1J0 407 151 A, 1J0 407 151 B (1) OEM |
 |

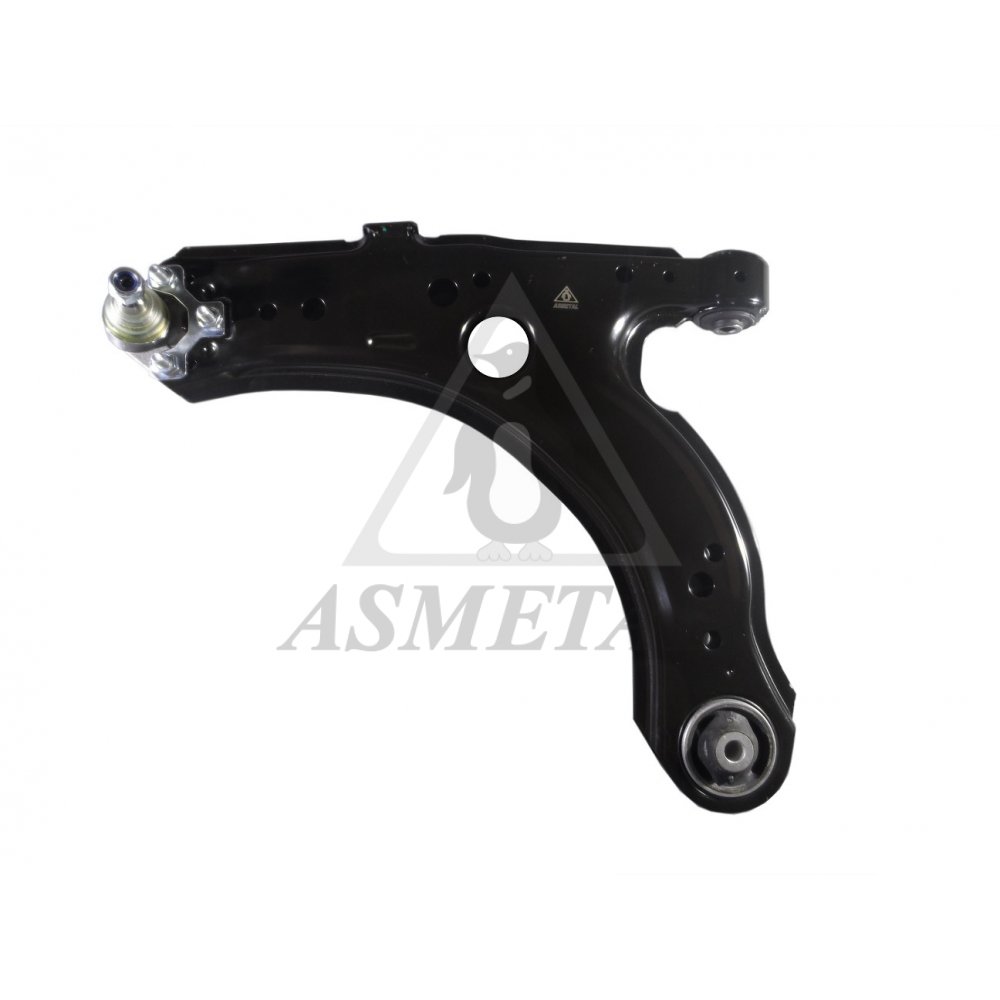

30VW1501
|
Track Control Arm Right |
cr:1/5 c:Ø15.02 th:M12x1.5 RHT / 3,5 kg |
1J0 407 151 C, 1J0 407 151 B (1) OEM |
 |

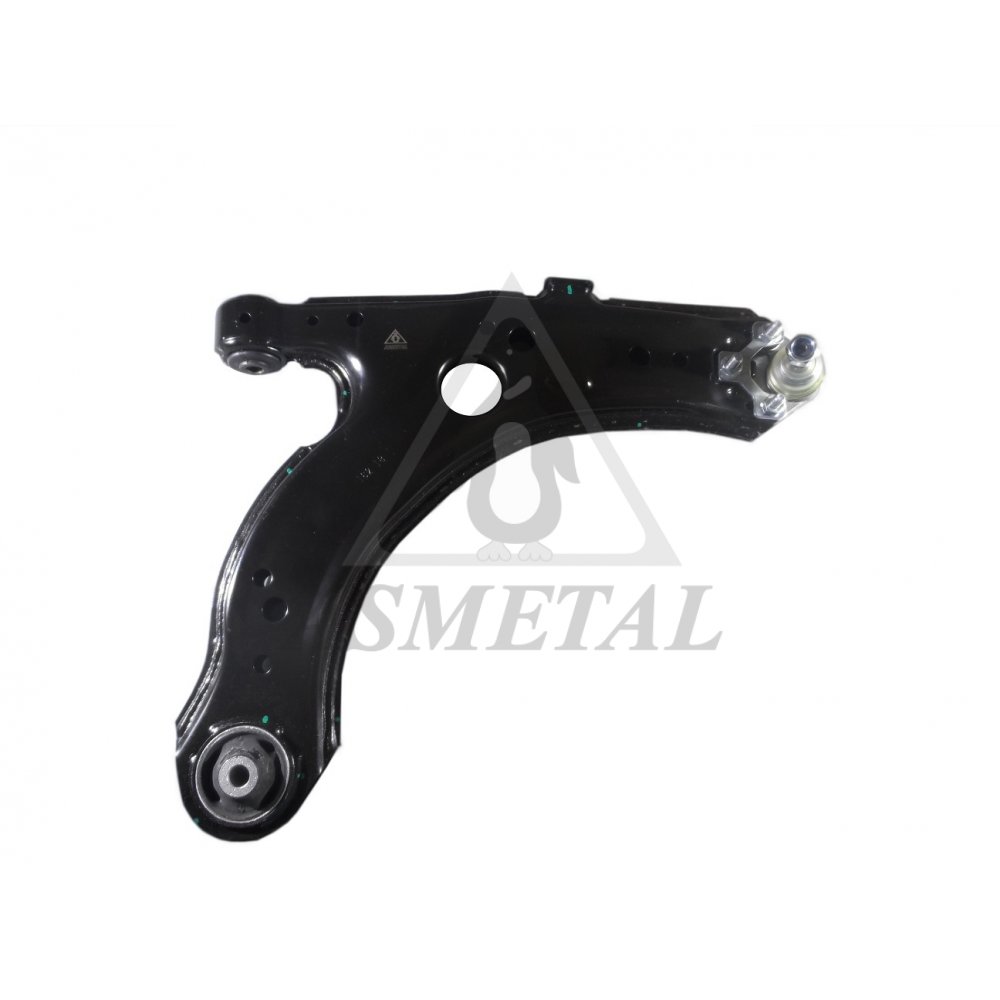

30VW1502
|
Track Control Arm Left |
cr:1/5 c:Ø15.02 th:M12x1.5 RHT / 3,5 kg |
1J0 407 151 C, 1J0 407 151 B (1) OEM |
 |

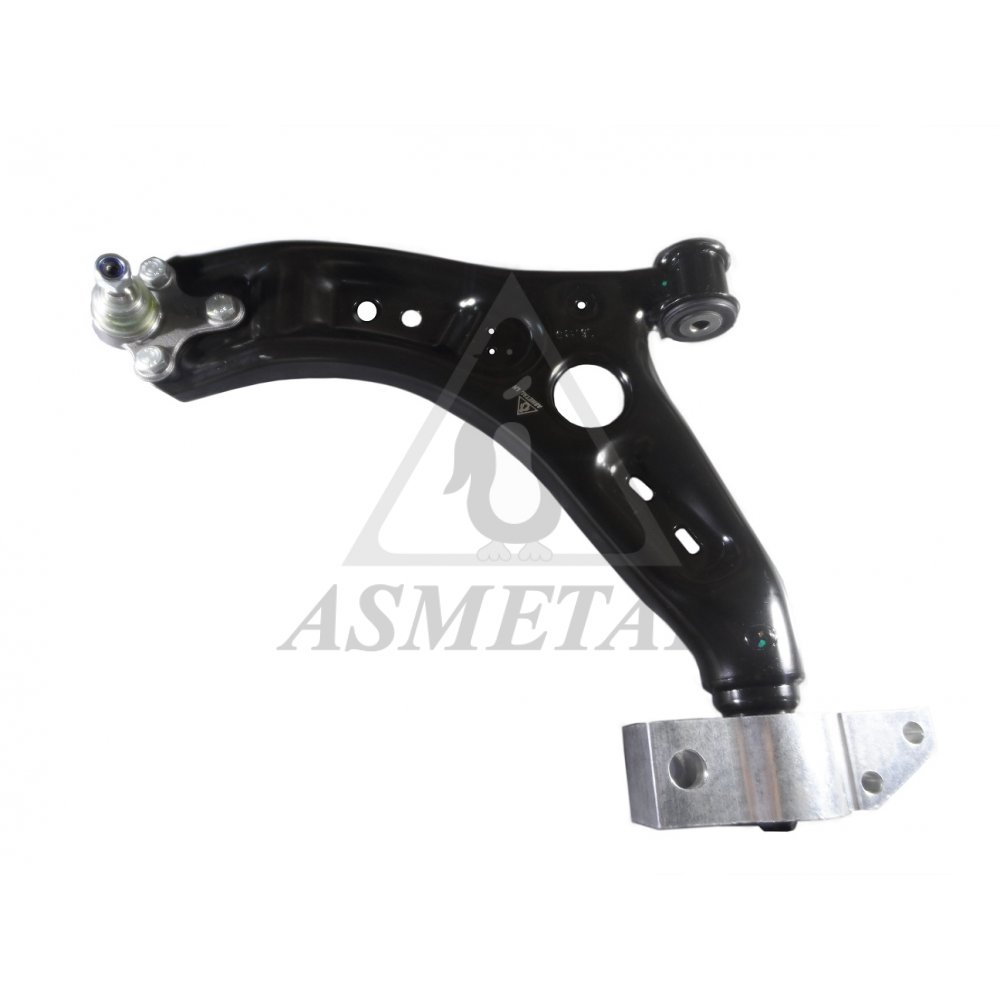

30VW1600
|
Track Control Arm Left |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4,3 kg |
1K0 407 151 AB, 1K0 407 151 AH (9) OEM |
 |

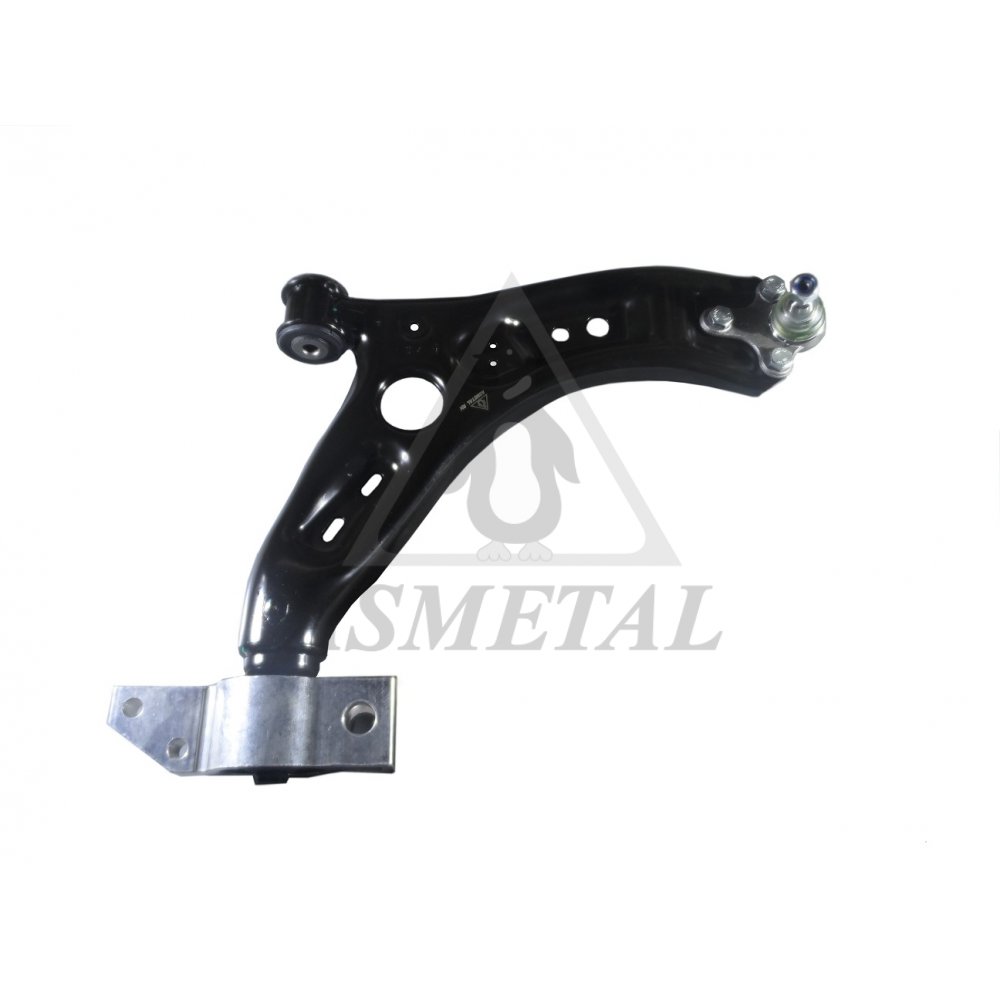

30VW1601
|
Track Control Arm Right |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4,3 kg |
1K0 407 152 AH, 1K0 407 152 AB (9) OEM |
 |

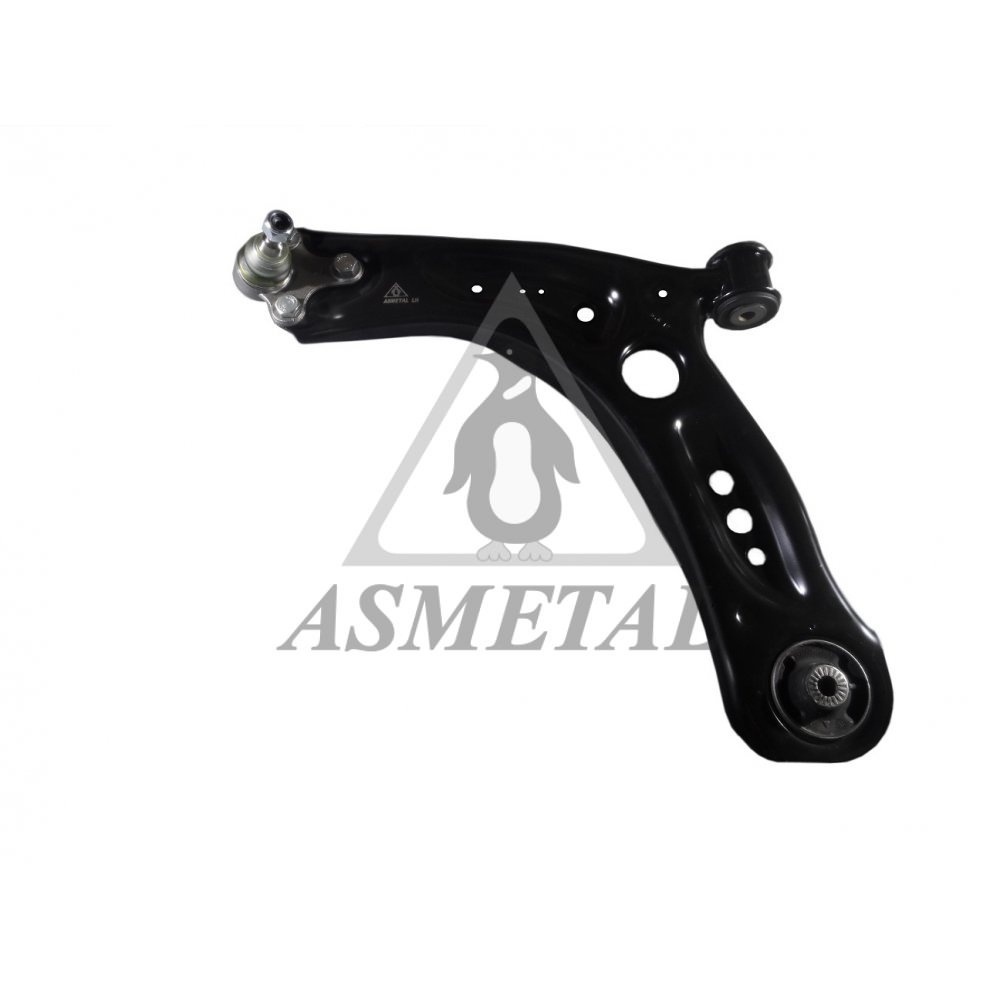

30VW1602
|
Track Control Arm Left |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3,8 kg |
5Q0 407 151 J, 5QM 407 151 A (3) OEM |
 |

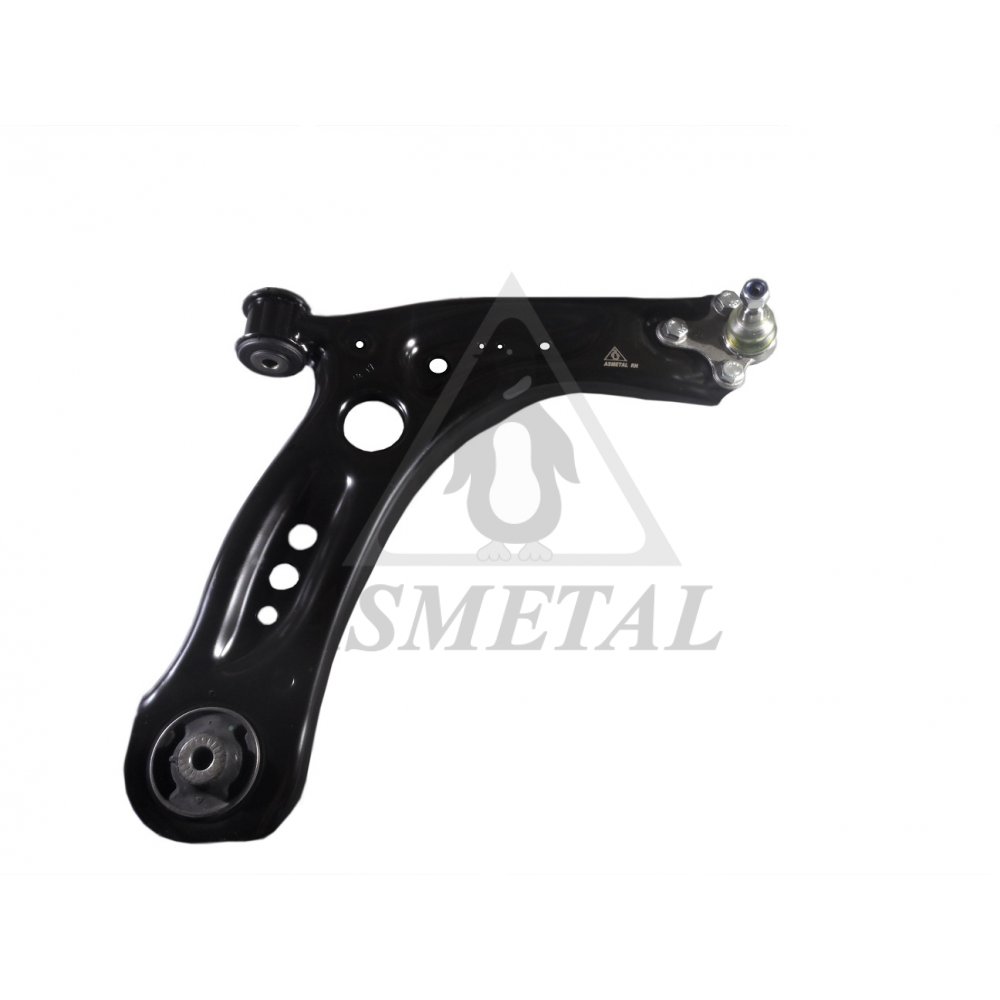

30VW1603
|
Track Control Arm Right |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3,8 kg |
5Q0 407 152 J, 5QM 407 152 A (3) OEM |
 |

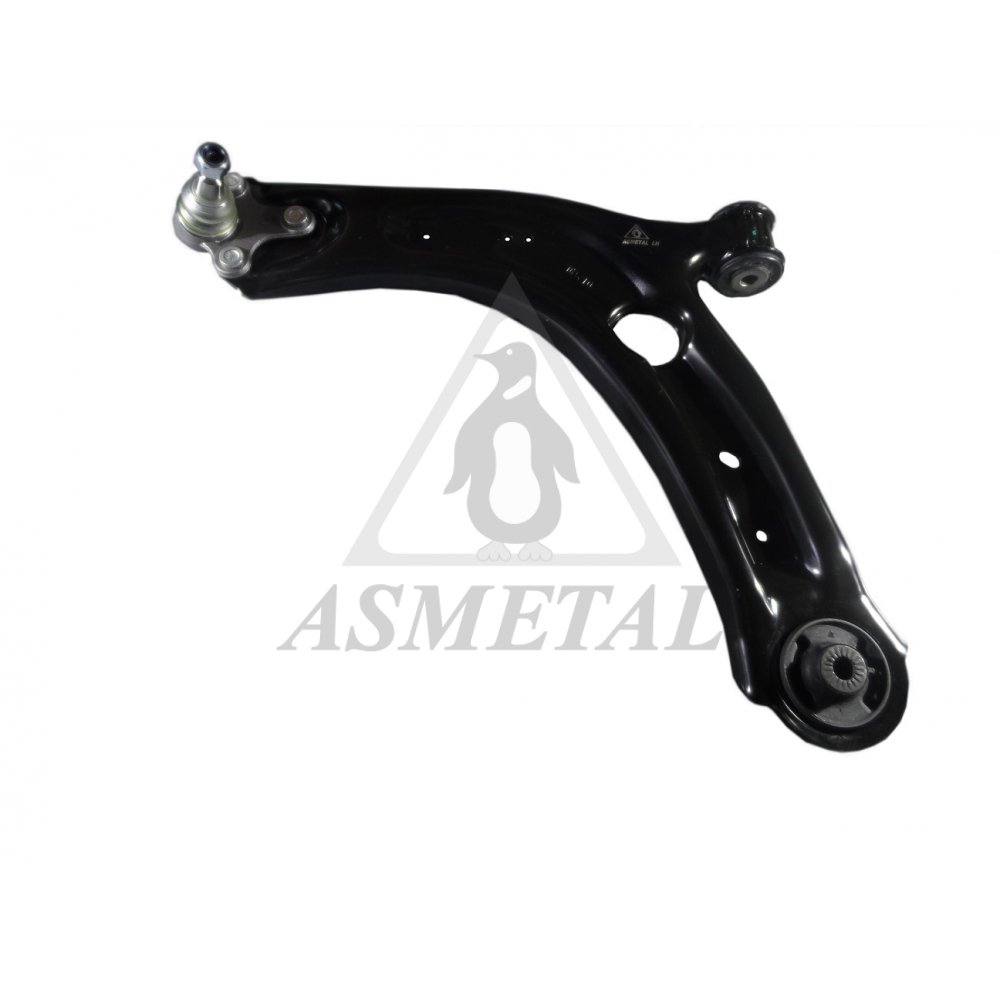

30VW1606
|
Track Control Arm Left |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,7 kg |
3Q0 407 151 E, 3Q0 407 151 J (9) OEM |
 |

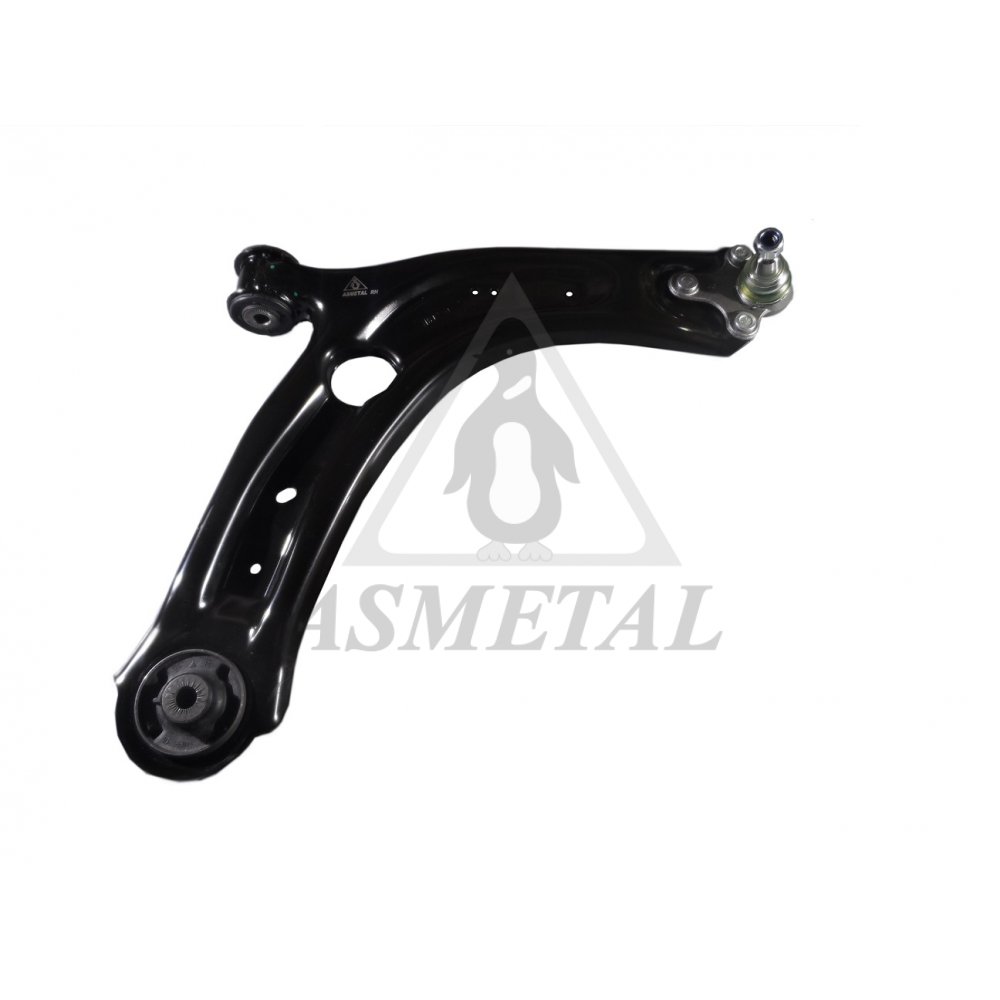

30VW1607
|
Track Control Arm Right |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,7 kg |
3Q0 407 152 E, 3Q0 407 152 J (9) OEM |
 |

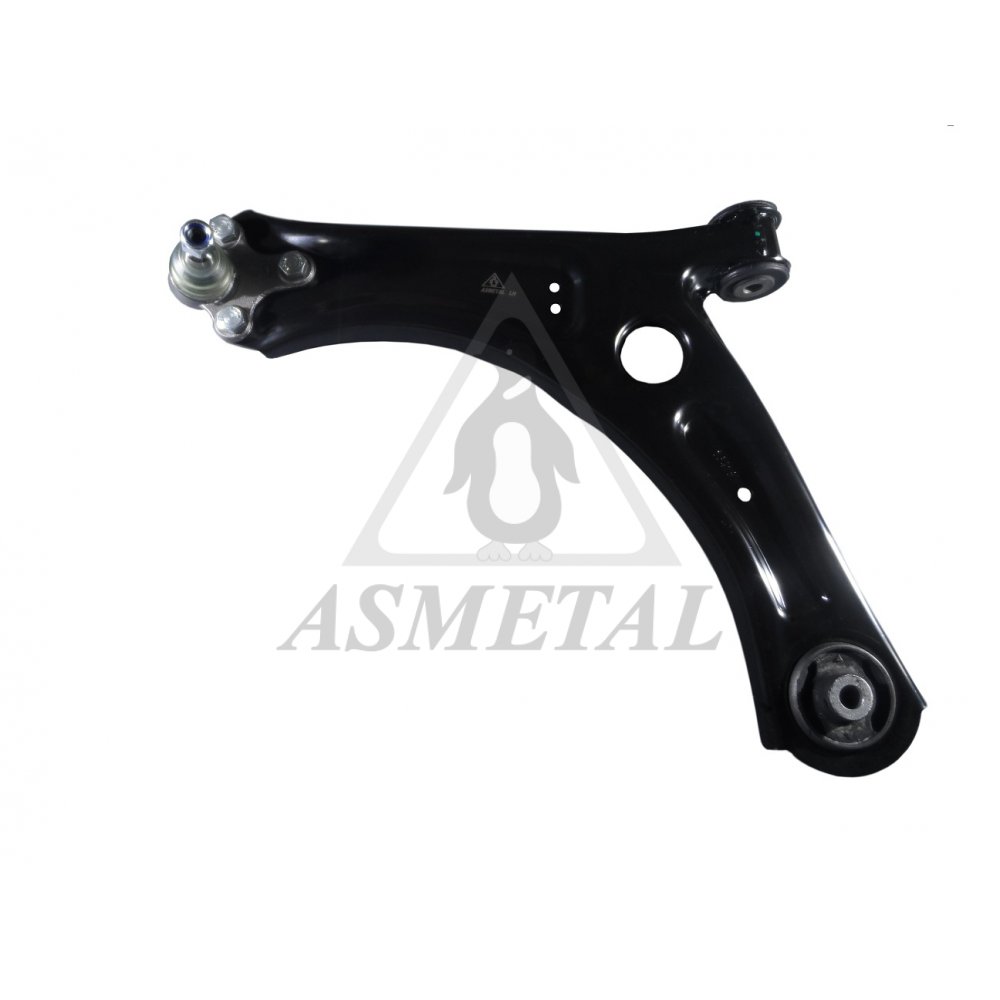

30VW1608
|
Track Control Arm Left |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3,6 kg |
1K0 407 151 BG, 1K0 407 151 BB (2) OEM |
 |
30VW1609
|
Track Control Arm Right |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3,6 kg |
1K0 407 152 BG, 1K0 407 152 BE (2) OEM |
 |
30VW1610
NEW
|
Track Control Arm Left |
5,50 kg |
1K0 407 151 R, 1K0 407 151 M (4) OEM |
 |
30VW1610P
NEW
|
Track Control Arm Left (Without Ball Joint) |
4,75 kg |
1K0 407 151 AC, 1K0 407 151 AD (4) OEM |
 |
30VW1611
NEW
|
Track Control Arm Right |
5,50 kg |
1K0 407 152 AC, 1K0 407 152 AD (3) OEM |
 |
30VW1611P
NEW
|
Track Control Arm Right (Without Ball Joint) |
4,75 kg |
1K0 407 152 AC, 1K0 407 152 AD (4) OEM |
 |

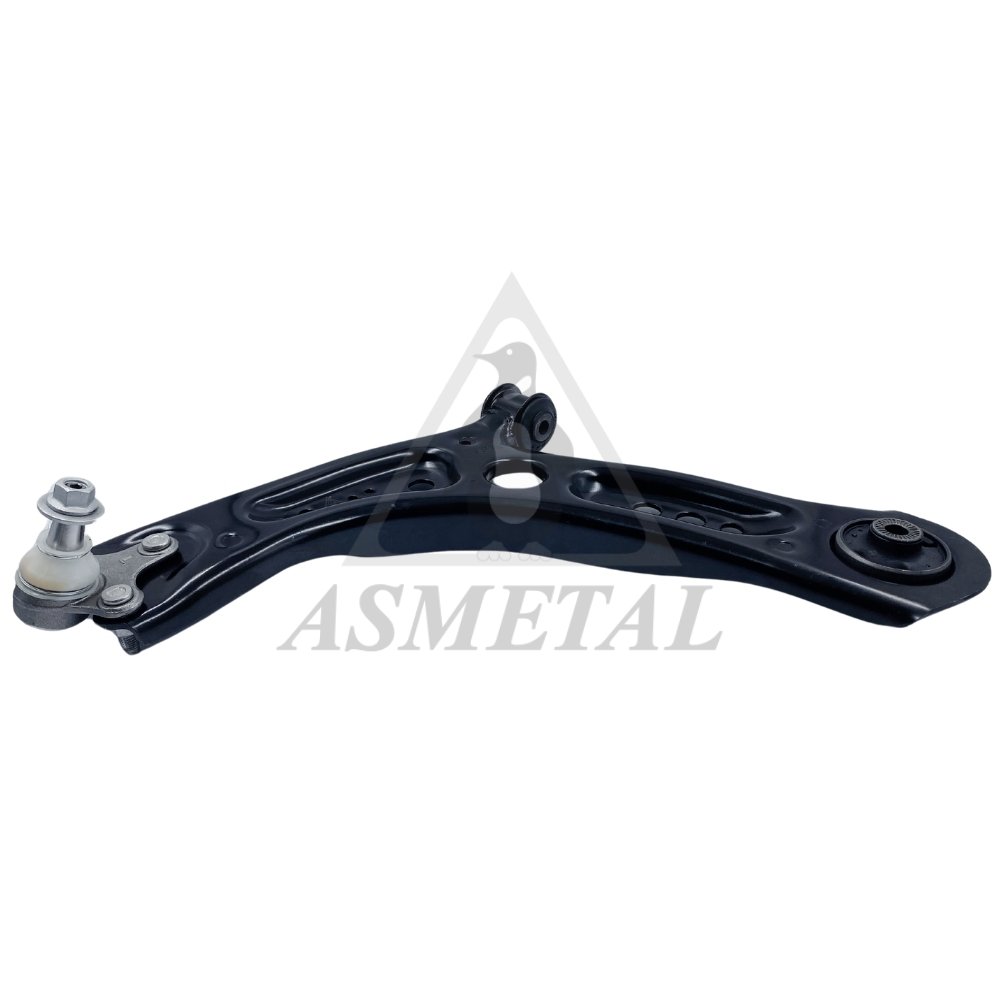

30VW1612
|
Track Control Arm Left |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,75 kg |
5Q0 407 151 J, 5QM 407 151 A (3) OEM |
 |

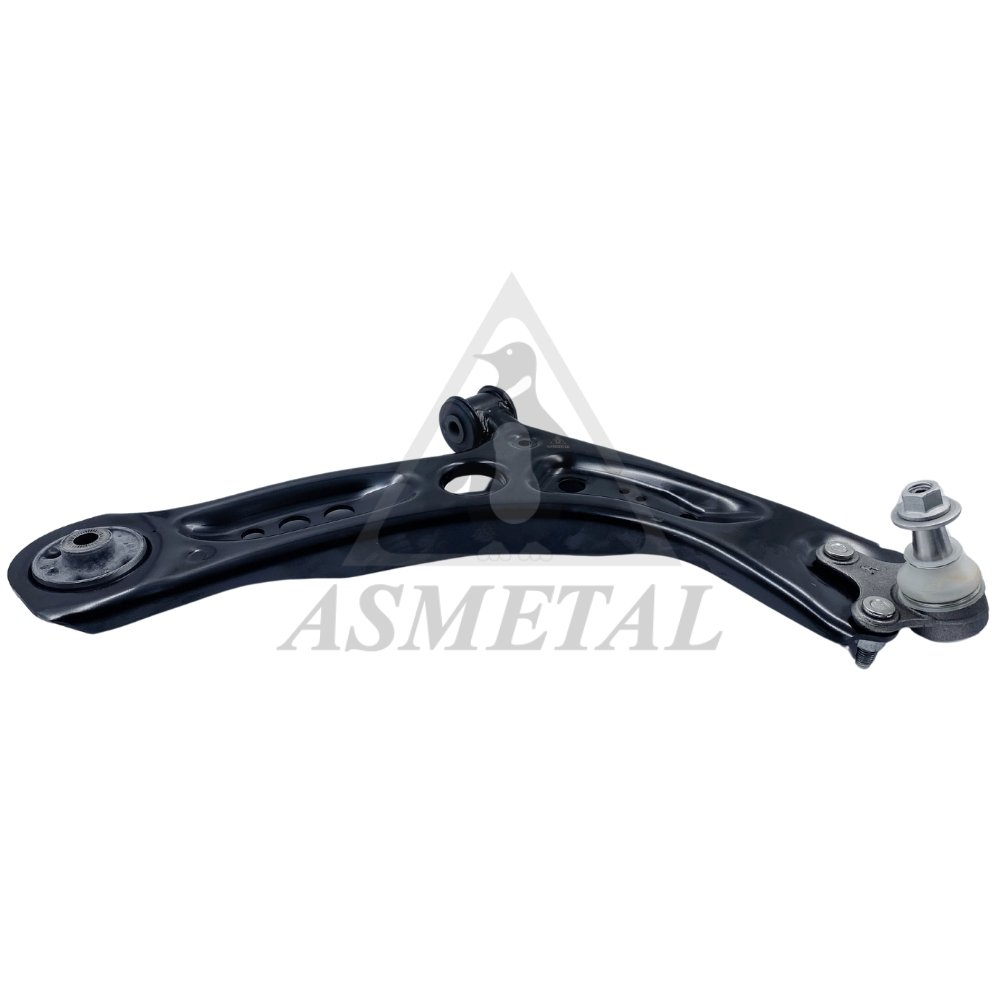

30VW1613
|
Track Control Arm Right |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,75 kg |
5Q0 407 152 J, 5QM 407 152 A (3) OEM |
 |
30VW1670
|
Track Control Arm Rear Left |
di:Ø12.25 / 1,79 kg |
1K0 505 223 E, 1K0 505 223 H (2) OEM |
 |
30VW1671
|
Track Control Arm Rear Right |
di:Ø12.25 / 1,77 kg |
1K0 505 224 H, 1K0 505 224 K (2) OEM |
 |
30VW1672
|
Track Control Arm Rear Left |
di:Ø12.25 / 1,58 kg |
5Q0 505 223 D, 5Q0 505 223 (1) OEM |
 |
30VW1673
|
Track Control Arm Rear Right |
di:Ø12.25 / 1,59 kg |
5QM 505 224, 5Q0 505 224 D |
 |
30VW1700
NEW
|
Track Control Arm Rear |
2,22 kg |
5QM 505 311, 5Q0 505 311 C (3) OEM |
 |
30VW1702
NEW
|
Track Rod Rear |
1,34 kg |
5Q0 505 323 C, 5Q0 505 323 D (1) OEM |
 |

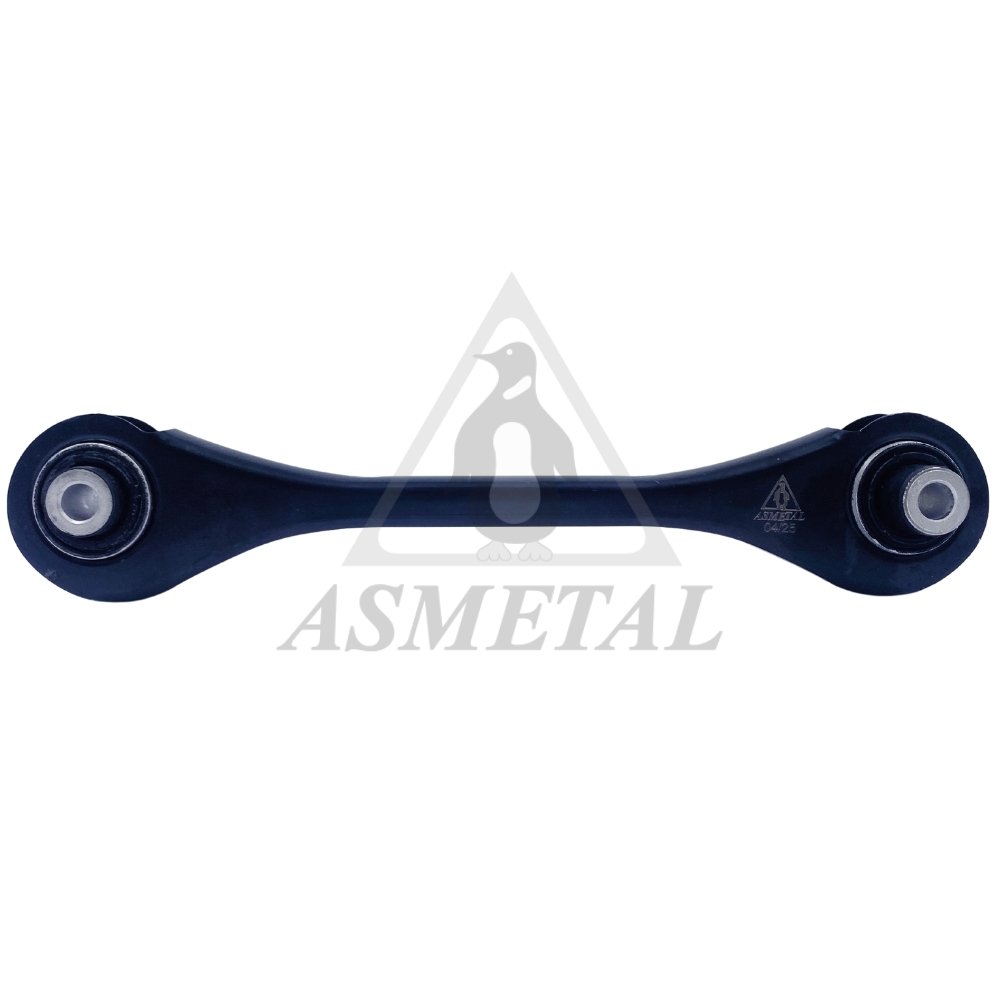

30VW1704
NEW
|
Track Rod Rear |
0,58 kg |
5Q0 501 529 F, 5Q0 501 529 D (2) OEM |
 |
30VW2010
NEW
|
Track Control Arm Left |
3,4 kg |
6Q0 407 151 E, 6Q0 407 151 D (1) OEM |
 |
30VW2010P
NEW
|
Track Control Arm (Without Ball Joint) |
2,9 kg |
6Q0 407 151 E, 6Q0 407 151 D (1) OEM |
 |
30VW2011
NEW
|
Track Control Arm Right |
3,4 kg |
6Q0 407 151 E, 6Q0 407 151 D (1) OEM |
 |
30VW6602
NEW
|
Track Control Arm Left |
4,40 kg |
1EA 407 151 A |
 |
30VW6603
NEW
|
Track Control Arm Right |
4,40 kg |
1EA 407 152 A |
 |
38AU0100
|
Stabiliser Mounting |
L:30 di:Ø10.8 / 0,03 kg |
8A0 511 327 D, 8A0 511 327 B (3) OEM |
 |

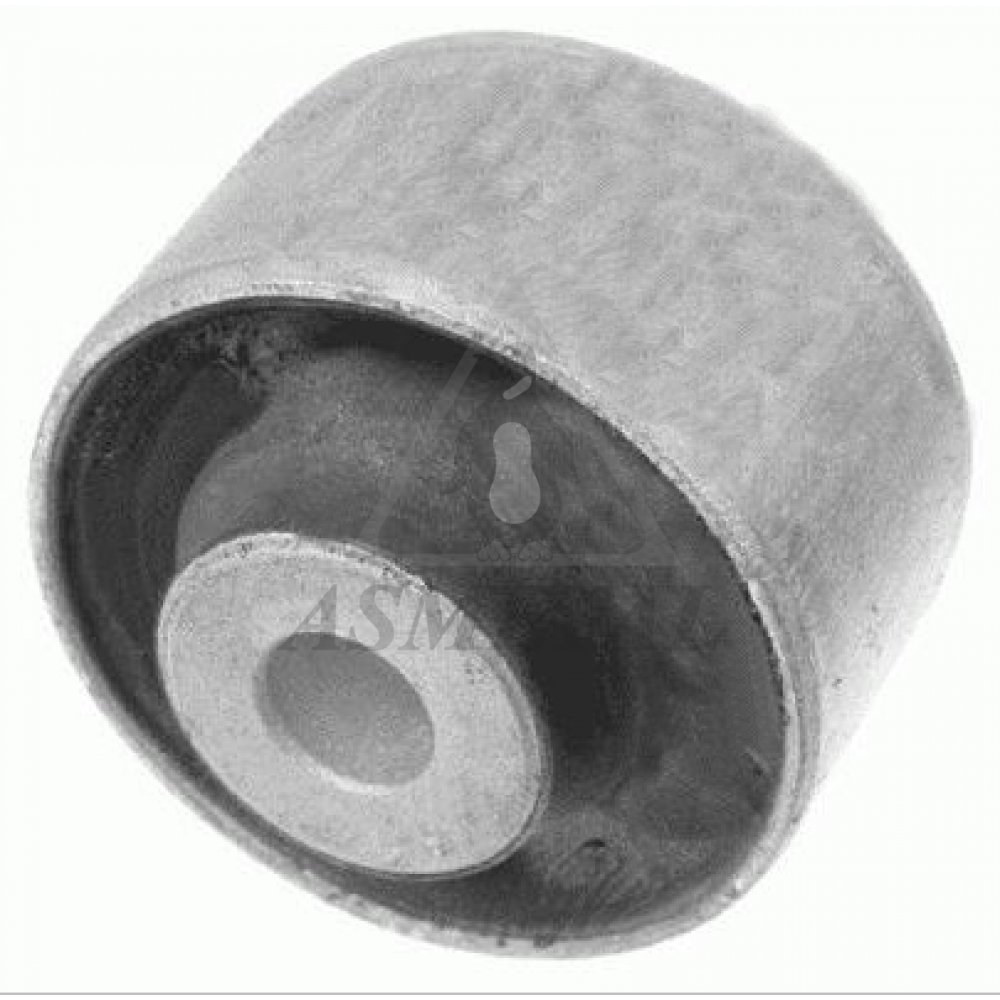

38AU0101
|
Silentblock for TCA |
L:40 di:Ø10.1 do:Ø46.5 / 0,09 kg |
8K0 407 515, 8D0 407 515 A (6) OEM |
 |
38AU0225
NEW
|
Stabiliser Mounting |
di:Ø25 / 0,07 kg |
4D0 411 327 E, 4D0 411 327 G |
 |
38AU0227
NEW
|
Stabiliser Mounting |
di:Ø27 / 0,07 kg |
4D0 411 327 H |
 |

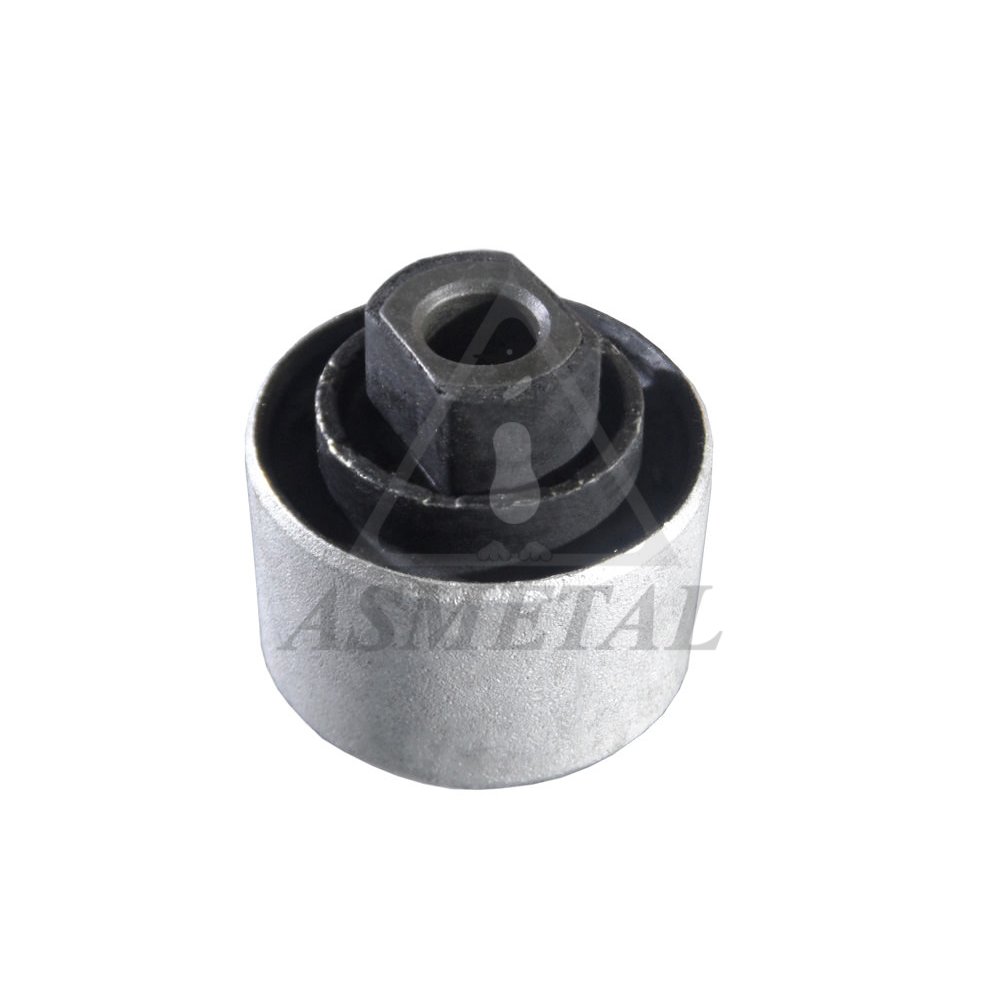

38AU0230
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø50.4 / 0,2 kg |
4Z7 407 182, 4D0 407 182 G (2) OEM |
 |

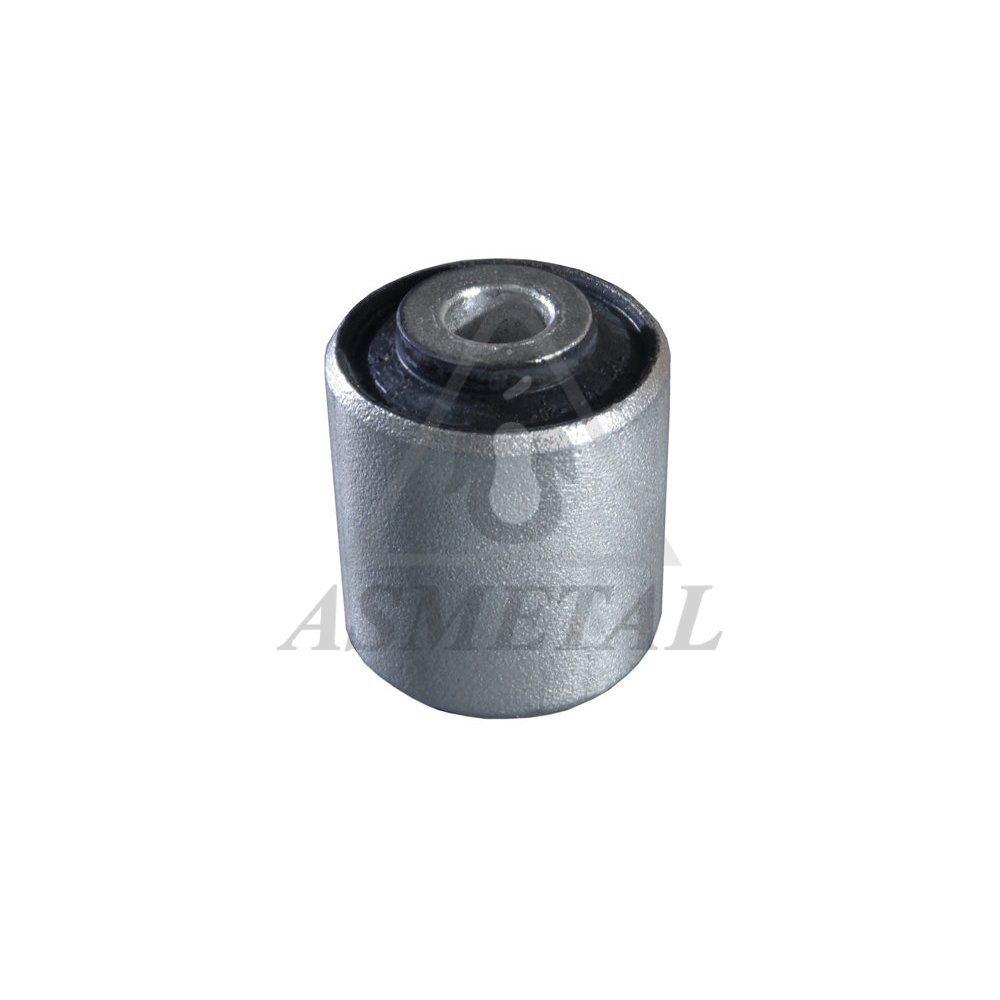

38AU0231
|
Silentblock for TCA |
L:50 di:Ø12.1 do:Ø40.3 / 0,99 kg |
4D0 407 181 F, 4D0 407 181 H |
 |

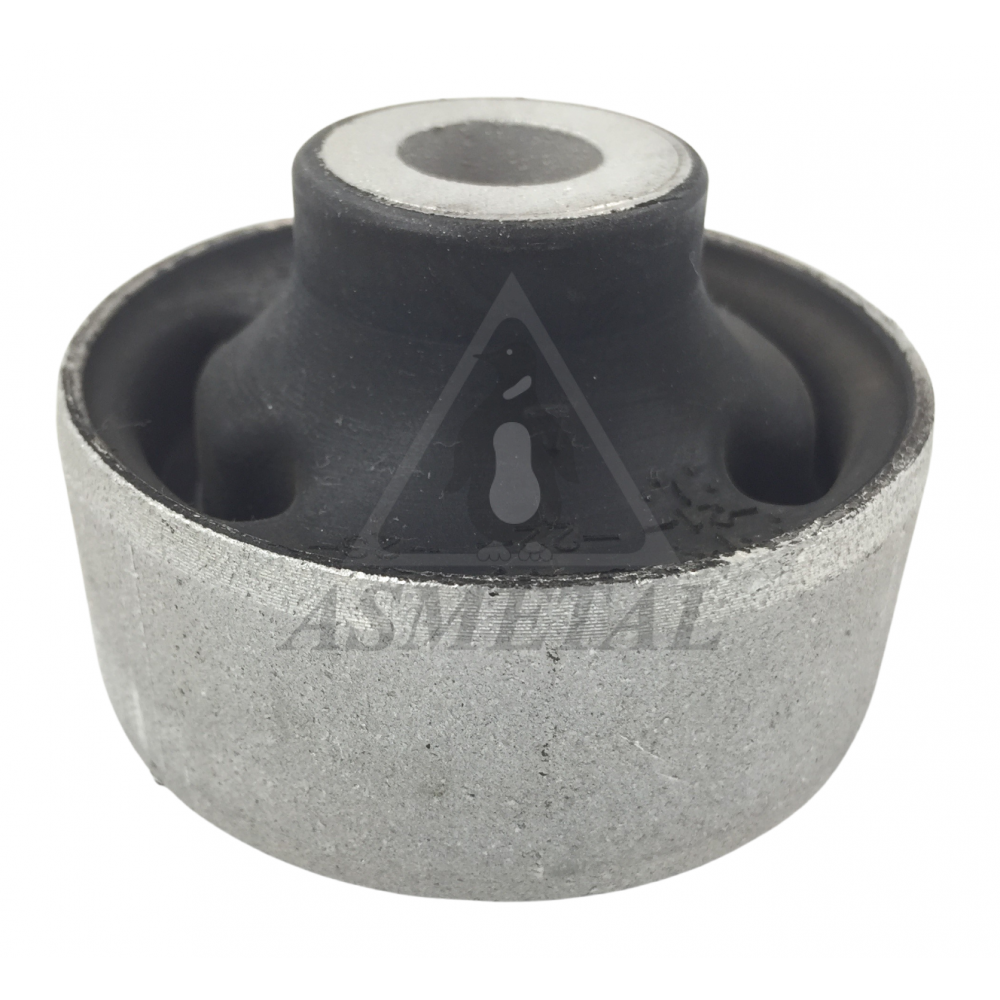

38AU1001
|
Silentblock for TCA |
L:50 di:Ø13.1 do:Ø60 / 0,12 kg |
2Q0 407 183 B, 2Q0 407 183 |
 |
38AU1200
|
Silentblock for TCA |
L:54.1 di:Ø12.2 do:Ø32.4 / 0,1 kg |
191 407 182, 357 407 182 (2) OEM |
 |
38AU1205
|
Silentblock for TCA |
L:41 di:Ø13.2 do:Ø60 / 0,12 kg |
1J0 407 181 A, 1J0 407 181 (1) OEM |
 |
38AU1210
|
Silentblock for TCA |
L:41 di:Ø13.5 do:Ø60 / 0,13 kg |
8N0 407 181 B, 6R0 407 181 B |
 |

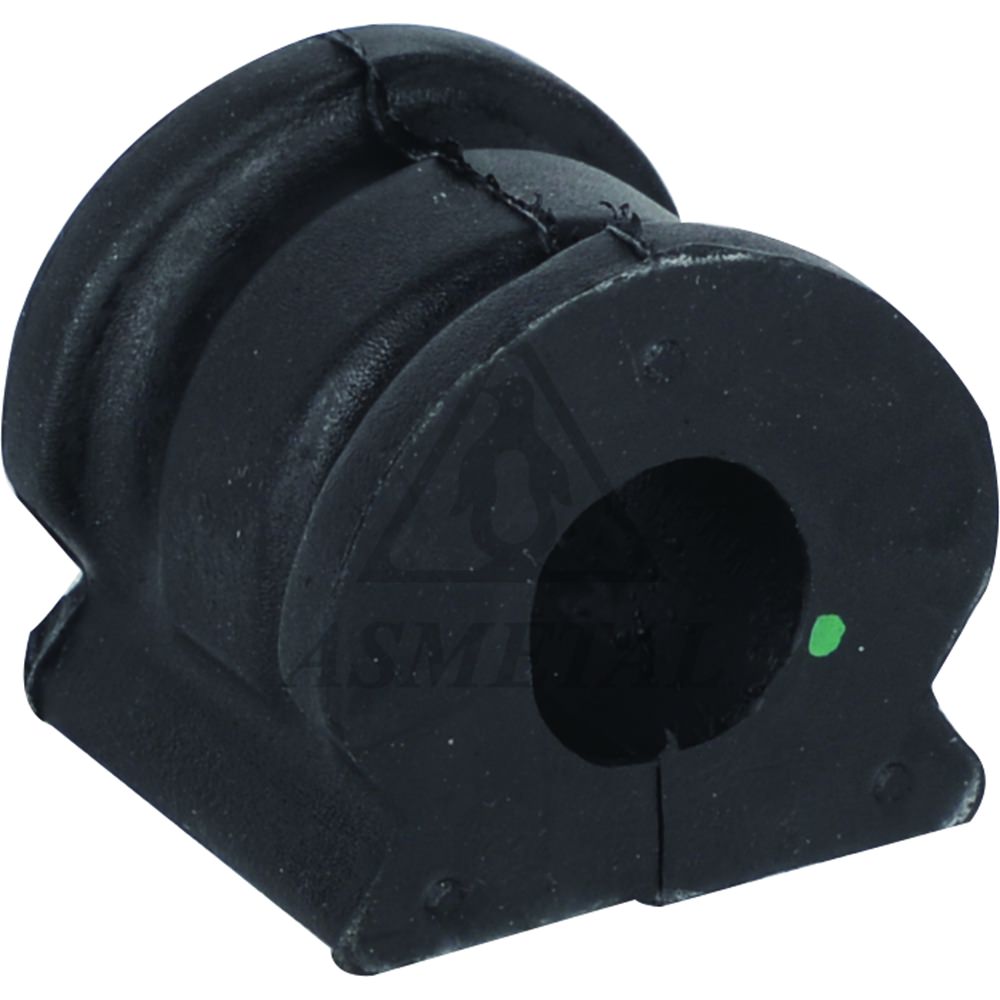

38AU1215
|
Stabiliser Mounting |
L:24.7 di:Ø17 do:Ø32.5 / 0,03 kg |
6Q0 411 303 AD, 6Q0 411 314 Q (3) OEM |
 |

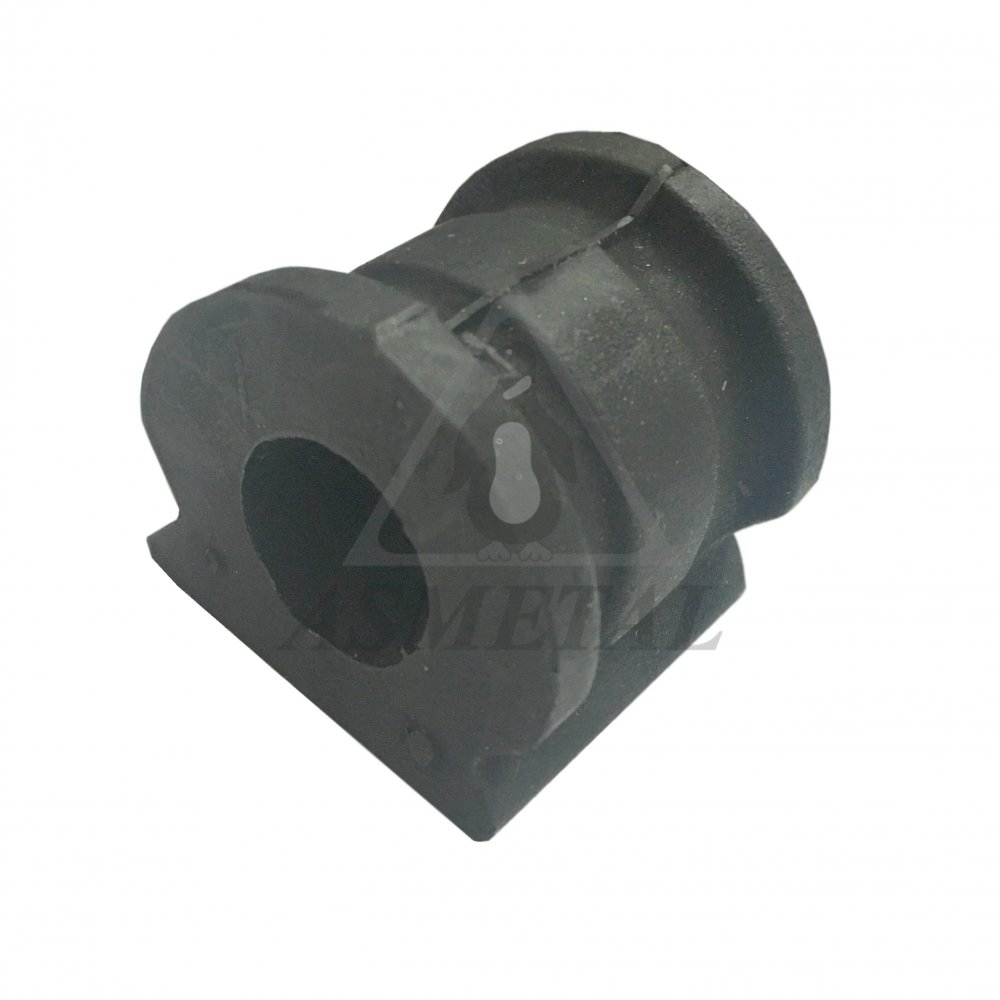

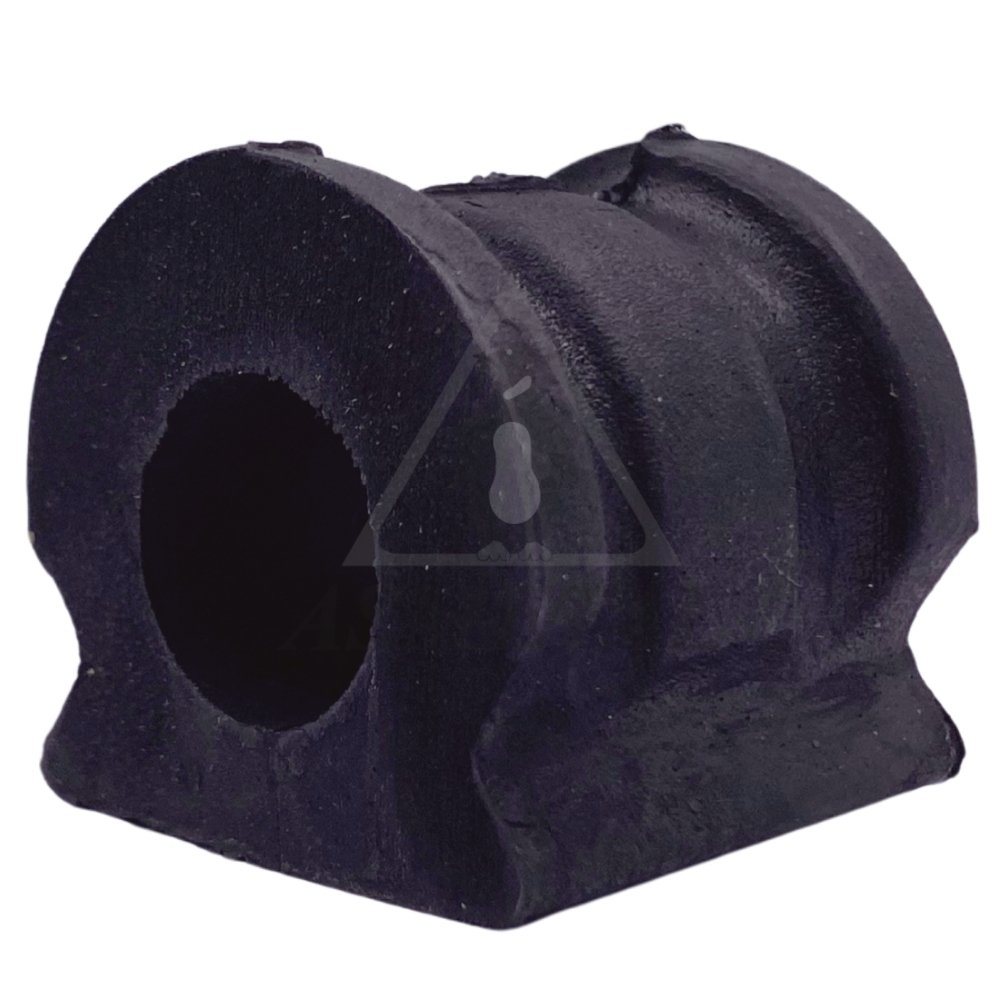

38AU1216
|
Stabiliser Mounting |
L:34.7 di:Ø18 do:Ø32.5 / 0,03 kg |
6Q0 411 314 R, 6Q0 411 314 N (3) OEM |
 |

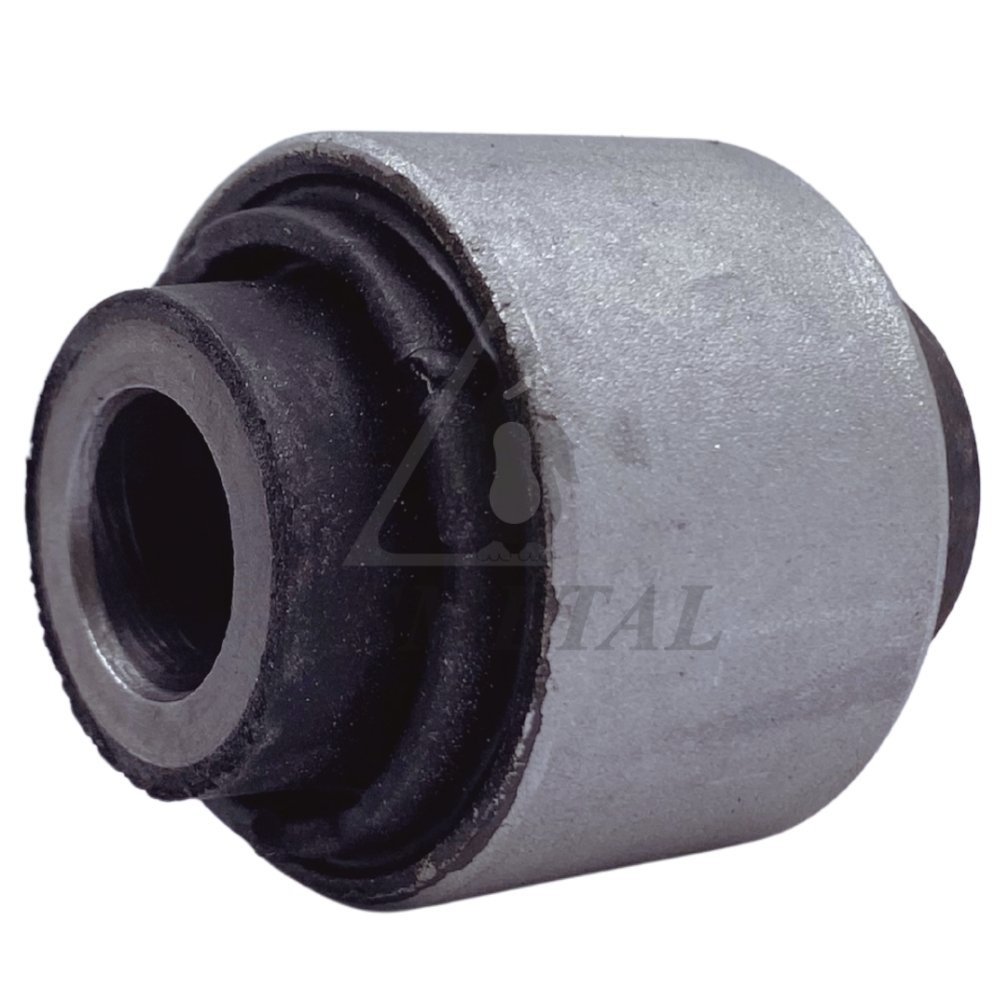

38AU1220
|
Silentblock for TCA |
L:45 di:Ø14.2 do:Ø38.7 / 0,13 kg |
1K0 505 203 A, 1K0 505 323 N* (1) OEM |
 |
38AU1221
|
Silentblock for TCA |
L:45 di:Ø14.1 do:Ø40.5 / 0,18 kg |
1K0 501 541 C, 1K0 501 530 C (5) OEM |
 |

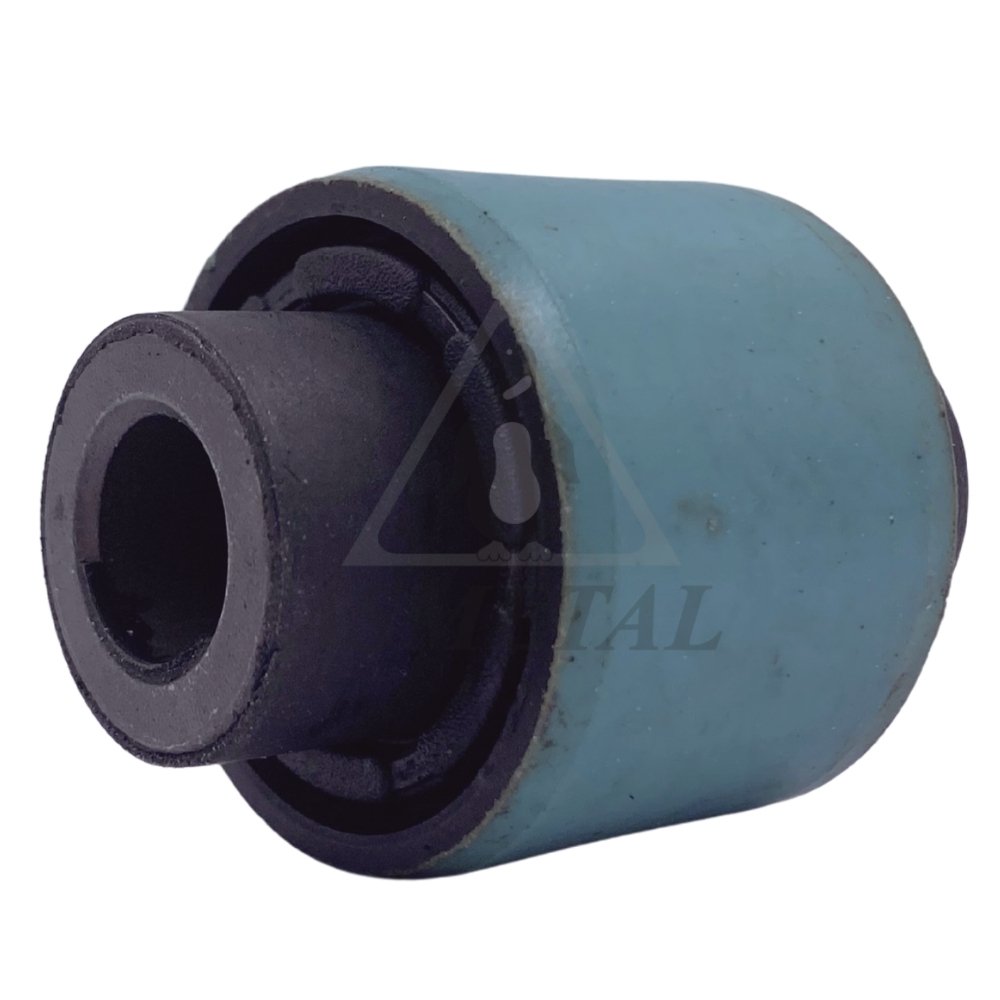

38AU1230
|
Silentblock for TCA |
L:49.8 di:Ø12.1 do:Ø37.4 / 0,14 kg |
5Q0 505 553 |
 |
38AU1231
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø44.5 / 0,12 kg |
3Q0 505 311 D*, 3Q0 505 311 E* (5) OEM |
 |
38AU1235
|
Silentblock for TCA |
L:45.2 di:Ø12.25 do:Ø60.2 / 0,19 kg |
1K0 505 541 B, 5Q0 505 541 A (4) OEM |
 |
38AU1290
NEW
|
Bellow Steering |
0,12 kg |
1K0 423 831 A, 1K0 423 831 B (1) OEM |
 |

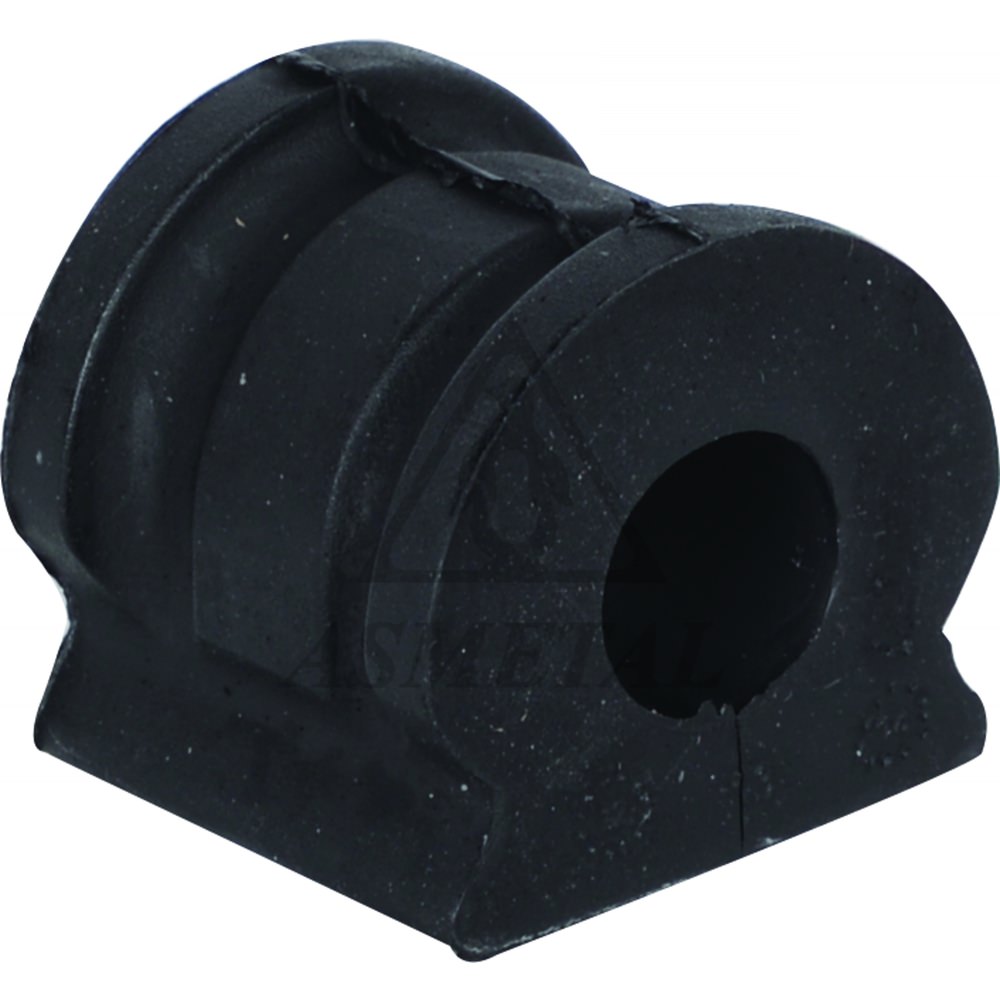

38AU2000
|
Stabiliser Mounting |
L:34.7 di:Ø16 do:Ø32.5 / 0,04 kg |
6Q0 411 303 H, 6Q0 411 305 F (5) OEM |
 |

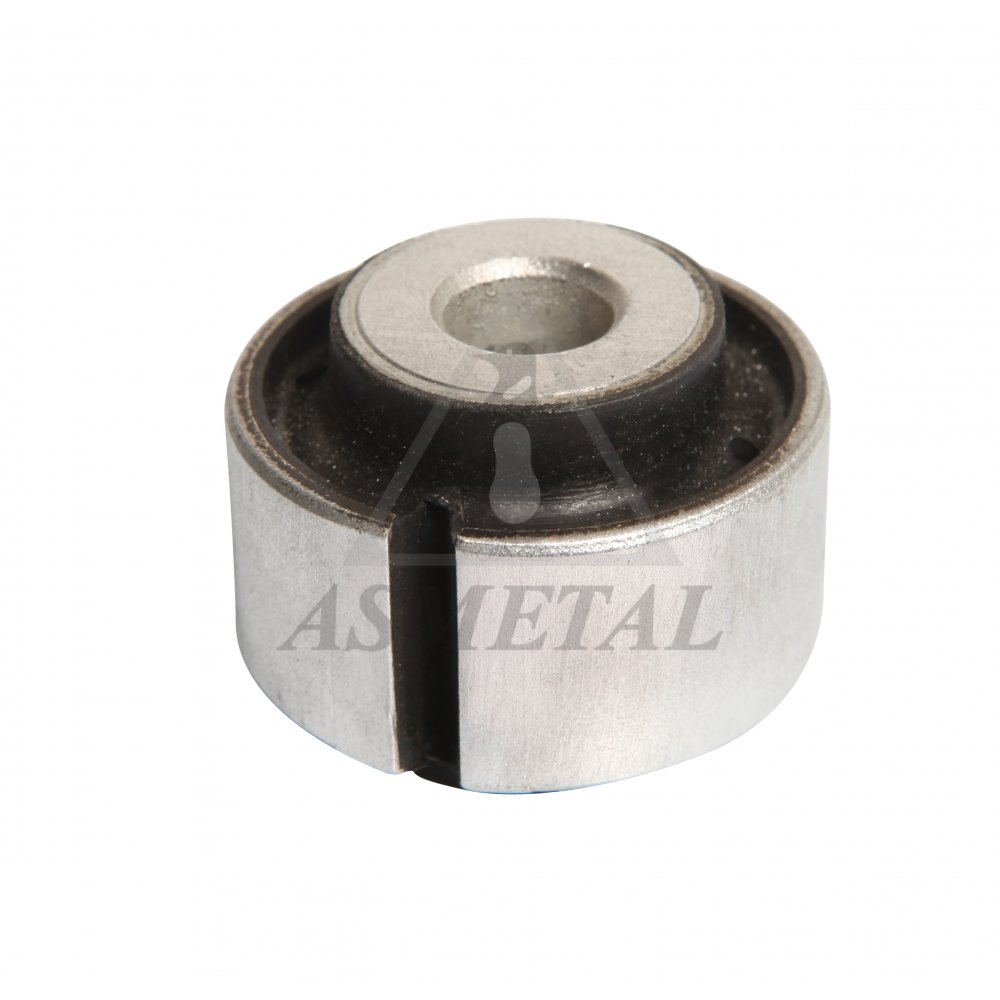

38AU2601
|
Silentblock for TCA |
L:28 di:Ø10.2 do:Ø36.8 / 0,05 kg |
8W0 505 324 F*, 8W0 505 323 F* (4) OEM |
 |

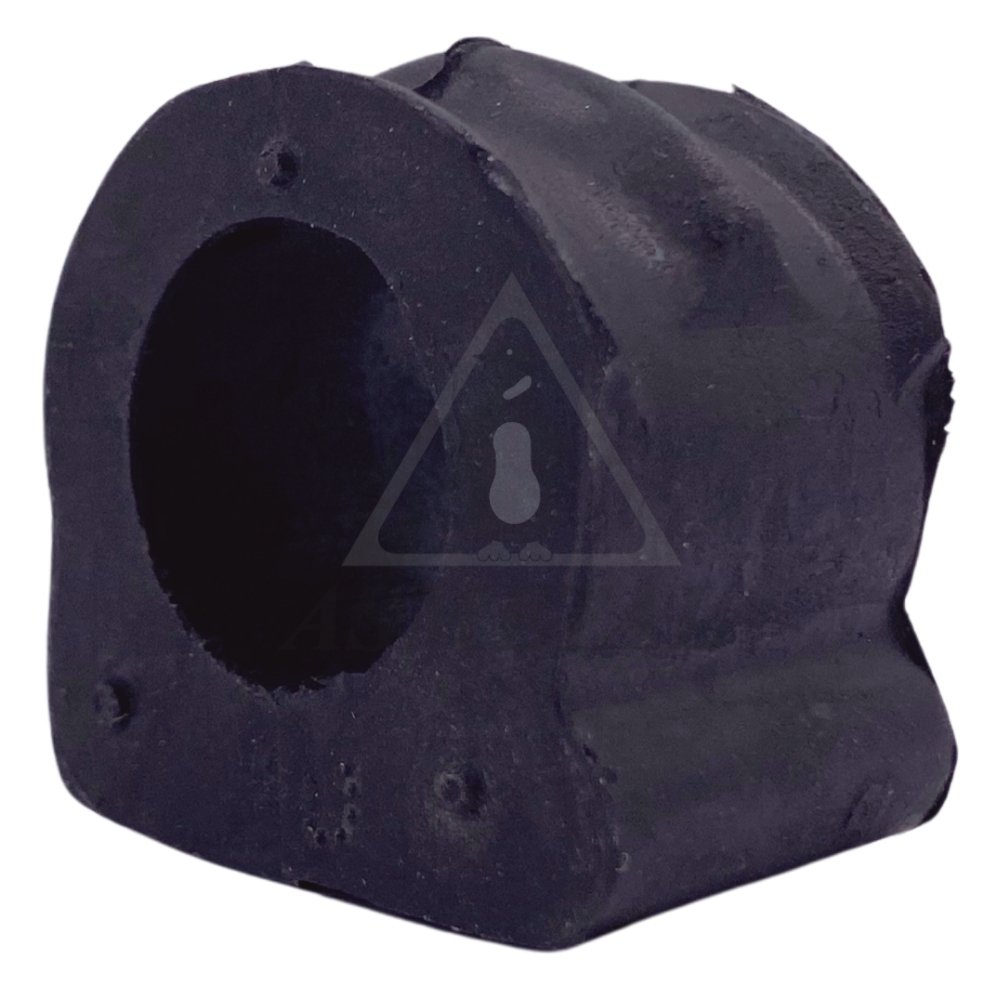

38AU3000
|
Stabiliser Mounting |
L:25 di:Ø20.8 / 0,04 kg |
8N0 411 303 G, 8N0 411 303 H (2) OEM |
 |
38AU3001
|
Stabiliser Mounting |
L:25.3 di:Ø17 / 0,03 kg |
8N0 411 305 A, 1J0 411 305 L (4) OEM |
 |
38AU3002
|
Stabiliser Mounting |
L:25.3 di:Ø20 / 0,03 kg |
1J0 411 314 P |
 |

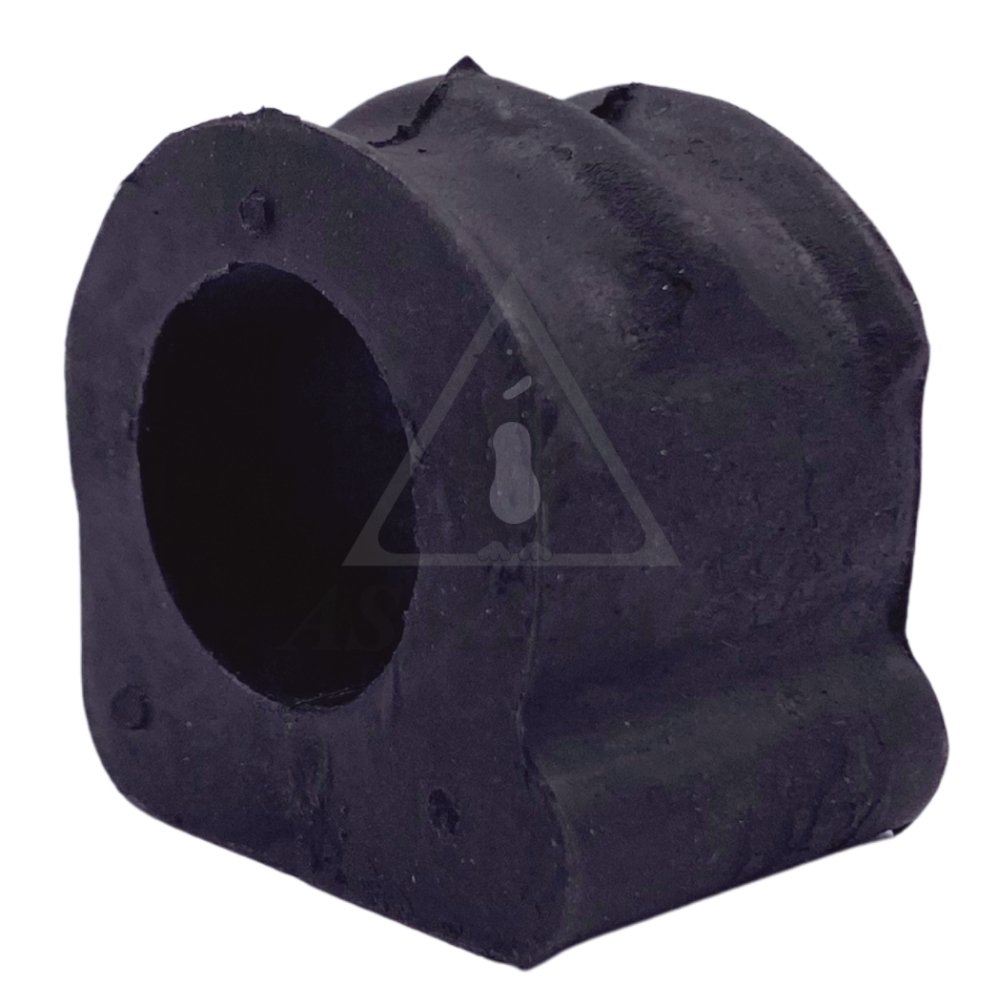

38AU3003
|
Stabiliser Mounting |
L:25 di:Ø20.8 / 0,03 kg |
8N0 411 314 B, 1J0 411 314 N (5) OEM |
 |
38AU3020
|
Silentblock for TCA |
L:54 di:Ø12.2 do:Ø48 / 0,19 kg |
5Q0 407 182 A, 5Q0 407 182 (4) OEM |
 |
38AU3021
|
Silentblock for TCA |
L:50 di:Ø13 do:Ø64.7 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
38AU3030
|
Silentblock for TCA |
L:54 di:Ø12.1 do:Ø39.5 / 0,19 kg |
1K0 407 182, 1K0 407 182 F (4) OEM |
 |

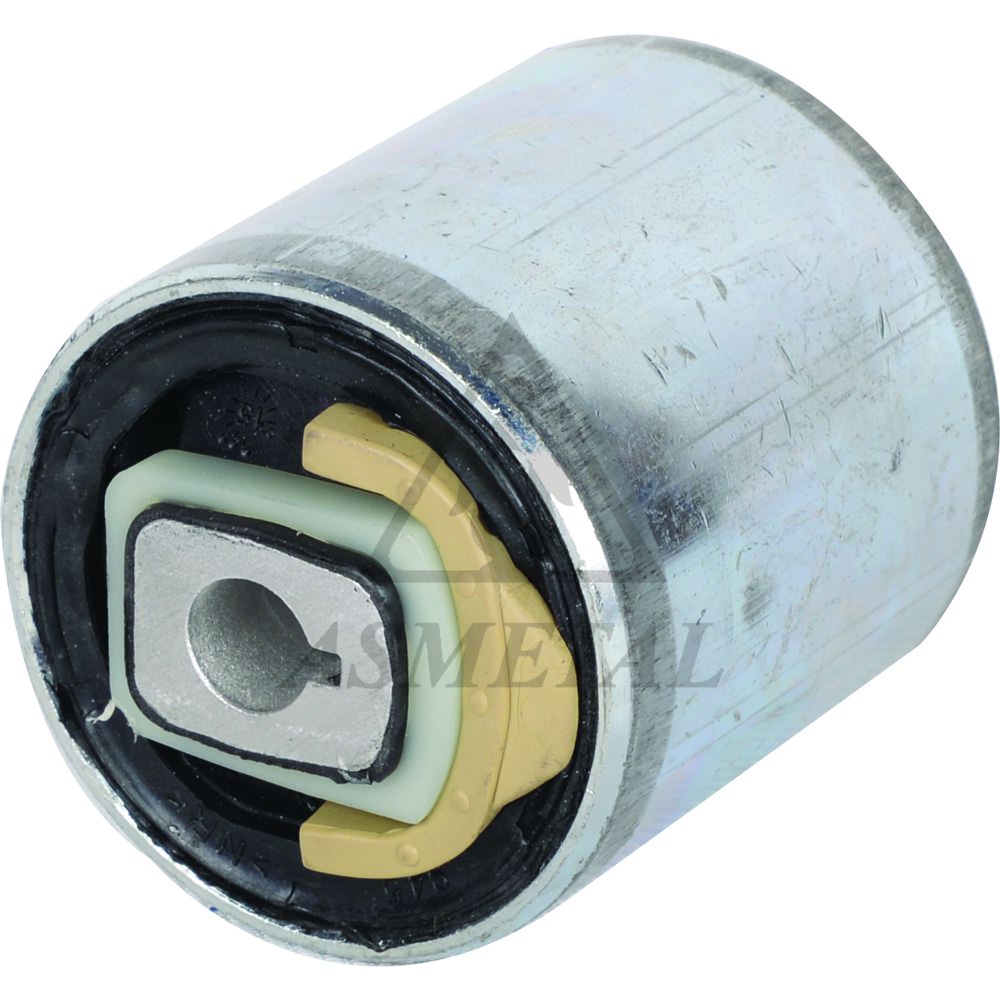

38AU4000
|
Silentblock for TCA |
L:80.2 di:Ø12.2 do:Ø65.1 / 0,59 kg |
4D0 407 183 AC, 4D0 407 183 Q (8) OEM |
 |

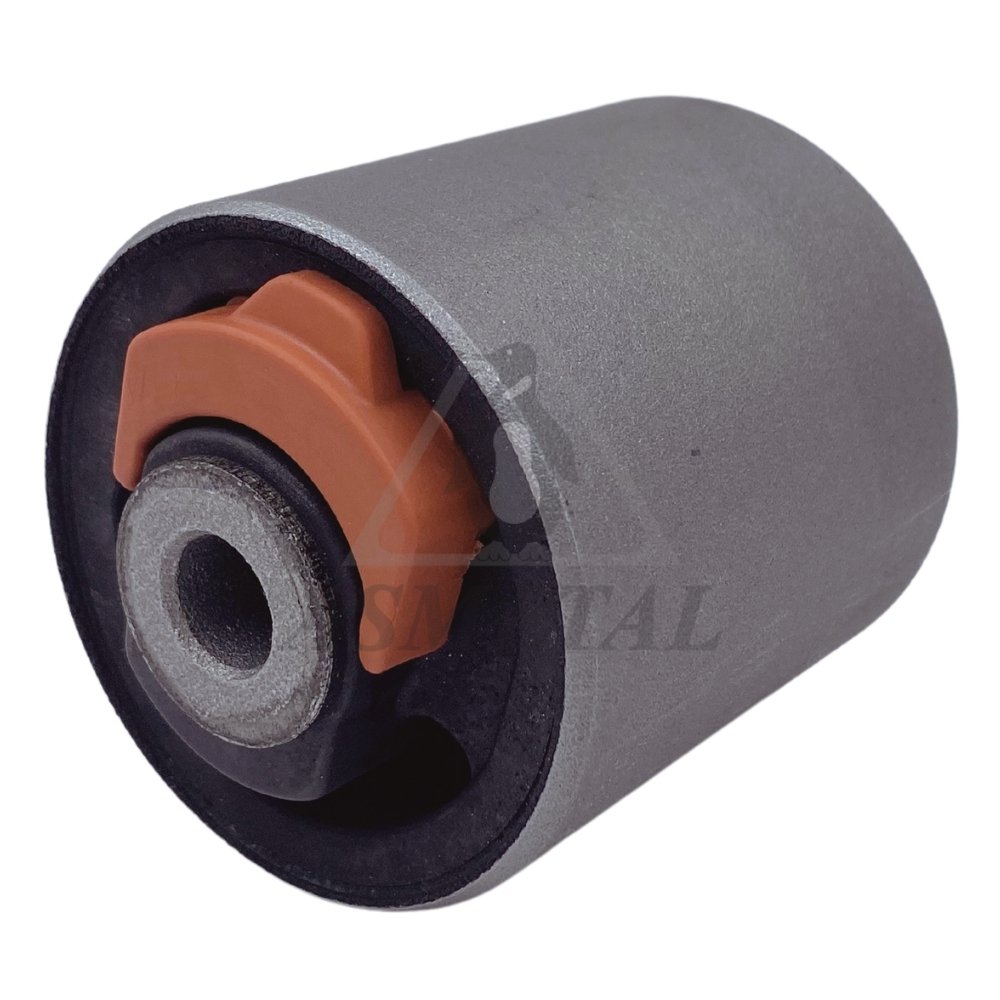

38AU4001
|
Silentblock for TCA |
L:80 di:Ø12 do:Ø65 / 0,44 kg |
4D0 407 183 AB, 4D0 407 183 AC (5) OEM |
 |
38SK1605
IN PREPARATION
|
Axle Beam Bushing |
|
5Q0 501 541 C, 5Q0 501 541 F |
 |
38SK2020
NEW
|
Stabiliser Mounting |
di:Ø20 / 0,03 kg |
6Q0 411 314 F, 6Q0 411 315 F |
 |

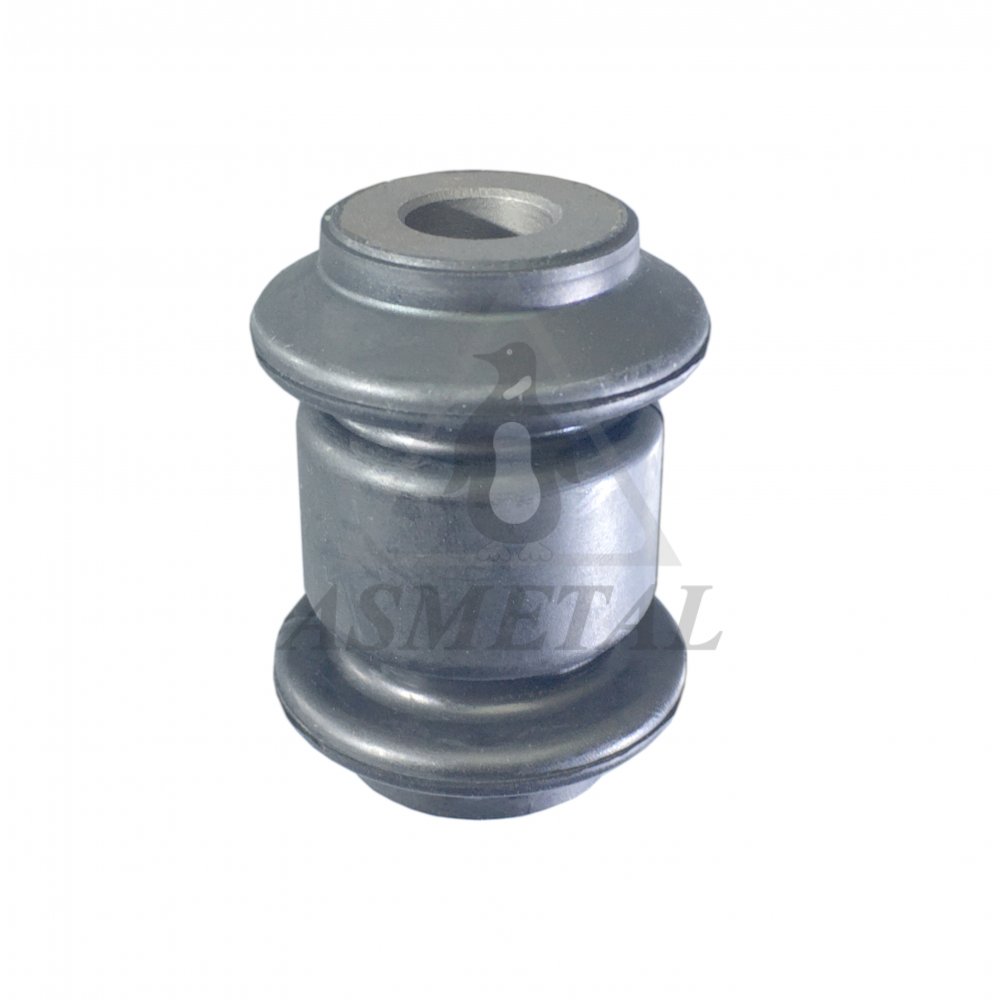

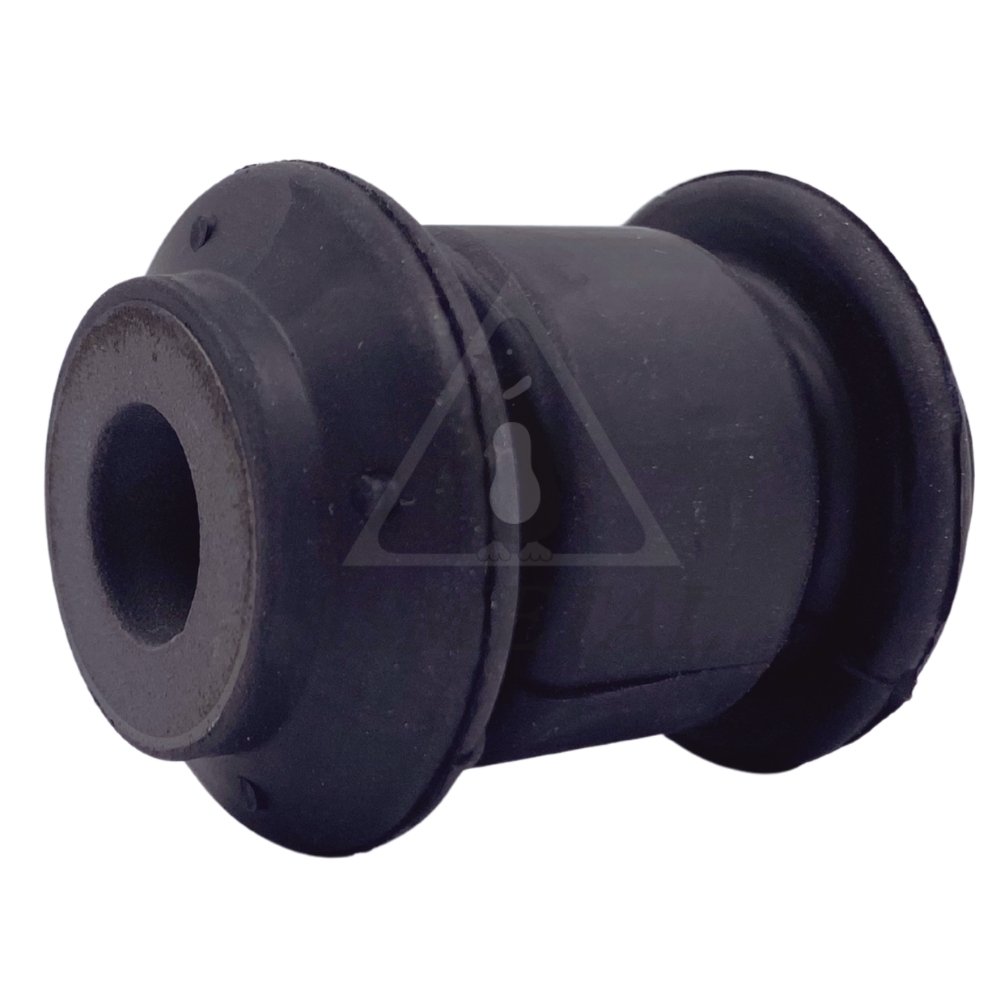

38VW1200
|
Silentblock for TCA |
L:54 di:Ø12.5 do:Ø32.6 / 0,13 kg |
6Q0 407 182 A |
 |
38VW1230
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø47.5 / 0,11 kg |
5Q0 505 311 D*, 5Q0 505 171 |
 |

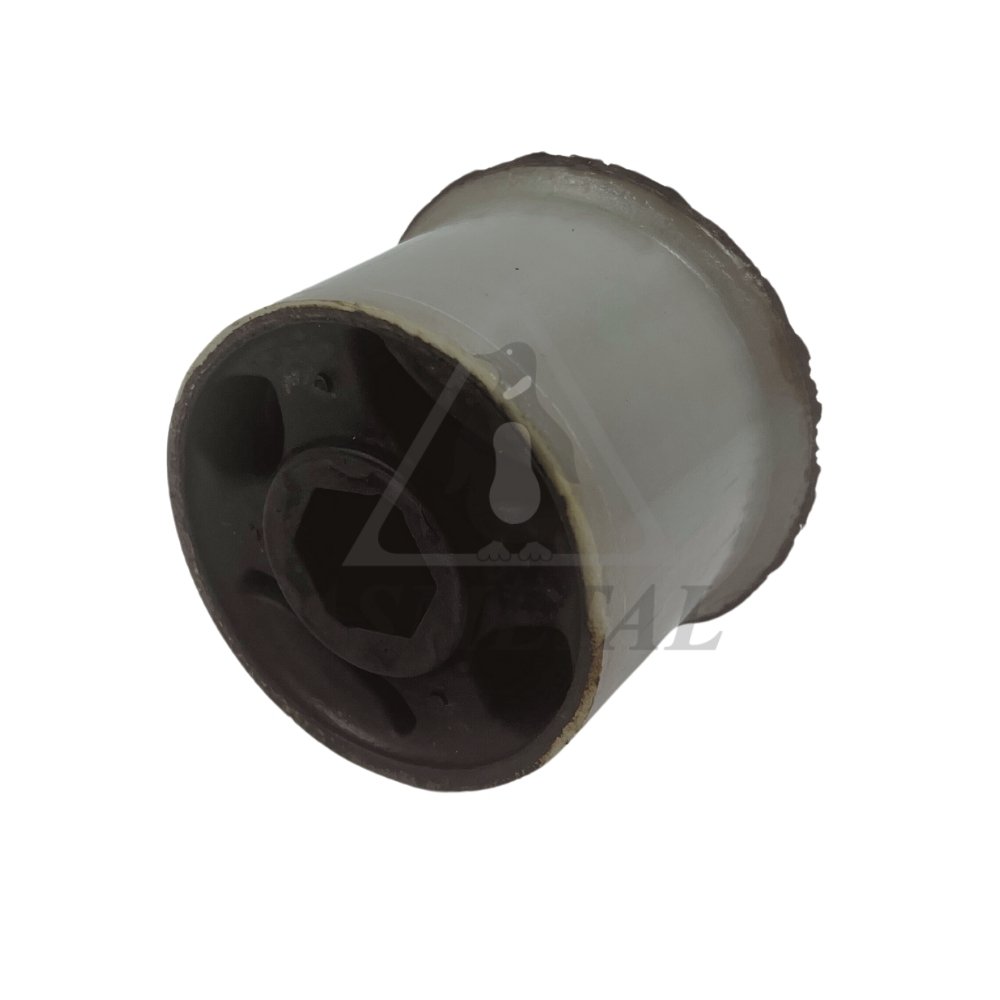

38VW1260
|
Silentblock for TCA |
L:53 di:Ø26 do:Ø63.5 / 0,16 kg |
6Q0 407 183 B, 6Q0 407 183 A (2) OEM |
 |

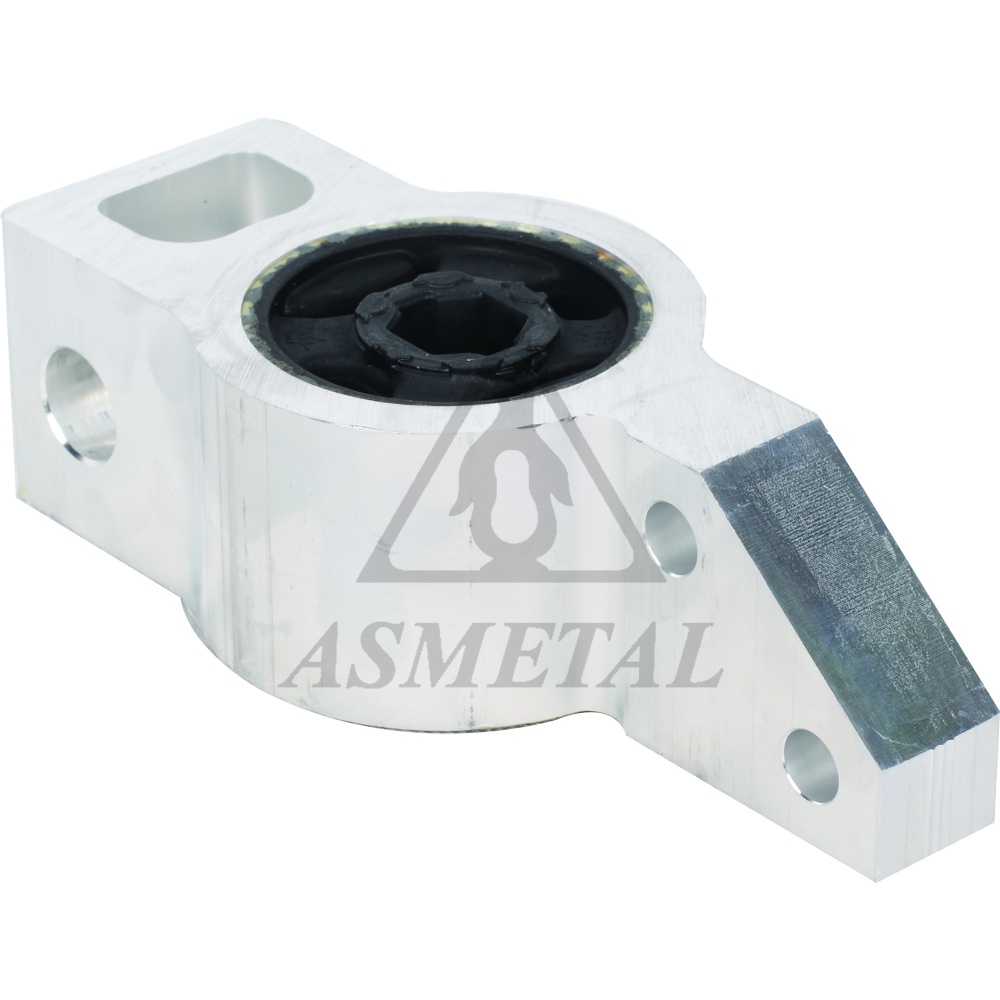

38VW1261
|
Silentblock for TCA Right |
L:171 / 0,7 kg |
1K0 199 232 P, 1K0 199 232 J (2) OEM |
 |

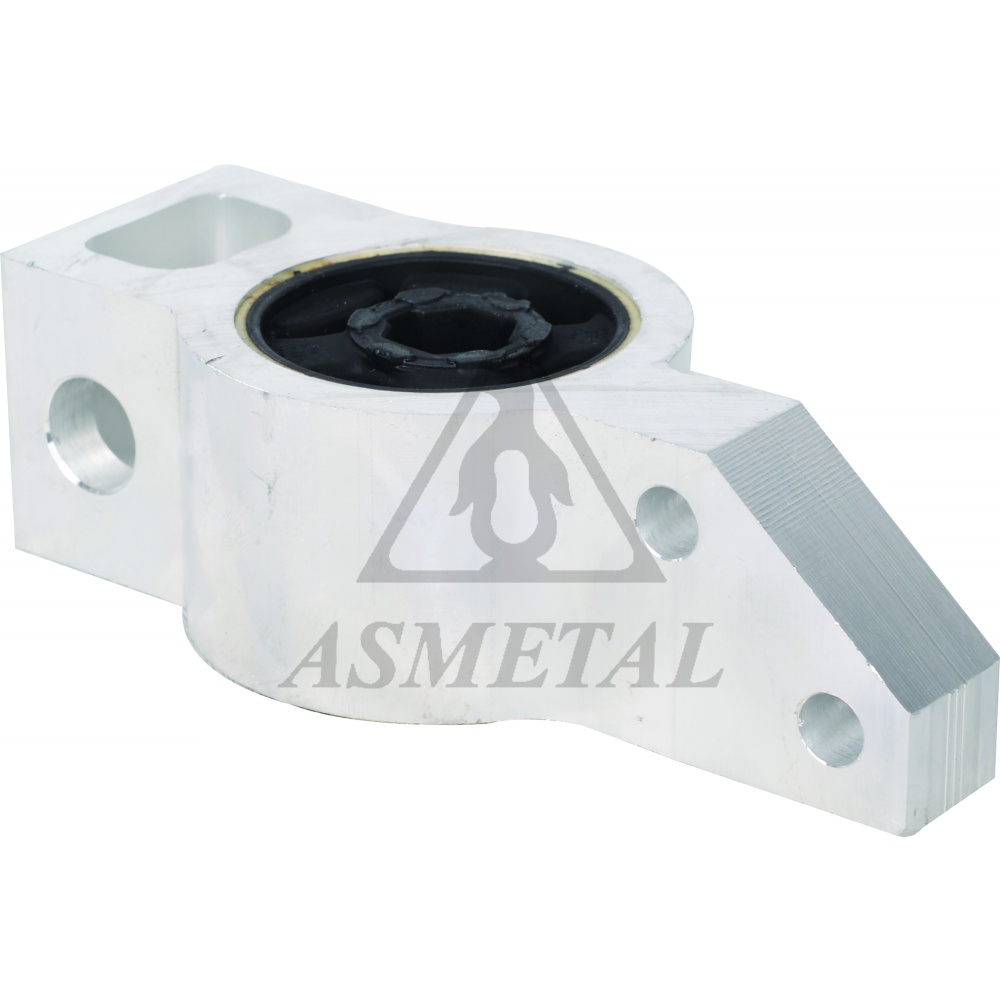

38VW1262
|
Silentblock for TCA Left |
L:171 / 0,7 kg |
1K0 199 231 J, 1K0 199 231 P (3) OEM |
 |
38VW1270
|
Strut Mount |
L:53 di:Ø27.5 do:Ø82 / 0,21 kg |
1J0 412 331, 1J0 412 331 C (1) OEM |
 |
38VW1271
|
Strut Mount With Bearing |
L:53 di:Ø27.5 do:Ø82 / 0,27 kg |
1J0 412 331 BS, 1J0 412 331 CS (4) OEM |
 |
38VW1273
|
Bearing |
L:13.8 di:Ø14 do:Ø45 / 0,07 kg |
357 412 249 A, 1J0 412 249 (10) OEM |
 |

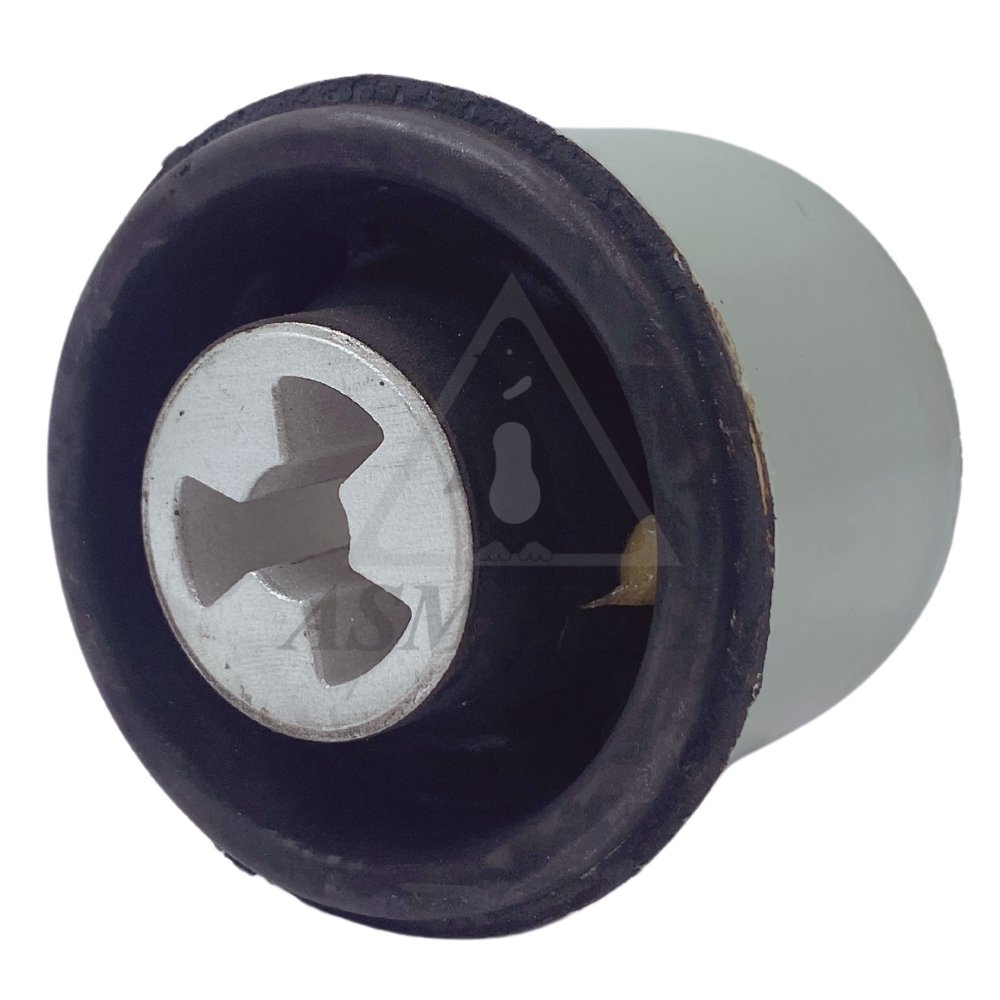

38VW1500
|
Axle Beam Bushing |
L:89.2 di:Ø12.1 do:Ø71.5 / 0,36 kg |
6R0 501 541 A, 6R0 501 541 B |
 |
38VW1502
|
Axle Beam Bushing |
L:64 di:Ø13.2 do:Ø69.2 / 0,64 kg |
1J0 501 541 D |
 |

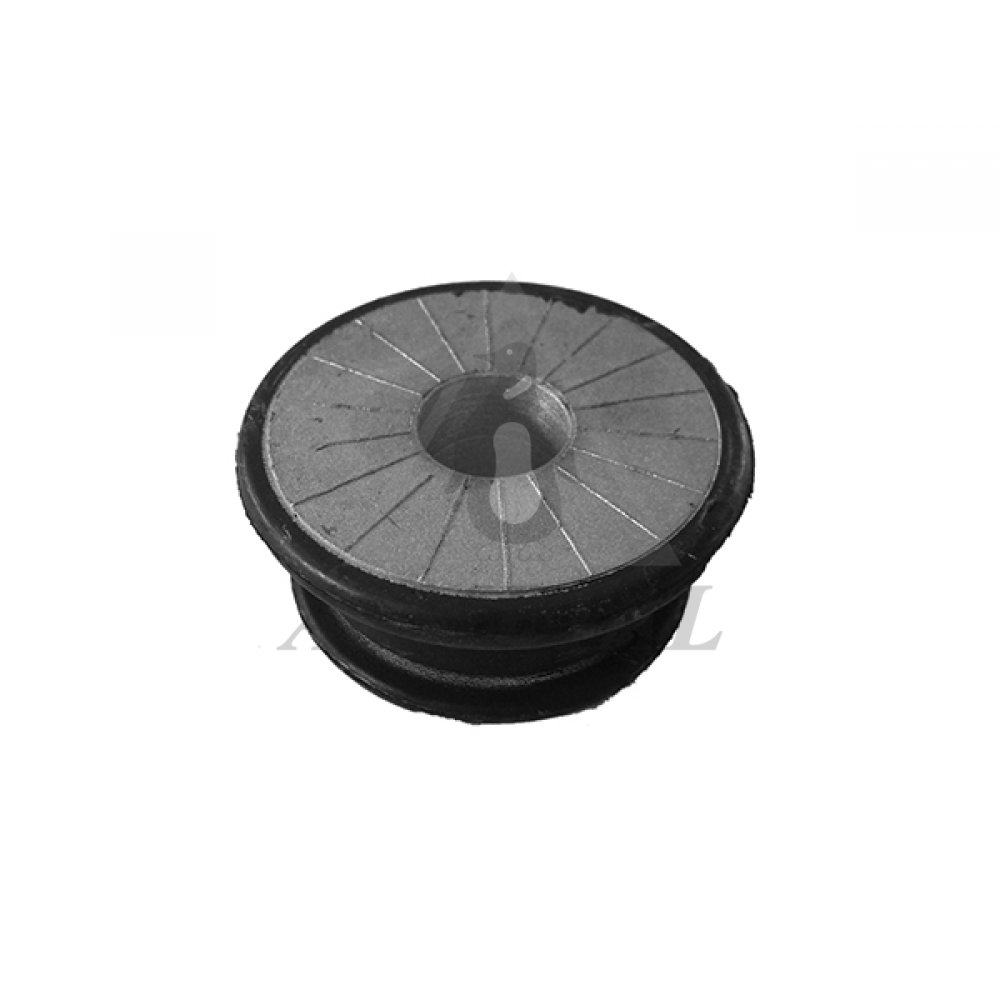

38VW1503
|
Axle Beam Bushing |
L:30.9 di:Ø18 do:Ø51 / 0,13 kg |
1J0 199 429 |
 |
38VW1504
|
Silentblock for TCA |
L:50 di:Ø12.2 do:Ø43.5 / 0,2165 kg |
1J0 505 203, 1J0 505 365 N |
 |
38VW1608
|
Axle Beam Bushing |
L:92 di:Ø18.1 do:Ø70 / 0,52 kg |
1K0 505 145 K, 1K0 505 145 H |
 |
38VW1609
|
Silentblock for TCA |
L:60 di:Ø12.1 do:Ø42.4 / 0,1 kg |
1K0 505 311 S, 1K0 505 311 AH (8) OEM |
 |
38VW1615
|
Stabiliser Mounting |
L:40 di:Ø15.5 / 0,07 kg |
1K0 511 327 AE, 1K0 511 327 AP |
 |
38VW1616
NEW
|
Stabiliser Mounting |
di:Ø17 / 0,08 kg |
1K0 511 327 AQ |
 |
38VW1617
NEW
|
Stabiliser Mounting |
di:Ø18,5 / 0,08 kg |
1K0 511 327 AR |
 |
38VW1618
NEW
|
Stabiliser Mounting |
di:Ø19 / 0,08 kg |
1K0 511 327 AS |
 |
38VW1623
NEW
|
Stabiliser Mounting |
di:Ø21-23 / 0,09 kg |
1K0 411 303 AL*, 1K0 411 303 BK* (8) OEM |
 |
38VW1700
|
Silentblock for TCA |
L:49.8 di:Ø12.1 do:Ø37.8 / 0,13 kg |
1K0 505 553, 1K0 505 553 A |
 |

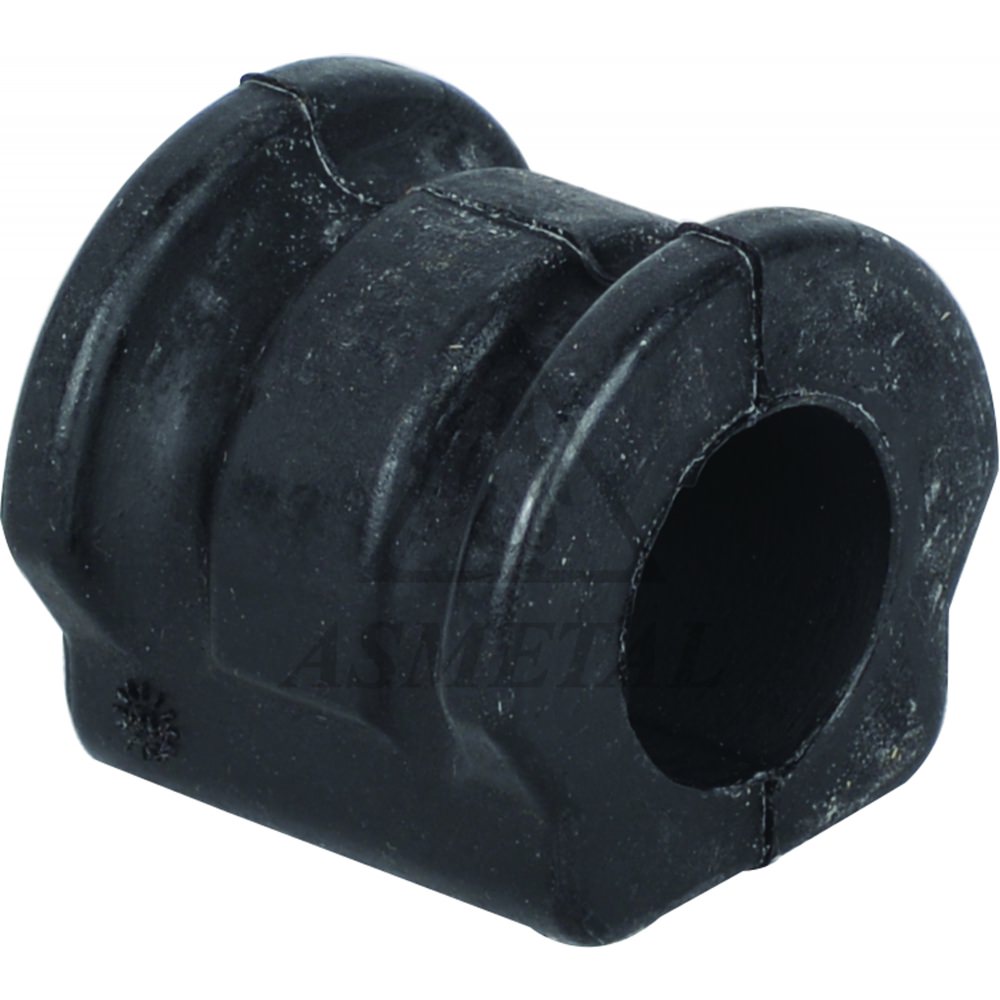

38VW2000
|
Stabiliser Mounting |
L:34.7 di:Ø20.8 / 0,03 kg |
8Z0 411 314 B |
 |
38VW2090
|
Bellow Driveshaft (KIT) |
L:122 di:Ø26 / 0,3 kg |
6C0 498 203, 1K0 498 203 (1) OEM |
 |

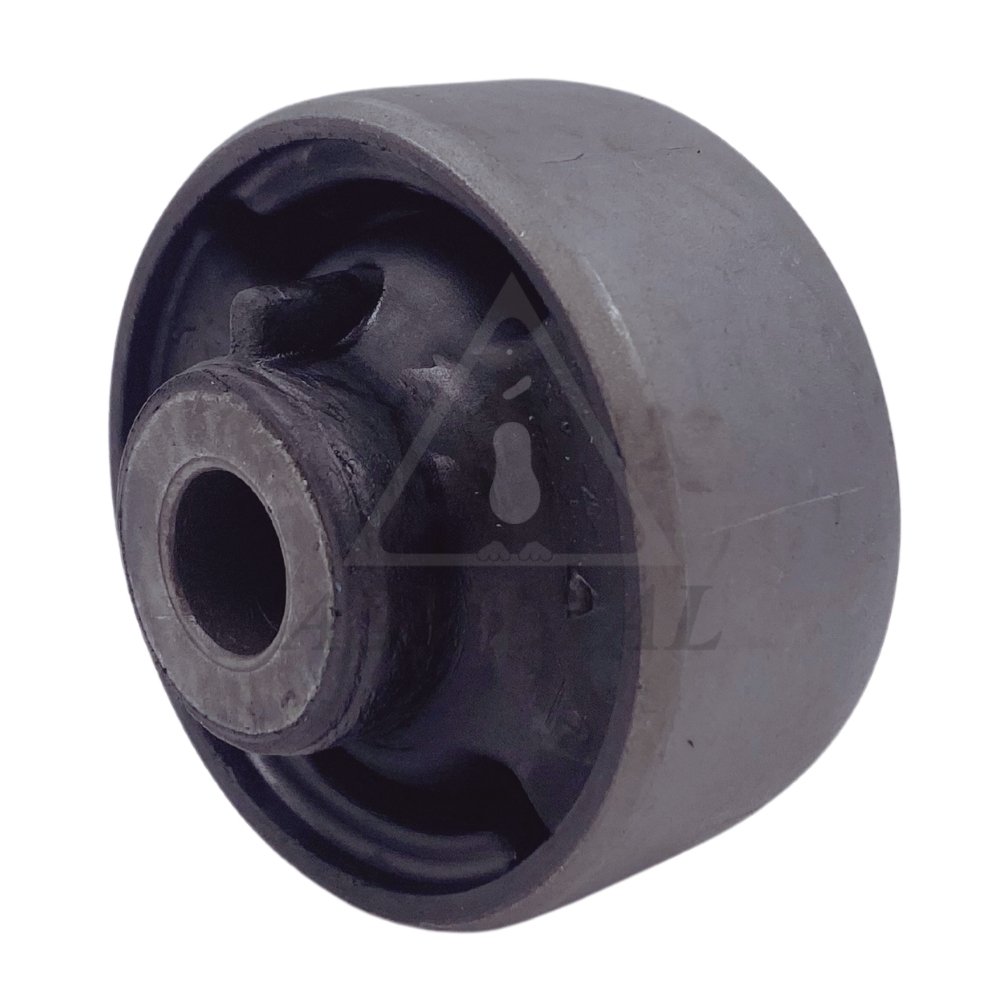

38VW7000
|
Silentblock for TCA |
L:50 di:Ø13.5 do:Ø64.8 / 0,23 kg |
1K0 407 183 M, 5C0 407 183 A (1) OEM |
 |

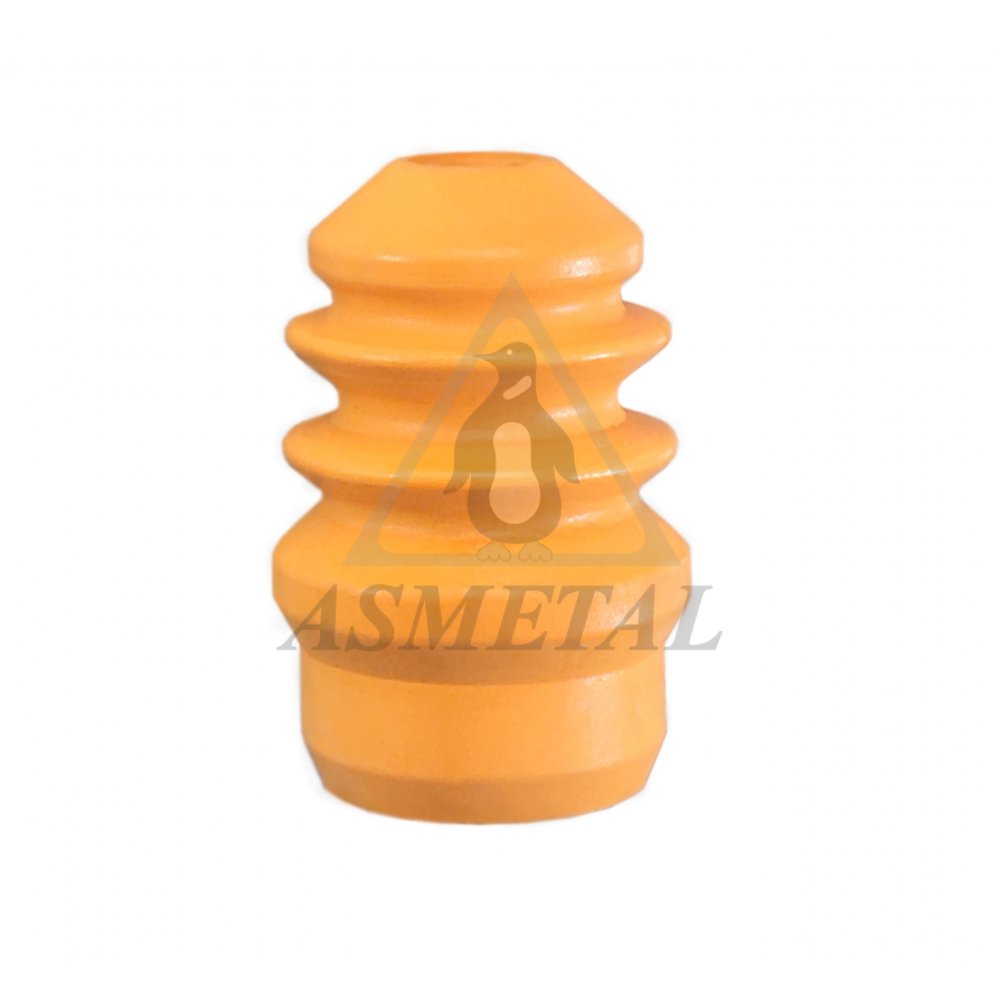

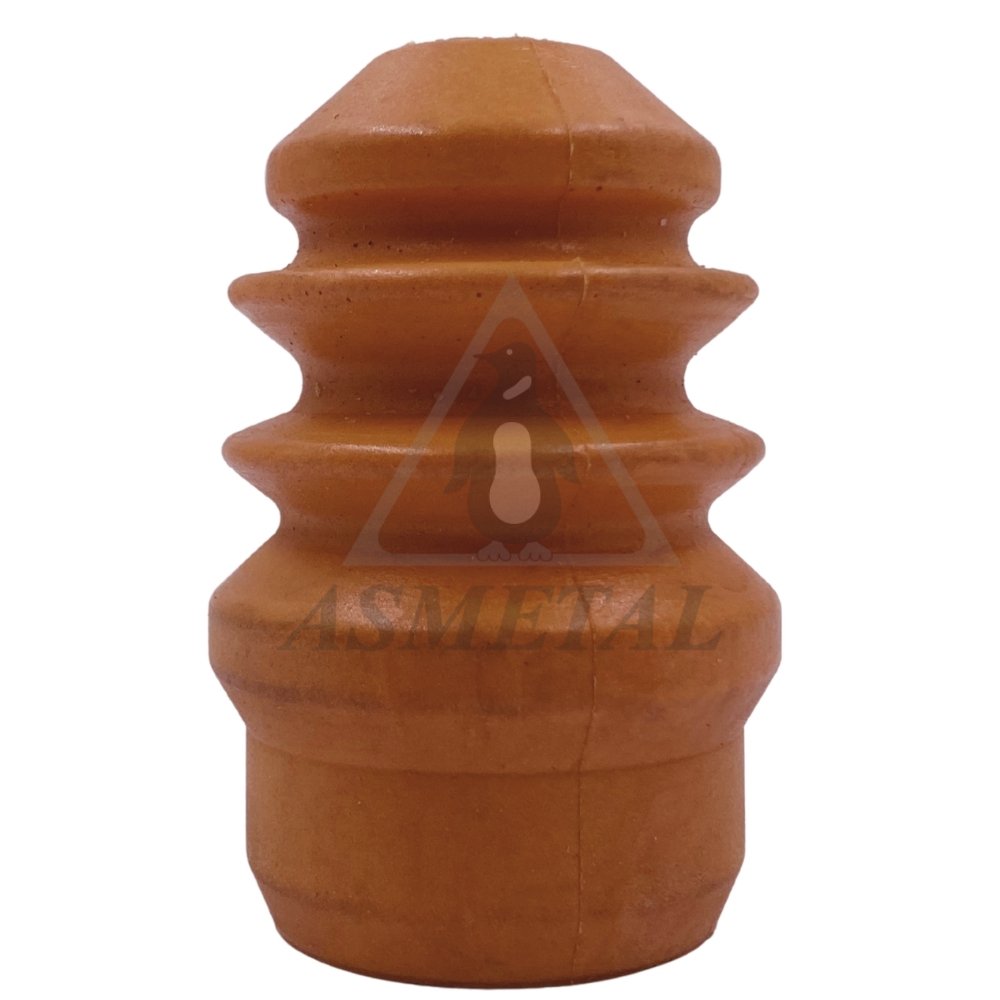

45AU0220
|
Suspension Support Buffer Front |
L:88 di:Ø19 do:Ø59 / 0,07 kg |
4D0 412 137 C, 8D0 412 131 F (2) OEM |
 |
45AU0230
|

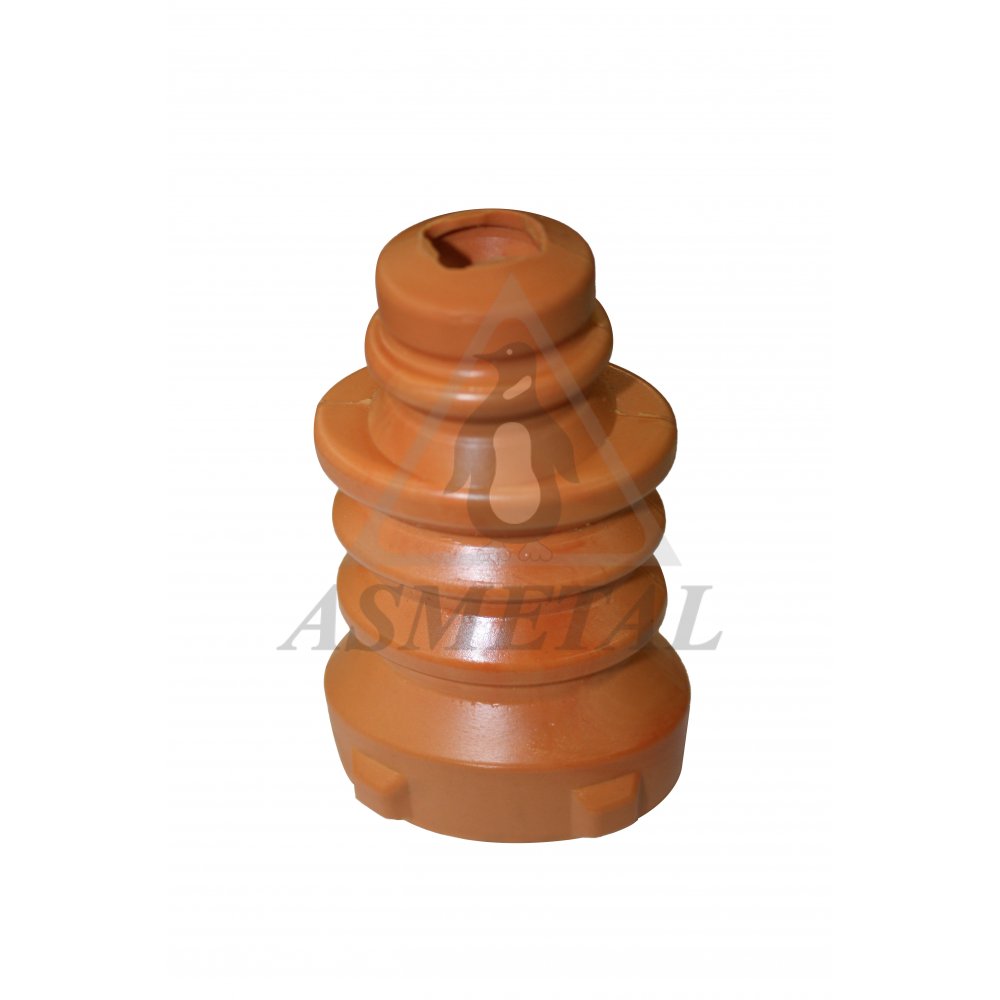

Suspension Support Buffer Rear |
L:130 di:Ø19 do:Ø61.5 / 0,11 kg |
4B9 512 131, 3B0 512 131 H (2) OEM |
 |
45AU0231
IN PREPARATION
|
Suspension Support Buffer Rear |
0 kg |
4B0 512 131 B |
 |

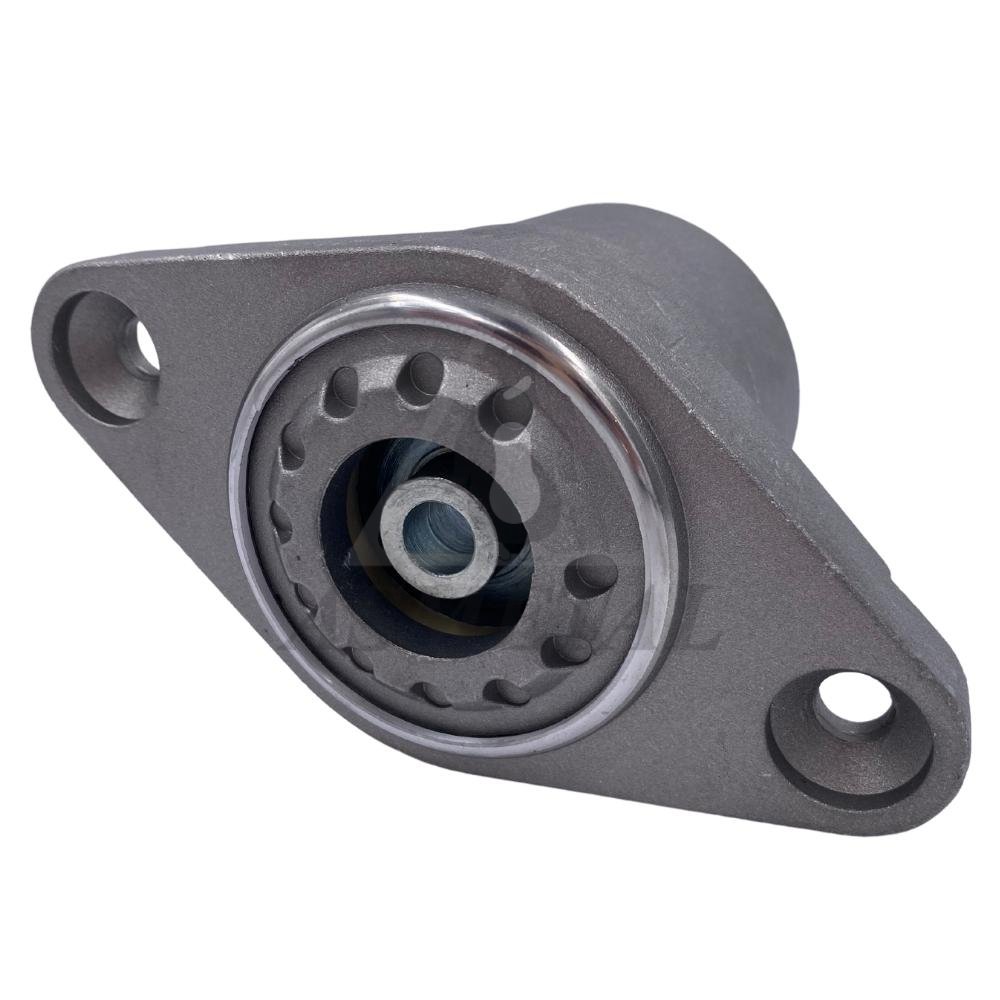

45SK0230
|
Strut Mount |
L:71 di:Ø10 do:Ø72.2 / 0,55 kg |
3B0 513 353 |
 |

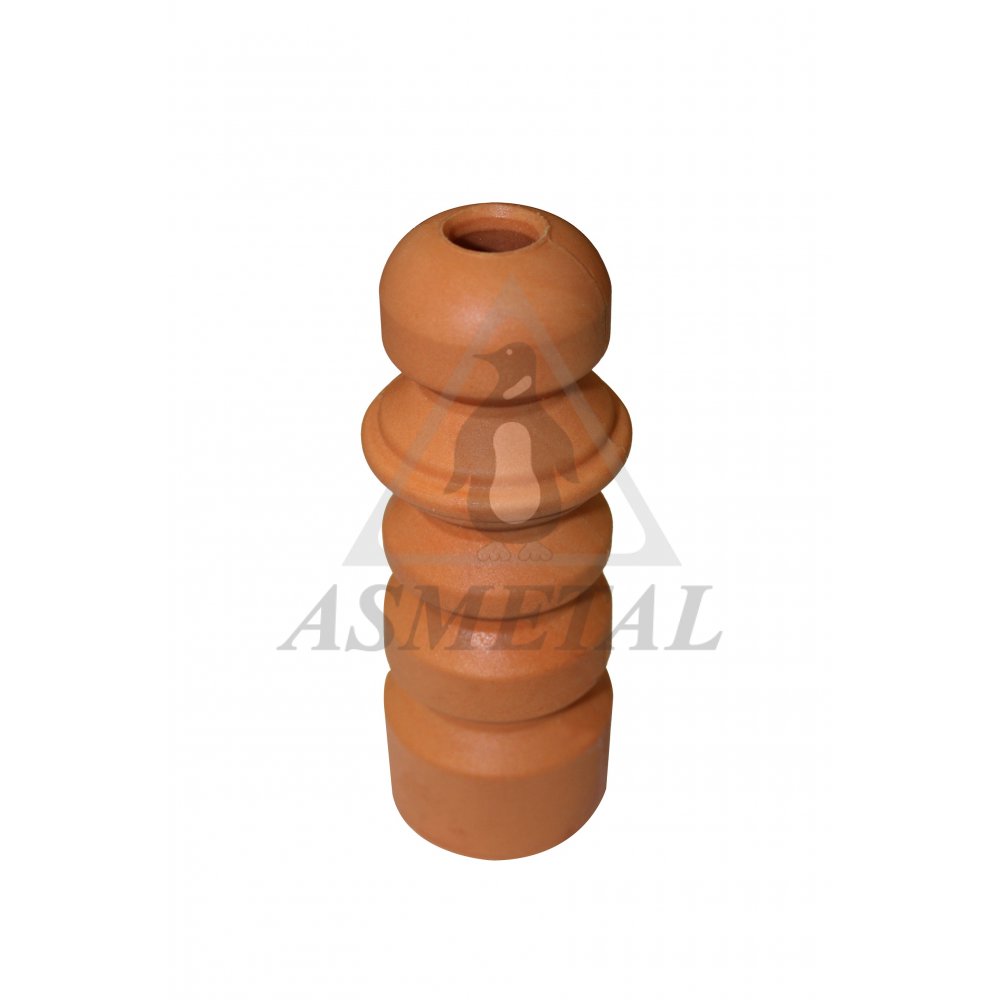

45VW1130
|
Suspension Support Buffer Rear |
L:155 di:Ø9 do:Ø56 / 0,12 kg |
005 443 148, 05 443 148 (3) OEM |
 |
45VW1505
|
Strut Mount |
L:58 di:Ø11.1 / 0,35 kg |
1J0 513 353 D, 1J0 513 353 C (6) OEM |
 |

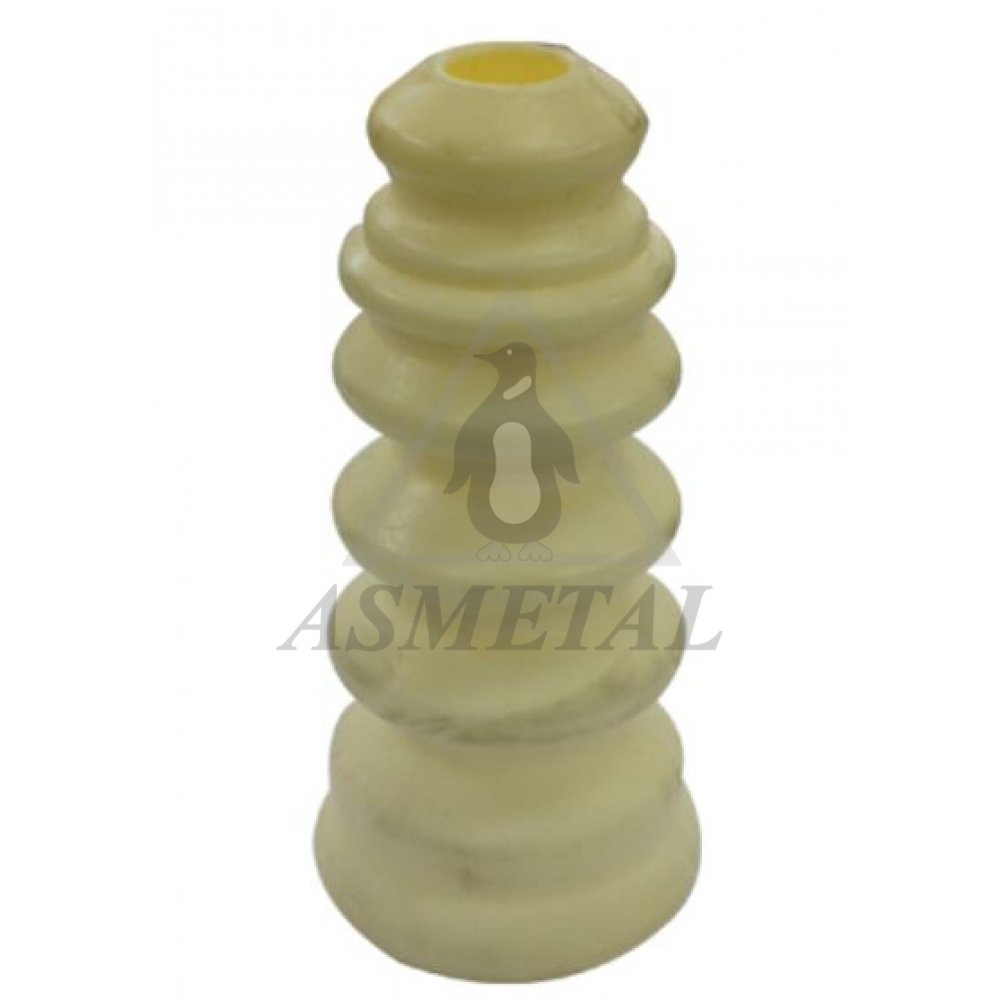

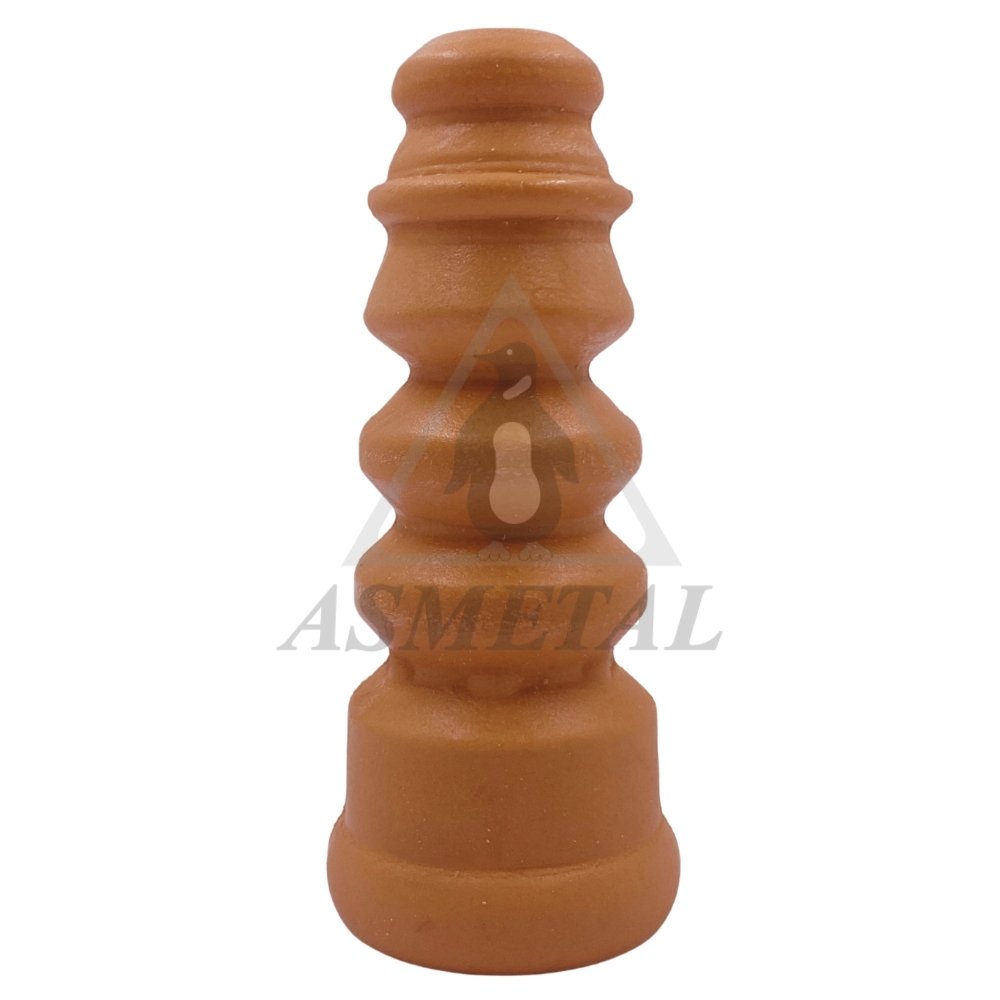

45VW1520
|
Suspension Support Buffer Rear |
L:145.5 di:Ø13 do:Ø59 / 0,1 kg |
1J0 512 131 |
 |

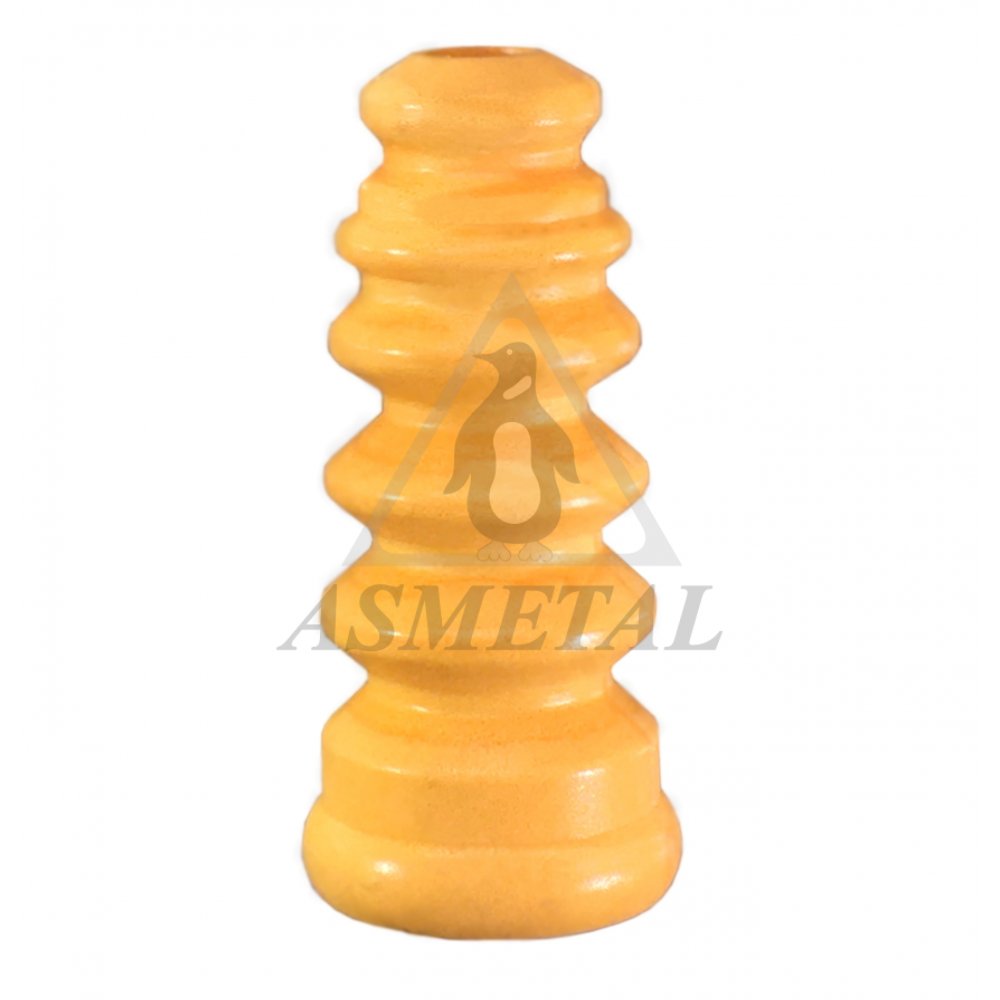

45VW1530
|
Suspension Support Buffer Rear |
L:128 di:Ø15.5 do:Ø52.5 / 0,1 kg |
1J0 512 131 B, 1J0 513 025 Q |
 |
45VW1600
|
Engine Mounting |
L:35.5 di:Ø15.2 do:Ø91.5 / 0,24 kg |
1K0 199 867 P, 1K0 199 867 Q (4) OEM |
 |

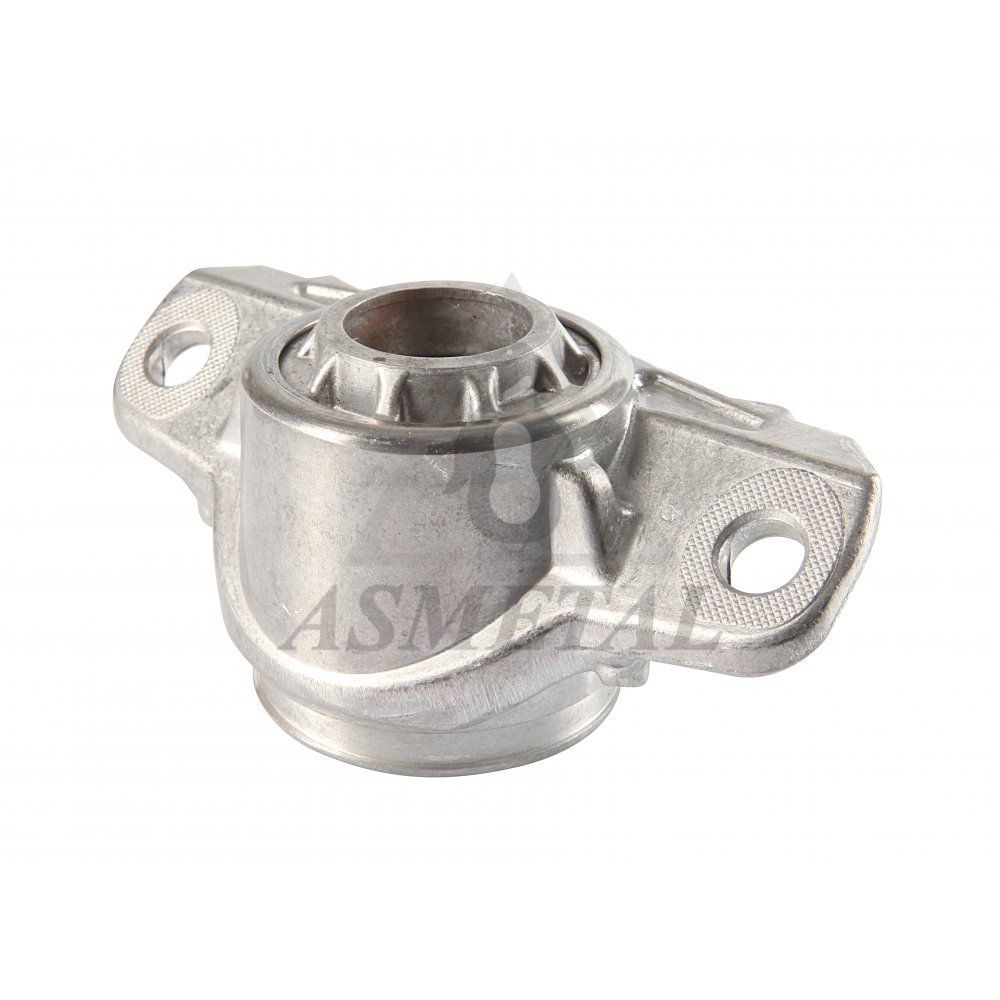

45VW1601
|
Strut Mount |
L:62 di:Ø11 do:Ø61.5 / 0,34 kg |
5Q0 513 353 H |
 |
45VW1602
NEW
|
Strut Mount Right |
0,35 kg |
5Q0 513 353 G, 5Q0 513 353 K (2) OEM |
 |
45VW1603
|
Strut Mount |
L:62.5 di:Ø10 do:Ø68 / 0,31 kg |
3C0 513 353, 3C0 513 353 C (1) OEM |
 |
45VW1605
|
Strut Mount |
L:48.2 di:Ø14.2 do:Ø65.5 / 0,77 kg |
1K0 412 331 B, 1K0 412 331 C |
 |

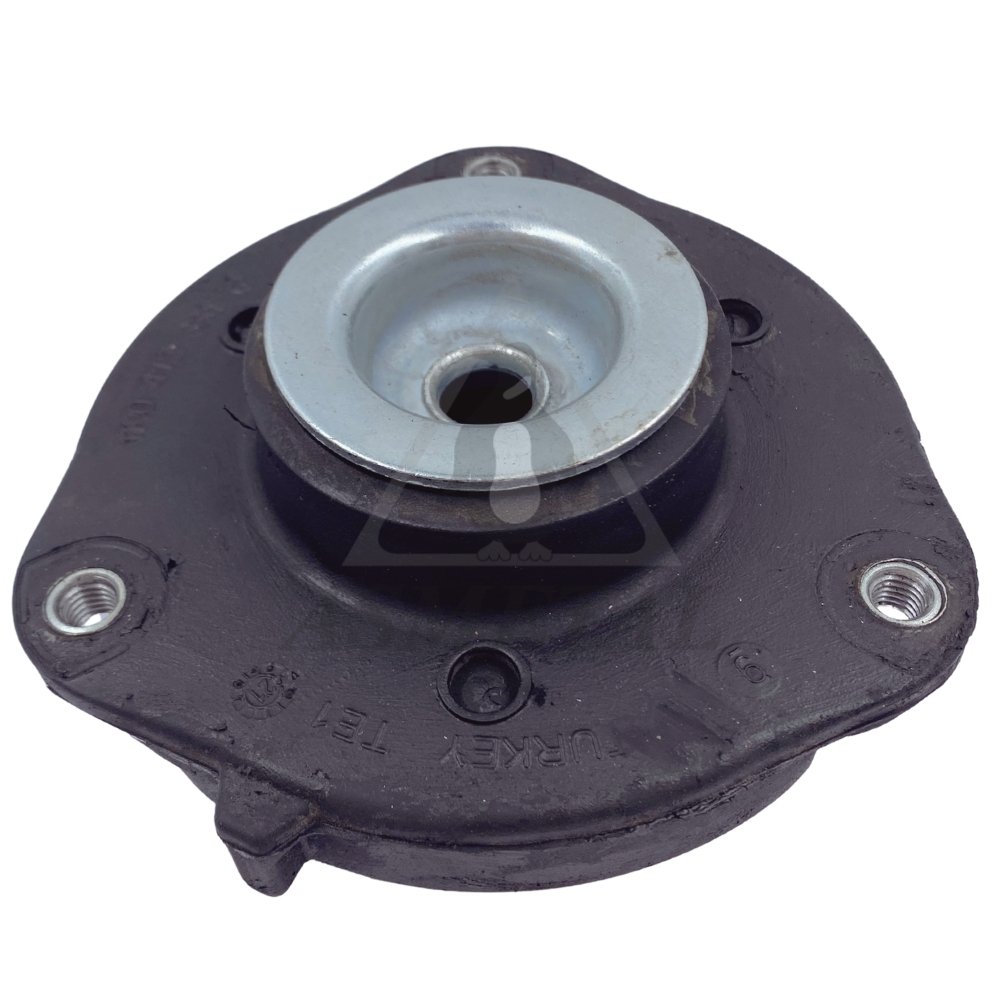

45VW1606
|
Strut Mount With Bearing |
L:52 di:Ø14.2 do:Ø68.5 / 1 kg |
1K0 412 331 B, 6N0 412 249 C (4) OEM |
 |
45VW1607
NEW
|
Bearing |
0,25 kg |
1K0 412 249 B, 6N0 412 249 C (3) OEM |
 |
45VW1608
NEW
|
Strut Mount |
0,69 kg |
5Q0 412 331 E, 5Q0 412 331 F (7) OEM |
 |
45VW1609
NEW
|
Engine Mounting |
0,60 kg |
5Q0 199 855 AB, 5Q0 199 855 AF (1) OEM |
 |
45VW1612
IN PREPARATION
|
Transmission Mount |
|
1K0 199 855 AG, 1K0 199 855 BD (1) OEM |
 |
45VW1613
IN PREPARATION
|
Transmission Mount |
|
1K0 199 855 AD, 1K0 199 855 BA (1) OEM |
 |
45VW1620
|
Suspension Support Buffer Front |
L:48.2 di:Ø14.2 do:Ø65.5 / 0,05 kg |
6Q0 412 301 A, 6N0 413 175 A |
 |
45VW1621
|
Suspension Support Buffer Front |
L:70 di:Ø19.5 do:Ø61 / 0,05 kg |
6K0 413 031 B, 357 412 303 F (4) OEM |
 |

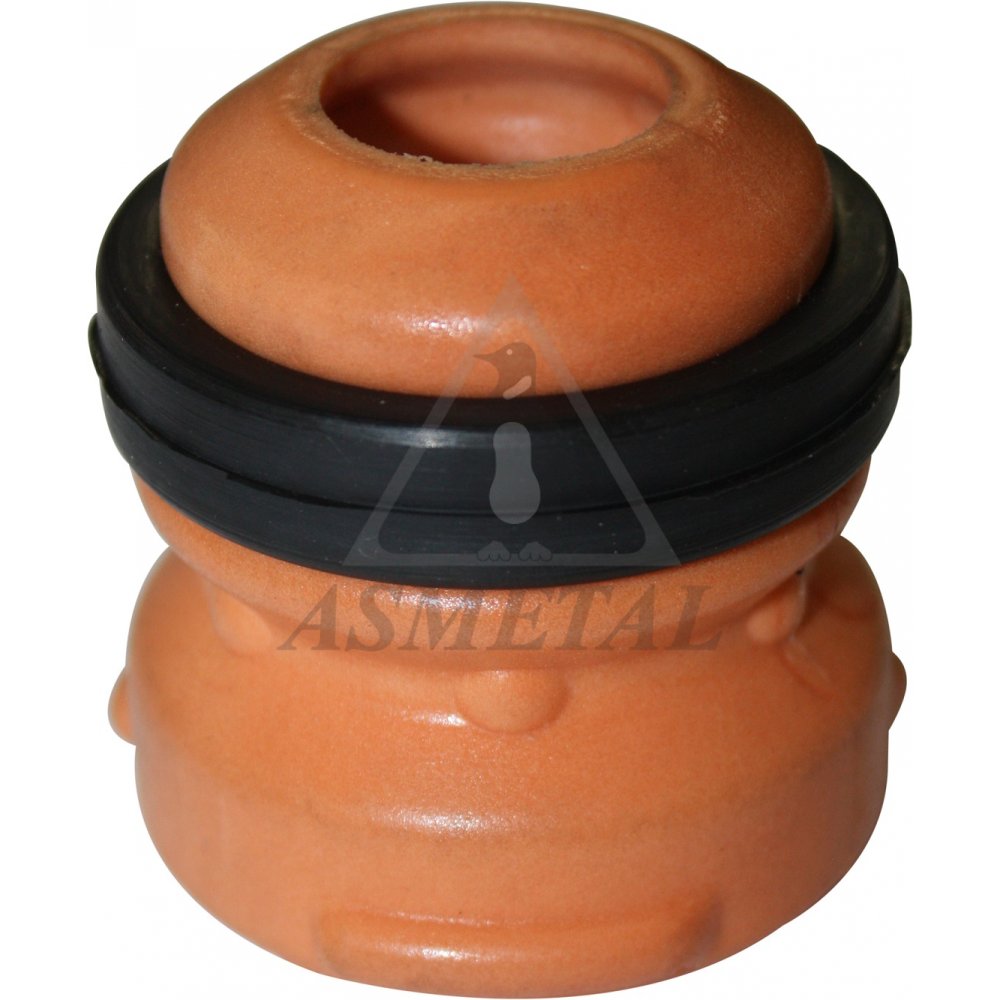

45VW1622
|
Suspension Support Buffer Front |
L:56.5 di:Ø20 do:Ø56.5 / 0,08 kg |
5Q0 412 303 B, 1K0 412 303 AE |
 |
45VW1624
|
Suspension Support Buffer Front |
L:53.5 di:Ø18.2 do:Ø58 / 0,04 kg |
1J0 412 303 |
 |

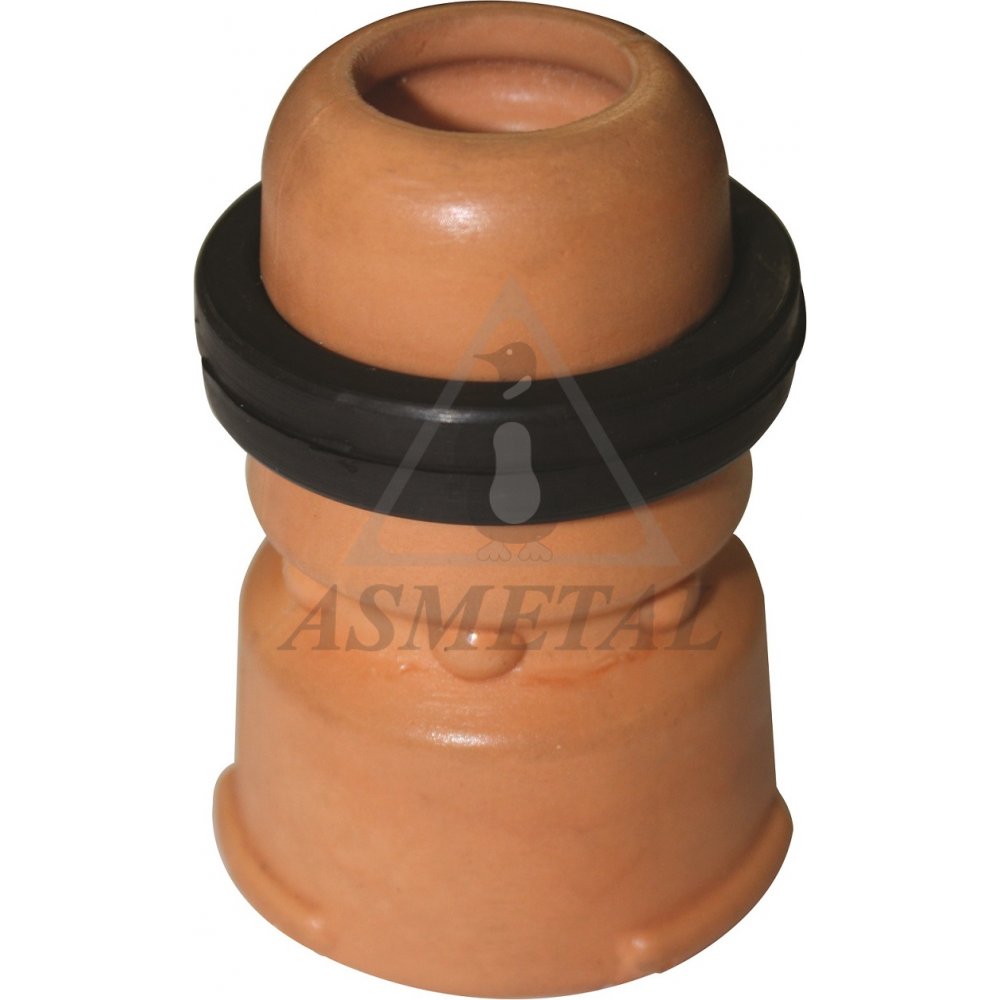

45VW1625
|
Suspension Support Buffer Front |
L:86 di:Ø24 do:Ø56.5 / 0,1 kg |
5Q0 412 303 |
 |

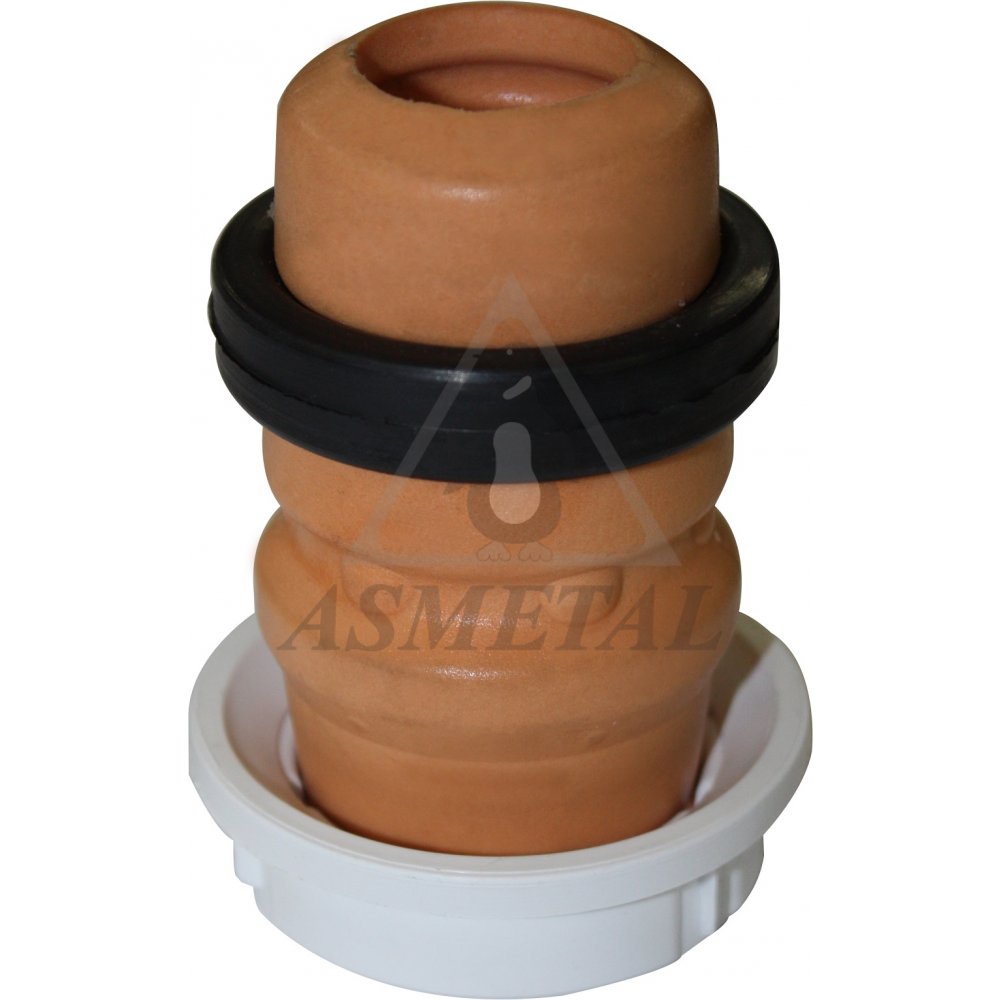

45VW1626
|
Suspension Support Buffer Front |
L:90.4 di:Ø27 do:Ø64.1 / 0,1 kg |
1K0 412 303 H |
 |

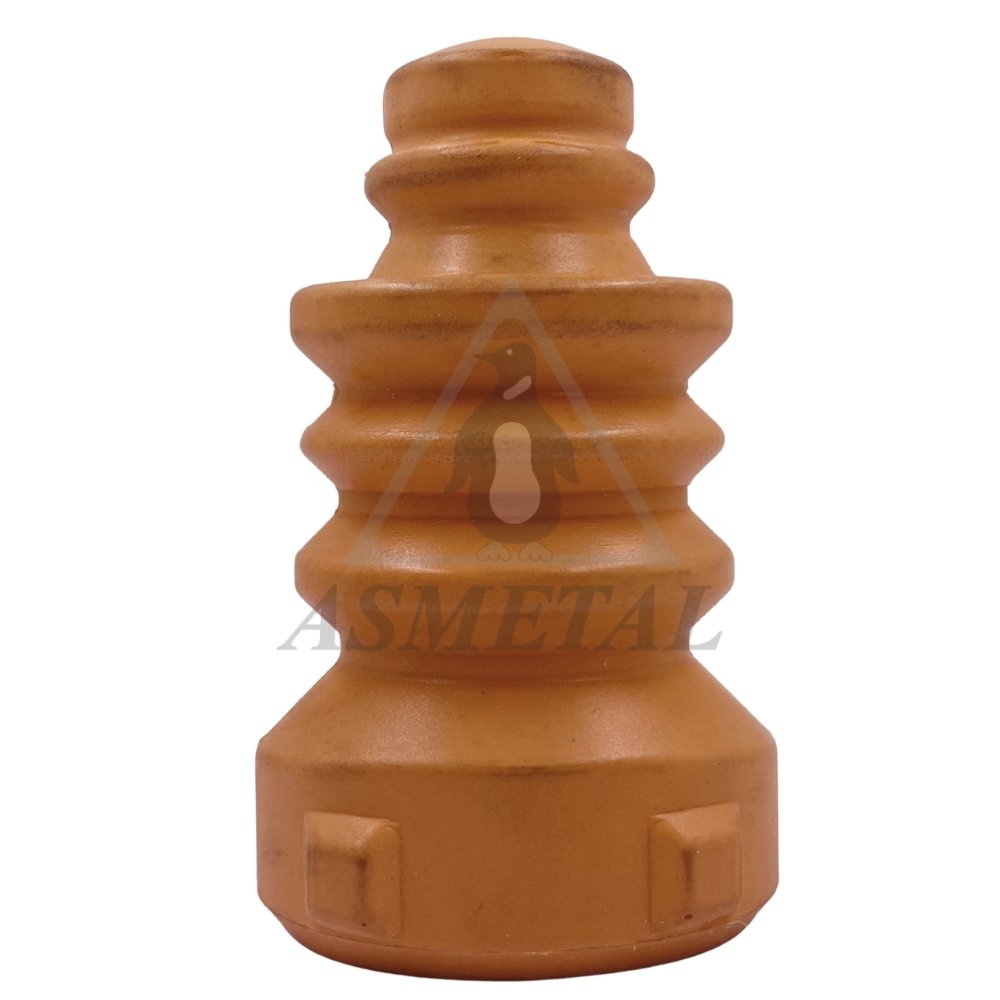

45VW1635
|
Suspension Support Buffer Rear |
L:134 di:Ø15 / 0,13 kg |
1K0 511 353 F |
 |

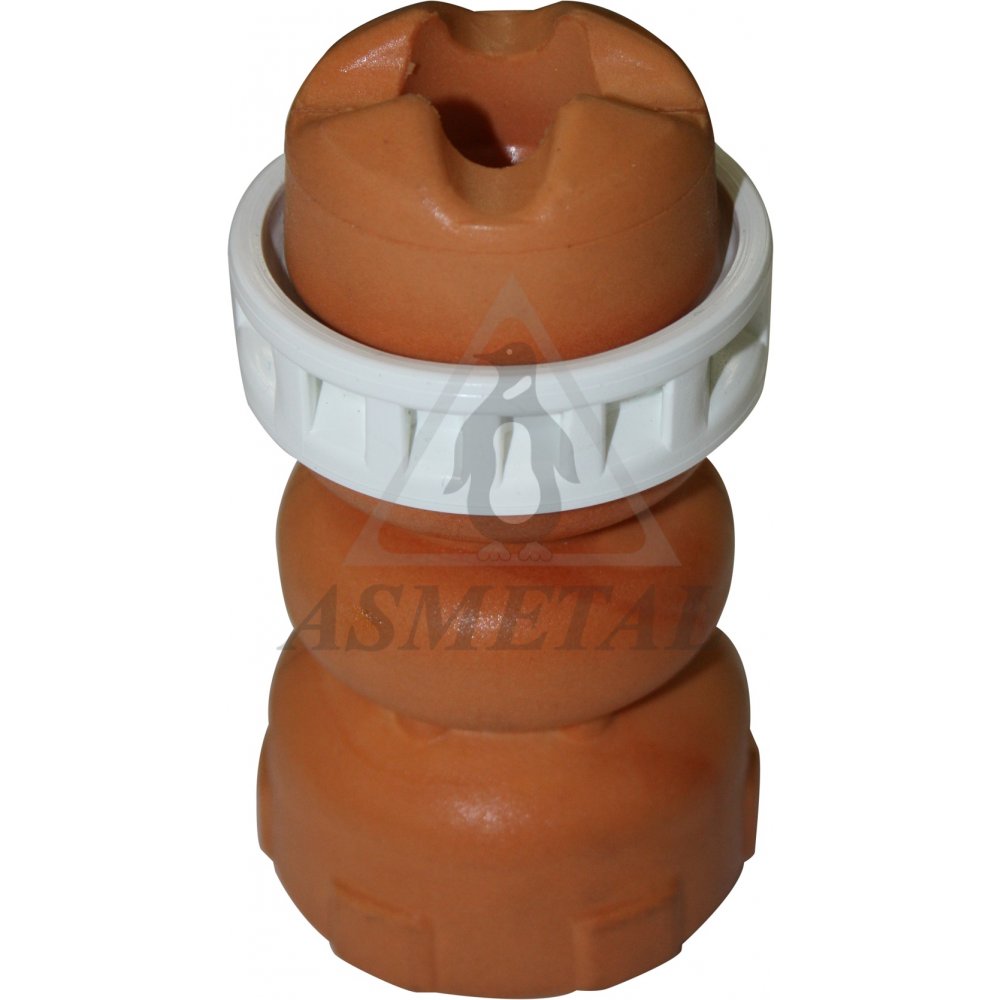

45VW1636
|
Suspension Support Buffer Rear |
L:113 di:Ø20.5 do:Ø60 / 0,11 kg |
5Q0 511 357 J, 5Q0 511 357 N |
 |

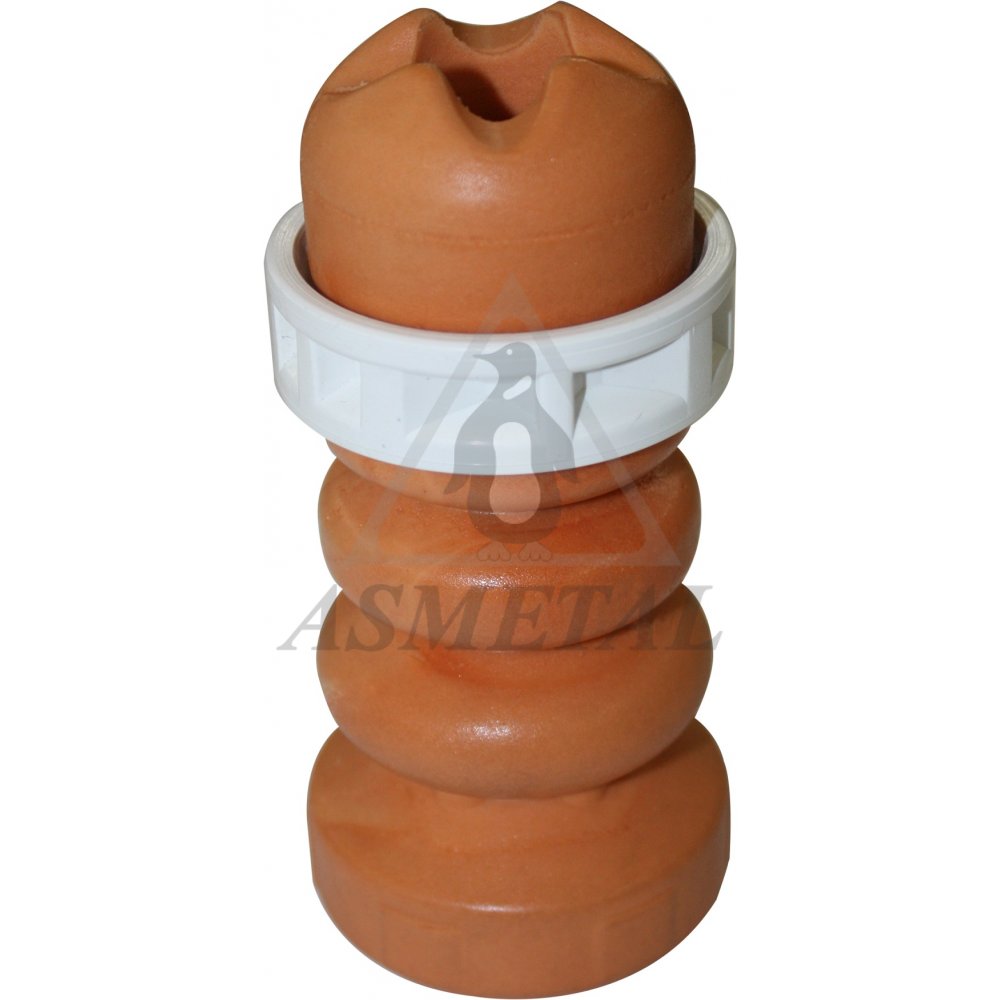

45VW1637
|
Suspension Support Buffer Rear |
L:134 di:Ø22 do:Ø61.5 / 0,13 kg |
5Q0 511 357 F |
 |

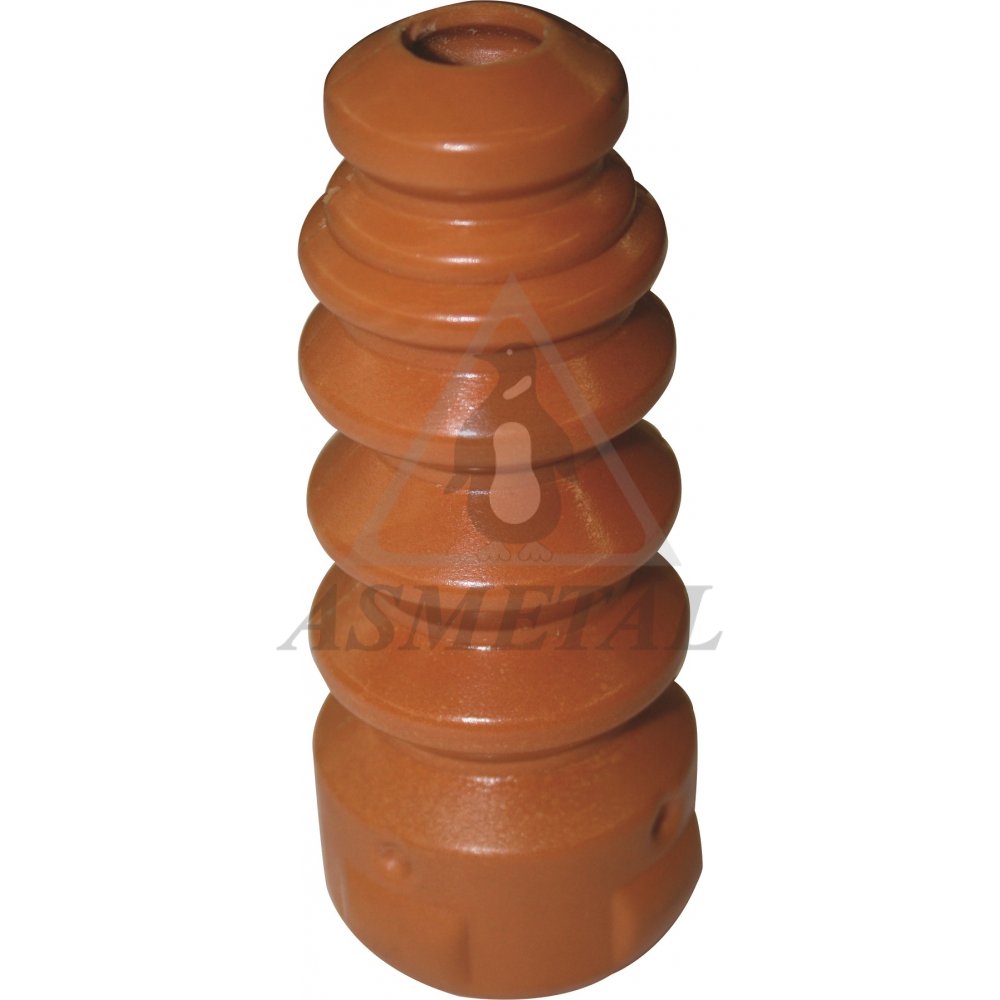

45VW1639
|
Suspension Support Buffer Rear |
L:134 di:Ø16 do:Ø55.5 / 0,09 kg |
3C0 511 359 |
 |

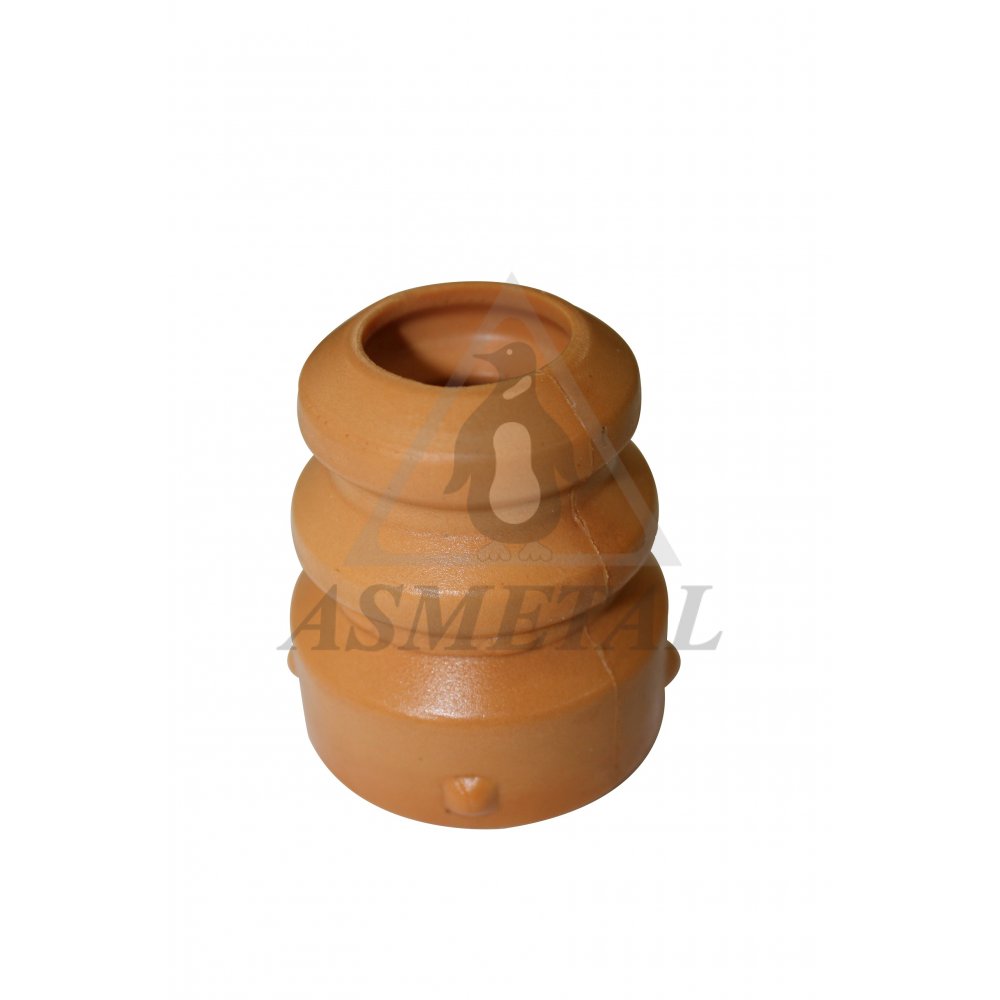

45VW2021
|
Suspension Support Buffer Front |
L:66.5 di:Ø24 do:Ø57.56 / 0,05 kg |
6N0 412 303 A |
 |

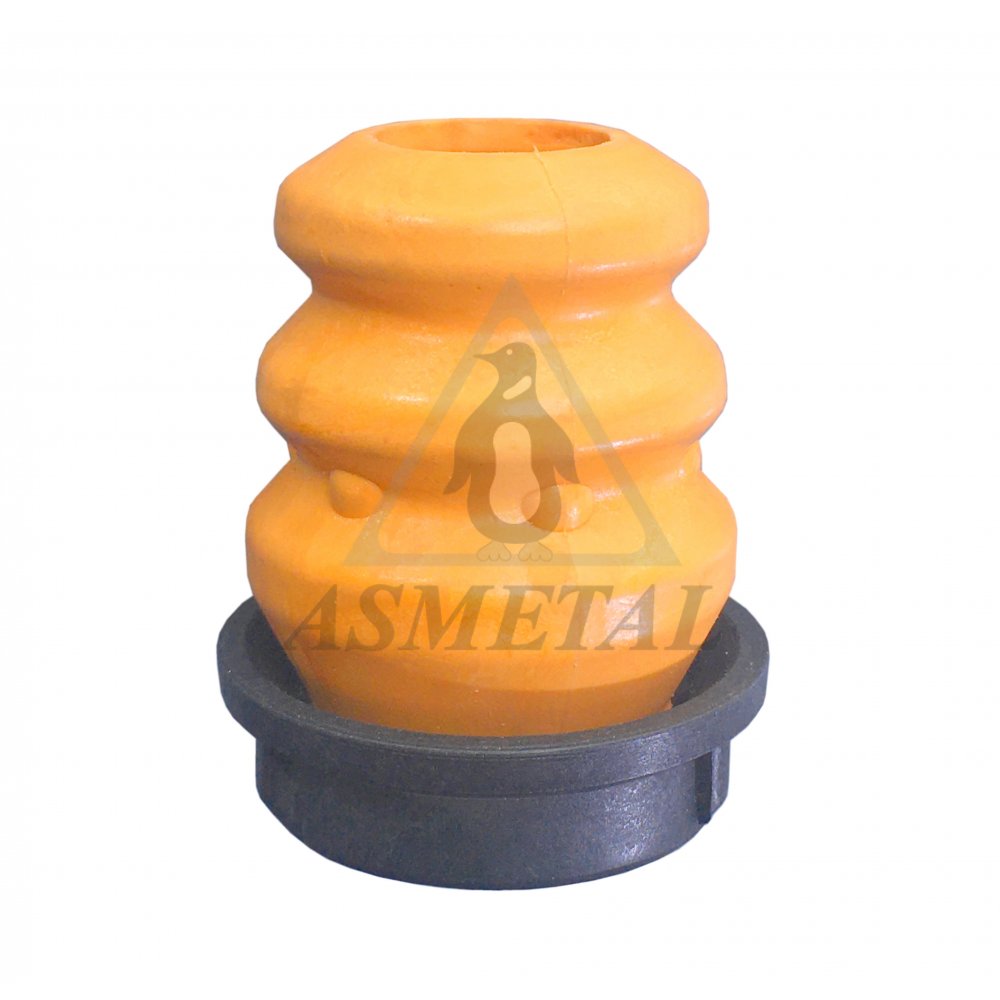

45VW2022
|
Suspension Support Buffer Front |
L:76.5 di:Ø24 do:Ø64 / 0,07 kg |
6Q0 412 301 |
 |

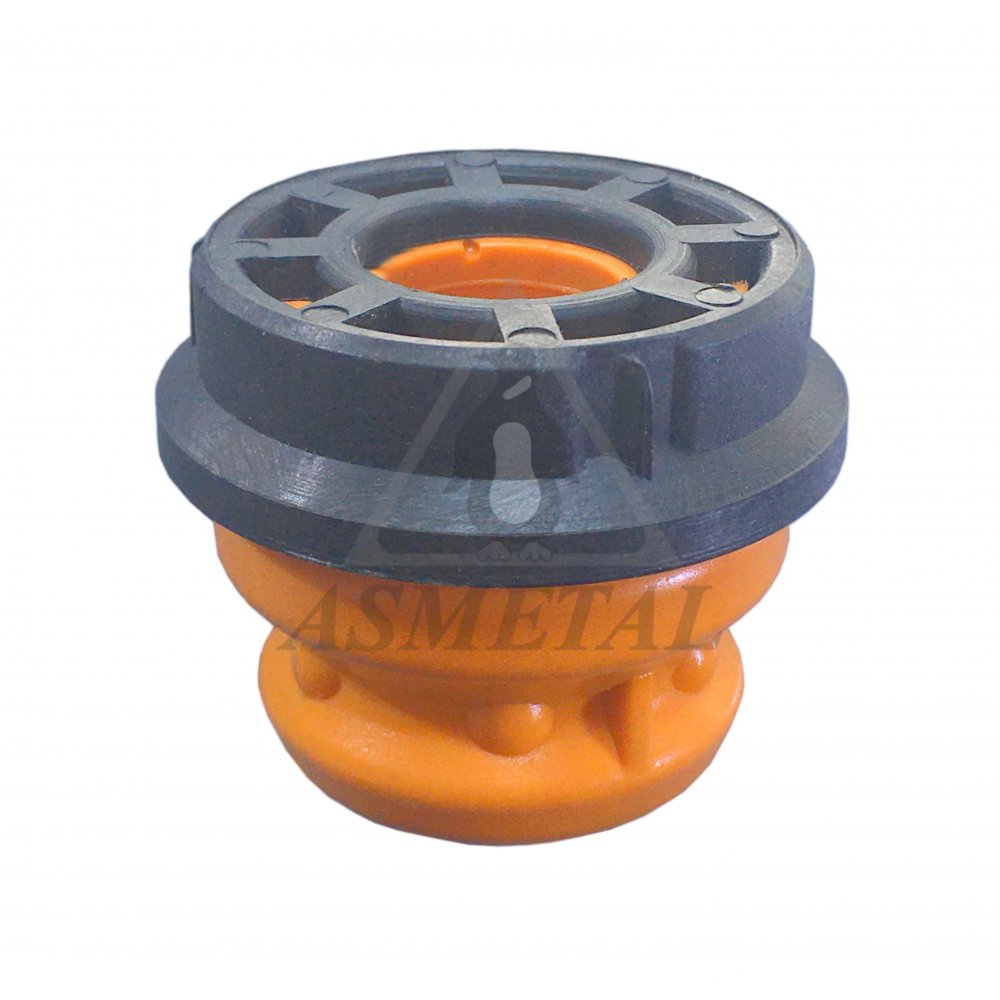

45VW2023
|
Suspension Support Buffer Front |
L:56 di:Ø22 do:Ø64 / 0,06 kg |
6Q0 412 301 A |
 |

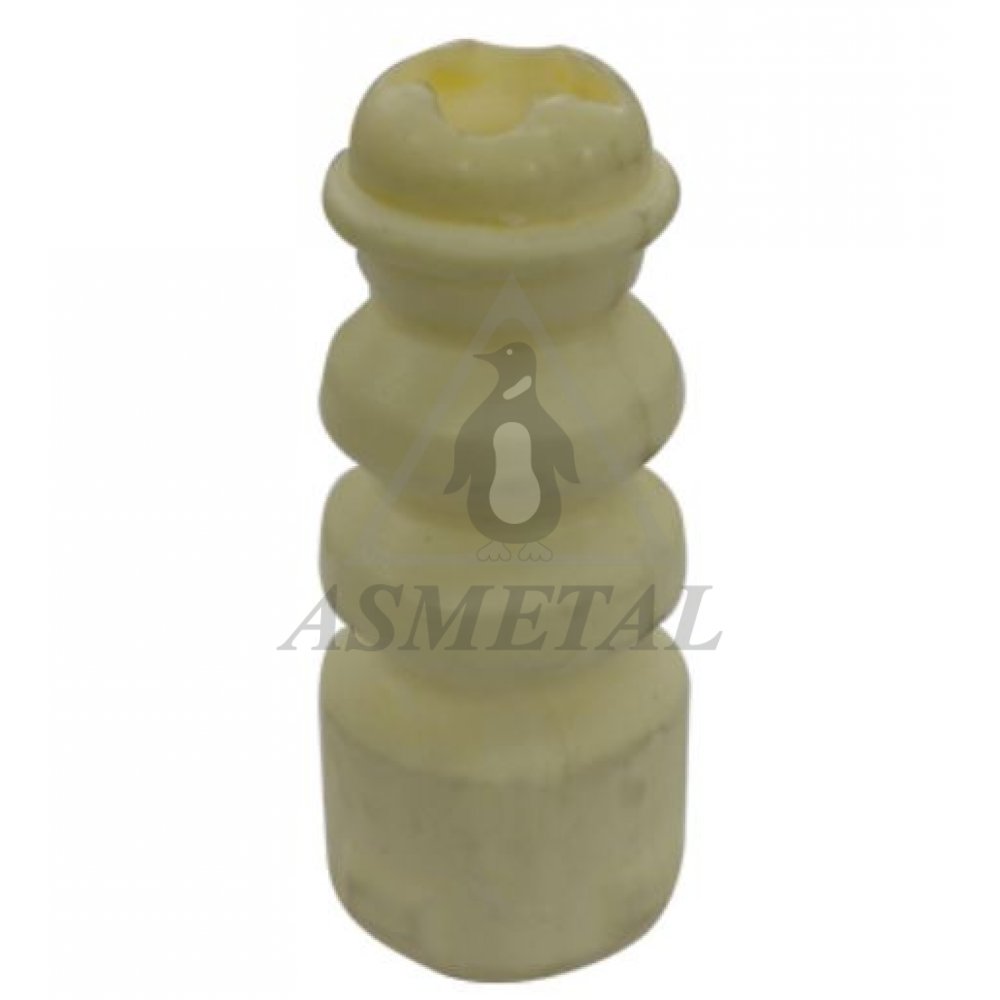

45VW2030
|
Suspension Support Buffer Rear |
L:124 di:Ø15.5 do:Ø52 / 0,07 kg |
6Q0 512 131 B |
 |
526VW1500
|
Stabiliser Link |
L:105.4 tp:M10x1.5 RHT / 0,18 kg |
1J0 411 315, 1J0 411 315 B (5) OEM |
