10VW1600
|
Ball Joint Lower Left |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1K0 407 365 C, 5Q0 407 365 A (6) OEM |
 |
10VW1601
|
Ball Joint Lower Right |
tp:M12x1.5 RHT cr:1/5 c:Ø15.4 / 0,62 kg |
1KD 407 366, 1K0 407 366 E (6) OEM |
 |
10VW1605
|
Ball Joint Lower Right |
th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg |
35D 407 366, 5QD 407 366 (3) OEM |
 |
10VW1606
|
Ball Joint Lower Left |
th:M12x1.5 RHT cr:1/5 c:Ø15.2 / 0,64 kg |
5QD 407 365, 3C0 407 365 A (3) OEM |
 |
13AU0200
|
Suspension KIT (TCA KIT) |
12,55 kg |
8D0 498 998, 8D0 498 998 B |
 |
13AU0201
|
Suspension KIT (TCA KIT) |
11,6 kg |
4B3 498 998 |
 |
13AU0300
|
Suspension KIT (TCA KIT) |
11,7 kg |
4D0 411 318 J, 8D0 411 318 D (1) OEM |
 |
13AU0400
|
Suspension KIT (TCA KIT) |
10,7 kg |
8D0 411 318 D, 4D0 411 318 G (1) OEM |
 |
17AU1200
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17AU1202
|
Tie Rod End Left |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg |
1K0 423 811 K, 1K0 423 811 J (8) OEM |
 |
17AU1203
|
Tie Rod End Right |
L:94 cr:1/5 c:Ø13.2 tp:M12x1.5 th:FM16x1.5 RHT / 0,45 kg |
1K0 423 812 K, 1K0 423 812 G (7) OEM |
 |
17AU1210
IN PREPARATION
|
Tie Rod End Left |
|
5WA 423 811 E, 5WA 423 811 C |
 |
17AU1211
IN PREPARATION
|
Tie Rod End Right |
|
5WA 423 812 E, 5WA 423 812 C |
 |
17VW2500
|
Tie Rod End |
L:154.5 c:Ø17.45 th:MM14x1.5 RHT / 0,62 kg |
4F0 419 811, 8E0 419 811 B (8) OEM |
 |
17VW2501
|
Tie Rod End Reinforced |
L:73.5 cr:1/8 c:Ø10.7 tp:M10x1 th:FM14x1.5 RHT / 0,68 kg |
8H1 422 065 B, 8H1 422 065 (48) OEM |
 |
17VW2505
|
Tie Rod End |
L:157 c:Ø17.45 th:MM14x1.5 RHT / 0,46 kg |
8E0 419 811, 4F0 498 811 A (4) OEM |
 |
20AU1200
|
Axial Joint |
L:311.5 tp:M16x1.5 th:MM16x1.5 RHT / 0,72 kg |
1K0 423 810 A, 1K1 423 070 AX (16) OEM |
 |

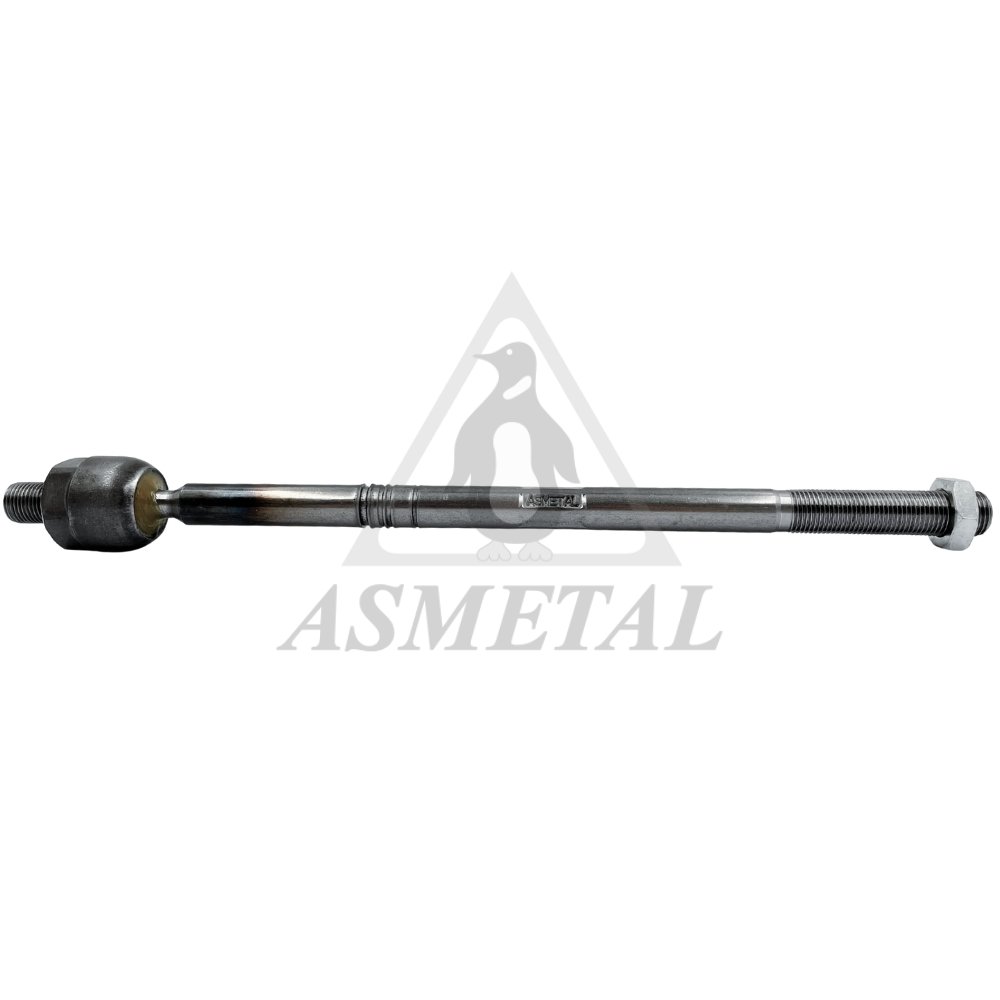

20VW1200
|
Axial Joint |
L:330 tp:M16x1.5 th:MM16x1.5 RHT / 0,75 kg |
1KD 423 810, 5Q0 423 810 (1) OEM |
 |
20VW2500
|
Axial Joint |
L:129 tp:M14x1.5 th:MM16x1.5 RHT / 0,42 kg |
4D0 419 801 B, 4D0 419 801 E (8) OEM |
 |
23AU0200
|
Track Control Arm Right |
c:Ø16 / 0,64 kg |
8E0 407 506 C, 8D0 407 506 A (14) OEM |
 |
23AU0200B
|
Track Control Arm Right (Without Fasteners) |
c:Ø16 / 0,44 kg |
8E0 407 506 P, 8D0 407 506 A (14) OEM |
 |
23AU0201
|
Track Control Arm Left |
c:Ø16 / 0,64 kg |
4Z7 407 505 A, 8D0 407 505 A (8) OEM |
 |
23AU0201B
|
Track Control Arm Left (Without Fasteners) |
c:Ø16 / 0,44 kg |
4Z7 407 505 A, 8D0 407 505 A (7) OEM |
 |
23AU0203
|
Track Control Arm Right |
c:Ø16 / 0,62 kg |
8E0 407 510 A, 8D0 407 510 E (17) OEM |
 |
23AU0203B
|
Track Control Arm Right (Without Fasteners) |
c:Ø16 / 0,42 kg |
8D0 407 510 C, 8E0 407 510 A (15) OEM |
 |
23AU0204
|
Track Control Arm Left |
c:Ø16 / 0,62 kg |
8D0 407 509 A, 8D0 407 509 E (17) OEM |
 |
23AU0204B
|
Track Control Arm Left (Without Fasteners) |
c:Ø16 / 0,42 kg |
8D0 407 509 E, 8D0 407 509 A (15) OEM |
 |
23AU0220
|
Track Control Arm Right |
c:Ø15.4 tp:M12x1.5 / 1,87 kg |
4D0 407 694 N, 4D0 407 694 E (13) OEM |
 |
23AU0220B
|
Track Control Arm Right (Without Fasteners) |
c:Ø15.4 tp:M12x1.5 / 1,72 kg |
4D0 407 694 H, 4D0 407 694 P (13) OEM |
 |
23AU0221
|
Track Control Arm Left |
c:Ø15.4 tp:M12x1.5 / 1,87 kg |
8E0 407 693 K, 4D0 407 693 AD (13) OEM |
 |
23AU0221B
|
Track Control Arm Left (Without Fasteners) |
c:Ø15.4 tp:M12x1.5 / 1,72 kg |
4D0 407 693 K, 8E0 407 693 H (13) OEM |
 |
23AU0230
|
Track Control Arm |
c:Ø20.56 cr:1/6 / 1,72 kg |
4D0 407 151 H, 4D0 407 151 G (9) OEM |
 |
23AU0230B
|
Track Control Arm (Without Fasteners) |
cr:1/6 c:Ø20.56 tp:M12x1.5 / 1,5 kg |
4D0 407 151 P, 8D0 407 151 F (9) OEM |
 |
23AU0250
|
Track Control Arm |
cr:1/6 c:Ø16.25 tp:M12x1.5 / 1,72 kg |
4B3 407 151 K, 4B3 407 151 E (3) OEM |
 |
23AU0250B
|
Track Control Arm (Without Fasteners) |
cr:1/6 c:Ø16.25 tp:M12x1.5 / 1,5 kg |
4B0 407 151, 4B3 407 151 A (3) OEM |
 |
26AU0210
|
Stabiliser Link Left |
L:90 / 0,35 kg |
4D0 411 317 J, 4D0 411 317 G (2) OEM |
 |
26AU0210B
|
Stabiliser Link Left |
L:90 / 0,24 kg |
4D0 411 317 J, 4D0 411 317 G (2) OEM |
 |
26AU0211
|
Stabiliser Link Right |
L:90 / 0,35 kg |
8D0 411 318 D, 4D0 411 318 G (1) OEM |
 |
26AU0211B
|
Stabiliser Link Right |
L:90 / 0,24 kg |
8D0 411 318 D, 4D0 411 318 G (1) OEM |
 |
26VW1600
|
Stabiliser Link |
L:335 tp:M12x1.5 RHT / 0,5 kg |
1K0 411 315 P, 1K0 411 315 K (14) OEM |
 |
26VW1605
|
Stabiliser Link Rear |
L:95.3 tp:M10x1.5 RHT / 0,38 kg |
1K0 505 465 K, 1K0 505 465 J (7) OEM |
 |
26VW1700
|
Stabiliser Link Rear |
L:70 tp:M10x1.5 RHT / 0,16 kg |
5Q0 505 465 C, 5Q0 505 465 A (4) OEM |
 |
29AU1200
NEW
|
Tie Rod Right |
1,1 kg |
1K0 423 810 A, 1K0 423 812 A (1) OEM |
 |
29AU1201
NEW
|
Tie Rod Left |
1,1 kg |
1K0 423 810 A, 1K0 423 811 A (1) OEM |
 |
29VW2500
|
Tie Rod |
c:Ø17.45 / 1 kg |
4B0 419 801 B, 4D0 419 801 E (10) OEM |
 |
30AU1220
NEW
|
Track Control Arm Left |
1,05 kg |
1K0 501 529 F |
 |
30AU1221
NEW
|
Track Control Arm Right |
1,05 kg |
1K0 501 530 C |
 |
30SK1600
NEW
|
Track Control Arm Rear |
|
1K0 505 311 AA, 1K0 505 311 AB (6) OEM |
 |
30SK1600K
IN PREPARATION
|
Track Control Arm Rear |
|
1K0 505 311 AA, 1K0 505 311 AB (6) OEM |
 |
30VW1600
|
Track Control Arm Left |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4,3 kg |
1K0 407 151 AB, 1K0 407 151 AH (9) OEM |
 |
30VW1601
|
Track Control Arm Right |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 4,3 kg |
1K0 407 152 AH, 1K0 407 152 AB (9) OEM |
 |
30VW1606
|
Track Control Arm Left |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,7 kg |
3Q0 407 151 E, 3Q0 407 151 J (9) OEM |
 |
30VW1607
|
Track Control Arm Right |
cr:1/5 c:Ø15.2 th:M12x1.5 RHT / 3,7 kg |
3Q0 407 152 E, 3Q0 407 152 J (9) OEM |
 |
30VW1608
|
Track Control Arm Left |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3,6 kg |
1K0 407 151 BG, 1K0 407 151 BB (2) OEM |
 |
30VW1609
|
Track Control Arm Right |
cr:1/5 c:Ø15.4 th:M12x1.5 RHT / 3,6 kg |
1K0 407 152 BG, 1K0 407 152 BE (2) OEM |
 |
30VW1610
NEW
|
Track Control Arm Left |
5,50 kg |
1K0 407 151 R, 1K0 407 151 M (4) OEM |
 |
30VW1610P
NEW
|
Track Control Arm Left (Without Ball Joint) |
4,75 kg |
1K0 407 151 AC, 1K0 407 151 AD (4) OEM |
 |
30VW1611
NEW
|
Track Control Arm Right |
5,50 kg |
1K0 407 152 AC, 1K0 407 152 AD (3) OEM |
 |
30VW1611P
NEW
|
Track Control Arm Right (Without Ball Joint) |
4,75 kg |
1K0 407 152 AC, 1K0 407 152 AD (4) OEM |
 |
30VW1670
|
Track Control Arm Rear Left |
di:Ø12.25 / 1,79 kg |
1K0 505 223 E, 1K0 505 223 H (2) OEM |
 |
30VW1671
|
Track Control Arm Rear Right |
di:Ø12.25 / 1,77 kg |
1K0 505 224 H, 1K0 505 224 K (2) OEM |
 |
30VW1672
|
Track Control Arm Rear Left |
di:Ø12.25 / 1,58 kg |
5Q0 505 223 D, 5Q0 505 223 (1) OEM |
 |
30VW1673
|
Track Control Arm Rear Right |
di:Ø12.25 / 1,59 kg |
5QM 505 224, 5Q0 505 224 D |
 |
30VW1702
NEW
|
Track Rod Rear |
1,34 kg |
5Q0 505 323 C, 5Q0 505 323 D (1) OEM |
 |
30VW1704
NEW
|
Track Rod Rear |
0,58 kg |
5Q0 501 529 F, 5Q0 501 529 D (2) OEM |
 |
38AU0101
|
Silentblock for TCA |
L:40 di:Ø10.1 do:Ø46.5 / 0,09 kg |
8K0 407 515, 8D0 407 515 A (6) OEM |
 |
38AU0225
NEW
|
Stabiliser Mounting |
di:Ø25 / 0,07 kg |
4D0 411 327 E, 4D0 411 327 G |
 |

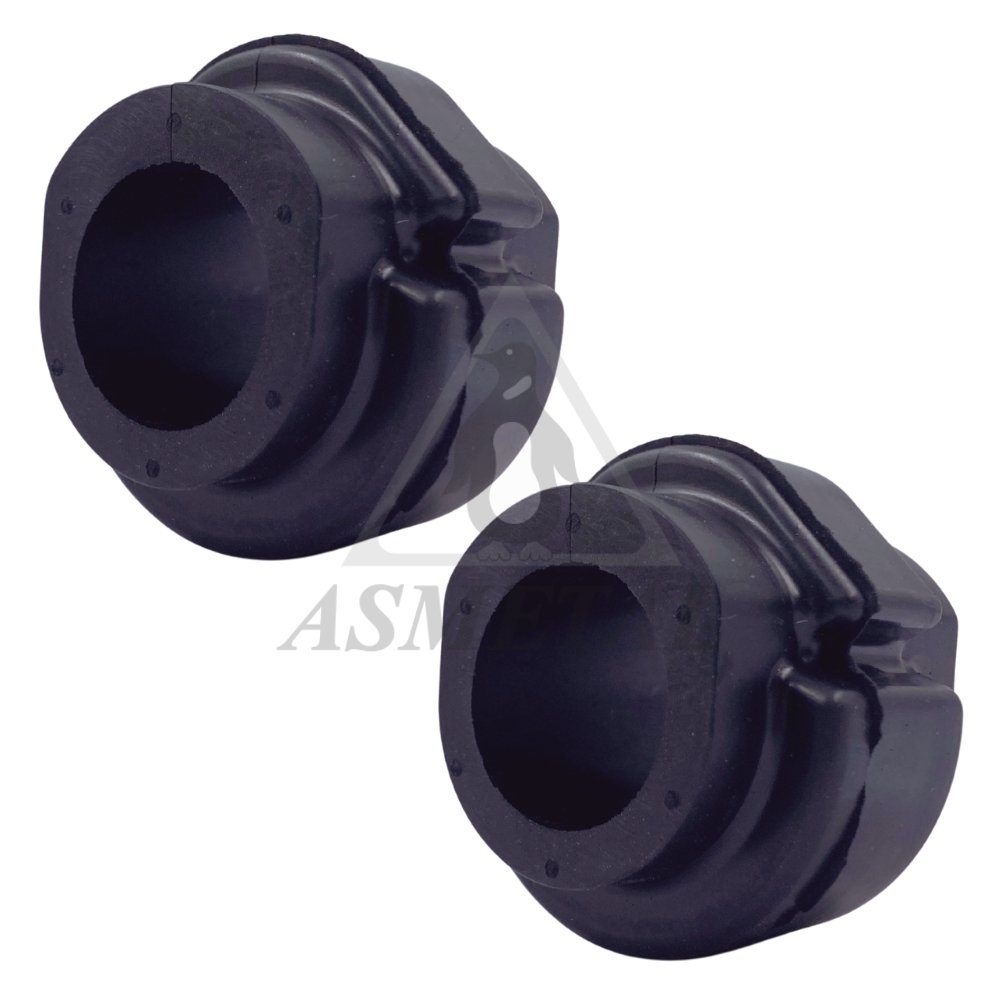

38AU0227
NEW
|
Stabiliser Mounting |
di:Ø27 / 0,07 kg |
4D0 411 327 H |
 |
38AU0230
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø50.4 / 0,2 kg |
4Z7 407 182, 4D0 407 182 G (2) OEM |
 |
38AU0231
|
Silentblock for TCA |
L:50 di:Ø12.1 do:Ø40.3 / 0,99 kg |
4D0 407 181 F, 4D0 407 181 H |
 |
38AU1220
|
Silentblock for TCA |
L:45 di:Ø14.2 do:Ø38.7 / 0,13 kg |
1K0 505 203 A, 1K0 505 323 N* (1) OEM |
 |
38AU1221
|
Silentblock for TCA |
L:45 di:Ø14.1 do:Ø40.5 / 0,18 kg |
1K0 501 541 C, 1K0 501 530 C (5) OEM |
 |
38AU1230
|
Silentblock for TCA |
L:49.8 di:Ø12.1 do:Ø37.4 / 0,14 kg |
5Q0 505 553 |
 |
38AU1231
|
Silentblock for TCA |
L:60 di:Ø12.2 do:Ø44.5 / 0,12 kg |
3Q0 505 311 D*, 3Q0 505 311 E* (5) OEM |
 |
38AU1235
|
Silentblock for TCA |
L:45.2 di:Ø12.25 do:Ø60.2 / 0,19 kg |
1K0 505 541 B, 5Q0 505 541 A (4) OEM |
 |
38AU1290
NEW
|
Bellow Steering |
0,12 kg |
1K0 423 831 A, 1K0 423 831 B (1) OEM |
 |
38AU3020
|
Silentblock for TCA |
L:54 di:Ø12.2 do:Ø48 / 0,19 kg |
5Q0 407 182 A, 5Q0 407 182 (4) OEM |
 |
38AU3021
|
Silentblock for TCA |
L:50 di:Ø13 do:Ø64.7 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
38AU3030
|
Silentblock for TCA |
L:54 di:Ø12.1 do:Ø39.5 / 0,19 kg |
1K0 407 182, 1K0 407 182 F (4) OEM |
 |
38AU4000
|
Silentblock for TCA |
L:80.2 di:Ø12.2 do:Ø65.1 / 0,59 kg |
4D0 407 183 AC, 4D0 407 183 Q (8) OEM |
 |
38AU4001
|
Silentblock for TCA |
L:80 di:Ø12 do:Ø65 / 0,44 kg |
4D0 407 183 AB, 4D0 407 183 AC (5) OEM |
 |
38VW1261
|
Silentblock for TCA Right |
L:171 / 0,7 kg |
1K0 199 232 P, 1K0 199 232 J (2) OEM |
 |
38VW1262
|
Silentblock for TCA Left |
L:171 / 0,7 kg |
1K0 199 231 J, 1K0 199 231 P (3) OEM |
 |
38VW1608
|
Axle Beam Bushing |
L:92 di:Ø18.1 do:Ø70 / 0,52 kg |
1K0 505 145 K, 1K0 505 145 H |
 |
38VW1609
|
Silentblock for TCA |
L:60 di:Ø12.1 do:Ø42.4 / 0,1 kg |
1K0 505 311 S, 1K0 505 311 AH (8) OEM |
 |

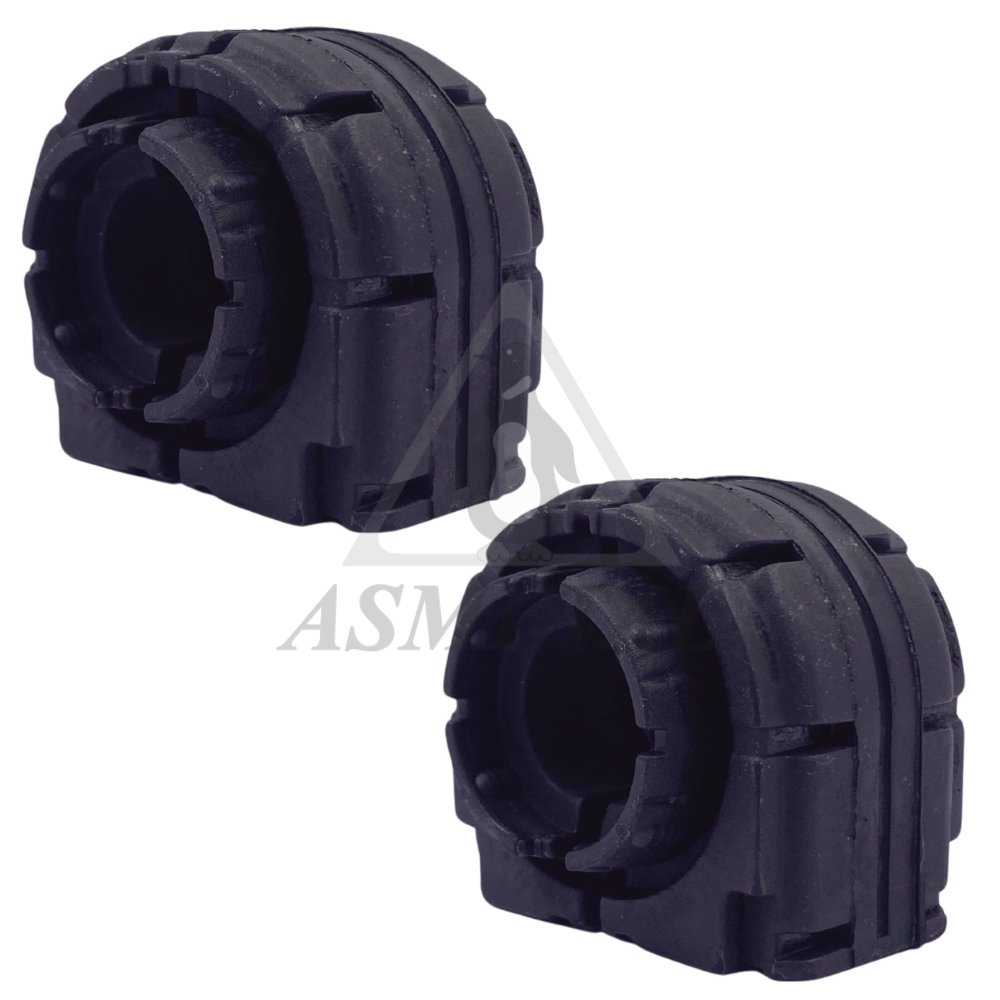

38VW1615
|
Stabiliser Mounting |
L:40 di:Ø15.5 / 0,07 kg |
1K0 511 327 AE, 1K0 511 327 AP |
 |

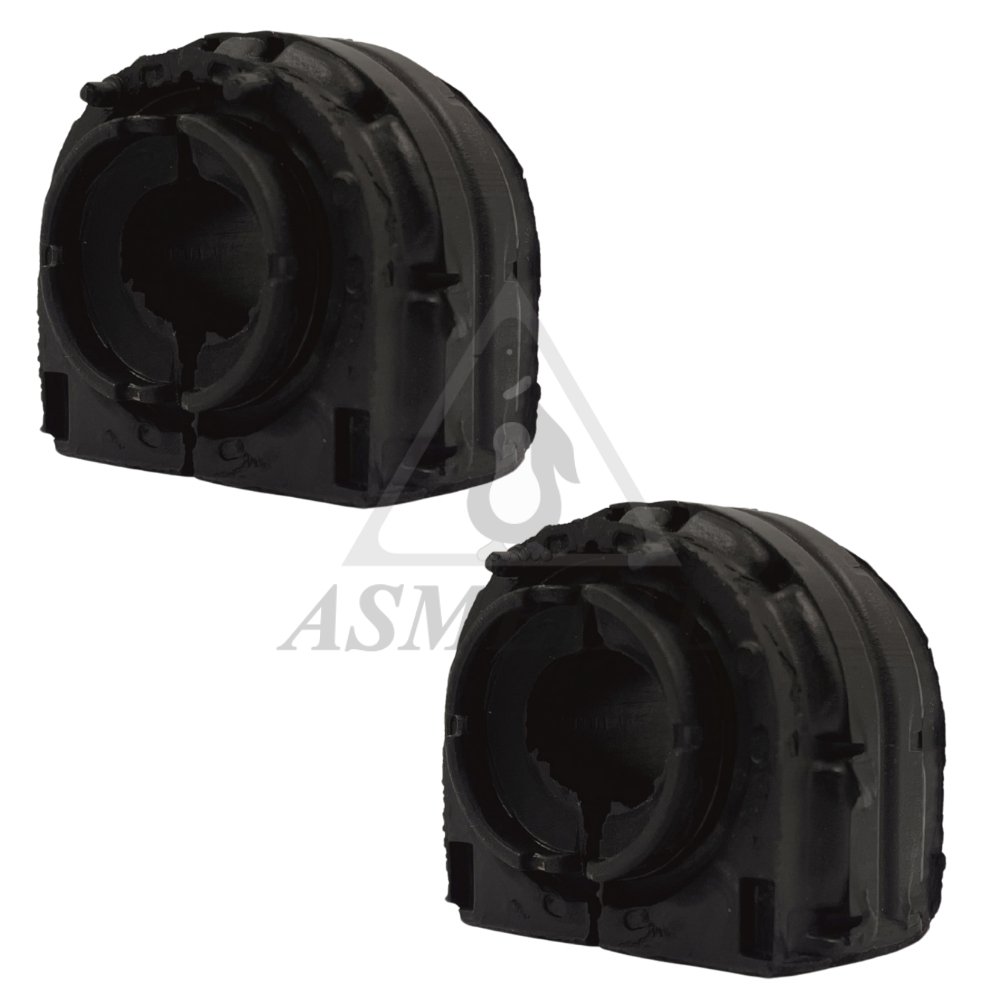

38VW1616
NEW
|
Stabiliser Mounting |
di:Ø17 / 0,08 kg |
1K0 511 327 AQ |
 |
38VW1617
NEW
|
Stabiliser Mounting |
di:Ø18,5 / 0,08 kg |
1K0 511 327 AR |
 |
38VW1618
NEW
|
Stabiliser Mounting |
di:Ø19 / 0,08 kg |
1K0 511 327 AS |
 |
38VW1623
NEW
|
Stabiliser Mounting |
di:Ø21-23 / 0,09 kg |
1K0 411 303 AL*, 1K0 411 303 BK* (8) OEM |
 |
38VW1700
|
Silentblock for TCA |
L:49.8 di:Ø12.1 do:Ø37.8 / 0,13 kg |
1K0 505 553, 1K0 505 553 A |
 |
38VW7000
|
Silentblock for TCA |
L:50 di:Ø13.5 do:Ø64.8 / 0,23 kg |
1K0 407 183 M, 5C0 407 183 A (1) OEM |
 |
45AU0220
|
Suspension Support Buffer Front |
L:88 di:Ø19 do:Ø59 / 0,07 kg |
4D0 412 137 C, 8D0 412 131 F (2) OEM |
 |
45AU0230
|
Suspension Support Buffer Rear |
L:130 di:Ø19 do:Ø61.5 / 0,11 kg |
4B9 512 131, 3B0 512 131 H (2) OEM |
 |
45AU0231
IN PREPARATION
|
Suspension Support Buffer Rear |
0 kg |
4B0 512 131 B |
 |
45SK0230
|
Strut Mount |
L:71 di:Ø10 do:Ø72.2 / 0,55 kg |
3B0 513 353 |
 |
45VW1600
|
Engine Mounting |
L:35.5 di:Ø15.2 do:Ø91.5 / 0,24 kg |
1K0 199 867 P, 1K0 199 867 Q (4) OEM |
 |
45VW1602
NEW
|
Strut Mount Right |
0,35 kg |
5Q0 513 353 G, 5Q0 513 353 K (2) OEM |
 |
45VW1603
|
Strut Mount |
L:62.5 di:Ø10 do:Ø68 / 0,31 kg |
3C0 513 353, 3C0 513 353 C (1) OEM |
 |
45VW1605
|
Strut Mount |
L:48.2 di:Ø14.2 do:Ø65.5 / 0,77 kg |
1K0 412 331 B, 1K0 412 331 C |
 |
45VW1606
|
Strut Mount With Bearing |
L:52 di:Ø14.2 do:Ø68.5 / 1 kg |
1K0 412 331 B, 6N0 412 249 C (4) OEM |
 |
45VW1607
NEW
|
Bearing |
0,25 kg |
1K0 412 249 B, 6N0 412 249 C (3) OEM |
 |
45VW1608
NEW
|
Strut Mount |
0,69 kg |
5Q0 412 331 E, 5Q0 412 331 F (7) OEM |
 |
45VW1609
NEW
|
Engine Mounting |
0,60 kg |
5Q0 199 855 AB, 5Q0 199 855 AF (1) OEM |
 |
45VW1626
|
Suspension Support Buffer Front |
L:90.4 di:Ø27 do:Ø64.1 / 0,1 kg |
1K0 412 303 H |
 |
45VW1636
|
Suspension Support Buffer Rear |
L:113 di:Ø20.5 do:Ø60 / 0,11 kg |
5Q0 511 357 J, 5Q0 511 357 N |
 |
45VW1639
|
Suspension Support Buffer Rear |
L:134 di:Ø16 do:Ø55.5 / 0,09 kg |
3C0 511 359 |
