10LD0400
|
Ball Joint Upper |
th:M14x1.5 RHT cp:1/8 cs:Ø14,7 / 0,52 kg |
2101 2904192, 2101 290418503 (2) OEM |
 |
10LD0500
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/8 cs:Ø14,75 / 0,61 kg |
2101 2904082, 4186632 (1) OEM |
 |
10LD0700
IN PREPARATION
|
Ball Joint Lower |
0 kg |
2123 2904192 |
 |
10LD0800
IN PREPARATION
|
Ball Joint Upper |
|
2121 4290419286 |
 |
10LD0810
IN PREPARATION
|
Ball Joint Lower |
|
2121 4290408286 |
 |

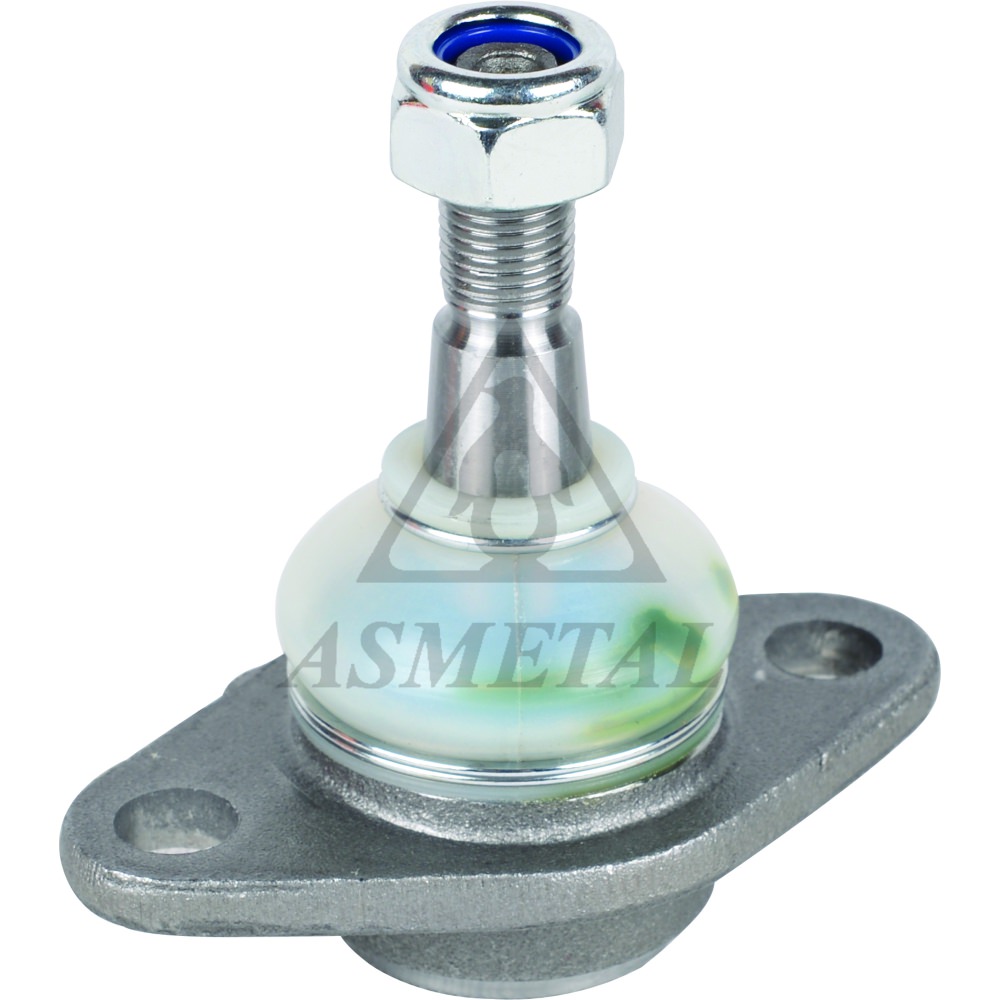

10LD1500
|
Ball Joint Lower |
th:M12x1.25 RHT cs:Ø13 / 0,38 kg |
2110 2904192, 2108 0290418501 (2) OEM |
 |
10RN5541
|
Ball Joint Lower |
c:Ø18 do:Ø38,35 / 0,27 kg |
54 50 042 69R, 60 01 549 181 (25) OEM |
 |
17DC1000
|
Tie Rod End Left |
c:Ø12,1 th:FM14x1,5 RHT / 0,65 kg |
48 52 028 67R, 60 01 550 442 (2) OEM |
 |
17DC1001
|
Tie Rod End Right |
c:Ø12,1 th:FM14x1,5 RHT / 0,65 kg |
60 01 547 611, 48 52 004 10R (2) OEM |
 |
17LD0500
|
Tie Rod End |
c:Ø14,65 th:MM16x1 RHT / 0,35 kg |
4 343 762, 4 327 143 (6) OEM |
 |
17LD0501
|
Tie Rod End |
c:Ø14,65 th:MM16x1 LHT / 0,54 kg |
2121 3414116, 21210 3414138 00 (1) OEM |
 |
17LD1030
|
Tie Rod End Right |
c:Ø14,65 th:MM16x1 LHT / 0,61 kg |
4 183 729, 2101 3003050 |
 |
17LD1050
|
Tie Rod End Left |
c:Ø14,65 th:MM16x1 LHT / 0,61 kg |
4 183 728, 2101 3003064 |
 |
17LD1500
IN PREPARATION
|
Tie Rod End Left |
0 kg |
1118 0341405700, 1118 3414057 |
 |
17LD1501
IN PREPARATION
|
Tie Rod End Right |
0 kg |
1118 03414056 |
 |
17LD1530
|
Tie Rod End Right |
c:Ø12,55 th:MM18x1,5 LHT / 0,54 kg |
2108 3414056 |
 |
17LD1550
|
Tie Rod End Left |
c:Ø12,55 th:MM18x1,5 LHT / 0,54 kg |
2108 3414057 |
 |

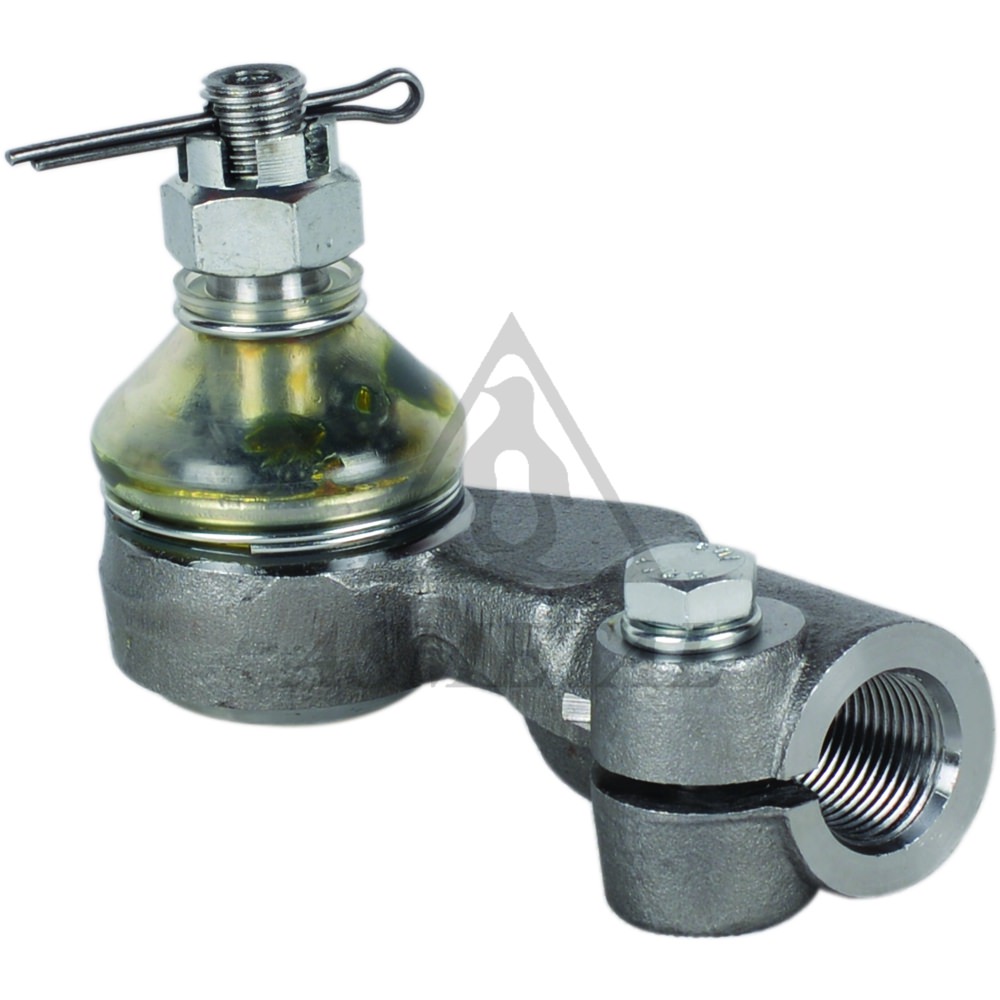

17LD2000
|
Tie Rod End Right |
c:Ø12,65 th:FM18x1,5 LHT / 0,49 kg |
2110 3414056 |
 |

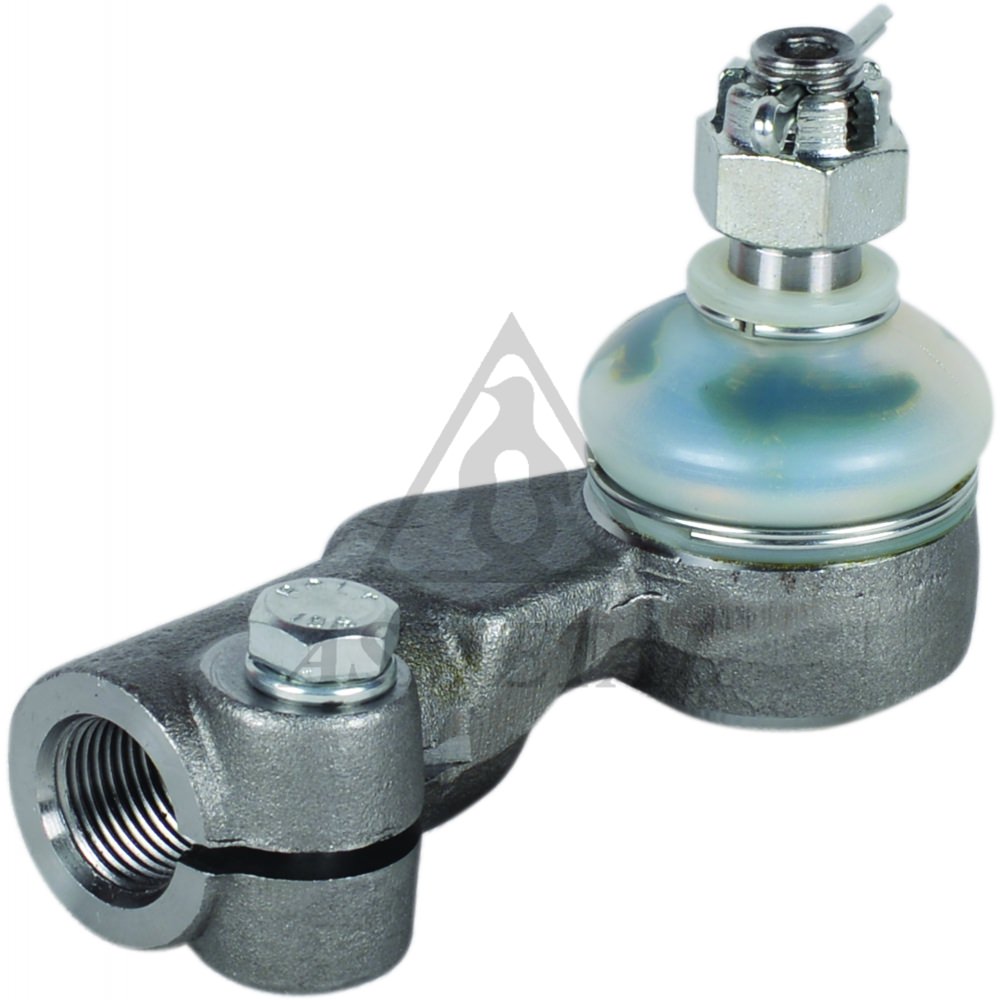

17LD2001
|
Tie Rod End Left |
c:Ø12,65 th:FM18x1,5 LHT / 0,49 kg |
2110 3414057 |
 |
20DC1000
|
Axial Joint |
th:MM12x1.0 RHT L:188,5mm / 0,42 kg |
60 01 547 606, 60 01 550 441 |
 |
22LD0570
|
Center Rod |
th1:M14x1.5 RHT L:561mm / 1,71 kg |
21213414011 |
 |
22LD1070
OUT OF SERVICE
|
Center Rod |
th1:M14x1.5 RHT / 1,3 kg |
2101-3003011 |
 |
26DC1000
|
Stabiliser Link |
L:73,4mm Plastic / 0,11 kg |
82 00 277 960, 60 01 547 138 |
 |
30DC1000
|
Track Control Arm Right |
cs:Ø18 / 2 kg |
82 00 820 918, 54 50 007 94R (6) OEM |
 |
30DC1001
|
Track Control Arm Left |
cs:Ø18 / 2 kg |
60 01 550 911, 60 01 550 909 (5) OEM |
 |
38DC1000
|
Stabiliser Mounting |
Ø24 / 0,03 kg |
60 01 549 311, 82 00 262 344 (4) OEM |
 |
38DC1002
|
Silentblock for TCA |
di:Ø12,1 do:Ø37,2 / 0,17 kg |
60 40 002 245, 60 01 547 519* (4) OEM |
 |
38DC1005
|
Mounting Axle Body |
di:Ø12 / 0,42 kg |
60 01 549 988, 60 01 549 989 (2) OEM |
 |
45DC1000
|
Strut Mount |
di:Ø12 do:Ø122 / 0,32 kg |
60 01 547 499, 60 01 548 403 (2) OEM |
 |
45DC1000E
OUT OF SERVICE
|
Strut Mount |
di:Ø12 do:Ø122 / 0,32 kg |
60 01 547 499, 60 01 548 403 (2) OEM |
 |

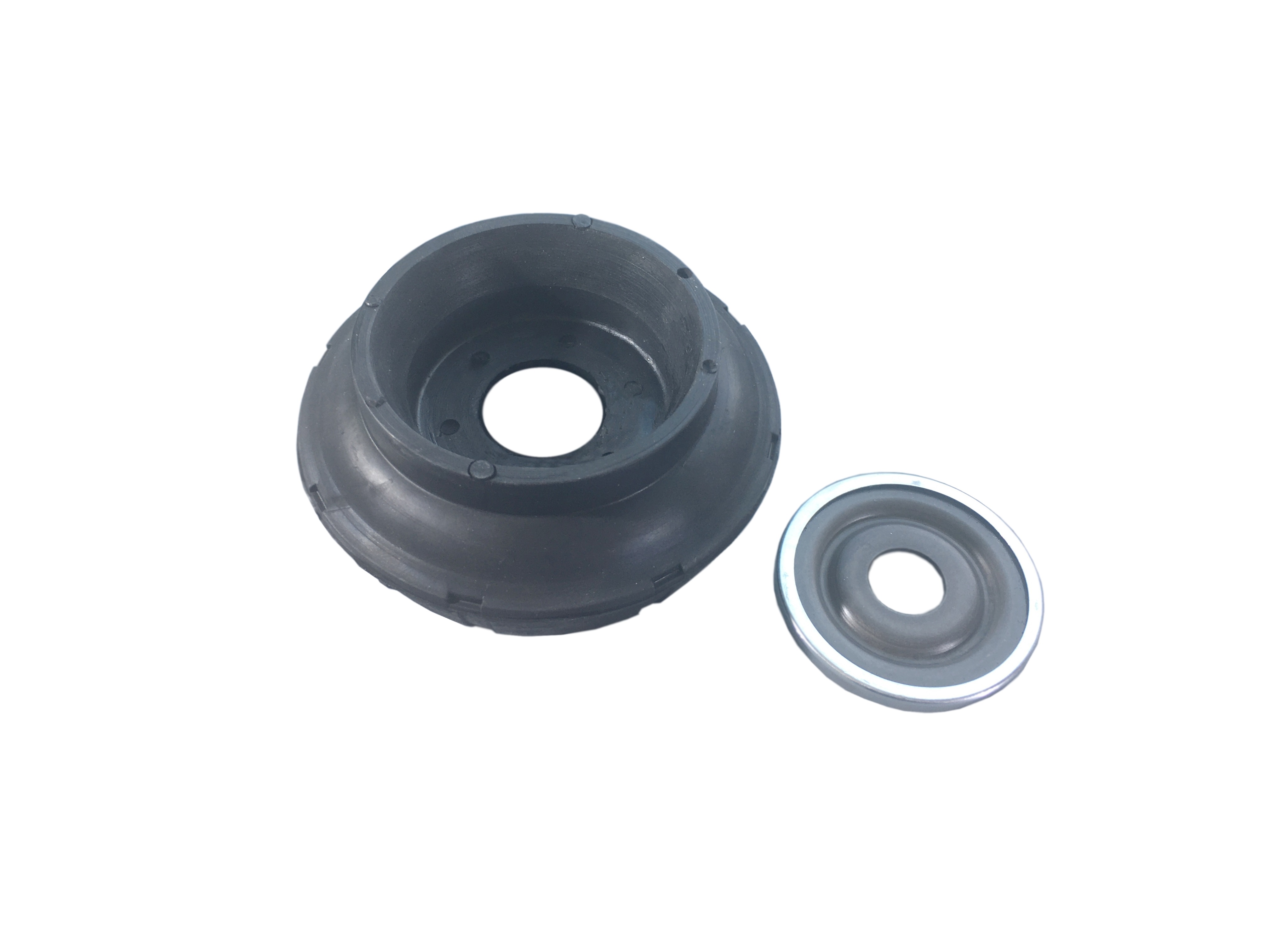

45DC1010
|
Strut Mount With Bearing |
di:Ø16.2 do:Ø75 h:47mm / 0,38 kg |
60 01 025 850, 82 00 307 941 (5) OEM |
 |
45DC1111
|
Bearing |
di: Ø16 / do: Ø56 / L: 10 / 0,06 kg |
86 60 004 283, 77 00 800 107 (3) OEM |
 |
45DC4560
IN PREPARATION
|
Engine Mounting |
|
11 23 810 35R, 11 23 839 05R (1) OEM |
