ASMETAL Catalogue

LAND ROVER > FREELANDER (15 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No

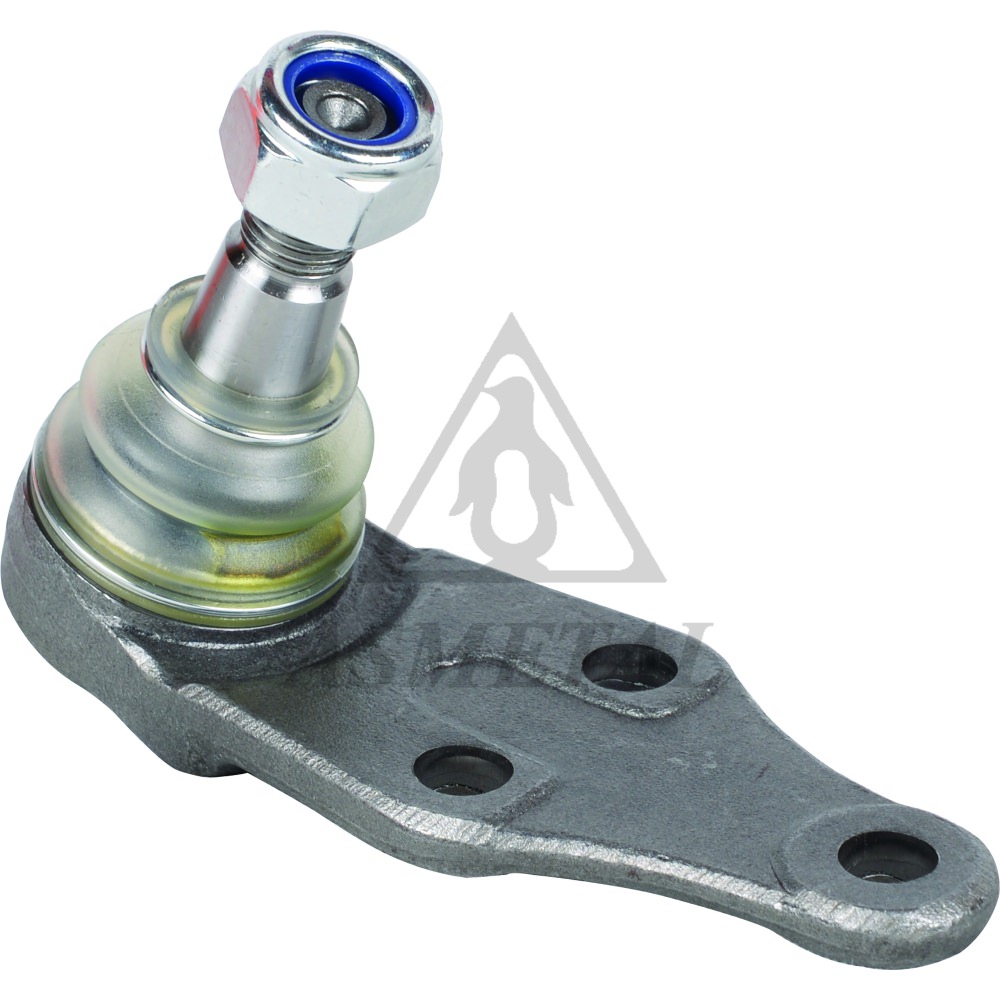

10LR1000	Ball Joint Lower	th:M14x1.5 RHT cr:1/6 c:Ø15 / 0,68 kg	RBJ 102920, RBJ 102930 (3) OEM

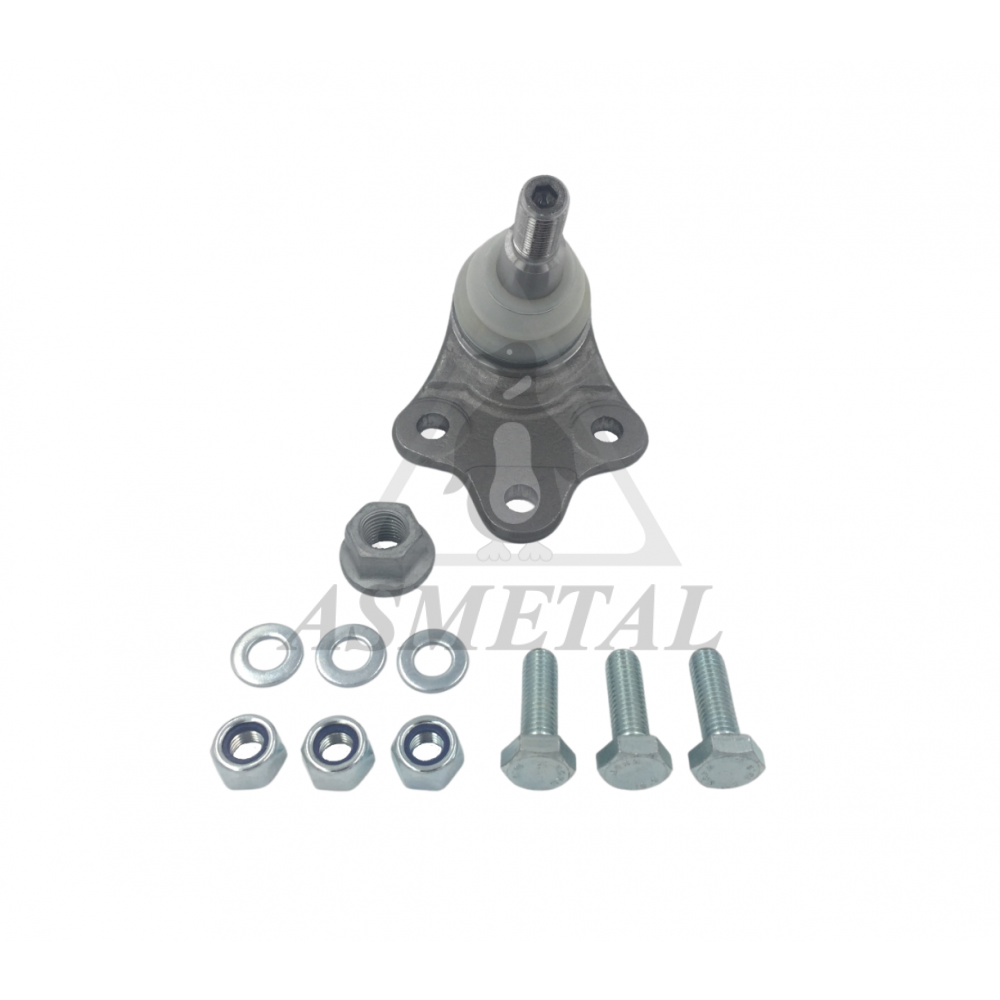

10LR2200	Ball Joint Lower	th:M14x1.5 RHT cr:1/6 c:Ø17.9 / 0,86 kg	LR0 07205, LR0 02625 (7) OEM
17FR2205	Tie Rod End Right	L:112 cr:1/6 c:Ø16.7 tp:M14x2 th:FM18x1.5 RHT / 0,58 kg	6G91 3289 AA, 1 433 273 (4) OEM
17FR2206	Tie Rod End Left	L:112 cr:1/6 c:Ø16.7 tp:M14x2 th:FM18x1.5 RHT / 0,58 kg	6G91 3290 AA, 1 433 274 (4) OEM

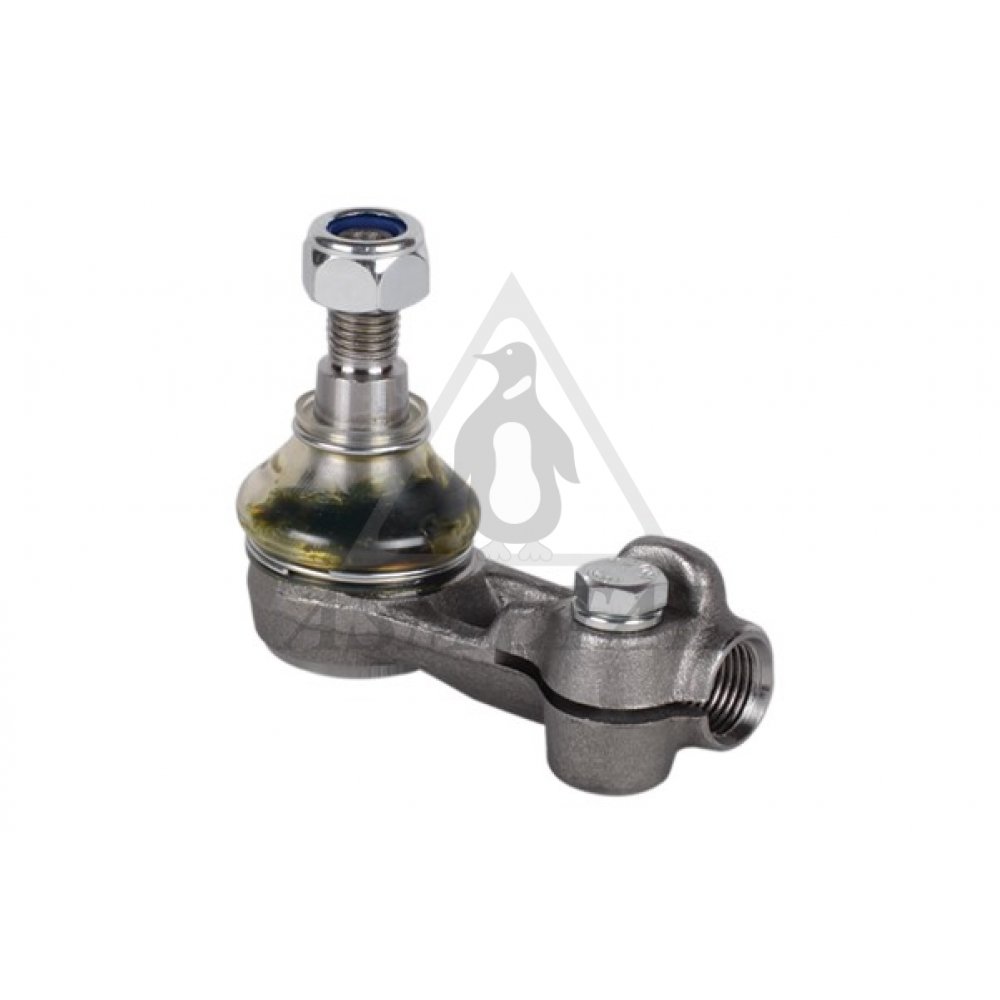

17LR1000	Tie Rod End Left	L:73.5 cr:1/10 c:Ø14.55 tp:M12x1.5 th:FM16x1.5 LHT / 0,44 kg	QJB 100230

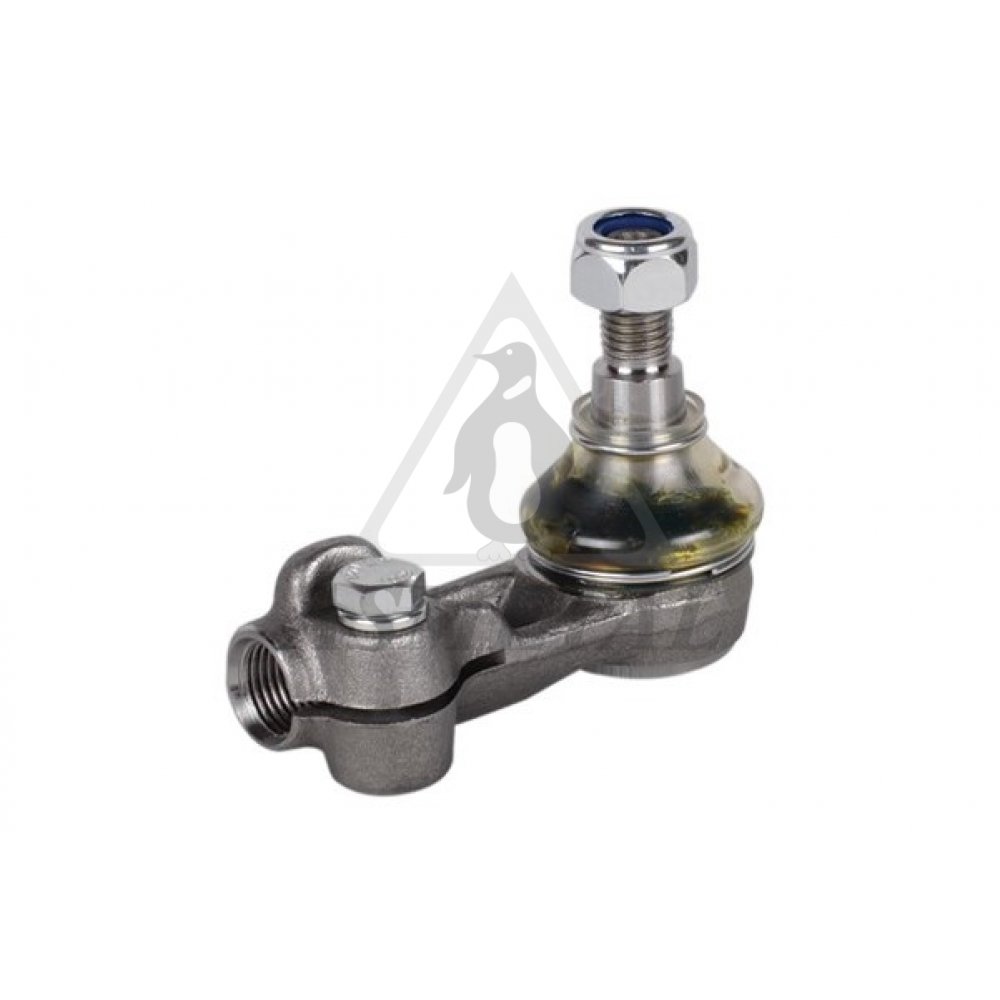

17LR1001	Tie Rod End Right	L:73.5 cr:1/10 c:Ø14.55 tp:M12x1.5 th:FM16x1.5 RHT / 0,44 kg	QJB 100220
20FR2205	Axial Joint	L:315 tp:M18x1.5 th:MM16x1.5 RHT / 0,83 kg	1 433 271, 1 596 574 (7) OEM

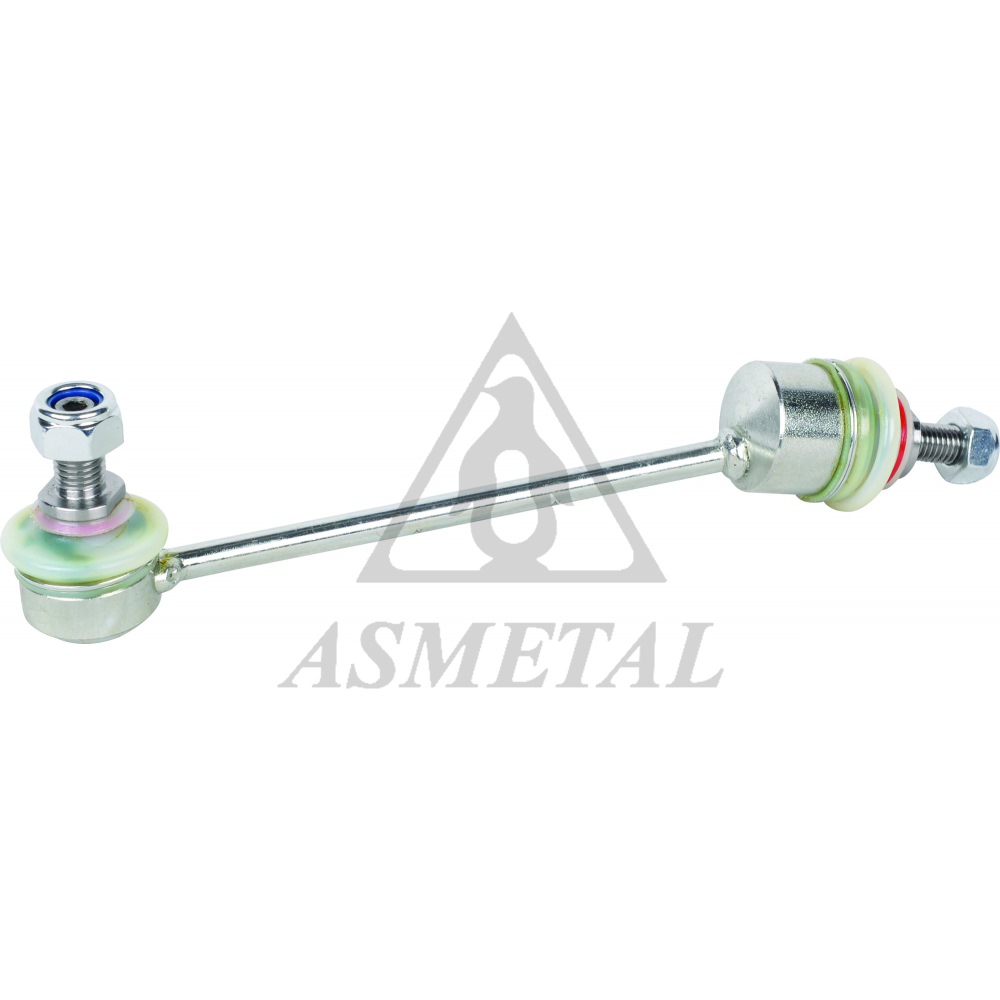

26LR1000	Stabiliser Link	L:208 tp:M10x1.5 RHT tp:M12x1.5 RHT / 0,38 kg	RBM 100172, RBM 100171 (1) OEM
26LR2010	Stabiliser Link Rear	L:229 tp:M10x1.5 RHT / 0,36 kg	LR0 02876, 6H525C486AB

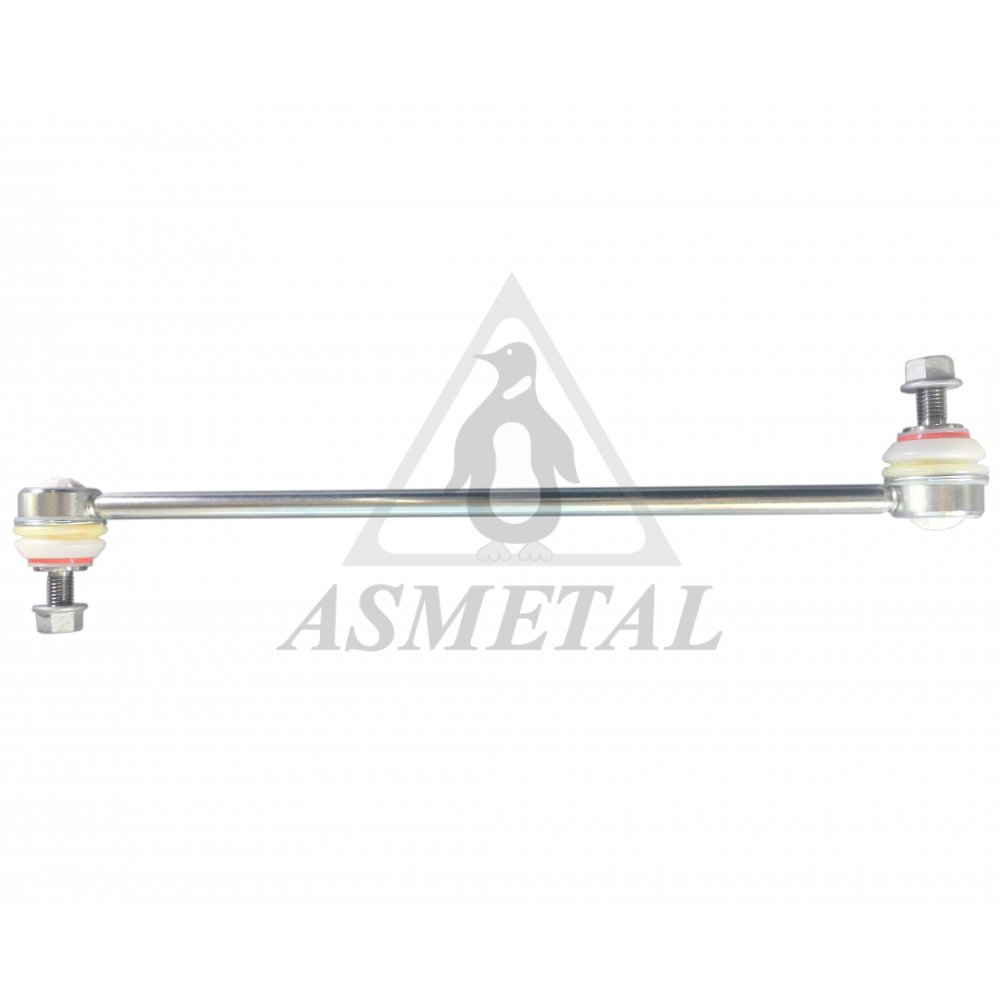

26LR2200	Stabiliser Link	L:347.5 tp:M10x1.5 RHT / 0,5 kg	LR0 02626
38FR2204	Silentblock for TCA Left	L:92.7 / 2 kg	1 507 182, 1 469 026 (17) OEM
38FR2205	Silentblock for TCA Right	L:92.7 / 2,03 kg	1 883 048, 1 469 024* (17) OEM
38FR4000	Silentblock for TCA	L:60 di:Ø14.2 do:Ø60.4 / 0,44 kg	6G9N 3A052 DG, 1 507 181* (37) OEM

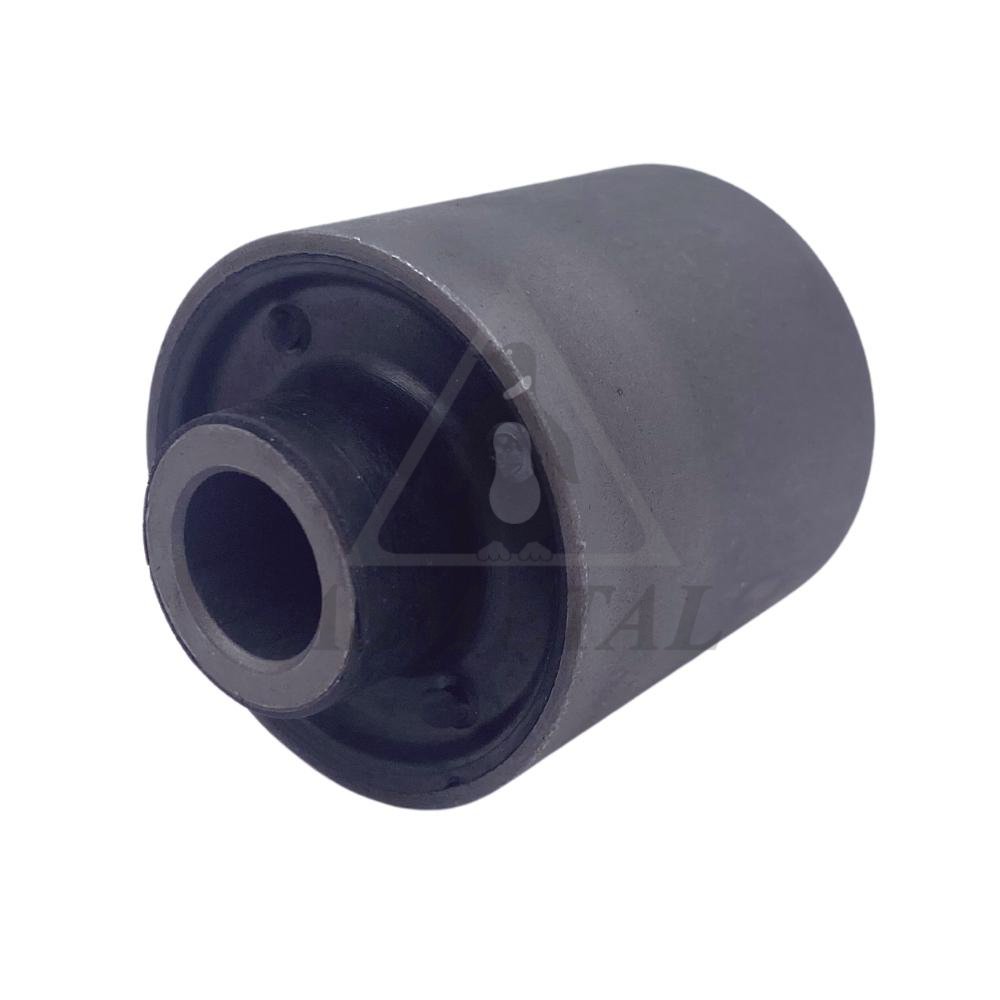

38LR1000	Silentblock for TCA	L:65 di:Ø14.1 do:Ø45.4 / 0,2565 kg	RBX 101790, RBX 101160
38LR1021 NEW	Stabiliser Mounting	di:Ø21 / 0,03 kg	RBX 101240, RBX 000010
