ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10LR0500	Ball Joint Lower	th:M16x1.5 RHT cr:1/6 c:Ø18.9 do:Ø44.4 / 0,7 kg	FTC 3571
10LR0505	Ball Joint Upper	th:M14x1.5 RHT cr:1/6 c:Ø15.9 do:Ø54.54 / 0,66 kg	FTC 3570
10LR0600 NEW	Ball Joint Upper	0,62 kg	RBK 500150, RBK 500210 (1) OEM
10LR1905 IN PREPARATION	Ball Joint Upper		RBK 500170, 5H323263BA (2) OEM

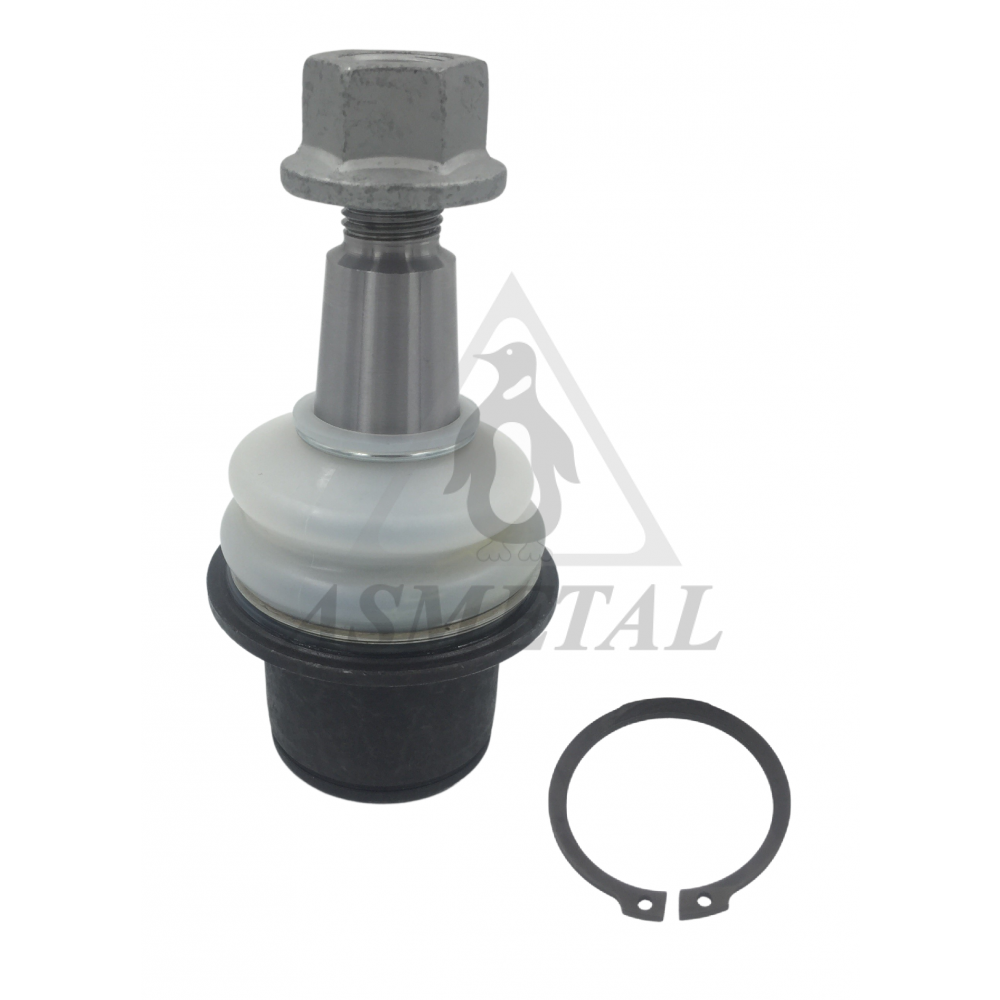

10LR1910	Ball Joint Lower	th:M16x1.5 RHT c:Ø20.5 do:Ø42.5 / 0,84 kg	RBK 500040, RBK 500180 (4) OEM
11LR0600 IN PREPARATION	Silentblock Bushing		RHF 000260, XH4 25A838AA
11LR0610 IN PREPARATION	Silentblock Bushing		LR0 19117, RGD 500083

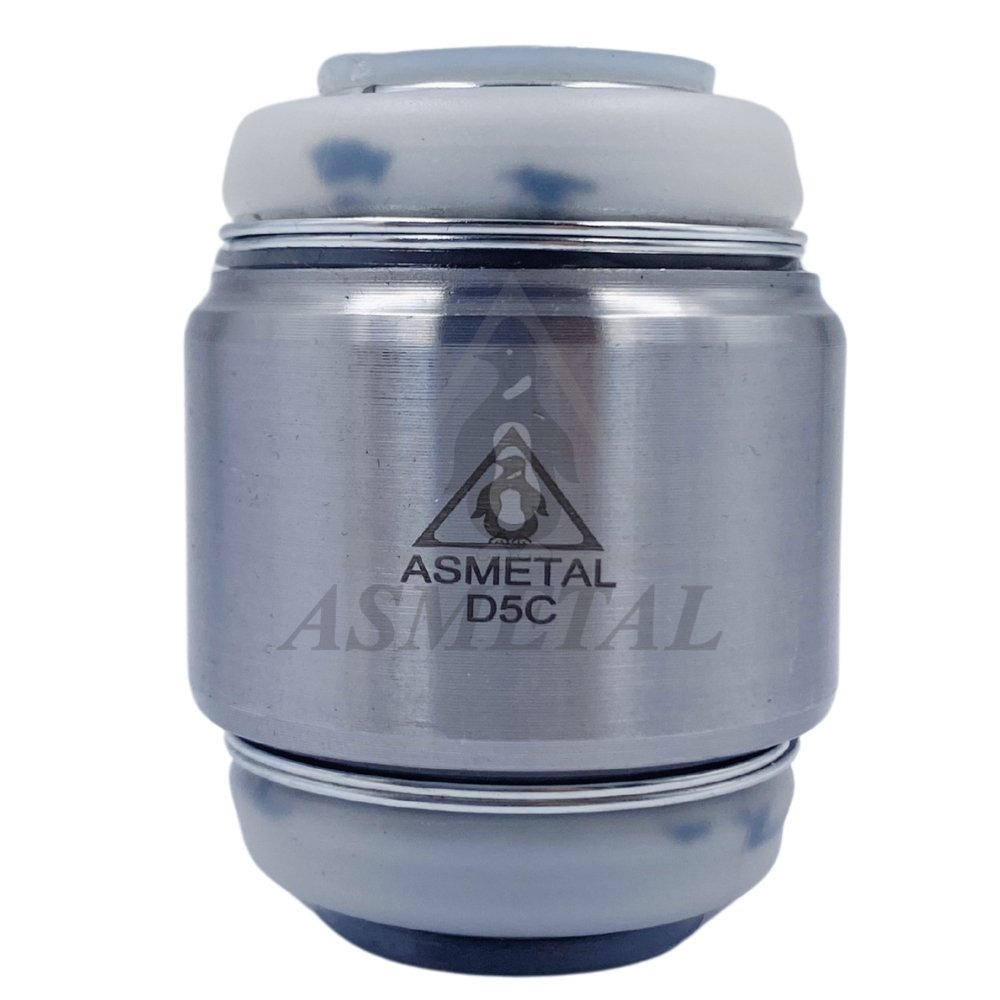

11LR0700 NEW	Silentblock Bushing	0,44 kg	RHF 500100, RHF 500031 (2) OEM

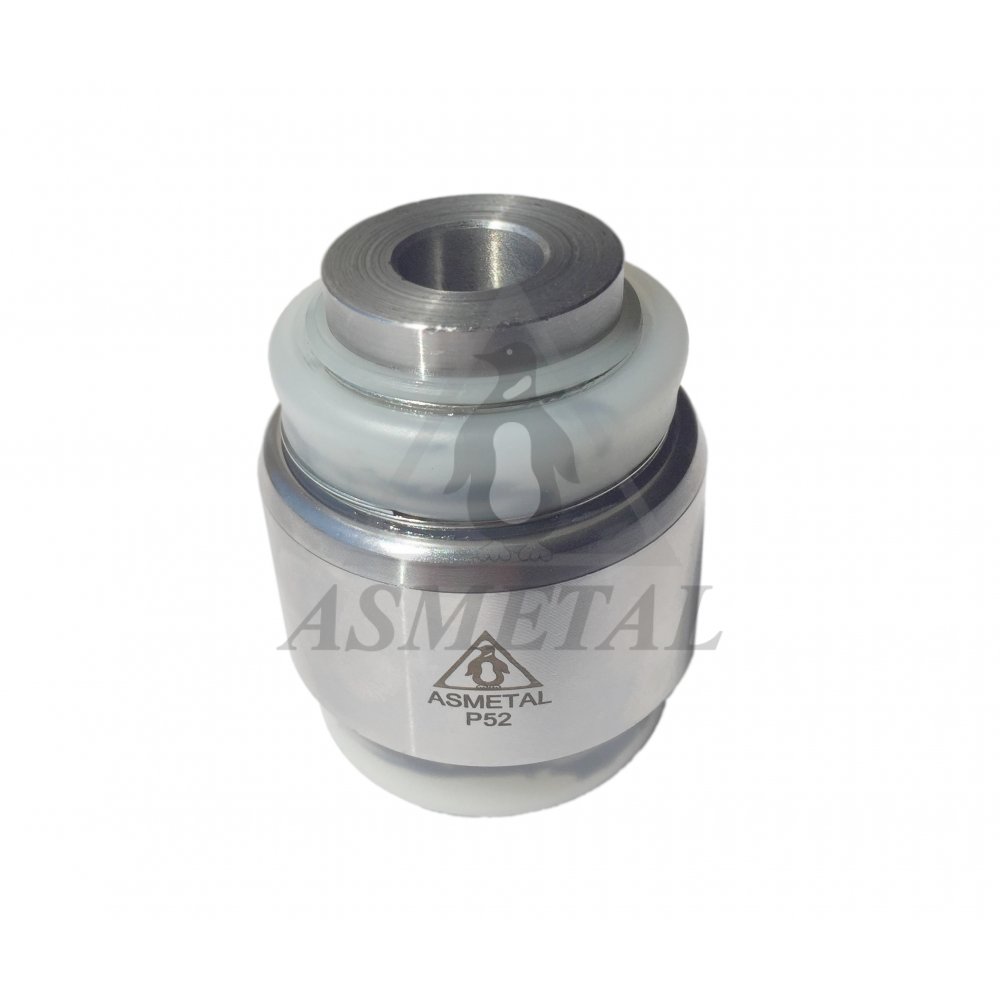

11LR1900	Silentblock Bushing	di:Ø16.30 do:Ø54.1 / 0,66 kg	RHF 500061, RHF 500130

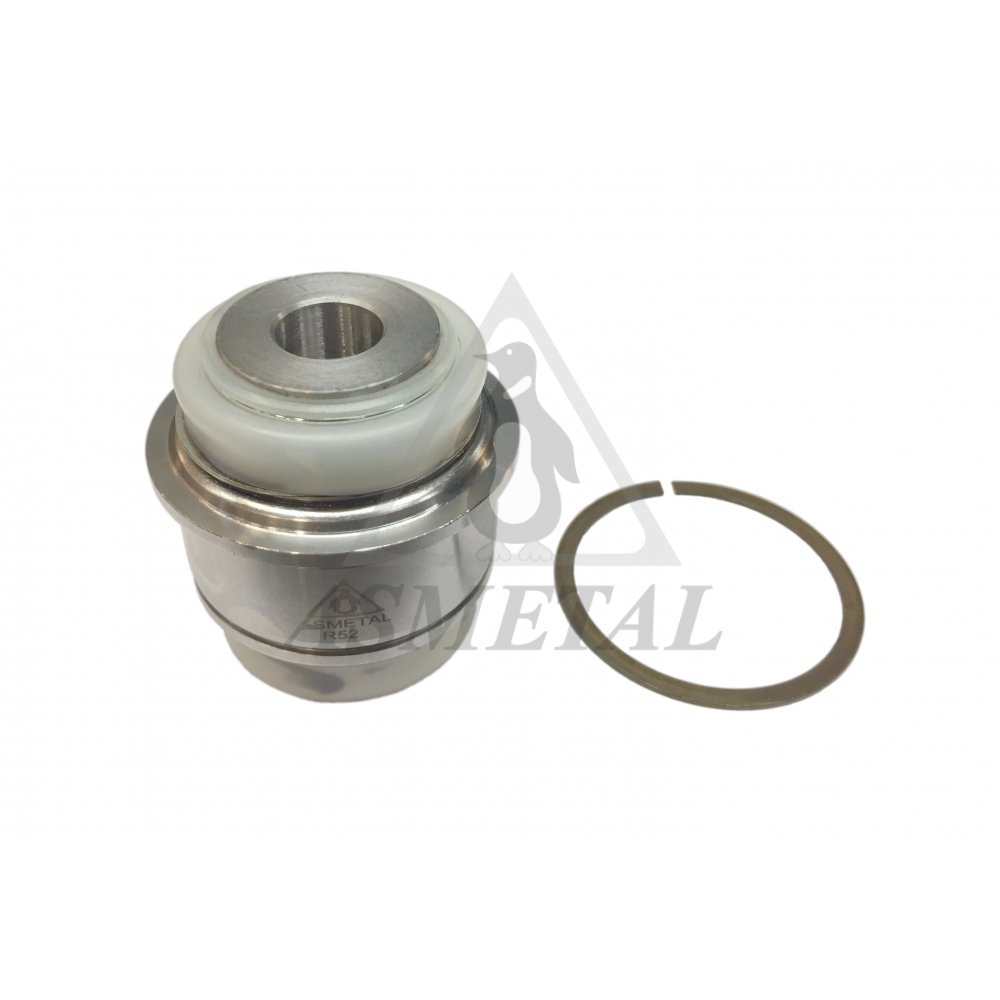

11LR1910	Silentblock Bushing	di:Ø16.30 do:Ø60 / 0,66 kg	LR0 32644, RBK 000042 (3) OEM

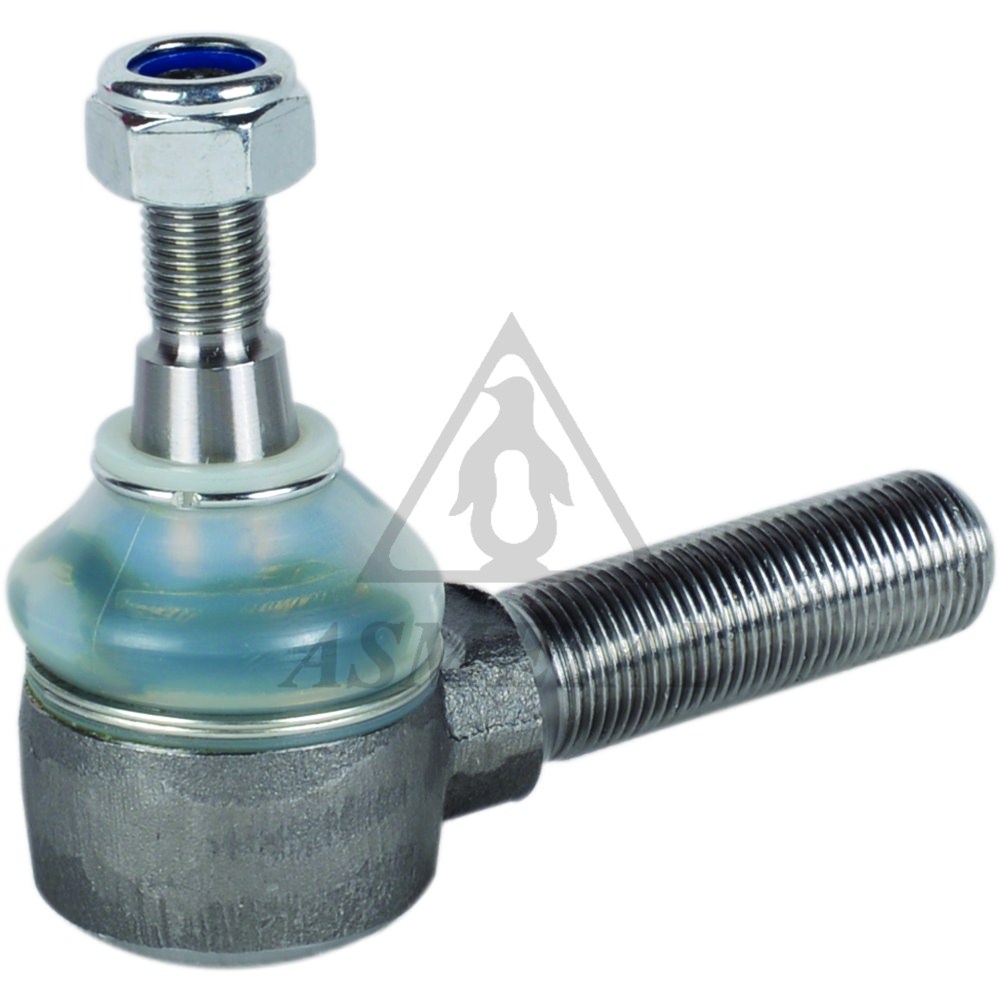

17LR0500	Tie Rod End	L:87 cr:1/5 c:Ø14 tp:M12x1.25 th:FM18x1.5 LHT / 0,43 kg	QFS 000010, QFS 100060 (1) OEM
17LR0600 NEW	Tie Rod End	0,96 kg	TIQ 000030, QJB 500050 (2) OEM

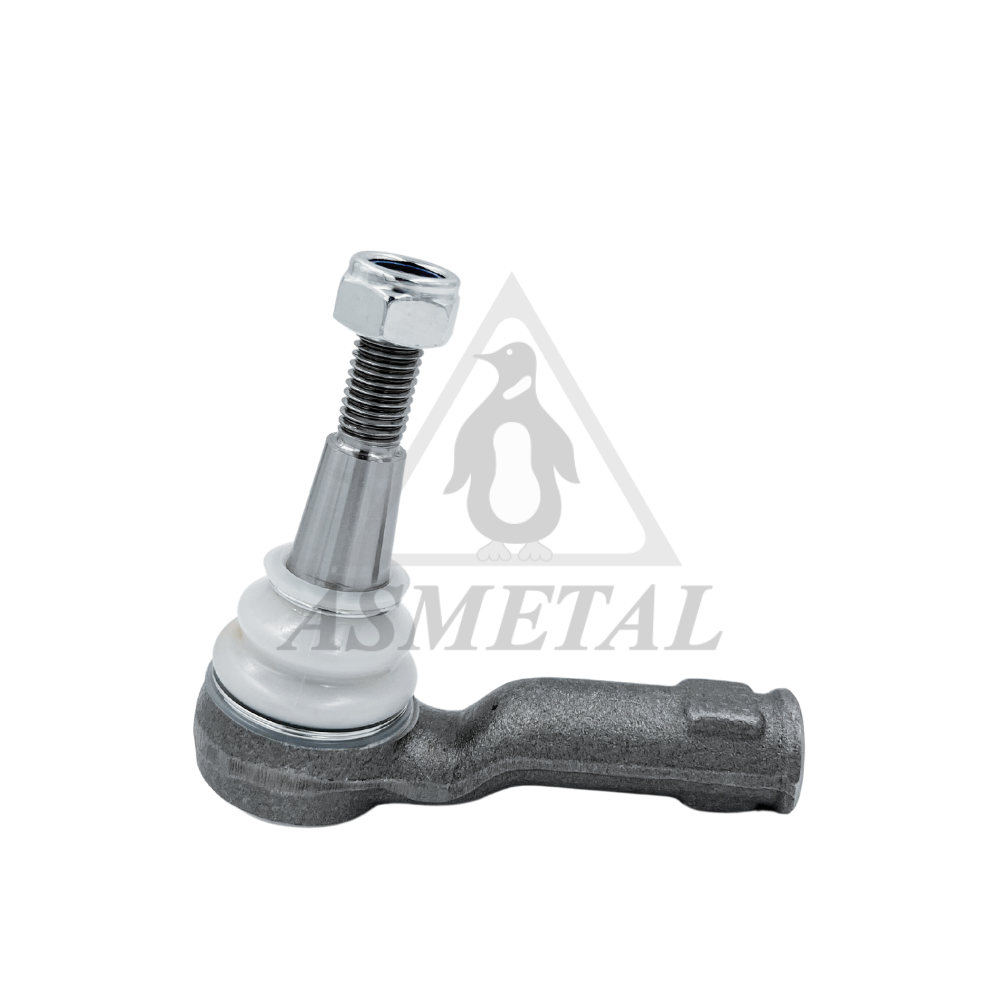

17LR1900	Tie Rod End	L:105 cr:1/6 c:Ø16.5 tp:M14x2 th:FM16x1.5 RHT / 0,68 kg	QJB 500070, LR0 10676
17LR1920	Tie Rod End	L:105 c:Ø16.8 tp:M12x1.75 th:FM16x1.5 RHT / 0,6 kg	QJB 500040, LR0 10675
17LR2000 IN PREPARATION	Tie Rod End Left	0 kg	T4N 20185, BJ3 23C437 AA (1) OEM
17LR2001 IN PREPARATION	Tie Rod End Right	0 kg	BJ3 23C367 AA, T4N 20184 (1) OEM
17LR4614 IN PREPARATION	Tie Rod End		LR0 59261, FPL A3C437 AA
17LR6020 IN PREPARATION	Tie Rod End	0 kg	LR0 33534, CPL A3C437 AA
17LR9000 IN PREPARATION	Tie Rod End		NRC 6007, NTC 1886 (2) OEM
20LR0600 NEW	Axial Joint	0,7 kg	TIQ 000040, QJB 500060 (2) OEM
20LR0610 IN PREPARATION	Axial Joint		LR0 19117, RGD 500083

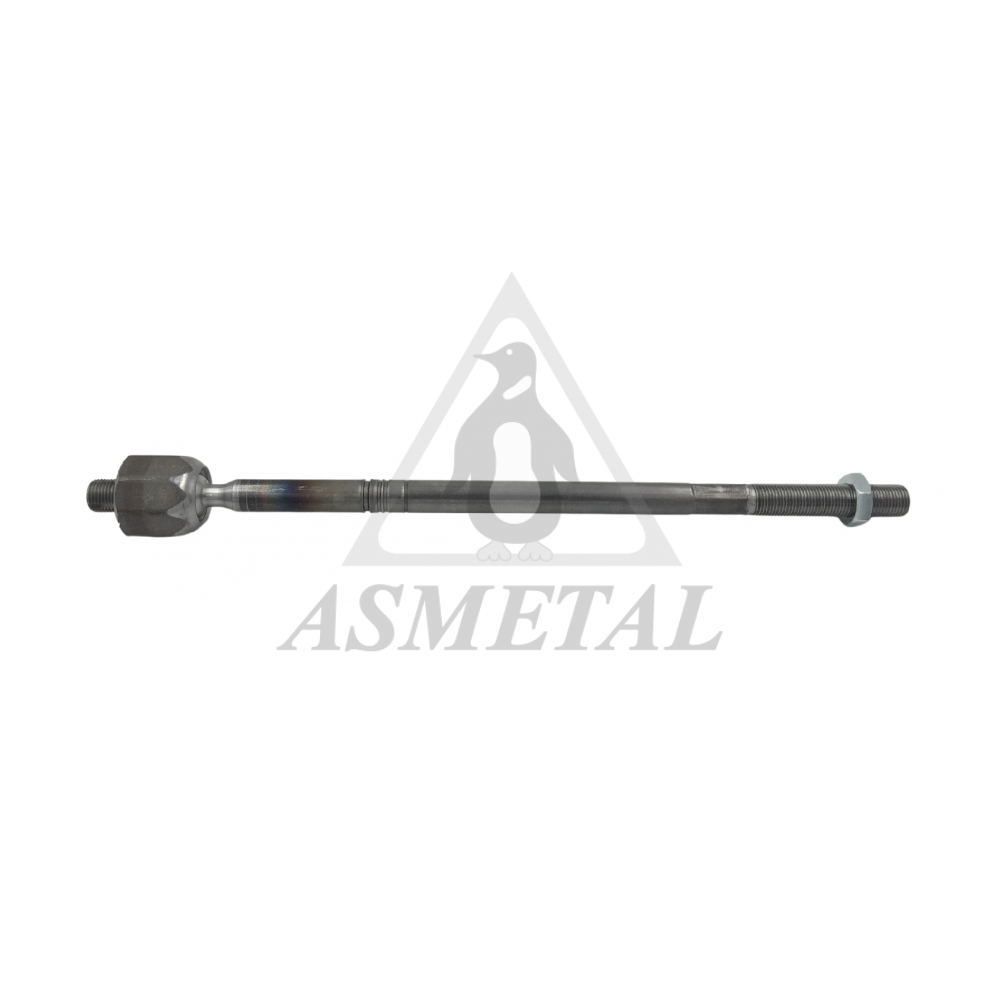

20LR1900	Axial Joint	L:366 tp:M16x1.5 th:MM16x1.5 RHT / 0,84 kg	QFK 500030

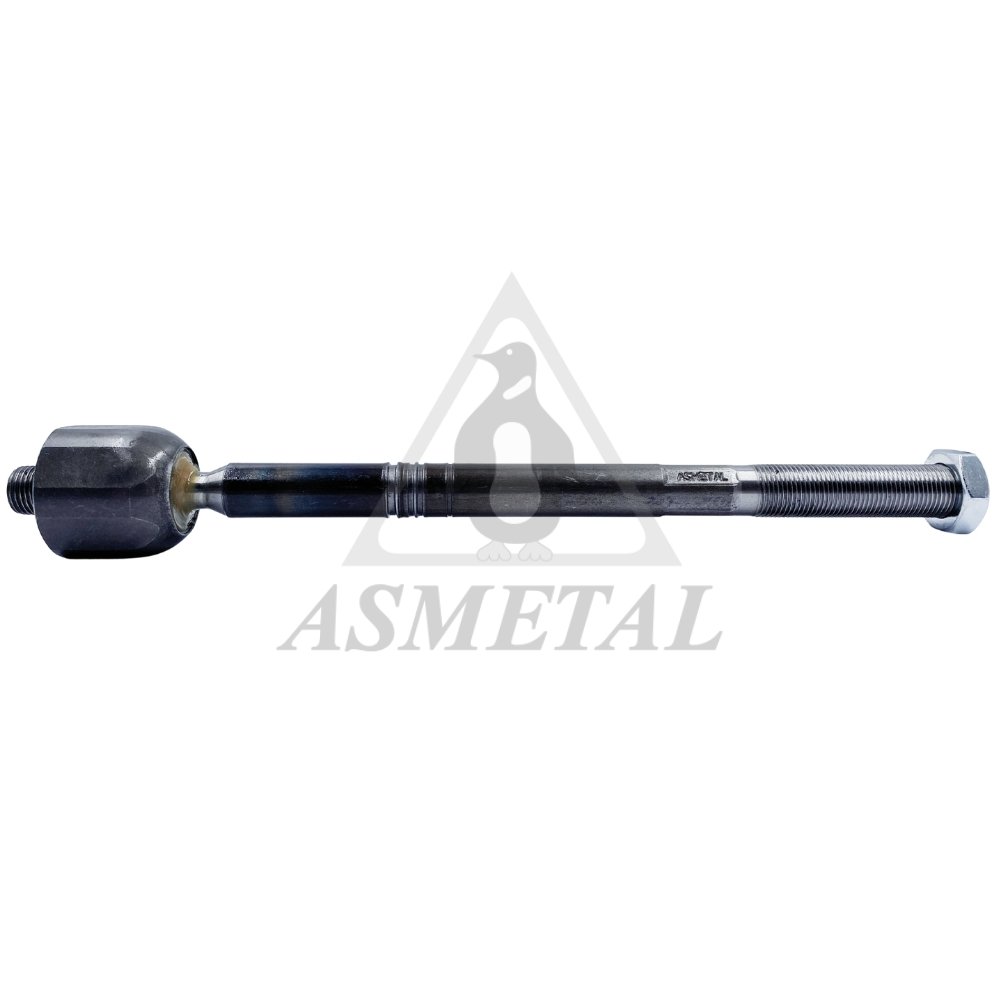

20LR2000 IN PREPARATION	Axial Joint		J9C 7533, JJ3 23L 519 AA (3) OEM

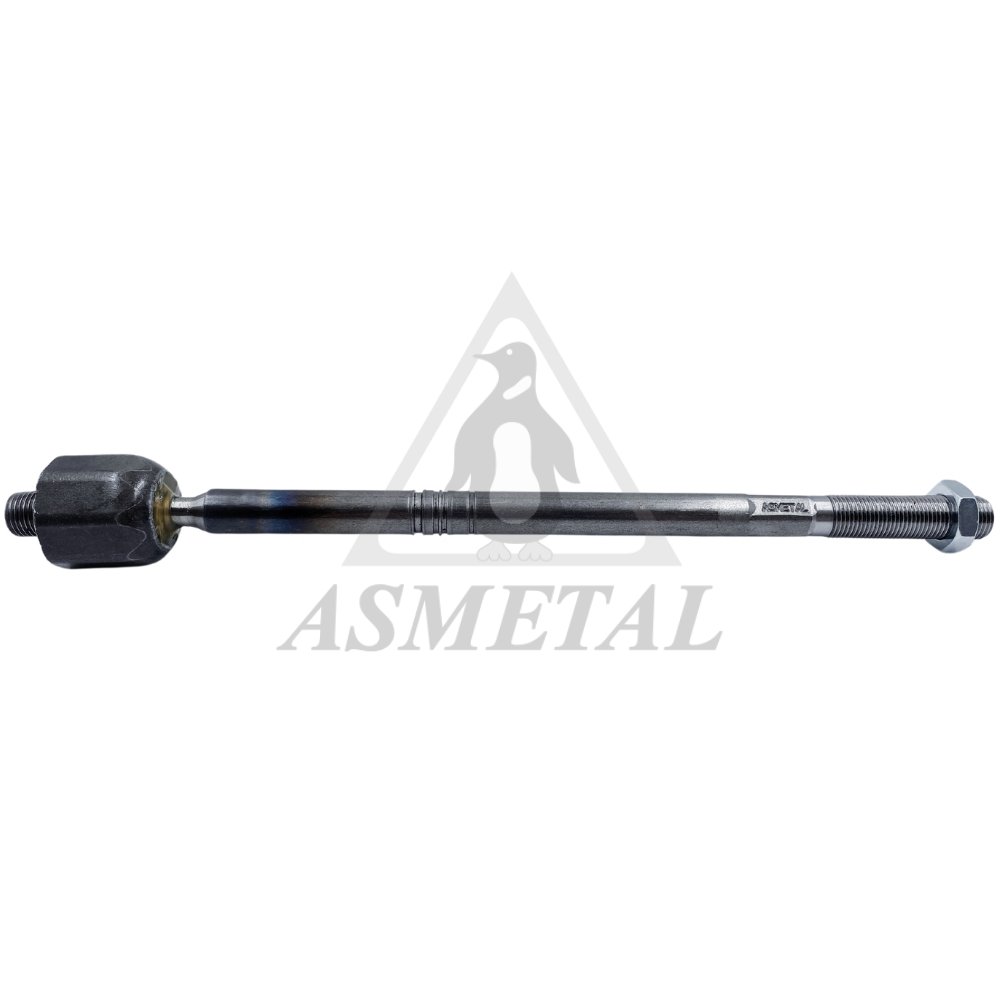

20LR4624	Axial Joint	L:322 tp:M16x1.5 th:MM16x1.5 RHT / 0,78 kg	LR0 59264*, FPL A3L519 AA
20LR6024 IN PREPARATION	Axial Joint	0 kg	LR0 33529, CPL A3L519 AA

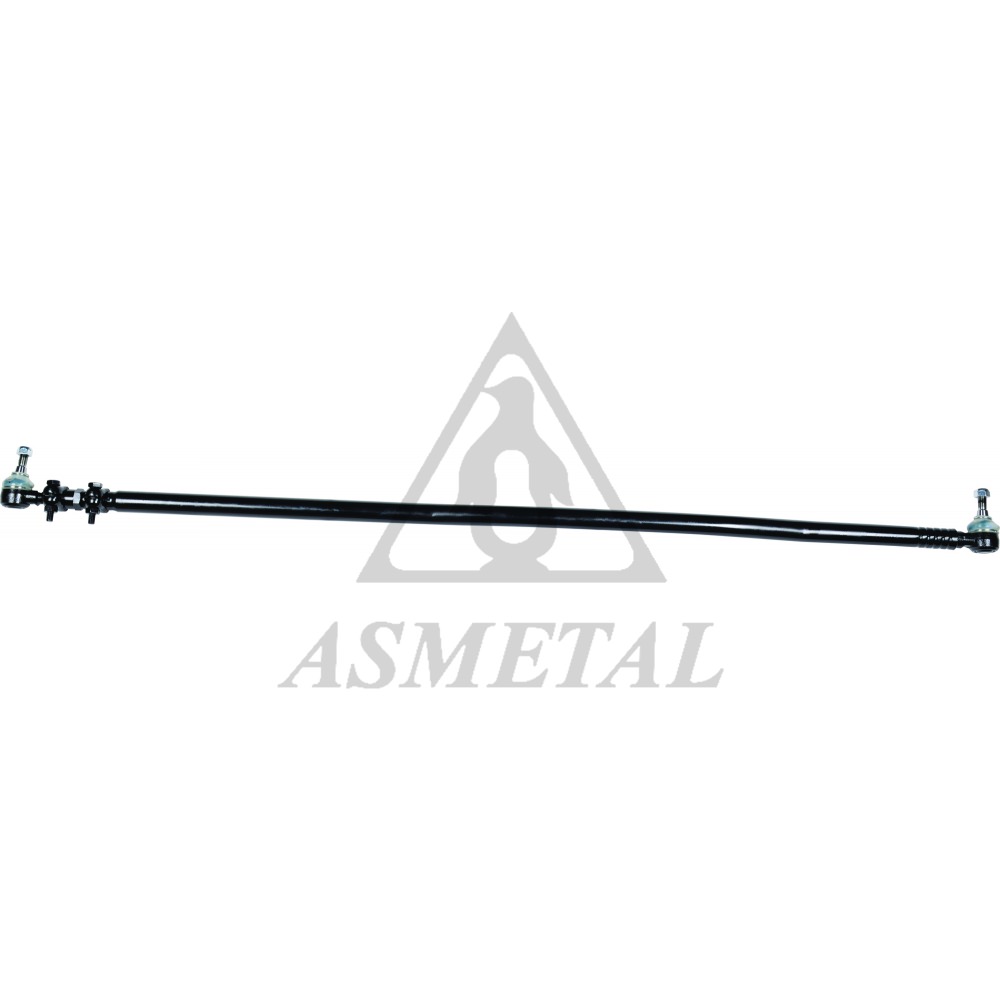

22LR0500 OUT OF SERVICE	Center Rod	th1:M12x1.25 RHT / 5,4 kg	ANR3826, TIQ000020

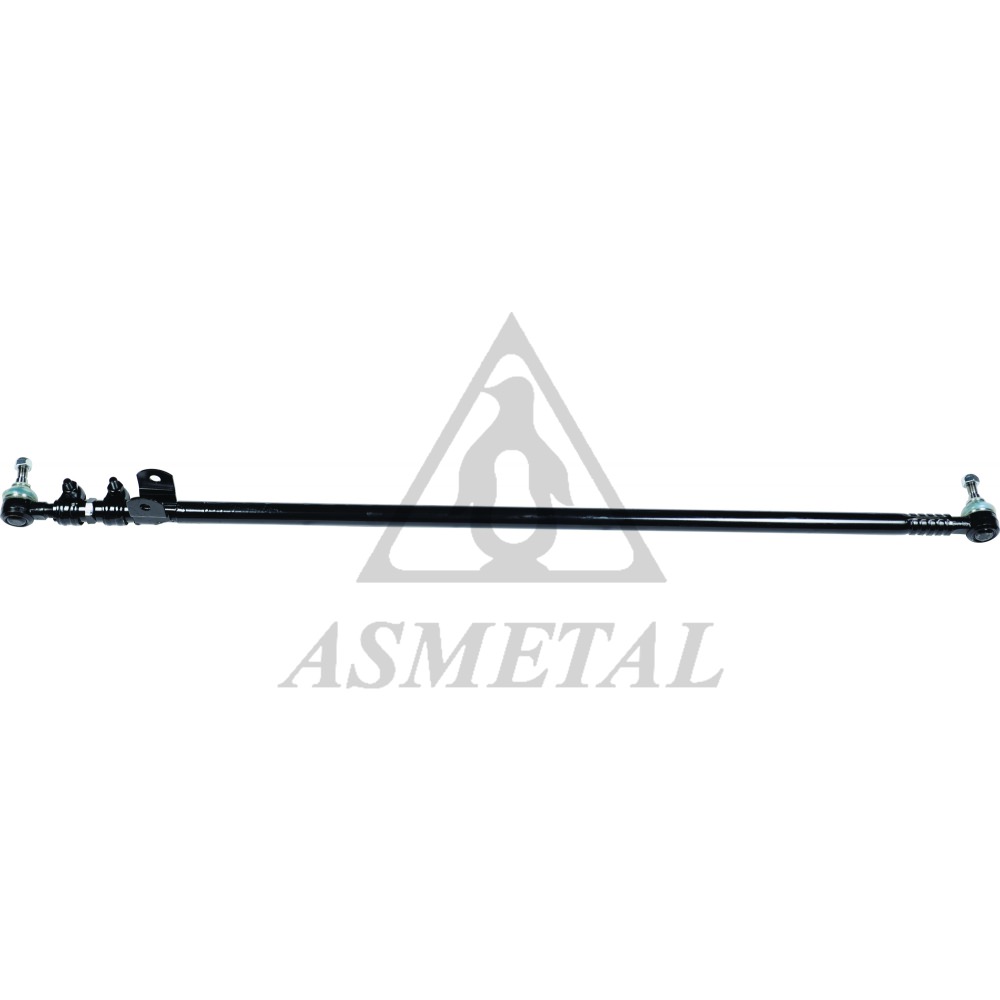

22LR0505 OUT OF SERVICE	Tie Rod	th1:M12x1.25 RHT / 4,2 kg	QHG 000070, ANR 3825
22LR0610 IN PREPARATION	Tie Rod		LR0 19117, RGD 500083 (1) OEM
23LR0670 IN PREPARATION	Track Control Arm Rear	0 kg	RGD 500180, RGD 500100 (2) OEM

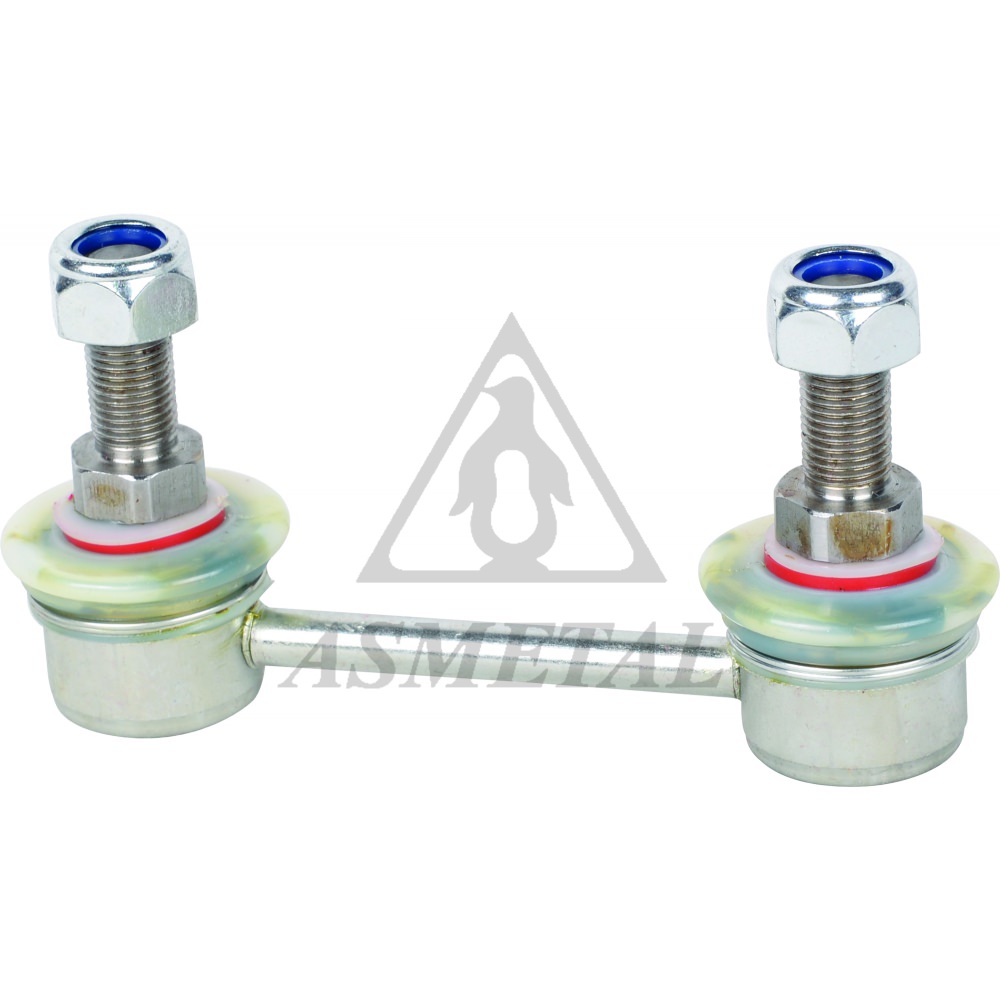

26LR0500	Stabiliser Link	L:98 tp:M12x1.25 RHT / 0,4 kg	ANR 3304

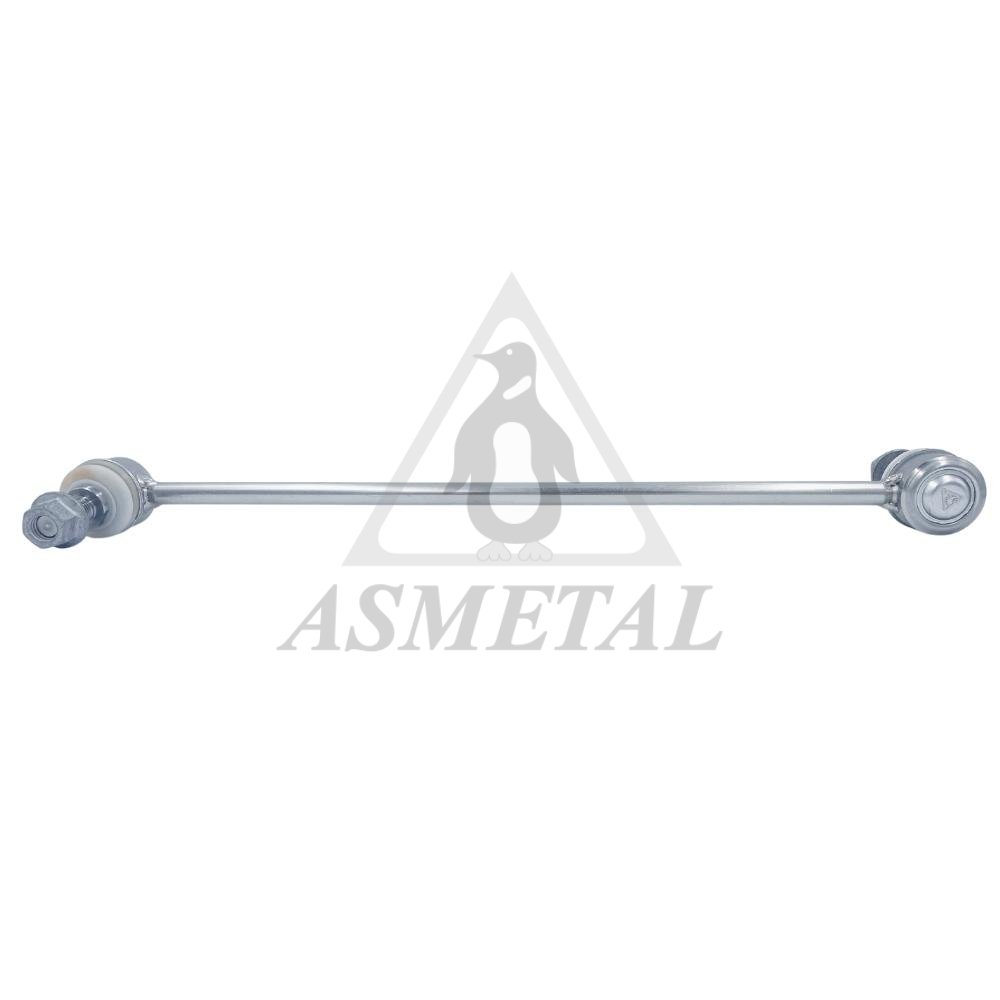

26LR0600	Stabiliser Link	L:380 tp:M12x1.5 RHT / 0,7 kg	LR0 30047, RBM 000011 (5) OEM

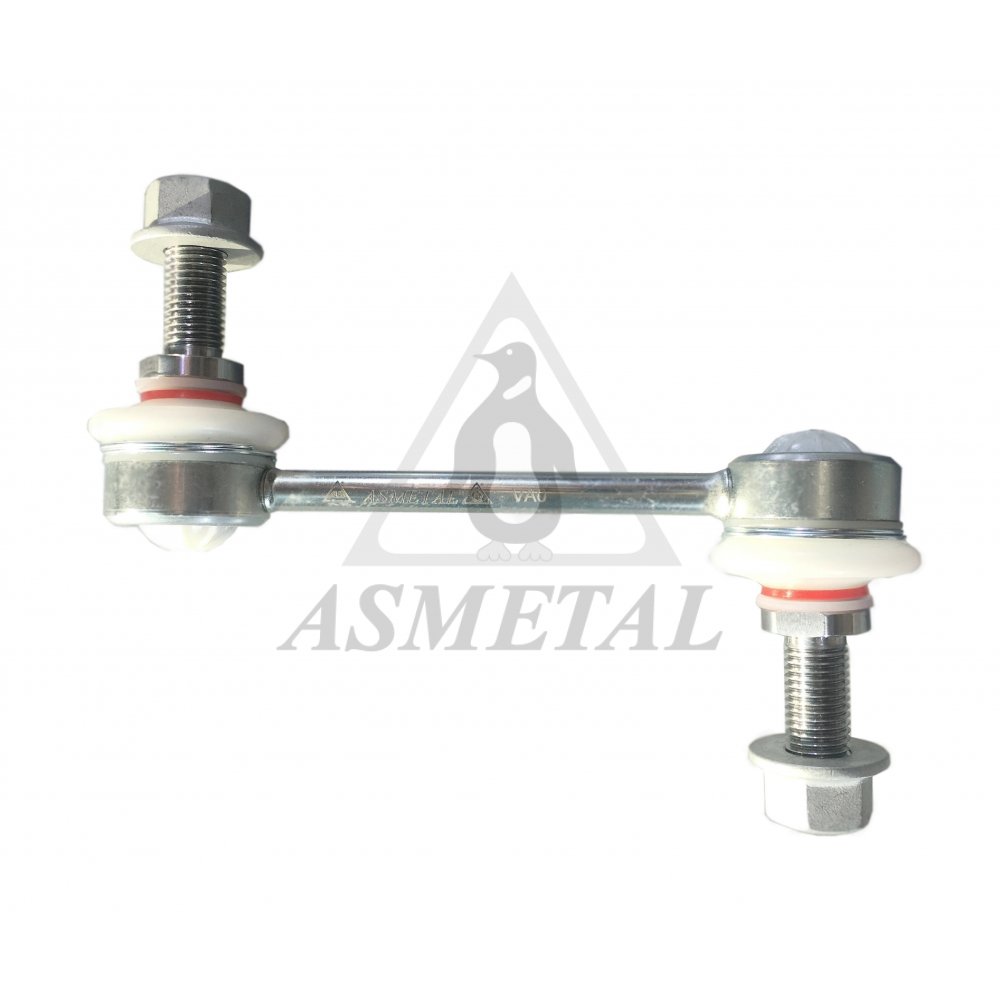

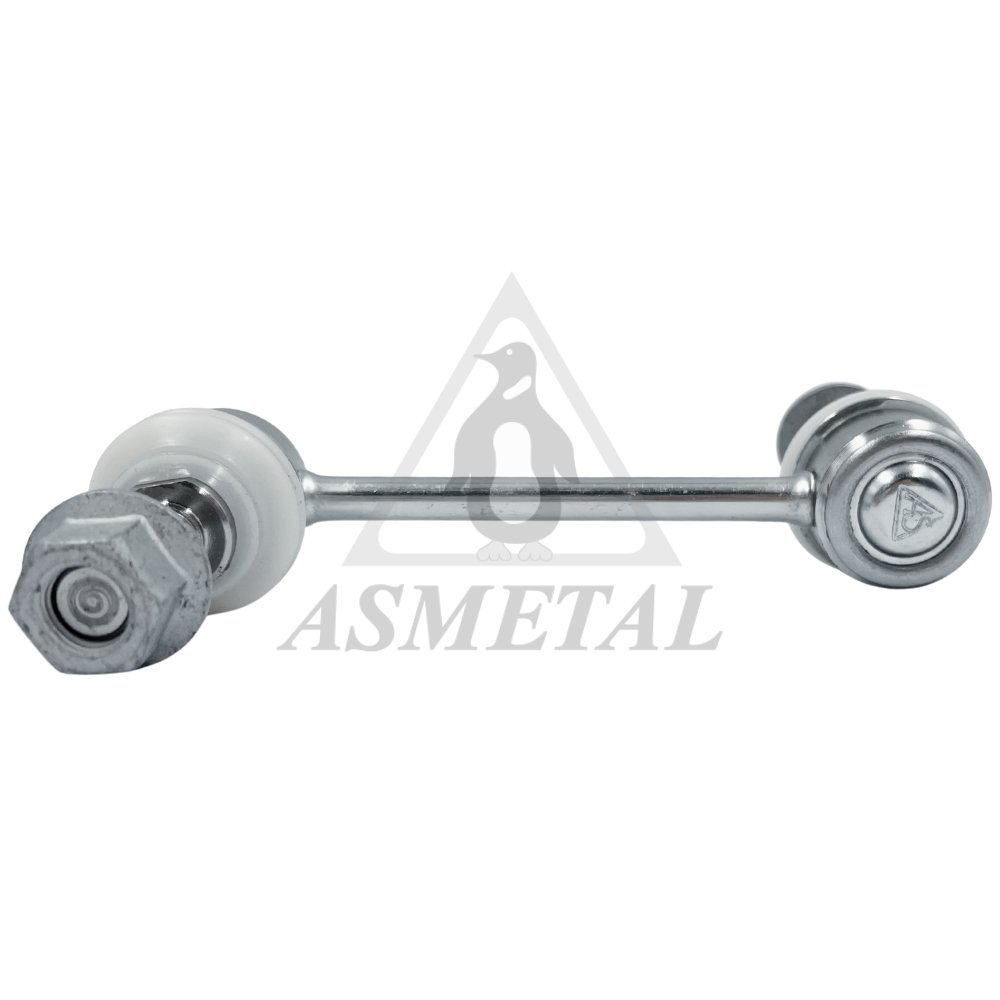

26LR0610	Stabiliser Link Rear	L:120 tp:M12x1.5 RHT / 0,34 kg	RGD 500131, RGD 000130 (5) OEM

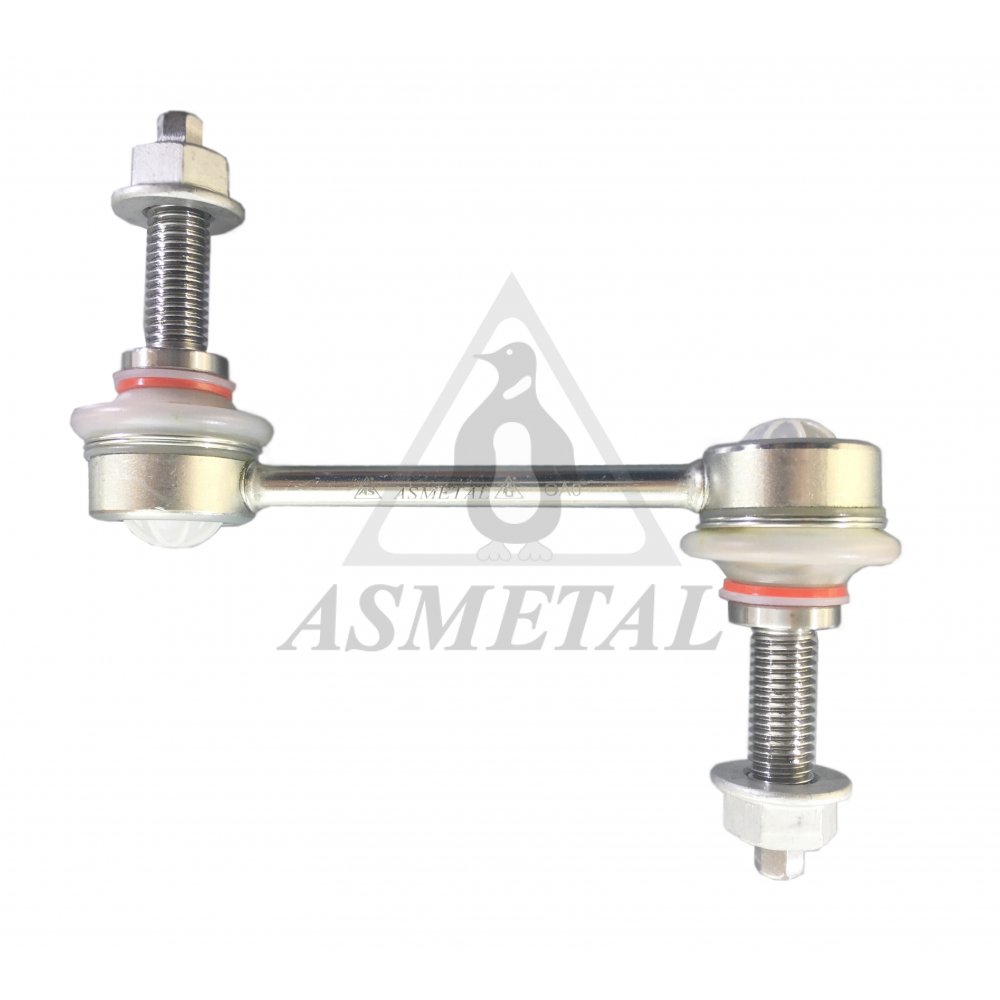

26LR0710	Stabiliser Link Rear	L:116.8 tp:M12x1.75 RHT / 0,36 kg	RGD 000312, RGD 000311

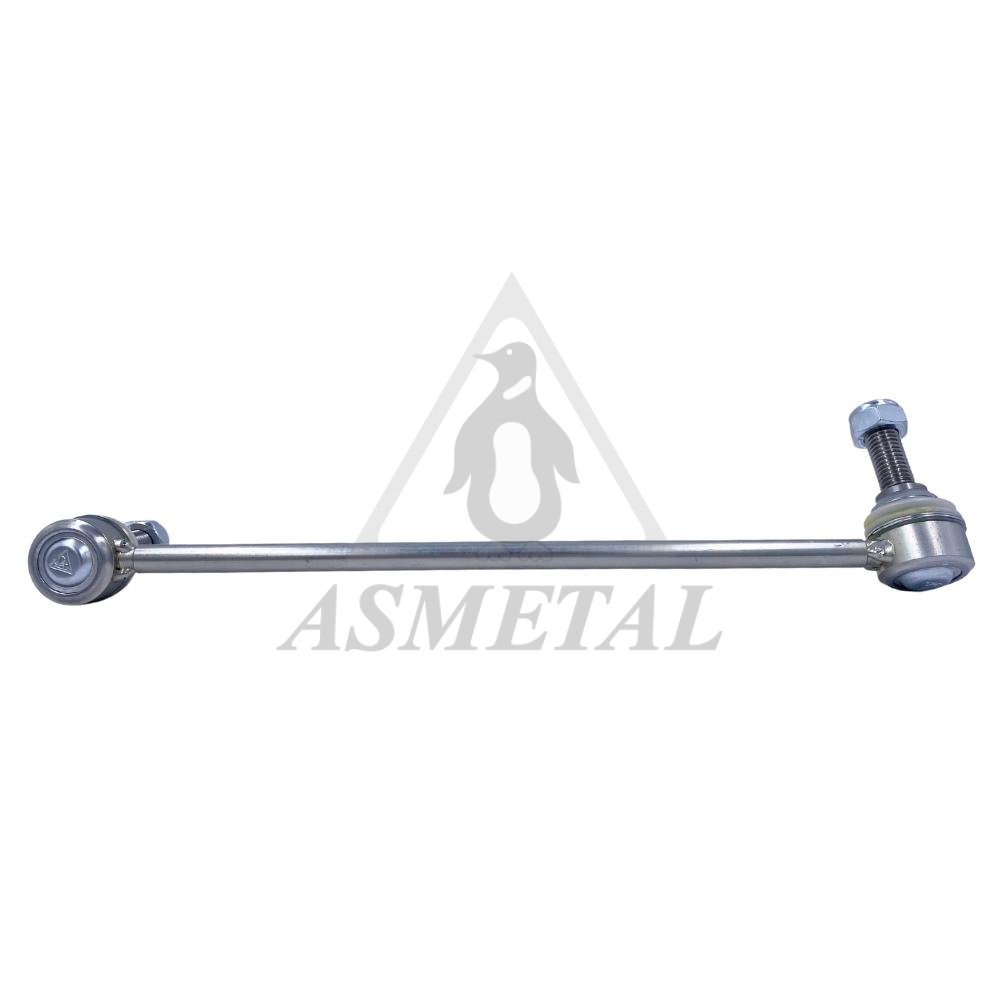

26LR1900	Stabiliser Link Left	L:345 tp:M14x2 RHT / 0,74 kg	RBM 500150

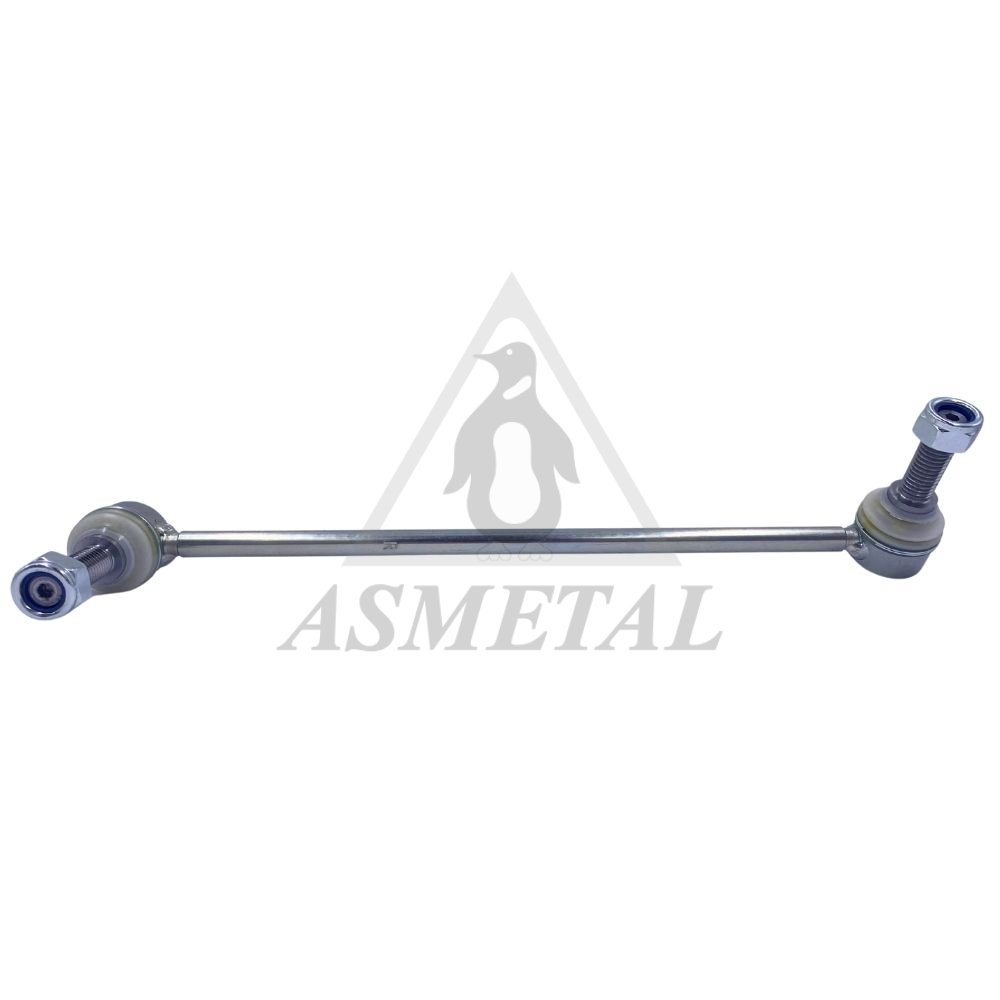

26LR1901	Stabiliser Link Right	L:345 tp:M14x2 RHT / 0,74 kg	RBM 500140
26LR2000	Stabiliser Link	L:320 tp:M10x1.25 RHT / 0,5 kg	J9C 1154, LR0 24474
26LR2010	Stabiliser Link Rear	L:229 tp:M10x1.5 RHT / 0,36 kg	LR0 02876, 6H525C486AB
26LR6000 IN PREPARATION	Stabiliser Link		LR0 35489

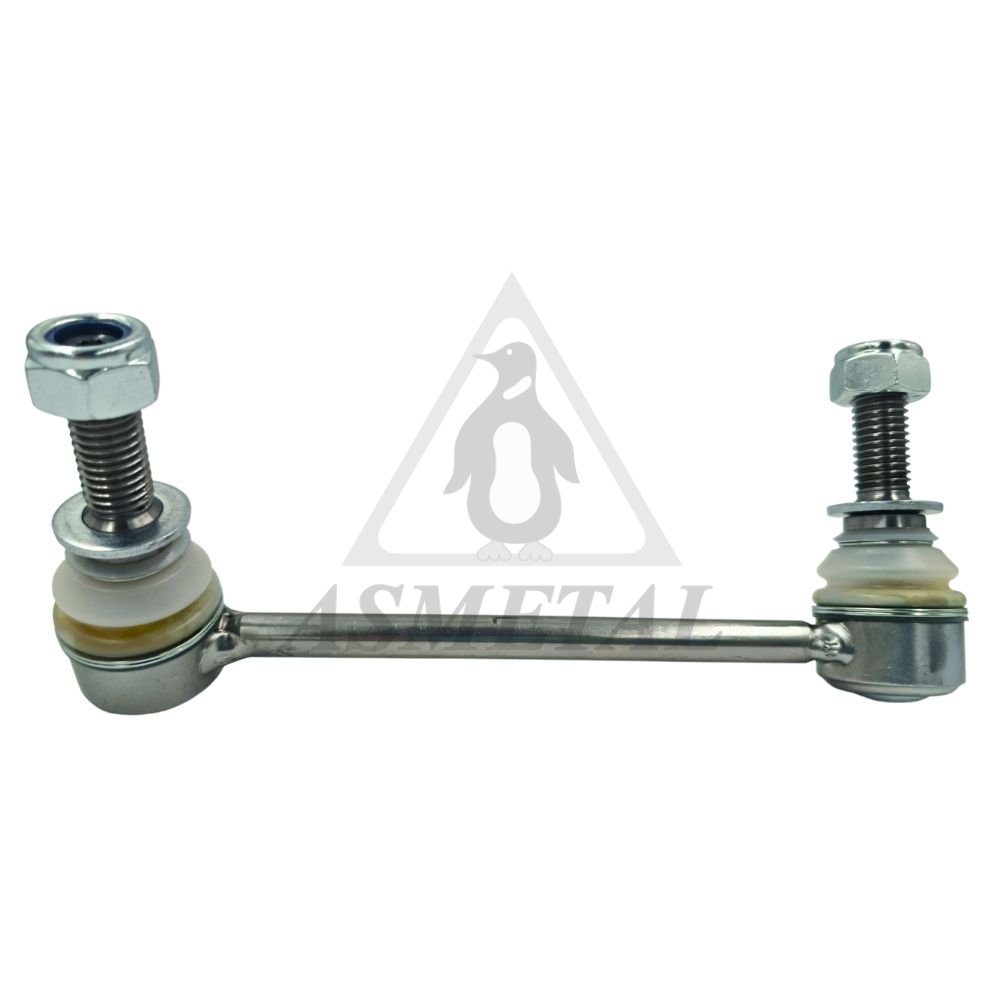

26LR6020	Stabiliser Link Rear Left	L:184 tp:M14x2 RHT / 0,62 kg	LR0 33243, LR0 48093

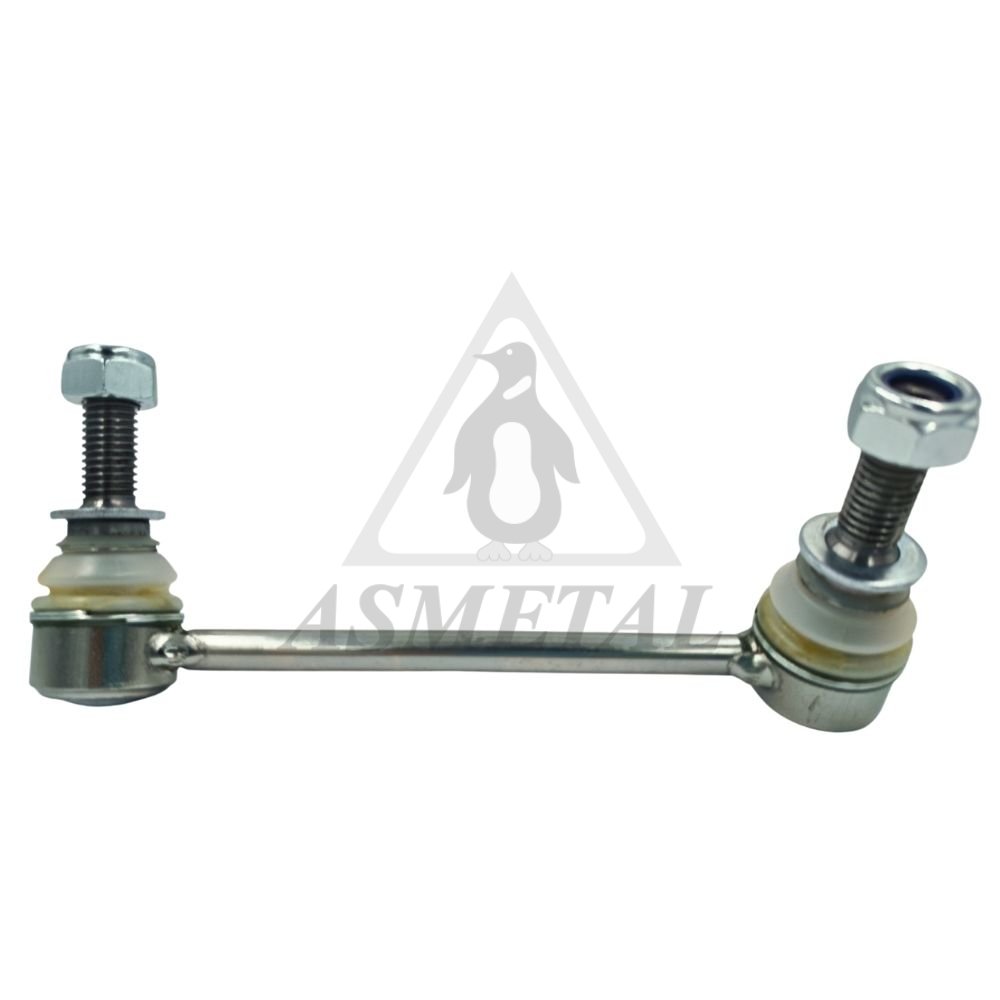

26LR6021	Stabiliser Link Rear Right	L:184 tp:M14x2 RHT / 0,62 kg	LR0 48092, LR0 33242
26LR6150 IN PREPARATION	Stabiliser Link Rear	0 kg	T4A 2038, HK83 5D498 A (2) OEM
38FR2232	Stabiliser Mounting	L:48 di:Ø22 / 0,1 kg	1 469 020, 1 453 257 (10) OEM

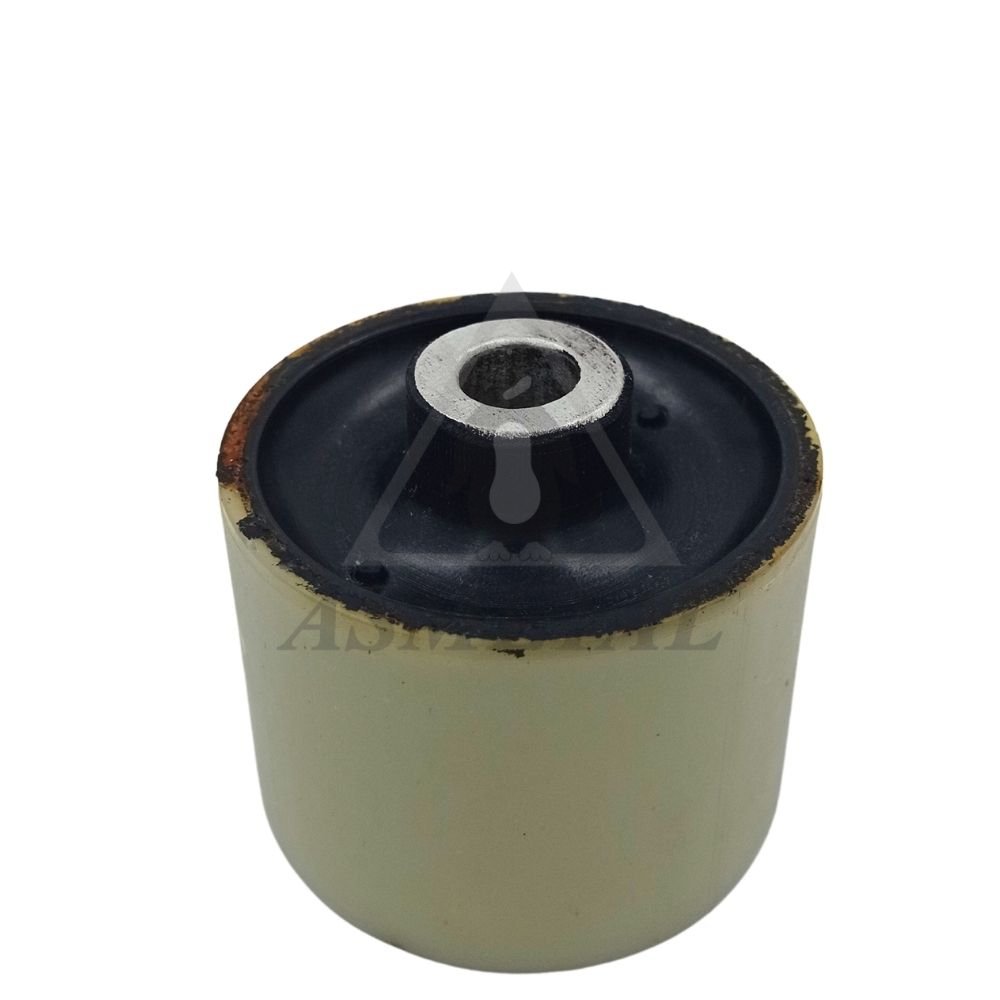

38LR0500	Silentblock for TCA	L:65 di:Ø12.2 do:Ø61.6 / 0,19 kg	ANR 3332

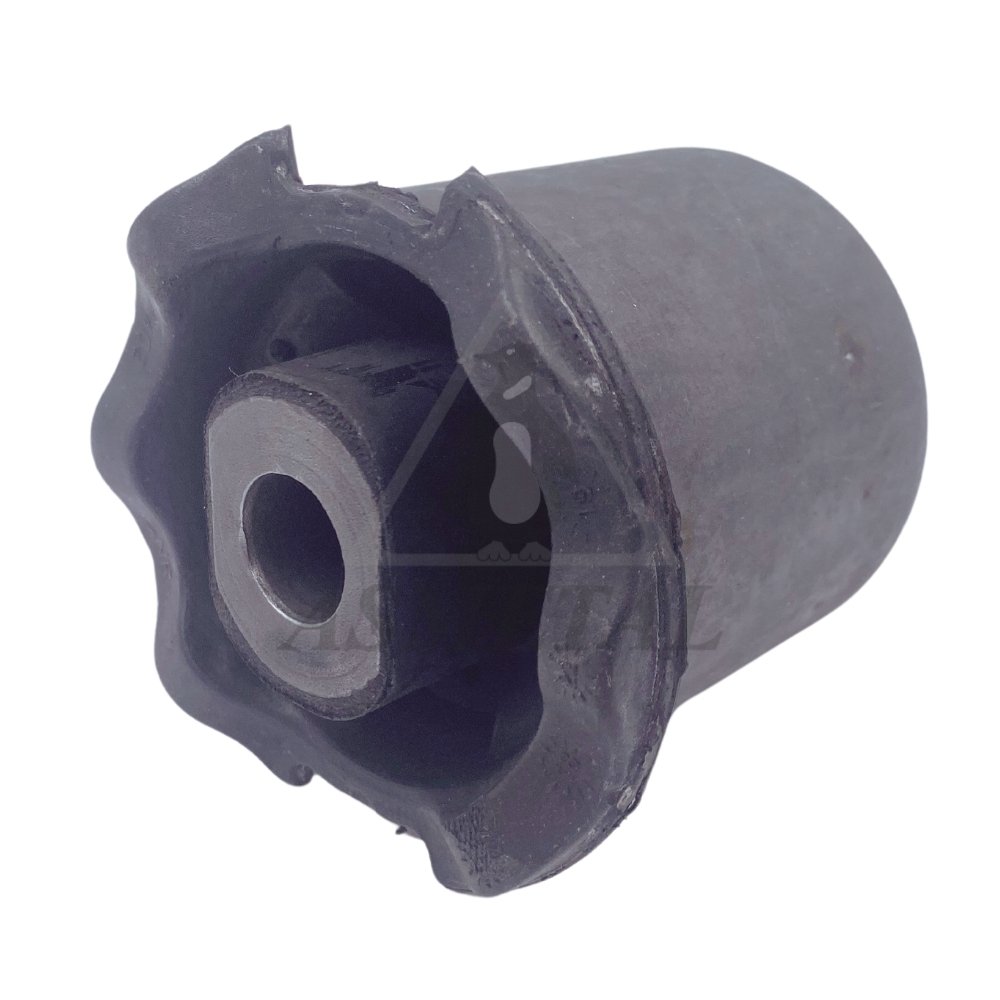

38LR0705	Silentblock for TCA	L:83 di:Ø16.2 do:Ø71 / 0,89 kg	LR0 23715, LR0 25986 (2) OEM
38LR2000	Silentblock for TCA	L:90 / 2,122 kg	J9C 13931, J9C 13932 (10) OEM
