ASMETAL Catalogue

MAGIRUS-DEUTZ (9 Quantity)

ASMETAL No	Product Description	Dimensions	Oem No

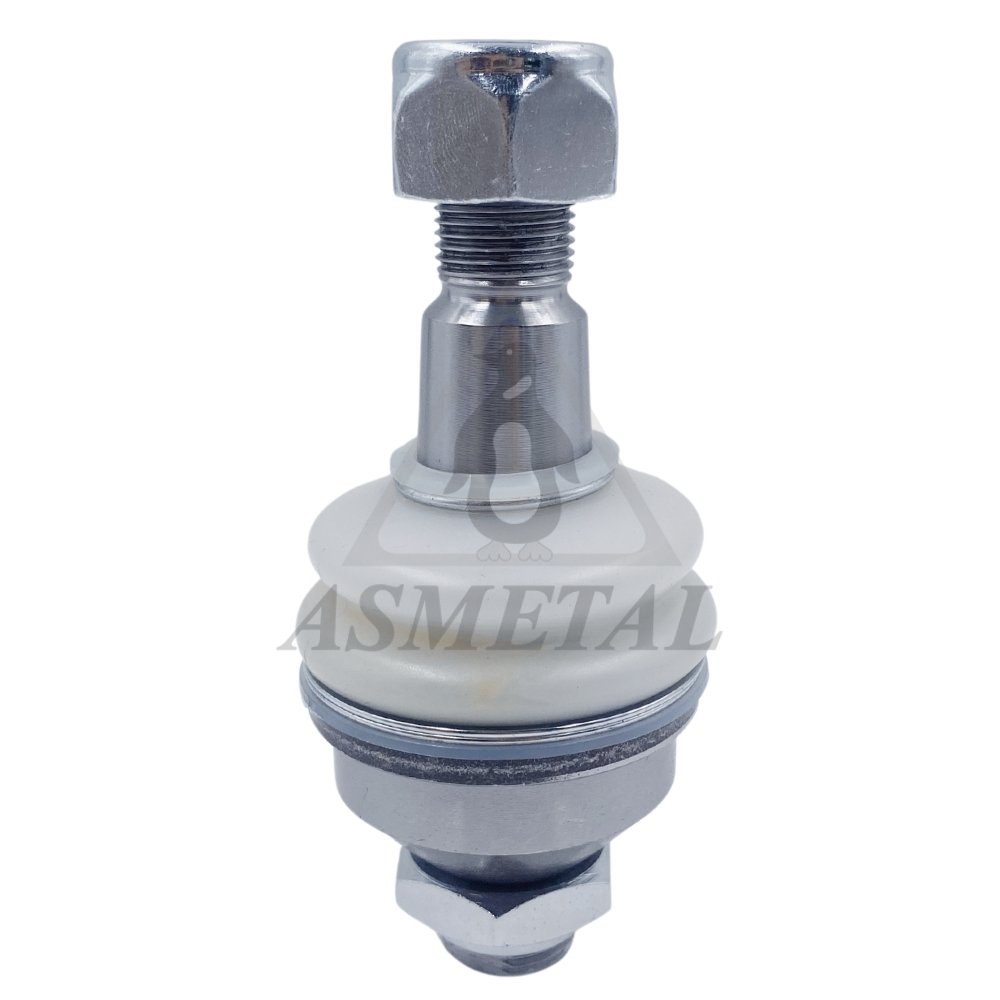

10IV40	Ball Joint	tp:M18x1.5 RHT cr:1/10 c:Ø21.4 do:Ø48 / 0,73 kg	93 802 242, 93 807 320 (5) OEM

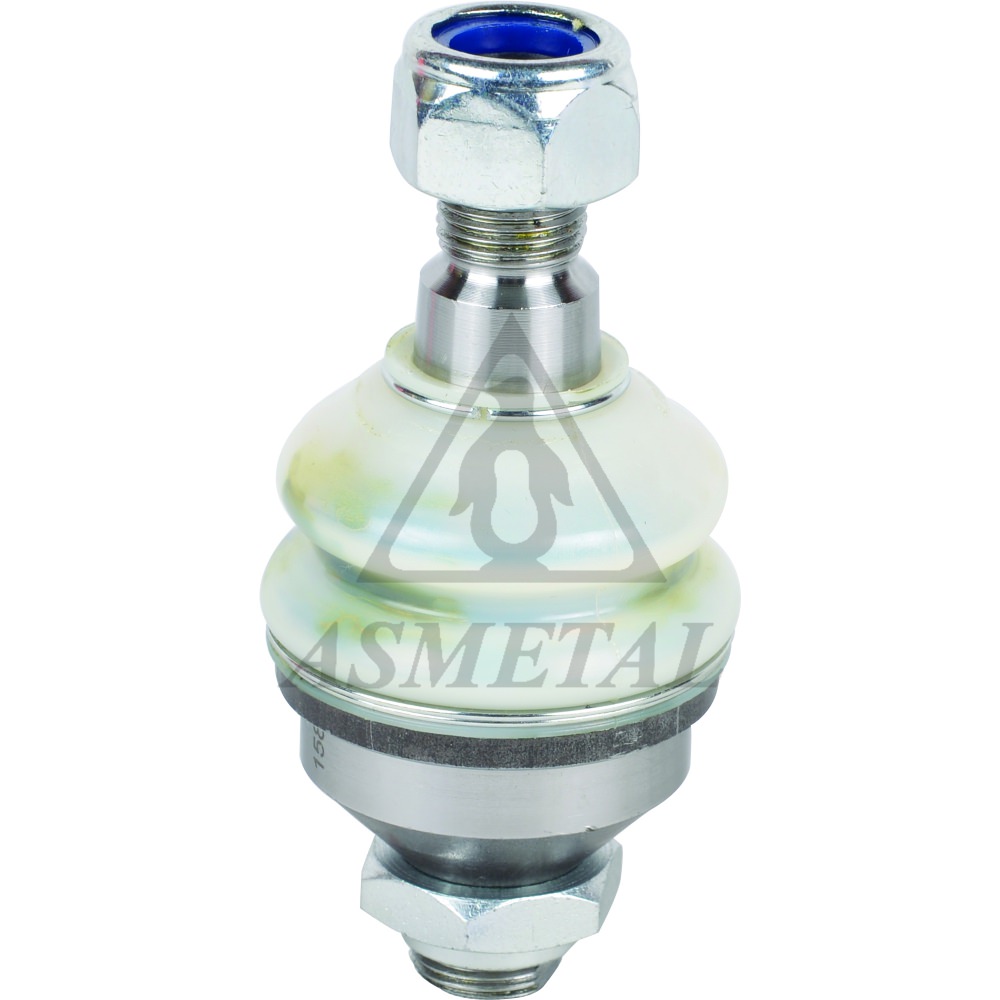

10MG0500 OUT OF SERVICE	Ball Joint	th:M18x1.5 RHT cp:1/10 cs:Ø21,4 do:Ø48 / 0 kg

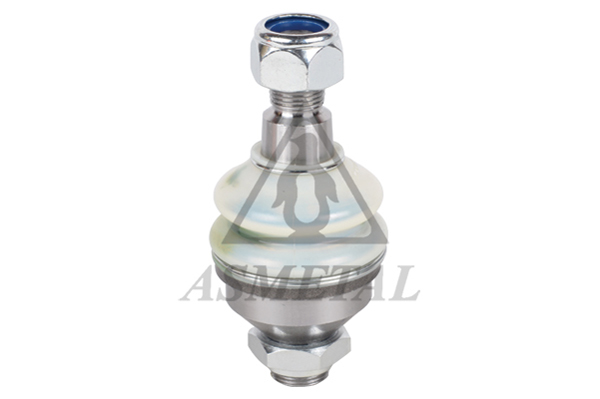

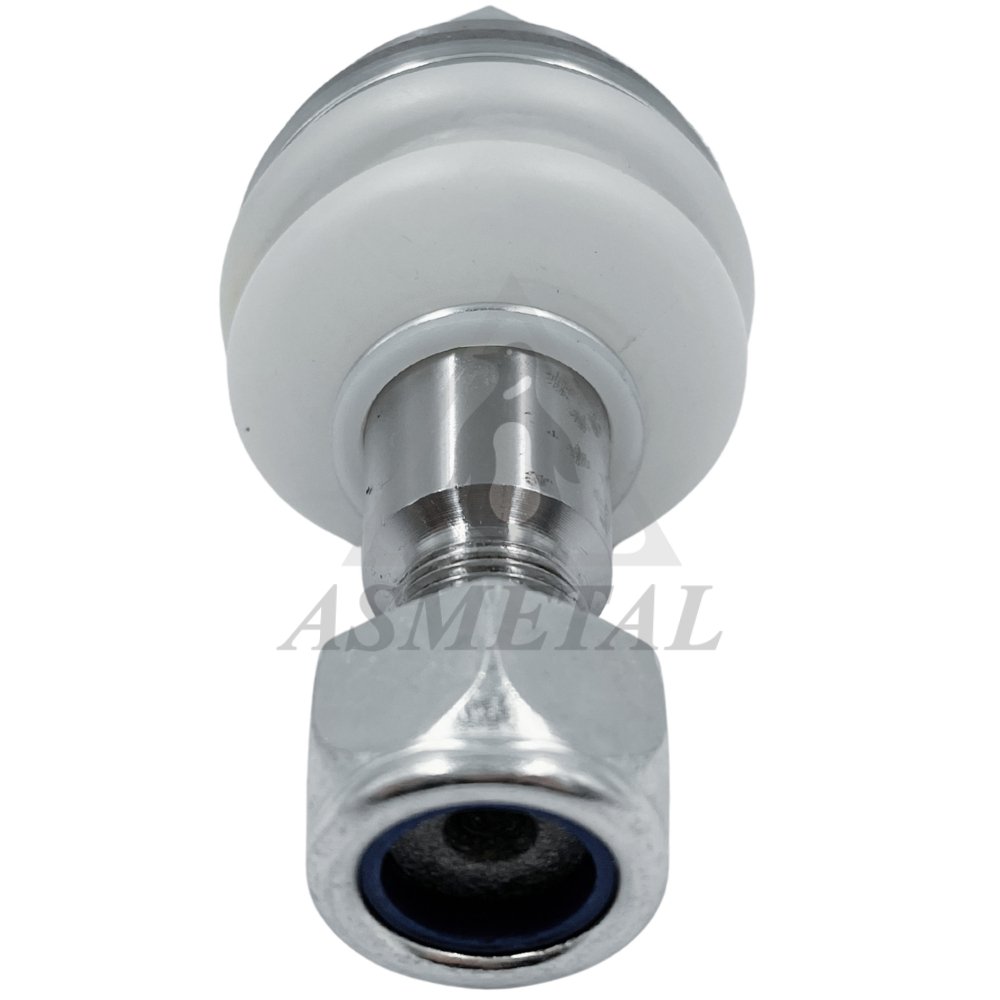

10MG0510	Ball Joint	th:M18x1.5 RHT cr:1/10 c:Ø22.07 tp2:M20x1.5 RHT / 0,74 kg	10MG0510

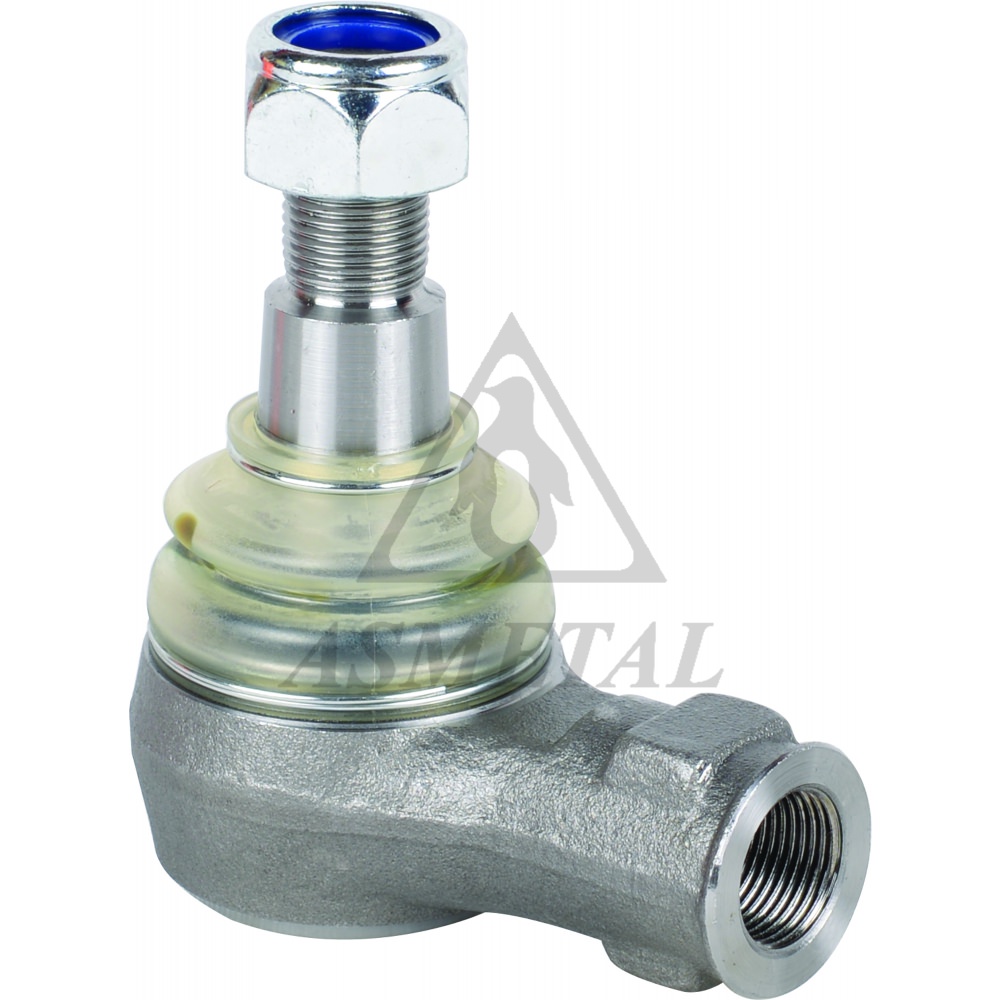

17MG0510	Tie Rod End	L:71 cr:1/8 c:Ø17.2 tp:M16x1.5 th:MM24x1.5 LHT / 0,98 kg	17MG0510

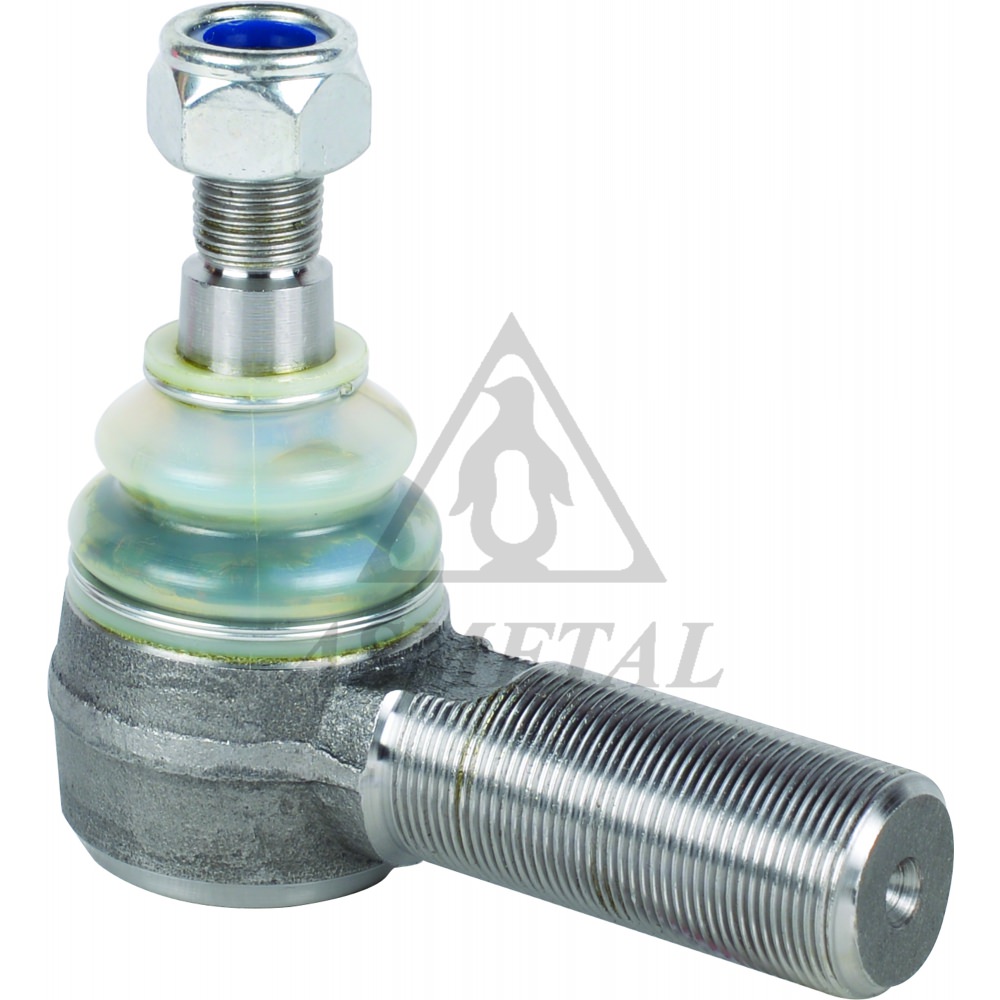

17MG1030	Tie Rod End Right	c:Ø18,1 th:MM28x1,5 RHT / 0,9 kg	17MG1030

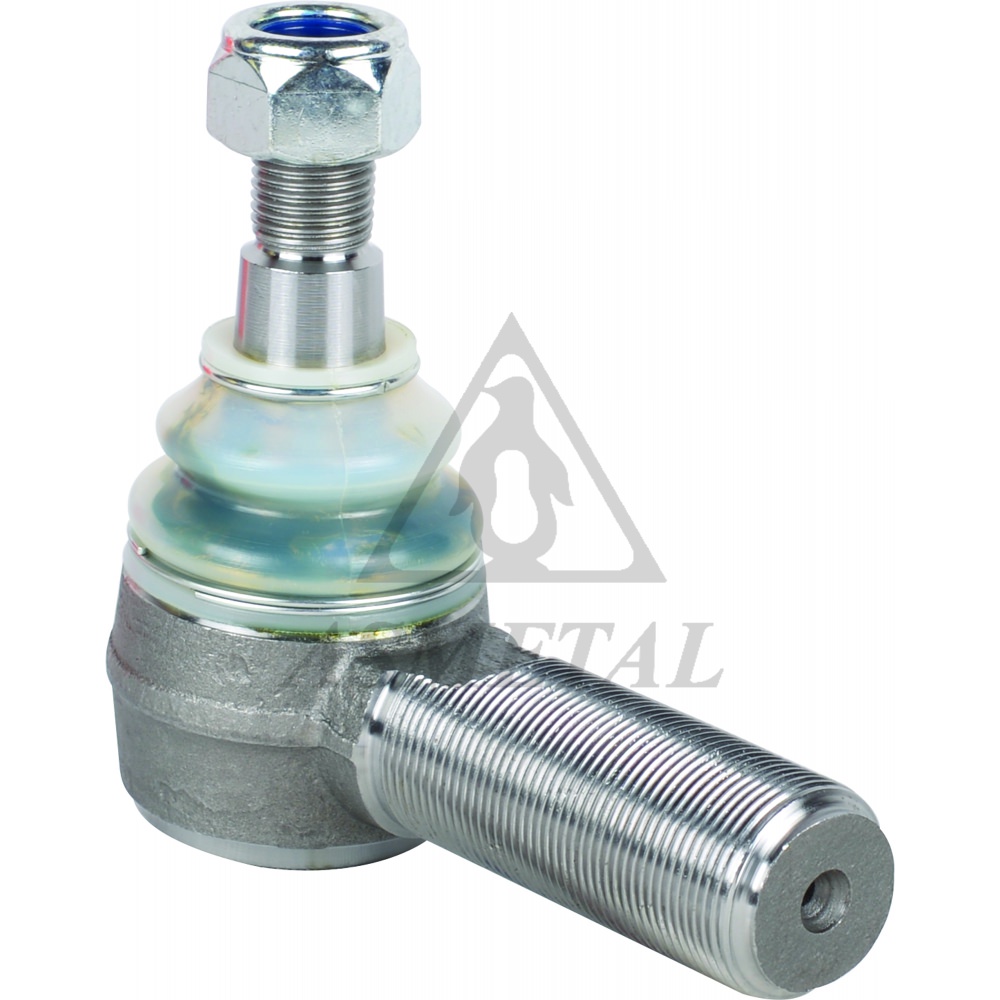

17MG1050	Tie Rod End Left	c:Ø18,1 th:MM28x1,5 LHT / 0,9 kg

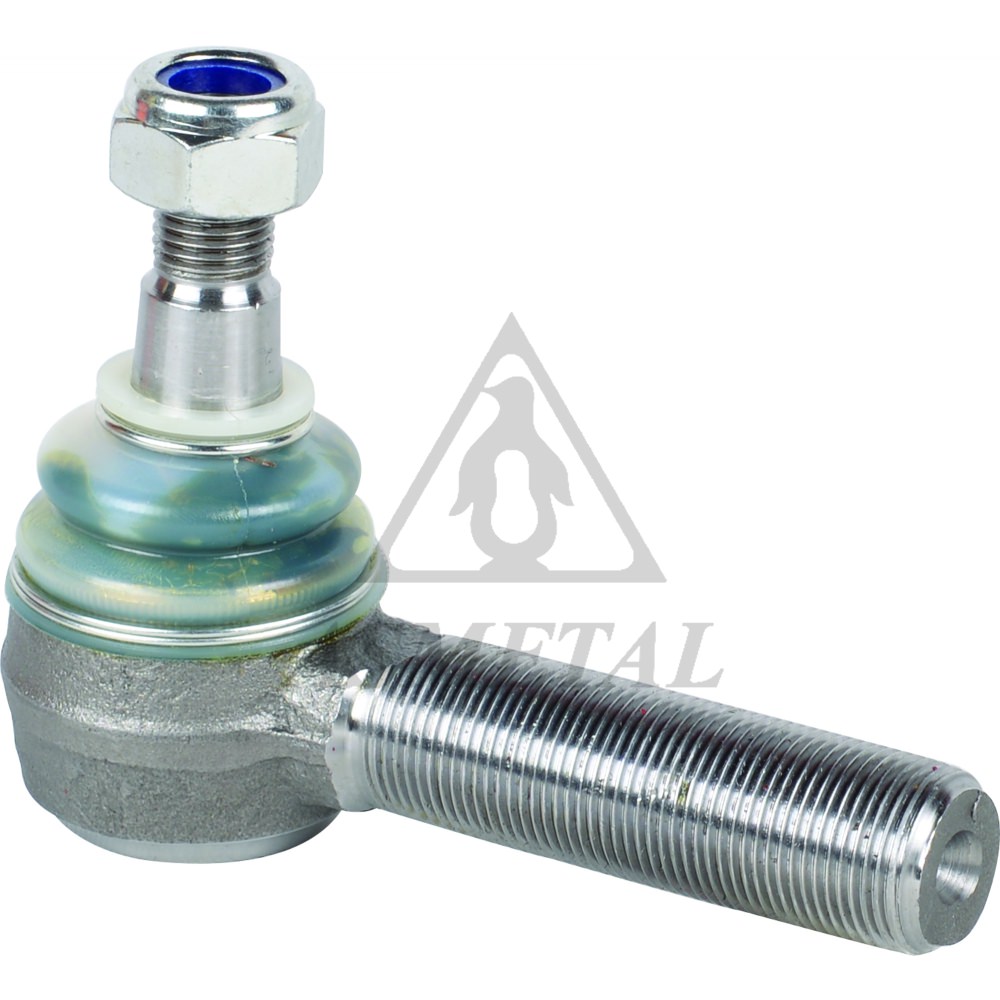

17MG2030	Tie Rod End Right	c:Ø16 / 0,64 kg

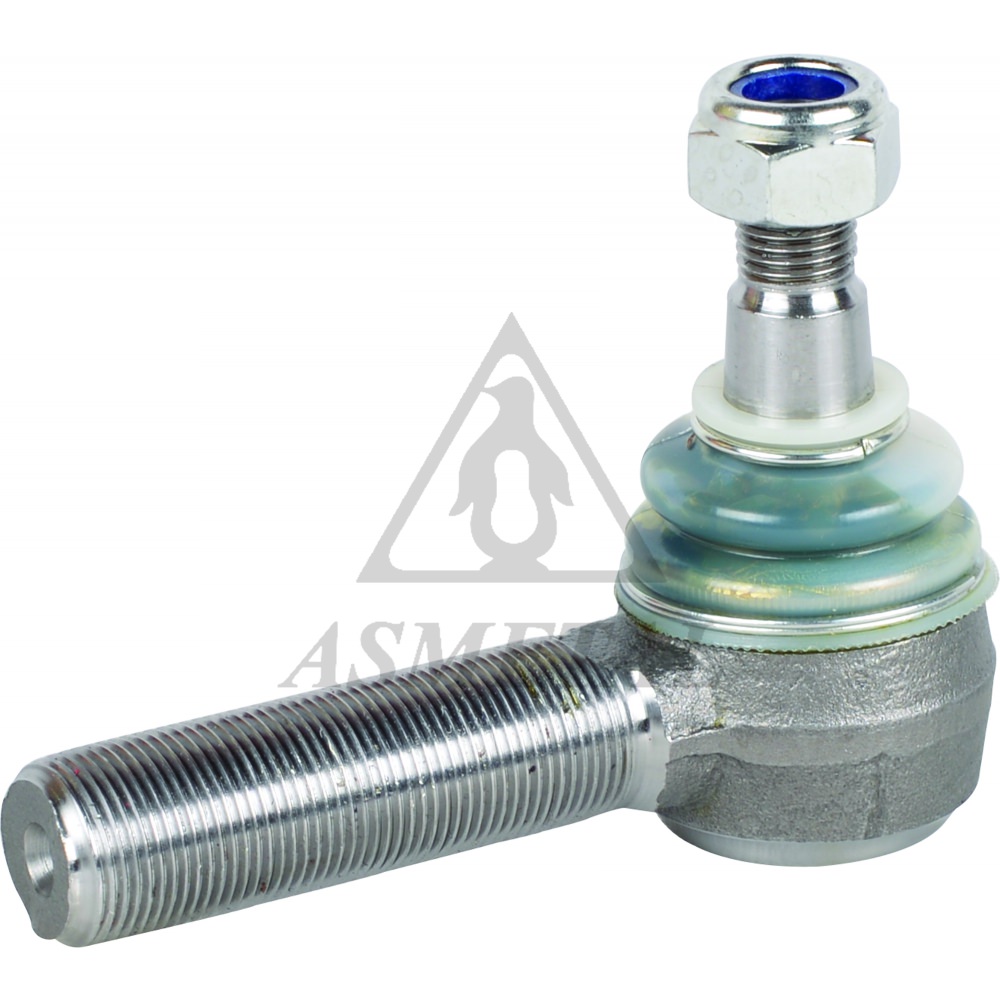

17MG2050	Tie Rod End Left	c:Ø16 / 0,64 kg

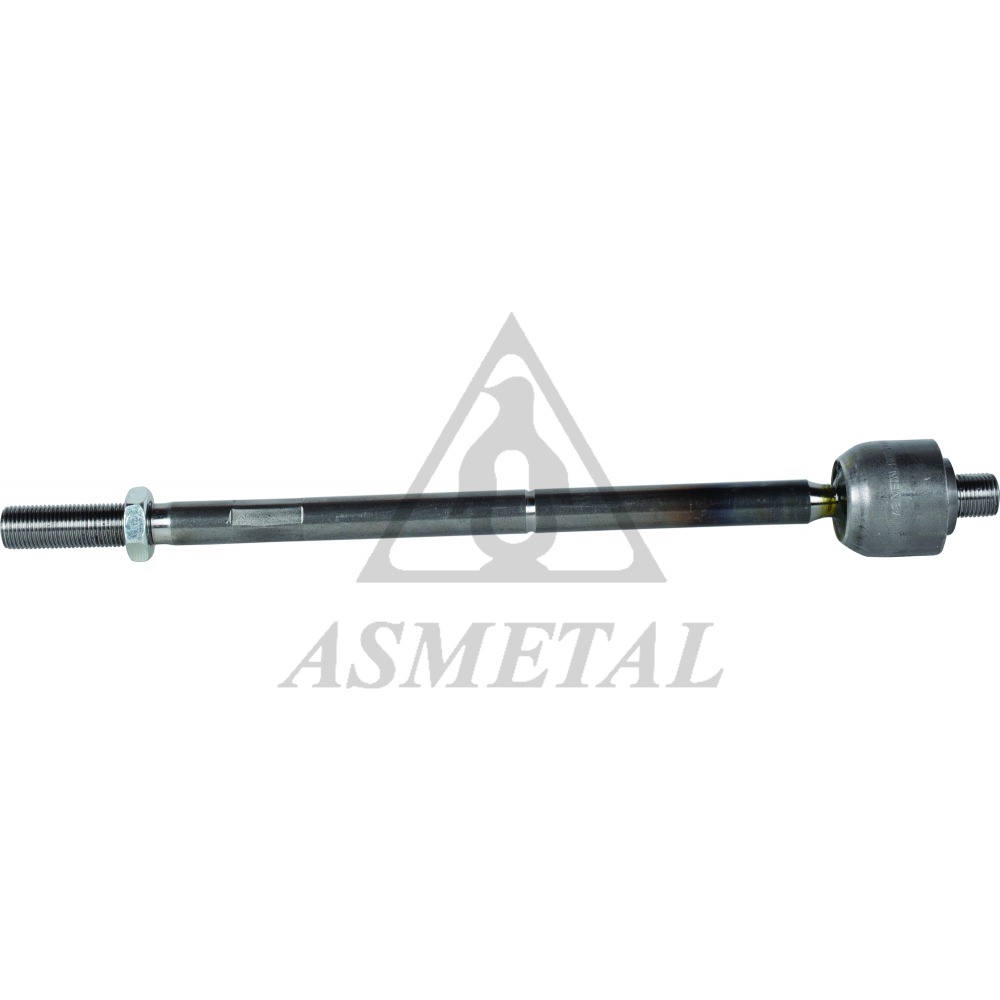

20MG0510	Axial Joint	L:341 tp:M16x1.5 th:MM16x1.5 RHT / 0,82 kg	20MG0510
