ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10MR3055	Ball Joint Lower	c:Ø18 do:Ø46.4 / 0,44 kg	124 333 01 27, A 124 333 01 27 (2) OEM
11MR00	Silentblock Bushing	di:Ø14 do:Ø40 / 0,22 kg	606 28 312, 606 28 313 (14) OEM
17MR1900	Tie Rod End	L:86 cr:1/10 c:Ø10.7 tp:M10x1 th:MM12x1.5 RHT / 0,24 kg	000 338 49 10, 000 338 63 10
17MR3030	Tie Rod End Inner	L:86 cr:1/10 c:Ø10.7 tp:M10x1 th:MM12x1.5 RHT / 0,22 kg	000 338 42 10, 000 338 44 10 (1) OEM
17MR3050	Tie Rod End Outer	L:86 cr:1/10 c:Ø10.7 tp:M10x1 th:MM12x1.5 LHT / 0,22 kg	000 338 45 10, 000 338 43 10 (2) OEM
21MR1900 OUT OF SERVICE	Tie Rod	c:Ø10,7 th:M10x1.0 RHT / 0,88 kg	201 330 12 03, 201 330 16 03 (2) OEM
21MR20 OUT OF SERVICE	Tie Rod	c:Ø10,7 th:M10x1.0 RHT / 0,7 kg	201 330 15 03, 201 330 07 03 (2) OEM
22MR1900	Center Rod	tp:M10x1 RHT cr:1/10 c:Ø10.8 / 1,25 kg	A 201 460 15 05, 201 460 14 05 (2) OEM
23MR02	Track Control Arm Rear	c:Ø11.5 / 0,62 kg	210 350 21 53, 201 350 27 53 (5) OEM
26MR1000	Stabiliser Link Rear	L:199 tp:M10x1.5 RHT / 0,11 kg	124 320 02 89, A 124 320 02 89
30MR0508	Track Control Arm Rear	di1:Ø12 di2:Ø12 / 0,7 kg	124 350 01 29, 210 350 00 29 (4) OEM
30MR0509	Track Control Arm Rear	di1:Ø12 di2:Ø12 / 0,67 kg	201 350 47 06, A 210 350 33 06 (11) OEM
30MR0510	Track Control Arm Rear	di1:Ø12 di2:Ø12 / 0,74 kg	210 350 34 06, A 210 350 24 06 (14) OEM
38MR02	Silentblock for TCA	L:43 di:Ø12.2 do:Ø31.5 / 0,08 kg	124 352 43 65, A 124 352 43 65 (8) OEM

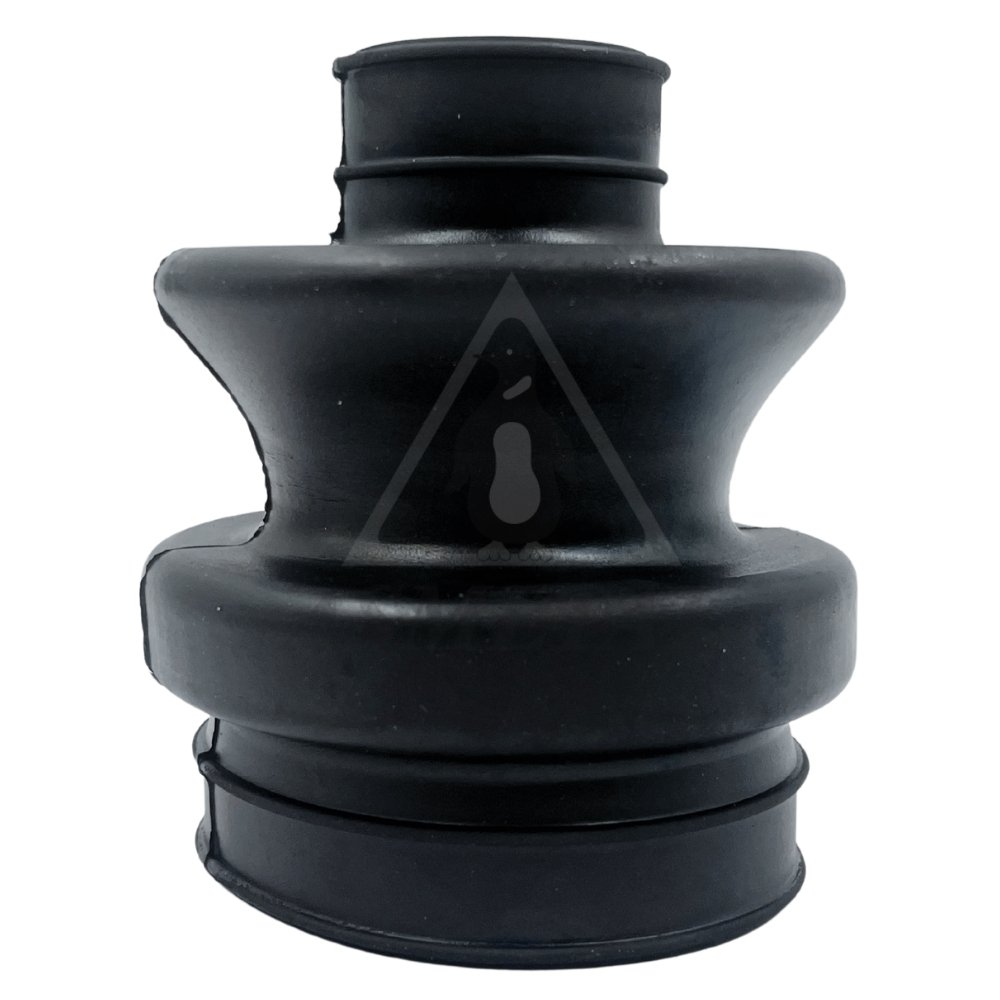

38MR0502	Bellow Driveshaft	L:99 di:Ø22 / 0,14 kg	A 124 357 02 91, A 124 350 01 37 (6) OEM
38MR0506	Stabiliser Mounting	L:36.5 di:Ø22 do:Ø38 / 0,04 kg	201 323 48 85, A 201 323 48 85 (2) OEM
38MR0507	Stabiliser Mounting	L:37.5 di:Ø24 do:Ø44.5 / 0,06 kg	124 323 54 85, 124 323 37 85 (1) OEM
38MR0508	Silentblock for TCA	L:55 di:Ø11 do:Ø36.2 / 0,11 kg	124 352 35 65, 124 350 05 75
38MR0509	Silentblock for TCA	L:38 di:Ø12.2 do:Ø36 / 0,08 kg	A 124 352 34 65, 124 352 90 65 (6) OEM
38MR0514	Stabiliser Mounting KIT	L:37.5 di:Ø24 do:Ø44.5 / 0,26 kg	A 124 320 00 47, 124 320 18 47 (2) OEM
38MR0515	Shock Absorber Bushing	L:40 di:Ø10.2 do:Ø25.2 / 0,05 kg	124 320 20 31, A 124 320 20 31
38MR0522	Silentblock for TCA	L:38 di:Ø12.2 do:Ø36.2 / 0,15 kg	124 352 86 65, 210 352 09 65 (2) OEM
38MR0523	Axle Beam Bushing	L:67 di:Ø17 do:Ø98 / 0,35 kg	201 351 28 42, A 201 351 28 42 (2) OEM
38MR0525	Axle Beam Bushing	L:57 di:Ø29 do:Ø66.5 / 0,22 kg	124 351 19 42, 201 351 27 42 (2) OEM
40MR0106	Drive Shaft Center Bearing	L:109.5 di:Ø43.5 / 0,23 kg	201 410 05 81
40MR0500 OUT OF SERVICE	Drive Shaft Center Bearing	0 kg	201 411 2147, 202 411 1447
45MR0520 IN PREPARATION	Suspension Support Buffer Front	0 kg	A 201 323 20 44, 201 323 20 44 (1) OEM
526MR3110	Left Stabiliser Bar Bracket	di: Ø8,6 / 0,2 kg	201 323 55 40, A 201 323 55 40
526MR3111	Right Stabiliser Bar Bracket	di: Ø8,6 / 0,2 kg	201 323 56 40, A 201 323 56 40
