ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No

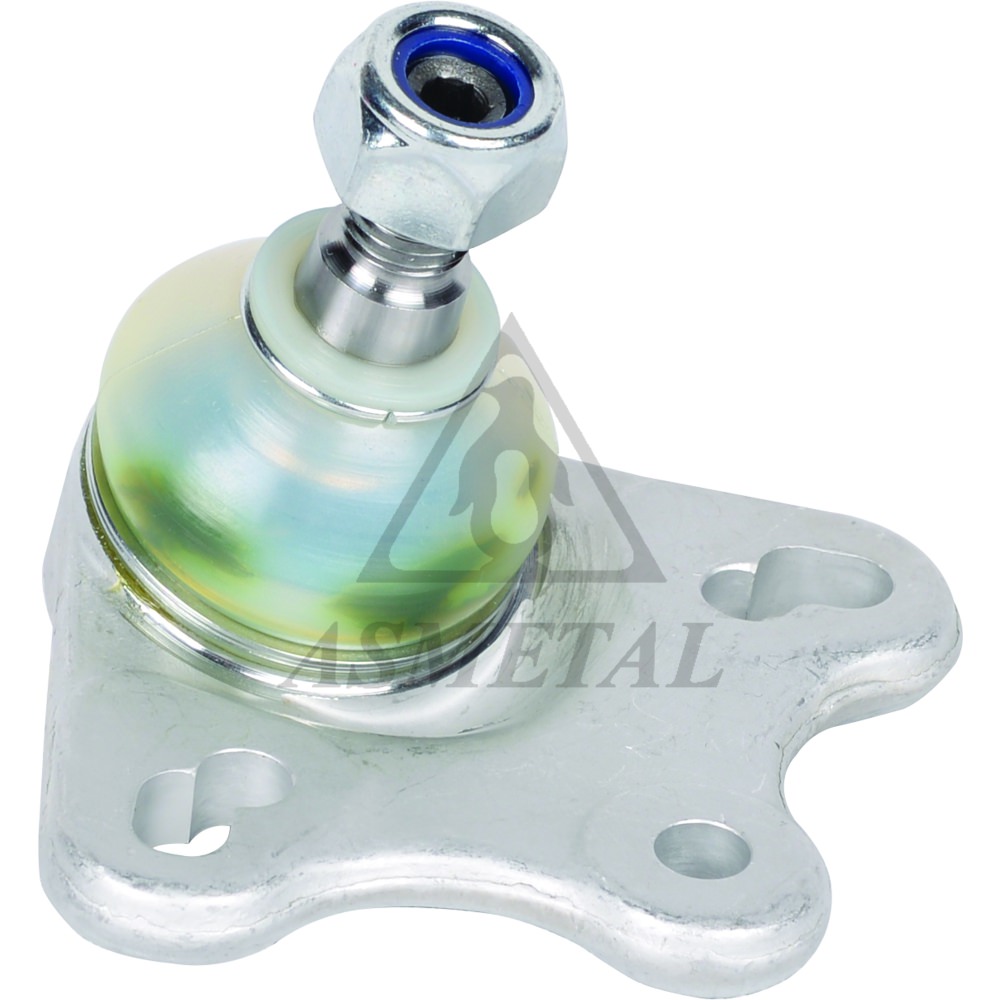

10MR1202	Ball Joint	th:M12x1.5 RHT cp:1/6 cs:Ø13,75 / 0,34 kg	A 168 333 02 27, A 168 333 01 27 (2) OEM

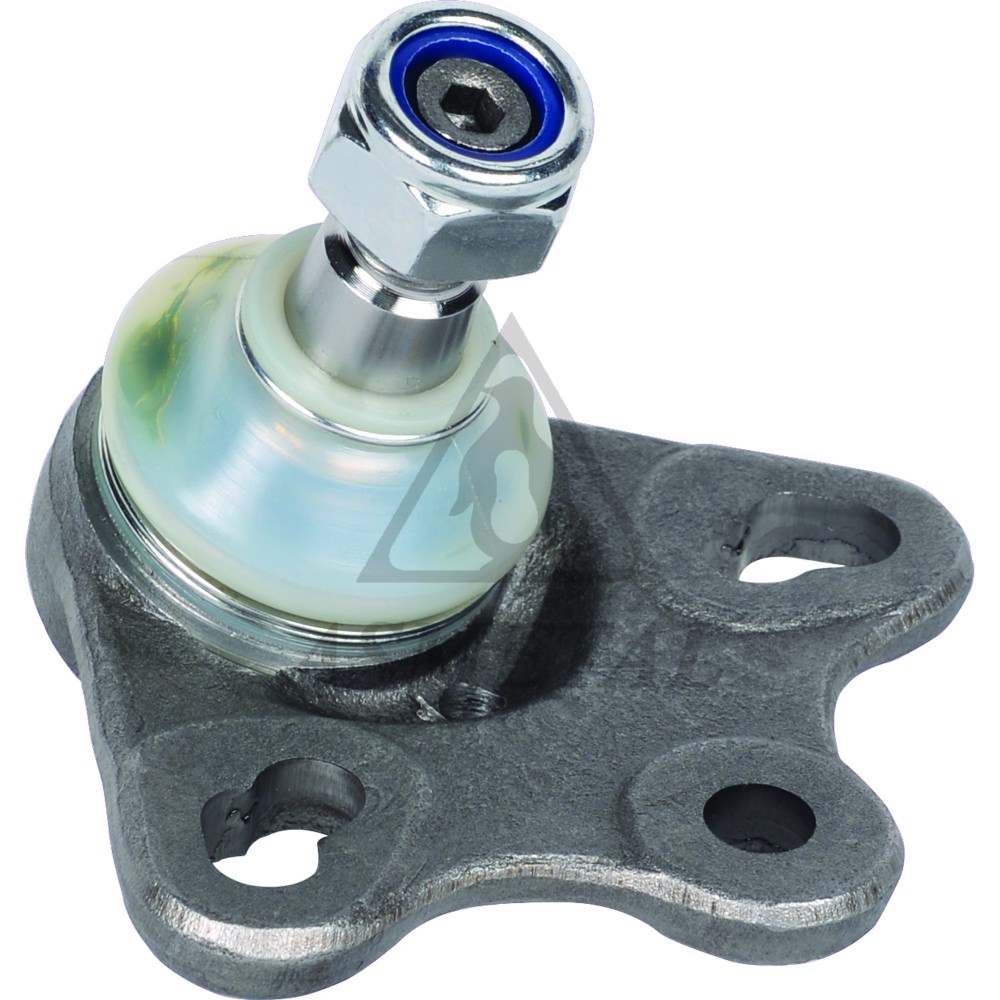

10MR1205	Ball Joint	th:M14x1.5 RHT cp:1/6 cs:Ø15,4 / 0,68 kg	169 333 00 27, A 169 333 03 27 (2) OEM

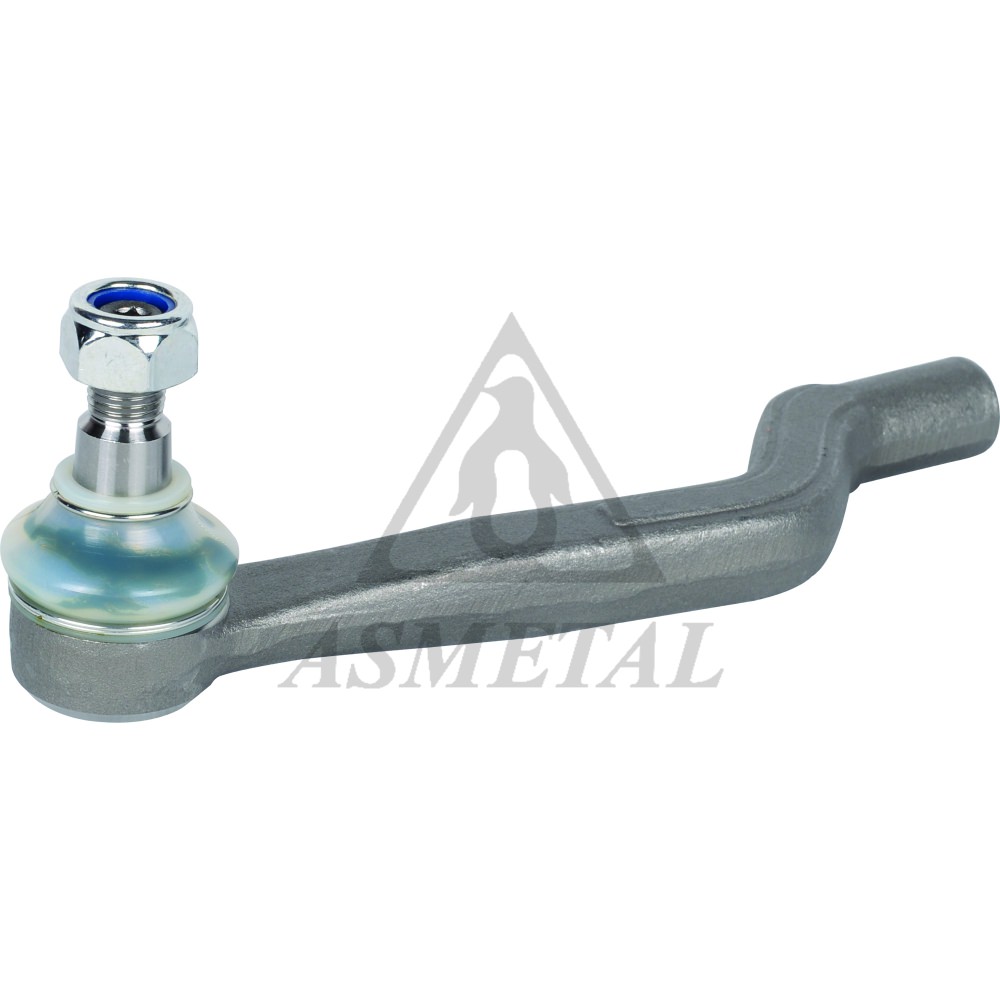

17MR1200	Tie Rod End Left	c:Ø16,6 th:FM14x1,5 RHT / 0,82 kg	169 330 05 03

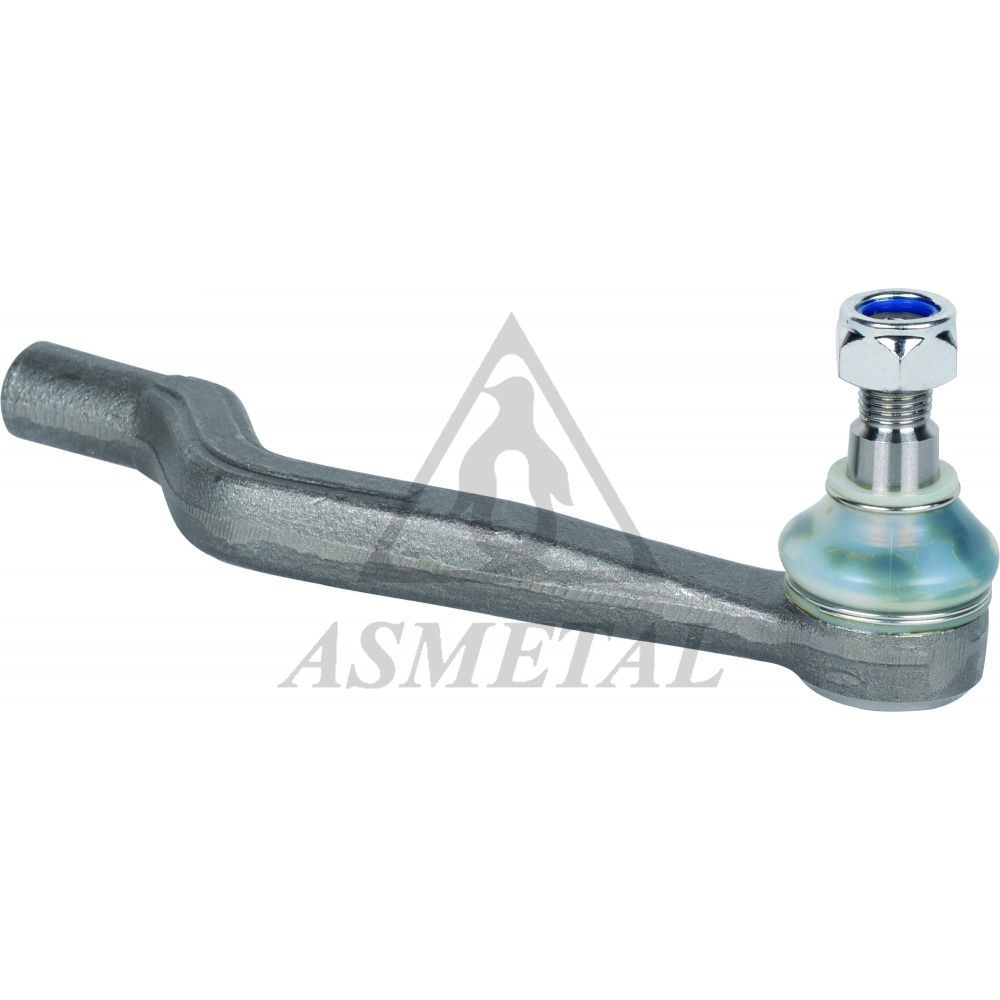

17MR1201	Tie Rod End Right	c:Ø16,6 th:FM14x1,5 RHT / 0,82 kg	169 330 06 03

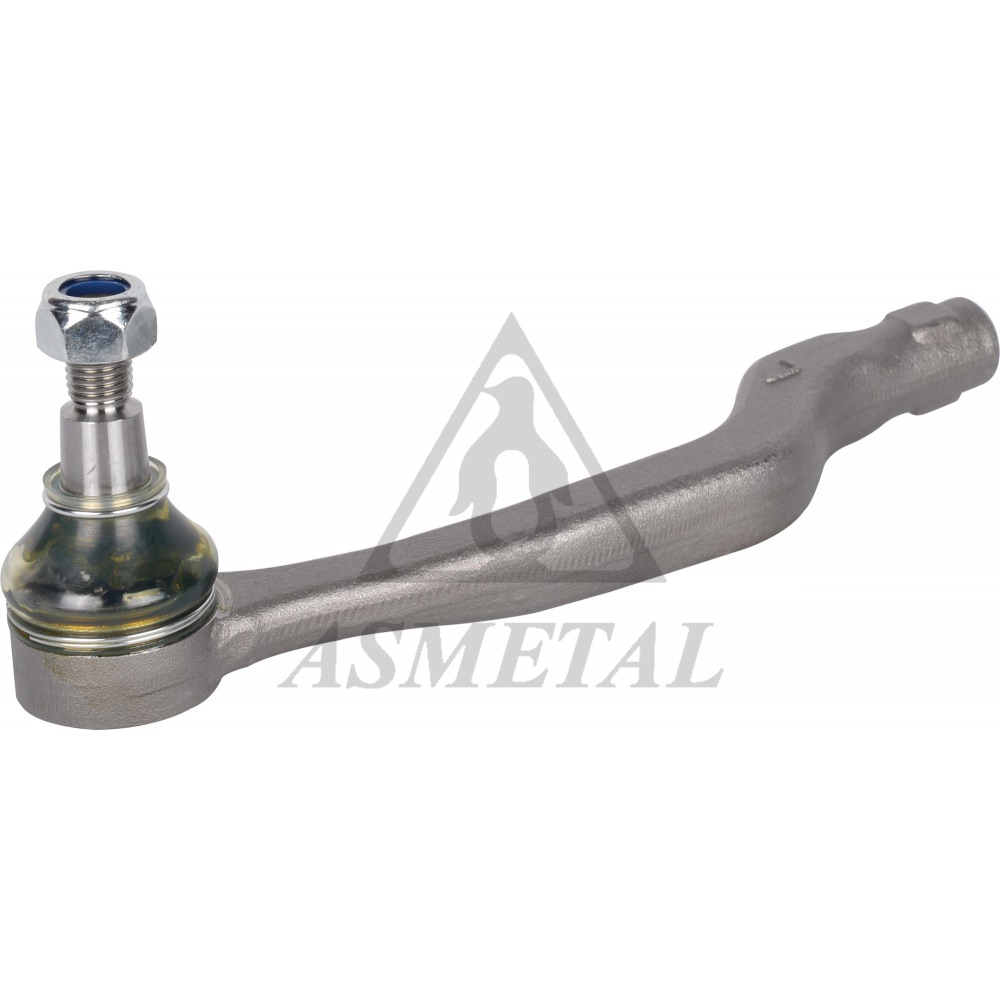

17MR1202	Tie Rod End Left	c:Ø14,6 th:FM12x1,5 RHT / 0,72 kg	A 168 330 15 35, A 168 330 11 35 (2) OEM

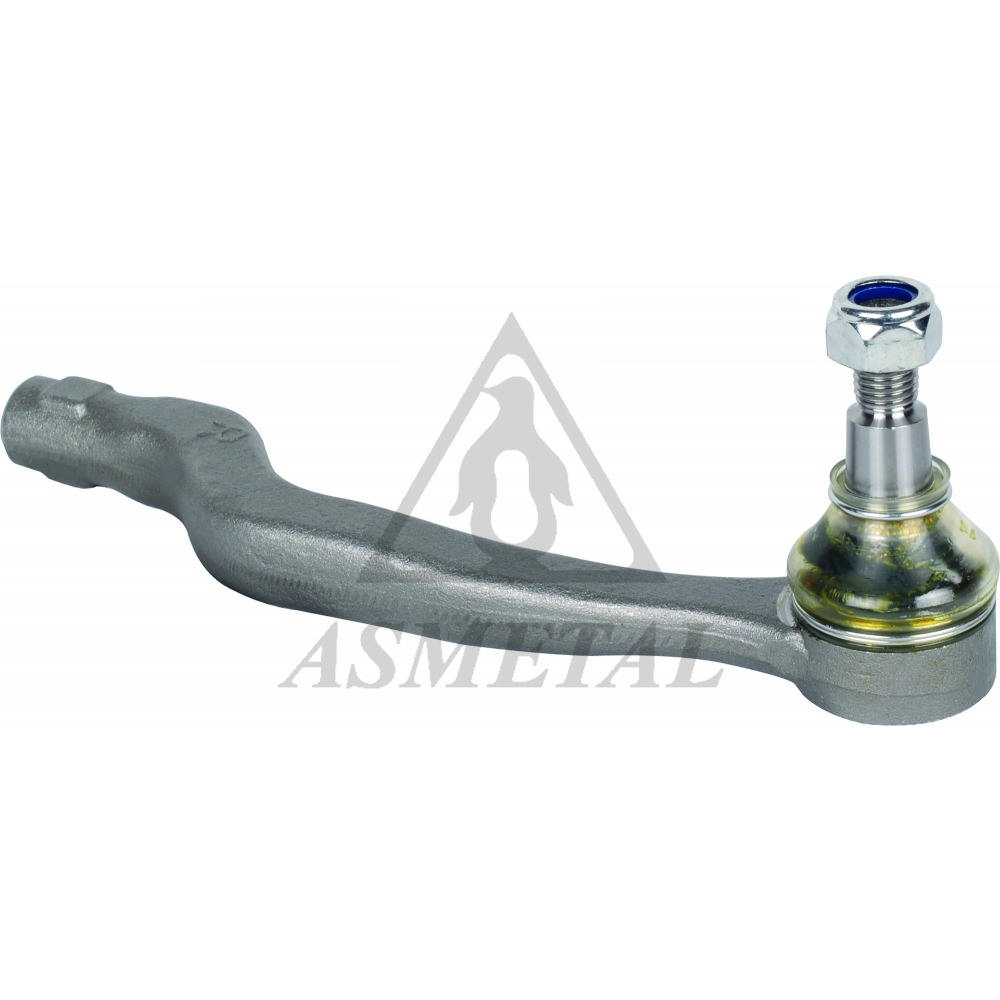

17MR1203	Tie Rod End Right	c:Ø14,6 th:FM12x1,5 RHT / 0,72 kg	A 168 330 16 35, A 168 330 12 35 (2) OEM

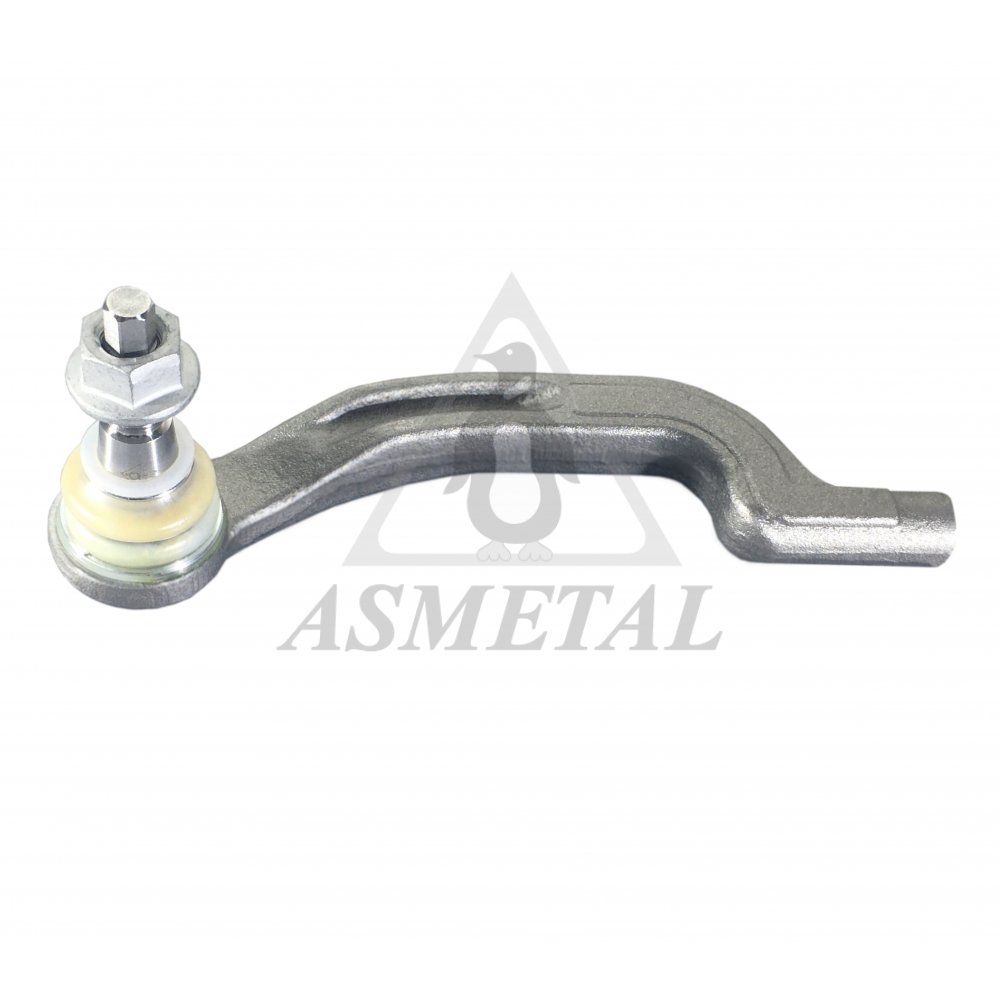

17MR1400	Tie Rod End Left	L: 210 cr: 1:5 c: Ø16.3 tp: M14x1.5 th: FM14x1.5 / 0,94 kg	48630 HG00A, 48630 5DF0A (2) OEM
17MR1401	Tie Rod End Right	L: 210 cr: 1:5 c: Ø16.3 tp: M14x1.5 th: FM14x1.5 / 0,94 kg	48510 5DF0A, 48510 HG00A (2) OEM

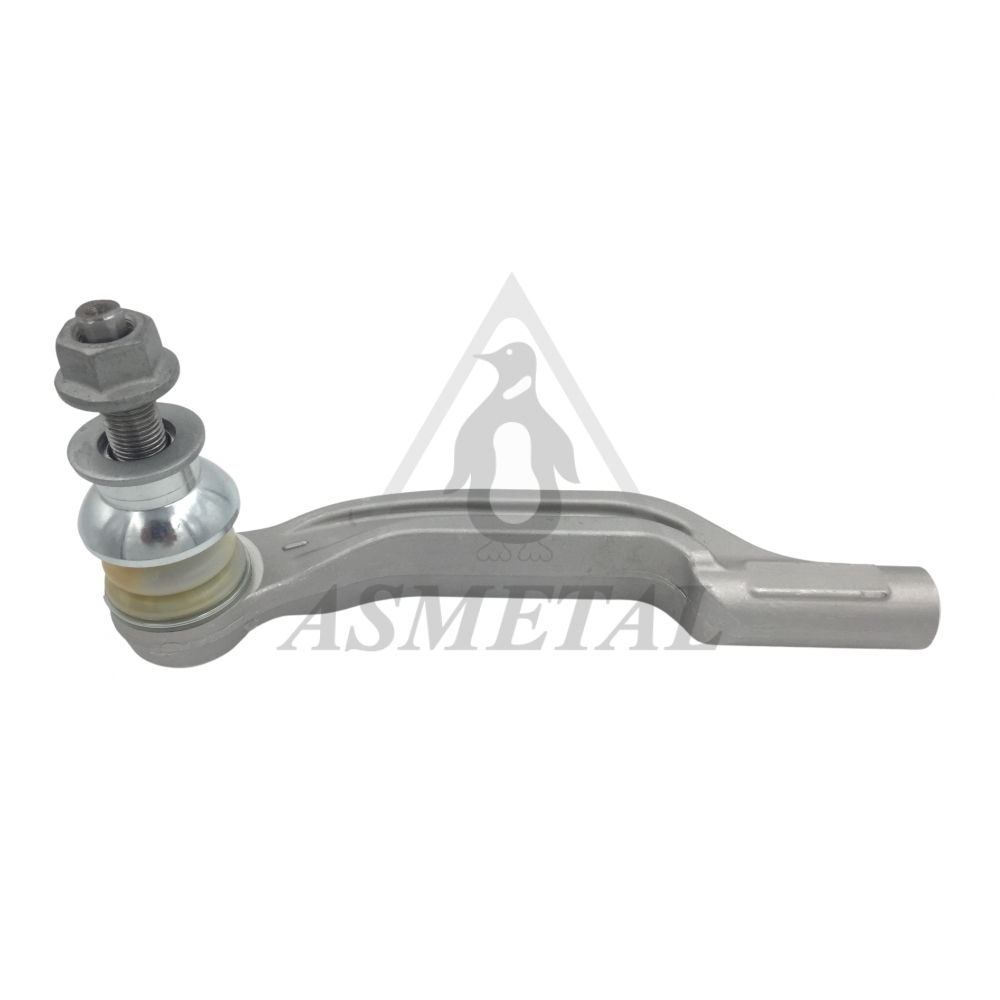

17MR1500	Tie Rod End Left	L: 222 / c: Ø14.9 / tp: M14x1.5 / th: FM14x1.5 / 0,73 kg	177 330 85 00, A 177 330 85 00

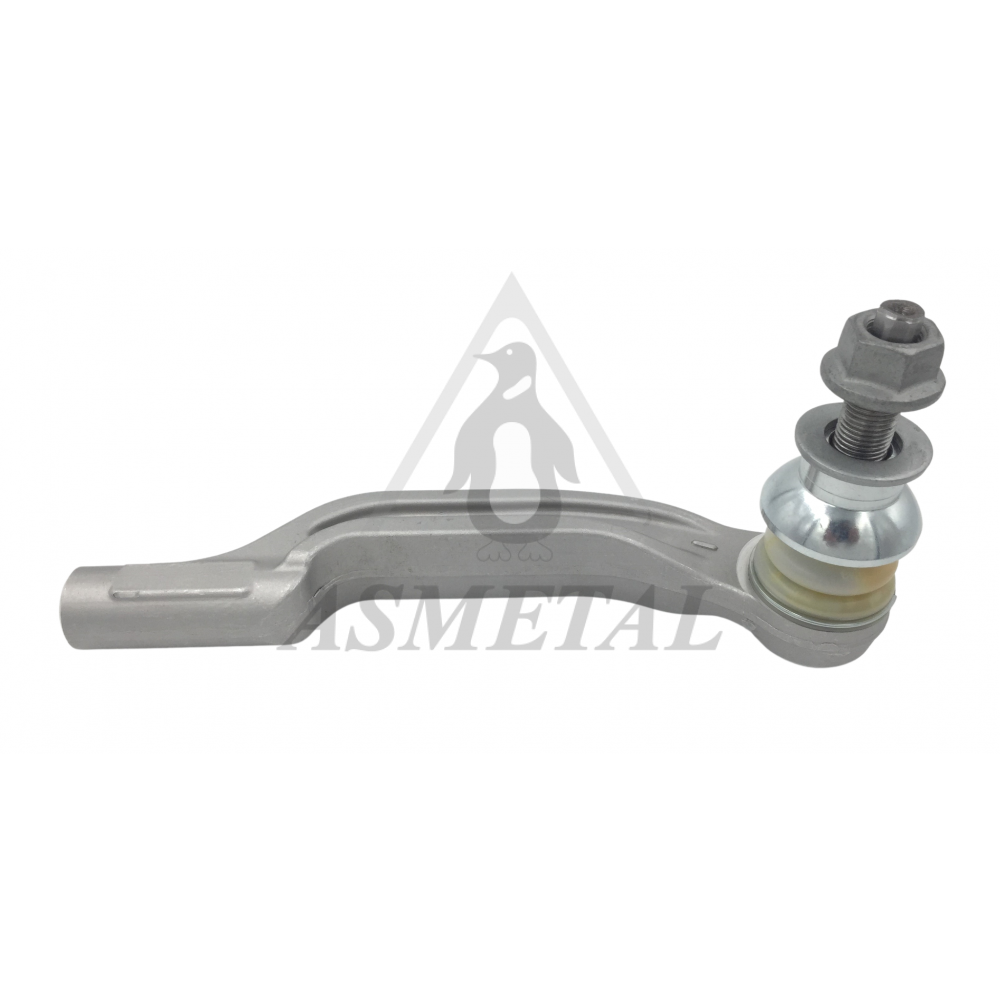

17MR1501	Tie Rod End Right	L: 222 / c: Ø14.9 / tp: M14x1.5 / th: FM14x1.5 / 0,73 kg	177 330 84 00, A 177 330 84 00

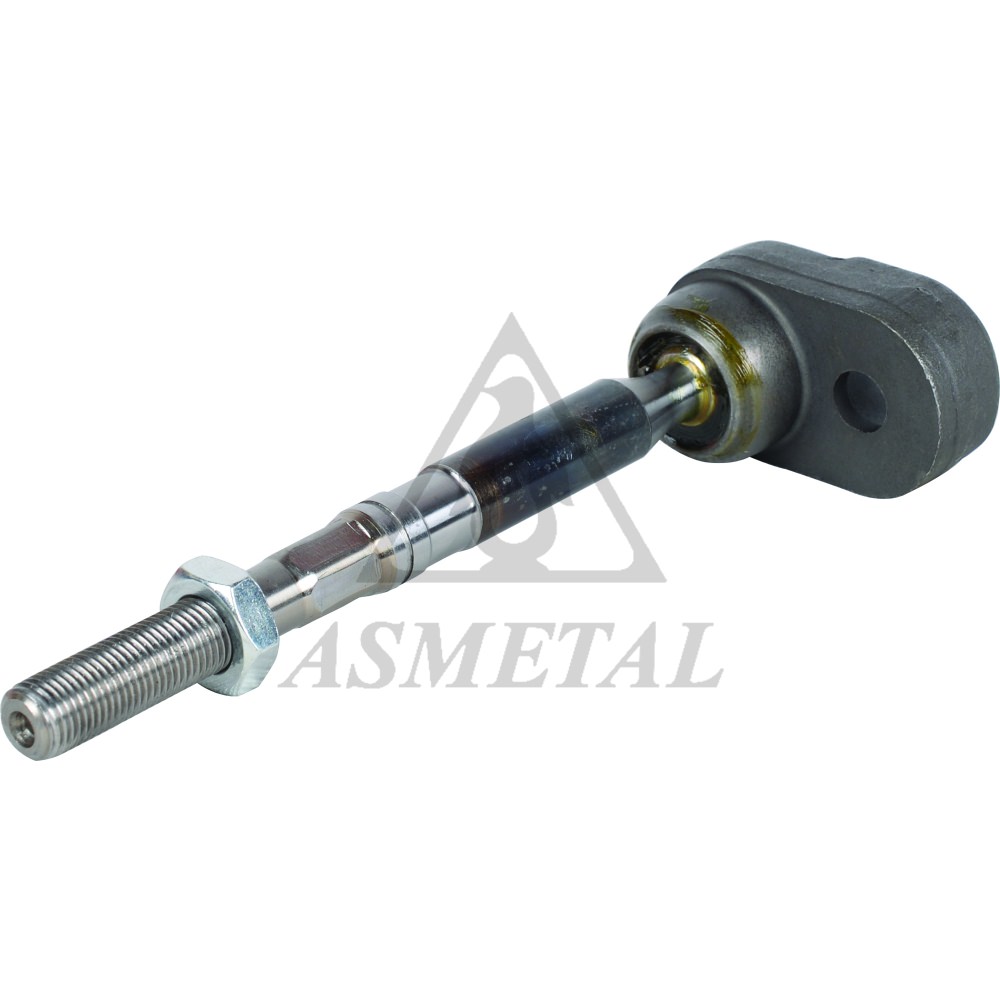

20MR1200	Axial Joint	L:203mm / 0,68 kg	169 330 08 03, 169 330 09 03 (1) OEM

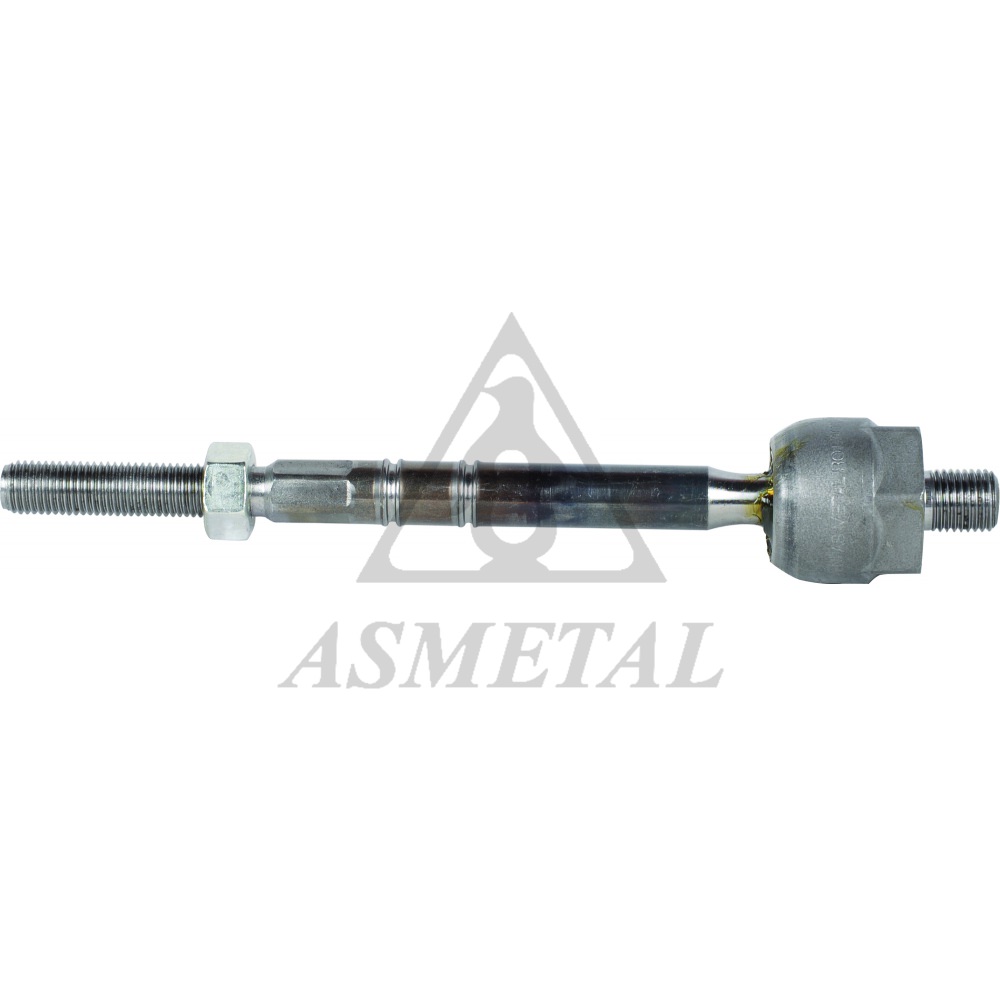

20MR1202	Axial Joint	th:MM14x1.5 RHT L:197mm / 0,42 kg	A 168 330 13 35, 168 330 13 35 (2) OEM

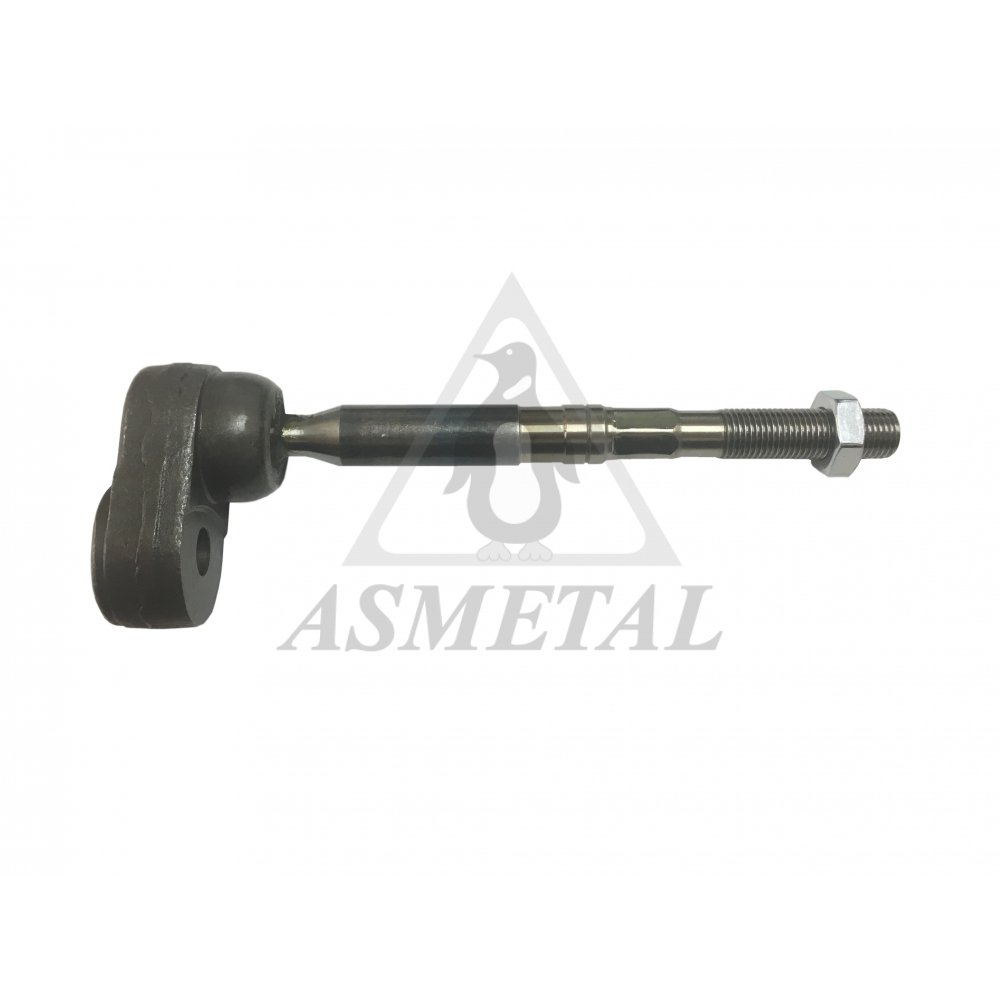

20MR1210	Axial Joint	th:M14x1.5 RHT cp:1/6 cs:Ø19,75 / 0,7 kg	169 330 07 03, A 169 330 04 03 (2) OEM

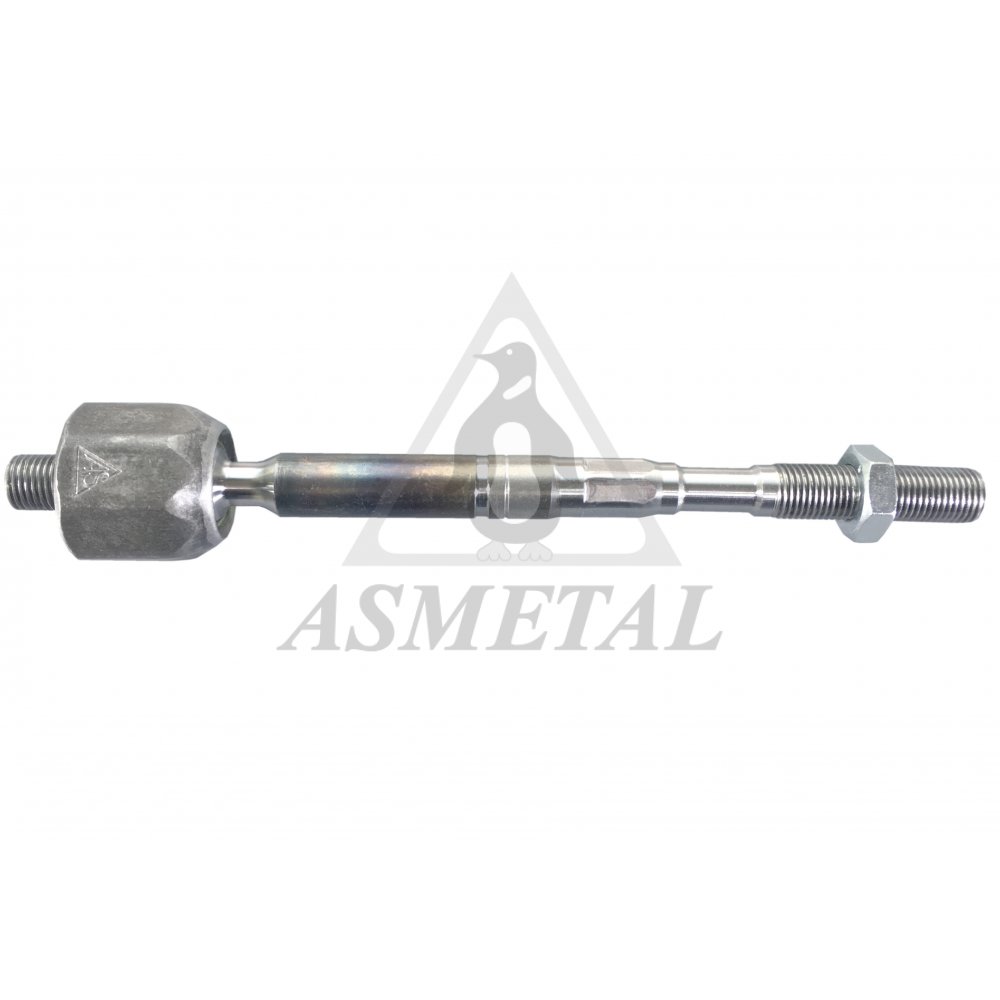

20MR1400	Axial Joint	th1:M14x1.5 RHT th2: M14x1.5 RHT L:222mm / 0,54 kg	48521 HG00B, 48521 5DA0A (2) OEM

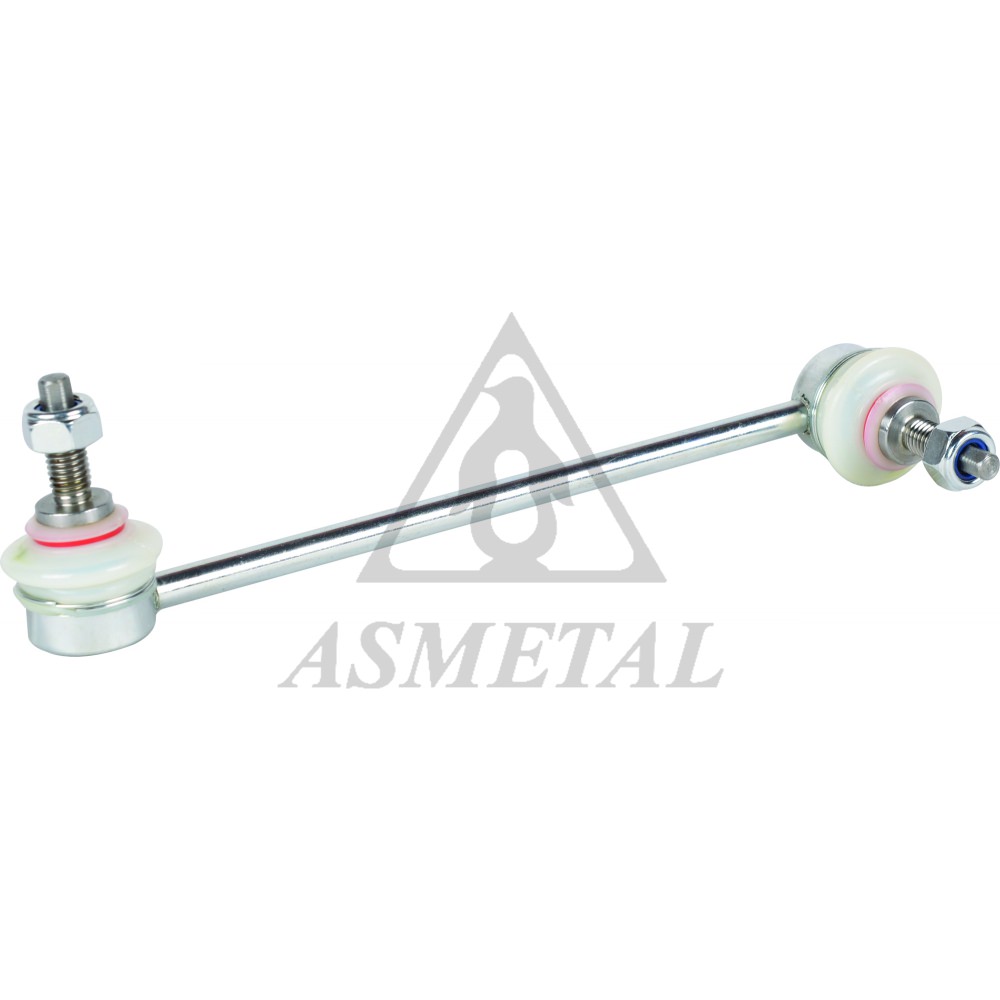

26MR1200	Stabiliser Link	L:220mm / 0,36 kg	168 320 11 89, A 168 320 10 89 (8) OEM
26MR1205	Stabiliser Link	L:244mm / 0,36 kg	169 320 09 89, A 169 320 09 89

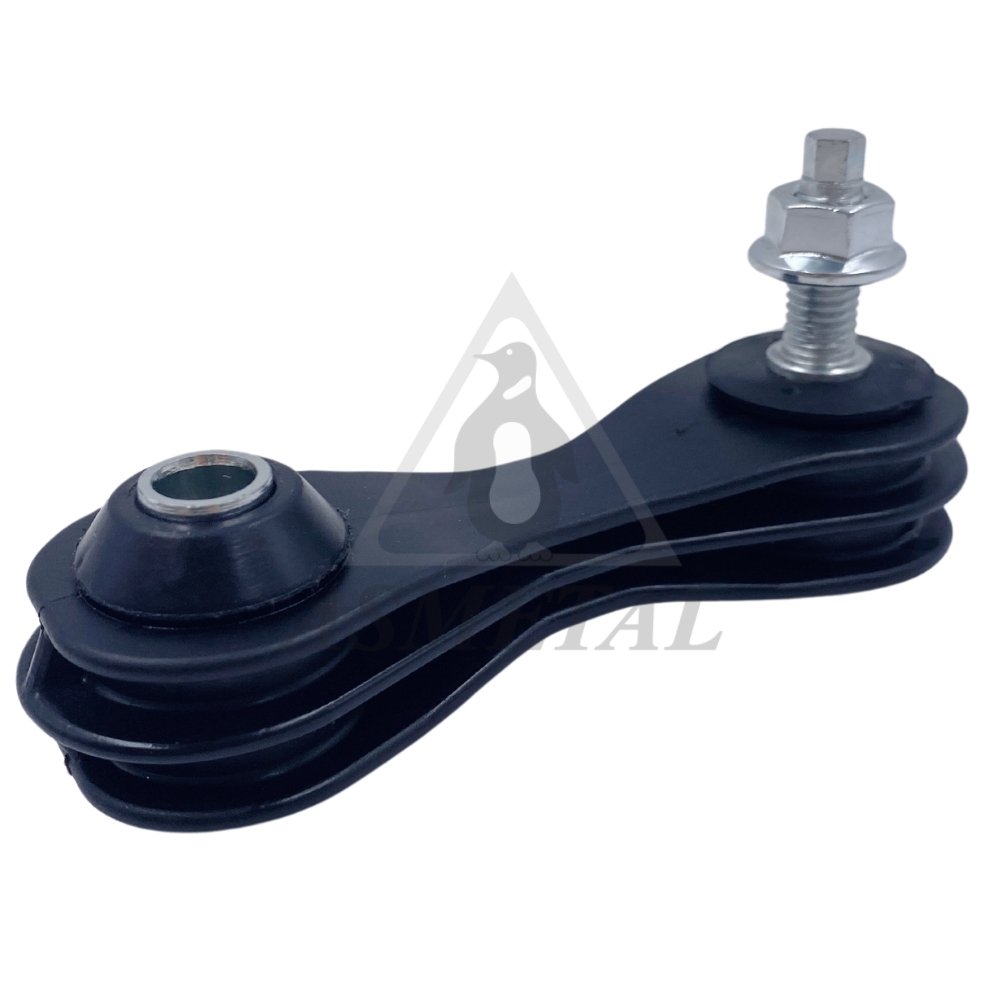

26MR1210	Stabiliser Link Rear	L: 87 tp: MM10x1.5 / 0,16 kg	169 320 05 89, A 169 320 05 89
26MR1400	Stabiliser Link	th:MM12x1.5 RHT L: 333mm / 0,42 kg	54618 HG00A, 54616 5DA0A (4) OEM
26MR1420 IN PREPARATION	Stabiliser Link Rear	0 kg	246 320 04 89, A 246 320 04 89

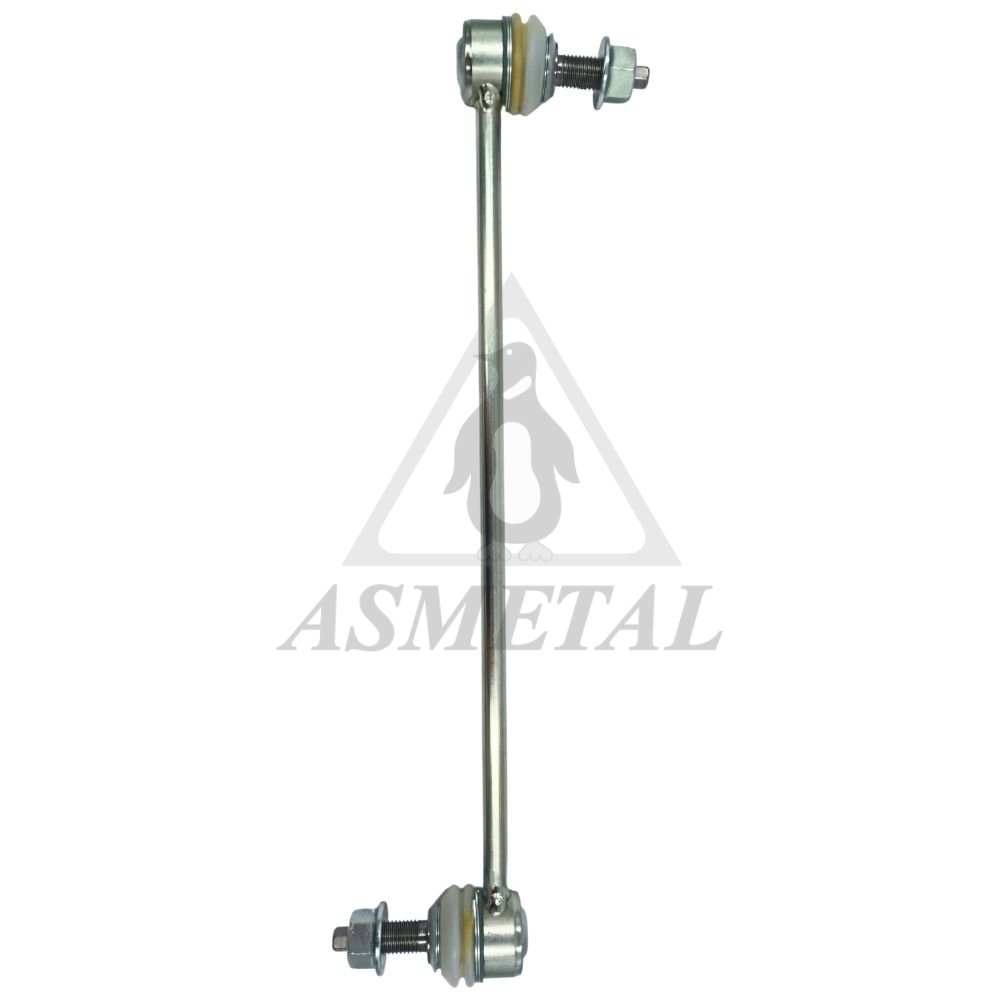

26MR1500 NEW	Stabiliser Link	L: 339 TP: M12X1,5 / 0,54 kg	247 320 76 03, 247 320 75 03 (4) OEM
30MR1204 IN PREPARATION	Track Control Arm Left	0 kg	169 330 05 07, 169 330 07 07 (4) OEM
30MR1205 IN PREPARATION	Track Control Arm Right	0 kg	169 330 06 07, 169 330 08 07 (4) OEM
30MR1400 IN PREPARATION	Track Control Arm Left	0 kg	242 330 07 00, A 242 330 07 00 (4) OEM
30MR1401 IN PREPARATION	Track Control Arm Right	0 kg	242 330 08 00, A 242 330 08 00 (4) OEM

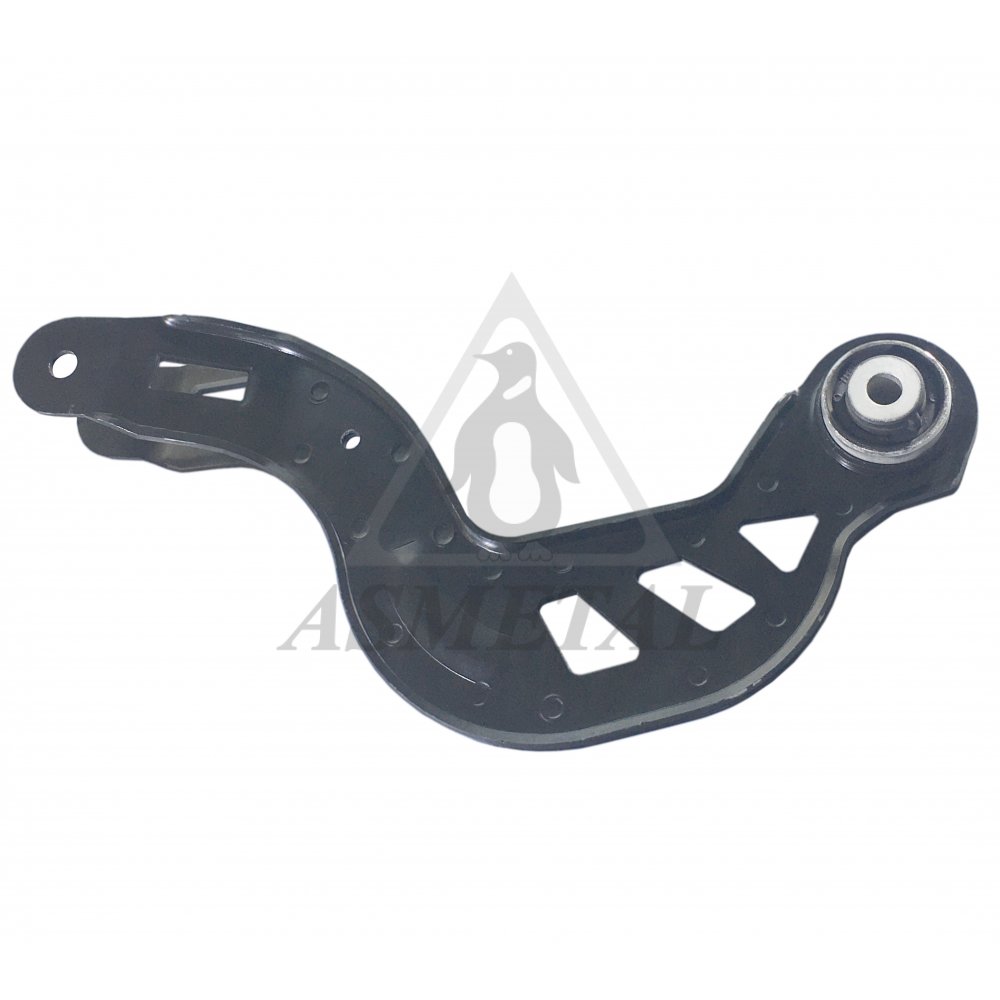

30MR1420	Track Control Arm Rear	cs:Ø12.2 L:327,5 mm / 1,34 kg	55120 5DA0A, 246 350 10 06 (1) OEM

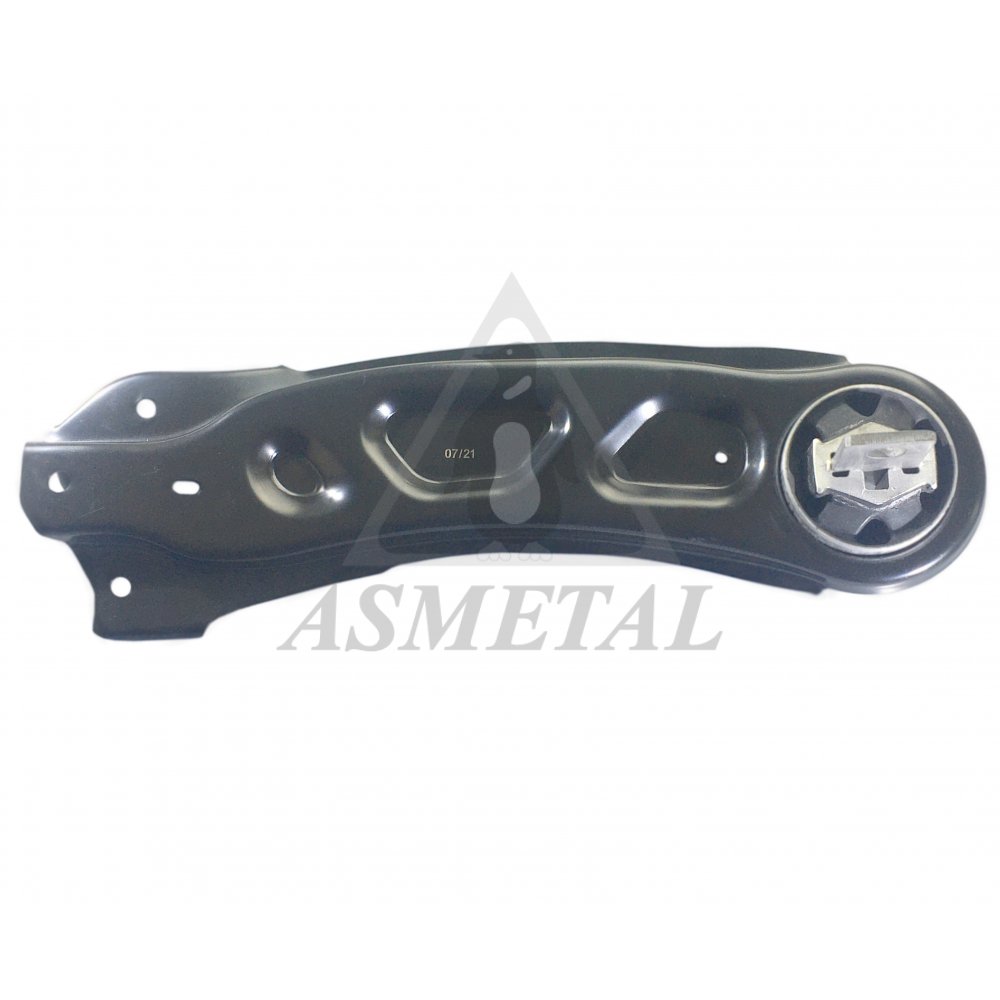

30MR1422	Track Control Arm Rear Left	L:390.5mm / 1,68 kg	246 350 04 06, 55502 5DA0A (1) OEM

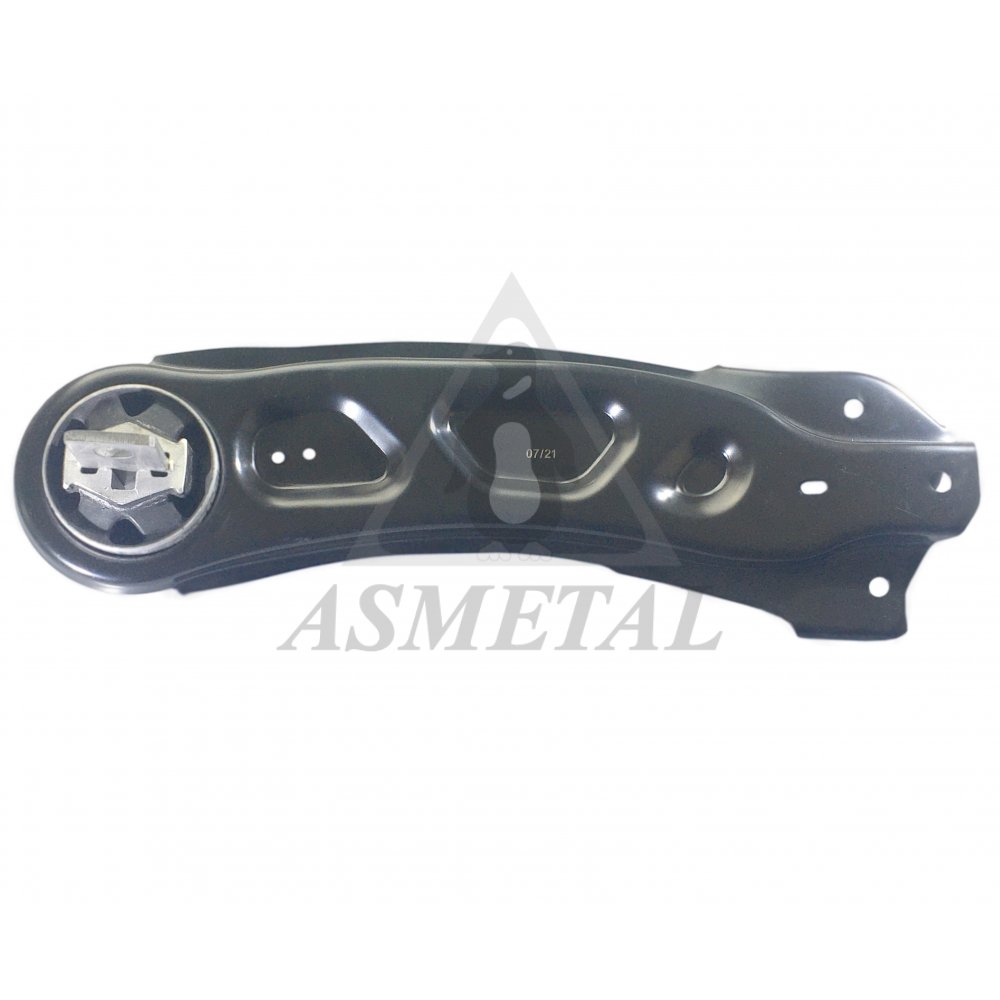

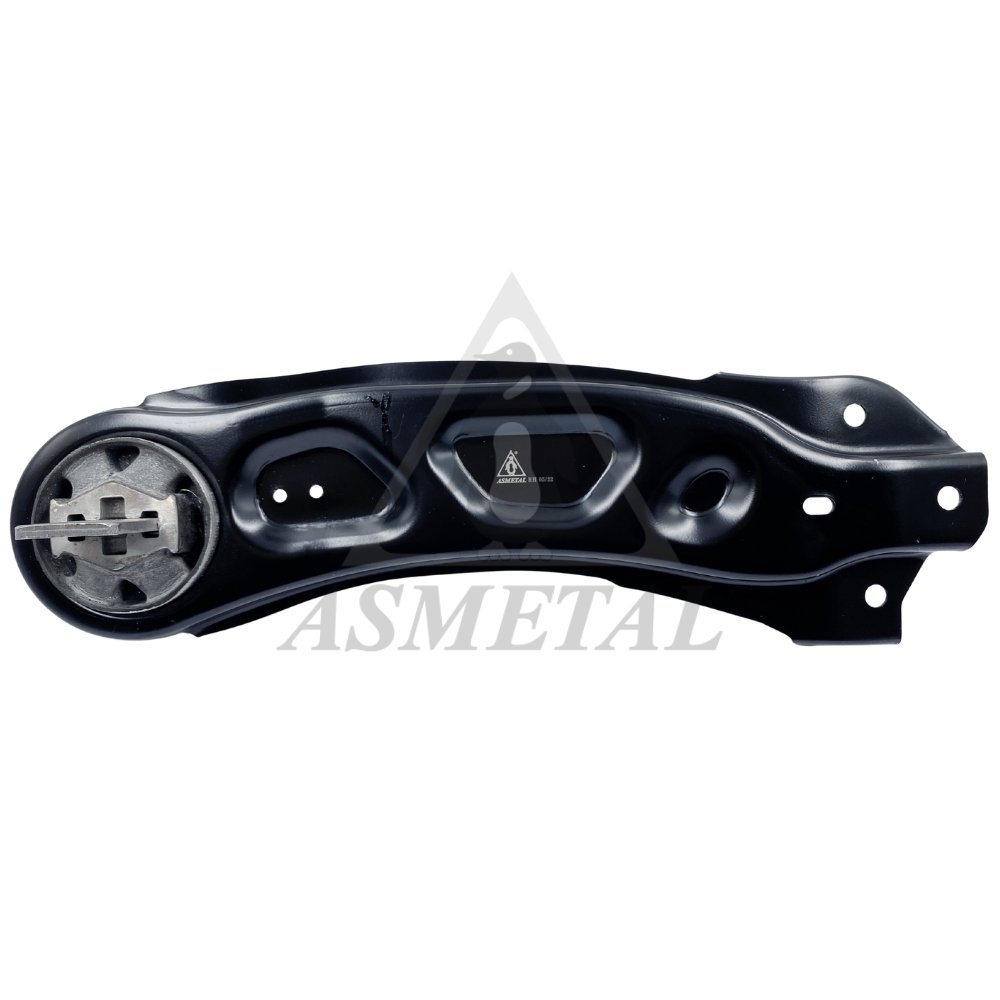

30MR1423	Track Control Arm Rear Right	L:390.5mm / 1,66 kg	A 246 350 05 06, 246 350 05 06 (1) OEM

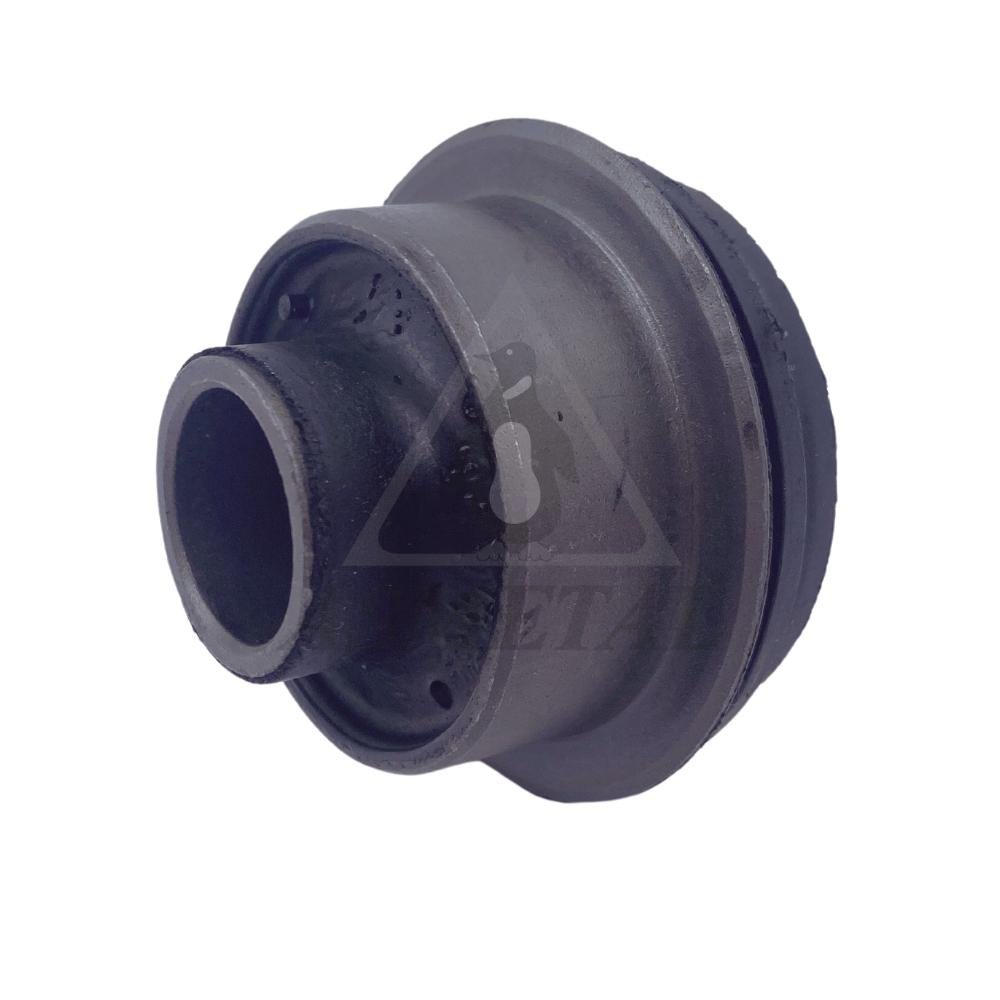

38MR1204 NEW	Silentblock for TCA	di: Ø19.9 / do: Ø46 / L: 41.9 / 0,222 kg	169 333 01 14, A 169 333 01 14

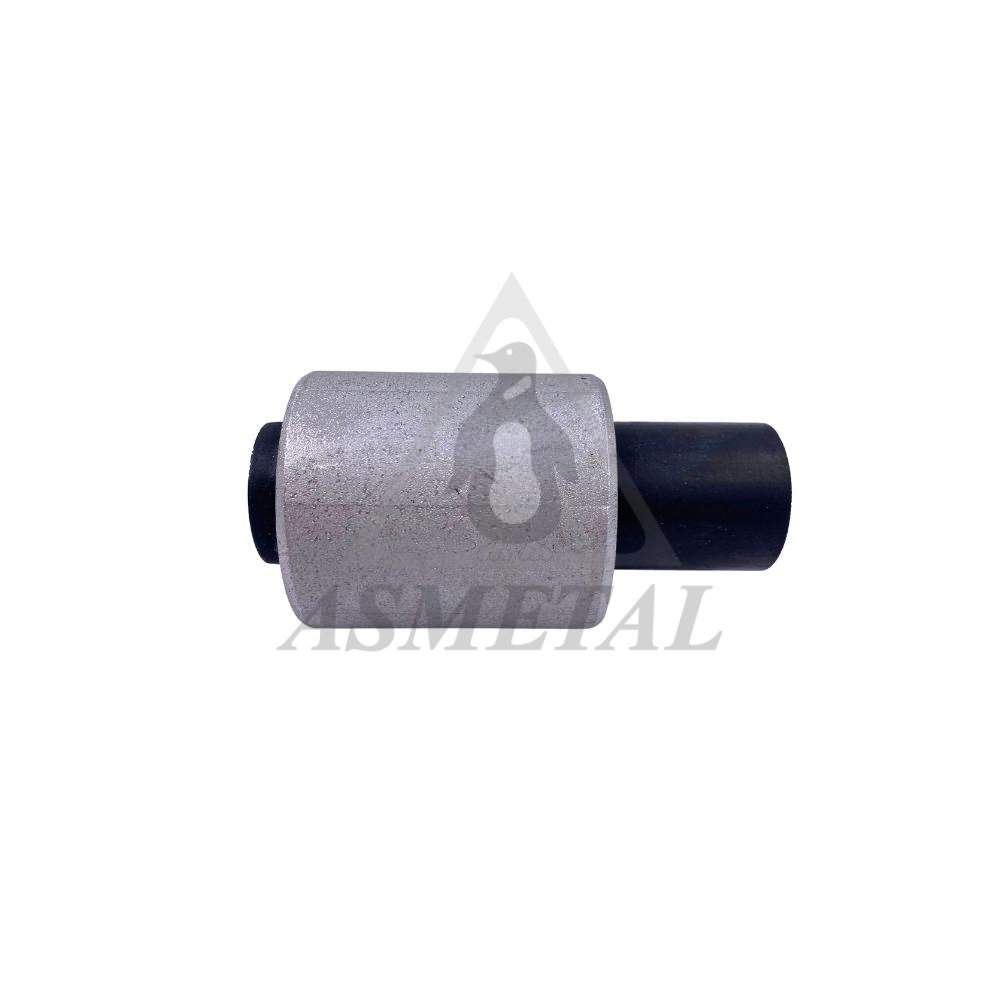

38MR1211 NEW	Silentblock for TCA	di: Ø14 / do: Ø60,3 / L: 116,8 / 0,37 kg	A 169 330 08 07, A 169 333 00 14 (10) OEM*

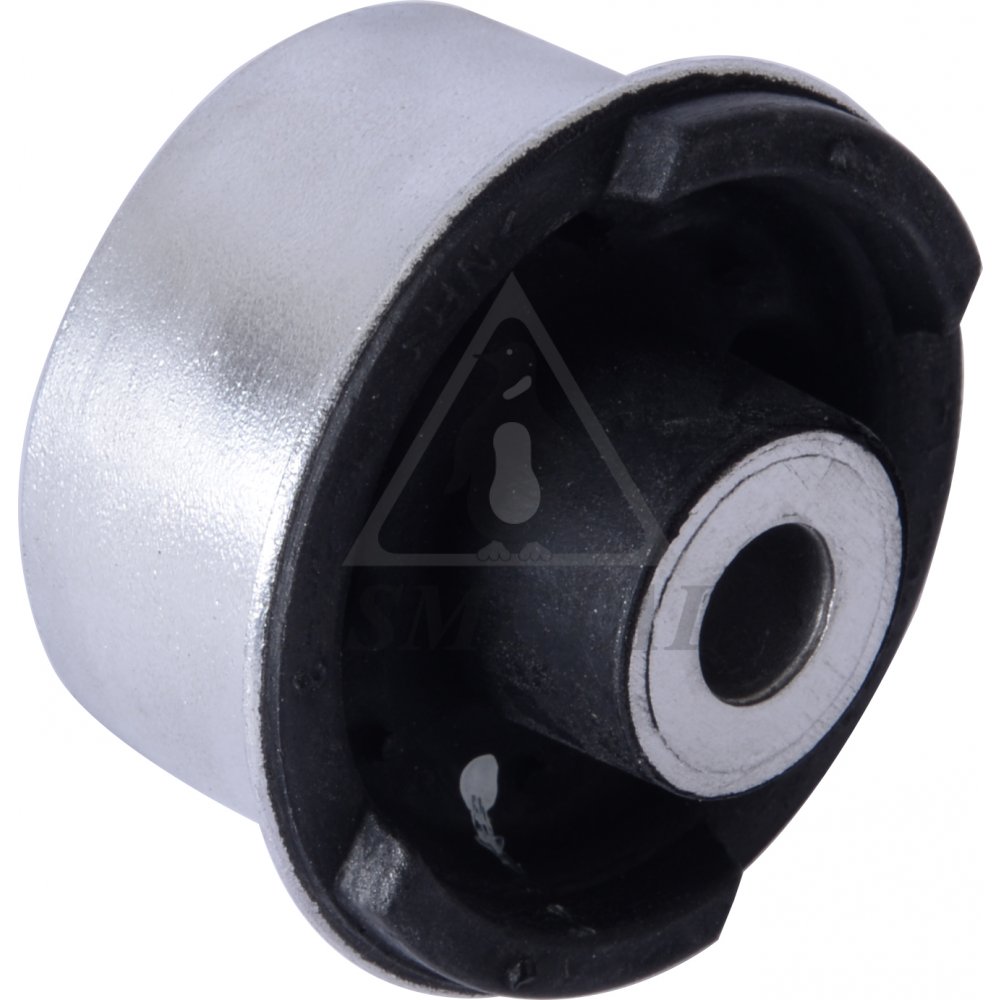

38MR1212	Silentblock for TCA	di:Ø12.1 do:Ø61 L:52.5mm / 0,17 kg	A 168 333 06 14, 168 333 02 14 (2) OEM

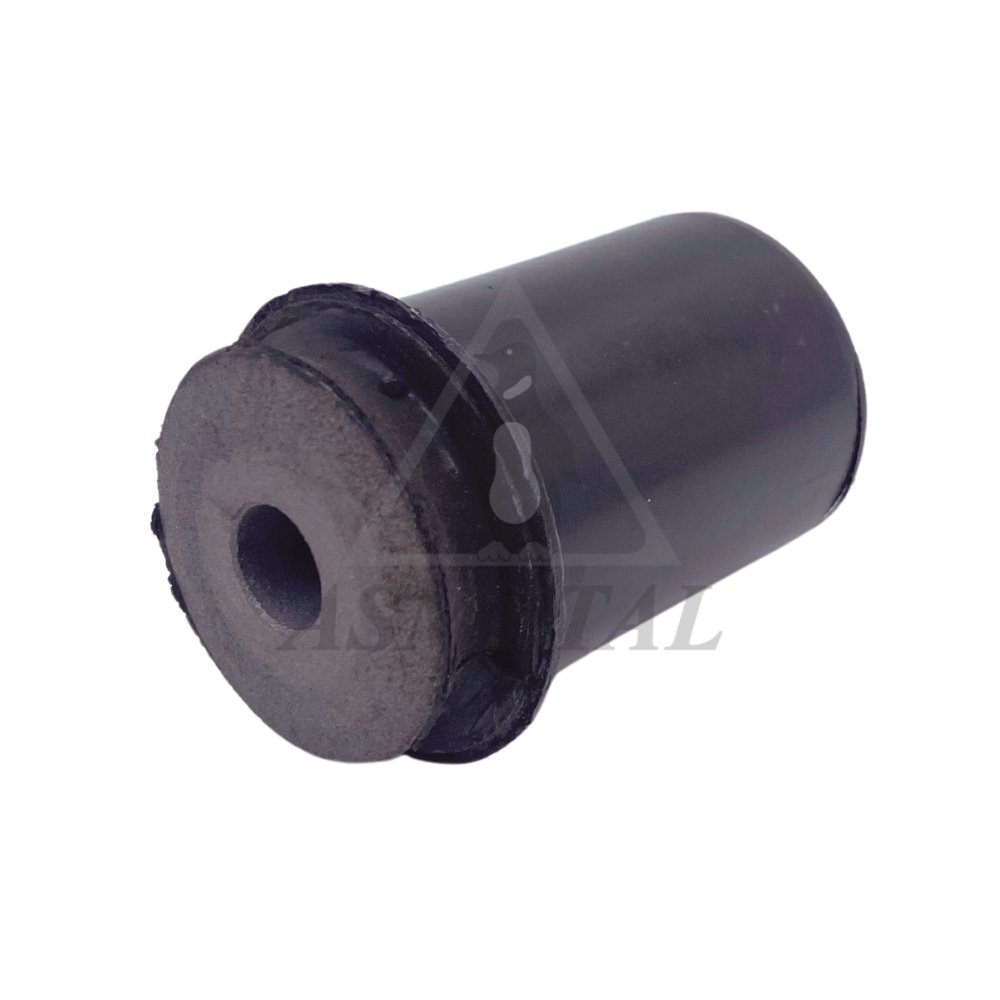

38MR1213 NEW	Silentblock for TCA	0,1930 kg	168 333 07 14, 168 333 00 14 (2) OEM

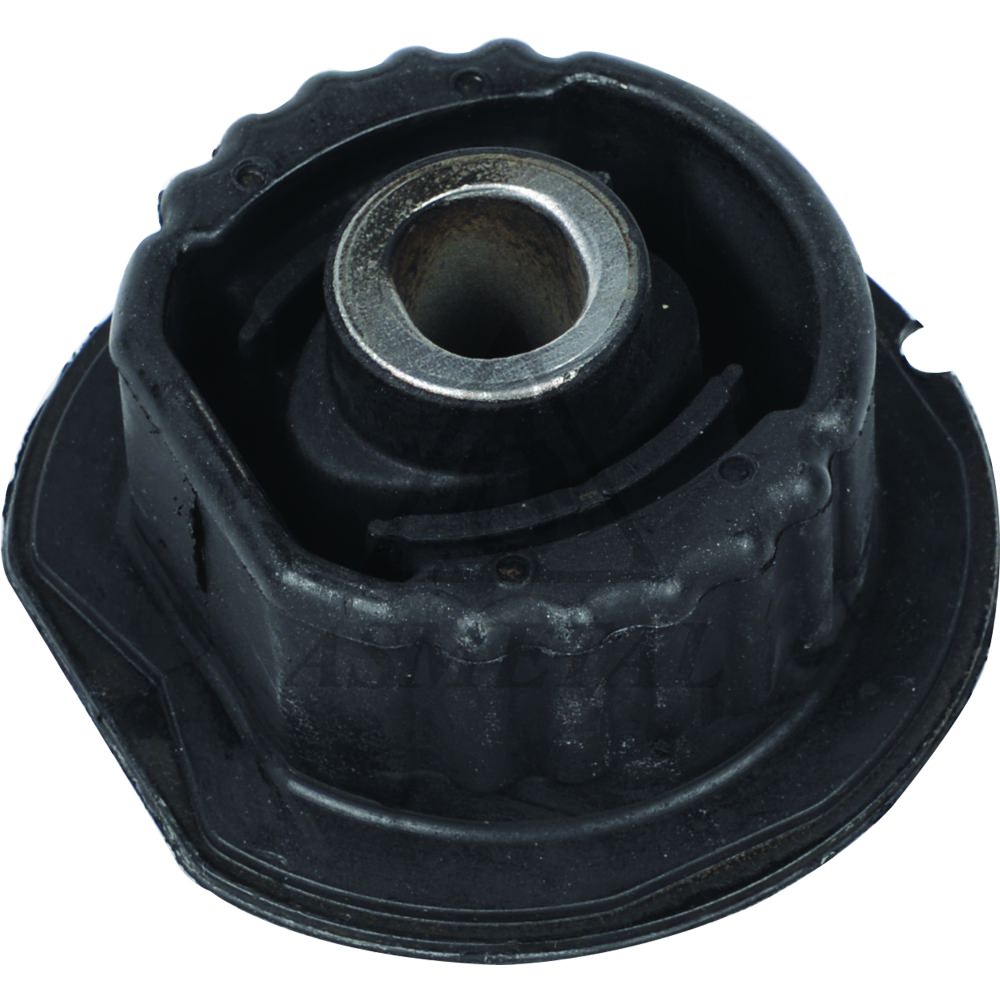

38MR1300	Mounting Axle Body	di:Ø16,6 do:Ø62,5 / 0,25 kg	168 350 14 08, 168 351 01 42 (2) OEM

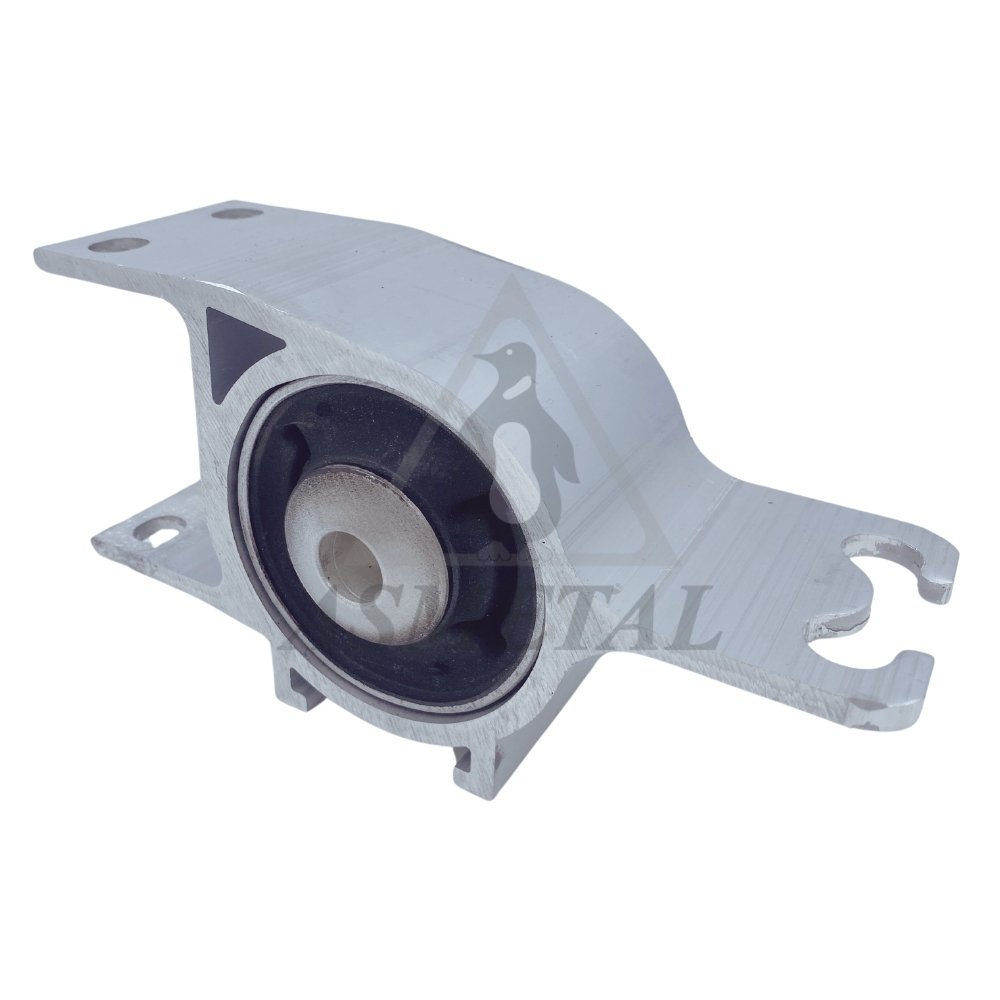

38MR1400 NEW	Silentblock for TCA Left	di: Ø14.3 / L: 172 / 0,67 kg	54501 5DA0A, 246 333 01 00 (1) OEM*

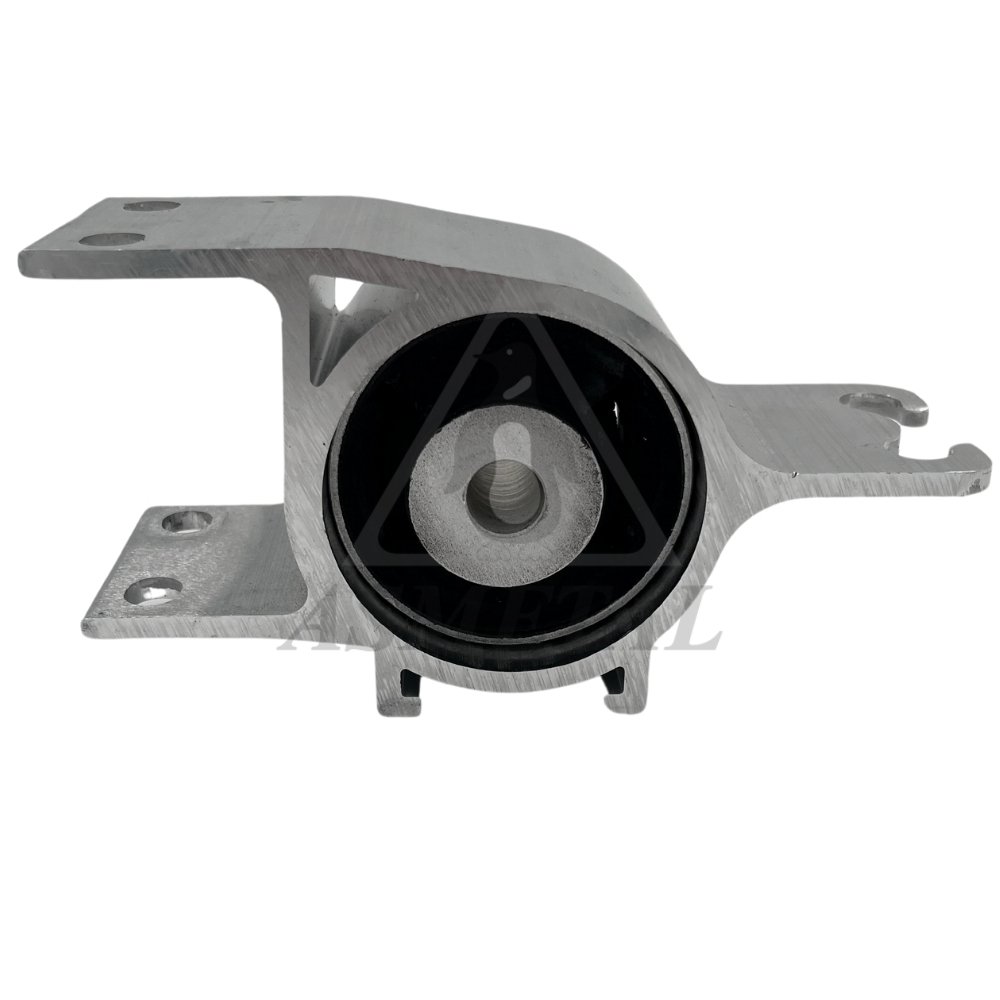

38MR1401 NEW	Silentblock for TCA Right	di: Ø14.3 / L: 172 / 0,67 kg	54500 5DA0A, 246 333 02 00 (1) OEM*

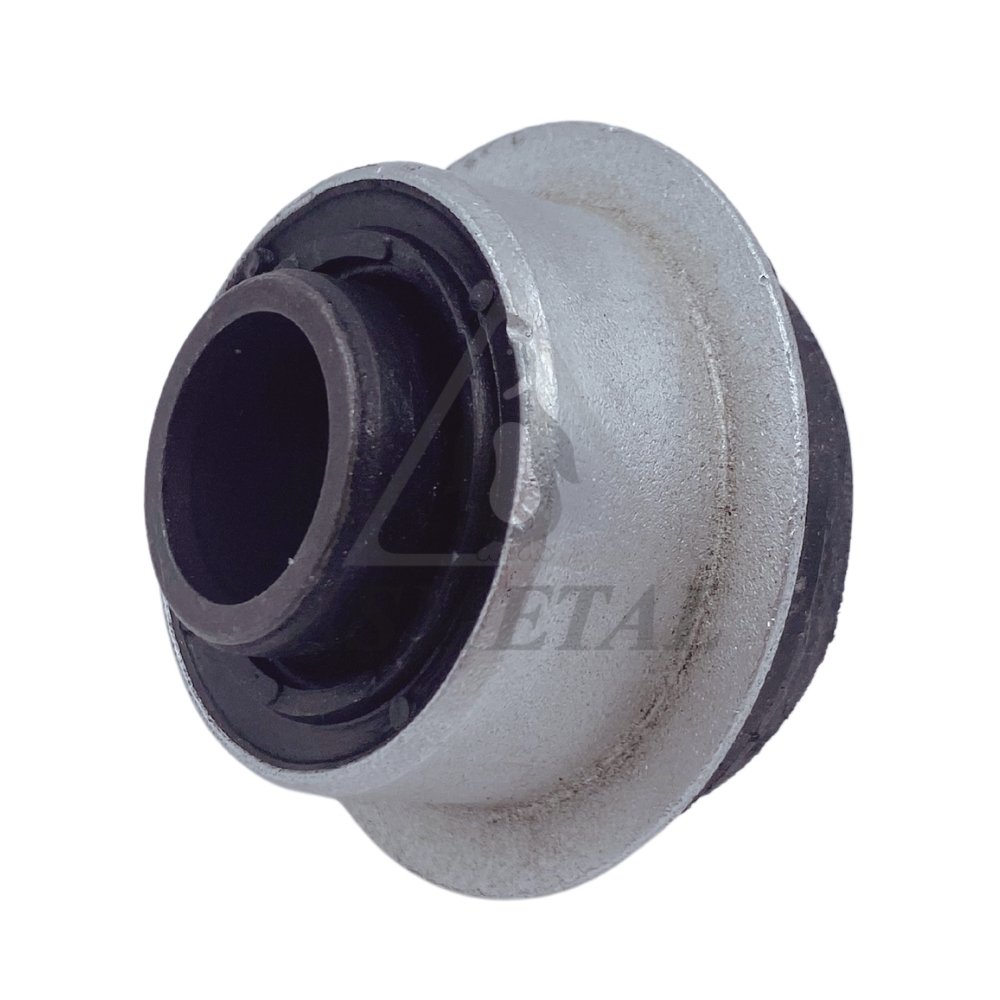

38MR1402 NEW	Silentblock for TCA		54500 5DA0A, 54501 5DA0A (32) OEM

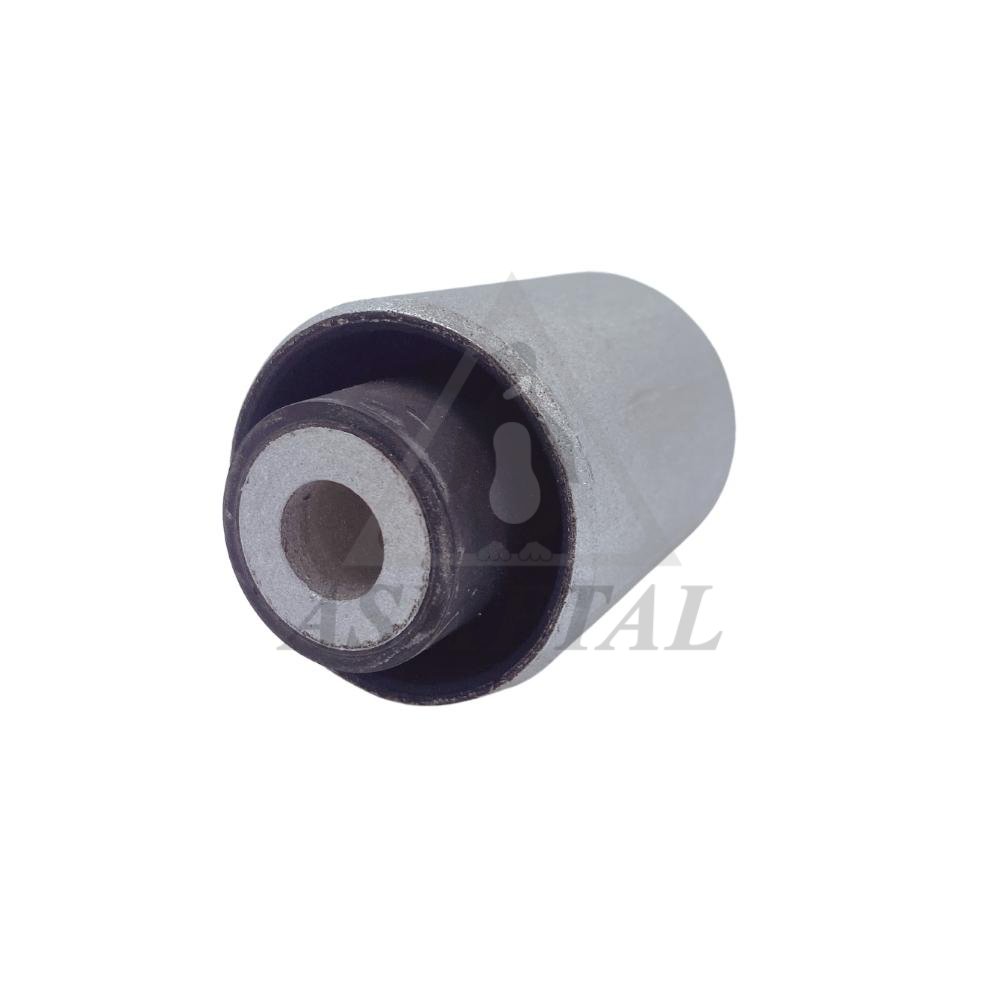

38MR1414 NEW	Silentblock for TCA	di: Ø12.1 / do: Ø45.1 / L: 77.8 / 0,172 kg	246 352 01 00, A 246 352 01 00 (2) OEM

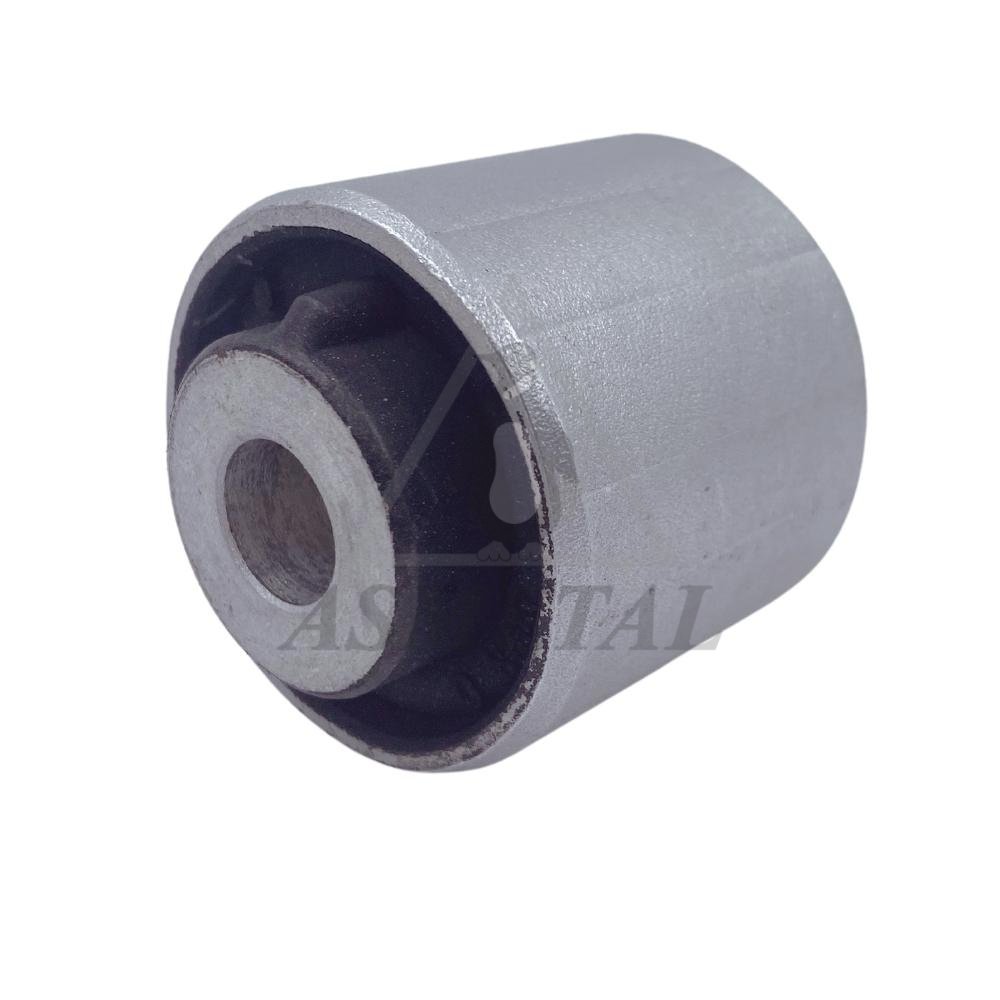

38MR1420 NEW	Silentblock for TCA	di: Ø12.2 / do: Ø47 / L: 50 / 0,1270 kg	55046 5DA0A, 247 352 16 00 (4) OEM

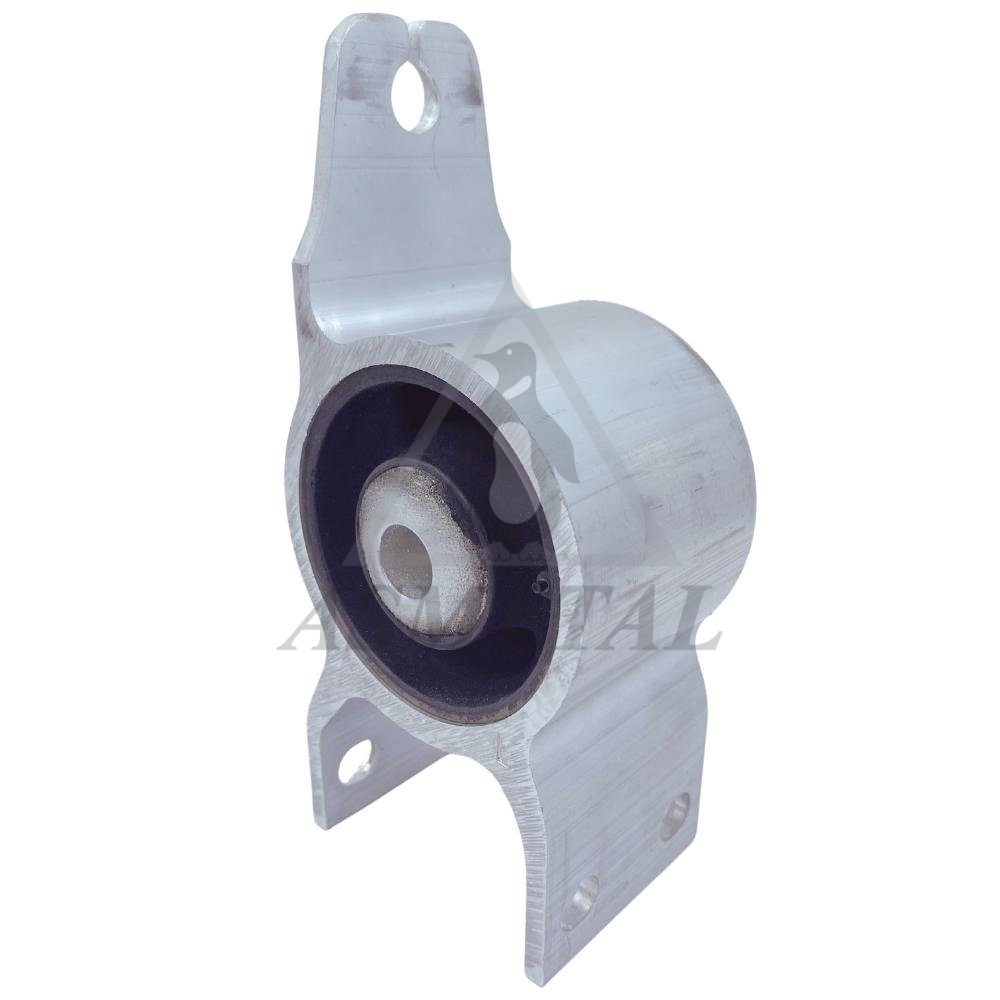

38MR1500 NEW	Silentblock for TCA Left	di: Ø14.3 / 0,6 kg	247 333 05 00, A 247 333 05 00

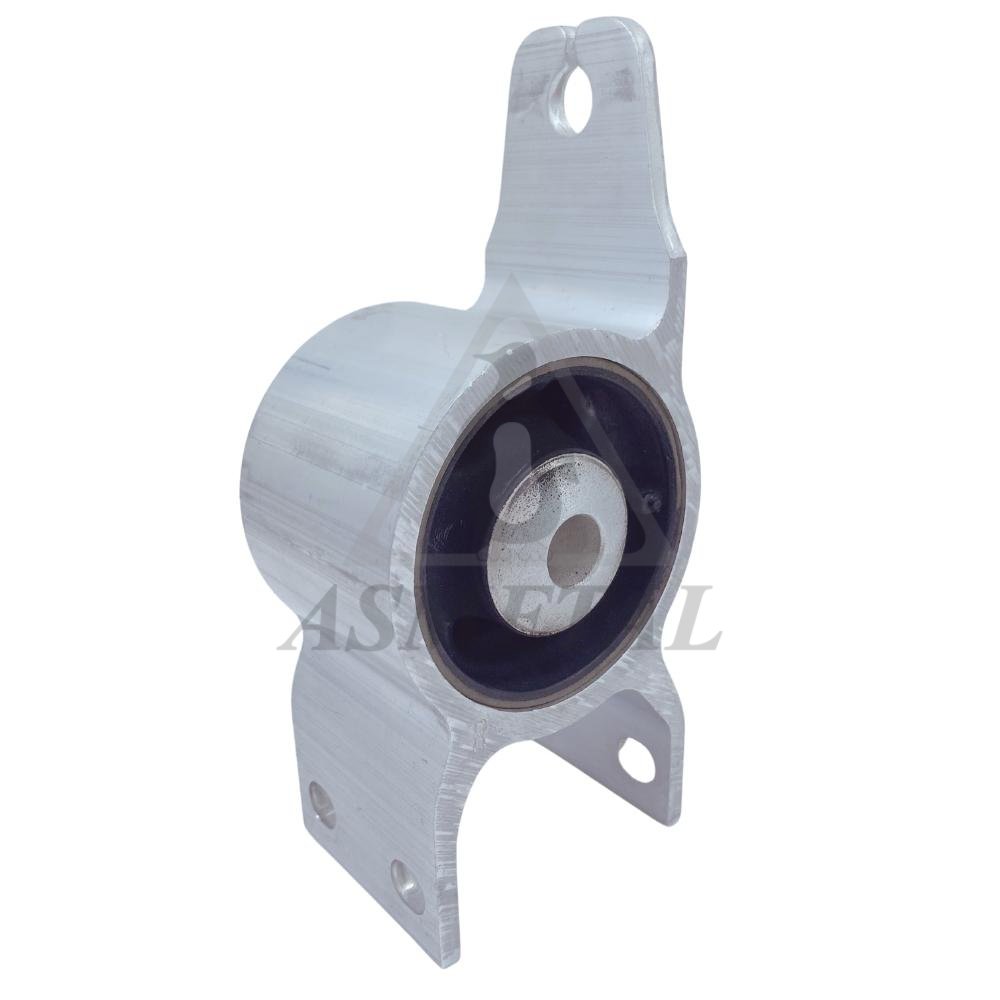

38MR1501 NEW	Silentblock for TCA Right	di: Ø14.3 / 0,61 kg	247 333 06 00, A 247 333 06 00

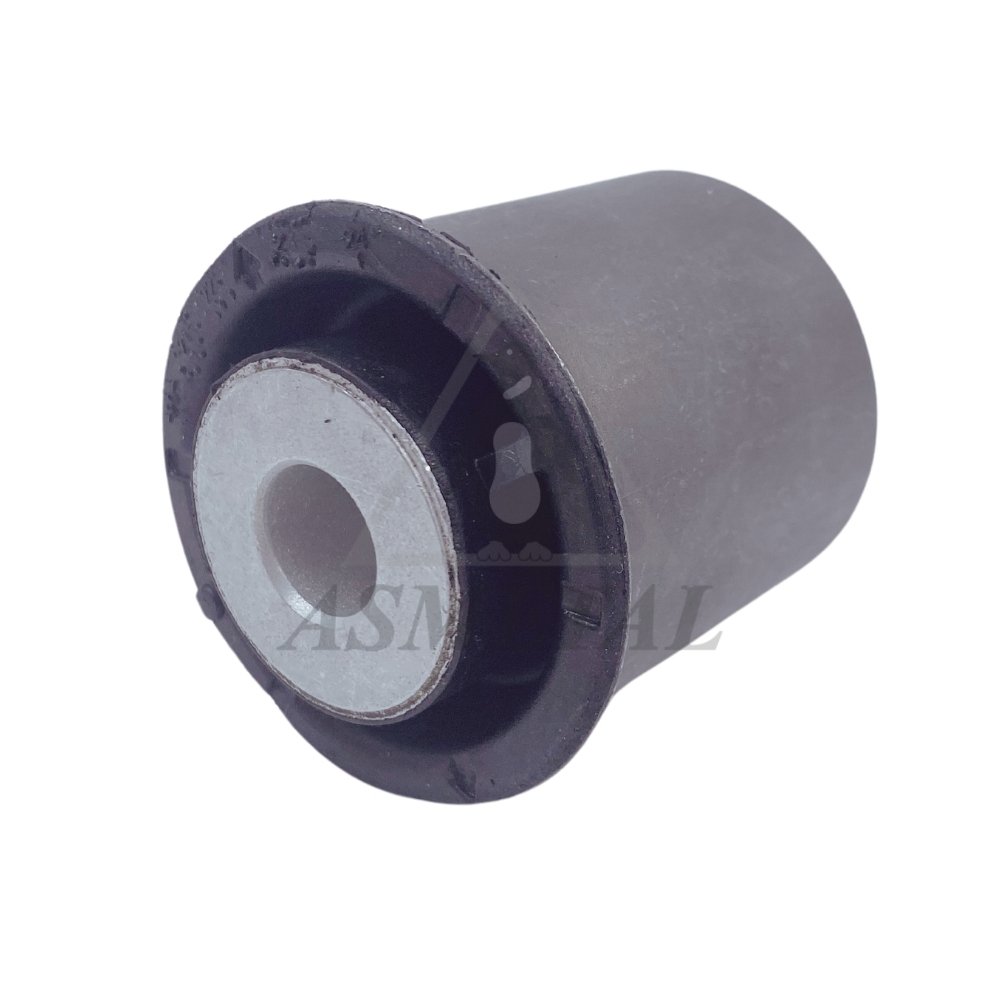

38MR1502 NEW	Silentblock for TCA	0,3010 kg	1773307400, A1773307400 (2) OEM
45MR1205 NEW	Strut Mount		169 320 00 73, A 169 320 00 73
45MR1221 IN PREPARATION	Suspension Support Buffer and Dust Cover	0 kg	A169 323 01 92, 169 323 01 92

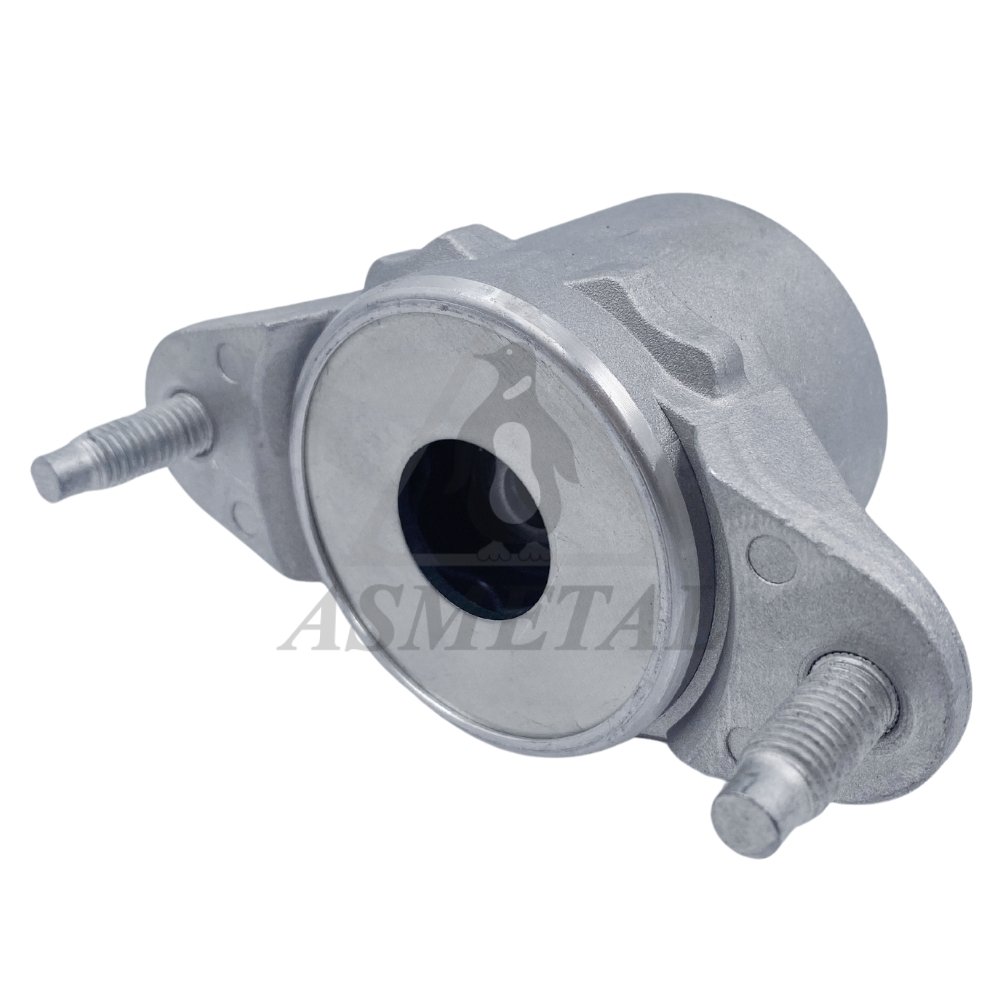

45MR1420 IN PREPARATION	Strut Mount		176 320 05 31, 176 320 15 31 (4) OEM
