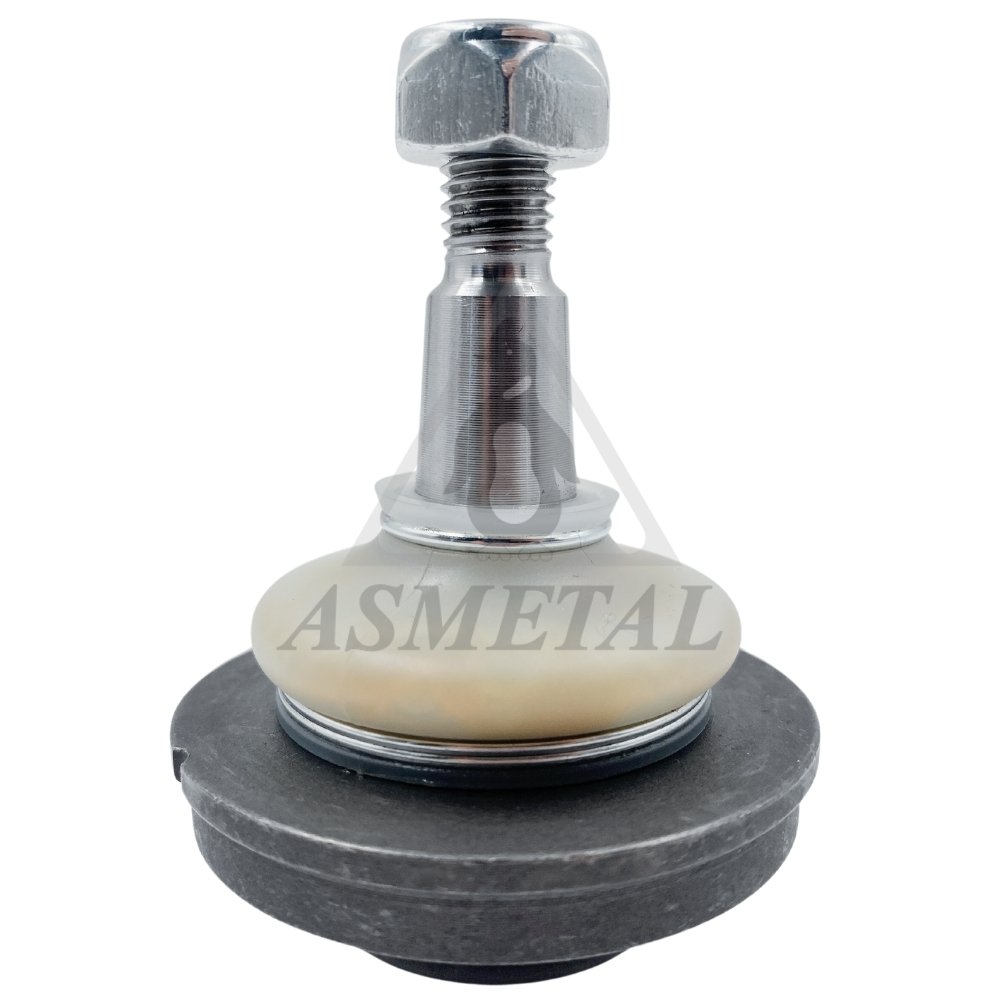

10MR02
IN PREPARATION
|
Ball Joint Upper |
|
2023304907* |
 |

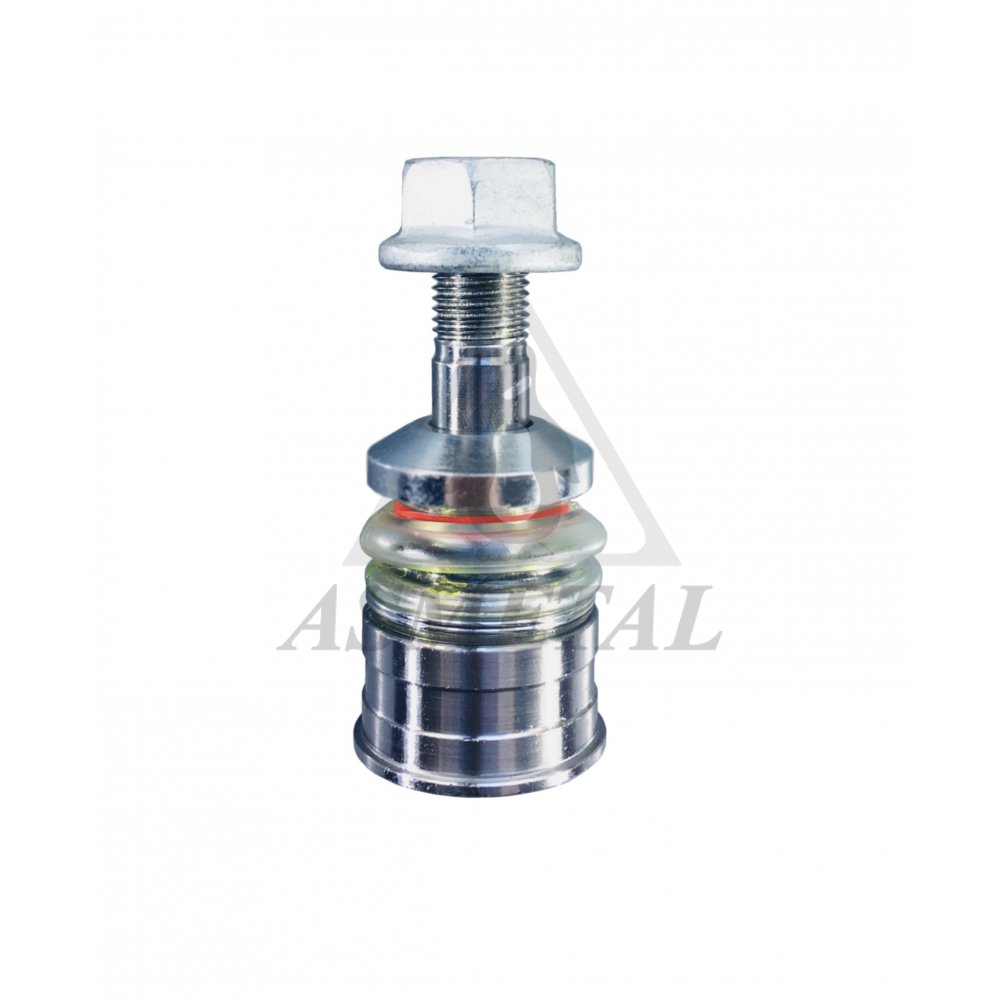

10MR1800
|
Ball Joint Lower |
th:MM14x1.5 RHT cs: Ø14 do:34.2 / 0,3 kg |
205 330 63 01, A 205 330 63 01 (12) OEM |
 |

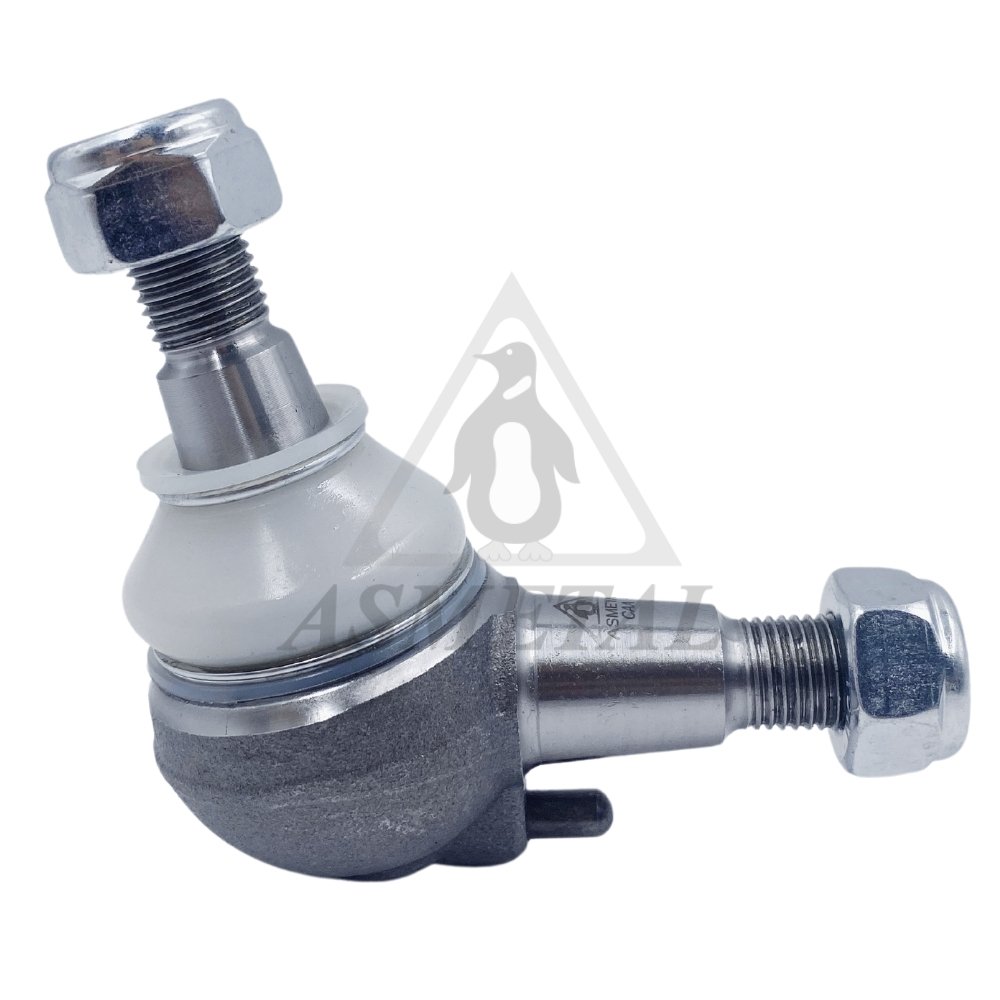

10MR40
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/6 cs:Ø15,9 / 0,58 kg |
5099237AA, K05099237AA (14) OEM |
 |

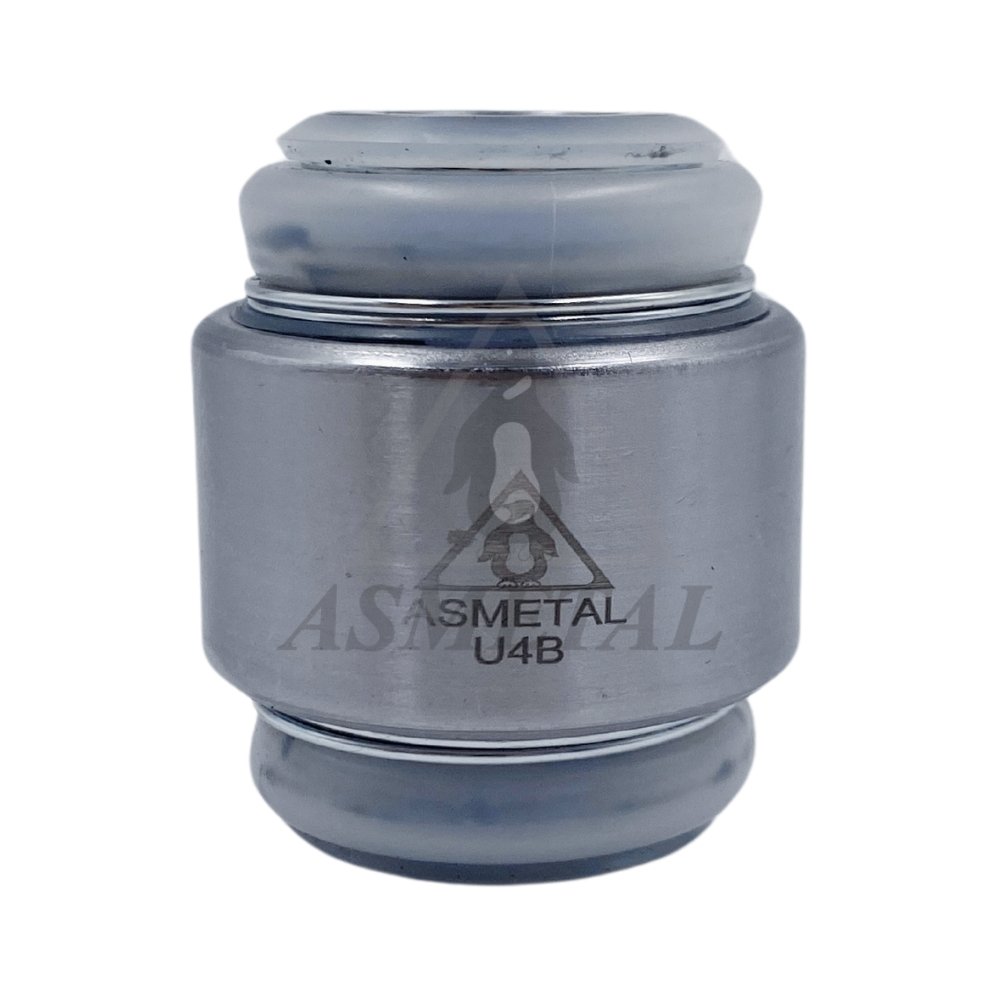

11MR00
|
Silentblock Bushing |
di:Ø14 do:Ø40 / 0,22 kg |
A 204 352 00 27, A 221 352 01 27 (14) OEM |
 |

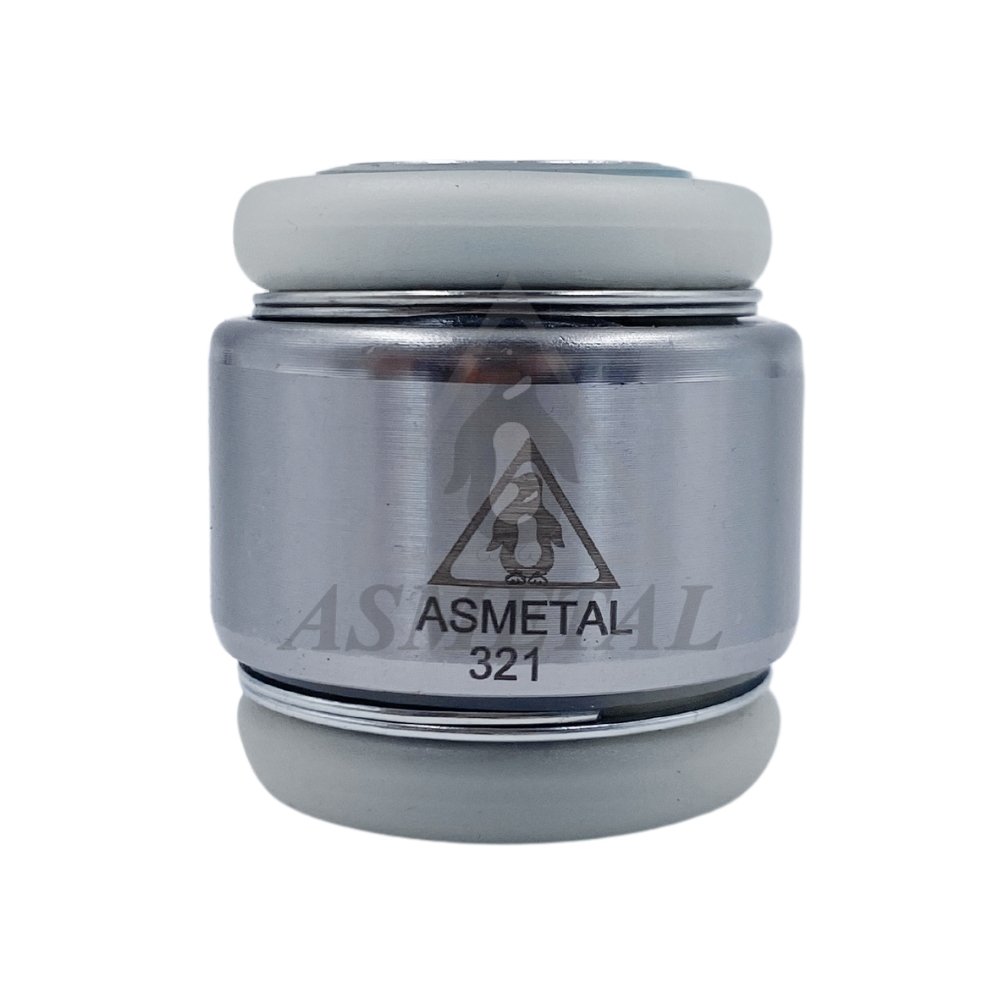

11MR1800
|
Silentblock Bushing |
di:Ø14 do: Ø44 L:48mm / 0,3 kg |
205 330 64 01, A 205 330 58 01 (8) OEM |
 |

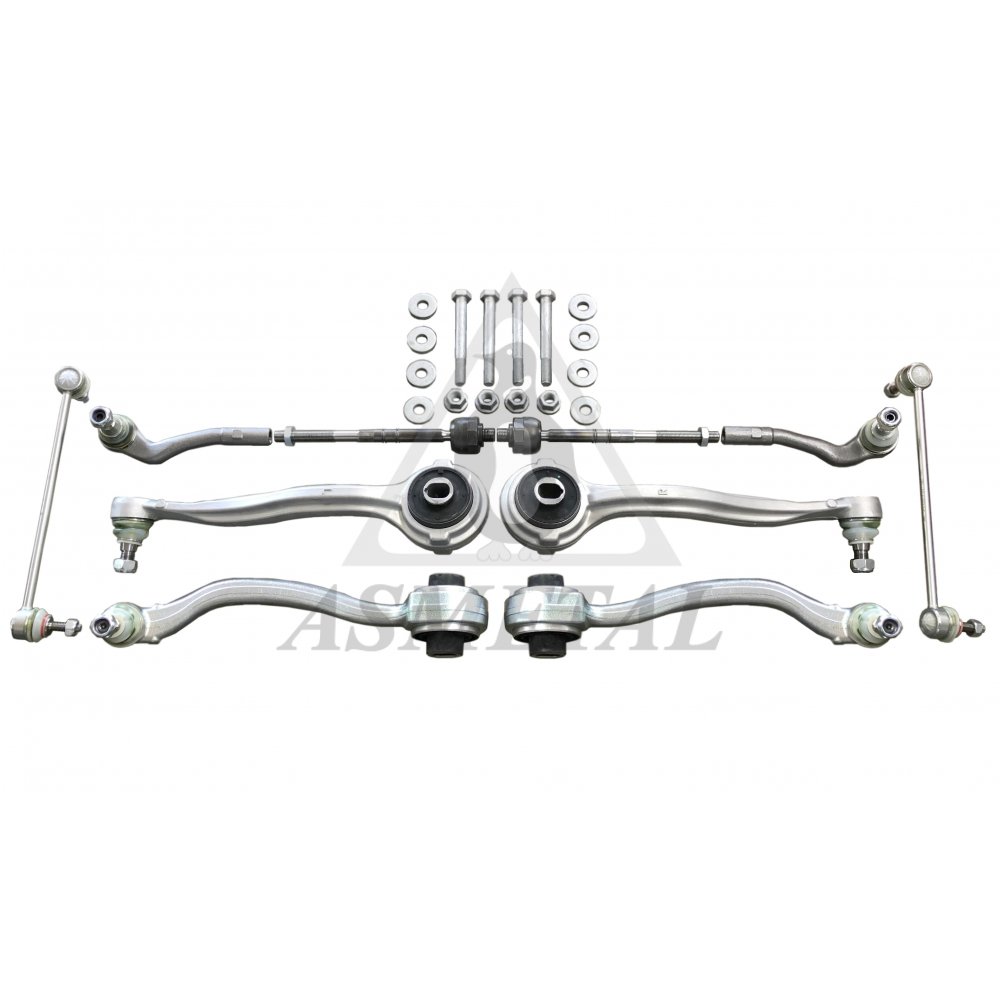

13MR3200
|
Suspension Kit (TCA Kit) |
13,4 kg |
204 330 33 11, A 204 330 43 11 (32) OEM |
 |
13MR3200B
IN PREPARATION
|
Suspension Kit (TCA Kit) |
0 kg |
A 203 330 02 11, 203 330 17 11 (32) OEM |
 |

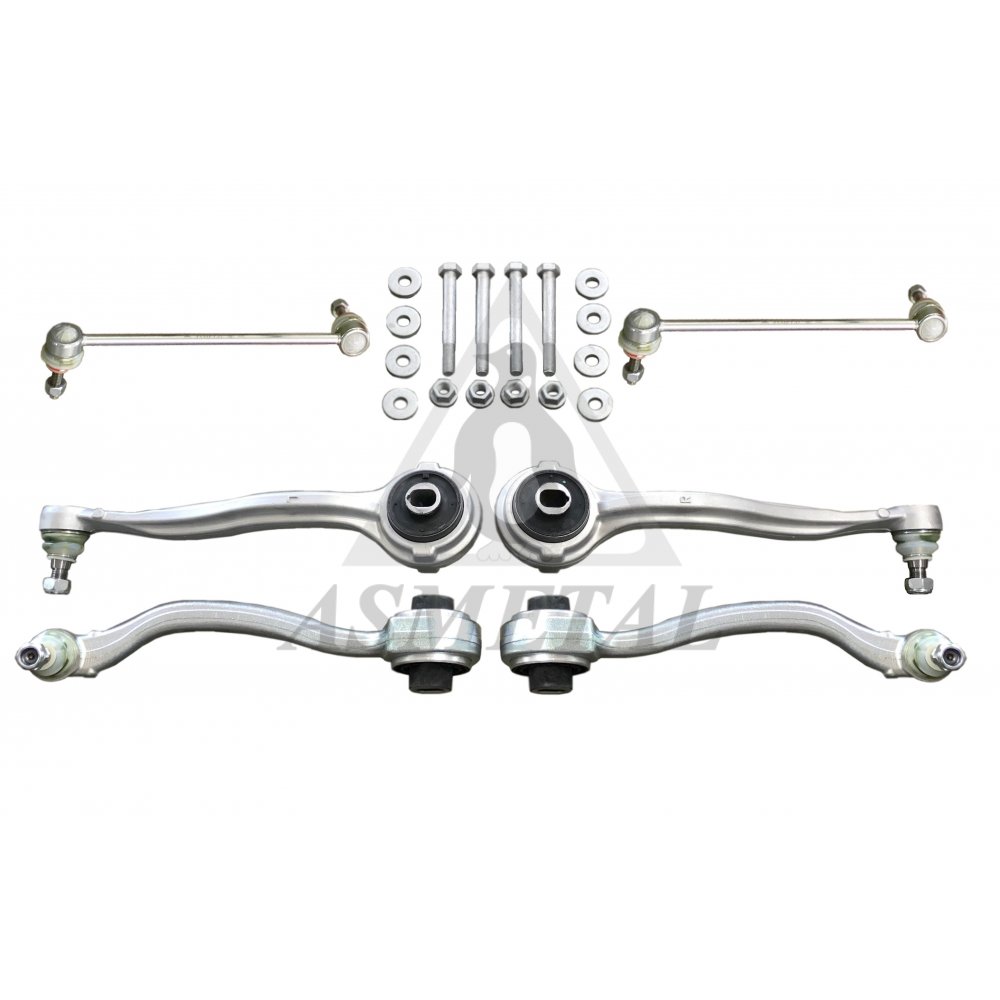

13MR3201
|
Suspension Kit (TCA Kit) |
10,83 kg |
A 203 330 20 11, 203 330 35 11 (32) OEM |
 |
13MR3201B
IN PREPARATION
|
Suspension Kit (TCA Kit) |
0 kg |
A 203 330 20 11, 203 330 35 11 (32) OEM |
 |

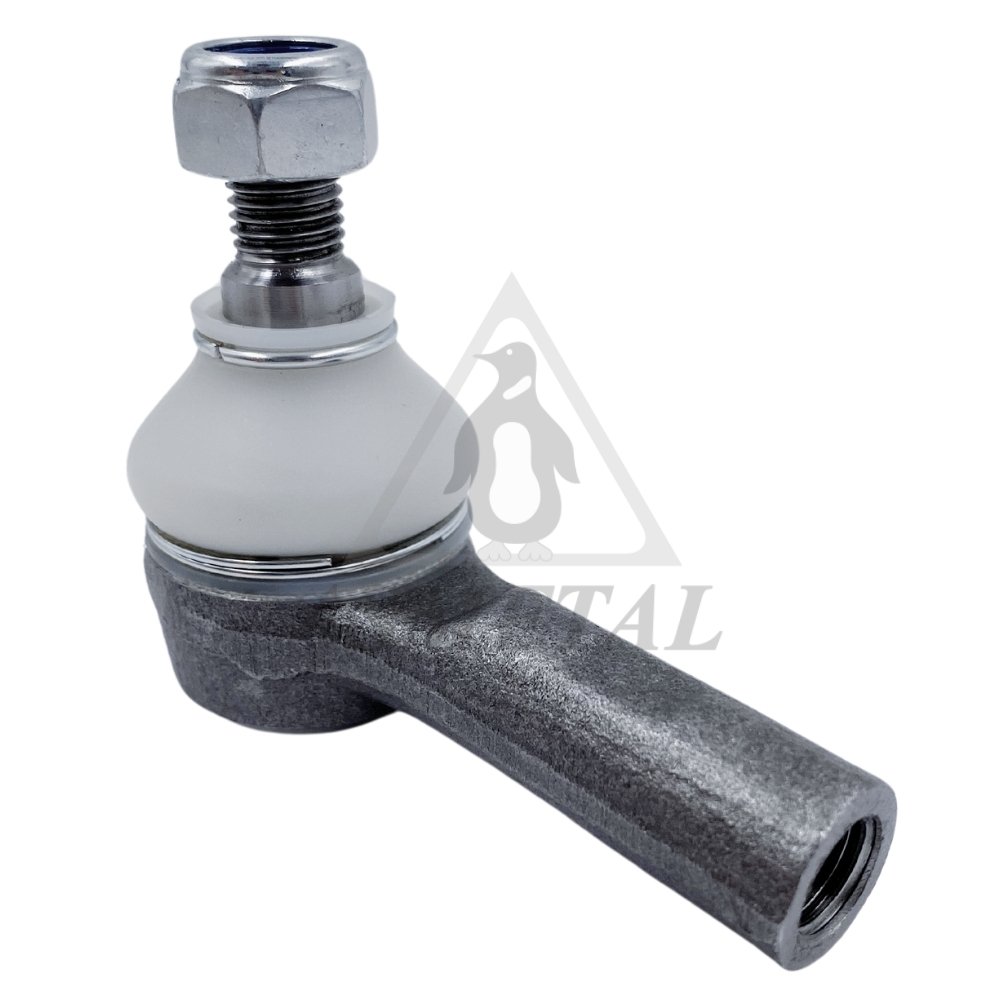

17MR1100
|
Tie Rod End |
c:Ø14,6 th:FM12x1,5 RHT / 0,3 kg |
001 330 74 35, 000 330 74 35 (1) OEM |
 |

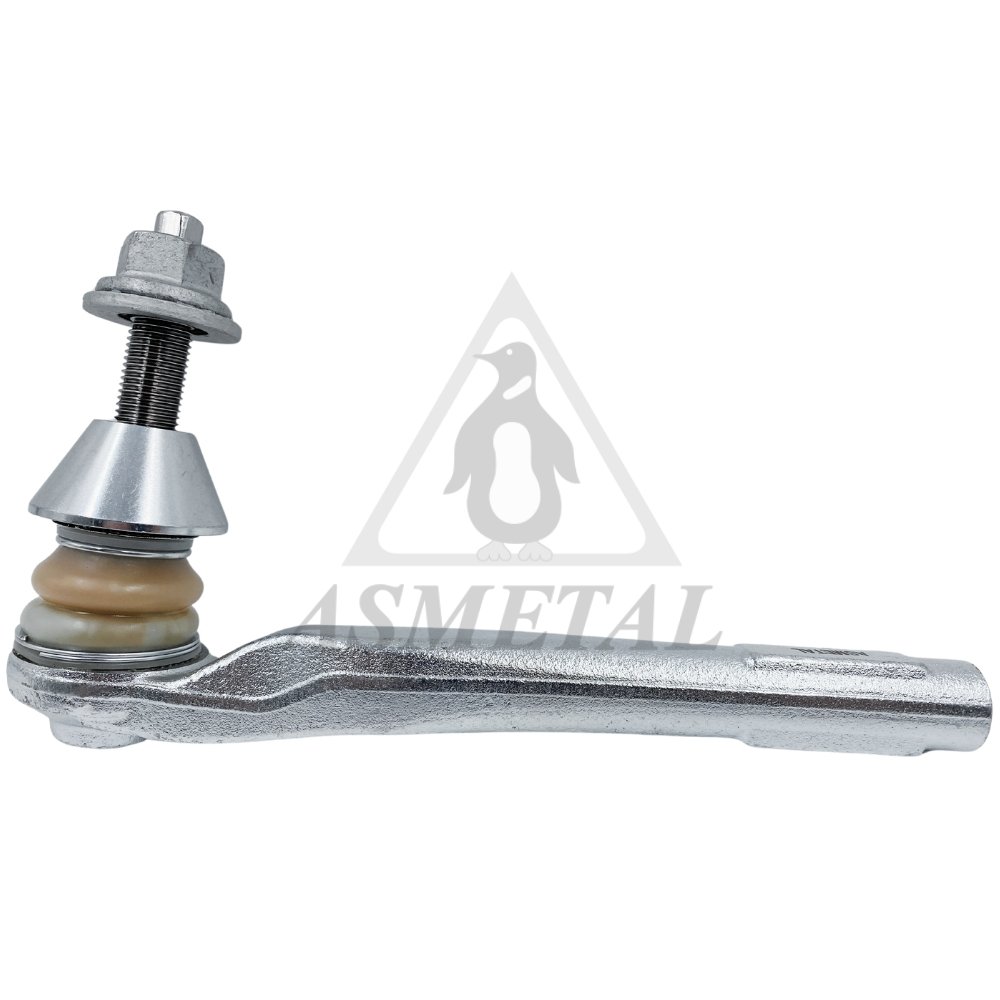

17MR1800
IN PREPARATION
|
Tie Rod End Left |
0 kg |
205 460 06 05, A 205 460 06 05 |
 |

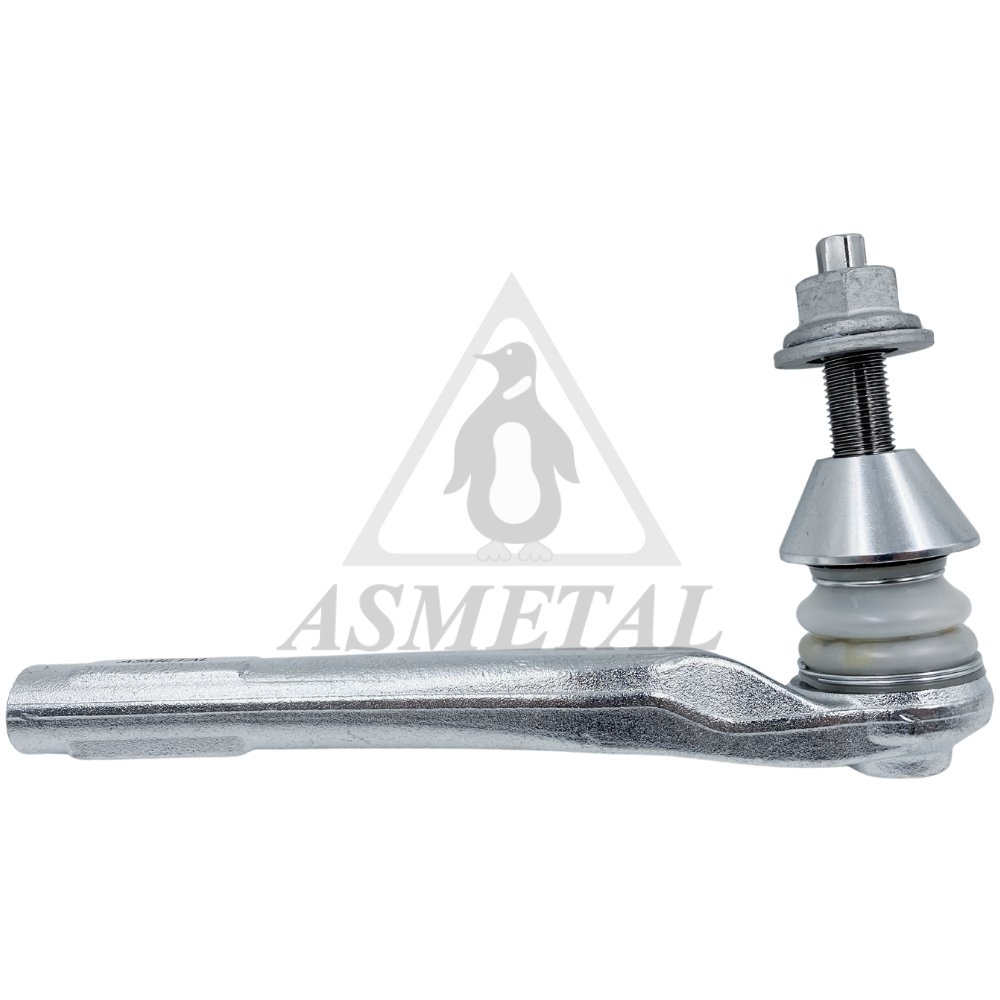

17MR1801
IN PREPARATION
|
Tie Rod End Right |
0 kg |
A 205 460 07 05, 205 460 07 05 |
 |

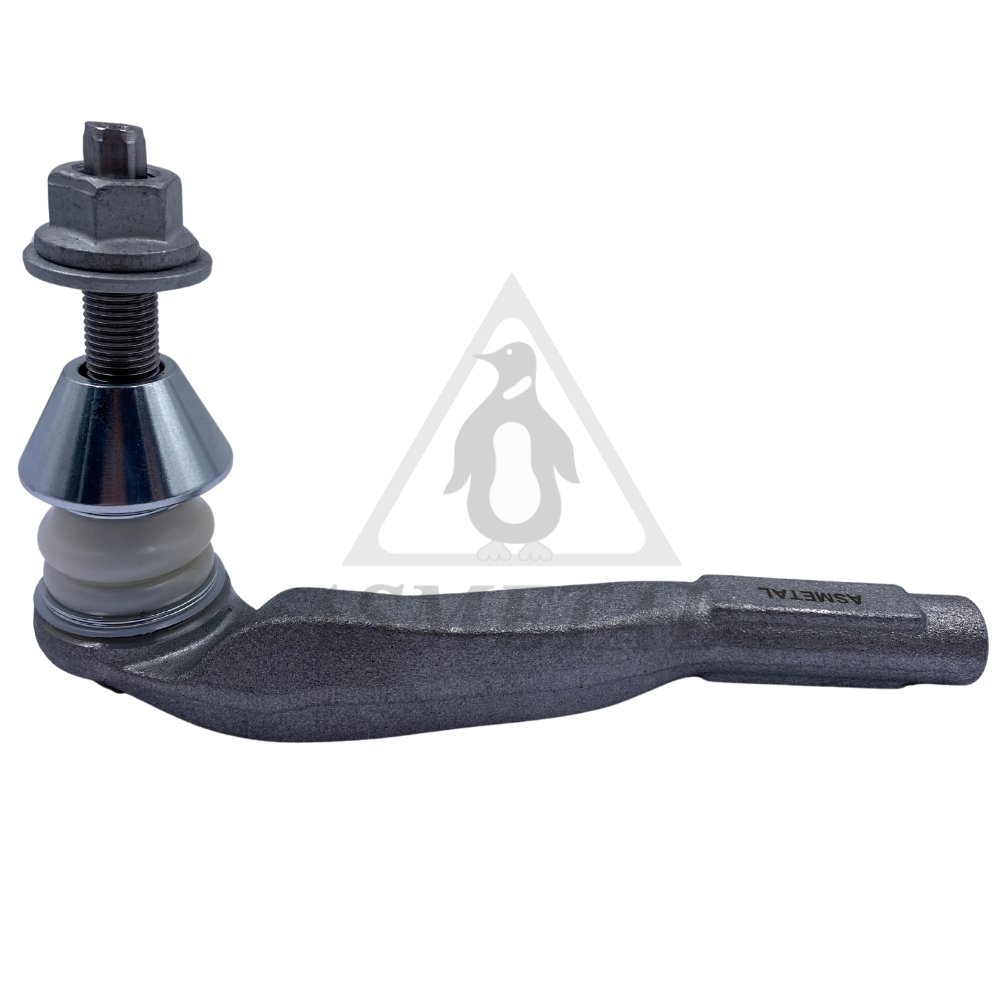

17MR1810
IN PREPARATION
|
Tie Rod End Left |
0 kg |
205 460 00 05, A 205 460 00 05 |
 |

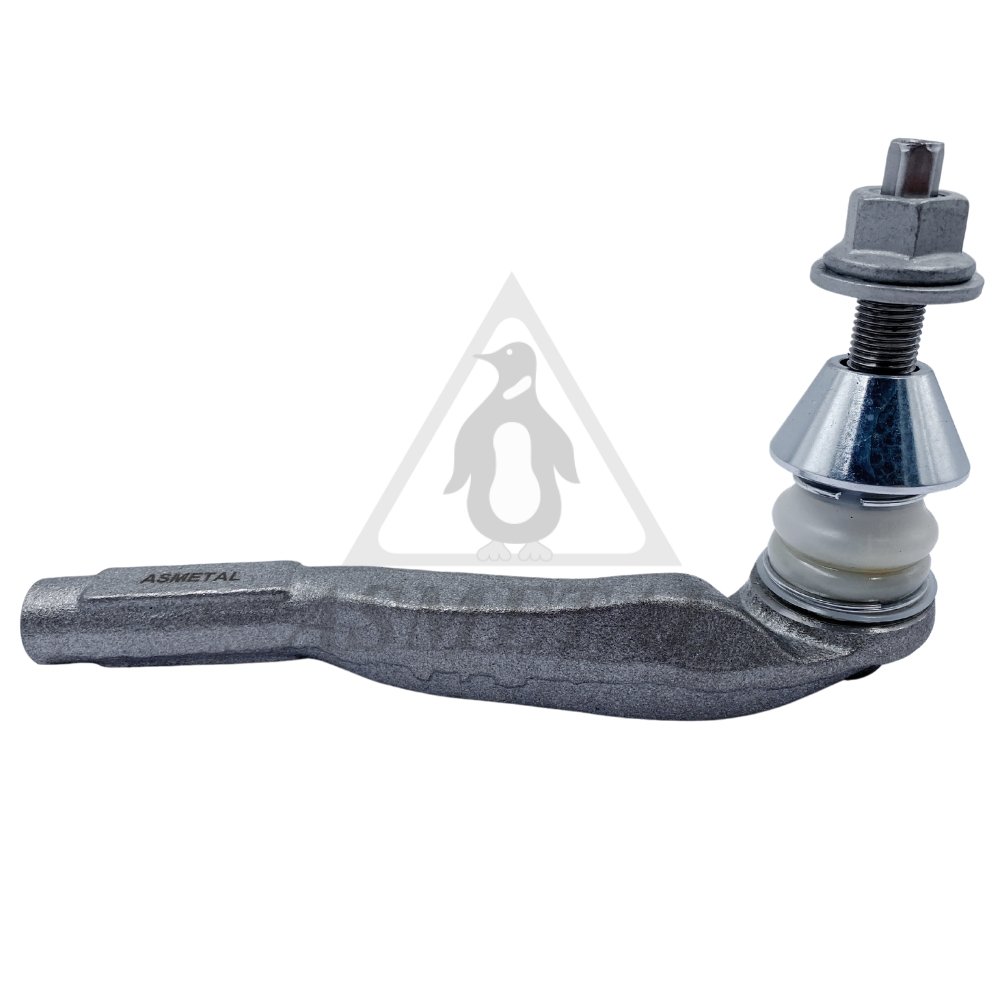

17MR1811
IN PREPARATION
|
Tie Rod End Right |
0 kg |
205 460 01 05, A 205 460 01 05 (1) OEM |
 |

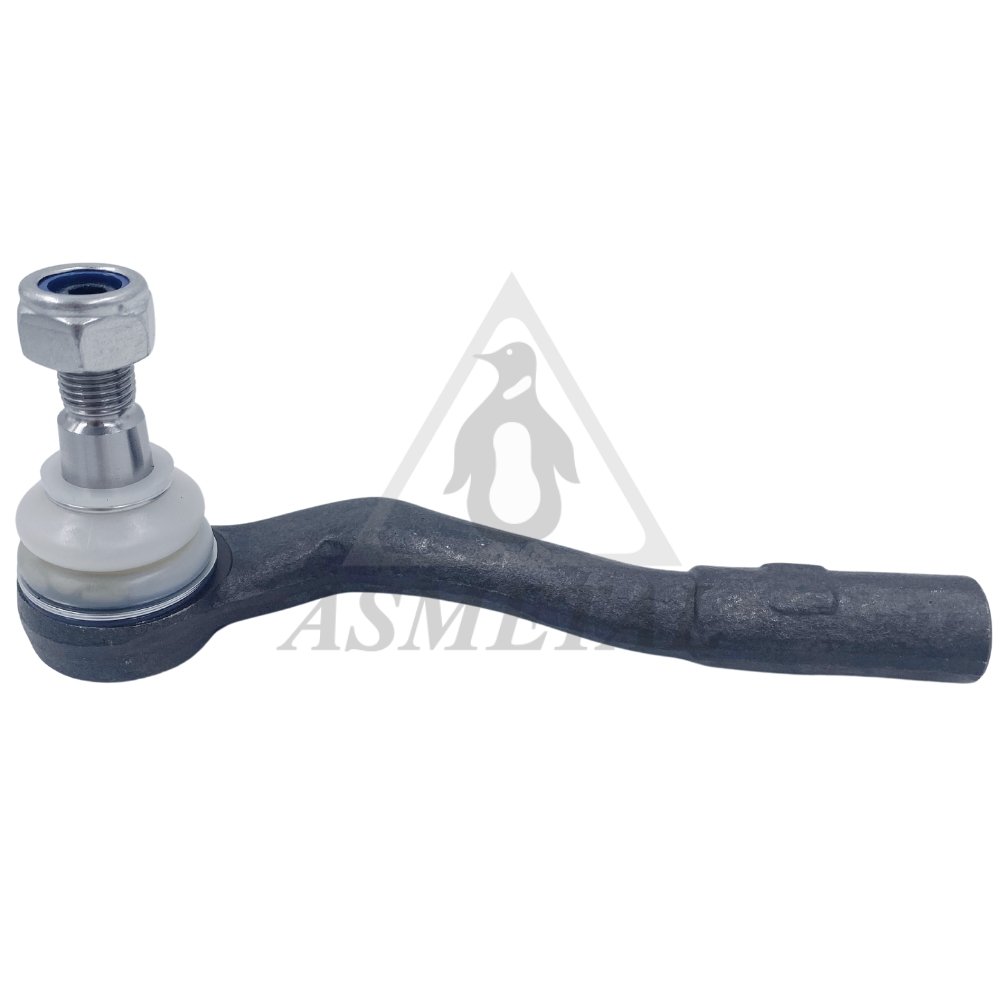

17MR3200
|
Tie Rod End Right |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg |
A 203 330 24 03, 203 330 40 03 (4) OEM |
 |

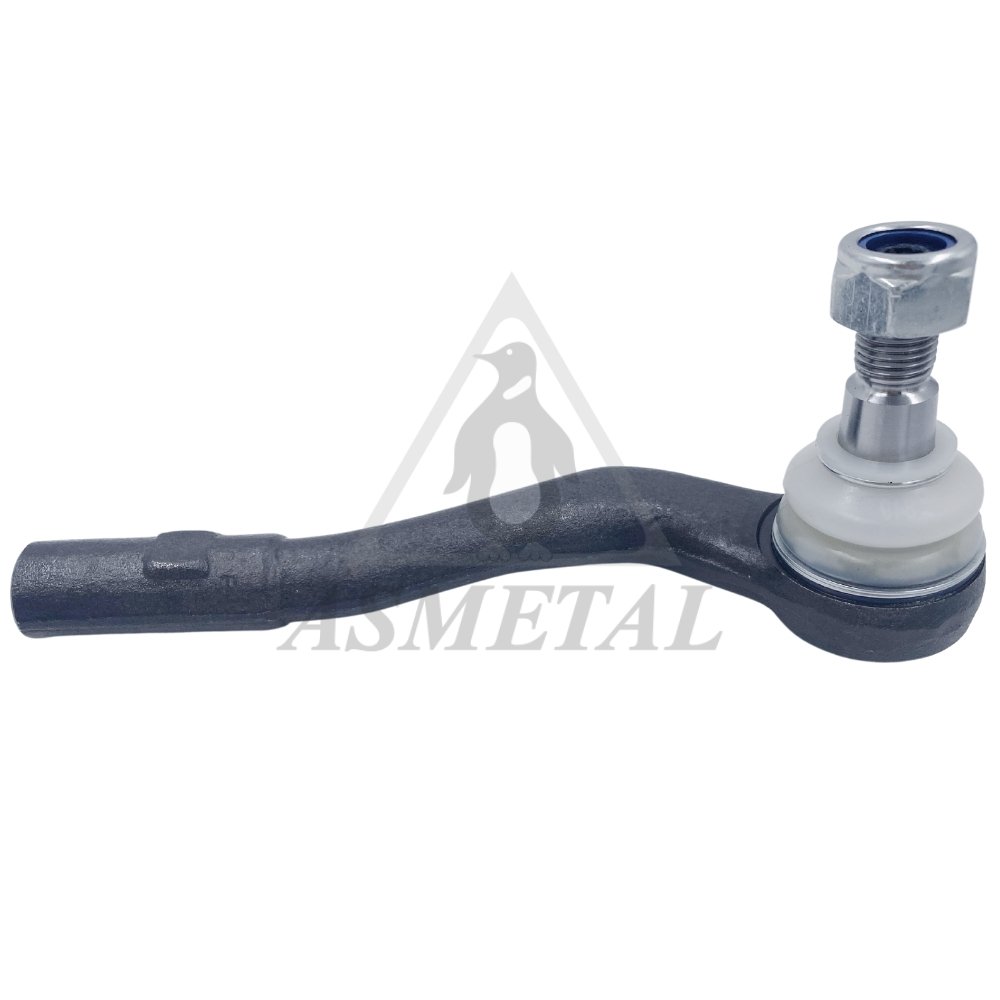

17MR3201
|
Tie Rod End Left |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg |
A 203 330 23 03, 203 330 39 03 (4) OEM |
 |
17MR3210
IN PREPARATION
|
Tie Rod End Left |
|
203 330 33 03, A 203 330 33 03 |
 |
17MR3211
IN PREPARATION
|
Tie Rod End Right |
|
203 330 34 03, A203 330 34 03 |
 |

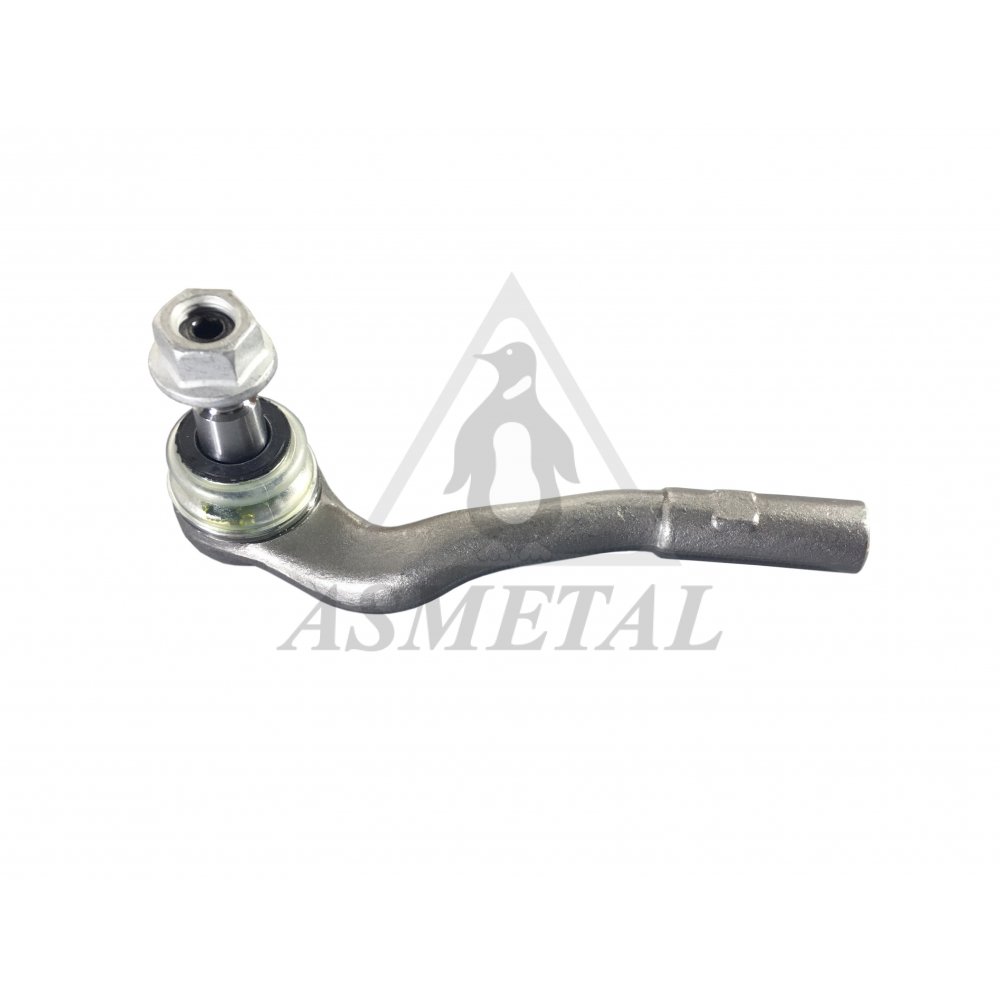

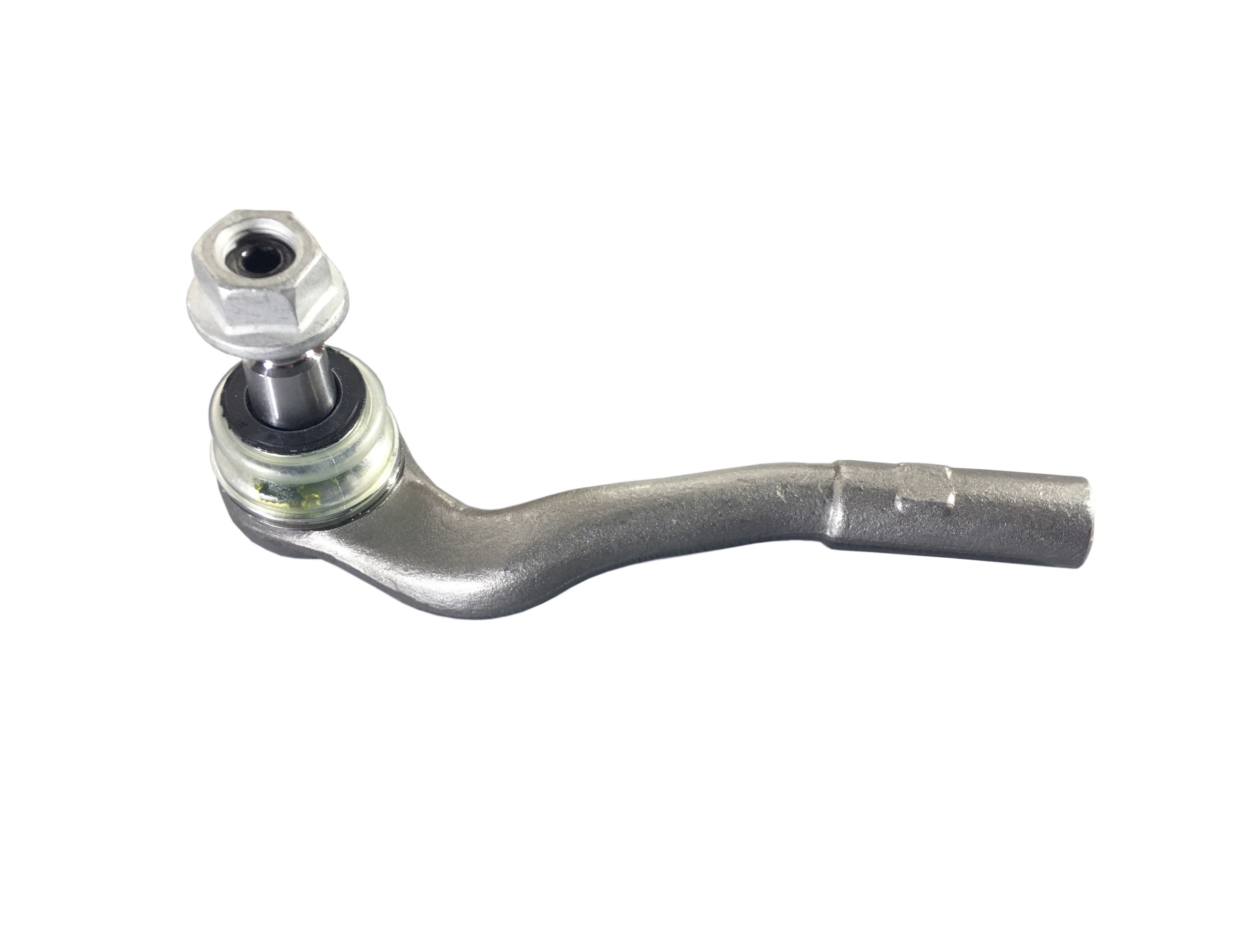

17MR3600
|
Tie Rod End Left |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg / 0,72 kg |
204 330 09 03, A 204 330 09 03 |
 |

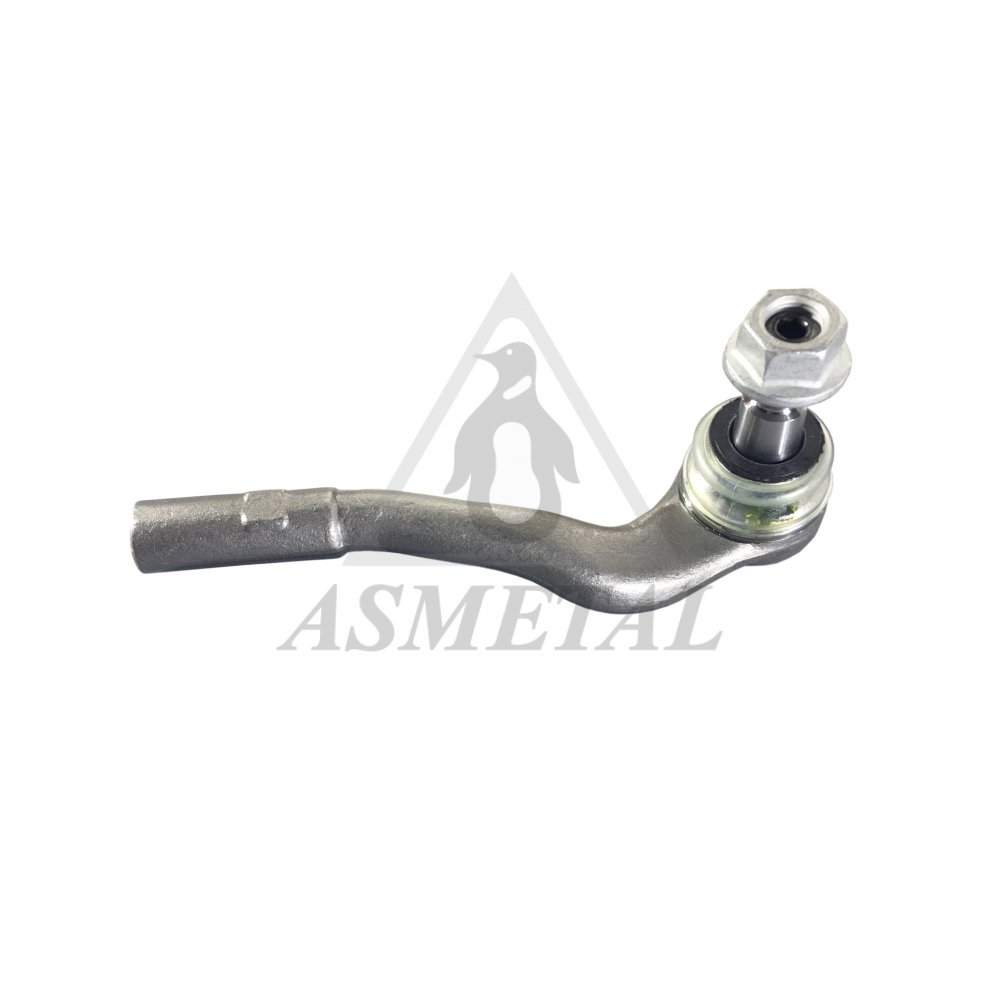

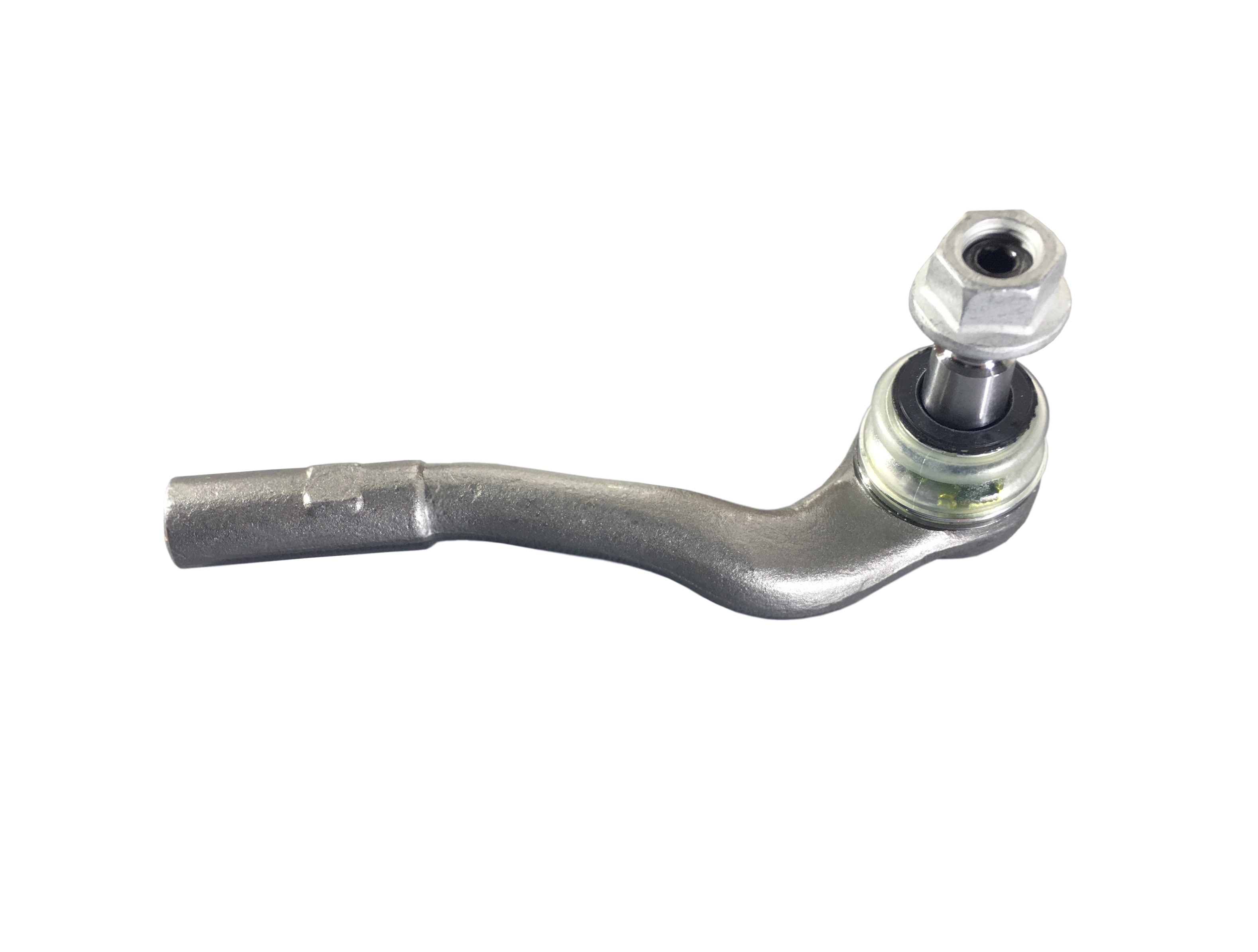

17MR3601
|
Tie Rod End Right |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg / 0,72 kg |
204 330 10 03, A 204 330 10 03 |
 |

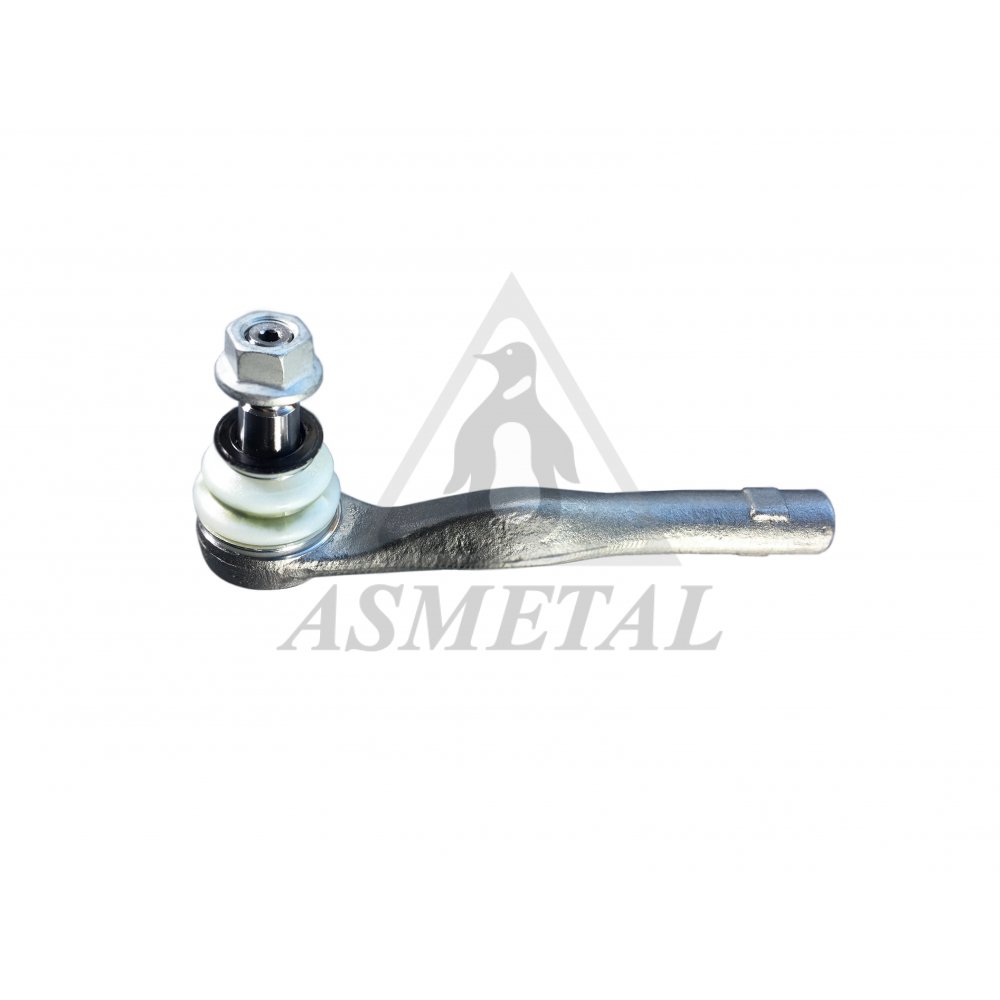

17MR3610
|
Tie Rod End Left |
L: 189 cr: 1:10 c: Ø16.6 tp: M14x1.5 th: FM14x1.5 / 0,81 kg |
A 204 330 33 03, 204 330 33 03 |
 |

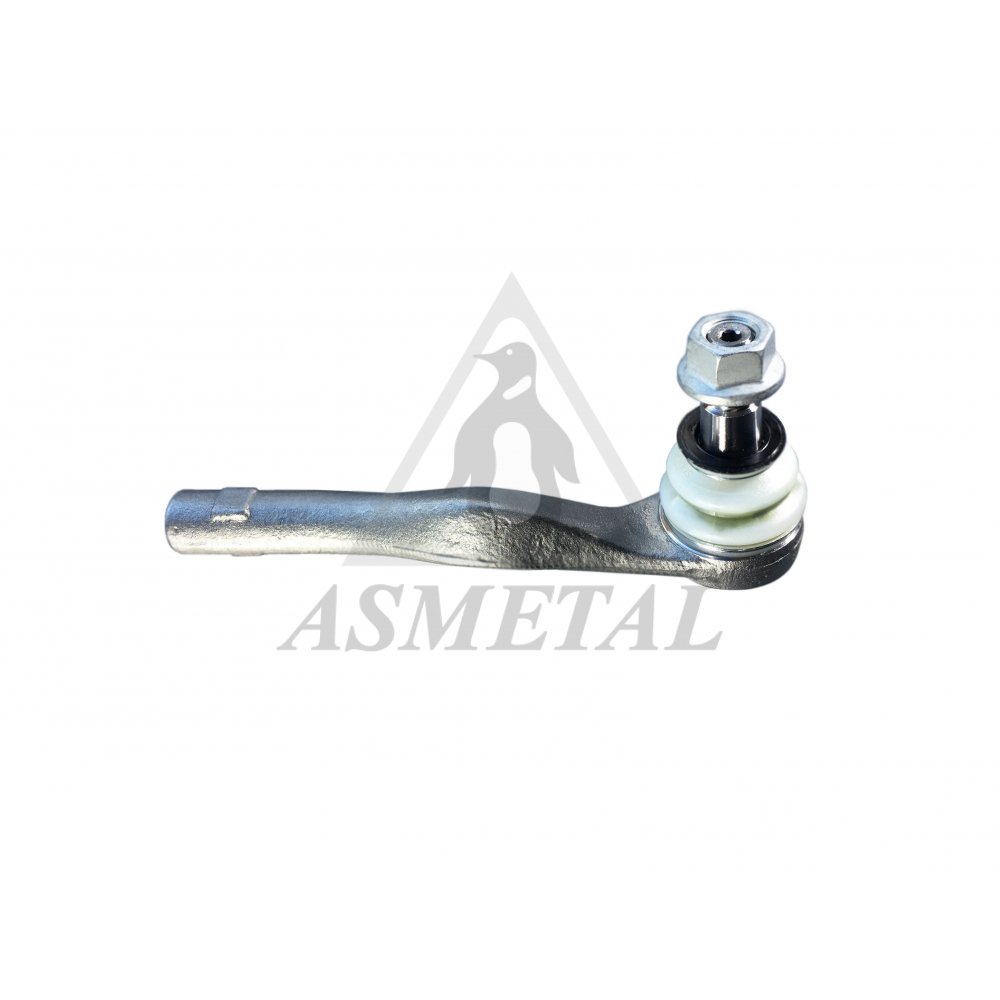

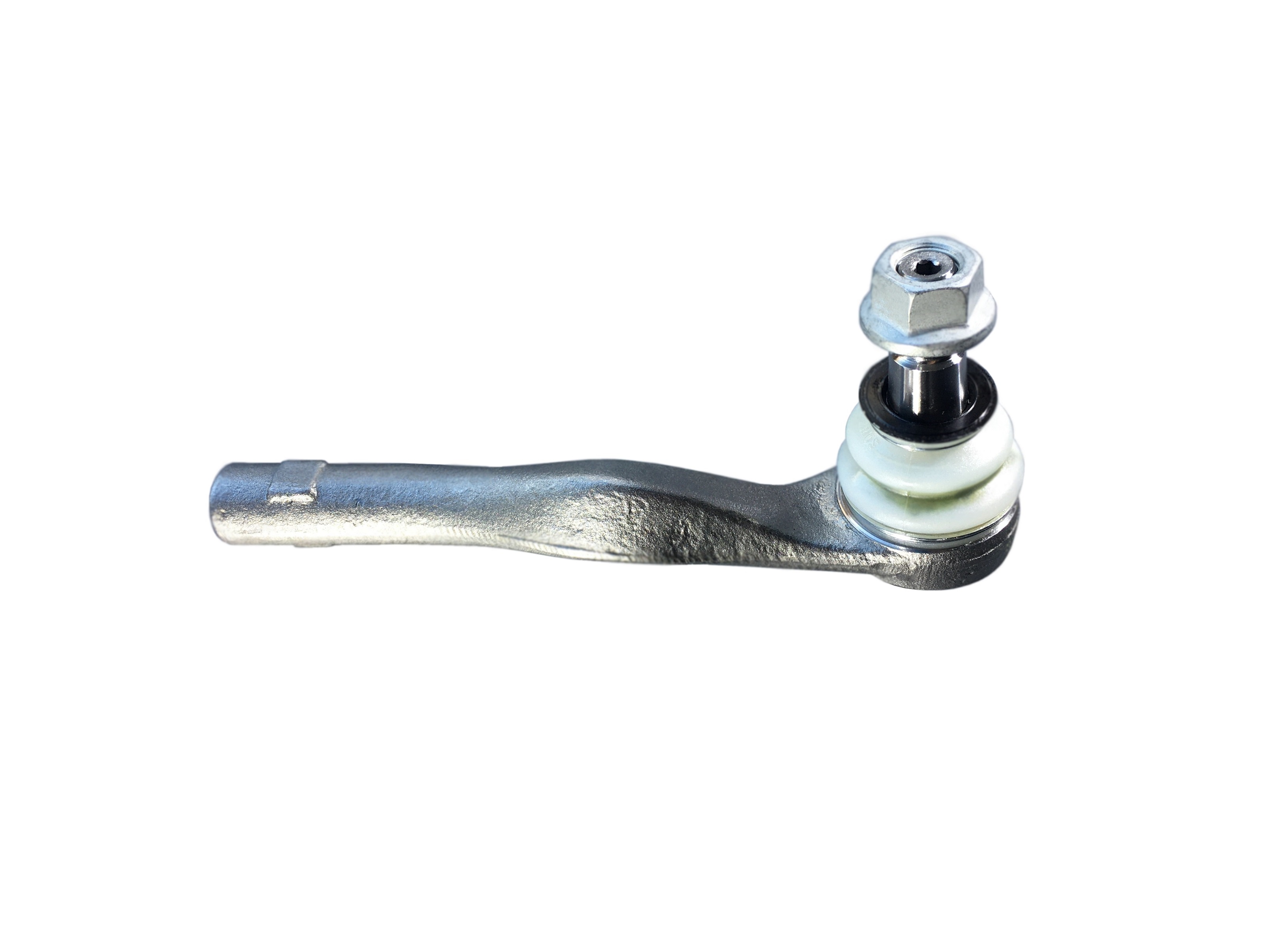

17MR3611
|
Tie Rod End Right |
L: 189 cr: 1:10 c: Ø16.6 tp: M14x1.5 th: FM14x1.5 / 0,81 kg |
A 204 330 34 03, 204 330 34 03 |
 |

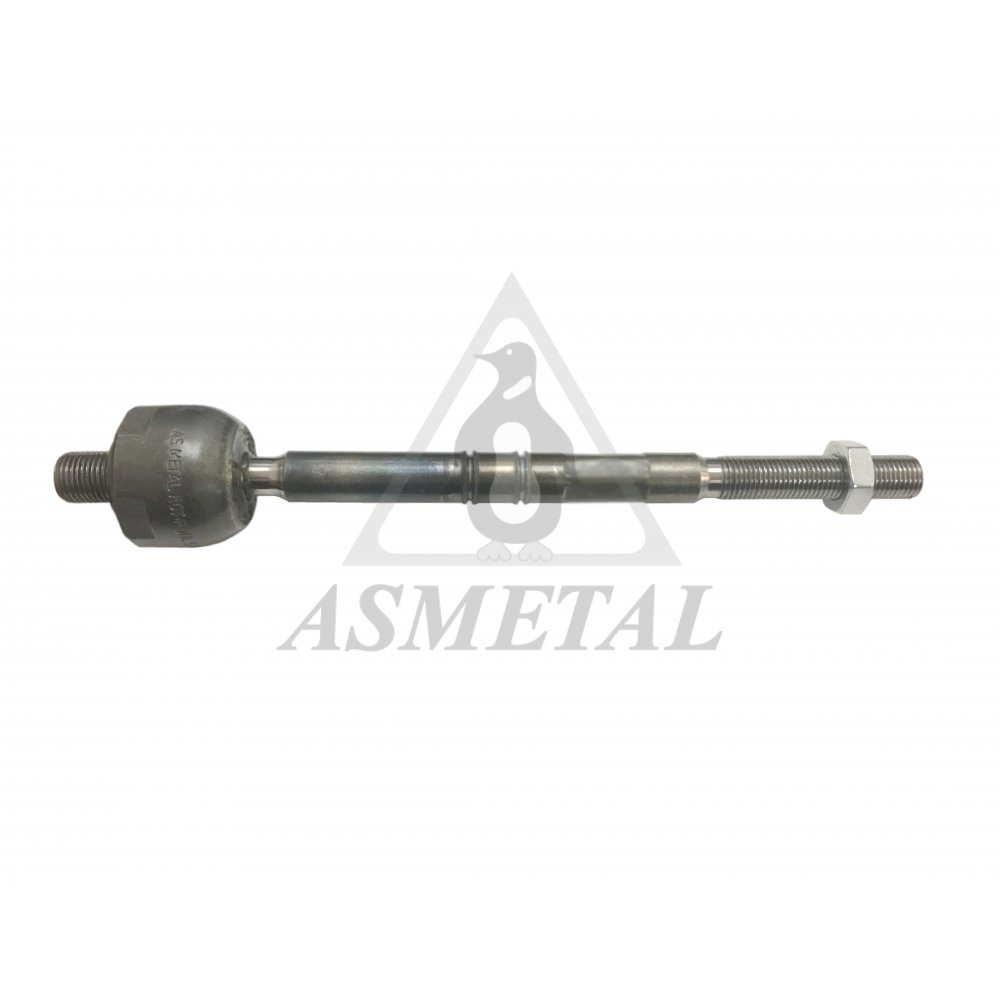

20MR1800
|
Axial Joint |
th:MM16x1.5 RHT th:MM14x1.5 RHT L:245.5mm / 0,68 kg |
205 460 08 05, A 205 460 08 05 |
 |

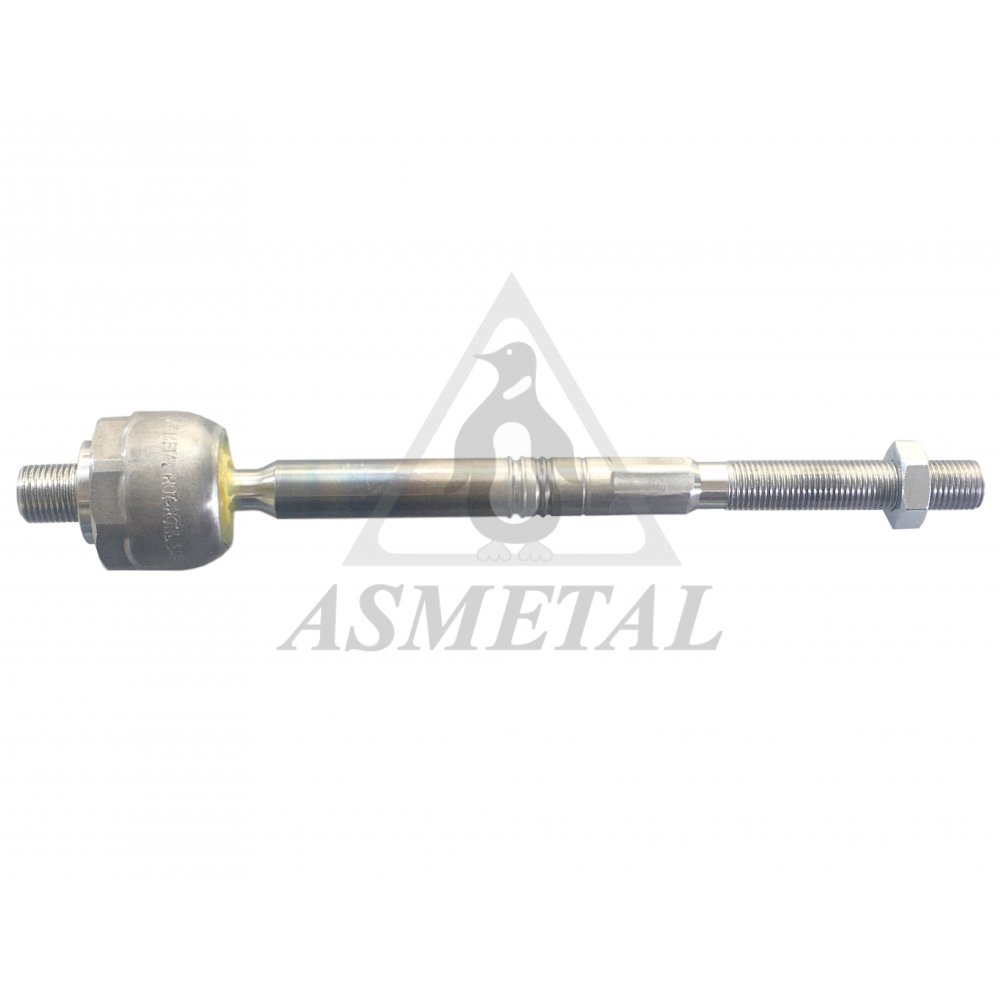

20MR1810
|
Axial Joint |
th1:MM16x1.5 RHT th2: MM14x1.5 RHT L: 243mm / 0,66 kg |
205 460 04 05, A 205 460 04 05 |
 |

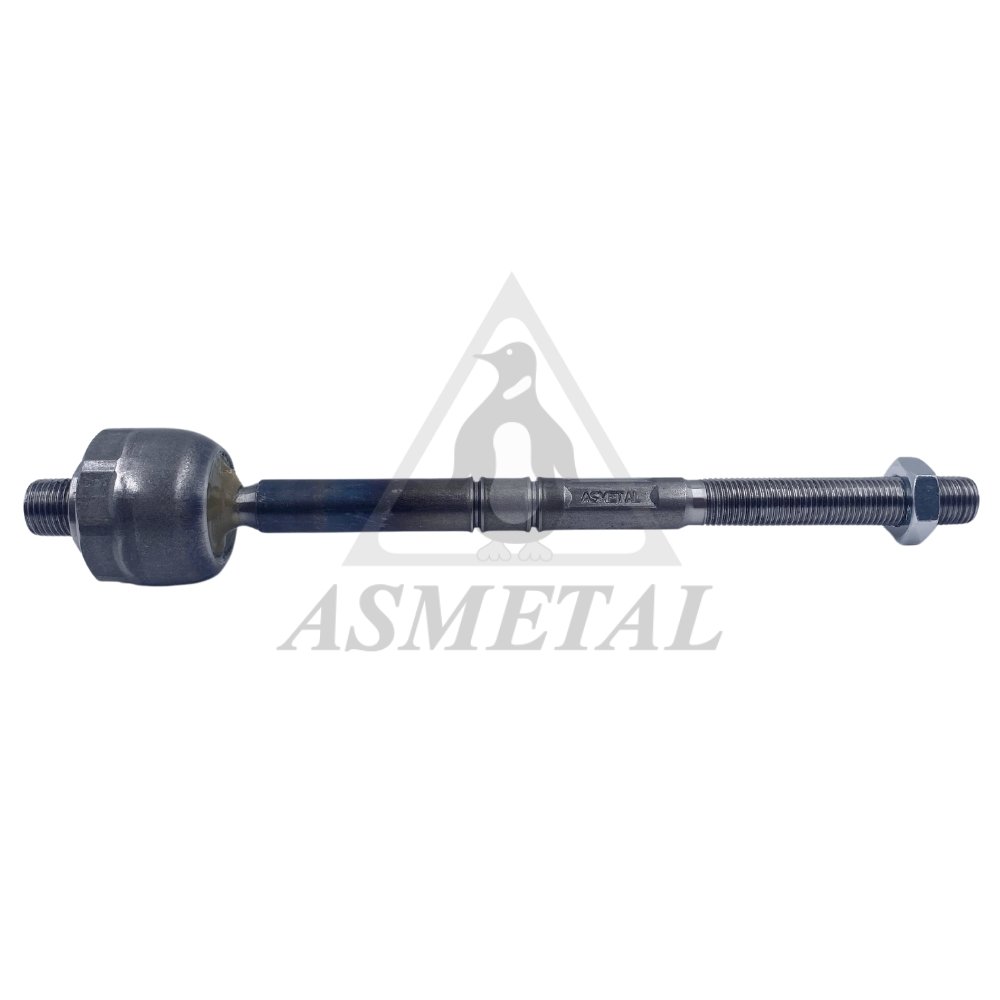

20MR3200
|
Axial Joint |
th:MM16x1,5 RHT L:241,5mm / 0,59 kg |
A 220 338 07 15, 230 338 00 15 (2) OEM |
 |

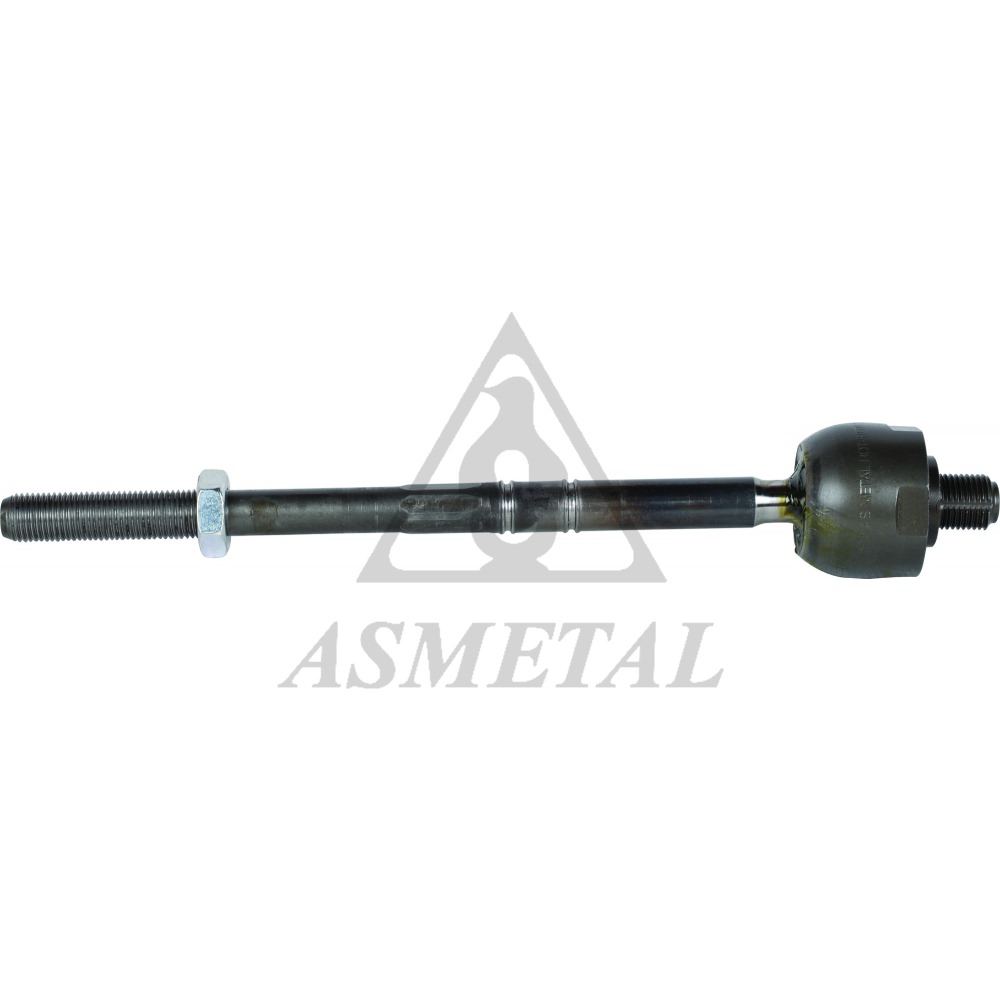

20MR3600
|
Axial Joint |
th:MM16x1,5 RHT L:261,5mm / 0,66 kg |
A 204 338 04 15, 204 338 00 15 (3) OEM |
 |

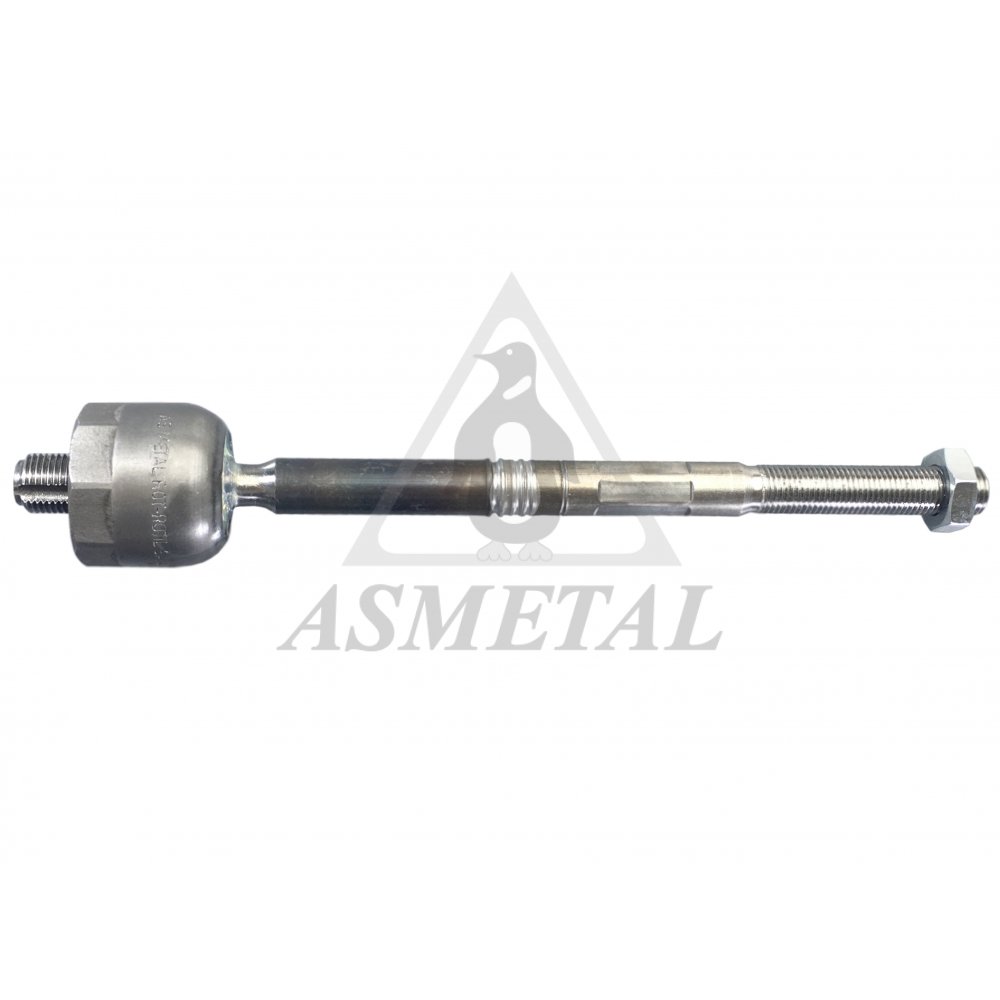

20MR3610
|
Axial Joint |
tp: MM16x1.5 tp: MM14x1.5 L: 245 / 0,7 kg |
204 338 05 15, A 204 338 05 15 (2) OEM |
 |

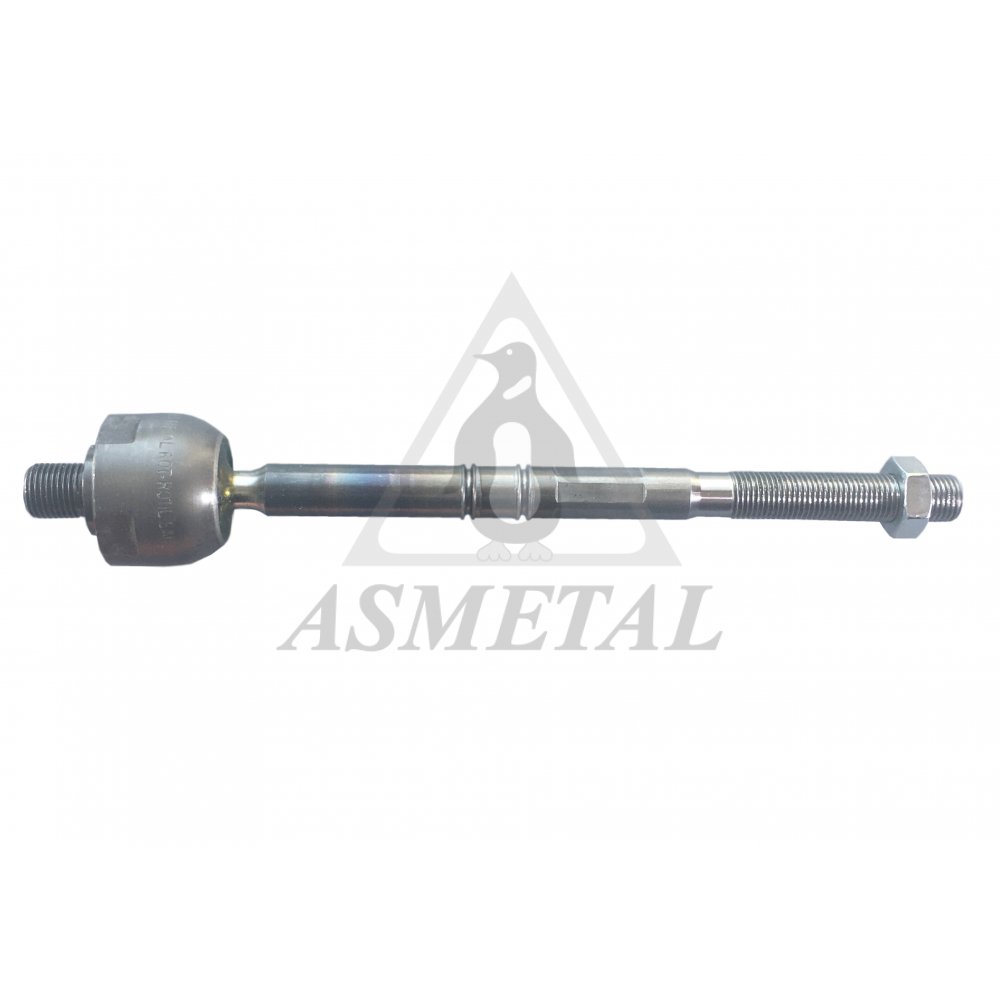

20MR3620
|
Axial Joint |
tp: MM16x1.5 tp: MM14x1.5 L: 250 / 0,65 kg |
207 330 05 00, A 207 330 05 00 |
 |

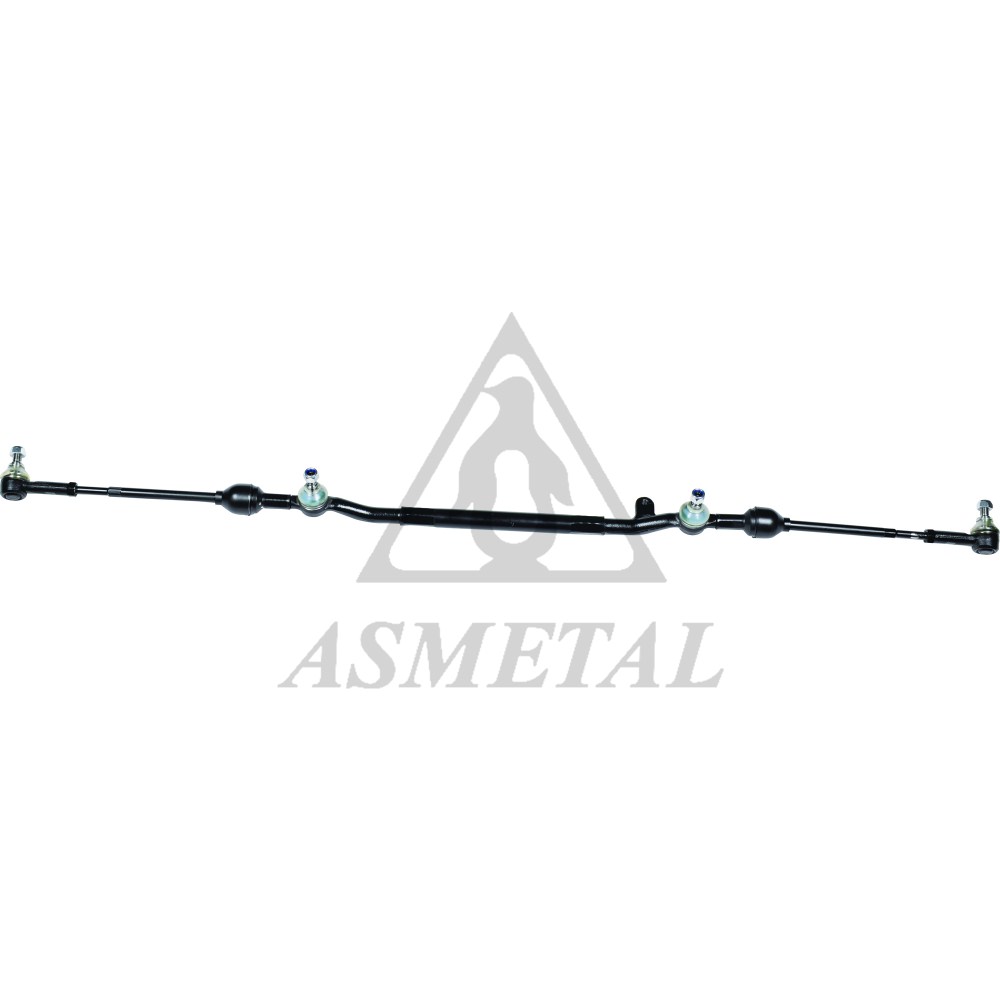

22MR1100
|
Tie Rod |
th1:M12x1.5 RHT L:516,5mm / 3,85 kg |
202 460 04 05, A 202 460 04 05 |
 |

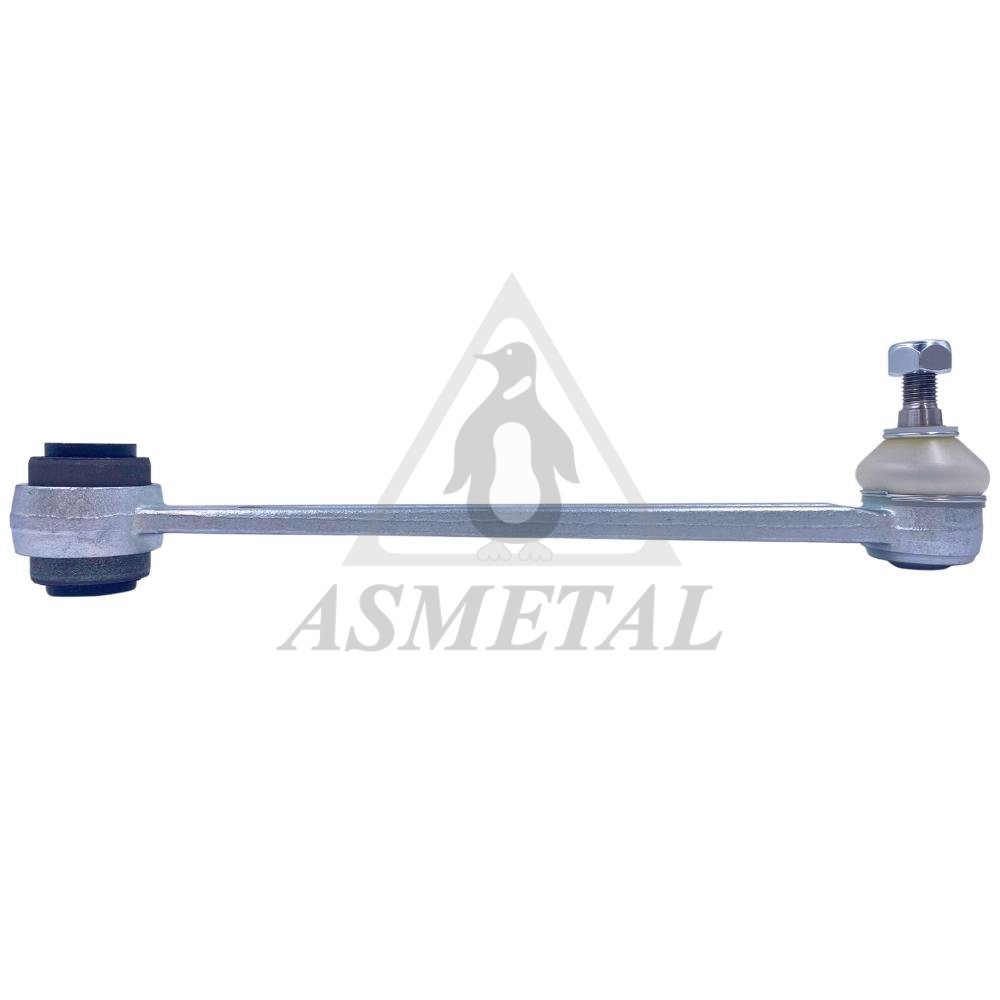

23MR02
|
Track Control Arm Rear |
c:1:6 th:M10x1.25 RHT L:245mm / 0,62 kg |
210 350 21 53, 201 350 27 53 (5) OEM |
 |

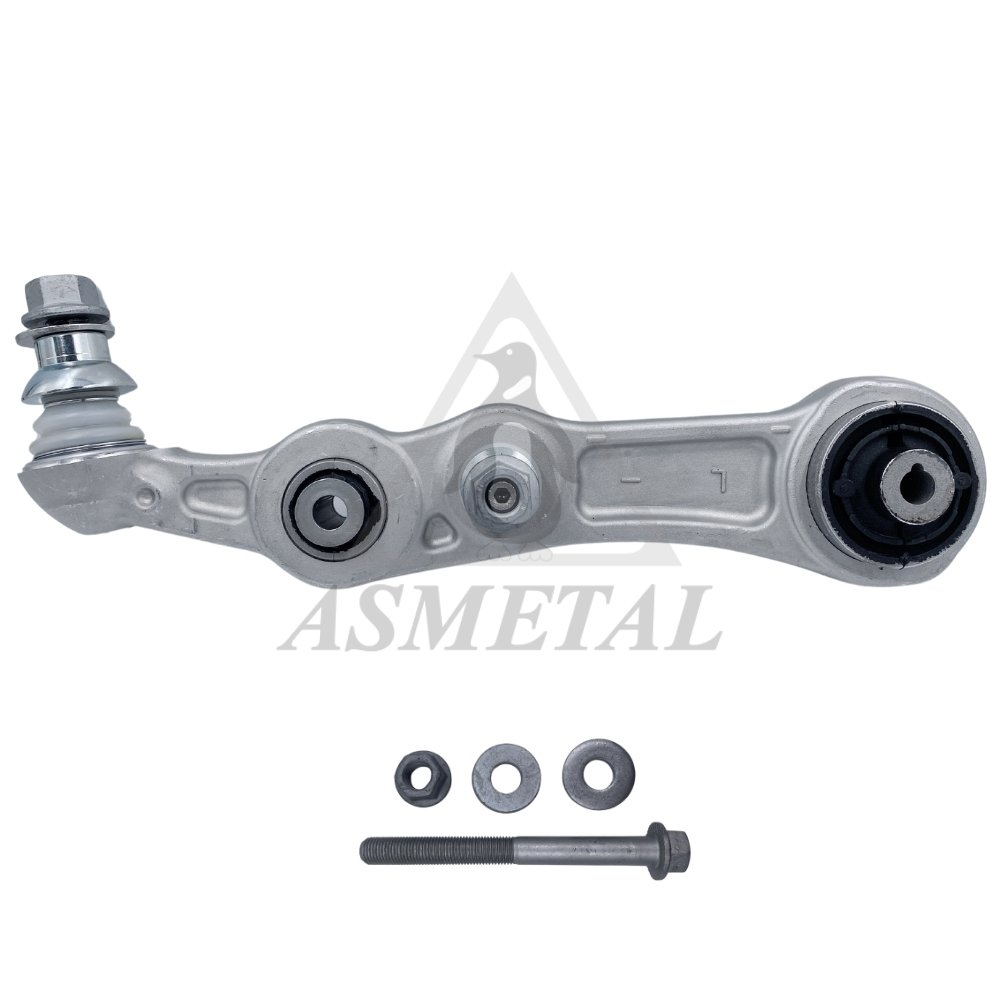

23MR1800
|
Track Control Arm Lower Left |
th:MM16x1.5 RHT cs:Ø15.85 / 2,84 kg |
205 330 65 10, A 205 330 61 01 (5) OEM |
 |
23MR1800B
|
Track Control Arm Lower Left (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,54 kg |
205 330 59 01, A 205 330 19 07 (5) OEM |
 |

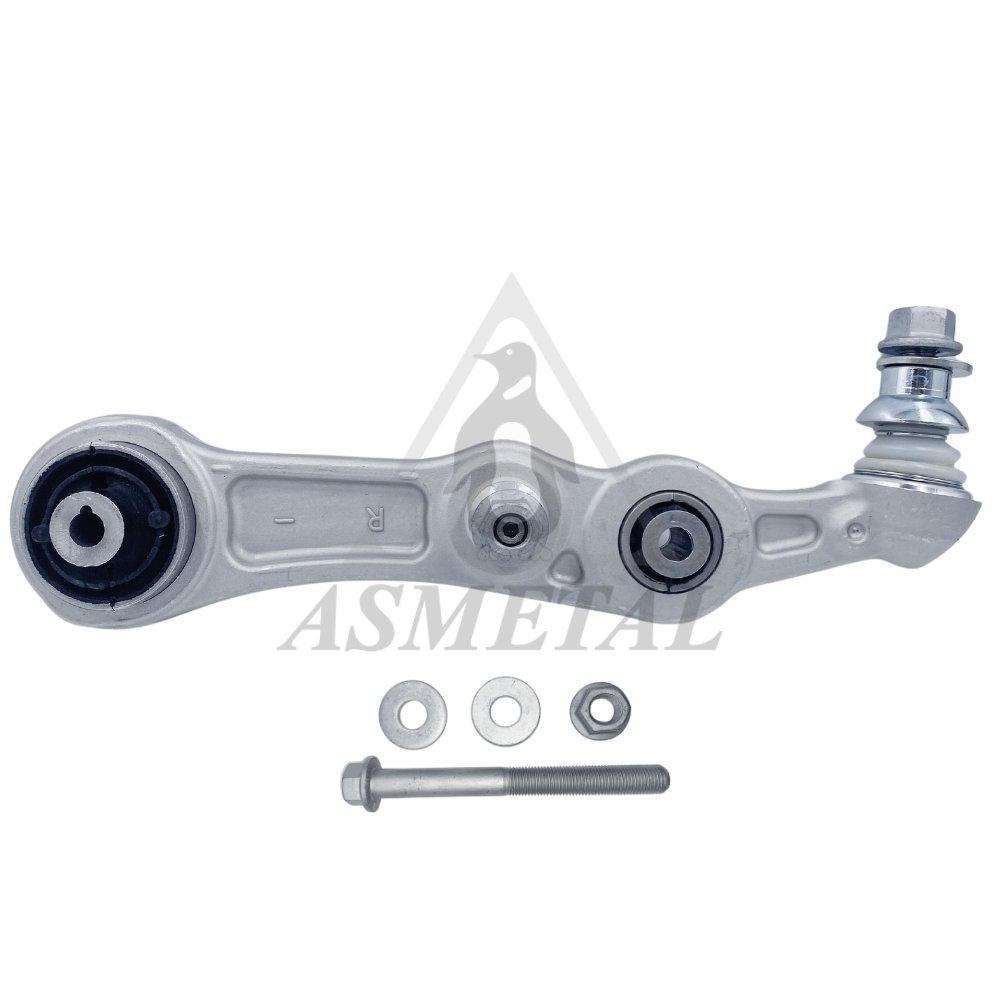

23MR1801
|
Track Control Arm Lower Right |
th:MM16x1.5 RHT cs:Ø15.85 / 2,84 kg |
205 330 62 01, 205 330 66 10 (6) OEM |
 |

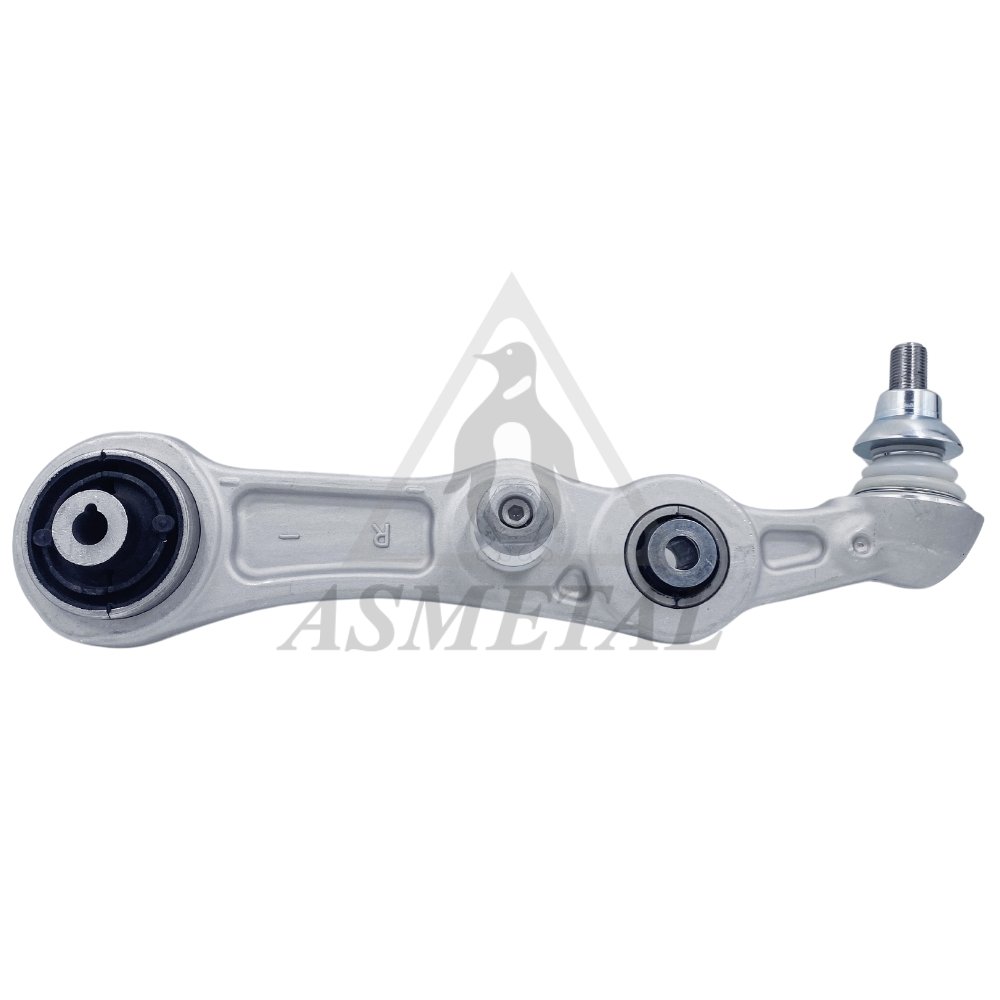

23MR1801B
|
Track Control Arm Lower Right (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,54 kg |
205 330 20 07, 205 330 62 01 (6) OEM |
 |

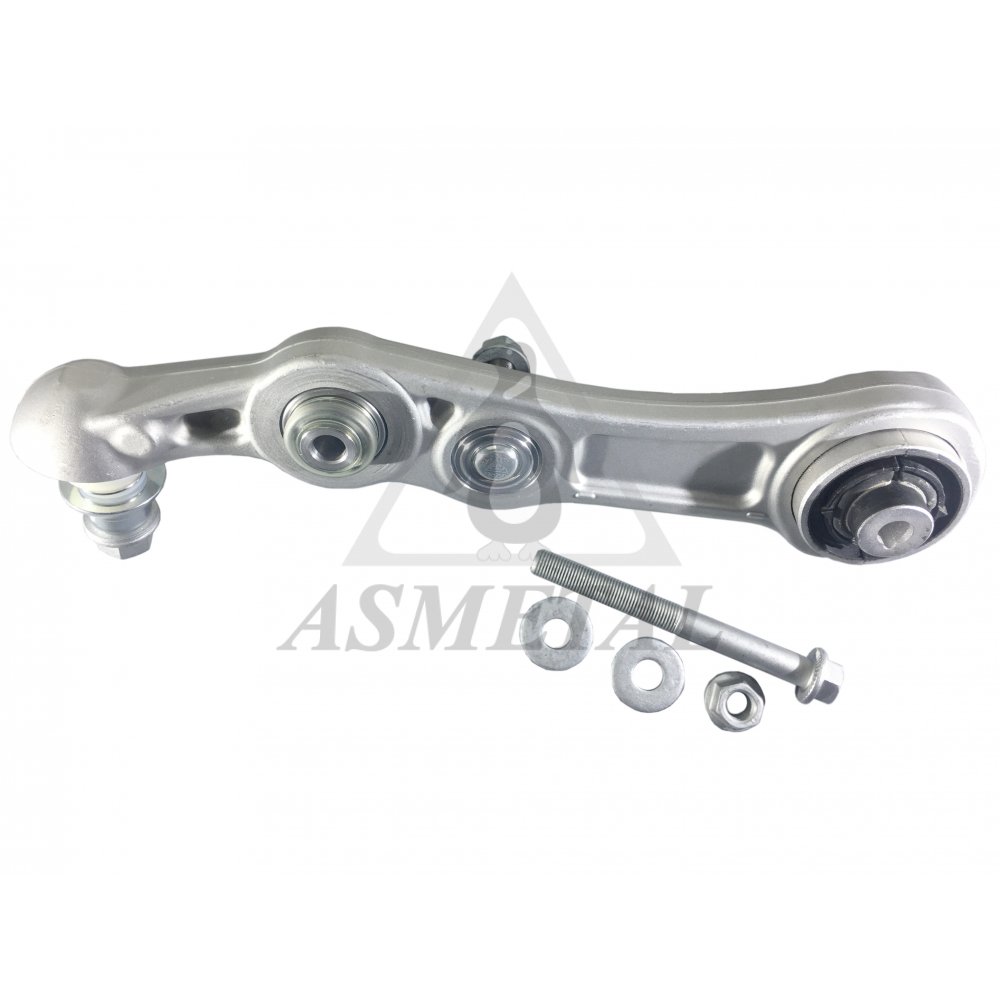

23MR1802
|
Track Control Arm Lower Left |
th:MM16x1.5 RHT cs:Ø15.85 / 2,96 kg |
A 205 330 63 01, 205 330 63 01 (2) OEM |
 |

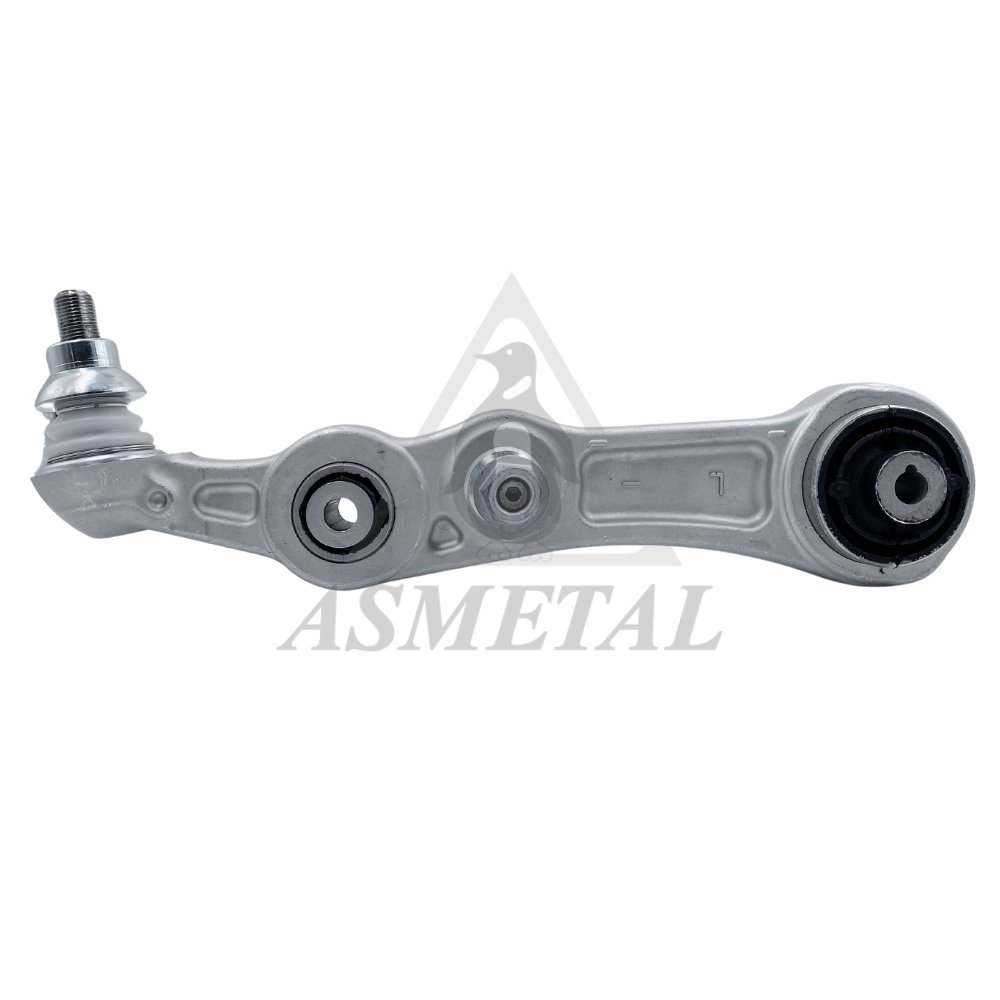

23MR1802B
|
Track Control Arm Lower Left (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,56 kg |
A 205 330 21 07, 205 330 21 07 (2) OEM |
 |

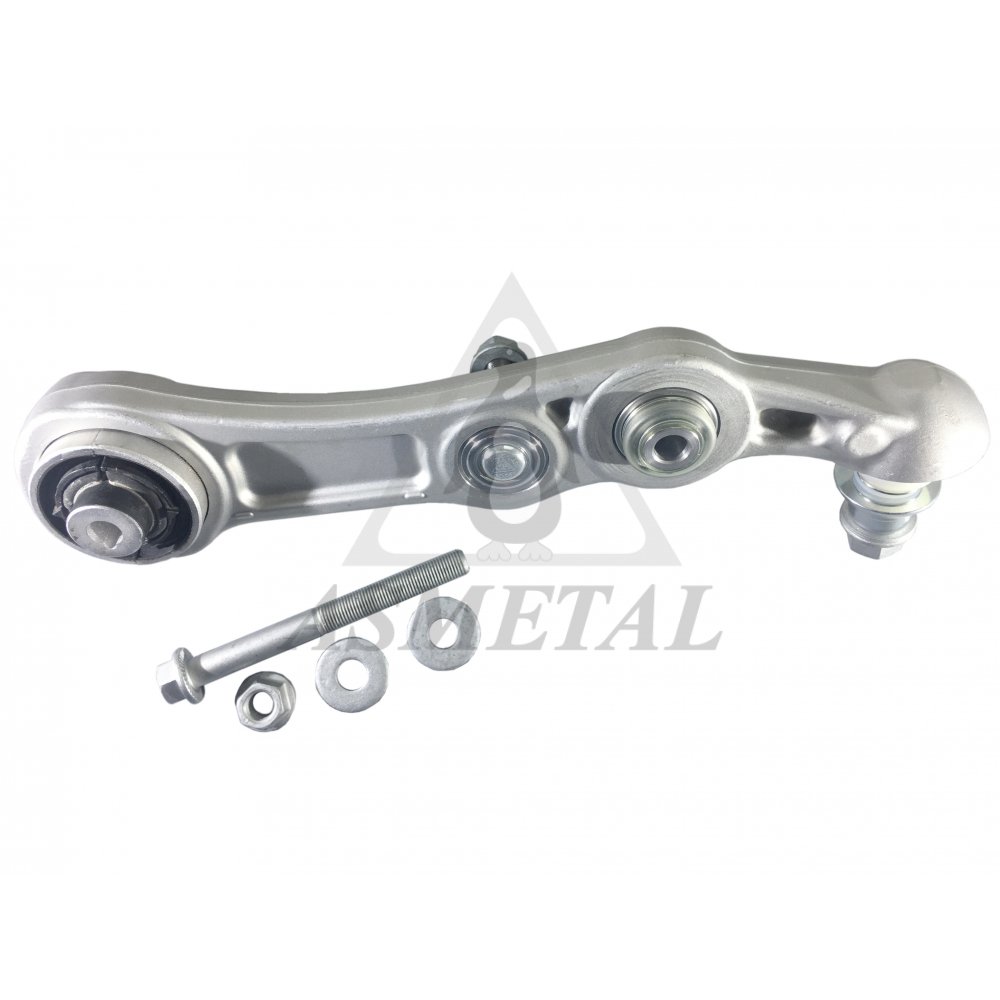

23MR1803
|
Track Control Arm Lower Right |
th:MM16x1.5 RHT cs:Ø15.85 / 2,96 kg |
205 330 64 01, A 205 330 64 01 (2) OEM |
 |

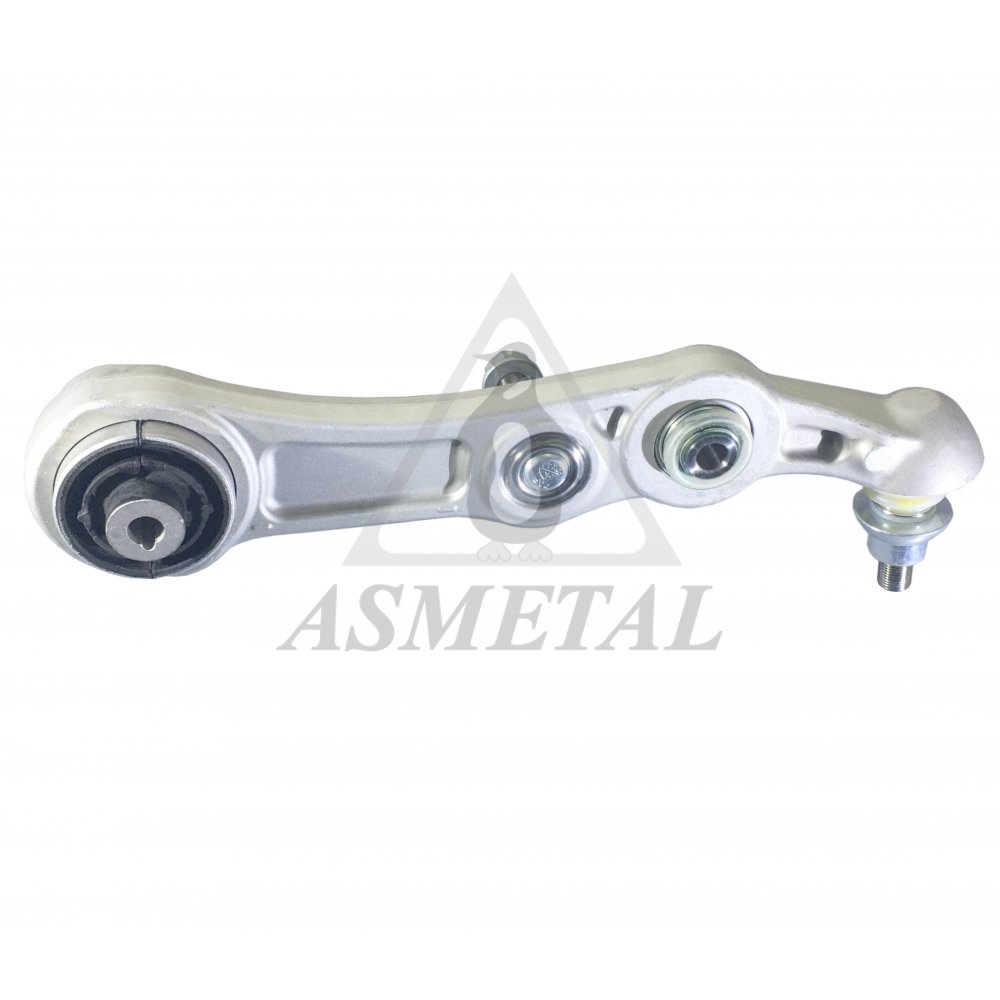

23MR1803B
|
Track Control Arm Lower Right (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,56 kg |
205 330 22 07, A 205 330 22 07 (2) OEM |
 |
23MR1804
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
205 330 13 05, 205 330 43 03 (4) OEM |
 |
23MR1805
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
205 330 16 05, 205 330 14 05 (4) OEM |
 |
23MR1806
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
205 330 17 05, A 205 330 17 05 |
 |
23MR1807
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
205 330 18 05, A 205 330 18 05 |
 |

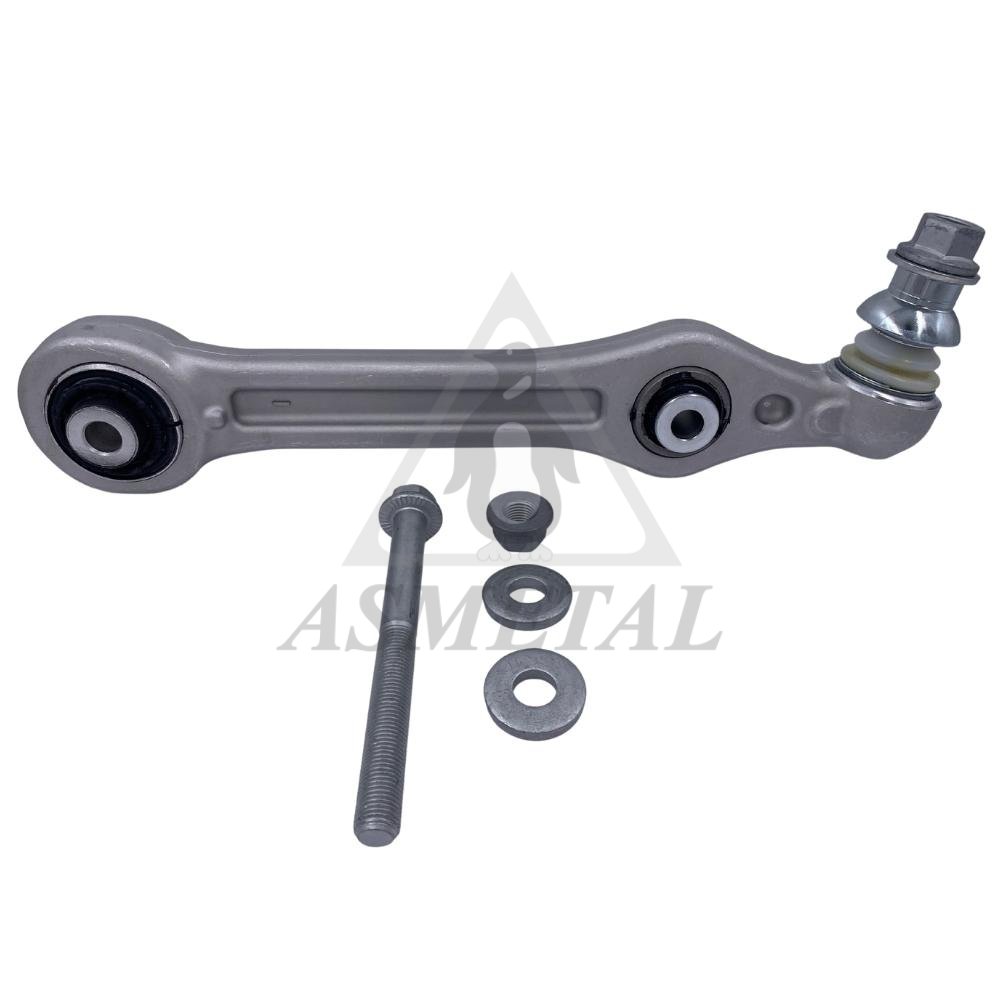

23MR1810
NEW
|
Track Control Arm Lower |
C: Ø16 TP: M16X1,5 / 2,25 kg |
A 205 330 67 10, 205 330 67 10 (2) OEM |
 |

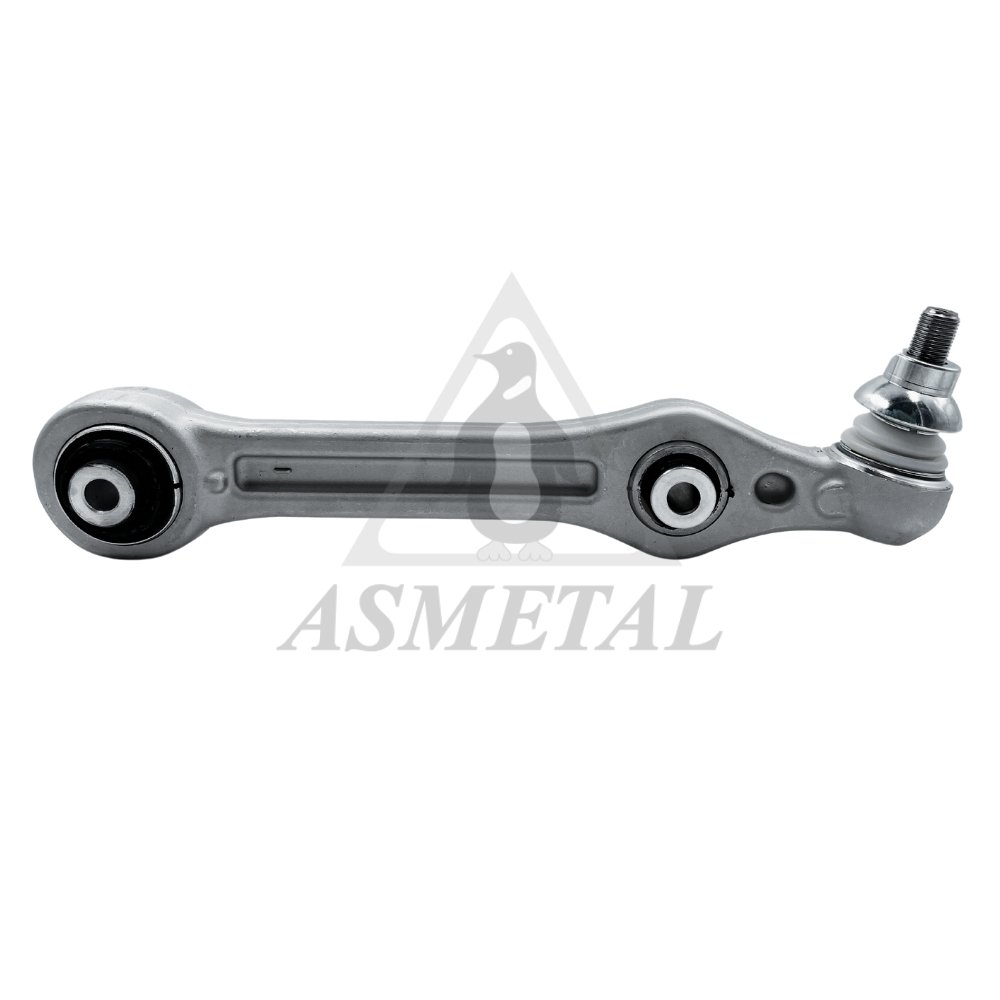

23MR1810B
NEW
|
Track Control Arm Lower (Without Fasteners) |
C: Ø16 TP: M16X1,5 / 2,03 kg |
A 205 330 67 10, 205 330 67 10 (2) OEM |
 |

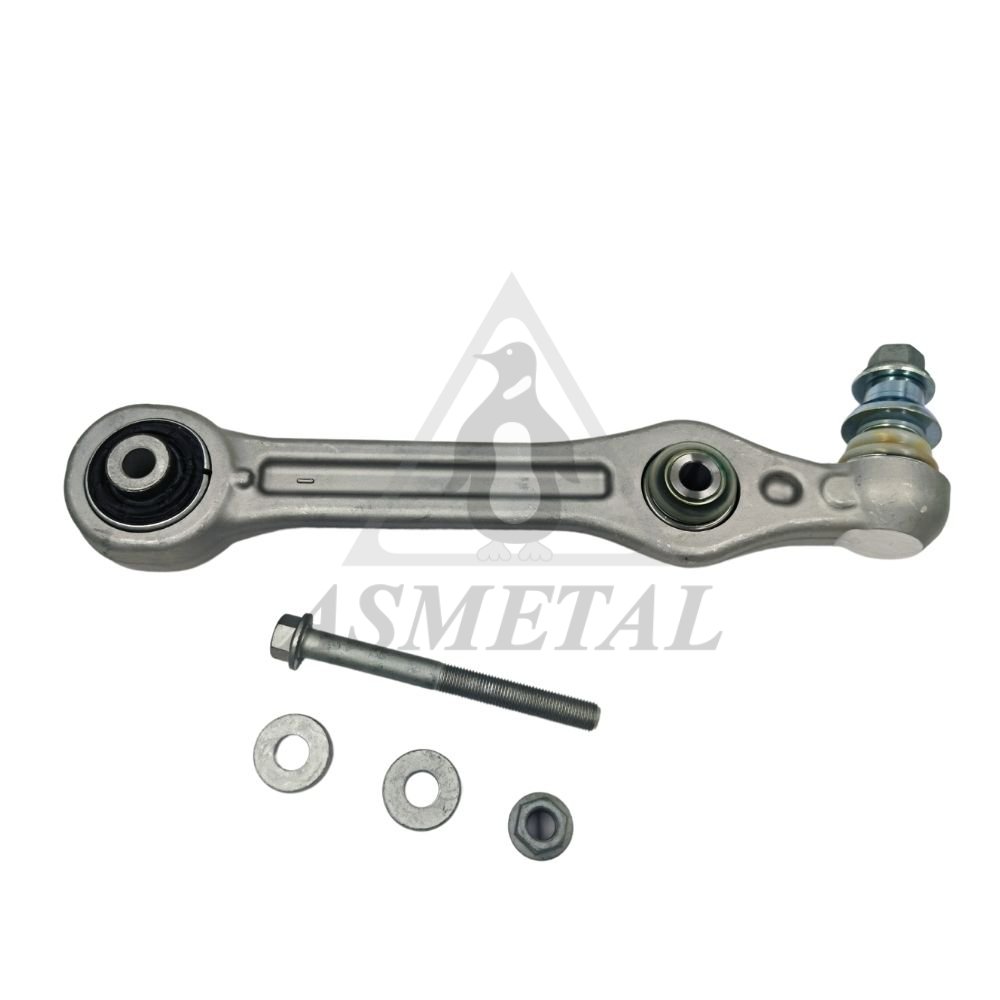

23MR1820
NEW
|
Track Control Arm Lower |
C: Ø16 TP: M16X1,5 / 2,36 kg |
A 205 330 58 01, 205 330 58 01 |
 |

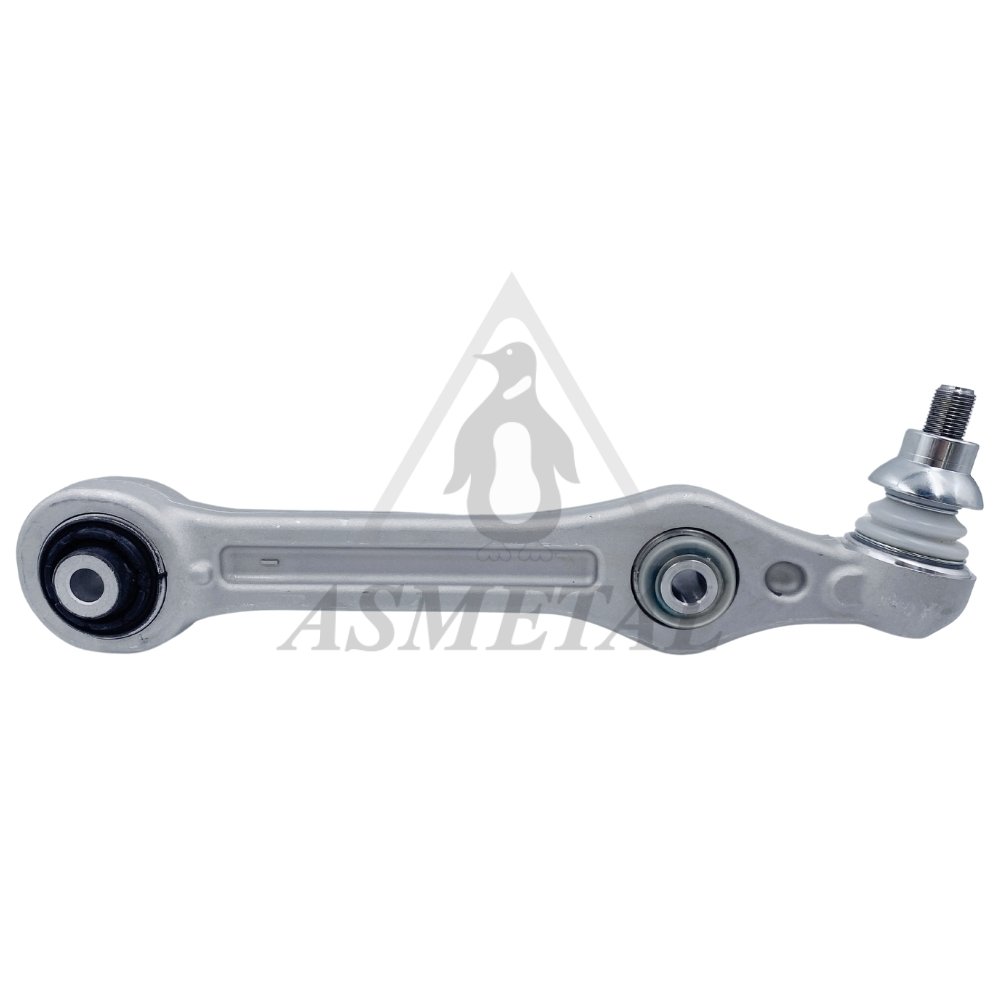

23MR1820B
NEW
|
Track Control Arm Lower (Without Fasteners) |
C: Ø16 TP: M16X1,5 / 2,03 kg |
A 205 330 58 01, 205 330 58 01 |
 |
23MR1850
IN PREPARATION
|
Track Control Arm Left |
|
205 350 61 03, 204 350 15 06 (4) OEM |
 |
23MR1851
IN PREPARATION
|
Track Control Arm Right |
|
205 350 62 03, 204 350 16 06 (4) OEM |
 |

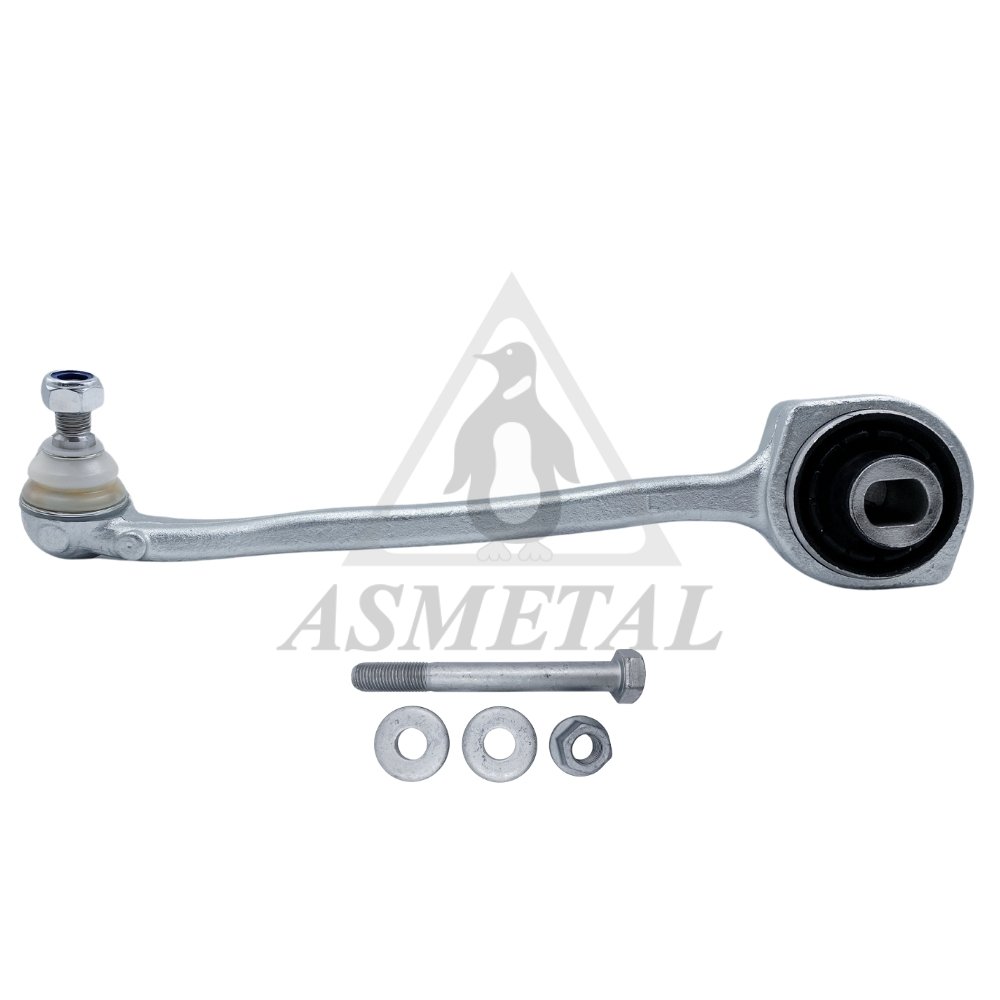

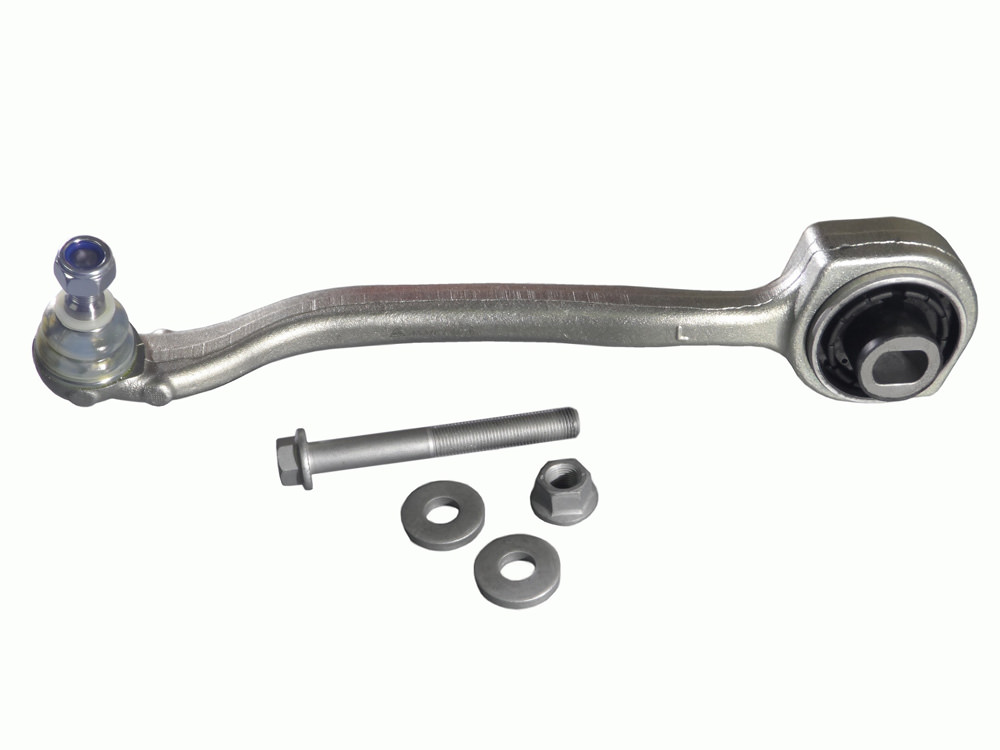

23MR3200
|
Track Control Arm Lower Left |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg |
203 330 19 11, 203 330 33 11 (4) OEM |
 |
23MR3200B
|
Track Control Arm Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg |
203 330 33 11, 204 330 19 11 (4) OEM |
 |

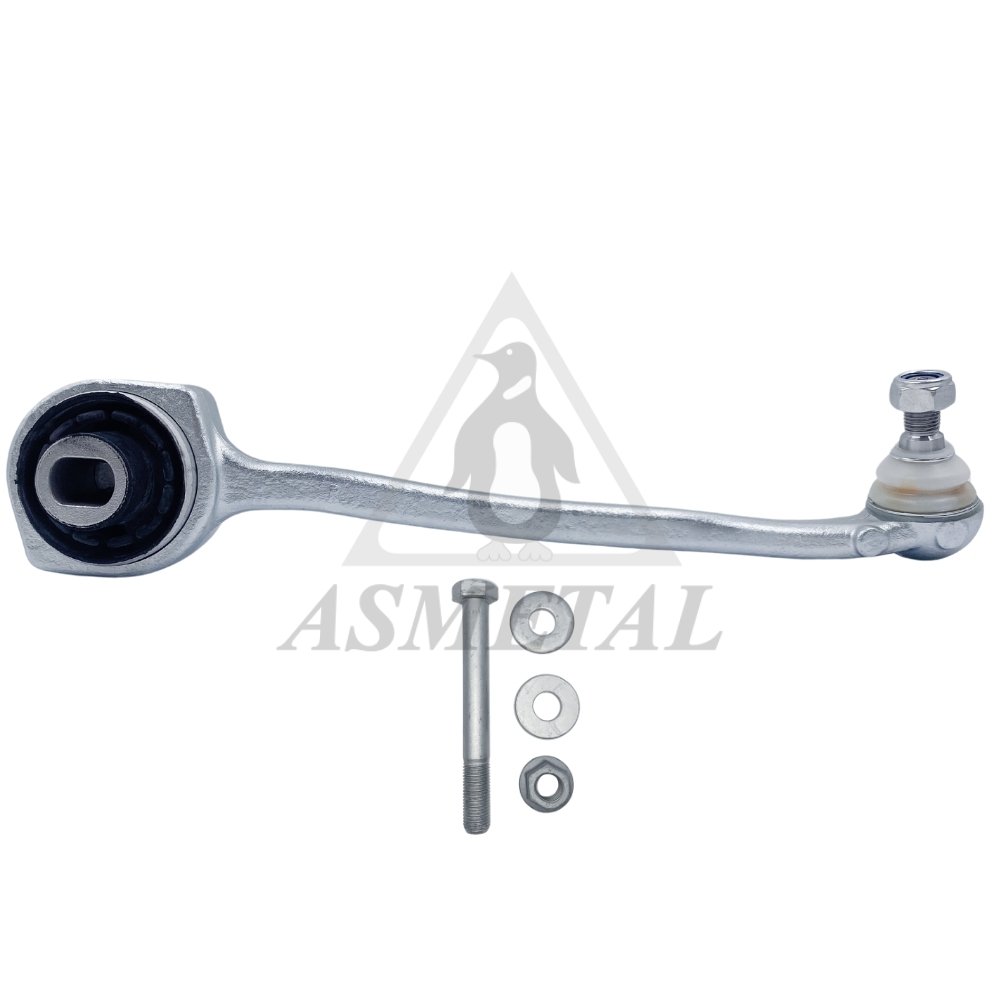

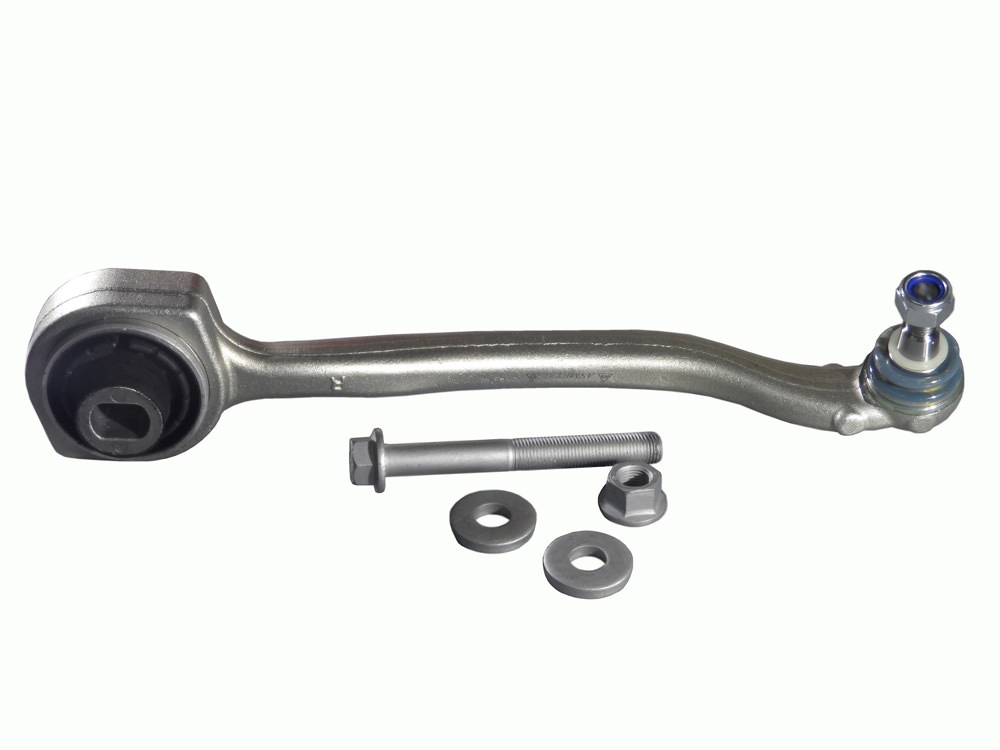

23MR3201
|
Track Control Arm Lower Right |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg |
203 330 20 11, 204 330 20 11 (4) OEM |
 |

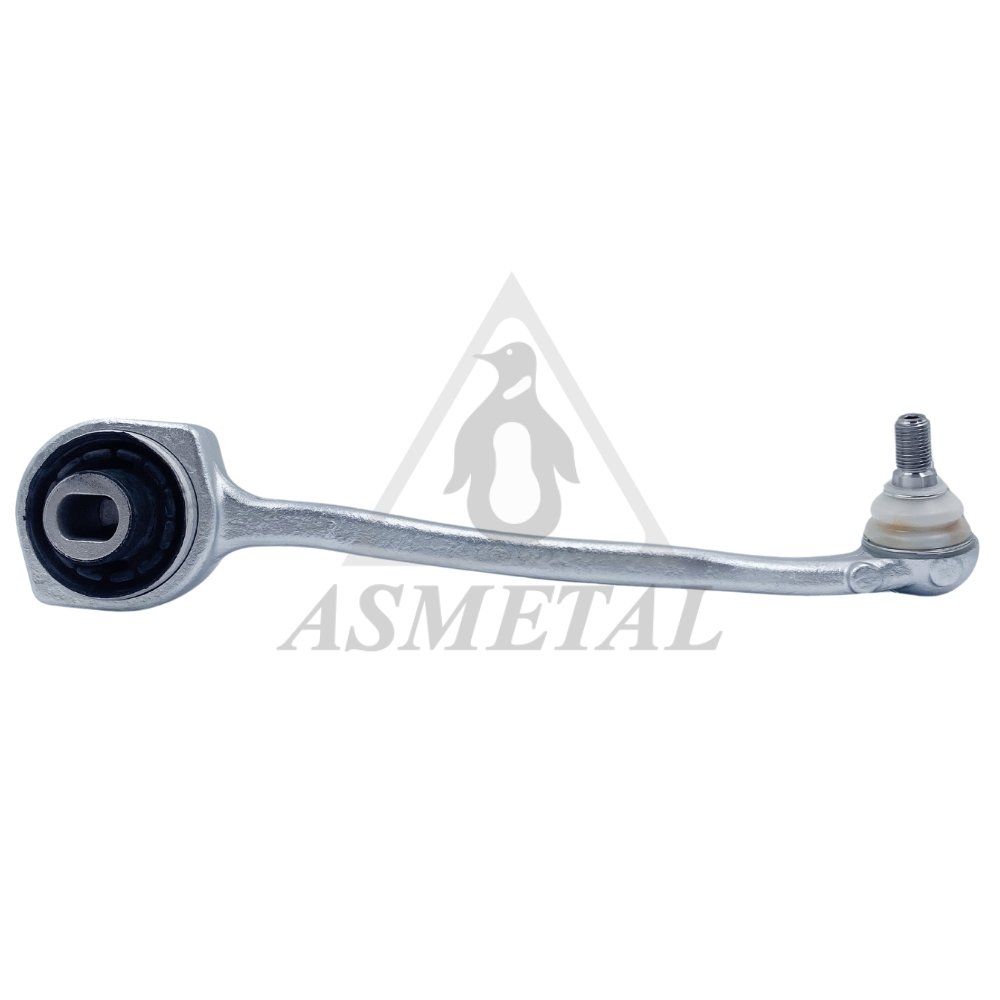

23MR3201B
|
Track Control Arm Right (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg |
A 203 330 20 11, A 204 330 20 11 (4) OEM |
 |

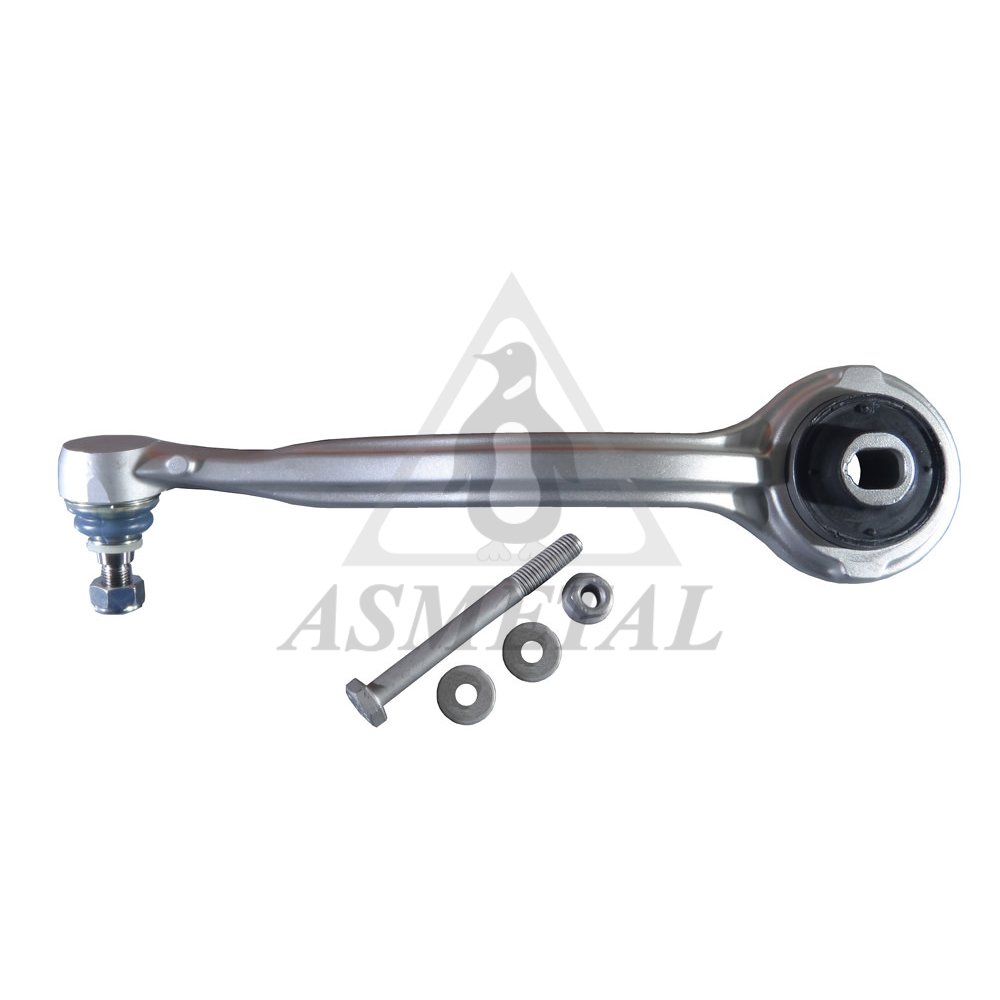

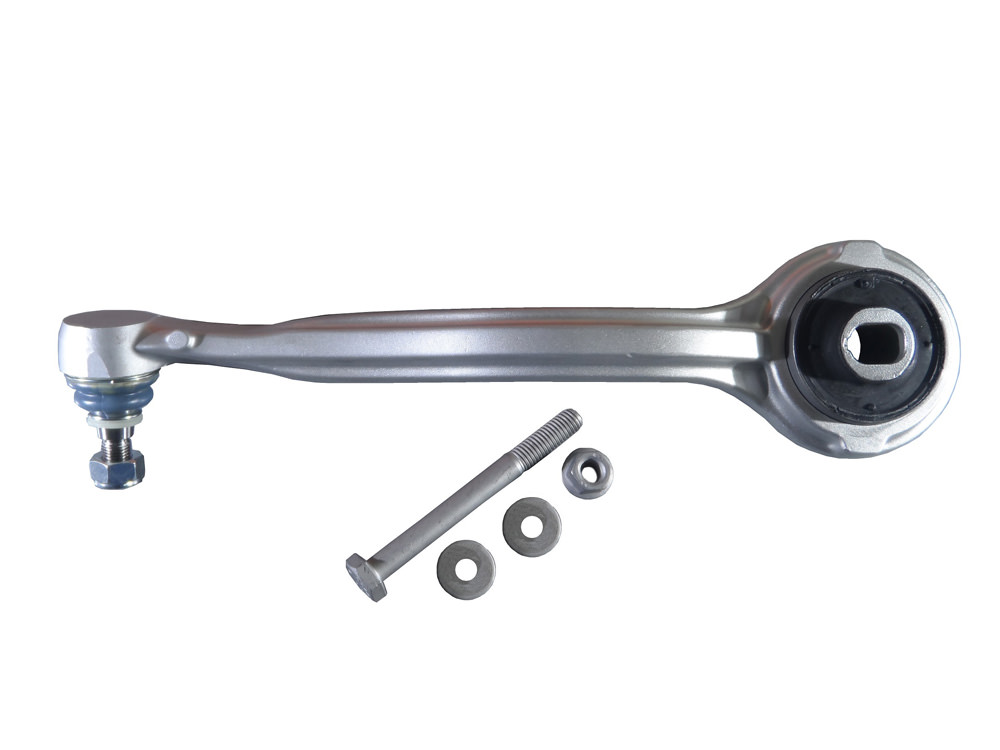

23MR3204
|
Track Control Arm Upper Left |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,92 kg |
203 330 01 11, 203 330 16 11 (9) OEM |
 |
23MR3204B
|
Track Control Arm Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,66 kg |
203 330 35 11, 203 330 39 11 (9) OEM |
 |

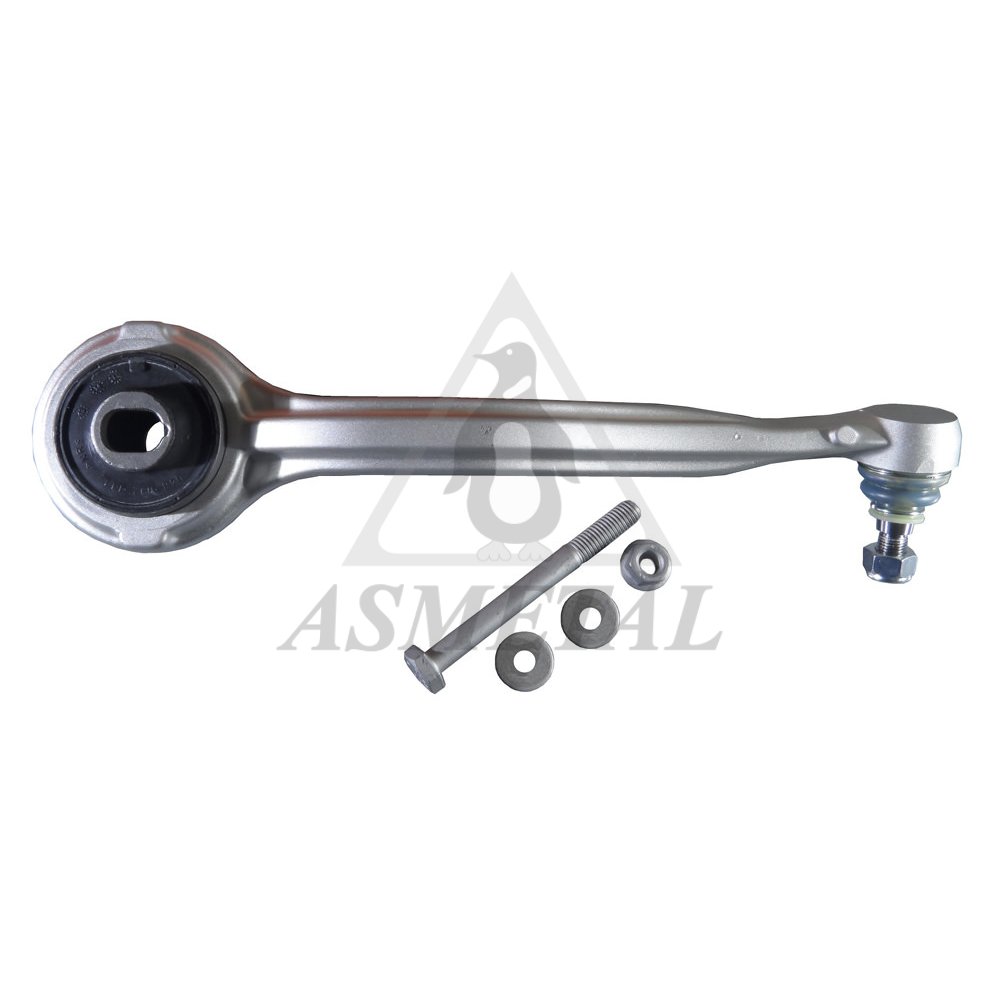

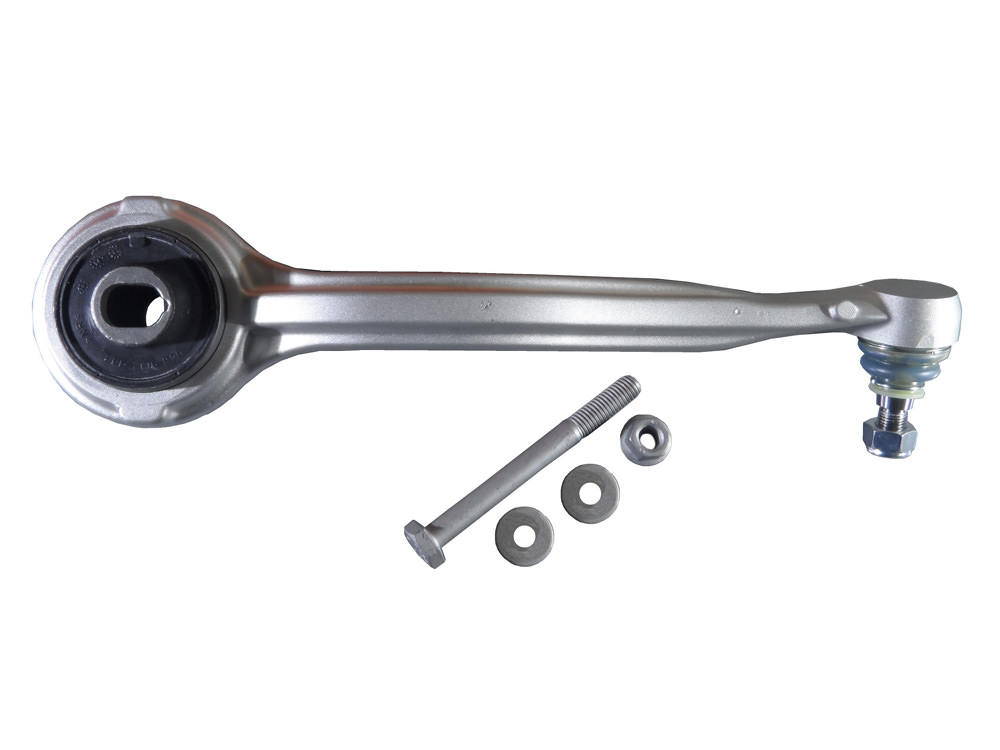

23MR3205
|
Track Control Arm Upper Right |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,92 kg |
203 330 17 11, 203 330 36 11 (8) OEM |
 |

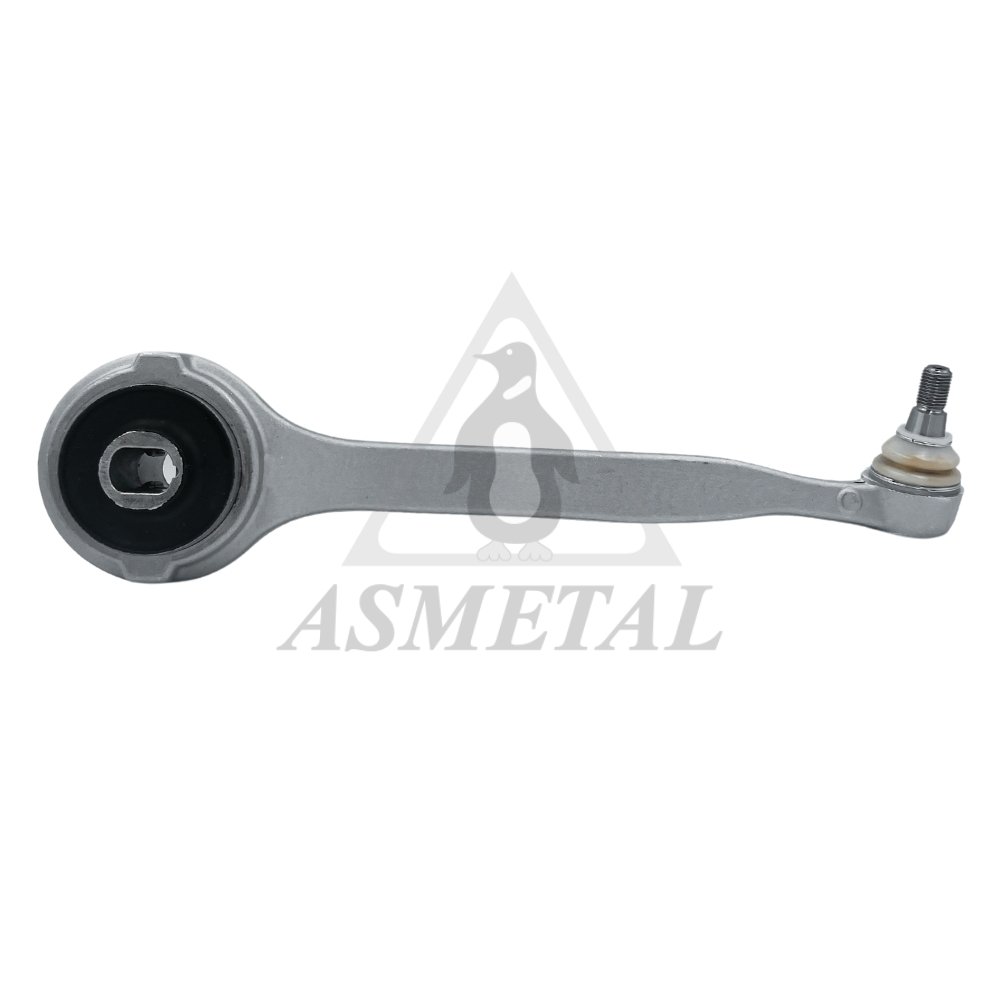

23MR3205B
|
Track Control Arm Right (Without Fasteners) |
1,66 kg |
203 330 40 11, 203 330 17 11 (8) OEM |
 |

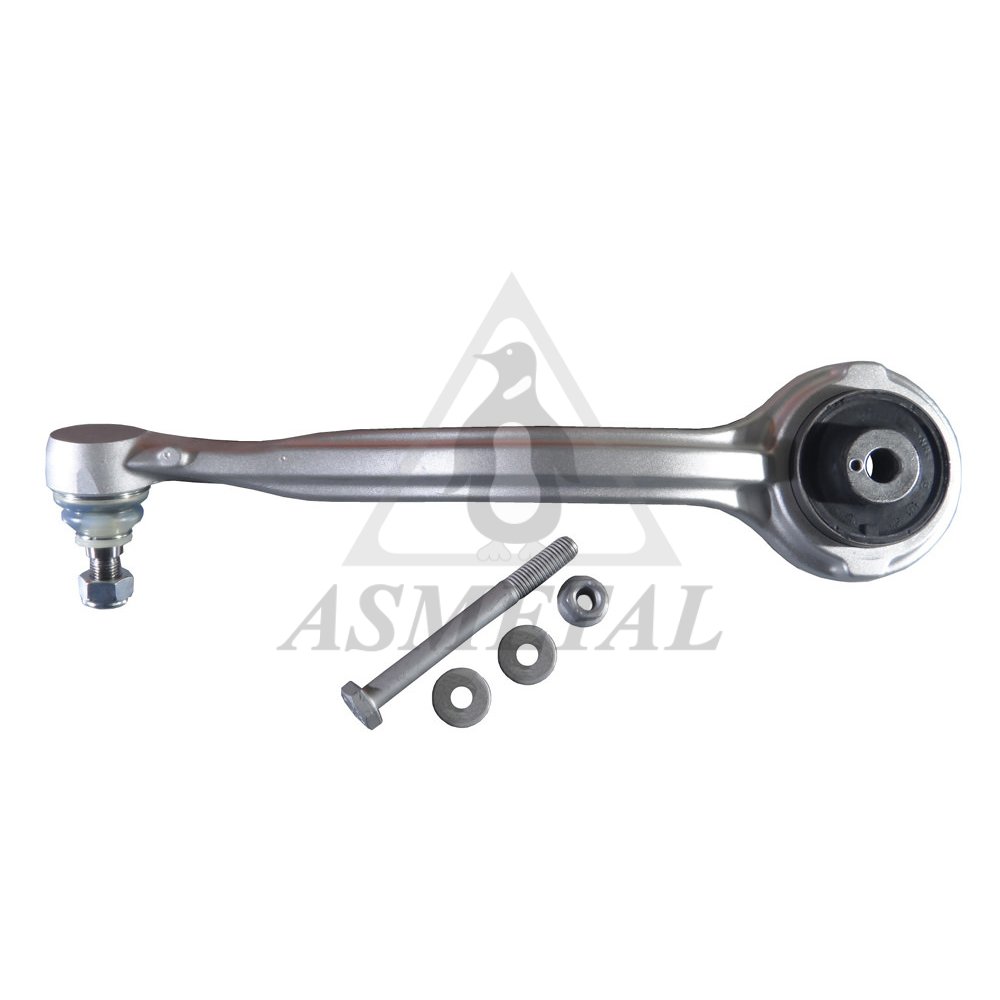

23MR3210
|
Track Control Arm Upper Left |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg |
203 330 01 11, 203 330 16 11 (10) OEM |
 |

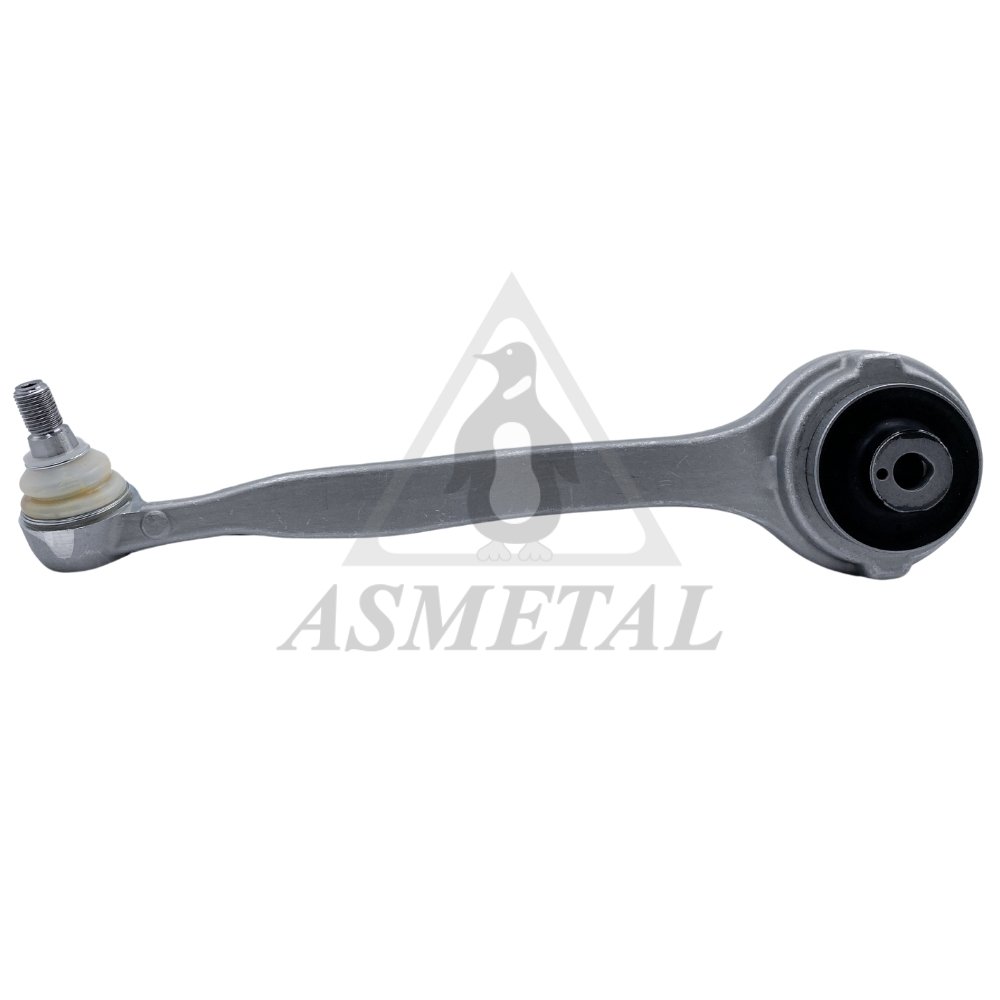

23MR3210B
|
Track Control Arm Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg |
203 330 39 11, 204 330 43 11 (10) OEM |
 |

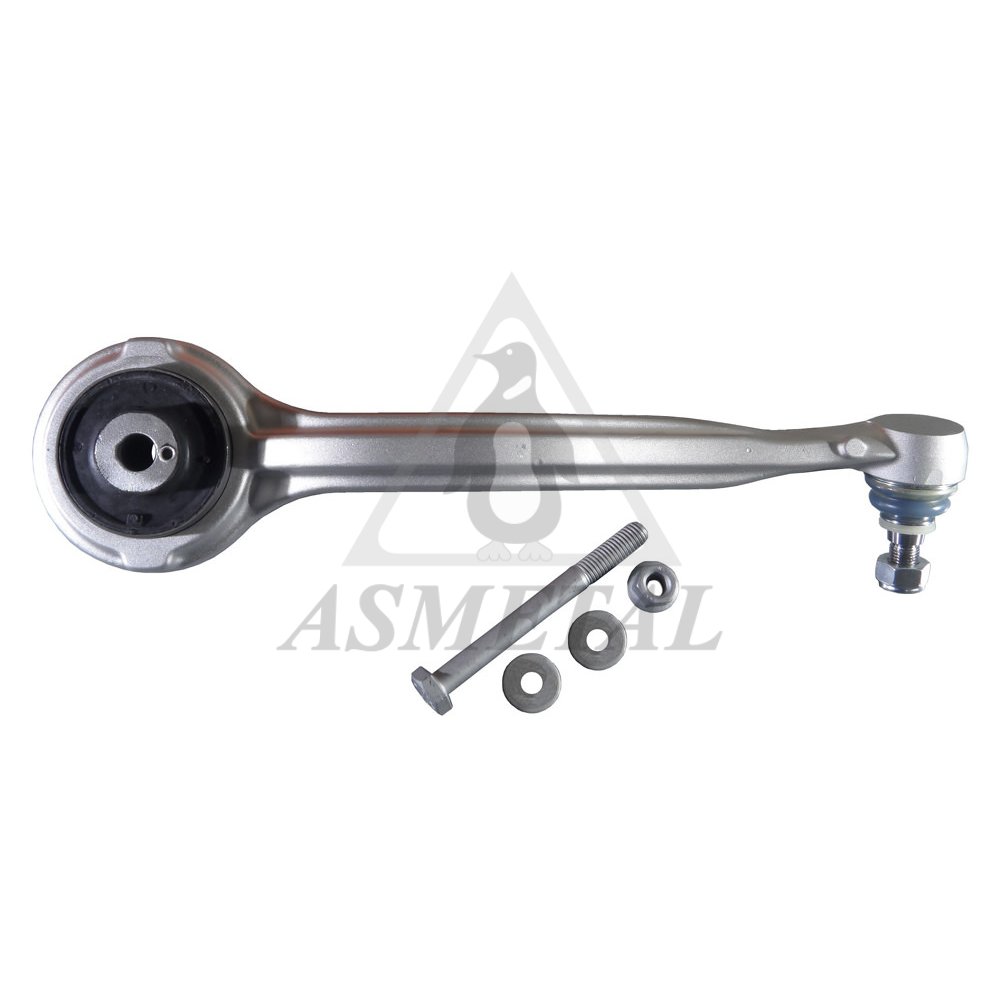

23MR3211
|
Track Control Arm Upper Right |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg |
203 330 36 11, 203 330 02 11 (10) OEM |
 |

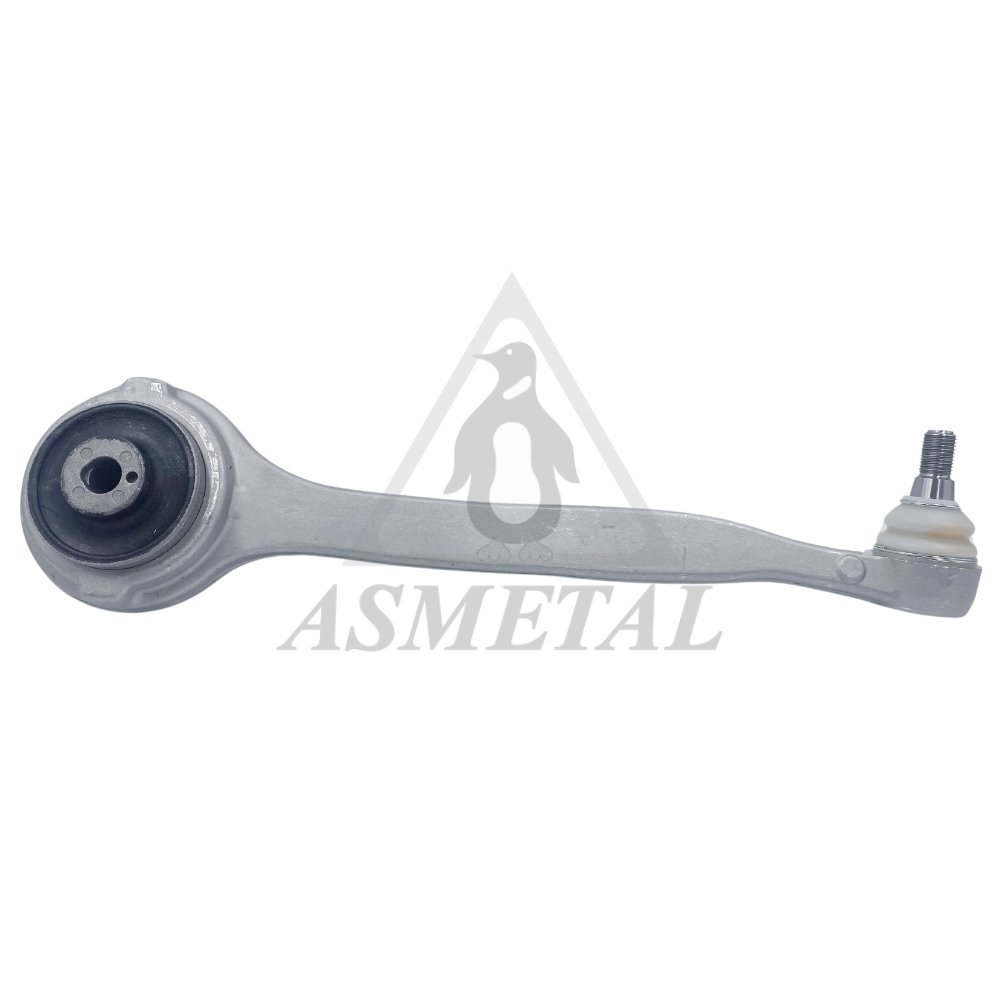

23MR3211B
|
Track Control Arm Right (Without Fasteners) |
TP: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg |
203 330 17 11, 204 330 88 11 (10) OEM |
 |

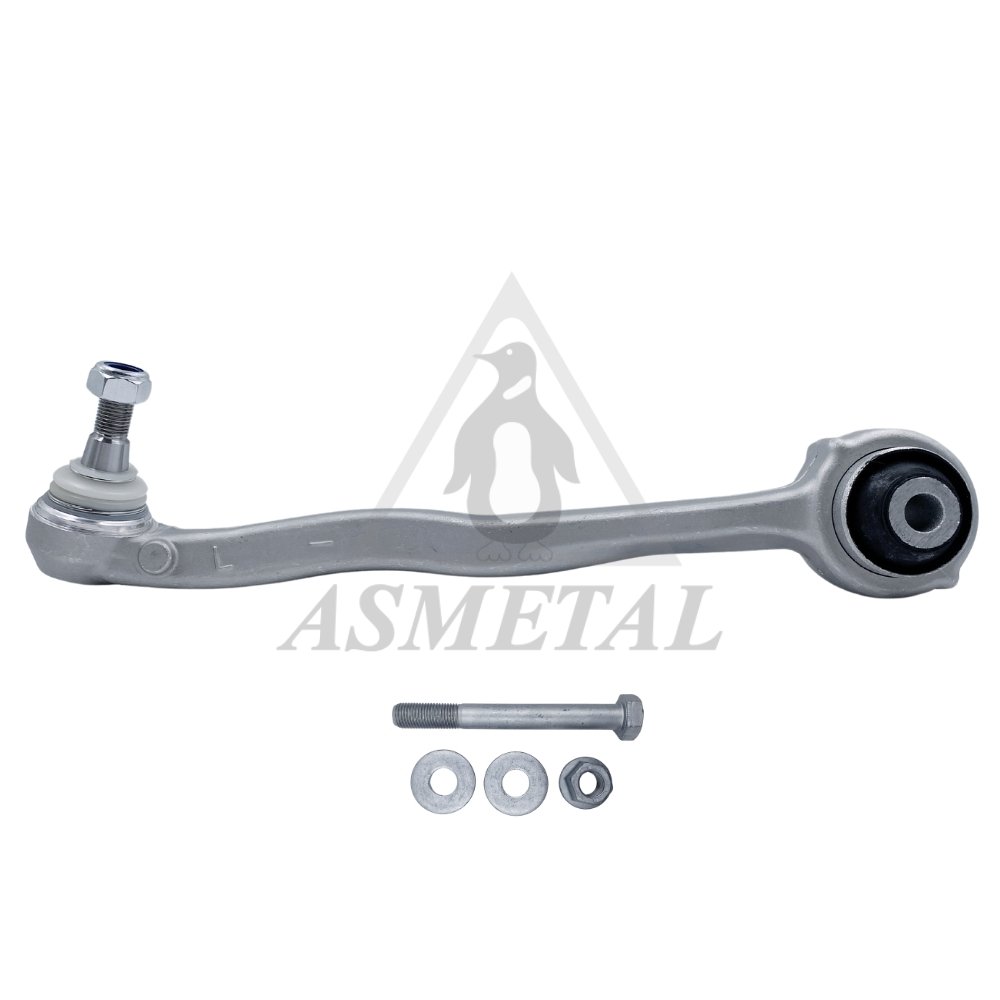

23MR3214
|
Track Control Arm Lower Left |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,6 kg |
A 204 330 31 11, 204 330 67 11 (2) OEM |
 |
23MR3214B
|
Track Control Arm Lower Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,5 kg |
A 204 330 67 11, 204 330 31 11 (2) OEM |
 |

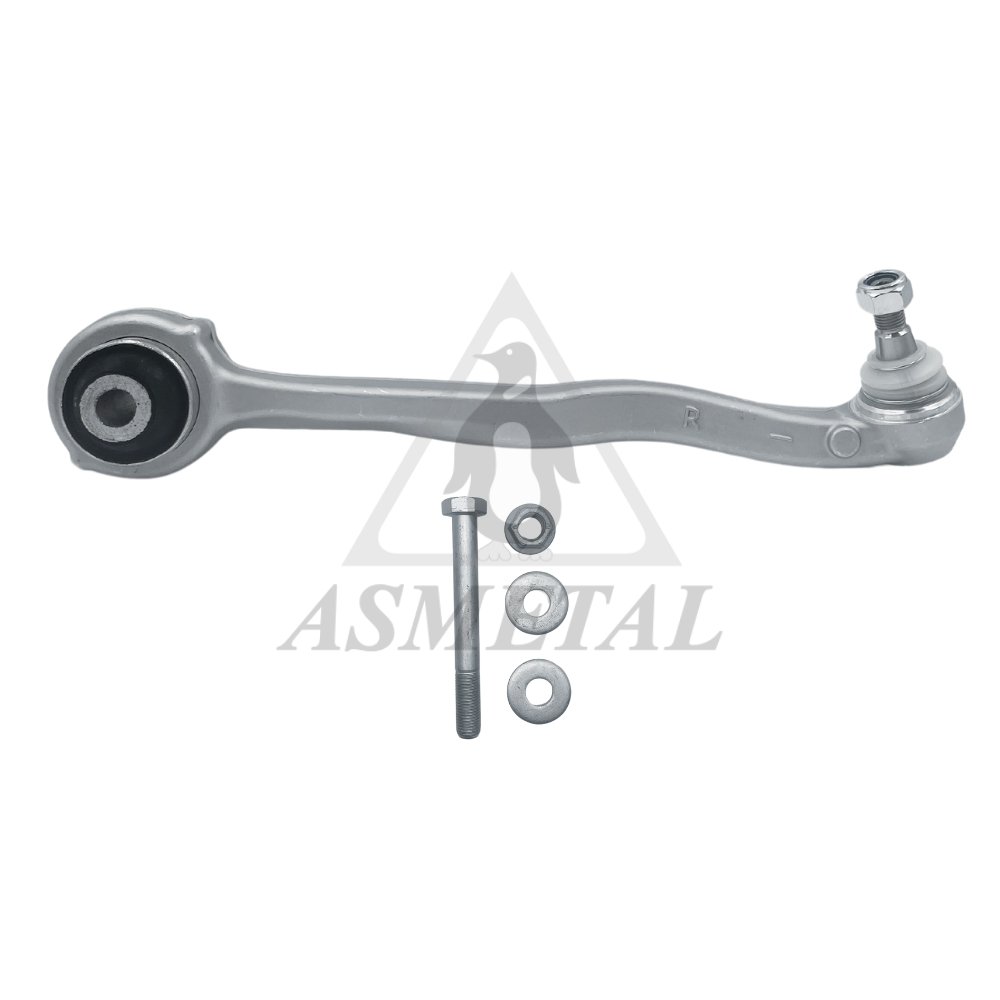

23MR3215
|
Track Control Arm Lower Right |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,6 kg |
A 204 330 32 11, 204 330 68 11 (2) OEM |
 |

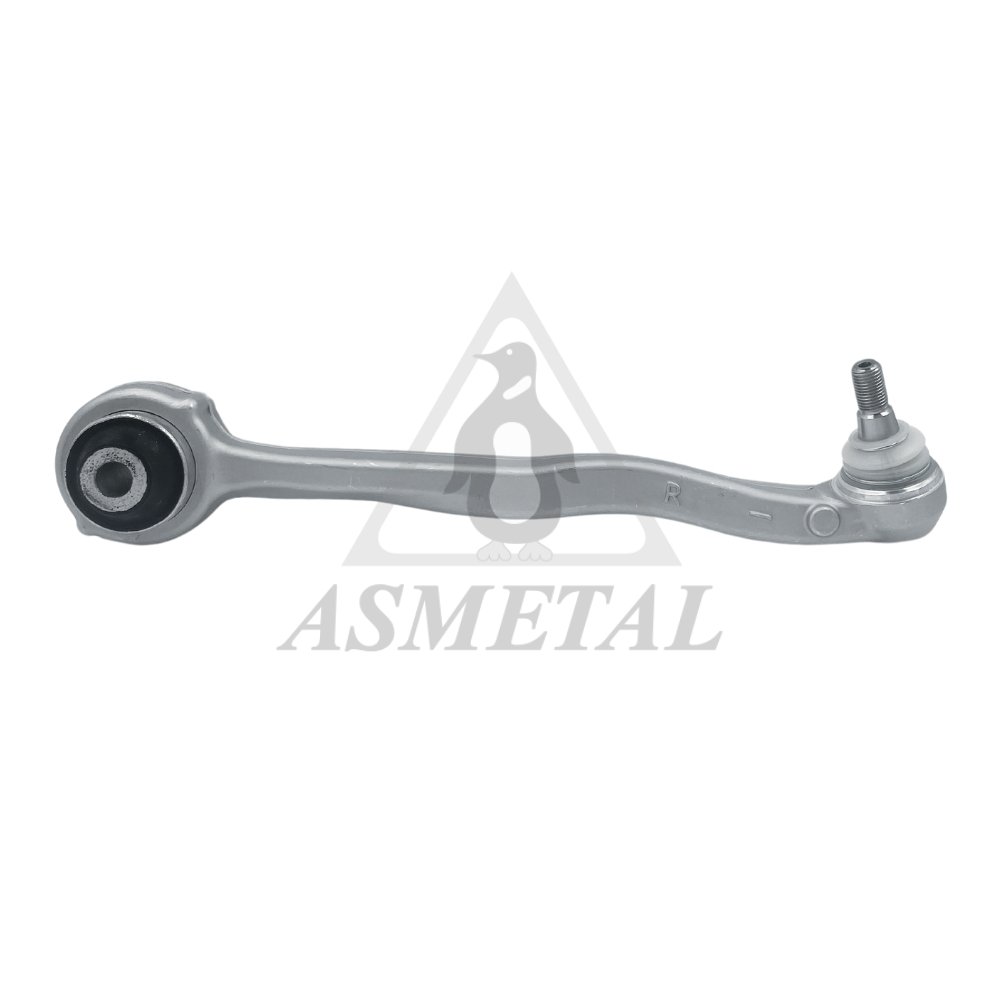

23MR3215B
|
Track Control Arm Lower Right (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,55 kg |
A 204 330 32 11, 204 330 68 11 (2) OEM |
 |

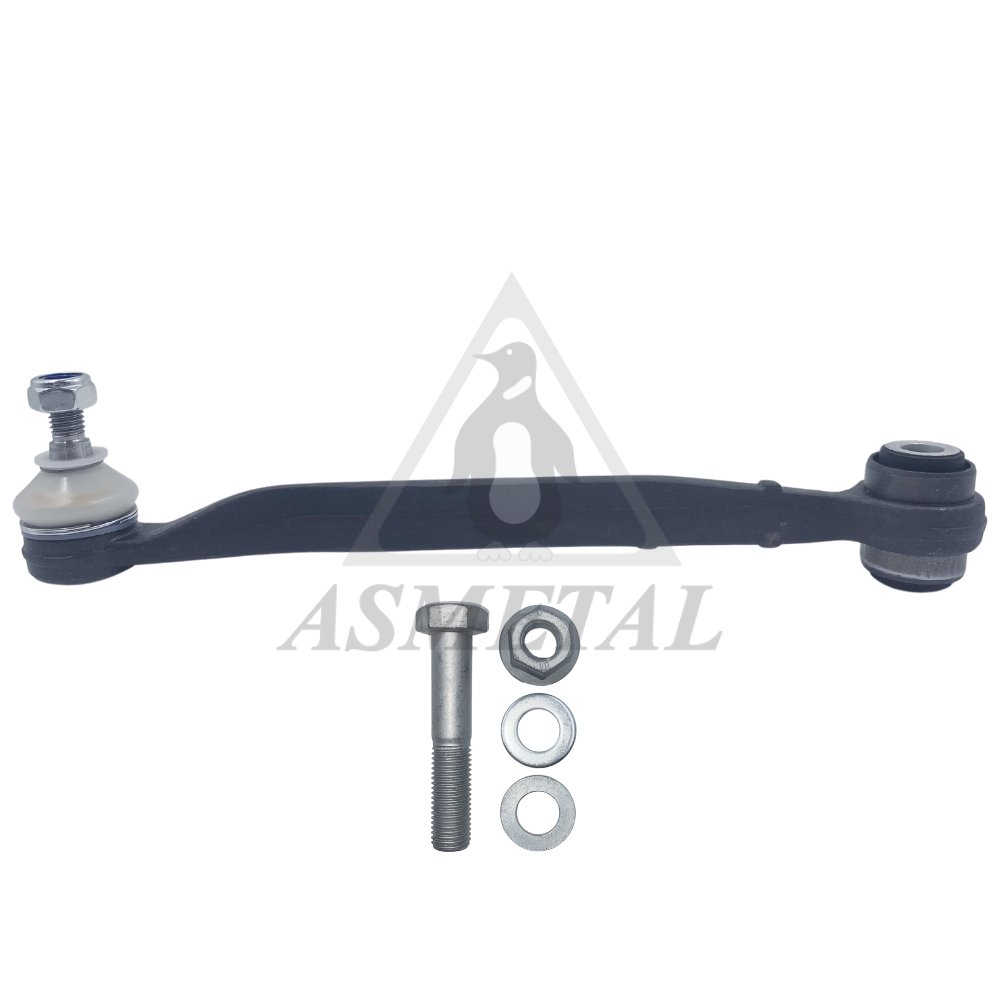

23MR3240
NEW
|
Track Control Arm Lower Rear |
tp: M10x1.5 / c: Ø11.3 / 0,68 kg |
A 203 350 07 53, 203 350 07 53 (2) OEM |
 |
23MR3310
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
204 330 73 11 S1, 204 330 90 11 (3) OEM |
 |
23MR3311
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
A 204 330 74 11, A 204 330 91 11 (2) OEM |
 |

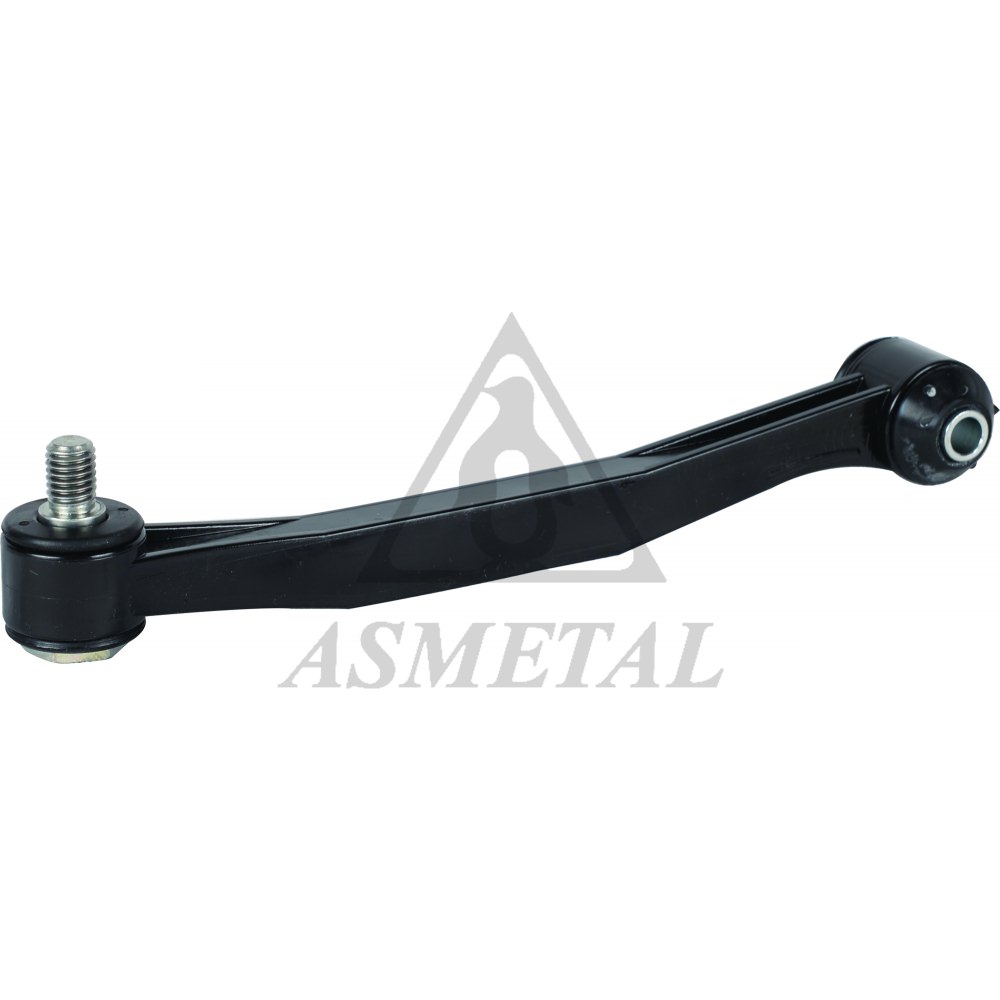

26MR1000
|
Stabiliser Link Rear |
L:197,4mm Plastic / 0,11 kg |
124 320 02 89, A 124 320 02 89 |
 |

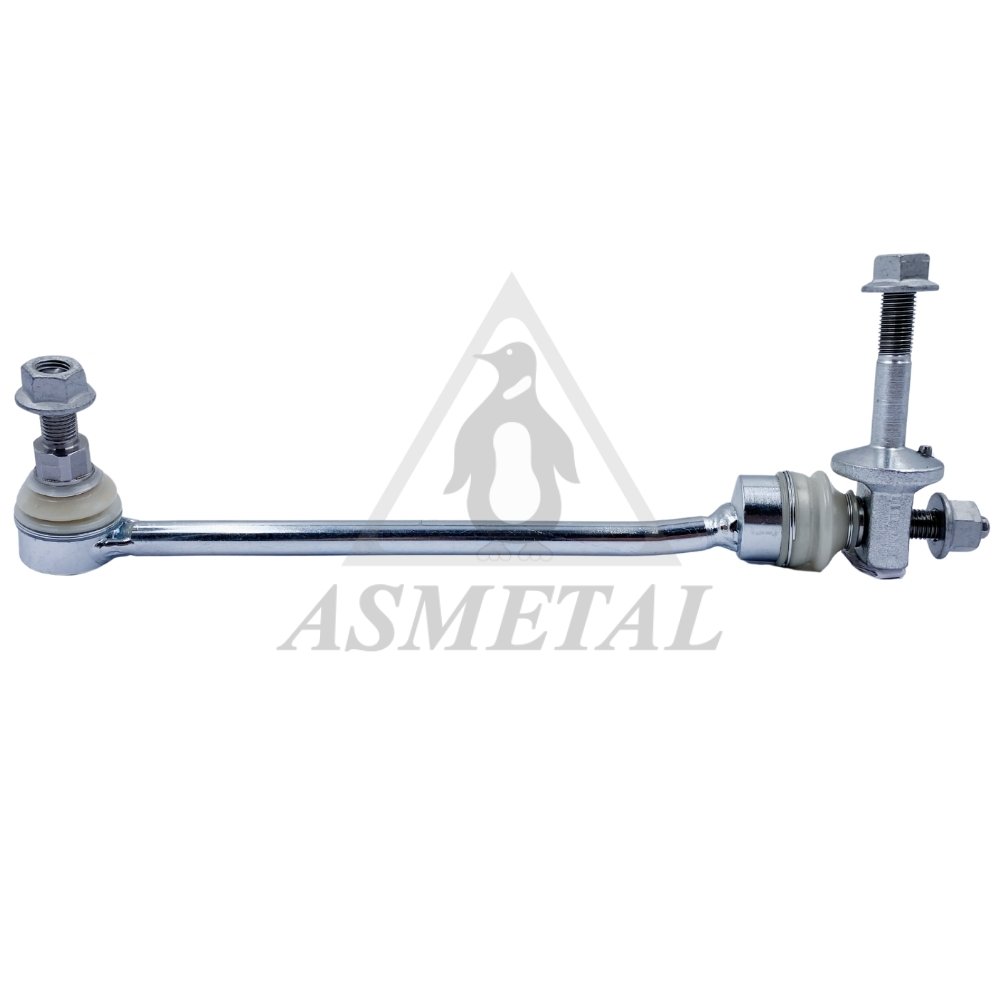

26MR1800
IN PREPARATION
|
Stabiliser Link Left |
0 kg |
205 323 09 17, A 205 323 09 17 |
 |

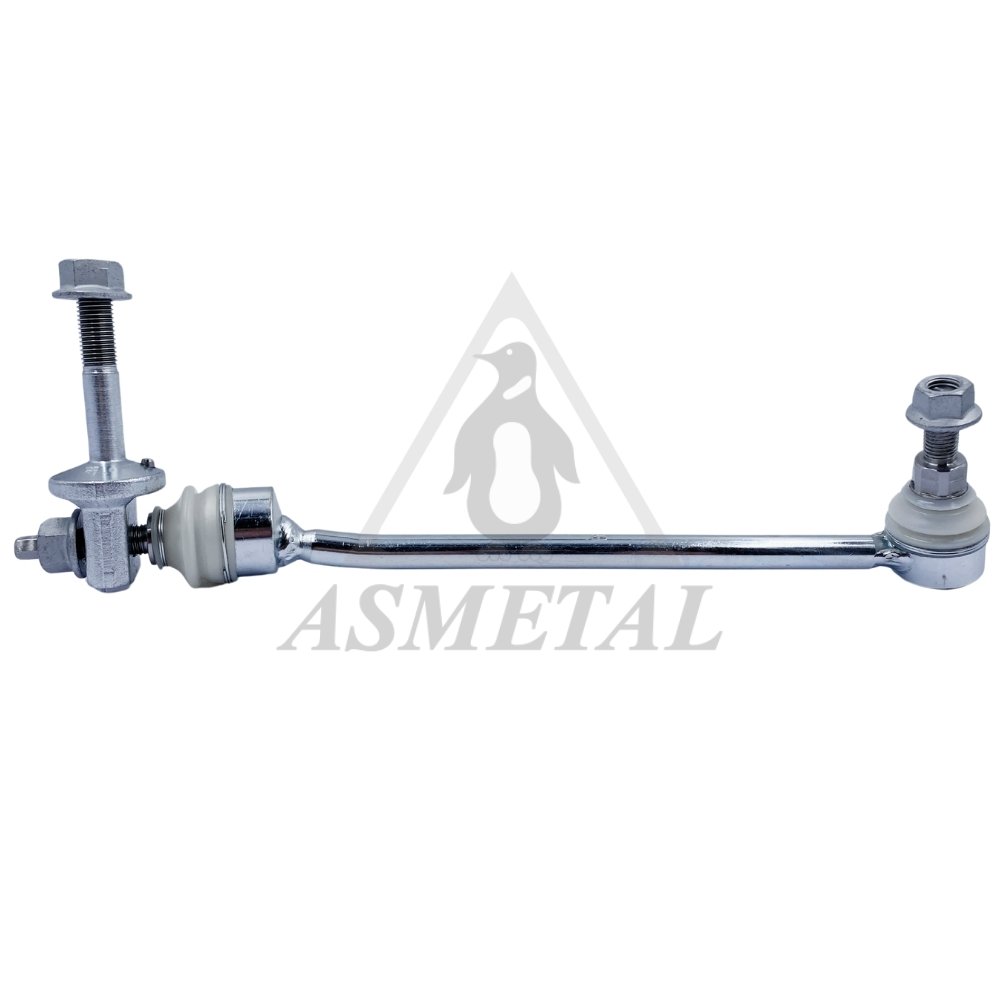

26MR1801
IN PREPARATION
|
Stabiliser Link Right |
0 kg |
205 323 10 17, A 205 323 10 17 |
 |

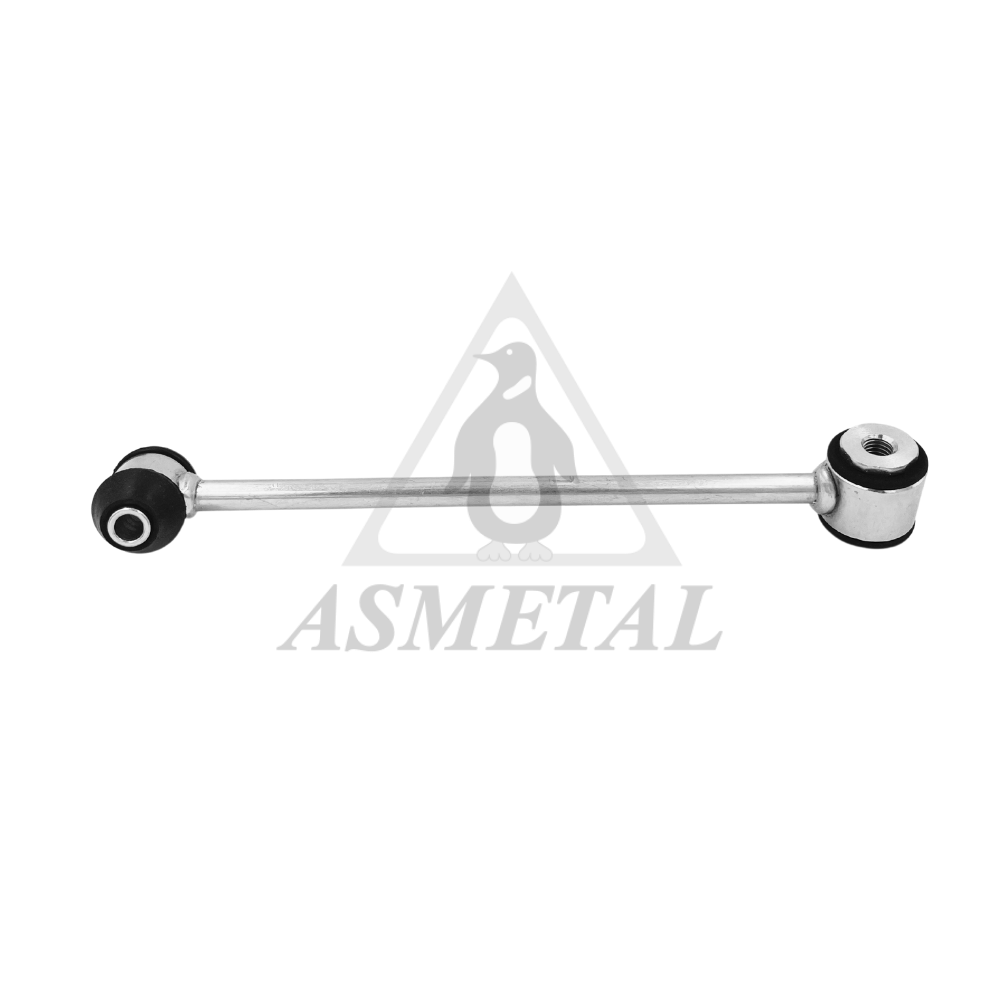

26MR1810
NEW
|
Stabiliser Link Rear Left |
L: 227 / 0,28 kg |
205 326 03 17, A 205 326 03 17 |
 |

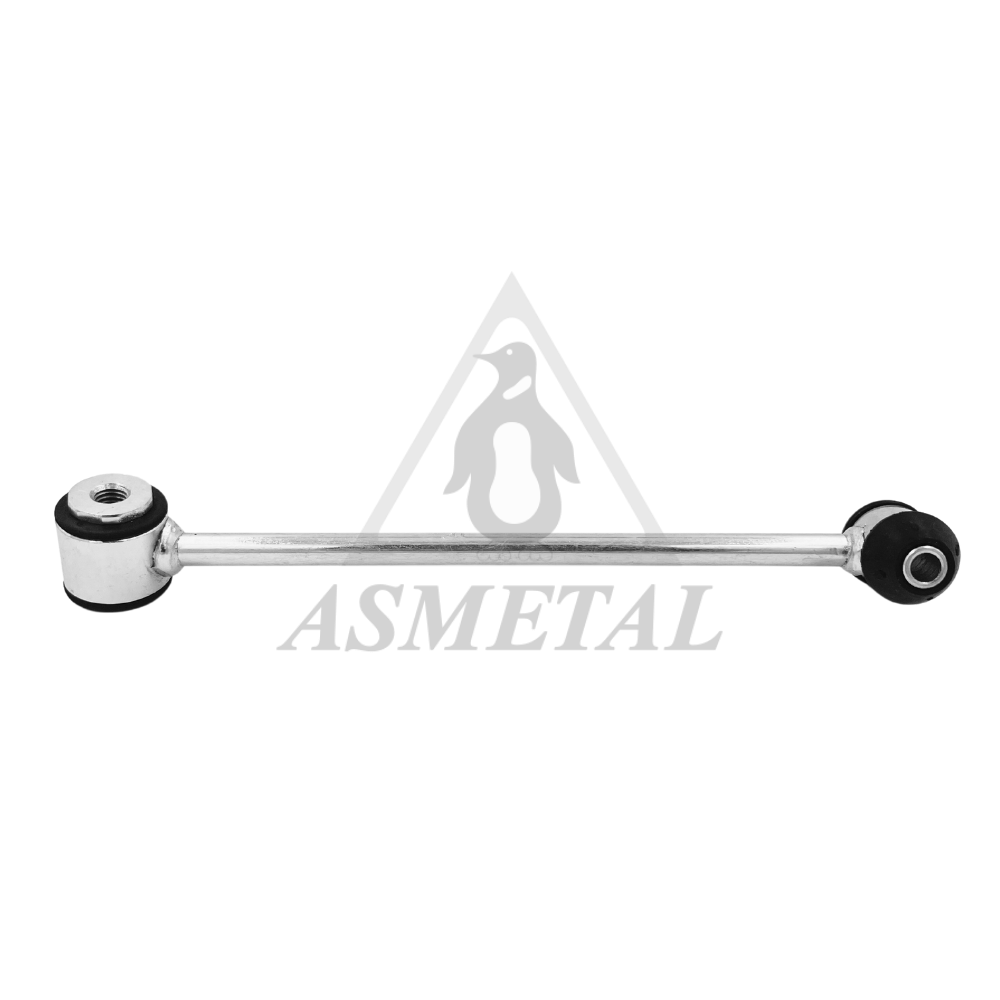

26MR1811
NEW
|
Stabiliser Link Rear Right |
L: 227 / 0,28 kg |
205 326 04 17, A 205 326 04 17 |
 |

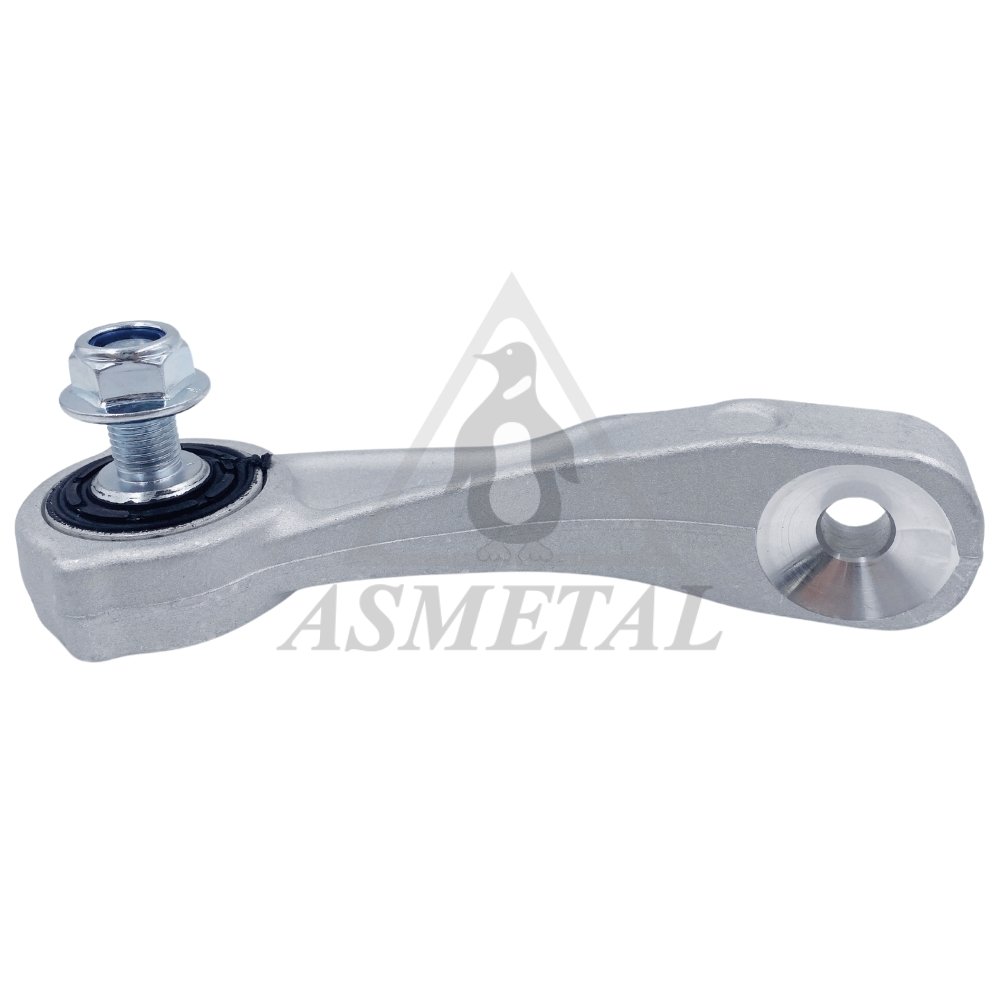

26MR1820
IN PREPARATION
|
Stabiliser Link Left |
0 kg |
205 323 07 17, A 205 323 07 17 |
 |

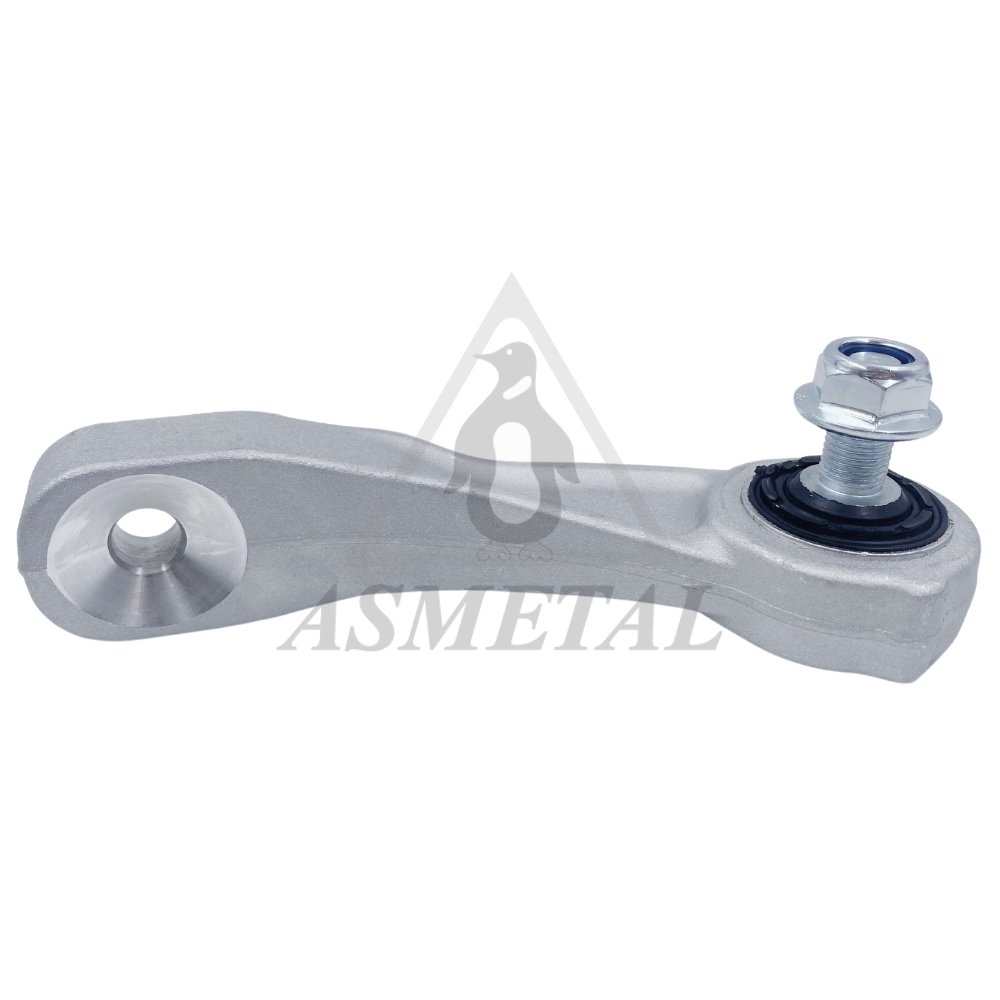

26MR1821
IN PREPARATION
|
Stabiliser Link Right |
0 kg |
205 323 08 17, A 205 323 08 17 |
 |

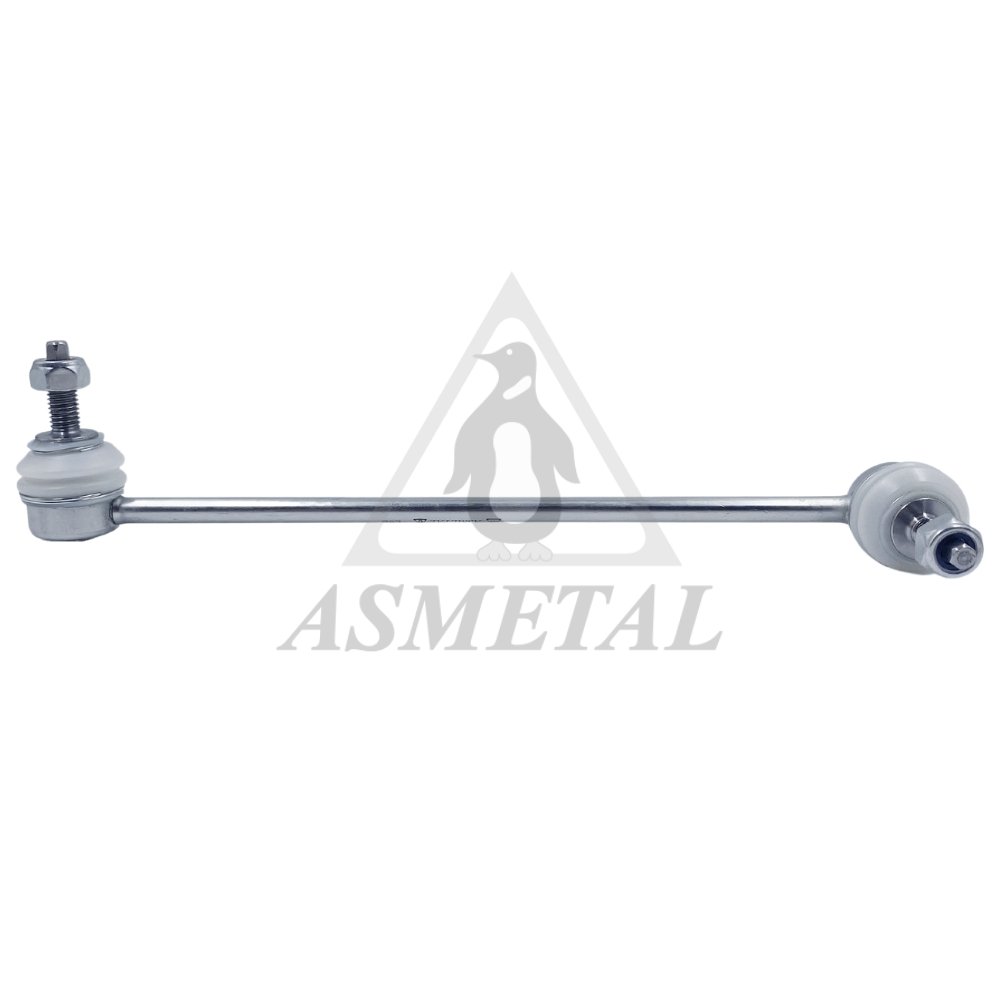

26MR3200
|
Stabiliser Link |
L:276mm / 0,38 kg |
A 203 320 27 89, 203 320 38 89 (8) OEM |
 |

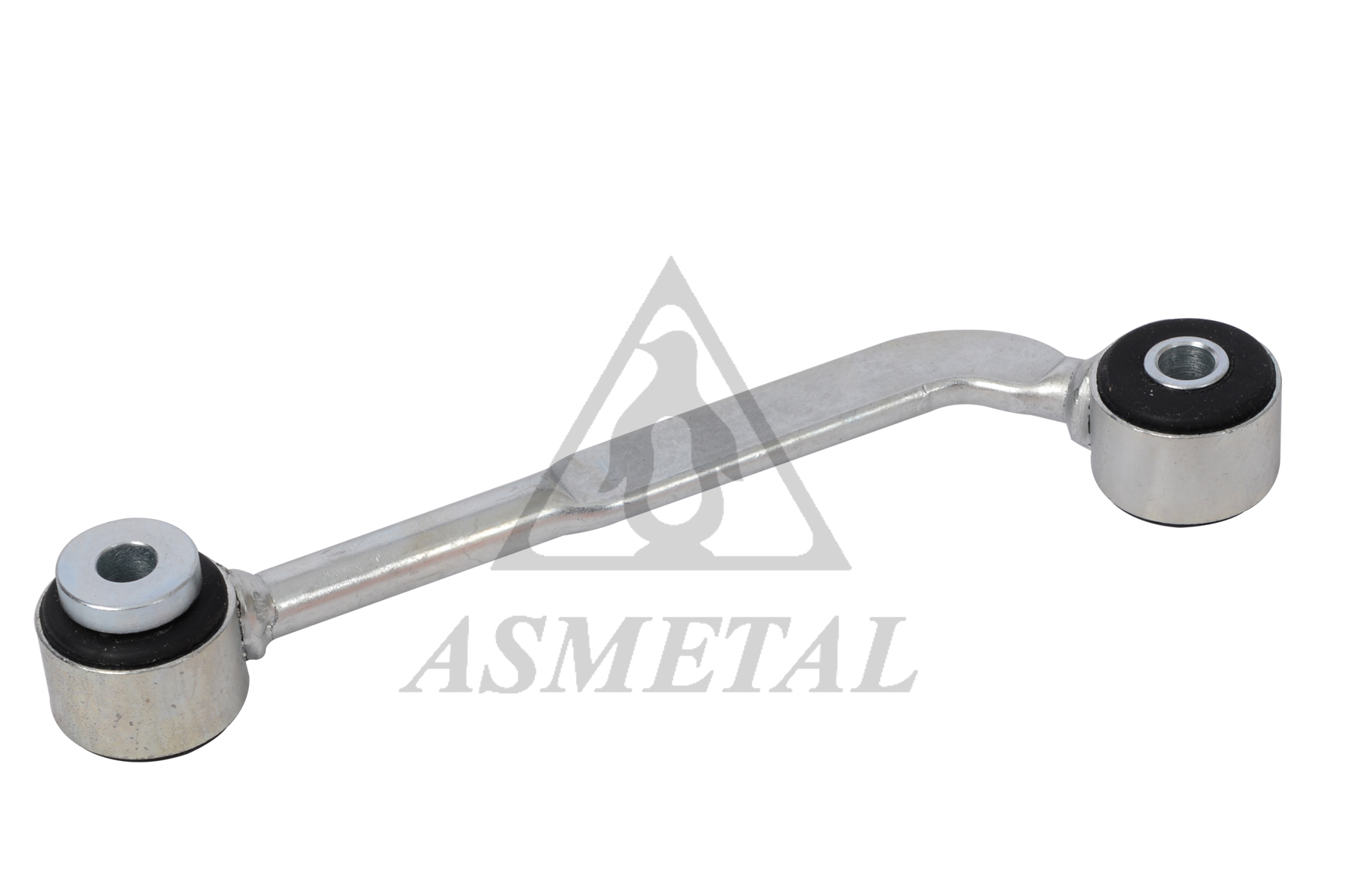

26MR3205
|
Stabiliser Link Rear Right |
L:185mm / 0,32 kg |
203 320 08 89, A 203 320 08 89 |
 |

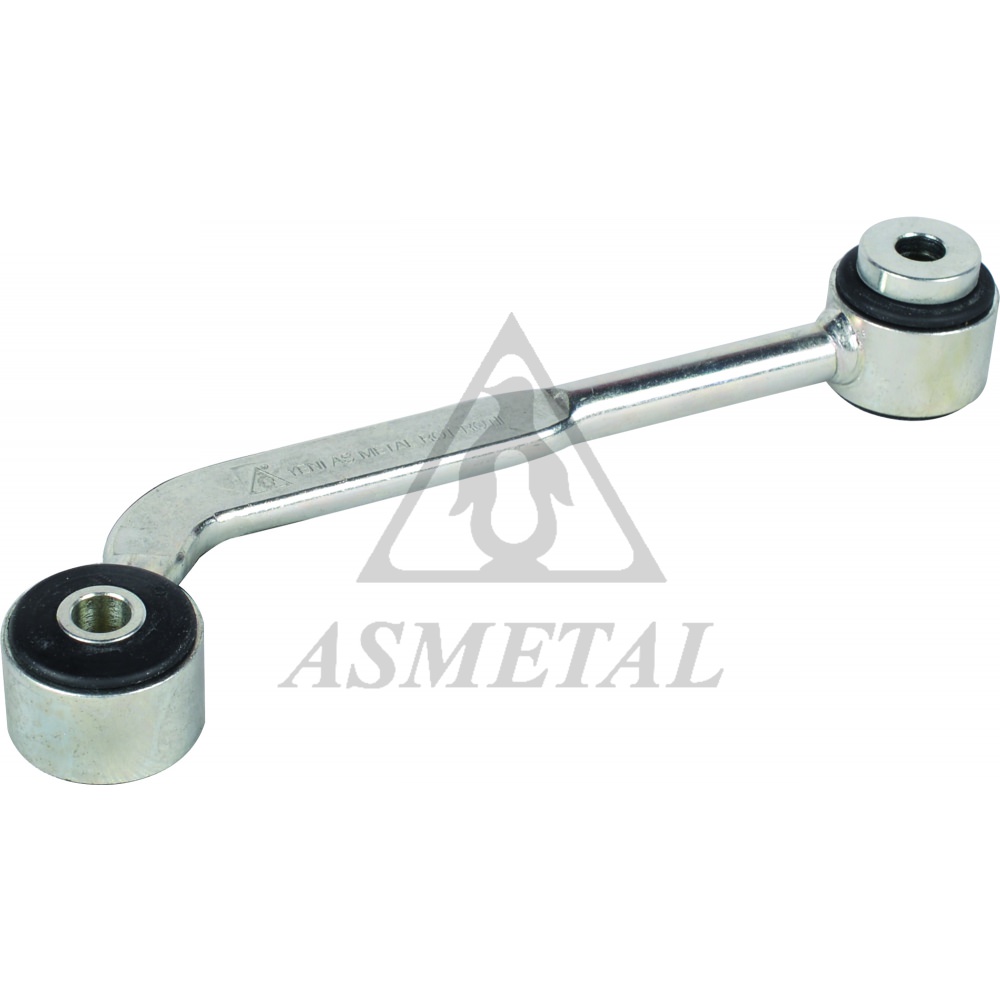

26MR3206
|
Stabiliser Link Rear Left |
L:185mm / 0,32 kg |
203 320 07 89, A 203 320 07 89 |
 |

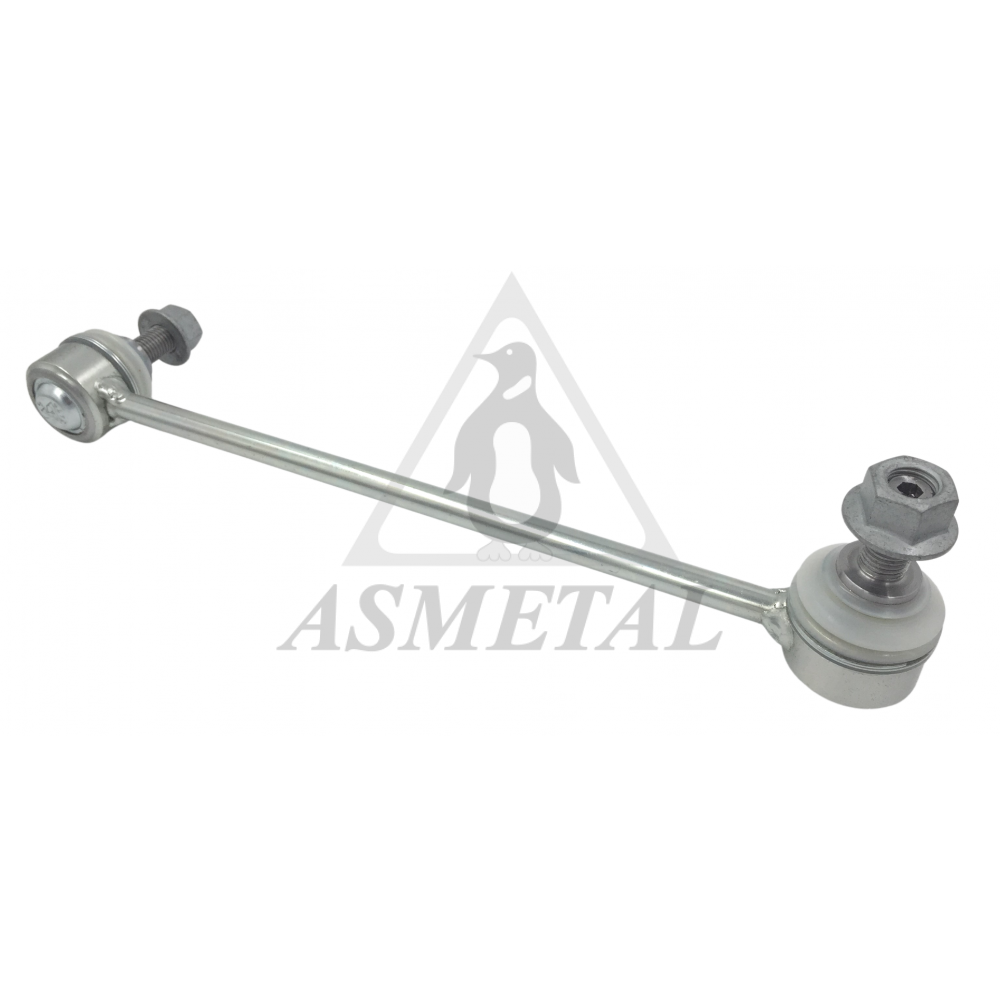

26MR3210
|
Stabiliser Link |
L: 276 / tp: MM12x1.5 / 0,58 kg |
203 320 26 89, A 203 320 26 89 (4) OEM |
 |

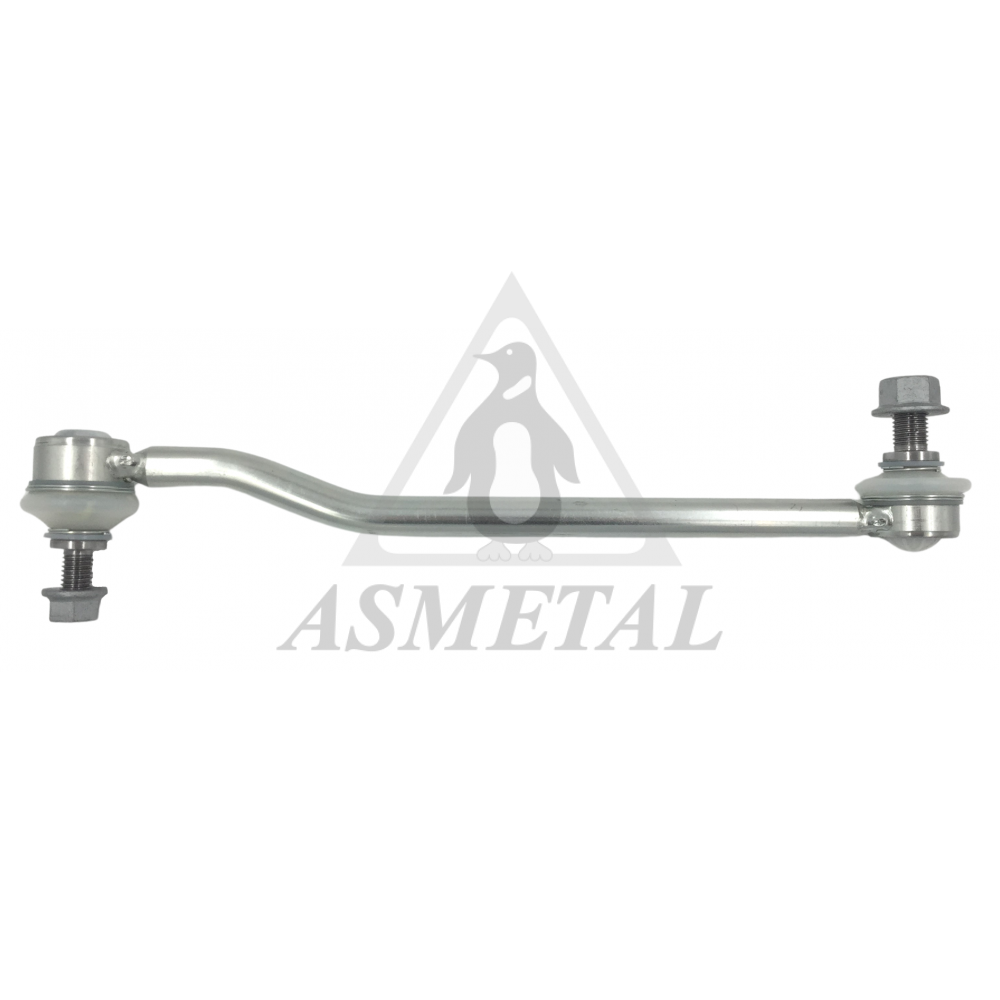

26MR3220
NEW
|
Stabiliser Link |
L: 289 / tp: MM12x1.5 / 0,64 kg |
203 320 18 89, 203 320 30 89 (2) OEM |
 |

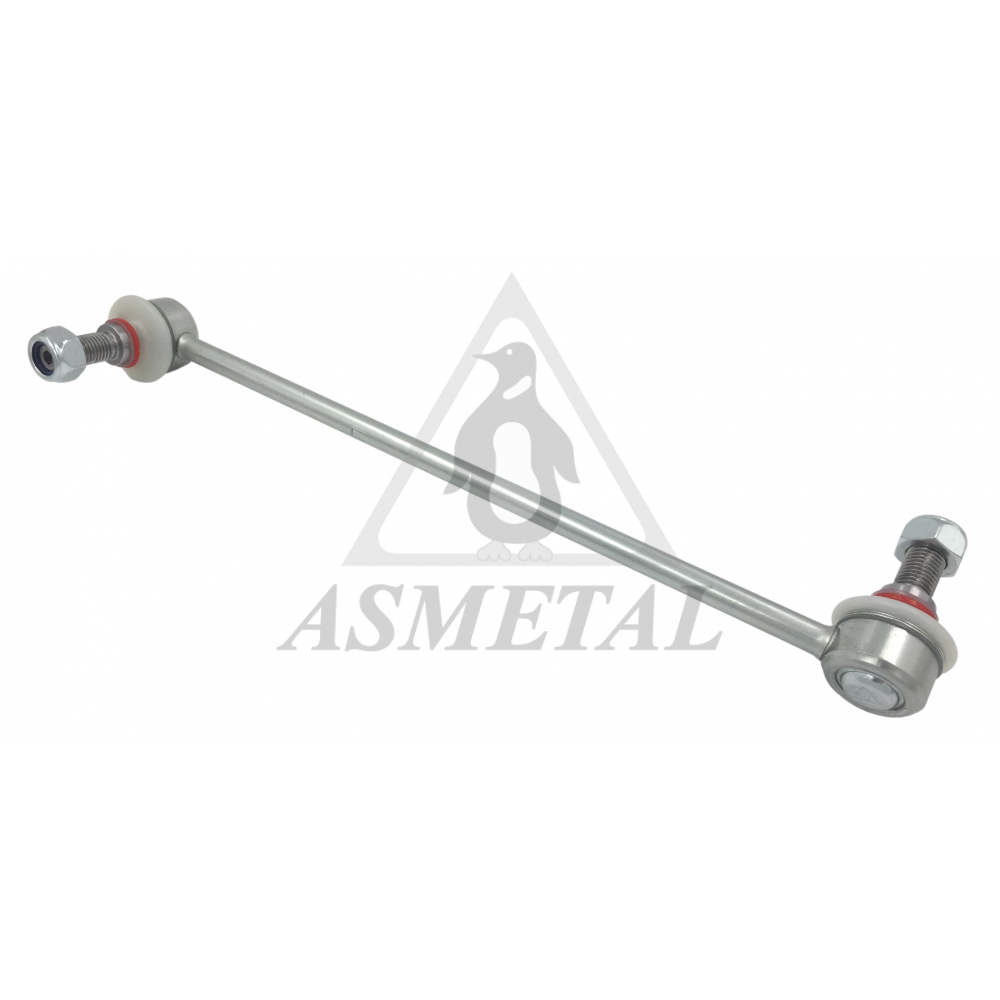

26MR3600
|
Stabiliser Link Left |
L:306mm / 0,62 kg |
A 204 320 17 89, 204 320 17 89 (2) OEM |
 |

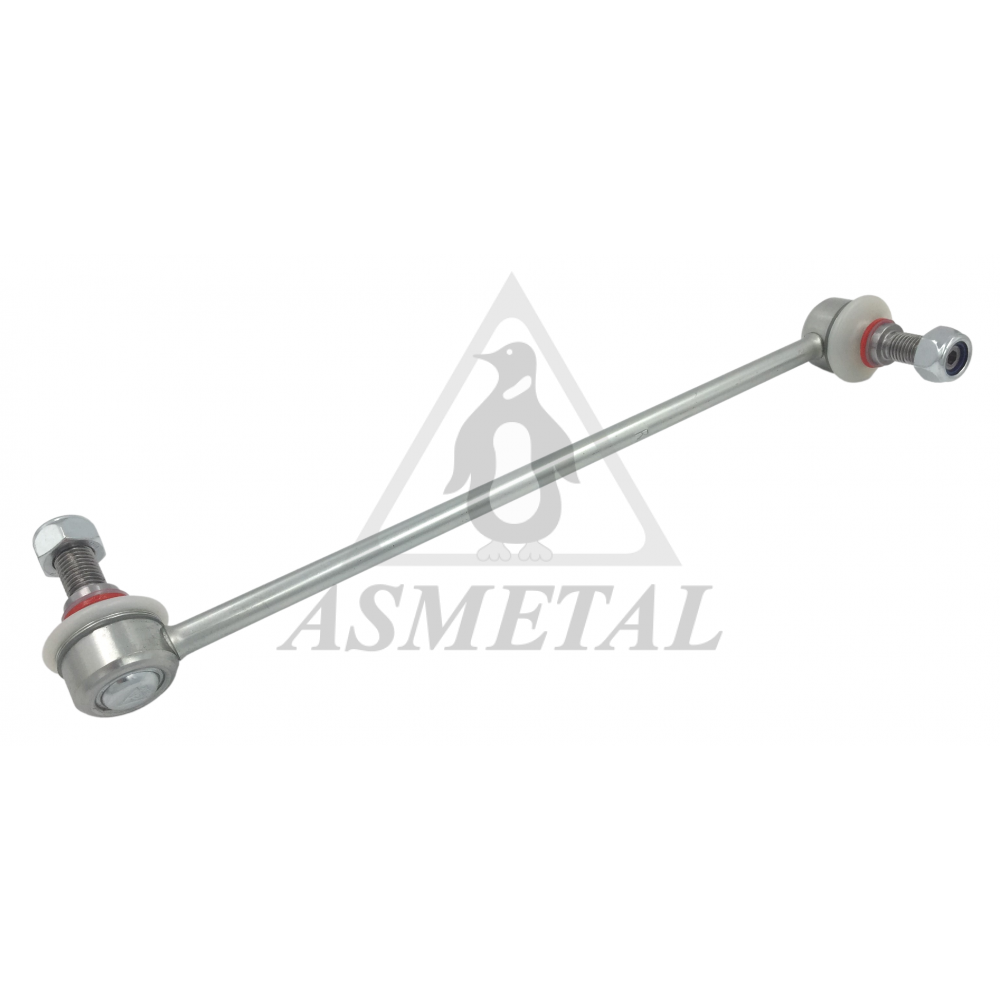

26MR3601
|
Stabiliser Link Right |
L:306mm / 0,62 kg |
204 320 38 89, A 204 320 18 89 (2) OEM |
 |

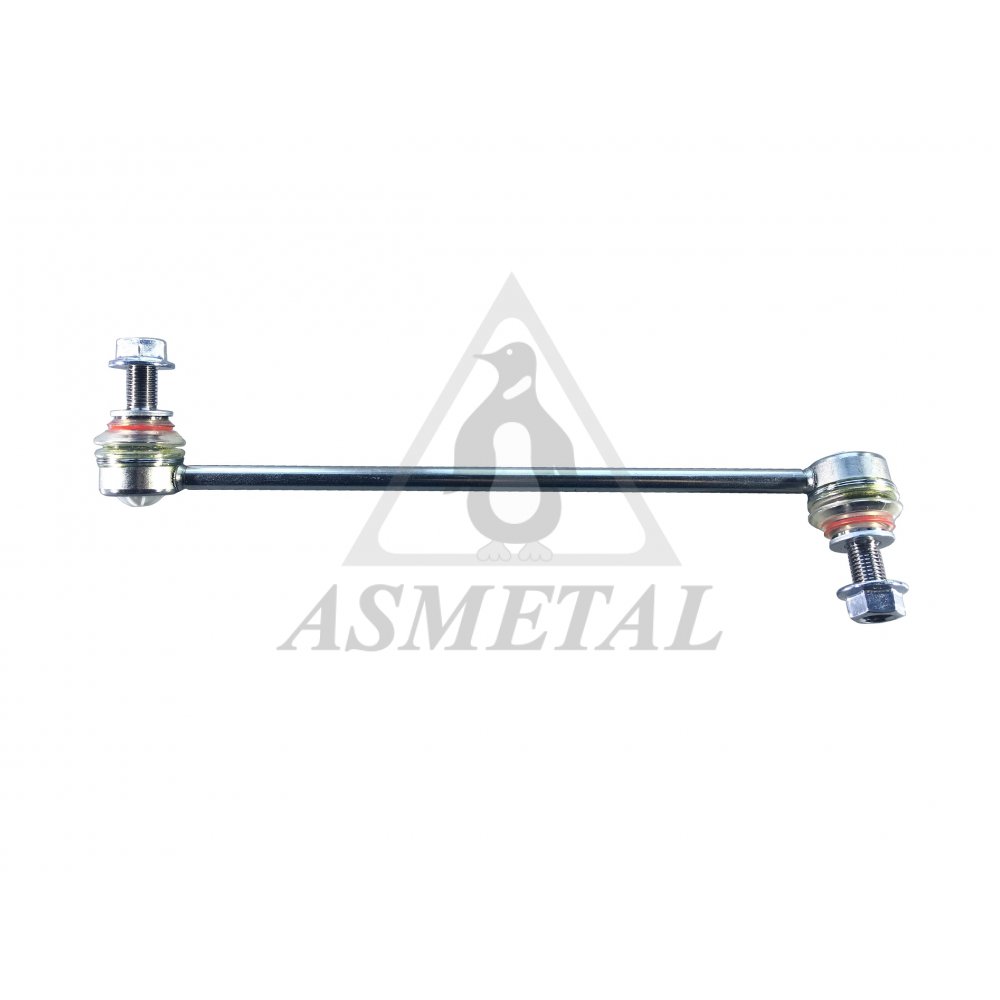

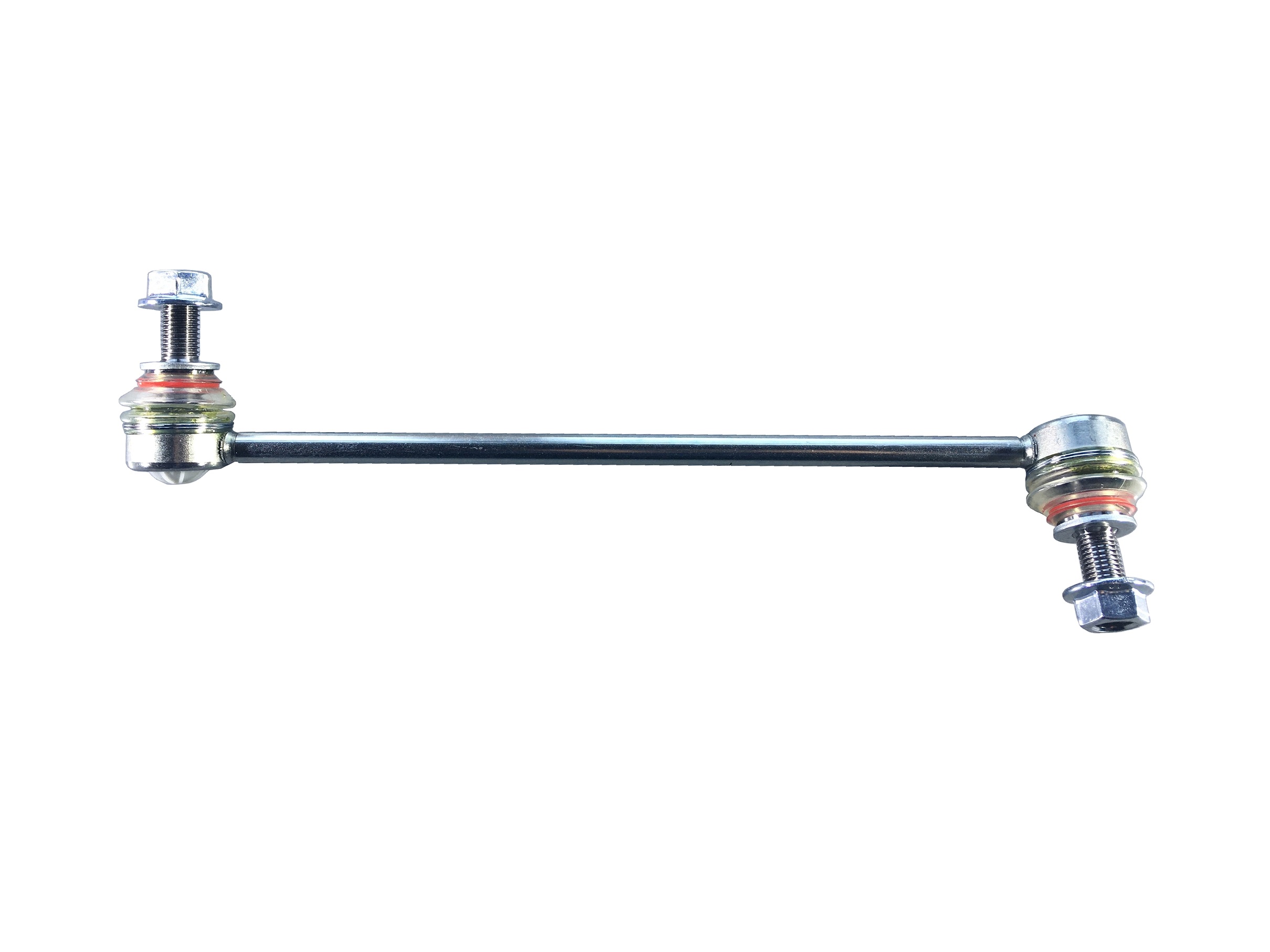

26MR3610
|
Stabiliser Link Left |
L:290 & M12x1.5 / 0,47 kg |
204 320 07 89, A 204 320 07 89 |
 |

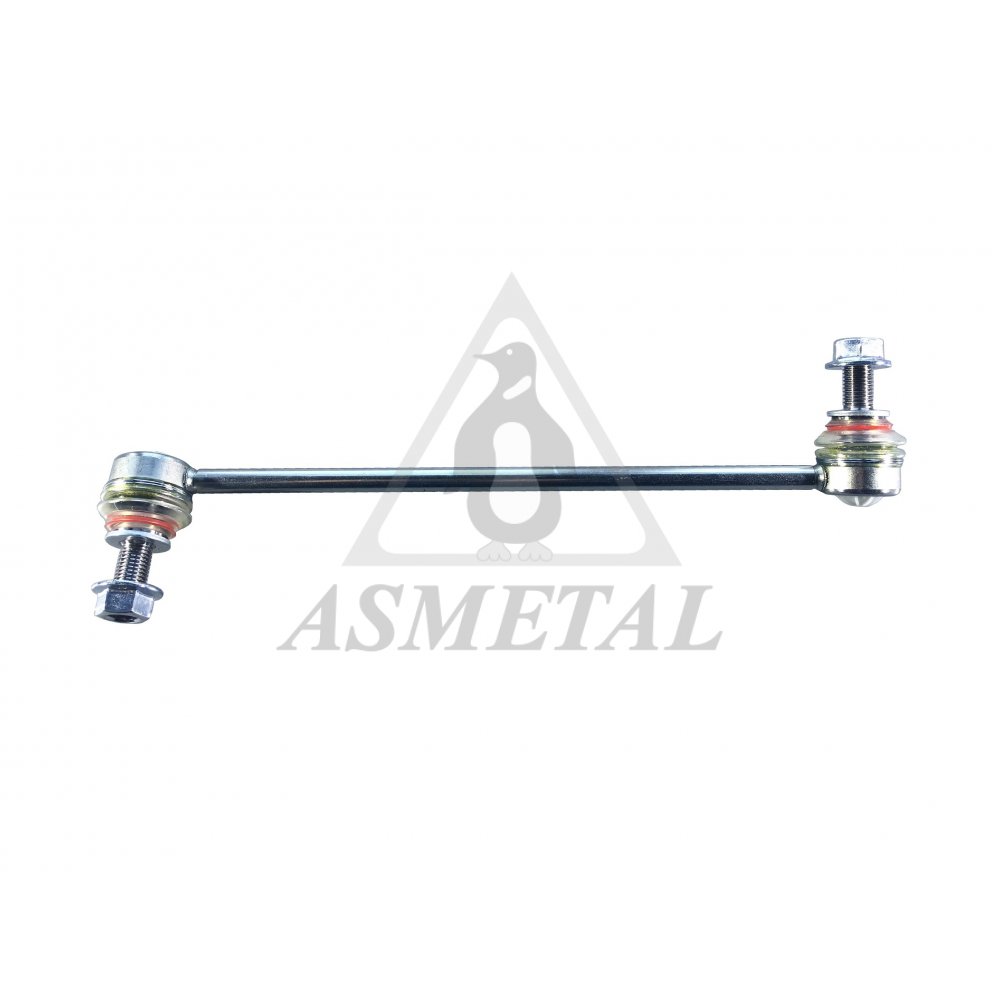

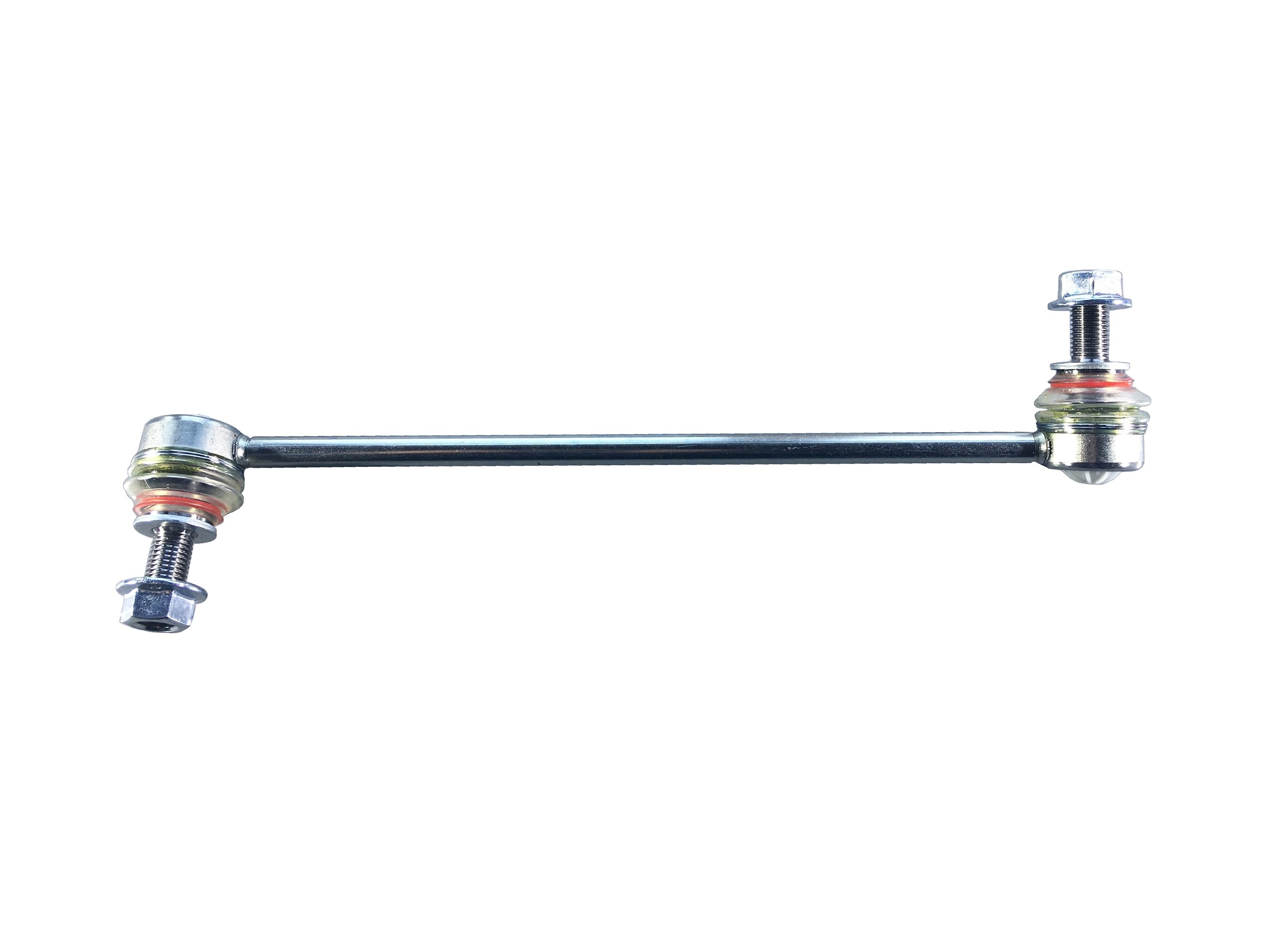

26MR3611
|
Stabiliser Link Right |
L:290 & M12x1.5 / 0,47 kg |
A 204 320 22 89, 204 320 22 89 |
 |

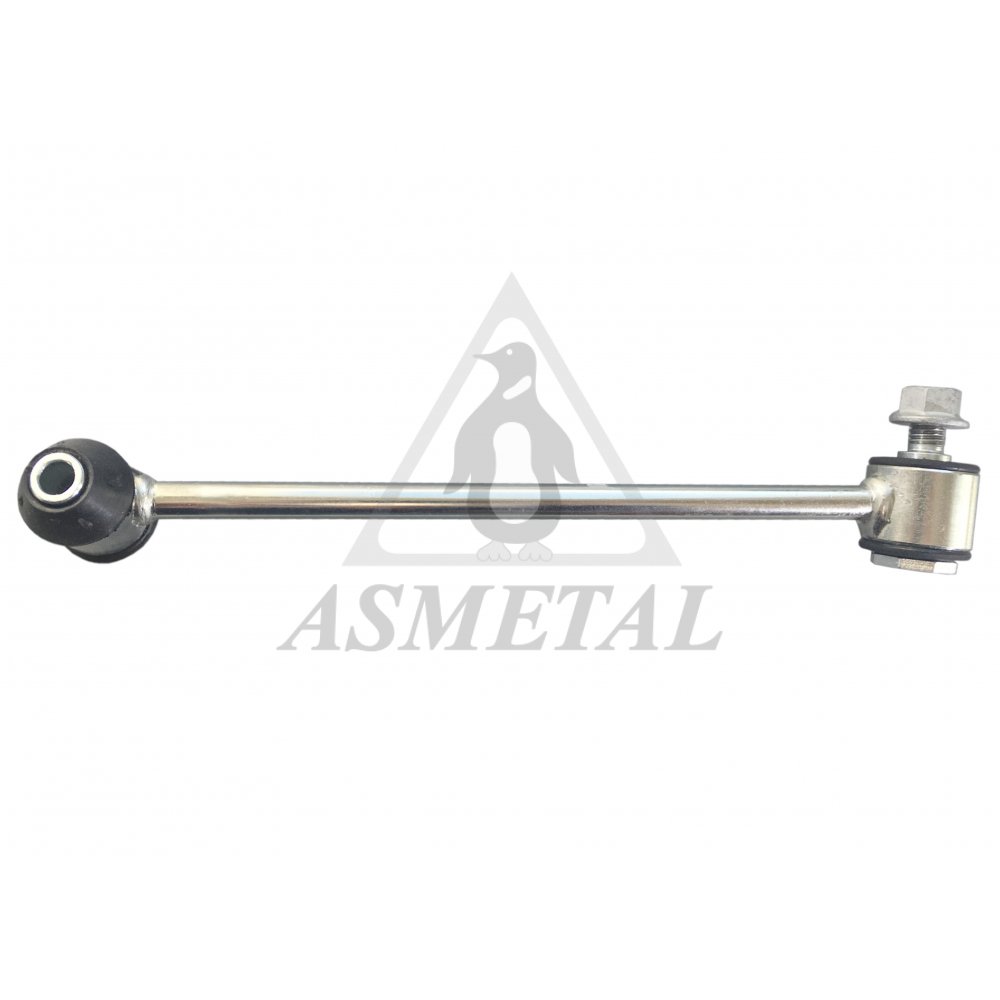

26MR3620
|
Stabiliser Link Rear Left |
th:MM10x1.5 RHT L: 232mm / 0,31 kg |
204 320 05 89, A 204 320 05 89 |
 |

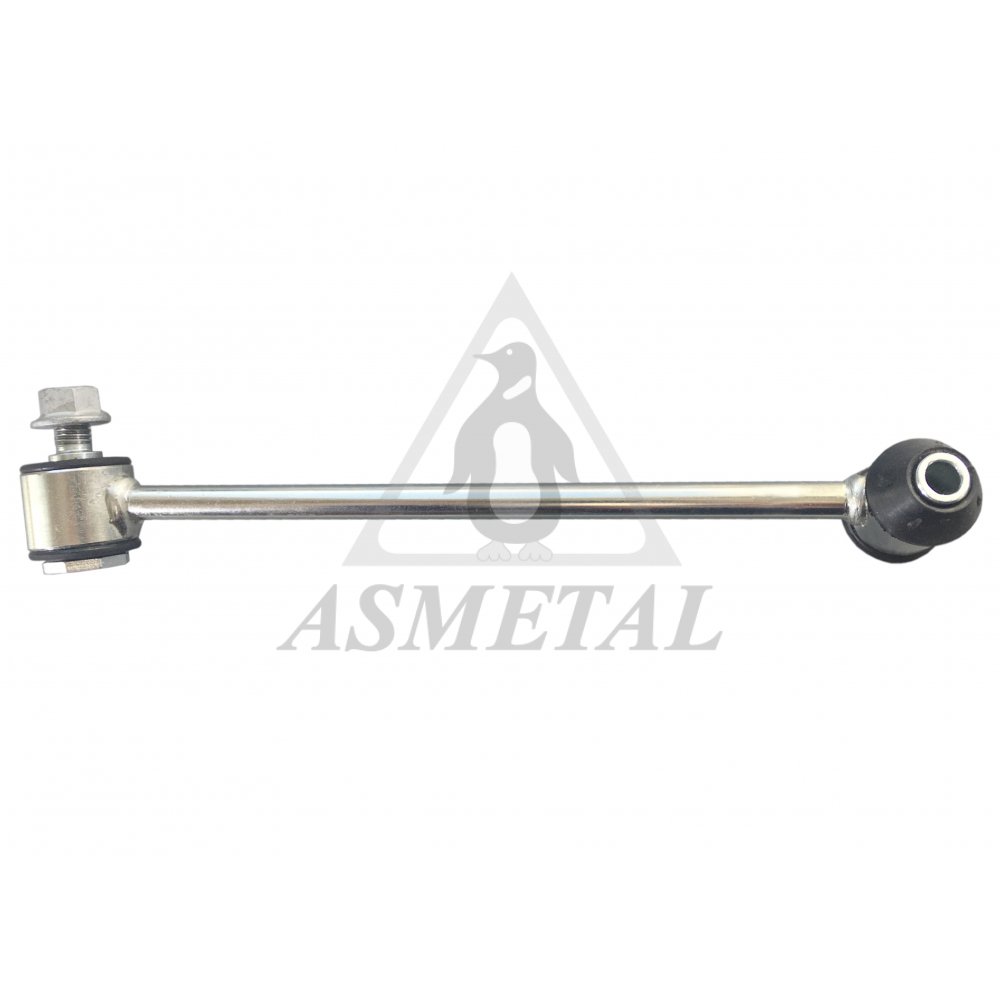

26MR3621
|
Stabiliser Link Rear Right |
th:MM10x1.5 RHT L: 232mm / 0,31 kg |
204 320 04 89, A 204 320 04 89 |
 |

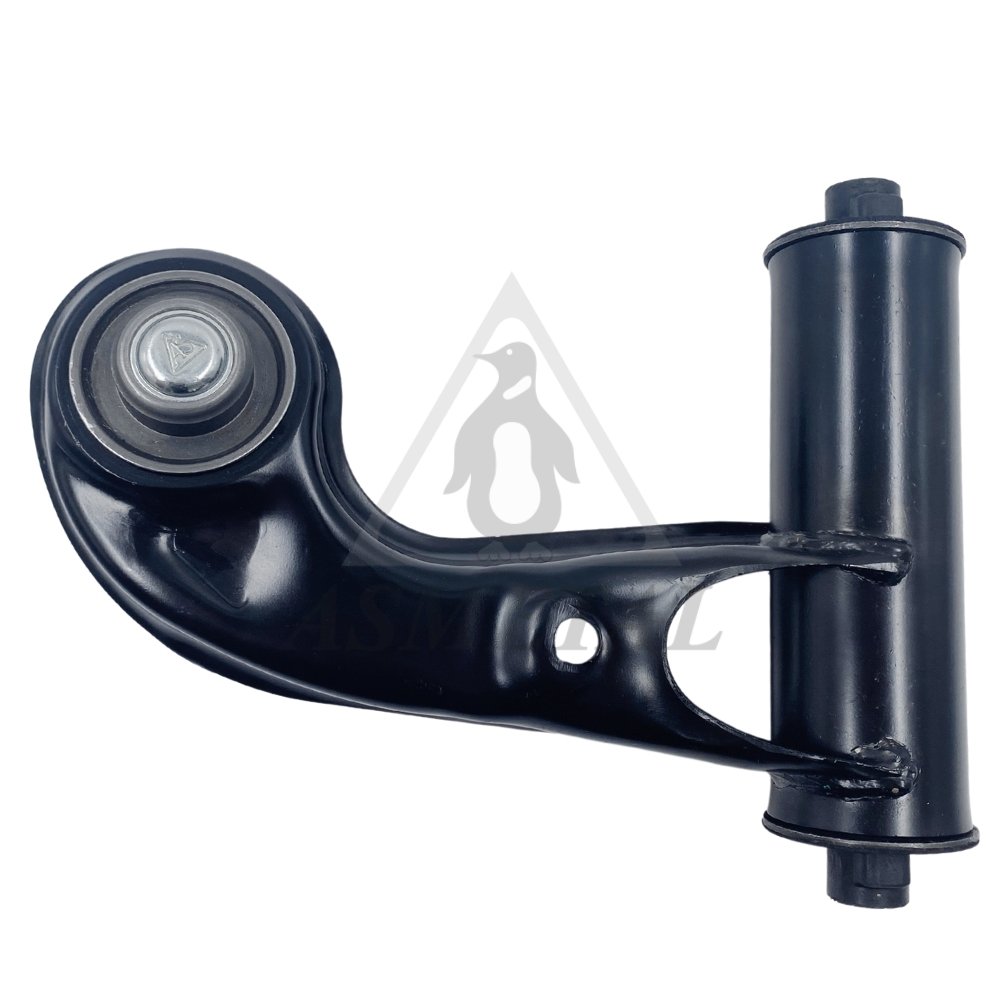

30MR02
IN PREPARATION
|
Track Control Arm Upper Left |
0 kg |
A 210 330 87 07, A 210 330 50 07 (16) OEM |
 |

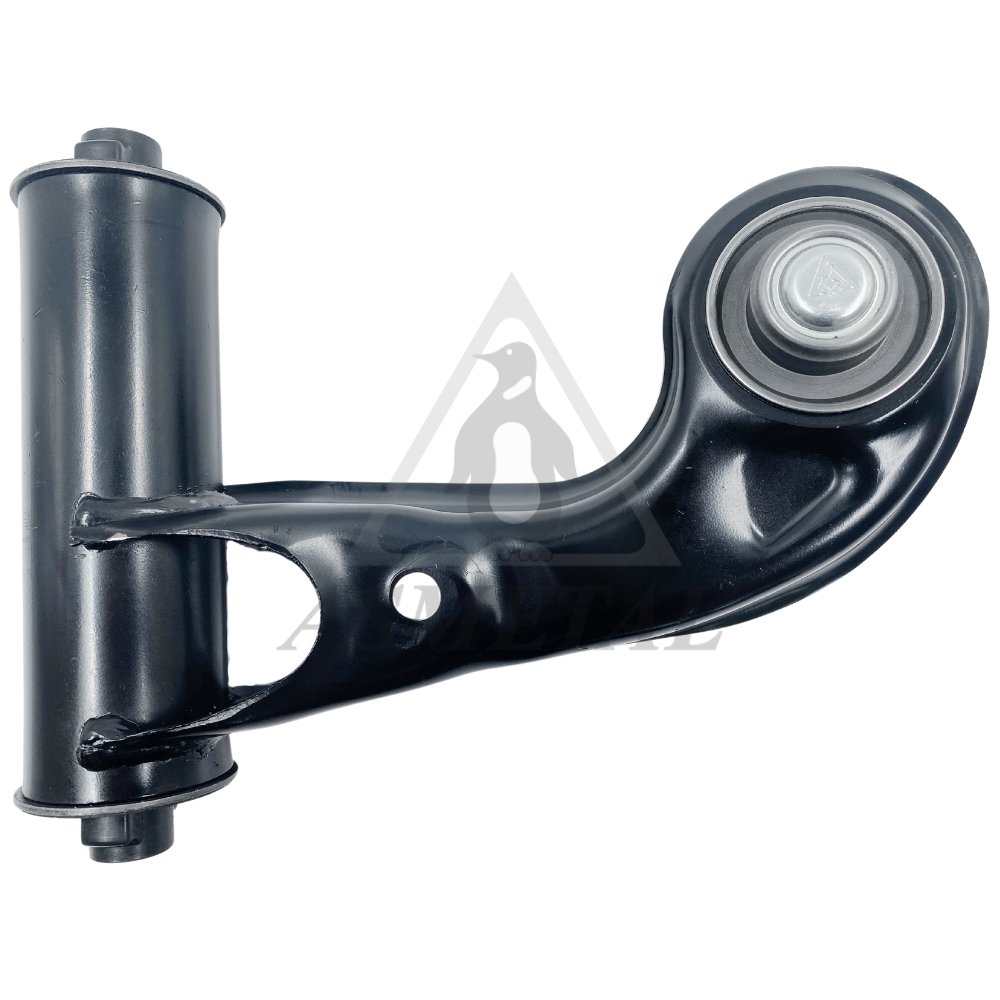

30MR03
IN PREPARATION
|
Track Control Arm Upper Right |
0 kg |
A 208 330 14 07, A 208 330 05 07 (15) OEM |
 |

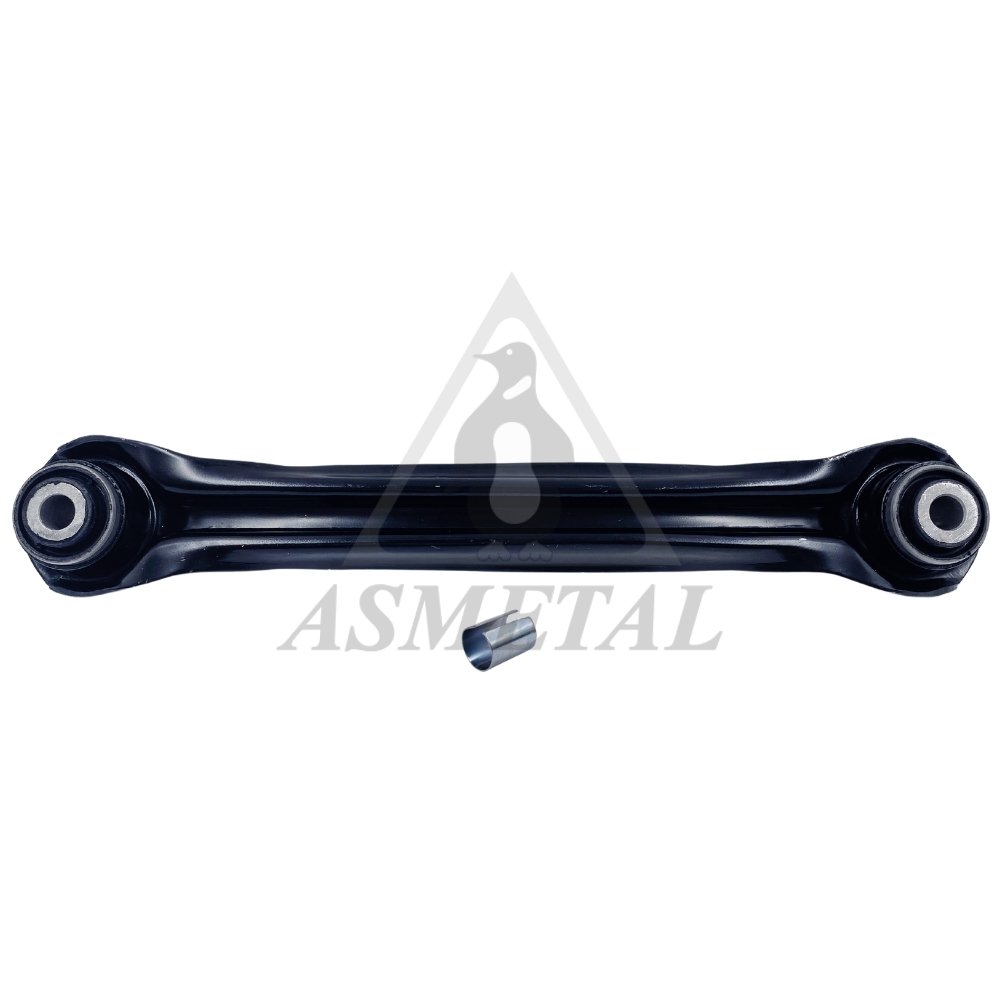

30MR0508
|
Track Rod Rear |
di: Ø12.2 / L: 314 / 0,7 kg |
124 350 01 29, 210 350 00 29 (4) OEM |
 |

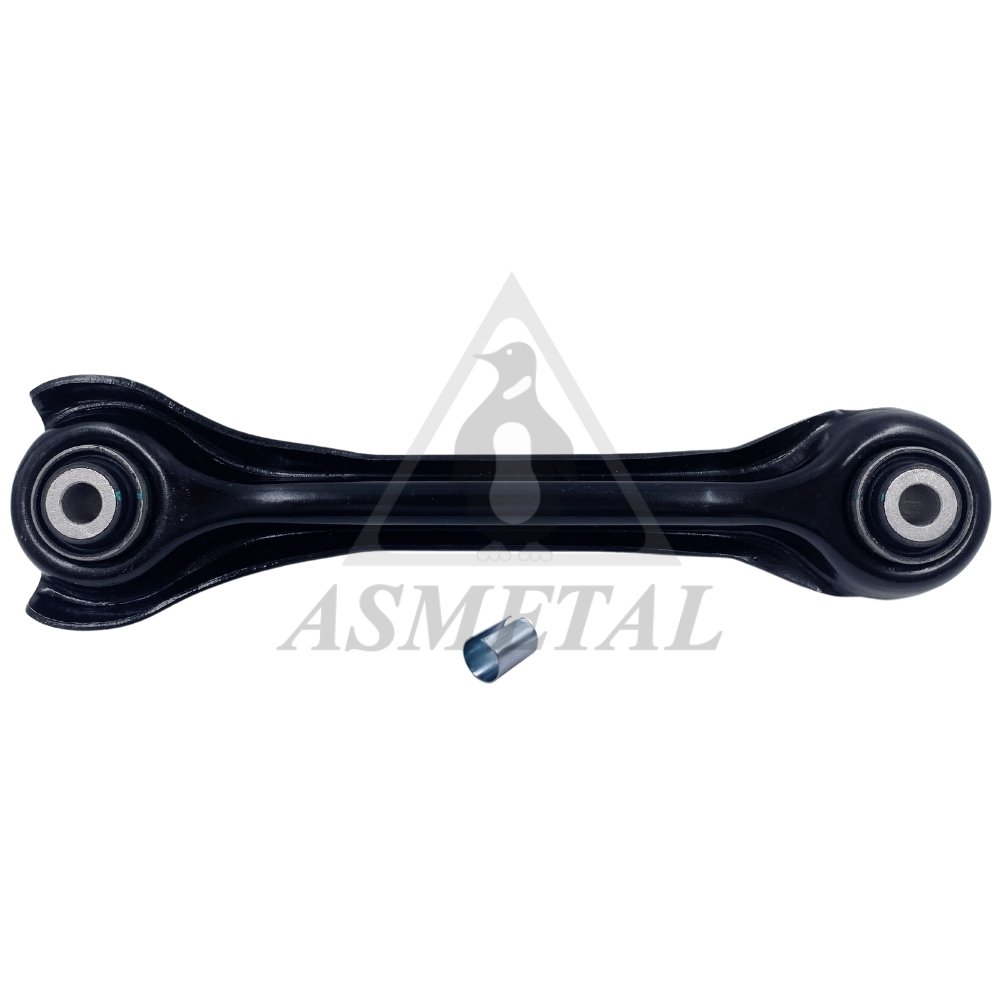

30MR0509
|
Track Control Arm Rear |
0,67 kg |
201 350 47 06, A 210 350 33 06 (11) OEM |
 |

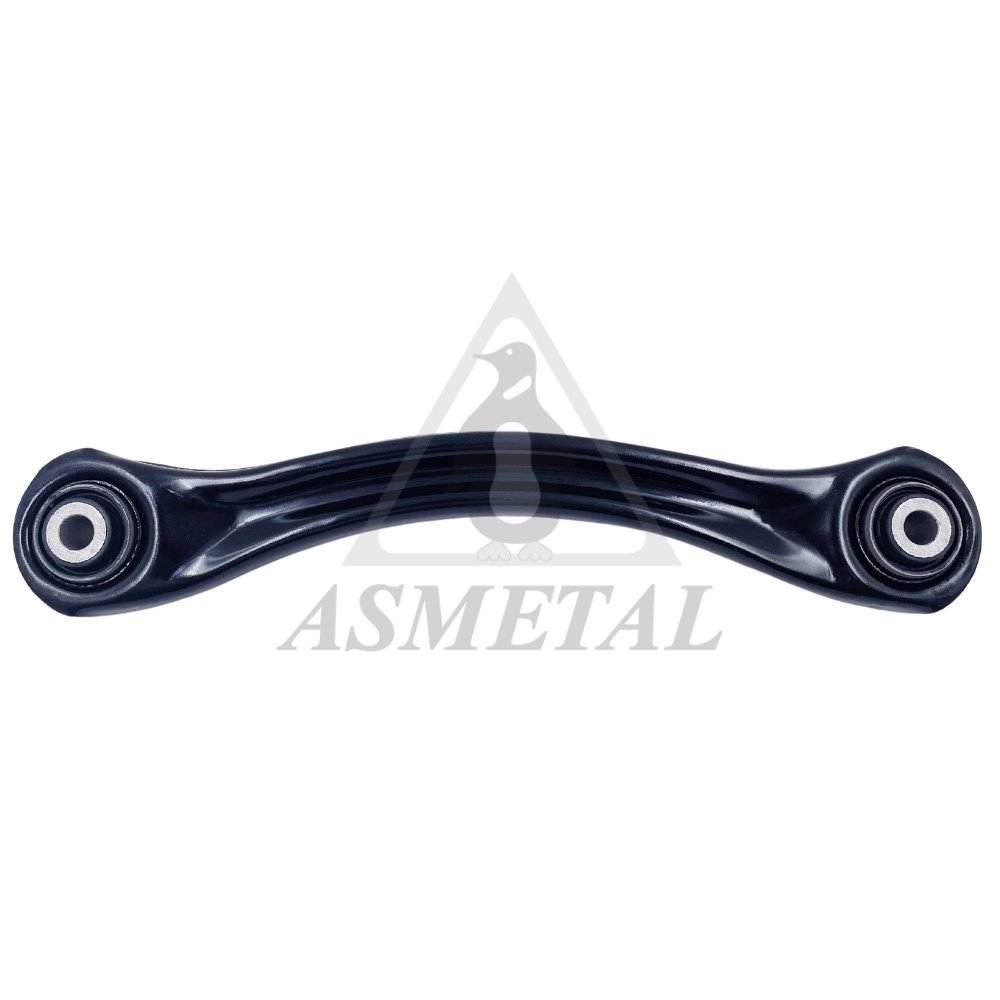

30MR0510
|
Track Control Arm Rear |
0,74 kg |
210 350 34 06, A 210 350 24 06 (14) OEM |
 |
30MR4702
IN PREPARATION
|
Track Control Arm Left |
|
205 330 55 01, A205 330 55 01 |
 |
30MR4703
IN PREPARATION
|
Track Control Arm Right |
|
A 205 330 56 01, 205 330 56 01 |
 |

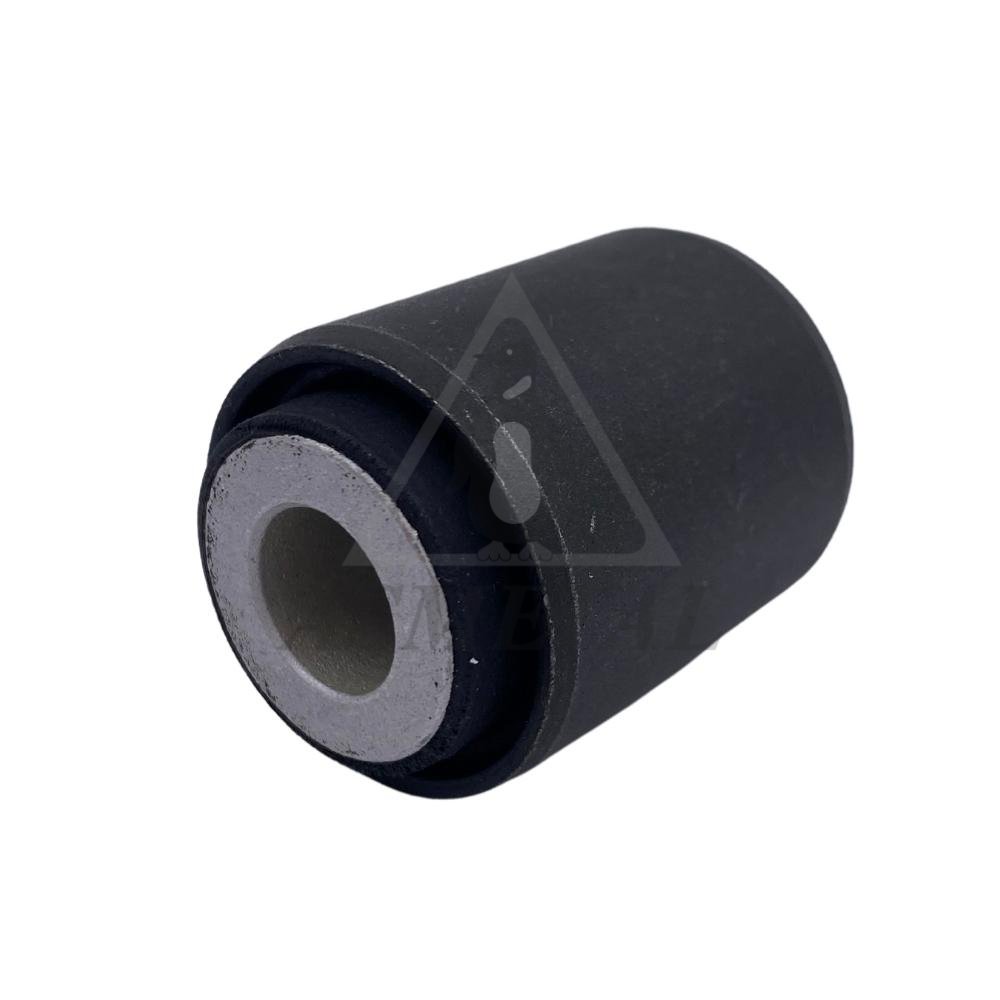

38MR02
NEW
|
Silentblock for TCA |
di: Ø12.1 / do: Ø31.5 / L: 43 / 0,079 kg |
124 352 43 65, A 124 352 43 65 (8) OEM |
 |

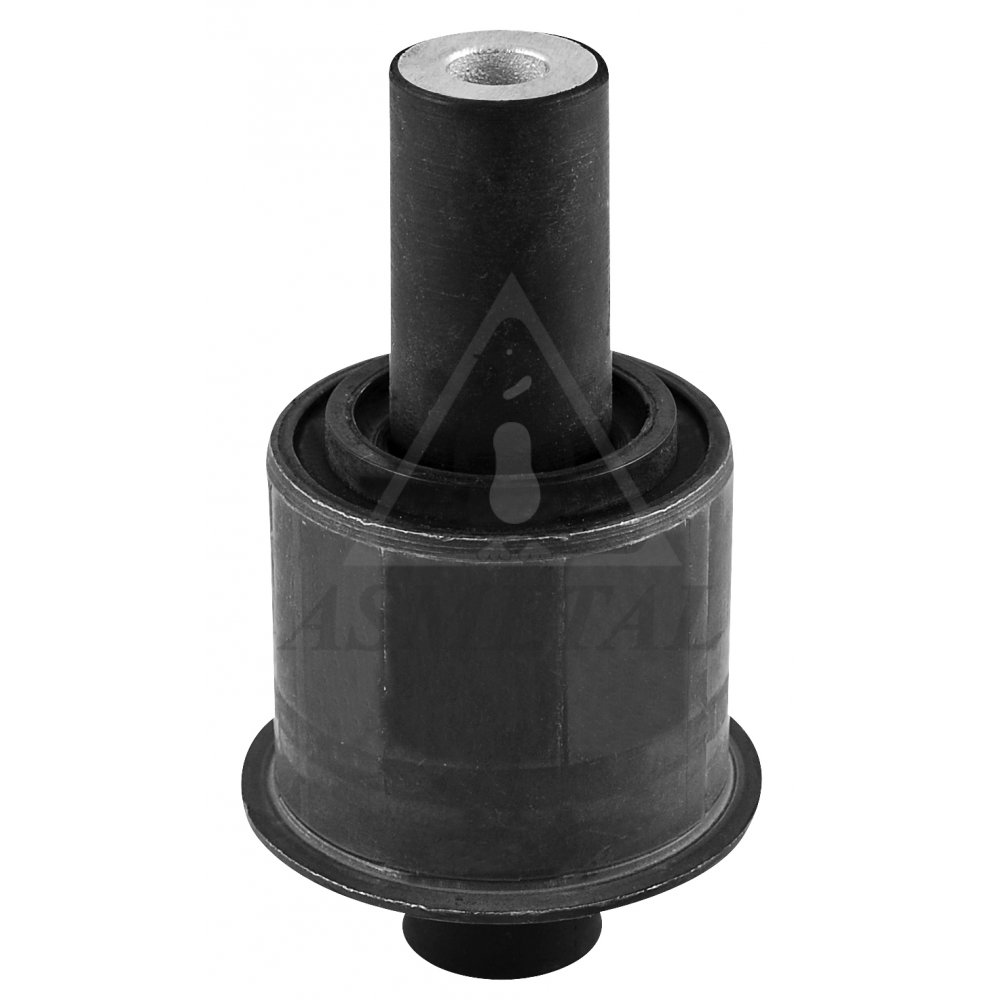

38MR03
NEW
|
Silentblock for TCA |
di:Ø10.2 do:Ø48.2 L:99.5mm / 0,25 kg |
5101057AA, 5101056AA (4) OEM |
 |

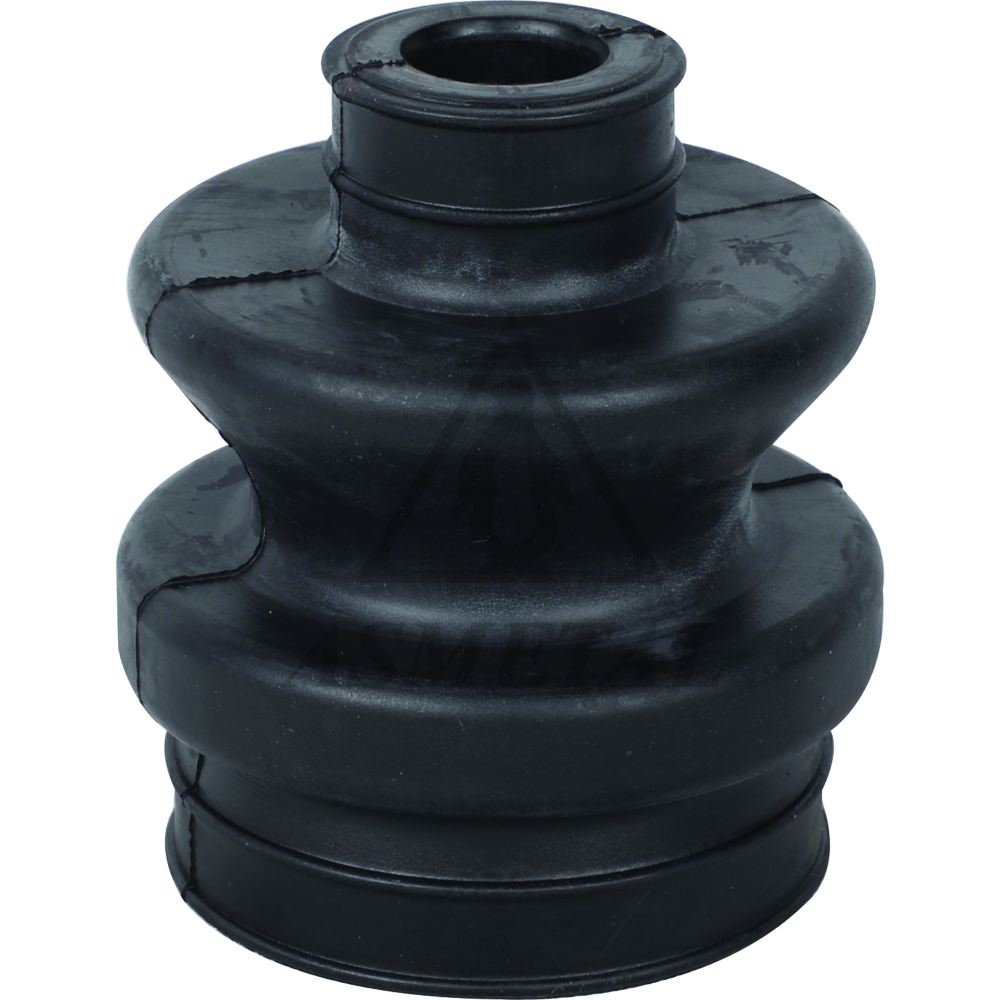

38MR0502
|
Bellow Driveshaft |
di:Ø22 / 0,14 kg |
A 124 357 02 91, A 124 350 01 37 (6) OEM |
 |

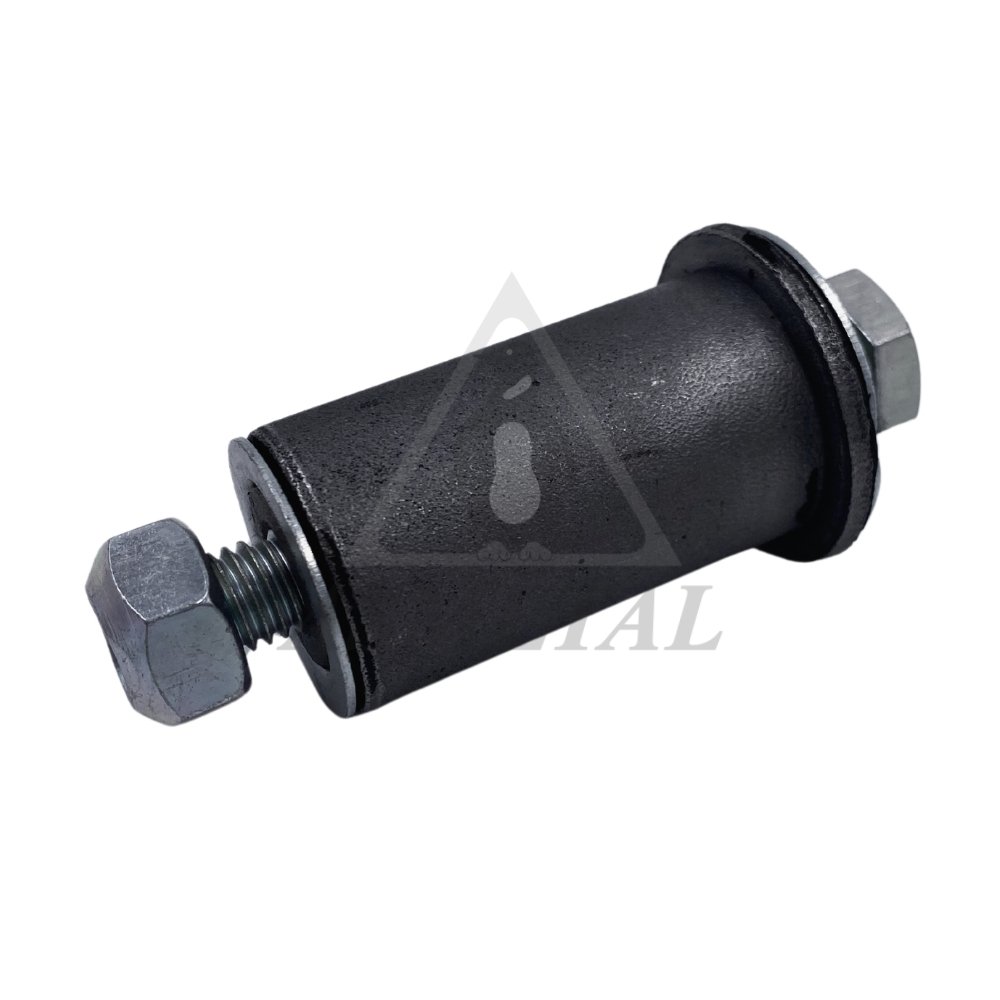

38MR0504
NEW
|
Silentblock for TCA |
0,2680 kg |
A202 460 03 19, 202 460 03 19 |
 |

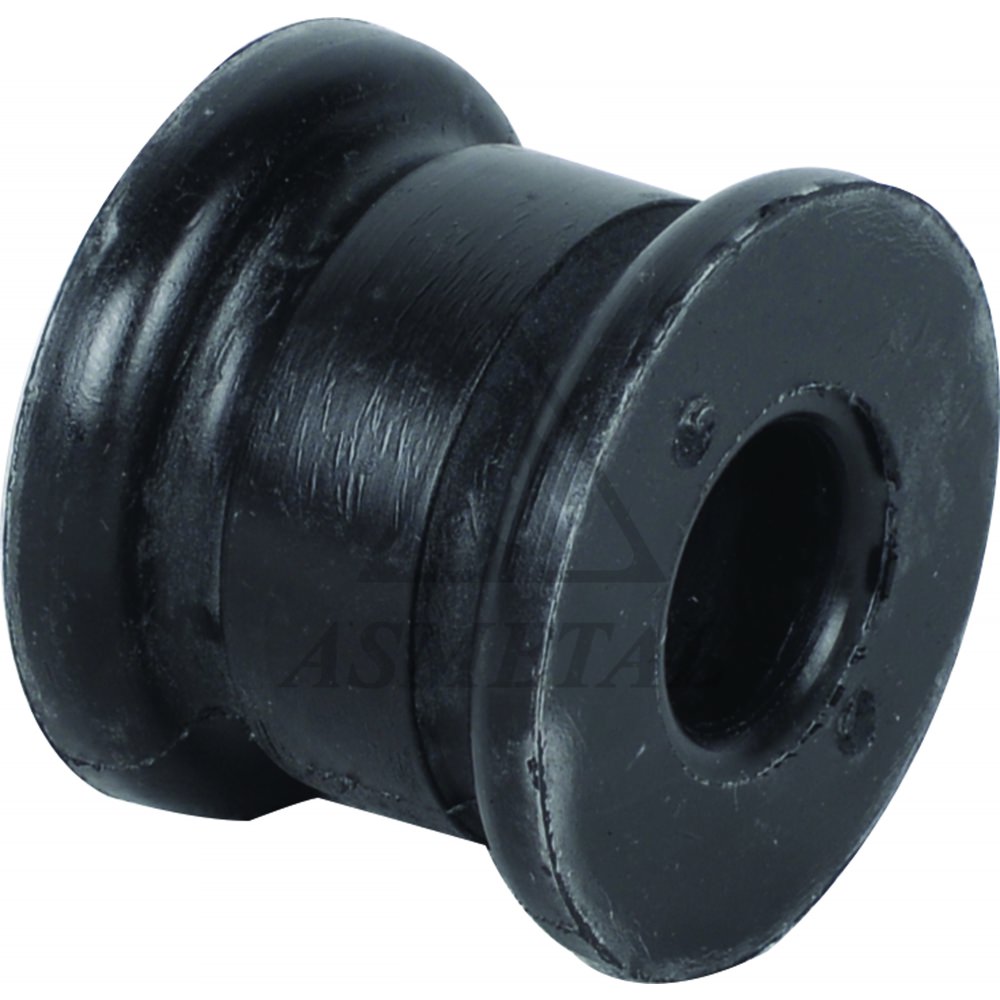

38MR0505
|
Silentblock for Stabiliser Link |
di:Ø18,5 do:Ø39,5 / 0,06 kg |
124 323 23 85, 124 323 49 85 (2) OEM |
 |

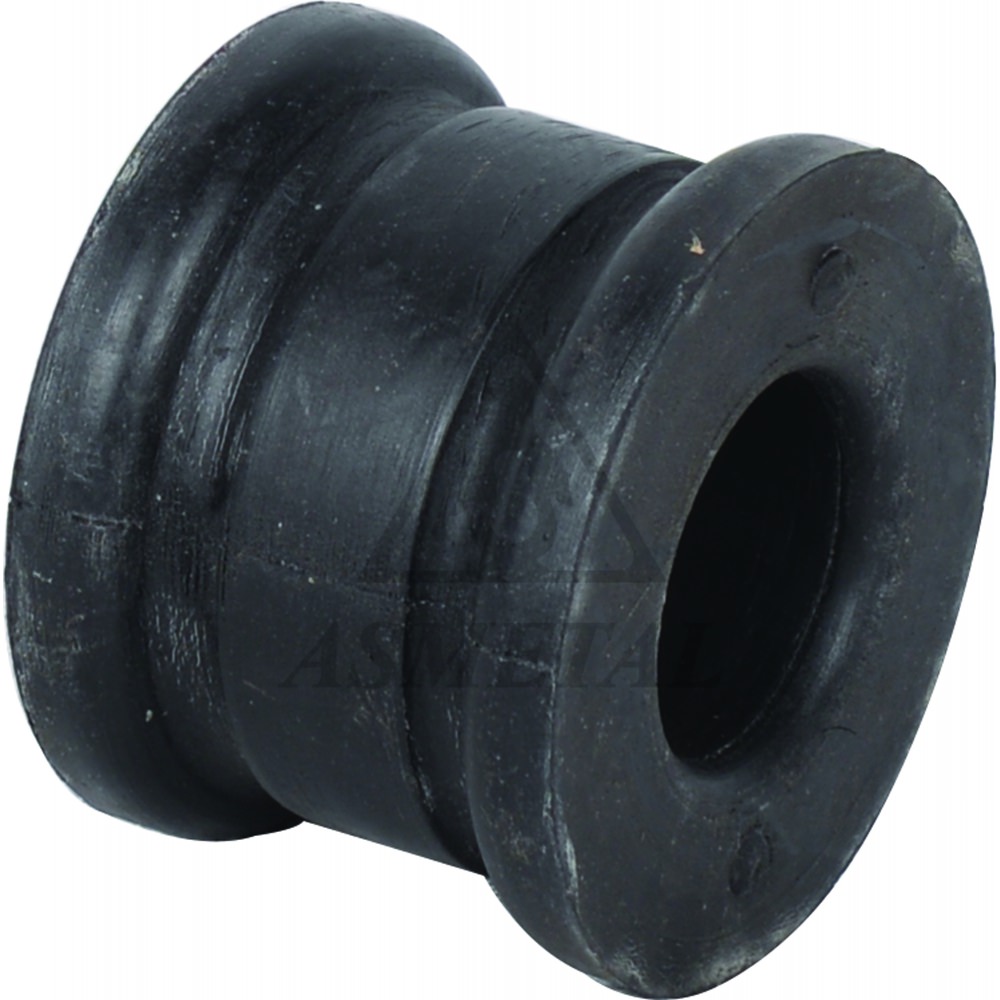

38MR0507
|
Silentblock for Stabiliser Link |
di:Ø24 do:Ø44,5 / 0,06 kg |
124 323 54 85, 124 323 37 85 (1) OEM |
 |

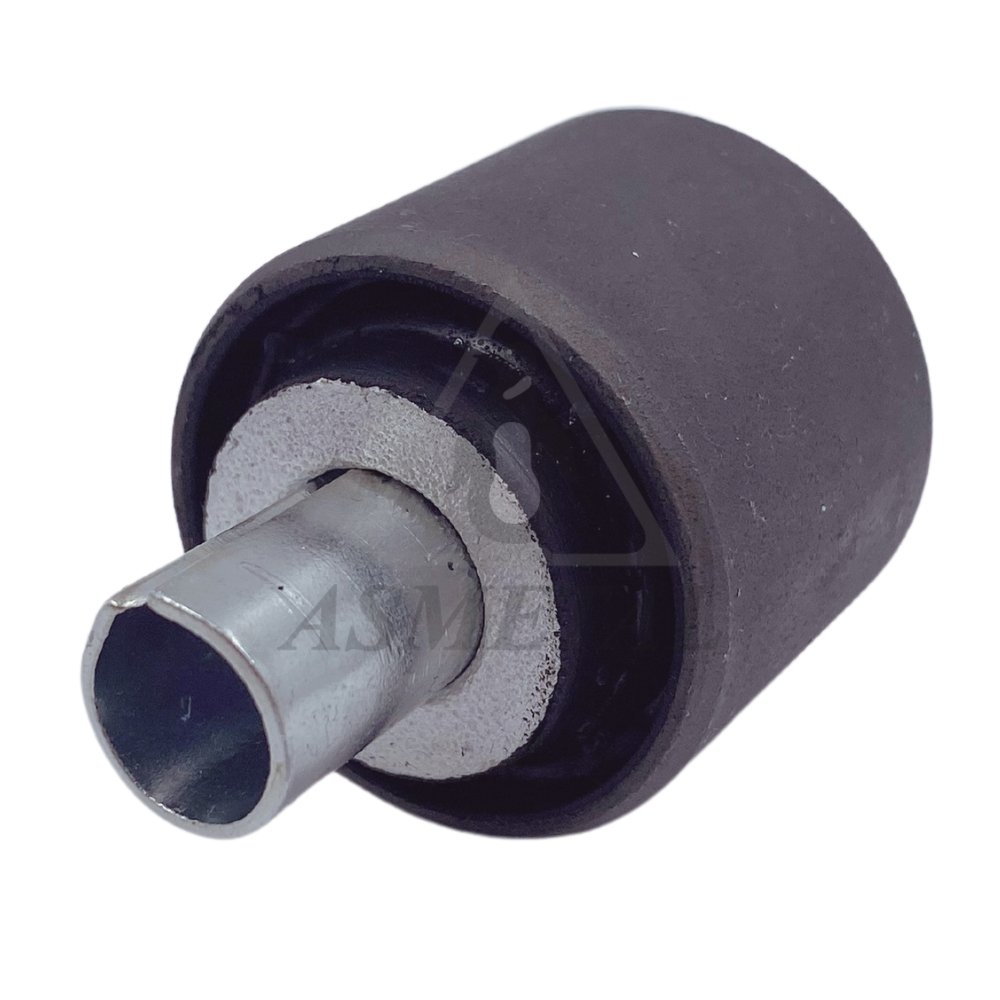

38MR0508
|
Silentblock for TCA |
di:Ø11 do:Ø36,2 L:38 / 0,11 kg |
124 352 35 65, 124 350 05 75 |
 |

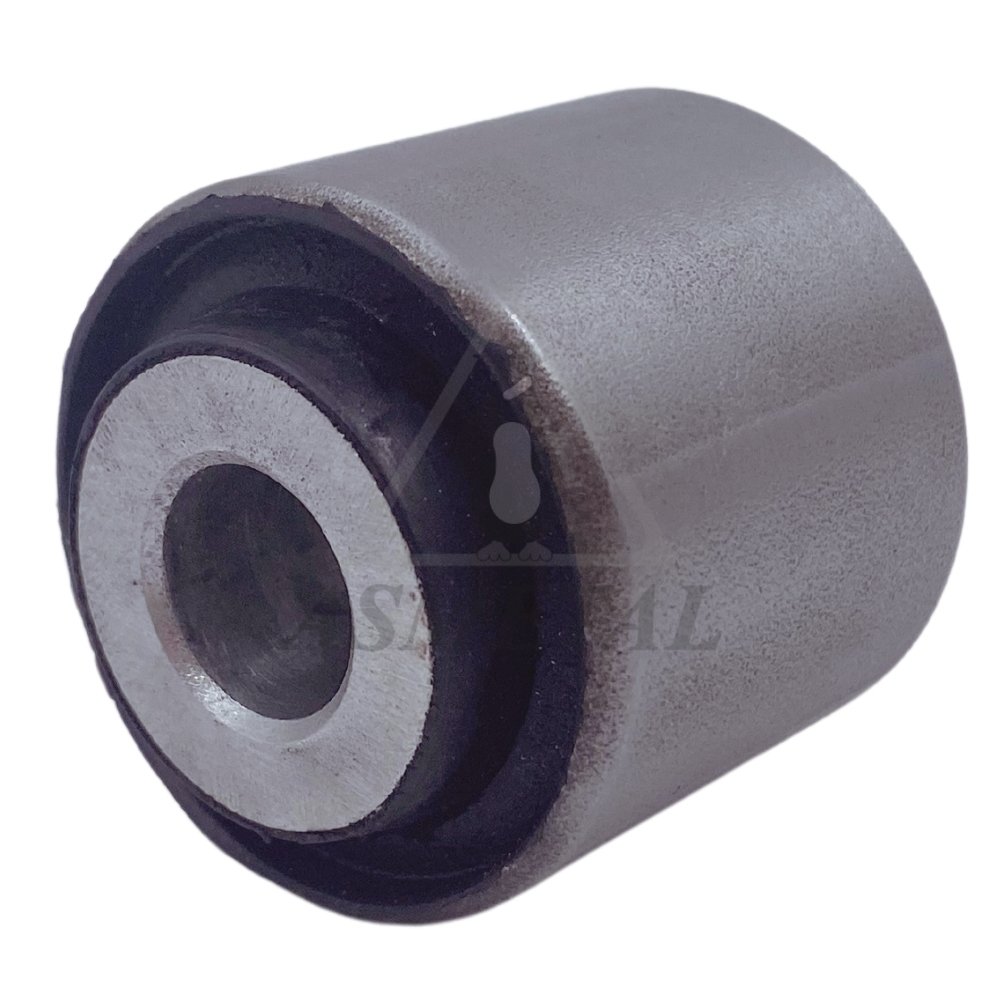

38MR0509
|
Silentblock for TCA |
di:Ø12,2 do:Ø36 / 0,08 kg |
A 124 352 34 65, 124 352 90 65 (6) OEM |
 |

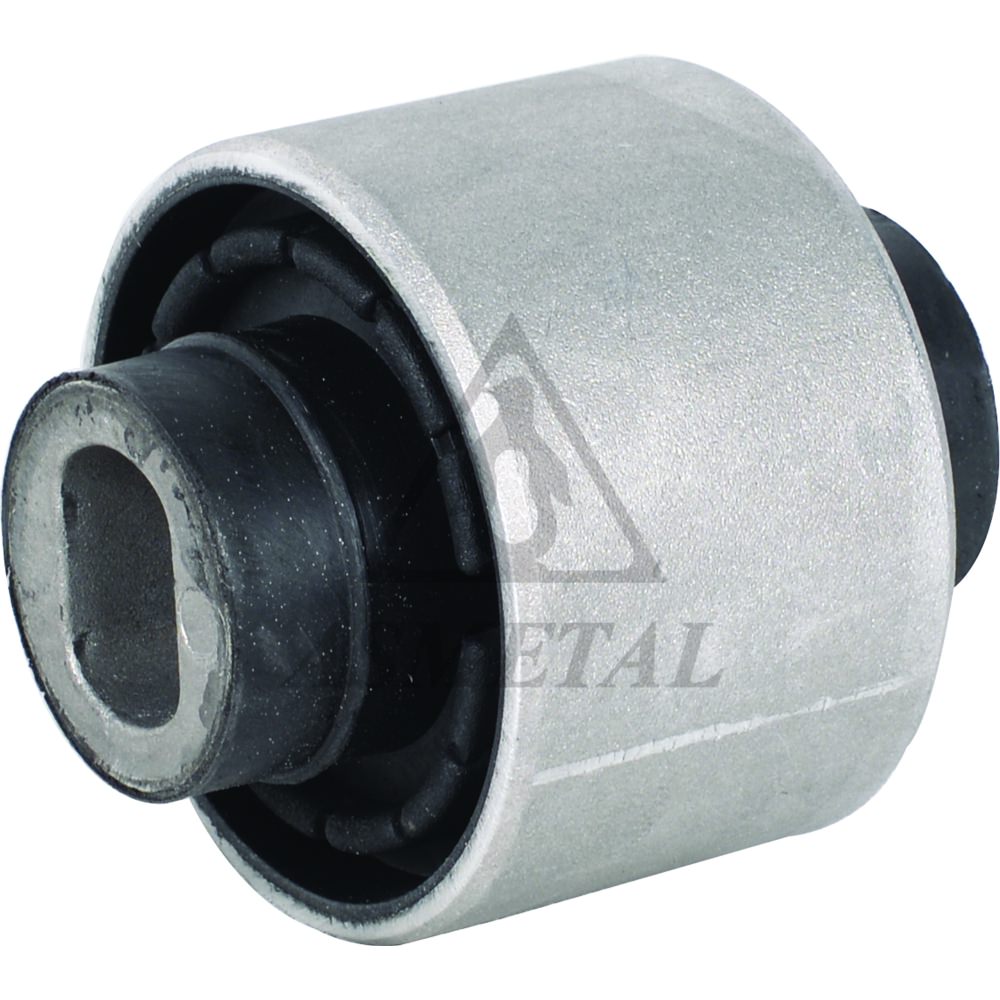

38MR0510
|
Silentblock for TCA |
do:Ø70,6 / 0,4 kg |
A 203 333 09 14, 203 333 03 14 (2) OEM |
 |

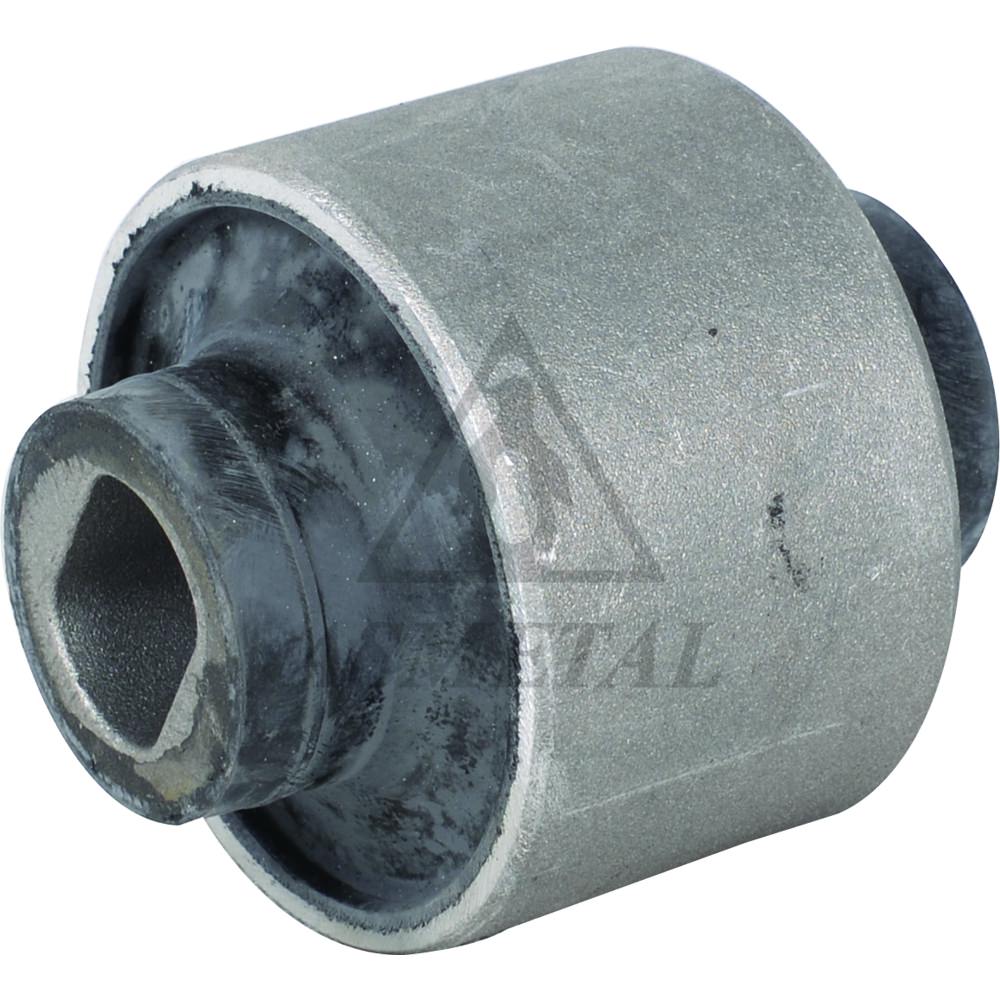

38MR0512
|
Silentblock for TCA |
do:Ø70,6 / 0,38 kg |
A 211 333 11 14, 211 333 11 14 |
 |

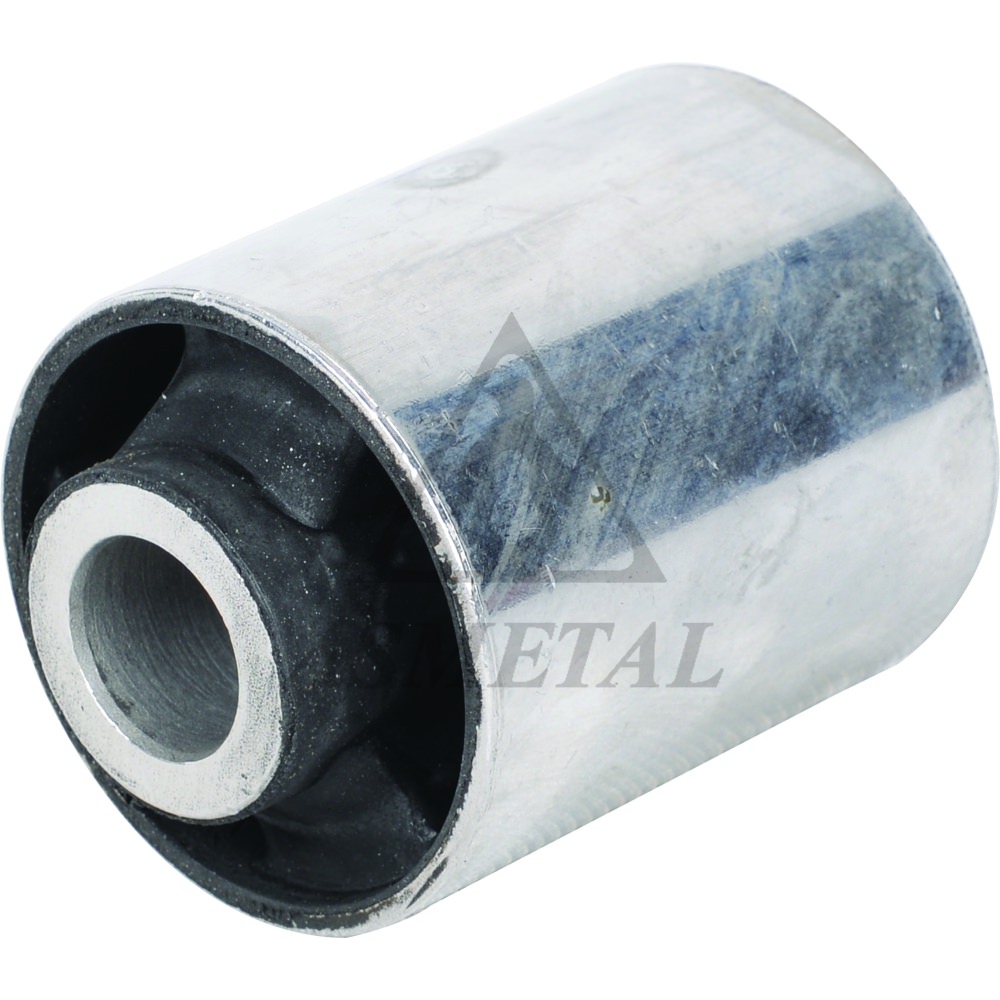

38MR0518
|
Silentblock for TCA |
di:Ø14,2 do:Ø60,2 / 0,27 kg |
A 202 333 64 14, 170 330 00 75* (3) OEM |
 |

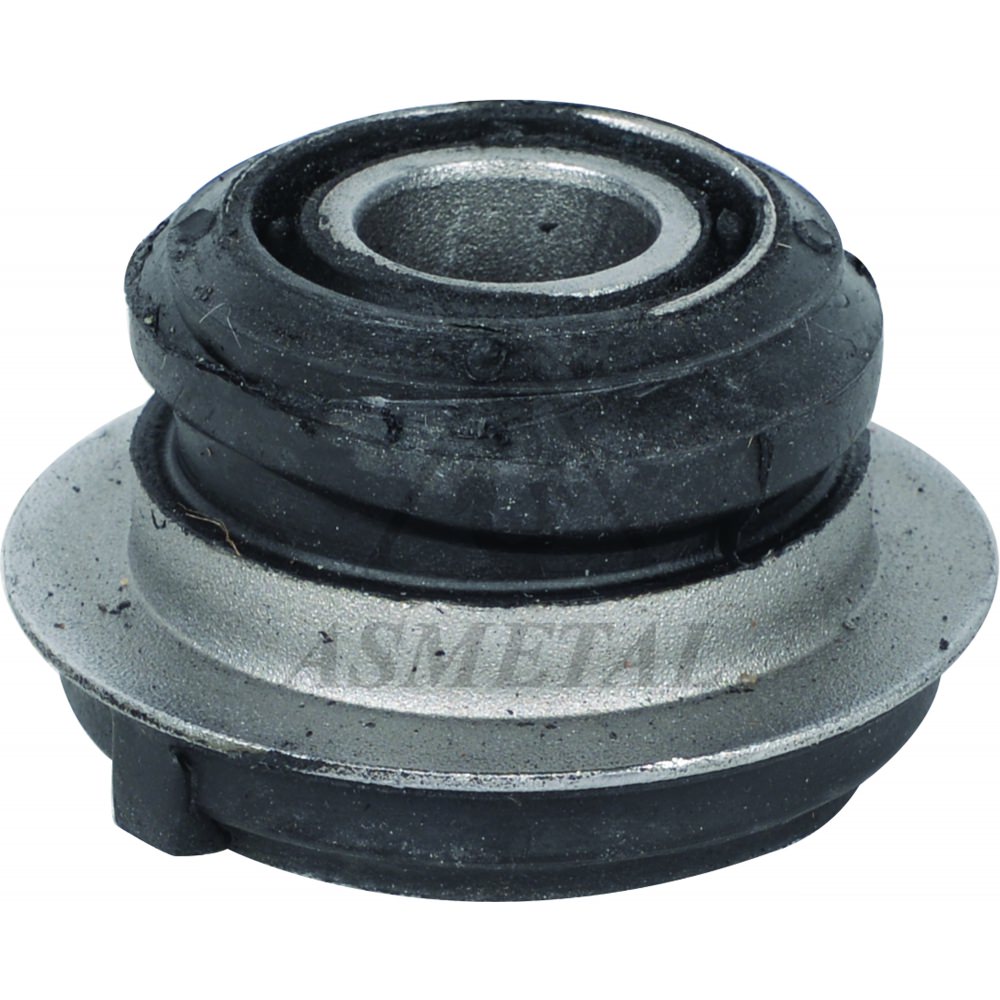

38MR0519
|
Silentblock for TCA |
di:Ø20 / 0,25 kg |
202 330 00 75*, 202 333 67 14 (2) OEM |
 |

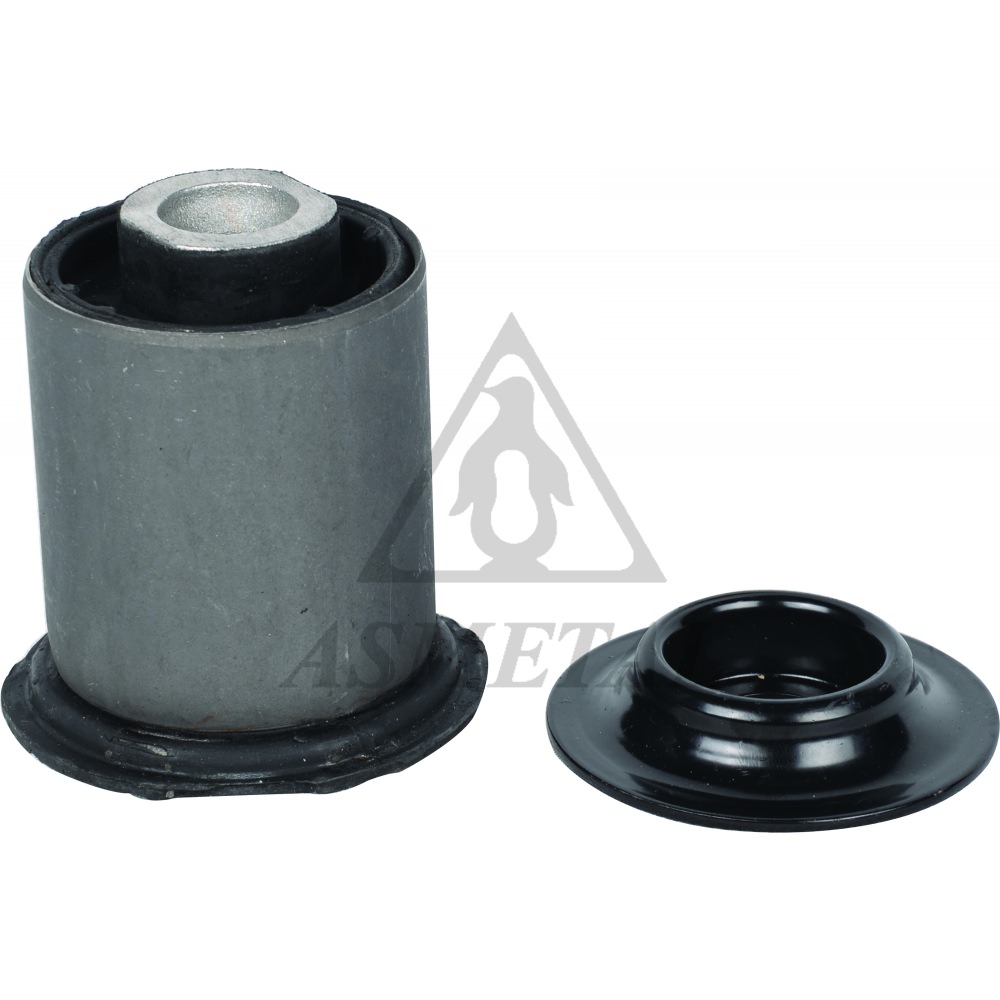

38MR0521
|
Silentblock for TCA |
di:Ø15,3 do:Ø60 / 0,56 kg |
203 330 04 07*, 202 330 00 75* (3) OEM |
 |

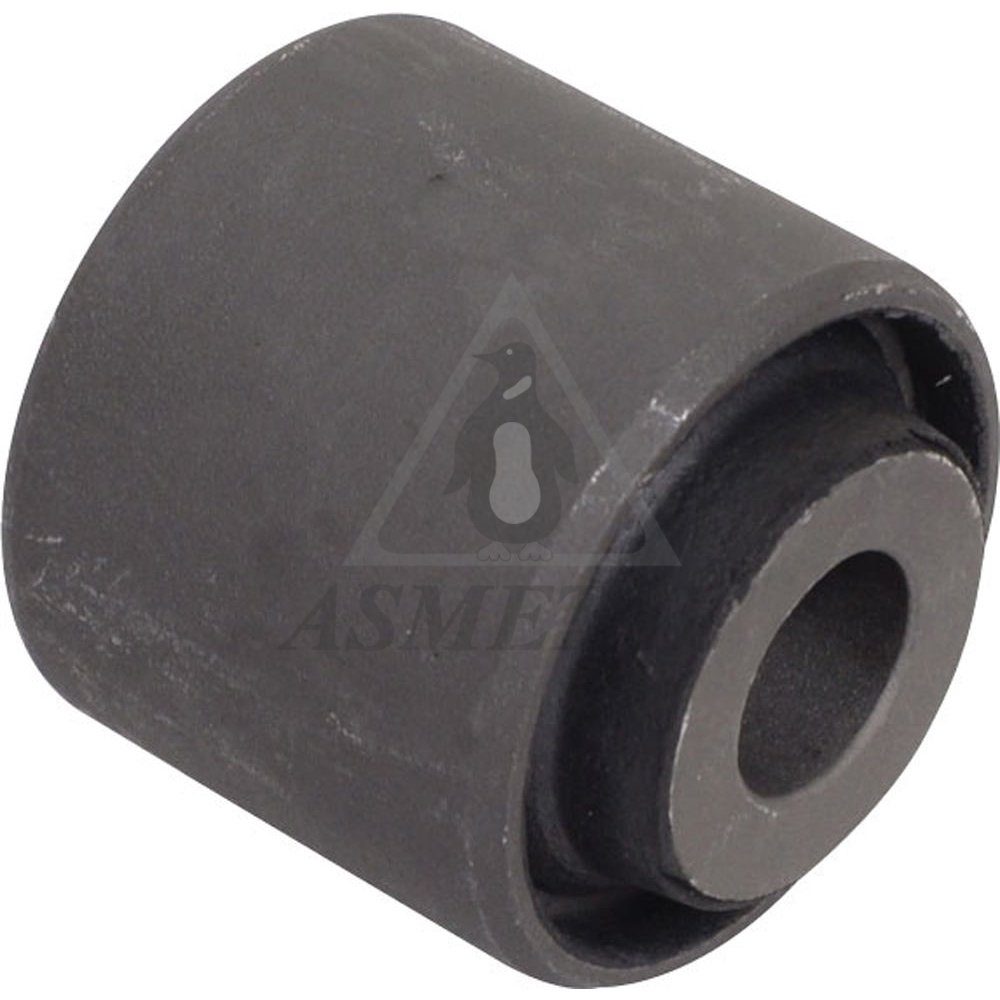

38MR0522
|
Silentblock for TCA |
di:Ø12.2 do: Ø36.2 L:38mm / 0,15 kg |
210 350 33 06*, 210 352 09 65 (1) OEM |
 |

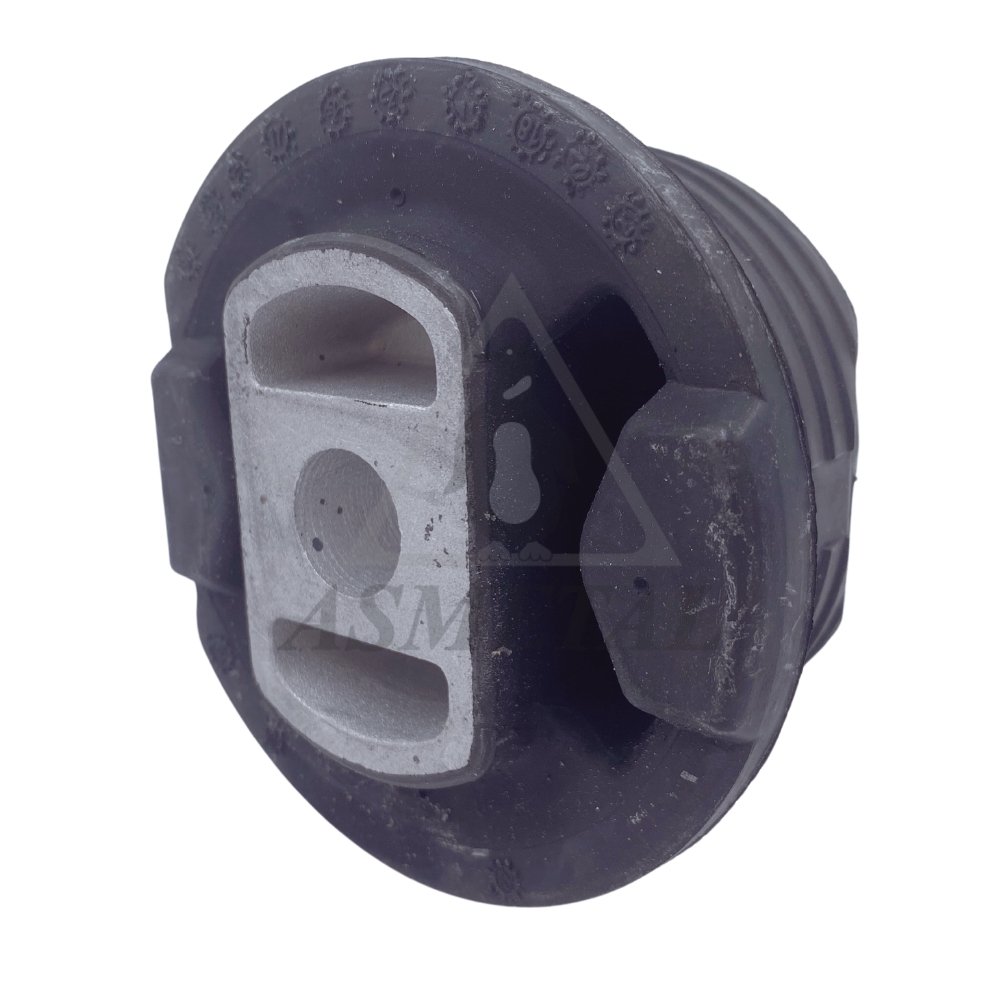

38MR0523
NEW
|
Mounting Axle Body |
di: Ø17 / do: Ø98 / L: 67 / 0,35 kg |
201 351 28 42, A 201 351 28 42 (2) OEM |
 |

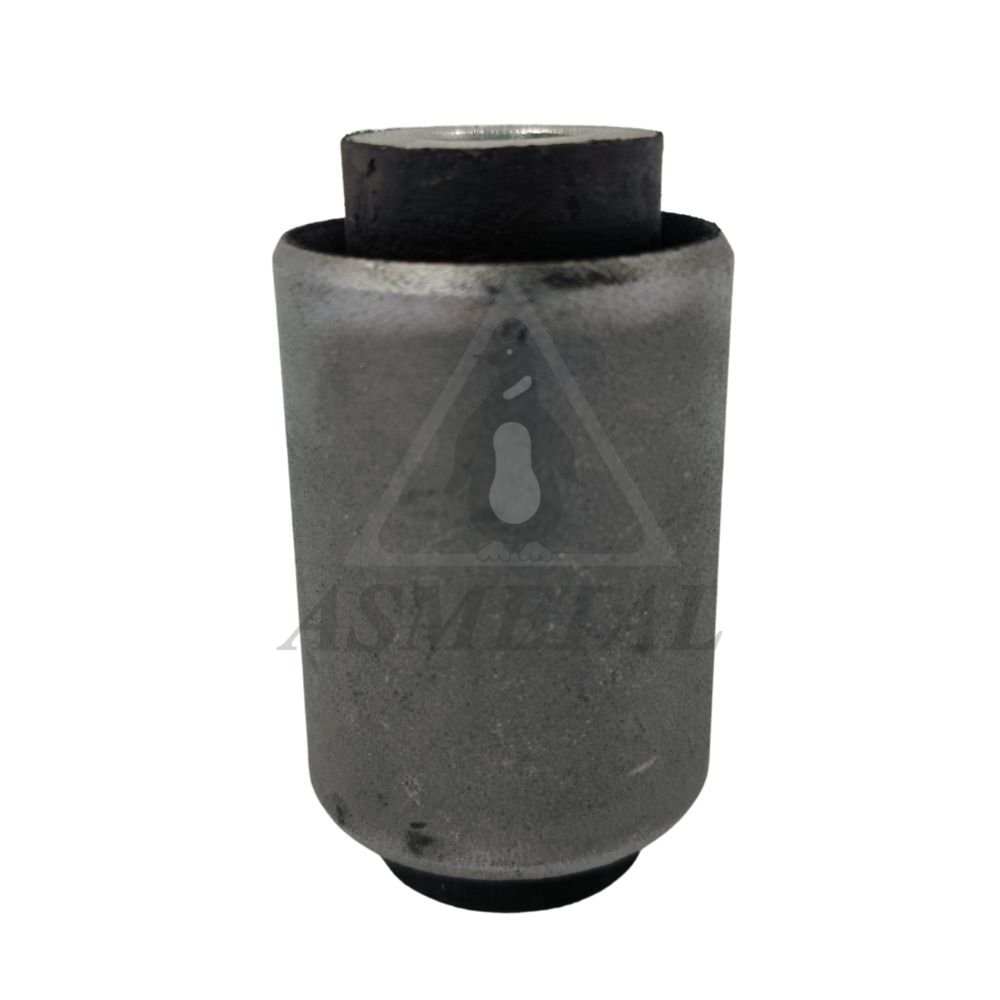

38MR0524
NEW
|
Silentblock for TCA |
di: Ø 12,5 / do: Ø33,5 / L: 57,7 / 0,12 kg |
124 352 36 65, A 124 352 36 65 (10) OEM |
 |

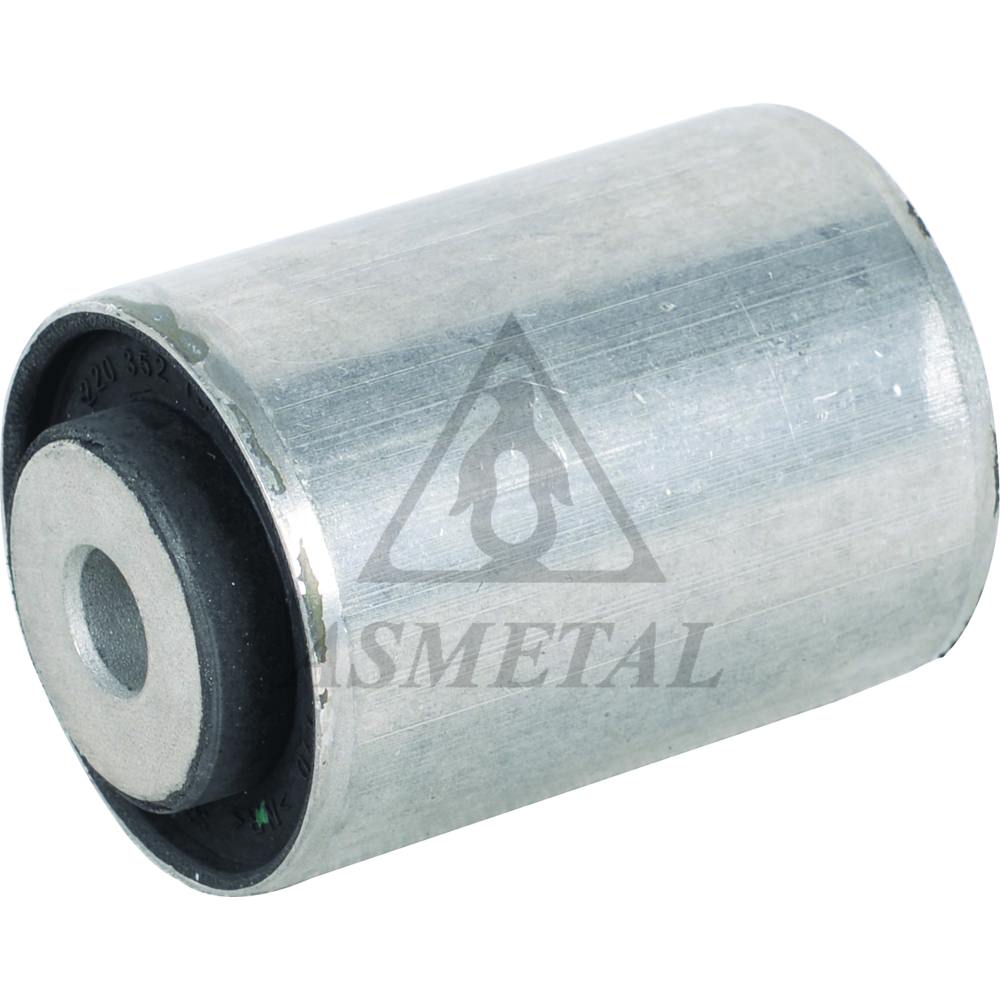

38MR0615
|
Silentblock for TCA |
di:Ø12,2 do:Ø51,2 / 0,26 kg |
A 220 352 13 65, A 204 352 10 65 (6) OEM |
 |

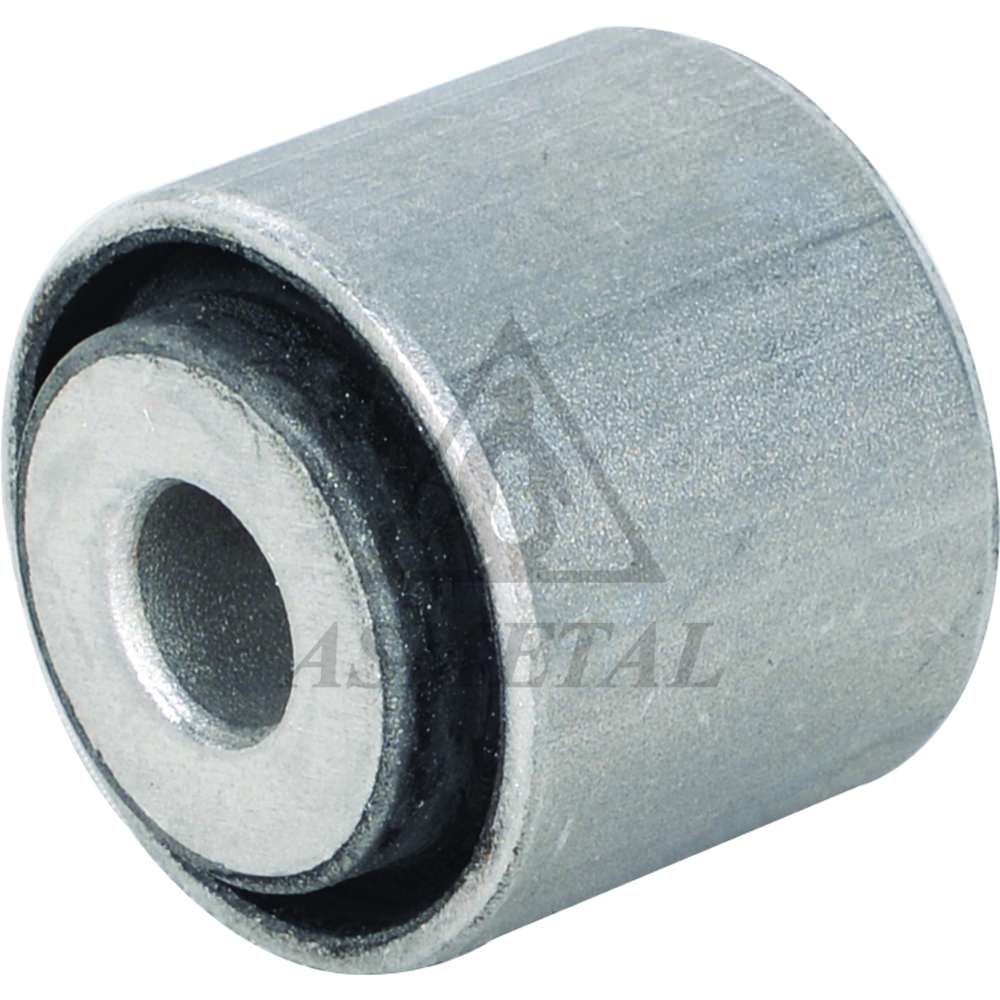

38MR0617
|
Silentblock for TCA |
di:Ø12,2 do:Ø38,5 / 0,08 kg |
A 230 352 15 65, A 205 352 05 08 (4) OEM |
 |

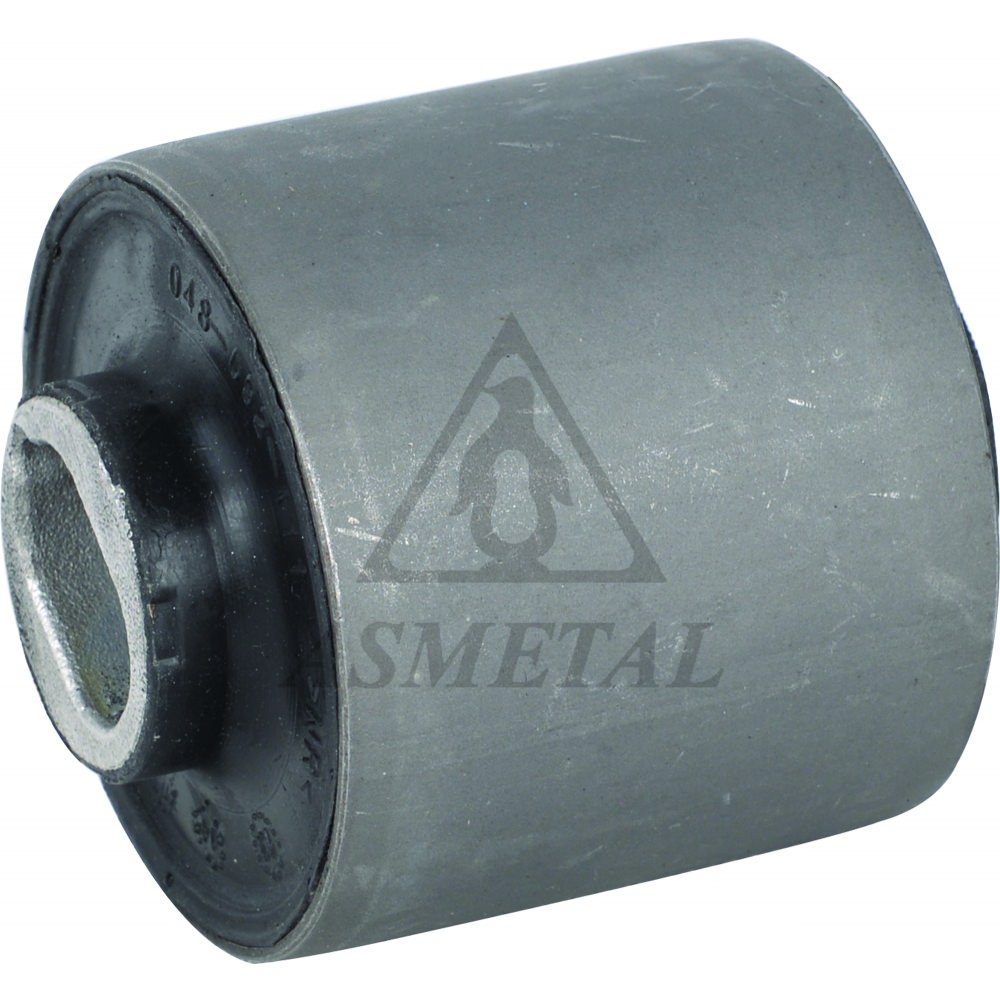

38MR0705
|
Silentblock for TCA |
di:Ø24 do:Ø44,5 / 0,52 kg |
203 333 02 14, 211 333 29 14 (6) OEM |
 |

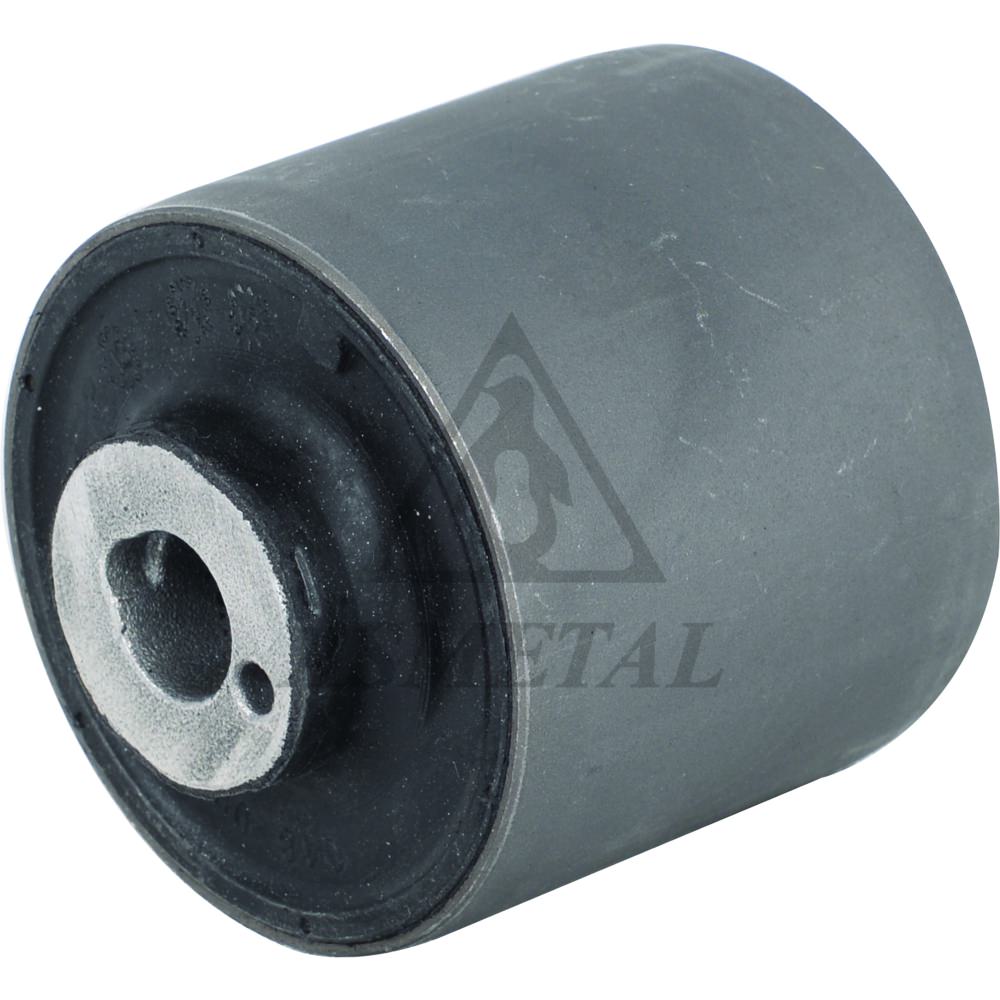

38MR0706
|
Silentblock for TCA |
di:Ø15 do:Ø70,5 / 0,56 kg |
A 204 333 11 14, 204 333 11 14 (10) OEM |
 |
38MR0706K
IN PREPARATION
|
Silentblock for TCA Set |
0 kg |
A 203 333 10 14, A 204 333 10 14 (4) OEM |
 |

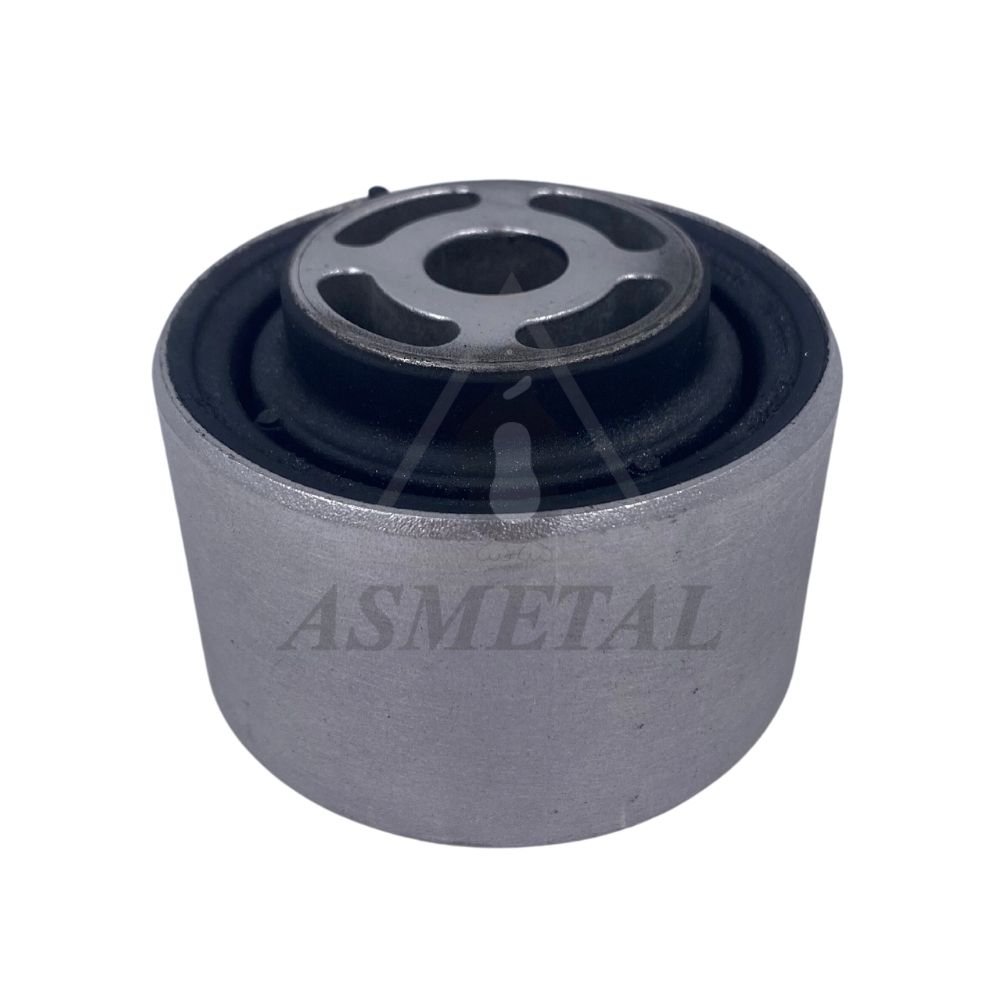

38MR0707
NEW
|
Mounting Axle Body |
di: Ø15 / do: Ø44 / L: 74,1 / 0,27 kg |
204 351 04 42, 205 351 02 00 (2) OEM |
 |

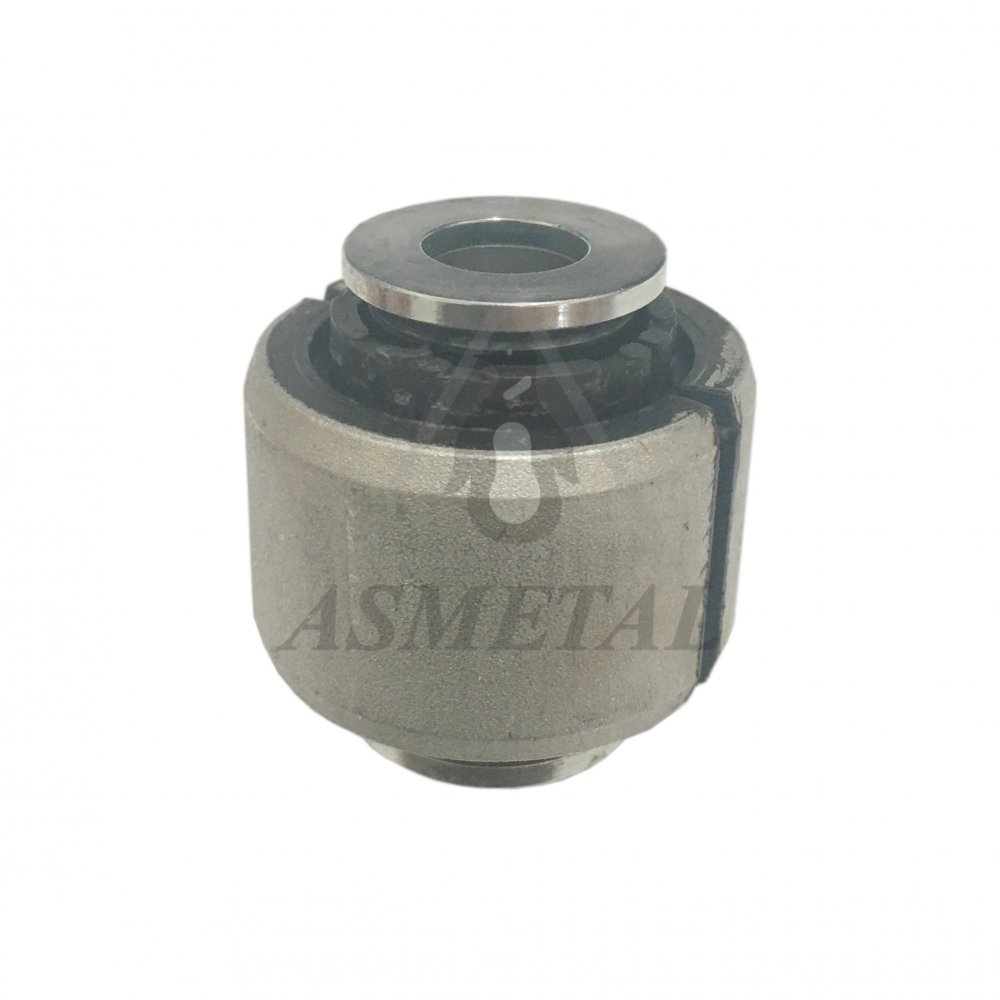

38MR1800
|
Silentblock for TCA |
di:Ø14 do: Ø45 L:47.8mm / 0,18 kg |
205 330 62 01*, 205 333 02 14 (4) OEM |
 |

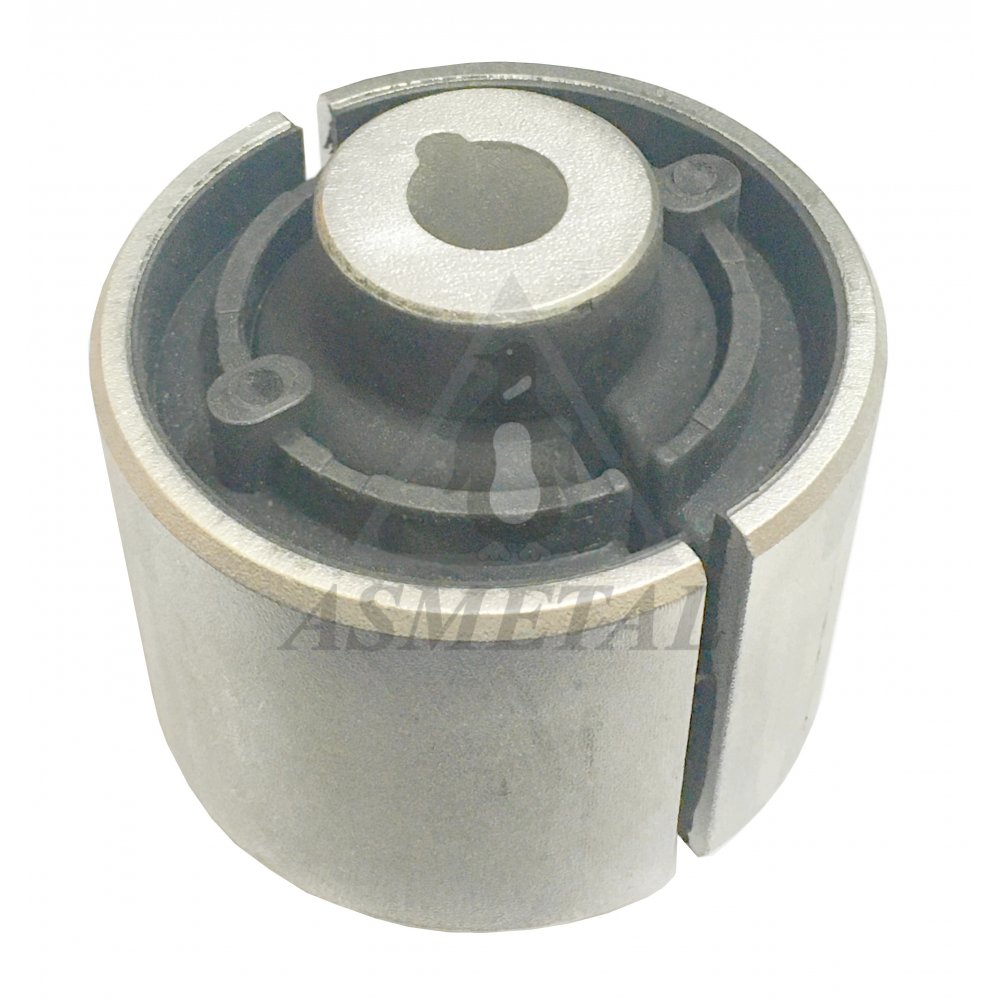

38MR1801
|
Silentblock for TCA |
di:Ø14.2 do: Ø75.5 L:80mm / 0,44 kg |
222 330 01 07*, 231 333 03 14 (8) OEM |
 |

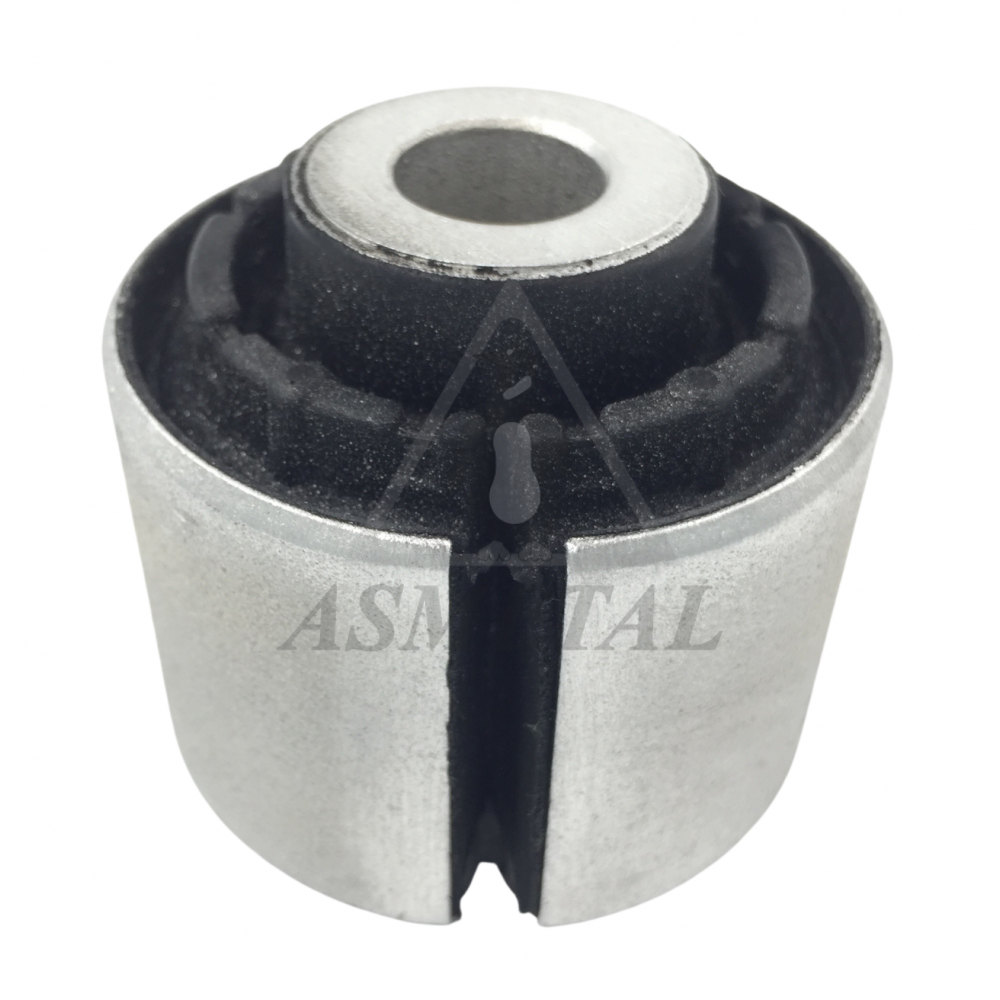

38MR1802
|
Silentblock for TCA |
di: Ø14.5 / do: Ø56.8 / L: 60 / 0,24 kg |
205 333 04 14, 205 330 58 01* (6) OEM |
 |

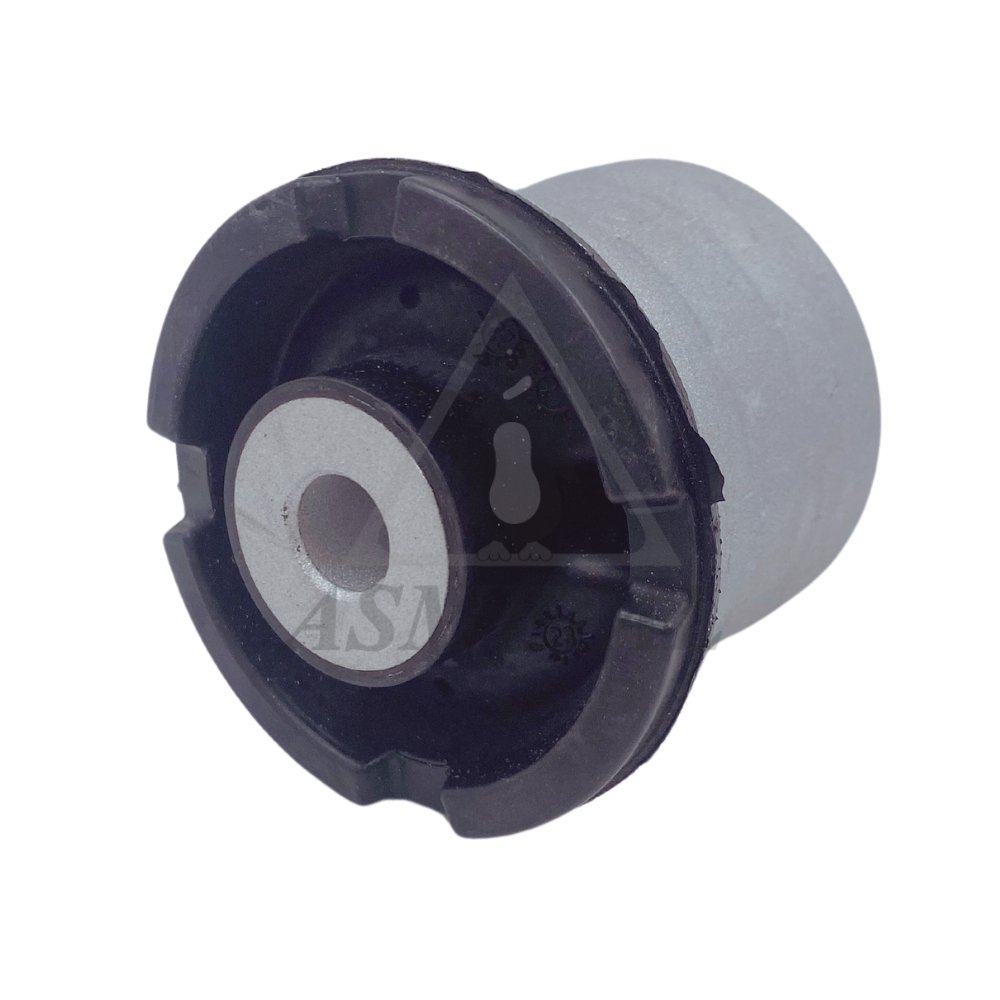

38MR1805
NEW
|
Silentblock for TCA |
0,18 kg |
205 333 03 14, A 205 333 03 14 (4) OEM |
 |

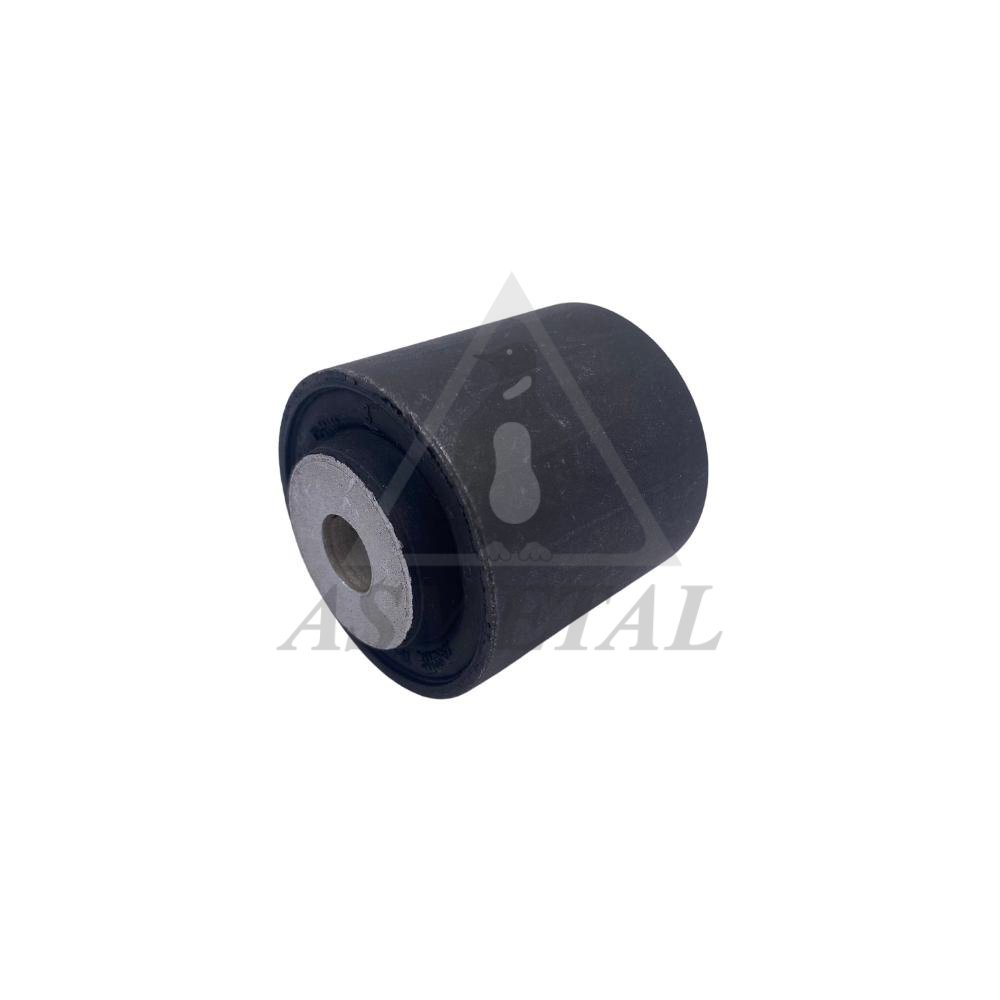

38MR3210
NEW
|
Silentblock for TCA |
di: Ø12.2 / do: Ø51.4 / L: 58 / 0,29 kg |
203 352 00 65, A 203 352 00 65 |
 |

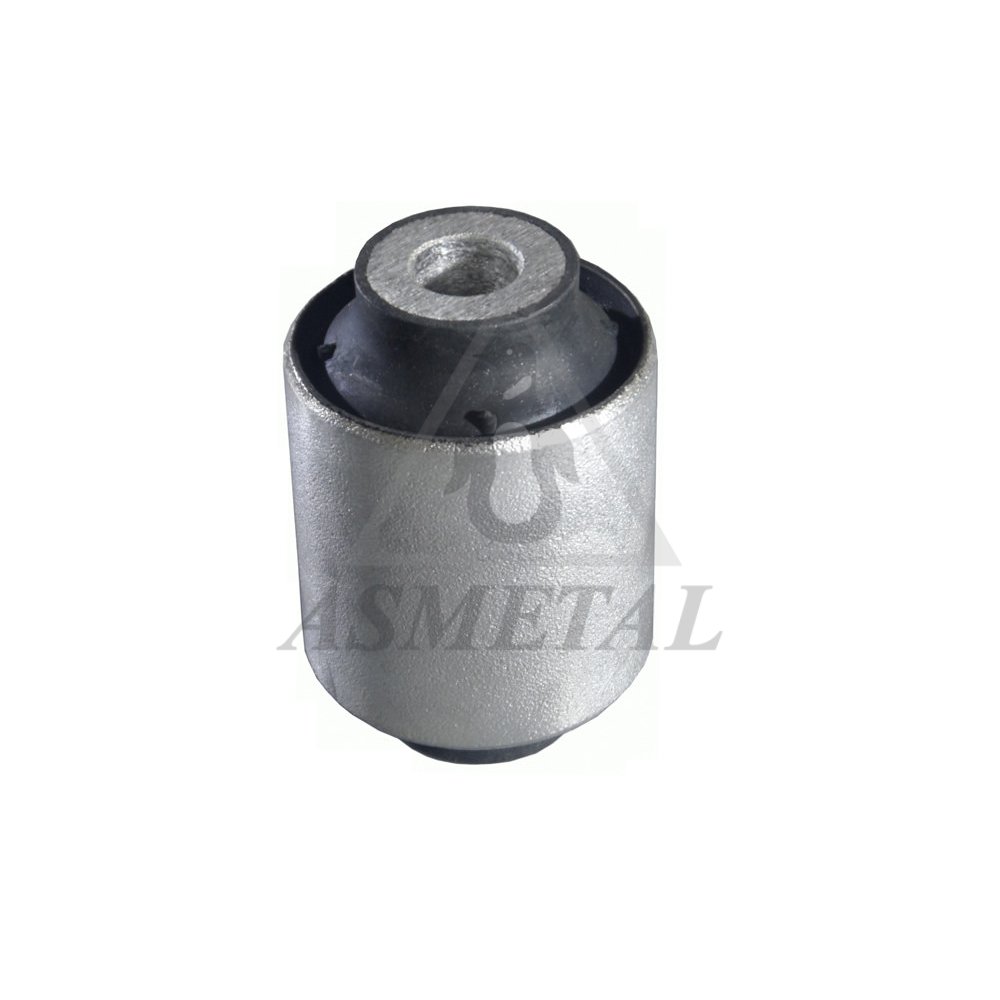

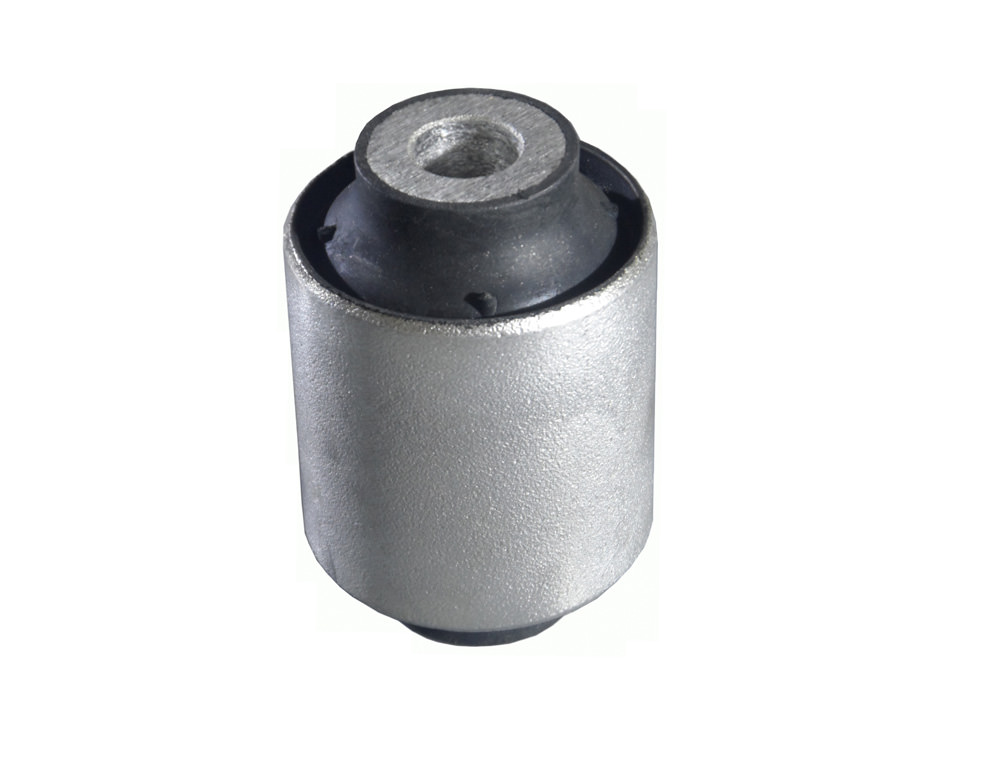

38MR3214
|
Silentblock for TCA |
0,22 kg |
204 330 68 11*, 204 333 04 14 (4) OEM |
 |

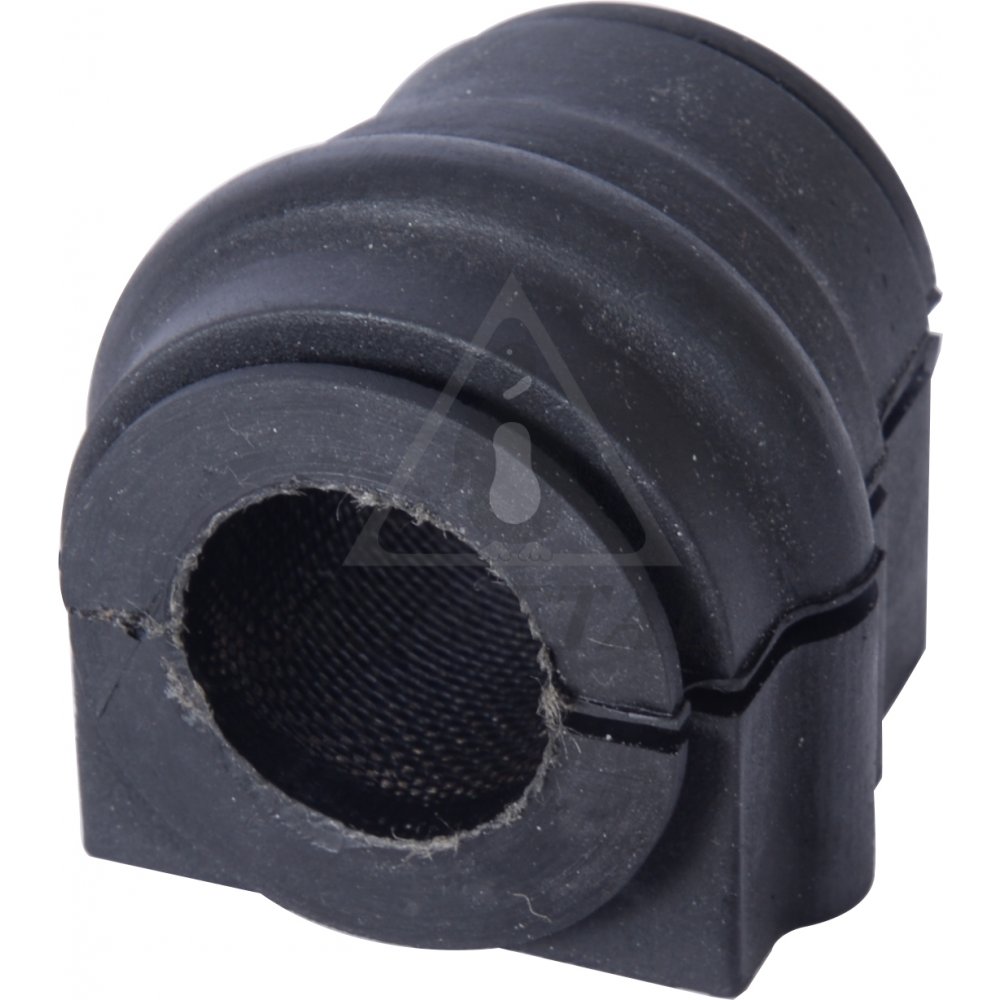

38MR3230
|
Stabiliser Mounting |
di:Ø21 L:42mm / 0,05 kg |
203 323 06 85, A203 323 20 85 (2) OEM |
 |

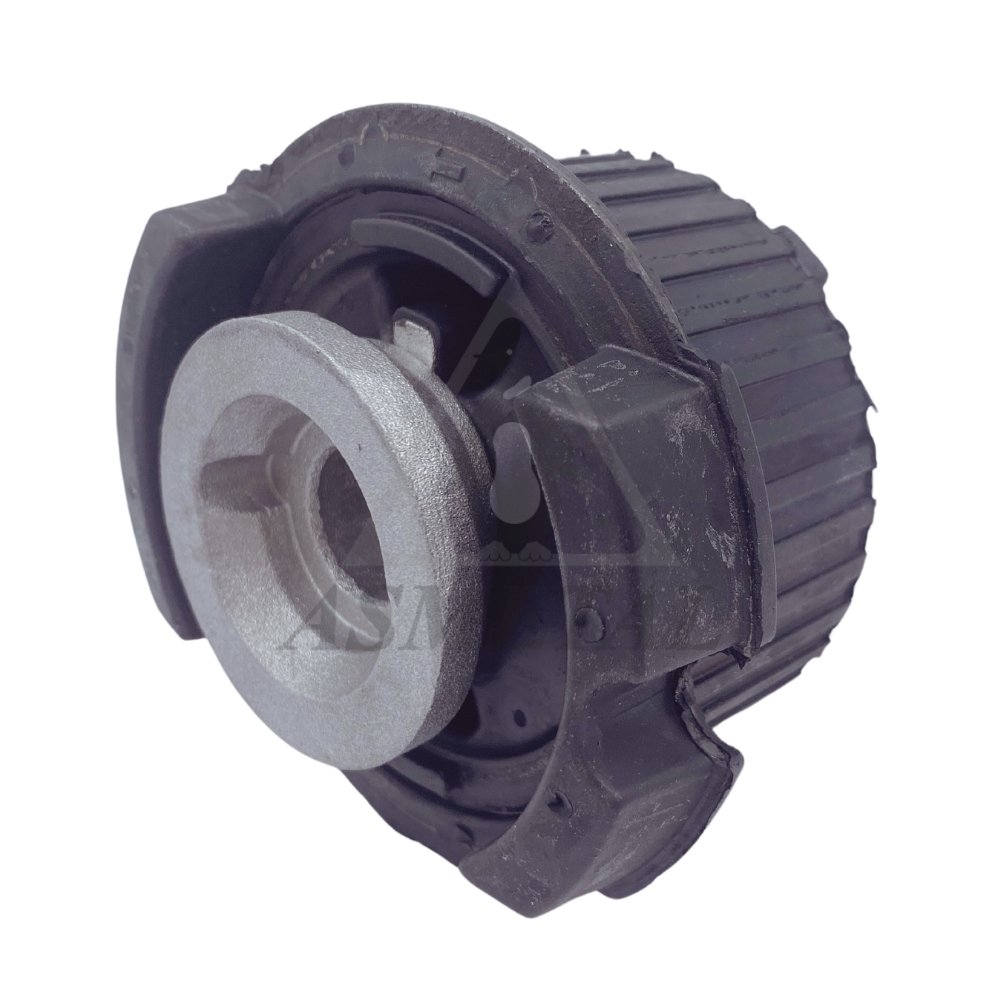

38MR4009
NEW
|
Mounting Axle Body |
di: Ø18 / do: Ø77 / L: 77.5 / 0,52 kg |
204 351 03 42, 204 351 08 42 (2) OEM |
 |

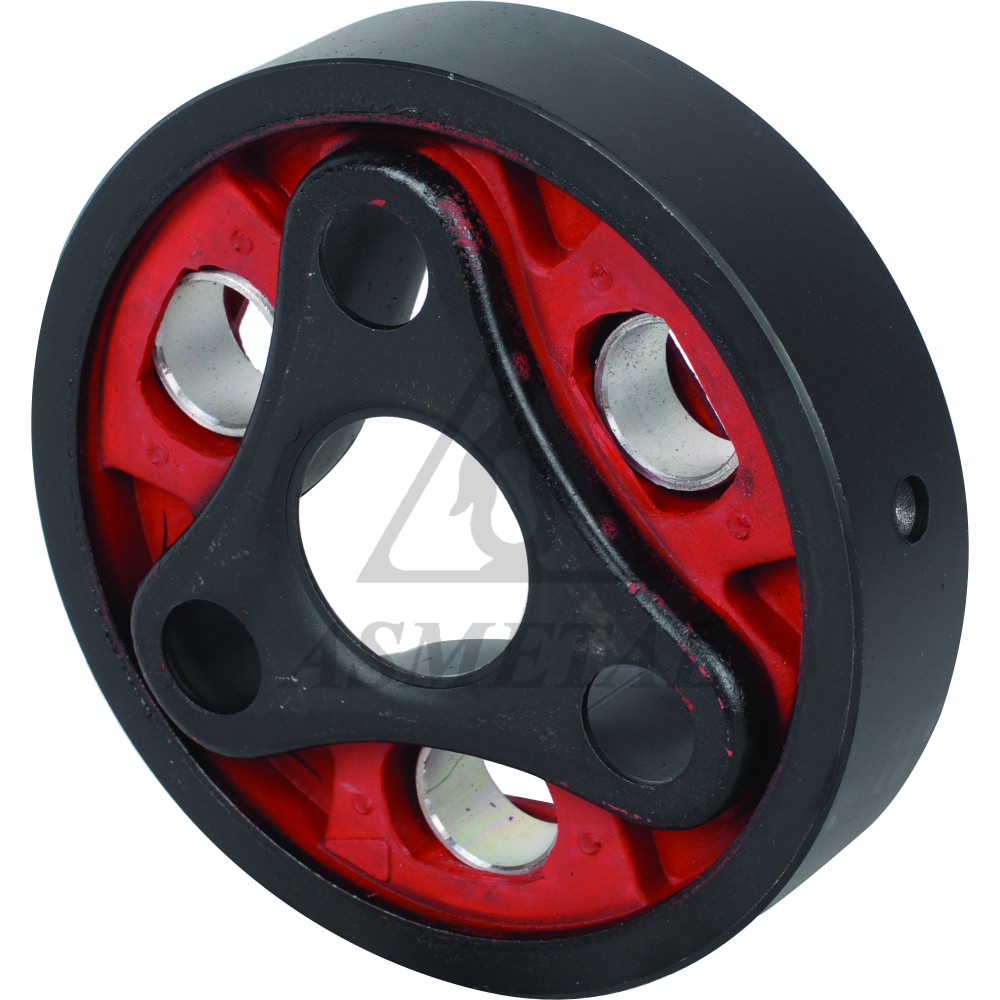

40MR0500
OUT OF SERVICE
|
Bearing Drive Shaft |
0 kg |
201 411 2147, 202 411 1447 |
 |

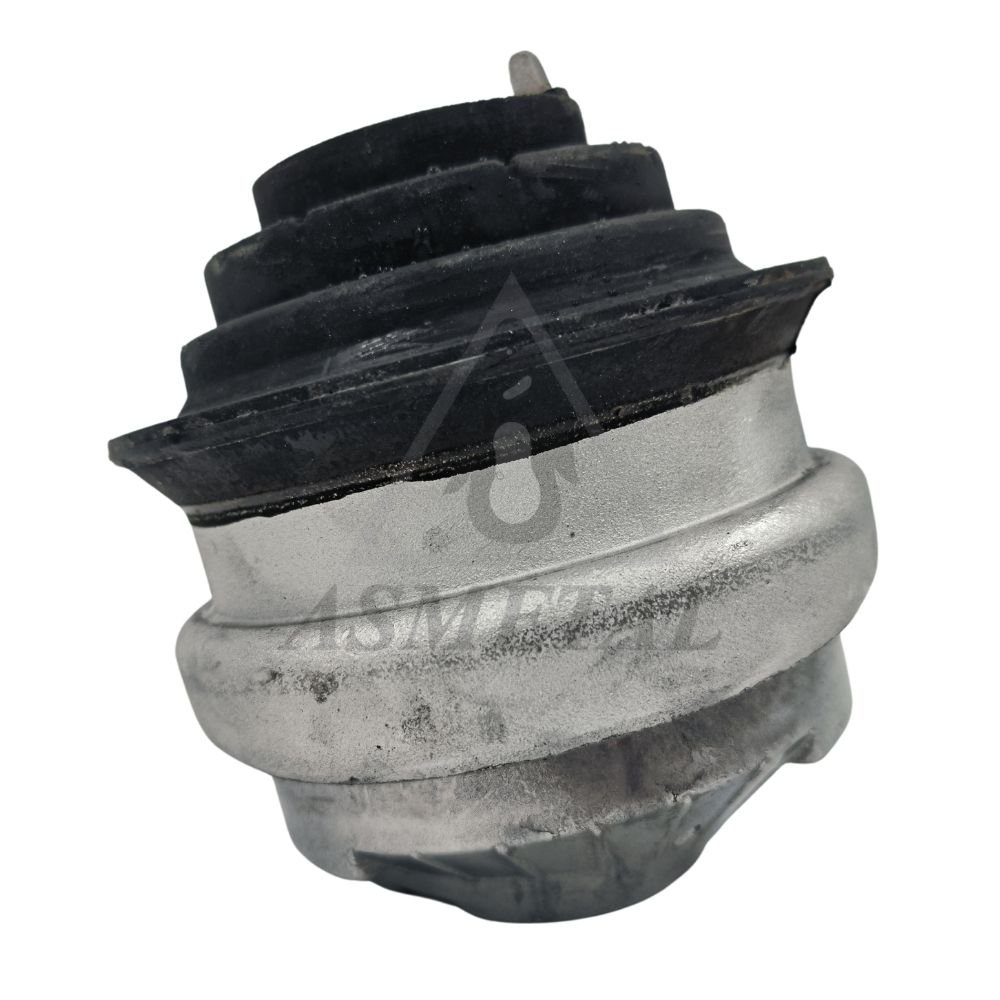

45MR0510
NEW
|
Engine Mounting |
1,15 kg |
A 210 240 08 17, 202 240 12 17 (12) OEM |
 |

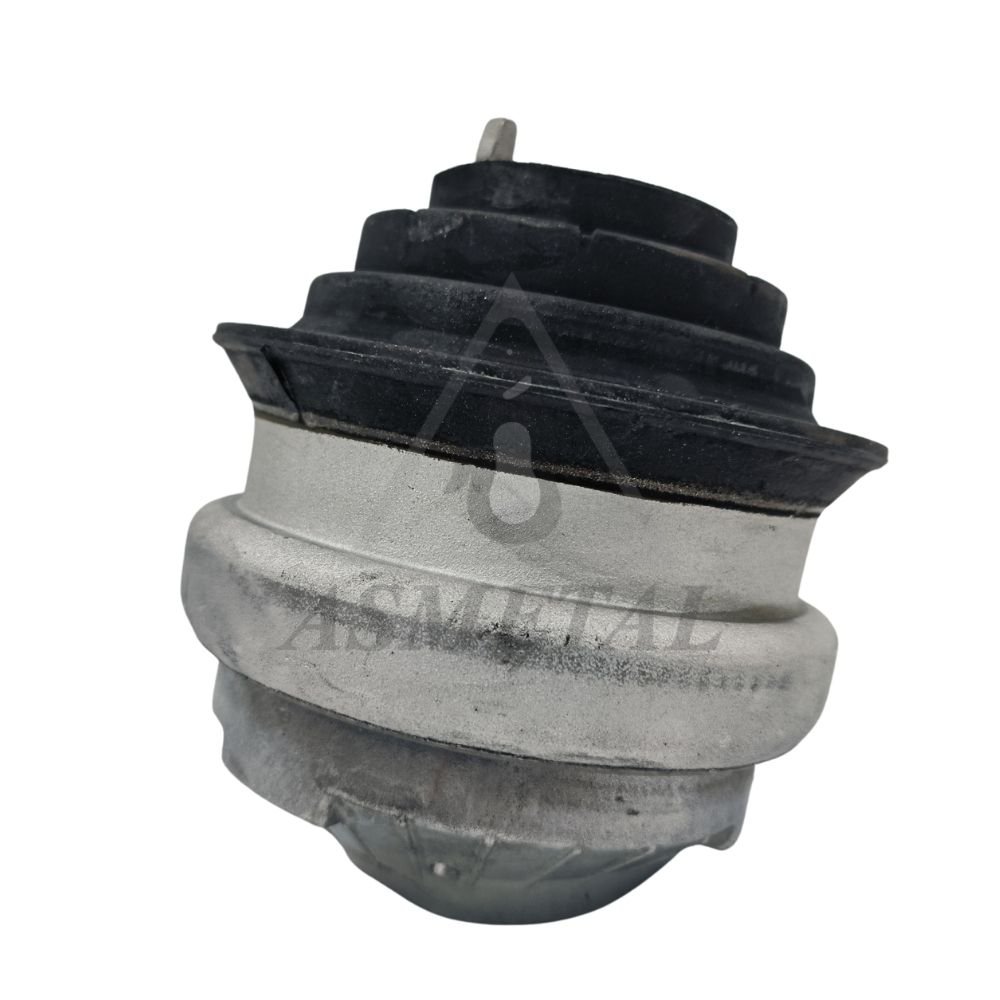

45MR0511
NEW
|
Engine Mounting |
1,123 kg |
202 240 25 17, A 202 240 25 17 (12) OEM |
 |

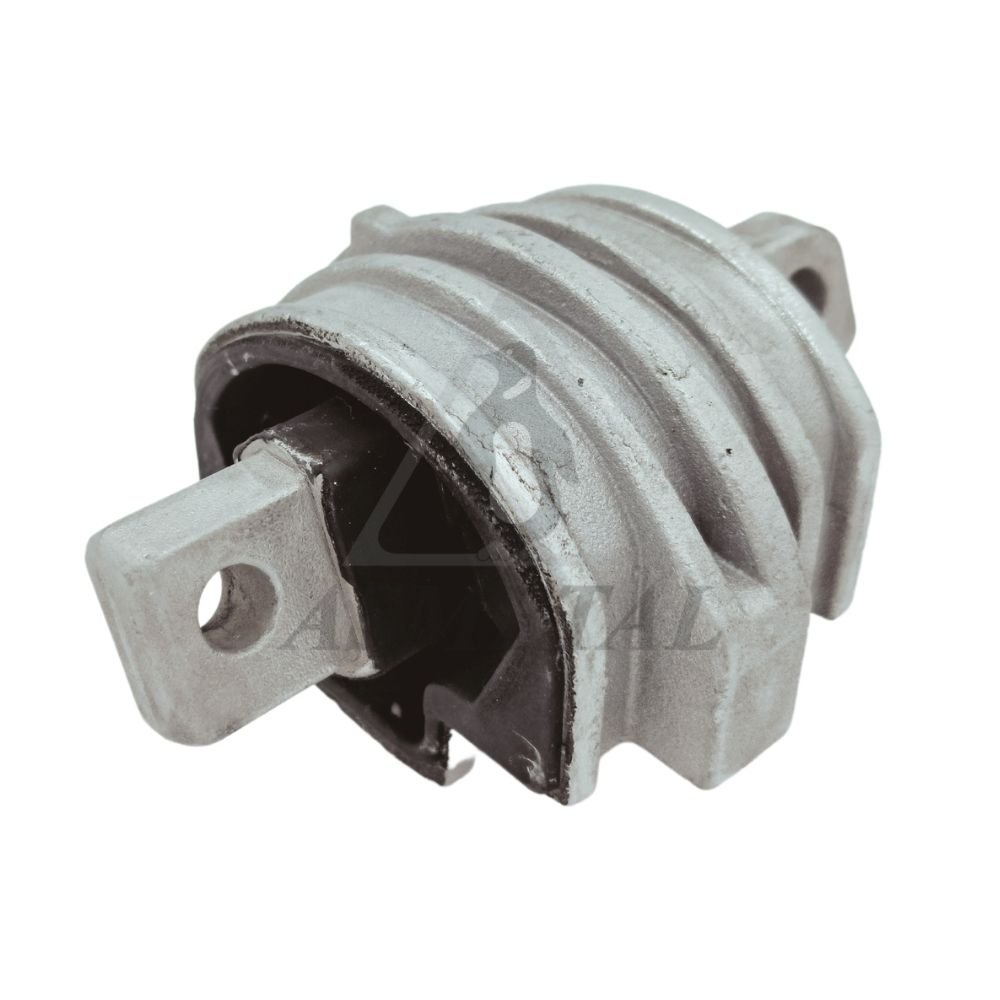

45MR0515
NEW
|
Mounting Automatic Transmission |
L: 110 / 0,51 kg |
210 240 03 18, 210 240 01 18 (4) OEM |
 |

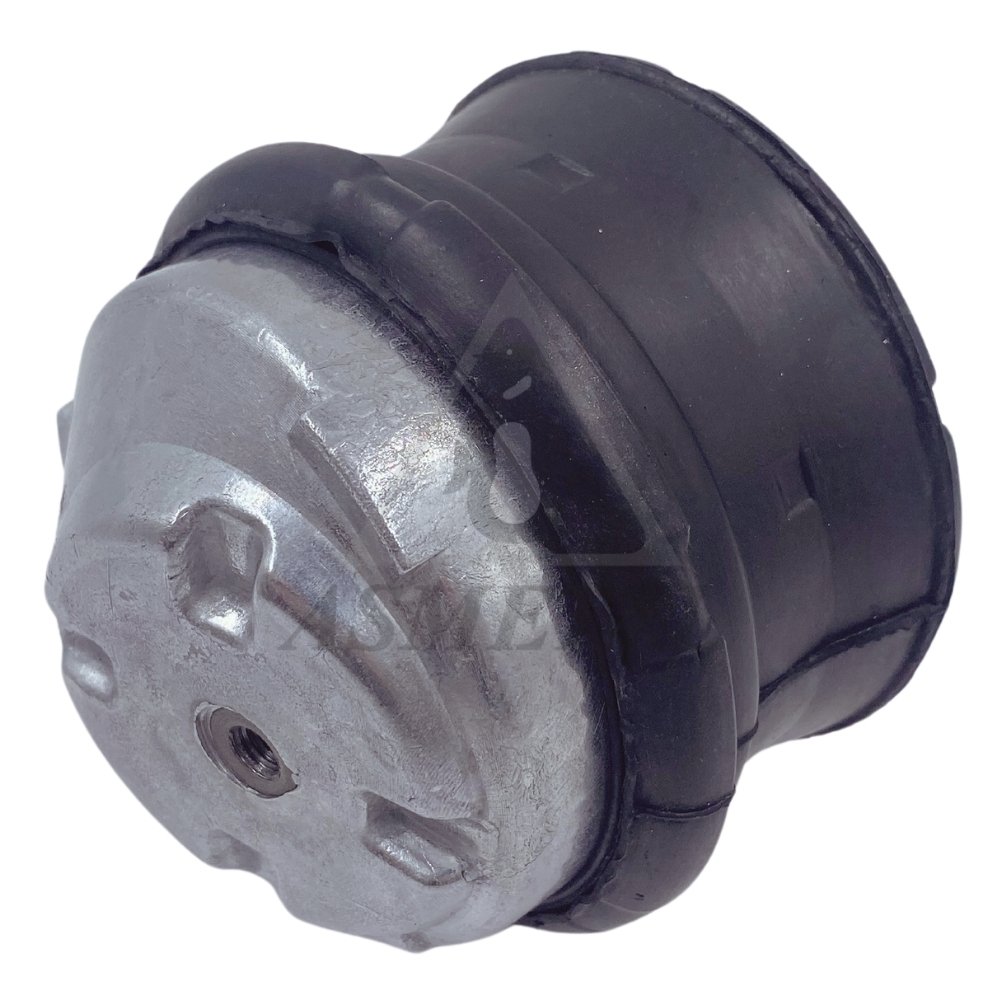

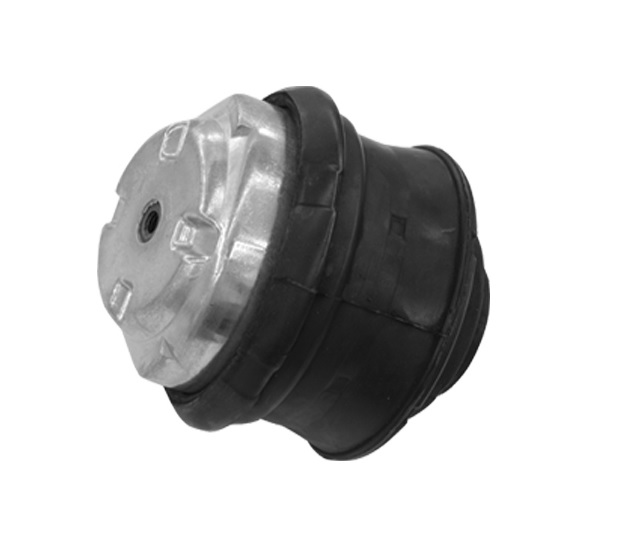

45MR1100
|
Engine Mounting |
do:Ø96 L:57mm / 1,14 kg |
A 202 240 01 17, A 202 240 09 17 (18) OEM |
 |

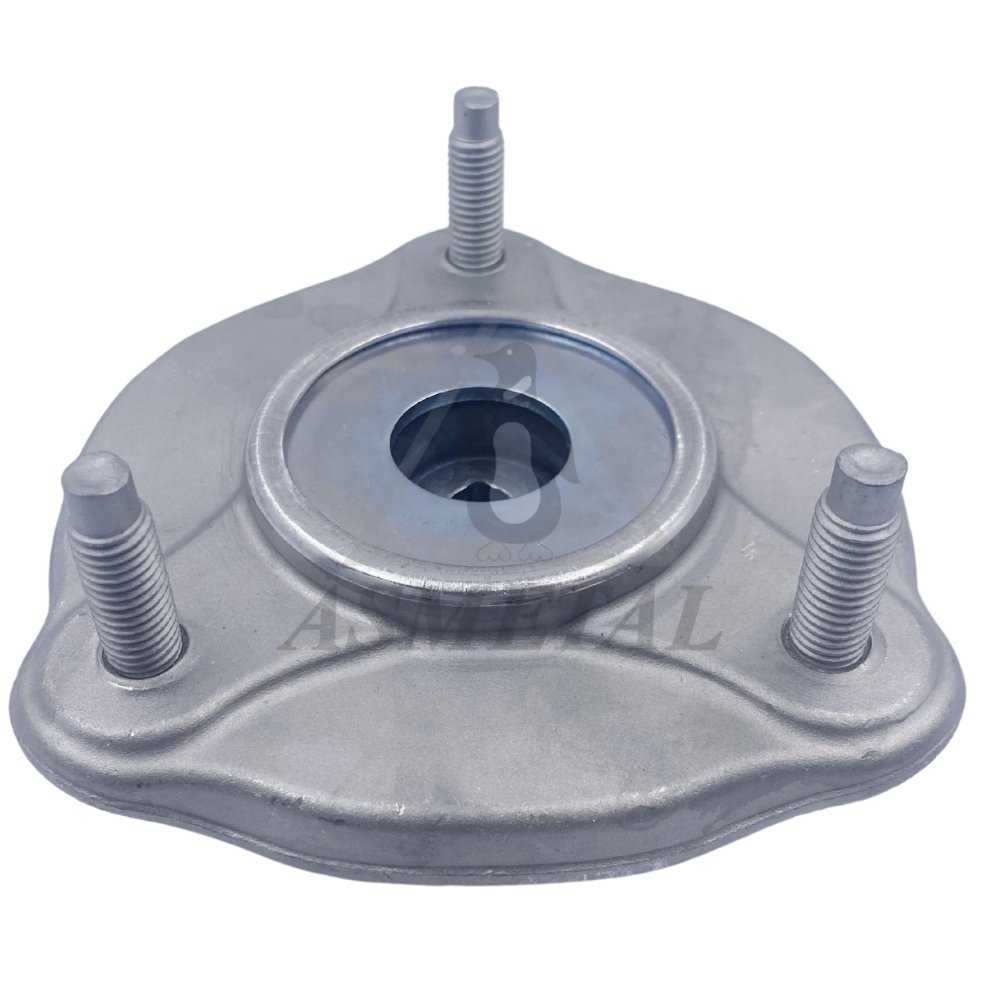

45MR1800
IN PREPARATION
|
Strut Mount |
0 kg |
205 323 00 20, 213 323 00 20 (6) OEM |
 |

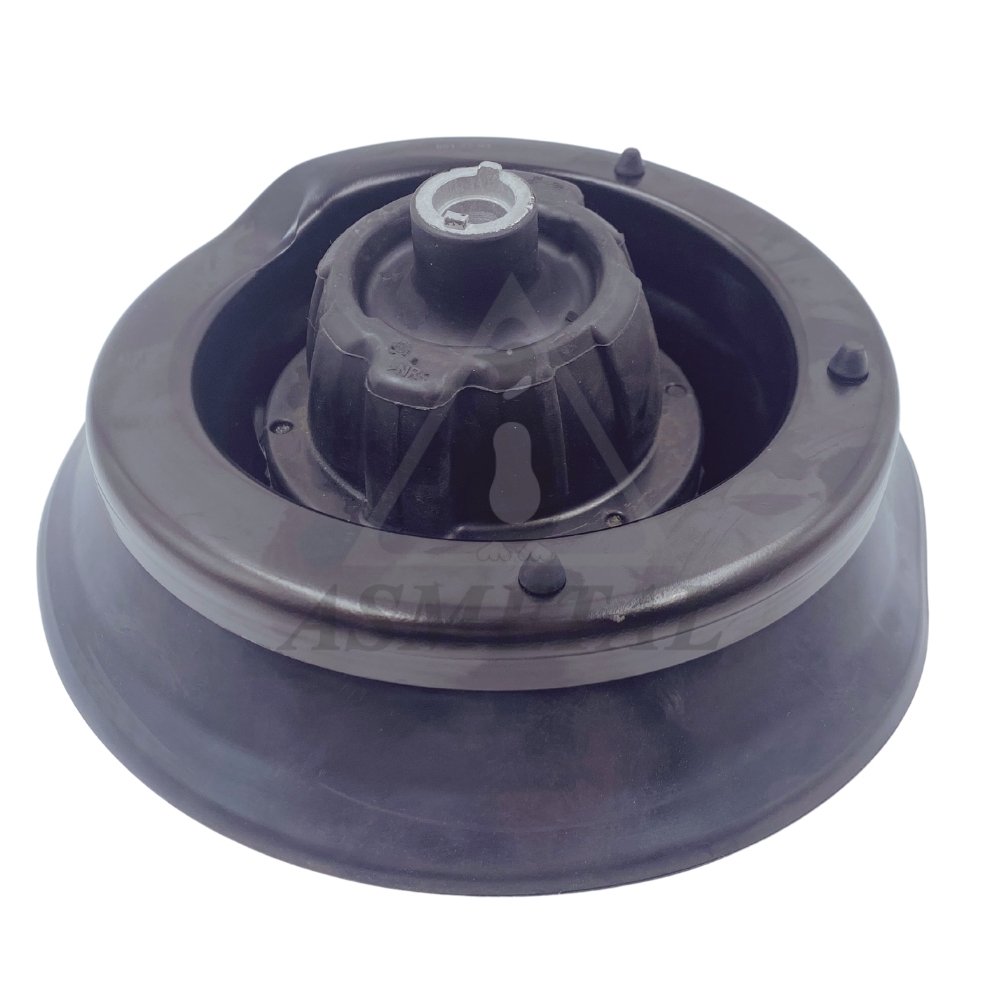

45MR3200
NEW
|
Strut Mount |
|
203 320 02 73, A203 320 02 73 |
 |

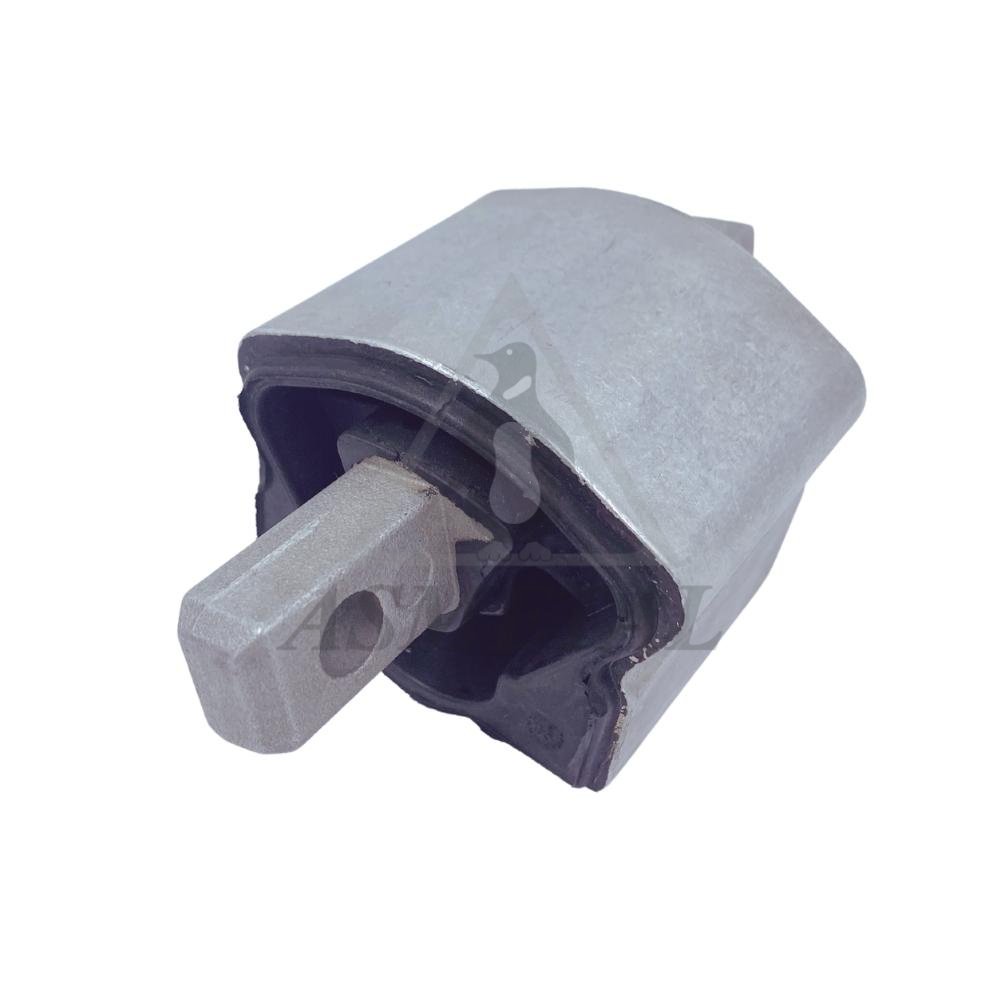

45MR3205
NEW
|
Mounting Automatic Transmission |
L: 103.8 / 0,53 kg |
212 240 03 18, 220 240 01 18 (4) OEM |
 |

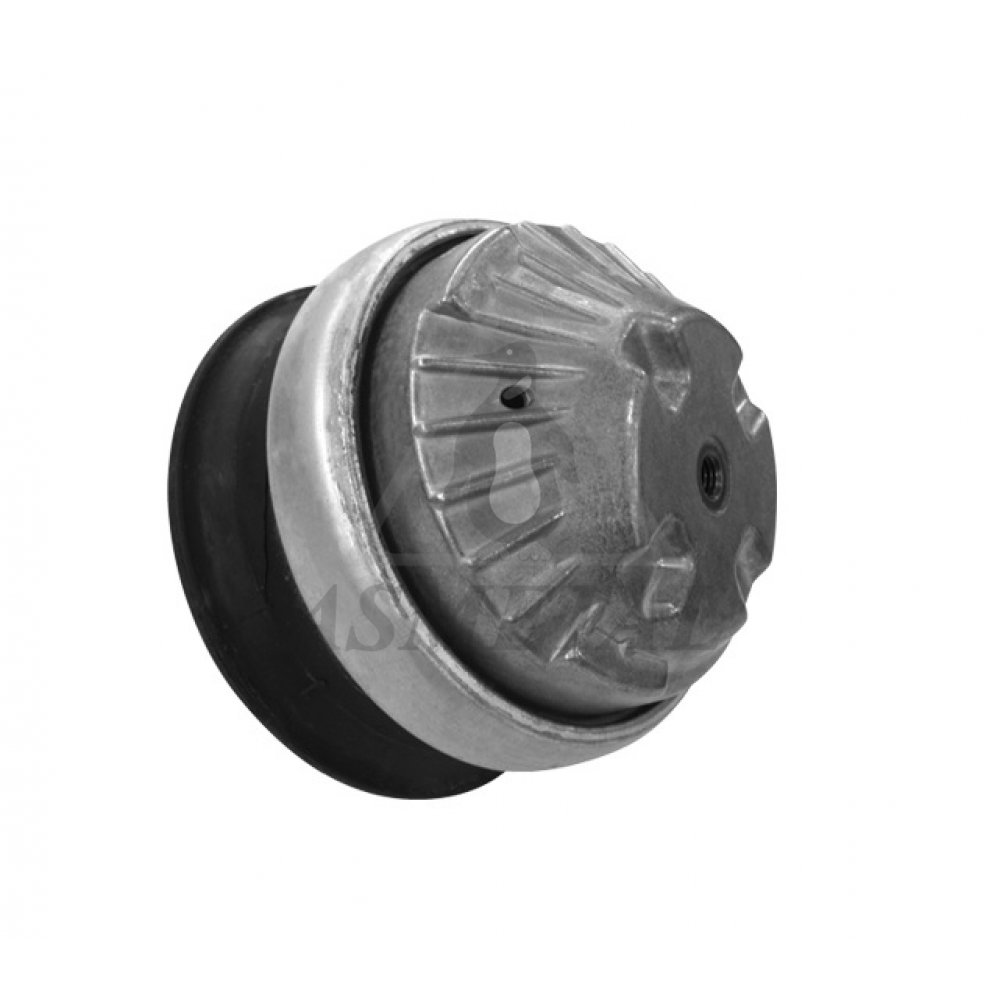

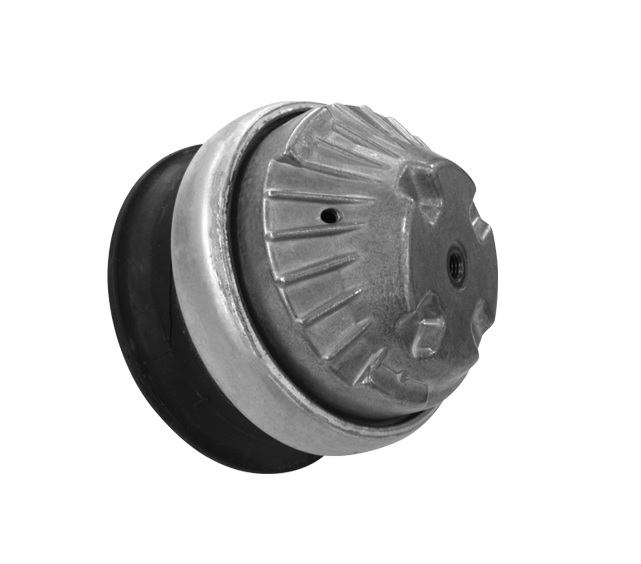

45MR3500
|
Engine Mounting |
do:Ø95.5 L:49.5mm / 1,1 kg |
210 240 28 17, A 210 240 27 17 (8) OEM |
 |

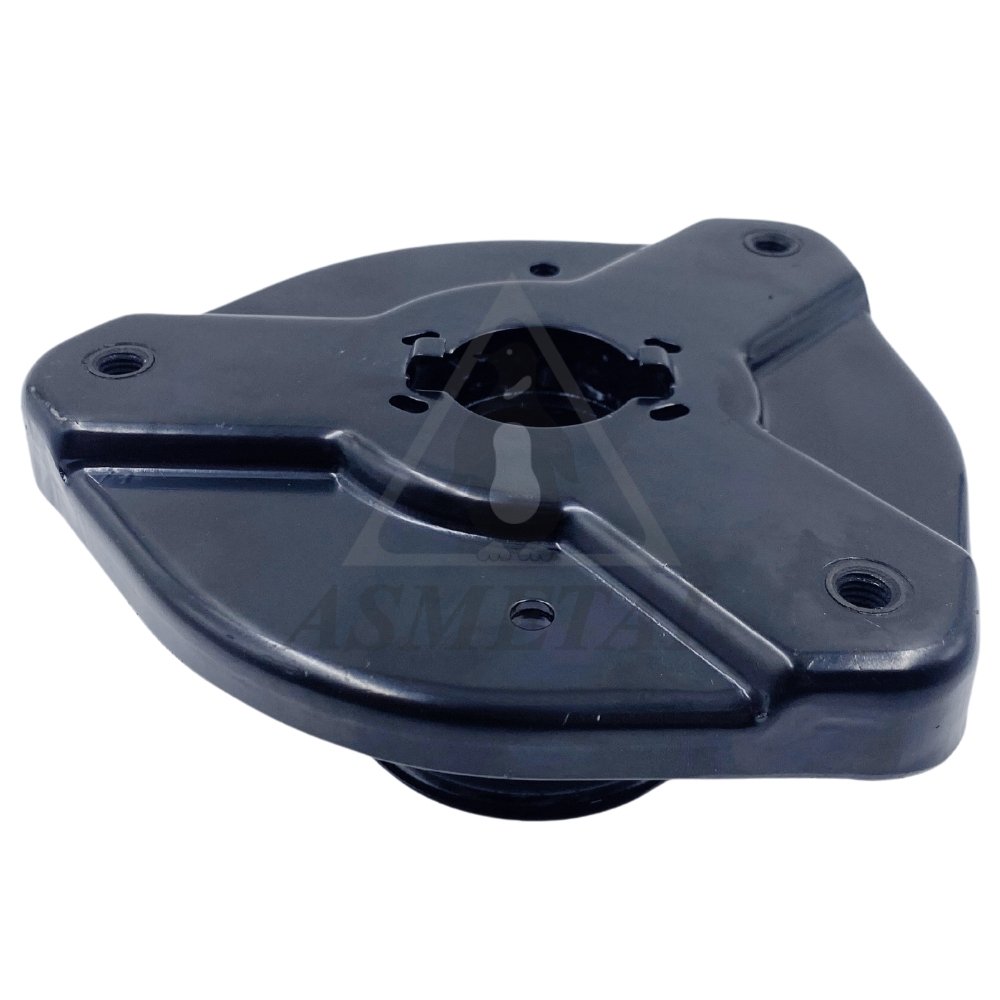

45MR3600
NEW
|
Strut Mount |
|
204 320 00 73, A204 320 00 73 |
 |

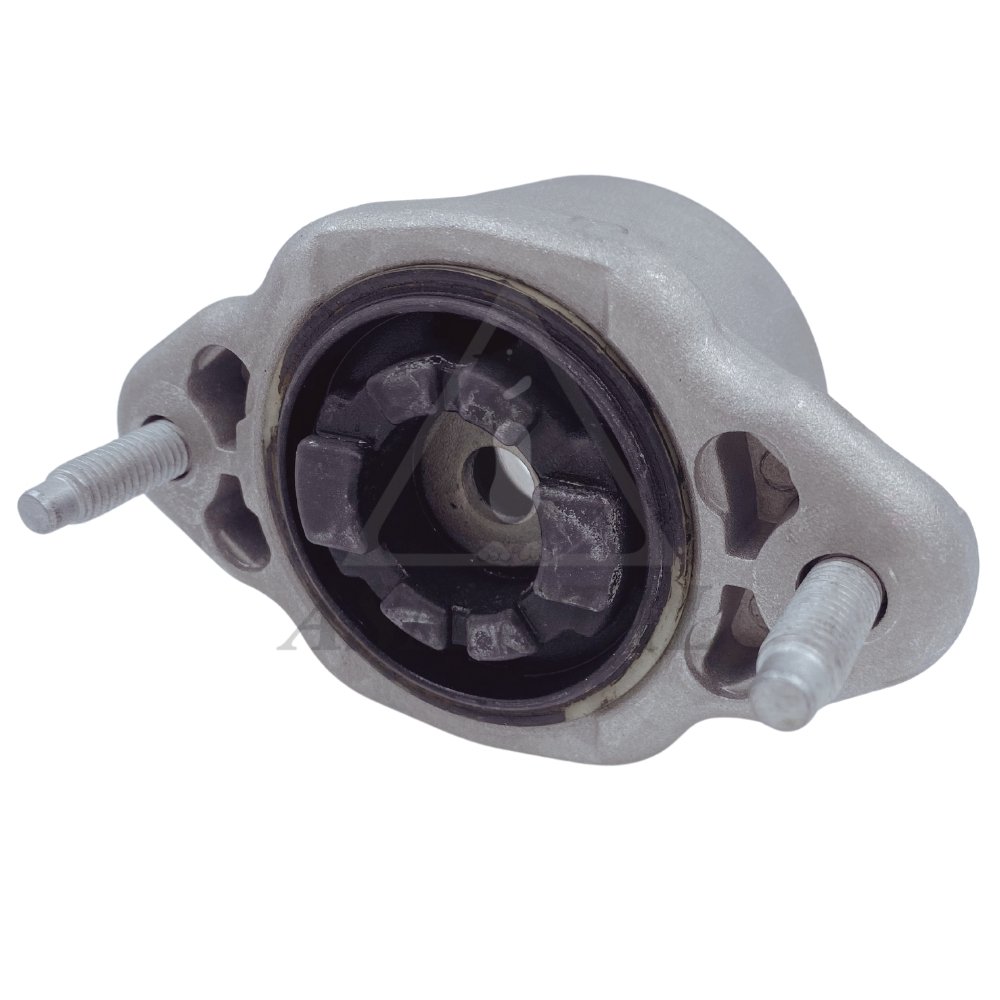

45MR4010
NEW
|
Strut Mount |
0,3090 kg |
204 320 03 73, A204 320 03 73 (4) OEM |
 |

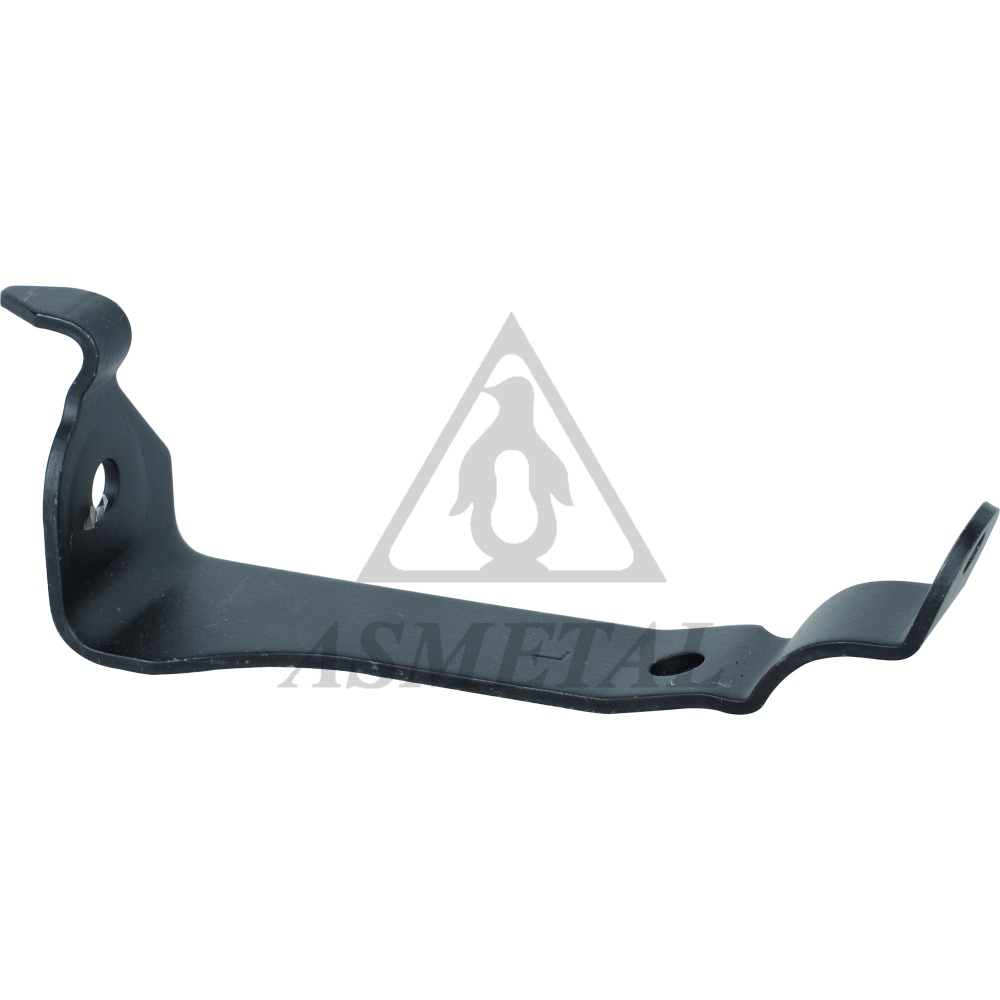

526MR3120
|
Bracket , Stabiliser Mounting Left |
0,21 kg |
208 323 01 40, A208 323 01 40 (2) OEM |
 |

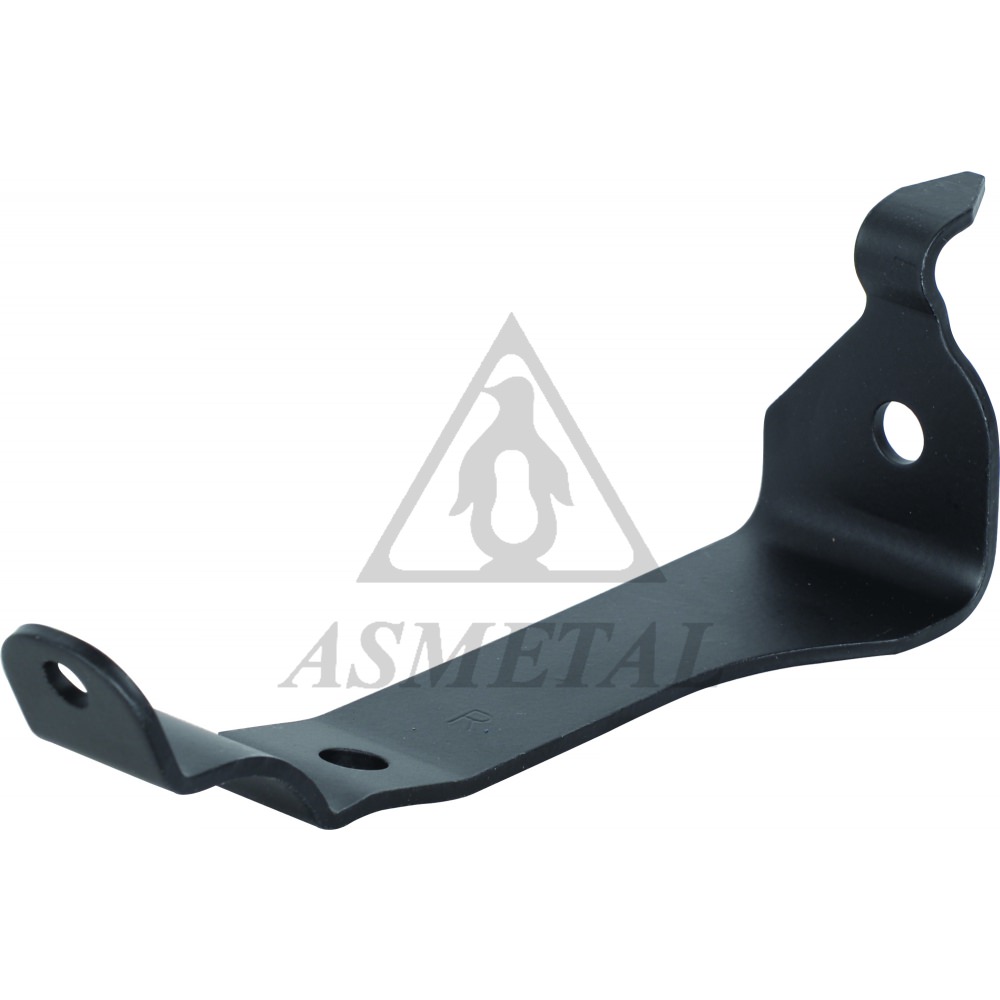

526MR3121
|
Bracket , Stabiliser Mounting Right |
0,21 kg |
202 323 09 40, A202 323 09 40 (2) OEM |
 |

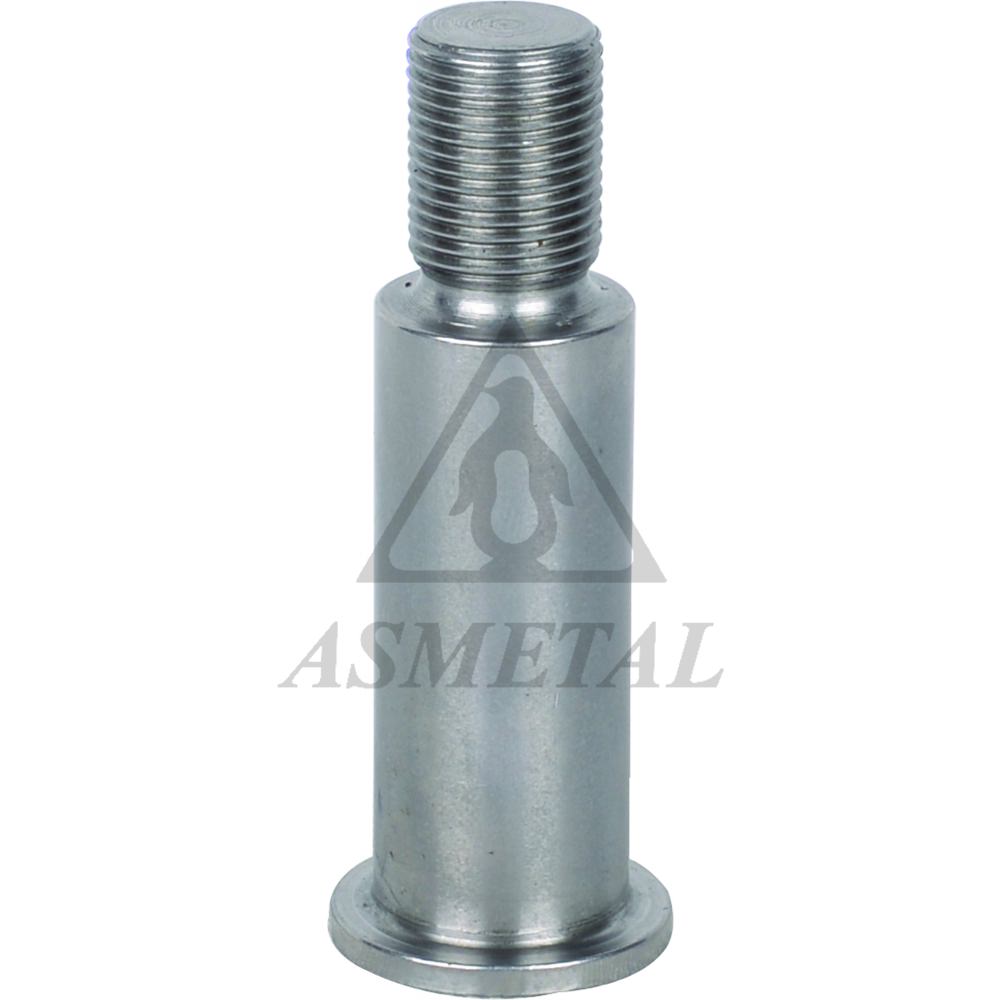

99MR40
OUT OF SERVICE
|
Bearing Journal |
0 kg |
606 202 01 20 |
