ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10RN5605	Ball Joint Lower Right	c:Ø20 / 0,56 kg	A 415 330 02 00, 415 330 02 00 (1) OEM
10RN5606	Ball Joint Lower Left	c:Ø20 / 0,56 kg	415 330 03 00, A 415 330 03 00 (1) OEM
10RN5700	Ball Joint Lower	tp:M12x1.5 cr:1/5 c:Ø15.85 / 0,76 kg	54 50 472 75R, 54 50 496 71R (2) OEM
17RN5605	Tie Rod End Right	L:199 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	415 460 01 05, 77 01 478 408
17RN5606	Tie Rod End Left	L:199 cr:1/5 c:Ø11.8 tp:M10x1.25 th:FM14x1.5 RHT / 0,64 kg	415 460 00 05, 77 01 478 407
17RN5700	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg	420 460 19 00, 420 460 17 00 (4) OEM
17RN5700S	Tie Rod End Left	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg	420 460 19 00, 420 460 17 00 (4) OEM
17RN5701	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,4 kg	420 460 18 00, 420 460 20 00 (4) OEM
17RN5701S	Tie Rod End Right	L:210 cr:1/5 c:Ø11.9 tp:M10x1.5 th:FM14x1.5 RHT / 0,86 kg	420 460 18 00, 420 460 20 00 (4) OEM
20RN5605	Axial Joint	L:213.5 tp:M14x1.5 th:MM14x1.5 RHT / 0,49 kg	415 320 00 89, 48 52 156 12R (1) OEM
26RN5605	Stabiliser Link	L:282 tp:M10x1.5 RHT / 0,36 kg	A 415 320 00 00, 415 320 00 00 (5) OEM
26RN5700	Stabiliser Link	L:275 tp:M10x1.5 RHT / 0,41 kg	420 320 01 00, A 420 320 01 00 (4) OEM
30RN5606	Track Control Arm Left	c:Ø20 / 3,4 kg	A 415 330 03 00, 415 330 03 00 (1) OEM
30RN5607	Track Control Arm Right	c:Ø20 / 3,4 kg	415 330 02 00, A 415 330 02 00 (1) OEM
30RN5702 NEW	Track Control Arm Left	3,9 kg	420 330 01 00, A 420 330 01 00 (1) OEM
30RN5703 NEW	Track Control Arm Right	3,9 kg	420 330 00 00, A 420 330 00 00 (1) OEM
38RN5541	Silentblock for TCA	L:48 di:Ø12.1 do:Ø33.1 / 0,16 kg	54 50 401 31R, 54 50 593 35R (12) OEM
38RN5542	Silentblock for TCA	L:53 di:Ø12.2 do:Ø58 / 0,26 kg	54 50 141 20R, 82 00 298 455 (14) OEM
38RN5616 IN PREPARATION	Axle Beam Bushing		415 352 08 00, A 415 352 08 00 (4) OEM

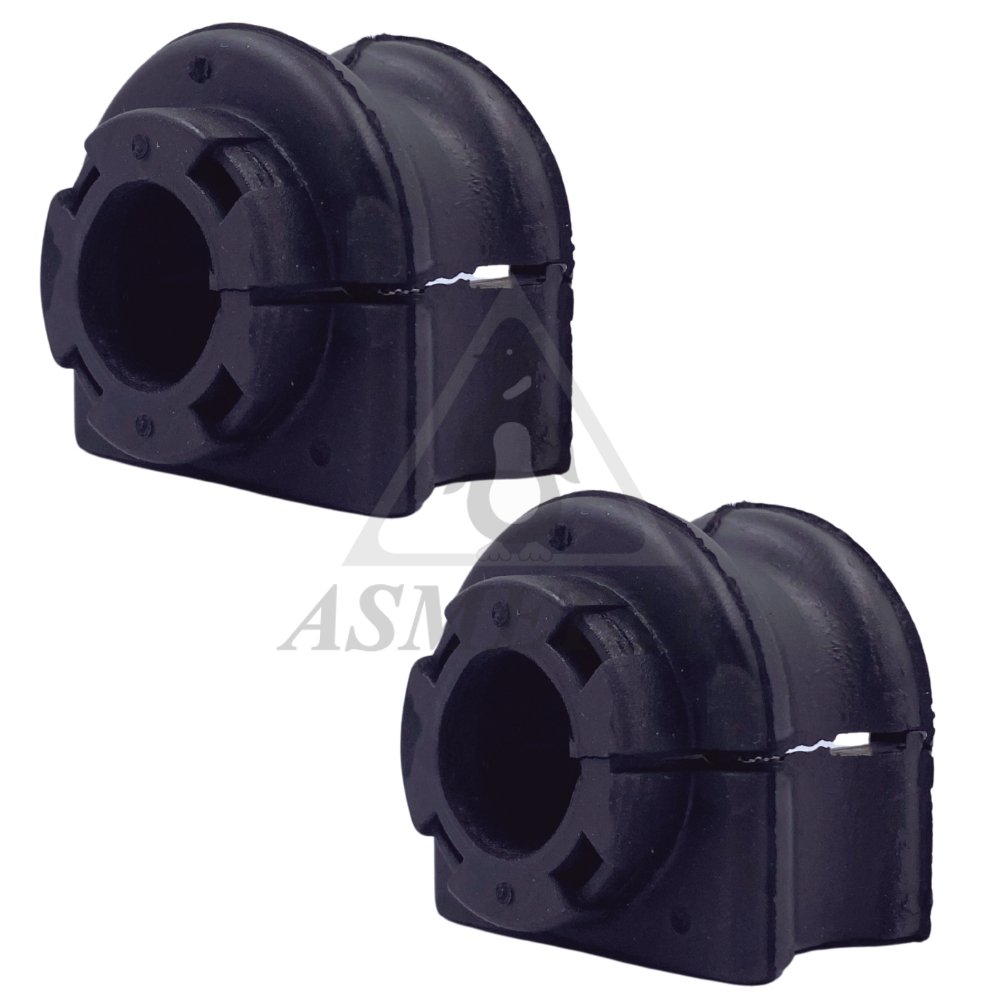

38RN5620 NEW	Stabiliser Mounting	di:Ø18,2-20 / 0,08 kg	A 415 326 01 81, 415 326 01 81 (1) OEM

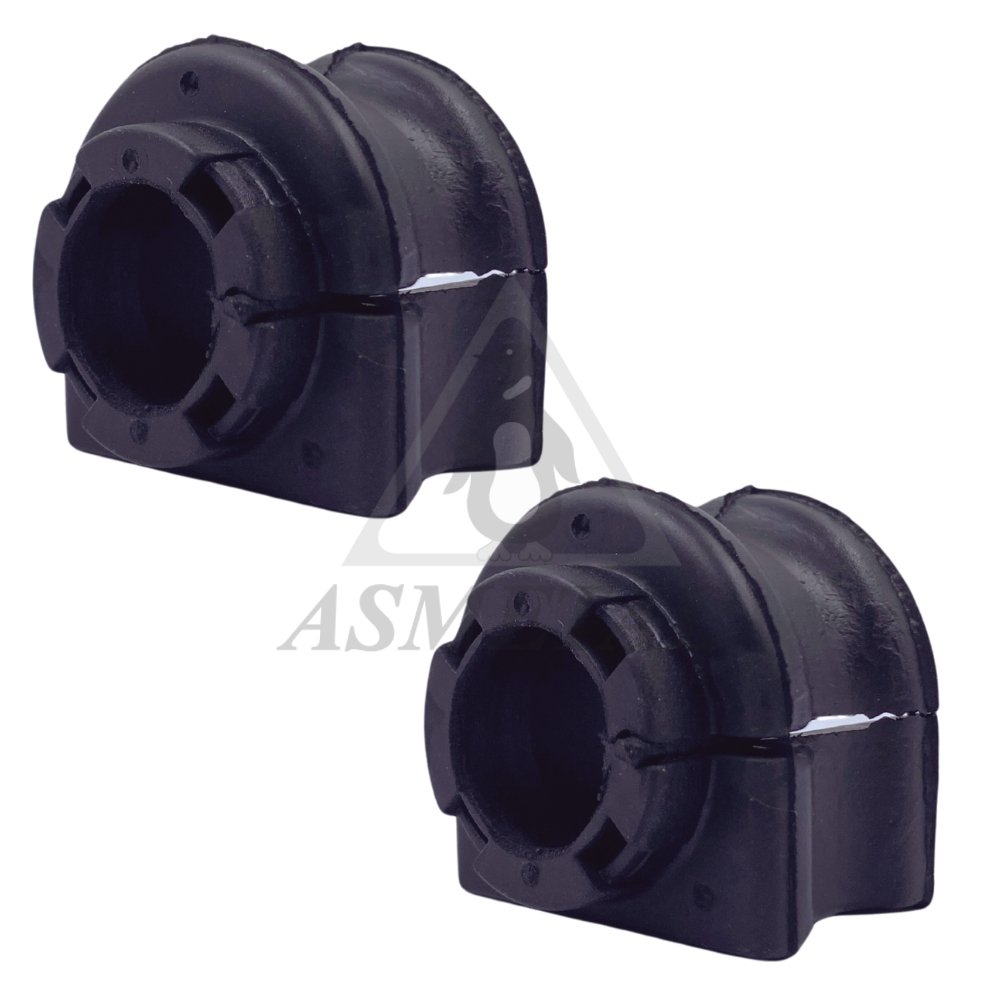

38RN5623 NEW	Stabiliser Mounting	di:Ø21,5 / 0,08 kg	A 415 326 00 81, 415 326 00 81 (1) OEM
38RN5710	Silentblock for TCA	L:50.5 di:Ø18.5 do:Ø55 / 0,24 kg	54 50 567 11R, 54 50 547 33R (5) OEM
38RN5712 IN PREPARATION	Silentblock for TCA		420 330 00 00, 420 330 01 00* (6) OEM

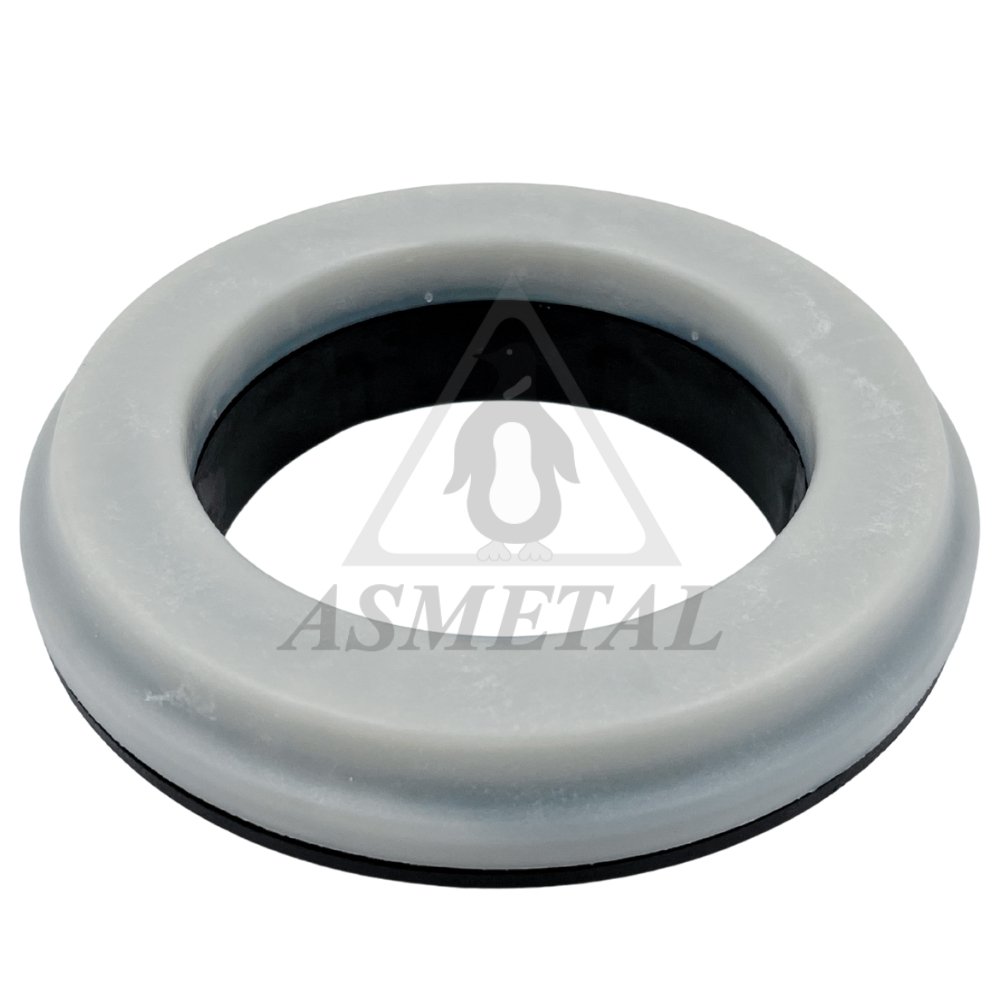

45RN5555 NEW	Bearing		415 322 01 84, A 415 322 01 84 (17) OEM
45RN5605 IN PREPARATION	Strut Mount	0 kg	415 323 00 20, 82 00 591 283
