ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
11MR00	Silentblock Bushing	di:Ø14 do:Ø40 / 0,22 kg	A 204 352 00 27, A 221 352 01 27 (14) OEM
13MR3200	Suspension Kit (TCA Kit)	13,4 kg	204 330 33 11, A 204 330 43 11 (32) OEM
13MR3200B IN PREPARATION	Suspension Kit (TCA Kit)	0 kg	A 203 330 02 11, 203 330 17 11 (32) OEM
13MR3201	Suspension Kit (TCA Kit)	10,83 kg	A 203 330 20 11, 203 330 35 11 (32) OEM
13MR3201B IN PREPARATION	Suspension Kit (TCA Kit)	0 kg	A 203 330 20 11, 203 330 35 11 (32) OEM
17MR3200	Tie Rod End Right	c:Ø16 th:FM14x1,5 RHT / 0,7 kg	A 203 330 24 03, 203 330 40 03 (4) OEM
17MR3201	Tie Rod End Left	c:Ø16 th:FM14x1,5 RHT / 0,7 kg	A 203 330 23 03, 203 330 39 03 (4) OEM
20MR3200	Axial Joint	th:MM16x1,5 RHT L:241,5mm / 0,59 kg	A 220 338 07 15, 230 338 00 15 (2) OEM
23MR3200	Track Control Arm Lower Left	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg	203 330 19 11, 203 330 33 11 (4) OEM
23MR3200B	Track Control Arm Left (Without Fasteners)	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg	203 330 33 11, 204 330 19 11 (4) OEM
23MR3201	Track Control Arm Lower Right	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg	203 330 20 11, 204 330 20 11 (4) OEM
23MR3201B	Track Control Arm Right (Without Fasteners)	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg	A 203 330 20 11, A 204 330 20 11 (4) OEM
23MR3204	Track Control Arm Upper Left	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,92 kg	203 330 01 11, 203 330 16 11 (9) OEM
23MR3204B	Track Control Arm Left (Without Fasteners)	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,66 kg	203 330 35 11, 203 330 39 11 (9) OEM
23MR3205	Track Control Arm Upper Right	tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,92 kg	203 330 17 11, 203 330 36 11 (8) OEM
23MR3205B	Track Control Arm Right (Without Fasteners)	1,66 kg	203 330 40 11, 203 330 17 11 (8) OEM
23MR3240 NEW	Track Control Arm Lower Rear	tp: M10x1.5 / c: Ø11.3 / 0,68 kg	A 203 350 07 53, 203 350 07 53 (2) OEM

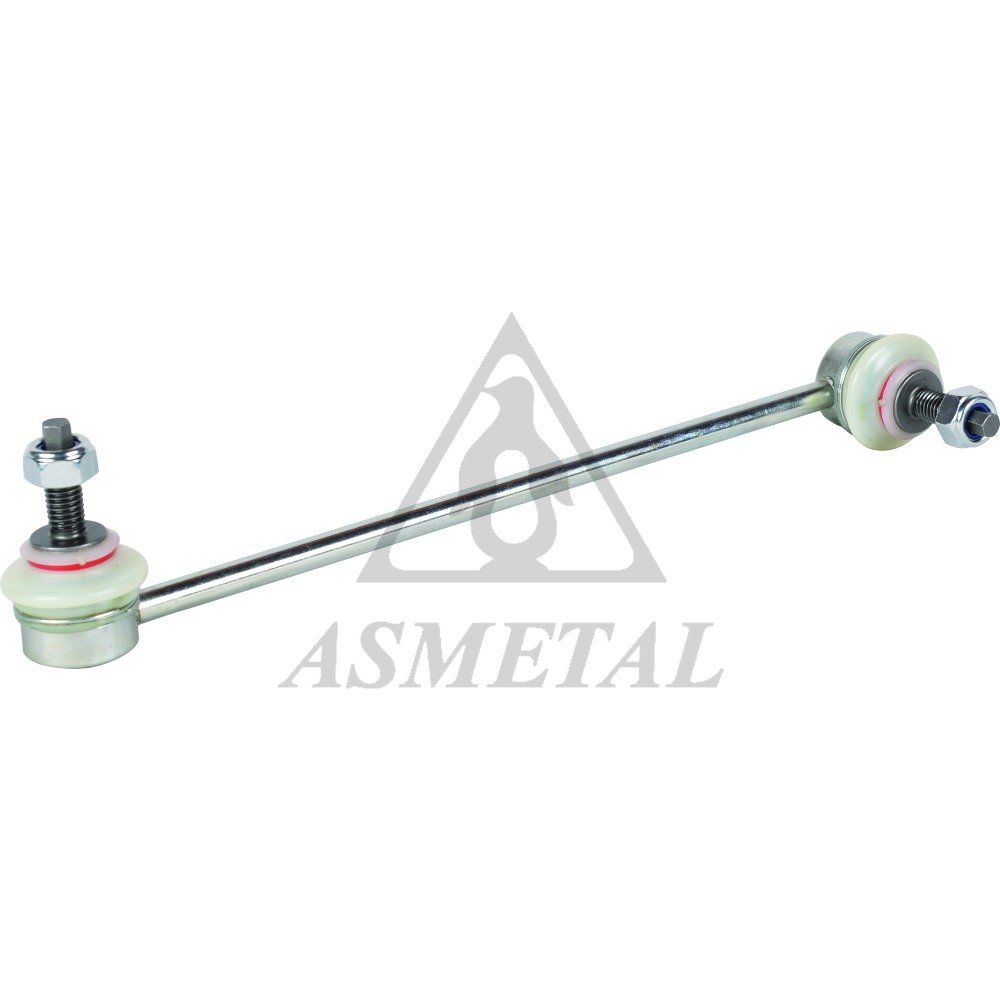

26MR3200	Stabiliser Link	L:276mm / 0,38 kg	A 203 320 27 89, 203 320 38 89 (8) OEM

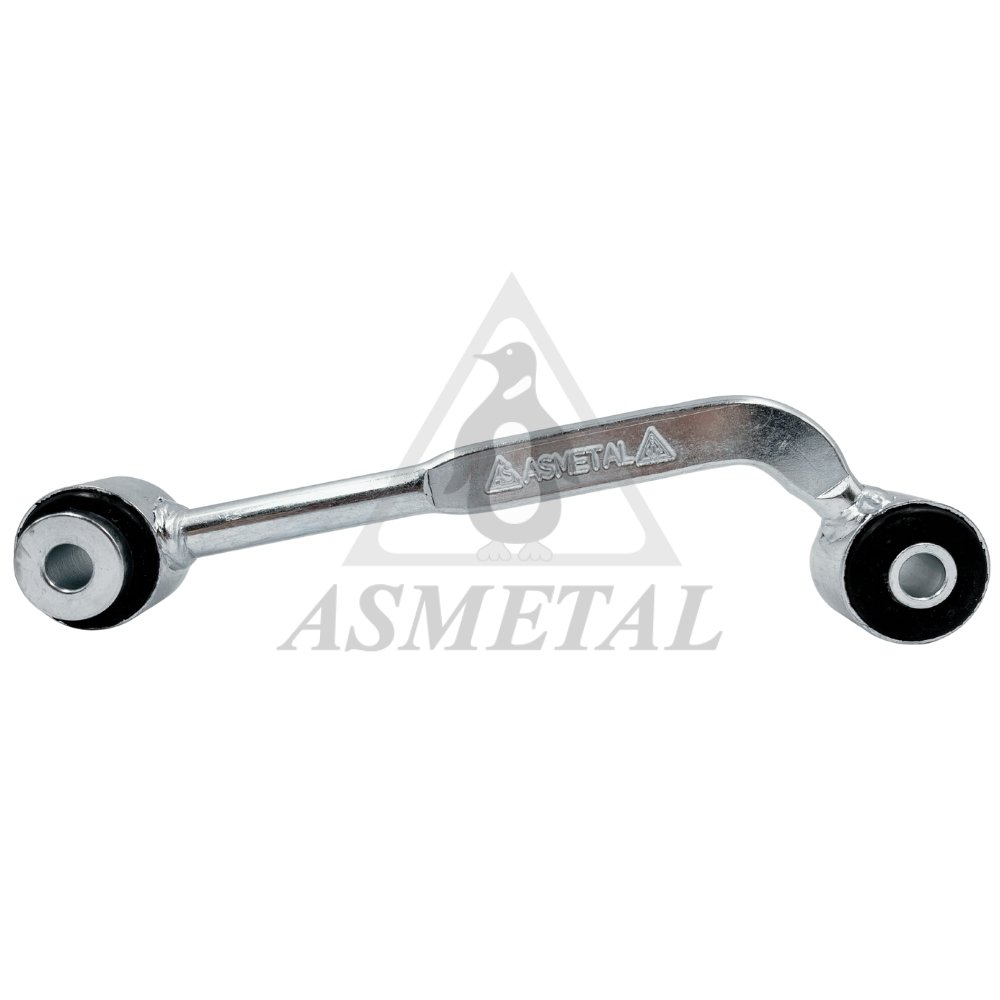

26MR3205	Stabiliser Link Rear Right	L:185mm / 0,32 kg	203 320 08 89, A 203 320 08 89

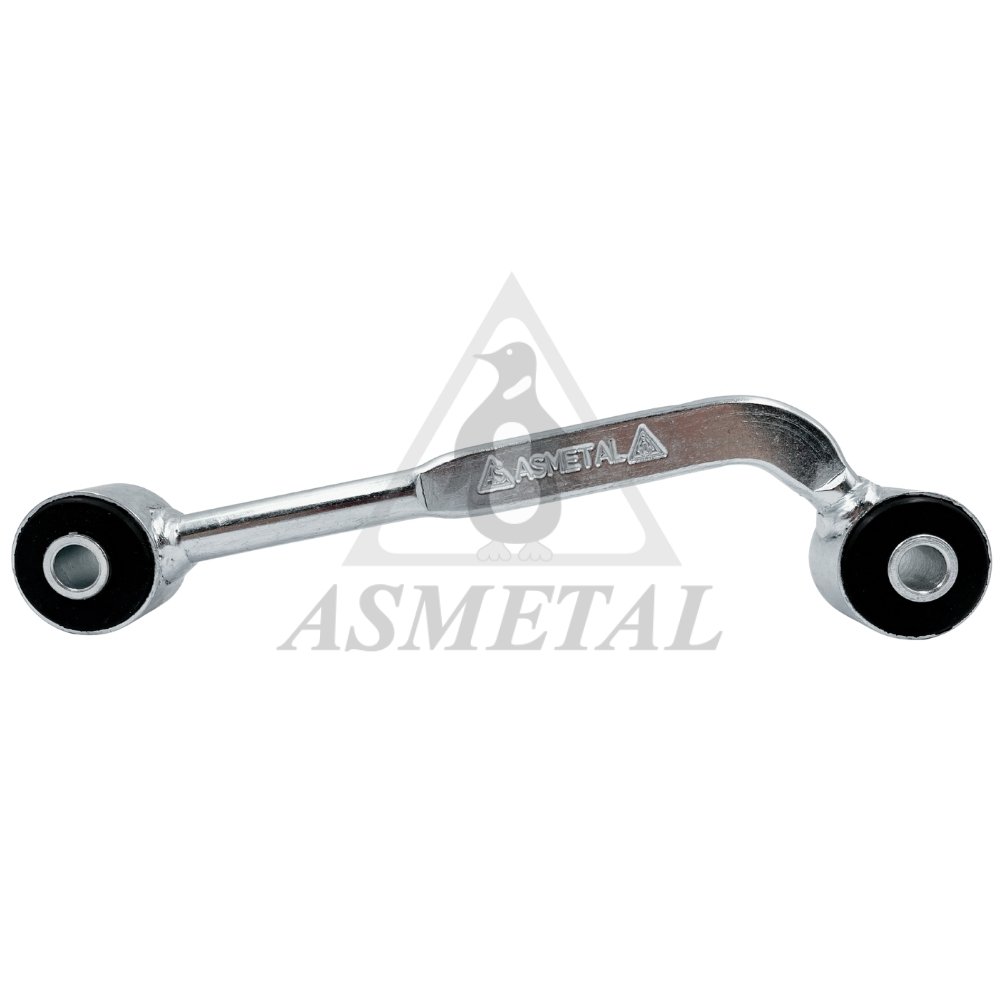

26MR3206	Stabiliser Link Rear Left	L:185mm / 0,32 kg	203 320 07 89, A 203 320 07 89
26MR3210	Stabiliser Link	L: 276 / tp: MM12x1.5 / 0,58 kg	203 320 26 89, A 203 320 26 89 (4) OEM
30MR0508	Track Rod Rear	di: Ø12.2 / L: 314 / 0,7 kg	124 350 01 29, 210 350 00 29 (4) OEM
30MR0509	Track Control Arm Rear	0,67 kg	201 350 47 06, A 210 350 33 06 (11) OEM
30MR0510	Track Control Arm Rear	0,74 kg	210 350 34 06, A 210 350 24 06 (14) OEM
38MR02 NEW	Silentblock for TCA	di: Ø12.1 / do: Ø31.5 / L: 43 / 0,079 kg	124 352 43 65, A 124 352 43 65 (8) OEM
38MR0509	Silentblock for TCA	di:Ø12,2 do:Ø36 / 0,08 kg	A 124 352 34 65, 124 352 90 65 (6) OEM
38MR0510	Silentblock for TCA	do:Ø70,6 / 0,4 kg	A 203 333 09 14, 203 333 03 14 (2) OEM
38MR0522	Silentblock for TCA	di:Ø12.2 do: Ø36.2 L:38mm / 0,15 kg	210 350 33 06, 210 352 09 65 (1) OEM*
38MR0705	Silentblock for TCA	di:Ø24 do:Ø44,5 / 0,52 kg	203 333 02 14, 211 333 29 14 (6) OEM

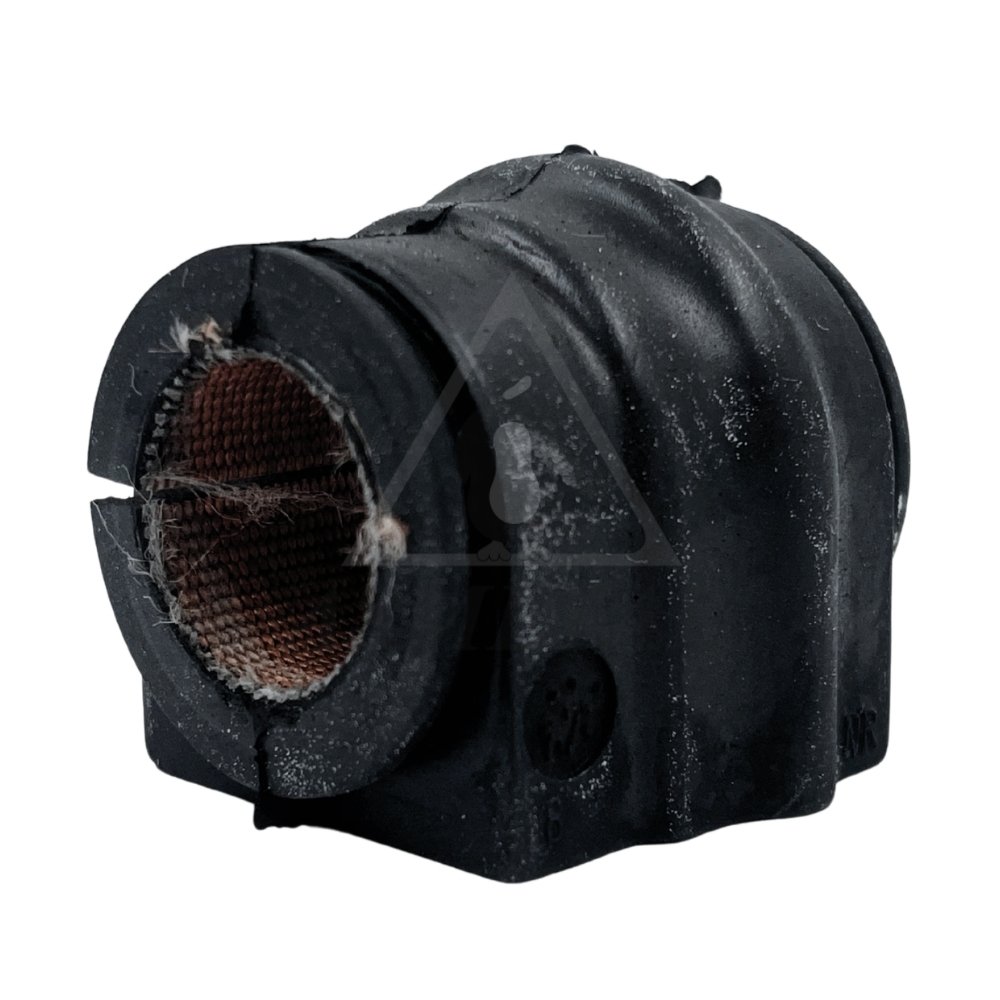

38MR3230	Stabiliser Mounting	di:Ø21 L:42mm / 0,05 kg	203 323 06 85, A203 323 20 85 (2) OEM
45MR1100	Engine Mounting	do:Ø96 L:57mm / 1,14 kg	A 202 240 01 17, A 202 240 09 17 (18) OEM
45MR3200 IN PREPARATION	Strut Mount		203 320 02 73, A203 320 02 73
45MR3205 NEW	Mounting Automatic Transmission	L: 103.8 / 0,53 kg	212 240 03 18, 220 240 01 18 (4) OEM
45MR3500	Engine Mounting	do:Ø95.5 L:49.5mm / 1,1 kg	210 240 28 17, A 210 240 27 17 (8) OEM
