ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10MR02	Ball Joint Upper	th:M10x1.5 RHT cr:1/8 c:Ø12.2 do:Ø36 / 0,3 kg	210 330 87 07, 202 330 49 07 (6) OEM
10MR40	Ball Joint Lower	tp:M14x1.5 RHT cr:1/6 c:Ø15.9 / 0,58 kg	5099 237AA, K05099 237AA (14) OEM
11MR00	Silentblock Bushing	di:Ø14 do:Ø40 / 0,22 kg	606 28 312, 606 28 313 (14) OEM
13MR3200	Suspension KIT (TCA KIT)	13,4 kg	A 203 330 02 11, 203 330 17 11 (32) OEM
13MR3201	Suspension KIT (TCA KIT)	10,83 kg	A 203 330 20 11, 203 330 35 11 (32) OEM
17MR1100	Tie Rod End	cr:1/10 c:Ø14.6 tp:M12x1.5 th:FM12x1.5 RHT / 0,3 kg	13 307 735, 001 330 74 35 (2) OEM
17MR3200	Tie Rod End Right	L:174 cr:1/10 c:Ø16 tp:M14x1.5 th:FM14x1.5 RHT / 0,7 kg	A 203 330 24 03, 203 330 40 03 (4) OEM
17MR3201	Tie Rod End Left	L:174 cr:1/10 c:Ø16 tp:M14x1.5 th:FM14x1.5 RHT / 0,7 kg	A 203 330 23 03, 203 330 39 03 (4) OEM
20MR3200	Axial Joint	L:243 tp:M14x1.5 th:MM16x1.5 RHT / 0,59 kg	A 220 338 07 15, 230 338 00 15 (2) OEM
22MR1100	Center Rod	L:1328 th1:M12x1.5 RHT / 3,85 kg	202 460 04 05, A 202 460 04 05
23MR02	Track Control Arm Rear	c:Ø11.5 / 0,62 kg	210 350 21 53, 201 350 27 53 (5) OEM
23MR3200	Track Control Arm Lower Left	tp:M14x1.5 RHT / 2,64 kg	203 330 19 11, 203 330 33 11 (4) OEM
23MR3200B	Track Control Arm Left (Without Fasteners)	cr:1/5 c:Ø16.2 tp:M14x1.5 / 2,26 kg	203 330 33 11, 204 330 19 11 (4) OEM
23MR3201	Track Control Arm Lower Right	tp:M14x1.5 RHT / 2,64 kg	203 330 20 11, 204 330 20 11 (4) OEM
23MR3201B	Track Control Arm Right (Without Fasteners)	cr:1/5 c:Ø16.2 tp:M14x1.5 / 2,26 kg	A 203 330 20 11, A 204 330 20 11 (4) OEM
23MR3204	Track Control Arm Upper Left	cr:1/5 c:Ø16.2 tp:M14x1.5 / 1,92 kg	203 330 01 11, 203 330 16 11 (9) OEM
23MR3204B	Track Control Arm Left (Without Fasteners)	cr:1/5 c:Ø16.2 tp:M14x1.5 / 1,66 kg	203 330 35 11, 203 330 39 11 (9) OEM
23MR3205	Track Control Arm Upper Right	cr:1/5 c:Ø16.2 tp:M14x1.5 / 1,92 kg	204 330 34 11, A 204 330 34 11 (10) OEM
23MR3205B	Track Control Arm Right (Without Fasteners)	cr:1/5 c:Ø16.2 tp:M14x1.5 / 1,66 kg	204 330 34 11, A 204 330 34 11 (10) OEM
23MR3240	Track Control Arm Lower Rear	c:Ø11.3 tp:M10x1.5 / 0,68 kg	A 203 350 07 53, 203 350 07 53 (2) OEM
26MR1000	Stabiliser Link Rear	L:199 tp:M10x1.5 RHT / 0,11 kg	124 320 02 89, A 124 320 02 89
26MR3200	Stabiliser Link	L:276 tp:M10x1.5 RHT / 0,38 kg	203 320 28 89, 203 320 04 89 (8) OEM
26MR3205	Stabiliser Link Rear Right	L:185 / 0,32 kg	203 320 08 89, A 203 320 08 89
26MR3206	Stabiliser Link Rear Left	L:185 / 0,32 kg	203 320 07 89, A 203 320 07 89
26MR3210	Stabiliser Link	L:276 tp:M12x1.5 RHT / 0,58 kg	203 320 26 89, A 203 320 26 89 (4) OEM
29MR3200 IN PREPARATION	Tie Rod Right		220 338 07 15, 230 338 00 15 (8) OEM
29MR3201 IN PREPARATION	Tie Rod Left		220 338 07 15, 230 338 00 15 (8) OEM
30MR02	Track Control Arm Upper Left	cr:1/8 c:Ø12.2 th:M10x1.5 RHT / 1,78 kg	202 330 36 07, 202 330 30 07 (16) OEM
30MR03	Track Control Arm Upper Right	cr:1/8 c:Ø12.2 th:M10x1.5 RHT / 1,78 kg	210 330 88 07, 210 330 23 07 (15) OEM
30MR0508	Track Control Arm Rear	di1:Ø12 di2:Ø12 / 0,7 kg	124 350 01 29, 210 350 00 29 (4) OEM
30MR0509	Track Control Arm Rear	di1:Ø12 di2:Ø12 / 0,67 kg	201 350 47 06, A 210 350 33 06 (11) OEM
30MR0510	Track Control Arm Rear	di1:Ø12 di2:Ø12 / 0,74 kg	210 350 34 06, A 210 350 24 06 (14) OEM
38MR02	Silentblock for TCA	L:43 di:Ø12.2 do:Ø31.5 / 0,08 kg	124 352 43 65, A 124 352 43 65 (8) OEM
38MR03	Silentblock for TCA	L:99.5 di:Ø10.2 do:Ø49 / 0,25 kg	5101 057 AA, 5101 056 AA (4) OEM
38MR0504	Silentblock for TCA	L:55 do:Ø28.1 tp:M10x1.5 RHT / 0,27 kg	A 202 460 03 19, 202 460 03 19
38MR0505	Stabiliser Mounting	L:37.5 di:Ø18.5 do:Ø39.5 / 0,06 kg	124 323 23 85, 124 323 49 85 (2) OEM
38MR0507	Stabiliser Mounting	L:37.5 di:Ø24 do:Ø44.5 / 0,06 kg	124 323 54 85, 124 323 37 85 (1) OEM
38MR0508	Silentblock for TCA	L:55 di:Ø11 do:Ø36.2 / 0,11 kg	124 352 35 65, 124 350 05 75
38MR0509	Silentblock for TCA	L:38 di:Ø12.2 do:Ø36 / 0,08 kg	A 124 352 34 65, 124 352 90 65 (6) OEM
38MR0510	Silentblock for TCA	L:80 do:Ø70.3 / 0,4 kg	A 203 333 09 14, 203 333 03 14 (2) OEM

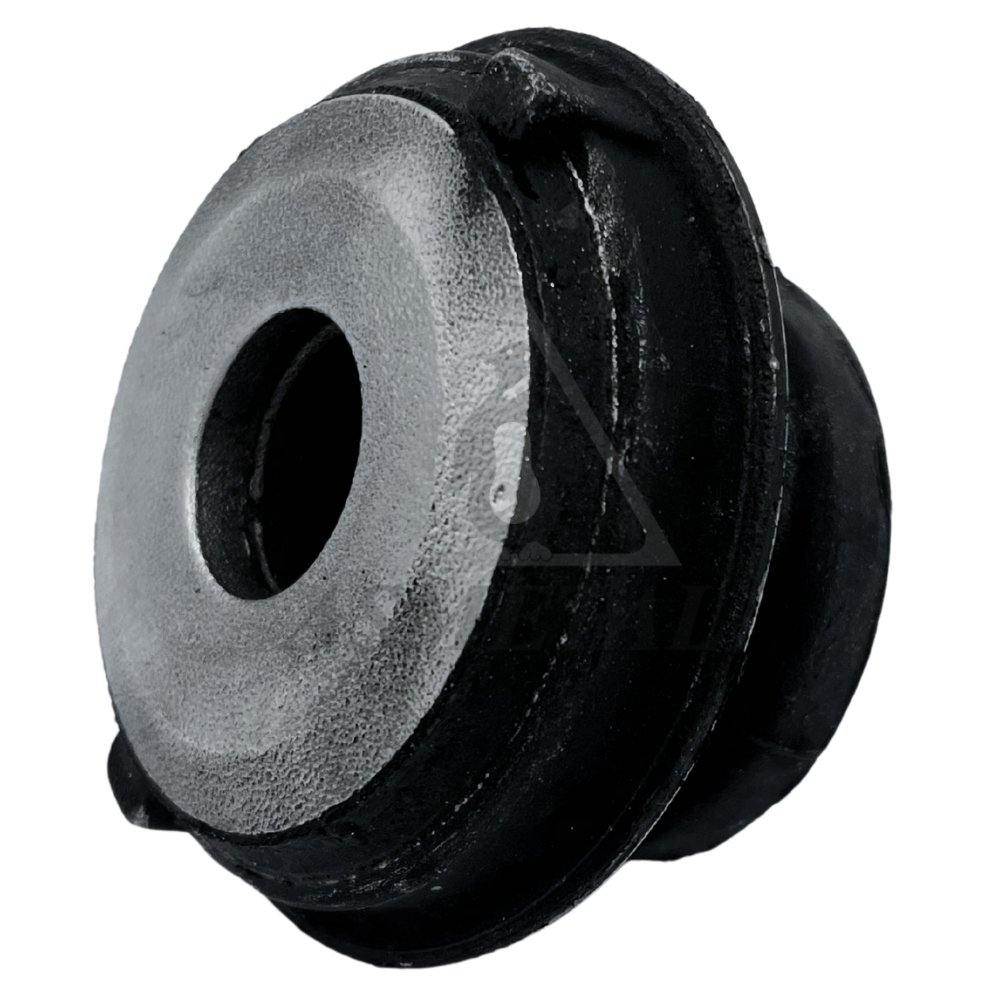

38MR0519	Silentblock for TCA	L:42 di:Ø20 do:Ø50.5 / 0,25 kg	202 330 00 75, 202 333 67 14 (2) OEM*
38MR0520	Silentblock for TCA	L:85 di:Ø20 do:Ø60 / 1,28 kg	A 208 330 00 75, 208 330 00 75
38MR0521	Silentblock for TCA	L:85 di:Ø21.2 do:Ø60 / 0,56 kg	203 330 04 07, 202 330 00 75 (3) OEM
38MR0522	Silentblock for TCA	L:38 di:Ø12.2 do:Ø36.2 / 0,15 kg	124 352 86 65, 210 352 09 65 (2) OEM
38MR0523	Axle Beam Bushing	L:67 di:Ø17 do:Ø98 / 0,35 kg	201 351 28 42, A 201 351 28 42 (2) OEM
38MR0524	Silentblock for TCA	L:57.7 di:Ø12.5 do:Ø33.5 / 0,12 kg	A 124 352 36 65, 202 352 01 65 (10) OEM
38MR0705	Silentblock for TCA	L:80 do:Ø70.5 / 0,52 kg	203 333 02 14, 211 333 29 14 (6) OEM
38MR3233 NEW	Stabiliser Mounting	di:Ø22 / 0,05 kg	A203 323 22 85, 203 323 22 85
38MR3255 NEW	Stabiliser Mounting	di:Ø15 / 0,06 kg	203 326 01 81, A 203 326 01 81
45MR0510	Engine Mounting	L:110 do:Ø110.5 / 1,15 kg	A 210 240 08 17, 202 240 12 17 (12) OEM
45MR0511	Engine Mounting	L:110 do:Ø110.5 / 1,123 kg	A 202 240 19 17, 210 240 05 17 (12) OEM
45MR0515	Transmission Mount	L:110 L1:60 / 0,51 kg	210 240 03 18, 210 240 01 18 (4) OEM
45MR1100	Engine Mounting	di:Ø96 tp1:M10x1.5 RHT tp2:M8x1.25 RHT / 1,14 kg	203 240 19 17, A 202 240 02 17 (18) OEM
45MR3200 NEW	Strut Mount	L:58.3 di:Ø14.3 do:Ø230 / 2 kg	203 320 02 73, A 203 320 02 73
45MR3205	Transmission Mount	L:103.8 / 0,53 kg	212 240 03 18, 220 240 01 18 (4) OEM
45MR3500	Engine Mounting	L:110 do:Ø95.5 th:MM8X1.25 RHT th:MM0X1.5 RHT / 1,1 kg	210 240 28 17, A 210 240 27 17 (8) OEM
526MR3120	Left Stabiliser Bar Bracket	L:194.5 / 0,21 kg	208 323 01 40, A 208 323 01 40 (2) OEM
526MR3121	Right Stabiliser Bar Bracket	L:194.5 / 0,21 kg	202 323 09 40, A 202 323 09 40 (2) OEM
